Schematic and parts book for Necchi FB12 FB12. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

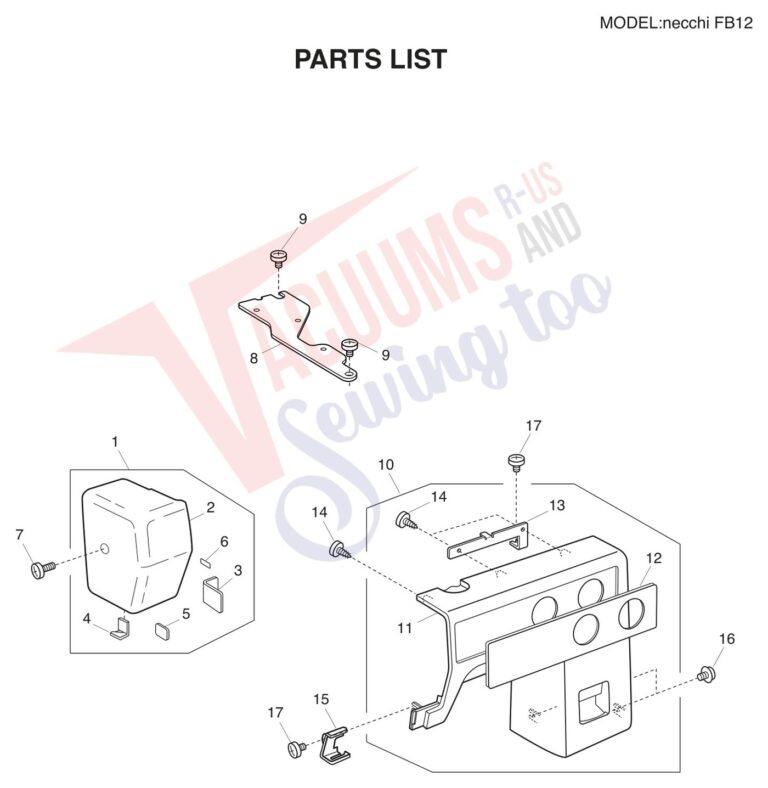

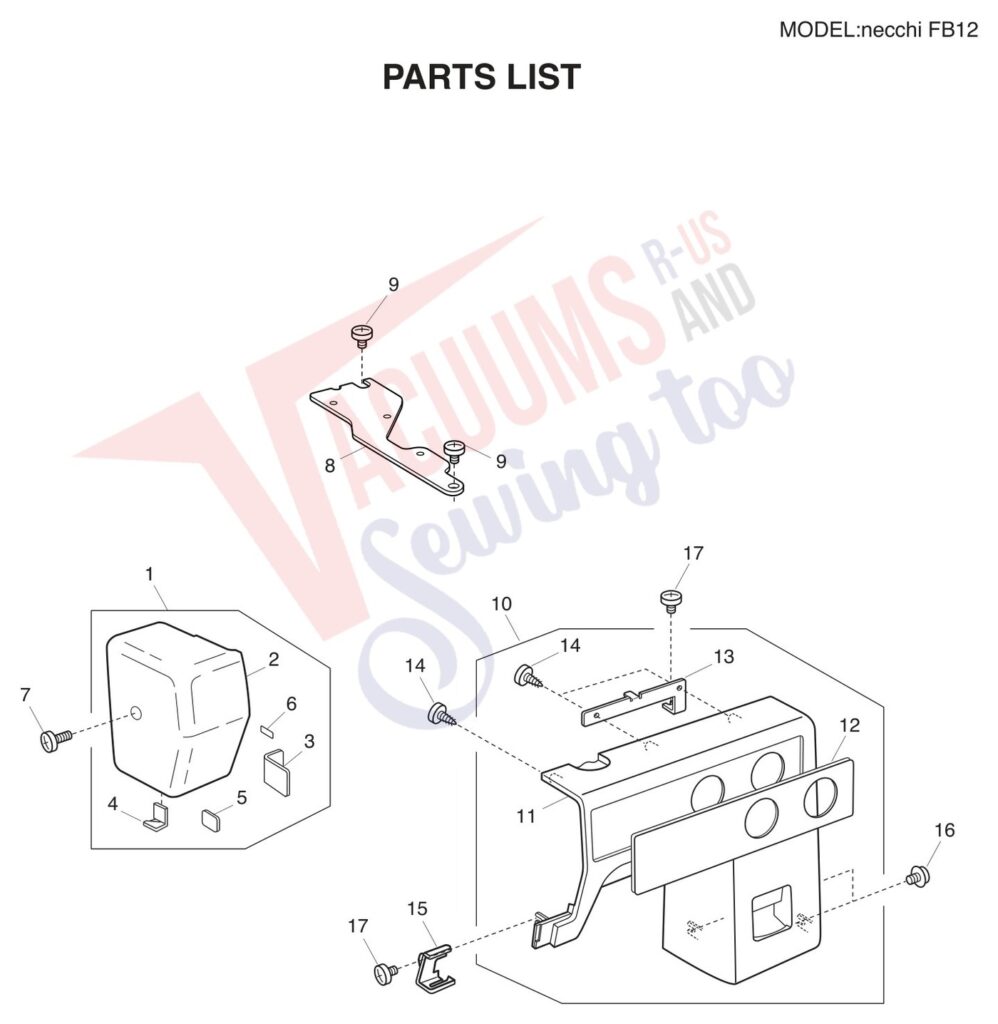

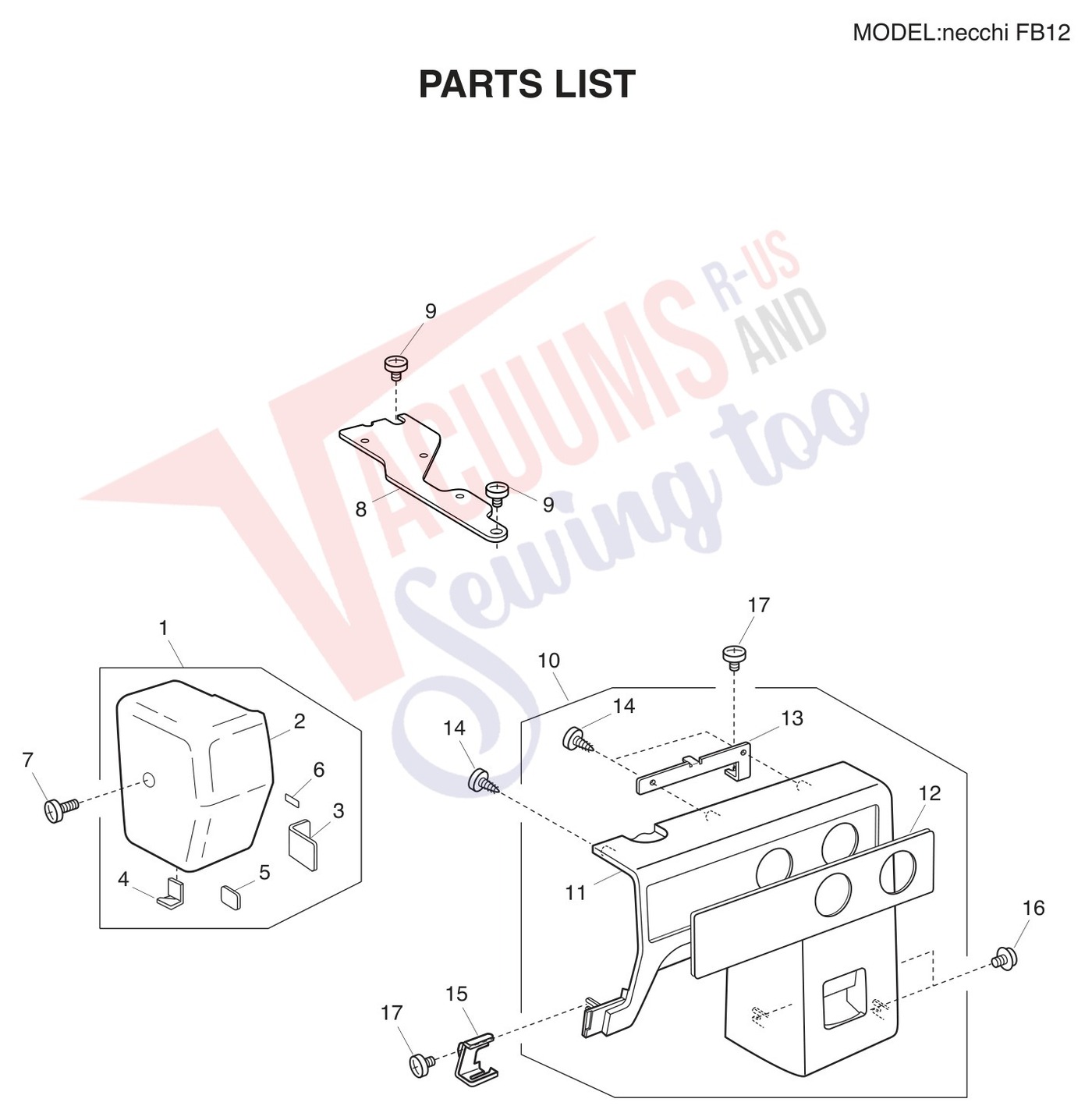

| # | Part image | Description | SKU | Price |
| 1 |  | Face plate (unit) sewing machine part or accessory For Janome Models: NEFB12 SRV | 749603403 | $22.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 | Not Available | Face plate | 749009056 | Not Available |
| 3 | | Face plate sticker sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, ... | 366076000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Thread Cutter Unit sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 1... | 840602006 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Reflector sticker sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF804... | 827099003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Sticker sewing machine part or accessory For Janome Models: 106, 108, 110, 2018S, 2041, 2041LX, 2... | 100411104 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | SET SCREW 4X12 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 16... | 000170507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Top cover set plate sewing machine part or accessory For Janome Models: NEFB12 SRV | 749003005 | $1.80Read more |
| 9 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Front cover (unit) sewing machine part or accessory For Janome Models: NEFB12 SRV | 749626309 | $35.20Add to cart Special order: ships in 2 to 4 weeks |
| 11 | Not Available | Front cover | 749039170 | Not Available |
| 12 | | Ornamental plate sewing machine part or accessory For Janome Models: NEFB12 SRV | 749216003 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Front cover set plate sewing machine part or accessory For Janome Models: NEFB12 SRV | 749042006 | $2.00Read more |
| 14 | | Setscrew 3 x 10 (B) sewing machine part or accessory For Janome Models: 1000CPX, 1110DX, 1600P, 1... | 000161206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | THREAD GUIDE PLATE S750 sewing machine part or accessory For Janome Models: 712T, LR1612-1622, NH... | 738034001 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

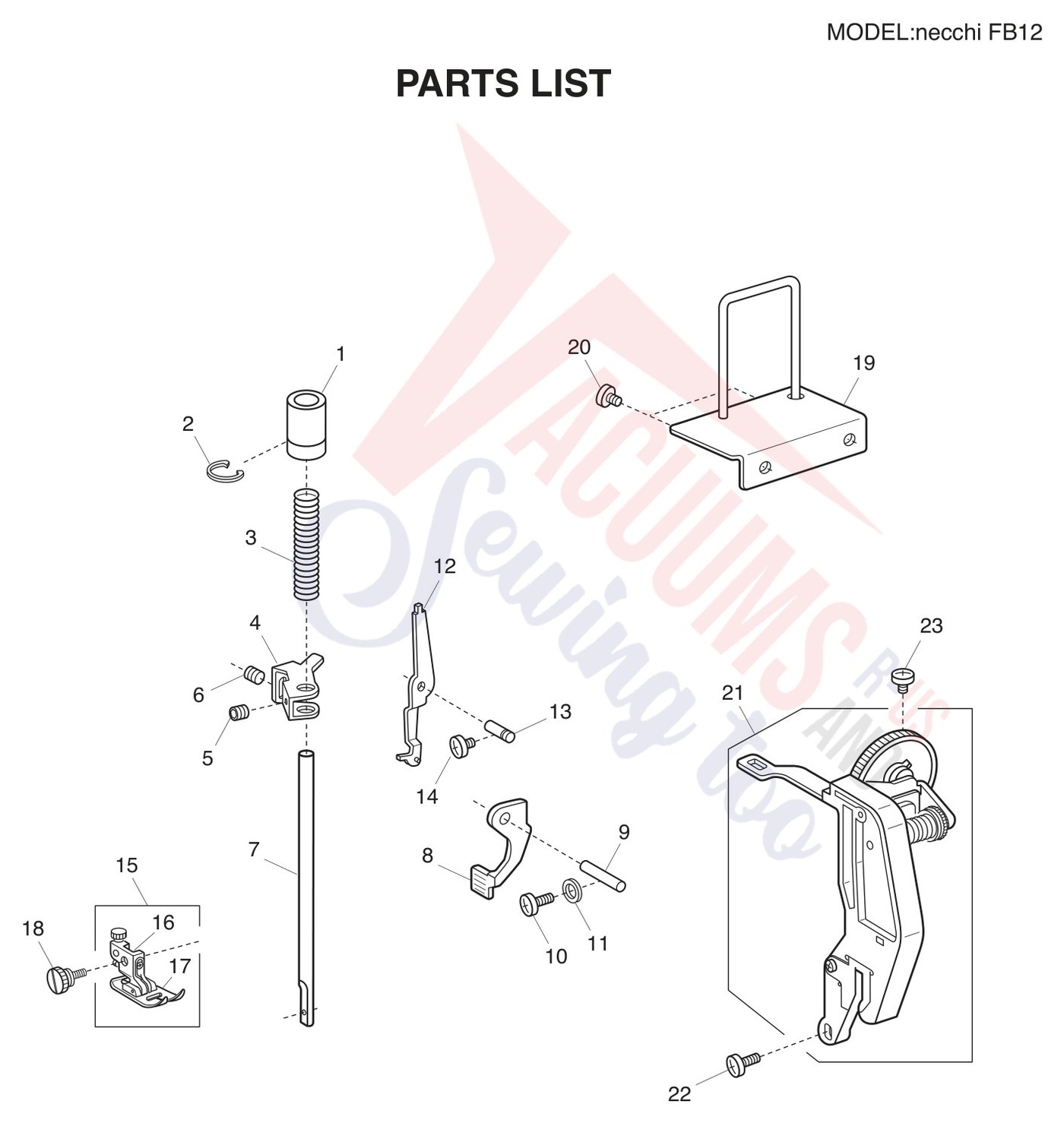

| # | Part image | Description | SKU | Price |
| 1 | | Presser bar bushing sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040,... | 802021007 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Snap ring 5103-37 sewing machine part or accessory For Janome Models: 712T, MC200E, MC350E, S-750... | 000032609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Presser bar spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF80... | 730026006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | PRESSER BAR BRACKET 6000 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, ... | 822069009 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Hexagon socket screw 4x8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, ... | 000111500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Darner spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &a... | 102222009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Presser Bar for Memory Craft 6000, 5500 and 5001 sewing machine part or accessory For Janome Mode... | 102801008 | $16.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | PRESSER FOOT LIFTER 639 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147,... | 652145007 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | PRESSER BAR LIFTER PIN: 9000/8 sewing machine part or accessory For Janome Models: 104, 106, 108,... | 822072005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Washer sewing machine part or accessory For Janome Models: 3160QDC, 405, 415, 419S, 423S, 712T, D... | 000072302 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Thread tension release lever sewing machine part or accessory For Janome Models: NEFB12 SRV | 738018009 | $2.07Read more |
| 13 |  | Thread tension release lvr pin sewing machine part or accessory For Models: , MC8900 Horizon , ... | 652042003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | Not Available | ZZ FOOT -820506007 | 820557003 | Not Available |
| 16 |  | Genuine Janome/Elna Standard Presser Foot Holder (top load low shank) For: 2040, HF3022, 6260QC... | 804509000 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Zig Zag Foot A (top load 7mm) sewing machine part or accessory For Janome Models: 2040, HF3022, 6... | 820506007 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Thumb Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 360, 3... | 647112009 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Spool Pin Unit sewing machine part or accessory For Janome Models: 712T, S-750 | 367511407 | $10.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Set Screw sewing machine part or accessory For Janome Models: 712T, MC10000, MC10001, MC11000, MC... | 000101426 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | TENSION UNIT S750 sewing machine part or accessory For Janome Models: 712T, S-750 | 749501101 | $28.60Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

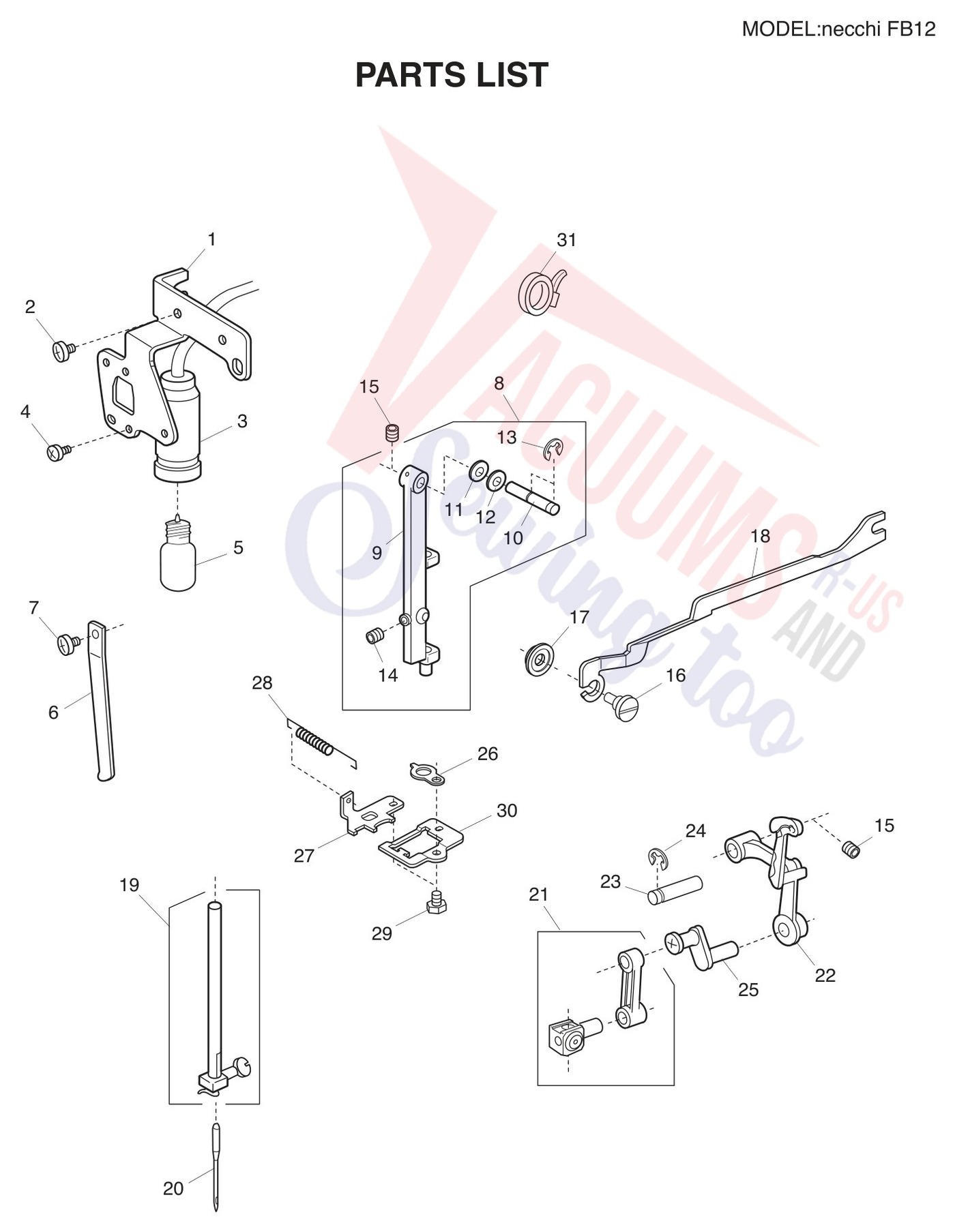

| 1 | | LAMP SOCKET SET PLATE sewing machine part or accessory For Janome Models: 712T, LR1612-1622, NH16... | 738017008 | $3.91Read more |
| 2 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Lamp socket (unit) sewing machine part or accessory For Janome Models: NEFB12 SRV | 749627001 | $16.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | SET SCREW 3X6-9 8 6 4 3123 750 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000078319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Threaded Light Bulb sewing machine part or accessory For Janome Models: 108, 1117S, 1200D, 203, 2... | 000008606 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Needle bar supporter spring sewing machine part or accessory For Janome Models: HF1012, HF2022, J... | 730024004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Needle bar supporter (unit) sewing machine part or accessory For Janome Models: NEFB12 SRV | 749646109 | $19.60Read more |
| 9 | | Needle bar supporter sewing machine part or accessory For Janome Models: NEFB12 SRV | 749075008 | $9.20Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Needle bar supporter pin sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119... | 735144006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Washer sewing machine part or accessory 673022002 Washer | 673022002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Washer sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2039... | 000070609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | SET SCREW-9 8 7 4 7500 4123 55 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000111902 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Zz rod eccentric pin sewing machine part or accessory For Janome Models: HF1012, HF2022, HF3000, ... | 678084007 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Zigzag rod sewing machine part or accessory For Janome Models: HF1012, HF2022, JD1803, JD1803, JD... | 748021006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | ZIG ZAG ROD sewing machine part or accessory For Janome Models: 2018S, 2039SN, 2118S, 2139N, 2139... | 735119002 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Needle Bar Unit sewing machine part or accessory For Janome Models: 712T, S-650, S-750, Necchi FB12 | 732502018 | $16.20Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Needle HAX14(single piece) sewing machine part or accessory For Janome Models: HELLO KITTY 3/4, H... | 102408089 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | NEEDLE BAR CONN. STUD UNIT sewing machine part or accessory For Janome Models: HF1012, HF2022, JA... | 680504005 | $4.40Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | THREAD TAKE UP LEVER UNIT sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 820511108 | $13.40Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Thread take-up lever pin sewing machine part or accessory For Janome Models: 2040, 3022, 4048/804... | 650062003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | NEEDLE BAR CRANK PIN-DISCONTIN sewing machine part or accessory For Janome Models: 712T, 808A, S-... | 732505000 | $5.60Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Supporter guide plate sewing machine part or accessory For Janome Models: NEFB12 SRV | 749058005 | $0.92Read more |
| 27 | | Supporter stopper sewing machine part or accessory For Janome Models: NEFB12 SRV | 803008001 | $1.40Read more |
| 28 | | Supporter stopper spring sewing machine part or accessory For Janome Models: NEFB12 SRV | 732064002 | $0.92Read more |
| 29 | | BOLT 4X6-4000 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022,... | 000066303 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Needle bar supporter adjusting plate sewing machine part or accessory For Janome Models: NEFB12 SRV | 803069000 | $2.00Read more |
| 31 |  | Wire tie band skb-1m sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110... | 000053008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

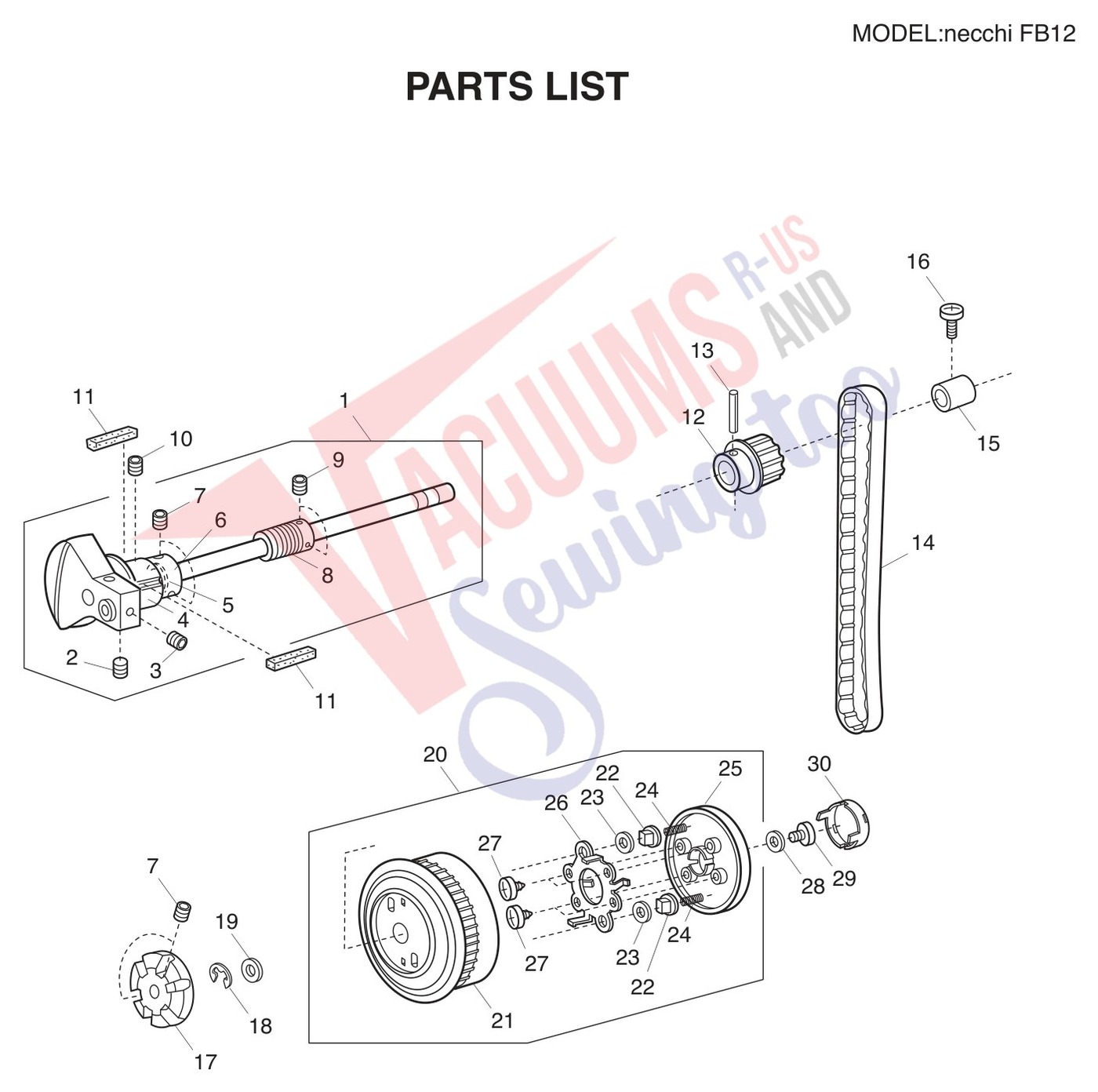

| 1 | | Upper shaft (unit) sewing machine part or accessory , Necchi FB12 | 749604002 | $28.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2... | 102073003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | PRESSER BRACKET SET SCREW sewing machine part or accessory For Janome Models: 104, 106, 108, 110,... | 102063000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Upper shaft front bushing sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039S... | 732025001 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Washer sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1110DX, 2040... | 000038605 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Upper shaft ring sewing machine part or accessory For Janome Models: MC5200 SRV | 673063016 | $2.76Read more |
| 7 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 8 | Not Available | Worm | 749011109 | Not Available |
| 9 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Hexagon Set Screw (2.0 mm) sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 000111108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Felt sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 2041... | 731312005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Upper shaft timing gear sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4... | 756017004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Spring pin sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048/8... | 000020501 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | TIMING BELT sewing machine part or accessory For Janome Models: 712T, 808A, S-650, S-750, Necchi ... | 733008001 | $8.80Add to cart |
| 15 | | UPPER SHAFT REAR BUSHING S650 sewing machine part or accessory For Janome Models: 2003P, 2018S, 2... | 732003003 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Balance Wheel Bushing sewing machine part or accessory For Janome Models: 808A, S-650, S-750, Nec... | 732027003 | $5.60Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Snap Ring sewing machine part or accessory For Janome Models: 1017, 1117S, 1600P-QC, 2003P, 2018S... | 000030205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | WASHER THRUST FT 100 MC SERI sewing machine part or accessory For Janome Models: 4618LE, 4623LE... | 000036706 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | BALANCE WHEEL UNIT-S750 sewing machine part or accessory For Janome Models: 808A, S-750, Necchi FB12 | 803621109 | $17.20Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Handwheel sewing machine part or accessory For Janome Models: NEFB12 SRV | 803078105 | $6.80Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | CLUTCH PIN 5500 3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, 80... | 650065006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | WASHER THRUST FT80 9 8 7 4 31 sewing machine part or accessory For Janome Models: 1117S, 1200D, ... | 000036201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | CLUTCH PIN SPRING 5500 3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6... | 650066007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Clutch knob sewing machine part or accessory For Models: , Necchi FB12 | 650067503 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | CLUTCH SPRING 5500 3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147,... | 650068009 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | +PAN TAP TIGHT SCREW 3X8-6 312 sewing machine part or accessory For Janome Models: 2003P, 2018S, ... | 000107307 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | Not Available | Washer 6 | 000070009 | Not Available |
| 29 | | SET SCR sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 & 38... | 000101208 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Clutch Cap sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 4618LE, 4623... | 650070509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

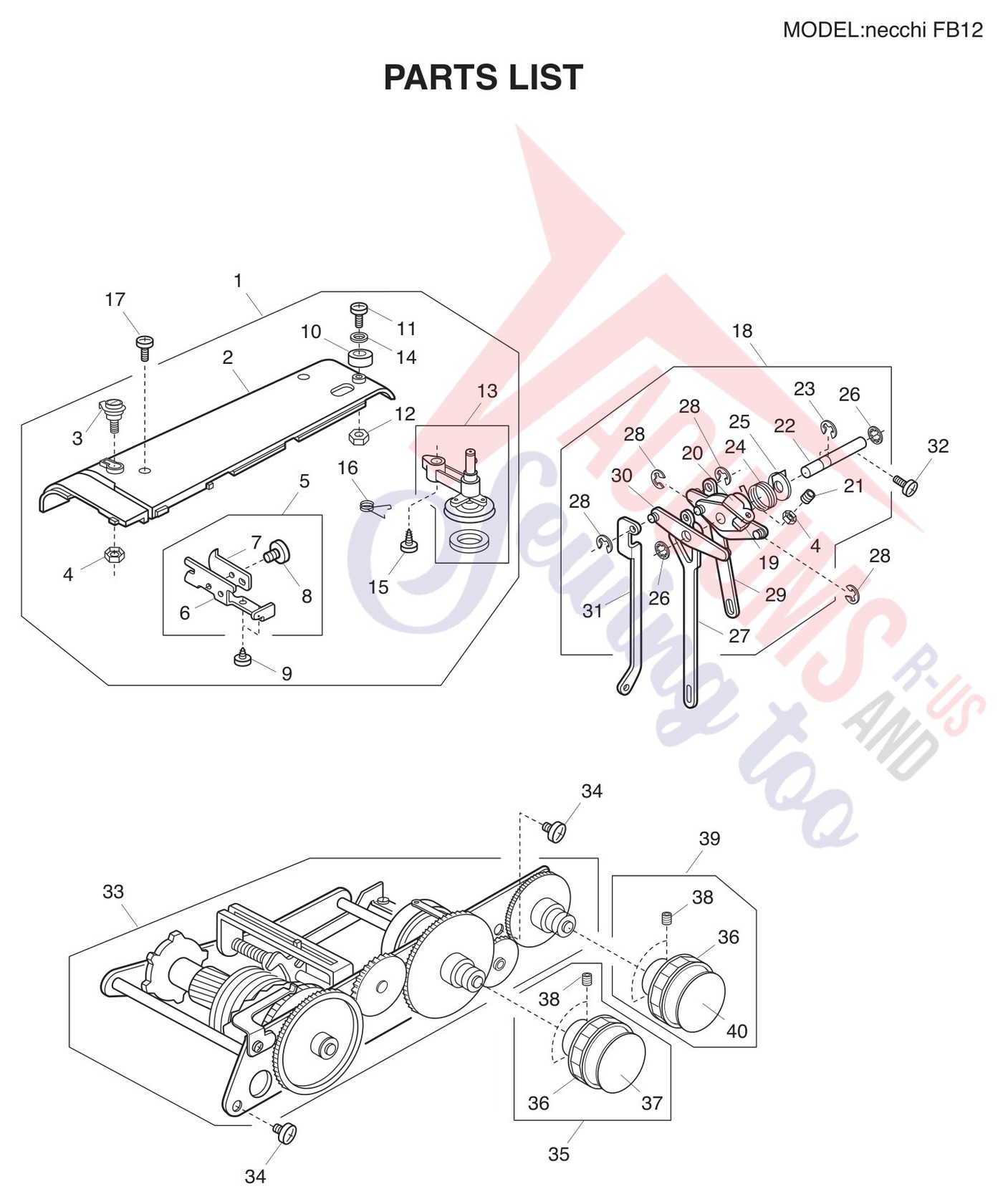

| 1 | | TOP COVER UNIT S750 sewing machine part or accessory For Janome Models: 712T, S-750, Necchi FB12 | 749628002 | $28.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Top cover sewing machine part or accessory For Janome Models: NEFB12 SRV | 749006008 | $6.40Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Thread guide plate unit sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2... | 730501011 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Top cover thread guide (unit) sewing machine part or accessory For Janome Models: NEFB12 SRV | 749602000 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Top cover thread guide sewing machine part or accessory For Janome Models: NEFB12 SRV | 749005007 | $2.00Read more |
| 7 | | Thread guide support plate sewing machine part or accessory For Janome Models: NEFB12 SRV | 749007009 | $0.80Read more |
| 8 |  | Set Screw for Race Bottom Plate sewing machine part or accessory For Janome Models: 1000CPX, 1600... | 820374004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Setscrew 3x8 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 134D, 2... | 000149301 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Bobbin Winder Stopper sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2... | 735016307 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Set Screw sewing machine part or accessory For Janome Models: T923, TB12, TB30 HF8050, HF5812, MC... | 000101828 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Nut sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1110DX, 1117S, ... | 000061205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Bobbin Winder Unit for Model S750 sewing machine part or accessory For Janome Models: 712T, S-750... | 728501003 | $23.60Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Washer sewing machine part or accessory For Janome Models: 1110DX, 1117S, 134D, 1600P, 1600P-DB, ... | 000071013 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Setscrew 4 x 12 sewing machine part or accessory For Janome Models: 1117S, 3125, 3128, AQS2009, H... | 000109103 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | BOBBIN WINDER ARM SPRING sewing machine part or accessory For Janome Models: 712T, JA1504-1512, J... | 735015007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Setscrew 4x30 sewing machine part or accessory For Janome Models: MC7700QCP, MC8900 Horizon , MC8... | 000103222 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Feed regulating arm (unit) sewing machine part or accessory For Janome Models: NEFB12 SRV | 749607005 | $22.31Read more |
| 19 | | Feed regulating arm sewing machine part or accessory For Janome Models: NEFB12 SRV | 749059006 | $2.99Read more |
| 20 | | Feed regulating plate sewing machine part or accessory For Janome Models: NEFB12 SRV | 736012007 | $3.60Read more |
| 21 |  | Set screw sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S, 20... | 648010009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Feed regulator shaft sewing machine part or accessory For Janome Models: NEFB12 SRV | 749016001 | $0.80Read more |
| 23 |  | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | Not Available | Feed regulating body spring | 803134007 | Not Available |
| 25 |  | Plain washer sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2039S... | 735073003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Snap ring CS-6 sewing machine part or accessory For Janome Models: 1017, 1117S, 1600P, 1600P-DB, ... | 000013800 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Feed rod sewing machine part or accessory For Janome Models: NEFB12 SRV | 732043005 | $1.38Read more |
| 28 |  | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 29 | | Reverse stitch rod sewing machine part or accessory For Janome Models: NEFB12 SRV | 738025009 | $0.92Read more |
| 30 | | Drop link sewing machine part or accessory For Janome Models: NEFB12 SRV | 749017002 | $2.40Read more |
| 31 | | Drop link rod sewing machine part or accessory For Janome Models: NEFB12 SRV | 749018003 | $1.60Read more |
| 32 | | SET SCREW 5X10 DISCONTINUED sewing machine part or accessory For Janome Models: 104, 106, 108, 11... | 000101301 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | ZIGZAG MECHANISM UNIT S750 sewing machine part or accessory For Janome Models: 712T, S-750, Necch... | 749609007 | $82.20Add to cart |
| 34 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Pattern selector dial (unit) sewing machine part or accessory For Janome Models: NEFB12 SRV | 749611507 | $8.60Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | Dial sewing machine part or accessory For Janome Models: NEFB12 SRV | 749037008 | $4.40Add to cart Special order: ships in 2 to 4 weeks |
| 37 | Not Available | Stitch pattern indicator plate | 749038504 | Not Available |
| 38 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 39 | Not Available | Stitch length dial (unit) | 749612508 | Not Available |
| 40 | Not Available | Feed length indicator plate | 749040509 | Not Available |

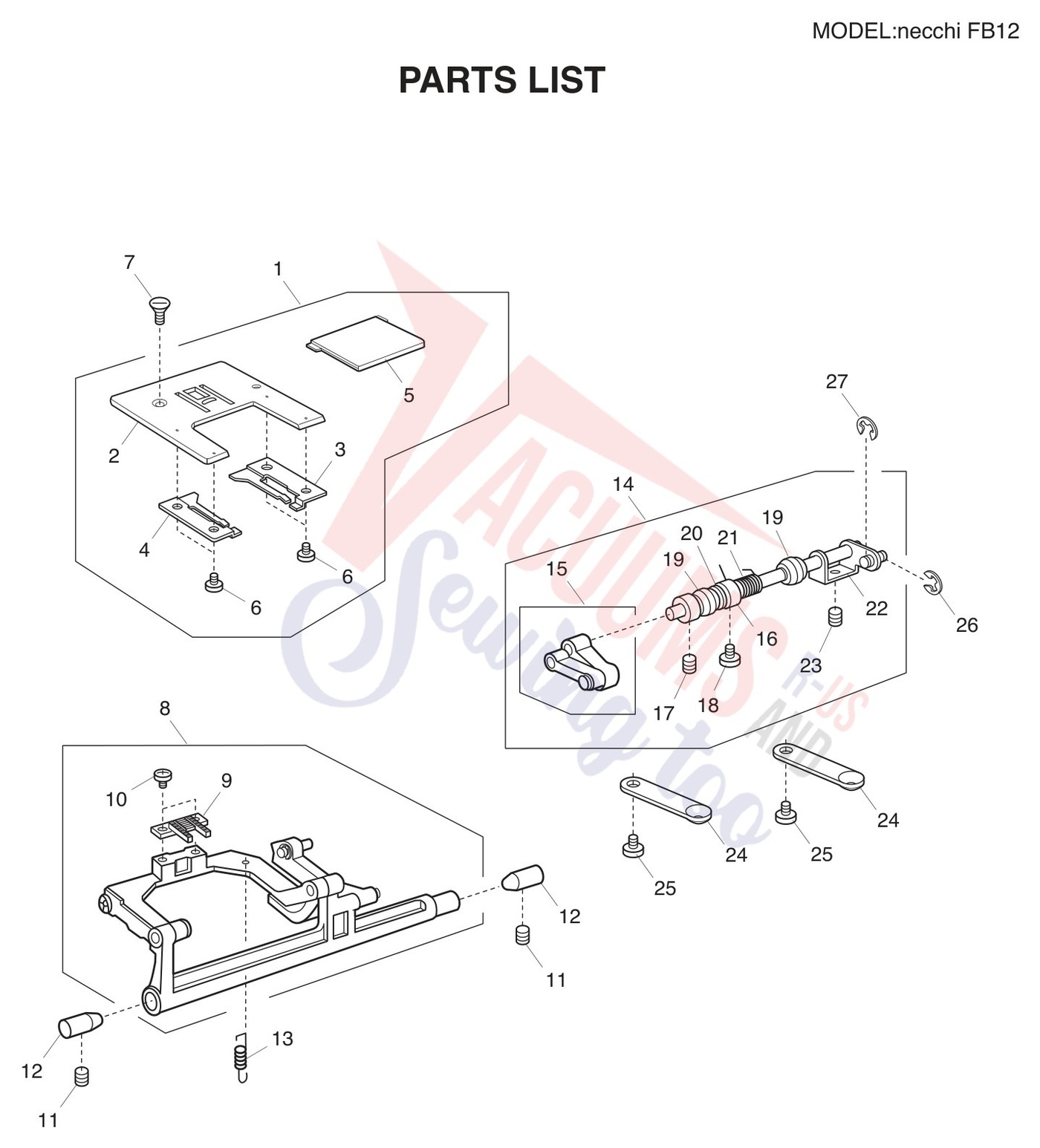

| # | Part image | Description | SKU | Price |
| 1 |  | Needle Plate Unit sewing machine part or accessory For Janome Models: 712T, S-750, Necchi FB12 | 732619606 | $20.20Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Needle plate sewing machine part or accessory For Janome Models: NEFB12 SRV | 749008103 | $11.20Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Slide Plate Holder (right) for School Model S-650 sewing machine part or accessory For Janome Mod... | 732015008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Slide Plate Holder (left) for School Model S-650 sewing machine part or accessory For Janome Mode... | 732014007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | SLIDE PLATE FOR S650 sewing machine part or accessory For Janome Models: 712T, S-750, Necchi FB12 | 732126003 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Set Screw for Race Bottom Plate sewing machine part or accessory For Janome Models: 1000CPX, 1600... | 820374004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Needle Plate Screw sewing machine part or accessory For Janome Models: MC200E, MC2400, MC3000, MC... | 681009101 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Feed lock shaft (unit) sewing machine part or accessory For Janome Models: NEFB12 SRV | 732633008 | $79.80Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Feed dog sewing machine part or accessory For Janome Models: NEFB12 SRV | 650083011 | $16.60Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022, 404... | 000104005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 12 | | Straight pin sewing machine part or accessory For Janome Models: 662, 712T, AQS2009, JEM GOLD 2/6... | 749024002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Feed Dog Base Spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF... | 650085002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Feed shaft (unit) sewing machine part or accessory For Janome Models: NEFB12 SRV | 749606004 | $20.47Read more |
| 15 |  | FEED REG. UNIT sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, ... | 650612004 | $6.60Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Ring | 820387000 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Setscrew 4x8 sewing machine part or accessory For Janome Models: NEFB12 SRV | 000069605 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Feed shaft bushing sewing machine part or accessory For Janome Models: NEFB12 SRV | 732039008 | $1.38Read more |
| 20 |  | Plain washer sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 625102008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | FEED REG. SPRING sewing machine part or accessory For Janome Models: 712T, 808A, DX2015, S-650, S... | 650088005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Feed shaft set plate sewing machine part or accessory For Janome Models: NEFB12 SRV | 732038007 | $1.40Read more |
| 23 | | Hexagon Set Screw (2.0 mm) sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 000111108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | BUSHING HOLDING PLATE FOR S650 sewing machine part or accessory For Janome Models: 712T, 808A, 80... | 732035004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | SET SCR sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 & 38... | 000101208 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 27 | | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

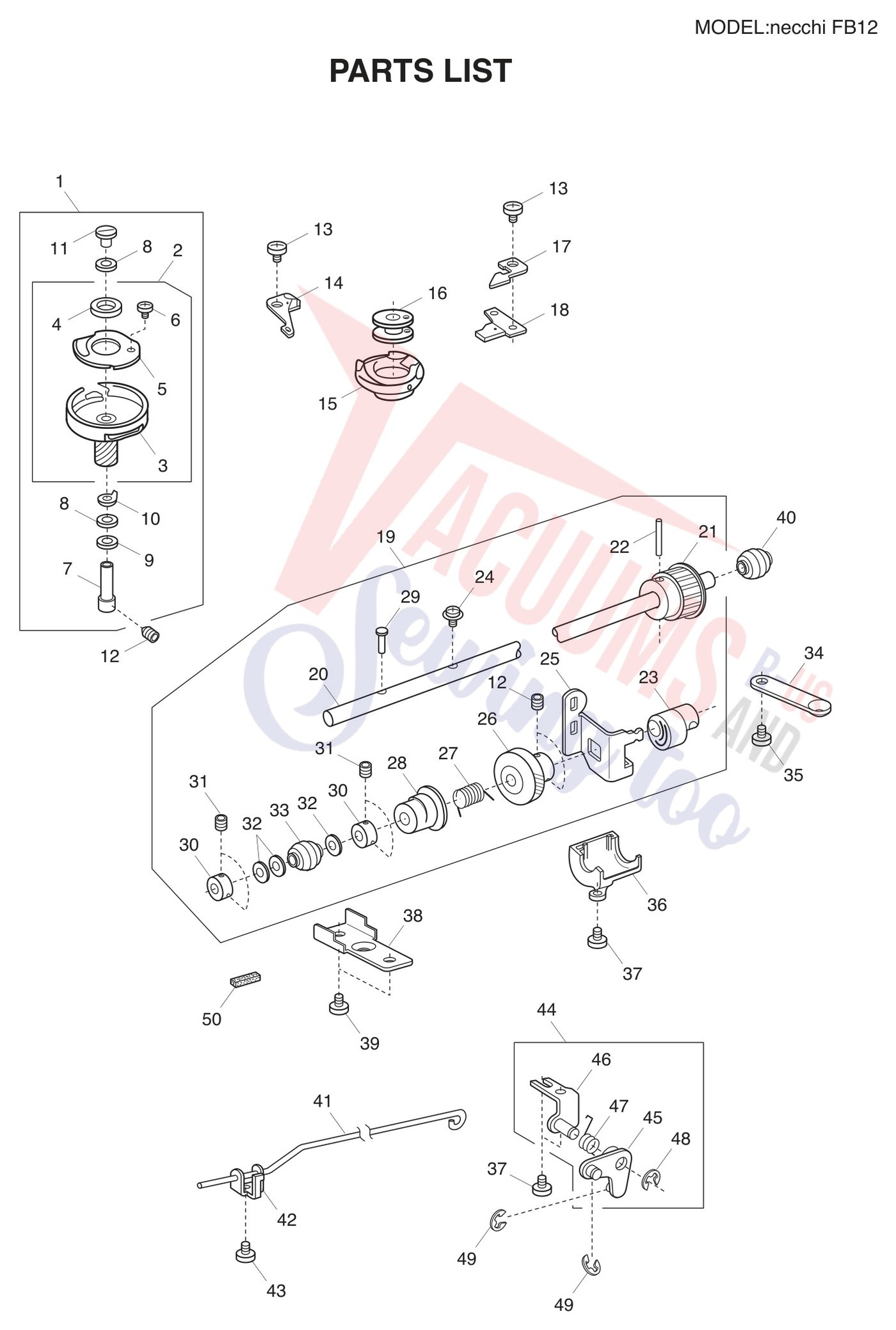

| 1 |  | HOOK RACE BODY UNIT S650/S750 sewing machine part or accessory For Janome Models: 712T, 808A, S-7... | 732611103 | $61.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Pre-owned Hook Unit for Janome PN 652623004 | 652623004 | $57.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | SHUTTLE BODY UNIT sewing machine part or accessory | 650950100 | $37.20Read more |
| 4 | | Magnet sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048/8048/... | 627190010 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Hook Race Bottom Plate sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/... | 627191000 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Set Screw for Race Bottom Plate sewing machine part or accessory For Janome Models: 1000CPX, 1600... | 820374004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Hook race shaft (unit) sewing machine part or accessory For Janome Models: NEFB12 SRV | 625613100 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | WASHER FOR 3000 sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4... | 000038409 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Plain washer sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 625102008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Hook shaft washer sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX,... | 627192001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Setscrew sewing machine part or accessory For Janome Models: NEFB12 SRV | 625103009 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 13 |  | Set Screw sewing machine part or accessory For Janome Models: 1017, 1110DX, 1117S, 134D, 2003P, 2... | 810220003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Stopper sewing machine part or accessory For Janome Models: 712T, 808A, S-650, S-750, Necchi FB12 | 627179013 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Janome Jem Gold Bobbin Holder Unit - 627569106 | 627569106 | $30.60Add to cart Special order: ships in 2 to 4 weeks |
| 16 | Not Available | Plastic bobbin | 102261000 | Not Available |
| 17 |  | Stopper Shield Plate sewing machine part or accessory For Janome Models: 712T, 808A, S-650, S-750... | 732099006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Bobbin Holder Stopper(Right) sewing machine part or accessory For Janome Models: 2040, 3022, 4048... | 627567001 | $6.40Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Lower shaft (unit) sewing machine part or accessory For Janome Models: NEFB12 SRV | 732610102 | $59.11Read more |
| 20 | | Lower shaft sewing machine part or accessory For Janome Models: NEFB12 SRV | 732032001 | $7.60Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Lower shaft gear sewing machine part or accessory 650073007 Lower shaft gear | 650073007 | $6.60Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Spring pin 3x18 sewing machine part or accessory For Janome Models: 3160QDC, 3160QDC, 4045LX, 404... | 000004200 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Feed Cam for Memory Craft 4000 sewing machine part or accessory For Janome Models: 6260QC, 712T, ... | 823026111 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Set screw with flange 3X14 sewing machine part or accessory For Janome Models: 6260QC, 712T, DC40... | 000149600 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Lower shaft supporter plate sewing machine part or accessory For Janome Models: NEFB12 SRV | 803133006 | $2.00Read more |
| 26 |  | Lower shaft gear sewing machine part or accessory 650076000 Lower shaft gear | 650076000 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Feed Lifting Cam Spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048... | 686035008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Feed Lift Cam sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 4... | 753183025 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Feed lifting pin sewing machine part or accessory 820161006 Feed lifting pin | 820161006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Lower shaft ring sewing machine part or accessory 820166001 Lower shaft ring | 820166001 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Washer 8x0.5 sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 404... | 000038502 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Lower shaft bushing sewing machine part or accessory For Janome Models: NEFB12 SRV | 732034106 | $2.07Read more |
| 34 | | BUSHING HOLDING PLATE FOR S650 sewing machine part or accessory For Janome Models: 712T, 808A, 80... | 732035004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | SET SCR sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 & 38... | 000101208 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | Gear Box Cover for School Models S650 and S750 sewing machine part or accessory For Janome Models... | 732036005 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 | Not Available | Bushing Holder (Left) | 749014009 | Not Available |
| 39 | | Setscrew 5x5 sewing machine part or accessory For Janome Models: NEFB12 SRV | 000198202 | $0.20Read more |
| 40 | | Lower Shaft Bushing sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, ... | 732034003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 41 | | Drop link rod (2) sewing machine part or accessory For Janome Models: NEFB12 SRV | 749023001 | $1.40Read more |
| 42 | | Drop set plate sewing machine part or accessory For Janome Models: NEFB12 SRV | 732052007 | $1.38Read more |
| 43 | | SET SCREW 3X6-9 8 6 4 3123 750 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000078319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 44 | | Drop link (unit) sewing machine part or accessory For Janome Models: NEFB12 SRV | 749608006 | $5.98Read more |
| 45 | | Drop link sewing machine part or accessory For Janome Models: NEFB12 SRV | 749020008 | $2.60Read more |
| 46 | | Link set plate sewing machine part or accessory For Janome Models: NEFB12 SRV | 749022000 | $1.40Read more |
| 47 | | Drop link spring sewing machine part or accessory For Janome Models: NEFB12 SRV | 749021009 | $0.60Read more |
| 48 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 49 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 50 | | Felt sewing machine part or accessory For Janome Models: NEFB12 SRV | 749212009 | $0.69Read more |
| # | Part image | Description | SKU | Price |

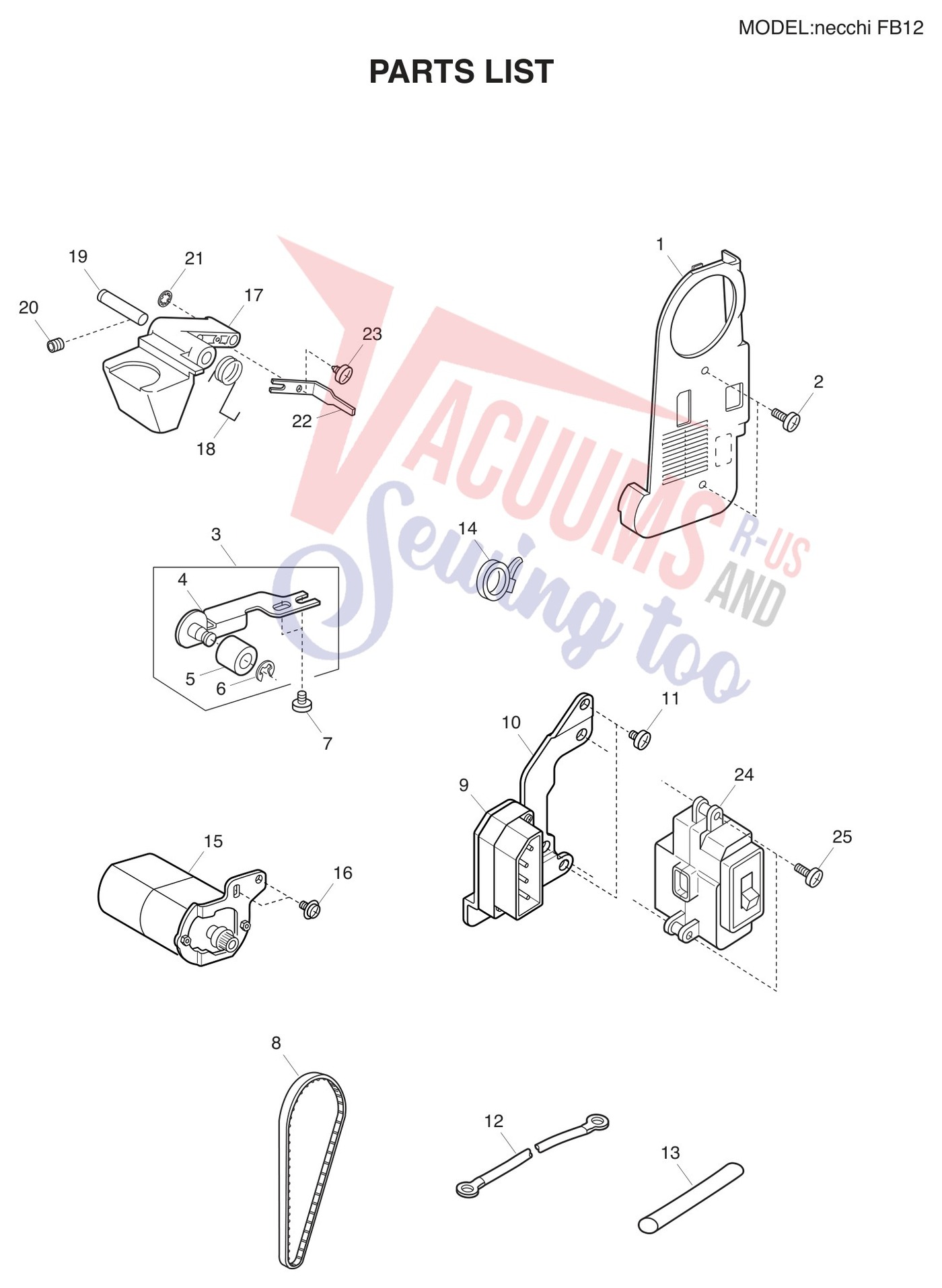

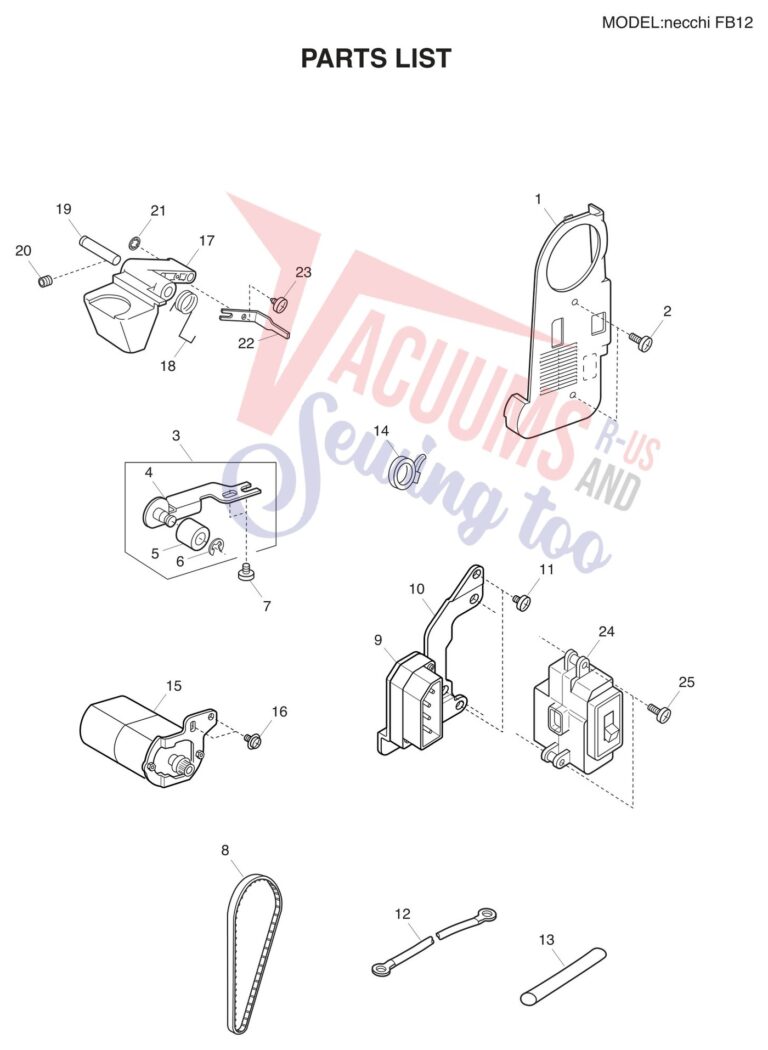

| 1 |  | BELT COVER FOR S750 sewing machine part or accessory For Janome Models: S-750, Necchi FB12 | 749004109 | $8.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1600P, 1600P-DB... | 000104119 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Idler (unit) sewing machine part or accessory For Janome Models: NEFB12 SRV | 749605003 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Idler base sewing machine part or accessory For Janome Models: NEFB12 SRV | 749013008 | $1.80Read more |
| 5 |  | Idler sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 4119 (QUILTER'... | 625217100 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Timing belt sewing machine part or accessory For Janome Models: NEFB12 SRV | 803079106 | $9.20Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Machine Socket Unit for Model S-750 sewing machine part or accessory For Janome Models: S-650, S-... | 732514002 | $20.20Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Machine socket set plate sewing machine part or accessory For Janome Models: NEFB12 SRV | 749056003 | $3.60Read more |
| 11 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | Not Available | Ground wire | 732515003 | Not Available |
| 13 | Not Available | Tube | 732120007 | Not Available |
| 14 | | Wire tie band skb-1m sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110... | 000053008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Motor (unit) sewing machine part or accessory For Janome Models: NEFB12 SRV | 749629003 | $68.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | MOTOR SET SCREW 2018E 5X10-7 7 sewing machine part or accessory For Janome Models: 1017, 104, 106... | 000115504 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | REVERSE BUTTON sewing machine part or accessory For Janome Models: 712T, S-750, Necchi FB12 | 749019004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | REVERSE BUTTON SPRING sewing machine part or accessory For Janome Models: 712T, JA1504-1512, LR16... | 736014009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | REVERSE BUTTON HINGE PIN sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN... | 736015000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | HEXAGON SOCKET SET SCREW 5X10 sewing machine part or accessory For Janome Models: 712T, LR1612-16... | 000112707 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | SNAP RING CS-4 9 8 4 6 3123 sewing machine part or accessory For Janome Models: 1200D, 134D, 1600... | 000014007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Reverse button plate sewing machine part or accessory For Janome Models: NEFB12 SRV | 738100009 | $0.80Read more |
| 23 |  | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | Not Available | Switch case (unit) | 732516107 | Not Available |
| 25 |  | SET SCREW sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2... | 000121400 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

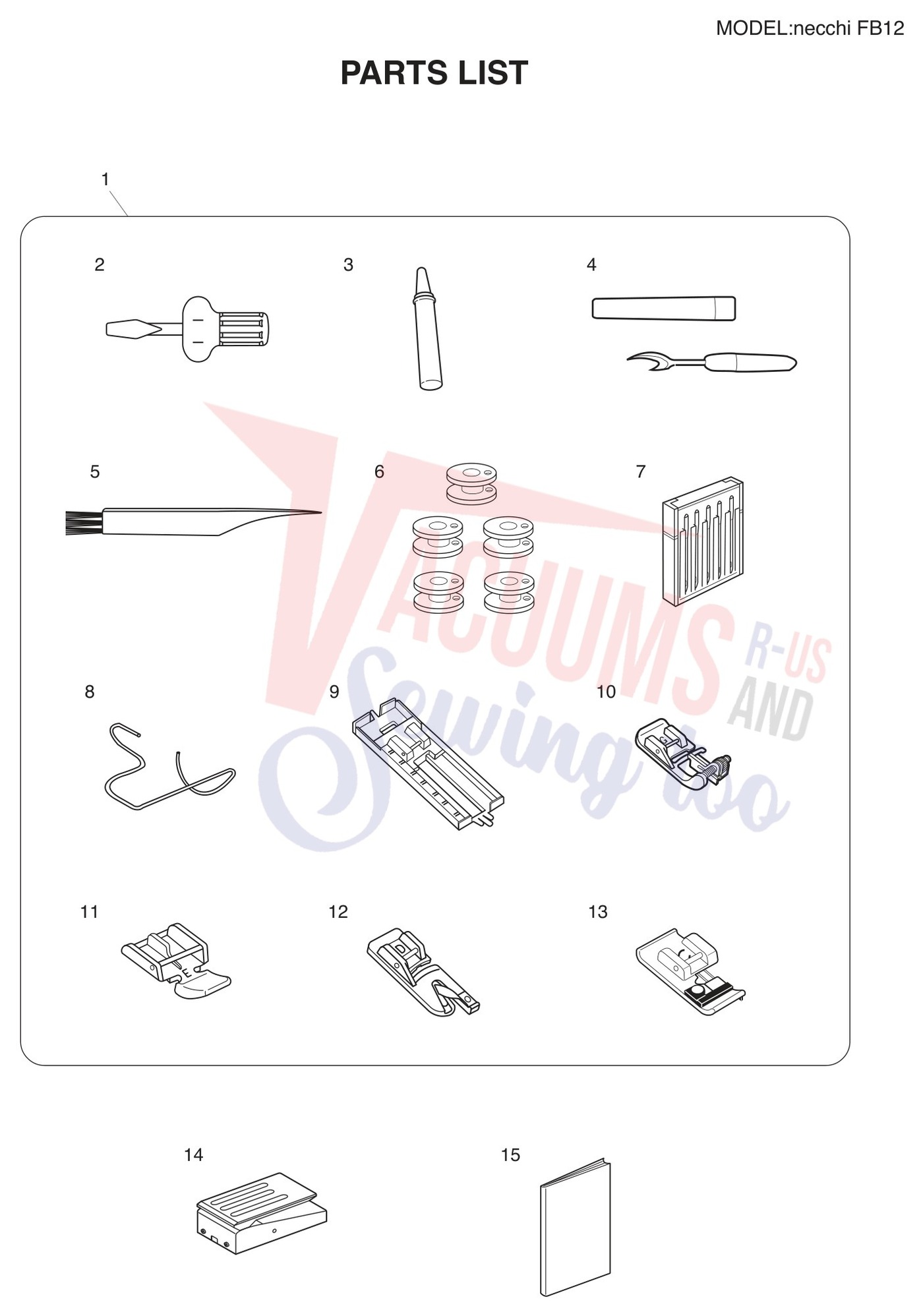

| 1 | | Standard accessories (unit) sewing machine part or accessory For Janome Models: NEFB12 SRV | 749870207 | $57.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 | Not Available | Screwdriver (LARGE) | 820832005 | Not Available |
| 3 | | Oil sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1110DX, 360, 3... | 741814003 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | SEAM RIPPER/BUTTONHOLE OPENER sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 647808009 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Genuine Janome/Elna Lint Brush For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX, 1600P-... | 802424004 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | Not Available | Plastic bobbin | 102261000 | Not Available |
| 7 |  | Needle Case Unit sewing machine part or accessory For Janome Models: All Janome sewing machines (... | 540401026 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | Not Available | Finger Guard | 687803008 | Not Available |
| 9 |  | Buttonhole Foot (sliding 5mm top load) sewing machine part or accessory For Janome Models: DX502,... | 732802000 | $11.50Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Adjustable Blind Hem Foot G 7mm sewing machine part or accessory For Janome Models: MC11000 Speci... | 820817015 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Zipper Foot (top load 7mm) sewing machine part or accessory For Janome Models: 2040, 3022, 3160QD... | 829801002 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Compatible alternateZipper Foot, Top Load 7mm for Janome and Elna More Product Details | WP11797 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Rolled Hemmer Foot for Janome | 820809014 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 | Not Available | Overlock Foot C (top load) | 820804019 | Not Available |
| 14 | Not Available | Foot control | 032770111 | Not Available |
| 15 | | Instruction book sewing machine part or accessory For Janome Models: NEFB12 SRV | 749800055 | $16.99Add to cart Special order: ships in 2 to 4 weeks |
Report errors on this page HERE
