Schematic and parts book for Necchi EV7 EV7. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

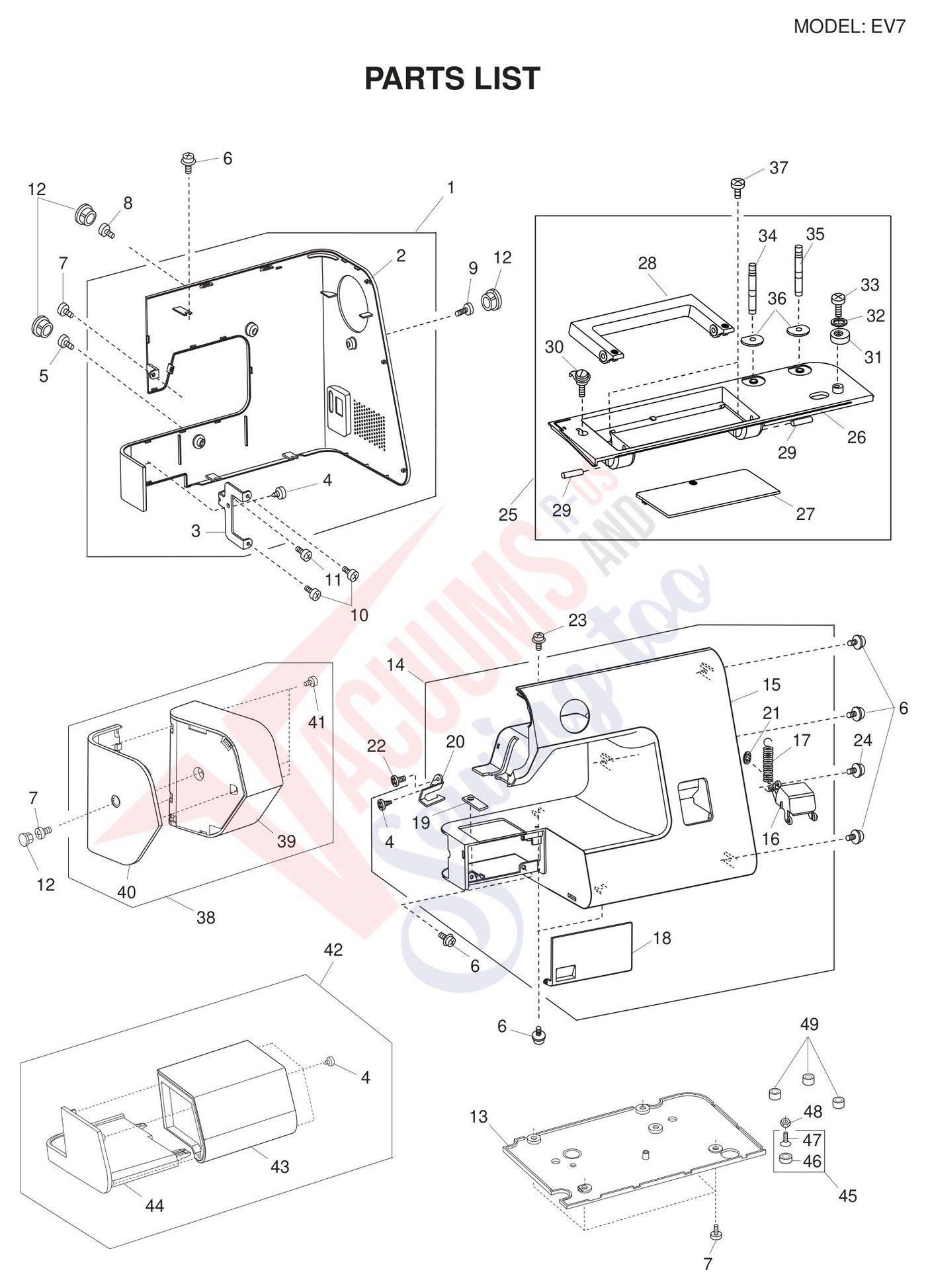

| # | Part image | Description | SKU | Price |
| 1 |  | Rear cover (unit) sewing machine part or accessory For Janome Models: EV7 SRV | 310613703 | $18.20Add to cart Special order: ships in 2 to 4 weeks |
| 2 | Not Available | Rear cover | 310048505 | Not Available |
| 3 |  | Cover fixing plate sewing machine part or accessory For Janome Models: EV7 SRV | 310049001 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Set Screw sewing machine part or accessory For Janome Models: 1017, 1110DX, 1117S, 134D, 2003P, 2... | 810220003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Tapping screw 4x10 (B) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 7034D... | 000198305 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Set Screw sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-Q... | 000080901 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Tapping setscrew 3x4 sewing machine part or accessory For Janome Models: 134D, 204D, 4048/8048/HF... | 000114709 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | TP SCREW 3X8-9 7 6 7500 3123 sewing machine part or accessory For Janome Models: 134D, 203, 2040,... | 000115009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | Not Available | Cap | 745033806 | Not Available |
| 13 |  | Bottom cover sewing machine part or accessory For Janome Models: EV7 SRV | 310050005 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Front cover (unit) sewing machine part or accessory For Janome Models: EV7 SRV | 310612609 | $30.20Add to cart Special order: ships in 2 to 4 weeks |
| 15 | Not Available | Front cover | 310044235 | Not Available |
| 16 | Not Available | R button | 310045502 | Not Available |
| 17 |  | R button spring sewing machine part or accessory For Janome Models: EV7 SRV | 310046008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Bed lid sewing machine part or accessory For Janome Models: EV7 SRV | 310047009 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2039... | 730006000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Thread guide plate sewing machine part or accessory For Janome Models: 2212, 2206, Necchi EV7 | 745031000 | $0.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Snap ring CS-3 sewing machine part or accessory For Janome Models: 1100D, 1110DX, 1200D, 1200D, 1... | 000014306 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1117S, 134D, 203, 204D, 211... | 000115607 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Setscrew 3x8 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 134D, 2... | 000149301 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Top cover (unit) sewing machine part or accessory For Janome Models: EV7 SRV | 310614508 | $17.60Add to cart Special order: ships in 2 to 4 weeks |
| 26 | Not Available | Top cover | 310051006 | Not Available |
| 27 | Not Available | Stitch guide | 310052328 | Not Available |
| 28 |  | Carrying handle sewing machine part or accessory For Janome Models: EV7 SRV | 310053008 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Spring pin 4x25 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1... | 000028107 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Thread guide plate unit sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2... | 730501011 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Bobbin Winder Stopper sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2... | 735016307 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Washer sewing machine part or accessory For Janome Models: 1110DX, 1117S, 134D, 1600P, 1600P-DB, ... | 000071013 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Setscrew 4x18 sewing machine part or accessory For Janome Models: EV7 SRV | 000160814 | $0.20Read more |
| 34 |  | Spool Pin sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX,... | 652302004 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Spool Pin sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX,... | 652205006 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 36 | Not Available | Spool pin cushion | 735013108 | Not Available |
| 37 |  | SPOOL PIN SCREW 4X10 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 900XP, ... | 000103510 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 | | Face cover (unit) sewing machine part or accessory For Janome Models: EV7 SRV | 310615602 | $10.40Add to cart Special order: ships in 2 to 4 weeks |
| 39 | Not Available | Face cover | 310054308 | Not Available |
| 40 | Not Available | Face cover plaque | 310055505 | Not Available |
| 41 | | Setscrew 3 x 10 (B) sewing machine part or accessory For Janome Models: 1000CPX, 1110DX, 1600P, 1... | 000161206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 42 | | Extension plate (unit) sewing machine part or accessory For Janome Models: EV7 SRV | 310616500 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 43 | | Extension plate 1 sewing machine part or accessory For Janome Models: EV7 SRV | 310056001 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 44 | Not Available | Extension plate 2 | 310057507 | Not Available |
| 45 | | Rubber base (unit) sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041... | 735616200 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 46 |  | RUBBER BASE sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 2041,... | 735002001 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 47 | | Flat screw 5 x 18 sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040,... | 000097901 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 48 |  | Nut sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1600P, 1600P-DBX, 160... | 000061319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 49 |  | Cushion sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 2... | 739064003 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

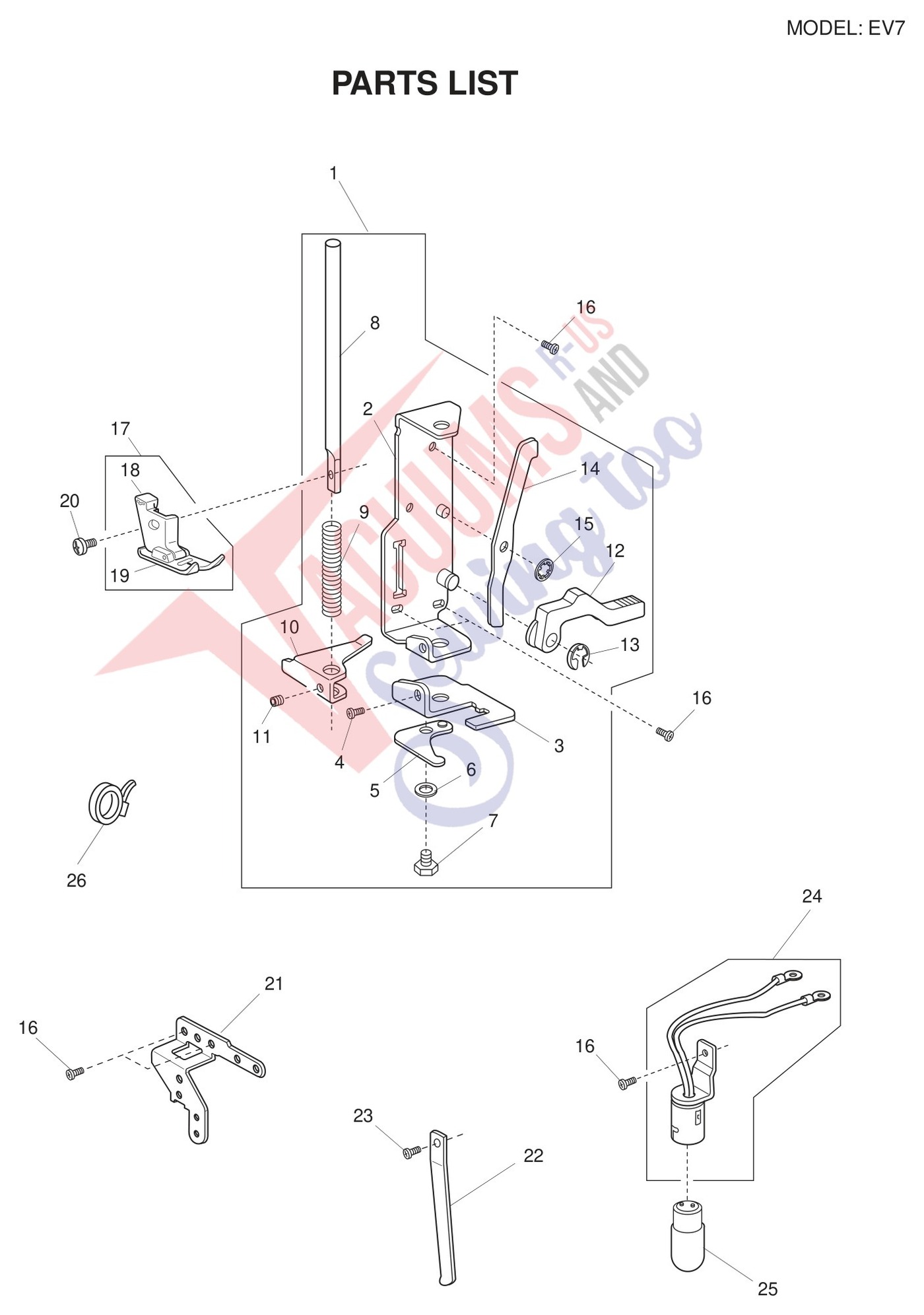

| 1 | | Presser bar base plate (unit) sewing machine part or accessory For Janome Models: EV7 SRV | 305604200 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Presser bar base plate sewing machine part or accessory For Janome Models: 2018S, 2039SN, 2041, 2... | 735221008 | $3.20Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Needle drop adjusting plate sewing machine part or accessory For Janome Models: 2018S, 2039SN, 20... | 735222009 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | NEEDLE BAR SUPPORTER STOPPER sewing machine part or accessory For Janome Models: 2003P, 2018S, 20... | 735025000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | WASHER-PLAIN 4-9 8 7 4 4123 31 sewing machine part or accessory For Janome Models: 1000CPX, 1017,... | 000070506 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | 7 mm Hexagon Bolt sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041,... | 000138307 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Presser bar sewing machine part or accessory , Necchi EV7 | 303017101 | $5.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | PRESSER BAR SPRING sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041... | 735027002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | PRESSER BAR SUPPORTER sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2... | 735028003 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Hexagon socket screw 4x8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, ... | 000111500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | PRESSER FOOT LIFTER sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 204... | 735029004 | $2.00Add to cart |
| 13 |  | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | TENSION RELEASE LEVER sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2... | 735030008 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | SNAP RING CS-5 7 6 7500 5500 sewing machine part or accessory For Janome Models: 1000CPX, 1017, 1... | 000013903 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Presser foot (unit) sewing machine part or accessory For Janome Models: 001CRYSTAL, 001SORBET, 00... | 310621003 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Presser foot holder (unit) sewing machine part or accessory For Janome Models: 001CRYSTAL, 001SOR... | 310801009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Zigzag foot (unit) sewing machine part or accessory For Janome Models: HD-1000, JA104, JA106, L10... | 301505002 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Set screw sewing machine part or accessory For Janome Models: 1017, 1110DX, 1117S, 2039SN, 2040, ... | 660106001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Face Plate Set Plate sewing machine part or accessory For Janome Models: JF1004, JF1022, XPRESSIO... | 740007013 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Needle bar supporter spring sewing machine part or accessory For Janome Models: HF1012, HF2022, J... | 730024004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Lamp socket (unit) (120 v) sewing machine part or accessory For Janome Models: 2039SN, 2041, 2041... | 647513015 | $9.20Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Light Bulb sewing machine part or accessory For Janome Models: 1000CP, 104, 106, 108, 110, 1100D,... | 000009803 | $4.40Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Wire tie band skb-1m sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110... | 000053008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

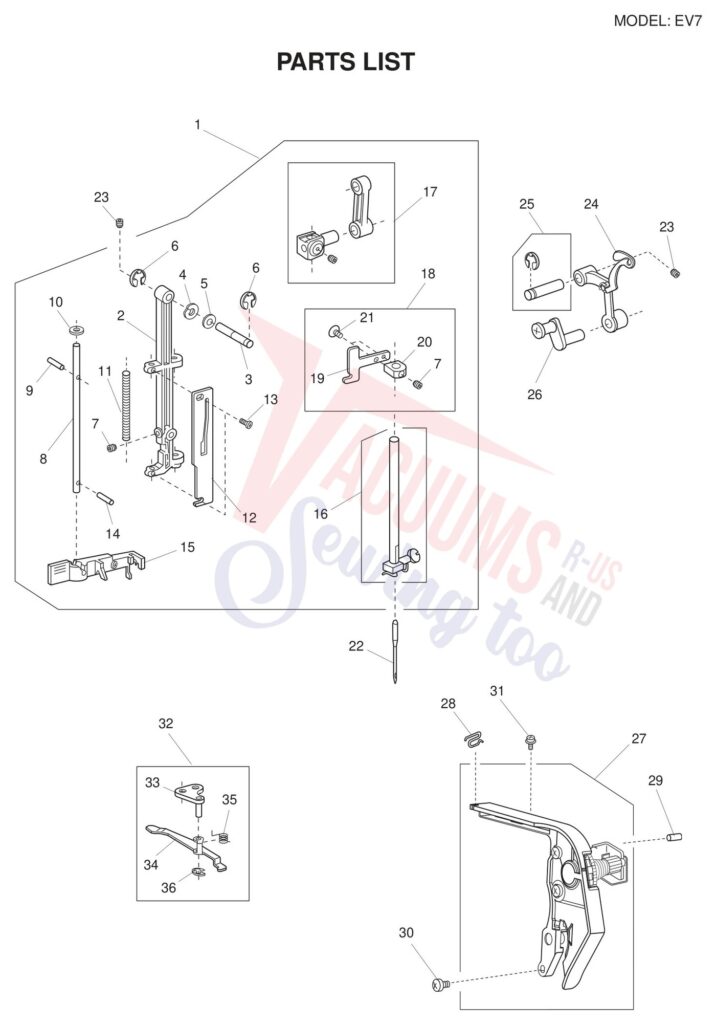

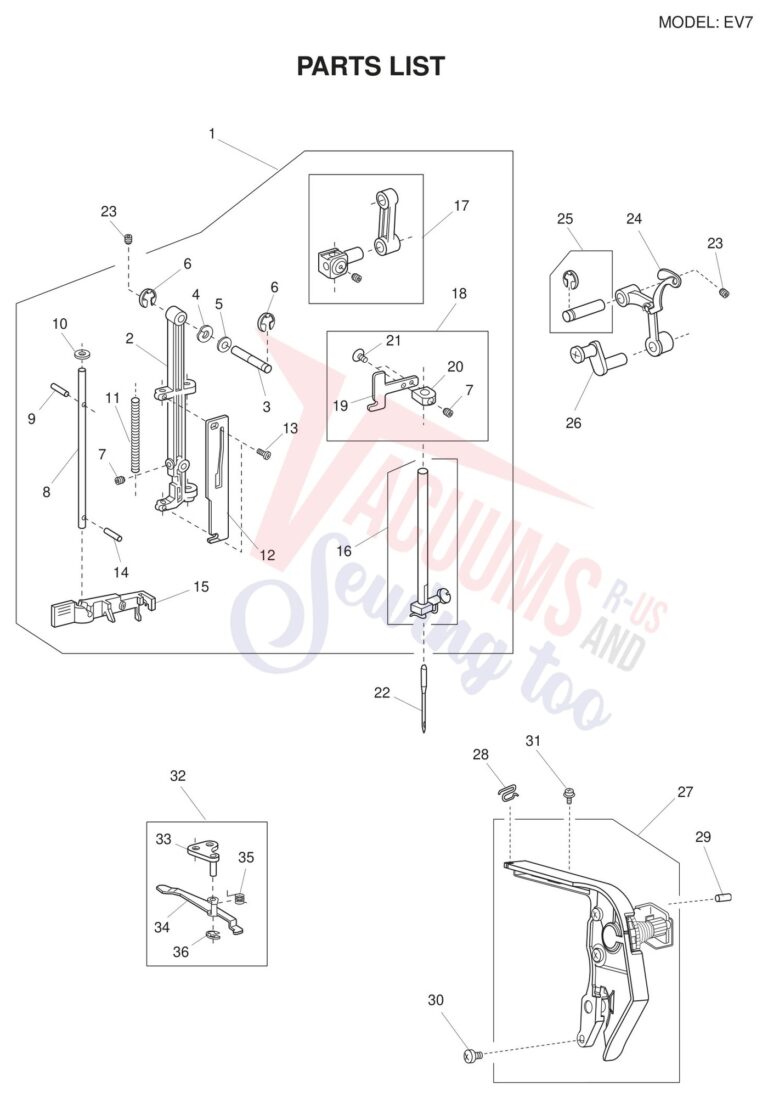

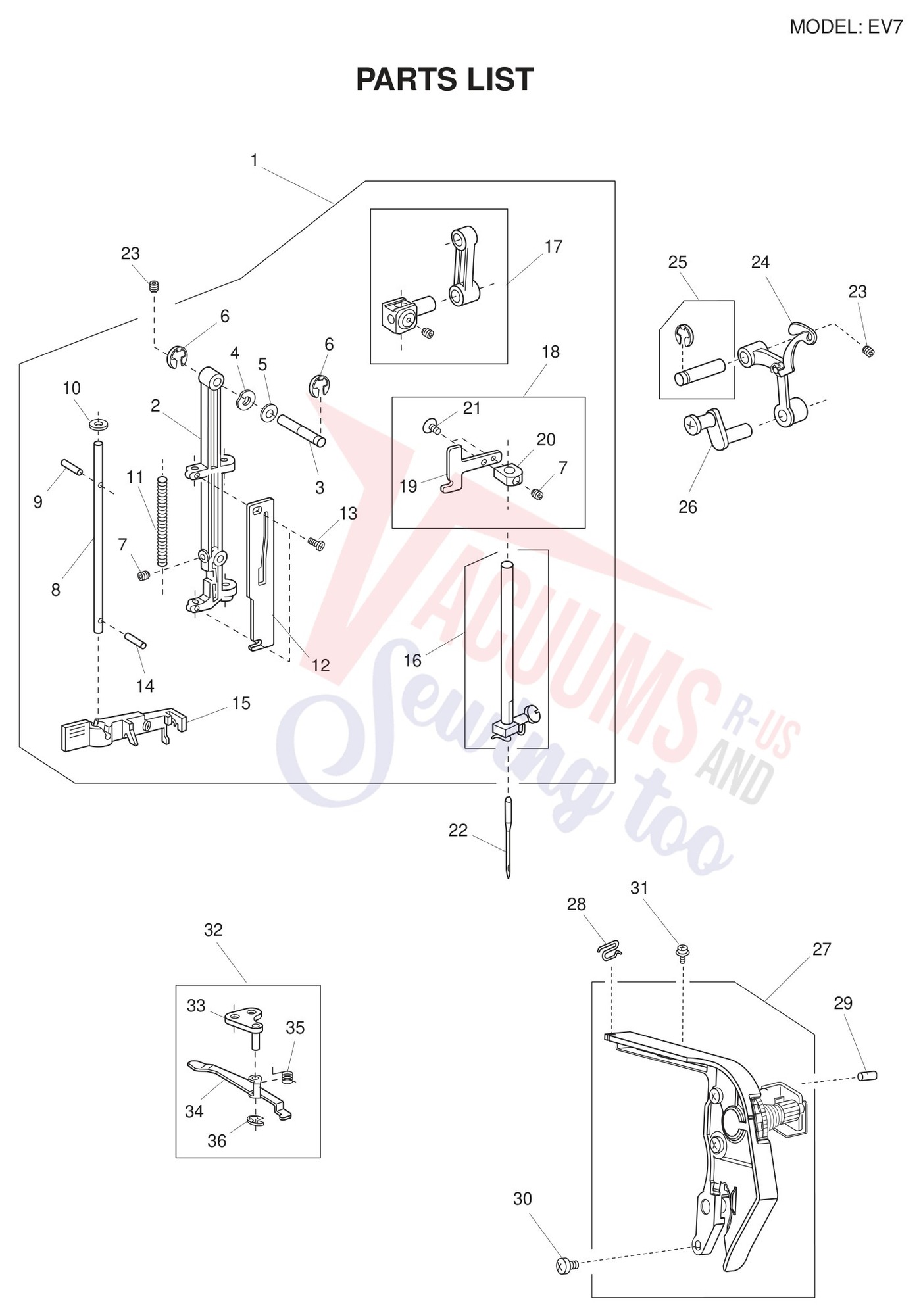

| 1 |  | Needle bar supporter (unit) sewing machine part or accessory , Necchi EV7 | 301611105 | $51.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Needle bar supporter sewing machine part or accessory , Necchi EV7 | 301032106 | $6.80Read more |
| 3 |  | Needle bar supporter pin sewing machine part or accessory For Janome Models: HF1012, HF2022, HF30... | 730022002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Washer sewing machine part or accessory 673022002 Washer | 673022002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Washer sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2039... | 000070609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | SET SCREW-9 8 7 4 7500 4123 55 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000111902 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | THREADER SHAFT sewing machine part or accessory | 301034005 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Slotted pin(E)2x14 sewing machine part or accessory For Janome Models: 2039SN, 2041, 2041LX, 2041... | 000122906 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Base plate sewing machine part or accessory For Janome Models: HF3000, HF5024, HT2008, MC2400, MC... | 734107004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | SPRING sewing machine part or accessory | 734094007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | THREADER GUIDE PLATE sewing machine part or accessory | 735196003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Pin 2x8 sewing machine part or accessory For Janome Models: 2040, 2139N, 3022, 3160QDC, 4045LX, 4... | 000003508 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Needle threader supp. unit sewing machine part or accessory For Janome Models: 2139N, AQS2009, HT... | 639643009 | $6.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Needle bar unit sewing machine part or accessory For Janome Models: HF1012, HF2022, JD1803, JD180... | 730503116 | $15.60Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | NEEDLE BAR CONN. STUD UNIT sewing machine part or accessory For Janome Models: HF1012, HF2022, JA... | 680504005 | $4.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | THREAD BASE PLATE UNIT sewing machine part or accessory | 735628009 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | THREADER SET PLATE sewing machine part or accessory | 735197004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Threader positioning holder sewing machine part or accessory For Janome Models: HF3000, HF8077, H... | 734102009 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Needle Threader Screw sewing machine part or accessory For Janome Models: 2039SN, 2040, 2041, 204... | 000097602 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Needle HAX14(single piece) sewing machine part or accessory For Janome Models: HELLO KITTY 3/4, H... | 102408089 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 24 | | Thread take-up lever sewing machine part or accessory For Janome Models: HF1012, HF2022, JD1803, ... | 625506109 | $10.60Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Take-up lever sup. pin unit sewing machine part or accessory For Janome Models: HELLO KITTY 3/4, ... | 731511006 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | NEEDLE BAR CRANK PIN UNIT sewing machine part or accessory For Janome Models: HF1012, HF2022, JA1... | 735504008 | $7.40Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Tension regulator (unit) sewing machine part or accessory For Janome Models: EV7 SRV | 310504504 | $24.80Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Thread guide sewing machine part or accessory For Janome Models: EV7 SRV | 310066004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Spring pin 1.6x18 sewing machine part or accessory For Janome Models: MC200E, MC350E, Necchi EC10... | 000024505 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Tension release arm (unit) sewing machine part or accessory For Janome Models: 2003P, 2118S, 2139... | 739605002 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Thread release base sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 211... | 739017001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Thread release arm sewing machine part or accessory For Janome Models: 2003P, 2041, 2041LX, 2041N... | 739018002 | $1.60Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Tension release spring sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, ... | 739019003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |

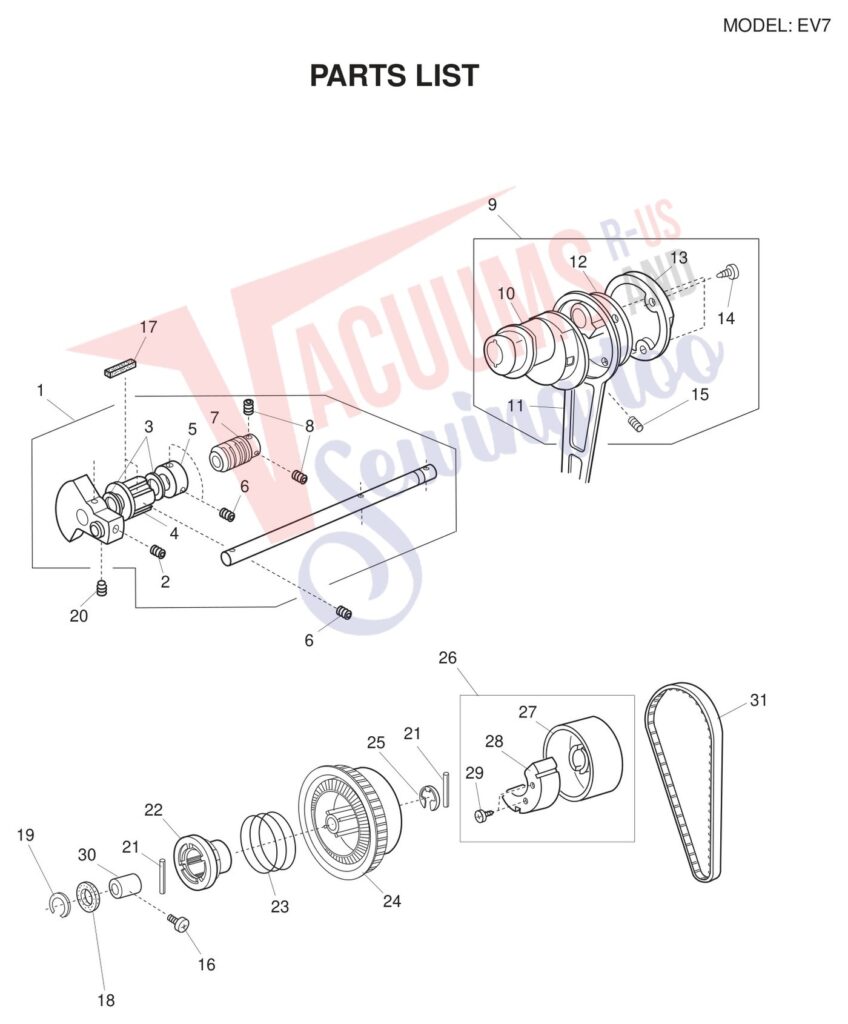

| # | Part image | Description | SKU | Price |

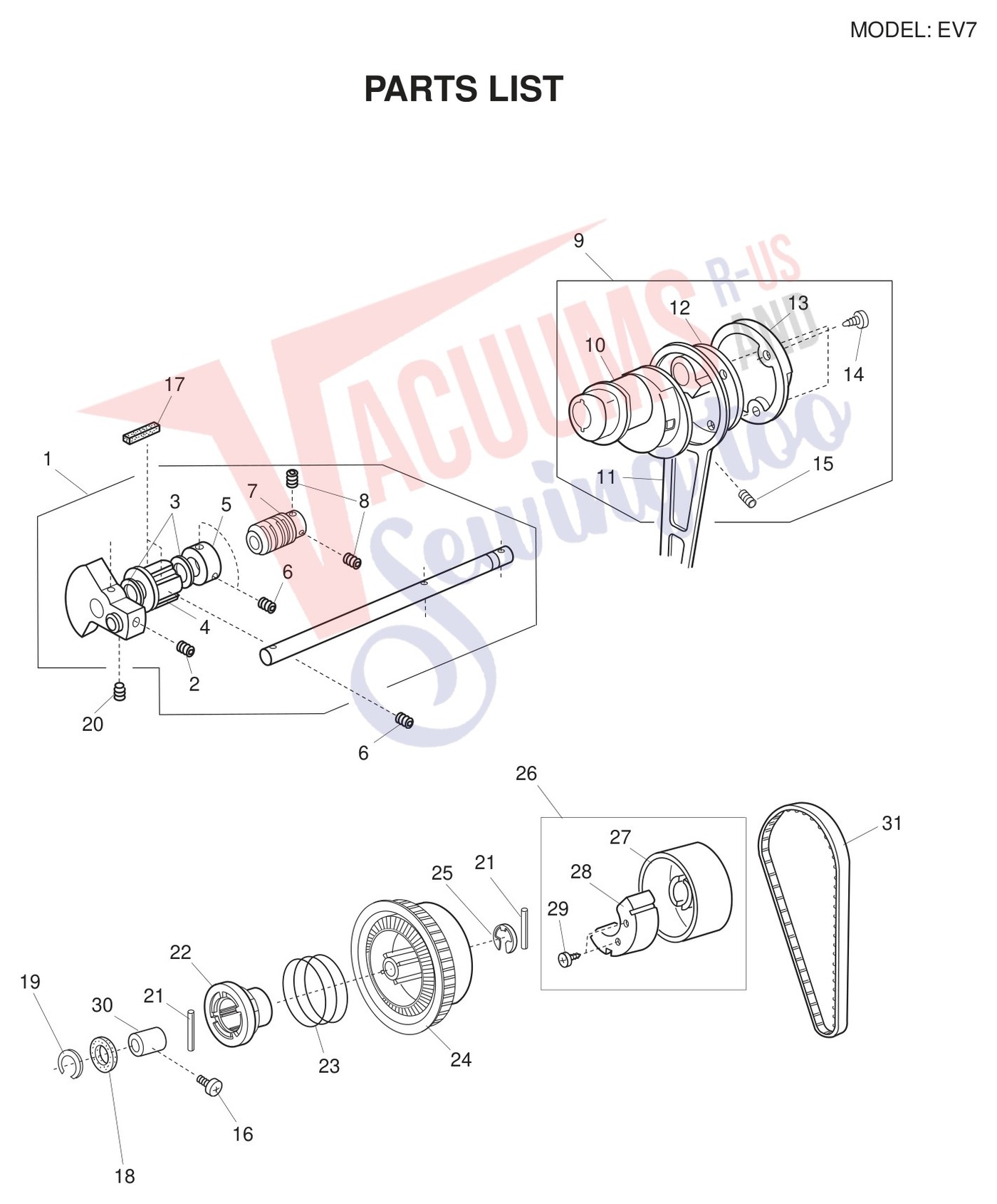

| 1 | | Upper shaft (unit) sewing machine part or accessory For Janome Models: EV7 SRV | 310602008 | $22.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2... | 102073003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Washer sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 20... | 000036717 | $0.80Read more |
| 4 |  | Upper shaft front bushing sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039S... | 732025001 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1600P, 1600P-DB, 1600P-... | 639095000 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 7 | Not Available | Worm | 749011109 | Not Available |
| 8 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Crank rod (unit) sewing machine part or accessory For Janome Models: 2212, 2206, Necchi EV7 | 304609006 | $8.80Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Feed cam sewing machine part or accessory For Janome Models: 2212, 2206, Necchi EV7 | 304042005 | $0.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Crank rod sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX,... | 743011008 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Crank cam sewing machine part or accessory For Elna Models: EL1000 | 304044007 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Crank cam plate sewing machine part or accessory For Janome Models: 2212, 2206, Necchi EV7 | 304043006 | $0.00Read more |
| 14 |  | SET SCREW sewing machine part or accessory For Janome Models: T923, TB30 2212, 2206, Necchi EC100... | 000161309 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 1... | 000110107 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Setscrew 5x8 sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 2041... | 000172602 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Felt sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 2041... | 731312005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Felt sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 2041... | 743029009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Felt holder sewing machine part or accessory For Janome Models: 1522PG | 310069007 | $0.40Read more |
| 20 | | Setscrew sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 2041, 20... | 761052007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | SPRING PIN 3X30 sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 405,... | 000024206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | clutch ring sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 405, 411... | 502064003 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | clutch spring sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 405, 4119 (QUIL... | 502065004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | belt wheel sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S, MC200E, MC30... | 303025009 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Snap Ring sewing machine part or accessory For Janome Models: 1017, 1117S, 1600P-QC, 2003P, 2018S... | 000030205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Handwheel (unit) sewing machine part or accessory For Janome Models: EV7 SRV | 310619503 | $4.00Read more |
| 27 | | Handwheel sewing machine part or accessory For Janome Models: EV7 SRV | 310007502 | $3.00Read more |
| 28 |  | Balance weight sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 20... | 743030003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | SET SCREW sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2... | 000121400 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | UPPER SHAFT REAR BUSHING S650 sewing machine part or accessory For Janome Models: 2003P, 2018S, 2... | 732003003 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Motor Belt sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX... | 650166008 | $10.00Add to cart Special order: ships in 2 to 4 weeks |

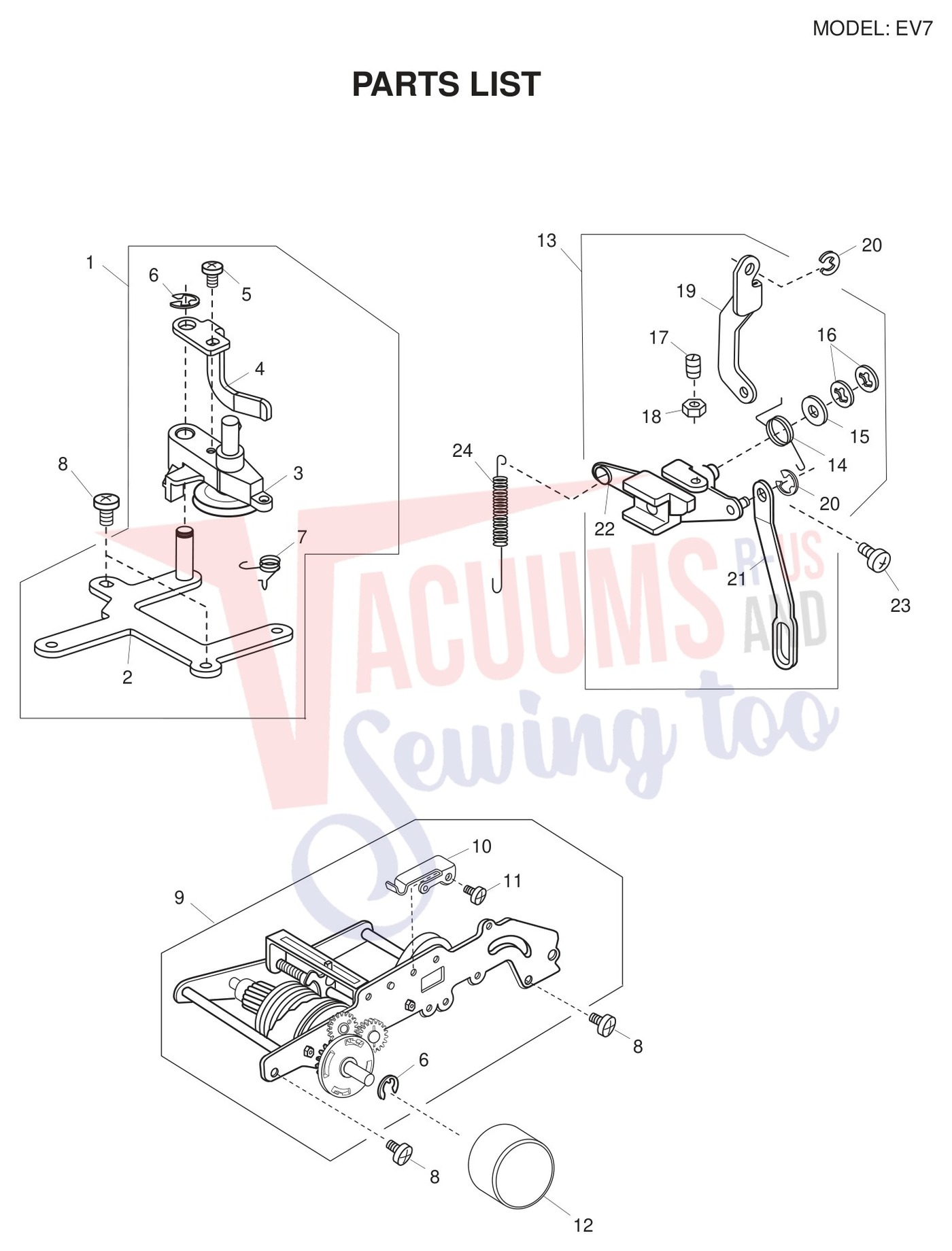

| # | Part image | Description | SKU | Price |
| 1 |  | Bobbin winder support plate (unit) sewing machine part or accessory For Janome Models: EV7 SRV | 310601007 | $14.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Bobbin winder support plate sewing machine part or accessory For Janome Models: EV7 SRV | 310001001 | $5.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Bobbin winder arm (unit) sewing machine part or accessory For Janome Models: EV7 SRV | 310501006 | $7.20Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Clutch opener plate sewing machine part or accessory For Janome Models: EV7 SRV | 310003003 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Bobbin winder spring sewing machine part or accessory For Janome Models: MC200E, Necchi EC100, Ne... | 505071002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Zigzag mechanism (unit) sewing machine part or accessory For Janome Models: EV7 SRV | 310611000 | $35.80Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Index spring sewing machine part or accessory For Janome Models: 2206, Necchi EV7 | 659013006 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Dial sewing machine part or accessory For Janome Models: EV7 SRV | 310043153 | $6.60Read more |
| 13 | | Feed regulator (unit) sewing machine part or accessory For Janome Models: EV7 SRV | 310618007 | $13.80Read more |
| 14 |  | FEED REGULATOR BODY SPRING sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039... | 735077007 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Plain washer sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2039S... | 735073003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Snap ring CS-6 sewing machine part or accessory For Janome Models: 1017, 1117S, 1600P, 1600P-DB, ... | 000013800 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Set screw sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S, 20... | 648010009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Feed regulating rod sewing machine part or accessory For Janome Models: 2206, Necchi EV7 | 740096008 | $0.00Read more |
| 20 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 21 | Not Available | Reverse link | 310058003 | Not Available |
| 22 | | Screw sewing machine part or accessory For Janome Models: 2222 V2 | 648012001 | $0.80Read more |
| 23 | | Setscrew 5x8 sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 2041... | 000172602 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Feed Regulator Spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 200... | 670100006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

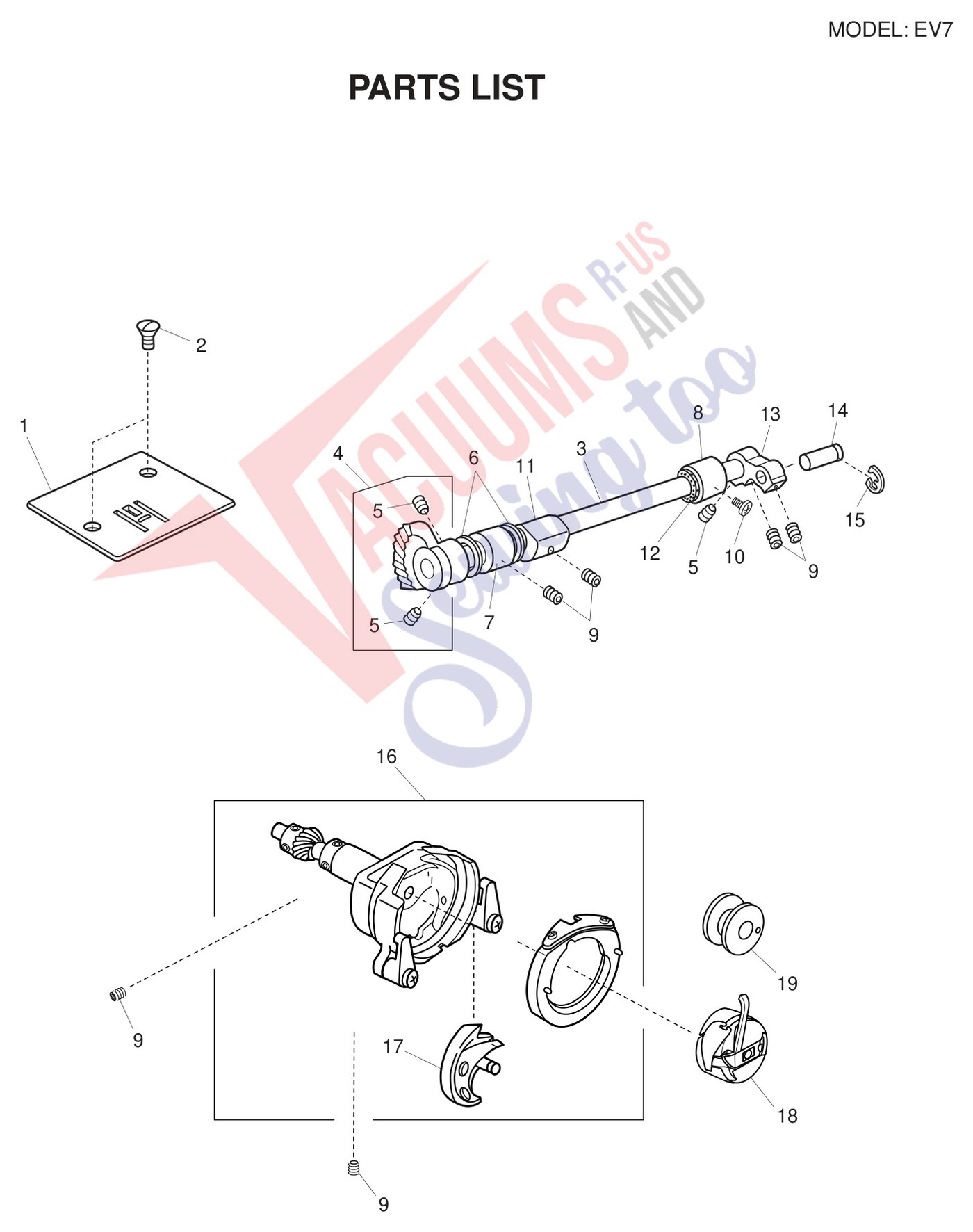

| 1 |  | Needle Plate sewing machine part or accessory For Janome Models: 1117S, 2003P, 2018S, 2039SN, 204... | 744004001 | $16.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Needle Plate Screw sewing machine part or accessory For Janome Models: MC200E, MC2400, MC3000, MC... | 681009101 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | LOWER SHAFT sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041L... | 735236006 | $55.80Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Lower shaft gear sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2... | 735950003 | $9.20Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 1... | 000110107 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | WASHER THRUST FT80 9 8 7 4 31 sewing machine part or accessory For Janome Models: 1117S, 1200D, ... | 000036201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Bushing sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 2... | 735233003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Bushing sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 2... | 735234004 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 10 | | Setscrew 5x8 sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 2041... | 000172602 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Feed lifting cam sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2... | 735061008 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Oil Felt Ring sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 204... | 822070003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Lower shaft crank arm sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 203... | 639036003 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Pin sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2039SN, 2041, ... | 639037004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | SHUTTLE BODY UNIT FOR JF1004 sewing machine part or accessory For Janome Models: 1017, 1117S, 200... | 735610101 | $111.40Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Shuttle Hook sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S... | 532096007 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Bobbin Case/ Holder for Front Loading Machines sewing machine part or accessory For Janome Models... | 647515006 | $12.80Add to cart Special order: ships in 2 to 4 weeks |
| 19 | Not Available | Plastic bobbin | 102261000 | Not Available |
| # | Part image | Description | SKU | Price |

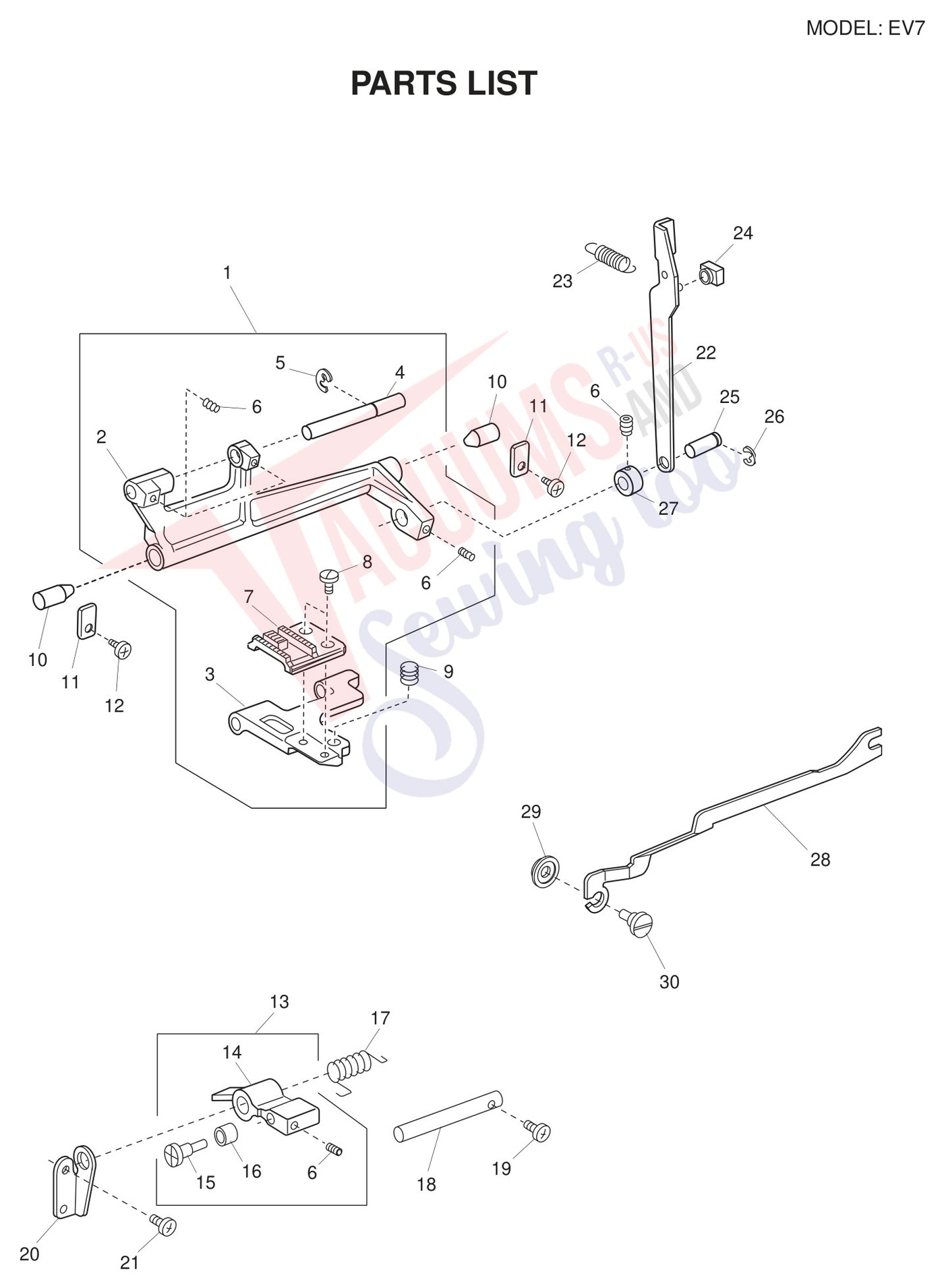

| 1 |  | FEED ROCK SHAFT UNIT sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 20... | 735612000 | $48.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Feed rock shaft sewing machine part or accessory For Elna Models: EL1000 | 735078008 | $7.40Read more |
| 3 |  | Feed bar sewing machine part or accessory For Elna Models: EL1000 | 735079009 | $6.80Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Feed bar shaft sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 20... | 735080003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Feed Dog sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, ... | 735081004 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Setscrew sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2039SN, 2... | 735082005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Feed bar spring sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2... | 735083006 | $0.60Read more |
| 10 |  | FEED ROCK SHAFT CENTER sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, ... | 735084007 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | UPPER SHAFT CTR HOLDING PLATE sewing machine part or accessory For Janome Models: 2003P, 2018S, 2... | 735085008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Feed lifting arm (unit) sewing machine part or accessory For Janome Models: JS1008LE, Necchi EV7 | 301608006 | $4.80Read more |
| 14 |  | Feed lifting arm sewing machine part or accessory For Janome Models: 2018S, 2039SN, 2041S, 2041S ... | 301027005 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Feed lifting pin sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, ... | 735087000 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Feed lifting roller sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 204... | 735088001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | FEED LIFTING SPRING sewing machine part or accessory For Janome Models: 2003P, HF1012, JA1504-151... | 735089002 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Feed lifting shaft sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041... | 735090006 | $1.60Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Feed lifting shaft holder sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039S... | 739022009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | SET SCREW 4X6 5500 4123 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000081119 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | FEED ROD FOR JF1004 sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 204... | 743012009 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | FEED ROD SPRING sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2... | 743013000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Feed Slide Block sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2... | 102141003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Feed rock shaft connecting pin sewing machine part or accessory For Janome Models: 2212, 2206, Ne... | 735071104 | $0.00Read more |
| 26 |  | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Ring sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 2041... | 735276008 | $1.40Read more |
| 28 |  | ZIG ZAG ROD sewing machine part or accessory For Janome Models: 2018S, 2039SN, 2118S, 2139N, 2139... | 735119002 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Zigzag rod sewing machine part or accessory For Janome Models: HF1012, HF2022, JD1803, JD1803, JD... | 748021006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Zz rod eccentric pin sewing machine part or accessory For Janome Models: HF1012, HF2022, HF3000, ... | 678084007 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

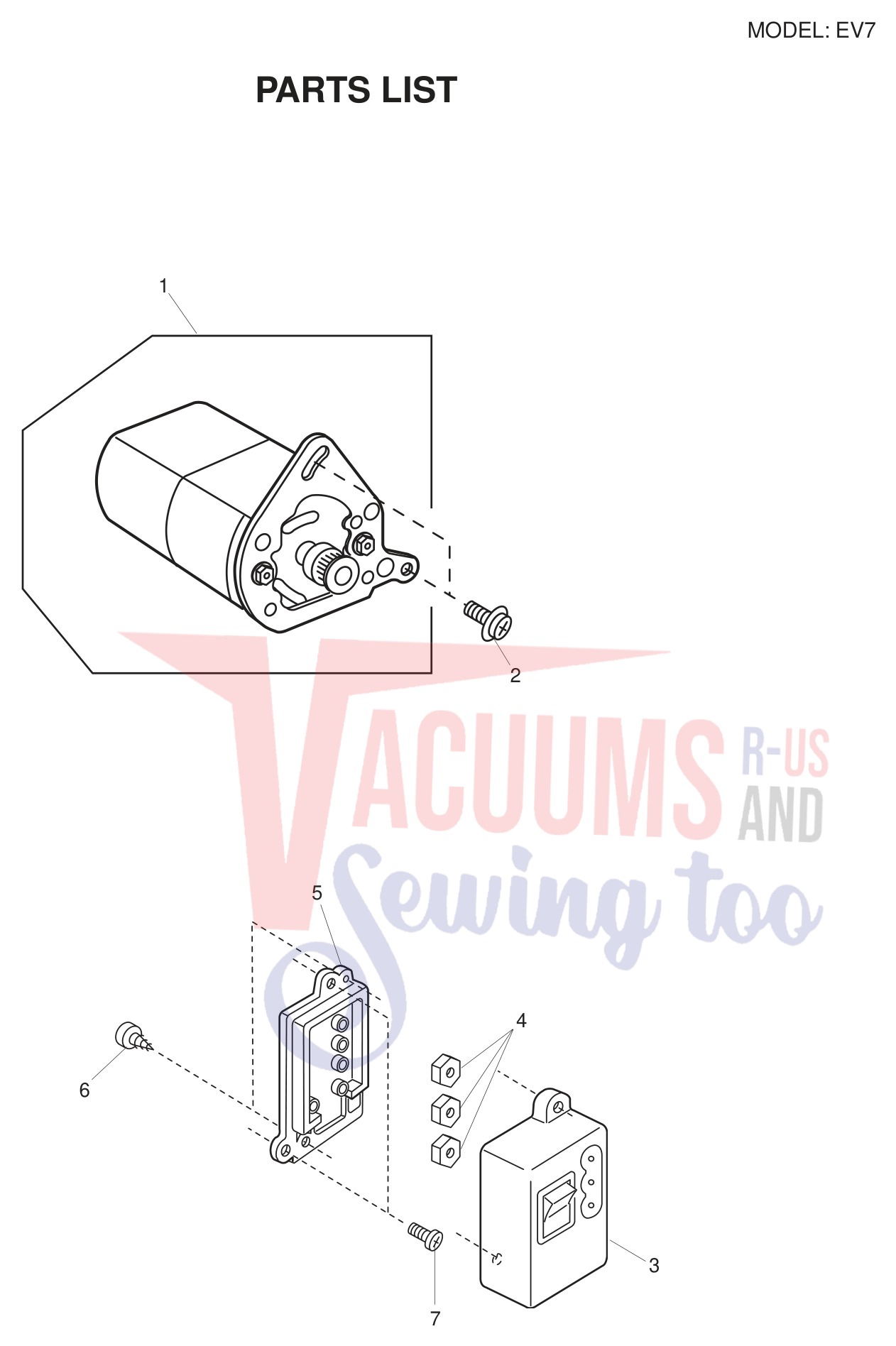

| 1 | | Motor (120 v) sewing machine part or accessory For Janome Models: 2139N, 2139S, 2149SX, HF1012, J... | 743612005 | $60.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | MOTOR SET SCREW 2018E 5X10-7 7 sewing machine part or accessory For Janome Models: 1017, 104, 106... | 000115504 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Machine socket unit sewing machine part or accessory For Janome Models: 2039SN, 2041, 2041LX, 204... | 739505403 | $17.20Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Nut sewing machine part or accessory For Janome Models: 2003P, 2039SN, 2041, 2041LX, 2041NX, 2041... | 000060802 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Socket Lid sewing machine part or accessory For Janome Models: 2003P, 2039SN, 2041, 2041LX, 2041N... | 739037007 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | +PAN HEAD TAP TIGHT SCREW 3X10 sewing machine part or accessory For Janome Models: 1117S, 134D, 2... | 000107802 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

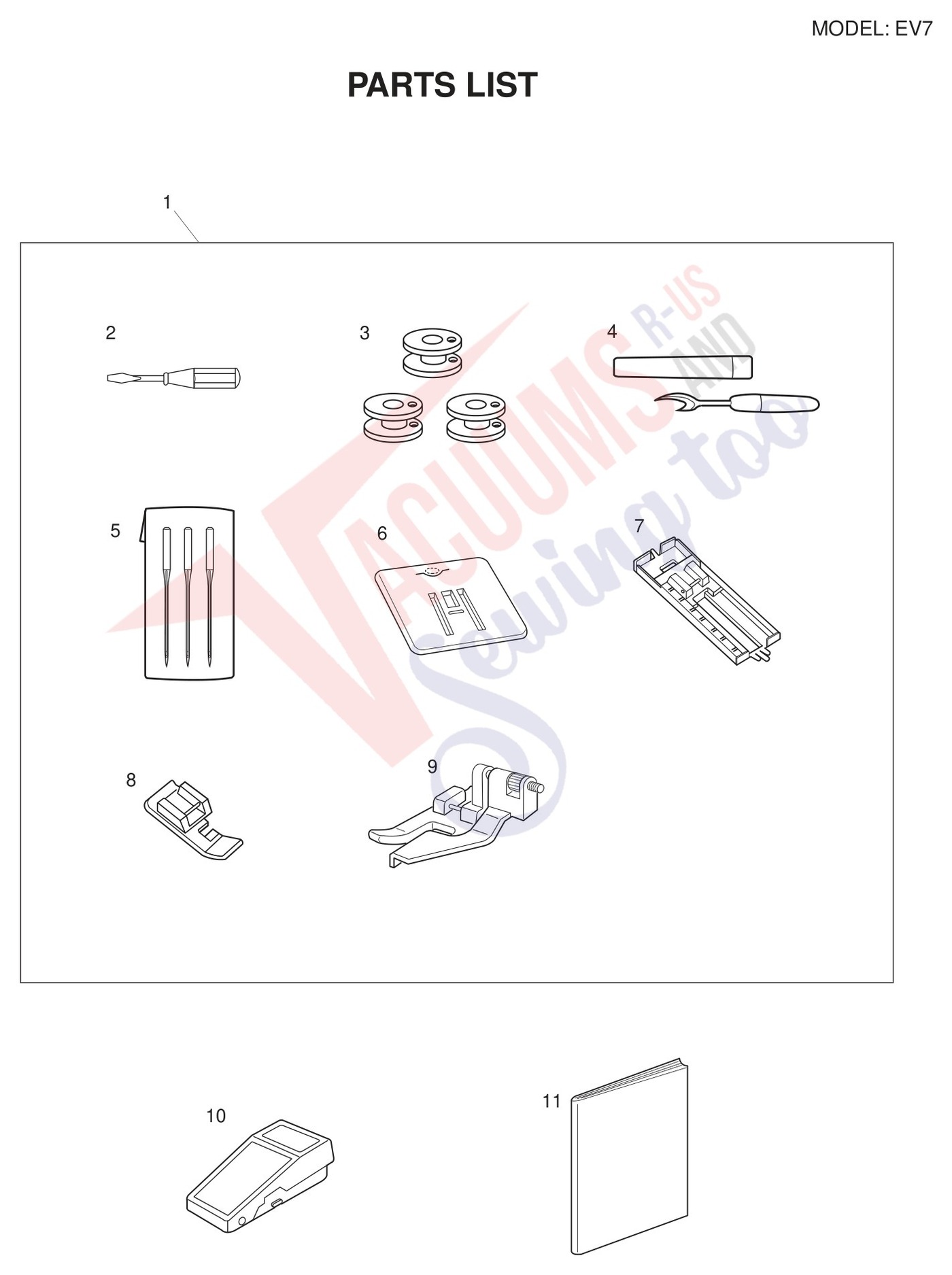

| 1 | | Accessories (unit) sewing machine part or accessory For Janome Models: EV7 SRV | 310870009 | $17.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Genuine Janome/Elna Small screw driver For: 104, 106, 108, 110, 1110DX, 134D, 1600P, 1600P-DB, ... | 647803004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | Not Available | Plastic bobbin | 102261000 | Not Available |
| 4 |  | SEAM RIPPER/BUTTONHOLE OPENER sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 647808009 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Organ needle set #14 sewing machine part or accessory Organ needle set #14Use with: All Janome ... | 639804000 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Genuine Janome/Elna DARNING PLATE 639 & JA1508 For: 2003P, Necchi EV7, Necchi EV7 | 735801008 | $3.50Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Buttonhole Foot (sliding 5mm front load) sewing machine part or accessory For Janome Models: HD-1... | 611413002 | $8.10Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Zipper Foot (front load) sewing machine part or accessory For Janome Models: HD-1000, JA104, JA10... | 611406002 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Blind Stitch Hem Foot (5mm) sewing machine part or accessory For Janome Models: HD-1000, JA104, J... | 611411000 | $11.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Elna and Janome Foot Control and Power Cord | C1028 | $49.99Add to cart |
| 11 |  | Instruction book sewing machine part or accessory For Janome Models: EV7 SRV | 310800215 | $6.99Add to cart Special order: ships in 2 to 4 weeks |
Report errors on this page HERE
