Schematic and parts book for Miele SWDL0 Triflex HX3 - SWDL0. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

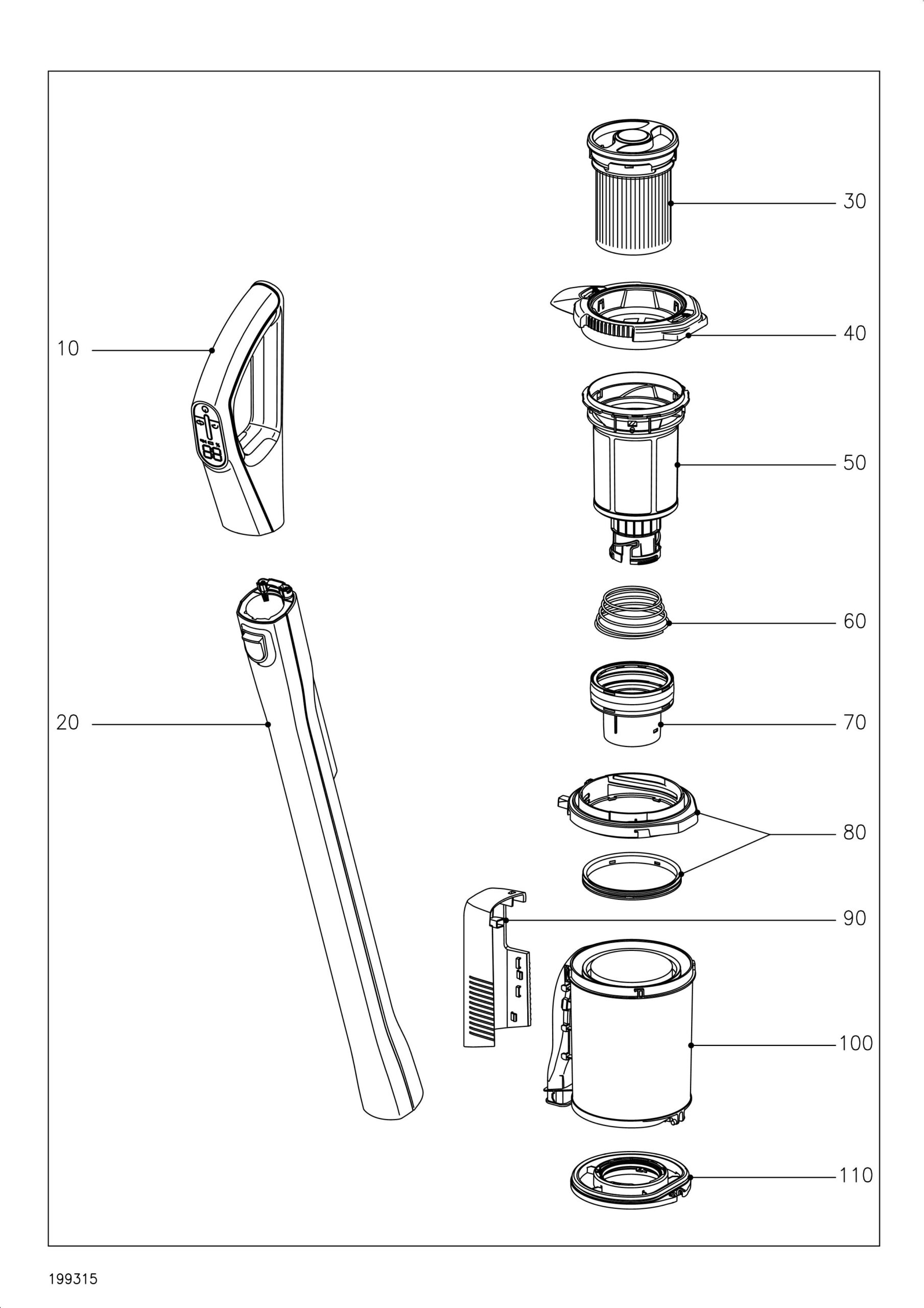

| # | Part image | Description | SKU | Price |
| 10 | No Image | Handle Brlws Assy | 12682133 | $189.00Read more |
| 20 | No Image | Suction Pipe Brws Assy | 12774320 | $129.00Read more |
| 30-110 | No Image | Separator Spcgr Assy | 12647533 | $329.00Read more |
| 30 | No Image | Fine Dust Filter | 13070280 | $0.00Read more |
| 40-70 | No Image | Pre-Filter Sub-Assembly Kd | 13028050 | $0.00Read more |
| 40 | No Image | Top Pre-Filter | 11836771 | $21.62Read more |
| 50 | No Image | -Pre-Filter Spcgr Assy | 12645893 | $109.00Read more |
| 60 | No Image | -Spring Separator | 11026091 | $15.00Read more |
| 70 | Not Available | -Vent duct | 10833433 | Not Available |
| 80 | No Image | Centering Ring Kd | 13028290 | $21.62Read more |
| 80 | No Image | Seal Top | 10833372 | $22.00Read more |
| 90 |  | Genuine Miele Cover Air channel | 10833502 | $36.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | | Genuine Miele Container Stuck KRGR assy | 11685320 | $95.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 110 | | Genuine Miele Flap | 11969530 | $47.00Add to cart Product is special order please allow 2-4 weeks for delivery. |

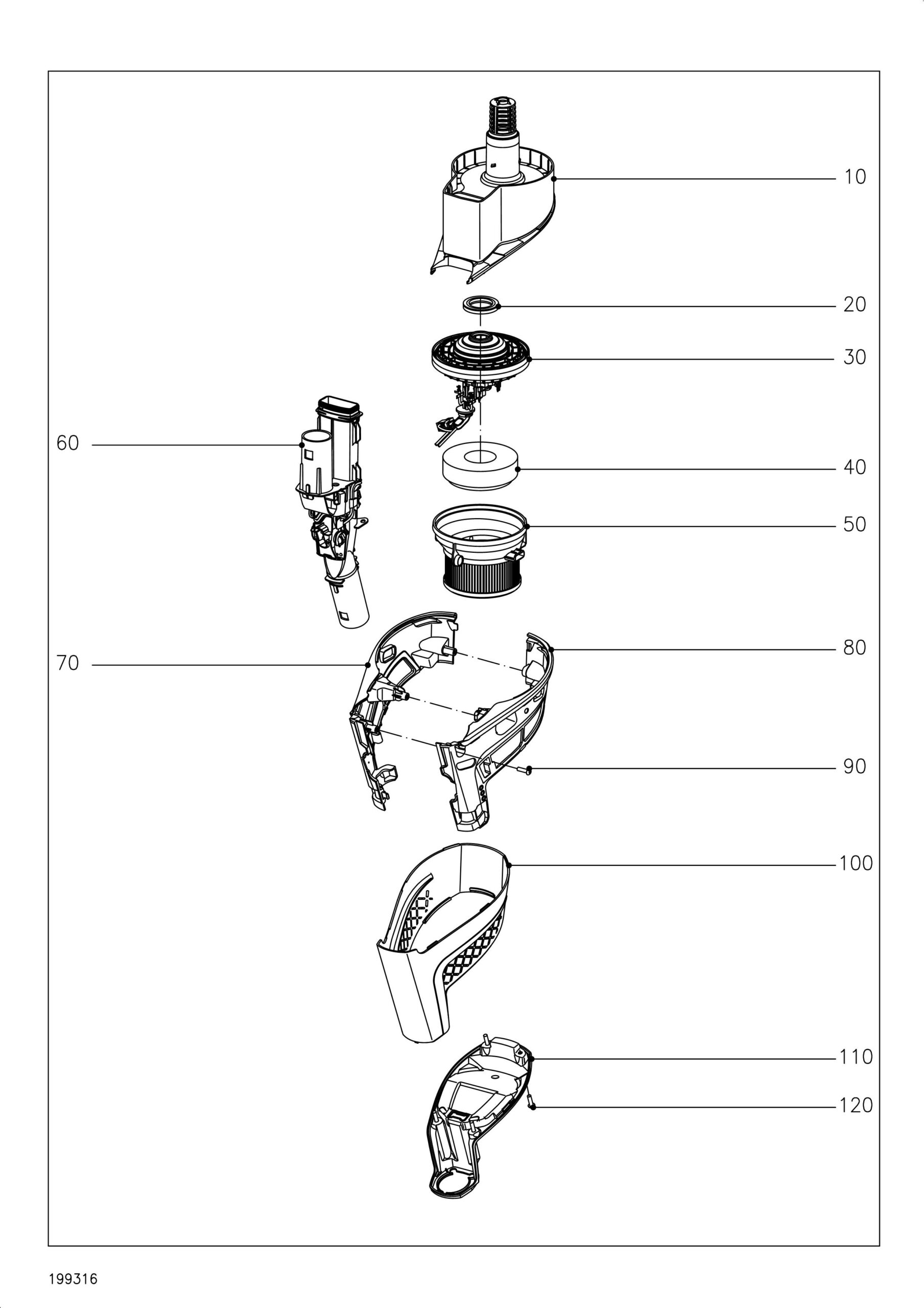

| # | Part image | Description | SKU | Price |
| 10 | | Genuine Miele Cover Motor housing | 11970750 | $98.00Read more |
| 20 | | Genuine Miele Sealing ring | 11544970 | $2.30Read more |
| 30 | No Image | Fan Mpg00-028 | 12764110 | $0.00Read more |
| 40 | | Genuine Miele Ring Polyurethane foam | 11599060 | $3.60Read more |
| 50 | No Image | Air Outlet Filter Hepa-Lifetime H13 | 11864671 | $100.00Read more |
| 60 | No Image | Bracket Electric S27013 Assy | 12680154 | $239.00Read more |
| 70 | | Genuine Miele Casing insert left assy | 10832432 | $59.40Read more |
| 80 | | Genuine Miele Casing insert right assy | 10832422 | $59.40Read more |
| 90 | | Genuine Miele Raised head screw 4,0X14 | 11058150 | $2.30Read more |
| 100 | No Image | Cover Frame Brlws Sw | 12774680 | $36.00Read more |
| 110 | | Genuine Miele Cover bottom | 10832444 | $39.50Read more |
| 120 | | Genuine Miele Raised head screw 4,0X14 | 11058150 | $2.30Read more |

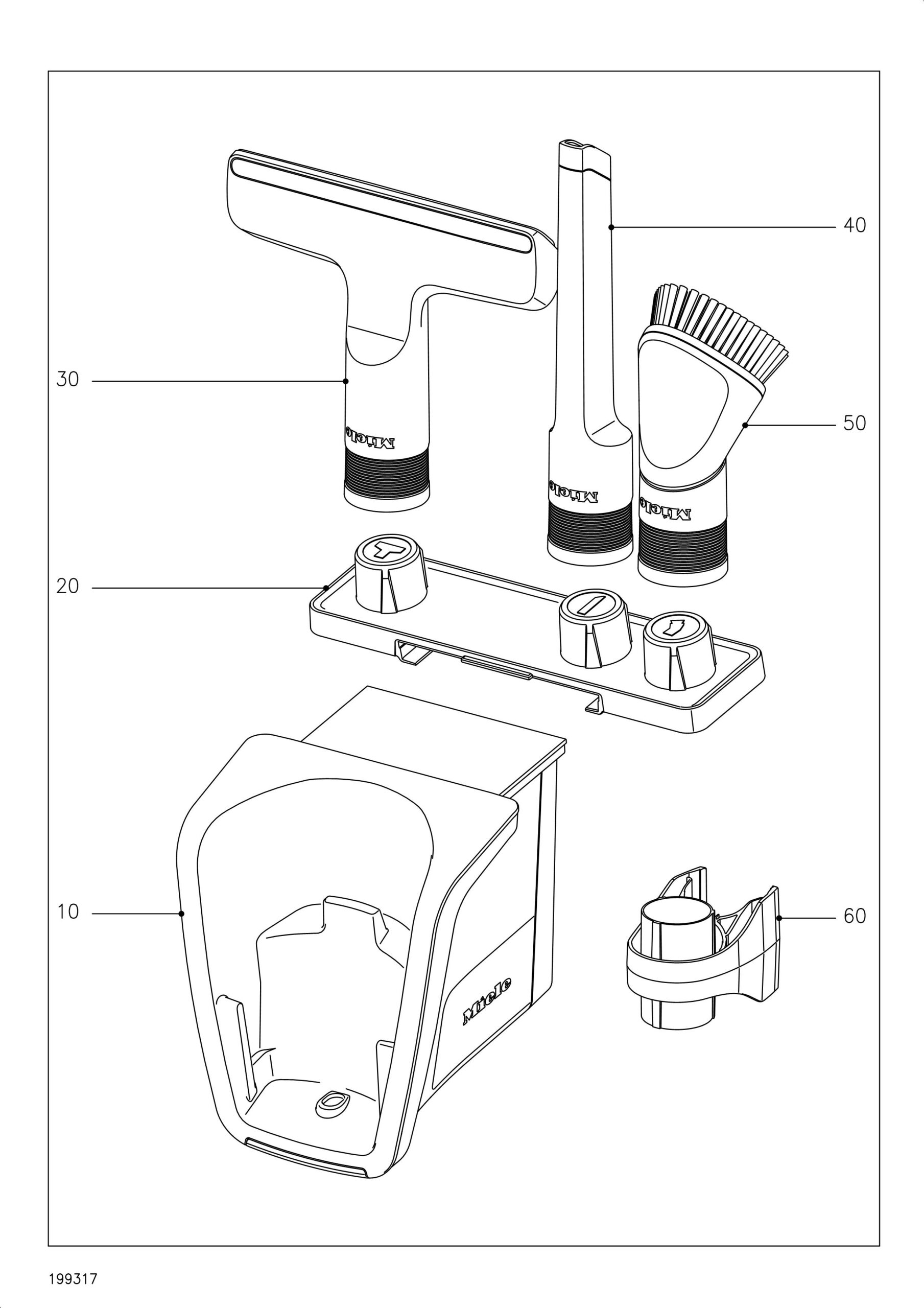

| # | Part image | Description | SKU | Price |
| w/o fig. | No Image | Universal Brush | 12410960 | $34.00Read more |
| w/o fig. | No Image | Flexible Hose | 12395710 | $0.00Read more |
| 10 | | Genuine Miele Wall bracket Bagged assy | 12014871 | $100.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele Shelf Accessory | 10833651 | $10.70Read more |
| 30 | No Image | Upholstery Nozzle | 12518950 | $0.00Read more |
| 40 | No Image | Crevice Nozzle | 12518930 | $16.70Read more |
| 50 | No Image | Dusting Brush | 12395490 | $24.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | No Image | Accessories Holder | 13066020 | $0.00Read more |

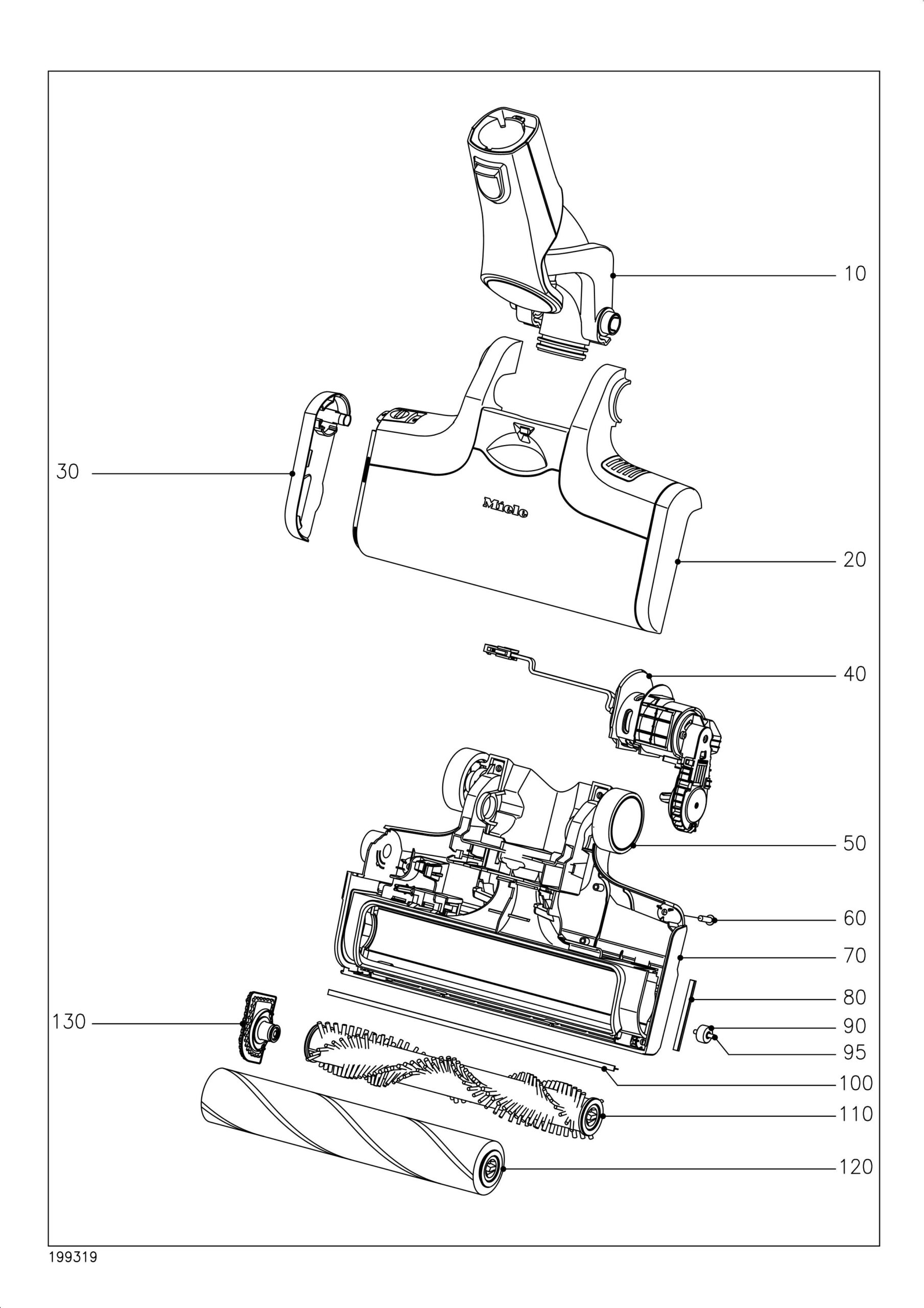

| # | Part image | Description | SKU | Price |
| w/o fig. | No Image | Casing Insert | 10834886 | $27.00Read more |
| 10-130 | No Image | Electro-Brush Obsw | 13118760 | $0.00Read more |
| 10 | No Image | Linkage Brlws/ Sg | 12774830 | $100.00Read more |
| 10 | No Image | Linkage Obsw/ Sg | 12774820 | $56.00Read more |
| 20 | No Image | Casing Top Assy | 11572091 | $56.00Read more |
| 30 | | Genuine Miele Flap | 10834871 | $6.60Read more |
| 40 | No Image | Motor Mgb 03 | 12477351 | $119.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | | Genuine Miele Support roller | 10835062 | $11.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | | Genuine Miele Raised head screw 4,0X14 | 11058150 | $2.30Read more |
| 70-95 | No Image | Casing Bottom Assy | 12030611 | $83.00Read more |
| 80 | | Genuine Miele Brush Seal 5Stck. | 11564270 | $10.70Read more |
| 90 |  | Genuine Miele Support roller front | 10835083 | $16.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 95 |  | Genuine Miele Shaft front | 10835070 | $2.50Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | No Image | Sealing Lip Short | 11507701 | $20.00Read more |
| 110 | | Genuine Miele Brush roller Power assy | 11936221 | $41.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 120 | No Image | Hardfloor Care Tool | 13066030 | $0.00Read more |
| 130 | | Genuine Miele Handle Brush roller assy | 10832394 | $15.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
