Schematic and parts book for Miele SVXF0 SVXF0 Guard M1. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

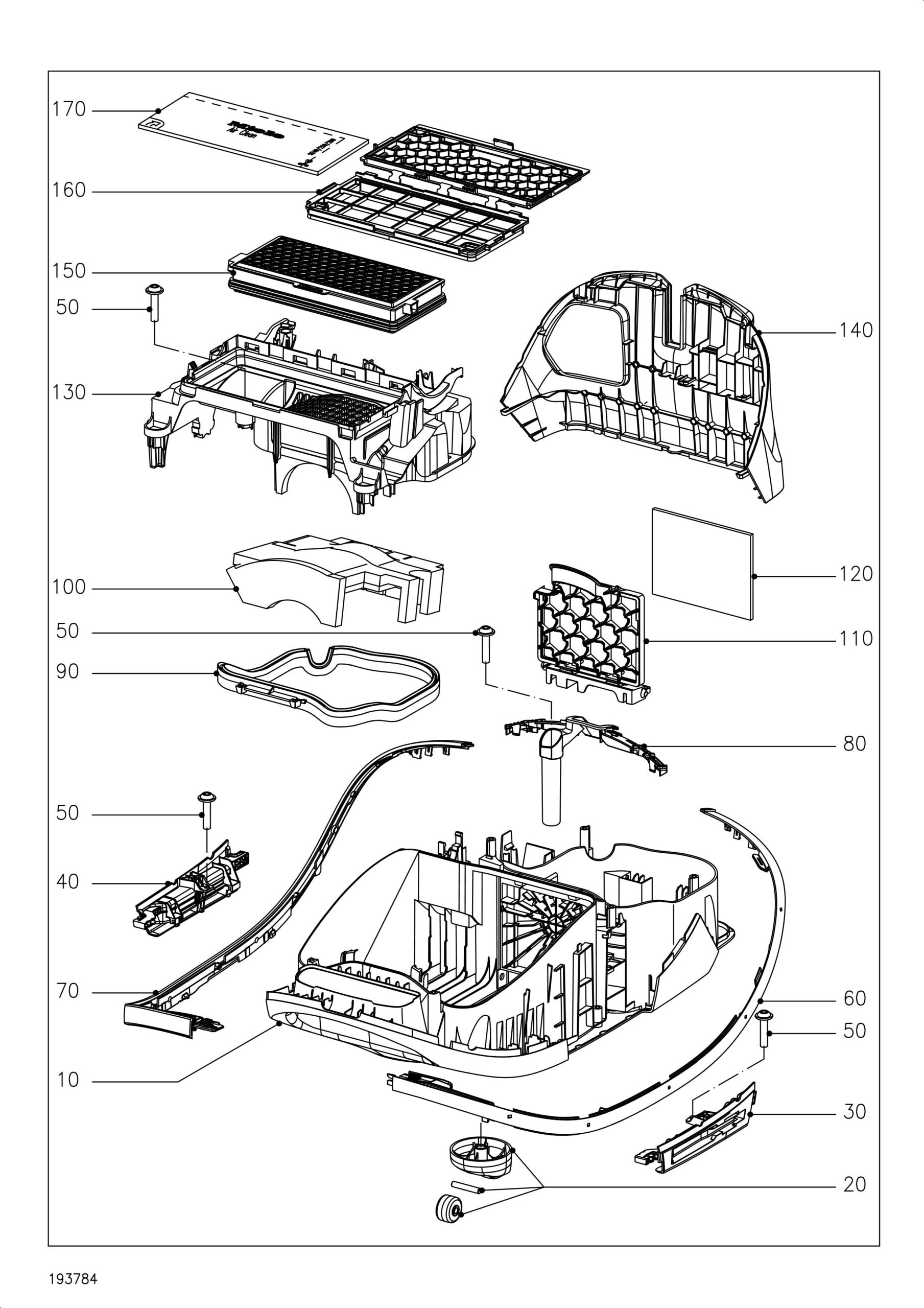

| # | Part image | Description | SKU | Price |
| 10 | No Image | Casing Bottom Csgr | 12534793 | $91.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | No Image | -Slide Skid Obsw Assy | 12494260 | $11.00Read more |
| 30 | No Image | Suspension Telescopic Pipe Left Csgr | 12534770 | $12.31Read more |
| 40 | No Image | Suspension Telescopic Pipe Right Csgr | 12534760 | $12.31Read more |
| 50 |  | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 60 | No Image | Buffer Left | 12332003 | $15.00Read more |
| 70 | No Image | Buffer Right | 12332014 | $15.53Read more |
| 80 | No Image | Funnel Parking | 12332021 | $11.16Read more |
| 90 |  | Genuine Miele Seal Motor housing | 7780793 | $13.50Read more |
| 100 | | Genuine Miele Damping plate Mounting plate | 7781553 | $20.00Read more |
| 110 | No Image | Filter Frame | 10844263 | $17.25Read more |
| 120 |  | Genuine Miele Dust compart.filter 3 pcs. | 6713110 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 | No Image | Mounting Plate Obsw | 12507420 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 140 | No Image | Rear Panel Csgr | 12507412 | $12.31Read more |
| 150 | No Image | Act.Air Cleanfilter | 12785350 | $49.00Add to cart Special order: ships in 2 to 4 weeks |
| 150 | No Image | Hepa-Filter | 12785390 | $64.00Add to cart Special order: ships in 2 to 4 weeks |
| 150 | No Image | Air-Clean Filter Silence | 12785400 | $0.00Read more |
| 150 | No Image | Air-Clean Filter Plus | 12868930 | $0.00Add to cart Special order: ships in 2 to 4 weeks |
| 160 | No Image | Spacer Bracket Air-Clean Filter | 12550741 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 170 |  | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $13.00Add to cart Special order: ships in 2 to 4 weeks |

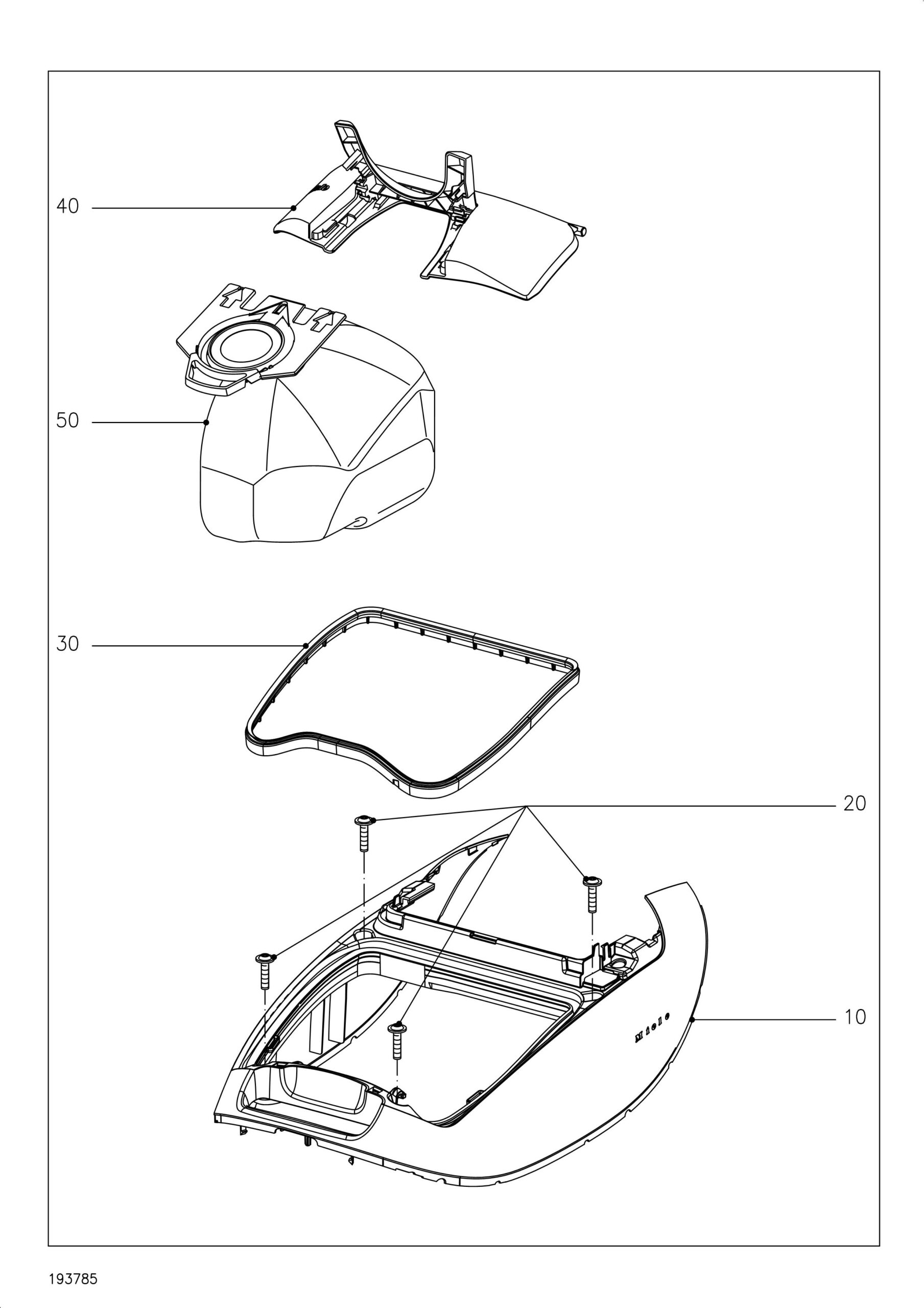

| # | Part image | Description | SKU | Price |
| 10 | No Image | Cover Frame Brlws | 12351774 | $63.00Read more |
| 20 | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 30 | | Genuine Miele Seal für Staubraum | 7793083 | $13.50Read more |
| 40 | No Image | Bracket Vacuum Cleaner Bag Keylock Kd | 12694801 | $20.00Read more |
| 50 | No Image | Vacuum Cleaner Bag Co Hyclean Pure Int | 12557080 | $0.00Read more |

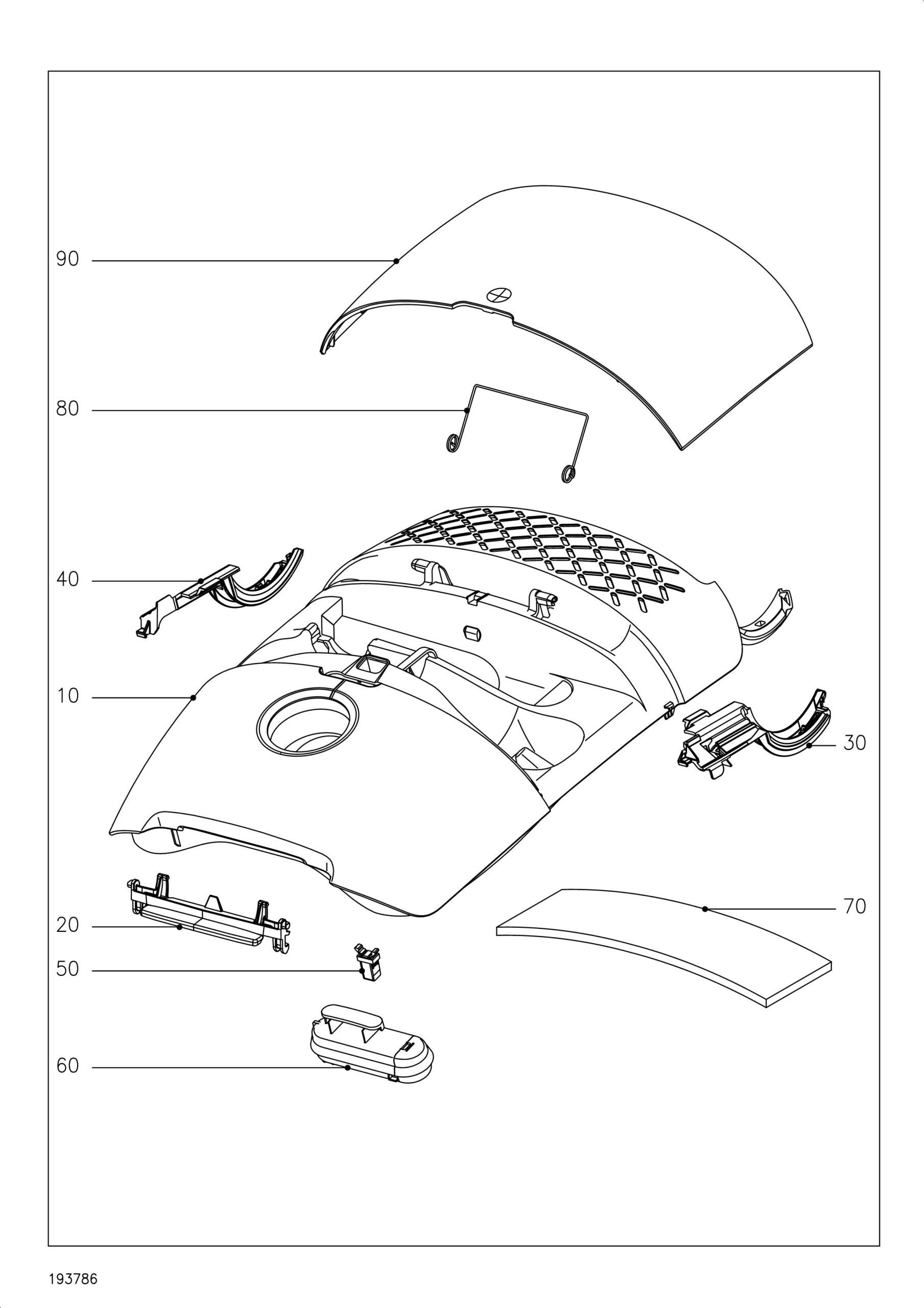

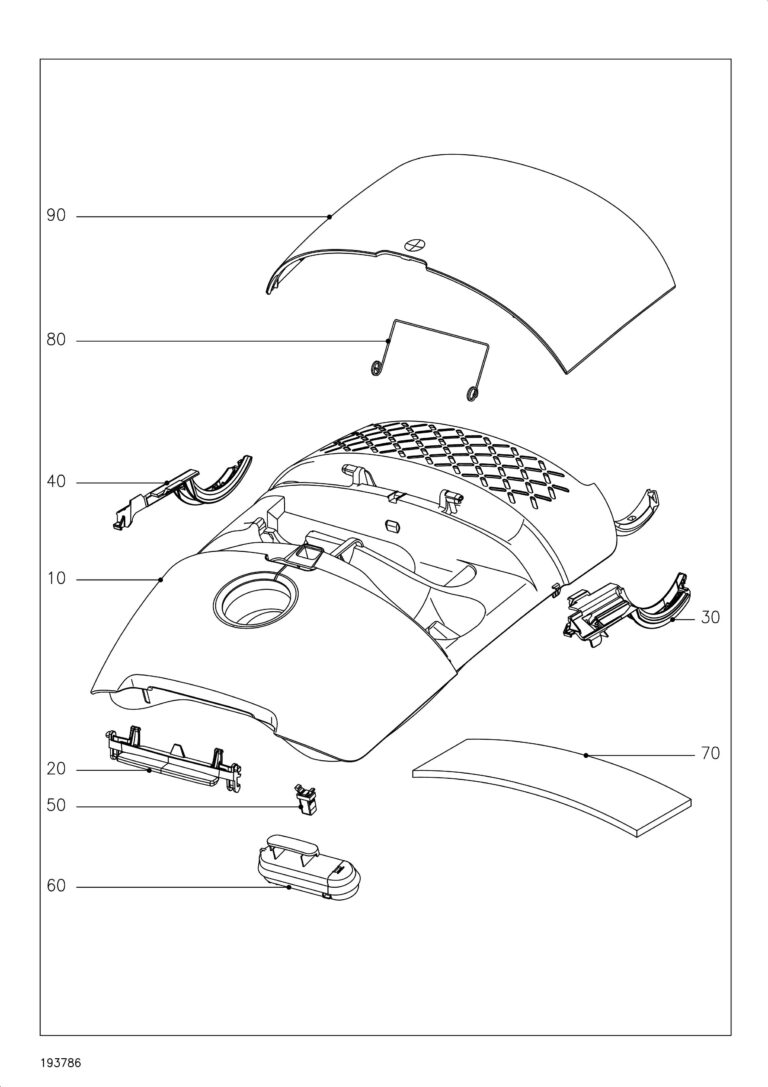

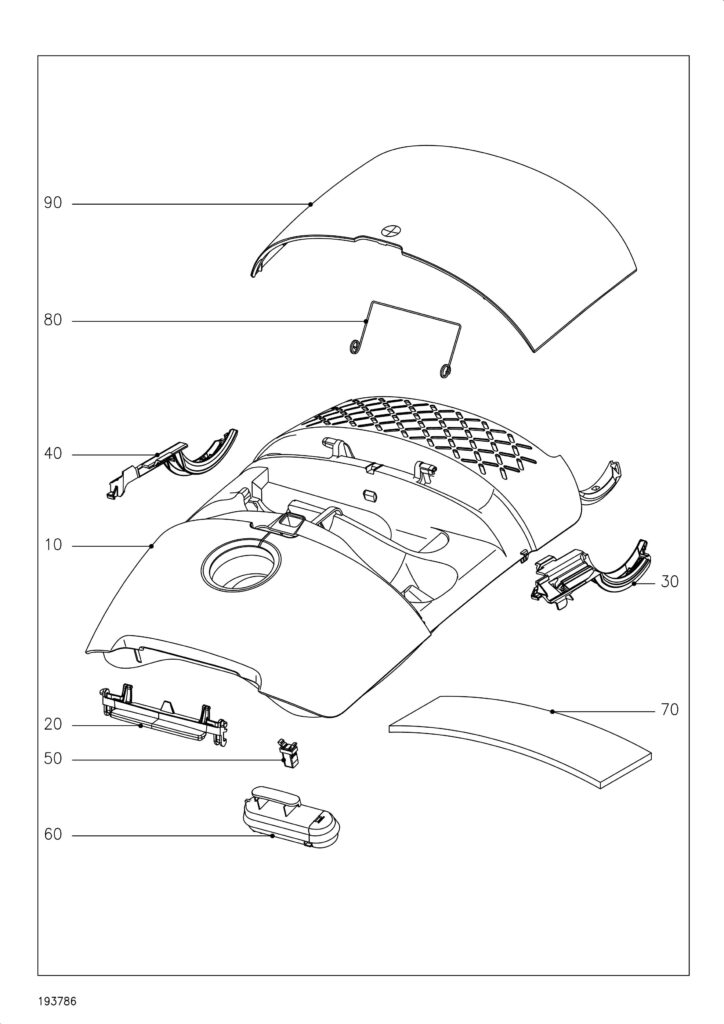

| # | Part image | Description | SKU | Price |
| w/o fig. | No Image | Bracket Lid Opener | 12332932 | $2.50Read more |
| 10 | No Image | Casing Top Brlws | 12334044 | $56.00Read more |
| 20 | No Image | Lock Obsw | 12498490 | $5.20Read more |
| 30 | No Image | Reinforcement Left Obsw | 12498500 | $7.00Read more |
| 40 | No Image | Reinforcement Right Obsw | 12498510 | $7.00Read more |
| 50 | No Image | Lid Opener Assy | 12107662 | $11.00Read more |
| 60 | No Image | Change Filter Ind. Assy | 12332763 | $30.00Read more |
| 70 |  | Genuine Miele Insulation matting | 7815232 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| 80 | | Genuine Miele Torsion spring Lid | 7815243 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| 90 | No Image | Lid Brlws | 12333953 | $56.00Read more |

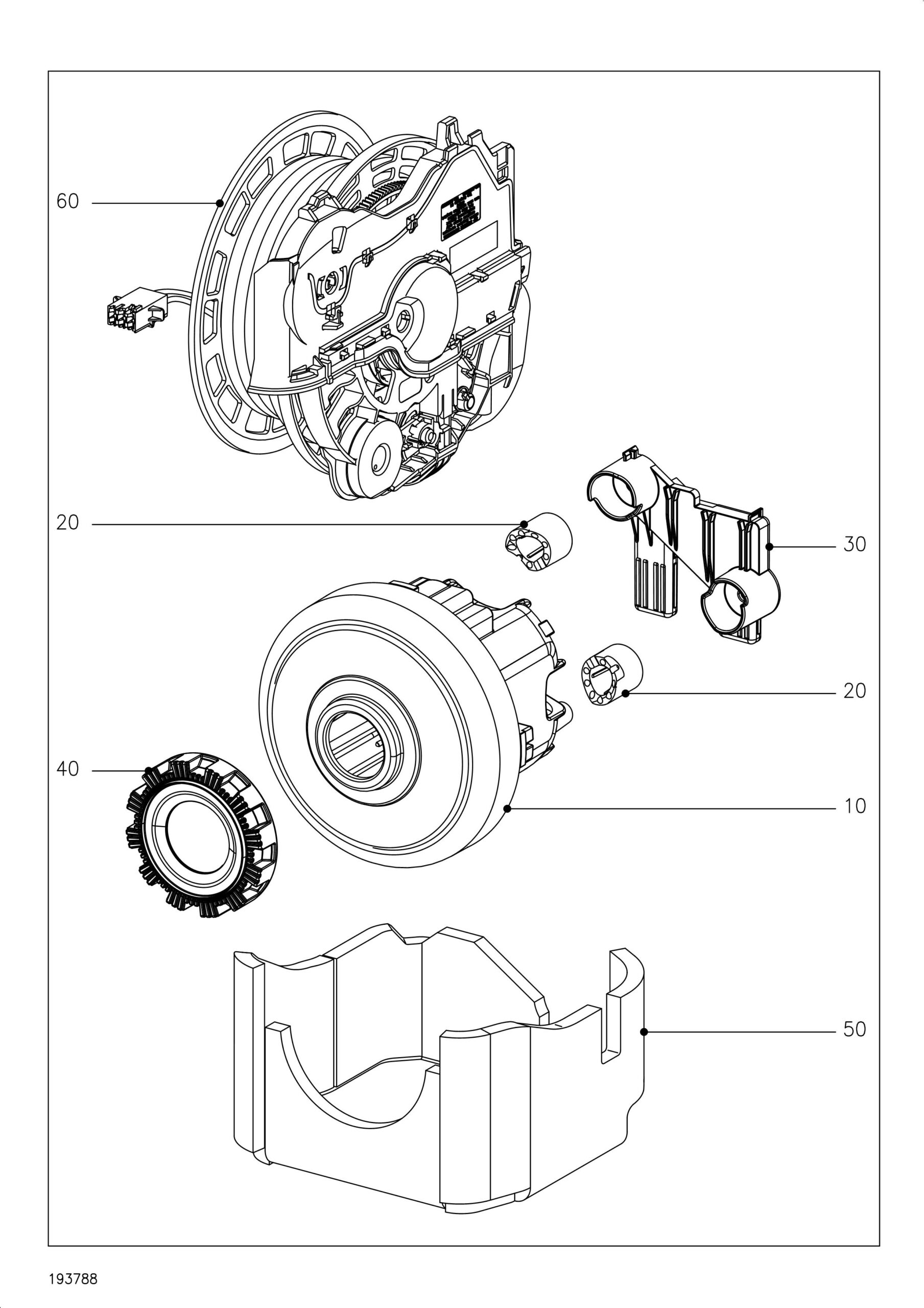

| # | Part image | Description | SKU | Price |
| 20 | No Image | Rubber Cushion 2 Pcs. | 6207002 | $22.00Read more |
| 30 | No Image | Motor Bracket | 11976481 | $2.50Read more |
| 40 | | Genuine Miele Bearing ring V18 | 7714533 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 60 | No Image | Cable Reel Kt20-Eu-7,5/0,75 | 12562671 | $0.00Read more |

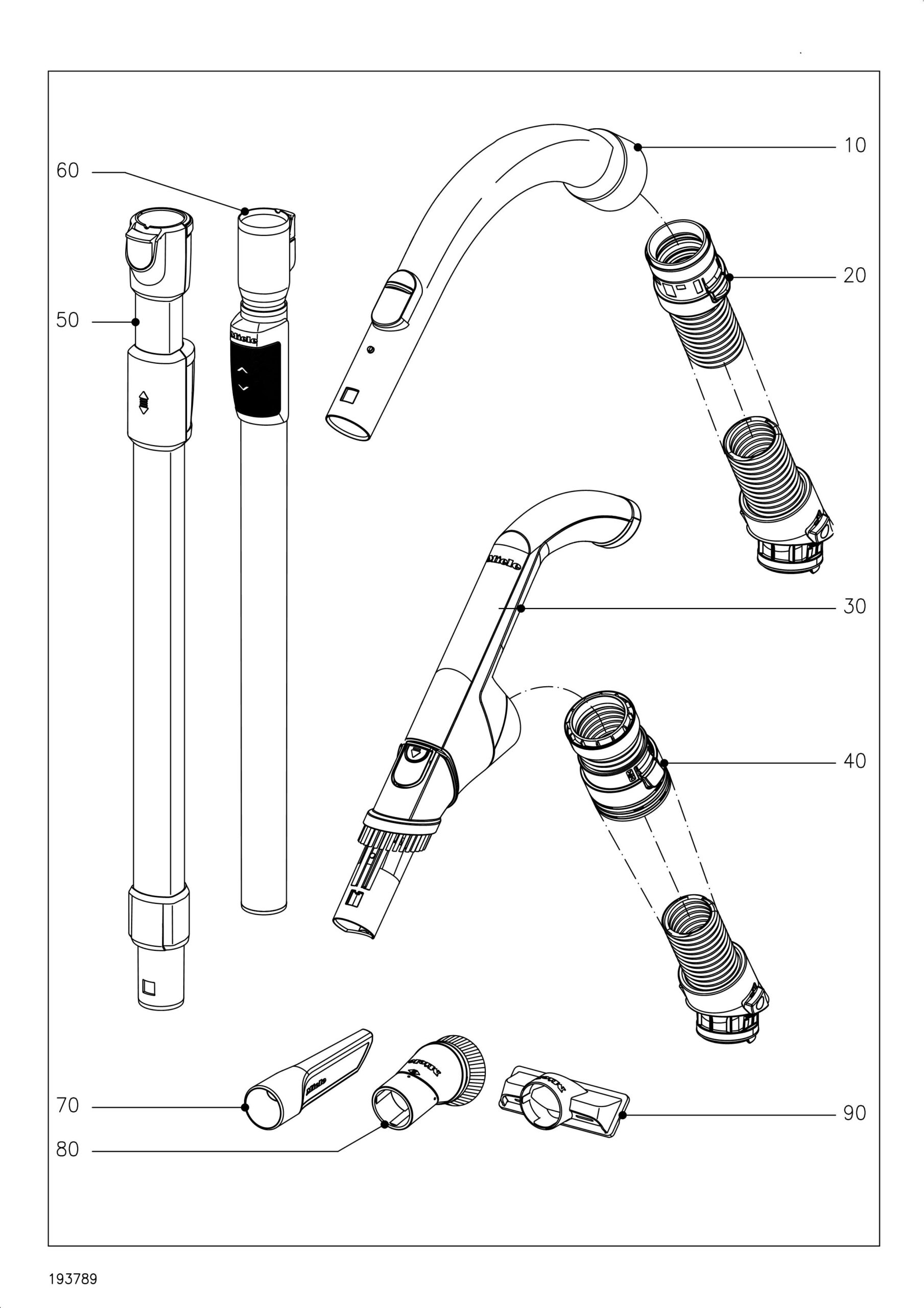

| # | Part image | Description | SKU | Price |
| 30 | | Genuine Miele Tubular handle EFS OBSW assy | 12442080 | $76.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | No Image | Suction Hose Efs Obsw Assy | 12445720 | $70.00Read more |
| 50 |  | HES Telescopic Wand for Miele | 10615280 | $77.99Add to cart Special order: ships in 2 to 4 weeks |
| 50 |  | Available ReconditionedGenuine Reconditioned Miele Telescopic Wand - Non Electric More Product Details | 5658812R | $0.00Add to cart |
| 70 | No Image | Crevice Nozzle 149Mm Obsw | 9442631 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 80 | No Image | Dusting Brush Pp Obsw Assy | 12397870 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 80 |  | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $26.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 | No Image | Upholstery Nozzle 2K Compact Obsw | 12410310 | $16.00Read more |

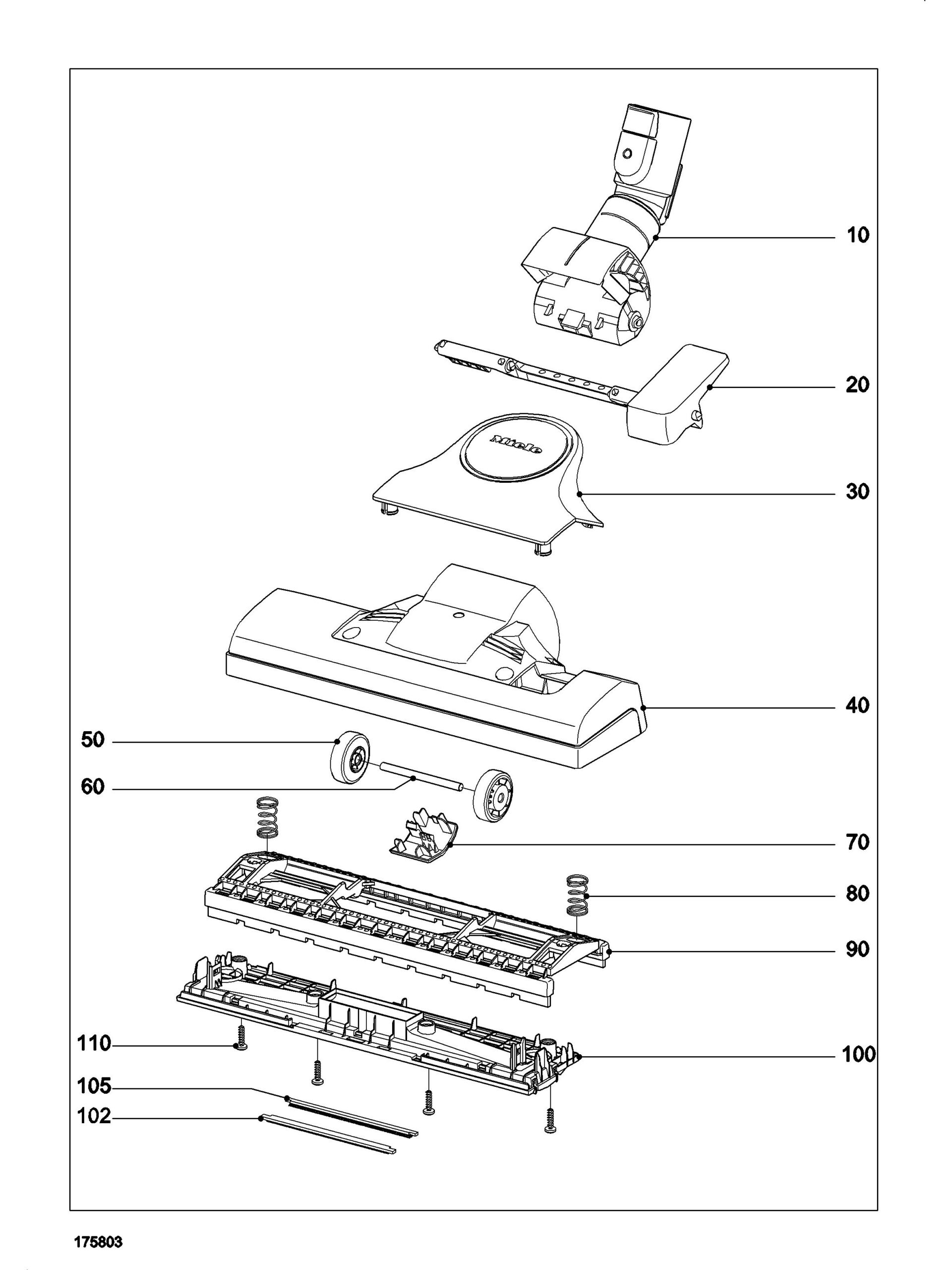

| # | Part image | Description | SKU | Price |
| 10-110 |  | Genuine Miele AllTeQ Floor nozzle SBD 365-3 | 11805640 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | Swivel Joint Component Obsw | 12837620 | $15.53Read more |
| 20 | No Image | Foot Switch Sbd365 Obsw | 12592121 | $17.25Read more |
| 30 | No Image | Cover Printed Sbd365 Obsw | 12592151 | $15.53Read more |
| 40 | No Image | Top Sbd365 Obsw | 12592160 | $47.00Read more |
| 50 | No Image | Support Roller Sbd470 Compl. | 12539430 | $11.00Read more |
| 60 |  | Genuine Miele Shaft SBD470 | 10004101 | $2.30Read more |
| 70 | No Image | Extra Components Sbd365 Obsw | 12592171 | $11.16Read more |
| 80 | No Image | Coil Spring Sbd470-3 | 9316860 | $15.00Read more |
| 90 | Not Available | Bristle plate SBD365 | 12539410 | Not Available |
| 90 | No Image | Bristle Supp.Plate Kd | 13079720 | $21.62Read more |
| 100 | No Image | Lower Section Sbd365 Obsw | 12592181 | $30.00Read more |
| 102 | No Image | Thread Lifter Sbd475 | 12035630 | $15.00Read more |
| 105 | No Image | Thread Lifter Sbd470-3 | 12035380 | $7.00Read more |
| 110 | No Image | Low Head Screw Sbd365 | 11779210 | $2.60Read more |
