Schematic and parts book for Miele SUZF0 SUZF0 Guard L1. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |

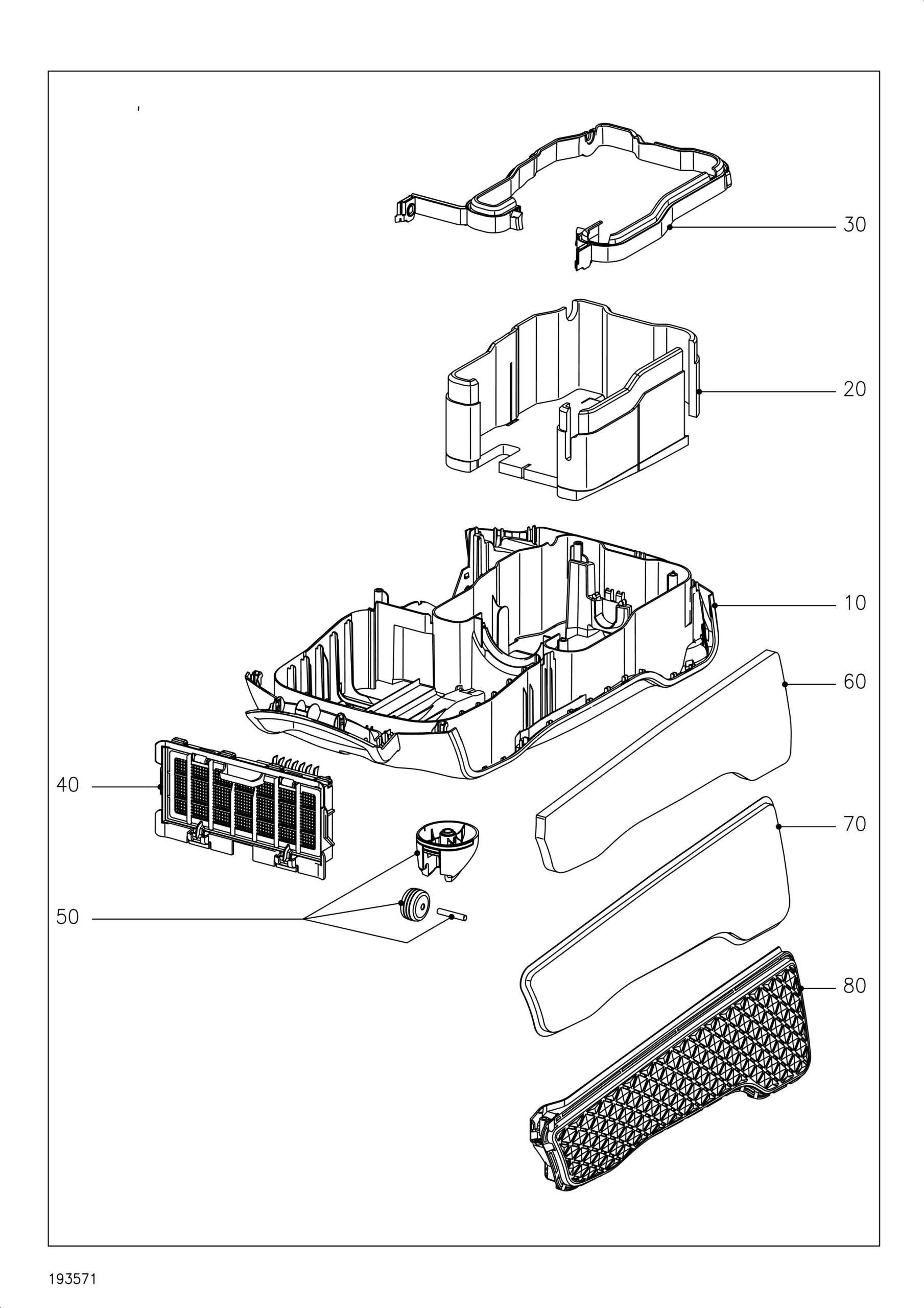

| w/o fig. | No Image | Handle Guard Obsw | 11996872 | $12.00Read more |
| w/o fig. | No Image | Handle Guard Brws | 12021242 | $12.00Read more |
| w/o fig. | No Image | Handle Guard Csgr | 12021252 | $12.00Read more |
| w/o fig. | No Image | Right Side Panel Suge | 12093141 | $36.00Read more |
| w/o fig. | No Image | Right Side Panel Tert | 12093121 | $36.00Read more |
| w/o fig. | No Image | Right Side Panel Nobl | 12093101 | $36.00Read more |
| w/o fig. | No Image | Right Side Panel Csgr | 11997851 | $30.00Read more |
| w/o fig. | No Image | Right Side Panel Brws | 11997841 | $30.00Read more |
| w/o fig. | No Image | Right Side Panel Obsw | 11997831 | $30.00Read more |
| 10 | No Image | Casing Bottom Obsw | 11996736 | $83.00Read more |
| 10 | No Image | Casing Bottom Brlws | 11997246 | $83.00Read more |
| 10 | No Image | Casing Bottom Csgr | 11997255 | $83.00Read more |
| 20 | No Image | Damping Plate Casing Bottom | 11996742 | $22.00Read more |
| 30 | No Image | Seal Motor Housing | 11996753 | $27.00Read more |
| 40 | No Image | Filter Frame Silence Assy | 12014642 | $42.00Read more |
| 50 | No Image | -Slide Skid Obsw Assy | 12494260 | $11.00Read more |
| 60 | No Image | Insulation Matting Side Panel | 11997050 | $20.00Read more |
| 70 | No Image | Left Side Panel Suge | 12093051 | $36.00Read more |
| 70 | No Image | Left Side Panel Tert | 12093071 | $36.00Read more |
| 70 | No Image | Left Side Panel Nobl | 12093061 | $36.00Read more |
| 70 | No Image | Left Side Panel Csgr | 11997821 | $30.00Read more |
| 70 | No Image | Left Side Panel Brws | 11997811 | $30.00Read more |
| 70 | No Image | Left Side Panel Obsw | 11997801 | $30.00Read more |

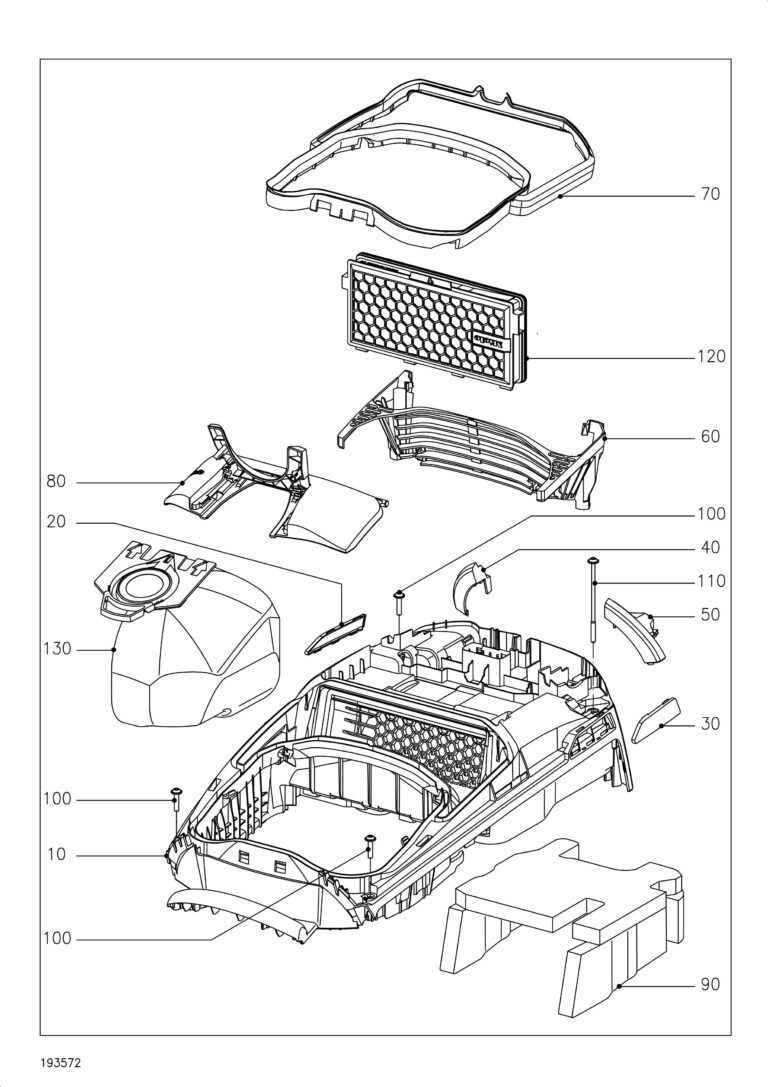

| # | Part image | Description | SKU | Price |

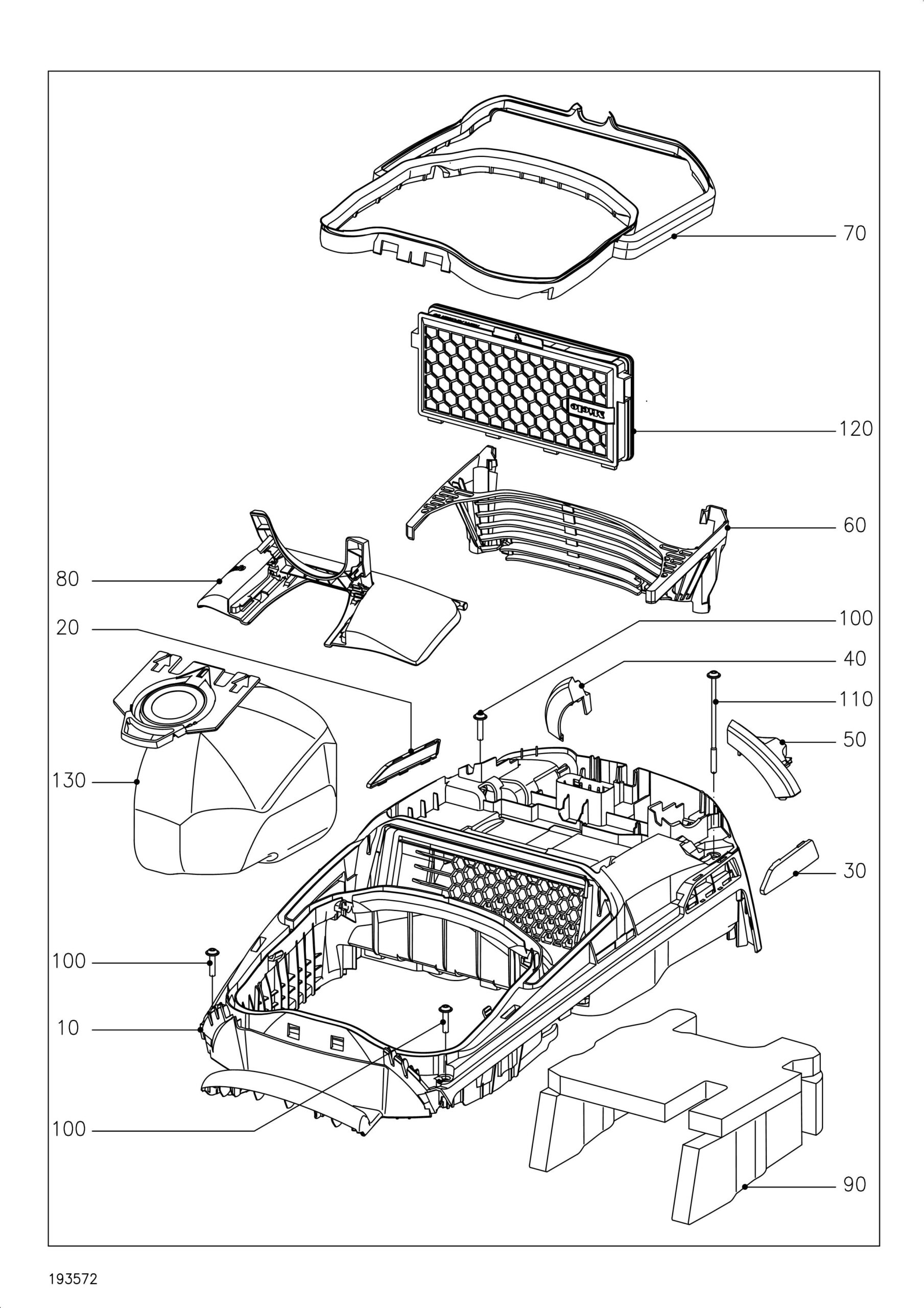

| w/o fig. | No Image | Damping Plate Synthetic Fleece | 11996811 | $7.00Read more |
| 10 | No Image | Cover Frame Csgr Assy | 12077856 | $119.00Read more |
| 10 | No Image | Cover Frame Brlws Assy | 12077836 | $139.00Read more |
| 10 | No Image | Cover Frame Obsw Assy | 11996806 | $139.00Read more |
| 20 | No Image | Mirror Right Printed Comfort | 12121441 | $27.00Read more |
| 20 | No Image | Mirror Right Printed Electro | 12005291 | $27.00Read more |
| 20 | No Image | Mirror Right Printed Select | 12511471 | $27.00Read more |
| 20 | No Image | Mirror Right Printed Allfloor | 12121402 | $27.00Read more |
| 20 | No Image | Mirror Right Printed Parquet | 12121421 | $27.00Read more |
| 20 | No Image | Mirror Right Printed Cat & Dog | 12121431 | $27.00Read more |
| 20 | No Image | Mirror Right Printed Performance | 12121502 | $27.00Read more |
| 20 | No Image | Mirror Right Printed Allergy | 12121451 | $27.00Read more |
| 20 | No Image | Mirror Right Printed Silence | 12005271 | $17.25Read more |
| 30 | No Image | Mirror Left Printed Comfort | 12121531 | $27.00Read more |
| 30 | No Image | Mirror Left Printed Electro | 12005471 | $27.00Read more |
| 30 | No Image | Mirror Left Printed Select | 12511481 | $27.00Read more |
| 30 | No Image | Mirror Left Printed Allfloor | 12121552 | $27.00Read more |
| 30 | No Image | Mirror Left Printed Parquet | 12121511 | $27.00Read more |
| 30 | No Image | Mirror Left Printed Cat & Dog | 12121521 | $27.00Read more |
| 30 | No Image | Mirror Left Print. Performance | 12121572 | $27.00Read more |
| 30 | No Image | Mirror Left Printed Allergy | 12121541 | $27.00Read more |
| 30 | No Image | Mirror Left Printed Silence | 12005461 | $17.25Read more |
| 40 | No Image | Bumper Right Csgr | 11998223 | $15.53Read more |
| 40 | No Image | Bumper Right Brlws | 11998112 | $15.53Read more |
| 40 | No Image | Bumper Right Obsw | 11996662 | $15.53Read more |
| 50 | No Image | Bumper Left Csgr | 11998233 | $15.53Read more |
| 50 | No Image | Bumper Left Brlws | 11998243 | $15.00Read more |
| 50 | No Image | Bumper Left Obsw | 11996652 | $15.53Read more |
| 60 | No Image | Safety Guard Cover Frame | 11997195 | $15.00Read more |
| 70 | No Image | Seal Dust Compartment | 11996642 | $36.00Read more |
| 80 | No Image | Bracket Vacuum Cleaner Bag Keylock | 12693641 | $30.00Read more |
| 90 | No Image | Damping Plate Cover Frame | 11996823 | $16.00Read more |
| 100 |  | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 110 | No Image | Raised Head Screw 4X80Mm | 11831281 | $2.30Read more |
| 120 | No Image | Act.Air Cleanfilter | 12785350 | $49.00Add to cart Special order: ships in 2 to 4 weeks |
| 120 | No Image | Hepa-Filter | 12785390 | $64.00Add to cart Special order: ships in 2 to 4 weeks |
| 120 | No Image | Air-Clean Filter Silence | 12785400 | $0.00Read more |
| 120 | No Image | Air-Clean Filter Plus | 12868930 | $0.00Add to cart Special order: ships in 2 to 4 weeks |
| 120 | No Image | Hepa-Filter Xl Pack | 12868960 | $115.98Read more |
| 120 | No Image | Spacer Bracket Air-Clean Filter | 12550741 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 | No Image | Vacuum Cleaner Bag Tu Hyclean Pure Int | 12557060 | $0.00Read more |

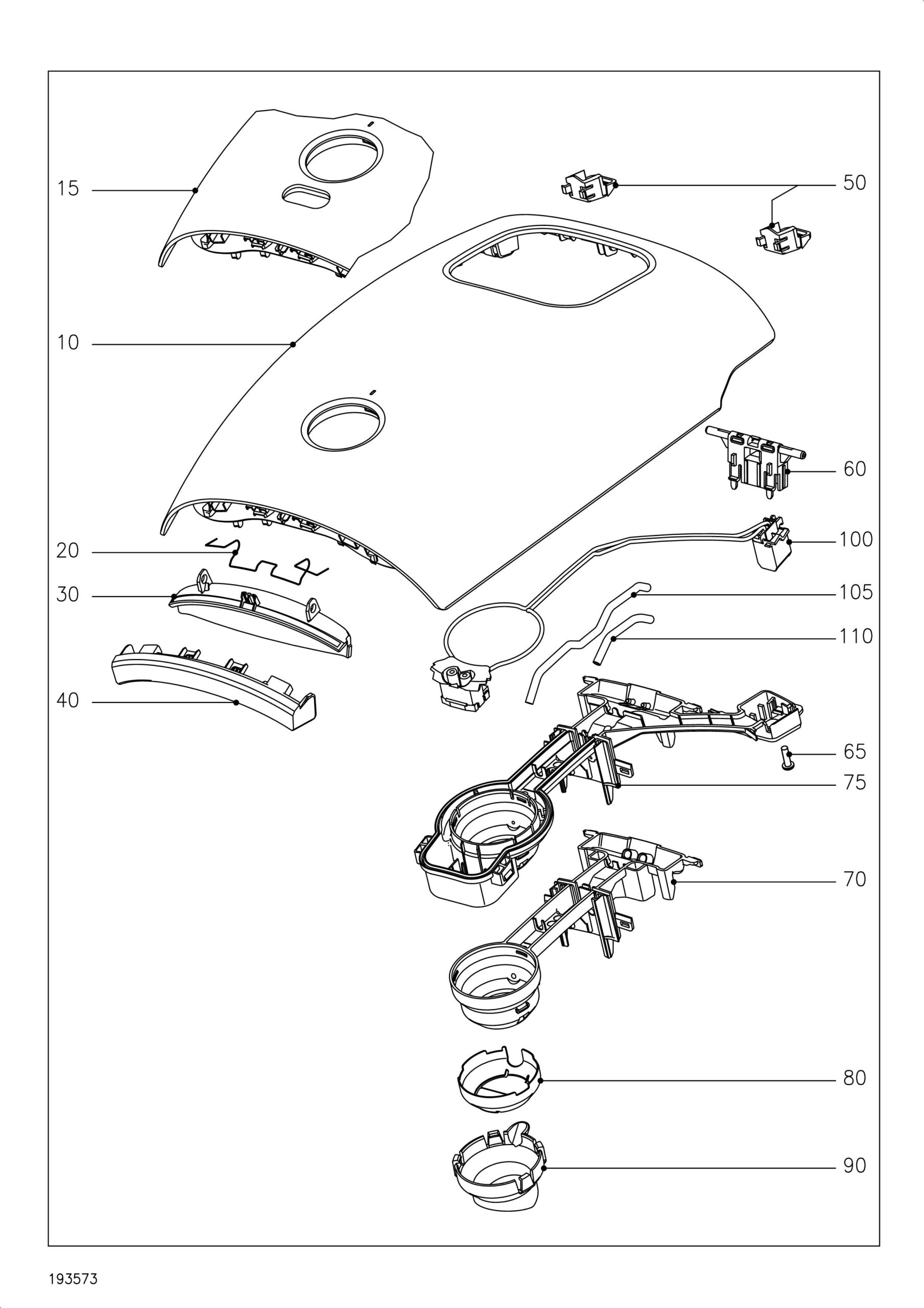

| # | Part image | Description | SKU | Price |
| 10-90 | No Image | Casing Top Obsw Assy | 11997668 | $119.00Read more |
| 10-90 | No Image | Casing Top Brlws Assy | 12073168 | $119.00Read more |
| 10-90 | No Image | Casing Top Csgr Assy | 12073178 | $119.00Read more |
| 10-90 | No Image | Casing Top Nobl Assy | 12193988 | $119.00Read more |
| 10-90 | No Image | Casing Top Tert Assy | 12194006 | $119.00Read more |
| 10-90 | No Image | Casing Top Suge Assy | 12193958 | $119.00Read more |
| 10-90 | No Image | Casing Top Tipf Assy | 12073208 | $100.00Read more |
| 20 | No Image | Spring Lock | 12756070 | $7.59Read more |
| 30 | No Image | Lock Casing Top Csgr | 12073115 | $12.00Read more |
| 30 | No Image | Lock Casing Top Brlws | 12073105 | $15.53Read more |
| 30 | No Image | Lock Casing Top Obsw | 11997545 | $15.53Read more |
| 40 | No Image | Cover Lock Csgr | 12193924 | $12.31Read more |
| 40 | No Image | Cover Lock Brlws | 12193904 | $12.00Read more |
| 40 | No Image | Cover Lock Obsw | 12193884 | $12.00Read more |
| 50 | No Image | Guide Inlay Top | 12073074 | $2.50Read more |
| 60 | No Image | Bearing Block | 11997554 | $7.00Read more |
| 70 | No Image | Dust Channel | 11997564 | $15.53Read more |
| 80 | No Image | Hygiene Cap Dust Channel | 11997592 | $7.00Read more |
| 90 | No Image | Docking Flange Dust Channel | 11997584 | $2.50Read more |
| 105 | No Image | Hose Dust Channel Long | 11997612 | $2.50Read more |
| 110 | No Image | Hose Dust Channel Short | 11997622 | $2.50Read more |

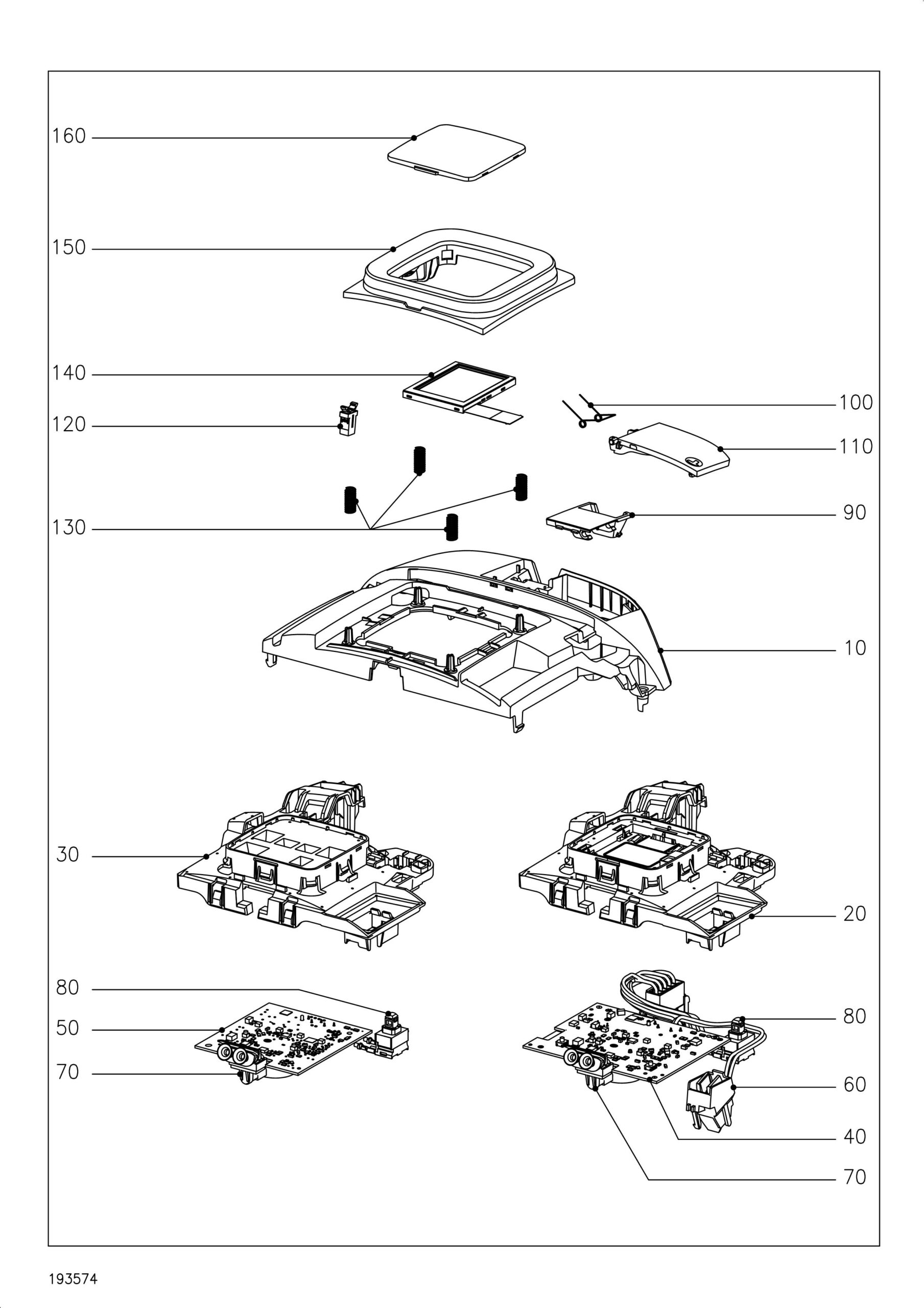

| # | Part image | Description | SKU | Price |
| w/o fig. | No Image | Harness Standard Usa Assy | 12147041 | $36.00Read more |
| 10 | No Image | Cap Entry Csgr | 12085105 | $30.00Read more |
| 10 | No Image | Cap Entry Brlws | 12085085 | $30.00Read more |
| 10 | No Image | Cap Entry Obsw | 12002225 | $30.00Read more |
| 30 | No Image | Casing Insert Cap Led | 12013493 | $20.00Read more |
| 50 | No Image | Electronic Unit Edw S22303/81 | 12272411 | $83.00Read more |
| 70 | No Image | Pressure Flange | 12003061 | $11.00Read more |
| 80 | No Image | -Switch 1 Pole 1681.3103 | 9023231 | $9.60Add to cart Special order: ships in 2 to 4 weeks |
| 90 | No Image | Holder Lid Accessory Csgr | 12082093 | $2.30Read more |
| 90 | No Image | Holder Lid Accessory Brlws | 12082083 | $2.30Read more |
| 90 | No Image | Holder Lid Accessory Obsw | 12082073 | $3.90Read more |
| 100 | No Image | Torsion Spring Lid | 12021962 | $2.50Read more |
| 110 | No Image | Lid Accessory Csgr | 12081913 | $5.20Read more |
| 110 | No Image | Lid Accessory Brws | 12081903 | $5.64Read more |
| 110 | No Image | Lid Accessory Obsw | 12002323 | $5.20Read more |
| 120 | No Image | Lid Opener Assy | 12107662 | $11.00Read more |
| 130 | No Image | Spring Swivel | 12001311 | $2.30Read more |
| 150 | No Image | Swivel Lacquered Sg | 12092950 | $36.00Read more |
| 150 | No Image | Swivel Lacquered Co | 12092970 | $36.00Read more |
| 150 | No Image | Swivel Lacquered Rg | 12002250 | $36.00Read more |
| 160 | No Image | Viewing Screen Printed Led Rbrt | 12926490 | $36.00Read more |
| 160 | No Image | Viewing Screen Printed Led Suge | 12359310 | $36.00Read more |
| 160 | No Image | Viewing Screen Printed Led Tert | 12359300 | $36.00Read more |
| 160 | No Image | Viewing Screen Printed Led Nobl | 12090870 | $36.00Read more |
| 160 | No Image | Viewing Screen Printed Led Csgr | 12087260 | $36.00Read more |
| 160 | No Image | Viewing Screen Printed Led Brlws | 12087140 | $36.00Read more |
| 160 | No Image | Viewing Screen Printed Led Obsw | 12006950 | $36.00Read more |

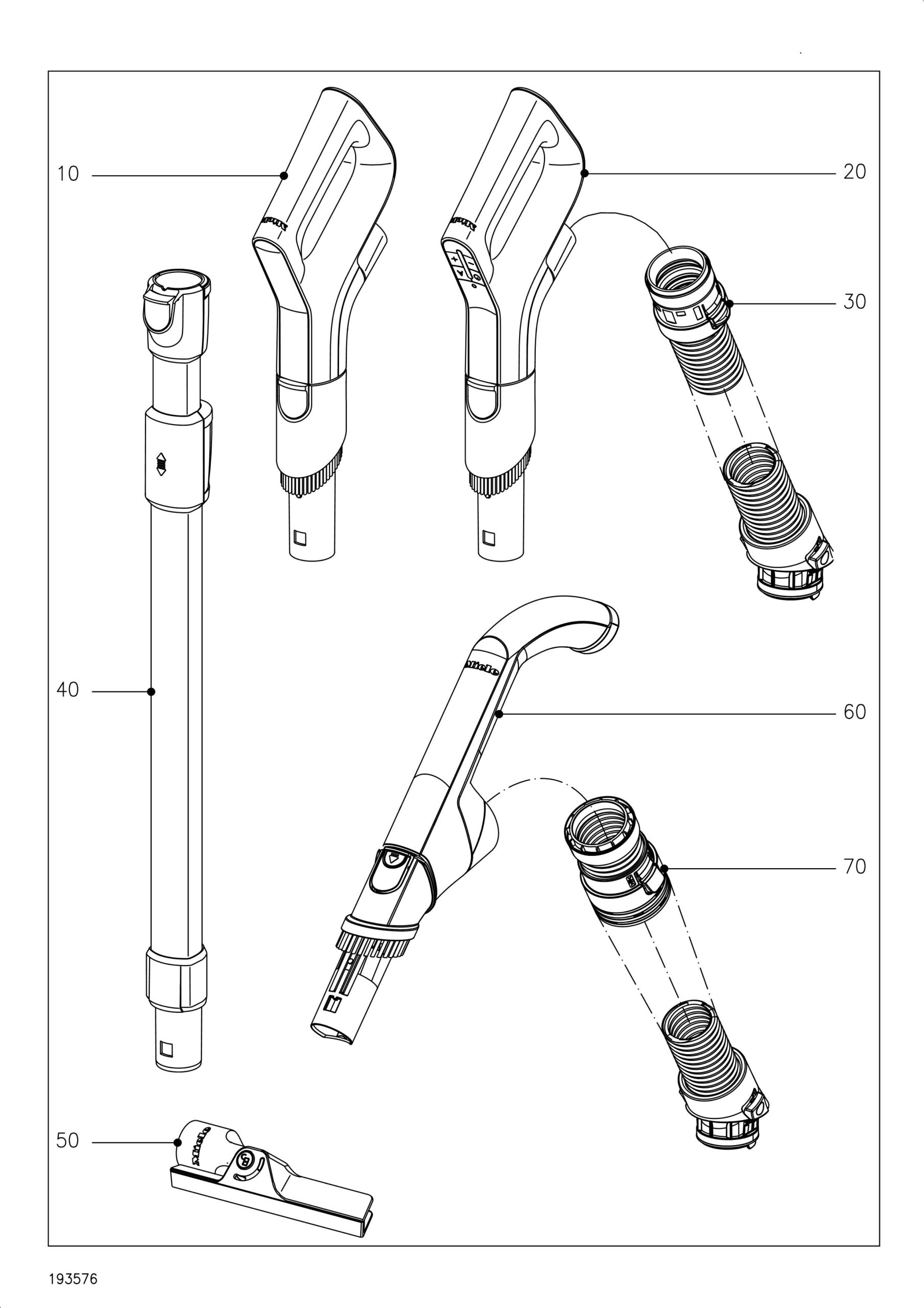

| # | Part image | Description | SKU | Price |
| 10 | No Image | Comfort Handle 2.0 | 12073254 | $83.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | No Image | Suction Hose Sg Obsw Assy | 12445500 | $53.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 |  | HES Telescopic Wand for Miele | 10615280 | $77.99Add to cart Special order: ships in 2 to 4 weeks |
| 40 |  | Available ReconditionedGenuine Reconditioned Miele Telescopic Wand - Non Electric More Product Details | 5658812R | $0.00Add to cart |
| 50 | No Image | Upholstery Nozzle 2In1 | 12789690 | $29.00Read more |
| # | Part image | Description | SKU | Price |

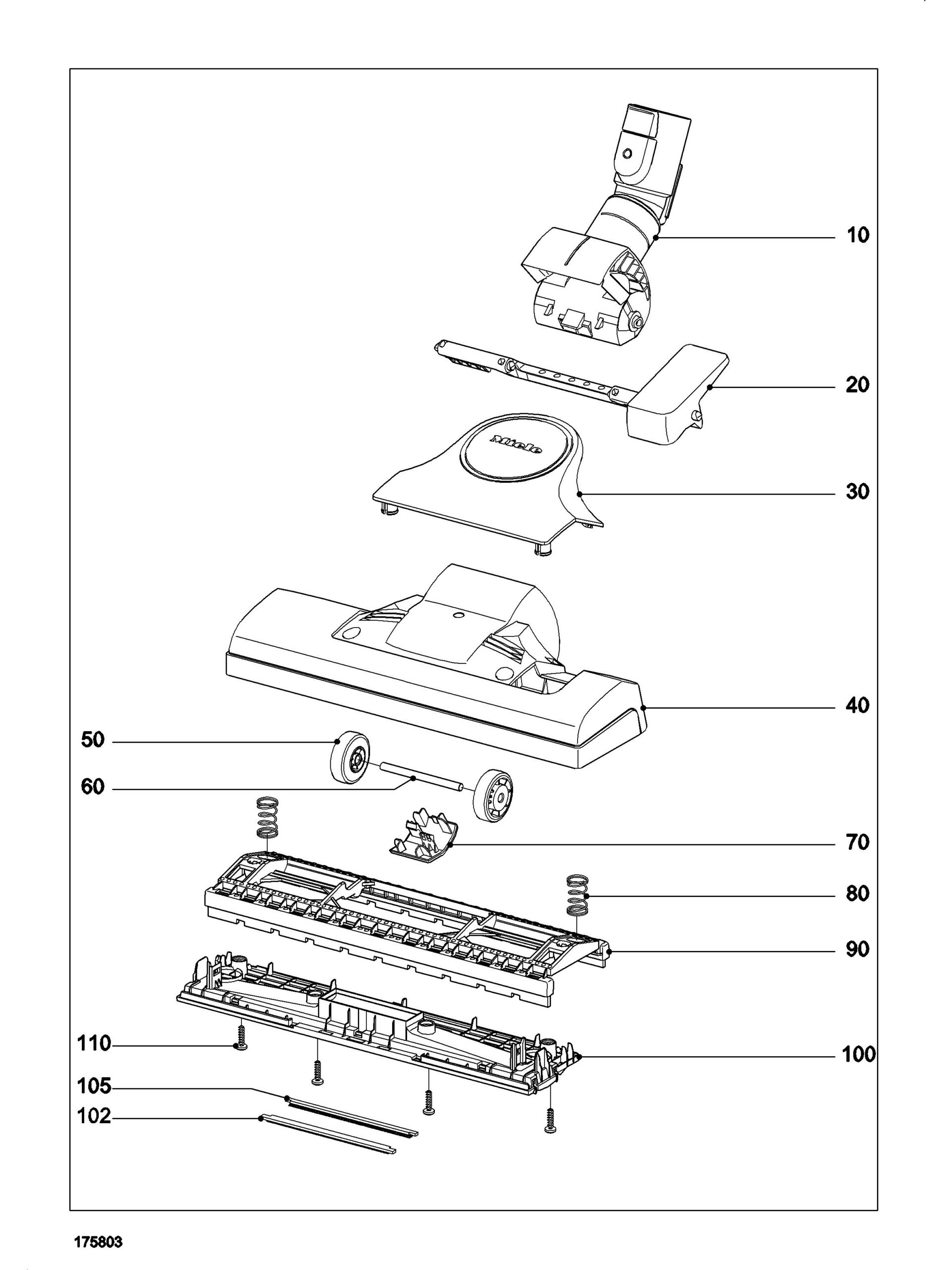

| 10-110 |  | Genuine Miele AllTeQ Floor nozzle SBD 365-3 | 11805640 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | Swivel Joint Component Obsw | 12837620 | $15.53Read more |
| 20 | No Image | Foot Switch Sbd365 Obsw | 12592121 | $17.25Read more |
| 30 | No Image | Cover Printed Sbd365 Obsw | 12592151 | $15.53Read more |
| 40 | No Image | Top Sbd365 Obsw | 12592160 | $47.00Read more |
| 50 | No Image | Support Roller Sbd470 Compl. | 12539430 | $11.00Read more |
| 60 |  | Genuine Miele Shaft SBD470 | 10004101 | $2.30Read more |
| 70 | No Image | Extra Components Sbd365 Obsw | 12592171 | $11.16Read more |
| 80 | No Image | Coil Spring Sbd470-3 | 9316860 | $15.00Read more |
| 90 | Not Available | Bristle plate SBD365 | 12539410 | Not Available |
| 90 | No Image | Bristle Supp.Plate Kd | 13079720 | $21.62Read more |
| 100 | No Image | Lower Section Sbd365 Obsw | 12592181 | $30.00Read more |
| 102 | No Image | Thread Lifter Sbd475 | 12035630 | $15.00Read more |
| 105 | No Image | Thread Lifter Sbd470-3 | 12035380 | $7.00Read more |
| 110 | No Image | Low Head Screw Sbd365 | 11779210 | $2.60Read more |

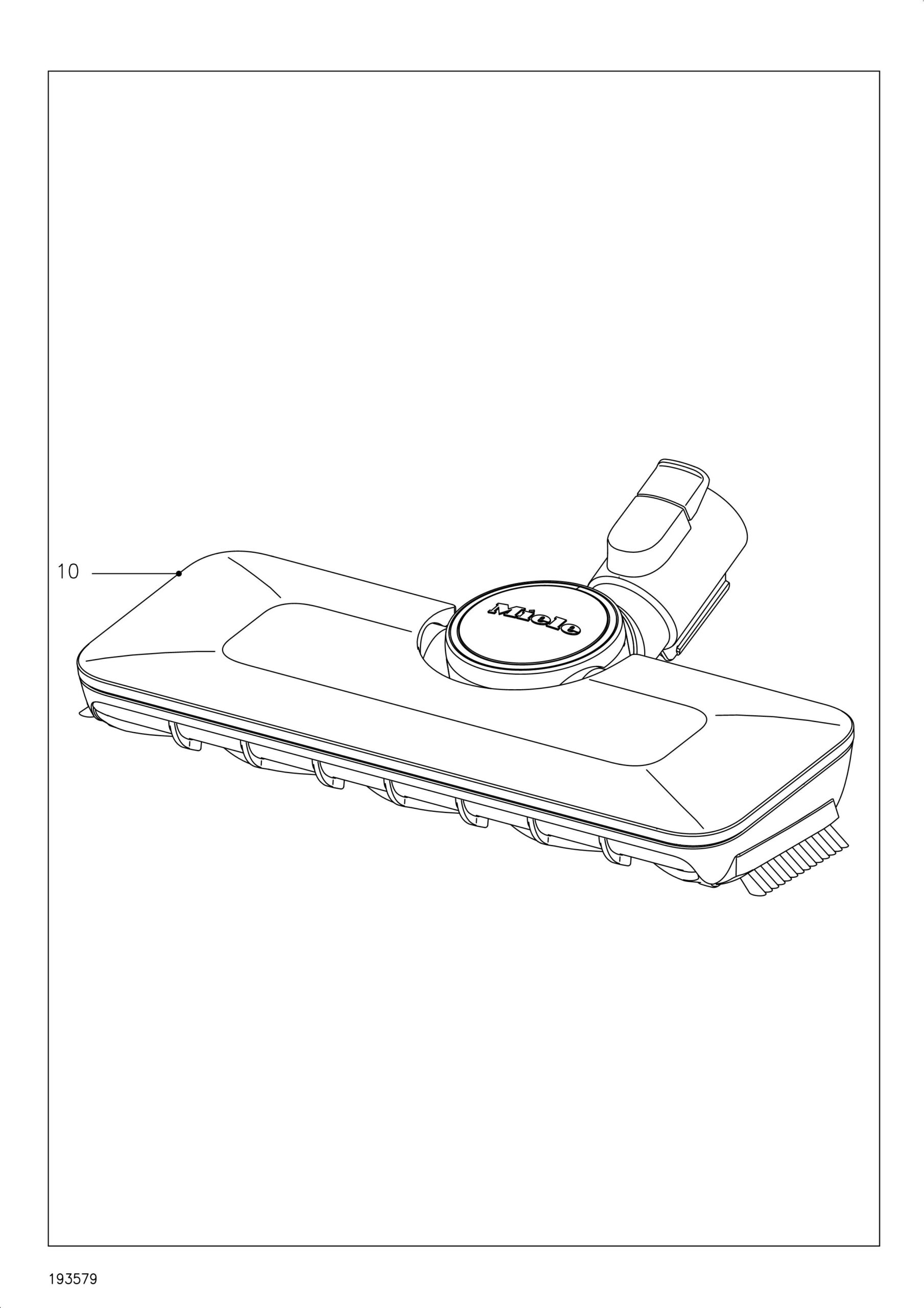

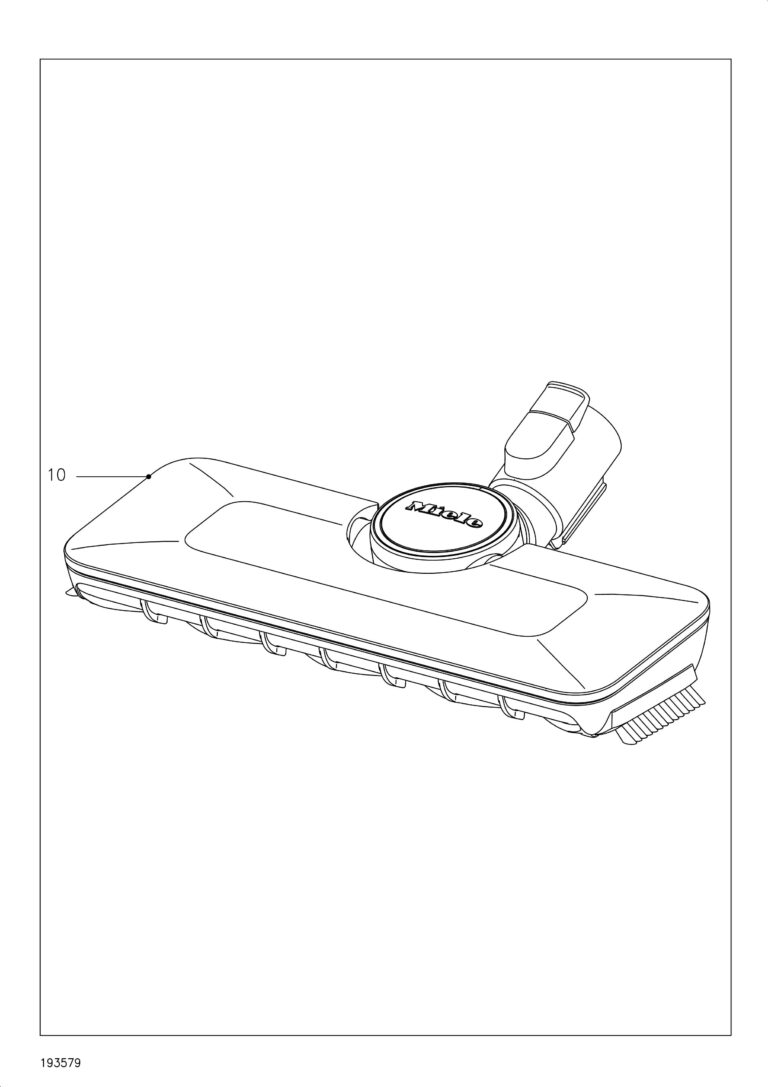

| # | Part image | Description | SKU | Price |

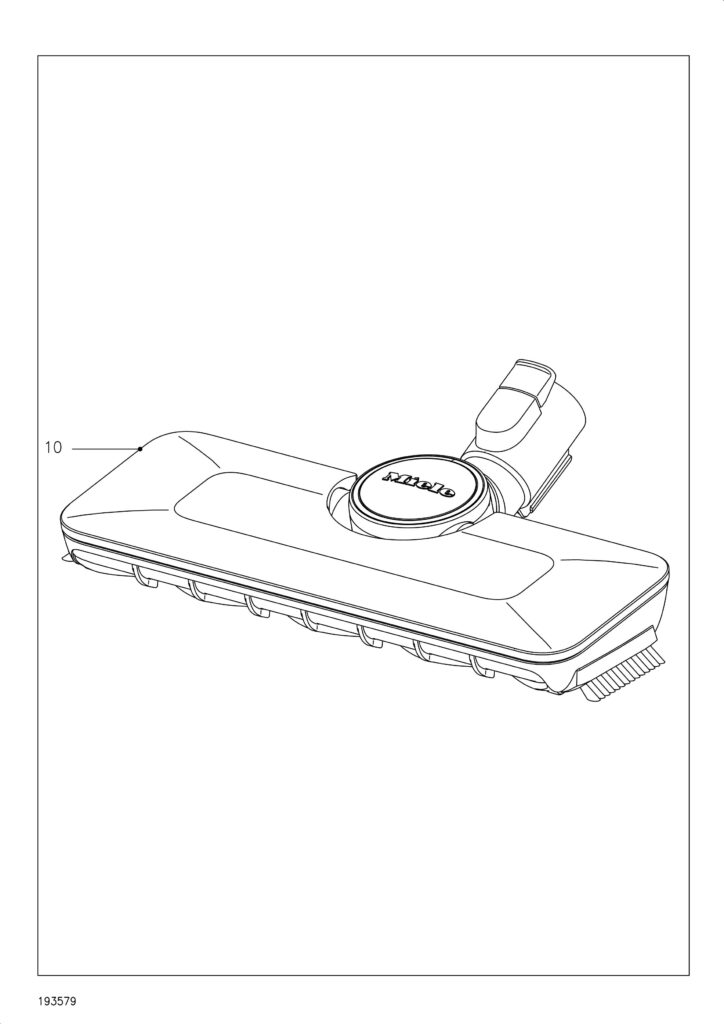

| 10 | No Image | Floor Nozzle Allfloor | 12789670 | $109.00Read more |

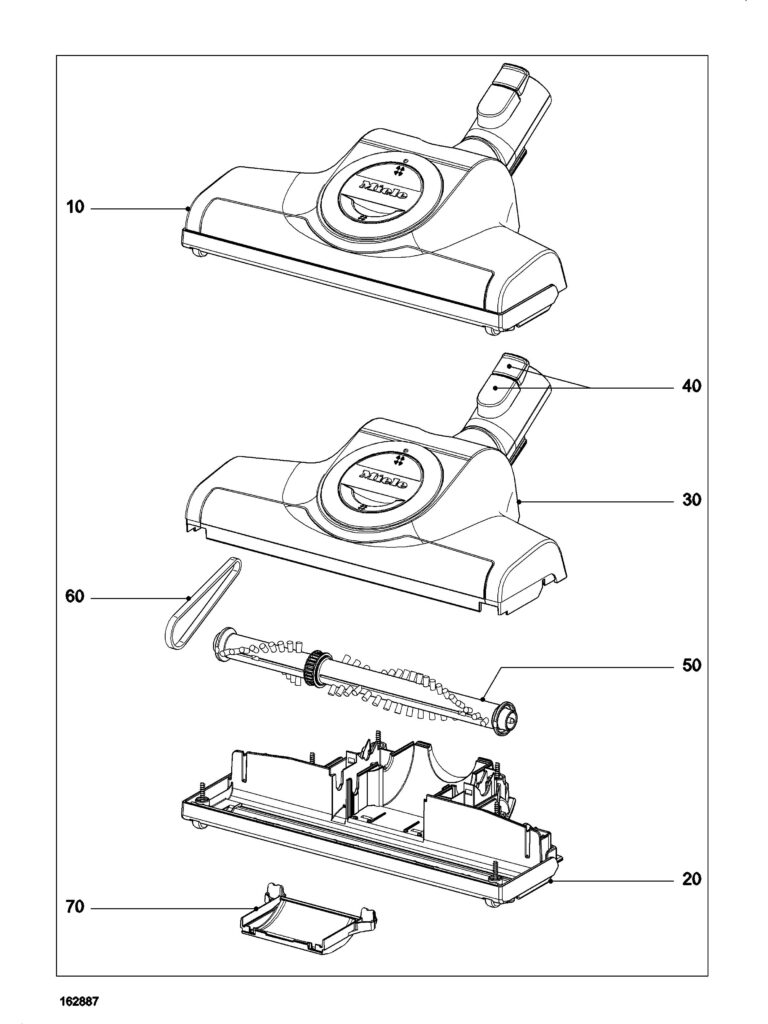

| # | Part image | Description | SKU | Price |

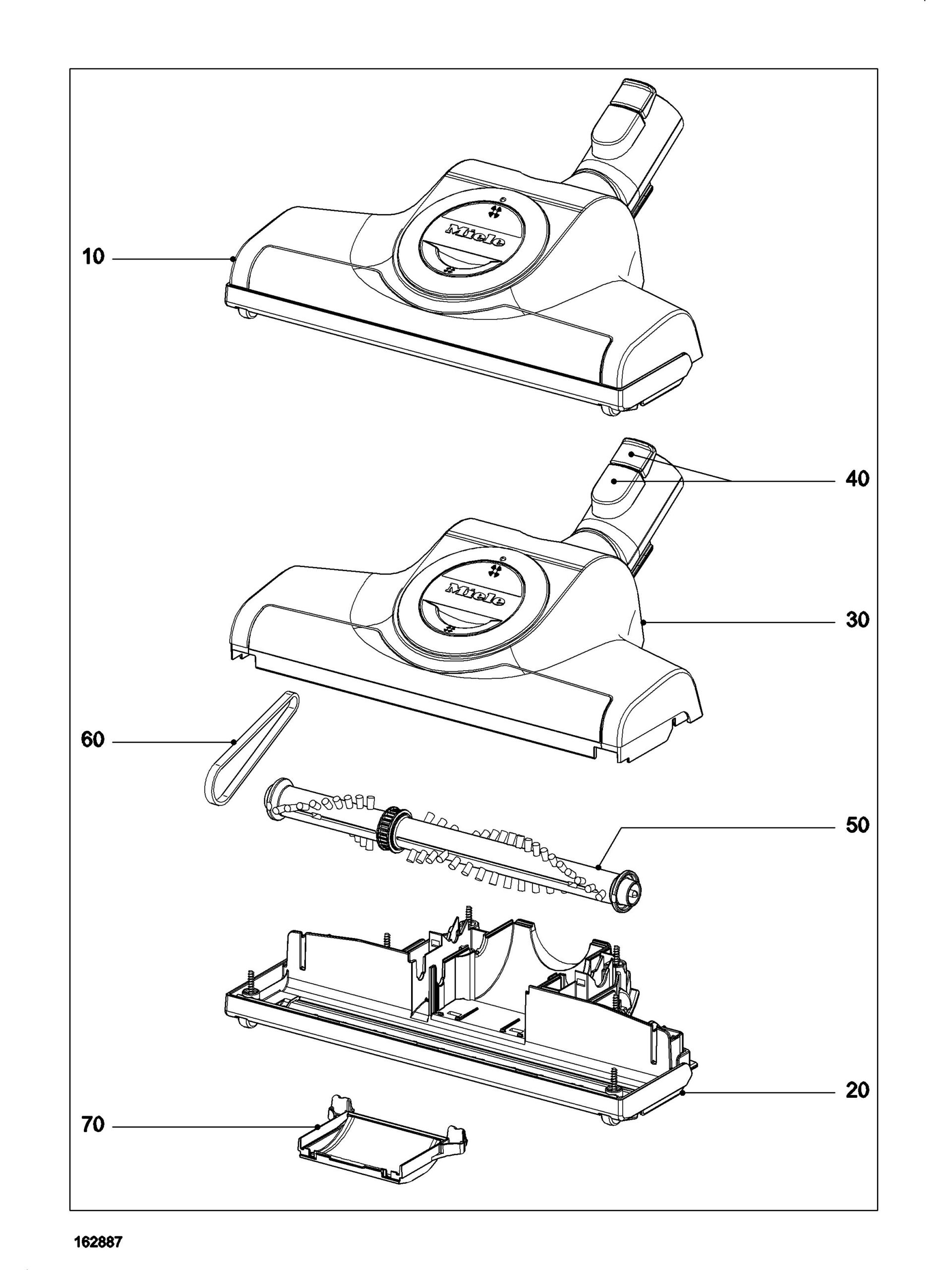

| w/o fig. | No Image | Bearing Lever | 11507680 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | Not Available | Turbo-brush STB305-3 TurboTeQ | 10455360 | Not Available |
| 20+70 | No Image | Casing Bottom Assy | 10498952 | $91.00Read more |
| 30 | No Image | Top Kpl. | 10498960 | $119.00Read more |
| 40 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 | No Image | Brush Roller | 10499081 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 60 |  | Genuine Miele Tooth belt | 6245620 | $27.00Read more |
| 70 | No Image | Service Flap Stb 305-3 | 10677430 | $22.00Read more |
