Schematic and parts book for Miele SUFE0 SUFE0. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

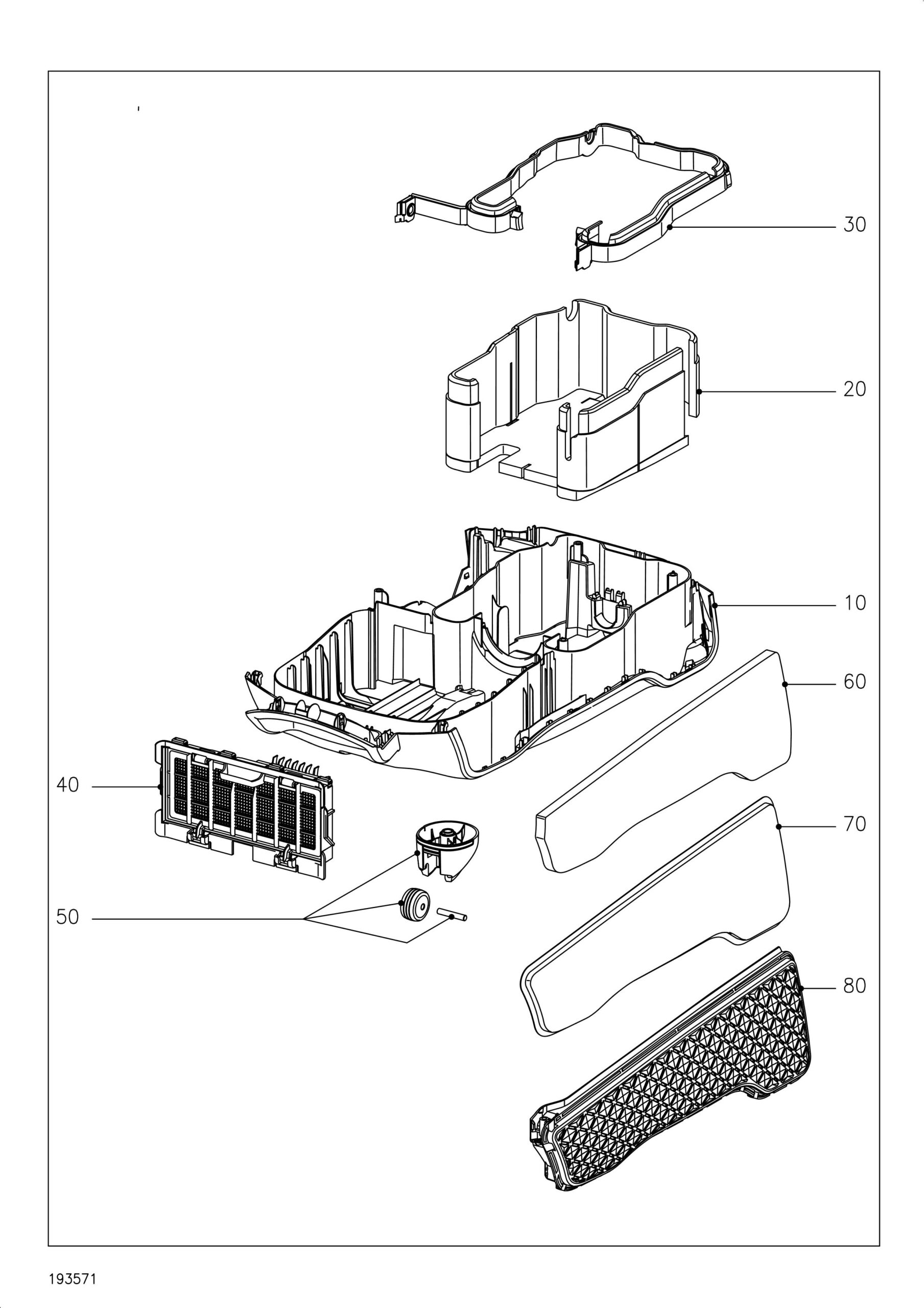

| # | Part image | Description | SKU | Price |
| w/o fig. | No Image | Handle Guard Csgr | 12021252 | $12.00Read more |
| w/o fig. | No Image | Right Side Panel Cm Assy | 12052551 | $83.00Read more |
| w/o fig. | No Image | Right Side Panel Nobl | 12093101 | $36.00Read more |
| 10 | No Image | Casing Bottom Csgr | 11997255 | $83.00Read more |
| 20 | No Image | Damping Plate Casing Bottom | 11996742 | $22.00Read more |
| 30 | No Image | Seal Motor Housing | 11996753 | $27.00Read more |
| 50 | No Image | -Slide Skid Obsw Assy | 12494260 | $11.00Read more |
| 50 | No Image | Slide Skid Dyn. Drive Obsw Assy | 12497890 | $27.00Read more |
| 60 | No Image | Insulation Matting Side Panel | 11997050 | $20.00Read more |
| 60+80 | No Image | Left Side Panel Cm Assy | 12052541 | $83.00Read more |
| 70 | No Image | Left Side Panel Nobl | 12093061 | $36.00Read more |

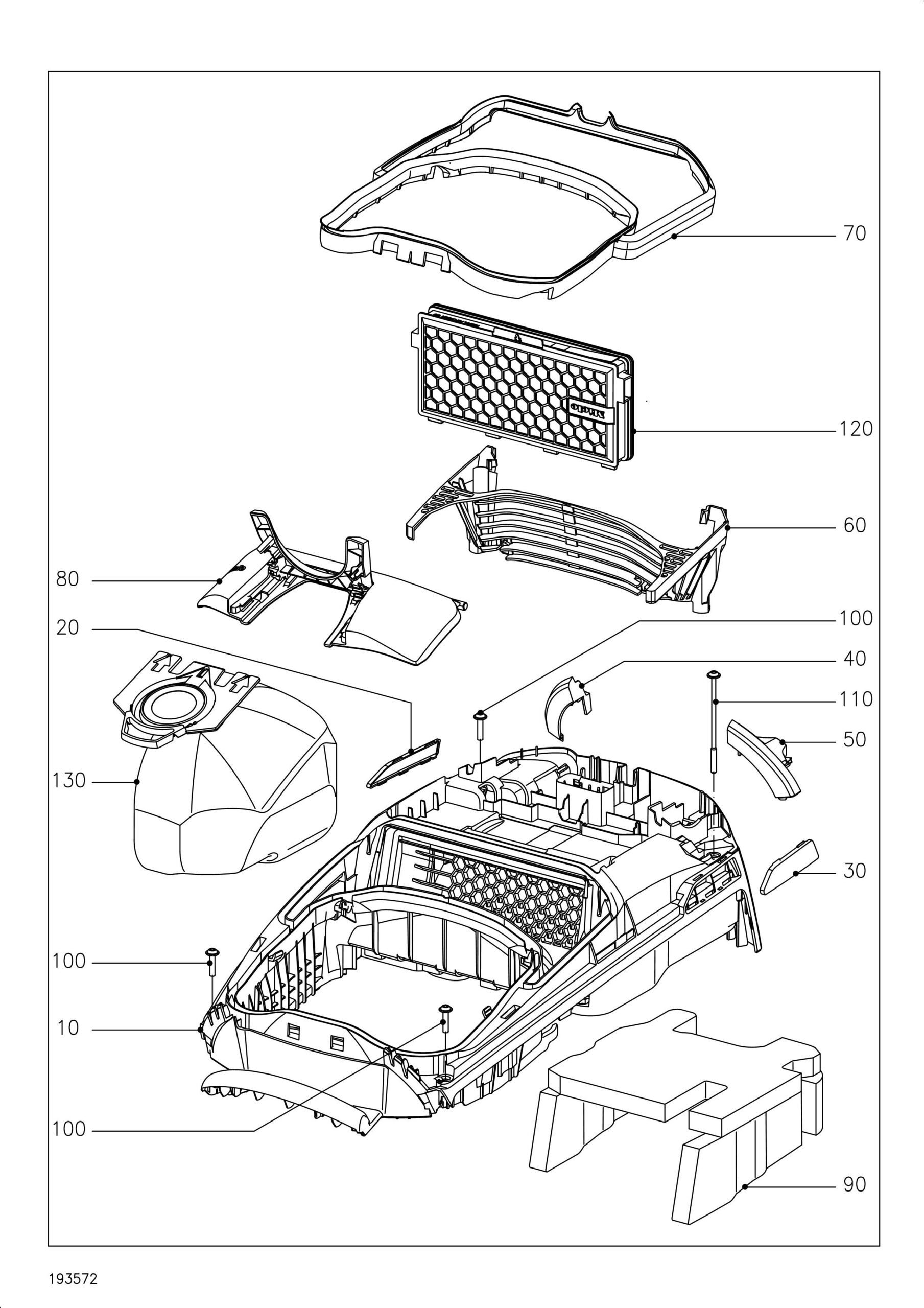

| # | Part image | Description | SKU | Price |

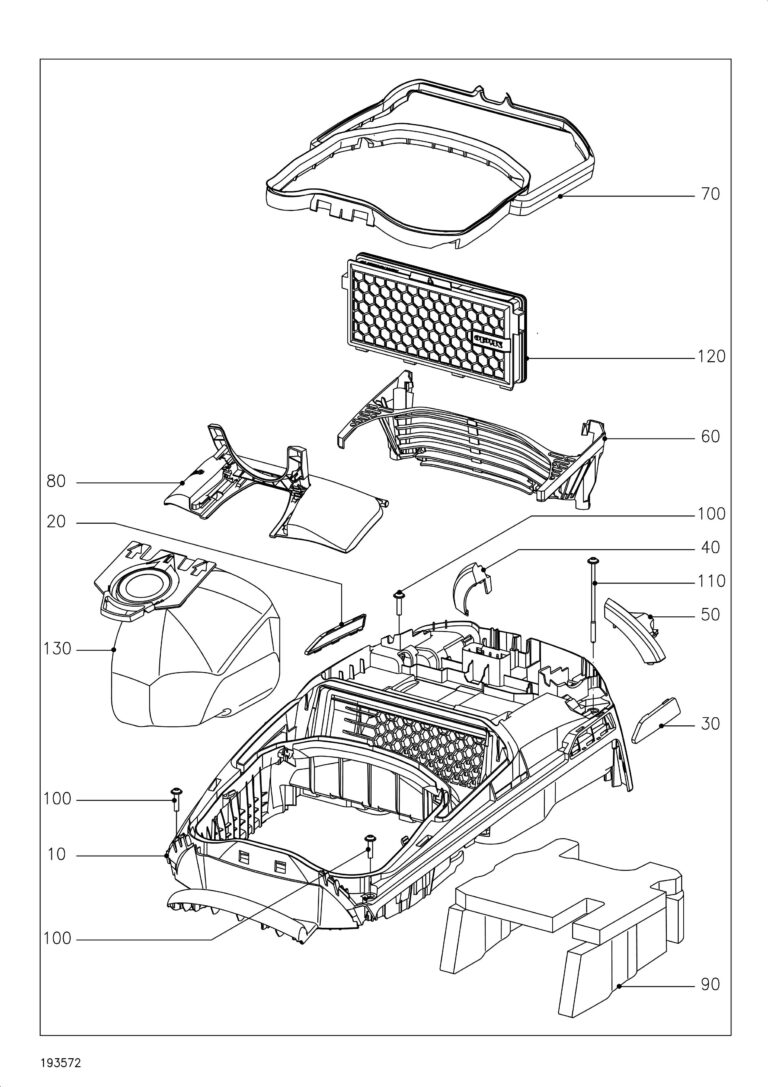

| w/o fig. | No Image | Damping Plate Synthetic Fleece | 11996811 | $7.00Read more |
| 10 | No Image | Cover Frame Csgr Assy | 12077856 | $119.00Read more |
| 20 | No Image | Mirror Right Printed Electro | 12005291 | $27.00Read more |
| 20 | No Image | Mirror Right Csgr | 12682300 | $7.59Read more |
| 30 | No Image | Mirror Left Printed Electro | 12005471 | $27.00Read more |
| 30 | No Image | Mirror Left Csgr | 12682350 | $7.59Read more |
| 40 | No Image | Bumper Right Csgr | 11998223 | $15.53Read more |
| 50 | No Image | Bumper Left Csgr | 11998233 | $15.53Read more |
| 60 | No Image | Safety Guard Cover Frame | 11997195 | $15.00Read more |
| 70 | No Image | Seal Dust Compartment | 11996642 | $36.00Read more |
| 80 | No Image | Bracket Vacuum Cleaner Bag Keylock | 12693641 | $30.00Read more |
| 90 | No Image | Damping Plate Cover Frame | 11996823 | $16.00Read more |
| 100 |  | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 110 | No Image | Raised Head Screw 4X80Mm | 11831281 | $2.30Read more |
| 120 | No Image | Act.Air Cleanfilter | 12785350 | $49.00Add to cart Special order: ships in 2 to 4 weeks |
| 120 | No Image | Hepa-Filter | 12785390 | $64.00Add to cart Special order: ships in 2 to 4 weeks |
| 120 | No Image | Air-Clean Filter Silence | 12785400 | $0.00Read more |
| 120 | No Image | Air-Clean Filter Plus | 12868930 | $0.00Add to cart Special order: ships in 2 to 4 weeks |
| 120 | No Image | Hepa-Filter Xl Pack | 12868960 | $115.98Read more |
| 120 | No Image | Spacer Bracket Air-Clean Filter | 12550741 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 | No Image | Vacuum Cleaner Bag Tu Hyclean Pure Int | 12557060 | $0.00Read more |
| # | Part image | Description | SKU | Price |

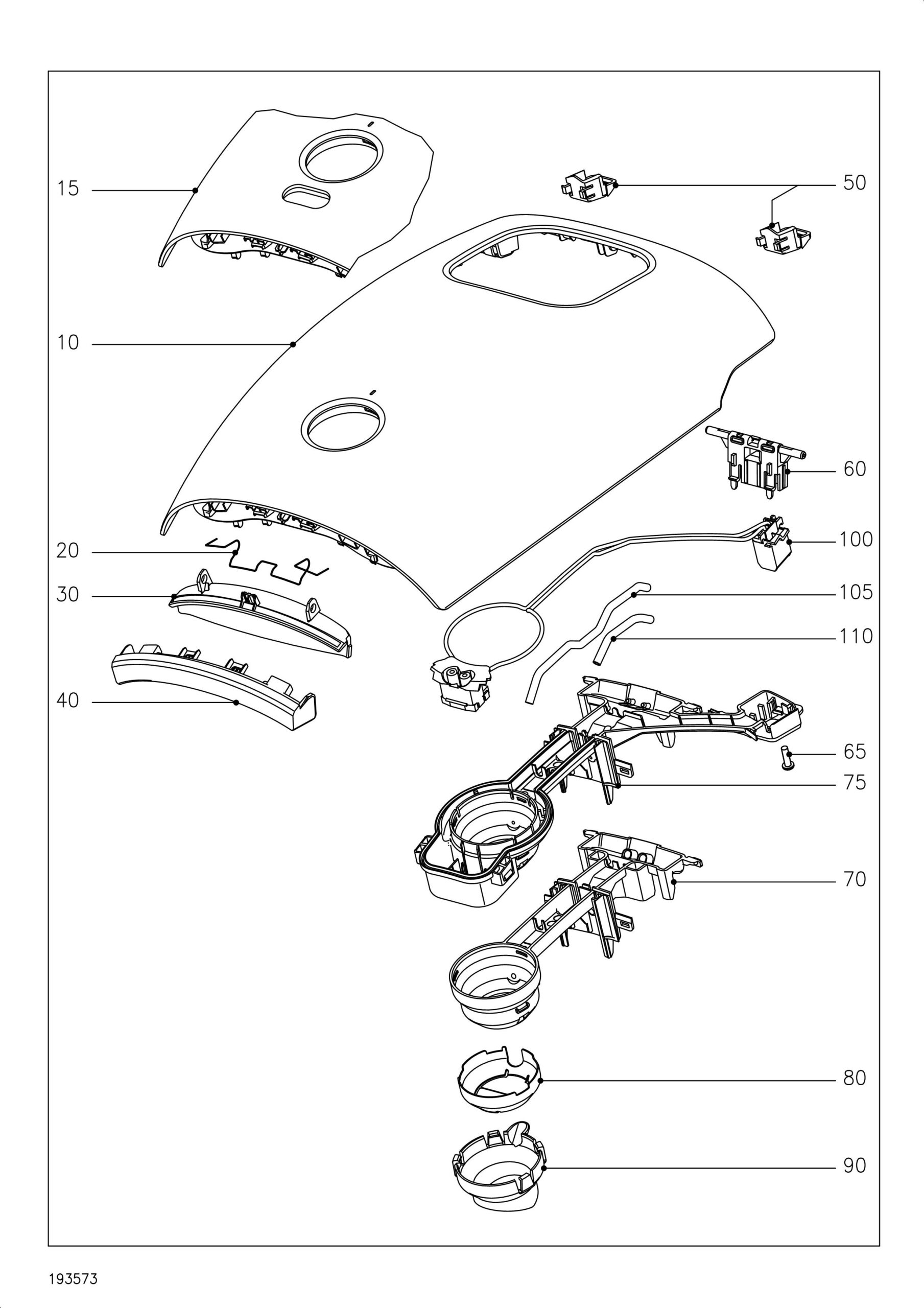

| 15-90 | No Image | Casing Top Electric Nobl Assy | 12088218 | $159.00Read more |
| 15-90 | No Image | Casing Top Electric Tipf Assy | 11998736 | $249.00Read more |
| 20 | No Image | Spring Lock | 12756070 | $7.59Read more |
| 30 | No Image | Lock Casing Top Csgr | 12073115 | $12.00Read more |
| 40 | No Image | Cover Lock Csgr | 12193924 | $12.31Read more |
| 50 | No Image | Guide Inlay Top | 12073074 | $2.50Read more |
| 60 | No Image | Bearing Block | 11997554 | $7.00Read more |
| 65 |  | Genuine Miele Raised head screw 4,0X14 | 11058150 | $2.30Read more |
| 75 | No Image | Dust Channel Electric | 11998784 | $27.00Read more |
| 80 | No Image | Hygiene Cap Dust Channel | 11997592 | $7.00Read more |
| 90 | No Image | Docking Flange Dust Channel | 11997584 | $2.50Read more |
| 100 | No Image | Connecting Cable Dust Channel | 12001542 | $27.00Read more |
| 105 | No Image | Hose Dust Channel Long | 11997612 | $2.50Read more |
| 110 | No Image | Hose Dust Channel Short | 11997622 | $2.50Read more |
| # | Part image | Description | SKU | Price |

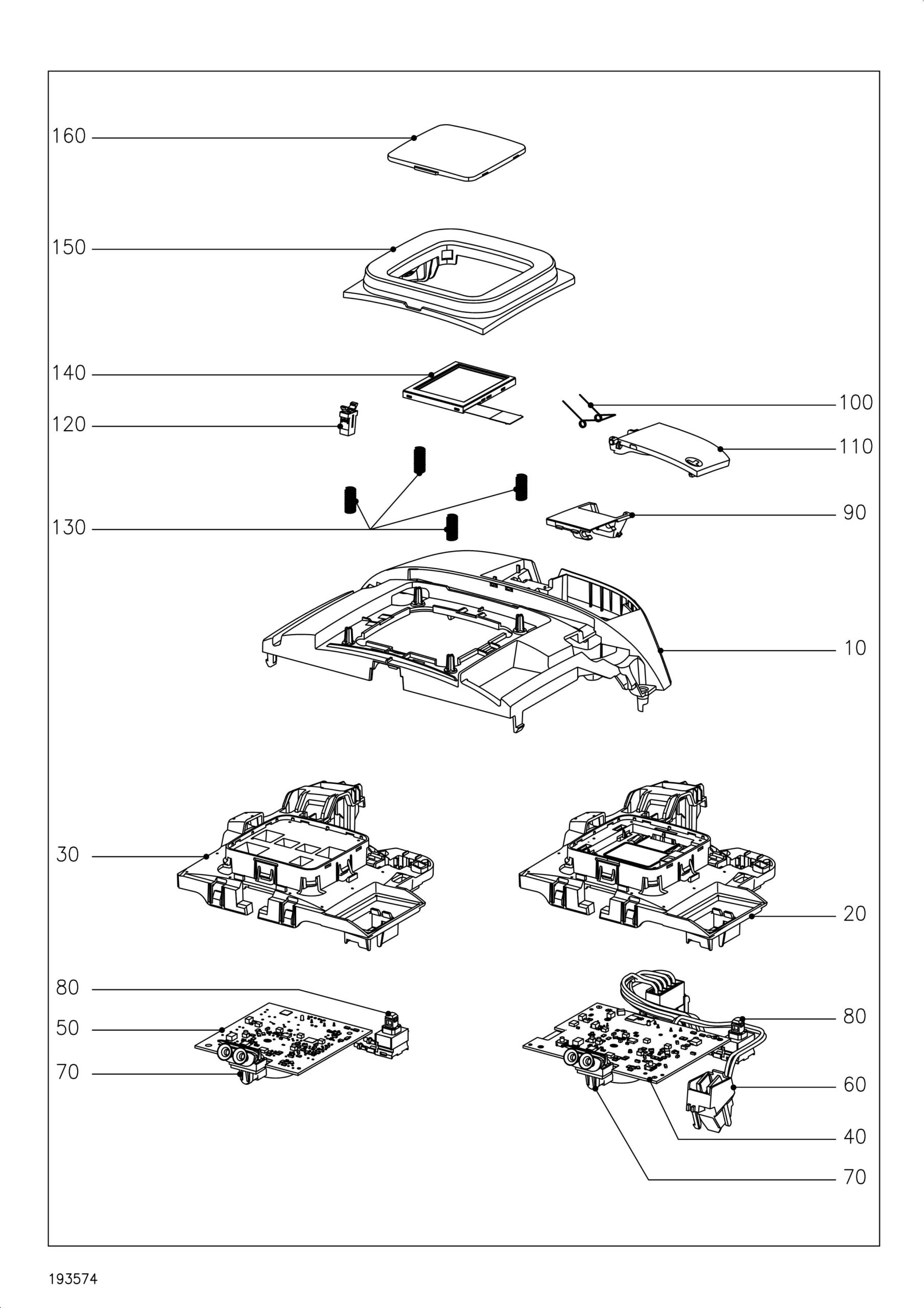

| w/o fig. | No Image | Harness Standard Usa Assy | 12147041 | $36.00Read more |
| 10 | No Image | Cap Entry Csgr | 12085105 | $30.00Read more |
| 10 | No Image | Cap Entry Brlws | 12085085 | $30.00Read more |
| 10 | No Image | Cap Entry Obsw | 12002225 | $30.00Read more |
| 10 | No Image | Cap Electric Csgr | 12085915 | $36.00Read more |
| 20 | No Image | Casing Insert Kappe Lcd | 12001292 | $30.00Read more |
| 30 | No Image | Casing Insert Cap Led | 12013493 | $20.00Read more |
| 40 | No Image | Electronic Unit Edw S22703 | 12070046 | $249.00Read more |
| 50 | No Image | Electronic Unit Edw S22303/81 | 12272411 | $83.00Read more |
| 60 | No Image | Connecting Cable Electric | 12001300 | $27.00Read more |
| 70 | No Image | Pressure Flange | 12003061 | $11.00Read more |
| 80 | No Image | -Switch 1 Pole 1681.3103 | 9023231 | $9.60Add to cart Special order: ships in 2 to 4 weeks |
| 90 | No Image | Holder Lid Accessory Csgr | 12082093 | $2.30Read more |
| 100 | No Image | Torsion Spring Lid | 12021962 | $2.50Read more |
| 110 | No Image | Lid Accessory Csgr | 12081913 | $5.20Read more |
| 120 | No Image | Lid Opener Assy | 12107662 | $11.00Read more |
| 130 | No Image | Spring Swivel | 12001311 | $2.30Read more |
| 140 | No Image | Lcd Display Tft Vc B22_17945C | 11989560 | $209.00Read more |
| 150 | No Image | Swivel Lacquered Sg | 12092950 | $36.00Read more |
| 150 | No Image | Swivel Lacquered Co | 12092970 | $36.00Read more |
| 160 | No Image | Viewing Screen Printed Lcd | 12003100 | $30.00Read more |
| 160 | No Image | Viewing Screen Printed Led Nobl | 12090870 | $36.00Read more |
| # | Part image | Description | SKU | Price |

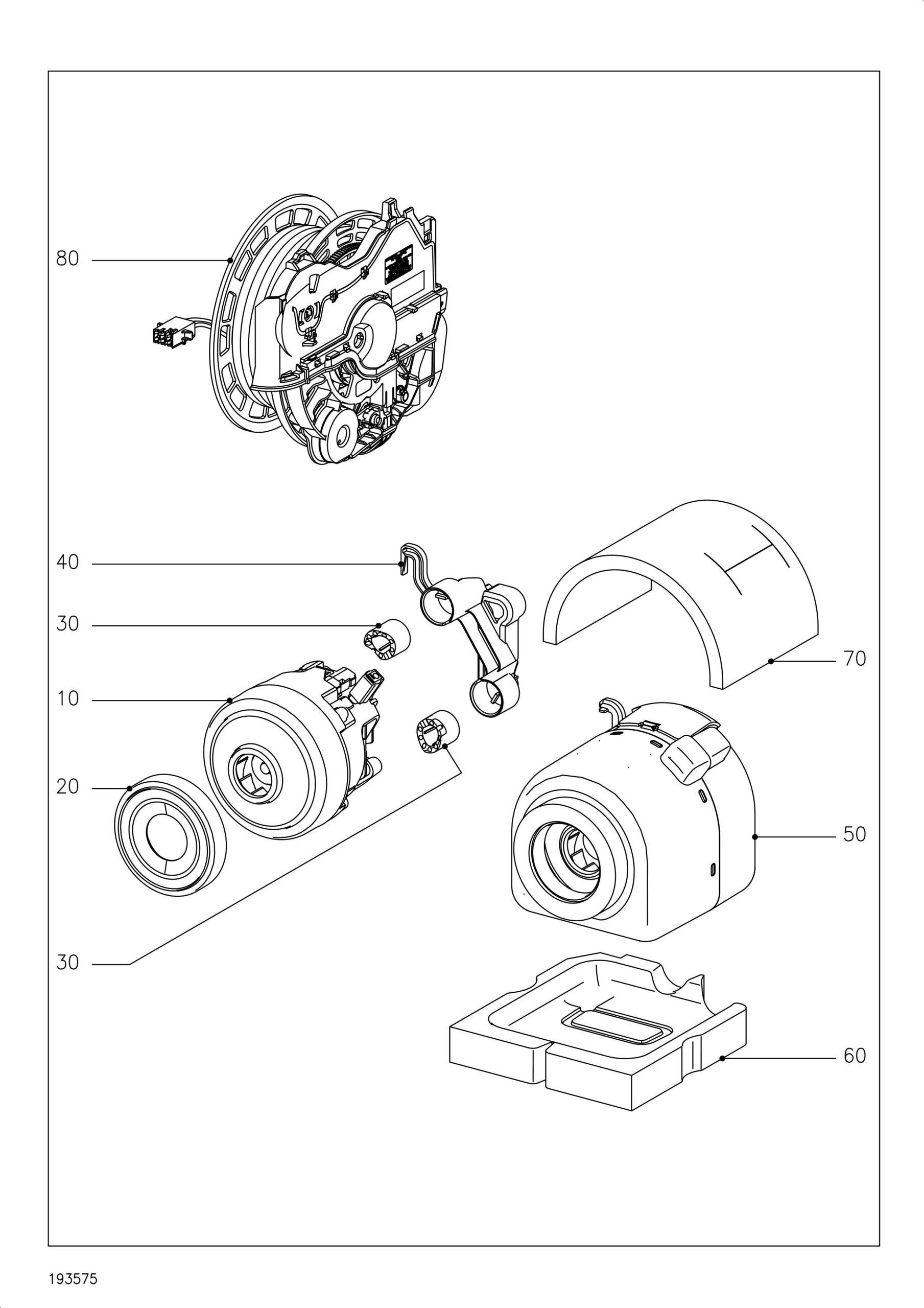

| w/o fig. | No Image | Cooling Channel Assy | 12171111 | $15.00Read more |
| 10 | No Image | Fan Mrg30/81-120-01 | 11704123 | $119.00Read more |
| 20 | No Image | Bearing Ring | 12001011 | $27.00Read more |
| 30 | No Image | Rubber Cushion 2 Pcs. | 6207002 | $22.00Read more |
| 40 | No Image | Adapter Rear | 12001352 | $3.90Read more |
| 80 | No Image | Cable Reel Kt00-Usa-7,5/17Awg | 12030904 | $109.00Read more |
| # | Part image | Description | SKU | Price |

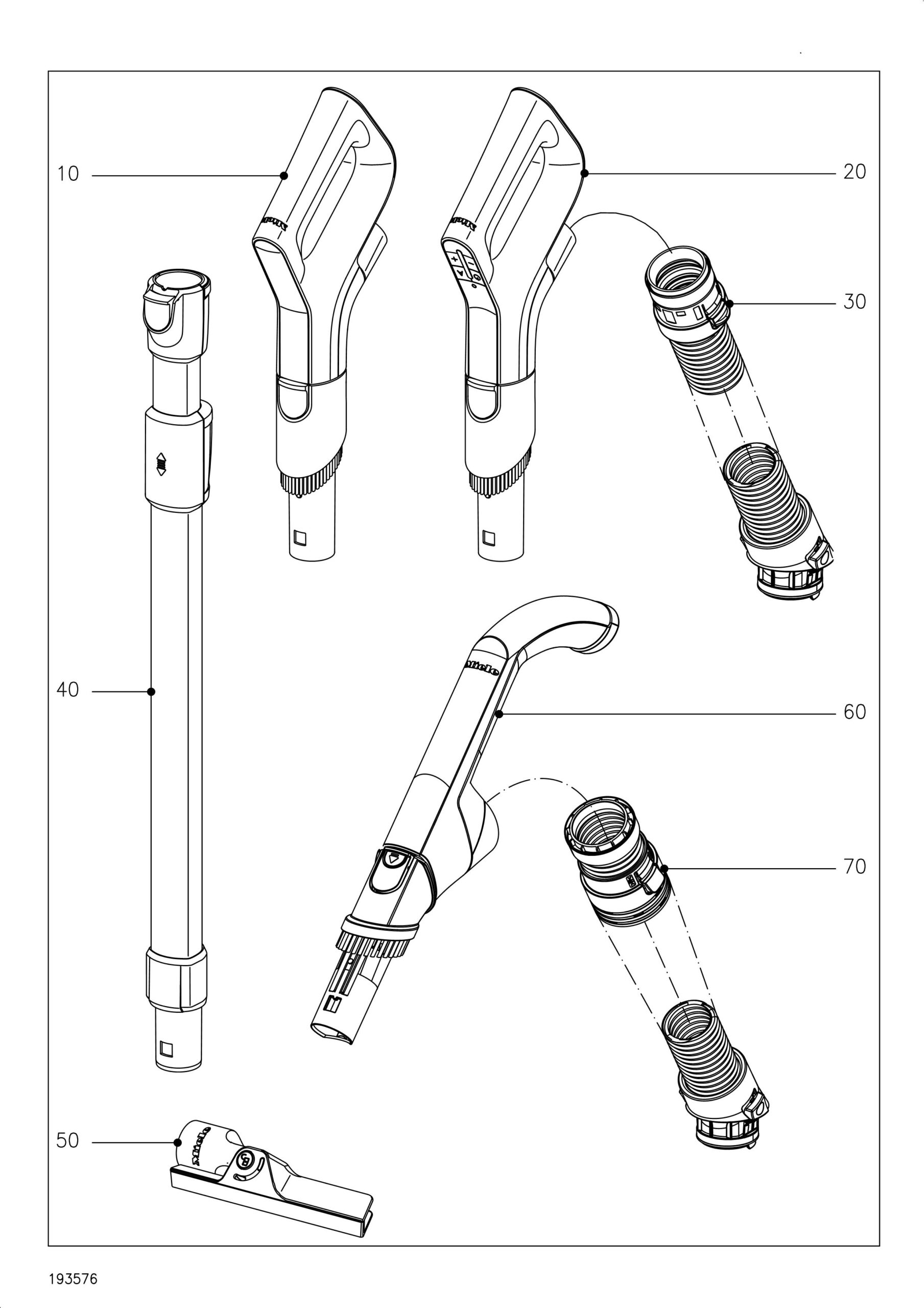

| 10 | No Image | Comfort Handle 2.0 | 12073254 | $83.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | No Image | Suction Hose Sg Obsw Assy | 12445500 | $53.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 |  | HES Telescopic Wand for Miele | 10615280 | $77.99Add to cart Special order: ships in 2 to 4 weeks |
| 40 |  | Available ReconditionedGenuine Reconditioned Miele Telescopic Wand - Non Electric More Product Details | 5658812R | $0.00Add to cart |
| 50 | No Image | Upholstery Nozzle 2In1 | 12789690 | $29.00Read more |
| # | Part image | Description | SKU | Price |

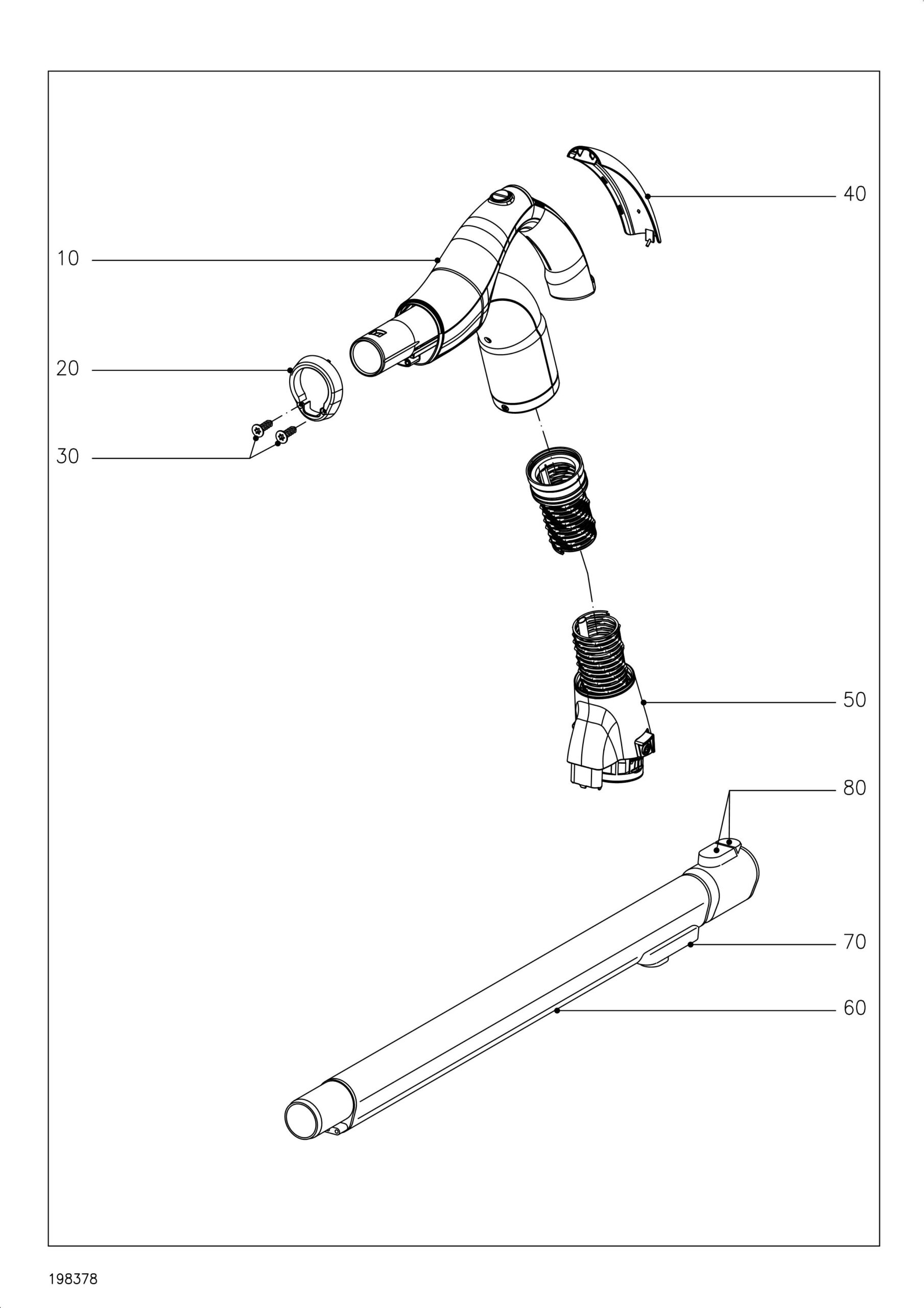

| w/o fig. | No Image | Accessories Holder | 12410980 | $24.99Add to cart Special order: ships in 2 to 4 weeks |
| w/o fig. |  | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $26.00Add to cart Special order: ships in 2 to 4 weeks |
| 10-50 | No Image | Elec.Suction Hose Ses121 Ger/Usa | 10715784 | $429.00Add to cart Special order: ships in 2 to 4 weeks |
| 10-30 | | Genuine Miele Tubular handle SES121 USA KD | 9121711 | $0.00Read more |
| 20 | | Genuine Miele Ring Tubular handle | 6677130 | $20.60Read more |
| 30 | No Image | --Coun.Self-Tap.Screw Spax 3 X 9,5Torx T10 | 6167230 | $2.50Read more |
| 40 |  | Genuine Miele Inset handle Printed | 6157660 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 | | Do not use in US Genuine Miele Elec.suction hose SES121 KD for Kuwait | 9121723 | $429.00Add to cart Special order: ships in 2 to 4 weeks |
| 60-80 |  | Direct Connect Electric Wand SET220 41996432USA 6543880 | WP10506 | $199.00Add to cart |
| 70 |  | Genuine Miele Push button Round | 9160460 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 80 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |

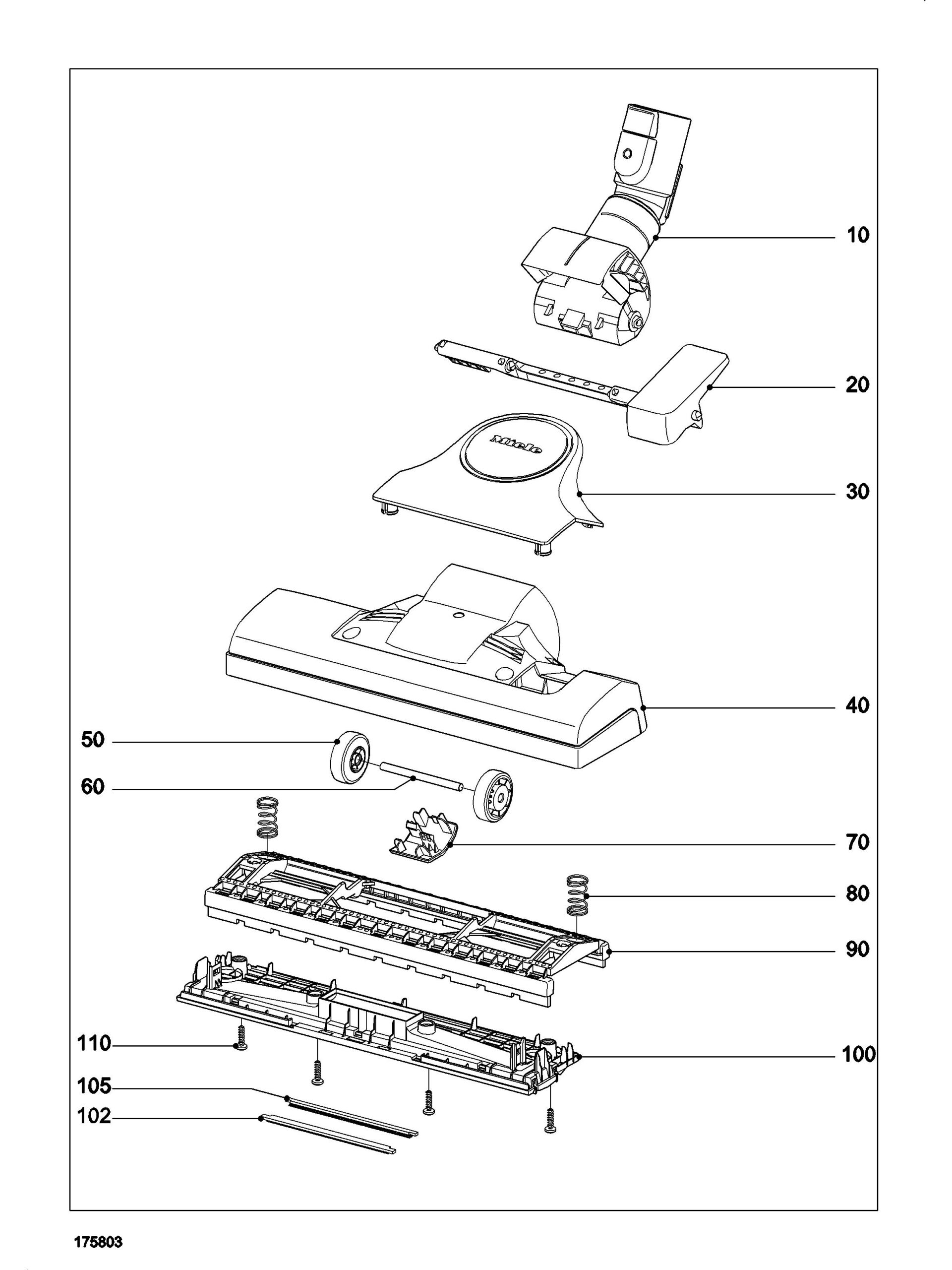

| # | Part image | Description | SKU | Price |
| 10-110 |  | Genuine Miele AllTeQ Floor nozzle SBD 365-3 | 11805640 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | Swivel Joint Component Obsw | 12837620 | $15.53Read more |
| 20 | No Image | Foot Switch Sbd365 Obsw | 12592121 | $17.25Read more |
| 30 | No Image | Cover Printed Sbd365 Obsw | 12592151 | $15.53Read more |
| 40 | No Image | Top Sbd365 Obsw | 12592160 | $47.00Read more |
| 50 | No Image | Support Roller Sbd470 Compl. | 12539430 | $11.00Read more |
| 60 |  | Genuine Miele Shaft SBD470 | 10004101 | $2.30Read more |
| 70 | No Image | Extra Components Sbd365 Obsw | 12592171 | $11.16Read more |
| 80 | No Image | Coil Spring Sbd470-3 | 9316860 | $15.00Read more |
| 90 | Not Available | Bristle plate SBD365 | 12539410 | Not Available |
| 90 | No Image | Bristle Supp.Plate Kd | 13079720 | $21.62Read more |
| 100 | No Image | Lower Section Sbd365 Obsw | 12592181 | $30.00Read more |
| 102 | No Image | Thread Lifter Sbd475 | 12035630 | $15.00Read more |
| 105 | No Image | Thread Lifter Sbd470-3 | 12035380 | $7.00Read more |
| 110 | No Image | Low Head Screw Sbd365 | 11779210 | $2.60Read more |

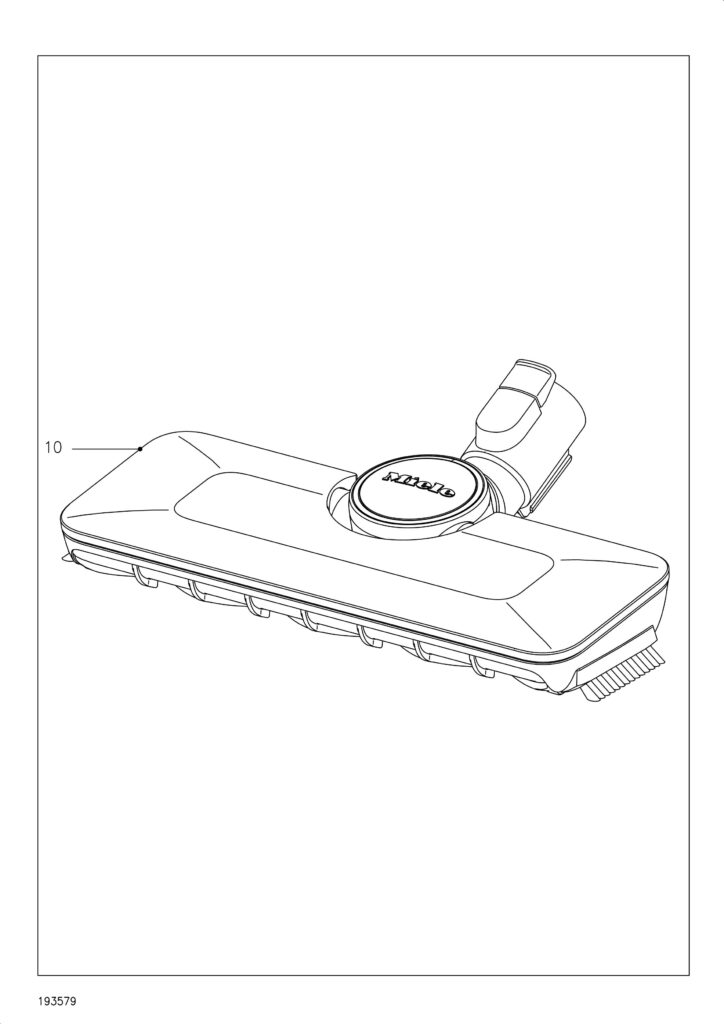

| # | Part image | Description | SKU | Price |

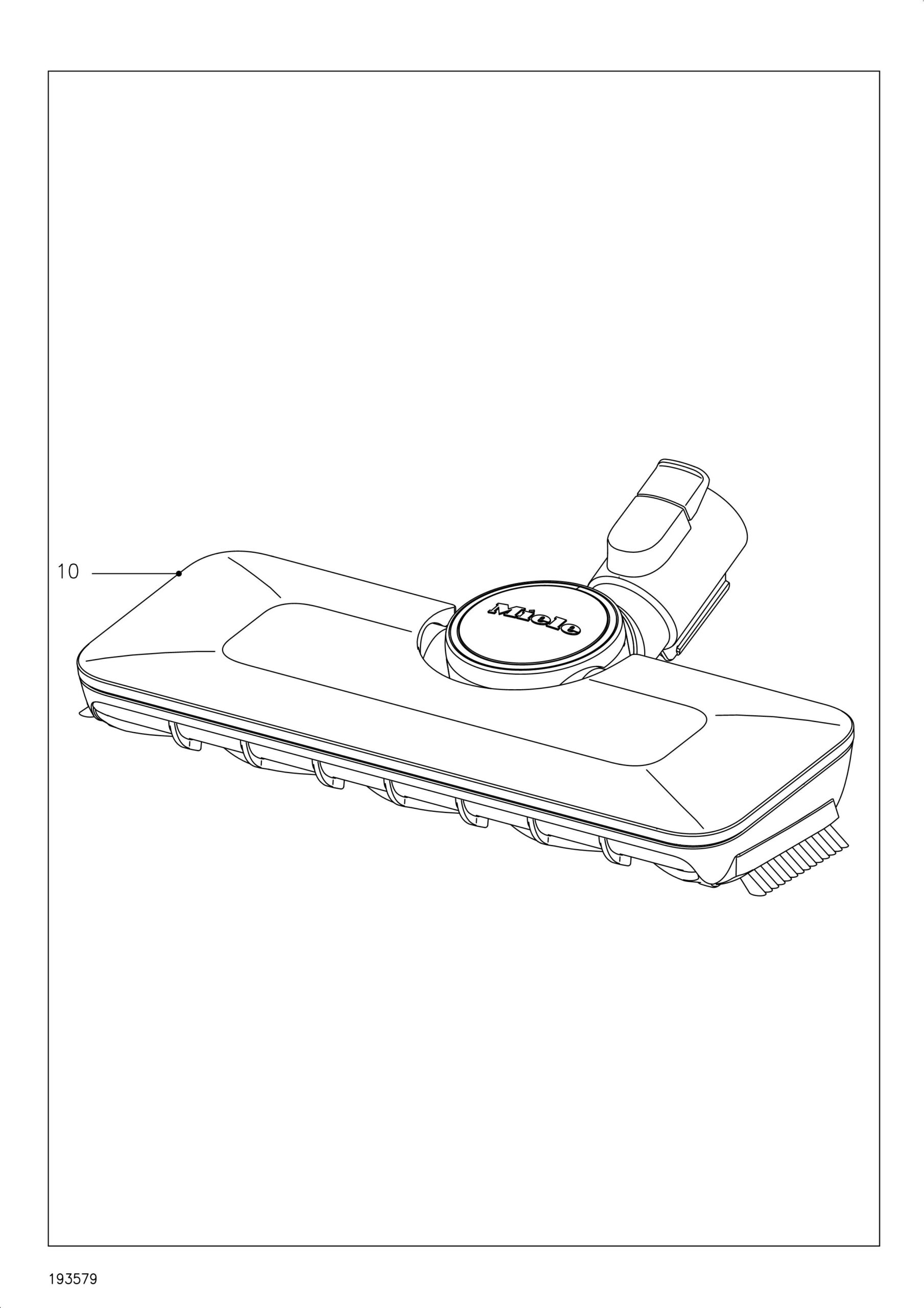

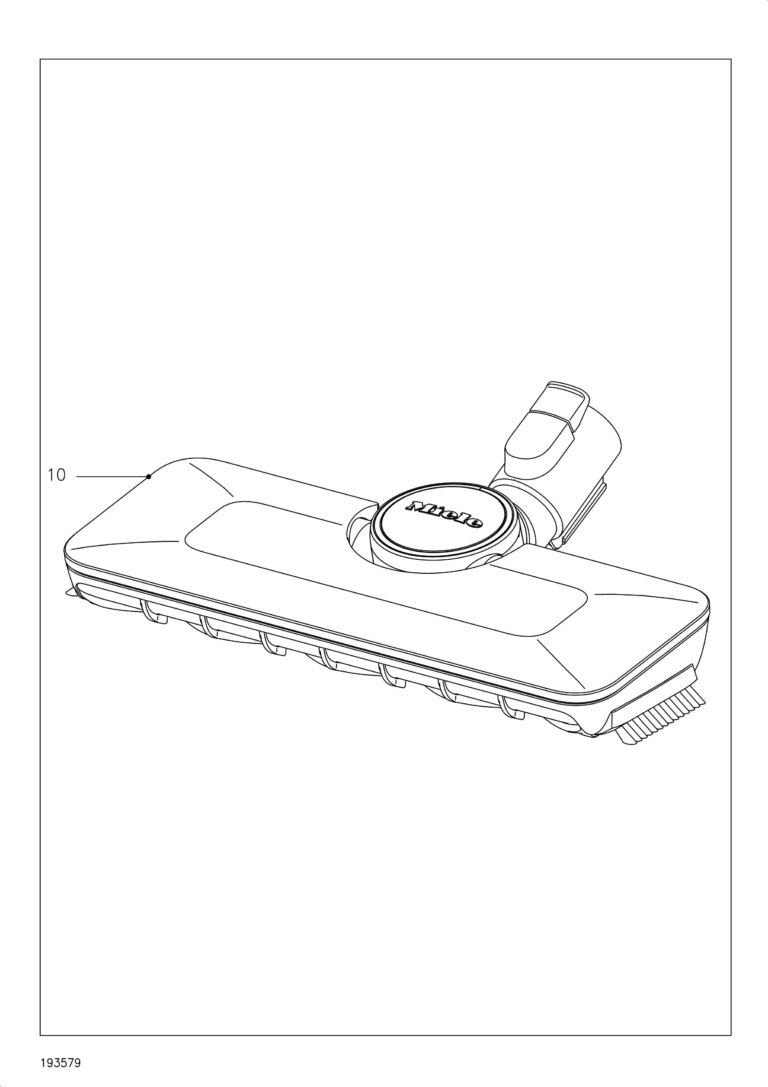

| 10 | No Image | Floor Nozzle Allfloor | 12789670 | $109.00Read more |
