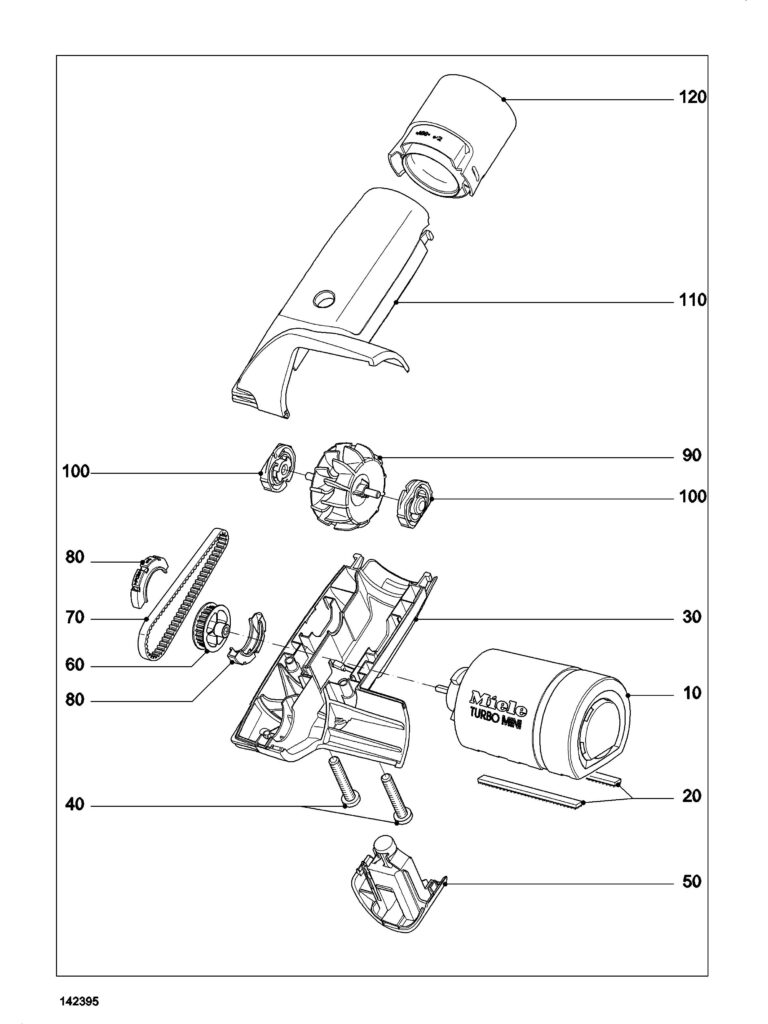

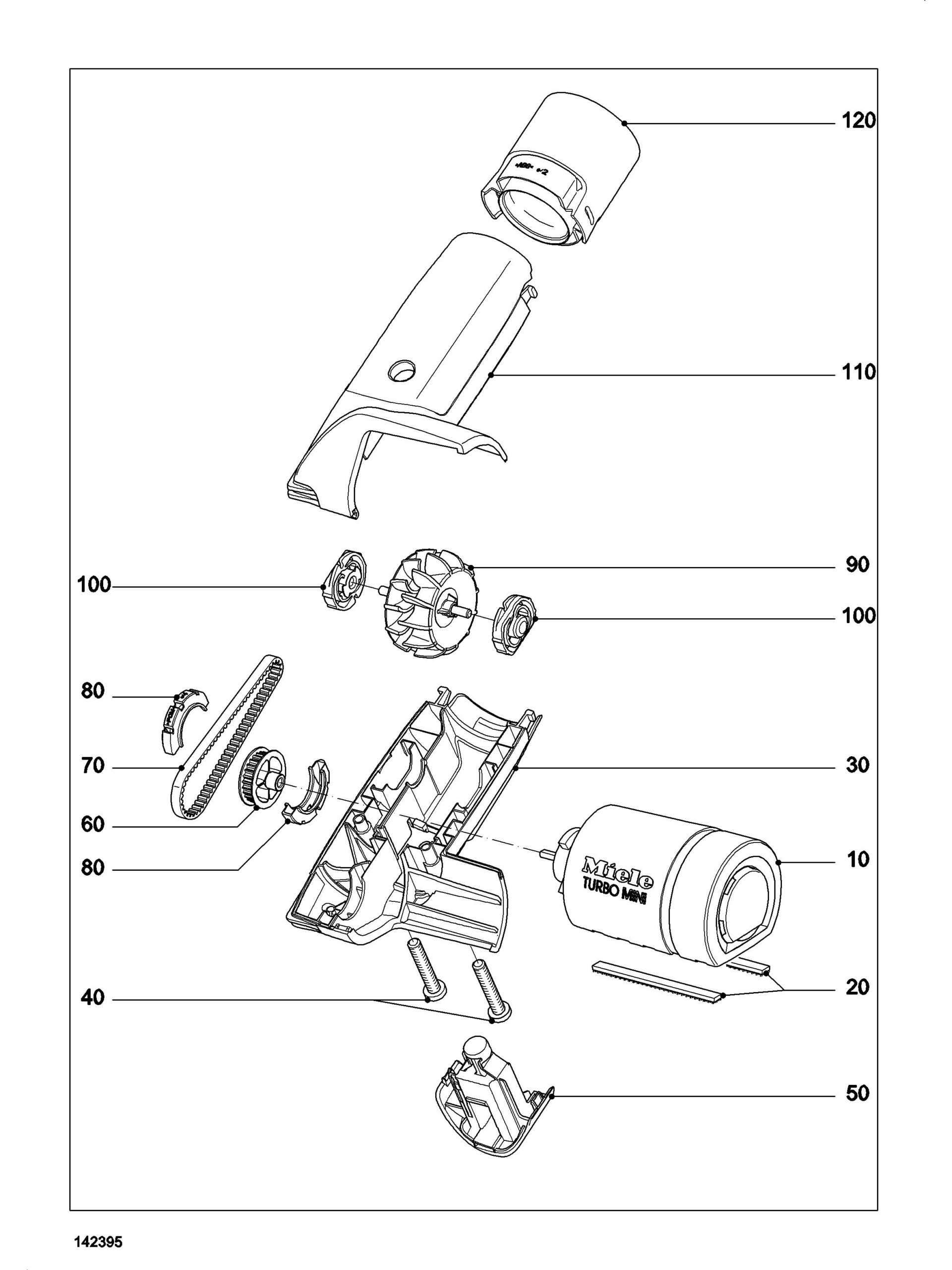

Schematic and parts book for Miele STB20 STB 20. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | Not Available | --Raised head screw 3,5 x 20 | 10326540 | Not Available |
| 10-120 | Not Available | Turbo-brush STB20 XS | 7805350 | Not Available |
| 10+20 | No Image | -Suction Channel Kpl. | 7815980 | $63.00Read more |
| 20 | No Image | -Thread Lifter 2 Pcs. | 7935940 | $15.00Read more |
| 30 | No Image | -Lower Section Stb20 | 10326291 | $16.00Read more |
| 50 | No Image | -Cleaning Flap Stb20 | 10326301 | $7.59Read more |
| 60 | No Image | -Lockwasher Stb20 | 10326431 | $36.00Read more |
| 70 | No Image | -Tooth Belt Stb20 | 10326190 | $42.00Read more |
| 80 | No Image | -Bearing Shell Stb20 | 10326421 | $4.14Read more |
| 90 | No Image | -Turbine Kpl. | 7816000 | $15.00Read more |
| 100 | No Image | -Turbine Lager | 7816010 | $5.20Read more |
| 110 | No Image | -Top Stb20 | 10326271 | $16.00Read more |
| 120 | No Image | -Connection Socket Stb20 | 10326321 | $12.31Read more |
| # | Part image | Description | SKU | Price |
| XX | No Image | Operat.Instruct. Ac Stb20 -Mehrsprachig- | 7815931 | $1.00Read more |
