Schematic and parts book for Miele SQLL0 SQLL0 DUOFLEX HX1. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 10 | No Image | Cover Frame Obsw Miele Only | 12460231 | $47.00Read more |
| 10 | No Image | Cover Frame Csgr Miele Only | 12460241 | $47.00Read more |
| 10 | No Image | Cover Frame Brws Miele Only | 12460251 | $47.00Read more |
| 20 | No Image | User Interface Assy | 12453342 | $56.00Read more |
| 30 | No Image | Air Channel | 12084210 | $27.00Read more |
| 40 | No Image | Raised Head Screw 4,0X14 | 11771400 | $2.50Read more |
| 50 | No Image | Rotary Knob Printed Obsw | 12298930 | $20.00Read more |
| 50 | No Image | Rotary Knob Printed Csgr | 12298920 | $20.00Read more |
| 50 | No Image | Rotary Knob Printed Brws | 12298910 | $21.62Read more |
| 50 | No Image | Rotary Knob Printed Suge | 12298900 | $20.00Read more |
| 50 | No Image | Rotary Knob Printed Tert | 12298890 | $21.62Read more |
| 50 | No Image | Rotary Knob Printed Nobl | 12298880 | $20.00Read more |
| 50 | No Image | Rotary Knob Printed Rbrt | 12298940 | $20.00Read more |
| 60 | No Image | Fine Dust Filter | 12518910 | $44.99Read more |
| 70 | No Image | Cover Recharge Battery Brws | 12132560 | $15.00Read more |
| 70 | No Image | Cover Recharge Battery Csgr | 12132570 | $15.00Read more |
| 70 | No Image | Cover Recharge Battery Obsw | 12132580 | $15.00Read more |
| 80 | No Image | Cap Cover Obsw | 12134270 | $27.00Read more |
| 80 | No Image | Cap Cover Csgr | 12134260 | $27.00Read more |
| 80 | No Image | Cap Cover Brws | 12134250 | $27.00Read more |
| 80 | No Image | Cap Cover Suge | 12134240 | $27.00Read more |
| 80 | No Image | Cap Cover Tert | 12134230 | $27.00Read more |
| 80 | No Image | Cap Cover Nobl | 12134220 | $27.00Read more |
| 80 | No Image | Cap Cover Ruby Red | 12134280 | $27.00Read more |
| 90 | No Image | Casing Top Brws | 12134321 | $47.00Read more |
| 90 | No Image | Casing Top Csgr | 12134331 | $47.00Read more |
| 90 | No Image | Casing Top Obsw | 12134341 | $47.00Read more |
| 100 | No Image | Cover Ring Flex Spacegrey | 12095181 | $27.00Read more |
| 100 | No Image | Cover Ring Flex Rosegold | 12095191 | $27.00Read more |
| 100 | No Image | Cover Ring Front Rosegold | 12095171 | $56.00Read more |
| 100 | No Image | Cover Ring Front Spacegrey | 12095161 | $56.00Read more |
| 110 | No Image | Suction Pipe Sgal Obsw | 12265052 | $66.00Read more |
| 110 | No Image | Suction Pipe Sgal Csgr | 12265062 | $66.00Read more |
| 110 | No Image | Suction Pipe Sgal Brws | 12708280 | $66.00Read more |
| 110 | No Image | Suction Pipe Rgal Obsw | 12265082 | $66.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 120 | No Image | Cover Air Channel Brws | 12084180 | $22.00Read more |
| 120 | No Image | Cover Air Channel Csgr | 12084190 | $21.62Read more |
| 120 | No Image | Cover Air Channel Obsw | 12084200 | $20.00Read more |
| 130 | No Image | Maintenance Brush Brws | 12100840 | $27.00Read more |
| 130 | No Image | Maintenance Brush Csgr | 12100850 | $27.00Read more |
| 130 | No Image | Maintenance Brush Obsw | 12100860 | $27.00Read more |

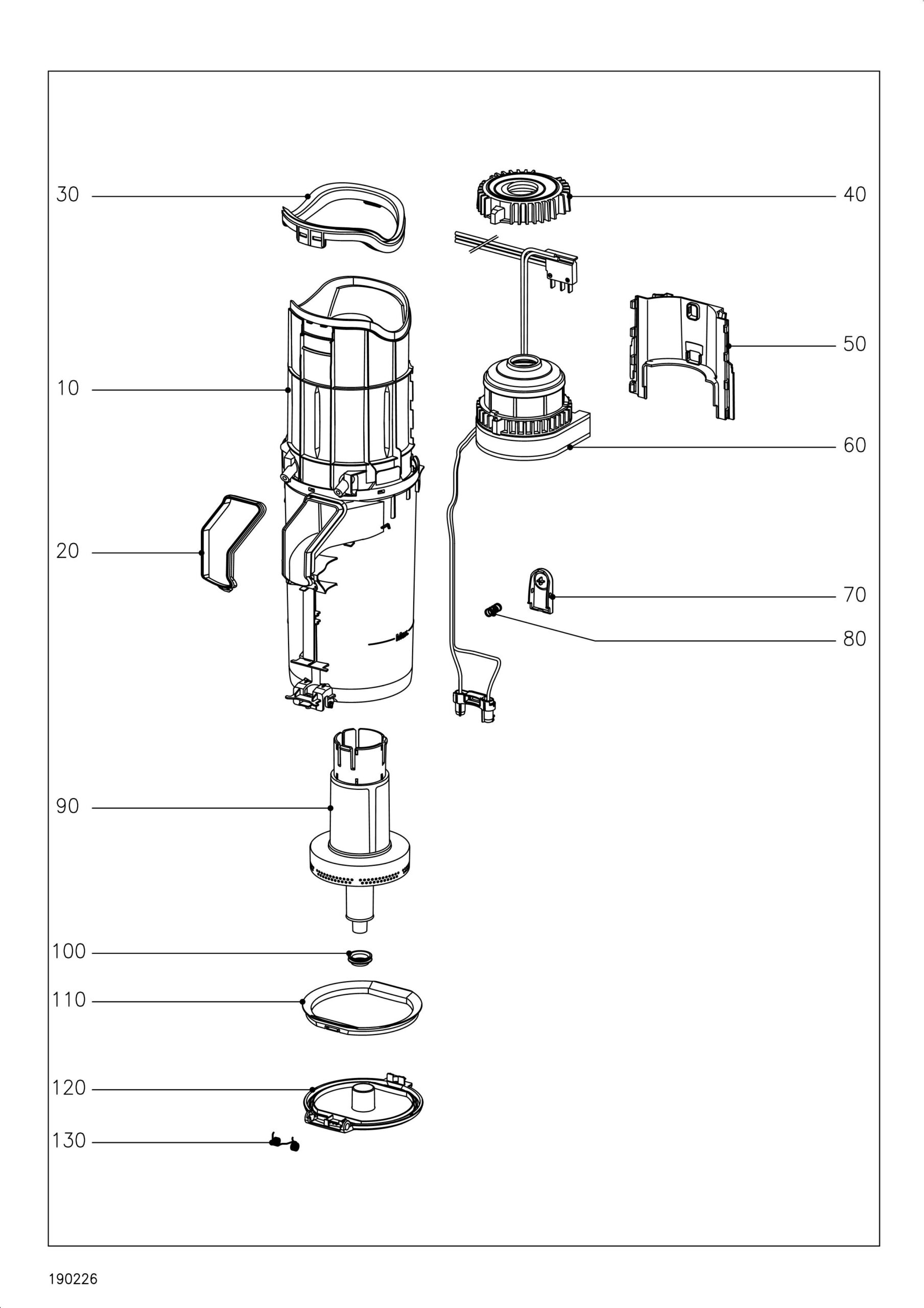

| # | Part image | Description | SKU | Price |
| 10+70 | No Image | Container Pre-Assy | 12457102 | $44.00Read more |
| 20 | No Image | Seal Air Channel | 12095150 | $15.00Read more |
| 30 | No Image | Lip Seal Fan Housing | 12113201 | $22.00Read more |
| 40 | No Image | Bearing Ring Small | 12113210 | $20.00Read more |
| 50 | No Image | Cover Fan Housing | 12113181 | $15.00Read more |
| 60 | No Image | Fan Mpg10-025 Prc | 12979630 | $119.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 | No Image | Release Element Pushbutton | 12113330 | $15.00Read more |
| 80 | No Image | Spring Release Element | 12113510 | $2.50Read more |
| 90+100 | No Image | Pre-Filter Assy | 12466941 | $56.00Read more |
| 100 | No Image | Sealing Plate Pre-Filter | 12113610 | $12.00Read more |
| 110 | No Image | Seal Lid Container | 12113480 | $20.00Read more |
| 120 | No Image | Lid Container | 12113352 | $20.00Read more |
| 130 | No Image | Spring Lid Container | 12113560 | $2.50Read more |

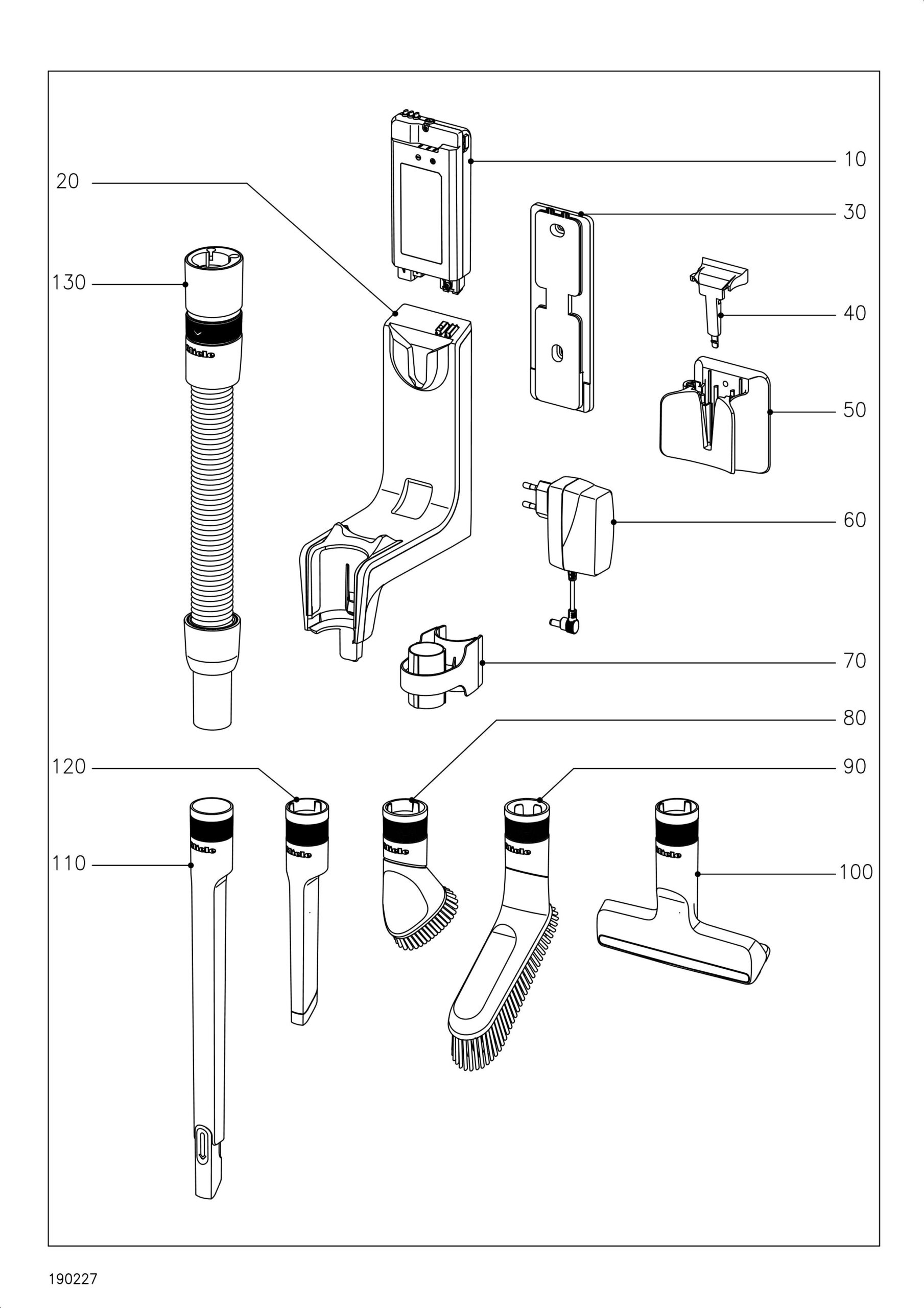

| # | Part image | Description | SKU | Price |
| w/o fig. | No Image | Screw Bag | 12264880 | $20.00Read more |
| 10 | No Image | Lithium-Ion Battery Basic | 12519010 | $0.00Read more |
| 10 | No Image | Lithium-Ion Battery | 12519020 | $0.00Read more |
| 20 | No Image | Wall Support Flex Assy Brws | 12265721 | $76.00Read more |
| 20 | No Image | Wall Support Flex Assy Csgr | 12265731 | $76.00Read more |
| 20 | No Image | Wall Support Flex Assy Obsw | 12265742 | $76.00Read more |
| 30 | No Image | Wall Fitting Rack Flex Obsw | 12172400 | $20.00Read more |
| 30 | No Image | Wall Fitting Rack Flex Brws | 12172410 | $20.00Read more |
| 30 | No Image | Wall Fitting Rack Flex Csgr | 12172420 | $20.00Read more |
| 40 | No Image | Small Parts Support Cover | 12462070 | $15.00Read more |
| 50 | No Image | Small Parts Wall Mount | 12207080 | $22.00Read more |
| 60 | No Image | Recharger Us, Jp Type A | 11684363 | $209.00Read more |
| 70 | No Image | Accessories Holder | 12410980 | $24.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 | No Image | Dusting Brush | 12395490 | $24.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | No Image | Universal Brush | 12410960 | $34.00Read more |
| 100 | No Image | Upholstery Nozzle | 12518950 | $0.00Read more |
| 110 | No Image | Flex. Crev. Nozzle 600Mm | 12395700 | $34.00Read more |
| 120 | No Image | Crevice Nozzle | 12518930 | $16.70Read more |
| 130 | No Image | Flexible Hose | 12395720 | $39.95Read more |

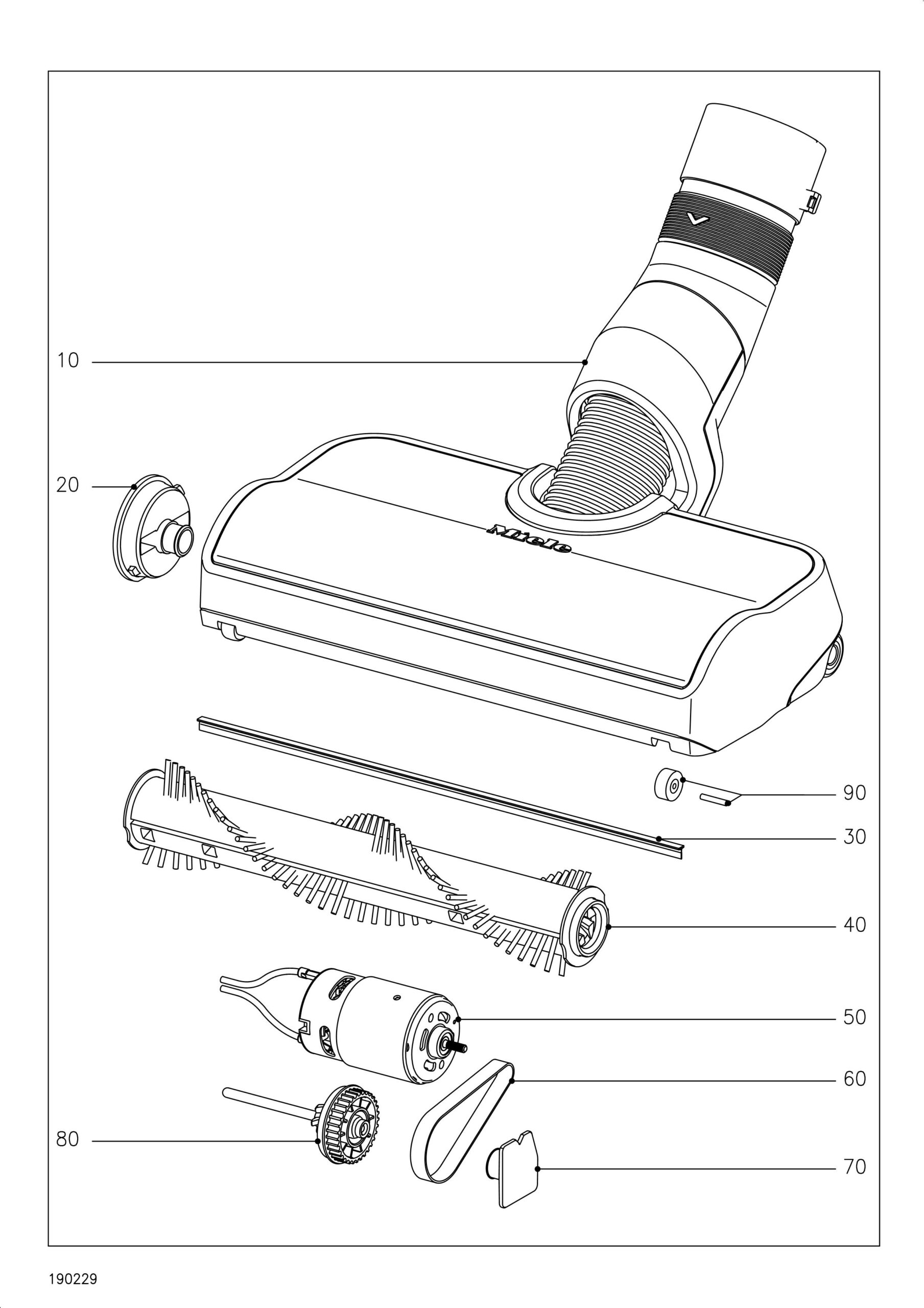

| # | Part image | Description | SKU | Price |
| 10-80 | No Image | Electro-Brush Multifloor Ob | 12518980 | $0.00Read more |
| 10-80 | No Image | Electro-Brush Mul.Fl Brws | 12518990 | $185.00Read more |
| 10-80 | No Image | Electro-Brush Multifloor Csgr | 12519000 | $185.00Read more |
| 20 | No Image | Handle Brush Roller Obsw | 12490000 | $27.00Read more |
| 20 | No Image | Handle Brush Roller Brws | 12490600 | $27.00Read more |
| 20 | No Image | Handle Brush Roller Csgr | 12490610 | $27.00Read more |
| 30 | No Image | Sealing Lip | 12326611 | $27.00Read more |
| 40 | No Image | Brush Roller Hx-Cct 20 | 12570520 | $72.00Read more |
| 50 | No Image | Motor | 12489950 | $119.00Read more |
| 60 | No Image | Tooth Belt | 12489980 | $56.00Read more |
| 70 | No Image | Holder Bearing | 12489960 | $20.00Read more |
| 80 | No Image | Motor Pinion | 12489970 | $20.00Read more |
| 90 |  | Genuine Miele Wheel 2 Pcs. | 4919170 | $30.00Add to cart Product is special order please allow 2-4 weeks for delivery. |

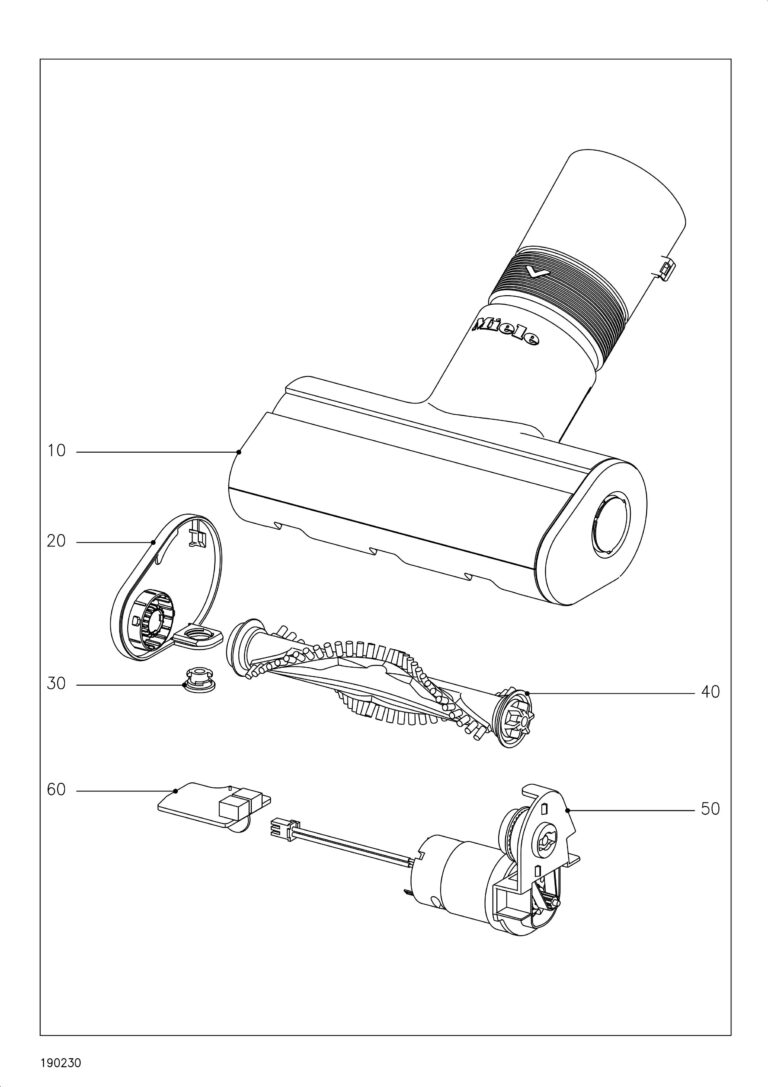

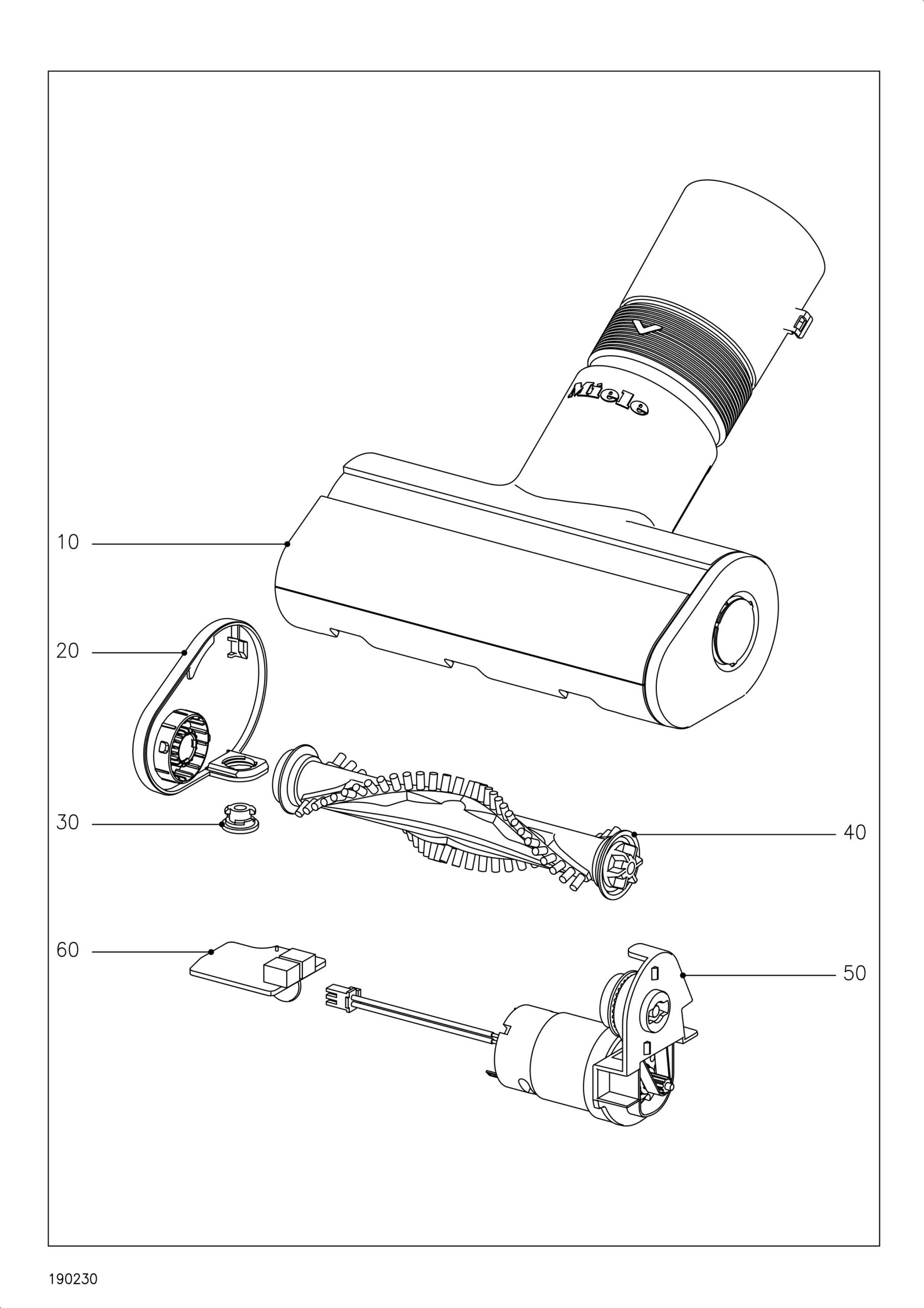

| # | Part image | Description | SKU | Price |
| 10-60 | No Image | Hand-Held Brush Electro Compact | 12410910 | $146.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | No Image | Right Side Panel | 12493710 | $15.00Read more |
| 30 | No Image | Knob | 12493720 | $11.00Read more |
| 40 | No Image | Brush Roller Assy | 12536110 | $36.00Read more |
| 50 | No Image | Motor Assy Group | 12536120 | $63.00Read more |
| 60 | No Image | Circuit Board | 12493700 | $56.00Read more |
| # | Part image | Description | SKU | Price |
| w/o fig. | No Image | Box Duoflex Hx1 Red | 12418280 | $63.00Read more |
| w/o fig. | No Image | Box Duoflex Hx1 Blue | 12418291 | $22.00Read more |
| w/o fig. | No Image | Box Duoflex Hx1 Yellow | 12418300 | $63.00Read more |
| w/o fig. | No Image | Box Duoflex Hx1 Cat&Dog | 12418310 | $22.00Read more |
| w/o fig. | No Image | Box Duoflex Hx1 Extra | 12418320 | $22.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| w/o fig. | No Image | Box Duoflex Hx1 Allfloor | 12418330 | $22.00Read more |
| w/o fig. | No Image | Box Duoflex Hx1 T Care | 12418340 | $22.00Read more |
| w/o fig. | No Image | Box Duoflex Hardfloor | 12645261 | $22.00Read more |
| w/o fig. | No Image | Box Duoflex Hx1 Red Fc B | 12923470 | $22.00Read more |
| w/o fig. | No Image | Box Duoflex Hx1 Redpulse | 12838480 | $22.00Read more |
| w/o fig. | No Image | Cover | 12264852 | $22.00Read more |
| w/o fig. | No Image | Accessory Box | 12264861 | $20.00Read more |
| w/o fig. | No Image | Foil Bag B25 320X630 | 12264901 | $2.50Read more |
| w/o fig. | No Image | Paper Cushion B25 | 12158772 | $47.00Read more |
