Schematic and parts book for Miele SNRF3 SNRF3 BOOST CX1+125 Gala Edit.. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

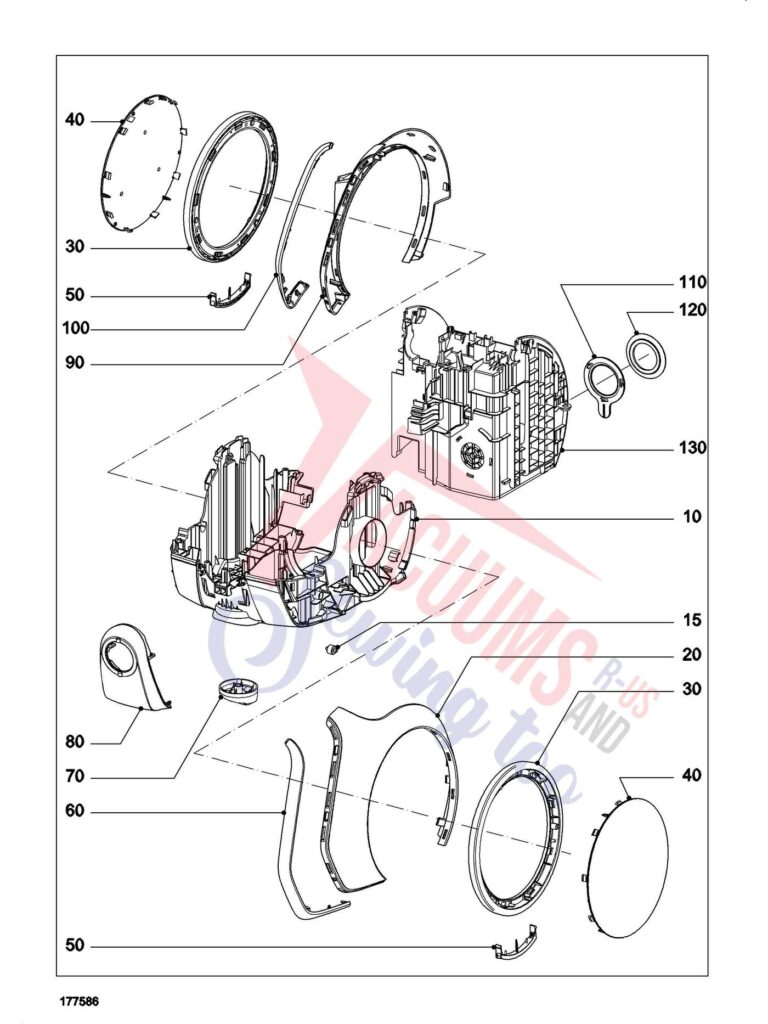

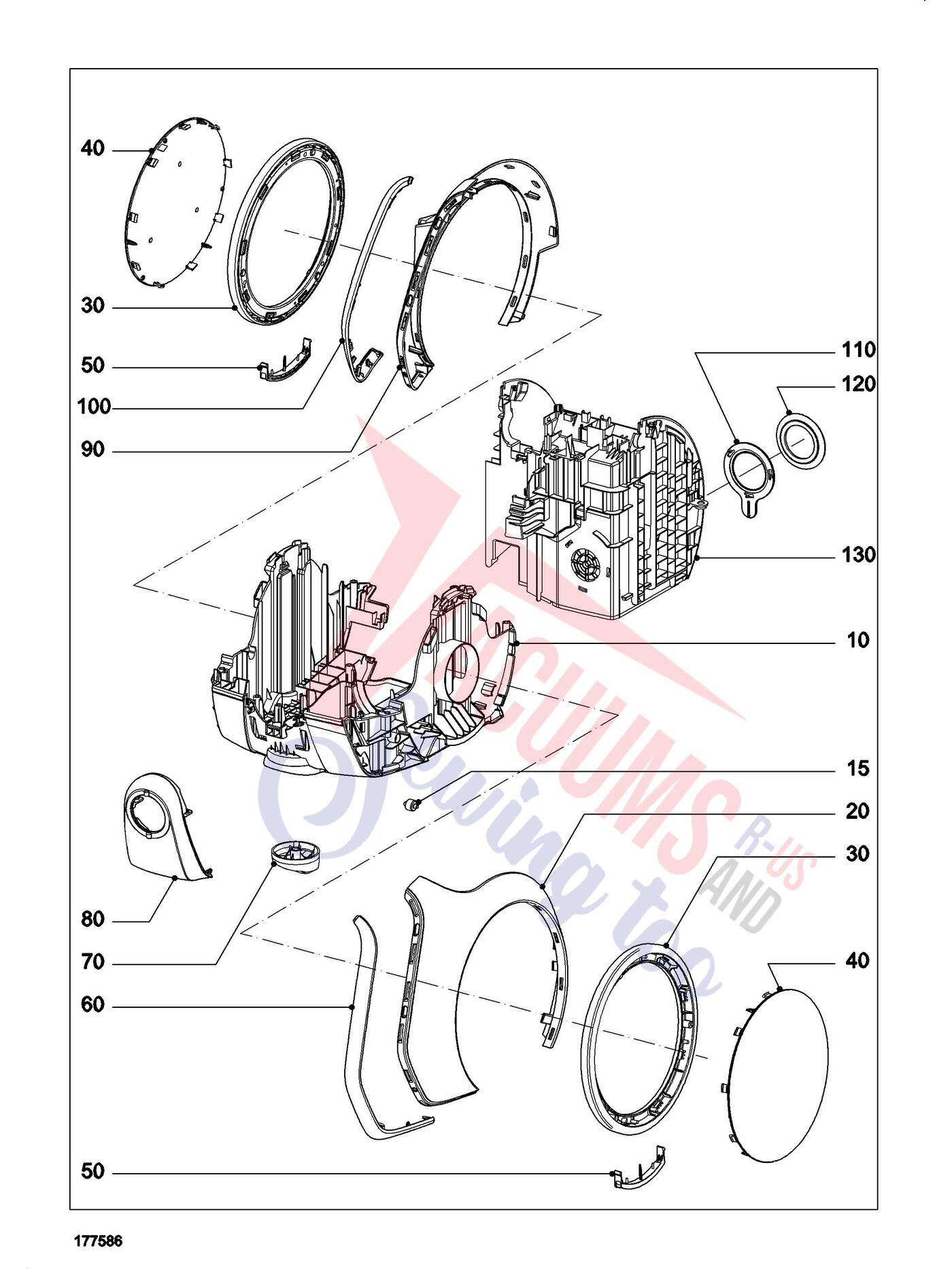

| # | Part image | Description | SKU | Price |
| 10 |  | Genuine Miele Casing bottom | 11168053 | $52.20Read more |
| 15 | | Genuine Miele Support roller B20 | 12536990 | $4.90Read more |
| 20 | No Image | Side Panel Left Lowe | 11168962 | $42.00Read more |
| 20 | No Image | Side Panel Left Grgr | 11510722 | $42.00Read more |
| 20 | No Image | Side Panel Left Obsw | 11510732 | $42.00Read more |
| 20 | No Image | Side Panel Left Kagr | 11895580 | $47.00Read more |
| 30 | | Genuine Miele Wheel (blue) | 11360921 | $39.50Read more |
| 30 | | Genuine Miele Wheel (red) | 11360931 | $39.50Read more |
| 30 | | Genuine Miele Wheel (black) | 11585272 | $52.20Read more |
| 40 | | Genuine Miele Cap Wheel LOWE | 11169041 | $24.70Read more |
| 40 | | Genuine Miele Cap Wheel OBSW | 11510531 | $24.70Read more |
| 40 | | Genuine Miele Cap Wheel KAGR printed | 11996400 | $33.80Read more |
| 40 | No Image | Cap Wheel Grgr | 11510541 | $27.00Read more |
| 50 | No Image | Bearing Wheel | 11689780 | $15.53Read more |
| 60 | | Genuine Miele Buffer left | 11168993 | $15.00Read more |
| 70 | No Image | -Slide Skid Obsw Assy | 12494260 | $11.00Read more |
| 80 | | Genuine Miele Dust channel | 11168111 | $20.60Read more |
| 90 | No Image | Side Panel Right Lowe | 11168972 | $42.00Read more |
| 90 | No Image | Side Panel Right Obsw | 11510762 | $42.00Read more |
| 90 | No Image | Side Panel Right Kagr | 11895590 | $47.00Read more |
| 90 | No Image | Side Panel Right Grgr | 11510772 | $42.00Read more |
| 100 | | Genuine Miele Buffer right | 11169013 | $15.00Read more |
| 110 | No Image | Seal Holder | 11368951 | $11.00Read more |
| 120 | | Genuine Miele Seal Central filter | 11368960 | $6.60Read more |
| 130 | | Genuine Miele Rear panel | 11168170 | $43.60Read more |

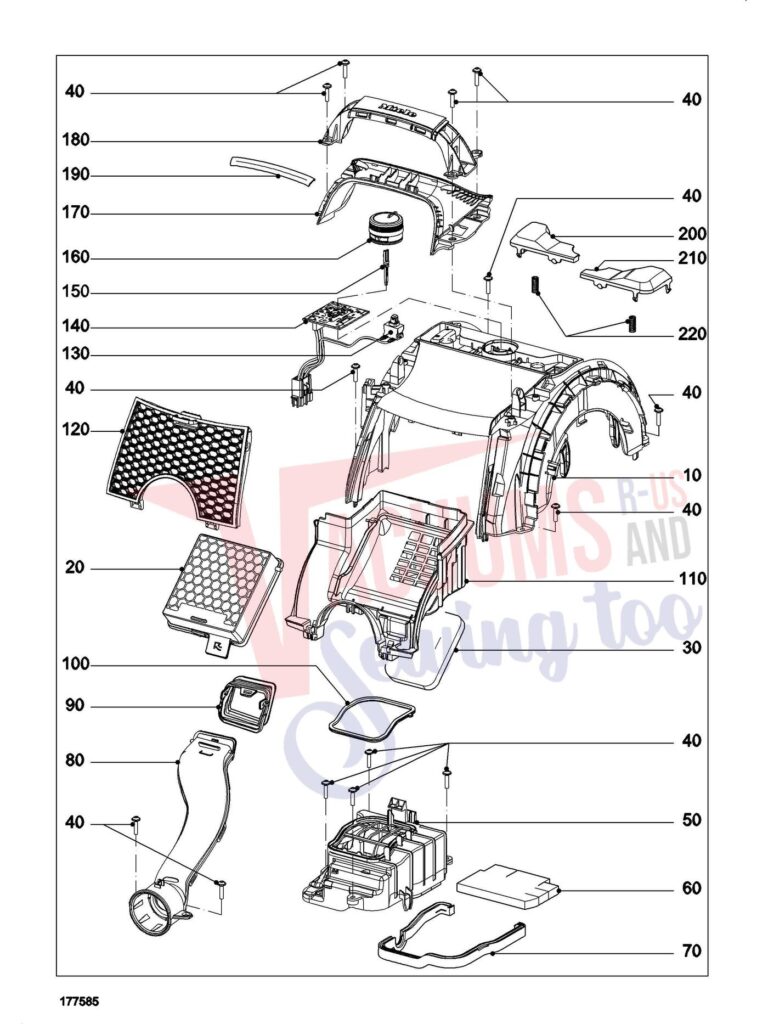

| # | Part image | Description | SKU | Price |
| w/o fig. | No Image | Seal Suction Channel | 11168160 | $15.00Read more |
| 10 | No Image | Casing Top | 11168214 | $56.00Read more |
| 20 | | Genuine Miele Hygiene Filter SF HY 60 | 11639240 | $48.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Genuine Miele Foam insert Filter holder | 11508260 | $2.30Read more |
| 40 | No Image | Raised Head Screw 4.0X18 Ejot-Delta-Pt | 10441610 | $2.50Read more |
| 50 | | Genuine Miele Cover | 11168101 | $20.60Read more |
| 60 | No Image | Damping Plate Cover | 11508270 | $2.30Read more |
| 70 |  | Genuine Miele Seal Motor housing | 11168092 | $18.80Read more |
| 80 | | Genuine Miele Suction channel assy USA | 11368930 | $27.90Read more |
| 90 | | Genuine Miele Lip seal | 11168150 | $15.00Read more |
| 100 | | Genuine Miele Seal Filter holder | 11168191 | $13.50Read more |
| 110 | | Genuine Miele Filter holder | 11168183 | $24.70Read more |
| 120 |  | Genuine Miele Grille assy | 11168293 | $33.80Read more |
| 130 | No Image | -Switch 1 Pole 1681.3103 | 9023231 | $9.60Add to cart Special order: ships in 2 to 4 weeks |
| 140 | No Image | Electronic Unit Edw S20203/81 Assy | 11314142 | $100.00Read more |
| 150 | | Genuine Miele Adapter | 11168251 | $6.60Read more |
| 160 | | Genuine Miele Rotary knob | 11168240 | $20.60Read more |
| 170 | | Genuine Miele Handle B20 | 11168230 | $20.60Read more |
| 180 | No Image | Side Panel Middle White Hot Stamp | 11510570 | $20.00Read more |
| 180 | No Image | Side Panel Middle Obsw Hot Stamp | 11510580 | $21.62Read more |
| 180 | No Image | Side Panel Middle Red Hot Stamp | 11510590 | $21.62Read more |
| 180 | No Image | Side Panel Middle Kagr Hot Stamp | 11895540 | $22.00Read more |
| 190 | | Genuine Miele Buffer middle | 11169000 | $2.30Read more |
| 200 | No Image | Foot Switch Cable Printed | 11168261 | $27.00Read more |
| 210 | No Image | Foot Switch Power Printed | 11168271 | $27.00Read more |
| 220 | No Image | Spring Foot Switch | 11168280 | $2.30Read more |

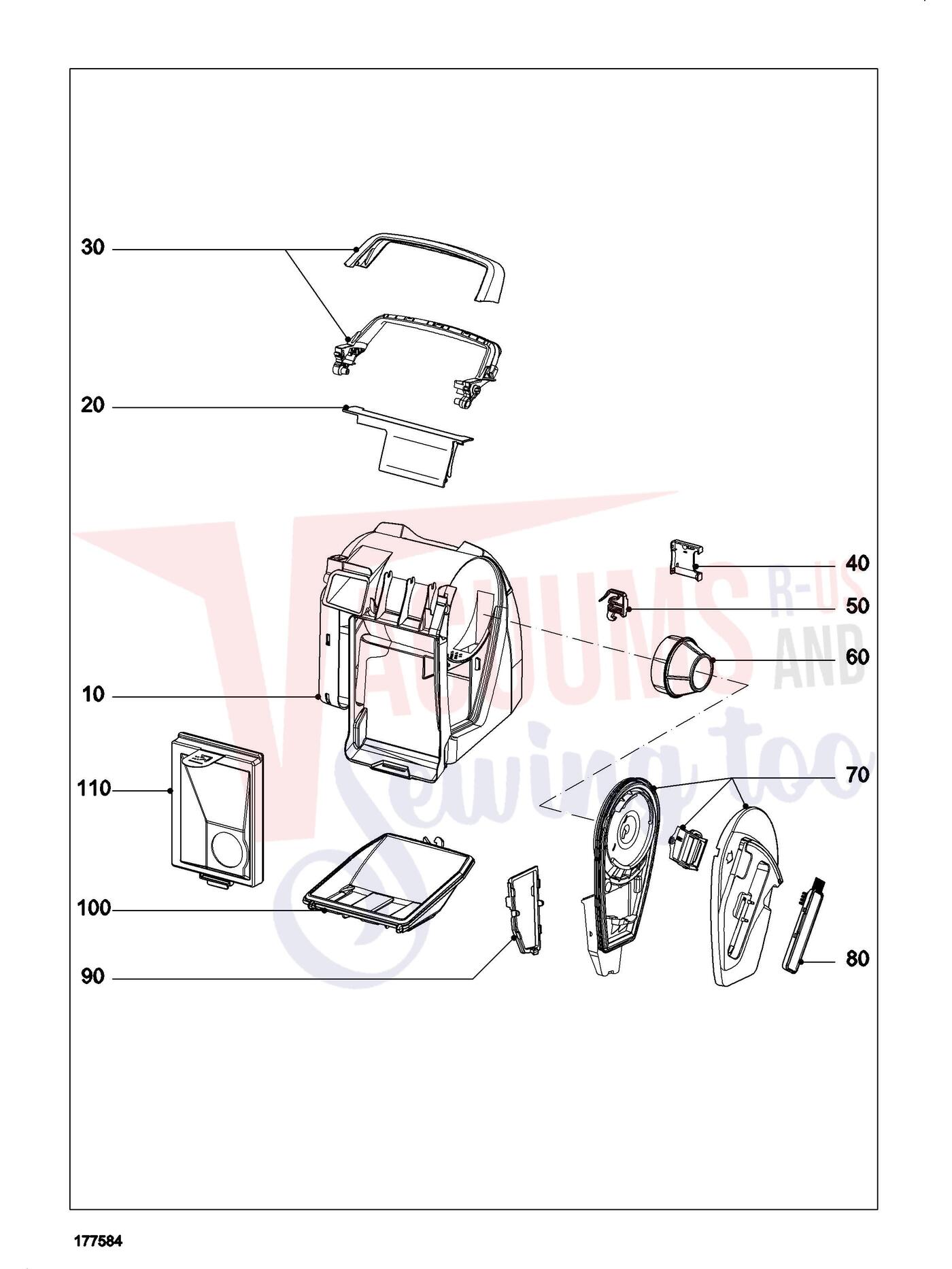

| # | Part image | Description | SKU | Price |
| 10-110 | No Image | Interceptor Assy Transparent | 12101911 | $299.00Read more |
| 20 | | Genuine Miele Cover top printed | 11169192 | $20.60Read more |
| 30 | | Genuine Miele Handle Assy | 11689792 | $20.60Read more |
| 40 |  | Genuine Miele Cover interlock | 11169142 | $2.30Add to cart Special order: ships in 2 to 4 weeks |
| 50 |  | Genuine Miele interlock Flap | 11169151 | $2.30Read more |
| 60 | | Genuine Miele Pre-filter Separator | 12040490 | $39.50Read more |
| 70 | | Genuine Miele Lid | 11689800 | $43.60Read more |
| 80 | | Genuine Miele Cleaning tool | 11169304 | $27.90Read more |
| 90 |  | Genuine Miele Filter frame Lid | 11169263 | $24.70Read more |
| 100 |  | Genuine Miele Flap assy | 11169214 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 | | Genuine Miele Feinstaub Filter CX FSF | 11639250 | $59.00Read more |

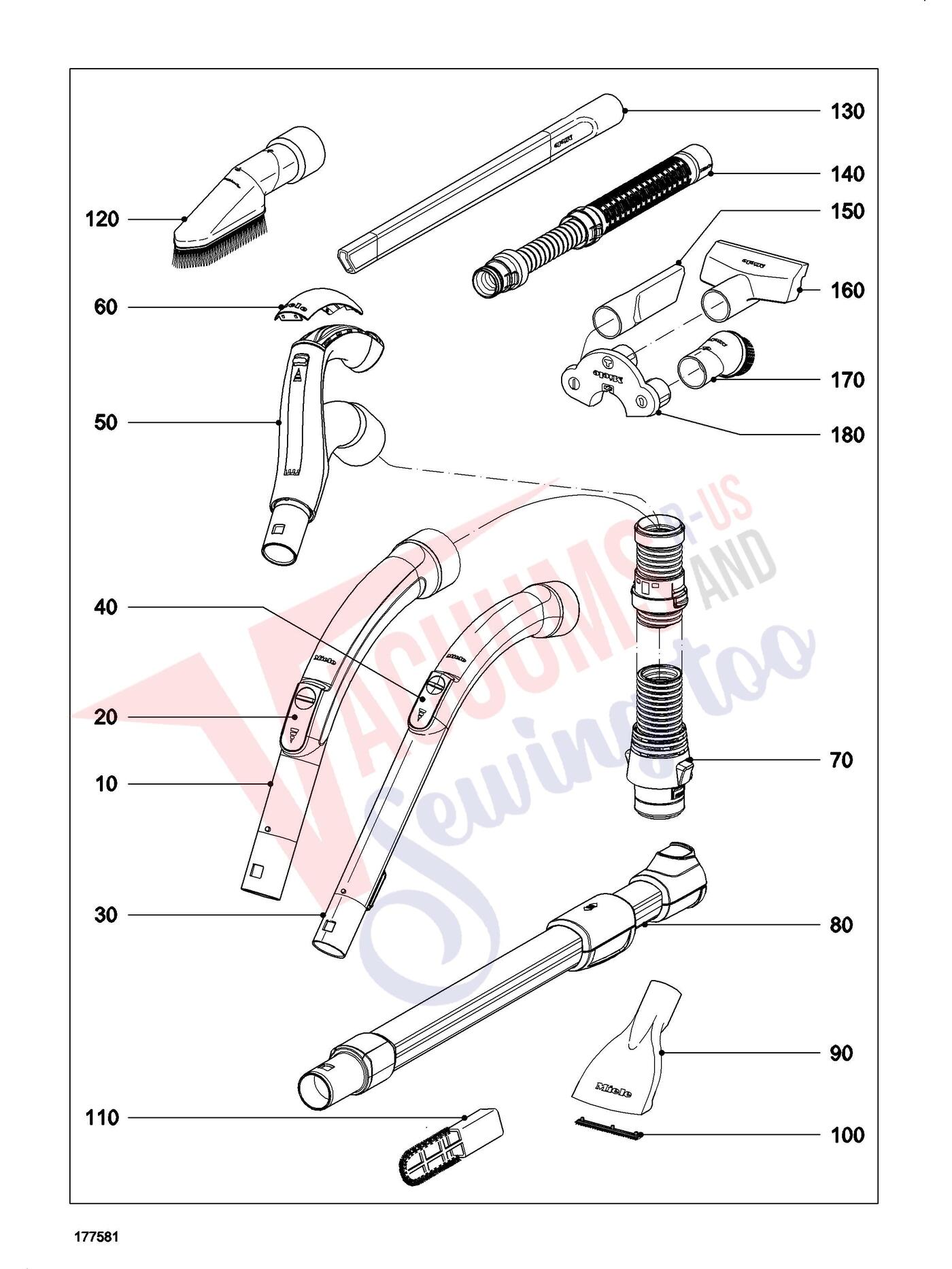

| # | Part image | Description | SKU | Price |
| (80) | | Genuine Miele KB Suction pipe EasySlide midsize | 12840870 | $91.00Read more |
| 10+20 | | Genuine Miele Tubular handle anthracite | 9442601 | $37.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Genuine Miele Suction control f. Griffr. XXL & 2.0 | 7587200 | $2.30Read more |
| 30+40 | | Genuine Miele Tubular handle XXL Parking assy | 7586107 | $56.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Genuine Miele Suction control f. Griffr. XXL & 2.0 | 7587200 | $2.30Read more |
| 50+60 | No Image | Tubular Handle Comfort S4/S5/S6/S8 | 6163665 | $83.00Read more |
| 60 |  | Genuine Miele Inset handle Printed | 6157660 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 | | Genuine Miele Suction hose 1820mm (B20) | 11368972 | $63.00Read more |
| 80 |  | HES Telescopic Wand for Miele | 10615280 | $77.99Add to cart Special order: ships in 2 to 4 weeks |
| 80 |  | Available ReconditionedGenuine Reconditioned Miele Telescopic Wand - Non Electric More Product Details | 5658812R | $0.00Add to cart |
| 90+100 | | Genuine Miele ST Mattress nozzle SMD10 | 7252280 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 100 | | Genuine Miele Thread lifter | 5056530 | $9.70Read more |
| 110 | | Genuine Miele ST Radiator brush SHB30 | 9660490 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 120 | | Genuine Miele ST Universal brush SUB20 | 11607330 | $49.00Read more |
| 130 | | Genuine Miele ST Flex. crev. nozzle SFD20 560mm | 7252100 | $39.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 |  | Compatible alternateMiele SFD20 Long Flexible Crevice Tool for Miele Vacuums More Product Details | SFD20 | $39.00Add to cart Special order: ships in 2 to 4 weeks |
| 140 |  | Genuine Miele ST Flexible hose SFS10 | 7252210 | $44.00Add to cart Special order: ships in 2 to 4 weeks |
| 150 | No Image | Crevice Nozzle 149Mm Obsw | 9442631 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 160 | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 170 |  | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $26.00Add to cart Special order: ships in 2 to 4 weeks |
| 180 | No Image | Holder Accessory Obsw | 12581110 | $12.00Add to cart Special order: ships in 2 to 4 weeks |

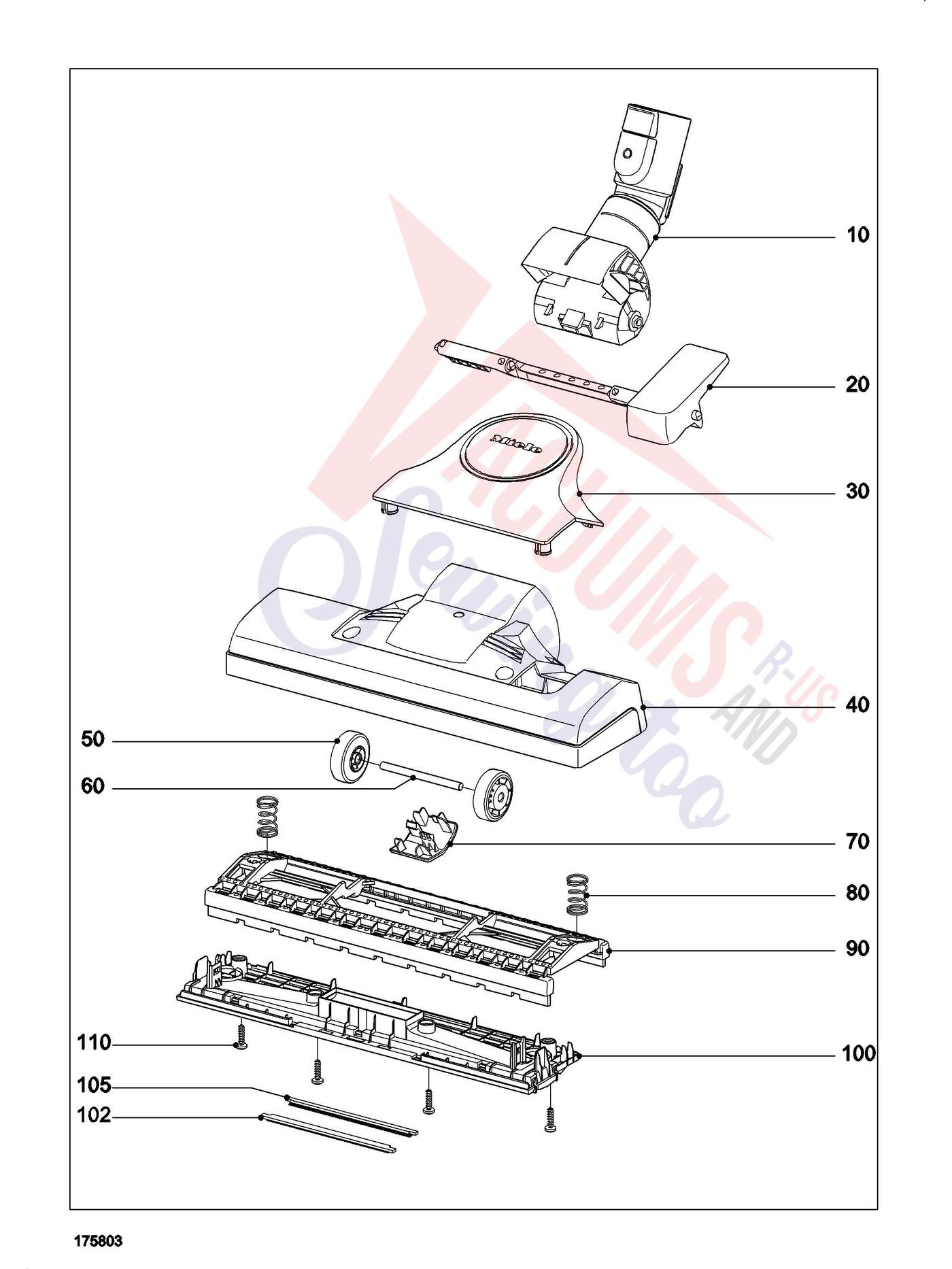

| # | Part image | Description | SKU | Price |
| 10-110 |  | Genuine Miele AllTeQ Floor nozzle SBD 365-3 | 11805640 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Genuine Miele Swivel joint Component AZ | 12837660 | $33.80Read more |
| 20 |  | Genuine Miele Foot switch printed SBD365 | 11263320 | $18.80Read more |
| 30 | No Image | Cover Pad Printed Sbd365 | 11263270 | $21.62Read more |
| 40 |  | Genuine Miele Top SBD365 | 11119760 | $27.90Read more |
| 50 | No Image | Support Roller Sbd470 Compl. | 12539430 | $11.00Read more |
| 60 |  | Genuine Miele Shaft SBD470 | 10004101 | $2.30Read more |
| 70 | No Image | Extra Components Sbd365 | 12538770 | $11.16Read more |
| 80 | No Image | Coil Spring Sbd470-3 | 9316860 | $15.00Read more |
| 90 | No Image | Bristle Plate Assy. Sbd365 | 11263774 | $36.00Read more |
| 100 |  | Genuine Miele Lower section vollst. SBD355 | 11263523 | $39.50Read more |
| 102 | No Image | Thread Lifter Sbd475 | 10242110 | $7.00Read more |
| 105 | No Image | Thread Lifter Sbd470-3 | 10514640 | $2.50Read more |
| 110 | No Image | Low Head Screw Sbd365 | 11119890 | $2.50Read more |
