Schematic and parts book for Miele SJQL0 Scout RX1 SJQL0. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

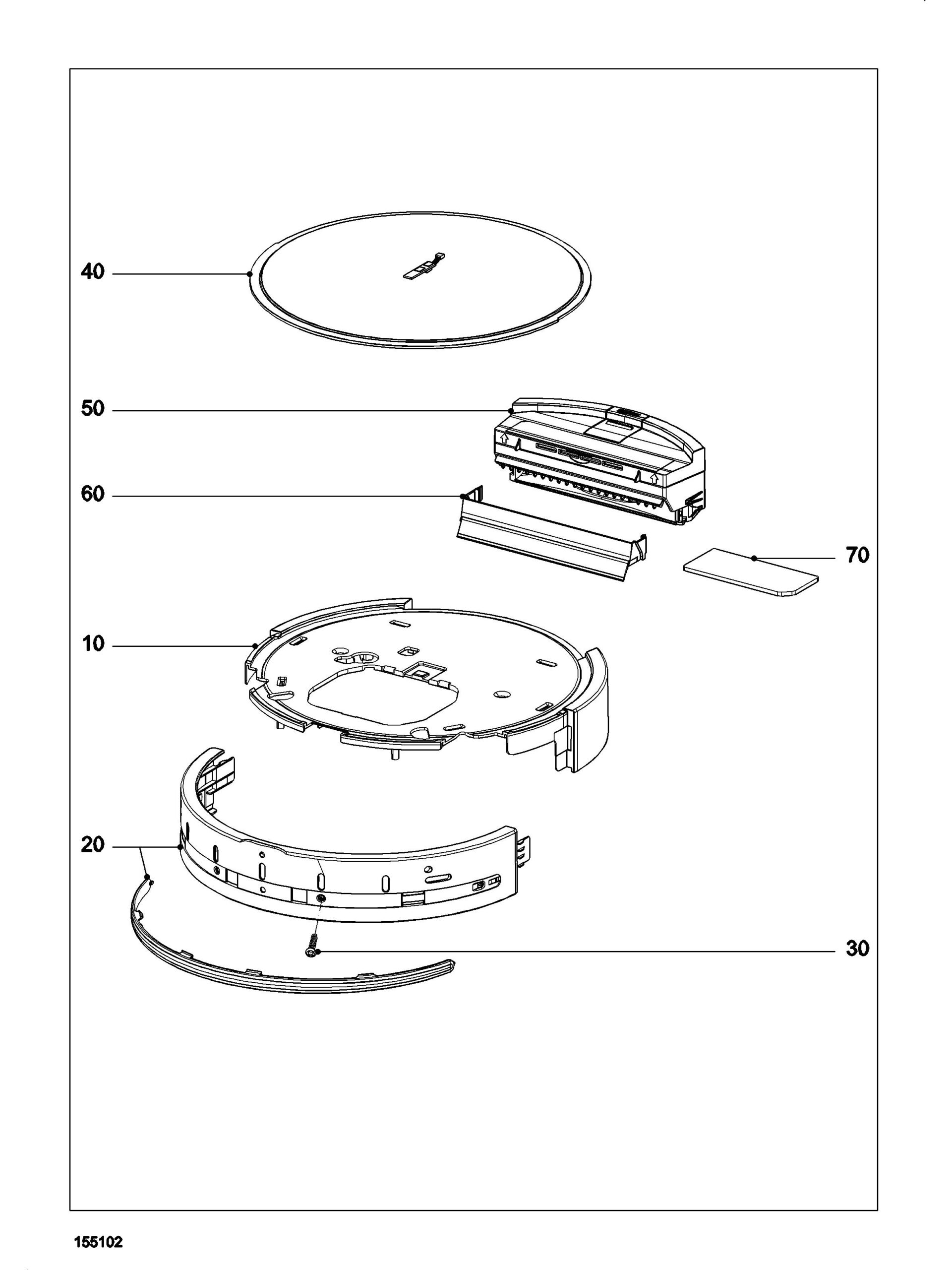

| # | Part image | Description | SKU | Price |
| XX |  | Genuine Miele Self tapping screw T2S PAN 3x8 MFZN | 9709090 | $2.30Read more |
| w/o fig. | No Image | Harness Touch Key Rx1 | 10087891 | $22.00Read more |
| 10 | No Image | Top Cover | 9709241 | $63.00Read more |
| 20 | No Image | Bumper Strip | 9835511 | $56.00Read more |
| 40 | No Image | Decor Cover Kpl. | 9708560 | $129.00Read more |
| 40 | No Image | Decor Cover Red Kpl. | 10157080 | $159.00Read more |
| 50 | No Image | Dust Box | 9935122 | $91.00Read more |
| 60 | No Image | Sealing Lip | 9782730 | $26.65Read more |
| 70 | No Image | Air-Clean Filter | 9724050 | $0.00Read more |

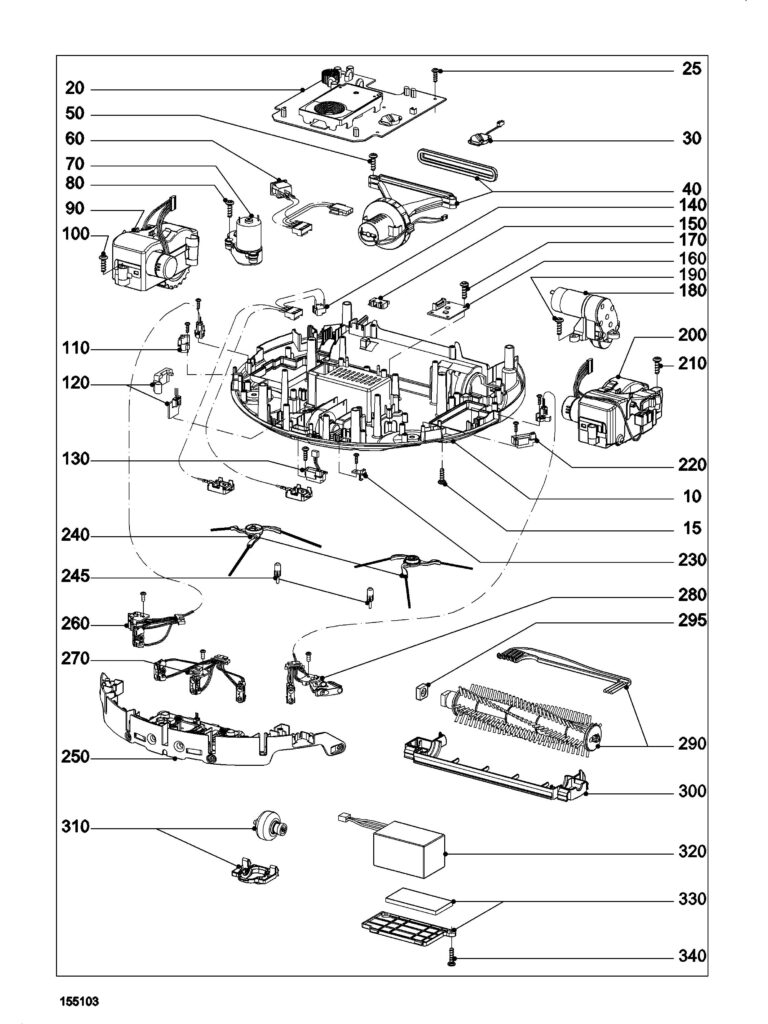

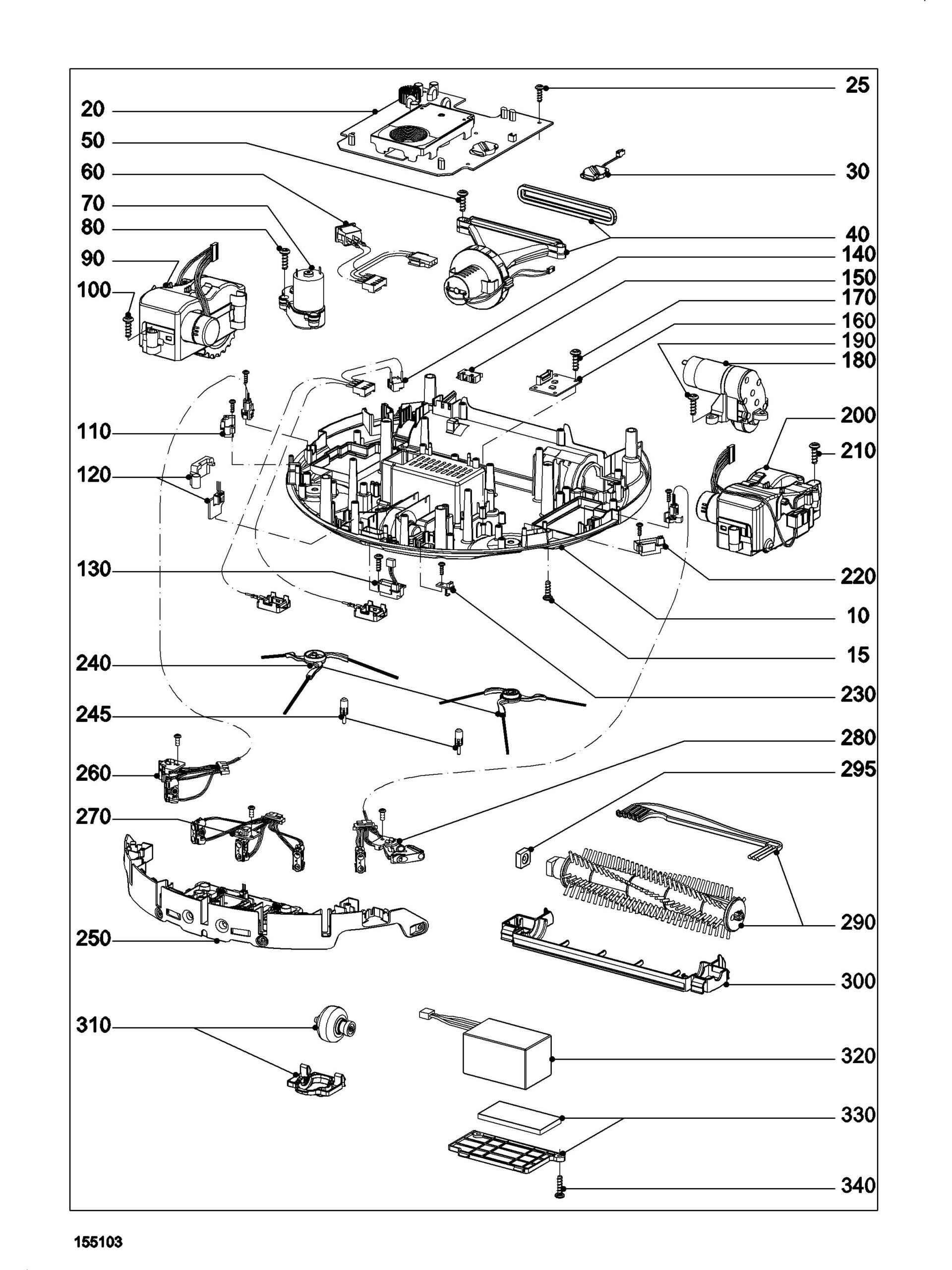

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Self tapping screw T2S PAN 3x8 MFZN | 9709090 | $2.30Read more |
| XX | | Genuine Miele Self tapping screw T2S PAN 4x14 MFZN | 9709130 | $2.30Read more |
| XX | | Genuine Miele Self tapping screw T2S PAN 4x14 MFZN | 9709130 | $2.30Read more |
| w/o fig. | No Image | Washer Right (0,90Mm) 3Stck. | 10495670 | $15.53Read more |
| XX | | Genuine Miele Self tapping screw T2S PAN 4x14 MFZN | 9709130 | $2.30Read more |
| XX | | Genuine Miele Self tapping screw T2S PAN 3x8 MFZN | 9709090 | $2.30Read more |
| XX | | Genuine Miele Self tapping screw T2S PAN 4x14 MFZN | 9709130 | $2.30Read more |
| w/o fig. | No Image | Washer Left (0,45Mm) 3Stck. | 10495660 | $11.16Read more |
| XX | | Genuine Miele Self tapping screw T2S PAN 4x14 MFZN | 9709130 | $2.30Read more |
| XX | No Image | Self Tapping Screw T2S Pan 4X20N | 9709050 | $2.50Read more |
| 15 | | Genuine Miele Self tapping screw T2S PAN 4x14 MFZN | 9709130 | $2.30Read more |
| 20 | No Image | Main Pcb Vollst. | 9708465 | $749.00Read more |
| 30 | No Image | Battery Rtc | 9709230 | $22.00Read more |
| 40 | No Image | Fan Module | 9709120 | $56.00Read more |
| 60 | No Image | Switch On-Off | 9793721 | $22.00Read more |
| 70 | No Image | Side Brush Motor Kpl. | 9793550 | $91.00Read more |
| 90 | No Image | Wheel Right Kpl. | 9709193 | $179.00Read more |
| 110 | No Image | Drop Sensor Kpl. | 9793620 | $76.00Read more |
| 120 | No Image | Passive Sensor Main Pcb | 9835500 | $42.00Read more |
| 130 | No Image | Drop Sensor Kpl. | 9793620 | $76.00Read more |
| 140 | No Image | Connector Terminal | 9793580 | $42.00Read more |
| 150 | No Image | Microswitch | 9793730 | $22.00Read more |
| 160 | No Image | Gyro Sensor Kpl. | 9793710 | $100.00Read more |
| 180 | No Image | Main Brush Motor Kpl. | 9709140 | $109.00Read more |
| 200 | No Image | Wheel Left Kpl. | 9709153 | $179.00Read more |
| 220 | No Image | Drop Sensor Kpl. | 9793620 | $76.00Read more |
| 230 | No Image | Hall Sensor Kpl. | 9793651 | $36.00Read more |
| 240 | No Image | Side Brush 2 Pcs. | 9724010 | $26.25Read more |
| 245 | No Image | Upgrade Kit Laundry Picker | 10000740 | $17.25Read more |
| 250 | No Image | Bumper Frame Kpl. | 9709202 | $159.00Read more |
| 260 | No Image | Sensor Group Right | 9793492 | $63.00Read more |
| 270 | No Image | Sensor Group Middle | 9793480 | $56.00Read more |
| 280 | No Image | Sensor Group Left | 9793472 | $63.00Read more |
| 290+295 | No Image | Brush Roller | 9782630 | $47.53Read more |
| 295 | No Image | Ball Bearing Main Brush | 10002690 | $22.00Read more |
| 300 | No Image | Main Brush Cover | 9709070 | $20.00Read more |
| 310 | No Image | Roller Cover | 9835492 | $27.00Read more |
| 320 | Not Available | Recharge battery RX1-YCR-M05 EXP. | 11779150 | Not Available |
| 320 | | Genuine Miele RX2_3-LA20 Lithium-ion battery Basic1 | 12689280 | $259.00Read more |
| 330 | No Image | Battery Cover | 9709022 | $15.00Read more |

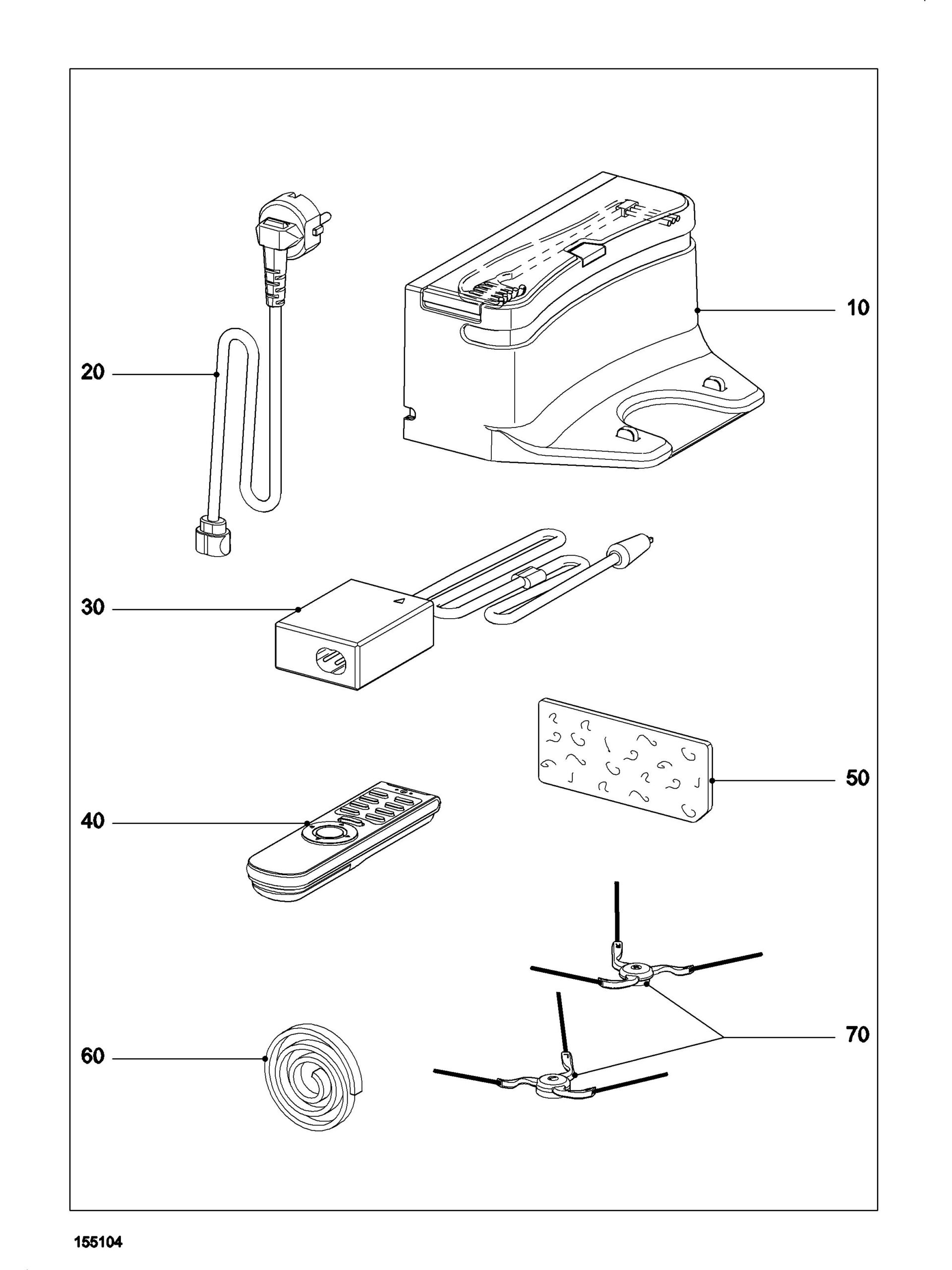

| # | Part image | Description | SKU | Price |
| 10 | No Image | Docking Station Vollst. | 9708424 | $289.00Read more |
| 20+30 | No Image | Power Supply Unit 21V 2.0A Nt03 Us/Cdn | 11177903 | $86.00Read more |
| 30+20 | No Image | Power Supply Unit 21V 2.0A Nt03 Us/Cdn | 11177903 | $86.00Read more |
| 30+20 | No Image | Power Supply Unit 21V 2.0A Nt03 Eu/Ch | 11177702 | $189.00Read more |
| 40 | No Image | Remote Control | 9708571 | $66.00Read more |
| 50 | No Image | Air-Clean Filter | 9724050 | $0.00Read more |
| 60 | Not Available | Magnetic tape 4m | 9782660 | Not Available |
| 70 | No Image | Side Brush 2 Pcs. | 9724010 | $26.25Read more |
