Schematic and parts book for Miele SGPA3 COMPLETE C3 SGPA3. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

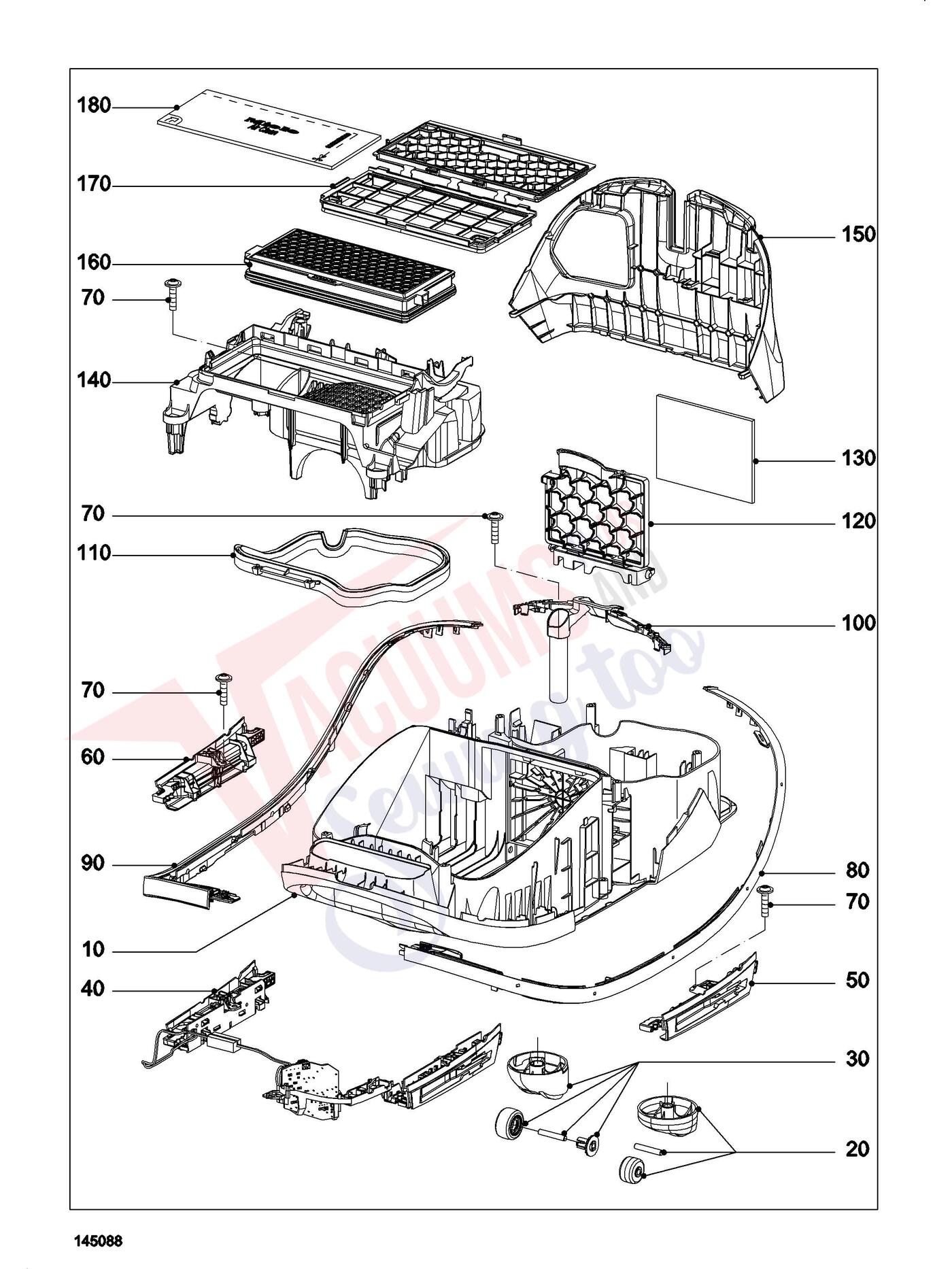

| # | Part image | Description | SKU | Price |
| w/o fig. |  | Genuine Miele Suction control S2/S5/S8 | 6455390 | $6.60Read more |
| XX |  | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 20 | No Image | -Slide Skid Obsw Assy | 12494260 | $11.00Read more |
| 50 |  | Genuine Miele Suspension Telescopic pipe left | 7781072 | $10.70Read more |
| 60 |  | Genuine Miele Suspension Telescopic pipe right | 7781052 | $10.70Read more |
| 80+90 |  | Genuine Miele Buffer | 9239220 | $150.60Read more |
| 100 |  | Genuine Miele Funnel | 7782554 | $71.70Read more |
| 100 |  | Available ReconditionedReconditioned Genuine Miele Funnel More Product Details | 7782554R | $64.70Add to cart |
| 110-130 | | Genuine Miele Casing bottom Standard assy | 9283039 | $105.10Read more |
| 110 | | Genuine Miele Seal Motor housing | 7780793 | $13.50Read more |
| 120 |  | Genuine Miele Filter frame S8 | 7780743 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 |  | Genuine Miele Dust compart.filter 3 pcs. | 6713110 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 140 | No Image | Mounting Plate Obsw | 12507420 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 150 |  | Genuine Miele Rear panel | 7781532 | $24.70Read more |
| 160 | No Image | Act.Air Cleanfilter | 12785350 | $49.00Add to cart Special order: ships in 2 to 4 weeks |
| 160 | No Image | Hepa-Filter | 12785390 | $64.00Add to cart Special order: ships in 2 to 4 weeks |
| 170 | No Image | Spacer Bracket Air-Clean Filter | 12550741 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 180 |  | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $13.00Add to cart Special order: ships in 2 to 4 weeks |

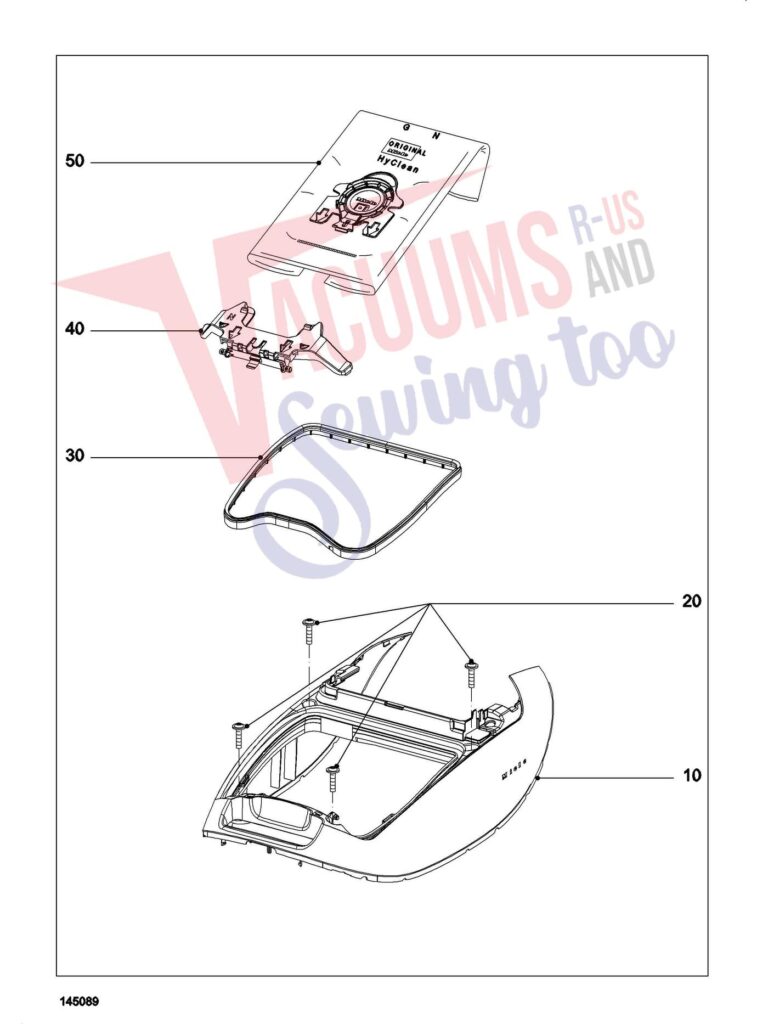

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 30+40 | | Genuine Miele Cover frame Deep sea blue met. S8 | 9531792 | $120.70Read more |
| 30+40 | | Genuine Miele Cover frame Ivory white kpl.SG | 9283373 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Lotos white kpl. SG | 9283333 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Canary yellow kpl.SG | 9283353 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Obsidian black SG | 9283363 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Diamondgrey kpl.SG | 9283383 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Tayberry red 2 SG | 10713073 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Koi orange kpl.SG | 9283403 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Sprint blue kpl. S8 | 9283412 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Bronze-pearl finish SG | 9283453 | $120.70Read more |
| 30+40 | | Genuine Miele Cover frame Mahogany br.met. S8 | 9283462 | $120.70Read more |
| 30+40 | | Genuine Miele Cover frame Autumn red kpl. SG | 9283343 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Tizia red metallic | 9283482 | $120.70Read more |
| 30+40 | | Genuine Miele Cover frame Racing green SG | 9791153 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Graphite grey kpl. SG | 10645413 | $78.10Read more |
| 30+40 | | Genuine Miele Cover frame Technoblue kpl. SG | 10645433 | $78.10Read more |
| 30+40 | | Genuine Miele Cover frame Petrol kpl. SG | 10645383 | $78.10Read more |
| 30+40 | | Genuine Miele Cover frame Curry yellow kpl. SG | 10645403 | $78.10Read more |
| 30 | | Genuine Miele Seal für Staubraum | 7793083 | $13.50Read more |
| 40 |  | Miele Blue Bag Dock Type GN for C3 and S8000 Series Canisters PN 7793096 | 7793096 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 | No Image | Vacuum Cleaner Bag Gn Hyclean Pure Int | 12421130 | $0.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 | Not Available | vacuum cleaner bag G/N USA | 7805110 | Not Available |

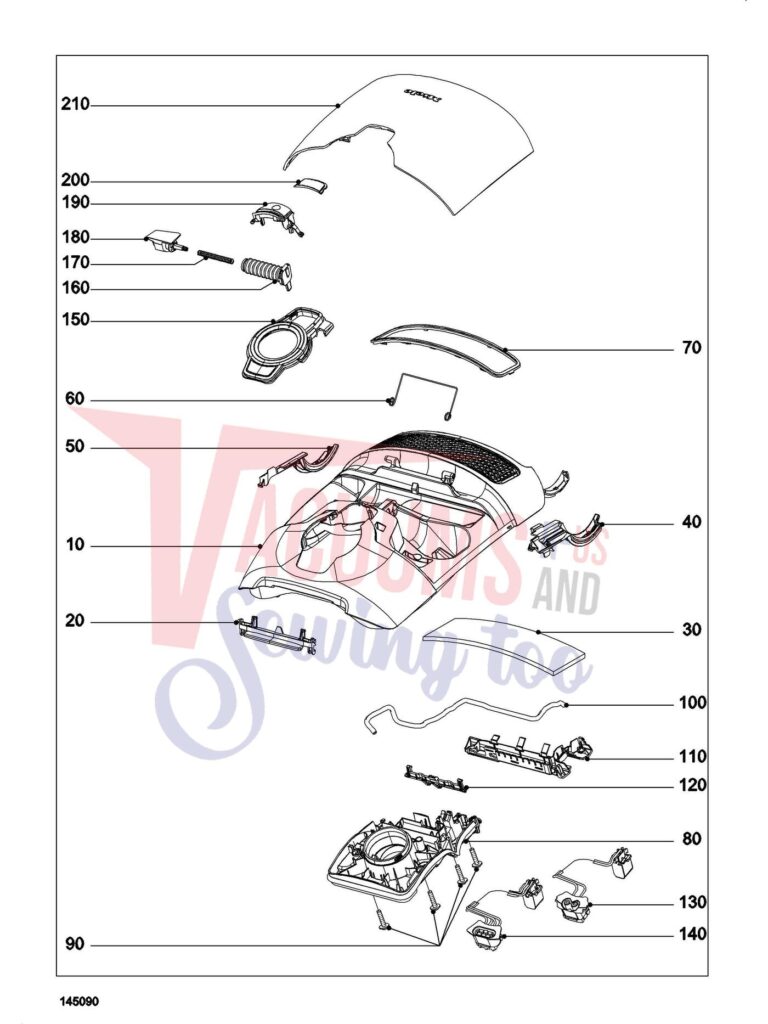

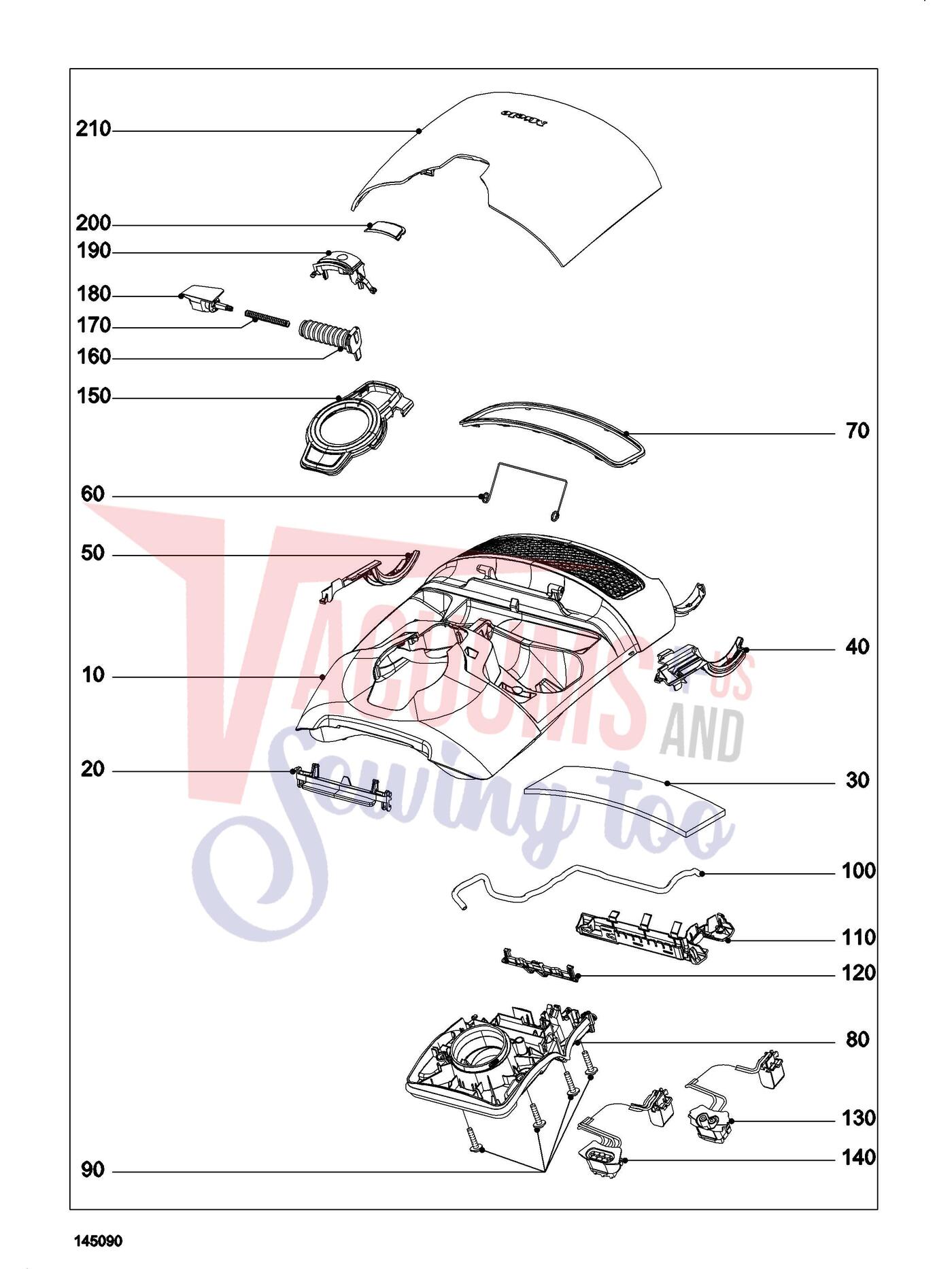

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| w/o fig. | | Genuine Miele Cover f. Steckdose | 7783112 | $6.60Read more |
| 10-50 | Not Available | Casing top Deep sea blue met. S8 | 9531811 | Not Available |
| 10-50 |  | Genuine Miele Casing top LOWS assy | 9283622 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 10-50 |  | Genuine Miele Casing top Canary yellow kpl. | 9283651 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 10-50 | | Genuine Miele Casing top OBSW assy | 9283662 | $98.00Read more |
| 10-50 |  | Genuine Miele Casing top Ivory white kpl.S8 | 9283671 | $98.00Read more |
| 10-50 |  | Genuine Miele Casing top Diamondgrey kpl. | 9283681 | $98.00Read more |
| 10-50 | | Genuine Miele Casing top BRRT 2 assy | 10713092 | $78.10Read more |
| 10-50 | No Image | Casing Top Koi Orange Kpl. | 9283701 | $109.00Read more |
| 10-50 | Not Available | Casing top Tizia red metallic | 9283761 | Not Available |
| 10-50 |  | Genuine Miele Casing top Sprint blue kpl. S8 | 9283711 | $98.00Read more |
| 10-50 | | Genuine Miele Casing top BRPF assy | 9283732 | $98.00Read more |
| 10-50 | Not Available | Casing top Deep sea blue met. S8 | 9531811 | Not Available |
| 10-50 | | Genuine Miele Casing top MART assy | 9283632 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 10-50 |  | Genuine Miele Casing top Mahogany br.met. | 9283771 | $120.70Read more |
| 10-50 | | Genuine Miele Casing top Racing green | 9791191 | $98.00Read more |
| 10-50 | | Genuine Miele Casing top PETR assy | 10645492 | $78.10Read more |
| 10-50 | No Image | Casing Top Cuge Assy | 10645502 | $83.00Read more |
| 10-50 | | Genuine Miele Casing top GRGR assy | 10645512 | $78.10Read more |
| 10-50 | | Genuine Miele Casing top Technoblue kpl. SG | 10645521 | $85.50Read more |
| 20 |  | Genuine Miele Lock S8 | 7804723 | $2.30Read more |
| 30 |  | Genuine Miele Insulation matting | 7815232 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| 40 | No Image | Reinforcement Left | 7815253 | $11.00Read more |
| 50 | No Image | Reinforcement Right | 7815273 | $11.00Read more |
| 60 | | Genuine Miele Torsion spring Lid | 7815243 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| 70 |  | Genuine Miele Trim Casing top SG | 7936893 | $13.50Read more |
| 80 | | Genuine Miele Dust channel Automatic | 7805054 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 100 | | Genuine Miele Hose für Staubführung | 7805291 | $4.90Read more |
| 110 |  | Genuine Miele Cover strip S8 | 7805283 | $15.00Read more |
| 120 |  | Genuine Miele interlock Lid | 7810882 | $2.30Read more |
| 140 | No Image | Flush Socket Outlet 4 Pole | 7805091 | $56.00Add to cart Special order: ships in 2 to 4 weeks |
| 150 | No Image | Ring Für Steckdose | 7805022 | $21.62Read more |
| 160 |  | Genuine Miele Conc.shaped hose Change filter ind. | 7797301 | $10.70Read more |
| 170 |  | Genuine Miele Spring für FWA S8 | 9184811 | $13.50Read more |
| 170 | No Image | Spring Für Fwa Eu | 10096690 | $2.30Read more |
| 180 |  | Genuine Miele Slide f. FWA | 7783013 | $2.30Read more |
| 190 |  | Genuine Miele Pushbutton Lid | 7783052 | $2.30Read more |
| 200 |  | Genuine Miele Viewing screen Change filter ind. | 7783002 | $4.90Read more |
| 210 | | Genuine Miele Lid Lotos white KD Complete C3 | 10084170 | $52.20Read more |
| 210 | | Genuine Miele Lid Canary yellow KD Complete C3 | 10084180 | $52.20Read more |
| 210 | | Genuine Miele Lid Obsidian black KD Complete C3 | 10082620 | $52.20Read more |
| 210 | | Genuine Miele Lid Obsidian black KD Complete C3 | 10082620 | $52.20Read more |
| 210 | | Genuine Miele Lid Bronze-pearl finish KD CompleteC3 | 10084290 | $52.20Read more |
| 210 | | Genuine Miele Lid Ivory white KD Complete C3 | 10084210 | $52.20Read more |
| 210 | | Genuine Miele Lid Autumn red KD Complete C3 | 10082450 | $52.20Read more |
| 210 | | Genuine Miele Lid Deep sea blue met. KD Compl.C3 | 10084330 | $76.00Add to cart Special order: ships in 2 to 4 weeks |
| 210 | Not Available | Lid Sprint blue KD Complete C3 | 10084220 | Not Available |
| 210 | | Genuine Miele Lid Koi orange KD Complete C3 | 10084230 | $52.20Read more |
| 210 | Not Available | Lid Diamondgrey KD Complete C3 | 10084240 | Not Available |
| 210 | | Genuine Miele Lid Tizia red metallic KD Comp.C3 | 10084350 | $62.00Read more |
| 210 | | Genuine Miele Lid Mahogany br.met. KD CompleteC3 | 10084380 | $62.00Read more |
| 210 | | Genuine Miele Lid Racing green KD Complete C3 | 10084260 | $62.00Read more |
| 210 | No Image | Lid Graphite Grey Kd Complete C3 | 10729610 | $76.00Read more |
| 210 | | Genuine Miele Lid Petrol KD Complete C3 | 10729690 | $71.70Read more |
| 210 | | Genuine Miele Lid Curry yellow KD Complete C3 | 10729720 | $39.50Read more |
| 210 | | Genuine Miele Lid Technoblue KD Complete C3 | 10729670 | $52.20Read more |

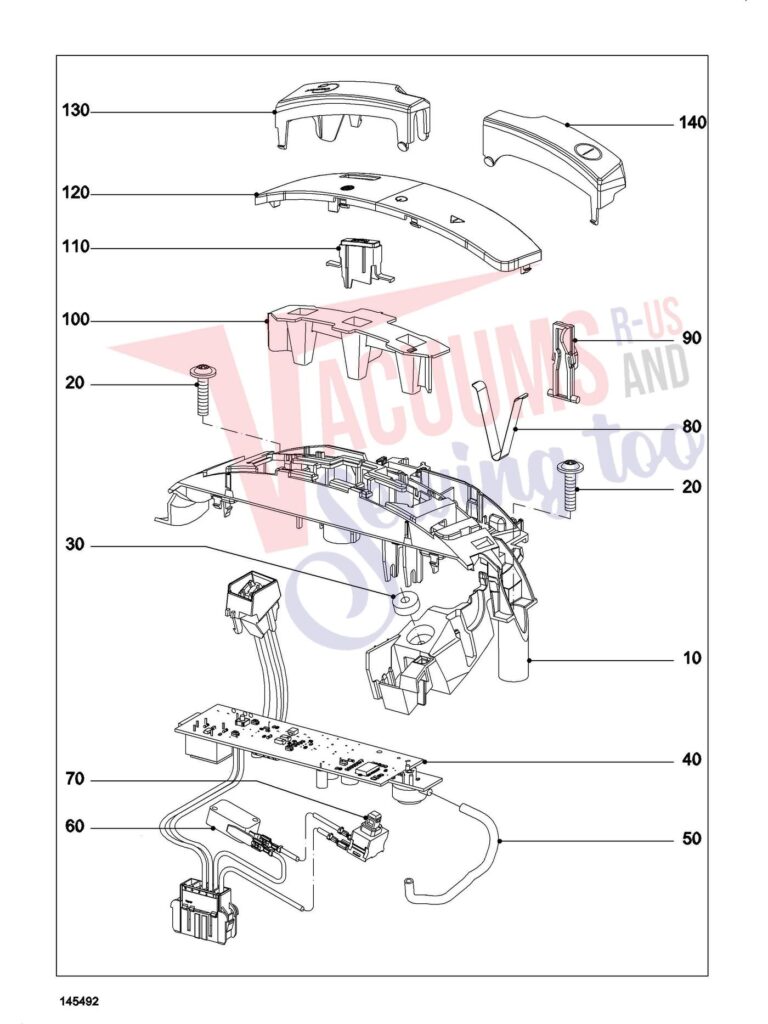

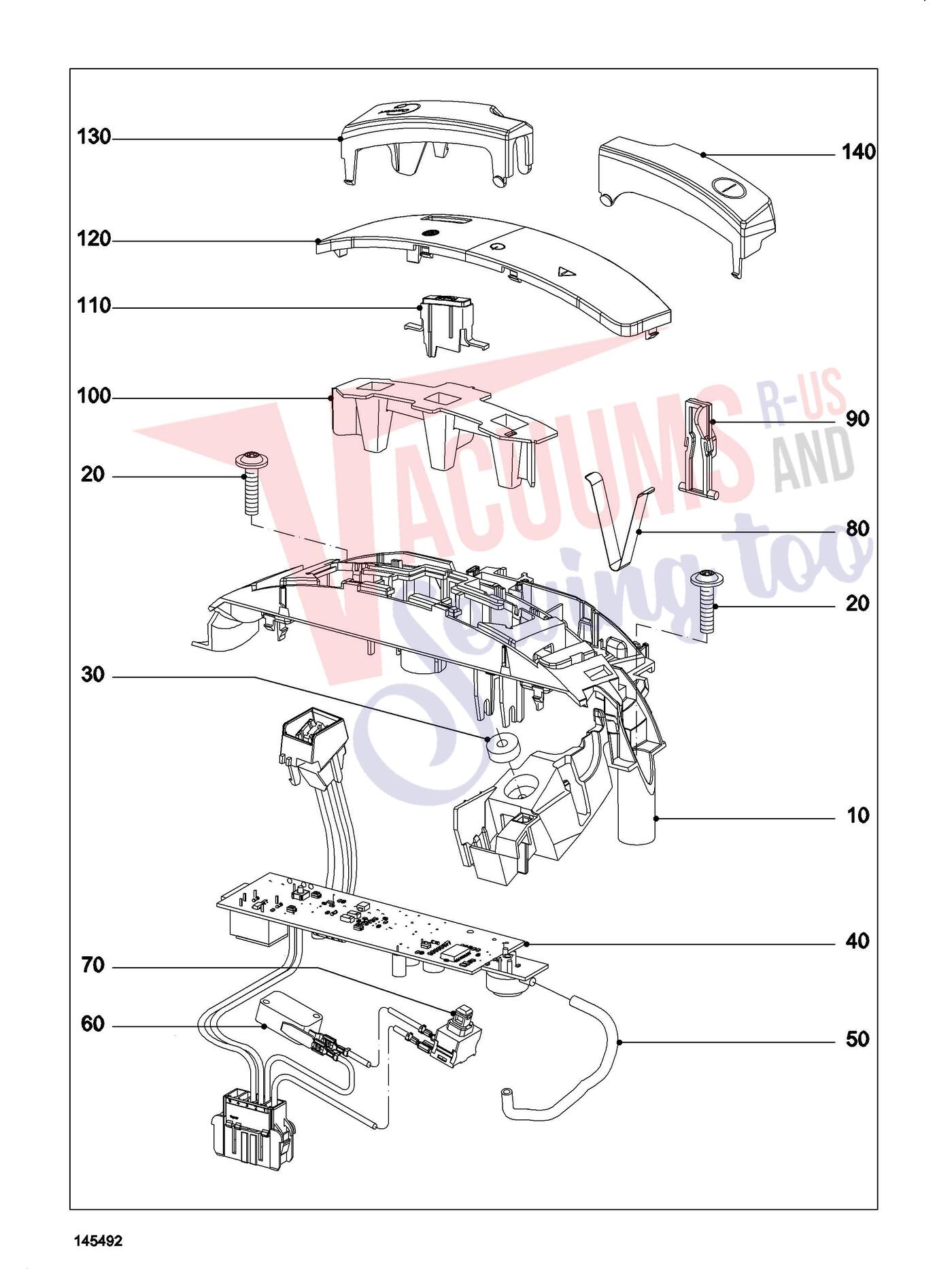

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 10 | | Genuine Miele Cap "Funk/Elektro" | 9283180 | $120.70Read more |
| 30 | | Genuine Miele Seal Air shield | 7799341 | $2.30Read more |
| 50 | | Genuine Miele Hose Cap | 7782931 | $2.30Read more |
| 60 | | Genuine Miele Switch 250V | 4487791 | $20.60Read more |
| 70 | No Image | -Switch 1 Pole 1681.3103 | 9023231 | $9.60Add to cart Special order: ships in 2 to 4 weeks |
| 80 | | Genuine Miele Leaf spring S8 | 7781641 | $2.30Read more |
| 90 | | Genuine Miele Lever für Parking | 7781791 | $10.70Read more |
| 100 | No Image | Reflector Electric | 7799312 | $47.00Read more |
| 110 | | Genuine Miele Pushbutton "Reset" laser shaped | 7781892 | $15.00Read more |
| 120 | No Image | Viewing Screen Electric Printed | 7781862 | $63.00Read more |
| 130 |  | Genuine Miele Foot switch right printed Silver | 7826012 | $27.00Read more |
| 140 |  | Genuine Miele Foot switch left lackiert/bedruckt | 7781612 | $27.00Read more |

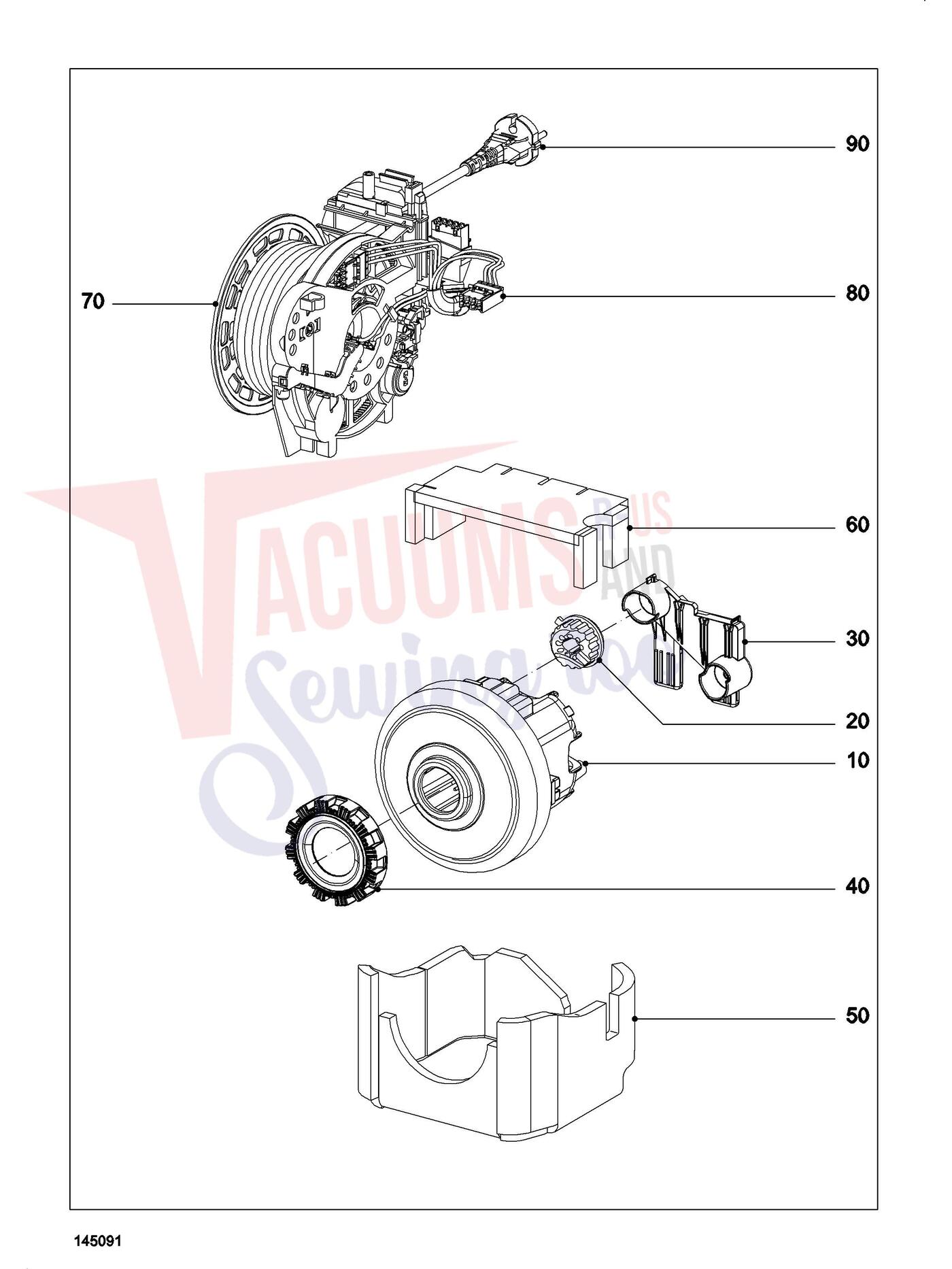

| # | Part image | Description | SKU | Price |
| 20 | | Genuine Miele Rubber cushion Baureihe SD/SG | 7497732 | $3.60Add to cart |
| 30 | | Genuine Miele Motor bracket S8 | 7781382 | $2.30Add to cart |
| 40 | | Genuine Miele Bearing ring V18 | 7714533 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 | | Genuine Miele Damping plate Casing bottom | 7780703 | $12.00Read more |
| 60 | | Genuine Miele Damping plate Mounting plate | 7781553 | $20.00Read more |
| 80 | No Image | Connecting Cable S8000/Kt20 | 7965604 | $42.00Read more |

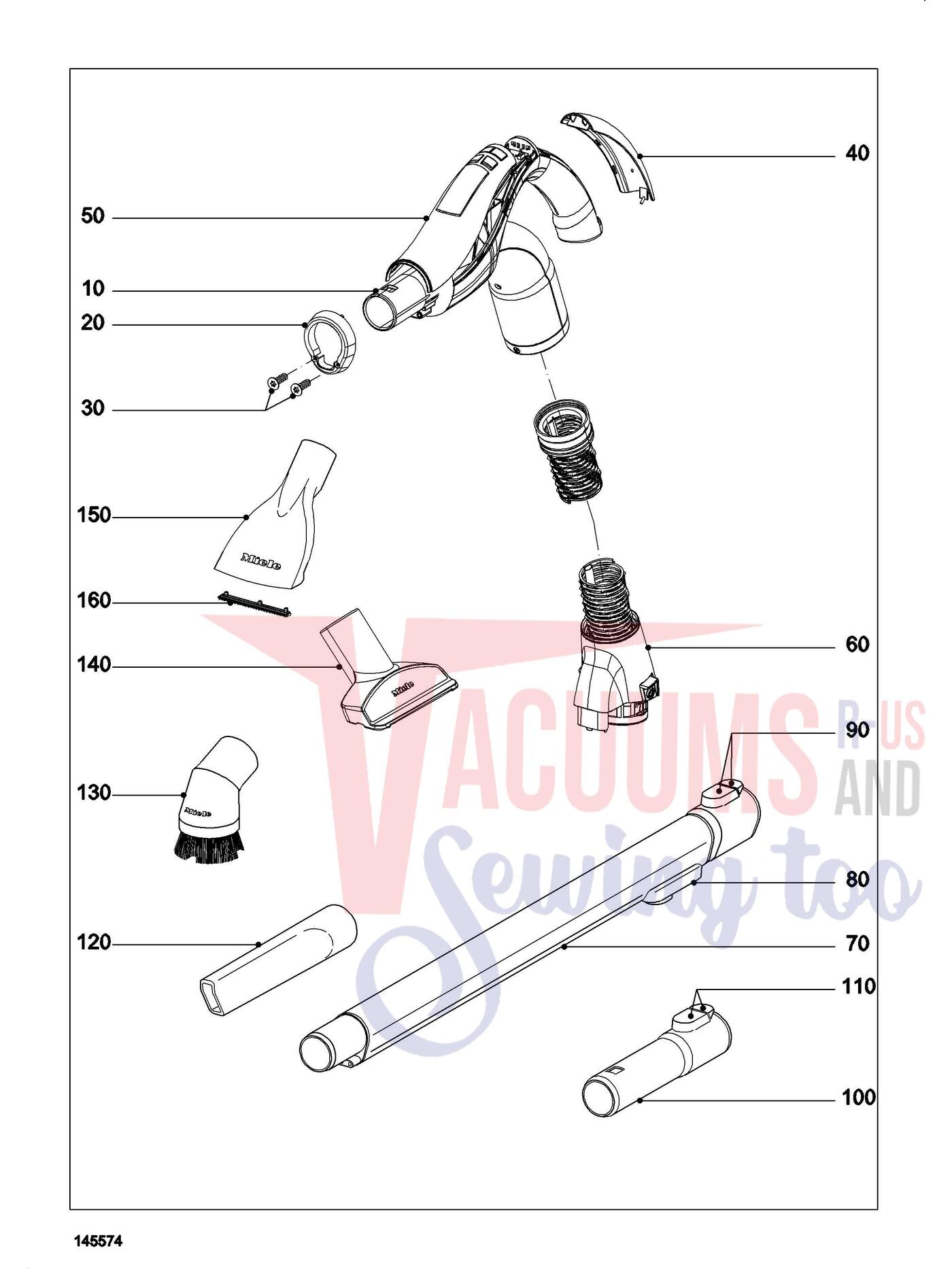

| # | Part image | Description | SKU | Price |
| XX | No Image | --Coun.Self-Tap.Screw Spax 3 X 9,5Torx T10 | 6167230 | $2.50Read more |
| 10-60 | No Image | Elec.Suction Hose Ses 131 Ger/Usa | 11567053 | $379.00Add to cart Special order: ships in 2 to 4 weeks |
| 10-40 | No Image | Tubular Handle Ses131 D Kd | 9121672 | $289.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Genuine Miele Ring Tubular handle | 6677130 | $20.60Read more |
| 40 |  | Genuine Miele Inset handle Printed | 6157660 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 | No Image | Electronic Unit Edw8951 Kd | 9121694 | $269.00Add to cart Special order: ships in 2 to 4 weeks |
| 60 | No Image | Elec.Suction Hose Ses131 Kd | 9121703 | $319.00Add to cart Special order: ships in 2 to 4 weeks |
| 70-90 |  | Direct Connect Electric Wand SET220 41996432USA 6543880 | WP10506 | $199.00Add to cart |
| 80 |  | Genuine Miele Push button Round | 9160460 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 100 | | Genuine Miele connecting piece Floor nozzle | 5449760 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 120 | No Image | Crevice Nozzle 149Mm Obsw | 9442631 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 | No Image | Dusting Brush L | 12187780 | $24.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 |  | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $26.00Add to cart Special order: ships in 2 to 4 weeks |
| 140 | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 150+160 | | Genuine Miele ST Mattress nozzle SMD10 | 7252280 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 160 | | Genuine Miele Thread lifter | 5056530 | $9.70Read more |

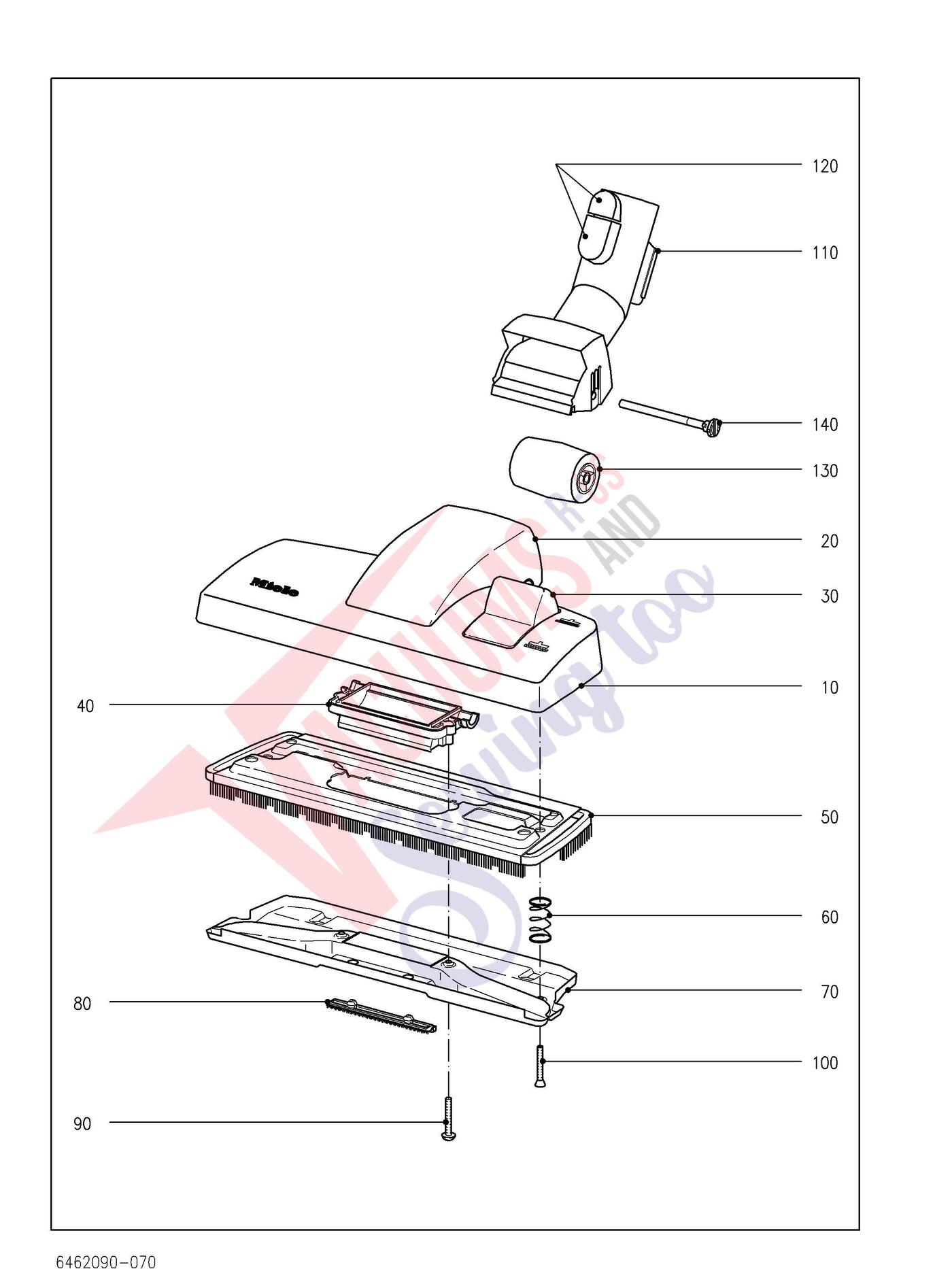

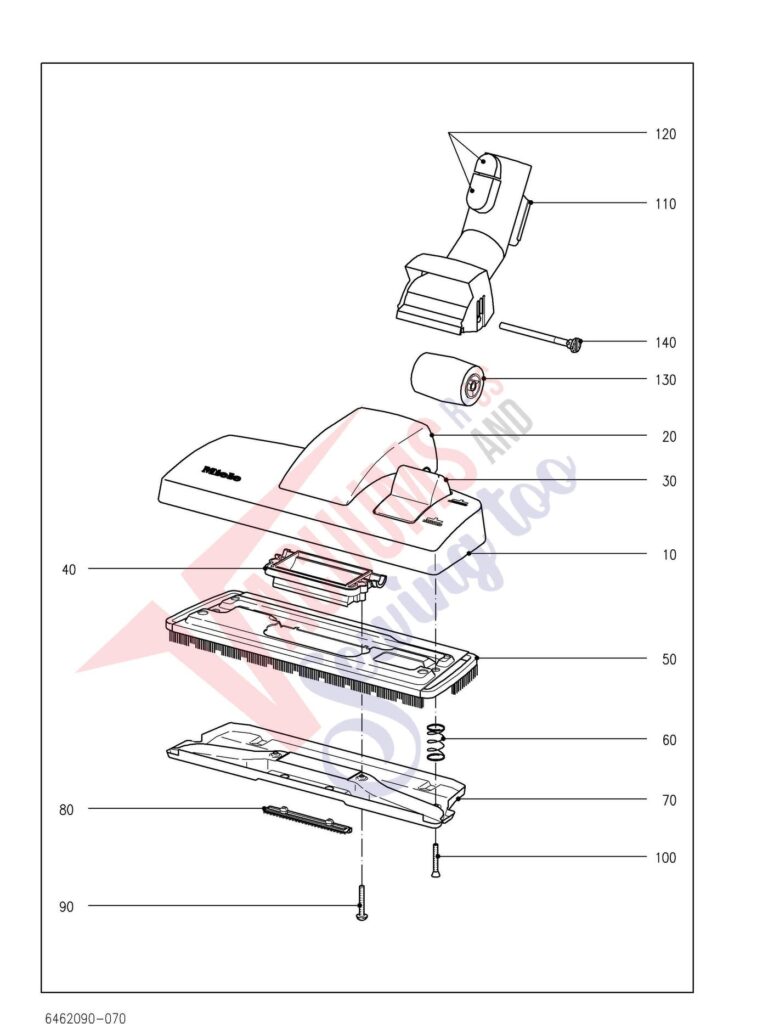

| # | Part image | Description | SKU | Price |
| 10-140 | Not Available | Floor nozzle SBD285-3 | 6223980 | Not Available |
| 10-140 | Not Available | Floor nozzle SBD285-3 AllTeQ | 7253830 | Not Available |
| 10 |  | Genuine Miele Top anthracite | 5235512 | $27.90Read more |
| 20 |  | Genuine Miele Suction channel anthracite | 5235541 | $24.70Read more |
| 30 |  | Genuine Miele Foot switch anthracite | 5235503 | $15.00Read more |
| 40 |  | Genuine Miele Fixing | 5235480 | $9.70Read more |
| 50 |  | Genuine Miele Bristle supp.plate | 5235463 | $33.80Read more |
| 60 |  | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |
| 70+80 |  | Genuine Miele Lower section | 5235453 | $43.60Read more |
| 80 |  | Genuine Miele Thread lifter 2 Pcs. | 6204050 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 |  | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $3.60Read more |
| 100 | No Image | --Countersunk Screw 35X20 | 5289870 | $2.30Read more |
| 110+120 |  | Genuine Miele Linkage SBD285-3 assy | 6578132 | $36.00Add to cart Special order: ships in 2 to 4 weeks |
| 120 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 |  | Genuine Miele Support roller | 5235530 | $15.00Read more |
| 140 |  | Genuine Miele Shaft Bayonett fitting | 5235520 | $13.50Read more |
| # | Part image | Description | SKU | Price |
| XX | No Image | --Screw 35X30 | 5981580 | $2.50Read more |
| XX | | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $3.60Read more |
| XX | | Genuine Miele Screw KA35X16 EJOT-PT | 4863580 | $3.60Read more |
| XX | | Genuine Miele Screw KA35X16 EJOT-PT | 4863580 | $3.60Read more |
| XX | | Genuine Miele Screw KA35X16 EJOT-PT | 4863580 | $3.60Read more |
| 10-30 | Not Available | Lower section | 5872660 | Not Available |

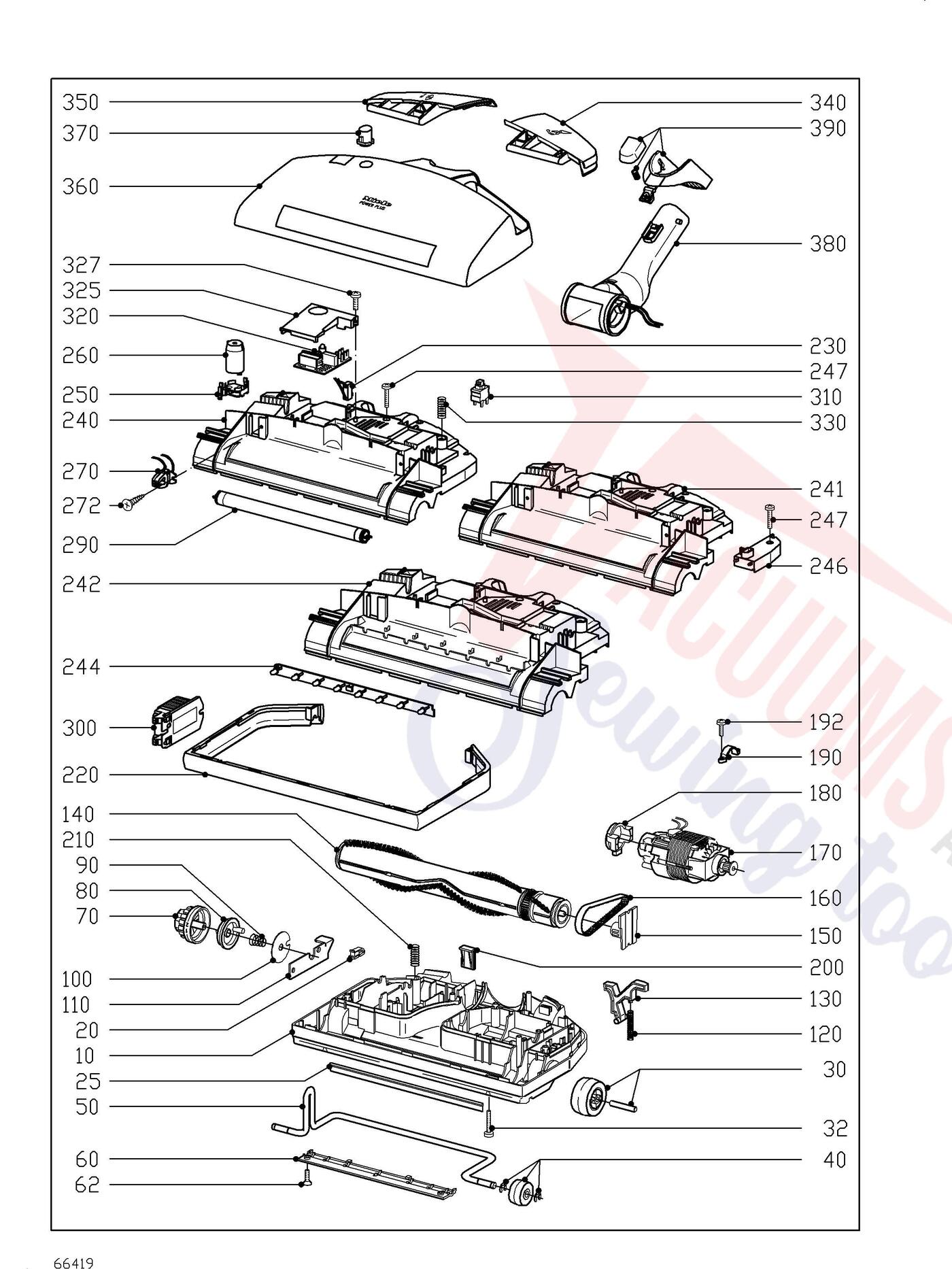

| 10-30 | | Genuine Miele Lower section | 6588850 | $176.20Read more |
| 20 |  | Genuine Miele Locating peg | 5812090 | $4.90Read more |
| 30 | | Genuine Miele Support roller 2 Pcs. | 5872610 | $52.20Add to cart Special order: ships in 2 to 4 weeks |
| 40+50 | | Genuine Miele Angle lever | 5872630 | $131.10Read more |
| 40 |  | Genuine Miele Support roller 2 Pcs. | 5872620 | $33.80Read more |
| 60 | | Genuine Miele Cover strip | 5812220 | $24.70Read more |
| 70 | | Genuine Miele Regulator wheel | 5812030 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 80 | | Genuine Miele Carrier | 5812040 | $9.70Read more |
| 90 | | Genuine Miele Coil spring | 5812080 | $2.30Read more |
| 100 | | Genuine Miele Disc | 5812060 | $4.90Read more |
| 110 | | Genuine Miele Switch lever | 5812070 | $9.70Read more |
| 120 | | Genuine Miele Spring Foot switch SEB | 6644260 | $11.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 | No Image | Interlock | 5812160 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 140 | | Genuine Miele Brush roller | 5812012 | $96.72Add to cart Special order: ships in 2 to 4 weeks |
| 150 |  | Genuine Miele Spherical bearing 2 Pcs. | 5872640 | $56.00Add to cart |
| 160 |  | Genuine Miele Tooth belt | 5812180 | $30.00Add to cart Special order: ships in 2 to 4 weeks |
| 170 |  | Genuine Miele AC motor 120V | 5812170 | $141.70Add to cart |
| 180 | | Genuine Miele Bracket AC motor | 5812210 | $18.80Read more |
| 190 | | Genuine Miele Motor bracket | 5812200 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 200 | | Genuine Miele Wedge | 5863080 | $11.00Add to cart Special order: ships in 2 to 4 weeks |
| 210 |  | Genuine Miele Spring | 5981600 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| 220 | | Genuine Miele Buffer | 5812140 | $43.60Read more |
| 220 | | Genuine Miele Buffer | 5812140 | $43.60Read more |
| 230 | | Genuine Miele Limit switch | 5884930 | $63.00Read more |
| 230 | | Genuine Miele Limit switch | 5884930 | $63.00Read more |
| 240 | Not Available | Cover | 5812250 | Not Available |
| 241 | No Image | Cover | 6588870 | $100.00Read more |
| 242+244 | | Genuine Miele Conv.kit cover 120V | 7495990 | $193.40Read more |
| 244 | | Genuine Miele printed circ. board LED 120V | 7448320 | $159.00Read more |
| 246+247 | | Genuine Miele conv.kit casing | 6646700 | $282.60Read more |
| 246+247 | | Genuine Miele conv.kit casing | 6646700 | $282.60Read more |
| 246 | | Genuine Miele Cover Switch | 6589390 | $15.00Read more |
| 250 | | Genuine Miele Lamp-holder Starter | 5863160 | $10.70Read more |
| 260 | | Genuine Miele Starter | 5862880 | $27.90Read more |
| 270 | | Genuine Miele Lamp-holder 2 Pcs. | 5872650 | $15.00Read more |
| 290 | Not Available | Neon tube | 5862870 | Not Available |
| 300 | | Genuine Miele Choke 120V | 5862930 | $85.50Read more |
| 310 |  | Genuine Miele Push button switch | 5862950 | $36.00Add to cart |
| 310 |  | Available ReconditionedReconditioned Genuine Miele Push button switch More Product Details | 5862950R | $32.00Add to cart |
| 320 | | Genuine Miele printed circ. board 120V | 5863060 | $189.00Add to cart Special order: ships in 2 to 4 weeks |
| 325 | No Image | Cover Printed Circ. Board | 5863270 | $17.25Read more |
| 330 | | Genuine Miele Spring | 5981600 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| 340 |  | Genuine Miele Foot switch links | 5811960 | $27.00Add to cart |
| 350 |  | Genuine Miele Foot switch right | 5811970 | $63.00Add to cart |
| 360+370 | | Genuine Miele Top | 5811900 | $98.00Read more |
| 370 | | Genuine Miele Push button | 5811940 | $9.70Read more |
| 380+390 |  | Genuine Miele Connection socket | 5811990 | $87.69Add to cart Special order: ships in 2 to 4 weeks |
| 380+390 |  | Available Pre OwnedPre owned Miele Connection Socket Knuckle for SEB234 and SEB236 Power Nozzles PN: 5811990 More Product Details | 5811990R | $69.99Add to cart |
| 390 |  | Miele Foot Switch | 5872570 | $36.00Add to cart Special order: ships in 2 to 4 weeks |
Report errors on this page HERE
