Schematic and parts book for Miele SGME1 COMPLETE C3 SGME1. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

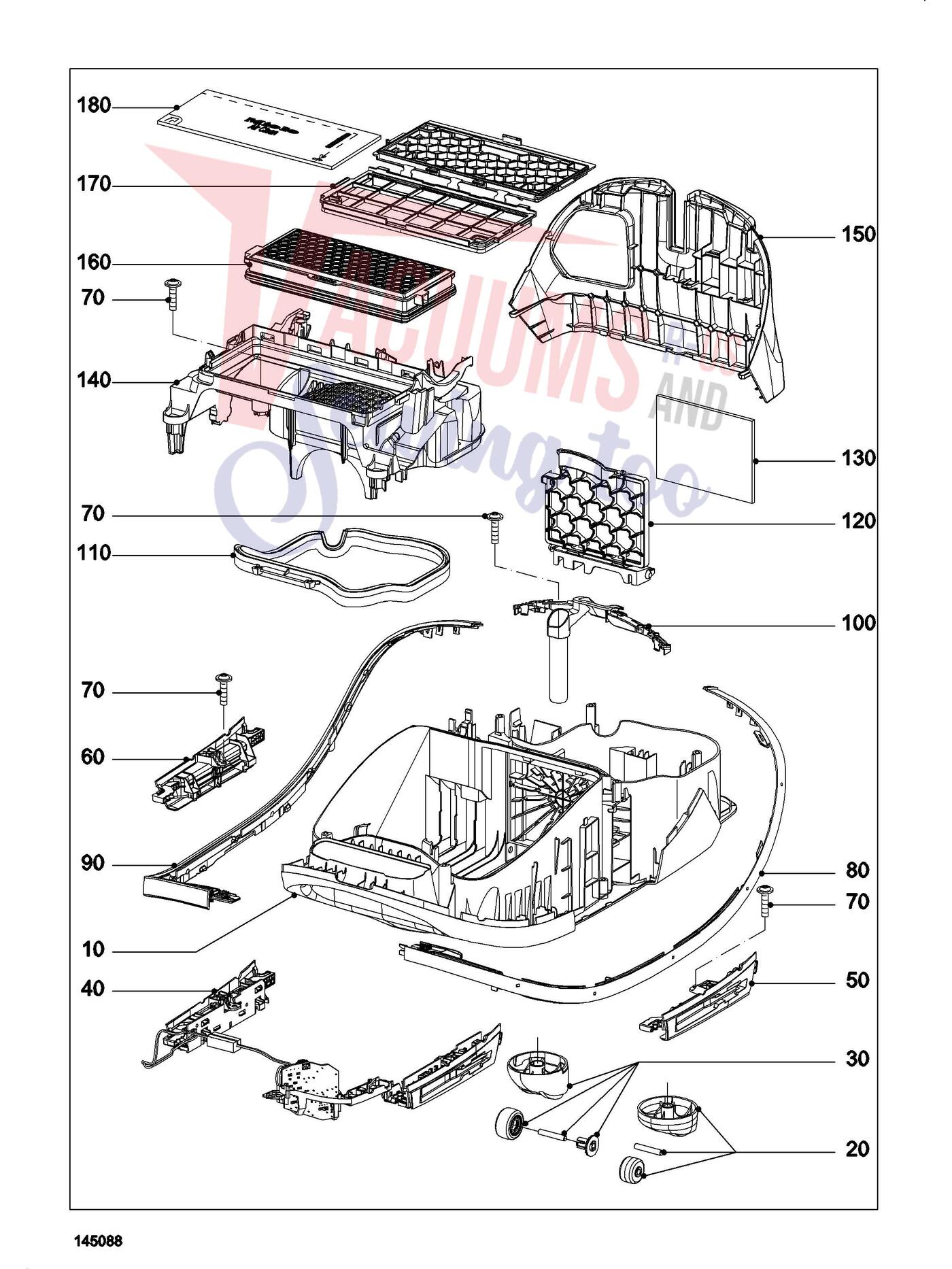

| # | Part image | Description | SKU | Price |
| w/o fig. |  | Genuine Miele Suction control S2/S5/S8 | 6455390 | $6.60Read more |
| XX |  | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 30 | No Image | Slide Skid Dyn. Drive Obsw Assy | 12497890 | $27.00Read more |
| 50 |  | Genuine Miele Suspension Telescopic pipe left | 7781072 | $10.70Read more |
| 60 |  | Genuine Miele Suspension Telescopic pipe right | 7781052 | $10.70Read more |
| 80+90 |  | Genuine Miele Buffer | 9239220 | $150.60Read more |
| 100 |  | Genuine Miele Funnel | 7782554 | $71.70Read more |
| 100 |  | Available ReconditionedReconditioned Genuine Miele Funnel More Product Details | 7782554R | $64.70Add to cart |
| 110-130 | | Genuine Miele Casing bottom Dynamic Drive assy | 9283058 | $150.60Read more |
| 110 | | Genuine Miele Seal Motor housing | 7780793 | $13.50Read more |
| 120 |  | Genuine Miele Filter frame S8 | 7780743 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 |  | Genuine Miele Dust compart.filter 3 pcs. | 6713110 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 140 | No Image | Mounting Plate Obsw | 12507420 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 150 |  | Genuine Miele Rear panel | 7781532 | $24.70Read more |
| 160 | No Image | Act.Air Cleanfilter | 12785350 | $49.00Add to cart Special order: ships in 2 to 4 weeks |
| 160 | No Image | Hepa-Filter | 12785390 | $64.00Add to cart Special order: ships in 2 to 4 weeks |
| 170 | No Image | Spacer Bracket Air-Clean Filter | 12550741 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 180 |  | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

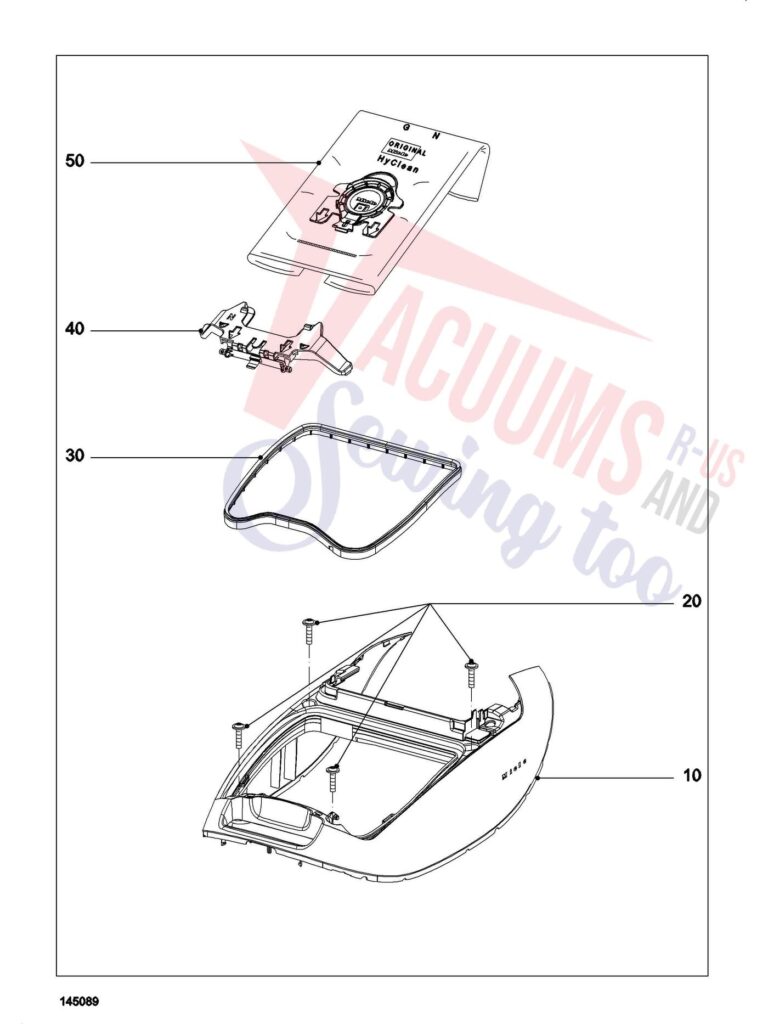

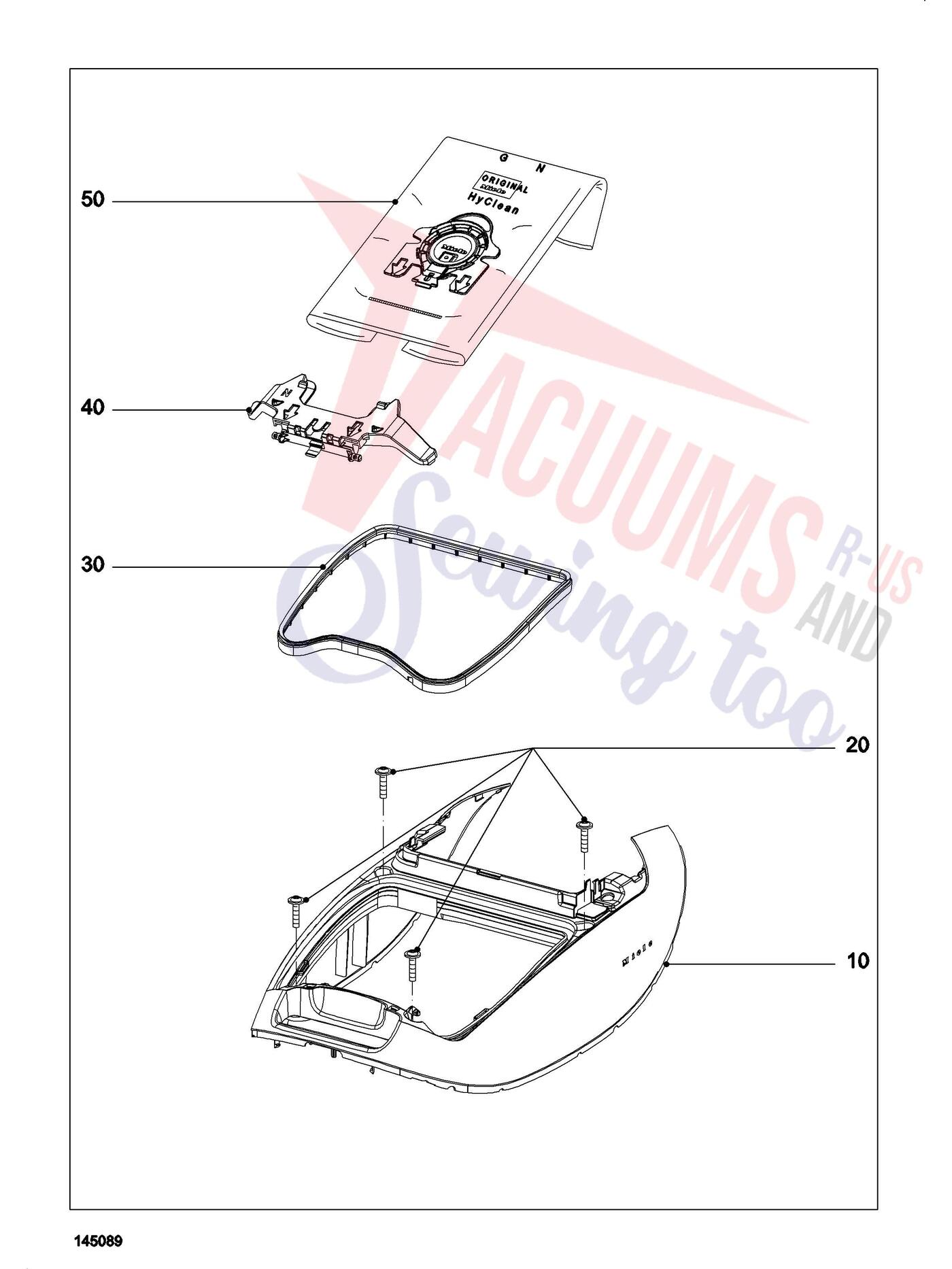

| XX | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 30+40 | | Genuine Miele Cover frame Deep sea blue met. S8 | 9531792 | $120.70Read more |
| 30+40 | | Genuine Miele Cover frame Ivory white kpl.SG | 9283373 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Lotos white kpl. SG | 9283333 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Canary yellow kpl.SG | 9283353 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Obsidian black SG | 9283363 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Diamondgrey kpl.SG | 9283383 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Tayberry red 2 SG | 10713073 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Koi orange kpl.SG | 9283403 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Sprint blue kpl. S8 | 9283412 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Bronze-pearl finish SG | 9283453 | $120.70Read more |
| 30+40 | | Genuine Miele Cover frame Mahogany br.met. S8 | 9283462 | $120.70Read more |
| 30+40 | | Genuine Miele Cover frame Autumn red kpl. SG | 9283343 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Tizia red metallic | 9283482 | $120.70Read more |
| 30+40 | | Genuine Miele Cover frame Havanna brown kpl. SG | 9791223 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Marine blue kpl. SG | 9782503 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Graphite grey kpl. SG | 10645413 | $78.10Read more |
| 30+40 | | Genuine Miele Cover frame Technoblue kpl. SG | 10645433 | $78.10Read more |
| 30+40 | | Genuine Miele Cover frame Petrol kpl. SG | 10645383 | $78.10Read more |
| 30+40 | | Genuine Miele Cover frame Curry yellow kpl. SG | 10645403 | $78.10Read more |
| 30 | | Genuine Miele Seal für Staubraum | 7793083 | $13.50Read more |
| 40 |  | Miele Blue Bag Dock Type GN for C3 and S8000 Series Canisters PN 7793096 | 7793096 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 | No Image | Vacuum Cleaner Bag Gn Hyclean Pure Int | 12421130 | $0.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 | Not Available | vacuum cleaner bag G/N USA | 7805110 | Not Available |
| # | Part image | Description | SKU | Price |
| # | Part image | Description | SKU | Price |

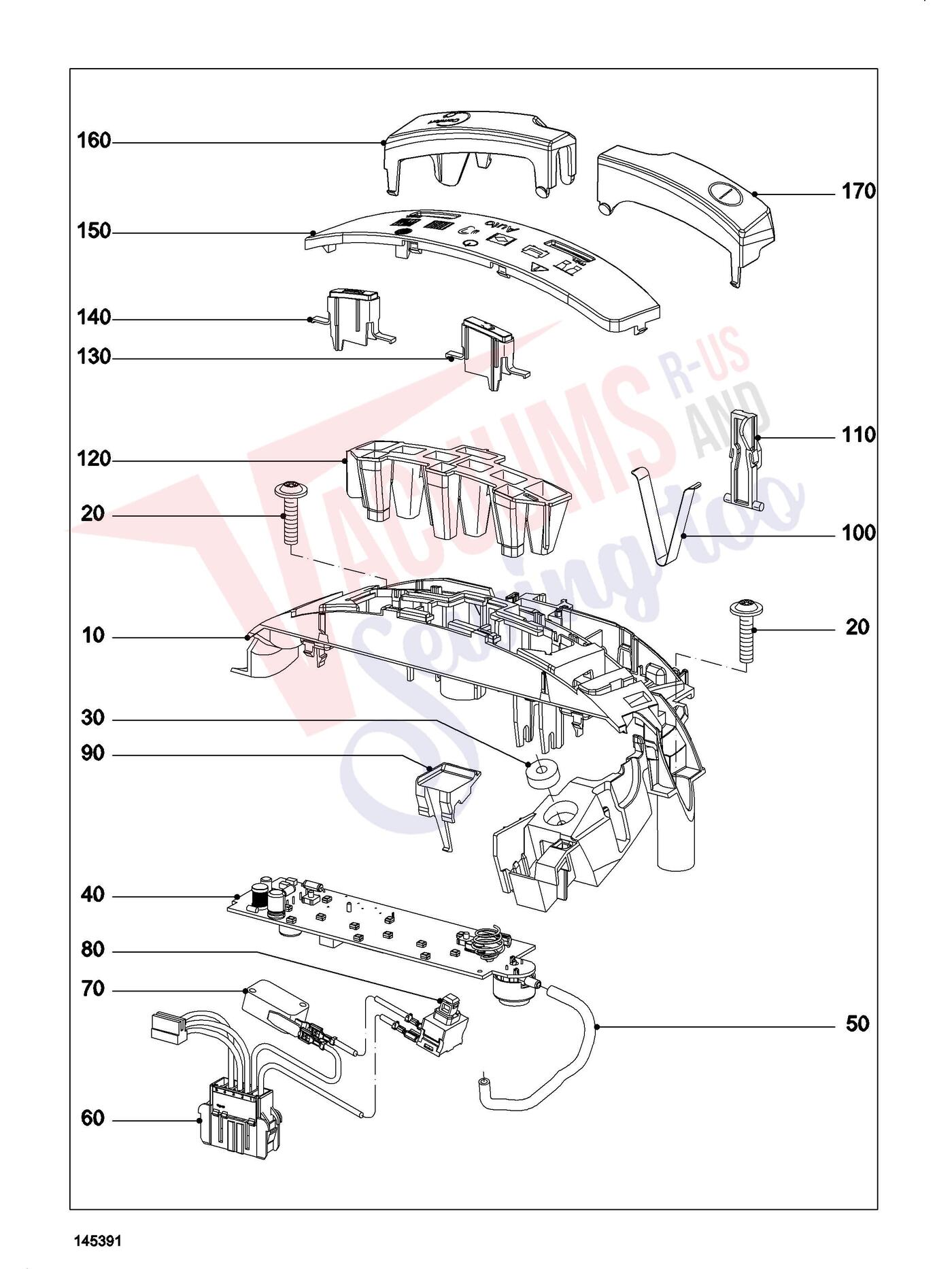

| XX | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 10 | | Genuine Miele Cap "Funk/Elektro" | 9283180 | $120.70Read more |
| 30 | | Genuine Miele Seal Air shield | 7799341 | $2.30Read more |
| 50 | | Genuine Miele Hose Cap | 7782931 | $2.30Read more |
| 70 | | Genuine Miele Switch 250V | 4487791 | $20.60Add to cart Special order: ships in 2 to 4 weeks |
| 80 | No Image | -Switch 1 Pole 1681.3103 | 9023231 | $9.60Add to cart Special order: ships in 2 to 4 weeks |
| 90 | | Genuine Miele Cover Cap | 7937112 | $13.50Read more |
| 100 | | Genuine Miele Leaf spring S8 | 7781641 | $2.30Read more |
| 110 | | Genuine Miele Lever für Parking | 7781791 | $10.70Read more |
| 120 | No Image | Reflector Radio | 7799422 | $56.00Read more |
| 130 | | Genuine Miele Pushbutton "Handbetrieb" | 7782293 | $20.60Read more |
| 140 | | Genuine Miele Pushbutton "Reset" laser shaped | 7781892 | $15.00Read more |
| 150 | | Genuine Miele Viewing screen Radio printed | 7781852 | $59.40Read more |
| 150 | No Image | Viewing Screen Radio Boost Printed | 10001170 | $83.00Read more |
| 160 |  | Genuine Miele Foot switch right printed Silver | 7826012 | $27.00Add to cart Special order: ships in 2 to 4 weeks |
| 170 |  | Genuine Miele Foot switch left lackiert/bedruckt | 7781612 | $27.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

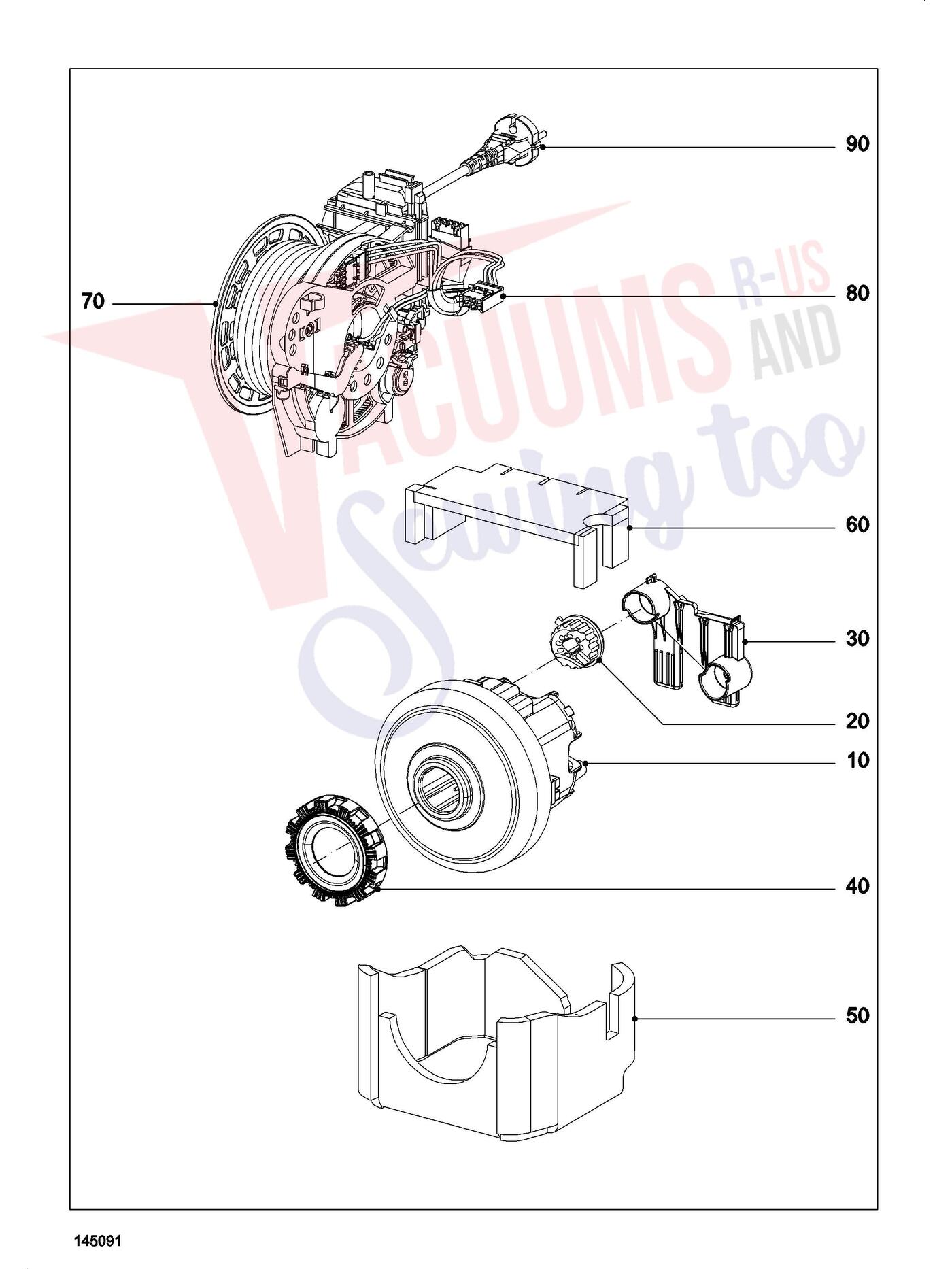

| 20 | | Genuine Miele Rubber cushion Baureihe SD/SG | 7497732 | $3.60Add to cart |
| 30 | | Genuine Miele Motor bracket S8 | 7781382 | $2.30Add to cart |
| 40 | | Genuine Miele Bearing ring V18 | 7714533 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 | | Genuine Miele Damping plate Casing bottom | 7780703 | $12.00Read more |
| 60 | | Genuine Miele Damping plate Mounting plate | 7781553 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

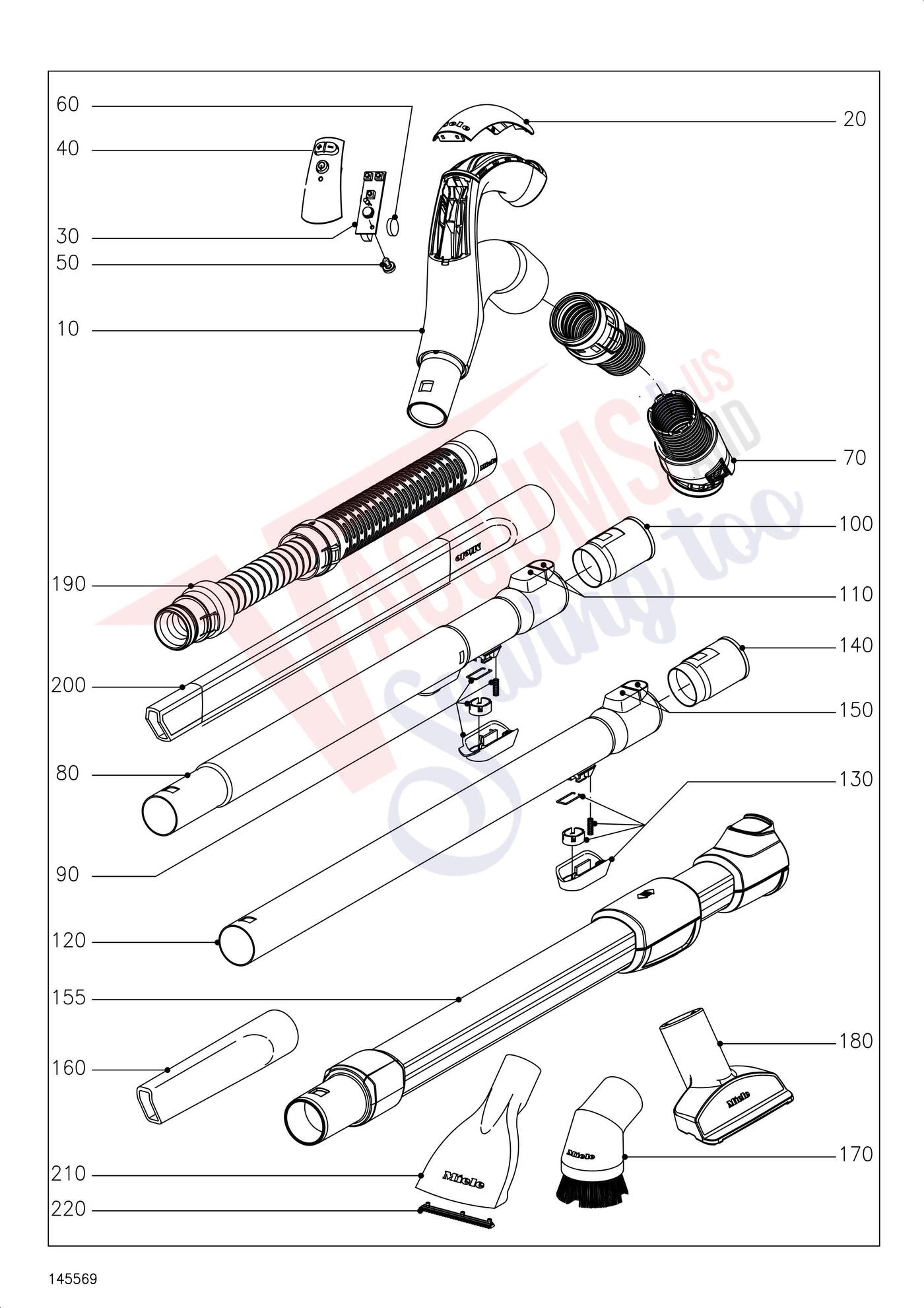

| XX | No Image | --Raised Head Screw 3,5X6,5 | 41851 | $2.30Read more |
| w/o fig. | | Genuine Miele Screw Plastic 3x10 | 9121940 | $2.30Read more |
| 10+20 | Not Available | Tubular handle assy | 9764413 | Not Available |
| 10+20+ | | Genuine Miele Tubular handle Radio controlled | 11560550 | $139.00Add to cart Special order: ships in 2 to 4 weeks |
| 10-60 | | Genuine Miele Tubular handle Radio transmitter | 9764405 | $120.70Read more |
| 20 |  | Genuine Miele Inset handle Printed | 6157660 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Genuine Miele support printed circ. board | 6264193 | $39.50Read more |
| 40 | | Genuine Miele support printed circ. board assy | 9764420 | $39.50Read more |
| 70 | No Image | Suction Hose Sg Obsw Assy | 12445500 | $53.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 |  | Genuine Miele Push button Round | 6151392 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 100+110 |  | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 110+220 | | Genuine Miele ST Mattress nozzle SMD10 | 7252280 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 120-150 | | Genuine Miele Telescopic pipe 2-part st.steel | 10275580 | $0.00Read more |
| 130 |  | Genuine Miele Push button Round | 5780932 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 140+150 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 150 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 155 |  | HES Telescopic Wand for Miele | 10615280 | $77.99Add to cart Special order: ships in 2 to 4 weeks |
| 155 |  | Available ReconditionedGenuine Reconditioned Miele Telescopic Wand - Non Electric More Product Details | 5658812R | $0.00Add to cart |
| 155 | | HES Telescopic Wand for Miele | 10615280 | $77.99Add to cart Special order: ships in 2 to 4 weeks |
| 160 | No Image | Crevice Nozzle 149Mm Obsw | 9442631 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 170 | No Image | Dusting Brush L | 12187780 | $24.00Add to cart Special order: ships in 2 to 4 weeks |
| 170 |  | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $26.00Add to cart Special order: ships in 2 to 4 weeks |
| 180 | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 190 |  | Genuine Miele ST Flexible hose SFS10 | 7252210 | $44.00Add to cart Special order: ships in 2 to 4 weeks |
| 200 | | Genuine Miele ST Flex. crev. nozzle SFD20 560mm | 7252100 | $39.00Add to cart Special order: ships in 2 to 4 weeks |
| 200 |  | Compatible alternateMiele SFD20 Long Flexible Crevice Tool for Miele Vacuums More Product Details | SFD20 | $39.00Add to cart Special order: ships in 2 to 4 weeks |
| 220 | | Genuine Miele Thread lifter | 5056530 | $9.70Read more |
| # | Part image | Description | SKU | Price |

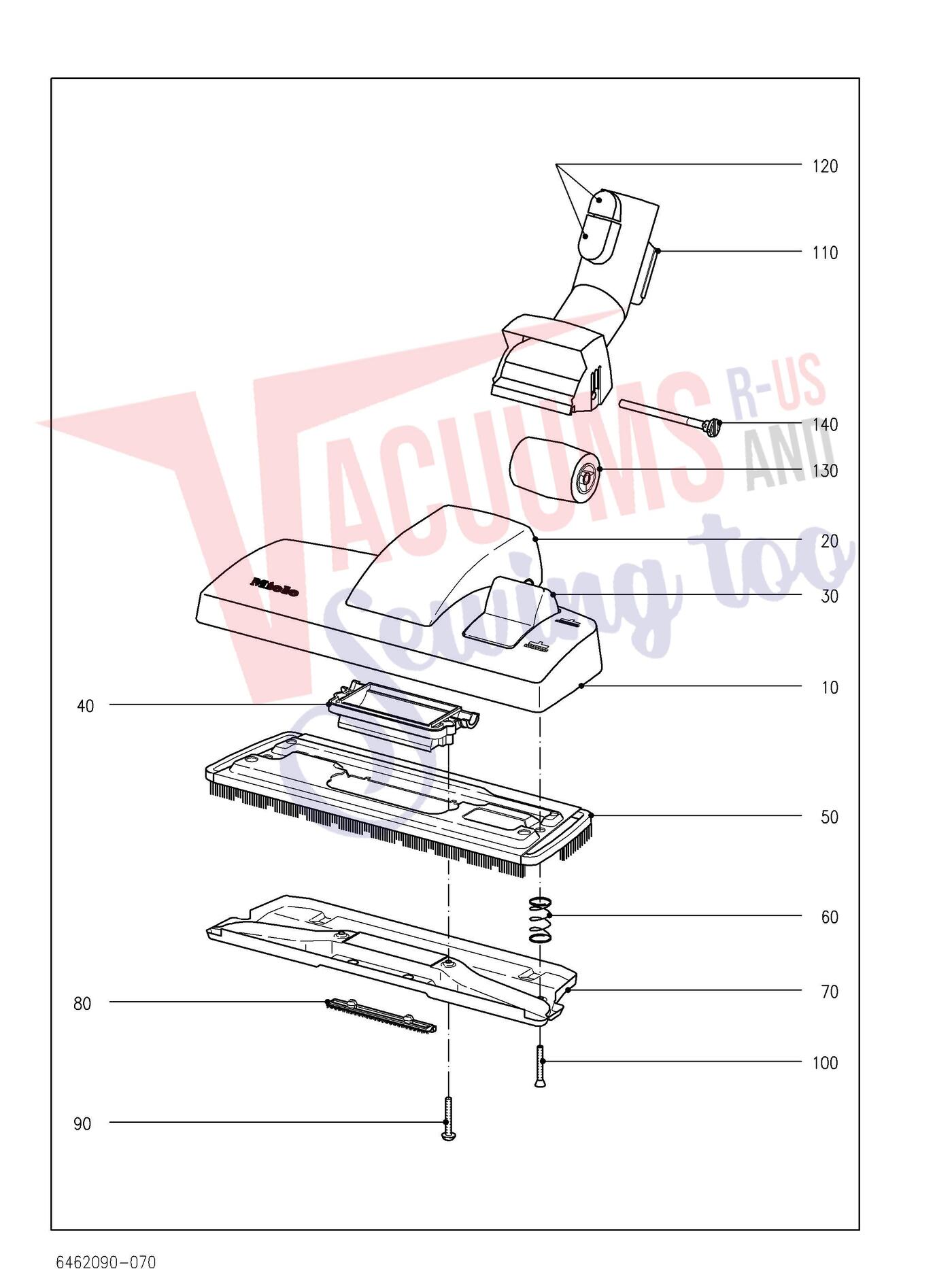

| 10-140 | Not Available | Floor nozzle SBD285-3 | 6223980 | Not Available |
| 10-140 | Not Available | Floor nozzle SBD285-3 AllTeQ | 7253830 | Not Available |
| 10 |  | Genuine Miele Top anthracite | 5235512 | $27.90Read more |
| 20 |  | Genuine Miele Suction channel anthracite | 5235541 | $24.70Read more |
| 30 |  | Genuine Miele Foot switch anthracite | 5235503 | $15.00Read more |
| 40 |  | Genuine Miele Fixing | 5235480 | $9.70Read more |
| 50 |  | Genuine Miele Bristle supp.plate | 5235463 | $33.80Read more |
| 60 |  | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |
| 70+80 |  | Genuine Miele Lower section | 5235453 | $43.60Read more |
| 80 |  | Genuine Miele Thread lifter 2 Pcs. | 6204050 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 |  | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $3.60Read more |
| 100 | No Image | --Countersunk Screw 35X20 | 5289870 | $2.30Read more |
| 110+120 |  | Genuine Miele Linkage SBD285-3 assy | 6578132 | $36.00Add to cart Special order: ships in 2 to 4 weeks |
| 120 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 |  | Genuine Miele Support roller | 5235530 | $15.00Read more |
| 140 |  | Genuine Miele Shaft Bayonett fitting | 5235520 | $13.50Read more |
| # | Part image | Description | SKU | Price |

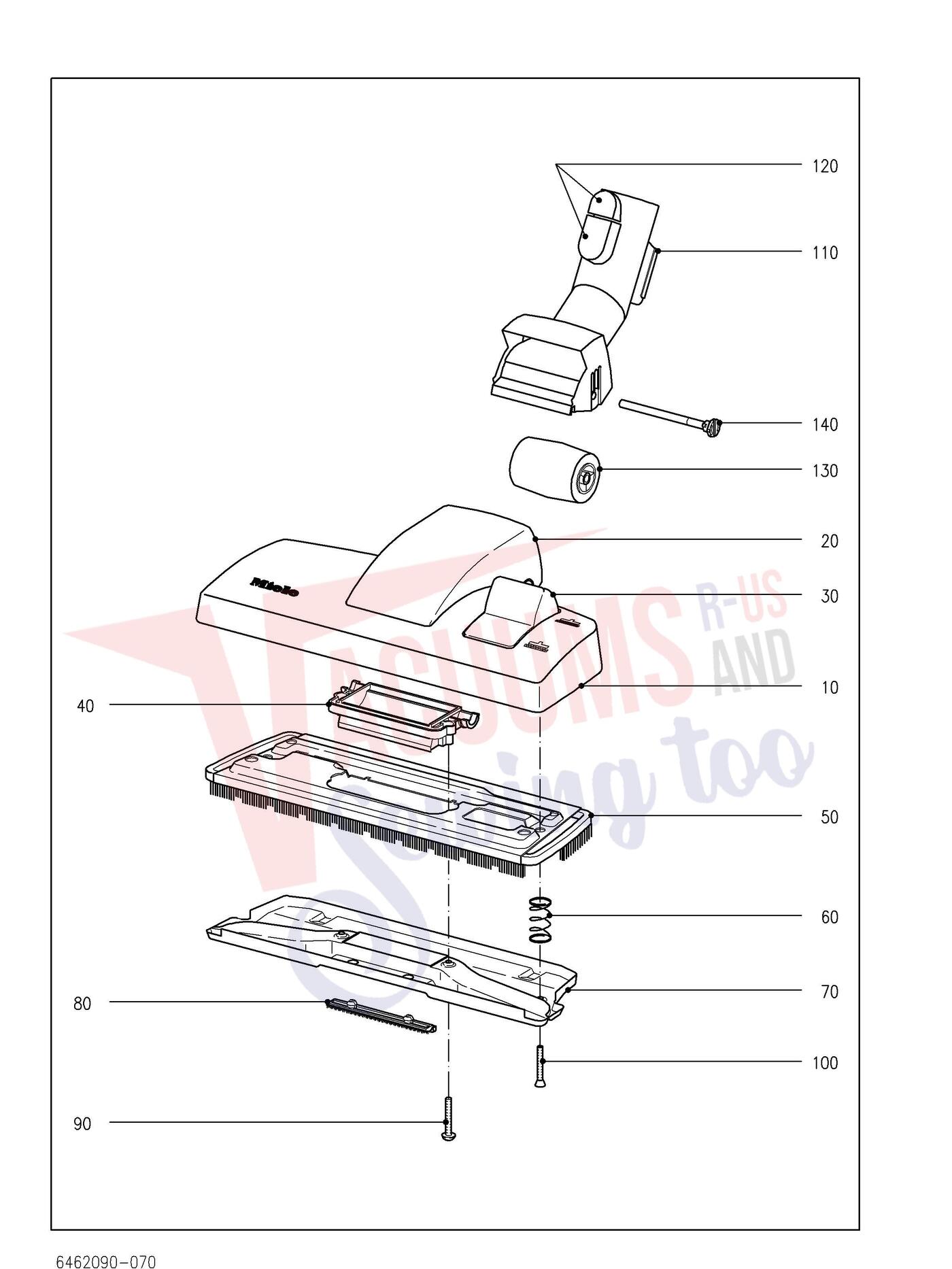

| 10-140 | Not Available | Floor nozzle Eco SBD 290-3 | 10228750 | Not Available |
| 10 | | Genuine Miele Top anthracite | 5235512 | $27.90Read more |
| 20 | | Genuine Miele Suction channel anthracite | 5235541 | $24.70Read more |
| 30 | | Genuine Miele Foot switch anthracite | 5235503 | $15.00Read more |
| 40 | No Image | -Fixing | 10104390 | $3.90Read more |
| 50 | | Genuine Miele Bristle supp.plate | 5235463 | $33.80Read more |
| 60 | | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |
| 70+80 | Not Available | -Lower section kpl. | 10007791 | Not Available |
| 80 |  | Genuine Miele Thread lifter 2 Pcs. | 7898590 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 | | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $3.60Read more |
| 100 | No Image | --Countersunk Screw 35X20 | 5289870 | $2.30Read more |
| 110+120 | | Genuine Miele Linkage SBD285-3 assy | 6578132 | $36.00Add to cart Special order: ships in 2 to 4 weeks |
| 120 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 | | Genuine Miele Support roller | 5235530 | $15.00Read more |
| 140 | | Genuine Miele Shaft Bayonett fitting | 5235520 | $13.50Read more |
