Schematic and parts book for Miele SFAE1 COMPLETE C2 SFAE1. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

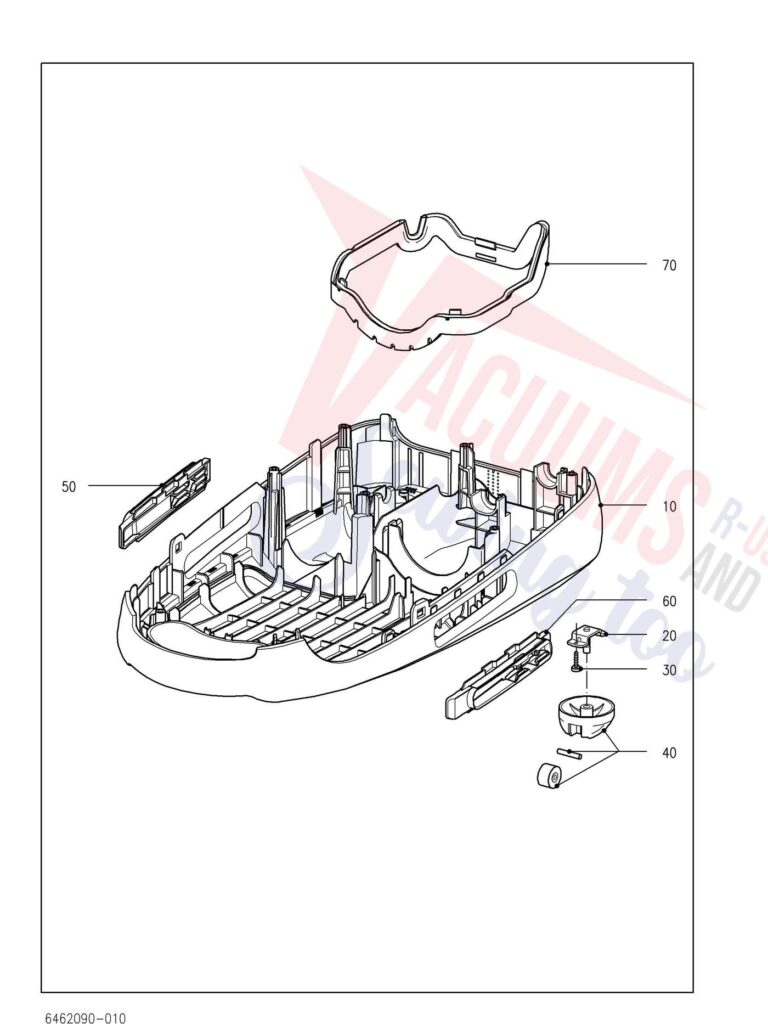

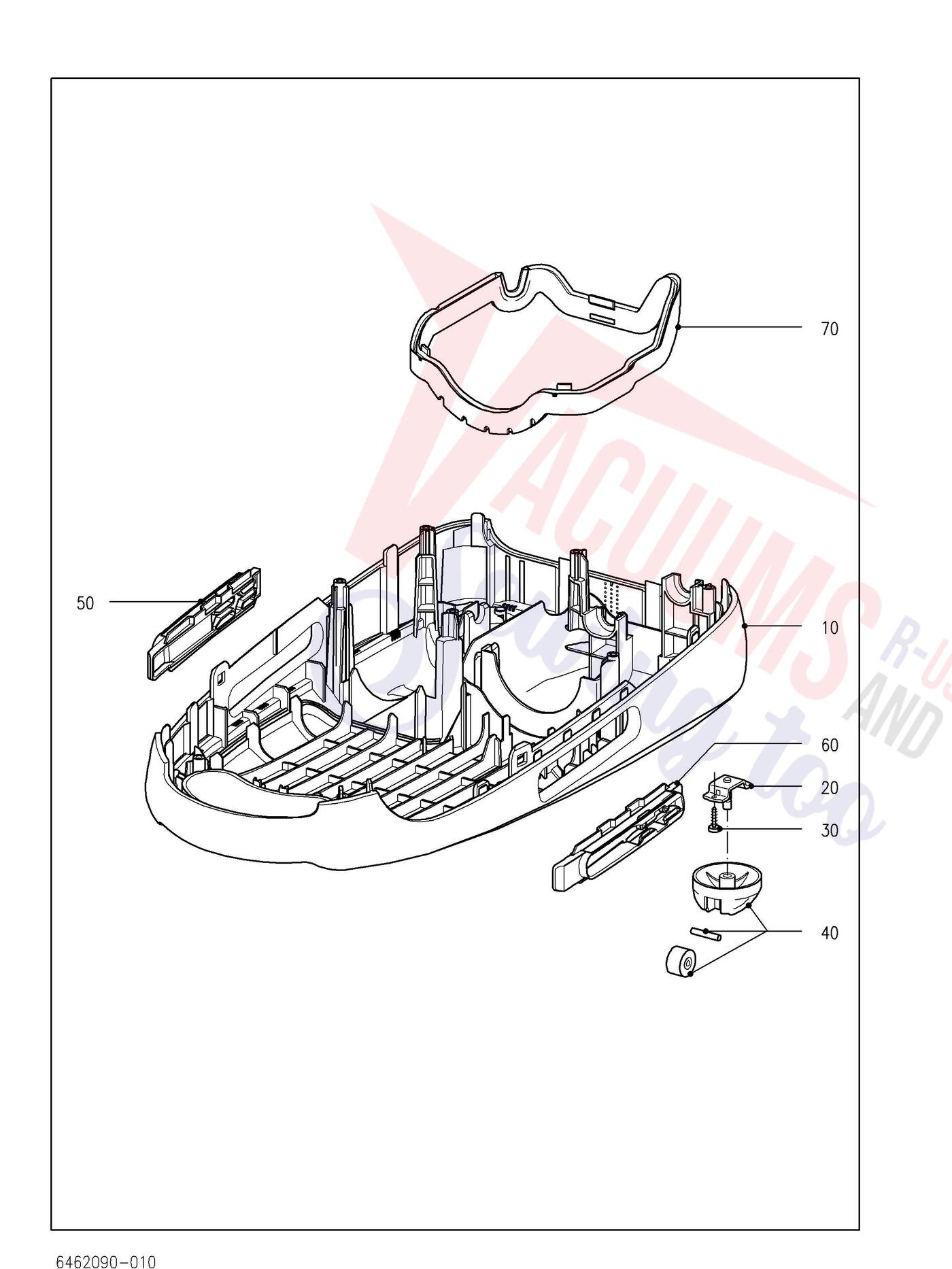

| # | Part image | Description | SKU | Price |
| XX |  | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 10-40 | No Image | Casing Bottom Anthracite | 9895503 | $119.00Read more |
| 20 | | Genuine Miele Shaft Slide skid | 3892600 | $9.70Read more |
| 40 | No Image | -Slide Skid Obsw Assy | 12494260 | $11.00Read more |
| 50 | | Genuine Miele Suspension right | 6065240 | $4.90Read more |
| 60 | Not Available | -Suspension left | 6065270 | Not Available |
| 70 | No Image | -Seal | 6049591 | $15.00Read more |

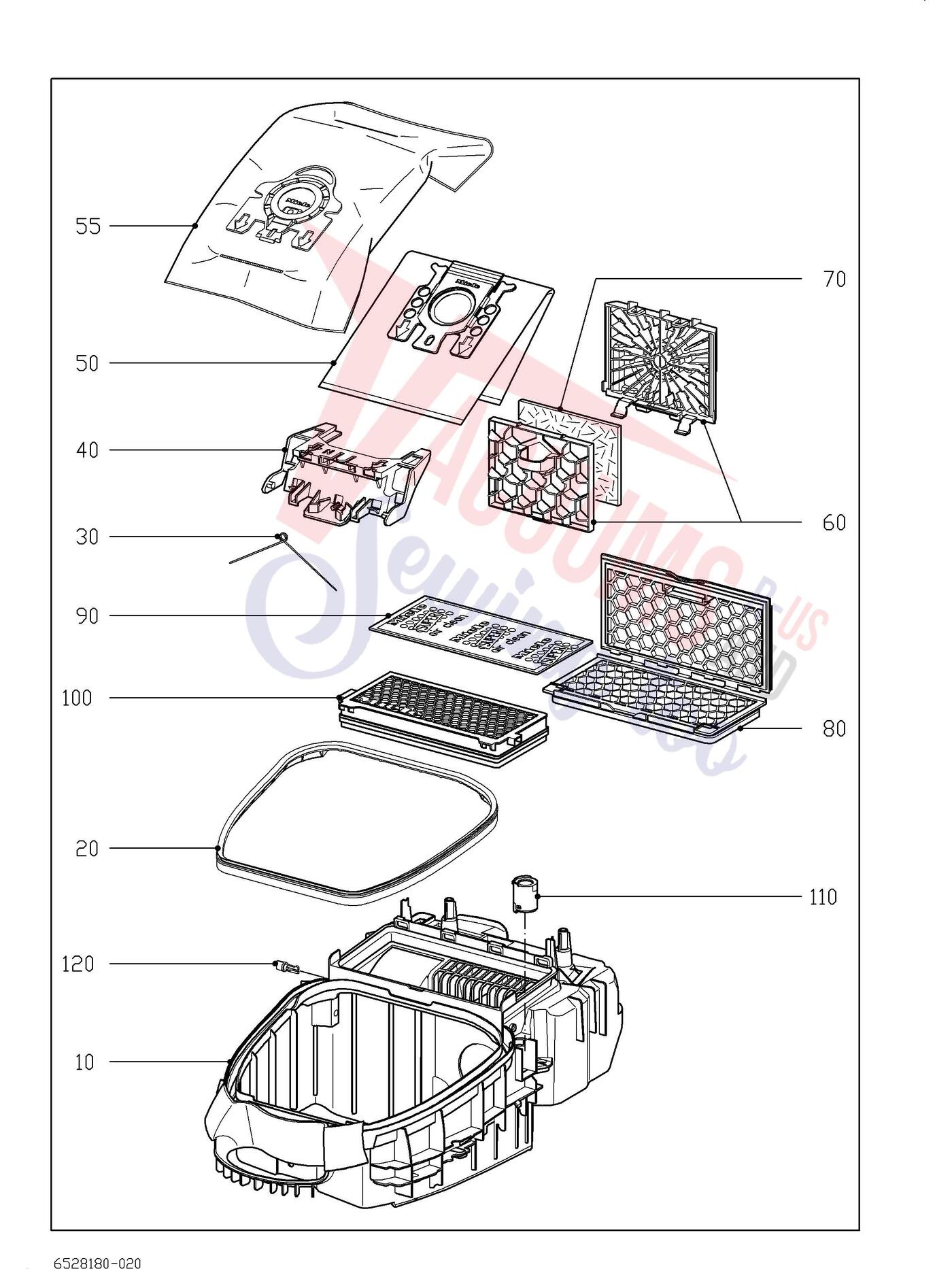

| # | Part image | Description | SKU | Price |
| 10 | | Genuine Miele Casing insert S5xxx | 12073090 | $71.70Read more |
| 20 | | Genuine Miele Sealing ring | 6141480 | $13.50Read more |
| 30 |  | Genuine Miele Torsion spring Bracket | 6434090 | $2.50Add to cart |
| 40 | | Genuine Miele Bracket vacuum cleaner bag | 6081322 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 55 | Not Available | vacuum cleaner bag G/N USA | 7805110 | Not Available |
| 60+70 | | Genuine Miele Filter frame Brilliant blue | 6241011 | $20.60Read more |
| 70 |  | Genuine Miele Dust compart.filter 3 pcs. | 6713110 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 80 |  | Genuine Miele Spacer bracket Air-Clean filter | 11690520 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 |  | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 100 | No Image | Act.Air Cleanfilter | 12785350 | $49.00Add to cart Special order: ships in 2 to 4 weeks |
| 100 | No Image | Hepa-Filter | 12785390 | $64.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 | | Genuine Miele End plug Suction control | 6175470 | $2.30Read more |
| 120 | No Image | End Plug | 6938811 | $7.00Read more |

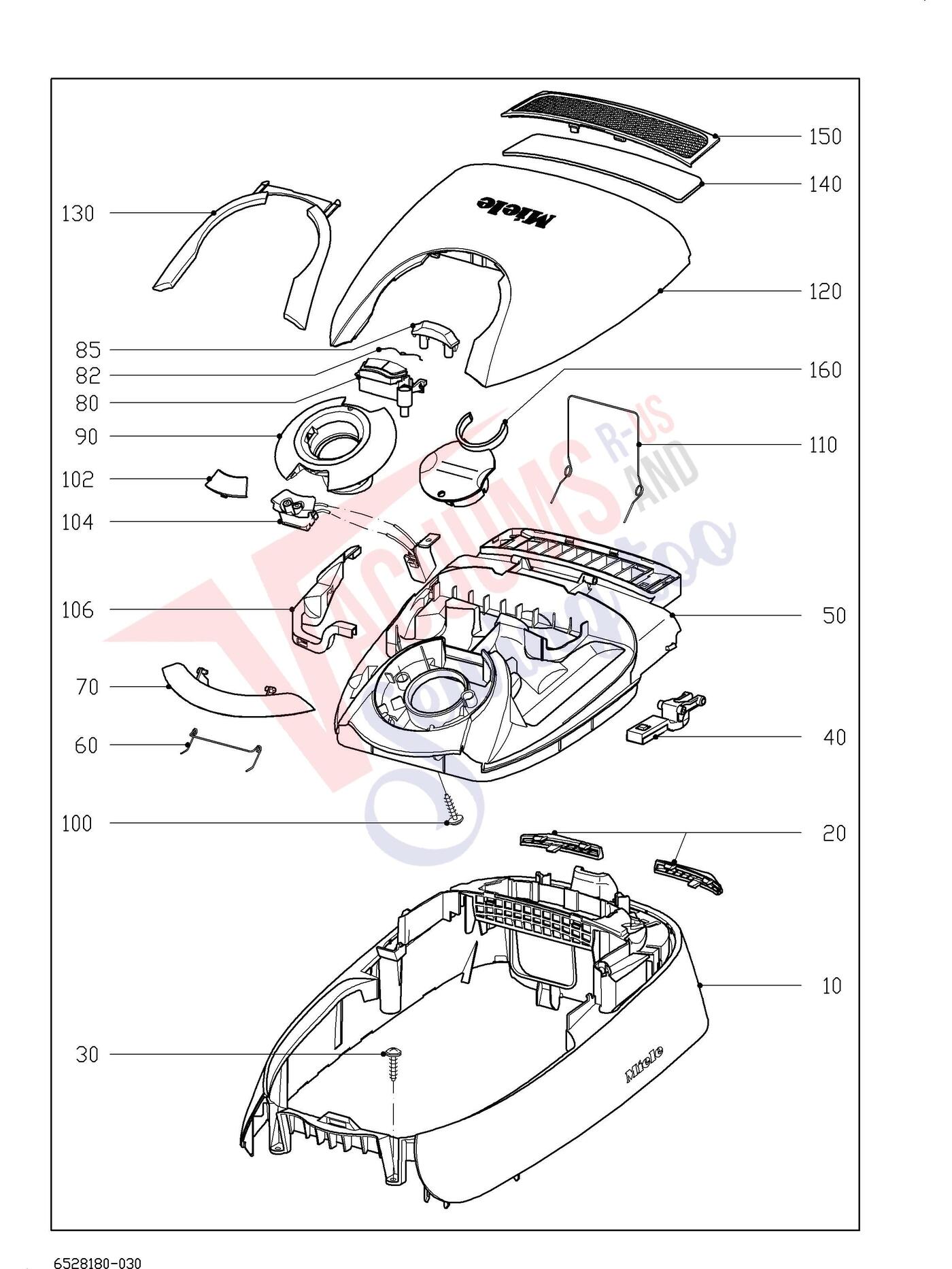

| # | Part image | Description | SKU | Price |
| XX |  | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| XX | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 10+20 | | Genuine Miele Cover frame Melon yellow | 6515110 | $93.60Read more |
| 10+20 | | Genuine Miele Cover frame Lava grey | 6515140 | $93.60Read more |
| 10+20 | | Genuine Miele Cover frame Autumn red | 6515160 | $0.00Read more |
| 10+20 | | Genuine Miele Cover frame deep black | 6515170 | $93.60Read more |
| 10+20 | | Genuine Miele Cover frame Royal blue | 6515180 | $93.60Read more |
| 10+20 | | Genuine Miele Cover frame Java green | 6515190 | $93.60Read more |
| 10+20 | | Genuine Miele Cover frame Royal blue | 6515180 | $93.60Read more |
| 10+20 | | Genuine Miele Cover frame Koi orange | 7129360 | $93.60Read more |
| 10+20 | | Genuine Miele Cover frame Tayberry red | 7147140 | $93.60Read more |
| 10+20 | | Genuine Miele Cover frame Saffron yellow | 7187290 | $93.60Read more |
| 10+20 | | Genuine Miele Cover frame Lotos white | 7434050 | $93.60Read more |
| 10+20 | | Genuine Miele Cover frame black magic | 6895590 | $120.70Read more |
| 10+20 | Not Available | Cover frame Midnight Purple | 7967220 | Not Available |
| 10+20 | | Genuine Miele Cover frame Obsidian black | 9375360 | $93.60Read more |
| 10+20 | | Genuine Miele Cover frame Canary yellow | 9478030 | $93.60Read more |
| 10+20 | | Genuine Miele Cover frame Sprint blue | 9626450 | $93.60Read more |
| 10+20 | No Image | Cover Frame Chili Red | 9895552 | $100.00Read more |
| 10+20 | | Genuine Miele Cover frame Graphite grey | 10810860 | $52.20Read more |
| 10+20 | No Image | Cover Frame Technoblue | 10810831 | $100.00Read more |
| 20 | | Genuine Miele Strip Left and right | 6515290 | $2.30Read more |
| 40 | | Genuine Miele Hinge 2 Pcs. | 6515311 | $20.60Read more |
| 50 | | Genuine Miele Casing top S5xxx | 11997180 | $98.00Read more |
| 60 |  | Genuine Miele Torsion spring Lock | 6079920 | $3.60Add to cart |
| 70 |  | Genuine Miele Lock | 6079890 | $3.60Read more |
| 80-85 |  | Genuine Miele Change filter ind. SF TYPE 1 USA/J | 10292782 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 82 | No Image | -Torsion Spring Change Filter Ind. | 5463554 | $2.50Read more |
| 85 |  | Genuine Miele interlock | 6122782 | $2.50Read more |
| 90 | | Genuine Miele Ring alu-silver | 6212270 | $20.60Read more |
| 102 | | Genuine Miele Fascia panel alu-silver | 6217170 | $10.70Read more |
| 104 | No Image | Flush Socket Outlet S5300 100-120V | 6648540 | $36.00Read more |
| 106 | No Image | Cover Strip Casing Top | 6128230 | $4.14Read more |
| 110 |  | Genuine Miele Torsion spring Lid | 6409260 | $5.20Read more |
| 120+130 | | Genuine Miele Lid Melon yellow | 6473631 | $52.20Read more |
| 120+130 | | Genuine Miele Lid Lava grey | 6473641 | $52.20Read more |
| 120+130 | | Genuine Miele Lid Autumn red | 6473651 | $52.20Read more |
| 120+130 | | Genuine Miele Lid Obsidian black | 9375340 | $52.20Read more |
| 120+130 | | Genuine Miele Lid Obsidian black | 9375340 | $52.20Read more |
| 120+130 | | Genuine Miele Lid Java green | 6473691 | $52.20Read more |
| 120+130 | | Genuine Miele Lid Capri blue | 6473721 | $52.20Read more |
| 120+130 | | Genuine Miele Lid Koi orange | 7129381 | $52.20Read more |
| 120+130 | | Genuine Miele Lid Tayberry red | 7147151 | $52.20Read more |
| 120+130 | | Genuine Miele Lid Saffron yellow | 7187281 | $52.20Read more |
| 120+130 | | Genuine Miele Lid Lotos white | 7434061 | $52.20Read more |
| 120+130 | | Genuine Miele Lid black magic | 6896051 | $62.00Read more |
| 120+130 | | Genuine Miele Lid Midnight Purple | 7967230 | $62.00Read more |
| 120+130 | | Genuine Miele Lid Obsidian black | 9375340 | $52.20Read more |
| 120+130 | Not Available | Lid Canary yellow | 9478050 | Not Available |
| 120+130 | | Genuine Miele Lid Sprint blue | 9626460 | $52.20Read more |
| 120+130 | Not Available | Lid Chili red | 9895510 | Not Available |
| 120+130 | | Genuine Miele Lid Graphite grey | 10810870 | $43.60Read more |
| 120+130 | | Genuine Miele Lid Technoblue | 10810820 | $43.60Read more |
| 130 | No Image | -Fascia Panel Lid | 6126400 | $5.20Read more |
| 150 | Not Available | Air shield alu-silver | 6764550 | Not Available |
| 150+140 | | Genuine Miele Air shield alu-silver | 6835790 | $27.90Read more |
| 160 | Not Available | Hygiene cap | 6622030 | Not Available |

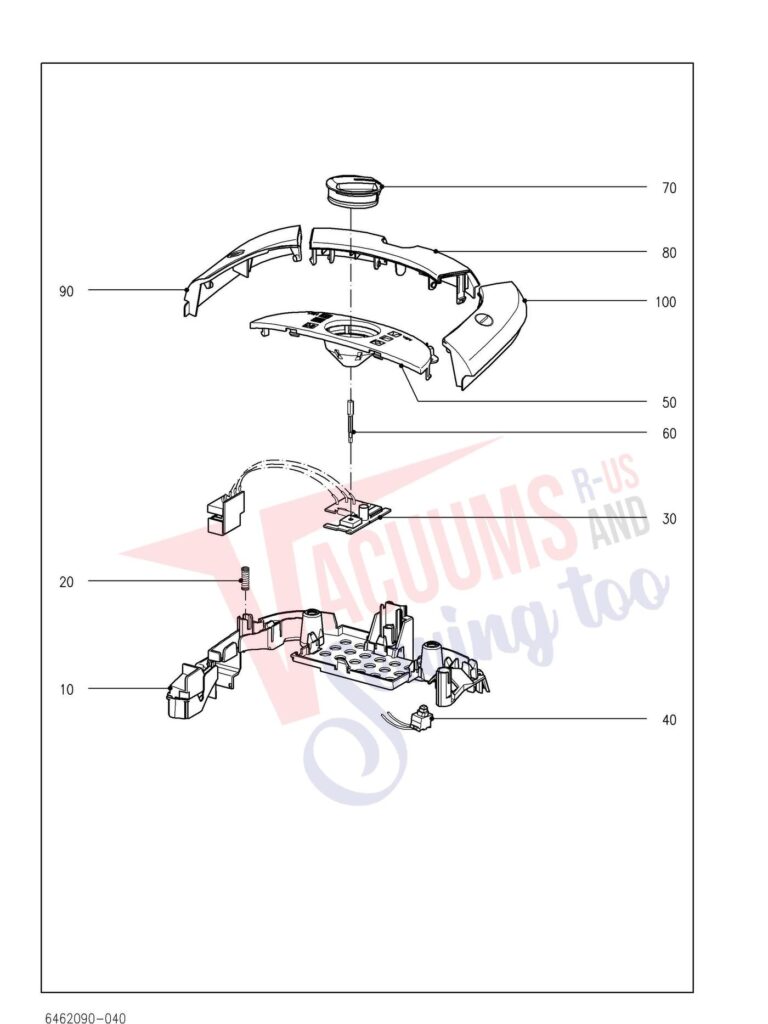

| # | Part image | Description | SKU | Price |
| 10 | No Image | Bracket Electronic Unit | 6134772 | $21.62Read more |
| 20 |  | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 30+40 |  | Genuine Miele Electronic unit EDW5201/81 120V 60Hz | 7322083 | $83.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | No Image | -Switch 1 Pole 1681.3103 | 9023231 | $9.60Add to cart Special order: ships in 2 to 4 weeks |
| 50-70 | | Genuine Miele Control panel Melon yellow | 6676190 | $52.20Read more |
| 50-70 | | Genuine Miele Control panel Lava grey | 6653560 | $52.20Read more |
| 50-70 | | Genuine Miele Control panel Autumn red | 6675020 | $52.20Read more |
| 50-70 | Not Available | Control panel Obsidian black | 9375380 | Not Available |
| 50-70 | | Genuine Miele Control panel Royal blue | 6560950 | $52.20Read more |
| 50-70 | No Image | Control Panel Java Green | 6613240 | $56.00Read more |
| 50-70 | | Genuine Miele Control panel Capri blue | 6653570 | $52.20Read more |
| 50-70 | No Image | Control Panel Koi Orange | 7129400 | $56.00Read more |
| 50-70 | | Genuine Miele Control panel Tayberry red | 7147160 | $52.20Read more |
| 50-70 | No Image | Control Panel Saffron Yellow | 7187310 | $56.00Read more |
| 50-70 | | Genuine Miele Control panel Lotos white | 7434070 | $52.20Read more |
| 50-70 | No Image | Control Panel Black Magic | 6895280 | $56.00Read more |
| 50-70 | | Genuine Miele Control panel Midnight Purple | 7967240 | $62.00Read more |
| 50-70 | Not Available | Control panel Obsidian black | 9375380 | Not Available |
| 50-70 | | Genuine Miele Control panel Canary yellow | 9478070 | $52.20Read more |
| 50-70 | | Genuine Miele Control panel Sprint blue | 9626440 | $52.20Read more |
| 50-70 | | Genuine Miele Control panel Chili red | 9895540 | $52.20Read more |
| 50-70 | | Genuine Miele Control panel Technoblue | 10810840 | $52.20Read more |
| 50-70 | No Image | Control Panel Graphite Grey | 10810850 | $56.00Read more |
| 60 | | Genuine Miele Adapter Rotary knob | 5776181 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| 70 | Not Available | -Rotary knob alu-silver | 6084040 | Not Available |
| 80 | Not Available | Fascia panel alu-silver | 6084080 | Not Available |
| 90 | | Genuine Miele Foot switch alu-silver SF printed | 11168540 | $22.00Add to cart |
| 100 | | Genuine Miele Foot switch alu-silver SF print | 11168551 | $22.00Add to cart Special order: ships in 2 to 4 weeks |

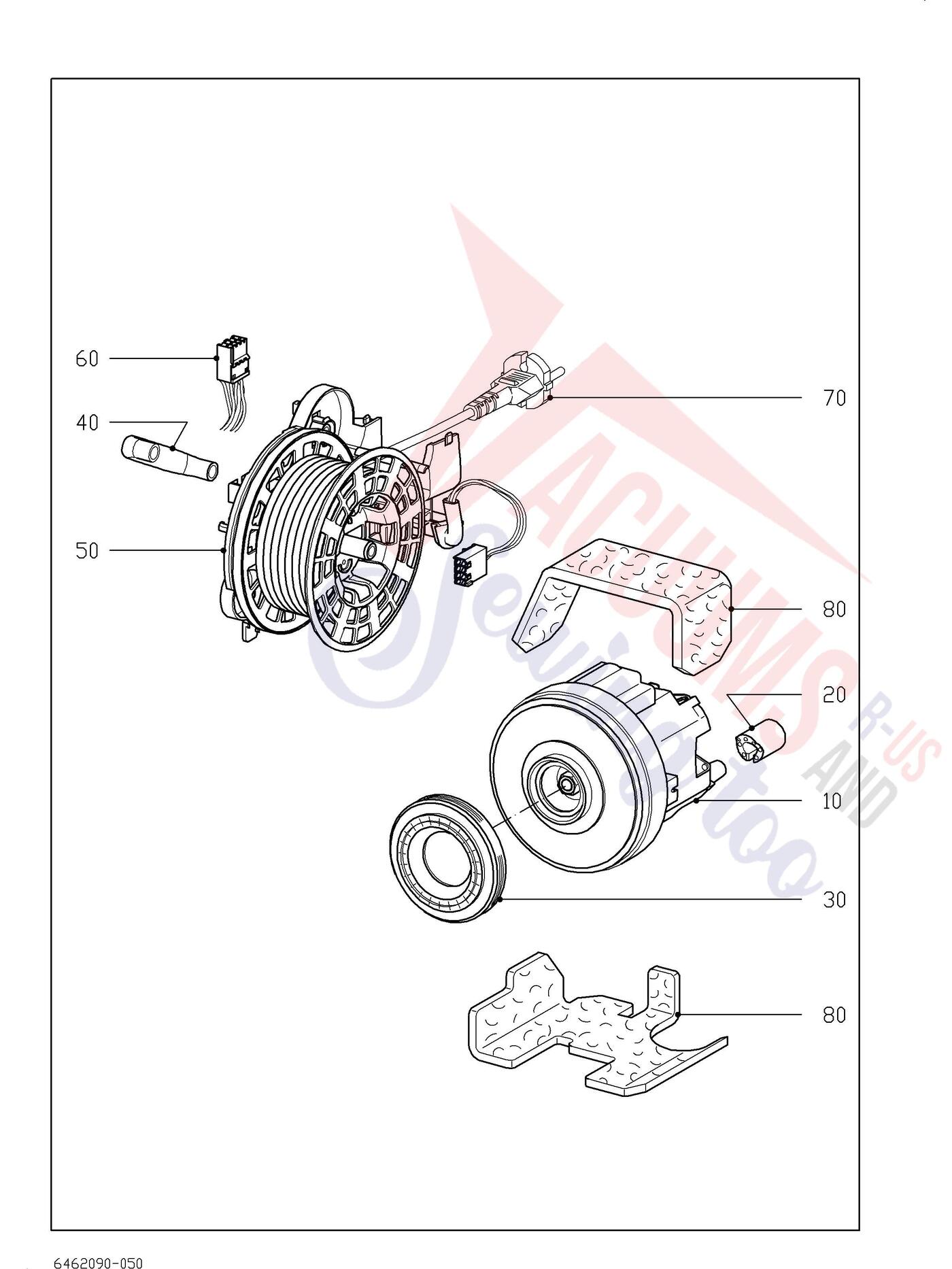

| # | Part image | Description | SKU | Price |
| 10 | | Genuine Miele Fan Mrg742/81-42/2 120V | 6514630 | $0.00Read more |
| 20 | No Image | Rubber Cushion 2 Pcs. | 6207002 | $22.00Read more |
| 30 | | Genuine Miele Bearing ring V18 | 7714533 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Genuine Miele Hose Nebenluft | 7196500 | $10.70Read more |
| 50-70 | | Genuine Miele Cable reel S5000 6,5m 120V USA | 6454293 | $0.00Read more |
| 50-70 | | Genuine Miele Cable reel S5000 6,5m EU/PRC | 9931334 | $109.00Read more |
| 60 |  | Genuine Miele Connecting cable S5000 100-120V | 6437871 | $63.00Read more |
| 70 | Not Available | -Supply cable 6,65m 17AWG 120V USA | 5241032 | Not Available |
| 80 | | Genuine Miele Damping plate | 6518591 | $20.60Read more |

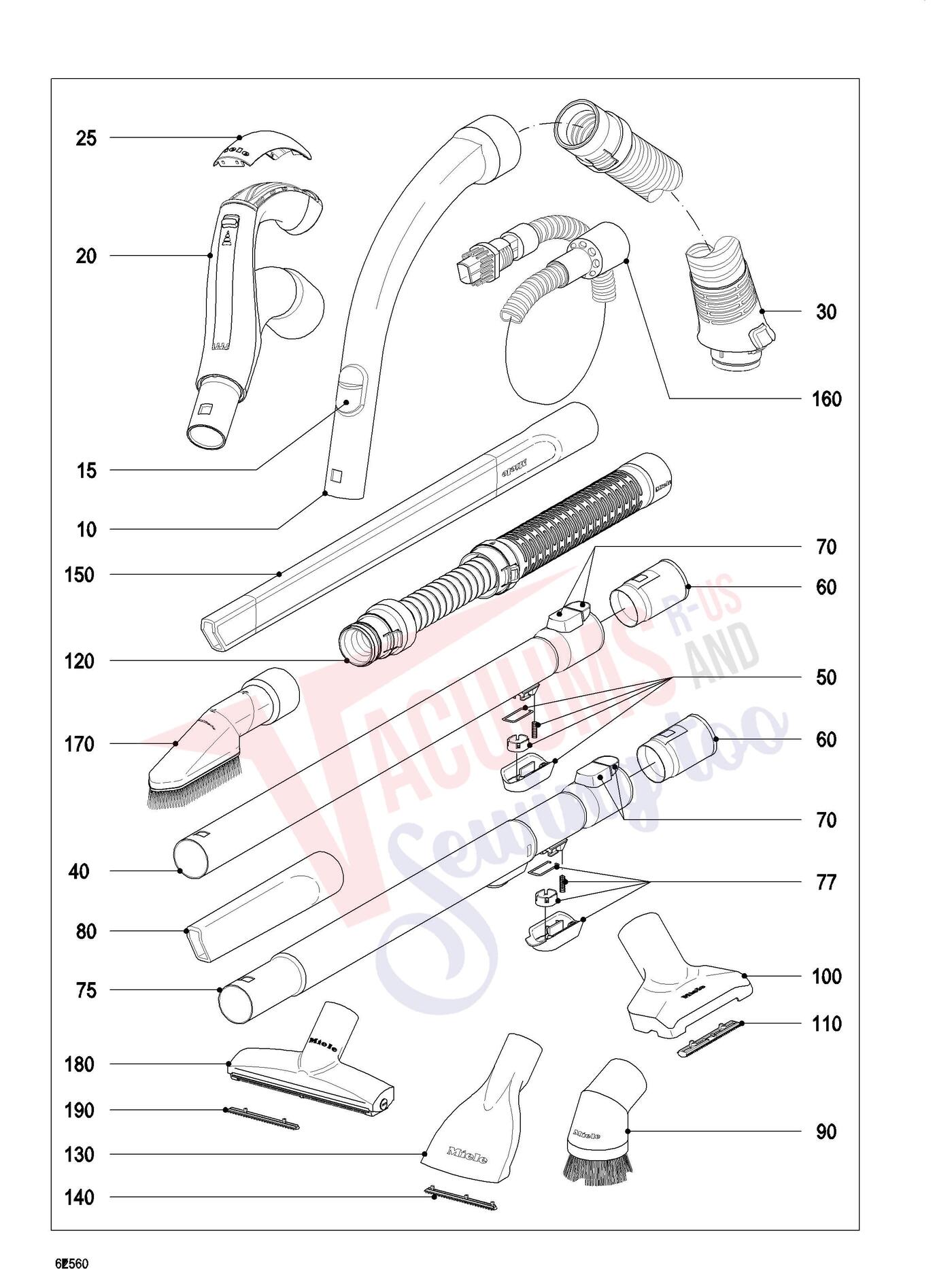

| # | Part image | Description | SKU | Price |
| w/o fig. |  | Genuine Miele ST Comfort handle Spotlight | 9385930 | $125.00Add to cart Special order: ships in 2 to 4 weeks |
| w/o fig. |  | Genuine Miele Inset handle Printed | 6157660 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| w/o fig. |  | Genuine Miele Battery Holder | 9121950 | $27.00Add to cart Special order: ships in 2 to 4 weeks |
| w/o fig. | | Genuine Miele Cover Battery | 9121730 | $24.70Read more |
| w/o fig. | | Genuine Miele Screw Plastic 3x10 | 9121940 | $2.30Read more |
| 10+15 | | Genuine Miele Tubular handle anthracite | 9442601 | $37.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Suction control anthracite | 5141090 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 20+25 | | Genuine Miele Tubular handle S4, S5 | 6163661 | $0.00Read more |
| 25 | | Genuine Miele Inset handle Printed | 6157660 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Genuine Miele Suction hose silver-coloured 1,8m | 6614661 | $0.00Read more |
| 40-70 |  | Genuine Miele Telescopic pipe 2-part st.steel | 5658812 | $0.00Read more |
| 40-70 |  | Available Pre OwnedReconditioned Miele Telescopic Aluminum Wand for Miele Upright Vacuums 6801181 More Product Details | 6801180R | $48.00Add to cart |
| 40-70 |  | Compatible alternateGenuine Miele Telescopic pipe Aluminium More Product Details | 6801181 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 | | Genuine Miele Push button Round | 5780931 | $0.00Read more |
| 50+60 |  | HES Telescopic Wand for Miele | 10615280 | $77.99Add to cart Special order: ships in 2 to 4 weeks |
| 50+60 |  | Available ReconditionedGenuine Reconditioned Miele Telescopic Wand - Non Electric More Product Details | 5658812R | $0.00Add to cart |
| 60 |  | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 60 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 77 |  | Genuine Miele Push button Round | 6151392 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 80 | No Image | Crevice Nozzle 149Mm Obsw | 9442631 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 |  | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $26.00Add to cart Special order: ships in 2 to 4 weeks |
| 100+110 | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 120 |  | Genuine Miele ST Flexible hose SFS10 | 7252210 | $44.00Add to cart Special order: ships in 2 to 4 weeks |
| 120 | | Genuine Miele ST Flexible hose SFS10 | 7252210 | $44.00Add to cart Special order: ships in 2 to 4 weeks |
| 140 | | Genuine Miele Thread lifter | 5056530 | $9.70Read more |
| 150 | | Genuine Miele ST Flex. crev. nozzle SFD20 560mm | 7252100 | $39.00Add to cart Special order: ships in 2 to 4 weeks |
| 150 |  | Compatible alternateMiele SFD20 Long Flexible Crevice Tool for Miele Vacuums More Product Details | SFD20 | $39.00Add to cart Special order: ships in 2 to 4 weeks |
| 160 | | Genuine Miele Suction hose MicroSet | 5261770 | $66.00Add to cart Special order: ships in 2 to 4 weeks |
| 170 | | Genuine Miele ST Universal brush SUB20 | 11607330 | $49.00Read more |
| 170 | | Genuine Miele ST Universal brush SUB20 | 11607330 | $49.00Read more |
| 180+190 | No Image | Genuine Miele Upholstery Nozzle SPD10 | 7252190 | $0.00Read more |
| 180+190 | No Image | Genuine Miele Upholstery Nozzle SPD10 | 7252190 | $0.00Read more |
| 190 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |

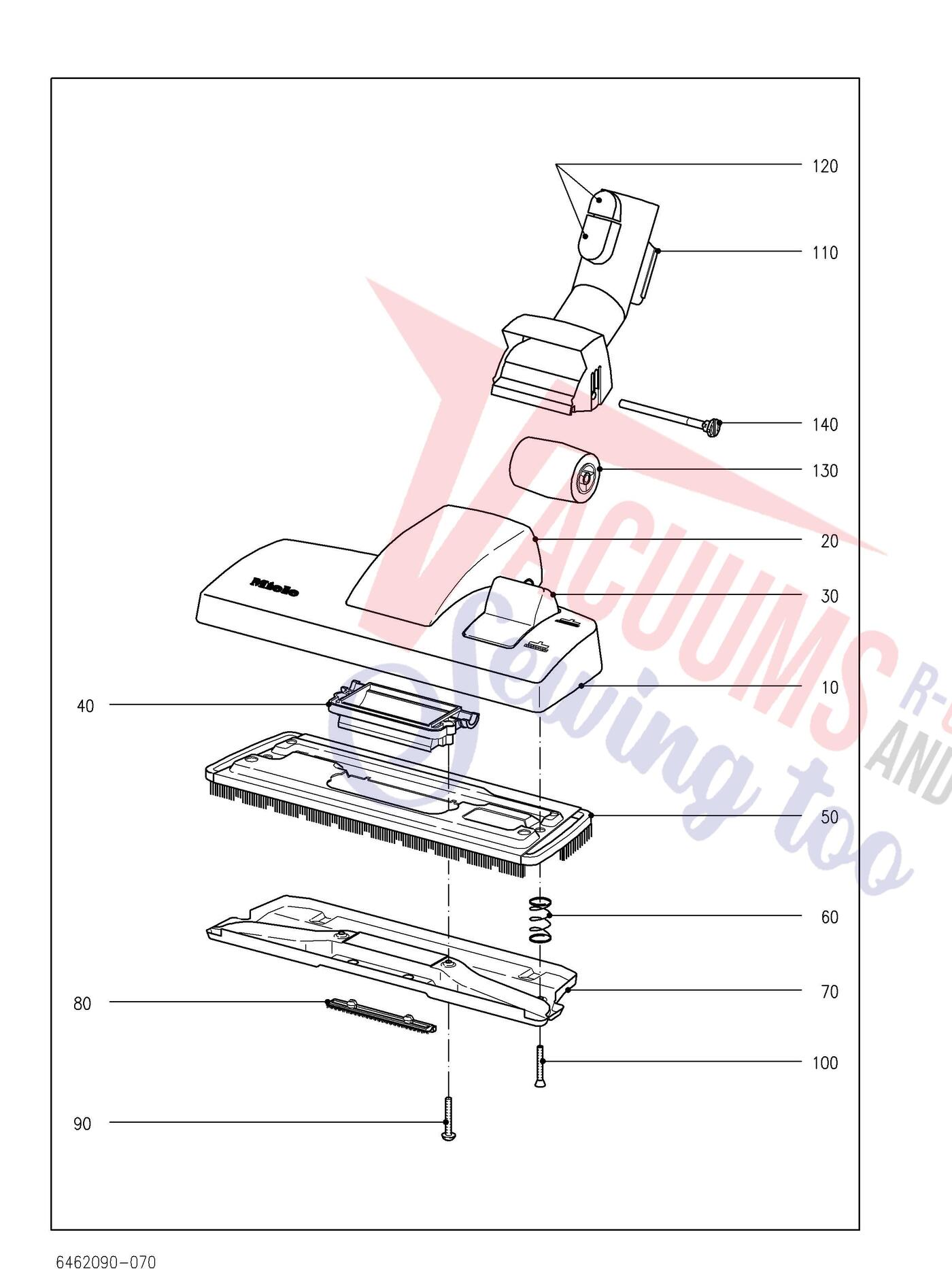

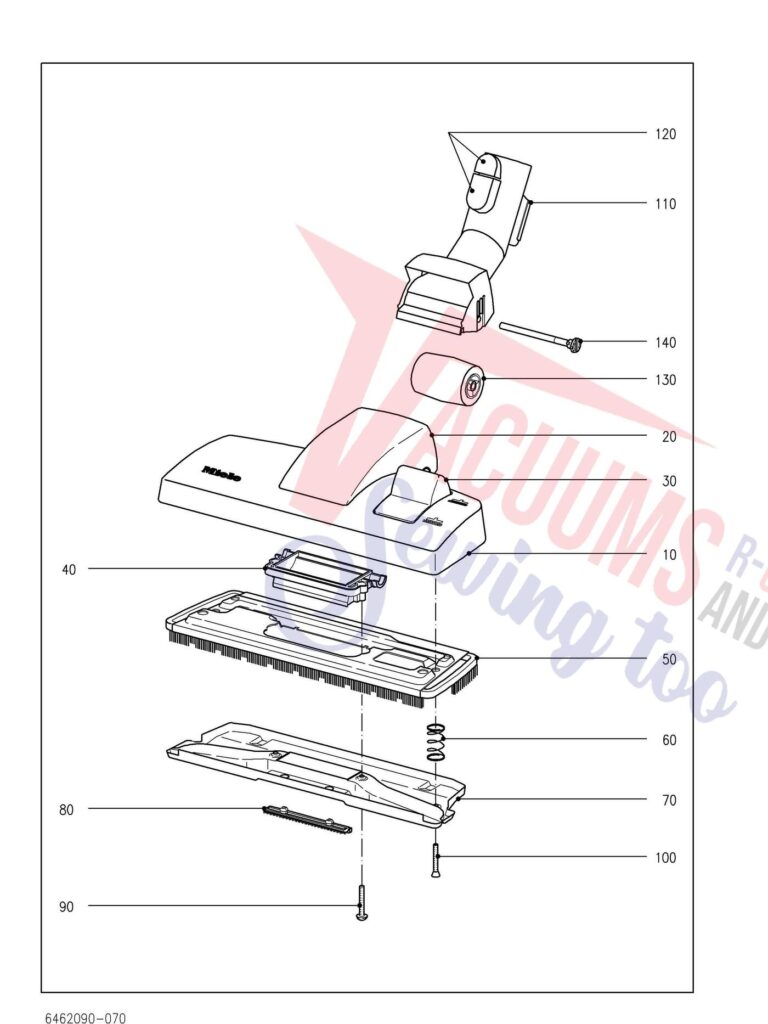

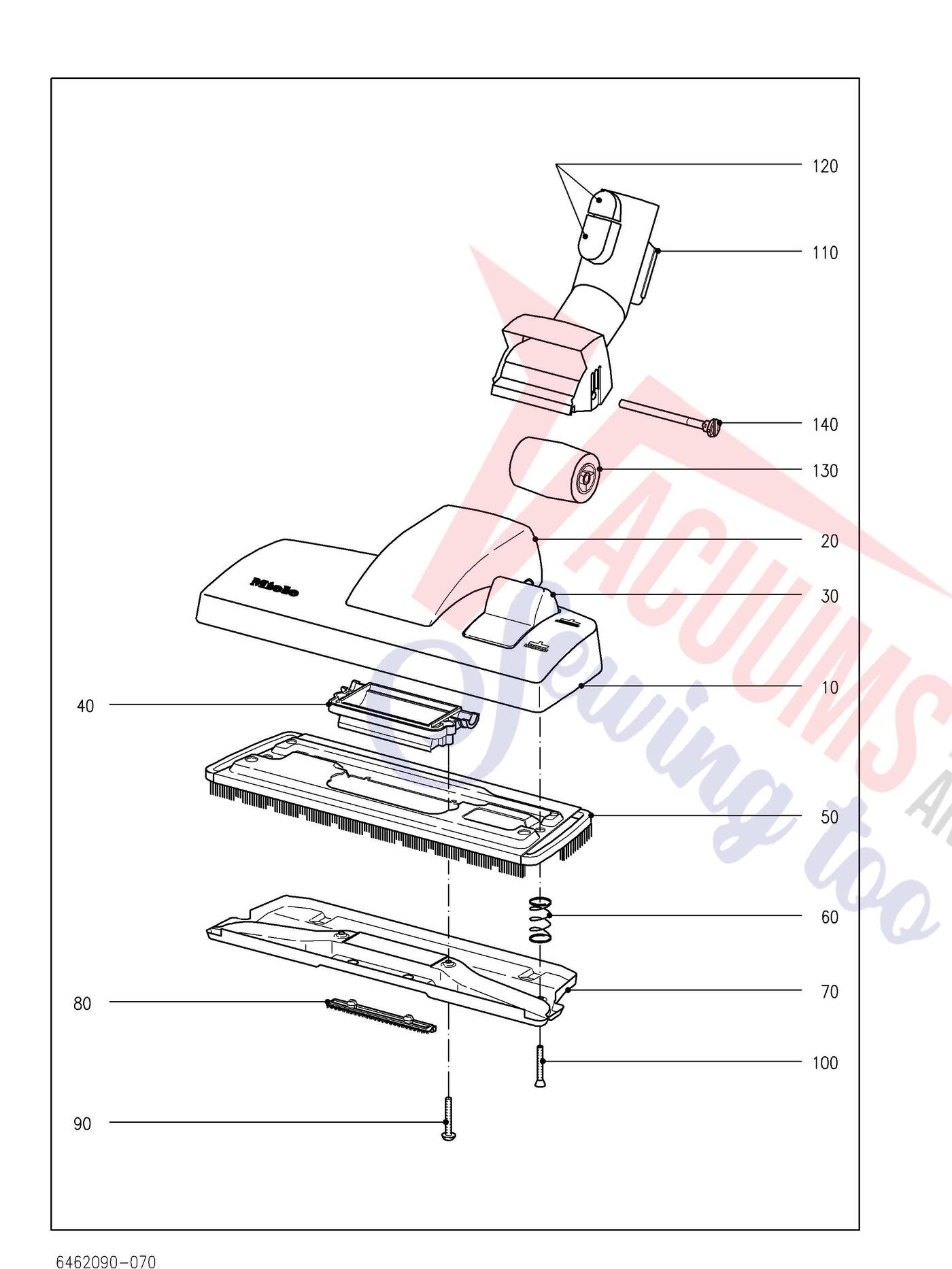

| # | Part image | Description | SKU | Price |
| 10-140 | Not Available | Floor nozzle SBD285-3 | 6223980 | Not Available |
| 10-140 | Not Available | Floor nozzle SBD285-3 AllTeQ | 7253830 | Not Available |
| 10 |  | Genuine Miele Top anthracite | 5235512 | $27.90Read more |
| 20 |  | Genuine Miele Suction channel anthracite | 5235541 | $24.70Read more |
| 30 |  | Genuine Miele Foot switch anthracite | 5235503 | $15.00Read more |
| 40 |  | Genuine Miele Fixing | 5235480 | $9.70Read more |
| 50 |  | Genuine Miele Bristle supp.plate | 5235463 | $33.80Read more |
| 60 |  | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |
| 70+80 |  | Genuine Miele Lower section | 5235453 | $43.60Read more |
| 80 |  | Genuine Miele Thread lifter 2 Pcs. | 6204050 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 |  | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $3.60Read more |
| 100 | No Image | --Countersunk Screw 35X20 | 5289870 | $2.30Read more |
| 110+120 |  | Genuine Miele Linkage SBD285-3 assy | 6578132 | $36.00Add to cart Special order: ships in 2 to 4 weeks |
| 120 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 |  | Genuine Miele Support roller | 5235530 | $15.00Read more |
| 140 |  | Genuine Miele Shaft Bayonett fitting | 5235520 | $13.50Read more |
| # | Part image | Description | SKU | Price |
| 10-140 | Not Available | Floor nozzle Eco SBD 290-3 | 10228750 | Not Available |
| 10 | | Genuine Miele Top anthracite | 5235512 | $27.90Read more |
| 20 | | Genuine Miele Suction channel anthracite | 5235541 | $24.70Read more |
| 30 | | Genuine Miele Foot switch anthracite | 5235503 | $15.00Read more |
| 40 | No Image | -Fixing | 10104390 | $3.90Read more |
| 50 | | Genuine Miele Bristle supp.plate | 5235463 | $33.80Read more |
| 60 | | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |
| 70+80 | Not Available | -Lower section kpl. | 10007791 | Not Available |
| 80 |  | Genuine Miele Thread lifter 2 Pcs. | 7898590 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 | | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $3.60Read more |
| 100 | No Image | --Countersunk Screw 35X20 | 5289870 | $2.30Read more |
| 110+120 | | Genuine Miele Linkage SBD285-3 assy | 6578132 | $36.00Add to cart Special order: ships in 2 to 4 weeks |
| 120 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 | | Genuine Miele Support roller | 5235530 | $15.00Read more |
| 140 | | Genuine Miele Shaft Bayonett fitting | 5235520 | $13.50Read more |
| # | Part image | Description | SKU | Price |
| 10-50 | | Genuine Miele FiberTeQ Floor nozzle SBD 355-3 | 10367830 | $73.53Read more |
| 20 | | Genuine Miele Bristle supp.plate | 7274680 | $63.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Genuine Miele Lower section SBD350/55-3 | 7274701 | $43.60Read more |
| 40 | | Genuine Miele Support roller 2 Pcs. | 7516120 | $18.80Read more |
| 50 |  | Genuine Miele Swivel joint Component AZ | 12837660 | $33.80Read more |
| # | Part image | Description | SKU | Price |

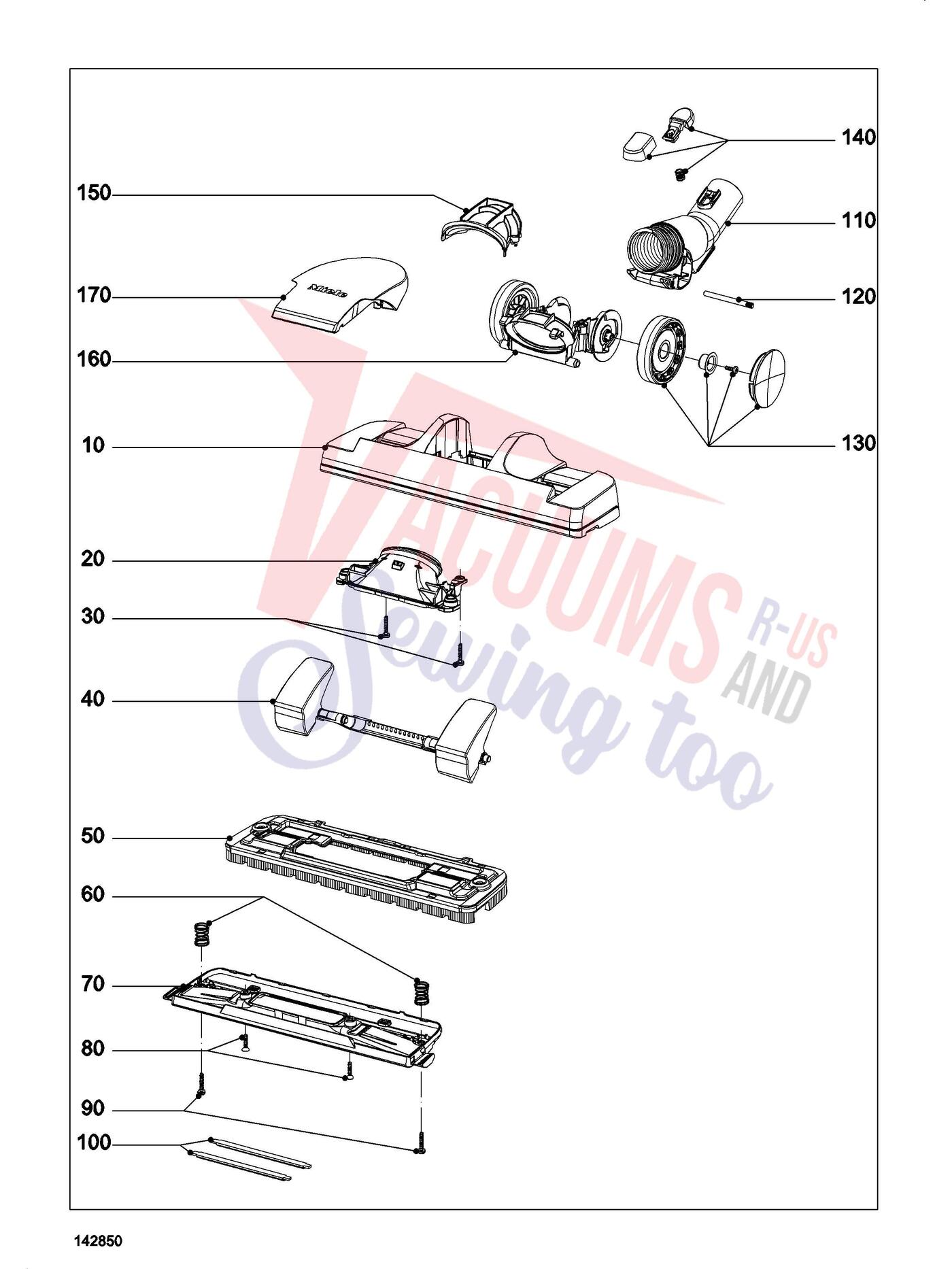

| 10-170 | Not Available | Floor nozzle AirTeQ SBD650-3 | 7879500 | Not Available |
| 10 | | Genuine Miele Top | 7874810 | $39.50Read more |
| 20 | | Genuine Miele Fixing | 7874800 | $13.50Read more |
| 30 | | Genuine Miele Raised head screw 3,5x18 | 6269840 | $2.30Read more |
| 40 |  | Genuine Miele Foot switch Printed | 7874782 | $33.80Read more |
| 50 |  | Genuine Miele Bristle supp.plate | 7874771 | $52.20Read more |
| 60 | Not Available | Double cone spring | 7874640 | Not Available |
| 70+100 | | Genuine Miele Lower section kpl. | 9010110 | $78.10Read more |
| 80 | | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $3.60Read more |
| 90 | | Genuine Miele Raised head screw 3,5x18 | 6269840 | $2.30Read more |
| 100 | | Genuine Miele Thread lifter 2 Pcs. | 7898590 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 110+140 |  | Genuine Miele Linkage kpl. | 7874901 | $78.10Read more |
| 120 | | Genuine Miele Shaft | 7874910 | $6.60Read more |
| 130 | No Image | Support Roller | 7898700 | $42.00Read more |
| 140 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 150 | | Genuine Miele Suction channel top | 7874921 | $10.70Read more |
| 160 | | Genuine Miele Suction channel bottom | 7874823 | $13.50Read more |
| 170 | No Image | Cover Printed | 7874930 | $22.00Read more |
Report errors on this page HERE
