Schematic and parts book for Miele SEB245 SEB 245. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

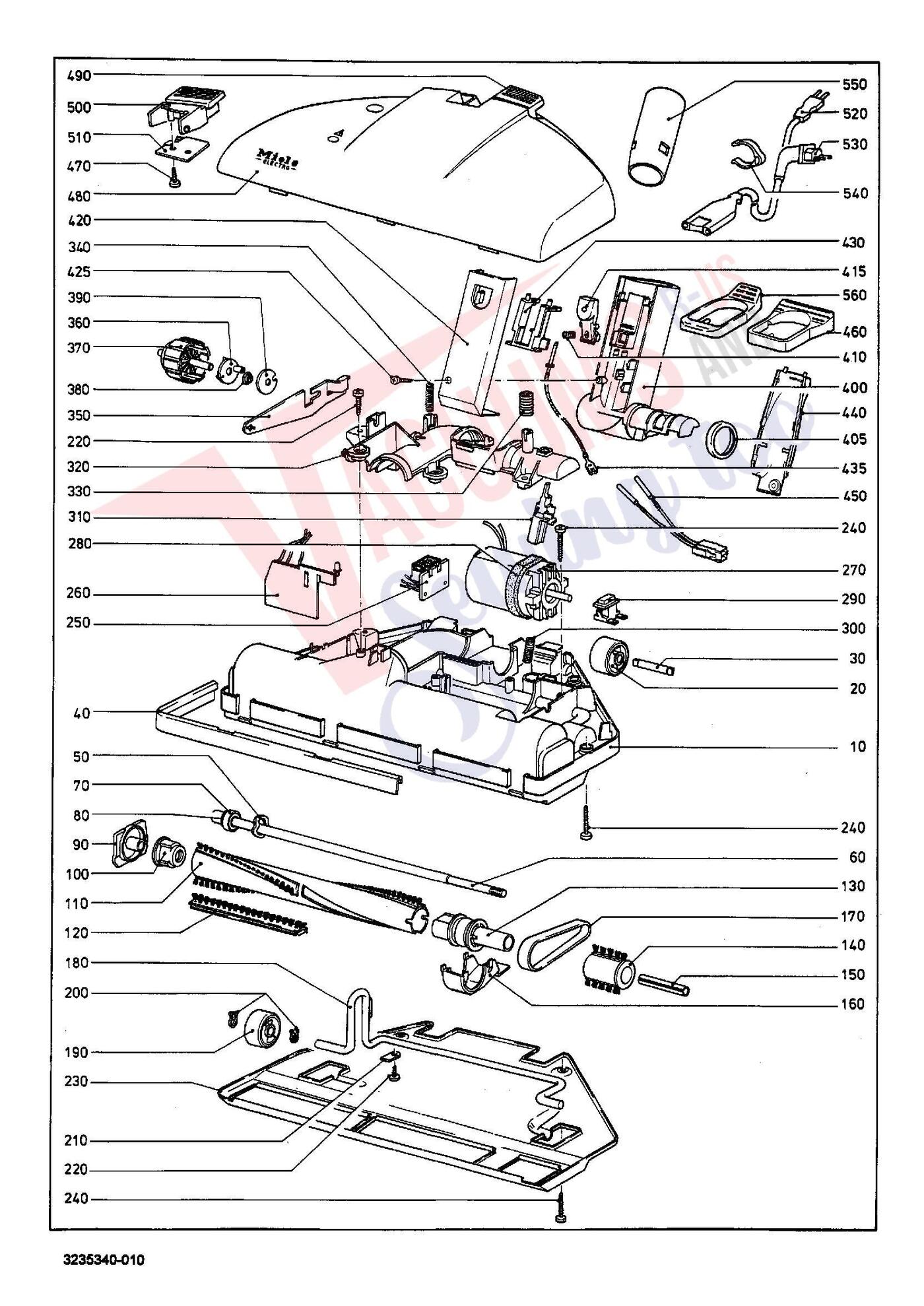

| # | Part image | Description | SKU | Price |
| XX |  | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4X20 | 2364630 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4X20 | 2364630 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 TORX T20 | 6106980 | $0.00Read more |
| XX | | Genuine Miele Raised head screw 4,0X10 | 3092030 | $2.30Read more |
| (435) | Not Available | -Connecting cable 2 pole | 3097430 | Not Available |
| XX | | Genuine Miele Raised head screw 4,0X10 | 3092030 | $2.30Read more |
| 10-30 | Not Available | Casing bottom anthracite | 3666020 | Not Available |
| 20+30 | Not Available | -Support roller anthracite | 3666140 | Not Available |
| 40 | Not Available | Buffer anthracite | 3643200 | Not Available |
| 50-80 | Not Available | -Shaft | 3246420 | Not Available |
| 70 | Not Available | Drive Lava grey | 3246401 | Not Available |
| 90 | Not Available | -Bearing anthracite | 3246412 | Not Available |
| 100 | | Genuine Miele Counter bearing anthracite | 3047711 | $15.00Read more |
| 110+120 | | Genuine Miele Roller | 3246381 | $150.60Read more |
| 120+140 | | Genuine Miele Bristle strip anthracite | 3246391 | $78.10Read more |
| 150 | | Genuine Miele Sleeve | 3047681 | $6.60Read more |
| 170 | | Genuine Miele Brush roller anthracite | 3647653 | $233.80Read more |
| 180-200 | Not Available | Angle lever anthracite | 3246311 | Not Available |
| 190+200 | Not Available | -Support roller anthracite | 3259211 | Not Available |
| 210 | Not Available | Clamping strip | 3046600 | Not Available |
| 230 | Not Available | Floor plate | 3446760 | Not Available |
| 250+260 | Not Available | Electronic unit ER201 120V 60HZ | 3121313 | Not Available |
| 270 | | Genuine Miele AC motor 120V 60HZ | 3121410 | $233.80Read more |
| 280 | Not Available | Sealing ring black | 3047540 | Not Available |
| 290 | Not Available | Switch 13A 120V | 3085940 | Not Available |
| 300 | Not Available | Spring | 3092710 | Not Available |
| 310 | Not Available | Feeler | 3042081 | Not Available |
| 320 | Not Available | Cover anthracite | 3643110 | Not Available |
| 330 | | Genuine Miele Spring | 3092700 | $4.90Read more |
| 340 | Not Available | Spring | 3092720 | Not Available |
| 350 | Not Available | Switch lever | 3042100 | Not Available |
| 360-380 | Not Available | Regulator wheel anthracite | 3246321 | Not Available |
| 390 | Not Available | Disc | 3046660 | Not Available |
| 400-435 | Not Available | Connection socket anthracite | 3643131 | Not Available |
| 400 | Not Available | -Connection socket Lava grey | 3046620 | Not Available |
| 400 | Not Available | -Connection socket anthracite | 3643220 | Not Available |
| 405 | Not Available | -Sleeve | 3246360 | Not Available |
| 410+415 | Not Available | -Lever anthracite | 3246342 | Not Available |
| 420 | Not Available | -Lid anthracite | 3643030 | Not Available |
| 430 | Not Available | -Contact striker black | 3663470 | Not Available |
| 435 | Not Available | -Flexible wire 275MM | 3097420 | Not Available |
| 480-510 | Not Available | Casing top anthracite | 3676720 | Not Available |
| 490+500 | Not Available | Foot switch anthracite | 3992760 | Not Available |
| 510 | Not Available | -Pressure plate | 3042160 | Not Available |
| 520 | No Image | Supply Cable Lava Grey | 3121431 | $68.00Read more |
| 520+540 | | Genuine Miele Supply cable black | 3282574 | $64.00Read more |
| 540 | | Genuine Miele Cable holder anthracite | 2245161 | $9.70Read more |
| 550 | | Genuine Miele Sleeve | 3058721 | $62.00Read more |

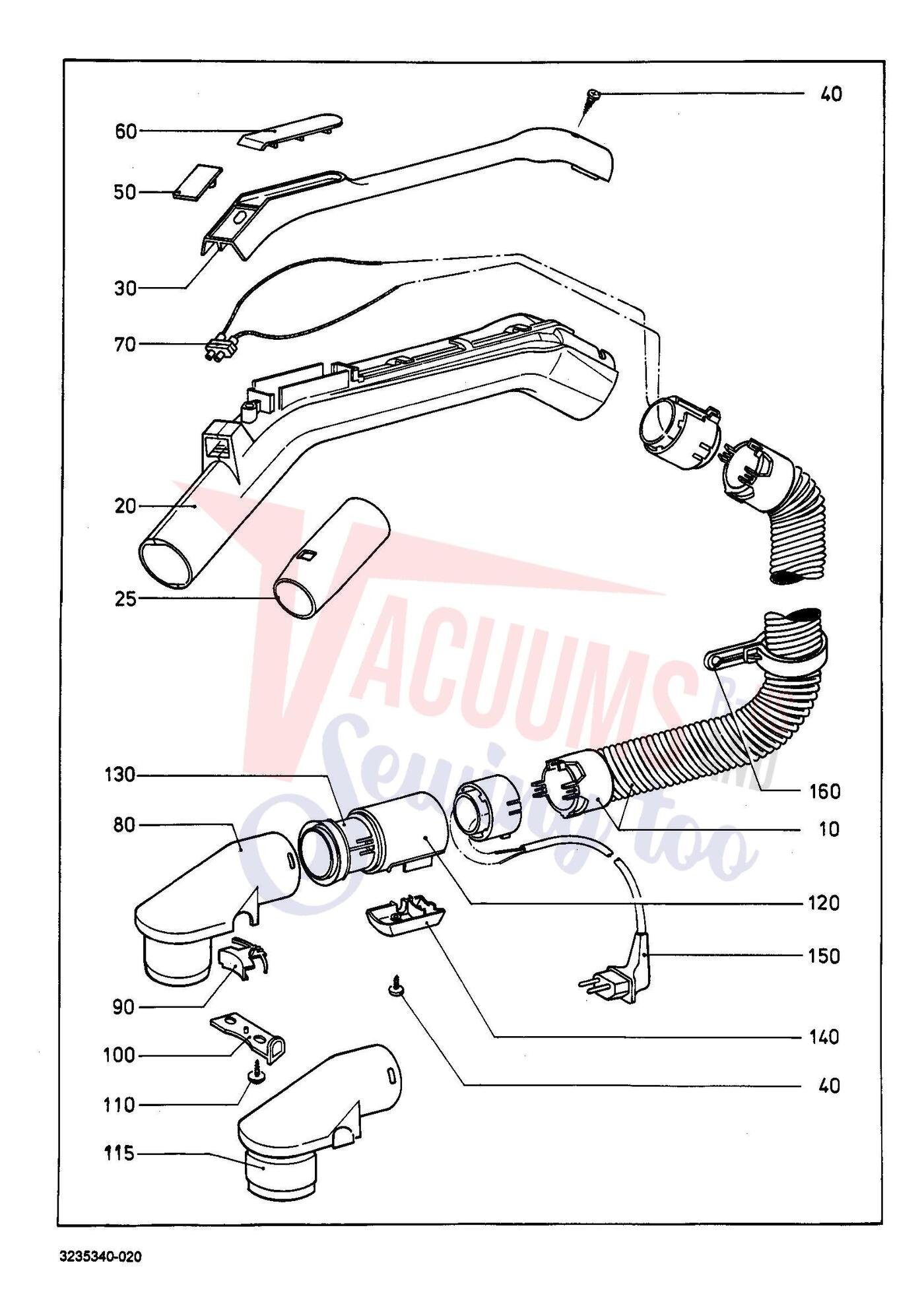

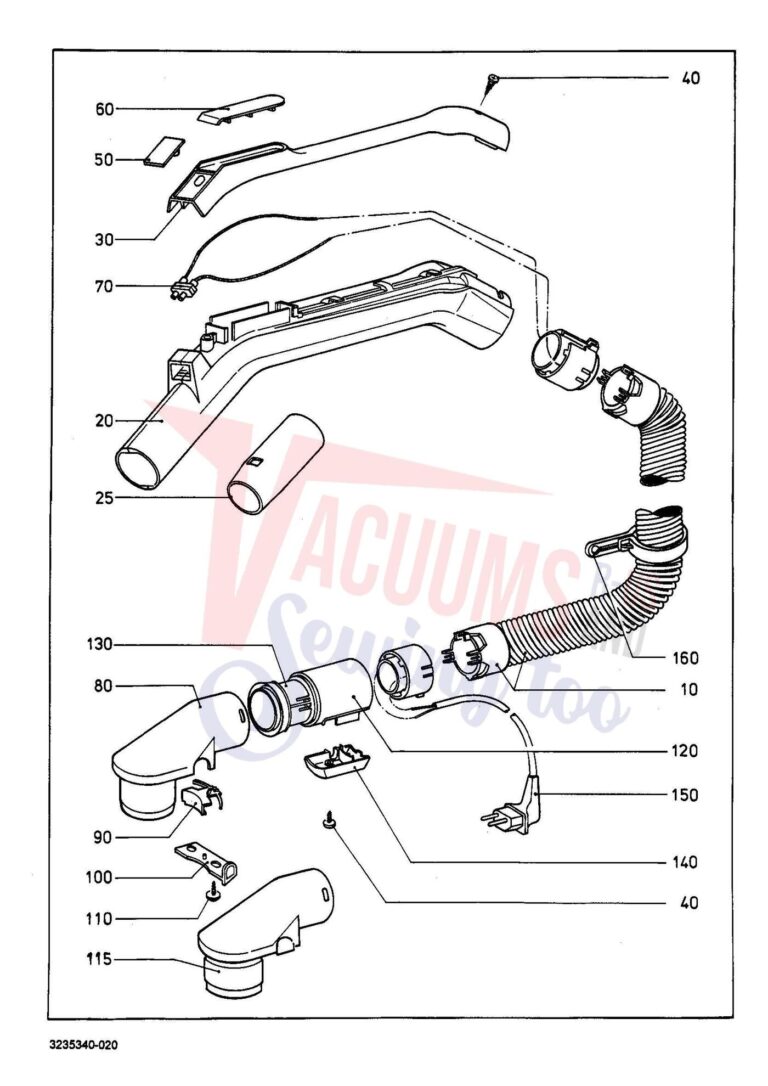

| # | Part image | Description | SKU | Price |
| XX | No Image | --Raised Head Screw 7981-St3,5X9,5-F-Z- | 2712350 | $2.50Read more |
| XX | | Genuine Miele Raised head screw 3,9X9,5 | 1143580 | $0.00Read more |
| XX | No Image | --Raised Head Screw 7981-St3,5X9,5-F-Z- | 2712350 | $2.50Read more |
| 10 | Not Available | Elec.suction hose anthracite | 3569720 | Not Available |
| 20+25 | Not Available | Tubular handle anthracite | 3623740 | Not Available |
| 30 | Not Available | Cover anthracite | 3624980 | Not Available |
| 50 | Not Available | -Cap anthracite | 3643700 | Not Available |
| 60 | Not Available | Lid Lava grey | 2245780 | Not Available |
| 60 | Not Available | Lid anthracite | 3643690 | Not Available |
| 70 | Not Available | Flush socket outlet black | 1707671 | Not Available |
| 90 | | Genuine Miele interlock Lava grey | 1963320 | $6.60Read more |
| 100 | | Genuine Miele Slide | 1348550 | $3.60Read more |
| 115 | | Genuine Miele Elbow anthracite | 3565392 | $47.00Read more |
| 115 | | Genuine Miele Elbow anthracite | 3565392 | $47.00Read more |
| 120 | Not Available | Sleeve anthracite | 3661300 | Not Available |
| 130 | Not Available | Ring anthracite | 3565860 | Not Available |
| 140 | Not Available | Cover Lava grey | 1998510 | Not Available |
| 140 | Not Available | Cover anthracite | 3565980 | Not Available |
| 150 | Not Available | Supply cable black | 3934350 | Not Available |
| 160 | | Genuine Miele Suspension anthracite | 3565990 | $3.60Read more |
