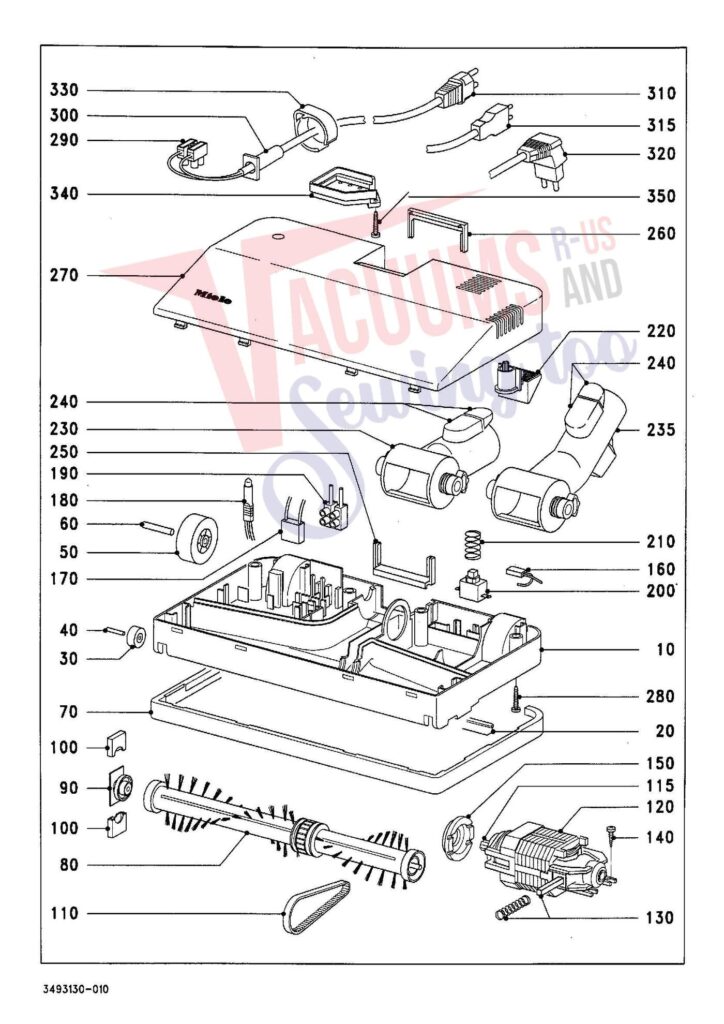

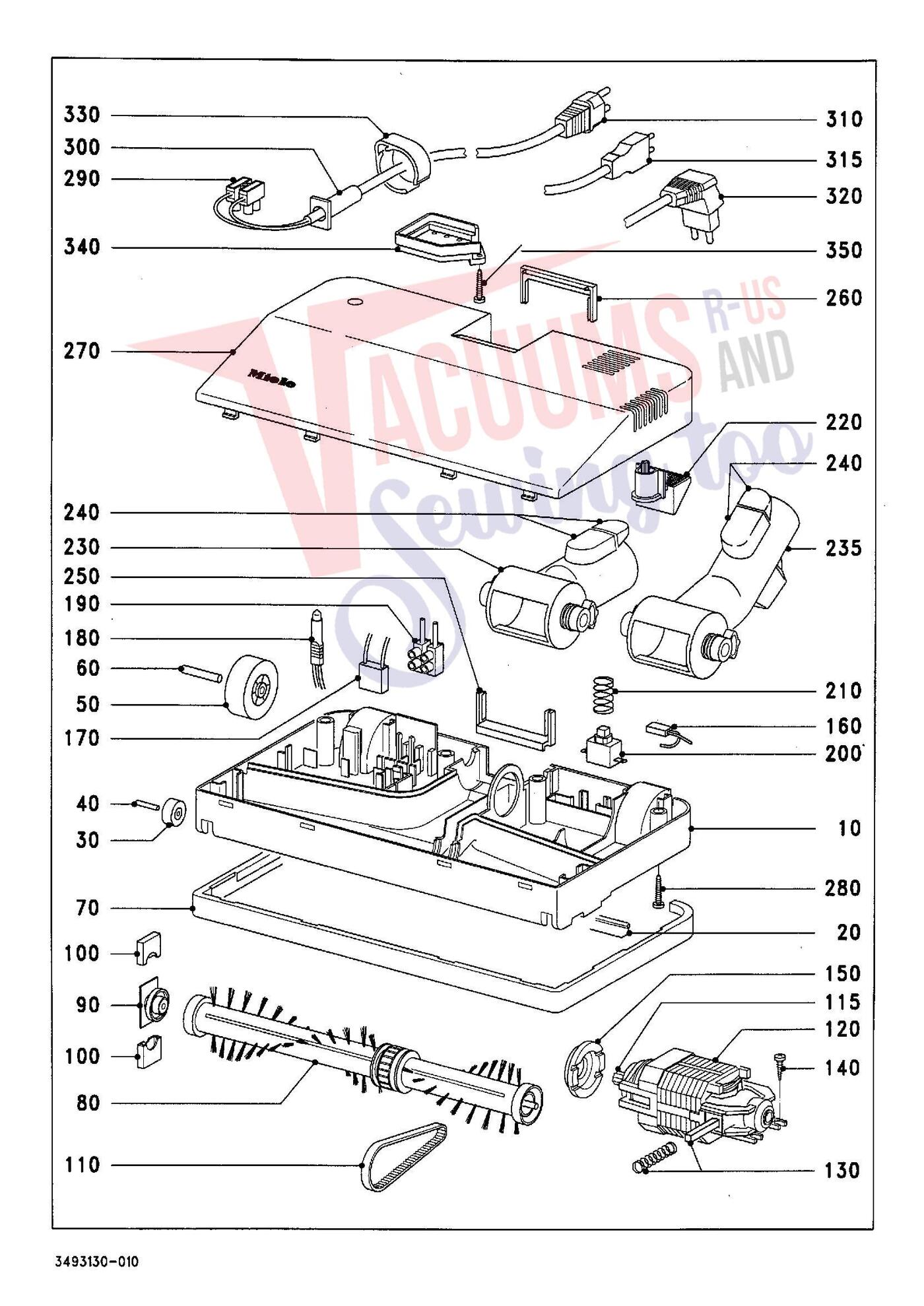

Schematic and parts book for Miele SEB192 SEB 192. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX |  | Genuine Miele Screw KA35X27 EJOT-PT | 3484490 | $2.30Read more |
| XX | | Genuine Miele Screw KA35X27 EJOT-PT | 3484490 | $2.30Read more |
| XX | Not Available | --Screw KA35X21 EJOT-PT | 3484510 | Not Available |
| 10-60 | Not Available | Casing bottom anthracite | 3661081 | Not Available |
| 20 | Not Available | -Strip | 3484471 | Not Available |
| 30 | Not Available | -Support roller anthracite | 3466121 | Not Available |
| 40 | Not Available | -Shaft | 3466150 | Not Available |
| 50 | Not Available | -Support roller black | 3466131 | Not Available |
| 60 | Not Available | -Shaft | 3466190 | Not Available |
| 70 | Not Available | Buffer anthracite | 3661060 | Not Available |
| 80 | Not Available | Roller brush | 3466230 | Not Available |
| 90 | Not Available | Bearing plate | 3494140 | Not Available |
| 100 | Not Available | Bearing Beige | 3181990 | Not Available |
| 110 | Not Available | Tooth belt | 3466240 | Not Available |
| 115 | Not Available | Pinion | 4199100 | Not Available |
| 120+130 | Not Available | AC motor 120V | 4125240 | Not Available |
| 130 | Not Available | -Carbon brush | 4180030 | Not Available |
| 150 | Not Available | Motor bracket | 3466270 | Not Available |
| 160 | Not Available | Motor overload 120V | 4125230 | Not Available |
| 170 | Not Available | Interf.sup.capacit. 0,1UFX2 250V | 3466330 | Not Available |
| 180 | Not Available | Bulb 250V | 3466350 | Not Available |
| 190 | Not Available | Multiple plug 2 pole | 4125250 | Not Available |
| 200 | Not Available | Push button switch | 3466340 | Not Available |
| 210 | Not Available | Spring | 3466440 | Not Available |
| 220 | Not Available | Foot switch anthracite | 3661000 | Not Available |
| 230+240 | Not Available | Connection socket anthracite | 3661020 | Not Available |
| 235+240 | Not Available | Connection socket anthracite | 4180021 | Not Available |
| 240 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Read more |
| 250+260 | Not Available | Seal black | 3494130 | Not Available |
| 270 | Not Available | Lid | 4032250 | Not Available |
| 290 | Not Available | Terminal block 2 pole | 4125260 | Not Available |
| 300 | Not Available | Sleeve anthracite | 4125200 | Not Available |
| 315+330 | Not Available | Supply cable anthracite | 4180001 | Not Available |
| 330 | | Genuine Miele Cable holder anthracite | 2245161 | $9.70Read more |
| 340 | Not Available | Cover black | 3466420 | Not Available |
