Schematic and parts book for Miele SEB191 SEB 191. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

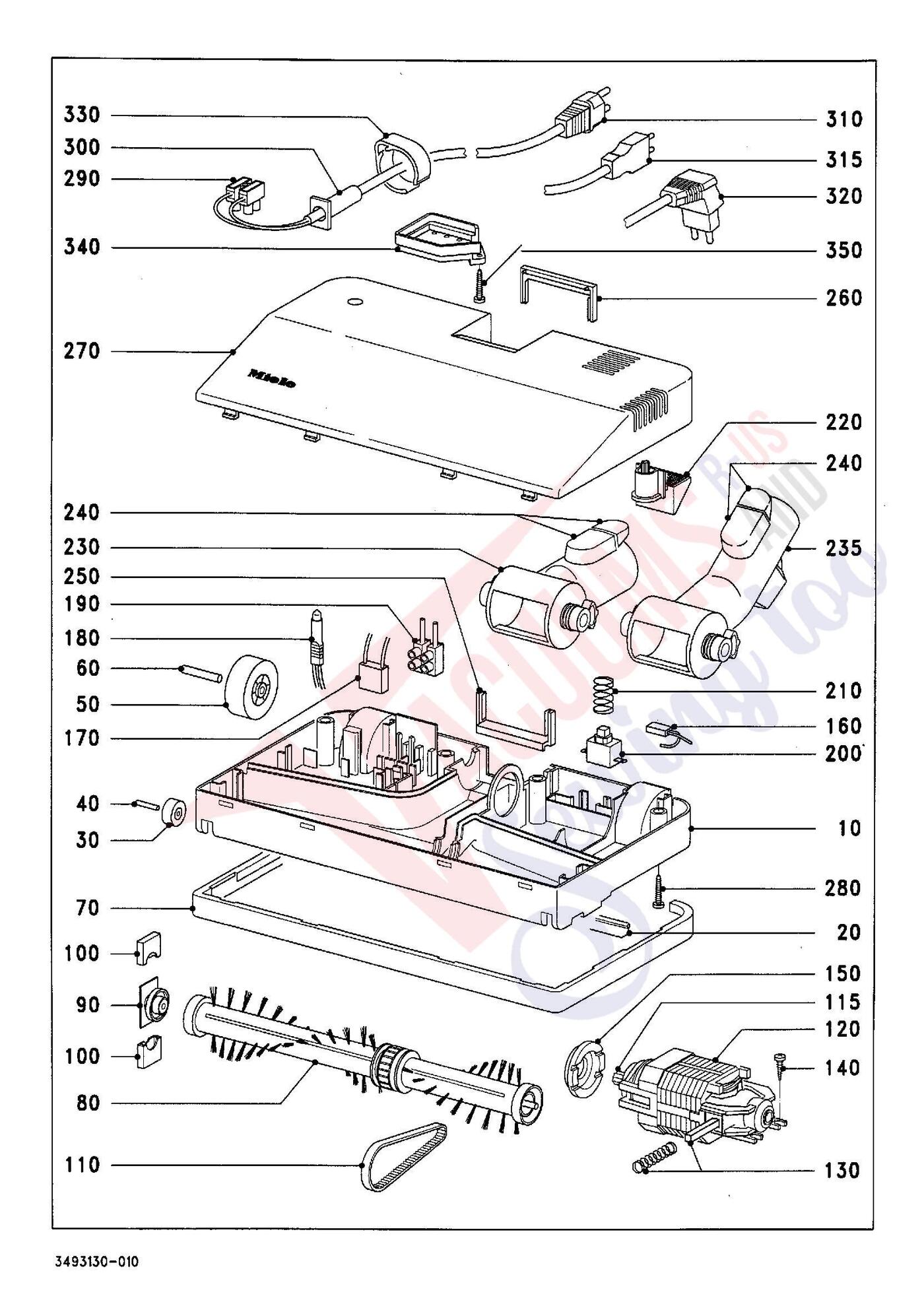

| # | Part image | Description | SKU | Price |
| XX |  | Genuine Miele Screw KA35X27 EJOT-PT | 3484490 | $2.30Read more |
| XX | | Genuine Miele Screw KA35X27 EJOT-PT | 3484490 | $2.30Read more |
| XX | Not Available | --Screw KA35X21 EJOT-PT | 3484510 | Not Available |
| 10-60 | Not Available | Casing bottom anthracite | 3661081 | Not Available |
| 20 | Not Available | -Strip | 3484471 | Not Available |
| 30 | Not Available | -Support roller anthracite | 3466121 | Not Available |
| 40 | Not Available | -Shaft | 3466150 | Not Available |
| 50 | Not Available | -Support roller black | 3466131 | Not Available |
| 60 | Not Available | -Shaft | 3466190 | Not Available |
| 70 | Not Available | Buffer anthracite | 3661060 | Not Available |
| 80 | Not Available | Roller brush | 3466230 | Not Available |
| 90 | Not Available | Bearing plate | 3494140 | Not Available |
| 100 | Not Available | Bearing Beige | 3181990 | Not Available |
| 110 | Not Available | Tooth belt | 3466240 | Not Available |
| 115 | Not Available | Pinion | 4199100 | Not Available |
| 120+130 | Not Available | AC motor 120V | 4125240 | Not Available |
| 130 | Not Available | -Carbon brush | 4180030 | Not Available |
| 150 | Not Available | Motor bracket | 3466270 | Not Available |
| 160 | Not Available | Motor overload 120V | 4125230 | Not Available |
| 170 | Not Available | Interf.sup.capacit. 0,1UFX2 250V | 3466330 | Not Available |
| 180 | Not Available | Bulb 250V | 3466350 | Not Available |
| 190 | Not Available | Multiple plug 2 pole | 4125250 | Not Available |
| 230+240 | Not Available | Connection socket anthracite | 3661020 | Not Available |
| 235+240 | Not Available | Connection socket anthracite | 4180021 | Not Available |
| 240 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Read more |
| 250+260 | Not Available | Seal black | 3494130 | Not Available |
| 270 | Not Available | Lid | 4032250 | Not Available |
| 290 | Not Available | Terminal block 2 pole | 4125260 | Not Available |
| 300 | Not Available | Sleeve anthracite | 4125200 | Not Available |
| 315+330 | Not Available | Supply cable black | 4179991 | Not Available |
| 330 | | Genuine Miele Cable holder anthracite | 2245161 | $9.70Read more |
| 340 | Not Available | Cover black | 3466420 | Not Available |
| # | Part image | Description | SKU | Price |
| XX | Not Available | --Screw KA30X12 EJOT-PT | 3695930 | Not Available |
| XX | No Image | --Raised Head Screw 3,5X9,5 | 1255710 | $2.50Read more |
| 10 | | Genuine Miele Tubular handle anthracite | 3697380 | $100.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele printed circ. board SES100/105/110/113 | 3682772 | $139.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30+40 | Not Available | -Top anthracite | 3766500 | Not Available |
| 40 | Not Available | -Suction control anthracite | 3697400 | Not Available |
| 60 | Not Available | Elec.suction hose SES100/105 1800mm | 5442692 | Not Available |
| 70 | | Genuine Miele Supply cable 2 pole black | 3629680 | $56.80Read more |
| 80 | Not Available | -Sleeve anthracite | 3661300 | Not Available |
| 90 | Not Available | -Cover anthracite | 3565980 | Not Available |
| 110 | Not Available | -Ring anthracite | 3565860 | Not Available |
| 120 | | Genuine Miele Elbow anthracite | 3565392 | $47.00Read more |
| 130 |  | Genuine Miele Elbow anthracite | 3982544 | $42.00Read more |
| # | Part image | Description | SKU | Price |
| XX | Not Available | --Screw KA30X12 EJOT-PT | 3695930 | Not Available |
| XX | No Image | --Raised Head Screw Din7981 Bz3,5X13 Z | 64392 | $2.50Read more |
| 10-80 | Not Available | Elec.suction hose SES110 USA | 4295584 | Not Available |
| 10 | | Genuine Miele Tubular handle anthracite | 3697380 | $100.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Genuine Miele printed circ. board SES100/105/110/113 | 3682772 | $139.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30+40 | Not Available | -Top anthracite | 3766500 | Not Available |
| 40 | Not Available | -Suction control anthracite | 3697400 | Not Available |
| 60-80 | Not Available | -Elec.suction hose | 4488600 | Not Available |
| 65 | Not Available | Elbow SES110 | 5555850 | Not Available |
| 70 | | Genuine Miele Socket anthracite | 4180082 | $27.90Read more |
