Schematic and parts book for Miele SDRF4 SDRF4. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

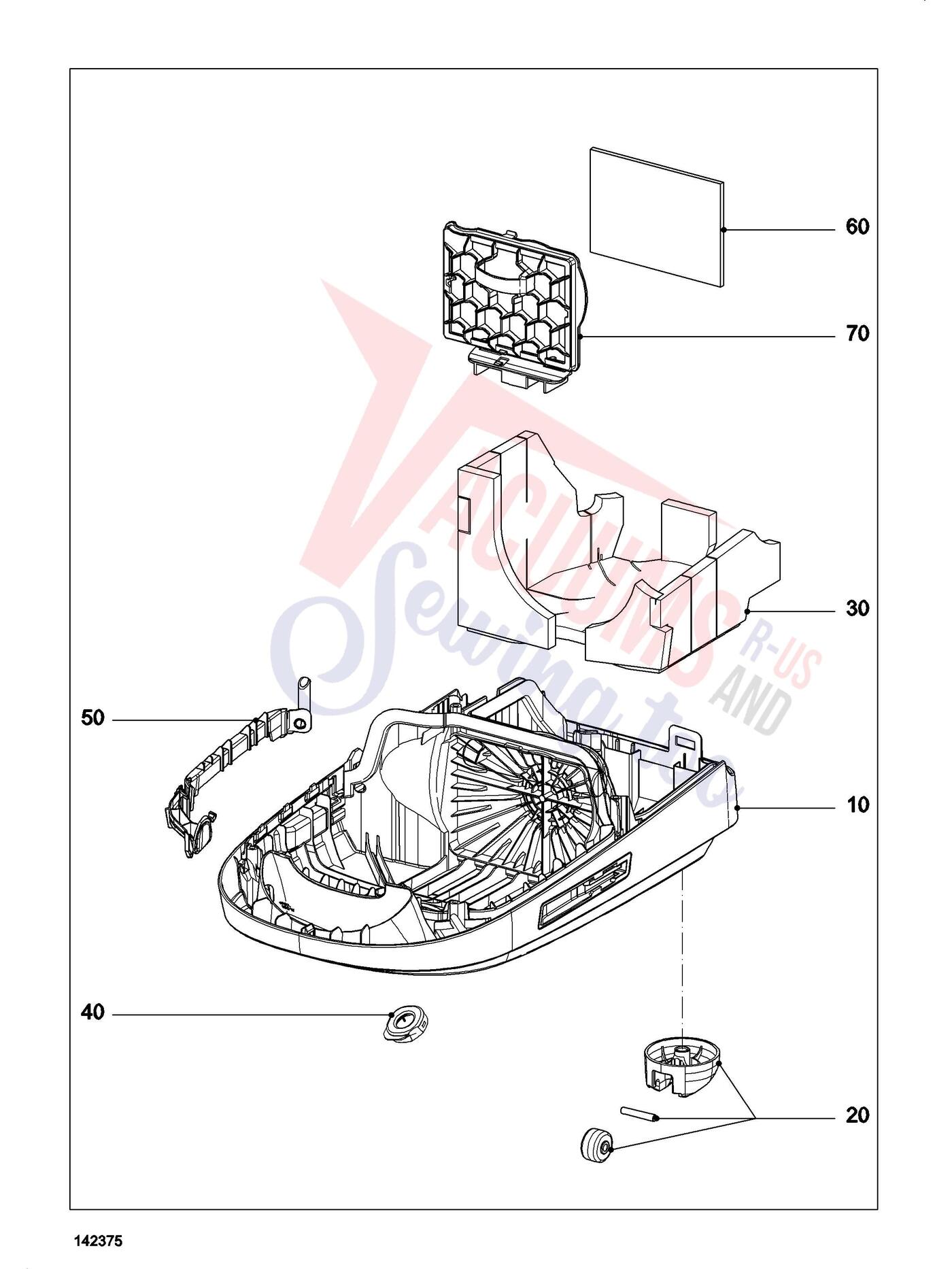

| # | Part image | Description | SKU | Price |
| 10-30 | No Image | Casing Bottom Vollst. S6 | 7500744 | $119.00Read more |
| 20 | No Image | -Slide Skid Obsw Assy | 12494260 | $11.00Read more |
| 30 | No Image | -Damping Plate | 10821610 | $11.16Read more |
| 50 | No Image | Cover S6000 | 7497783 | $20.00Read more |
| 60 |  | Genuine Miele Dust compart.filter 3 pcs. | 6713110 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 | No Image | Filter Frame S6 | 7497756 | $7.00Read more |
| # | Part image | Description | SKU | Price |

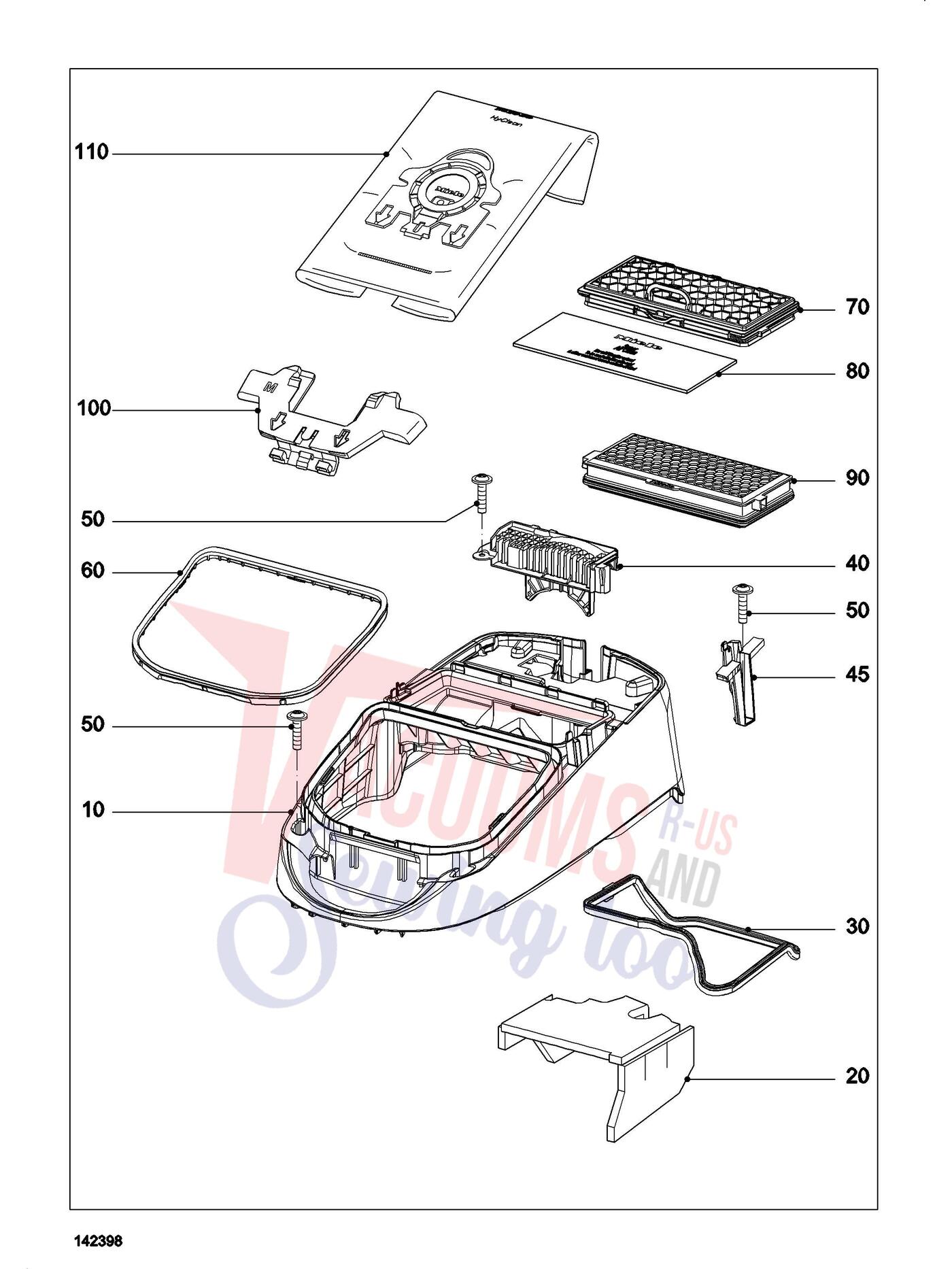

| XX |  | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 10-40 | No Image | Cover Frame Royal Blue Kpl. | 7698003 | $91.00Read more |
| 10-40 | No Image | Cover Frame Lotos White Compl. Sd Prc | 10889810 | $100.00Add to cart Special order: ships in 2 to 4 weeks |
| 10-40 | Not Available | Cover frame Melon yellow kpl. | 7698503 | Not Available |
| 10-40 | No Image | Cover Frame Lava Grey Kpl. | 7698514 | $100.00Read more |
| 10-40 | No Image | Cover Frame Obsidian Black Compl. Sd Prc | 10889840 | $100.00Read more |
| 10-40 | No Image | Cover Frame Chili Red Kpl. | 7698534 | $100.00Read more |
| 10-40 | No Image | Cover Frame Chili Red Kpl. | 7698535 | $100.00Read more |
| 10-40 | No Image | Cover Frame Sprint Blue Kpl. | 7698575 | $100.00Read more |
| 10-40 | No Image | Cover Frame Almond Brown Kpl. | 7698595 | $100.00Read more |
| 10-40 | No Image | Cover Frame Midnight Purple Kpl. | 7698615 | $129.00Read more |
| 10-40 | No Image | Cover Frame Lily Green Kpl. | 7698625 | $100.00Read more |
| 10-40 | No Image | Cover Frame Pistachio Green Kpl. | 7698635 | $100.00Read more |
| 10-40 | No Image | Cover Frame Ruby Red Velvet | 7698663 | $129.00Read more |
| 10-40 | No Image | Cover Frame Autumn Red Compl. Sd Prc | 10889820 | $100.00Read more |
| 10-40 | No Image | Cover Frame Obsidian Black Compl. Sd Prc | 10889840 | $100.00Read more |
| 10-40 | No Image | Cover Frame Canary Yellow Kpl. | 9459635 | $100.00Read more |
| 10-40 | No Image | Cover Frame Marine Blue Compl. Sd Prc | 10889830 | $100.00Add to cart Special order: ships in 2 to 4 weeks |
| 10-40 | No Image | Cover Frame Racing Green Kpl. | 9789345 | $100.00Read more |
| 10-40 | No Image | Cover Frame Petrol Kpl. Sd | 10646965 | $159.00Read more |
| 20 | No Image | Damping Plate | 10821600 | $20.00Read more |
| 30 | No Image | Seal F. Motorraum | 7510582 | $15.00Read more |
| 40 | No Image | Grille Cover Frame | 7510591 | $12.00Read more |
| 45 | No Image | Fitment | 7737983 | $4.14Read more |
| 60 | No Image | Seal | 7510571 | $11.00Add to cart Special order: ships in 2 to 4 weeks |
| 80 |  | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 | No Image | Act.Air Cleanfilter | 12785350 | $49.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 | No Image | Hepa-Filter | 12785390 | $64.00Add to cart Special order: ships in 2 to 4 weeks |
| 100 | Not Available | Bracket vacuum cleaner bag kpl. | 7510614 | Not Available |
| 110 | Not Available | vacuum cleaner bag F/J/M USA | 7805100 | Not Available |
| # | Part image | Description | SKU | Price |

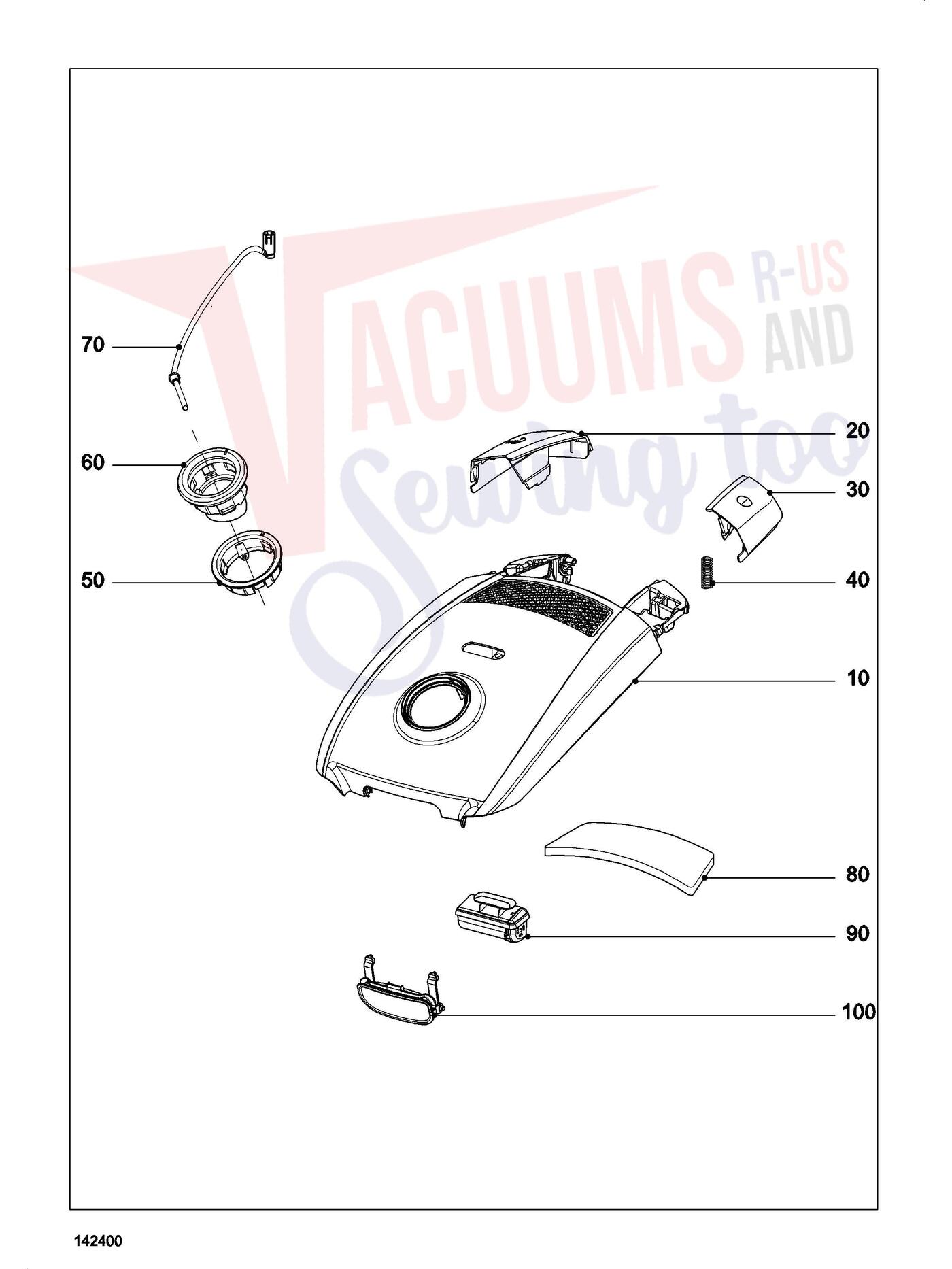

| 10-40 | No Image | Casing Top Lotos White | 7838992 | $109.00Read more |
| 10-40 | No Image | Casing Top Obsidian Black | 9484551 | $109.00Read more |
| 10-40 | No Image | Casing Top Chili Red | 7839052 | $109.00Read more |
| 10-40 | No Image | Casing Top Sprint Blue | 7839072 | $109.00Read more |
| 10-40 | No Image | Casing Top Almond Brown | 7839102 | $109.00Read more |
| 10-40 | No Image | Casing Top Obsidian Black | 9484551 | $109.00Read more |
| 10-40 | No Image | Casing Top Midnight Purple | 7697791 | $129.00Read more |
| 10-40 | No Image | Casing Top Lily Green | 7697801 | $129.00Read more |
| 10-40 | No Image | Casing Top Lava Grey | 7839012 | $109.00Read more |
| 10-40 | No Image | Casing Top Canary Yellow | 9597330 | $109.00Read more |
| 10-40 | No Image | Casing Top Autumn Red | 9471831 | $109.00Read more |
| 10-40 | No Image | Casing Top Obsidian Black | 9484551 | $109.00Read more |
| 10-40 | No Image | Casing Top Canary Yellow | 9597330 | $109.00Read more |
| 10-40 | No Image | Casing Top Obsidian Black | 9484551 | $109.00Read more |
| 10-40 | No Image | Casing Top Marine Blue | 11096510 | $109.00Read more |
| 10-40 | No Image | Casing Top Petrol | 10808920 | $119.00Read more |
| 20 | No Image | Foot Switch Right | 7516662 | $21.62Read more |
| 30 | No Image | Foot Switch Left Printed Sd | 11591900 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 |  | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 50 | No Image | Circlip | 7498032 | $2.50Read more |
| 60 | No Image | Ring Casing Top | 7519253 | $16.00Read more |
| 80 | No Image | Insulation Matting Air Shield | 9549800 | $7.59Read more |
| 90 | No Image | Change Filter Ind. Kpl. S6 | 7498065 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 100 | No Image | Lock | 7498041 | $2.50Read more |
| # | Part image | Description | SKU | Price |

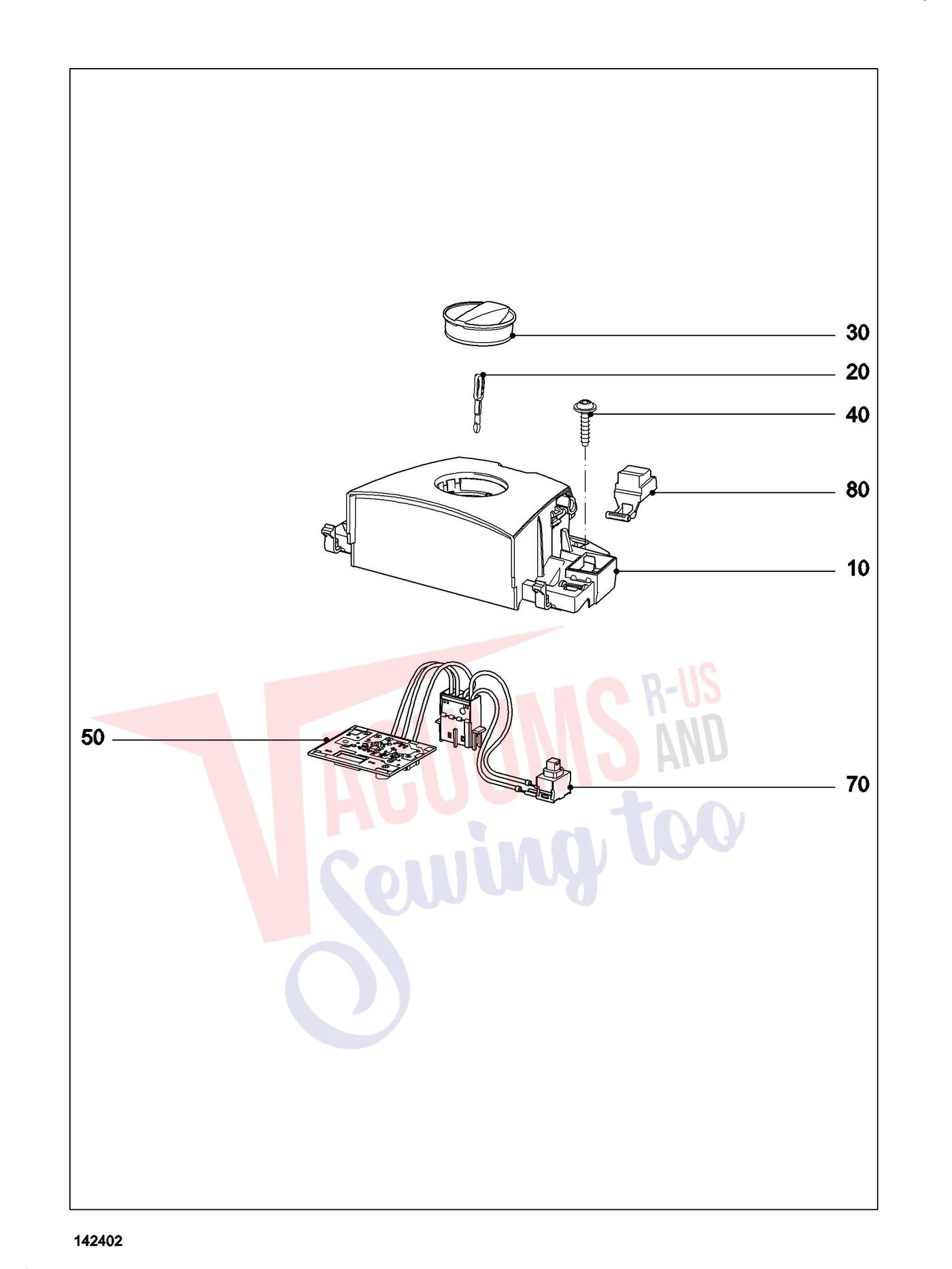

| XX | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 10-30 | No Image | Cap | 7838584 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | No Image | Adapter Rotary Knob | 7510653 | $3.90Read more |
| 30 | No Image | Rotary Knob Sd | 7510663 | $12.31Read more |
| 50-70 | No Image | Electronic Unit Edw S14203 Assy | 11256351 | $66.00Read more |
| 70 | No Image | -Switch 1 Pole 1681.3103 | 9023231 | $9.60Add to cart Special order: ships in 2 to 4 weeks |
| 80 | No Image | Lever Switch | 7510632 | $3.90Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

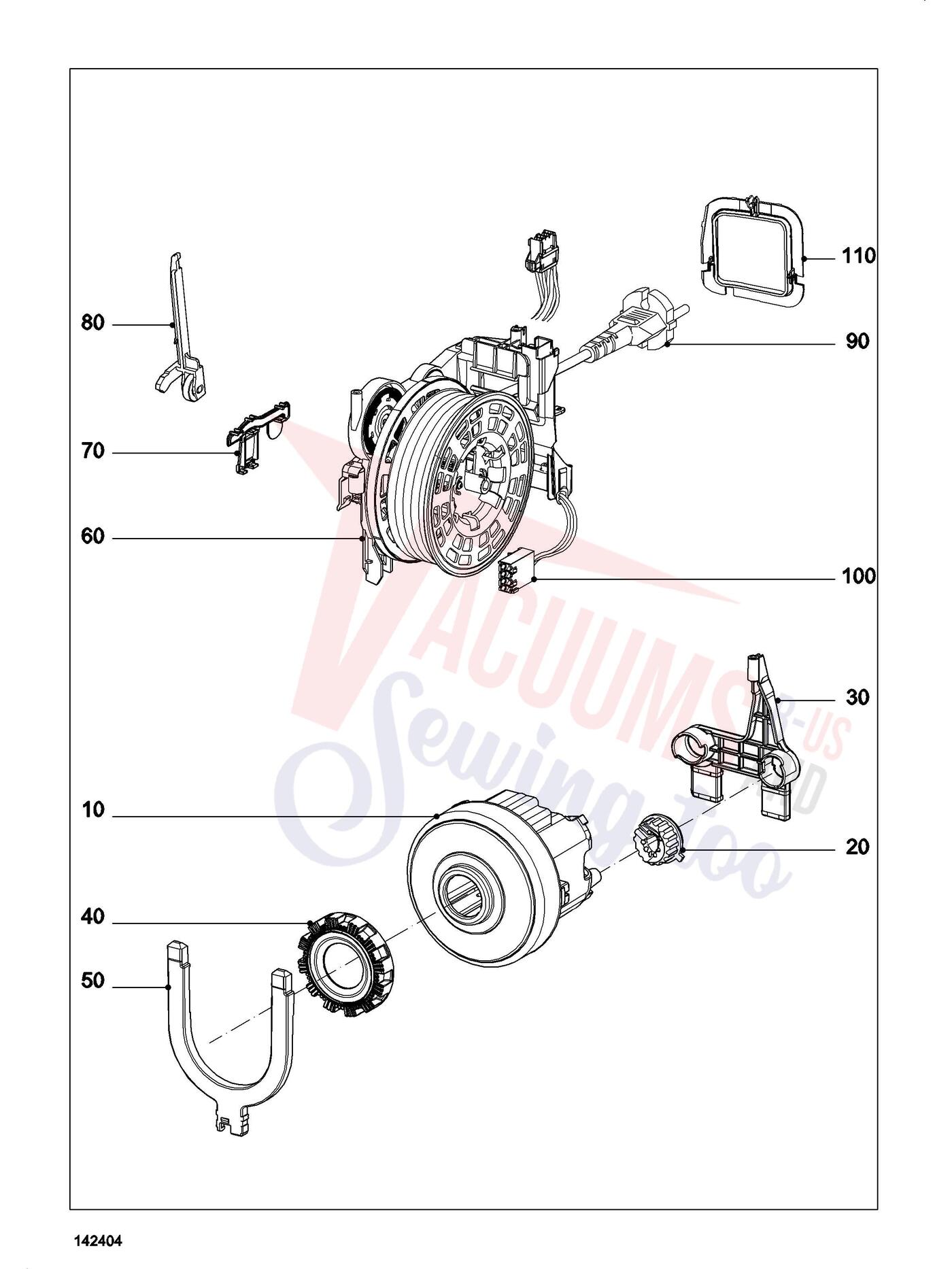

| 10 | No Image | Fan Silence+H.Vollst.Usa | 7929953 | $119.00Read more |
| 20 |  | Genuine Miele Rubber cushion Baureihe SD/SG | 7497732 | $3.60Add to cart |
| 30 | No Image | Motor Bracket S6 | 7497761 | $5.64Read more |
| 40 | | Genuine Miele Bearing ring V18 | 7714533 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 | No Image | Bearing Flange S6 | 7497772 | $3.90Read more |
| 60-90 | No Image | Cable Reel S6000 6,5M Usa/Prc | 11545590 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 60-90 | No Image | Cable Reel S6000 7,5M Eu/Prc | 11545571 | $109.00Read more |
| 70 | No Image | -Cover Strip S6000 | 7498881 | $2.30Read more |
| 80 | Not Available | -Brake lever compl. S6000 | 7498953 | Not Available |
| 90 | Not Available | -Supply cable 6,65m 17AWG 120V USA | 5241032 | Not Available |
| 110 | No Image | Fascia Panel S6000 | 7498823 | $15.00Read more |
| # | Part image | Description | SKU | Price |

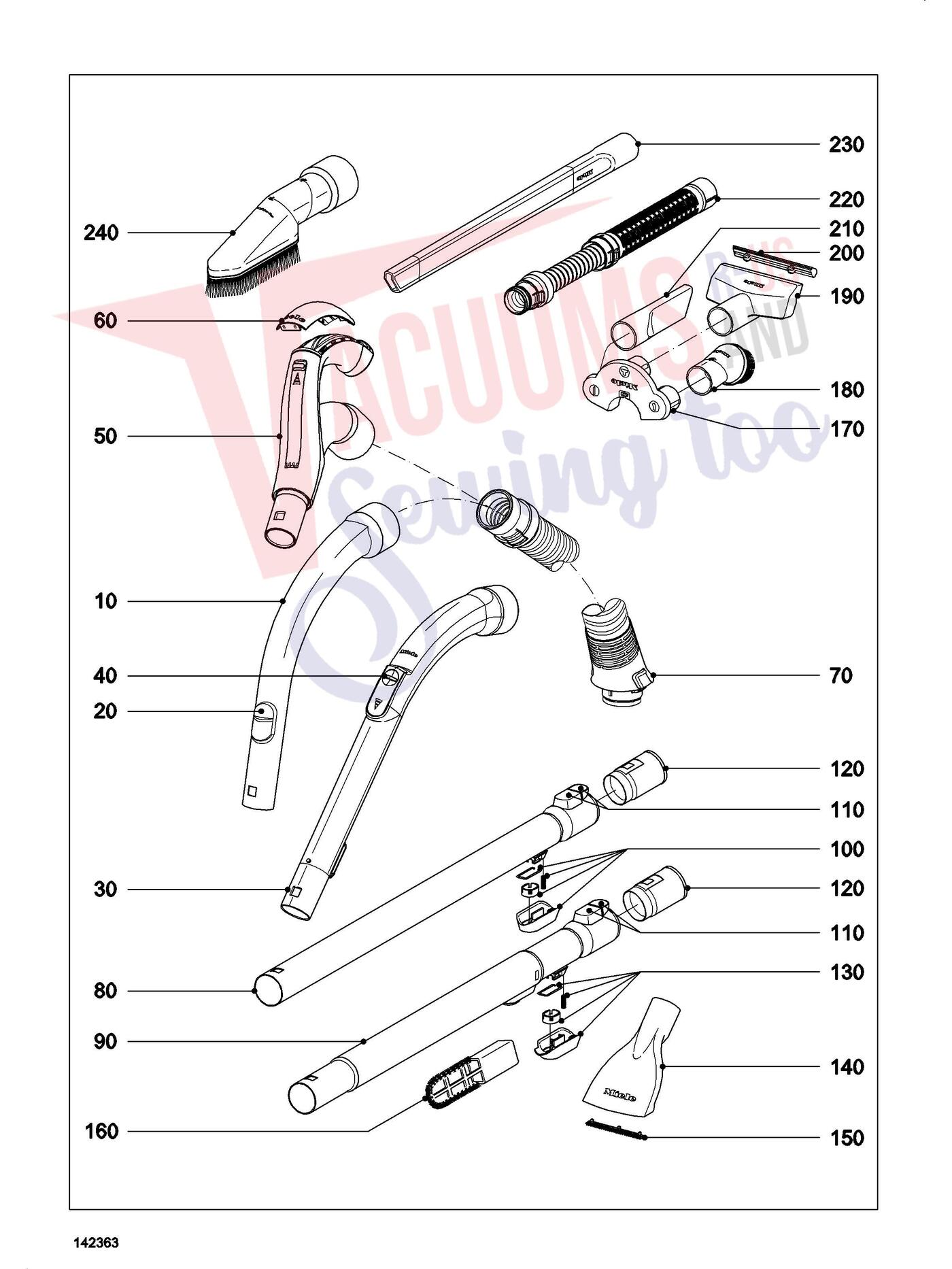

| w/o fig. | | Genuine Miele Telescopic pipe HES compact | 9480843 | $0.00Read more |
| w/o fig. | No Image | Suction Pipe Easyslide Compact | 12512531 | $100.00Add to cart Special order: ships in 2 to 4 weeks |
| 10+20 | | Genuine Miele Tubular handle anthracite | 9442601 | $37.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Suction control anthracite | 5141090 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 30+40 | | Genuine Miele Tubular handle XXL Parking assy | 7586107 | $56.00Read more |
| 40 | | Genuine Miele Suction control f. Griffr. XXL & 2.0 | 7587200 | $2.30Read more |
| 50+60 | No Image | Tubular Handle Comfort S4/S5/S6/S8 | 6163665 | $83.00Read more |
| 60 |  | Genuine Miele Inset handle Printed | 6157660 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 | No Image | Suction Hose Kpl. Zweifarbig St | 12509450 | $74.25Add to cart Special order: ships in 2 to 4 weeks |
| 100-120 | | Genuine Miele Telescopic pipe 2-part st.steel | 10275580 | $0.00Read more |
| 100 |  | Genuine Miele Push button Round | 5780932 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 110+120 |  | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 110-130 |  | HES Telescopic Wand for Miele | 10615280 | $77.99Add to cart Special order: ships in 2 to 4 weeks |
| 110-130 |  | Available ReconditionedGenuine Reconditioned Miele Telescopic Wand - Non Electric More Product Details | 5658812R | $0.00Add to cart |
| 110+120 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 |  | Genuine Miele Push button Round | 6151392 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 140+150 | | Genuine Miele ST Mattress nozzle SMD10 | 7252280 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 150 | | Genuine Miele Thread lifter | 5056530 | $9.70Read more |
| 160 | | Genuine Miele ST Radiator brush SHB30 | 9660490 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 170 | No Image | Holder Accessory Obsw | 12581110 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 180 | No Image | Dusting Brush L | 12187780 | $24.00Add to cart Special order: ships in 2 to 4 weeks |
| 180 |  | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $26.00Add to cart Special order: ships in 2 to 4 weeks |
| 190+200 | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 210 | No Image | Crevice Nozzle 149Mm Obsw | 9442631 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 220 |  | Genuine Miele ST Flexible hose SFS10 | 7252210 | $44.00Add to cart Special order: ships in 2 to 4 weeks |
| 230 | | Genuine Miele ST Flex. crev. nozzle SFD20 560mm | 7252100 | $39.00Add to cart Special order: ships in 2 to 4 weeks |
| 230 |  | Compatible alternateMiele SFD20 Long Flexible Crevice Tool for Miele Vacuums More Product Details | SFD20 | $39.00Add to cart Special order: ships in 2 to 4 weeks |
| 240 | | Genuine Miele ST Universal brush SUB20 | 11607330 | $49.00Read more |
| # | Part image | Description | SKU | Price |

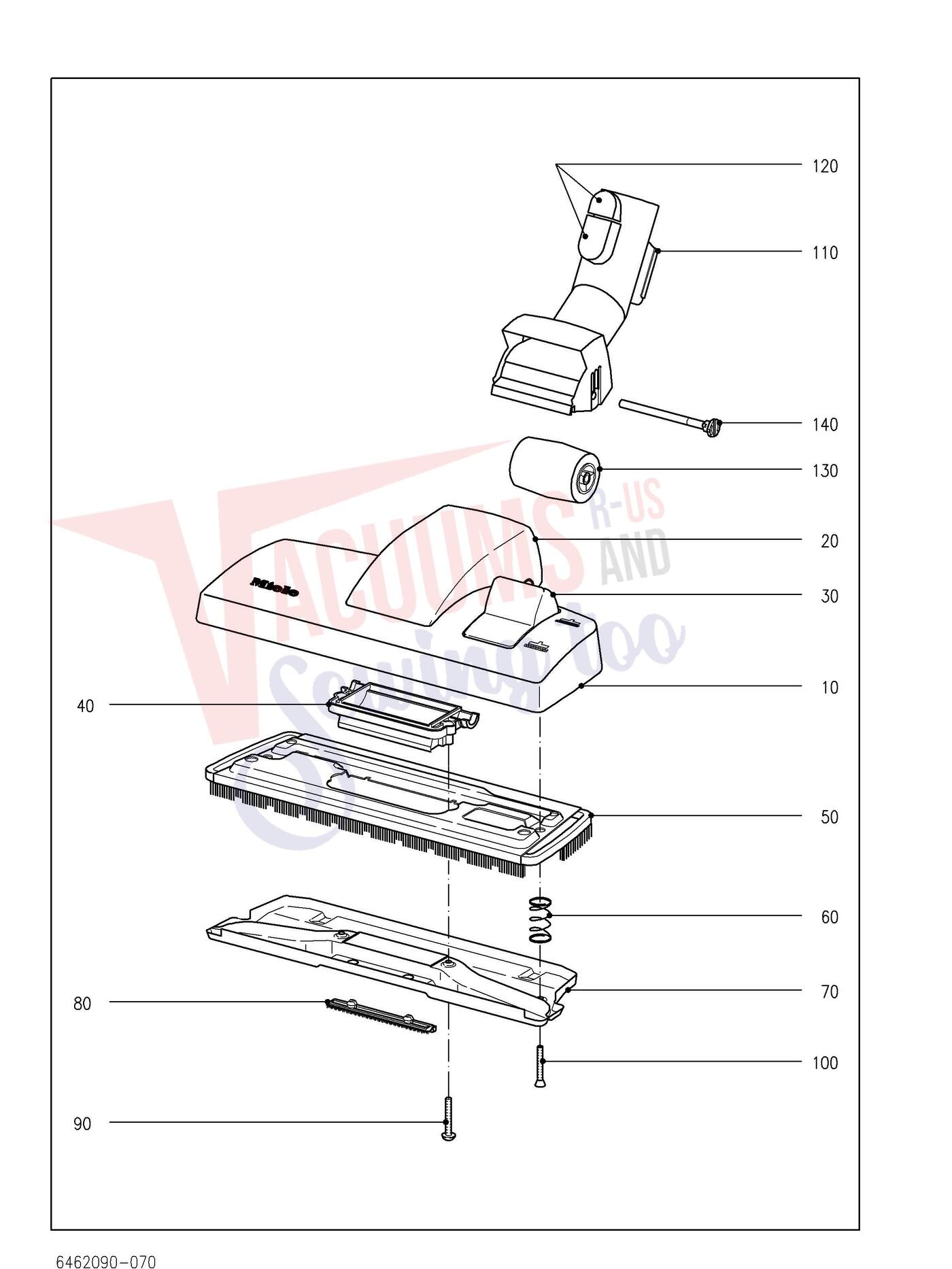

| 10-140 | Not Available | Floor nozzle SBD285-3 | 6223980 | Not Available |
| 10-140 | Not Available | Floor nozzle SBD285-3 AllTeQ | 7253830 | Not Available |
| 10 |  | Genuine Miele Top anthracite | 5235512 | $27.90Read more |
| 20 |  | Genuine Miele Suction channel anthracite | 5235541 | $24.70Read more |
| 30 |  | Genuine Miele Foot switch anthracite | 5235503 | $15.00Read more |
| 40 |  | Genuine Miele Fixing | 5235480 | $9.70Read more |
| 50 |  | Genuine Miele Bristle supp.plate | 5235463 | $33.80Read more |
| 60 |  | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |
| 70+80 |  | Genuine Miele Lower section | 5235453 | $43.60Read more |
| 80 |  | Genuine Miele Thread lifter 2 Pcs. | 6204050 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 |  | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $3.60Read more |
| 100 | No Image | --Countersunk Screw 35X20 | 5289870 | $2.30Read more |
| 110+120 |  | Genuine Miele Linkage SBD285-3 assy | 6578132 | $36.00Add to cart Special order: ships in 2 to 4 weeks |
| 120 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 |  | Genuine Miele Support roller | 5235530 | $15.00Read more |
| 140 |  | Genuine Miele Shaft Bayonett fitting | 5235520 | $13.50Read more |
| # | Part image | Description | SKU | Price |

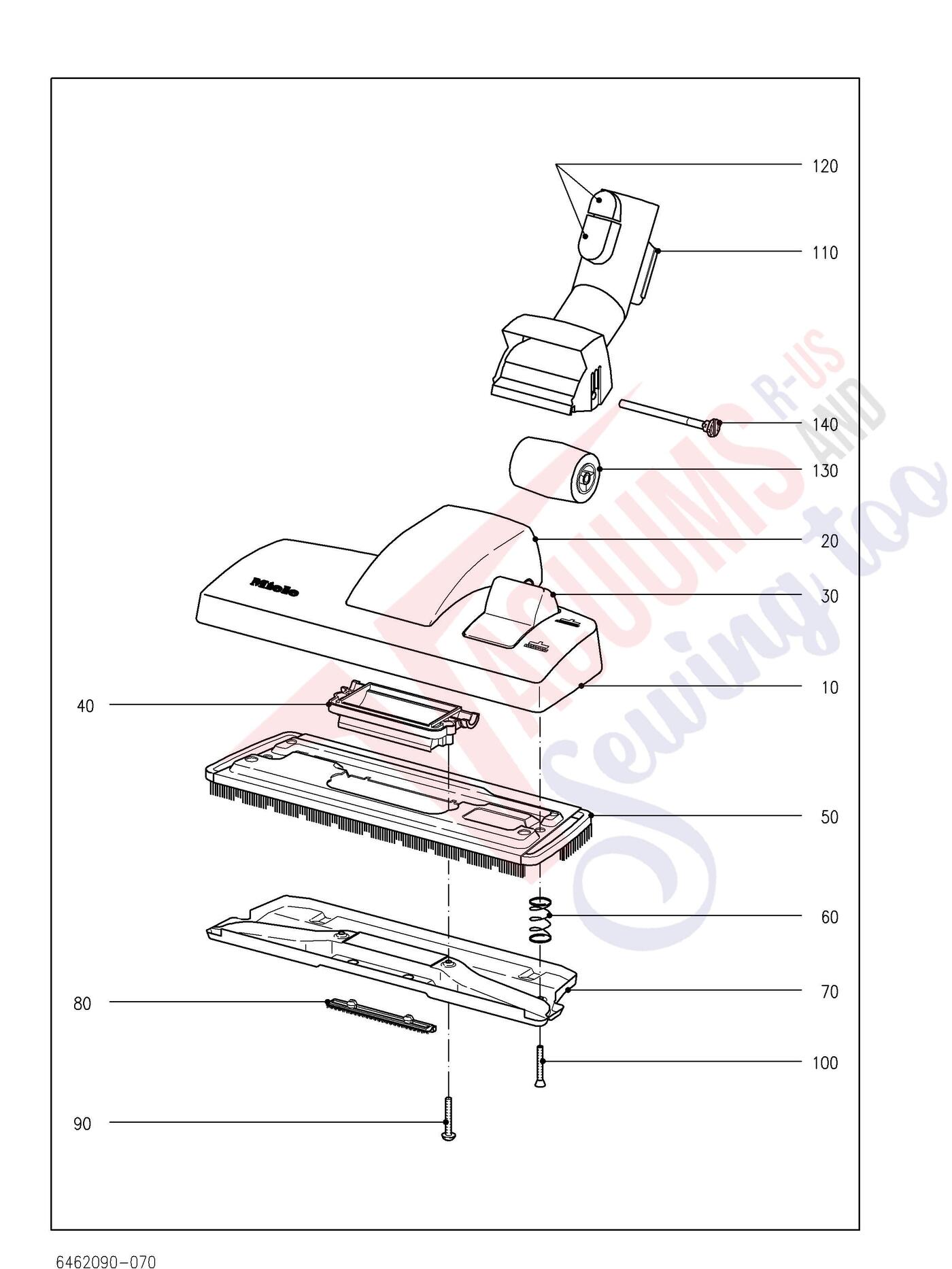

| 10-140 | Not Available | Floor nozzle Eco SBD 290-3 | 10228750 | Not Available |
| 10 | | Genuine Miele Top anthracite | 5235512 | $27.90Read more |
| 20 | | Genuine Miele Suction channel anthracite | 5235541 | $24.70Read more |
| 30 | | Genuine Miele Foot switch anthracite | 5235503 | $15.00Read more |
| 40 | No Image | -Fixing | 10104390 | $3.90Read more |
| 50 | | Genuine Miele Bristle supp.plate | 5235463 | $33.80Read more |
| 60 | | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |
| 70+80 | Not Available | -Lower section kpl. | 10007791 | Not Available |
| 80 |  | Genuine Miele Thread lifter 2 Pcs. | 7898590 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 | | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $3.60Read more |
| 100 | No Image | --Countersunk Screw 35X20 | 5289870 | $2.30Read more |
| 110+120 | | Genuine Miele Linkage SBD285-3 assy | 6578132 | $36.00Add to cart Special order: ships in 2 to 4 weeks |
| 120 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 | | Genuine Miele Support roller | 5235530 | $15.00Read more |
| 140 | | Genuine Miele Shaft Bayonett fitting | 5235520 | $13.50Read more |

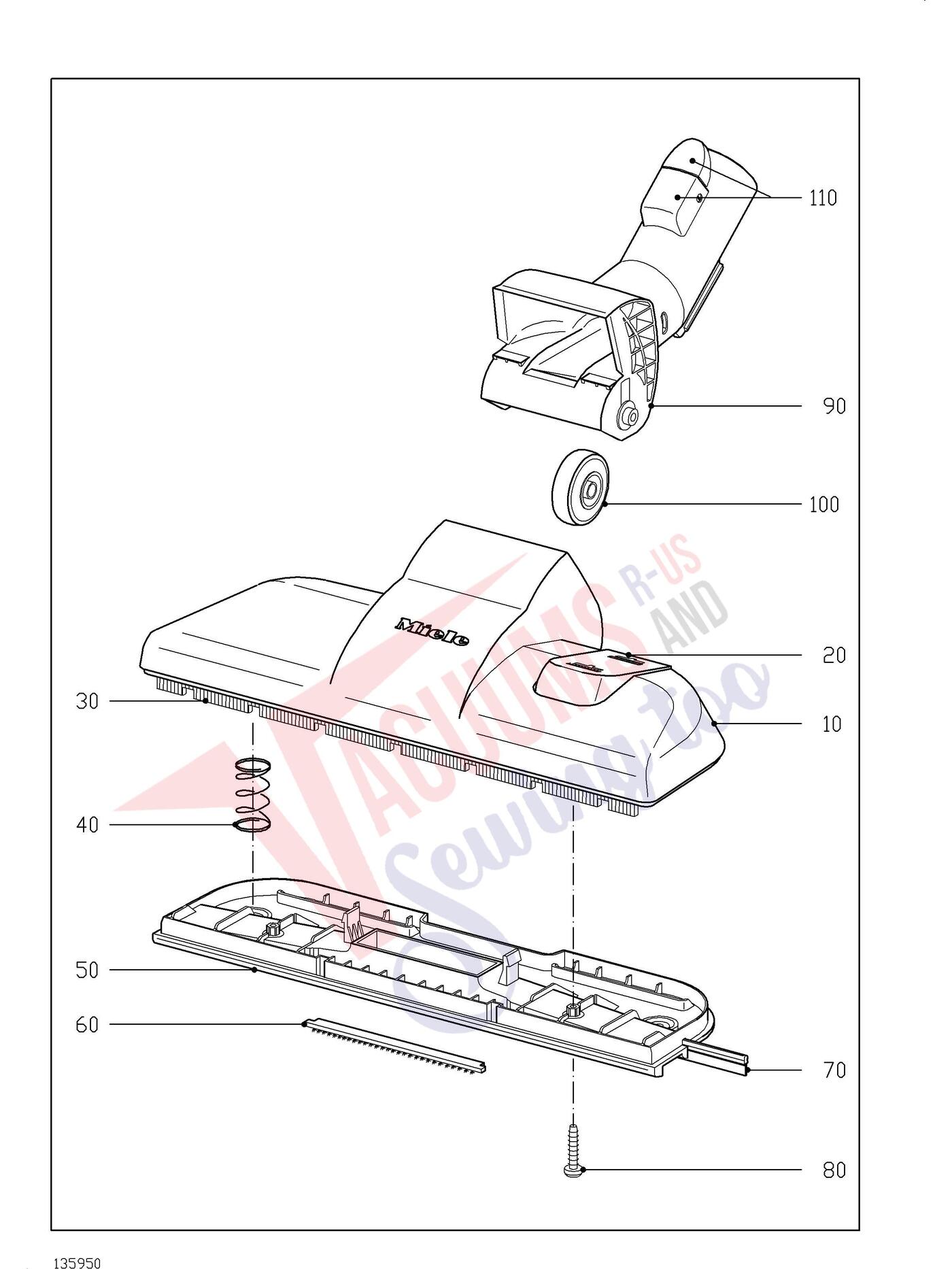

| # | Part image | Description | SKU | Price |
| 10-120 | Not Available | Floor nozzle SBD470-3 FiberTeQ | 9274750 | Not Available |
| 10-120 | Not Available | Floor nozzle SBD470-3 | 10484833 | Not Available |
| 10 | | Genuine Miele Top | 6167160 | $39.50Read more |
| 20 | | Genuine Miele Foot switch | 6167170 | $20.60Read more |
| 30 | No Image | -Bristle Supp.Plate | 6167190 | $42.00Read more |
| 40 | | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |
| 50+60 | | Genuine Miele Lower section | 6167251 | $43.60Read more |
| 60 | | Genuine Miele Thread lifter 2 Pcs. | 6440411 | $13.50Read more |
| 70 | No Image | --Coun.Self-Tap.Screw Spax 3 X 9,5Torx T10 | 6167230 | $2.50Read more |
| 80 | | Genuine Miele Raised head screw 3,5x16 TORX T10 | 6644310 | $2.30Read more |
| 90+100 | | Genuine Miele Linkage SBD450-3 | 6167150 | $33.80Read more |
| 100 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 | | Genuine Miele Support roller | 5235530 | $15.00Read more |
| 120 | | Genuine Miele Shaft Bayonett fitting | 5235520 | $13.50Read more |
| # | Part image | Description | SKU | Price |
| 10-110 | Not Available | Floor nozzle SBD470-3 FiberTeQ | 9274750 | Not Available |
| 10-110 | Not Available | Floor nozzle SBD470-3 | 10484833 | Not Available |
| 10-20 | Not Available | -Top kpl. | 9017800 | Not Available |
| 20 | | Genuine Miele Foot switch SBD350-3 | 7274671 | $13.50Read more |
| 30 | | Genuine Miele Bristle supp.plate | 7274680 | $63.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Genuine Miele Coil spring 2 Pcs. | 5478660 | $20.60Read more |
| 50-70 | | Genuine Miele Lower section kpl. | 9010081 | $52.20Read more |
| 60 | Not Available | -Thread lifter 2 Pcs. | 7516080 | Not Available |
| 70 |  | Genuine Miele Sealing strip SBD355 | 10242100 | $4.90Read more |
| 80 | No Image | --Screw 3,5X20 | 7292290 | $2.50Read more |
| 90-110 | | Genuine Miele Linkage | 7274641 | $39.50Read more |
| 100 | | Genuine Miele Support roller SBD350/355 | 10455370 | $2.30Read more |
| 110 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
Report errors on this page HERE
