Schematic and parts book for Miele SBAG1 SBAG1. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

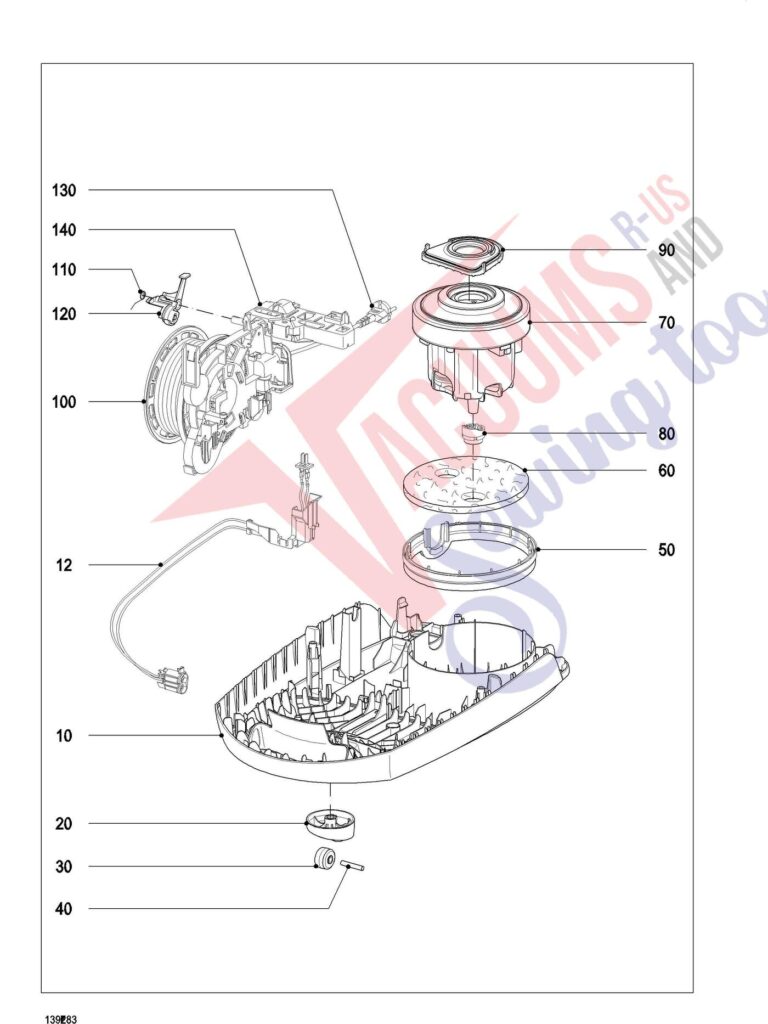

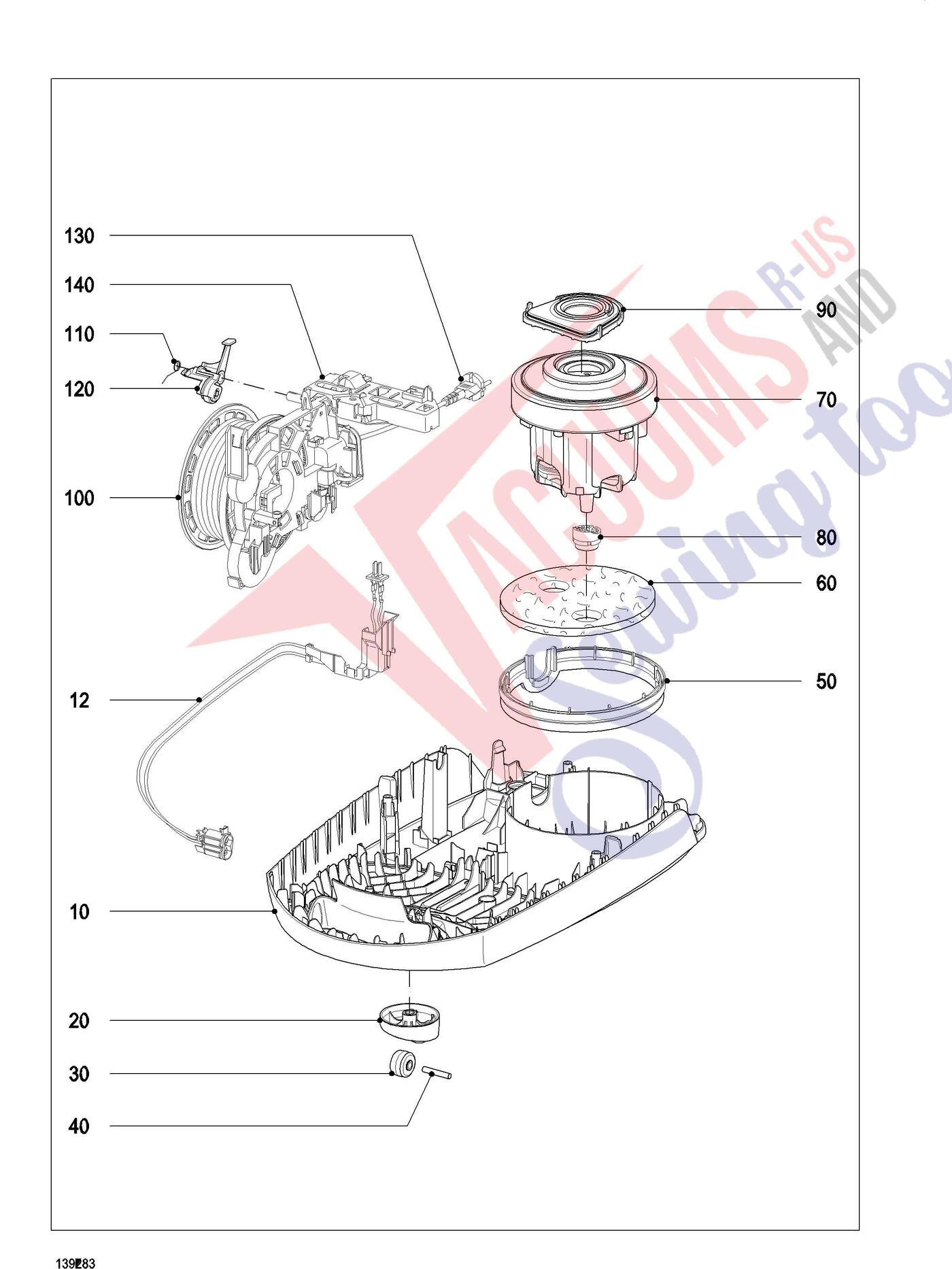

| # | Part image | Description | SKU | Price |
| 10-40 | No Image | Casing Bottom Anthracite | 7606094 | $119.00Read more |
| 12 |  | Genuine Miele Flush socket outlet S2 | 7093573 | $39.50Read more |
| 20-40 | No Image | -Slide Skid Obsw Assy | 12494260 | $11.00Read more |
| 30 | No Image | -Slide Skid Obsw Assy | 12494260 | $11.00Read more |
| 40 | No Image | -Slide Skid Obsw Assy | 12494260 | $11.00Read more |
| 50 | No Image | Seal | 7293590 | $16.00Read more |
| 60 | | Genuine Miele Damping plate | 6843121 | $6.60Read more |
| 70 | | Genuine Miele Fan Mrg134/81-42/2 120V | 7022163 | $119.00Add to cart Special order: ships in 2 to 4 weeks |
| 80 | | Genuine Miele Rubber cushion 2 Pcs. | 7290080 | $24.70Read more |
| 90 | | Genuine Miele Bearing ring | 6976850 | $20.60Read more |
| 100-140 | | Genuine Miele Cable reel S2 USA 5,5m 120V | 7255085 | $189.00Read more |
| 100-140 | | Genuine Miele Cable reel S2000 EU 5,5m 230V | 10483193 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 | | Genuine Miele Torsion spring S2000 | 5708570 | $3.60Read more |
| 120 | | Genuine Miele Brake lever compl. S2000 | 7227152 | $6.60Read more |
| 130 | Not Available | -Supply cable 5,65m 17AWG 120V USA | 6264932 | Not Available |
| 140 | | Genuine Miele Electronic unit cpl.EDW2202/81 S2 KD | 10357380 | $91.00Read more |

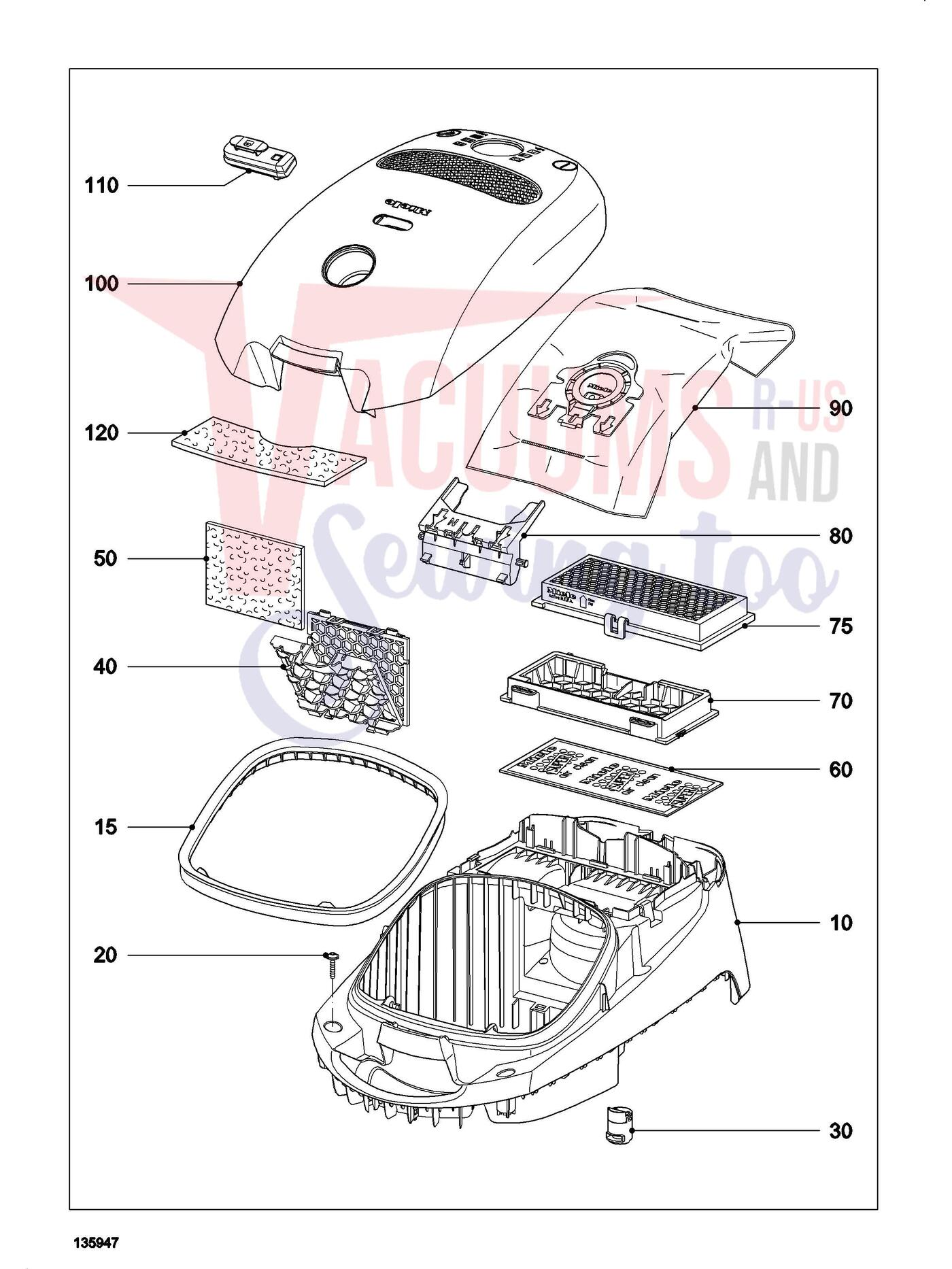

| # | Part image | Description | SKU | Price |
| XX |  | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 10+15 | | Genuine Miele Cover frame With seal assy | 10540465 | $100.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Genuine Miele Seal Staubraum SB* | 10471722 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Genuine Miele Suction control S2/S5/S8 | 6455390 | $6.60Read more |
| 40 |  | Genuine Miele Filter frame für Motorschutz | 6843091 | $59.40Read more |
| 40 | | Available ReconditionedReconditioned Genuine Miele Filter frame für Motorschutz More Product Details | 6843091R | $52.40Add to cart |
| 50 |  | Genuine Miele Dust compart.filter 3 pcs. | 6713110 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 60 |  | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 | | Genuine Miele Grille Sup.Air-Cleanfilter | 6843131 | $27.90Read more |
| 75 | No Image | Act.Air Cleanfilter | 12718090 | $49.00Add to cart Special order: ships in 2 to 4 weeks |
| 75 | No Image | Hepa-Filter | 12785370 | $64.00Add to cart Special order: ships in 2 to 4 weeks |
| 80 | No Image | Bracket Vacuum Cleaner Bag | 6843173 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 | Not Available | vacuum cleaner bag G/N USA | 7805110 | Not Available |
| 100+110 |  | Genuine Miele Casing top Lotos white | 7839906 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 100+110 | | Genuine Miele Casing top Graphite grey | 10713233 | $129.00Add to cart Special order: ships in 2 to 4 weeks |
| 100+110 | | Genuine Miele Casing top Graphite grey | 10713233 | $129.00Add to cart Special order: ships in 2 to 4 weeks |
| 100+110 | | Genuine Miele Casing top Graphite grey | 10713233 | $129.00Add to cart Special order: ships in 2 to 4 weeks |
| 100+110 | | Genuine Miele Casing top Autumn red | 7839925 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 100+110 | | Genuine Miele Casing top Graphite grey | 10713233 | $129.00Add to cart Special order: ships in 2 to 4 weeks |
| 100+110 | | Genuine Miele Casing top Graphite grey | 10713230 | $0.00Read more |
| 100+110 | | Genuine Miele Casing top Technoblue | 10713223 | $0.00Read more |
| 110 | No Image | -Change Filter Ind. Assy | 12659812 | $22.00Read more |
| 120 |  | Genuine Miele Insulation matting Air shield | 7295010 | $7.00Add to cart Special order: ships in 2 to 4 weeks |

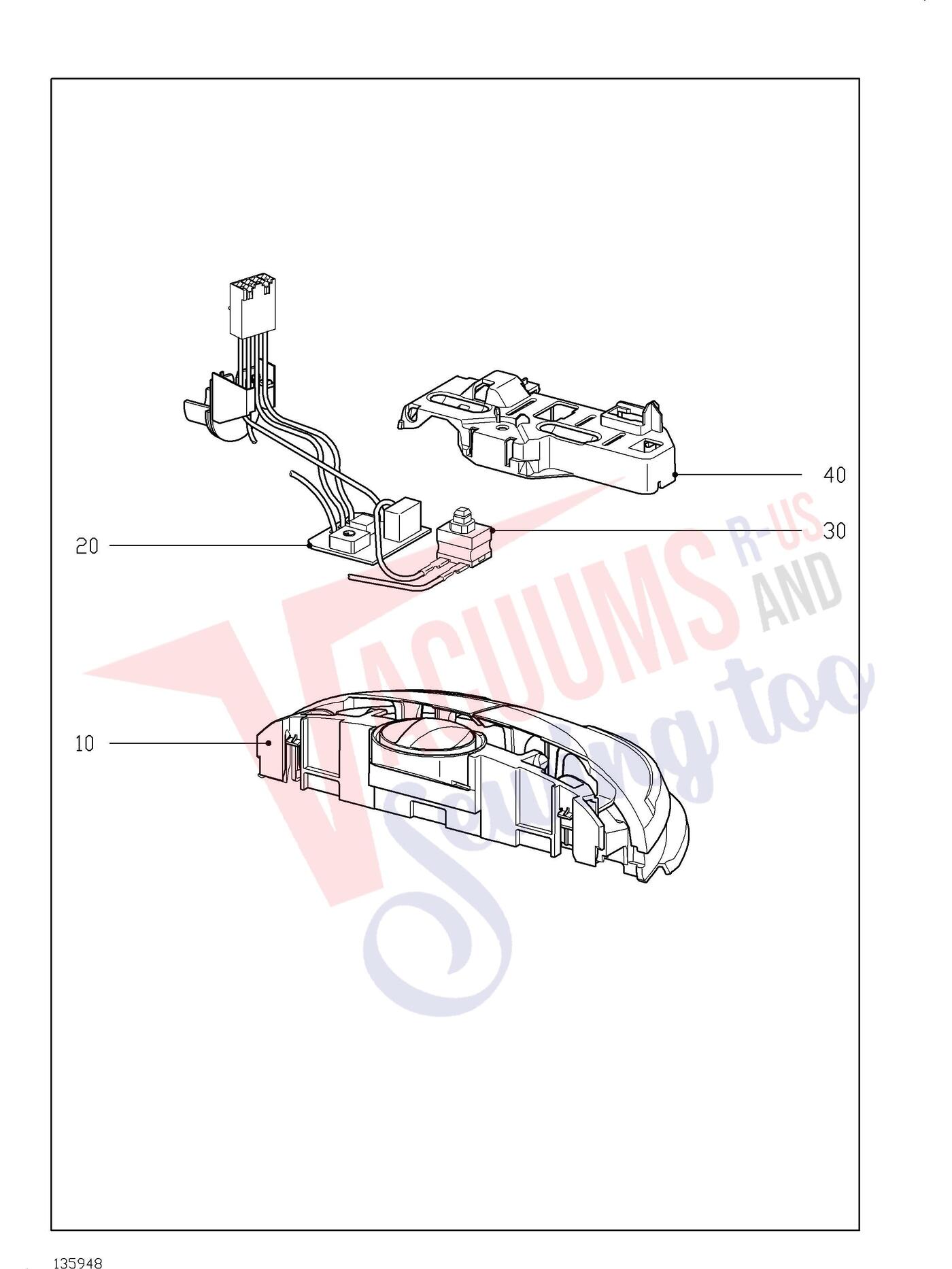

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 10 | | Genuine Miele Cap assy | 7820861 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 20-40 | | Genuine Miele Electronic unit cpl.EDW2202/81 S2 KD | 10357380 | $91.00Read more |
| 30 | No Image | -Switch 1 Pole 1681.3103 | 9023231 | $9.60Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Genuine Miele Bracket Electronic unit S2000 | 7018032 | $18.80Read more |

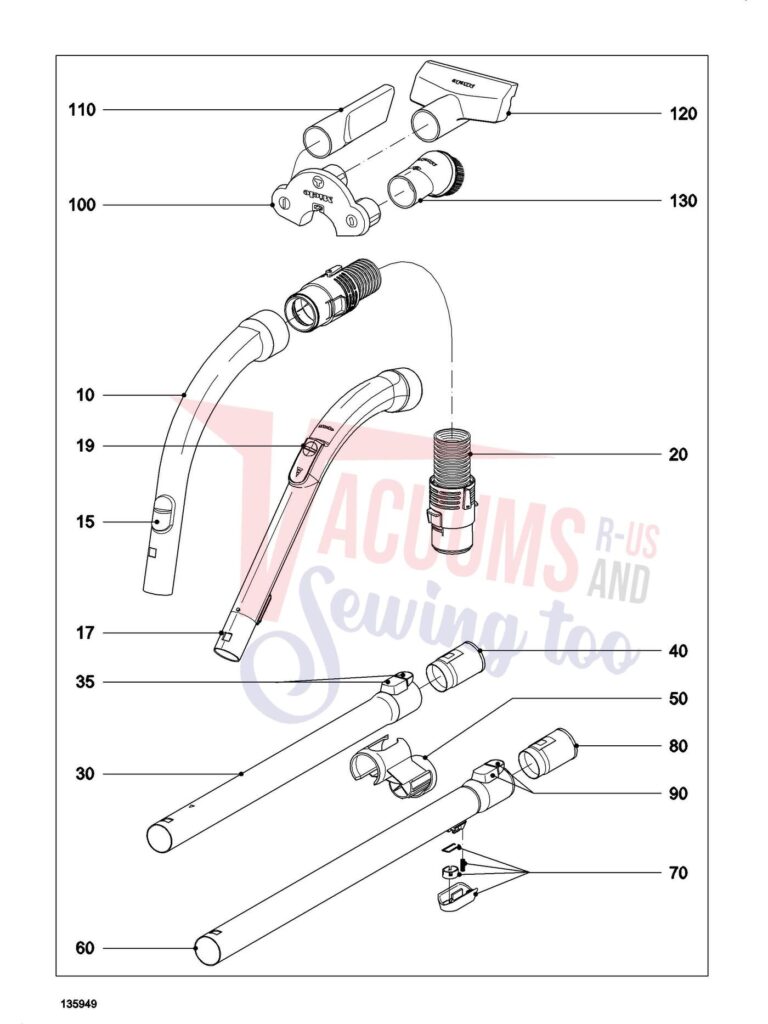

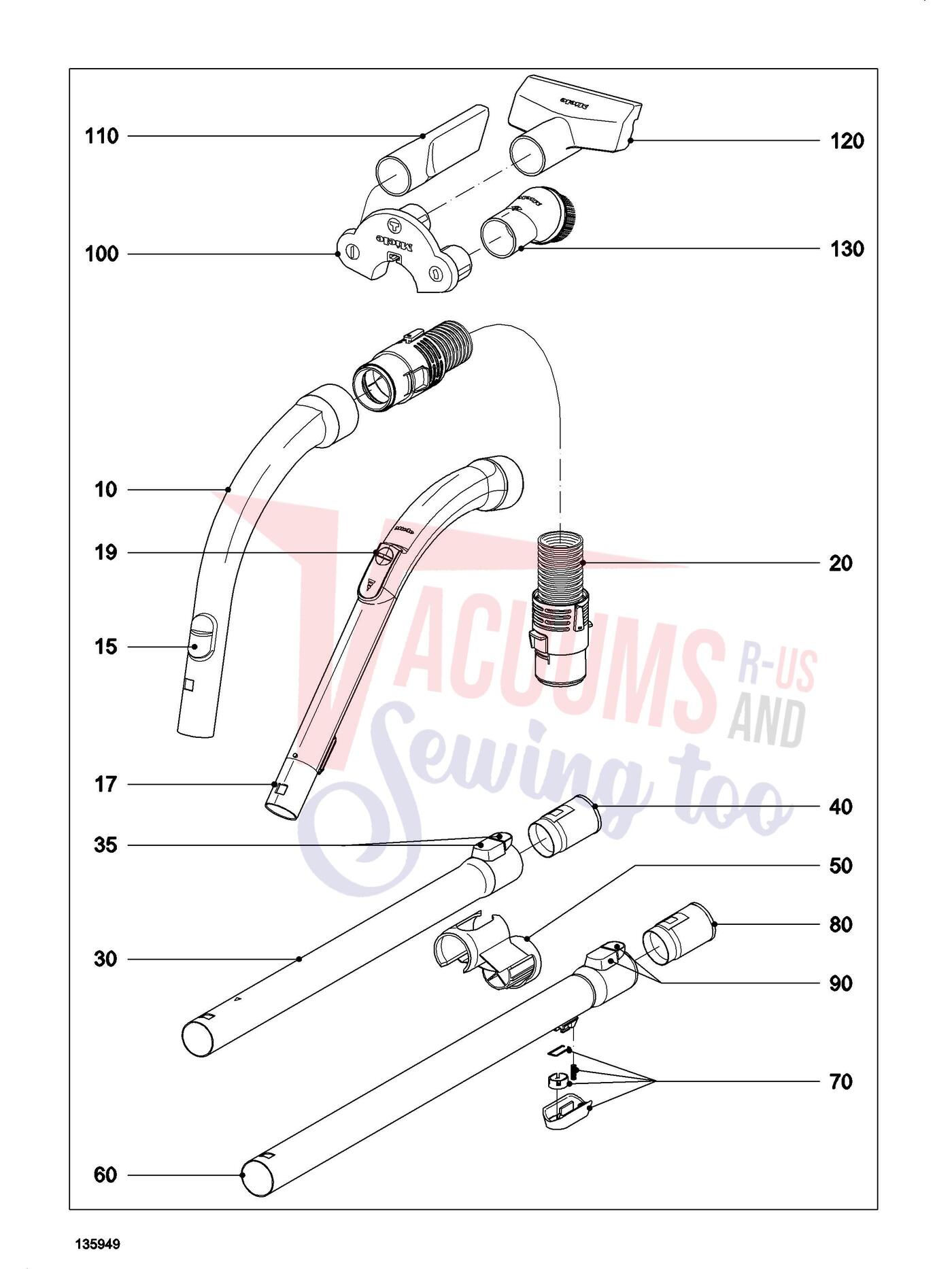

| # | Part image | Description | SKU | Price |
| w/o fig. | | Genuine Miele Telescopic pipe HES compact | 9480843 | $0.00Read more |
| w/o fig. | No Image | Suction Pipe Easyslide Compact | 12512531 | $100.00Add to cart Special order: ships in 2 to 4 weeks |
| 10+15 | | Genuine Miele Tubular handle anthracite | 9442601 | $37.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Suction control anthracite | 5141090 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 17+19 | | Genuine Miele Tubular handle XXL assy | 7586094 | $56.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Genuine Miele Suction control f. Griffr. XXL & 2.0 | 7587200 | $2.30Read more |
| 20 | No Image | Suction Hose Obsw Assy | 12491350 | $51.00Add to cart Special order: ships in 2 to 4 weeks |
| 30-40 | No Image | Suction Pipe Top Obsw Assy | 12421840 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 | | Genuine Miele Holder Suction pipe | 7096871 | $11.00Read more |
| 60-90 | No Image | Suction Pipe Easyslide Compact | 12512531 | $100.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 |  | Genuine Miele Push button Round | 5780932 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 80+90 |  | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 100 | No Image | Holder Accessory Obsw | 12581110 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 | No Image | Crevice Nozzle 149Mm Obsw | 9442631 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 120 | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 | No Image | Dusting Brush L | 12187780 | $24.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 |  | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $26.00Add to cart Special order: ships in 2 to 4 weeks |

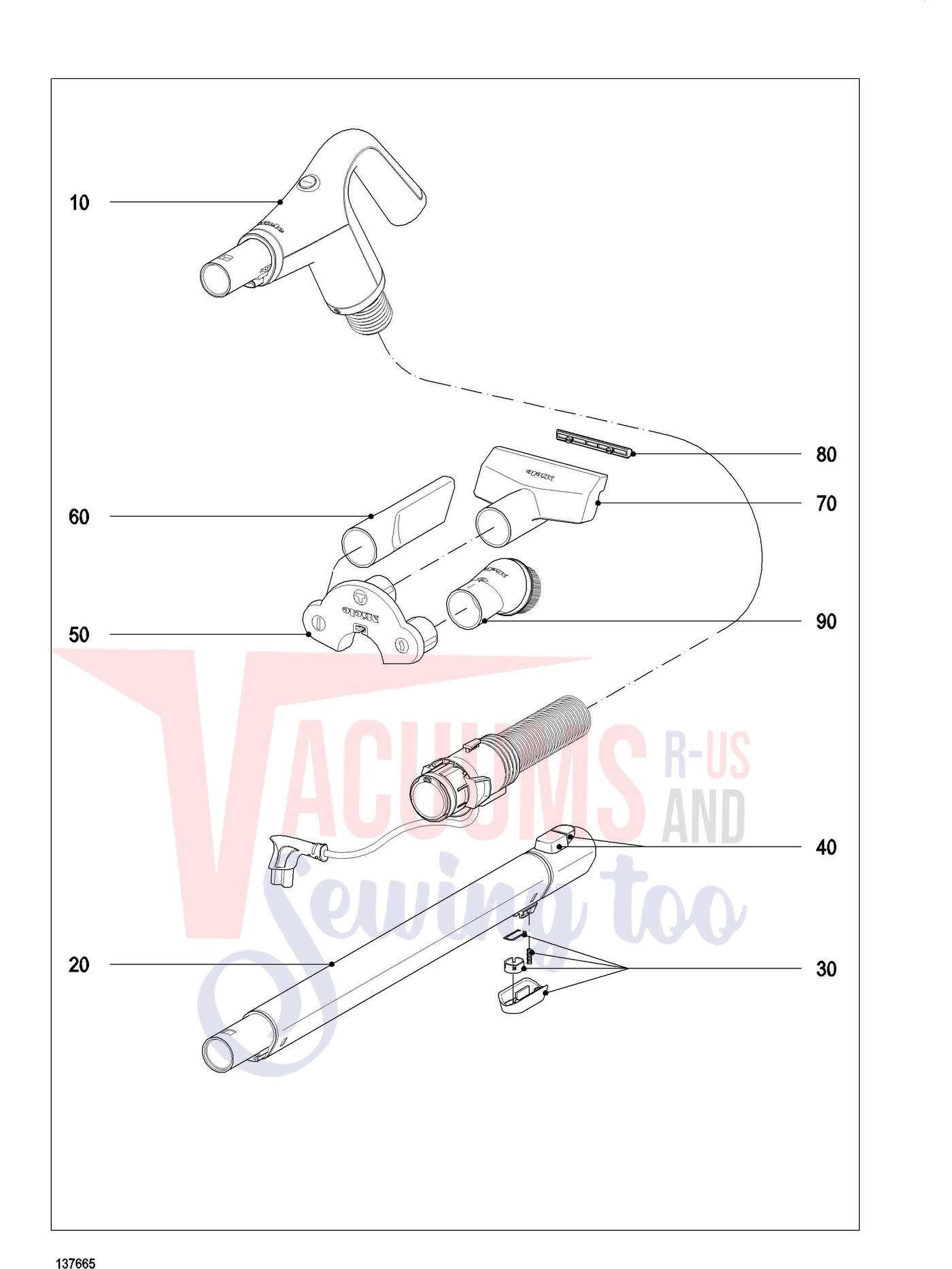

| # | Part image | Description | SKU | Price |
| 10 | No Image | Elec.Suction Hose Ses116 | 7762551 | $199.00Add to cart Special order: ships in 2 to 4 weeks |
| 20-40 |  | Direct Connect Electric Wand SET220 41996432USA 6543880 | WP10506 | $199.00Add to cart |
| 30 |  | Genuine Miele Push button Round | 9160460 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 |  | Genuine Miele Holder Accessory | 6991370 | $11.00Add to cart Special order: ships in 2 to 4 weeks |
| 60 | No Image | Crevice Nozzle 149Mm Obsw | 9442631 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 70+80 | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 80 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 90 | No Image | Dusting Brush L | 12187780 | $24.00Add to cart Special order: ships in 2 to 4 weeks |

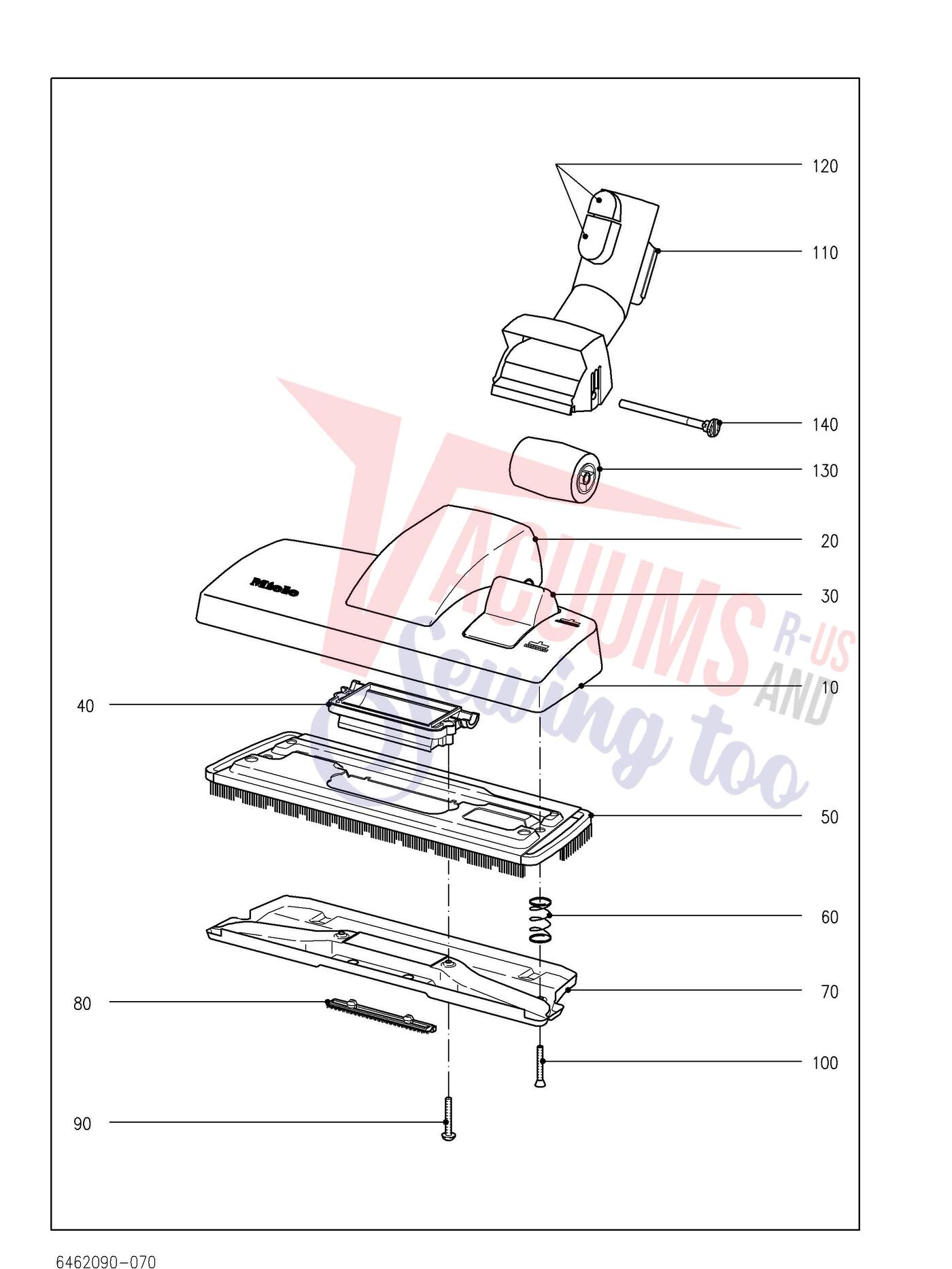

| # | Part image | Description | SKU | Price |
| 10-140 | Not Available | Floor nozzle Eco SBD 290-3 | 10228750 | Not Available |
| 10 |  | Genuine Miele Top anthracite | 5235512 | $27.90Read more |
| 20 |  | Genuine Miele Suction channel anthracite | 5235541 | $24.70Read more |
| 30 |  | Genuine Miele Foot switch anthracite | 5235503 | $15.00Read more |
| 40 | No Image | -Fixing | 10104390 | $3.90Read more |
| 50 |  | Genuine Miele Bristle supp.plate | 5235463 | $33.80Read more |
| 60 |  | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |
| 70+80 | Not Available | -Lower section kpl. | 10007791 | Not Available |
| 80 |  | Genuine Miele Thread lifter 2 Pcs. | 7898590 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 |  | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $3.60Read more |
| 100 | No Image | --Countersunk Screw 35X20 | 5289870 | $2.30Read more |
| 110+120 |  | Genuine Miele Linkage SBD285-3 assy | 6578132 | $36.00Add to cart Special order: ships in 2 to 4 weeks |
| 120 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 |  | Genuine Miele Support roller | 5235530 | $15.00Read more |
| 140 |  | Genuine Miele Shaft Bayonett fitting | 5235520 | $13.50Read more |

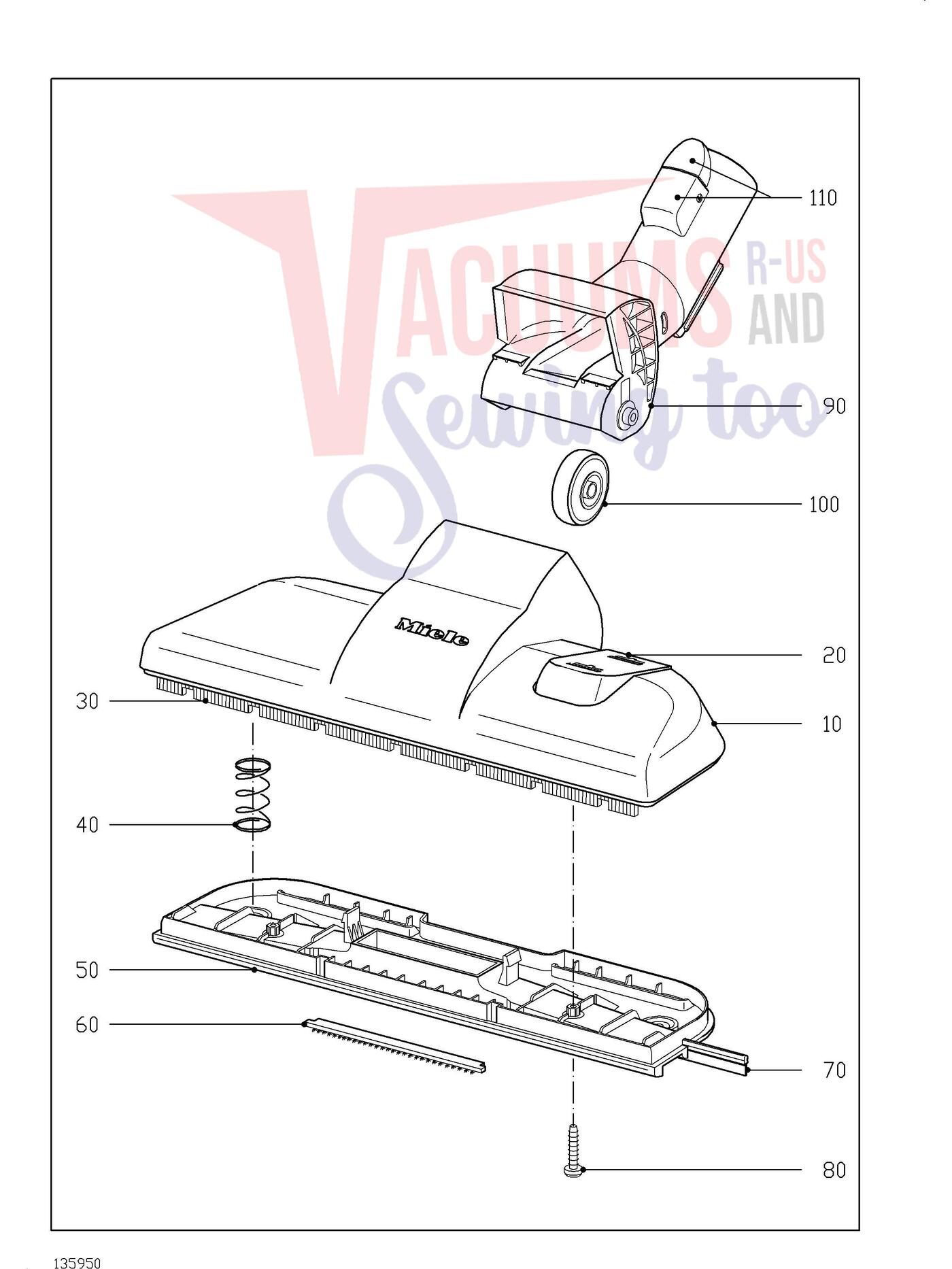

| # | Part image | Description | SKU | Price |
| 10-110 | Not Available | Floor nozzle SBD470-3 | 10484833 | Not Available |
| 10-110 | | Genuine Miele FiberTeQ Floor nozzle SBD 355-3 | 10367830 | $73.53Read more |
| 10-20 | Not Available | -Top SBD350-3 | 7274660 | Not Available |
| 20 | | Genuine Miele Foot switch SBD350-3 | 7274671 | $13.50Read more |
| 30 | | Genuine Miele Bristle supp.plate | 7274680 | $63.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Genuine Miele Coil spring 2 Pcs. | 5478660 | $20.60Read more |
| 50-70 | No Image | -Lower Section Sbd355 Obsw | 12592061 | $21.62Read more |
| 60 | Not Available | -Thread lifter 2 Pcs. | 7516080 | Not Available |
| 70 |  | Genuine Miele Sealing strip SBD355 | 10242100 | $4.90Read more |
| 80 | No Image | --Screw 3,5X20 | 7292290 | $2.50Read more |
| 90-110 | | Genuine Miele Linkage | 7274641 | $39.50Read more |
| 100 | | Genuine Miele Support roller SBD350/355 | 10455370 | $2.30Read more |
| 110 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |

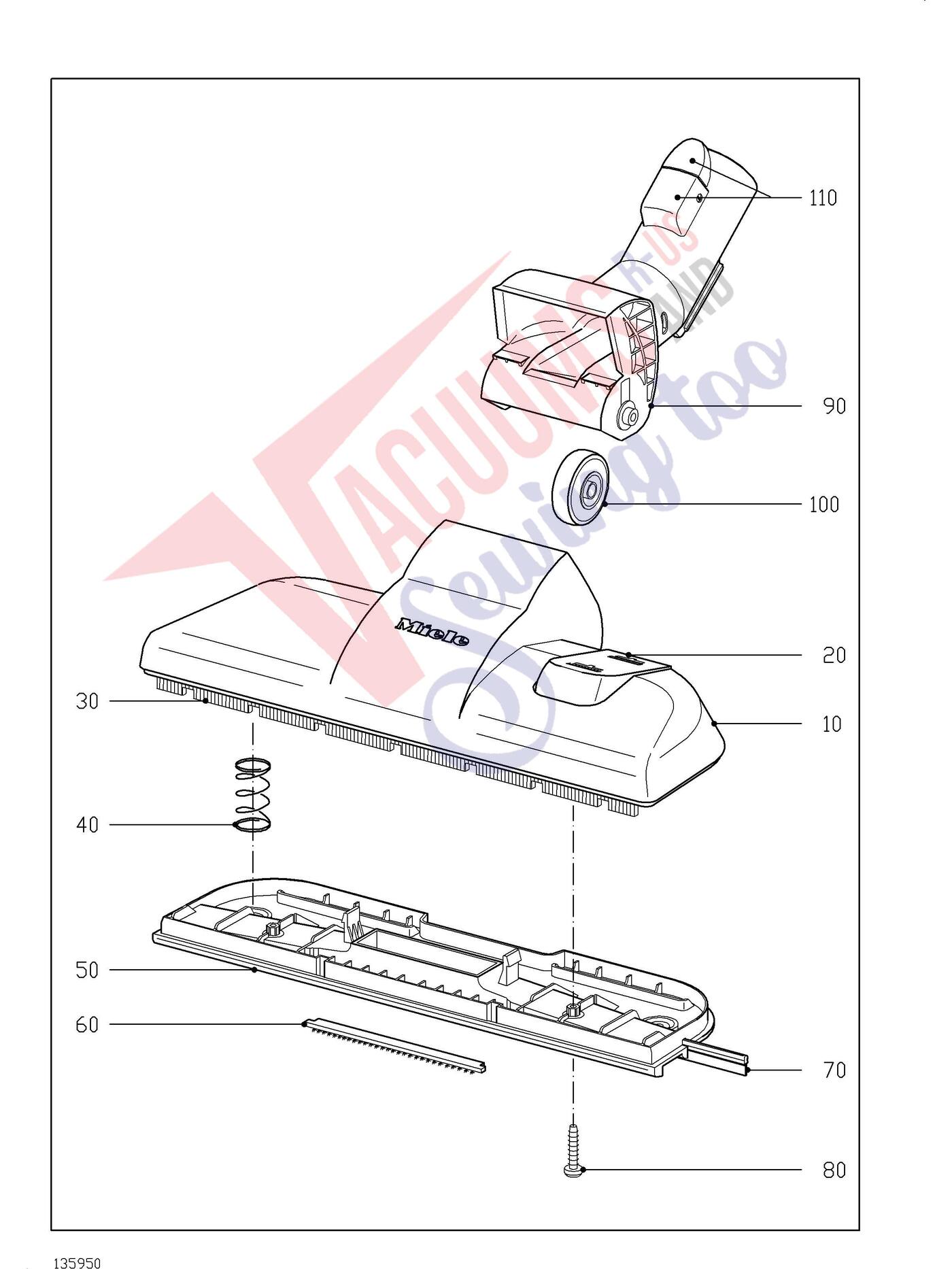

| # | Part image | Description | SKU | Price |
| 10-110 | Not Available | Floor nozzle SBD470-3 FiberTeQ | 9274750 | Not Available |
| 10-20 | Not Available | -Top kpl. | 9017800 | Not Available |
| 20 | | Genuine Miele Foot switch SBD350-3 | 7274671 | $13.50Read more |
| 30 | | Genuine Miele Bristle supp.plate | 7274680 | $63.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Genuine Miele Coil spring 2 Pcs. | 5478660 | $20.60Read more |
| 50-70 | | Genuine Miele Lower section kpl. | 9010081 | $52.20Read more |
| 60 | Not Available | -Thread lifter 2 Pcs. | 7516080 | Not Available |
| 70 | | Genuine Miele Sealing strip SBD355 | 10242100 | $4.90Read more |
| 80 | No Image | --Screw 3,5X20 | 7292290 | $2.50Read more |
| 90-110 | | Genuine Miele Linkage | 7274641 | $39.50Read more |
| 100 | | Genuine Miele Support roller SBD350/355 | 10455370 | $2.30Read more |
| 110 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

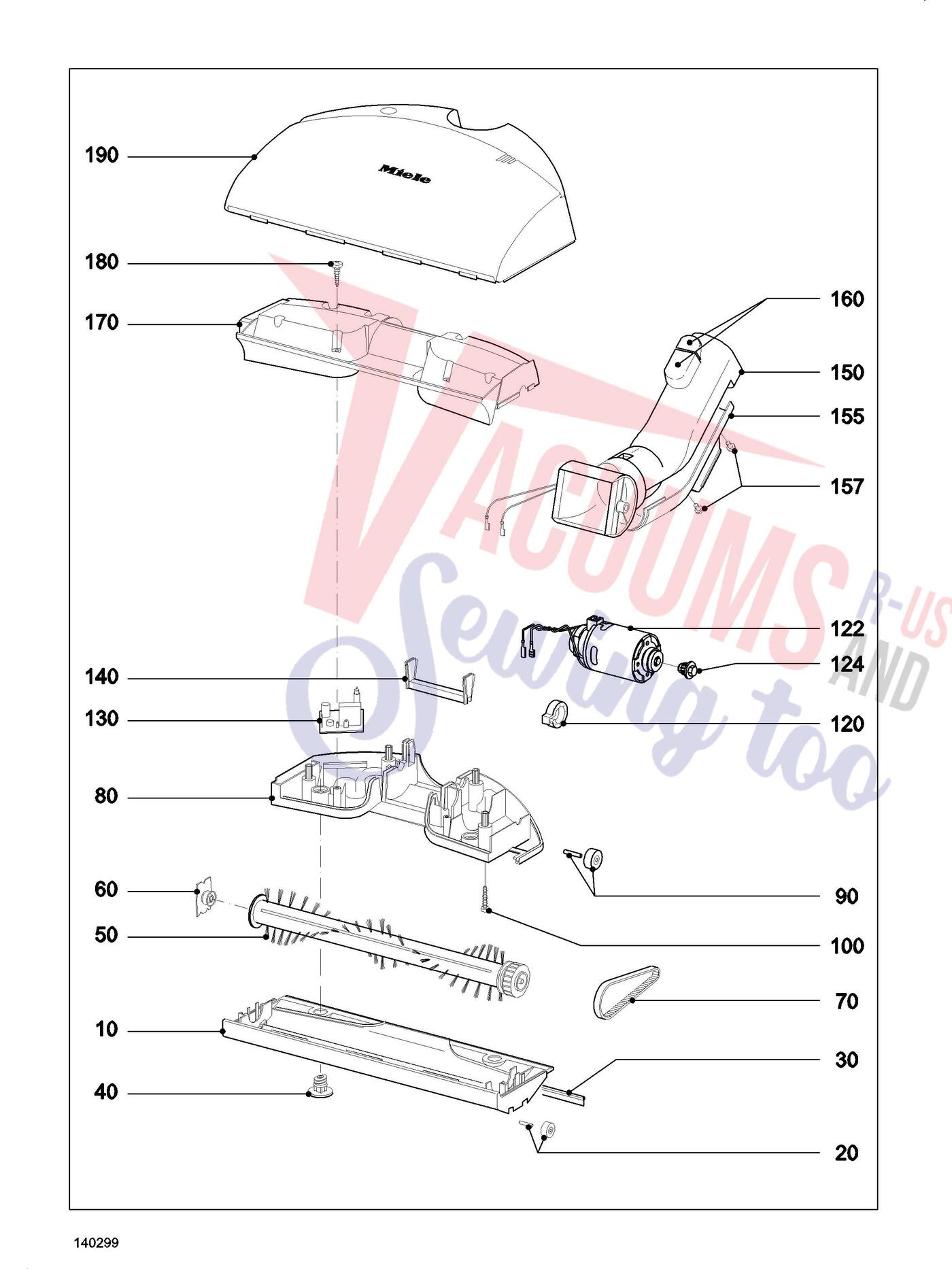

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Screw KA35X27 EJOT-PT | 3484490 | $2.30Read more |
| XX | | Genuine Miele Screw KA35X16 EJOT-PT | 4863580 | $3.60Read more |
| xx |  | Preowned reconditioned tested Miele SEB 217-3 power head | WP12121 | $114.99Read more |
| 10-40 | | Genuine Miele Floor plate SEB217 | 4929763 | $93.60Read more |
| 20 | | Genuine Miele Wheel 2 Pcs. | 4919170 | $30.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Genuine Miele Strip | 4929021 | $11.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Genuine Miele Screw 2 Pcs. | 4919190 | $15.00Read more |
| 50+60 |  | Genuine Miele Brush roller | 4929740 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 60 |  | Genuine Miele Bearing plate 2 Pcs. | 4941340 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 |  | Genuine Miele Tooth belt | 4897760 | $30.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 |  | Available ReconditionedReconditioned Genuine Miele Tooth belt More Product Details | 4897760R | $27.64Add to cart |
| 70 |  | Compatible alternateAftermarket Miele Geared Belt for SEB Powerheads More Product Details | 54330106 | $9.89Add to cart |
| 80+90 | | Genuine Miele Lower section SEB217 | 4929771 | $76.00Read more |
| 90 |  | Genuine Miele Wheel 2 Pcs. | 4919180 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 120 | No Image | Bearing | 4929730 | $11.00Read more |
| 120 |  | Available ReconditionedBearing More Product Details | 4929730R | $9.50Add to cart |
| 122+124 | | Genuine Miele AC motor 100-120V | 6828100 | $170.80Add to cart |
| 124 |  | Genuine Miele Pinion | 6808920 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 |  | Reconditioned Miele SEB213 PC Board 100-120v PN: 5604210 | 5604210 | $161.60Add to cart |
| 140 | | Genuine Miele Cable duct | 4841770 | $20.60Read more |
| 150-160 | | Genuine Miele Linkage SEB217-3 | 9197521 | $93.60Read more |
| 155 | | Genuine Miele Lid SEB216-3,SEB217-3 | 6603810 | $33.80Read more |
| 160 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 170 | | Genuine Miele Cover anthracite | 4841731 | $52.20Read more |
| 190 | | Genuine Miele Top anthracite | 5604200 | $71.70Read more |
