Schematic and parts book for Miele SBAF5 SBAF5. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |

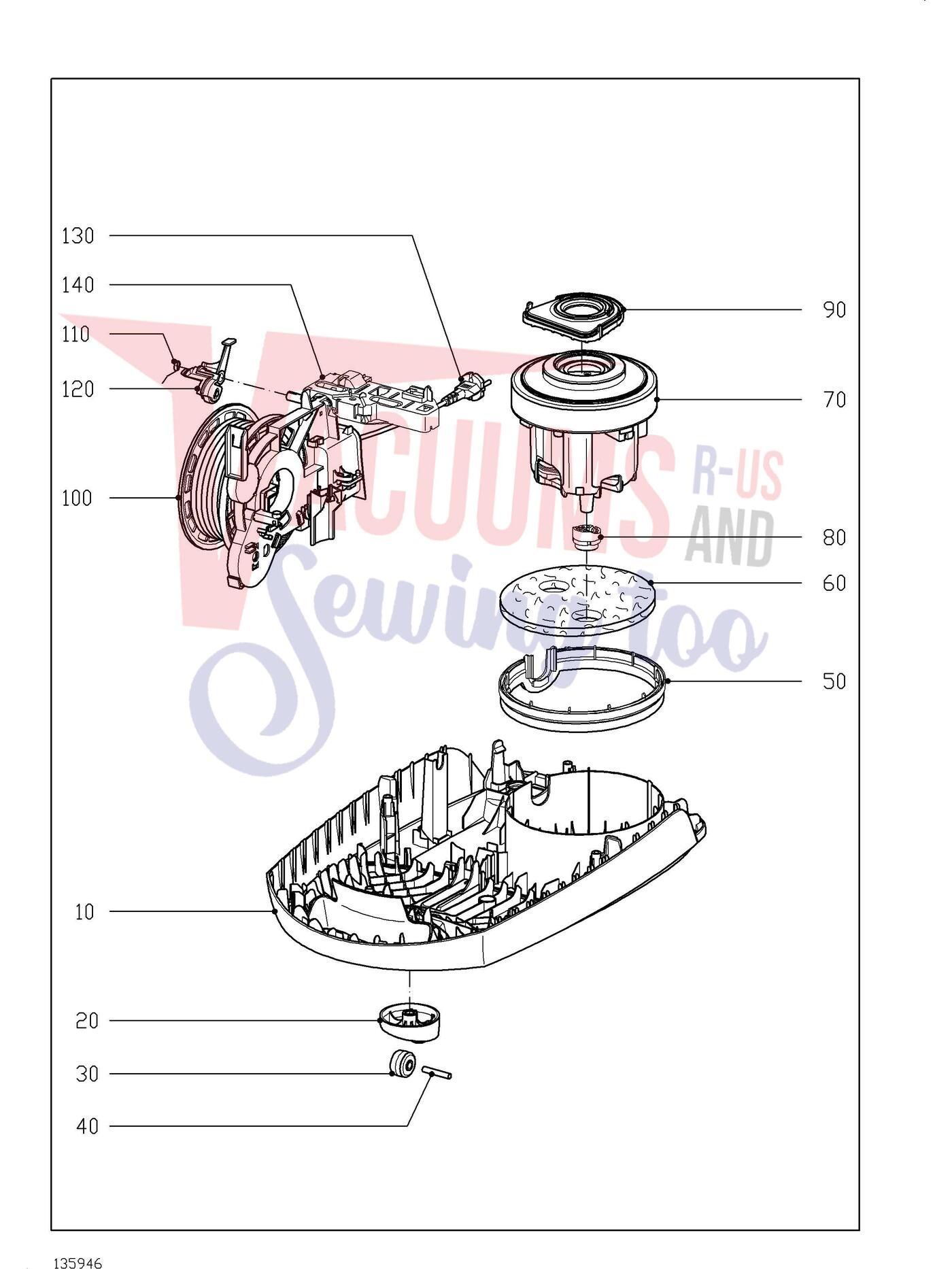

| 10-40 |  | Genuine Miele Casing bottom anthracite | 7275801 | $105.10Read more |
| 20-40 | No Image | -Slide Skid Obsw Assy | 12494260 | $11.00Read more |
| 30 | No Image | -Slide Skid Obsw Assy | 12494260 | $11.00Read more |
| 40 | No Image | -Slide Skid Obsw Assy | 12494260 | $11.00Read more |
| 50 | No Image | Seal | 7293590 | $16.00Read more |
| 60 | | Genuine Miele Damping plate | 6843121 | $6.60Read more |
| 70 | | Genuine Miele Fan Mrg136-42/2 230-240V | 7000873 | $95.04Read more |
| 80 | | Genuine Miele Rubber cushion 2 Pcs. | 7290080 | $24.70Read more |
| 90 | | Genuine Miele Bearing ring | 6976850 | $20.60Read more |
| 100-140 | | Genuine Miele Cable reel S2000 EU 5,5m 230V | 10483193 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 | | Genuine Miele Torsion spring S2000 | 5708570 | $3.60Read more |
| 120 | | Genuine Miele Brake lever compl. S2000 | 7227152 | $6.60Read more |
| 130 | Not Available | -Supply cable 5,65m 0,75qmm EU | 7256311 | Not Available |
| 140 | | Genuine Miele Electronic unit cpl. EDW2202 S2 KD | 10357391 | $91.00Read more |
| 140 | | Genuine Miele Electronic unit cpl. EDW2202 S2 | 7018047 | $93.60Read more |
| # | Part image | Description | SKU | Price |

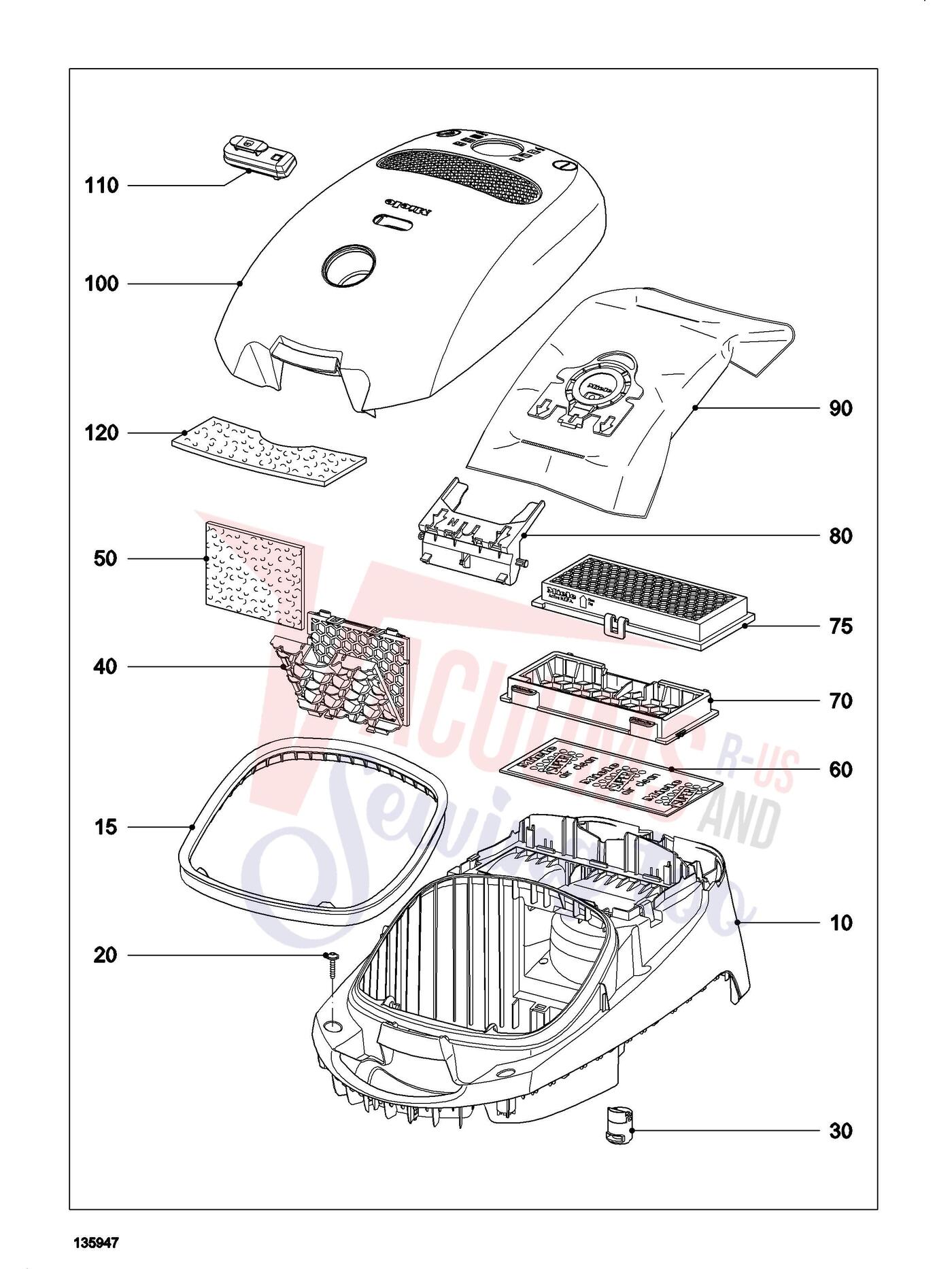

| XX |  | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 10+15 | | Genuine Miele Cover frame With seal assy | 10540465 | $100.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Genuine Miele Seal Staubraum SB* | 10471722 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Genuine Miele Suction control S2/S5/S8 | 6455390 | $6.60Read more |
| 40 |  | Genuine Miele Filter frame für Motorschutz | 6843091 | $59.40Read more |
| 40 | | Available ReconditionedReconditioned Genuine Miele Filter frame für Motorschutz More Product Details | 6843091R | $52.40Add to cart |
| 50 |  | Genuine Miele Dust compart.filter 3 pcs. | 6713110 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 60 |  | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 | | Genuine Miele Grille Sup.Air-Cleanfilter | 6843131 | $27.90Read more |
| 75 | No Image | Act.Air Cleanfilter | 12718090 | $49.00Add to cart Special order: ships in 2 to 4 weeks |
| 75 | No Image | Hepa-Filter | 12785370 | $64.00Add to cart Special order: ships in 2 to 4 weeks |
| 80 | No Image | Bracket Vacuum Cleaner Bag | 6843173 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 | Not Available | vacuum cleaner bag G/N USA | 7805110 | Not Available |
| 100+110 |  | Genuine Miele Casing top Lotos white | 7839906 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 100+110 | | Genuine Miele Casing top Graphite grey | 10713233 | $129.00Add to cart Special order: ships in 2 to 4 weeks |
| 100+110 | | Genuine Miele Casing top Graphite grey | 10713233 | $129.00Add to cart Special order: ships in 2 to 4 weeks |
| 100+110 | | Genuine Miele Casing top Graphite grey | 10713233 | $129.00Add to cart Special order: ships in 2 to 4 weeks |
| 100+110 | | Genuine Miele Casing top Autumn red | 7839925 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 100+110 | | Genuine Miele Casing top Graphite grey | 10713233 | $129.00Add to cart Special order: ships in 2 to 4 weeks |
| 100+110 | | Genuine Miele Casing top Graphite grey | 10713230 | $0.00Read more |
| 100+110 | | Genuine Miele Casing top Technoblue | 10713223 | $0.00Read more |
| 110 | No Image | -Change Filter Ind. Assy | 12659812 | $22.00Read more |
| 120 |  | Genuine Miele Insulation matting Air shield | 7295010 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

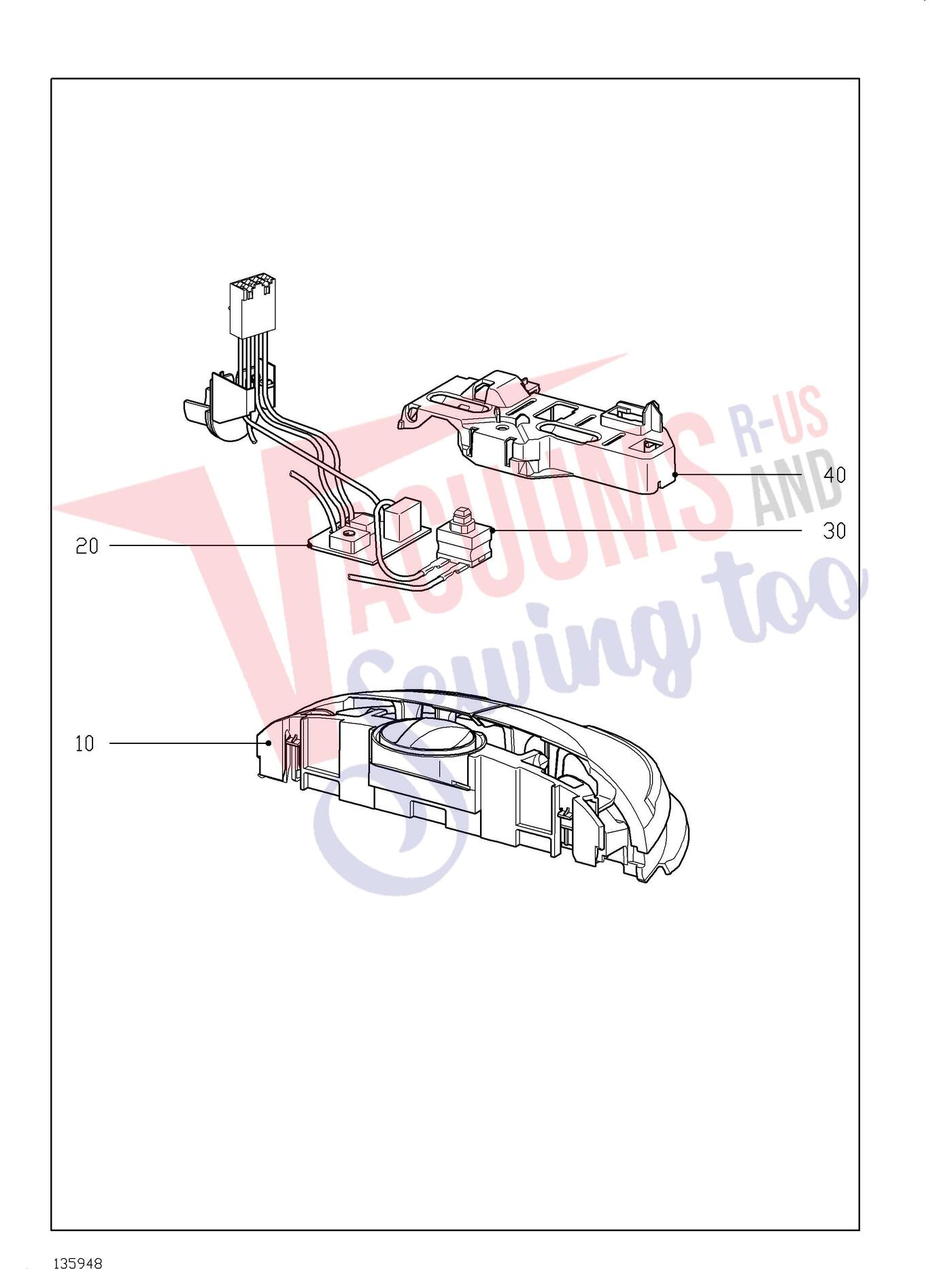

| XX | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 10 | | Genuine Miele Cap assy | 7820861 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 20-40 | | Genuine Miele Electronic unit cpl. EDW2202 S2 KD | 10357391 | $91.00Read more |
| 20-40 | | Genuine Miele Electronic unit cpl. EDW2202 S2 | 7018047 | $93.60Read more |
| 30 | No Image | -Switch 1 Pole 1681.3103 | 9023231 | $9.60Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Genuine Miele Bracket Electronic unit S2000 | 7018032 | $18.80Read more |
| # | Part image | Description | SKU | Price |

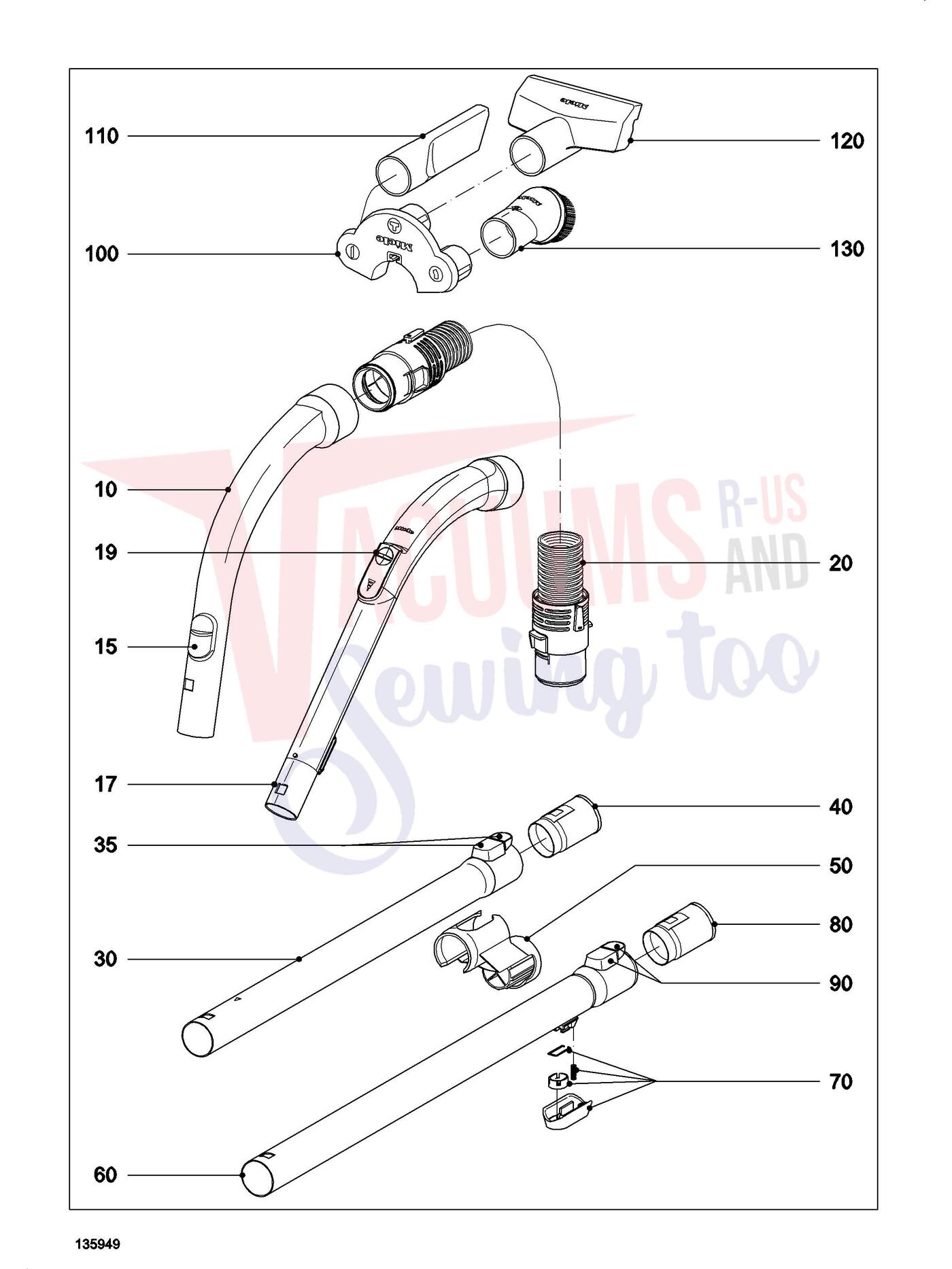

| w/o fig. | | Genuine Miele Telescopic pipe HES compact | 9480843 | $0.00Read more |
| w/o fig. | No Image | Suction Pipe Easyslide Compact | 12512531 | $100.00Add to cart Special order: ships in 2 to 4 weeks |
| 10+15 | | Genuine Miele Tubular handle anthracite | 9442601 | $37.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Suction control anthracite | 5141090 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 17+19 | | Genuine Miele Tubular handle XXL assy | 7586094 | $56.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | No Image | Suction Hose Obsw Assy | 12491350 | $51.00Add to cart Special order: ships in 2 to 4 weeks |
| 30-40 | No Image | Suction Pipe Top Obsw Assy | 12421840 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
| 35+40 |  | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 | | Genuine Miele Holder Suction pipe | 7096871 | $11.00Read more |
| 60-90 | No Image | Suction Pipe Easyslide Compact | 12512531 | $100.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 |  | Genuine Miele Push button Round | 5780932 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 80+90 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 100 | No Image | Holder Accessory Obsw | 12581110 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 | No Image | Crevice Nozzle 149Mm Obsw | 9442631 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 120 | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 | No Image | Dusting Brush L | 12187780 | $24.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 |  | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $26.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

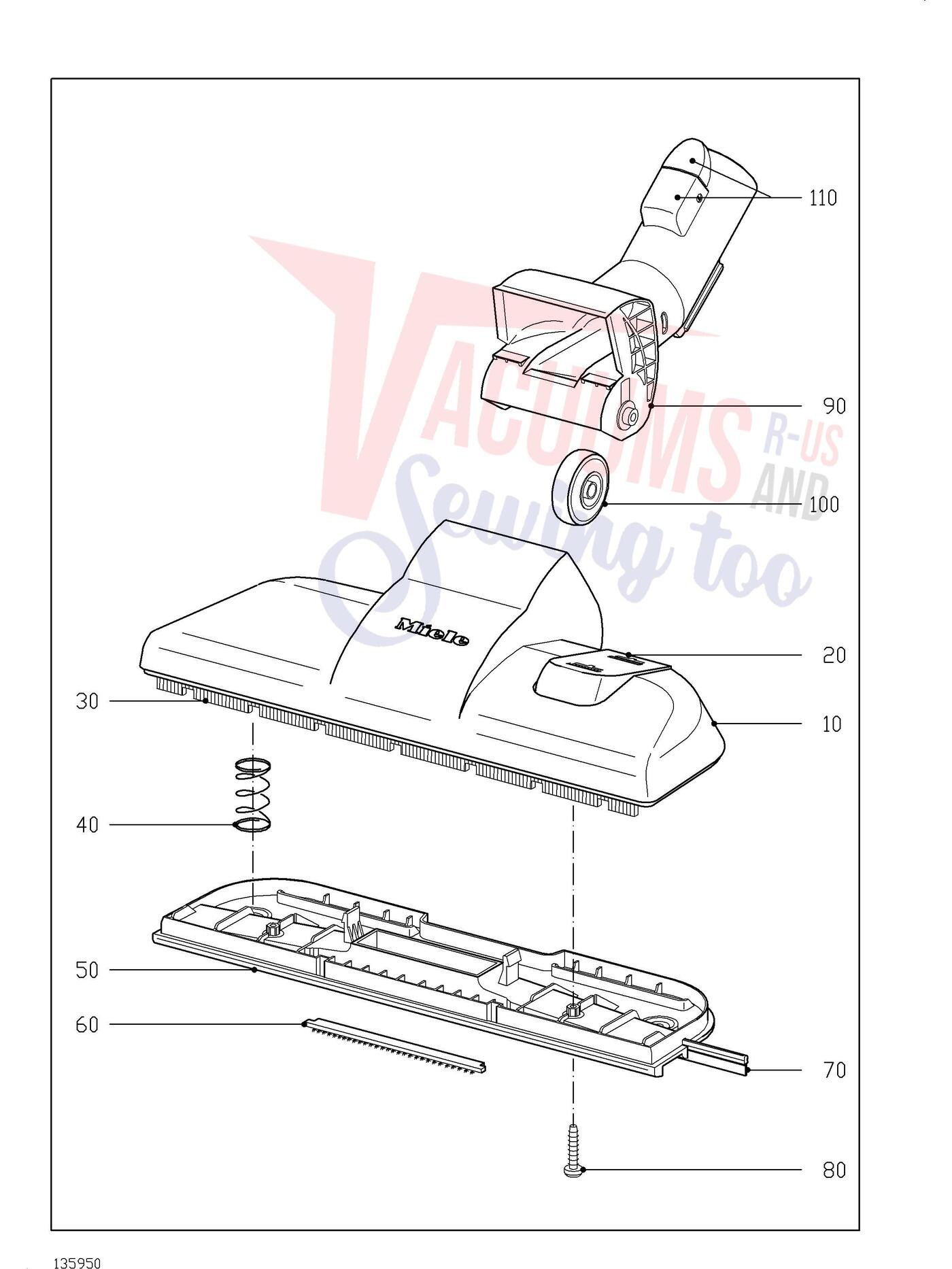

| 10-110 | Not Available | Floor nozzle SBD470-3 | 10484833 | Not Available |
| 10-110 | | Genuine Miele FiberTeQ Floor nozzle SBD 355-3 | 10367830 | $73.53Read more |
| 10-20 | Not Available | -Top SBD350-3 | 7274660 | Not Available |
| 20 | | Genuine Miele Foot switch SBD350-3 | 7274671 | $13.50Read more |
| 30 | | Genuine Miele Bristle supp.plate | 7274680 | $63.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Genuine Miele Coil spring 2 Pcs. | 5478660 | $20.60Read more |
| 50-70 | No Image | -Lower Section Sbd355 Obsw | 12592061 | $21.62Read more |
| 60 | Not Available | -Thread lifter 2 Pcs. | 7516080 | Not Available |
| 70 |  | Genuine Miele Sealing strip SBD355 | 10242100 | $4.90Read more |
| 80 | No Image | --Screw 3,5X20 | 7292290 | $2.50Read more |
| 90-110 | | Genuine Miele Linkage | 7274641 | $39.50Read more |
| 100 | | Genuine Miele Support roller SBD350/355 | 10455370 | $2.30Read more |
| 110 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
