Schematic and parts book for Miele SACD0 SACD0. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

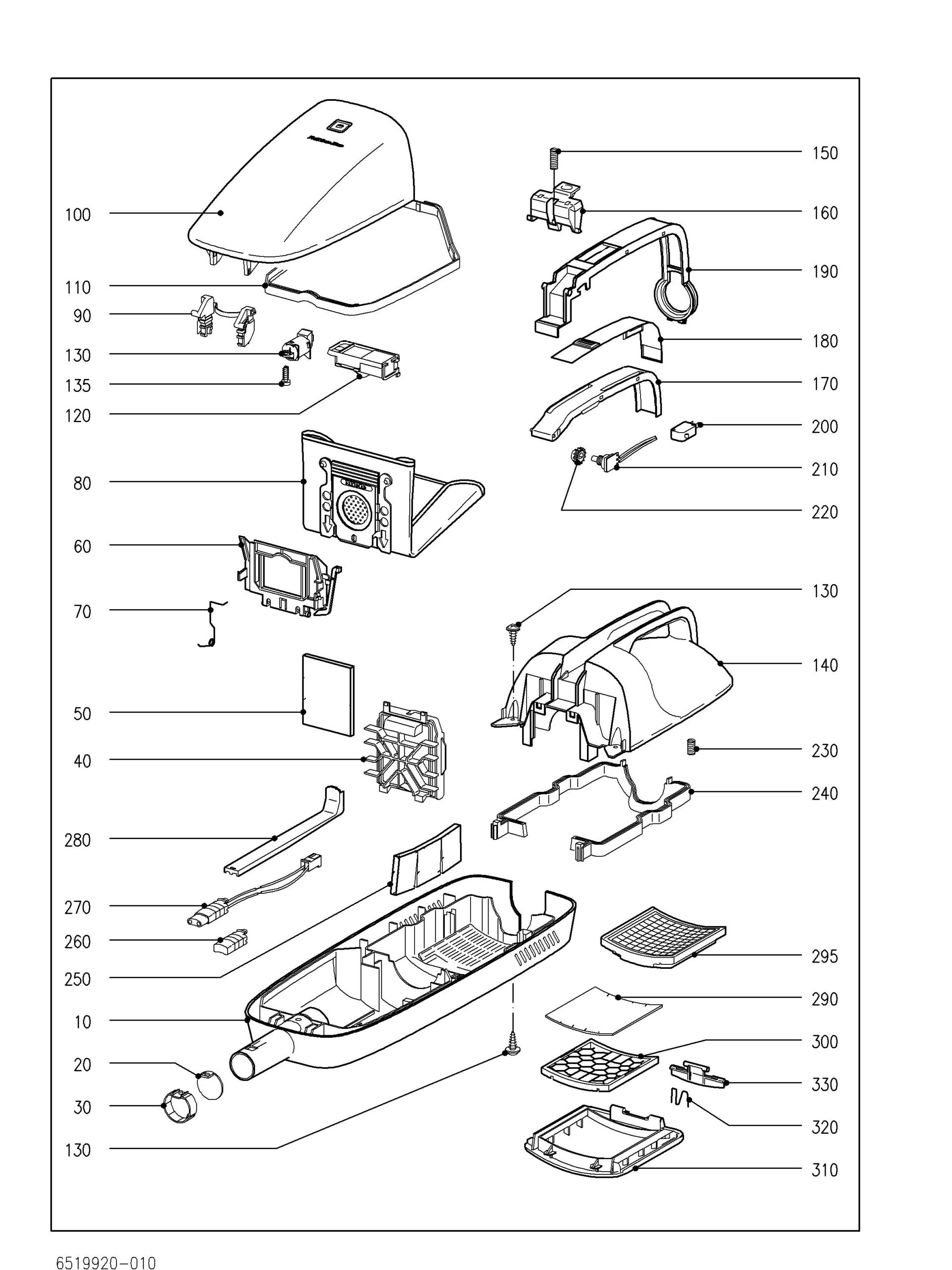

| # | Part image | Description | SKU | Price |
| 10-30 |  | Genuine Miele Casing bottom Autumn red | 6535962 | $120.70Read more |
| 10-30 | No Image | Casing Bottom Lotos White | 7758242 | $129.00Read more |
| 10-30 | | Genuine Miele Casing bottom Lava grey | 6535982 | $120.70Read more |
| 10-30 | | Genuine Miele Casing bottom Sprint blue | 9193501 | $176.20Read more |
| 10-30 | No Image | Casing Bottom Canary Yellow | 9193511 | $129.00Read more |
| 10-30 | | Genuine Miele Casing bottom Obsidian black | 9193521 | $176.20Read more |
| 10-30 | | Genuine Miele Casing bottom Chili red | 10809290 | $52.20Read more |
| 10-30 | No Image | Casing Bottom Graphite Grey | 10809320 | $56.00Read more |
| 20 | | Genuine Miele Flap | 1087860 | $13.50Read more |
| 30 | | Genuine Miele Bush anthracite | 4695090 | $3.60Read more |
| 40 | | Genuine Miele Filter frame S190er | 4695161 | $10.70Read more |
| 50 | | Genuine Miele Dust compart.filter 3 S140 | 4781420 | $15.00Read more |
| 60 | | Genuine Miele Bracket S190er | 4695085 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 | | Genuine Miele Torsion spring | 4774821 | $3.60Read more |
| 80 | No Image | Vacuum Cleaner Bag Kk Hyclean | 10123260 | $0.00Read more |
| 90 | No Image | Hinge Anthracite | 4715900 | $7.59Read more |
| 100-120 | | Genuine Miele Dust compart.lid Autumn red | 10082552 | $93.60Read more |
| 100-120 | | Genuine Miele Dust compart.lid Lotos white | 10082481 | $62.00Read more |
| 100-120 | | Genuine Miele Dust compart.lid Graphite grey | 10809341 | $105.10Read more |
| 100-120 | | Genuine Miele Dust compart.lid Sprint blue | 10082511 | $78.10Read more |
| 100-120 | | Genuine Miele Dust compart.lid Canary yellow | 10082492 | $93.60Read more |
| 100-120 | | Genuine Miele Dust compart.lid Obsidian black | 10082461 | $78.10Read more |
| 100-120 | | Genuine Miele Dust compart.lid Chili red | 10809311 | $105.10Read more |
| 100-120 | | Genuine Miele Dust compart.lid Graphite grey | 10809341 | $105.10Read more |
| 110 | | Genuine Miele Seal Dust compart.lid SA | 10706600 | $18.80Read more |
| 120 | | Genuine Miele Change filter ind. | 4715924 | $15.00Read more |
| 130 | | Genuine Miele Suction control | 5607611 | $33.80Read more |
| 135 | No Image | --Raised Head Screw 3,5X10 | 1816311 | $2.30Read more |
| 140 | | Genuine Miele Casing top Autumn red | 6486321 | $98.00Read more |
| 140 | No Image | Casing Top Lotos White | 7734911 | $109.00Read more |
| 140 | No Image | Casing Top Lava Grey | 6486341 | $109.00Read more |
| 140 | No Image | Casing Top Sprint Blue | 9148891 | $109.00Read more |
| 140 | No Image | Casing Top Canary Yellow | 9148901 | $109.00Read more |
| 140 | No Image | Casing Top Obsidian Black | 9148921 | $109.00Read more |
| 140 | | Genuine Miele Casing top Chili red 2 SA | 10713341 | $59.40Read more |
| 140 | | Genuine Miele Casing top Graphite grey SA | 10682911 | $52.20Read more |
| 150 |  | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 160 | | Genuine Miele SA Lock | 4703783 | $24.70Read more |
| 160 | | Genuine Miele Conversion kit Lock Swing | 10989130 | $13.50Read more |
| 170 | | Genuine Miele Cover strip anthracite | 4651950 | $18.80Read more |
| 180 | | Genuine Miele Slide 0-Min-Max | 6515921 | $15.00Read more |
| 190 | No Image | Cover Alu-Silver | 6527640 | $47.00Read more |
| 200 | | Genuine Miele Switch 250V | 4664140 | $27.90Read more |
| 230 | No Image | Spring | 2924730 | $2.50Read more |
| 240 | | Genuine Miele Seal | 4988401 | $15.00Read more |
| 250 | No Image | Damping Plate | 4821850 | $7.00Read more |
| 260 | No Image | Cap Anthracite | 4695140 | $4.14Read more |
| 290 | Not Available | Air-Clean filter 3 pcs. | 4781210 | Not Available |
| 295 | Not Available | Act.Air Cleanfilter SF-AAC10 | 7496330 | Not Available |
| 295 | | Genuine Miele Filter SF-H10 AirClean Plus | 7364560 | $52.45Add to cart Special order: ships in 2 to 4 weeks |
| 300 | | Genuine Miele Grille anthracite | 4695110 | $10.70Read more |
| 310-330 | | Genuine Miele Filter cap Autumn red | 6536140 | $43.60Read more |
| 310-330 | No Image | Filter Cap Lotos White | 7758191 | $47.00Read more |
| 310-330 | No Image | Filter Cap Lava Grey | 6536210 | $47.00Read more |
| 310-330 | No Image | Filter Cap Sprint Blue | 9193530 | $47.00Read more |
| 310-330 | Not Available | Filter cap Canary yellow | 9193540 | Not Available |
| 310-330 | | Genuine Miele Filter cap Obsidian black | 9193550 | $43.60Read more |
| 310-330 | | Genuine Miele Filter cap Chili red | 10809300 | $59.40Read more |
| 310-330 | No Image | Filter Cap Graphite Grey | 10809330 | $63.00Read more |
| 320 | Not Available | -Torsion spring | 4814940 | Not Available |
| 320 | | Genuine Miele Torsion spring | 5117270 | $4.90Read more |
| 320 | | Genuine Miele Torsion spring | 5117270 | $4.90Read more |
| 330 | | Genuine Miele Lock | 4814951 | $4.90Read more |
| 330 | | Genuine Miele Lock | 4814951 | $4.90Read more |

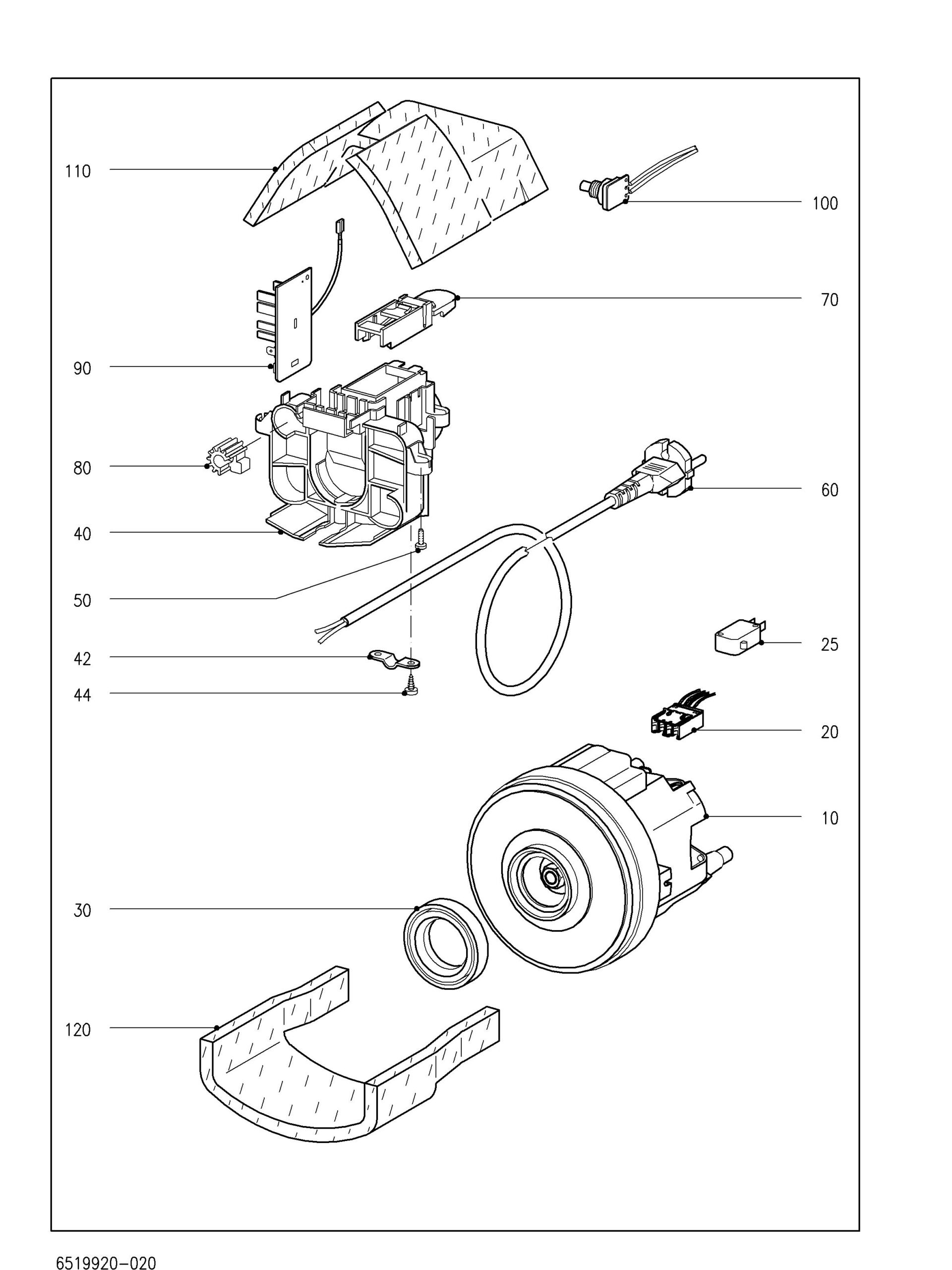

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 3,5X10 TORX T20 | 6238770 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| w/o fig. |  | Genuine Miele Cable holder | 7113160 | $3.10Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | Fan Mrg142/81-42/2 120V | 5420954 | $119.00Read more |
| 10 | | Genuine Miele Fan Mrg146-42/2 230V | 6471351 | $95.04Read more |
| 20+25 | | Genuine Miele Connecting cable Swing USA | 10509480 | $59.40Read more |
| 25 | | Genuine Miele Switch 250V | 4664140 | $27.90Read more |
| 30 | | Genuine Miele Bearing ring | 4695150 | $24.70Read more |
| 40-44 | | Genuine Miele Motor bracket anthracite | 4880007 | $52.20Read more |
| 42 | | Genuine Miele Cable clamp | 5032020 | $15.00Read more |
| 52 | | Genuine Miele Plug housing | 4664131 | $10.70Read more |
| 54 | Not Available | Terminal block 2 POL. | 75448 | Not Available |
| 56 | | Genuine Miele insulating piece | 4715970 | $4.90Read more |
| 60 | No Image | Supply Cable 8M Usa | 4884943 | $68.00Read more |
| 60 | | Genuine Miele Supply cable 8,50m 120V USA | 6731242 | $64.00Read more |
| 70 | | Genuine Miele Lever | 5396811 | $15.00Read more |
| 80 | | Genuine Miele Rubber cushion black | 3928380 | $0.00Read more |
| 90 | | Genuine Miele Electronic unit EDL140/81 120V 60HZ | 6715691 | $85.50Read more |
| 110+120 | | Genuine Miele Damping plate | 4816470 | $27.90Read more |

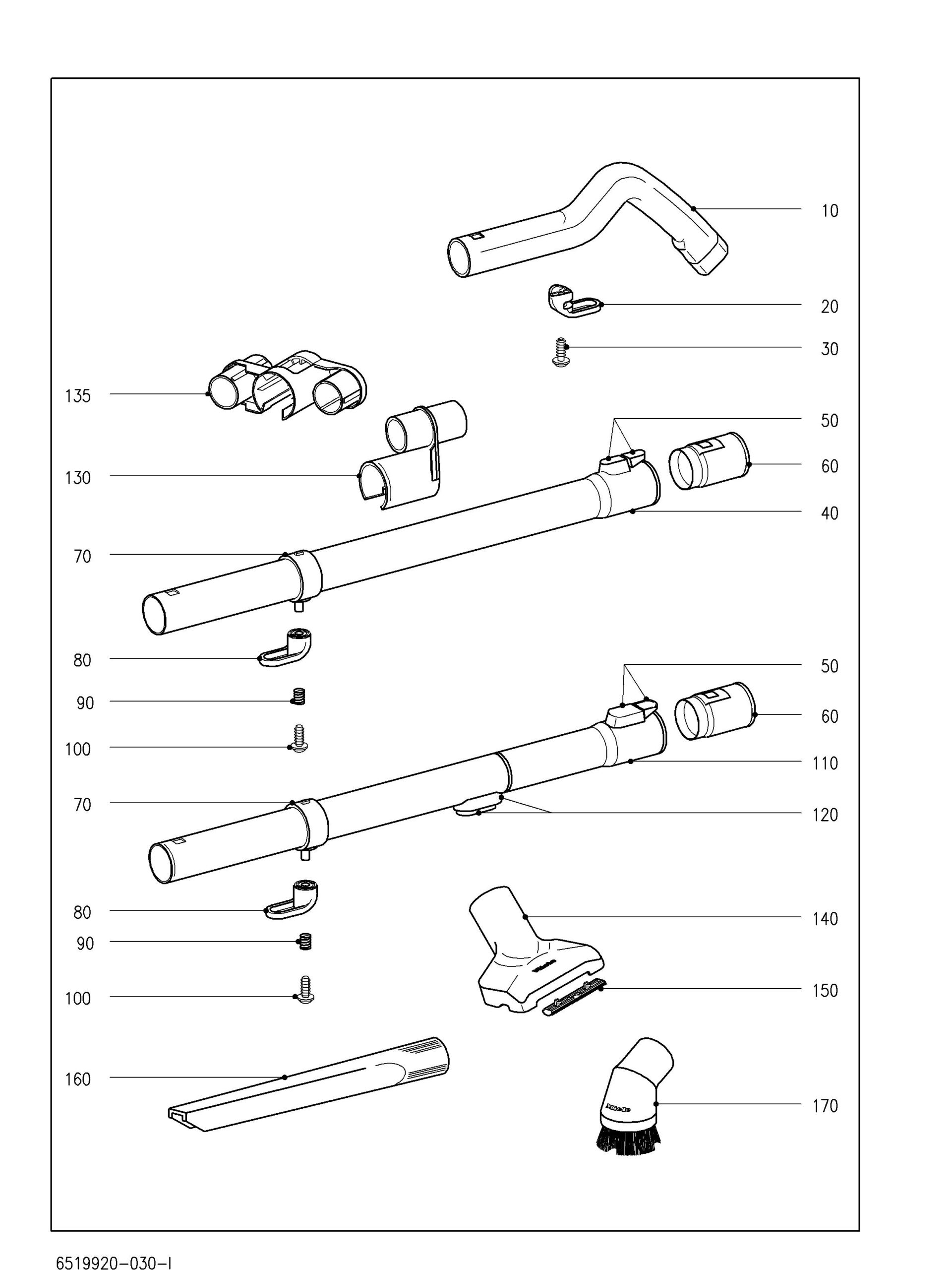

| # | Part image | Description | SKU | Price |
| XX |  | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| XX | | Genuine Miele Raised head screw 3,9X9,5 | 1143580 | $0.00Read more |
| XX | | Genuine Miele Raised head screw 3,9X9,5 | 1143580 | $0.00Read more |
| 10-30 | | Genuine Miele Tubular handle S163-S168 | 6527792 | $52.20Read more |
| 20 | | Genuine Miele Hook anthracite | 4718080 | $6.60Read more |
| 40-100 | No Image | Suction Pipe Stainless Steel | 5308412 | $66.00Read more |
| 50 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 60 |  | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 60 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 | | Genuine Miele Sleeve anthracite | 4718052 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 70 | | Genuine Miele Sleeve anthracite | 4718052 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 80 | | Genuine Miele Hook anthracite | 4718040 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 80 | | Genuine Miele Hook anthracite | 4718040 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 90 | | Genuine Miele Spring | 29289 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| 90 | | Genuine Miele Spring | 29289 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| 110+120 | | Genuine Miele Telescopic pipe ohne Haken f. Hand. | 5964482 | $0.00Read more |
| 120 |  | Genuine Miele Push button Round | 5780932 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 | | Genuine Miele Bracket Accessory | 5455120 | $24.70Read more |
| 135 | | Genuine Miele Holder 3-piece accessory | 6423360 | $36.00Add to cart Special order: ships in 2 to 4 weeks |
| 140+150 | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 150 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 160 | No Image | Crevice Nozzle 149Mm Obsw | 9442631 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 170 | No Image | Dusting Brush L | 12187780 | $24.00Add to cart Special order: ships in 2 to 4 weeks |

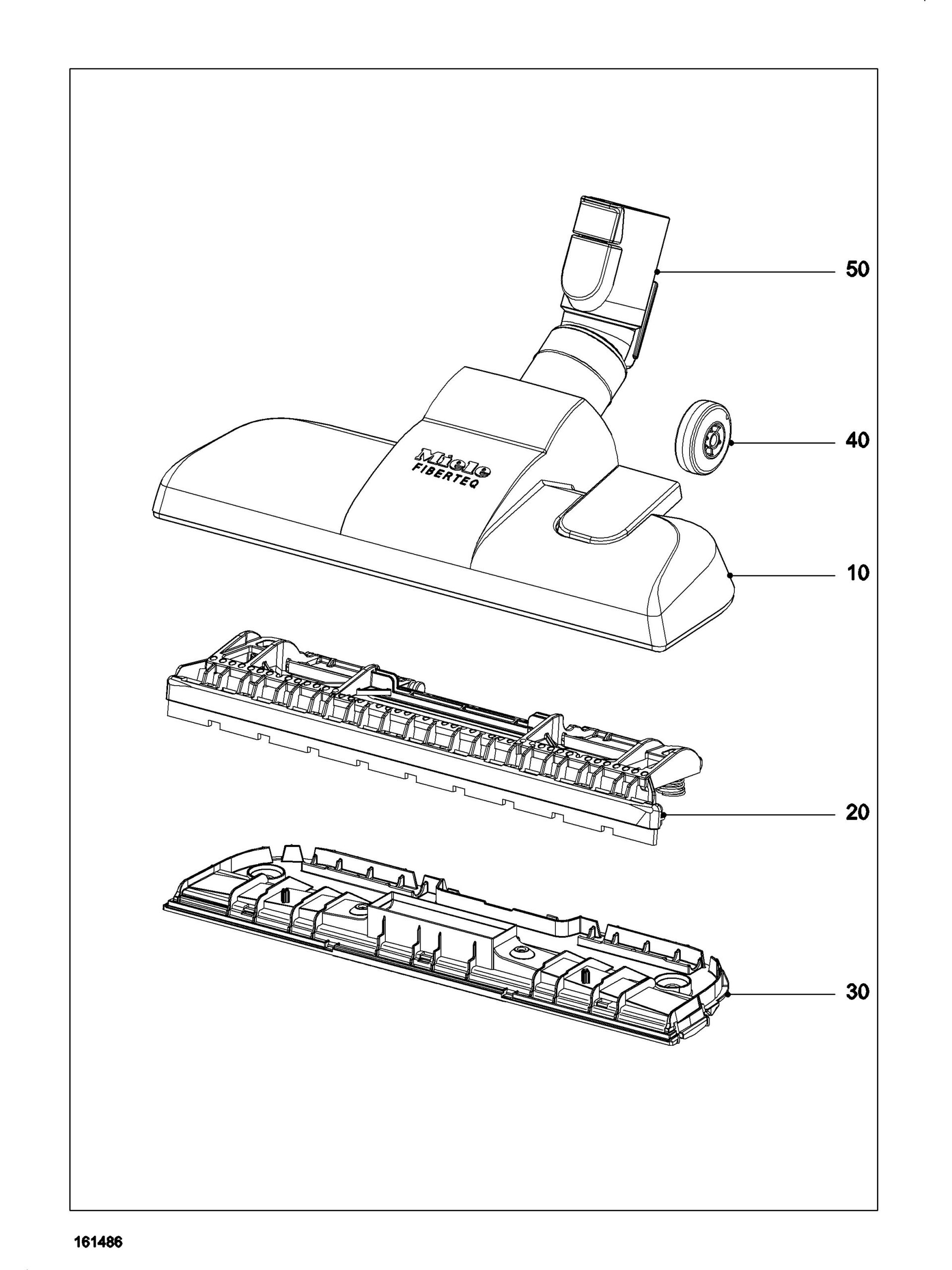

| # | Part image | Description | SKU | Price |
| 10-50 | | Genuine Miele FiberTeQ Floor nozzle SBD 355-3 | 10367830 | $73.53Read more |
| 20 | | Genuine Miele Bristle supp.plate | 7274680 | $63.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Genuine Miele Lower section SBD350/55-3 | 7274701 | $43.60Read more |
| 40 | | Genuine Miele Support roller 2 Pcs. | 7516120 | $18.80Read more |
| 50 |  | Genuine Miele Swivel joint Component AZ | 12837660 | $33.80Read more |

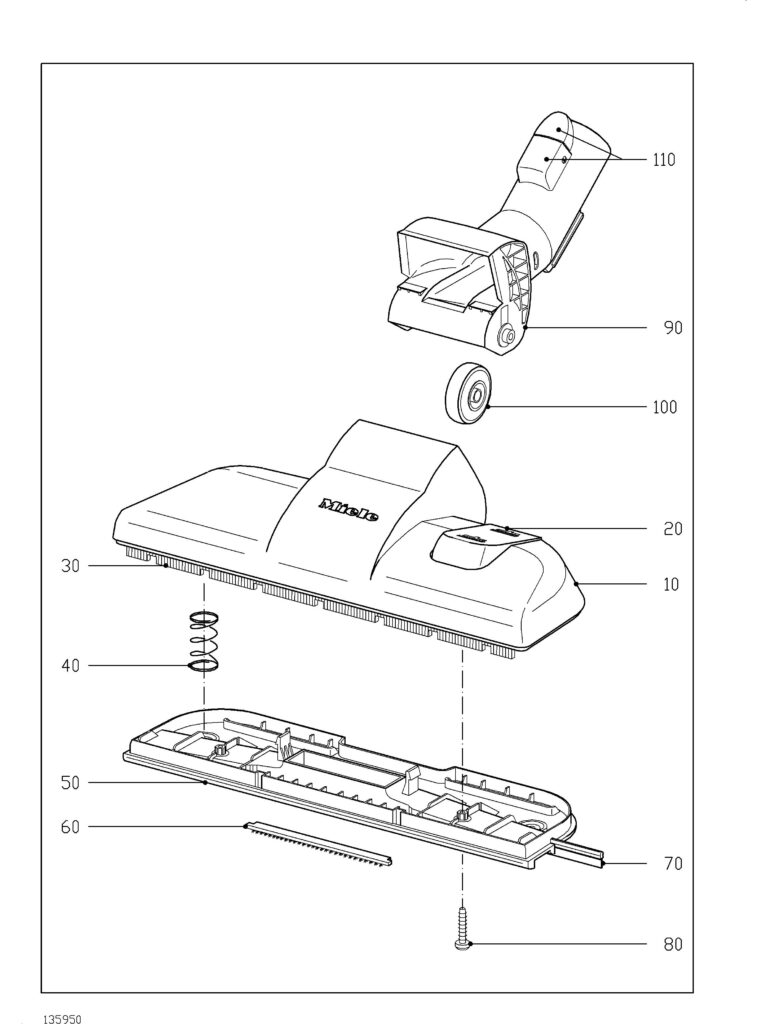

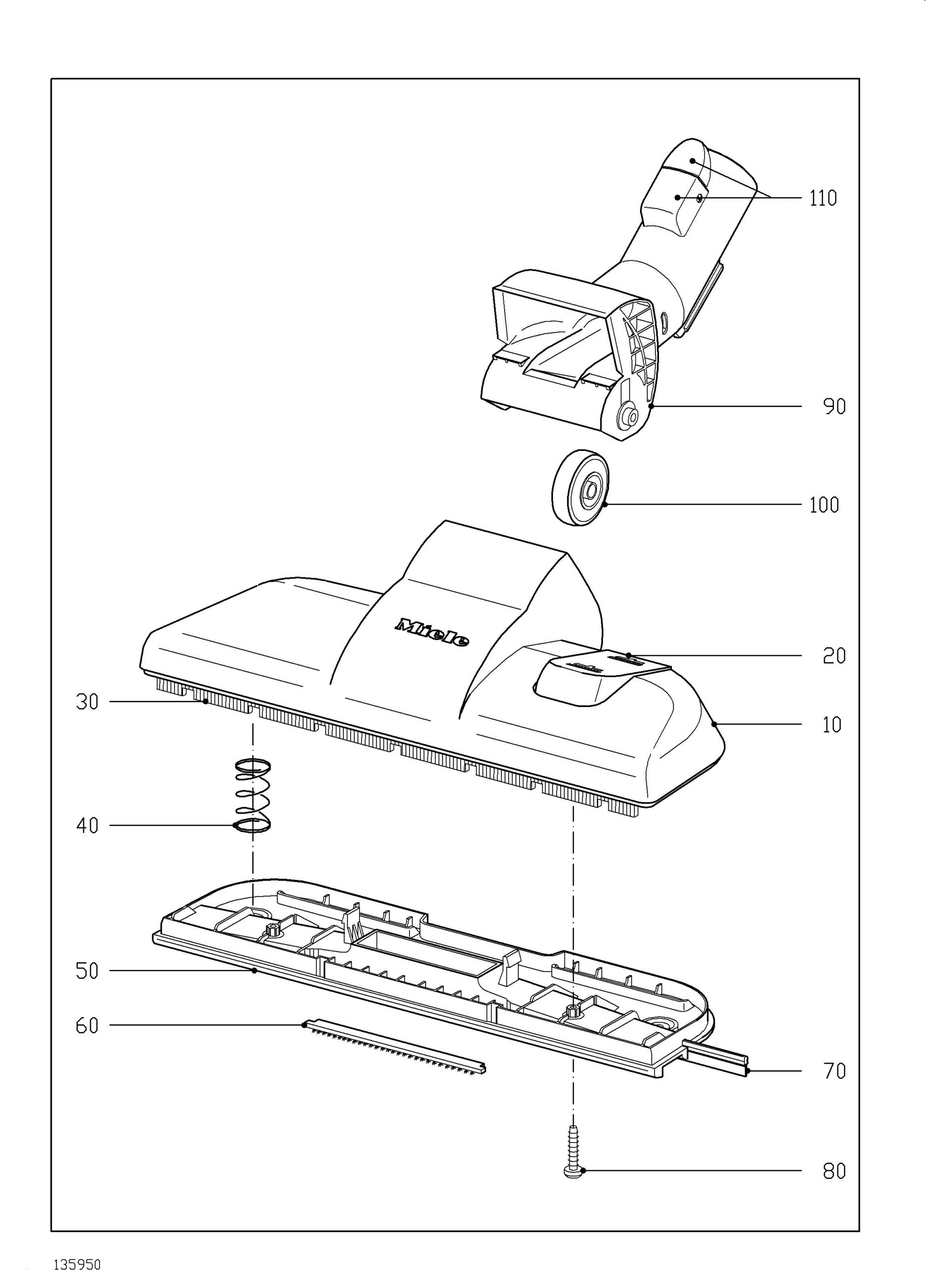

| # | Part image | Description | SKU | Price |
| 10-110 | Not Available | Floor nozzle SBD470-3 FiberTeQ | 9274750 | Not Available |
| 10-20 | Not Available | -Top kpl. | 9017800 | Not Available |
| 20 | | Genuine Miele Foot switch SBD350-3 | 7274671 | $13.50Read more |
| 30 | | Genuine Miele Bristle supp.plate | 7274680 | $63.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Genuine Miele Coil spring 2 Pcs. | 5478660 | $20.60Read more |
| 50-70 | | Genuine Miele Lower section kpl. | 9010081 | $52.20Read more |
| 60 | Not Available | -Thread lifter 2 Pcs. | 7516080 | Not Available |
| 70 |  | Genuine Miele Sealing strip SBD355 | 10242100 | $4.90Read more |
| 80 | No Image | --Screw 3,5X20 | 7292290 | $2.50Read more |
| 90-110 | | Genuine Miele Linkage | 7274641 | $39.50Read more |
| 100 | | Genuine Miele Support roller SBD350/355 | 10455370 | $2.30Read more |
| 110 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |

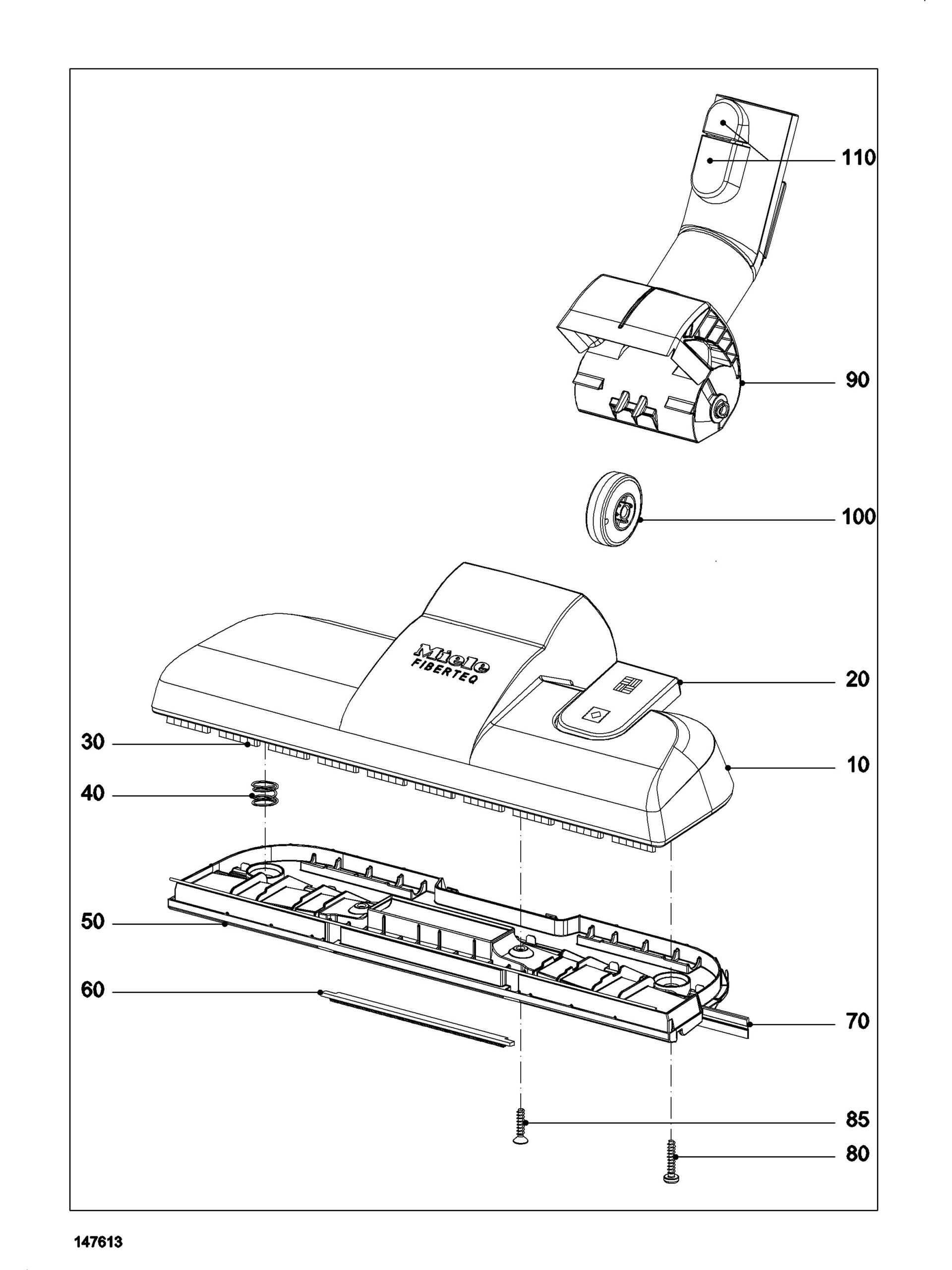

| # | Part image | Description | SKU | Price |
| 10-110 | Not Available | Floor nozzle SBD470-3 FiberTeQ | 9274750 | Not Available |
| 10-110 | Not Available | Floor nozzle SBD470-3 | 10484833 | Not Available |
| 10-20 | No Image | Top Sbd470-3 | 9316870 | $63.00Read more |
| 20 | | Genuine Miele Foot switch SBD470-3 | 9316890 | $33.80Read more |
| 30 | | Genuine Miele Bristle supp.plate SBD470-3 | 9316850 | $33.80Read more |
| 40 | No Image | Coil Spring Sbd470-3 | 9316860 | $15.00Read more |
| 50 | No Image | Lower Section Sbd470-3 | 9316820 | $91.00Read more |
| 60 | No Image | Thread Lifter 2 Pcs. | 9340531 | $15.00Read more |
| 70 | Not Available | Sealing strip SBD470-3 | 9316840 | Not Available |
| 80 | No Image | Raised Head Screw | 9316920 | $15.00Read more |
| 85 | No Image | Low Head Screw | 9316930 | $15.00Read more |
| 90-110 | | Genuine Miele Linkage SBD470-3 | 9316900 | $71.70Read more |
| 100 | | Genuine Miele Support roller SBD470-3 | 9316910 | $20.60Read more |
| 110 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
