Schematic and parts book for Miele S920 S 920. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

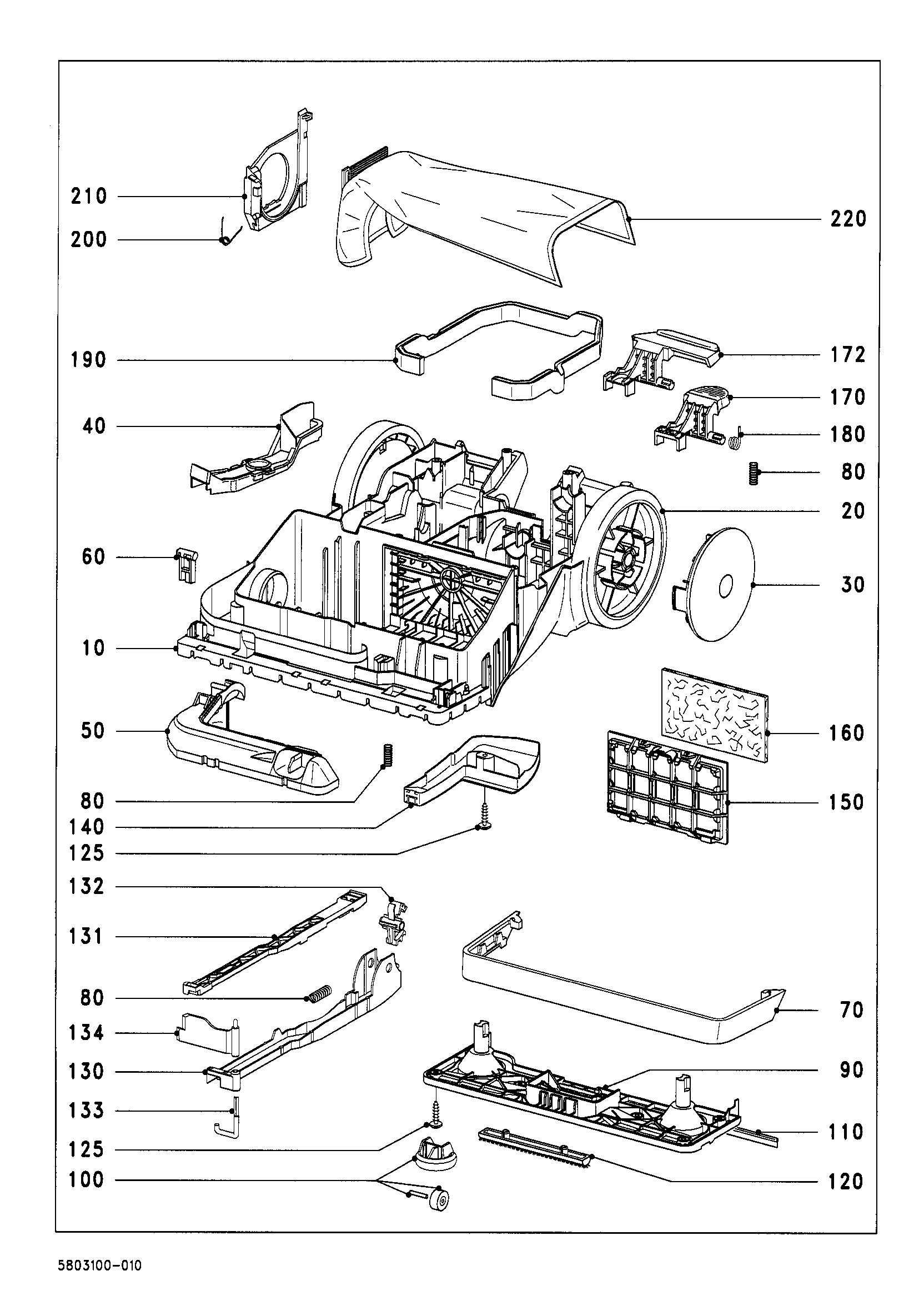

| # | Part image | Description | SKU | Price |
| XX | No Image | --Raised Head Screw 4,0X14 | 1599350 | $2.10Read more |
| XX | No Image | --Raised Head Screw 4,0X14 | 1599350 | $2.10Read more |
| 10+20 | No Image | Casing Bottom Anthracite | 5855410 | $119.00Read more |
| 20 | No Image | -Wheel | 5735450 | $27.00Read more |
| 30 | Not Available | Fascia panel alu-silver | 5817260 | Not Available |
| 30 | Not Available | Fascia panel alu-silver | 5817260 | Not Available |
| 50 | Not Available | Cover strip front | 5732560 | Not Available |
| 60 | Not Available | Hinge 2 Pcs. | 5855530 | Not Available |
| 70 | Not Available | Buffer | 5732540 | Not Available |
| 80 |  | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| +80 | Not Available | Venting kit | 6034160 | Not Available |
| 80 | | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 80 | | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 90-120 | Not Available | Floor plate | 5710701 | Not Available |
| 100 |  | Genuine Miele Support roller 2 Pcs. | 5855421 | $27.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 | No Image | -Sealing Strip | 5712690 | $4.14Read more |
| 120 |  | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 130 | Not Available | -Switch bearing | 5732531 | Not Available |
| 131 | Not Available | -Switch bar | 5949070 | Not Available |
| 132 | Not Available | -Pinion Switch bar | 5949090 | Not Available |
| 133 | Not Available | -Switch lever | 5949120 | Not Available |
| 134 | Not Available | -Switch plate | 5949110 | Not Available |
| 140 | Not Available | Cover strip bottom | 5732550 | Not Available |
| 150 | Not Available | Filter frame | 5732580 | Not Available |
| 160 | Not Available | Dust compart.filter 3 S900 | 5855400 | Not Available |
| 172 | Not Available | Foot switch | 5866551 | Not Available |
| 180 | Not Available | Torsion spring Foot switch | 5732620 | Not Available |
| 190 | No Image | Seal | 5732610 | $15.00Read more |
| 200 | No Image | Torsion Spring Bracket | 5735430 | $2.30Read more |
| 210 | No Image | Bracket Vacuum Cleaner Bag | 5735411 | $7.00Read more |
| 220 | Not Available | vacuum cleaner bag L/L S900 | 5852650 | Not Available |

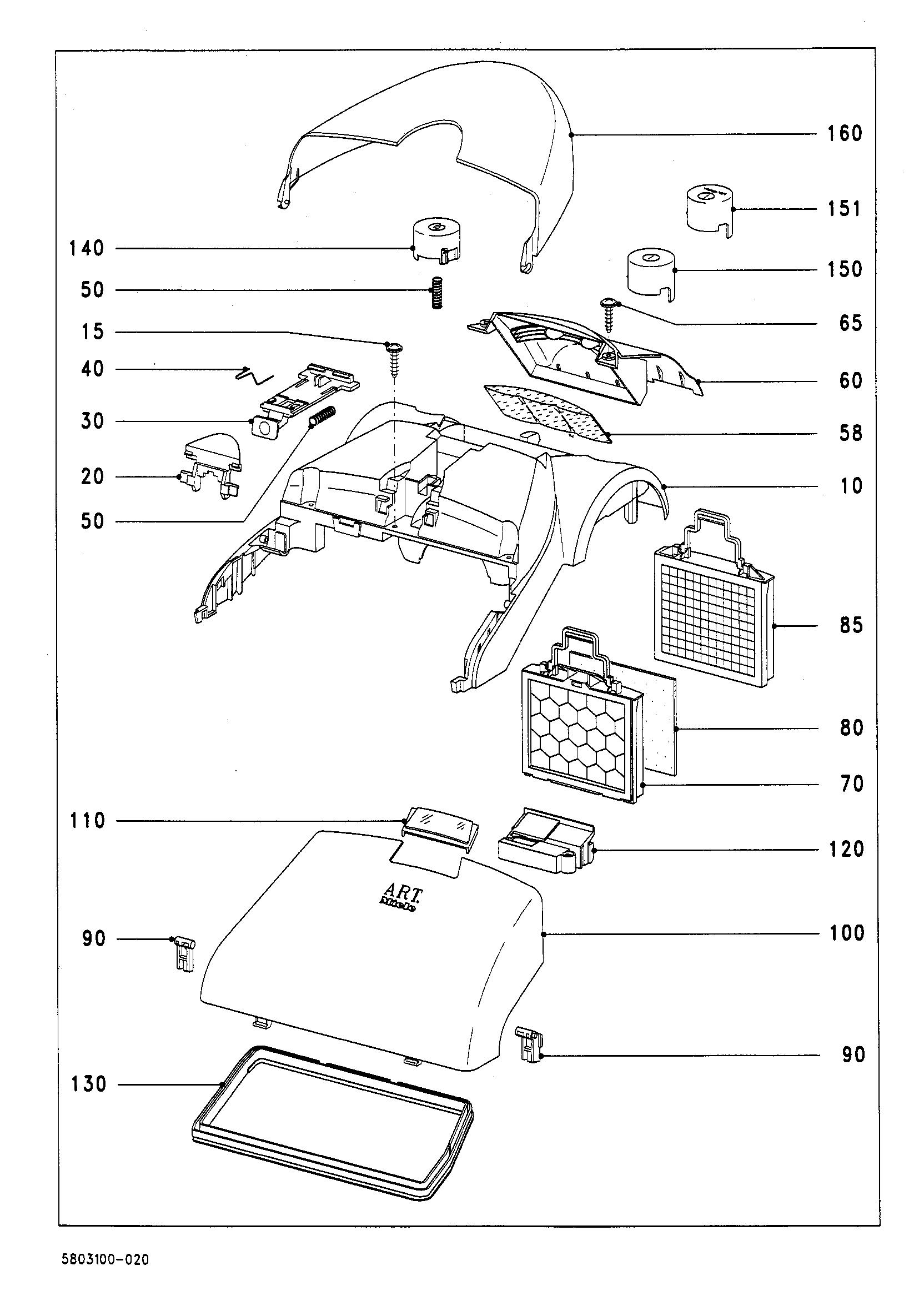

| # | Part image | Description | SKU | Price |
| XX | No Image | --Raised Head Screw 4,0X14 | 1599350 | $2.10Read more |
| XX |  | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 10 | No Image | Cover Frame | 5730551 | $100.00Read more |
| 20 | Not Available | Lock Aluminium-look | 5817270 | Not Available |
| 30 | Not Available | Slide Cover frame | 5731450 | Not Available |
| 40 | Not Available | Torsion spring Lock | 7556250 | Not Available |
| 50 | | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 58 | Not Available | Damping plate | 5844310 | Not Available |
| 60 | Not Available | Filter cap | 5735460 | Not Available |
| 70+80 | Not Available | Grille | 5809580 | Not Available |
| 70 | Not Available | -Grille Sup.Air-Cleanfilter | 5905680 | Not Available |
| 80 | Not Available | Sup.Air-Cleanfilter 3 S900 | 5856430 | Not Available |
| 85 | No Image | Act.Air Cleanfilter S900 | 5893420 | $31.45Read more |
| 85 | No Image | Active Hepa Filter S900 | 5893410 | $31.45Add to cart |
| 85 |  | Compatible alternateMiele active Air clean filter for Miele Art 5893420 5306 More Product Details | SFAAC40 | $24.99Add to cart |
| 90 | Not Available | Hinge 2 Pcs. | 5855530 | Not Available |
| 100 | Not Available | Dust compart.lid black mystery | 5817320 | Not Available |
| 100 | Not Available | Dust compart.lid black mystery | 5817321 | Not Available |
| 100 | No Image | Dust Compart.Lid Mojito | 5817330 | $91.00Read more |
| 100 | No Image | Dust Compart.Lid Hot Chocolate | 5817340 | $91.00Read more |
| 100 | Not Available | Dust compart.lid true blue | 5817350 | Not Available |
| 100+160 | No Image | Casing Red Roses | 5894681 | $299.00Read more |
| 110 | Not Available | Viewing screen Lid | 5731440 | Not Available |
| 120 | Not Available | Change filter ind. | 5809590 | Not Available |
| 130 | Not Available | Sealing ring | 5735400 | Not Available |
| 140 | Not Available | Pushbutton right | 6039990 | Not Available |
| 150 | No Image | Pushbutton Left | 5730500 | $7.00Read more |
| 160 | Not Available | Casing top black mystery | 5817041 | Not Available |
| 160 | Not Available | Casing top mojito | 5817051 | Not Available |
| 160 | Not Available | Casing top hot chocolate | 5817061 | Not Available |
| 160 | Not Available | Casing top true blue | 5817071 | Not Available |
| 160+100 | No Image | Casing Red Roses | 5894681 | $299.00Read more |
| # | Part image | Description | SKU | Price |
| 10-50 | No Image | BASE, CHARGING W/AC ADAPTER Part Number: 603-0422 for Bissell | 6030422 | $31.14Read more |
| 20 | Not Available | -Brake lever Bremsscheibe S900 | 5725760 | Not Available |
| 30 | | Genuine Miele Torsion spring S2000 | 5708570 | $3.60Read more |
| 40 | Not Available | -Slide protection | 5692790 | Not Available |
| 50 | No Image | -Supply Cable 6,65M 230V | 4691520 | $61.00Read more |
| 70 | | Genuine Miele Bearing ring Baureihe SH | 5708753 | $13.50Read more |
| 90 | No Image | Rubber Cushion 2 Pcs. | 5855890 | $11.00Read more |
| 105 | No Image | -Switch 1 Pole 1681.3103 | 9023231 | $9.60Add to cart Special order: ships in 2 to 4 weeks |

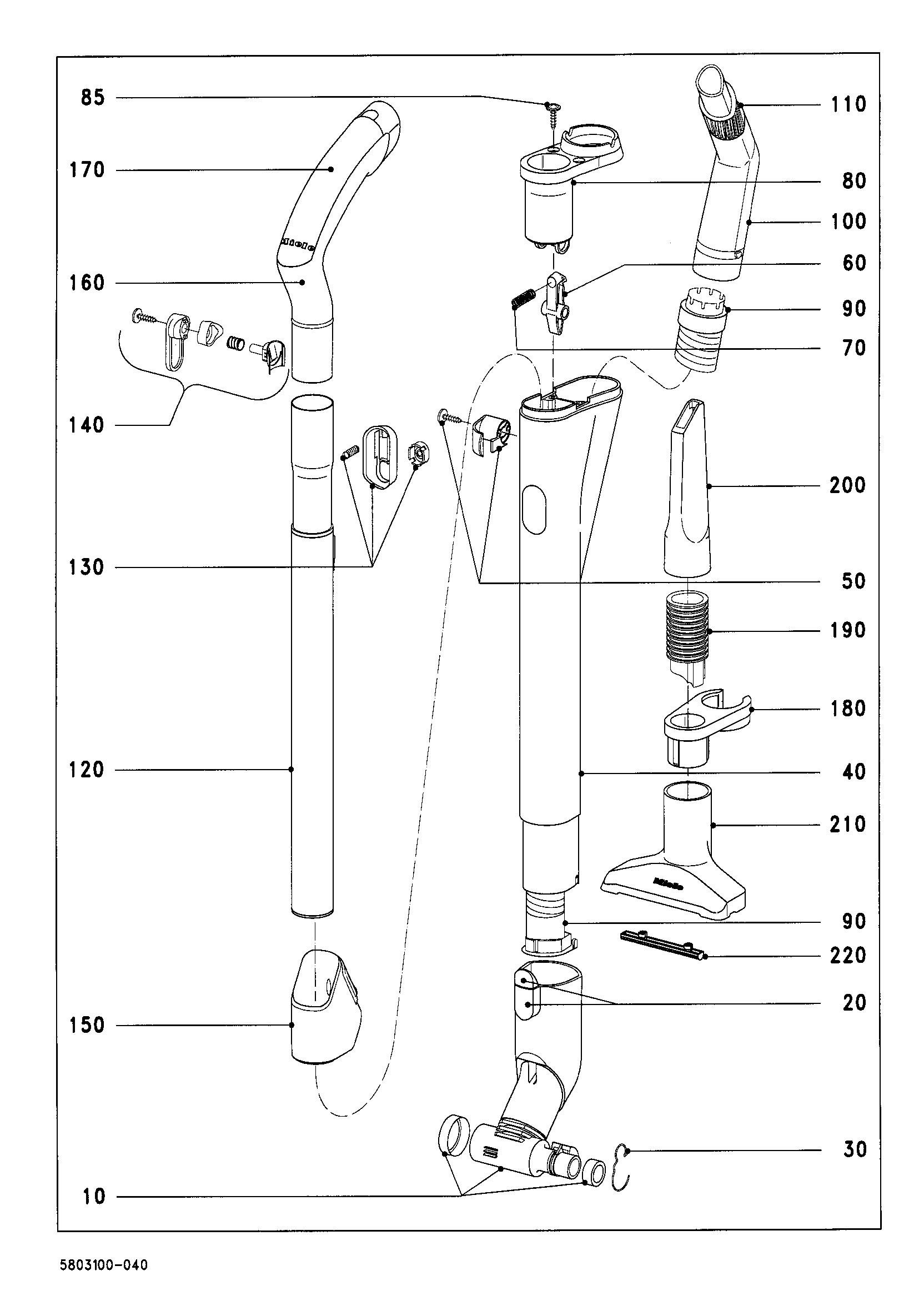

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 10+20 | No Image | Linkage Vollst. | 5812761 | $56.00Read more |
| 20 | Not Available | -interlock anthracite | 5856460 | Not Available |
| 30 | Not Available | Torsion spring Foot switch | 5732620 | Not Available |
| 40-85 | Not Available | Pipe | 5906040 | Not Available |
| 50 | Not Available | -Cable duct | 5855580 | Not Available |
| 60 | Not Available | -Lever End cap | 5712810 | Not Available |
| 70 | | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 80 | Not Available | -End cap | 5712800 | Not Available |
| 90 | Not Available | Suction hose | 5748650 | Not Available |
| 100+110 | Not Available | Jet | 5748690 | Not Available |
| 110 | Not Available | -Brush | 5748710 | Not Available |
| 120-140 | Not Available | Telescopic pipe Stainless steel | 5905980 | Not Available |
| 130 | No Image | -Push Button Round | 5780930 | $15.53Read more |
| 140 | Not Available | -Hook Telescopic pipe | 5855571 | Not Available |
| 150 | Not Available | support | 5859830 | Not Available |
| 160+170 | Not Available | Tubular handle Black Mystery | 5867440 | Not Available |
| 160+170 | No Image | Tubular Handle Mojito | 6049600 | $42.00Read more |
| 160+170 | No Image | Tubular Handle Hot Chocolate | 6049610 | $42.00Read more |
| 160+170 | No Image | Tubular Handle True Blue | 6049620 | $42.00Read more |
| 160+170 | Not Available | Tubular handle Red Roses | 6049630 | Not Available |
| 170 | Not Available | -Inset handle black mystery | 5843660 | Not Available |
| 170 | Not Available | -Inset handle black mystery | 5843660 | Not Available |
| 170 | Not Available | -Inset handle black mystery | 5843660 | Not Available |
| 170 | Not Available | -Inset handle black mystery | 5843660 | Not Available |
| 170 | Not Available | -Inset handle red roses | 5843740 | Not Available |
| 180 | Not Available | Holder Accessory | 5849281 | Not Available |
| 190 | Not Available | Adapter Accessory | 5791190 | Not Available |
| 200 | No Image | Crevice Nozzle 149Mm Obsw | 9442631 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 210+220 | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 220 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
