Schematic and parts book for Miele S8530 S8530. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

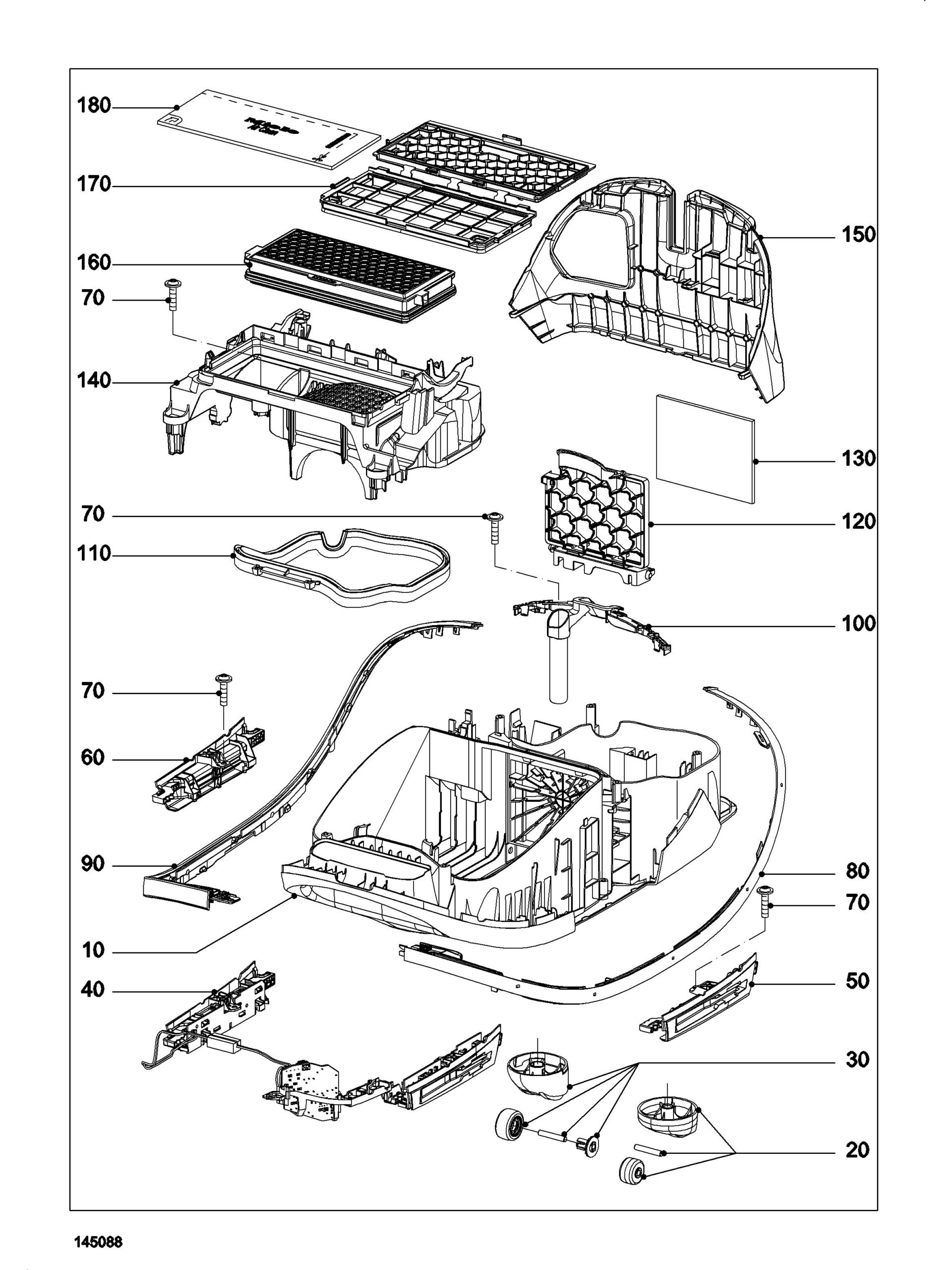

| # | Part image | Description | SKU | Price |
| w/o fig. |  | Genuine Miele Suction control S2/S5/S8 | 6455390 | $6.60Read more |
| w/o fig. | No Image | Suspension Telescopic Pipe Rts. S8 | 7793982 | $7.00Read more |
| w/o fig. | No Image | Suspension Telescopic Pipe Lks. S8 | 7794002 | $7.00Read more |
| XX |  | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 30 | No Image | Slide Skid Dyn. Drive Obsw Assy | 12497890 | $27.00Read more |
| 40 | | Genuine Miele Lighting unit EZ8021 | 7794783 | $397.20Read more |
| 80+90 |  | Genuine Miele Buffer | 9239220 | $150.60Read more |
| 80+90 | | Genuine Miele Buffer beflockt | 9239230 | $176.20Read more |
| 100 |  | Genuine Miele Funnel | 7782554 | $71.70Read more |
| 100 |  | Available ReconditionedReconditioned Genuine Miele Funnel More Product Details | 7782554R | $64.70Add to cart |
| 110-130 | | Genuine Miele Casing bottom Standard assy | 9283039 | $105.10Read more |
| 110-130 | | Genuine Miele Casing bottom Dynamic Drive assy | 9283058 | $150.60Read more |
| 110 | | Genuine Miele Seal Motor housing | 7780793 | $13.50Read more |
| 120 |  | Genuine Miele Filter frame S8 | 7780743 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 | | Genuine Miele Casing bottom Light DynDrive assy | 11489610 | $329.00Read more |
| 130 |  | Genuine Miele Dust compart.filter 3 pcs. | 6713110 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 140 | No Image | Mounting Plate Obsw | 12507420 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 150 |  | Genuine Miele Rear panel | 7781532 | $24.70Read more |
| 160 | No Image | Act.Air Cleanfilter | 12785350 | $49.00Add to cart Special order: ships in 2 to 4 weeks |
| 160 | No Image | Hepa-Filter | 12785390 | $64.00Add to cart Special order: ships in 2 to 4 weeks |
| 170 | No Image | Spacer Bracket Air-Clean Filter | 12550741 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 180 |  | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $13.00Add to cart Special order: ships in 2 to 4 weeks |

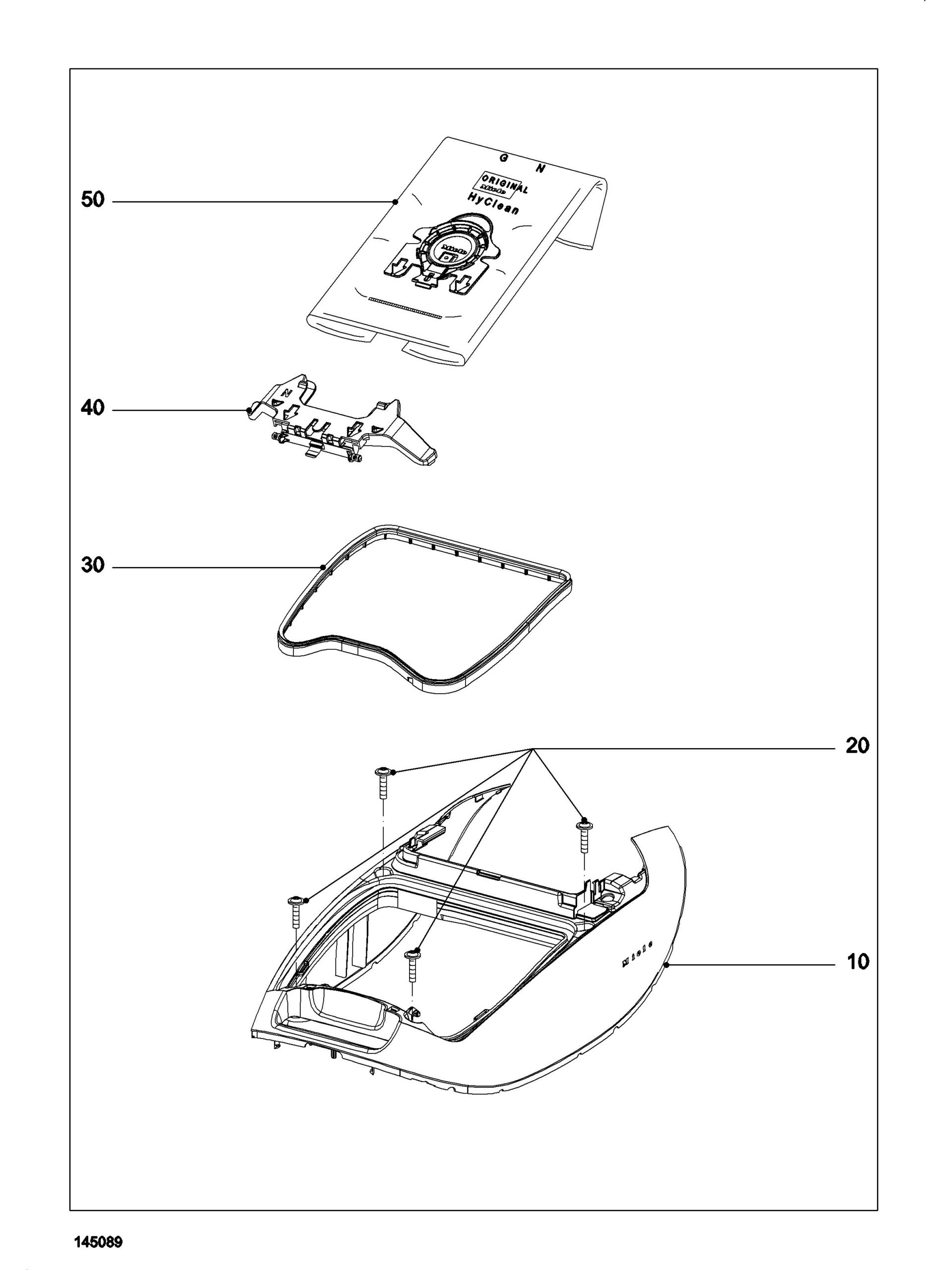

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 30+40 | | Genuine Miele Cover frame Deep sea blue met. S8 | 9531792 | $120.70Read more |
| 30+40 | | Genuine Miele Cover frame Ivory white kpl.SG | 9283373 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Lotos white kpl. SG | 9283333 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Canary yellow kpl.SG | 9283353 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Obsidian black SG | 9283363 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Diamondgrey kpl.SG | 9283383 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Tayberry red 2 SG | 10713073 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Koi orange kpl.SG | 9283403 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Sprint blue kpl. S8 | 9283412 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Bronze-pearl finish SG | 9283453 | $120.70Read more |
| 30+40 | | Genuine Miele Cover frame Mahogany br.met. S8 | 9283462 | $120.70Read more |
| 30+40 | | Genuine Miele Cover frame Autumn red kpl. SG | 9283343 | $93.60Read more |
| 30+40 | | Genuine Miele Cover frame Tizia red metallic | 9283482 | $120.70Read more |
| 30+40 | | Genuine Miele Cover frame Graphite grey kpl. SG | 10645413 | $78.10Read more |
| 30+40 | | Genuine Miele Cover frame Technoblue kpl. SG | 10645433 | $78.10Read more |
| 30+40 | | Genuine Miele Cover frame Petrol kpl. SG | 10645383 | $78.10Read more |
| 30+40 | | Genuine Miele Cover frame Curry yellow kpl. SG | 10645403 | $78.10Read more |
| 30+40 | | Genuine Miele Cover frame Marine blue kpl. SG | 9782503 | $93.60Read more |
| 30 | | Genuine Miele Seal für Staubraum | 7793083 | $13.50Read more |
| 40 |  | Miele Blue Bag Dock Type GN for C3 and S8000 Series Canisters PN 7793096 | 7793096 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 | No Image | Vacuum Cleaner Bag Gn Hyclean Pure Int | 12421130 | $0.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 | Not Available | vacuum cleaner bag G/N USA | 7805110 | Not Available |

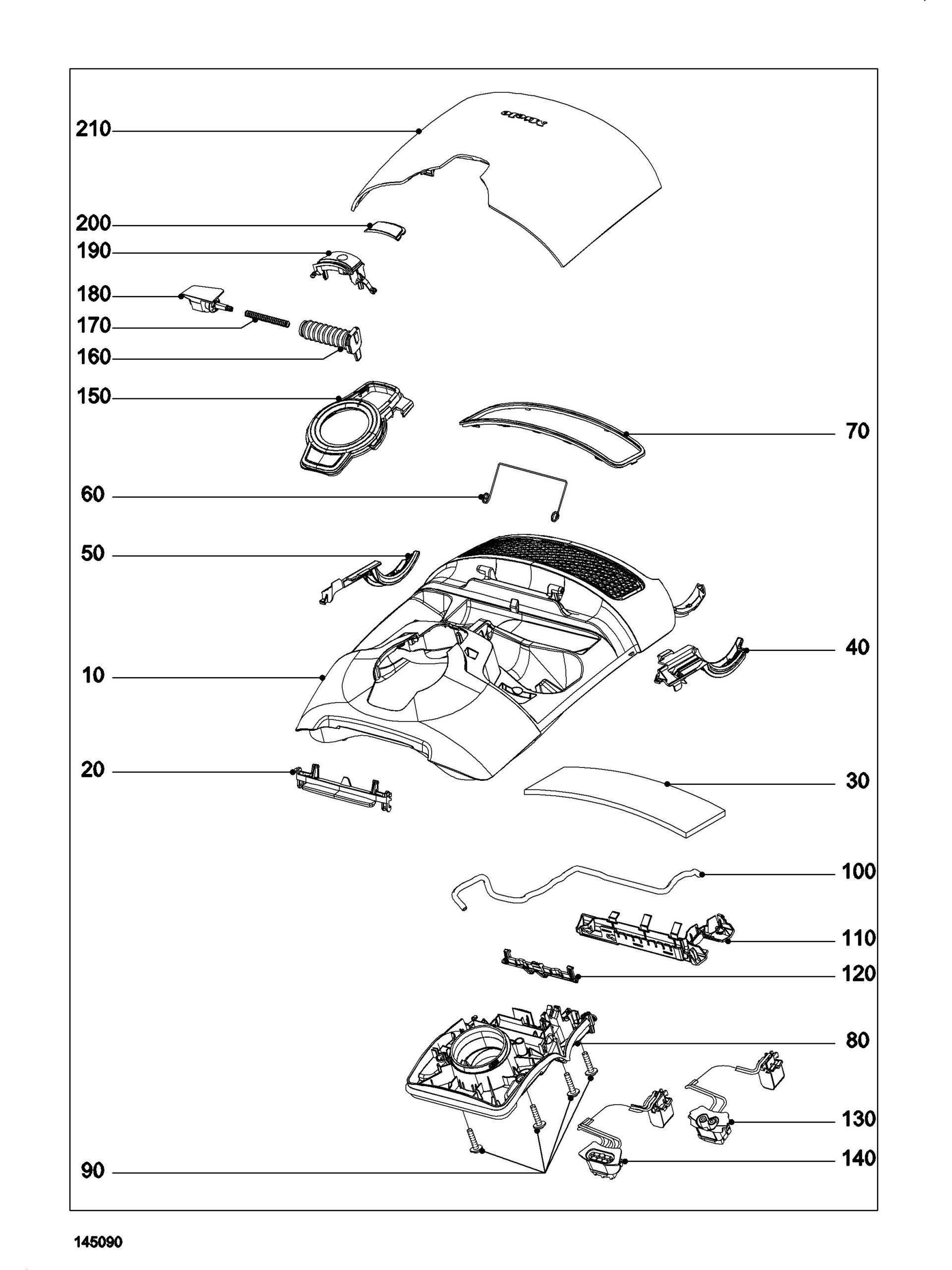

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| w/o fig. | | Genuine Miele Cover f. Steckdose | 7783112 | $6.60Read more |
| 10-50 | | Genuine Miele Casing top Deep sea blue met. S8 | 9086942 | $120.70Read more |
| 10-50 |  | Genuine Miele Casing top LOWS assy | 9283622 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 10-50 |  | Genuine Miele Casing top Canary yellow kpl. | 9283651 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 10-50 | | Genuine Miele Casing top OBSW assy | 9283662 | $98.00Read more |
| 10-50 |  | Genuine Miele Casing top Ivory white kpl.S8 | 9283671 | $98.00Read more |
| 10-50 |  | Genuine Miele Casing top Diamondgrey kpl. | 9283681 | $98.00Read more |
| 10-50 | | Genuine Miele Casing top BRRT 2 assy | 10713092 | $78.10Read more |
| 10-50 | No Image | Casing Top Koi Orange Kpl. | 9283701 | $109.00Read more |
| 10-50 | Not Available | Casing top Tizia red metallic | 9283761 | Not Available |
| 10-50 |  | Genuine Miele Casing top Sprint blue kpl. S8 | 9283711 | $98.00Read more |
| 10-50 | | Genuine Miele Casing top BRPF assy | 9283732 | $98.00Read more |
| 10-50 | Not Available | Casing top Deep sea blue met. S8 | 9531811 | Not Available |
| 10-50 | | Genuine Miele Casing top MART assy | 9283632 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 10-50 | | Genuine Miele Casing top PETR assy | 10645492 | $78.10Read more |
| 10-50 | No Image | Casing Top Cuge Assy | 10645502 | $83.00Read more |
| 10-50 | | Genuine Miele Casing top GRGR assy | 10645512 | $78.10Read more |
| 10-50 | | Genuine Miele Casing top Technoblue kpl. SG | 10645521 | $85.50Read more |
| 10-50 |  | Genuine Miele Casing top Mahogany br.met. | 9283771 | $120.70Read more |
| 10-50 | | Genuine Miele Casing top MABL assy | 9782522 | $98.00Read more |
| 20 |  | Genuine Miele Lock S8 | 7804723 | $2.30Read more |
| 30 |  | Genuine Miele Insulation matting | 7815232 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| 40 | No Image | Reinforcement Left | 7815253 | $11.00Read more |
| 50 | No Image | Reinforcement Right | 7815273 | $11.00Read more |
| 60 | | Genuine Miele Torsion spring Lid | 7815243 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| 70 | | Genuine Miele Trim Casing top SG Chrom | 7936913 | $59.40Read more |
| 80 | | Genuine Miele Dust channel Automatic | 7805054 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 100 | | Genuine Miele Hose für Staubführung | 7805291 | $4.90Read more |
| 110 |  | Genuine Miele Cover strip S8 | 7805283 | $15.00Read more |
| 120 |  | Genuine Miele interlock Lid | 7810882 | $2.30Read more |
| 130 |  | Genuine Miele Flush socket outlet 2 pole assy | 7805082 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
| 150 | | Genuine Miele Ring lacquered Mattchrome II | 10557070 | $59.40Read more |
| 160 |  | Genuine Miele Conc.shaped hose Change filter ind. | 7797301 | $10.70Read more |
| 170 |  | Genuine Miele Spring für FWA S8 | 9184811 | $13.50Read more |
| 170 | No Image | Spring Für Fwa Eu | 10096690 | $2.30Read more |
| 180 |  | Genuine Miele Slide f. FWA | 7783013 | $2.30Read more |
| 190 |  | Genuine Miele Pushbutton Lid | 7783052 | $2.30Read more |
| 200 |  | Genuine Miele Viewing screen Change filter ind. | 7783002 | $4.90Read more |
| 210 | | Genuine Miele Lid Lotos white KD Complete C3 | 10084170 | $52.20Read more |
| 210 | | Genuine Miele Lid Canary yellow KD Complete C3 | 10084180 | $52.20Read more |
| 210 | | Genuine Miele Lid Obsidian black KD Complete C3 | 10082620 | $52.20Read more |
| 210 | | Genuine Miele Lid Obsidian black KD Complete C3 | 10082620 | $52.20Read more |
| 210 | | Genuine Miele Lid Bronze-pearl finish KD CompleteC3 | 10084290 | $52.20Read more |
| 210 | | Genuine Miele Lid Ivory white KD Complete C3 | 10084210 | $52.20Read more |
| 210 | | Genuine Miele Lid Autumn red KD Complete C3 | 10082450 | $52.20Read more |
| 210 | | Genuine Miele Lid Deep sea blue met. KD Compl.C3 | 10084330 | $76.00Add to cart Special order: ships in 2 to 4 weeks |
| 210 | Not Available | Lid Sprint blue KD Complete C3 | 10084220 | Not Available |
| 210 | | Genuine Miele Lid Koi orange KD Complete C3 | 10084230 | $52.20Read more |
| 210 | Not Available | Lid Diamondgrey KD Complete C3 | 10084240 | Not Available |
| 210 | | Genuine Miele Lid Tizia red metallic KD Comp.C3 | 10084350 | $62.00Read more |
| 210 | | Genuine Miele Lid Mahogany br.met. KD CompleteC3 | 10084380 | $62.00Read more |
| 210 | No Image | Lid Graphite Grey Kd Complete C3 | 10729610 | $76.00Read more |
| 210 | | Genuine Miele Lid Petrol KD Complete C3 | 10729690 | $71.70Read more |
| 210 | | Genuine Miele Lid Curry yellow KD Complete C3 | 10729720 | $39.50Read more |
| 210 | | Genuine Miele Lid Technoblue KD Complete C3 | 10729670 | $52.20Read more |
| 210 | | Genuine Miele Lid Marine blue KD Complete C3 | 10084270 | $52.20Read more |

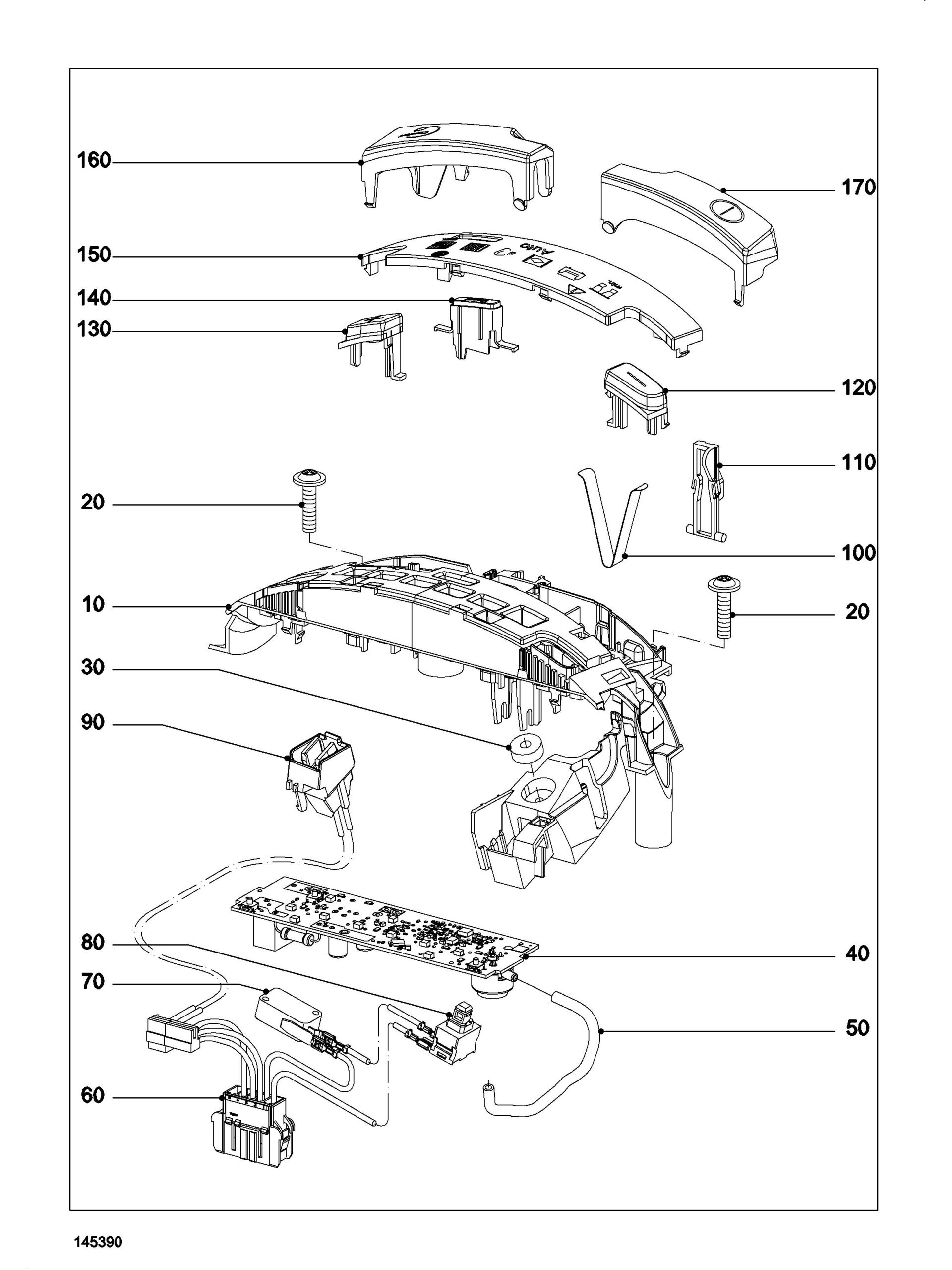

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 10 | | Genuine Miele Cap "automatik" | 9283130 | $120.70Read more |
| 30 | | Genuine Miele Seal Air shield | 7799341 | $2.30Read more |
| 50 | | Genuine Miele Hose AUTO | 7781781 | $2.30Read more |
| 60 | No Image | Harness Edw8503 Assy | 7972365 | $47.00Read more |
| 70 | | Genuine Miele Switch 250V | 4487791 | $20.60Read more |
| 80 | No Image | -Switch 1 Pole 1681.3103 | 9023231 | $9.60Add to cart Special order: ships in 2 to 4 weeks |
| 90 | No Image | Harness 2 Pole B7 | 7798220 | $22.00Read more |
| 100 | | Genuine Miele Leaf spring S8 | 7781641 | $2.30Read more |
| 110 | | Genuine Miele Lever für Parking | 7781791 | $10.70Read more |
| 120 | | Genuine Miele Pushbutton "minus" | 7781701 | $10.70Read more |
| 130 | | Genuine Miele Pushbutton "plus" | 7781721 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 140 | | Genuine Miele Pushbutton "Reset" laser shaped | 7781892 | $15.00Read more |
| 150 | | Genuine Miele Viewing screen automatik | 7799282 | $52.20Read more |
| 150 | No Image | Viewing Screen Bedruckt "Eco" | 9853680 | $0.00Read more |
| 160 | No Image | Foot Switch Right Verchromt | 7846772 | $63.00Read more |
| 170 | No Image | Foot Switch Left Sg Crii | 10557090 | $63.00Read more |

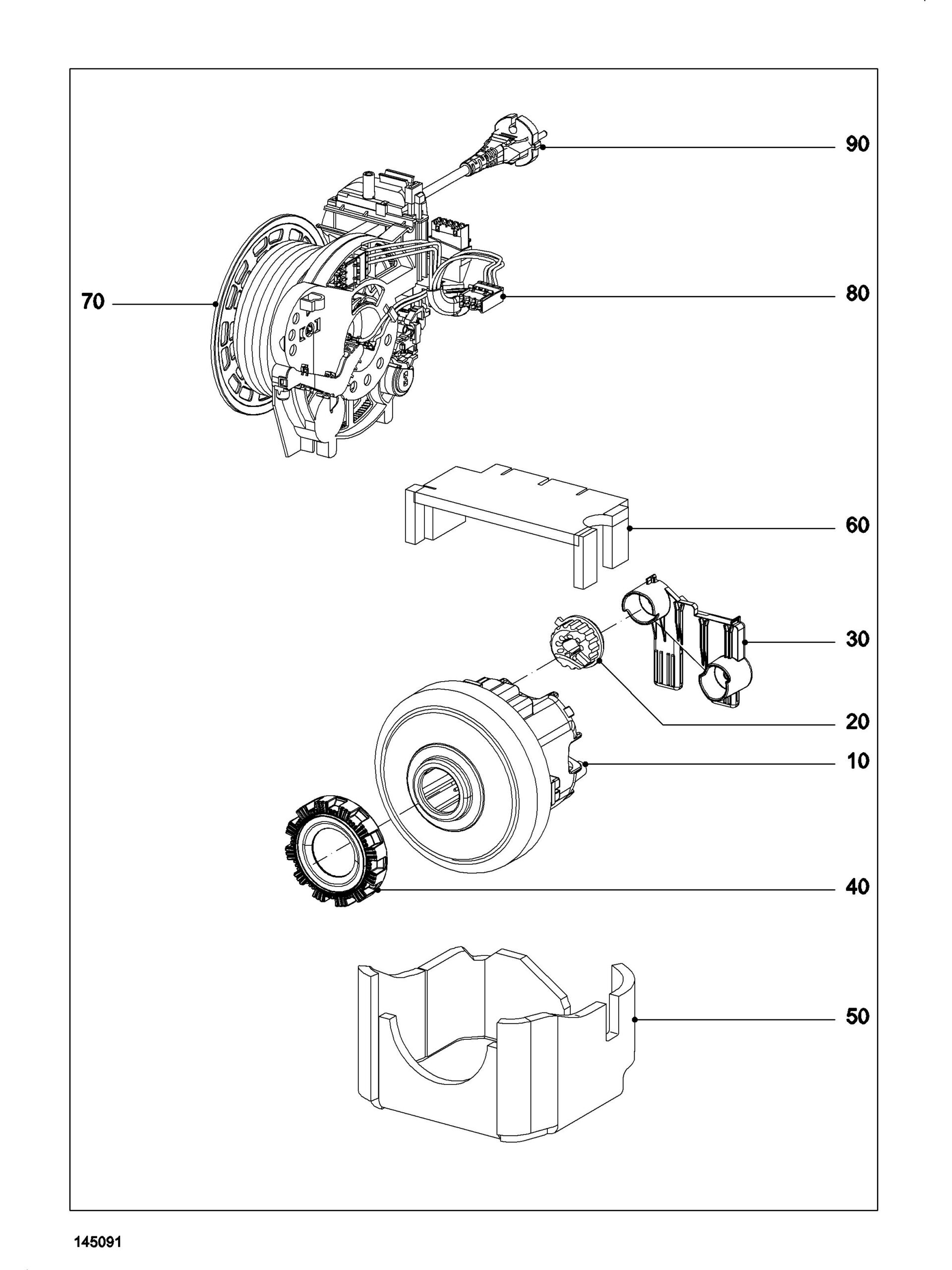

| # | Part image | Description | SKU | Price |
| 20 | | Genuine Miele Rubber cushion Baureihe SD/SG | 7497732 | $3.60Add to cart |
| 30 | | Genuine Miele Motor bracket S8 | 7781382 | $2.30Add to cart |
| 40 | | Genuine Miele Bearing ring V18 | 7714533 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 | | Genuine Miele Damping plate Casing bottom | 7780703 | $12.00Read more |
| 60 | | Genuine Miele Damping plate Mounting plate | 7781553 | $20.00Read more |
| 70-90 | | Genuine Miele Cable reel S8000 8,5m EU | 10858382 | $83.22Add to cart Special order: ships in 2 to 4 weeks |
| 80 | No Image | Connecting Cable S8000/Kt20 | 7965604 | $42.00Read more |

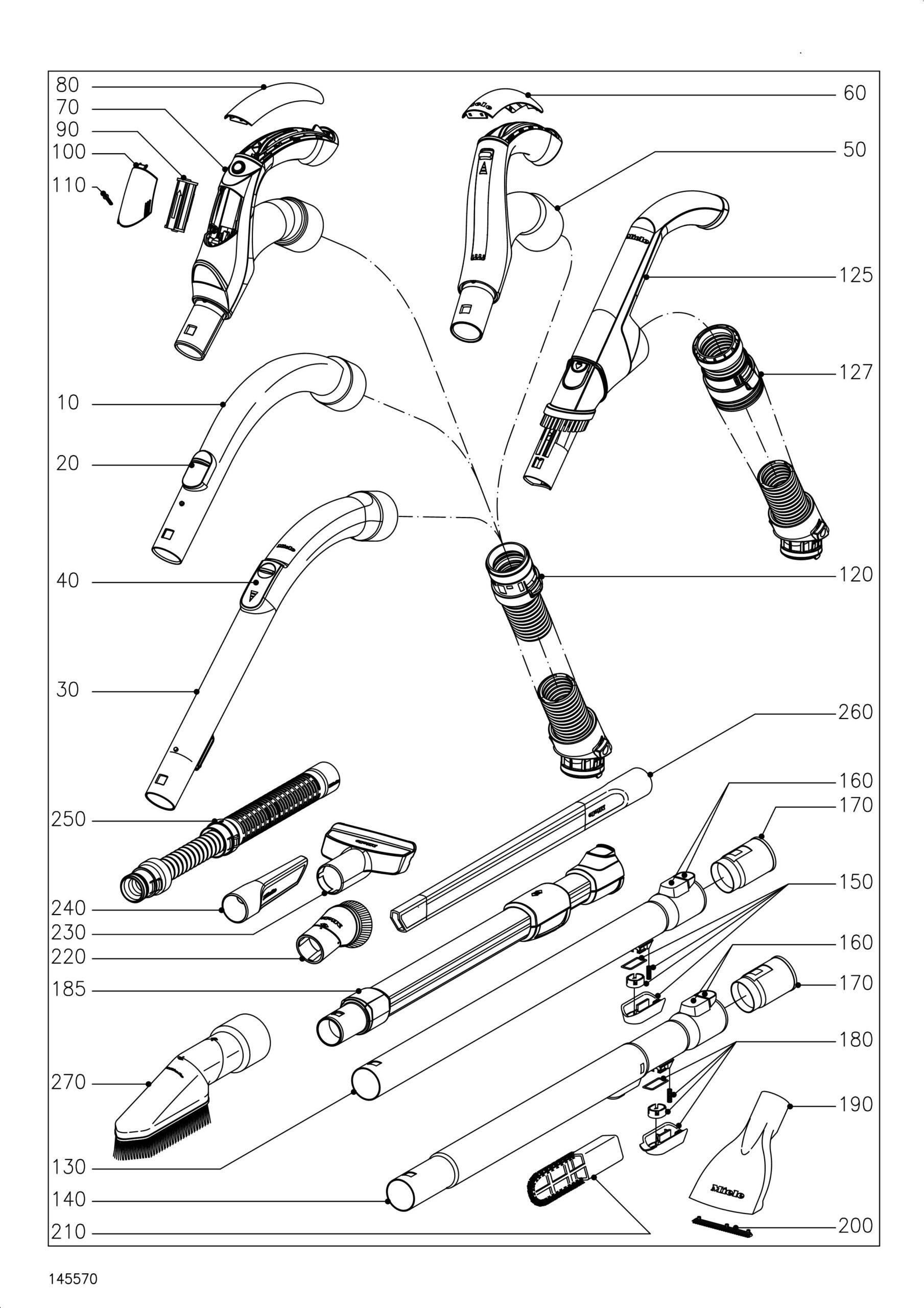

| # | Part image | Description | SKU | Price |
| 10+20 | | Genuine Miele Tubular handle anthracite | 9442601 | $37.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Suction control anthracite | 5141090 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 30+40 | | Genuine Miele Tubular handle XXL Parking assy | 7586107 | $56.00Read more |
| 40 | | Genuine Miele Suction control f. Griffr. XXL & 2.0 | 7587200 | $2.30Read more |
| 50+60 | | Genuine Miele Tubular handle Comfort Standard | 6163669 | $91.00Add to cart Special order: ships in 2 to 4 weeks |
| 60 |  | Genuine Miele Inset handle Printed | 6157660 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 70-110 | No Image | Tubular Handle Vollst.M.Beleuchtung | 7913282 | $0.00Read more |
| 80 | | Genuine Miele Inset handle Printed | 6157660 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 |  | Genuine Miele Battery Holder | 9121950 | $27.00Add to cart Special order: ships in 2 to 4 weeks |
| 100 | | Genuine Miele Cover Battery | 9121730 | $24.70Read more |
| 110 | | Genuine Miele Screw Plastic 3x10 | 9121940 | $2.30Read more |
| 120 | No Image | Suction Hose Sg Obsw Assy | 12445500 | $53.00Add to cart Special order: ships in 2 to 4 weeks |
| 125 | | Genuine Miele Tubular handle EFS OBSW assy | 12442080 | $76.00Add to cart Special order: ships in 2 to 4 weeks |
| 127 | No Image | Suction Hose Efs Obsw Assy | 12445720 | $70.00Read more |
| 150-170 | | Genuine Miele Telescopic pipe 2-part st.steel | 10275580 | $0.00Read more |
| 150 |  | Genuine Miele Push button Round | 5780932 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 160 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 160+170 |  | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 180 |  | Genuine Miele Push button Round | 6151392 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 185 |  | HES Telescopic Wand for Miele | 10615280 | $77.99Add to cart Special order: ships in 2 to 4 weeks |
| 185 |  | Available ReconditionedGenuine Reconditioned Miele Telescopic Wand - Non Electric More Product Details | 5658812R | $0.00Add to cart |
| 185 | | HES Telescopic Wand for Miele | 10615280 | $77.99Add to cart Special order: ships in 2 to 4 weeks |
| 185 | | HES Telescopic Wand for Miele | 10615280 | $77.99Add to cart Special order: ships in 2 to 4 weeks |
| 190+200 | | Genuine Miele ST Mattress nozzle SMD10 | 7252280 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 200 | | Genuine Miele Thread lifter | 5056530 | $9.70Read more |
| 210 | | Genuine Miele ST Radiator brush SHB30 | 9660490 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 220 | No Image | Dusting Brush L | 12187780 | $24.00Add to cart Special order: ships in 2 to 4 weeks |
| 220 |  | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $26.00Add to cart Special order: ships in 2 to 4 weeks |
| 230 | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 240 | No Image | Crevice Nozzle 149Mm Obsw | 9442631 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 250 |  | Genuine Miele ST Flexible hose SFS10 | 7252210 | $44.00Add to cart Special order: ships in 2 to 4 weeks |
| 260 | | Genuine Miele ST Flex. crev. nozzle SFD20 560mm | 7252100 | $39.00Add to cart Special order: ships in 2 to 4 weeks |
| 260 |  | Compatible alternateMiele SFD20 Long Flexible Crevice Tool for Miele Vacuums More Product Details | SFD20 | $39.00Add to cart Special order: ships in 2 to 4 weeks |
| 270 | | Genuine Miele ST Universal brush SUB20 | 11607330 | $49.00Read more |

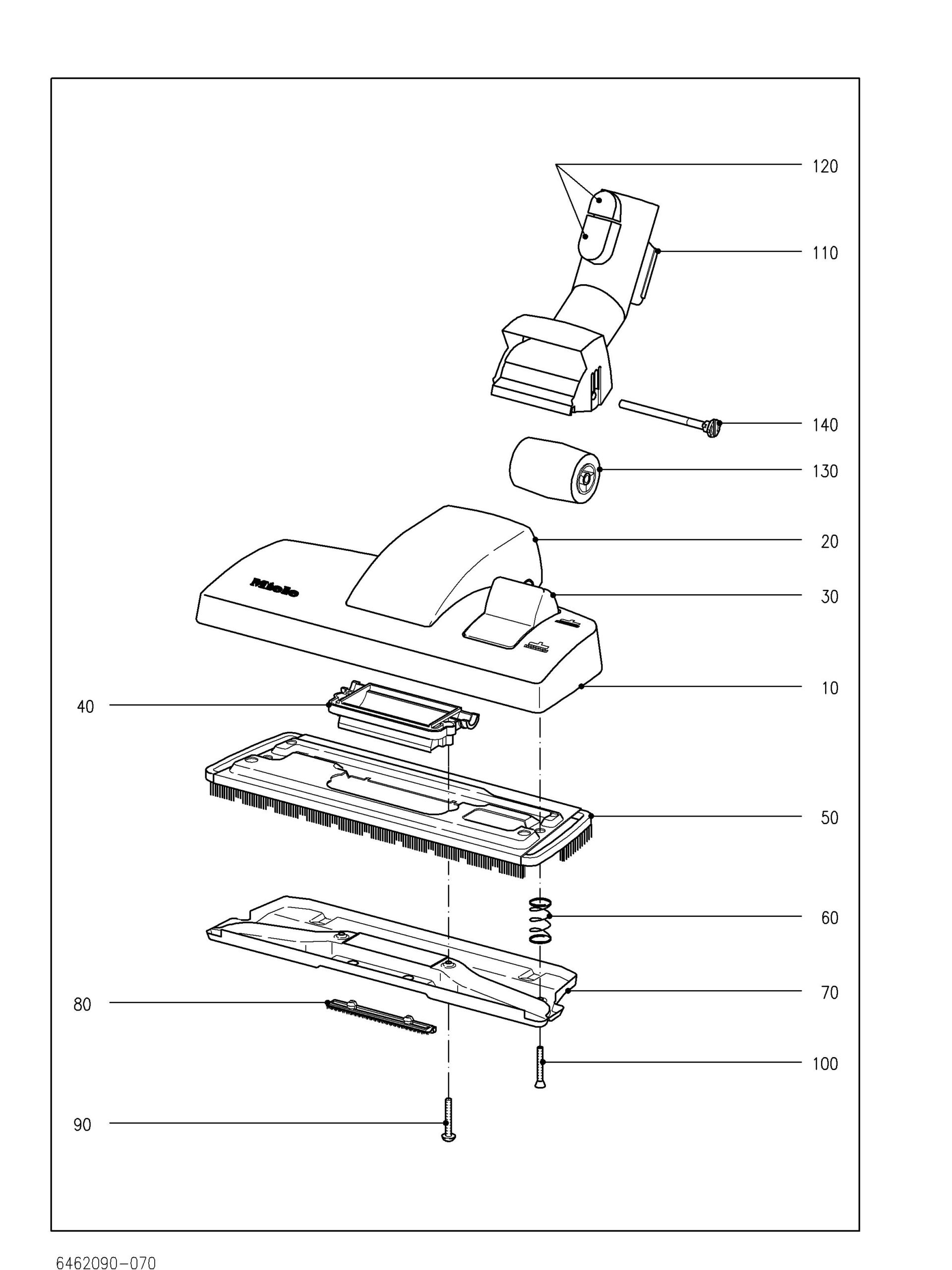

| # | Part image | Description | SKU | Price |
| 10-140 | Not Available | Floor nozzle SBD285-3 | 6223980 | Not Available |
| 10-140 | Not Available | Floor nozzle SBD285-3 AllTeQ | 7253830 | Not Available |
| 10 |  | Genuine Miele Top anthracite | 5235512 | $27.90Read more |
| 20 |  | Genuine Miele Suction channel anthracite | 5235541 | $24.70Read more |
| 30 |  | Genuine Miele Foot switch anthracite | 5235503 | $15.00Read more |
| 40 |  | Genuine Miele Fixing | 5235480 | $9.70Read more |
| 50 |  | Genuine Miele Bristle supp.plate | 5235463 | $33.80Read more |
| 60 |  | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |
| 70+80 |  | Genuine Miele Lower section | 5235453 | $43.60Read more |
| 80 |  | Genuine Miele Thread lifter 2 Pcs. | 6204050 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 |  | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $3.60Read more |
| 100 | No Image | --Countersunk Screw 35X20 | 5289870 | $2.30Read more |
| 110+120 |  | Genuine Miele Linkage SBD285-3 assy | 6578132 | $36.00Add to cart Special order: ships in 2 to 4 weeks |
| 120 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 |  | Genuine Miele Support roller | 5235530 | $15.00Read more |
| 140 |  | Genuine Miele Shaft Bayonett fitting | 5235520 | $13.50Read more |
Report errors on this page HERE
