Schematic and parts book for Miele S734 S 734. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |

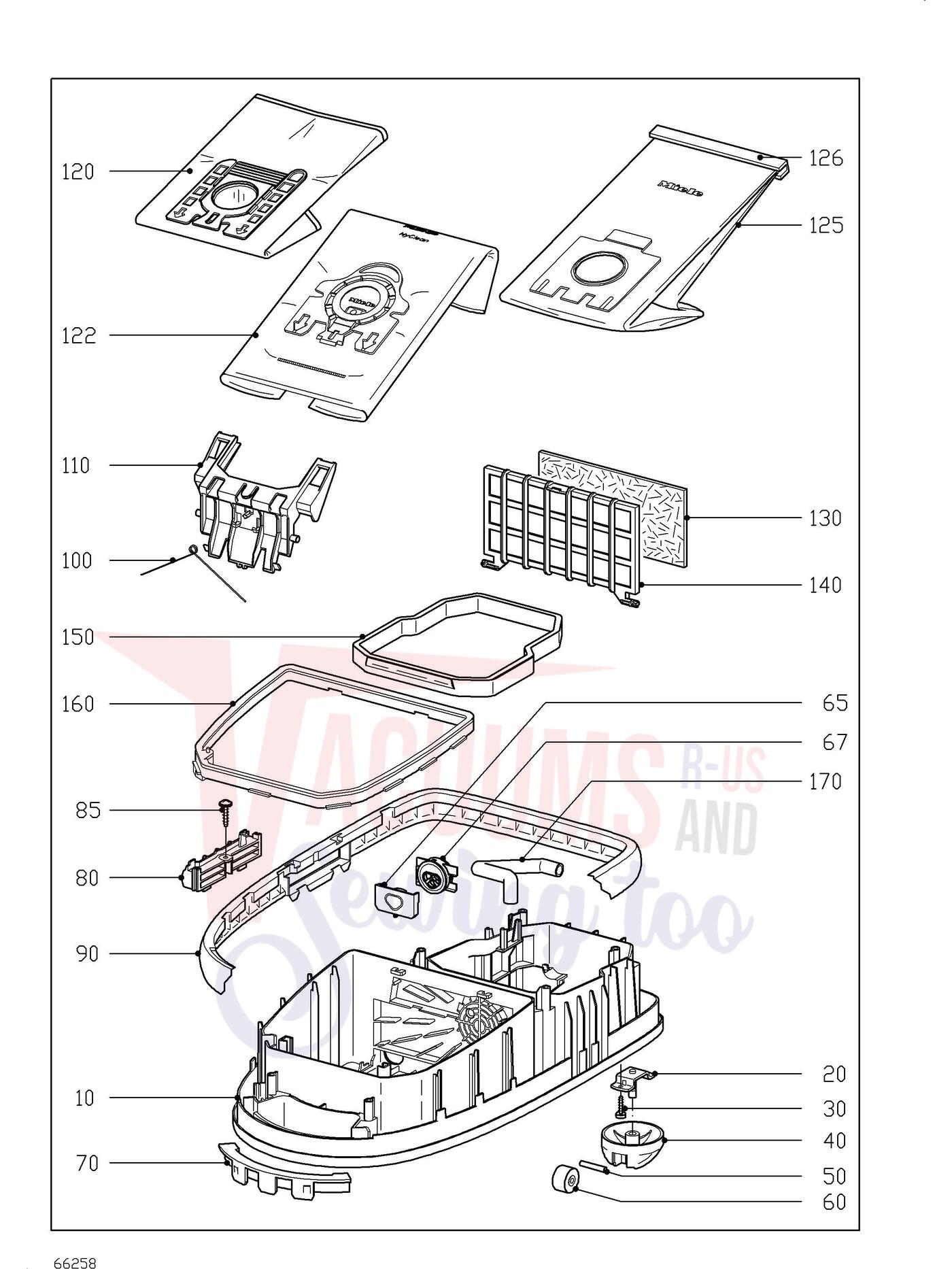

| XX |  | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 10-65 | No Image | Casing Bottom Anthracite | 5266836 | $119.00Read more |
| 20 | | Genuine Miele Shaft Slide skid | 3892600 | $9.70Read more |
| 40-60 | No Image | -Slide Skid Obsw Assy | 12494260 | $11.00Read more |
| 40-60 | No Image | -Slide Skid Obsw Assy | 12494260 | $11.00Read more |
| 50+60 | No Image | -Support Roller Anthracite | 3946930 | $11.16Read more |
| 65 | Not Available | -End plug Casing bottom | 6083930 | Not Available |
| 67 | | Genuine Miele Suction control | 5388511 | $6.60Read more |
| 70 | | Genuine Miele Grip handle anthracite | 5088880 | $6.60Read more |
| 80 | | Genuine Miele Suspension anthracite | 5088800 | $6.60Read more |
| 90 | | Genuine Miele Buffer | 5088850 | $43.60Read more |
| 100 | | Genuine Miele Torsion spring | 5088960 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| 110 | No Image | Bracket Vacuum Cleaner Bag | 6745042 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 122 | Not Available | vacuum cleaner bag F/J/M USA | 7805100 | Not Available |
| 125+126 | Not Available | Cloth filter bag S227-S858 | 5188842 | Not Available |
| 126 | | Genuine Miele Lock | 1058641 | $20.60Read more |
| 130 |  | Genuine Miele Dust compart.filter 3 pcs. | 6713110 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 140 | | Genuine Miele Filter frame | 5117170 | $13.50Read more |
| 150 | | Genuine Miele Seal | 5088860 | $18.80Read more |
| 160 | | Genuine Miele Sealing ring | 5088870 | $18.80Read more |
| 170 | | Genuine Miele Hose | 5088980 | $15.00Read more |
| # | Part image | Description | SKU | Price |

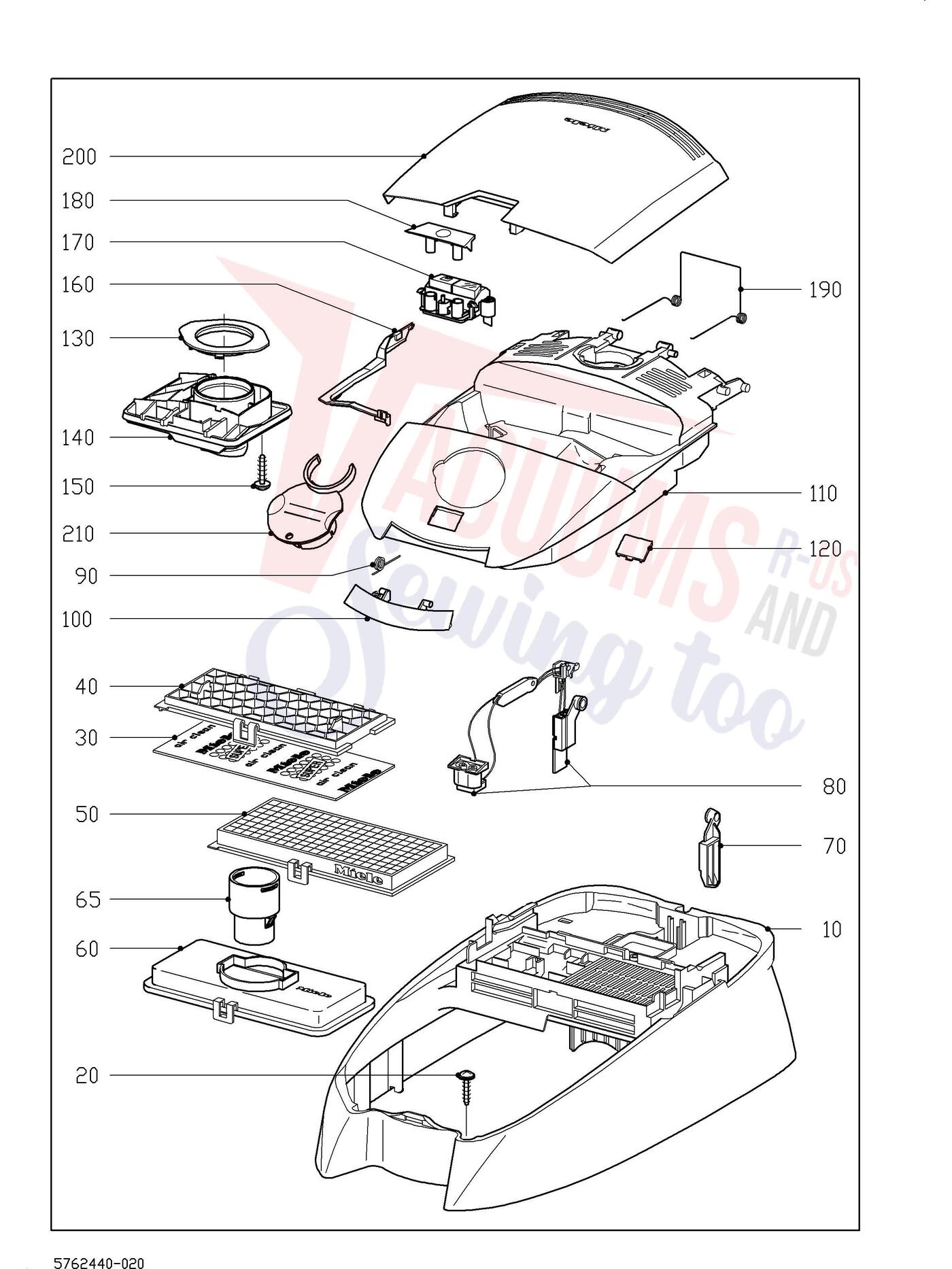

| XX | No Image | --Raised Head Screw 4,0X18 Torx T20 | 6238630 | $2.30Read more |
| XX |  | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| XX | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 10 | | Genuine Miele Cover frame deep black of 2 Parking | 5223582 | $93.60Read more |
| 30 |  | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Genuine Miele Grille anthracite | 5089130 | $18.80Read more |
| 50 | No Image | Hepa-Filter | 12785370 | $64.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 | No Image | Act.Air Cleanfilter | 12718090 | $49.00Add to cart Special order: ships in 2 to 4 weeks |
| 60 | | Genuine Miele Blower plate | 5109310 | $20.60Read more |
| 65 | | Genuine Miele Adapter Blower plate | 5751130 | $9.70Read more |
| 70 |  | Genuine Miele Hinge left anthracite | 5089000 | $4.90Add to cart |
| 90 | | Genuine Miele Torsion spring | 5108160 | $10.70Read more |
| 100 |  | Genuine Miele Lock anthracite | 5089024 | $4.90Read more |
| 110 | Not Available | Casing top indigo | 5585172 | Not Available |
| 120 | | Genuine Miele Cap anthracite | 5089032 | $3.60Read more |
| 130 | | Genuine Miele Ring Dust channel | 5739640 | $4.90Read more |
| 140 | | Genuine Miele Dust channel Casing top | 5754751 | $0.00Read more |
| 160 | | Genuine Miele Cover strip anthracite | 5108170 | $2.30Read more |
| 180 | | Genuine Miele interlock | 5089091 | $9.70Read more |
| 190 |  | Genuine Miele Torsion spring | 5124520 | $4.90Read more |
| 210 | Not Available | Hygiene cap | 6622030 | Not Available |
| # | Part image | Description | SKU | Price |

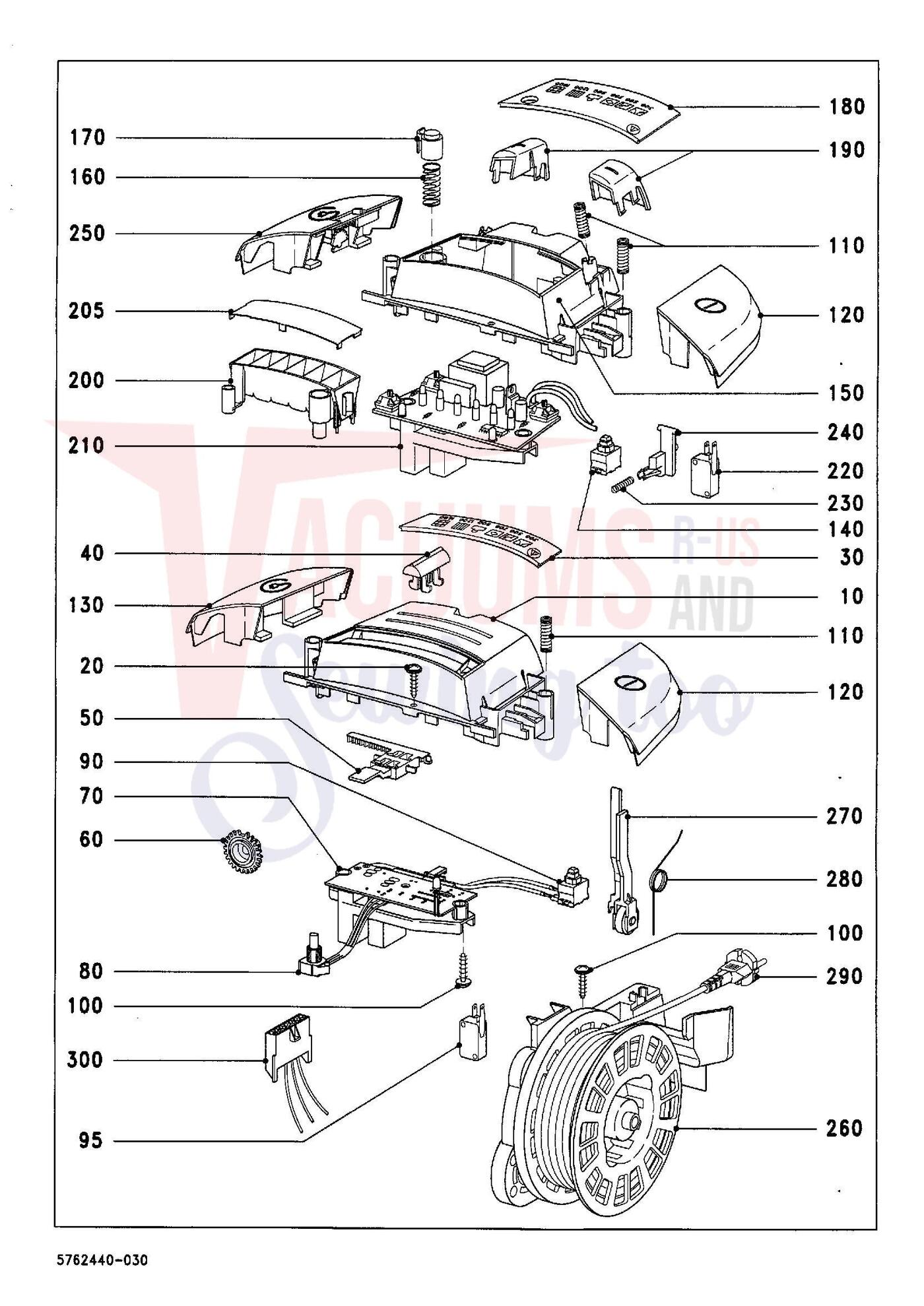

| XX | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 110 |  | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 120 | | Genuine Miele Foot switch left (Relaunch) | 7737081 | $9.70Read more |
| 140 | No Image | -Switch 1 Pole 1681.3103 | 9023231 | $9.60Add to cart Special order: ships in 2 to 4 weeks |
| 150-220 | Not Available | Cap 1800W | 5782940 | Not Available |
| 150-220 | Not Available | Cap 2000W | 6130390 | Not Available |
| 150 | Not Available | -Cap | 5129902 | Not Available |
| 160 | | Genuine Miele Spring | 3092700 | $4.90Read more |
| 170 | | Genuine Miele Push button | 5159490 | $4.90Read more |
| 180 | Not Available | -Viewing screen 1800W | 5755040 | Not Available |
| 180 | Not Available | -Viewing screen 2000W | 6093340 | Not Available |
| 190 | Not Available | -Pushbutton Left and right | 5333210 | Not Available |
| 200 | Not Available | -Reflector | 5252300 | Not Available |
| 205 | Not Available | -Fascia panel | 5252340 | Not Available |
| 220 | Not Available | -Switch 250V | 5305040 | Not Available |
| 230 | | Genuine Miele Spring | 3982390 | $3.60Read more |
| 240 | | Genuine Miele Switch lever anthracite | 5281003 | $3.60Read more |
| 250 | Not Available | Foot switch AutoReverse | 5363731 | Not Available |
| 260-290 | Not Available | Cable reel S700 6,5m 230V EU | 5755463 | Not Available |
| 270 | No Image | -Brake Lever S300/500/700 | 4312183 | $7.59Read more |
| 280 | | Genuine Miele Torsion spring S300-S5000 | 6217500 | $6.60Read more |
| 290 | No Image | -Supply Cable 6,65M 1Qmm 230V | 5766340 | $61.00Read more |
| # | Part image | Description | SKU | Price |

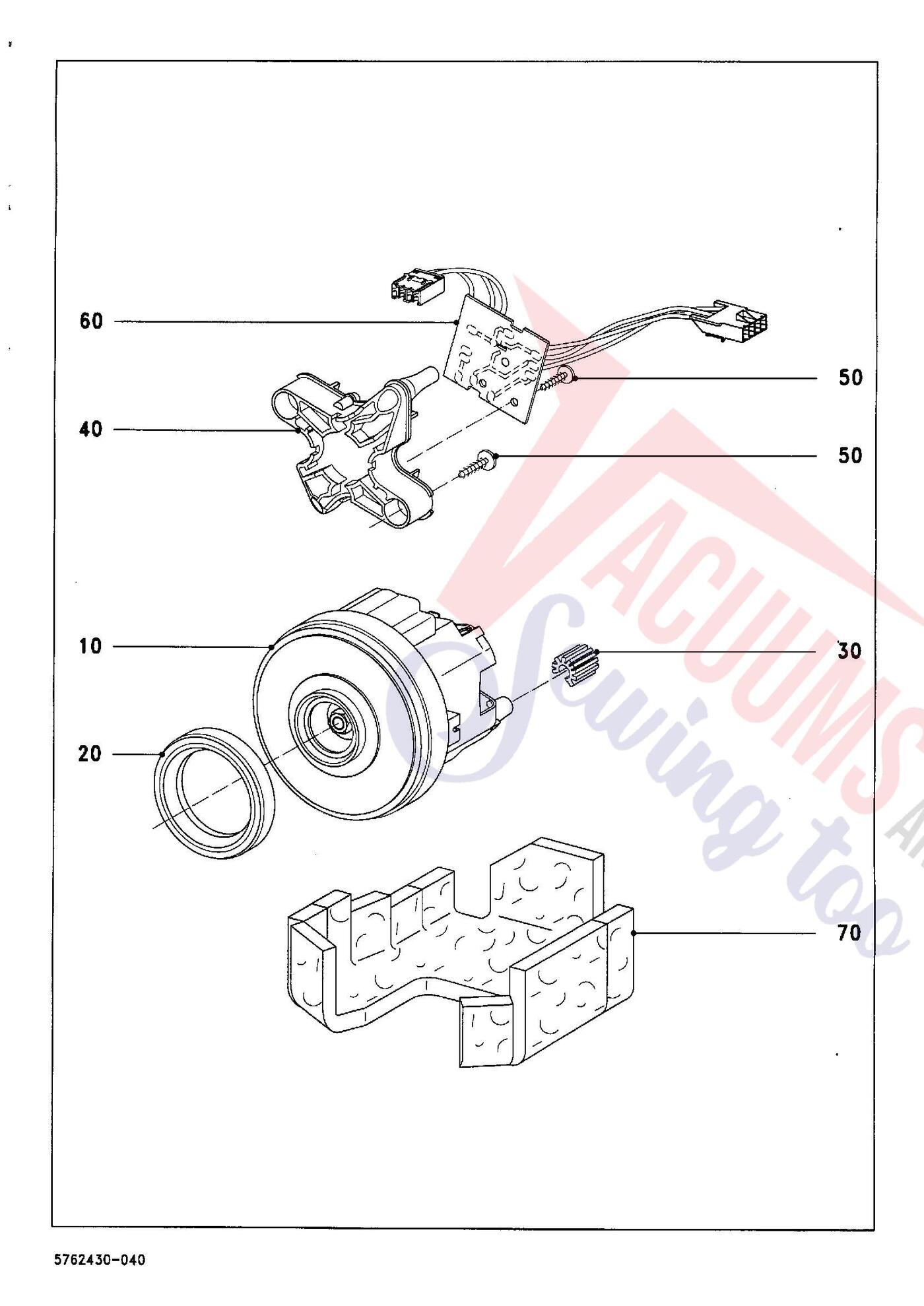

| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 10 | | Genuine Miele Fan Mrg410-42/2 230V | 7499465 | $95.04Read more |
| 20 | | Genuine Miele Bearing ring | 5089170 | $13.50Read more |
| 30 | | Genuine Miele Rubber cushion | 5089190 | $6.60Read more |
| 40 | No Image | Adapter Fan | 5704060 | $22.00Read more |
| 70 | | Genuine Miele Damping plate | 5088890 | $10.70Read more |
| # | Part image | Description | SKU | Price |

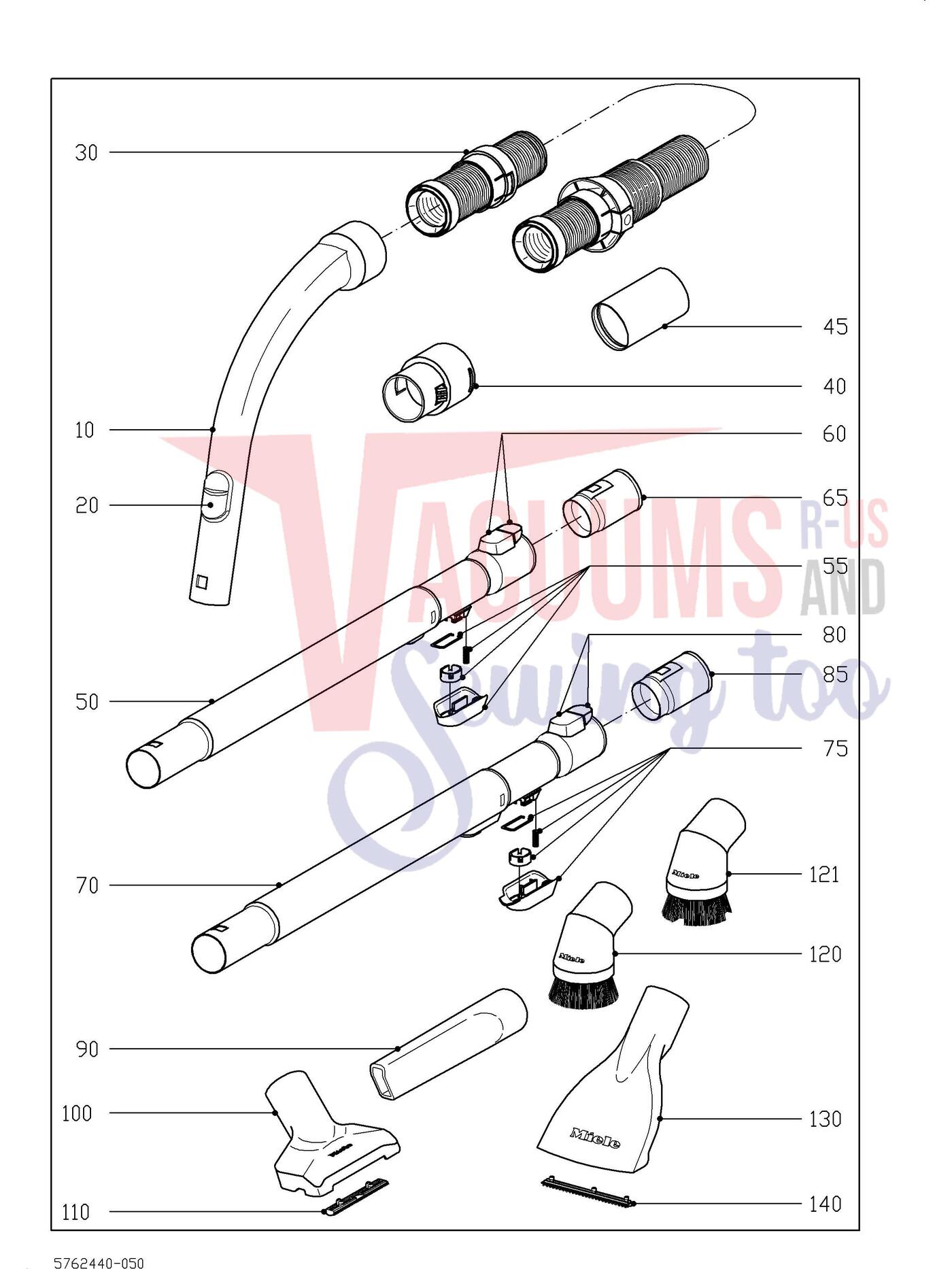

| 10+20 | | Genuine Miele Tubular handle anthracite | 9442601 | $37.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Suction control anthracite | 5141090 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 30 | No Image | Suction Hose Silver-Coloured 1,8M | 5749830 | $53.00Read more |
| 40 | | Genuine Miele Adapter Blower plate | 5751130 | $9.70Read more |
| 45 | Not Available | Connecting tube Suction hose | 5527410 | Not Available |
| 55 |  | Genuine Miele Push button Round | 5780932 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 60+65 |  | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 60 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 70-85 |  | HES Telescopic Wand for Miele | 10615280 | $77.99Add to cart Special order: ships in 2 to 4 weeks |
| 70-85 |  | Available ReconditionedGenuine Reconditioned Miele Telescopic Wand - Non Electric More Product Details | 5658812R | $0.00Add to cart |
| 75 | No Image | -Push Button Round | 6151391 | $15.53Read more |
| 80+70 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 80 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 | No Image | Crevice Nozzle 149Mm Obsw | 9442631 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 100+110 | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 121 | No Image | Dusting Brush L | 12187780 | $24.00Add to cart Special order: ships in 2 to 4 weeks |
| 121 |  | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $26.00Add to cart Special order: ships in 2 to 4 weeks |
| 130+140 | | Genuine Miele ST Mattress nozzle SMD10 | 7252280 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 140 | | Genuine Miele Thread lifter | 5056530 | $9.70Read more |
| # | Part image | Description | SKU | Price |

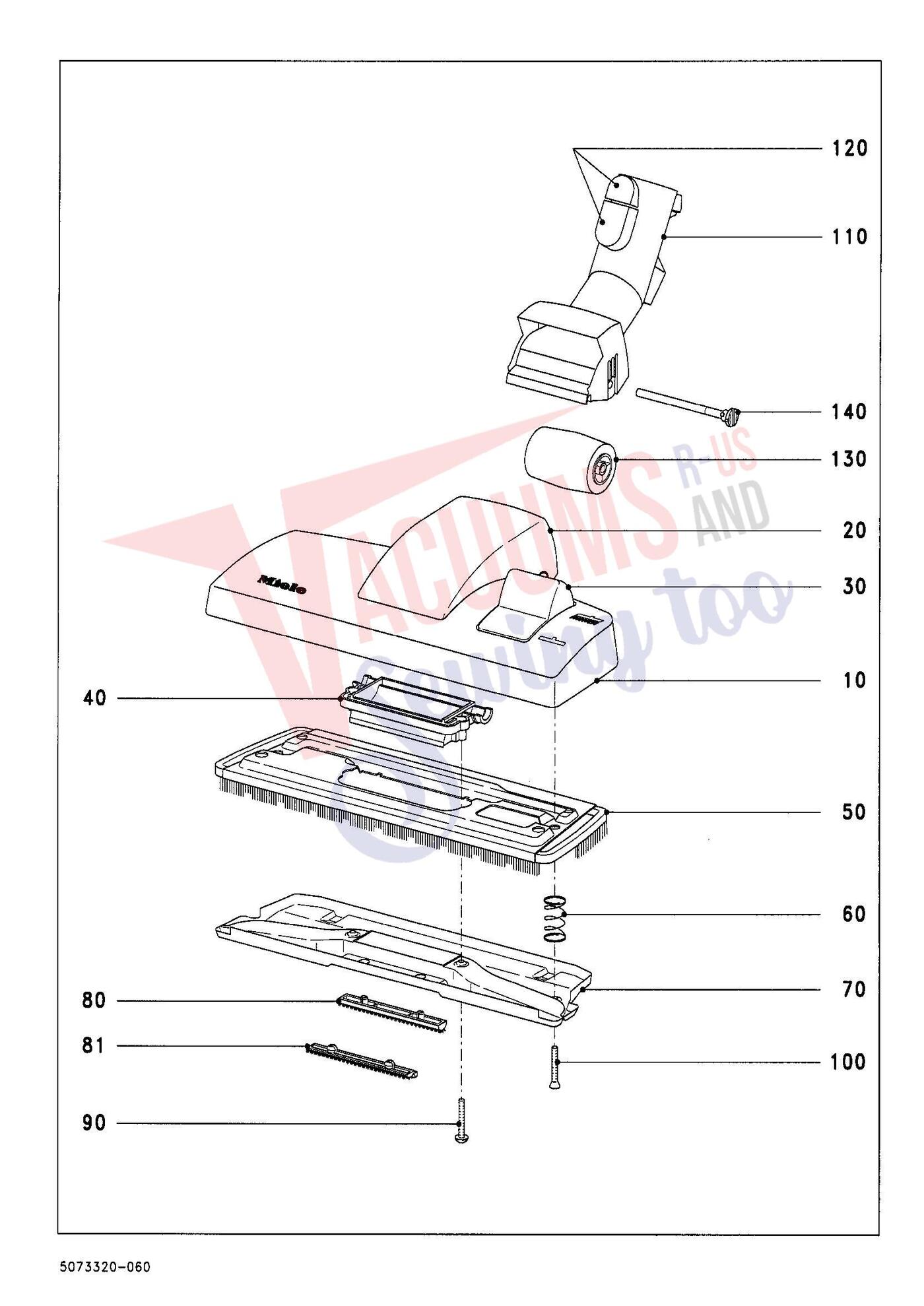

| 10 |  | Genuine Miele Top anthracite | 5235512 | $27.90Read more |
| 20 |  | Genuine Miele Suction channel anthracite | 5235541 | $24.70Read more |
| 30 |  | Genuine Miele Foot switch anthracite | 5235503 | $15.00Read more |
| 40 |  | Genuine Miele Fixing | 5235480 | $9.70Read more |
| 50 |  | Genuine Miele Bristle supp.plate | 5235463 | $33.80Read more |
| 60 |  | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |
| 70+81 |  | Genuine Miele Lower section | 5235453 | $43.60Read more |
| 80 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 81-140 | Not Available | Floor nozzle SBD285-2 AllTeQ | 7253820 | Not Available |
| 81 |  | Genuine Miele Thread lifter 2 Pcs. | 6204050 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 |  | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $3.60Read more |
| 100 | No Image | --Countersunk Screw 35X20 | 5289870 | $2.30Read more |
| 110+120 | | Genuine Miele Linkage anthracite | 5235552 | $39.50Read more |
| 120 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 |  | Genuine Miele Support roller | 5235530 | $15.00Read more |
| 140 |  | Genuine Miele Shaft Bayonett fitting | 5235520 | $13.50Read more |
| # | Part image | Description | SKU | Price |
