Schematic and parts book for Miele S624 S 624. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

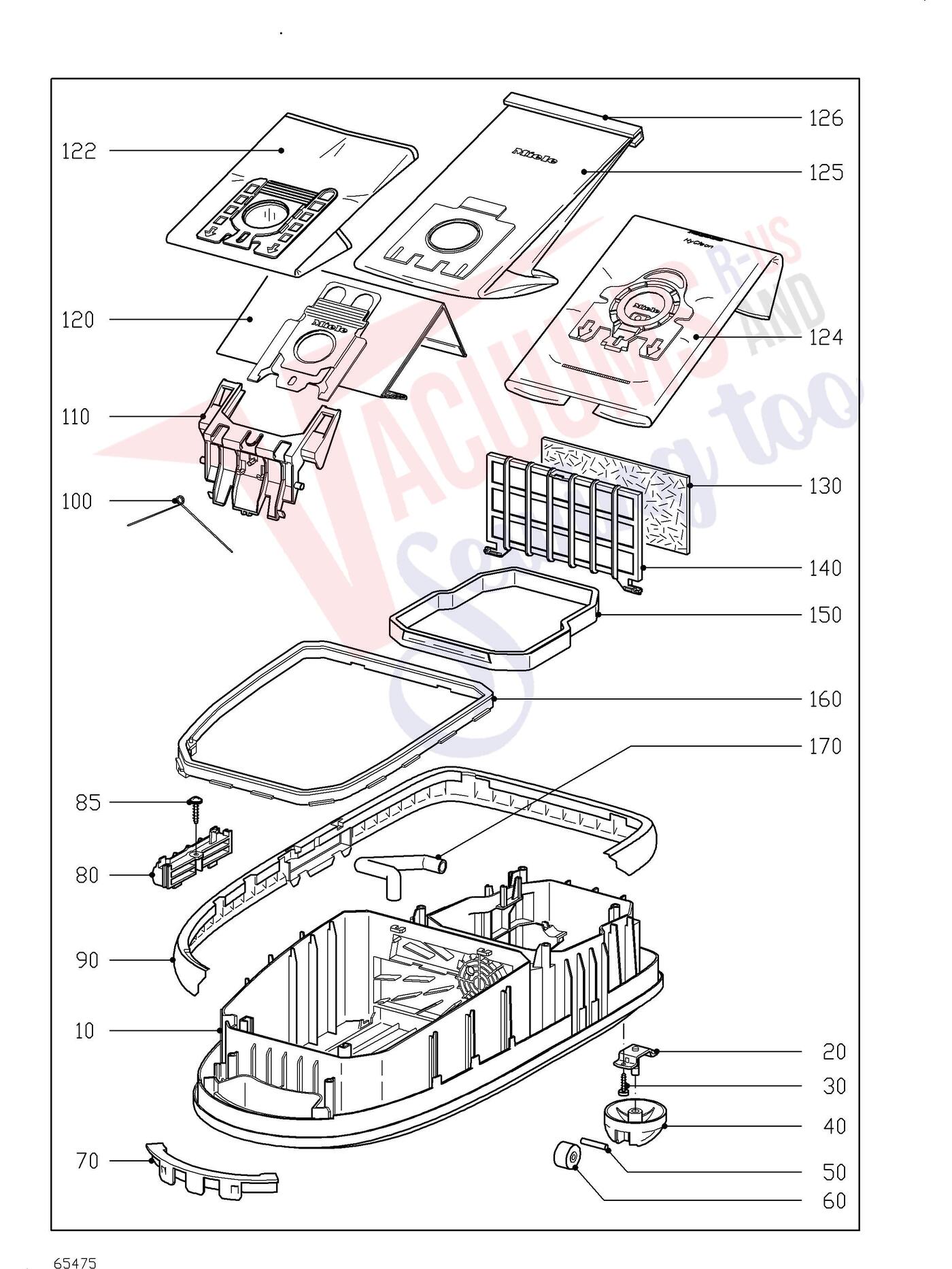

| # | Part image | Description | SKU | Price |
| XX |  | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 10-60 | Not Available | Casing bottom anthracite | 5314134 | Not Available |
| 20 | | Genuine Miele Shaft Slide skid | 3892600 | $9.70Read more |
| 40-60 | No Image | -Slide Skid Obsw Assy | 12494260 | $11.00Read more |
| 40-60 | No Image | -Slide Skid Obsw Assy | 12494260 | $11.00Read more |
| 70 | | Genuine Miele Grip handle anthracite | 5088880 | $6.60Read more |
| 80 | | Genuine Miele Suspension anthracite | 5088800 | $6.60Read more |
| 90 | Not Available | Buffer | 5093610 | Not Available |
| 100 | | Genuine Miele Torsion spring | 5088960 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| 110 | Not Available | Bracket Dustbag | 5088942 | Not Available |
| 120 | No Image | Dustbag Typ N 1/5 S600 | 5275420 | $20.16Read more |
| 124 | No Image | Vacuum Cleaner Bag Gn Hyclean Pure Int | 12421130 | $0.00Add to cart Special order: ships in 2 to 4 weeks |
| 125+126 | Not Available | Cloth filter bag S227-S858 | 5188842 | Not Available |
| 126 | | Genuine Miele Lock | 1058641 | $20.60Read more |
| 130 |  | Genuine Miele Dust compart.filter 3 pcs. | 6713110 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 140 | | Genuine Miele Filter frame | 5117170 | $13.50Read more |
| 150 | | Genuine Miele Seal | 5088860 | $18.80Read more |
| 160 | | Genuine Miele Sealing ring | 5093620 | $20.60Read more |
| 170 | | Genuine Miele Hose | 5088980 | $15.00Read more |

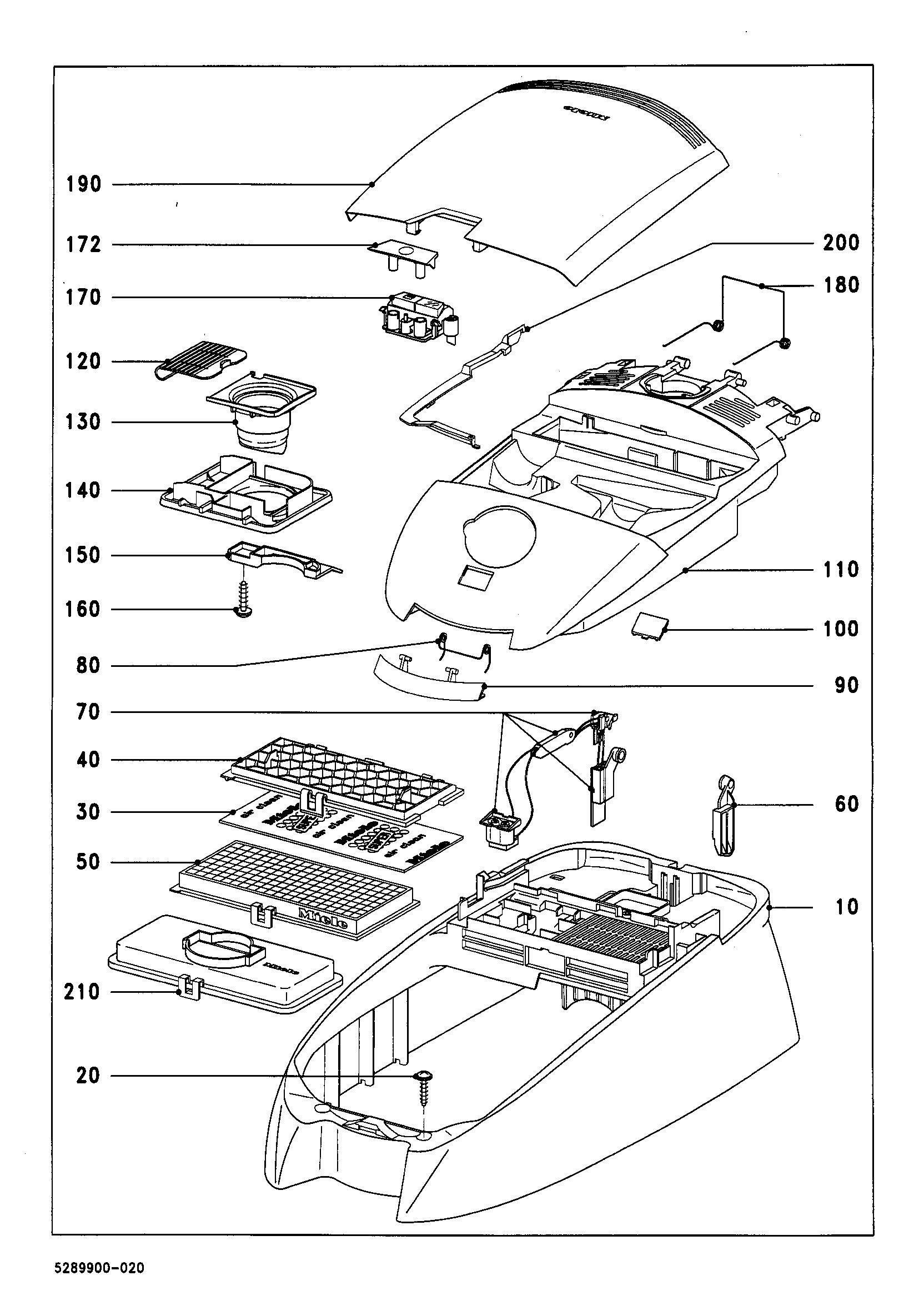

| # | Part image | Description | SKU | Price |
| XX |  | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| XX | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 10 | Not Available | Cover frame brick red | 5225812 | Not Available |
| 10 | | Genuine Miele Cover frame Royal blue | 5225822 | $93.60Read more |
| 10 | Not Available | Cover frame sun yellow | 5225842 | Not Available |
| 10 | Not Available | Cover frame siena red | 5225851 | Not Available |
| 10 | Not Available | Cover frame tropical green | 5225872 | Not Available |
| 10 | Not Available | Cover frame ice green metallic | 5271872 | Not Available |
| 30 |  | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Genuine Miele Grille anthracite | 5089130 | $18.80Read more |
| 50 | No Image | Hepa-Filter | 12785370 | $64.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 | No Image | Act.Air Cleanfilter | 12718090 | $49.00Add to cart Special order: ships in 2 to 4 weeks |
| 60 |  | Genuine Miele Hinge left anthracite | 5089000 | $4.90Add to cart |
| 70 | Not Available | Flush socket outlet 2 pole | 5478210 | Not Available |
| 80 | | Genuine Miele Torsion spring | 5124500 | $20.60Read more |
| 90 | Not Available | Lock anthracite | 5093642 | Not Available |
| 100 | | Genuine Miele Cap anthracite | 5089032 | $3.60Read more |
| 110 | Not Available | Casing top deep black | 5231302 | Not Available |
| 110 | | Genuine Miele Casing top Royal blue | 5231172 | $98.00Read more |
| 110 | Not Available | Casing top siena red | 5231210 | Not Available |
| 110 | No Image | Casing Top Siena Red | 5231211 | $76.00Read more |
| 110 | No Image | Casing Top Sun Yellow | 5231191 | $56.00Read more |
| 110 | Not Available | Casing top tropical green | 5231242 | Not Available |
| 110 | No Image | Casing Top Ice Green Metallic | 5231310 | $109.00Read more |
| 120 | | Genuine Miele Coupler link anthracite | 5091021 | $3.60Read more |
| 130 | No Image | Slide Sleeve Anthracite | 5089042 | $12.31Read more |
| 140 | | Genuine Miele Dust channel anthracite | 5089011 | $13.50Read more |
| 150 | | Genuine Miele Holder Dust channel | 5223481 | $4.90Read more |
| 170+172 | | Genuine Miele Change filter ind. | 5535191 | $33.80Read more |
| 172 | | Genuine Miele interlock | 5089091 | $9.70Read more |
| 180 | | Genuine Miele Torsion spring | 5108200 | $6.60Read more |
| 190 | Not Available | Lid deep black | 5271652 | Not Available |
| 190 | Not Available | Lid Royal blue | 5271442 | Not Available |
| 190 | Not Available | Lid deep black | 5271652 | Not Available |
| 190 | No Image | Lid Siena Red | 5271562 | $56.00Read more |
| 190 | Not Available | Lid deep black | 5271652 | Not Available |
| 190 | | Genuine Miele Lid night blue metallic | 5271712 | $78.10Read more |
| 200 | Not Available | Cover strip anthracite | 5108210 | Not Available |
| 210 | | Genuine Miele Blower plate | 5109310 | $20.60Read more |

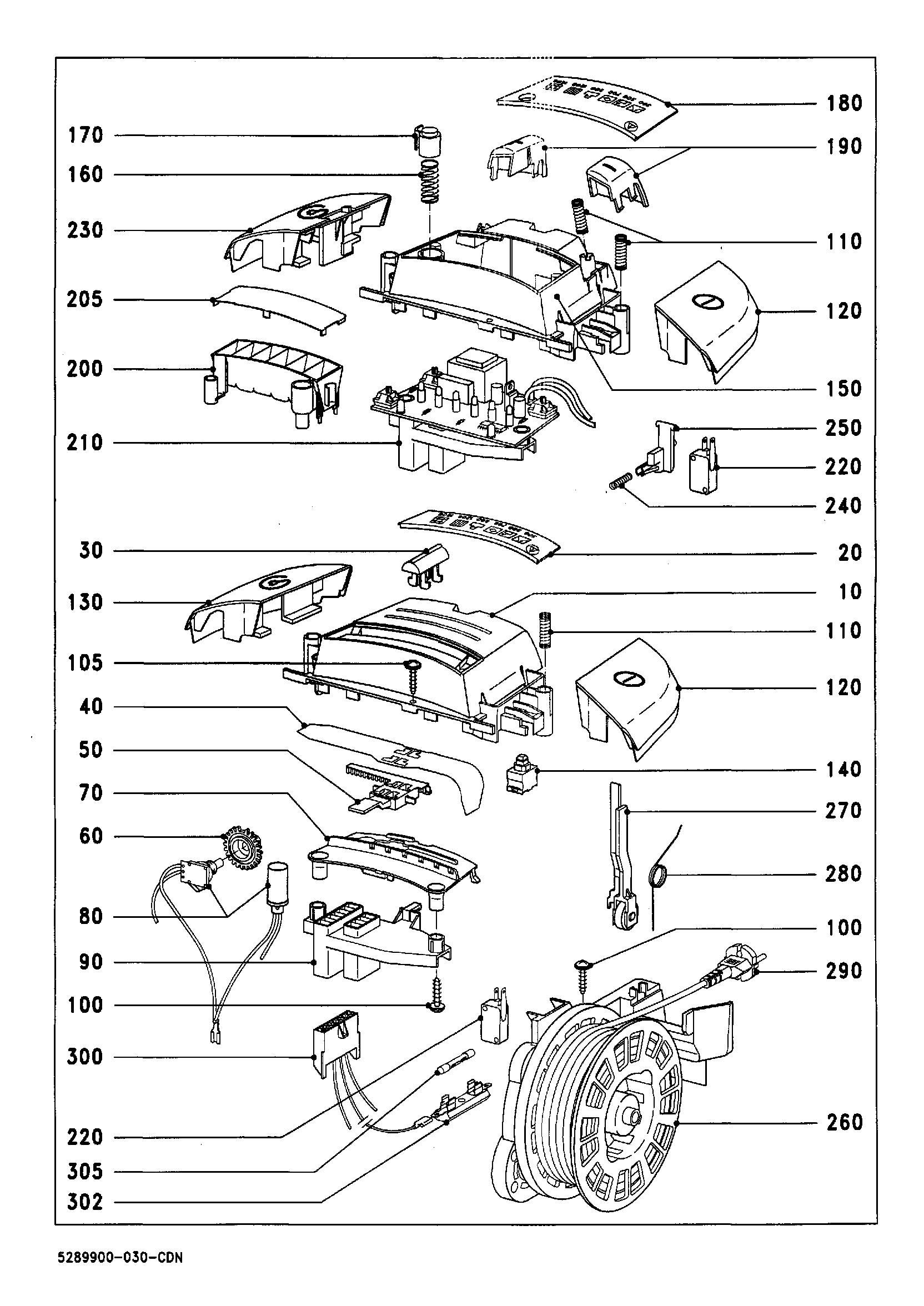

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 10 | Not Available | -Cap anthracite | 5148913 | Not Available |
| 20 | Not Available | -Viewing screen 1100W | 5390090 | Not Available |
| 30 | Not Available | -Slide anthracite | 5148920 | Not Available |
| 40 | Not Available | -Cover foil anthracite | 5286600 | Not Available |
| 50 | Not Available | -Gear rack | 5148960 | Not Available |
| 60 | Not Available | -Cogwheel | 5148950 | Not Available |
| 70 | Not Available | -Bracket | 5148980 | Not Available |
| 80 | Not Available | -Indicator light | 5482010 | Not Available |
| 90 | No Image | -Plug Housing | 5090751 | $56.00Read more |
| 110 |  | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 120 | Not Available | Foot switch left anthracite | 5093680 | Not Available |
| 130 | Not Available | Foot switch right anthracite | 5093670 | Not Available |
| 140+220 | Not Available | Cap 1100W | 5501641 | Not Available |
| 140 | No Image | -Switch 1 Pole 1681.3103 | 9023231 | $9.60Add to cart Special order: ships in 2 to 4 weeks |
| 220 | | Genuine Miele Switch 250V | 4487791 | $20.60Add to cart Special order: ships in 2 to 4 weeks |
| 230 | Not Available | Foot switch AutoReverse | 5368031 | Not Available |
| 240 | | Genuine Miele Spring | 3982390 | $3.60Read more |
| 250 | | Genuine Miele Switch lever anthracite | 5281003 | $3.60Read more |
| 260-290 | No Image | Cable Reel S600 6,5M 120V | 5241042 | $109.00Read more |
| 270 | | Genuine Miele Brake lever S400/600/800 | 4312191 | $18.80Read more |
| 280 | | Genuine Miele Torsion spring S300-S5000 | 6217500 | $6.60Read more |
| 290 | No Image | -Supply Cable 6,65M 120V | 5241030 | $61.00Read more |
| 290 | Not Available | -Supply cable 6,65m 17AWG 120V USA | 5241032 | Not Available |
| 300 | No Image | Connecting Cable Usa | 5483511 | $91.00Read more |
| 302 | | Genuine Miele Fuse holder | 3604030 | $33.80Read more |
| 305 | | Genuine Miele Micro fuse T6,3A 500V 6,3X32MM | 3595980 | $6.00Read more |

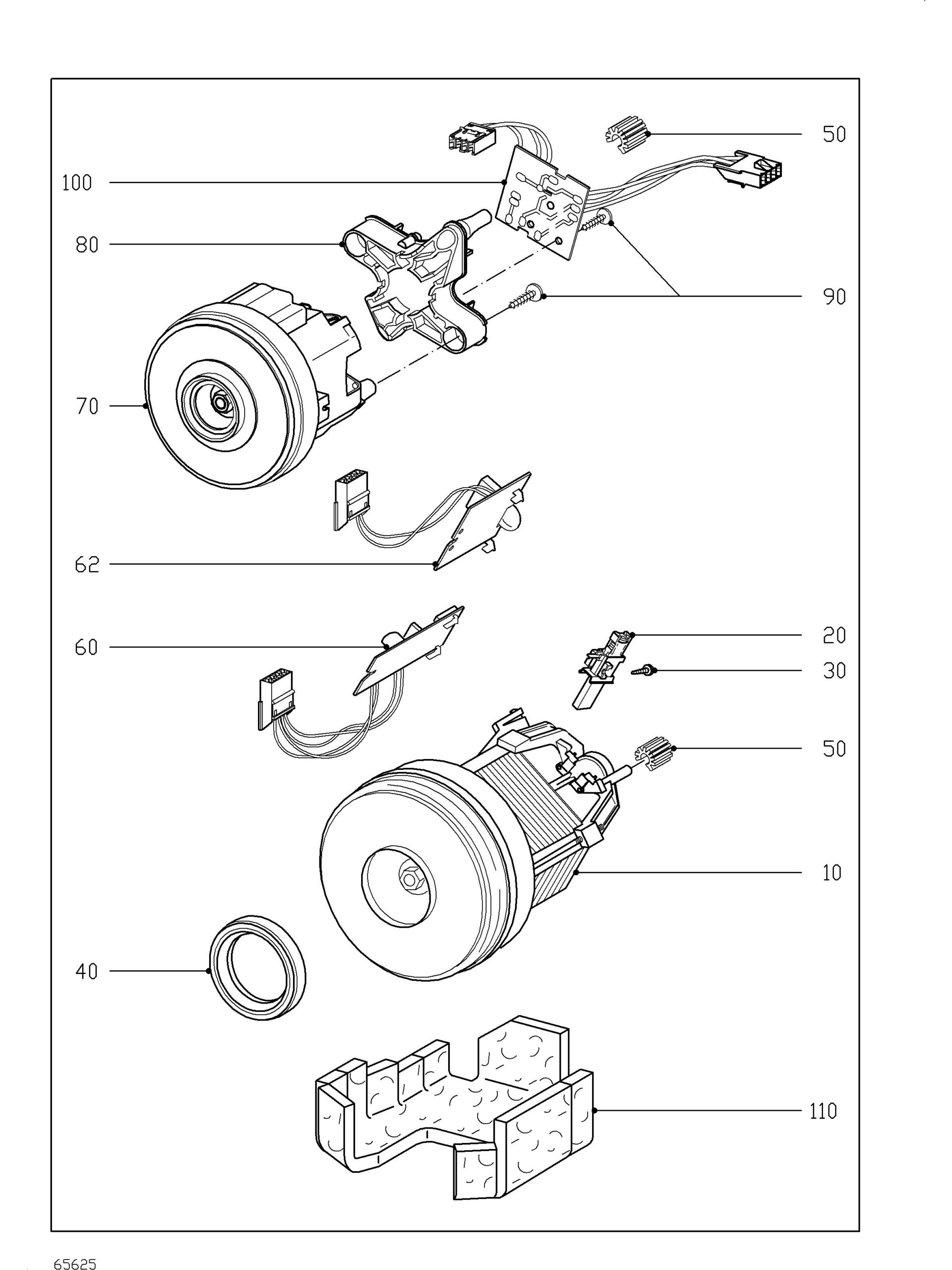

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 3,9X9,5 | 3903441 | $2.30Read more |
| 10-30 | Not Available | Fan Mrg42/81-43/2 120V | 4698861 | Not Available |
| 20 | Not Available | -Carbon brush 2 Pcs. | 5419810 | Not Available |
| 40 | | Genuine Miele Bearing ring | 5089170 | $13.50Read more |
| 50 | | Genuine Miele Rubber cushion | 5089190 | $6.60Read more |
| 60 | Not Available | Electronic unit EDL515/81 120V/60Hz | 5408621 | Not Available |
| 70 |  | Genuine Miele Fan Mrg722/81-42/2 120V | 5709492 | $119.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 |  | Available ReconditionedReconditioned Genuine Miele Fan Mrg722/81-42/2 120V More Product Details | 5709492R | $100.00Add to cart |
| 70 | Not Available | Fan Mrg728-42/2 230V | 5693814 | Not Available |
| 80-100 | | Genuine Miele Electronic unit EDL7161/81 vollst. | 6836741 | $120.70Read more |
| 90 | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 110 | | Genuine Miele Damping plate | 5088890 | $10.70Read more |

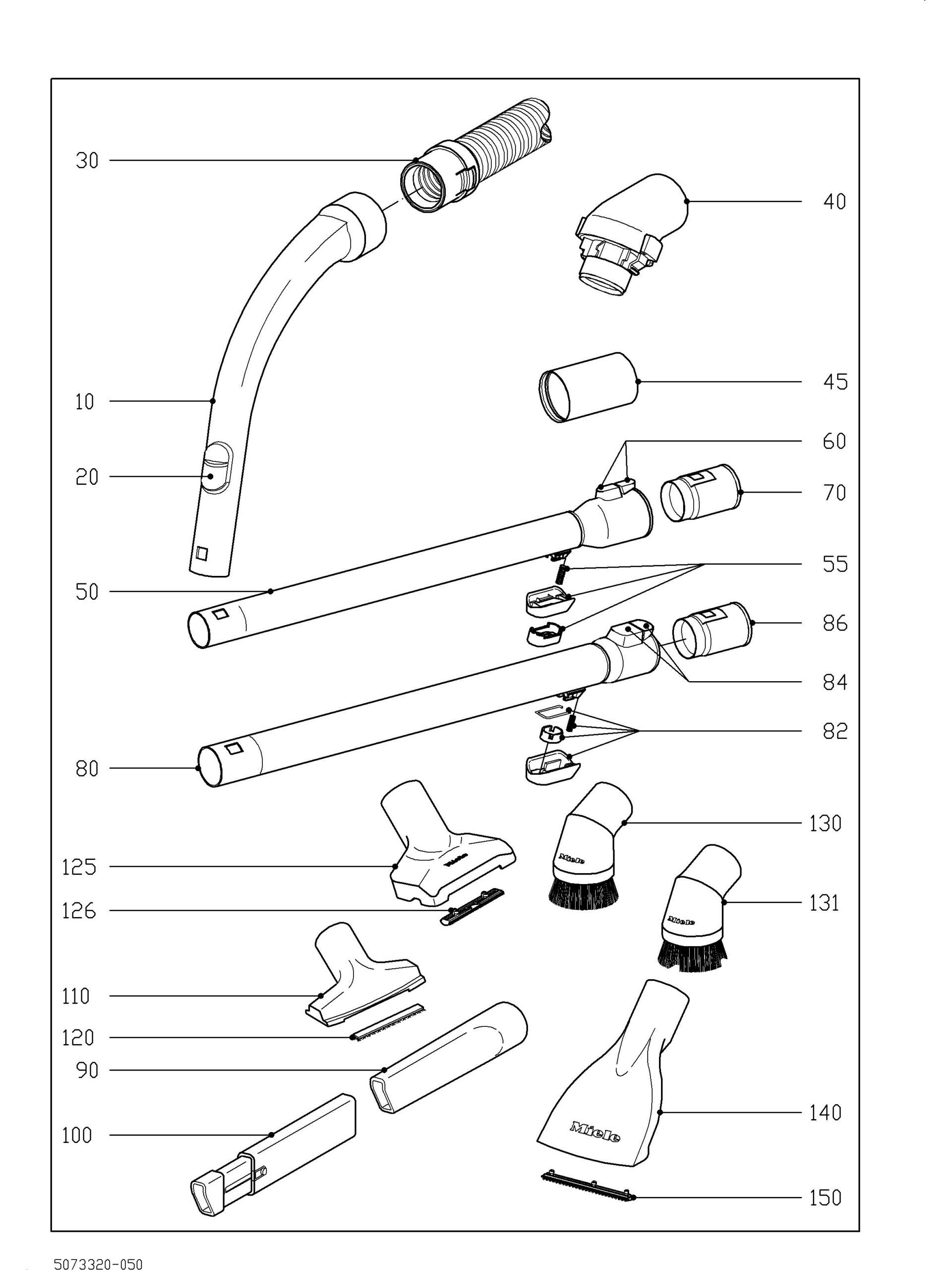

| # | Part image | Description | SKU | Price |
| 10-40 | Not Available | Suction hose S500/S600 | 5269604 | Not Available |
| 10+20 | | Genuine Miele Tubular handle anthracite | 9442601 | $37.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Suction control anthracite | 5141090 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Genuine Miele Suction hose silver-coloured 1,8m | 5230830 | $61.00Read more |
| 30 |  | Available ReconditionedReconditioned Genuine Miele Suction hose silver-coloured 1,8m More Product Details | 5230830R | $45.25Add to cart |
| 40 | Not Available | -Elbow anthracite | 5108111 | Not Available |
| 45 | Not Available | Connecting tube Suction hose | 5527410 | Not Available |
| 55 | | Genuine Miele Push button 15x30mm | 4832460 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 60+70 |  | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 60 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 80-86 |  | Genuine Miele Telescopic pipe 2-part st.steel | 5658812 | $0.00Read more |
| 80-86 |  | Available Pre OwnedReconditioned Miele Telescopic Aluminum Wand for Miele Upright Vacuums 6801181 More Product Details | 6801180R | $48.00Add to cart |
| 80-86 |  | Compatible alternateGenuine Miele Telescopic pipe Aluminium More Product Details | 6801181 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 82 |  | Genuine Miele Push button Round | 5780932 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 84+86 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 84 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 | No Image | Crevice Nozzle 149Mm Obsw | 9442631 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 100 | | Genuine Miele Nozzle extension anthracite | 5120360 | $33.80Read more |
| 120 | | Genuine Miele Thread lifter 2 Pcs. | 2348770 | $13.50Read more |
| 125+126 | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 126 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 131 | No Image | Dusting Brush L | 12187780 | $24.00Add to cart Special order: ships in 2 to 4 weeks |
| 131 |  | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $26.00Add to cart Special order: ships in 2 to 4 weeks |
| 140+150 | | Genuine Miele ST Mattress nozzle SMD10 | 7252280 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 150 | | Genuine Miele Thread lifter | 5056530 | $9.70Read more |

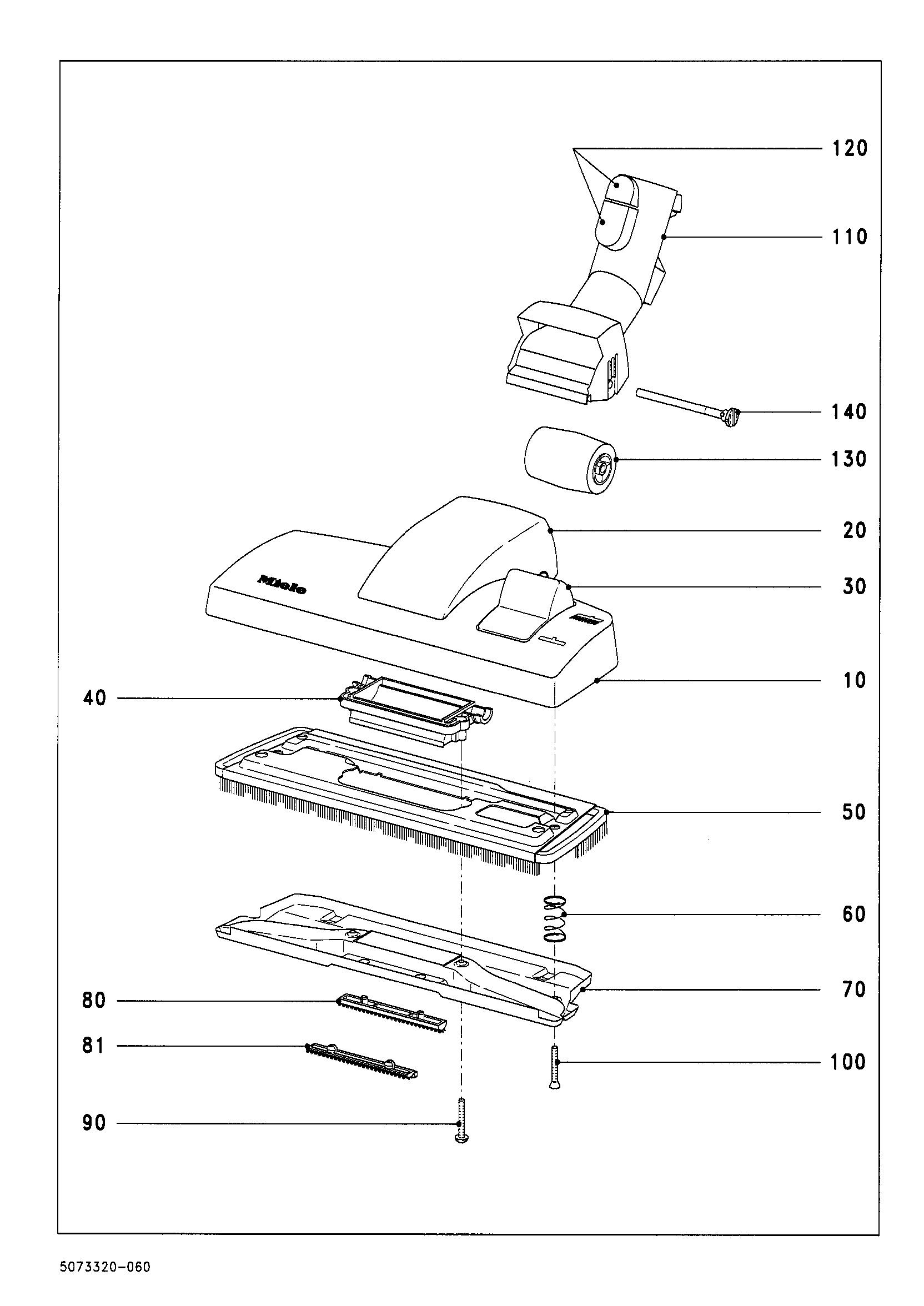

| # | Part image | Description | SKU | Price |
| 10 |  | Genuine Miele Top anthracite | 5235512 | $27.90Read more |
| 20 |  | Genuine Miele Suction channel anthracite | 5235541 | $24.70Read more |
| 30 |  | Genuine Miele Foot switch anthracite | 5235503 | $15.00Read more |
| 40 |  | Genuine Miele Fixing | 5235480 | $9.70Read more |
| 50 |  | Genuine Miele Bristle supp.plate | 5235463 | $33.80Read more |
| 60 |  | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |
| 70+81 |  | Genuine Miele Lower section | 5235453 | $43.60Read more |
| 80 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 81-140 | Not Available | Floor nozzle SBD285-2 AllTeQ | 7253820 | Not Available |
| 81 |  | Genuine Miele Thread lifter 2 Pcs. | 6204050 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 |  | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $3.60Read more |
| 100 | No Image | --Countersunk Screw 35X20 | 5289870 | $2.30Read more |
| 110+120 | | Genuine Miele Linkage anthracite | 5235552 | $39.50Read more |
| 120 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 |  | Genuine Miele Support roller | 5235530 | $15.00Read more |
| 140 |  | Genuine Miele Shaft Bayonett fitting | 5235520 | $13.50Read more |
| # | Part image | Description | SKU | Price |
| w/o fig. | Not Available | Operat.instruct. USA/CDN | 5476421 | Not Available |
| w/o fig. | Not Available | Operat.instruct. USA | 6051031 | Not Available |
| XX | Not Available | Operat.instruct. S500 -USA/CDN- | 7319300 | Not Available |
