Schematic and parts book for Miele S5981 S5981. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

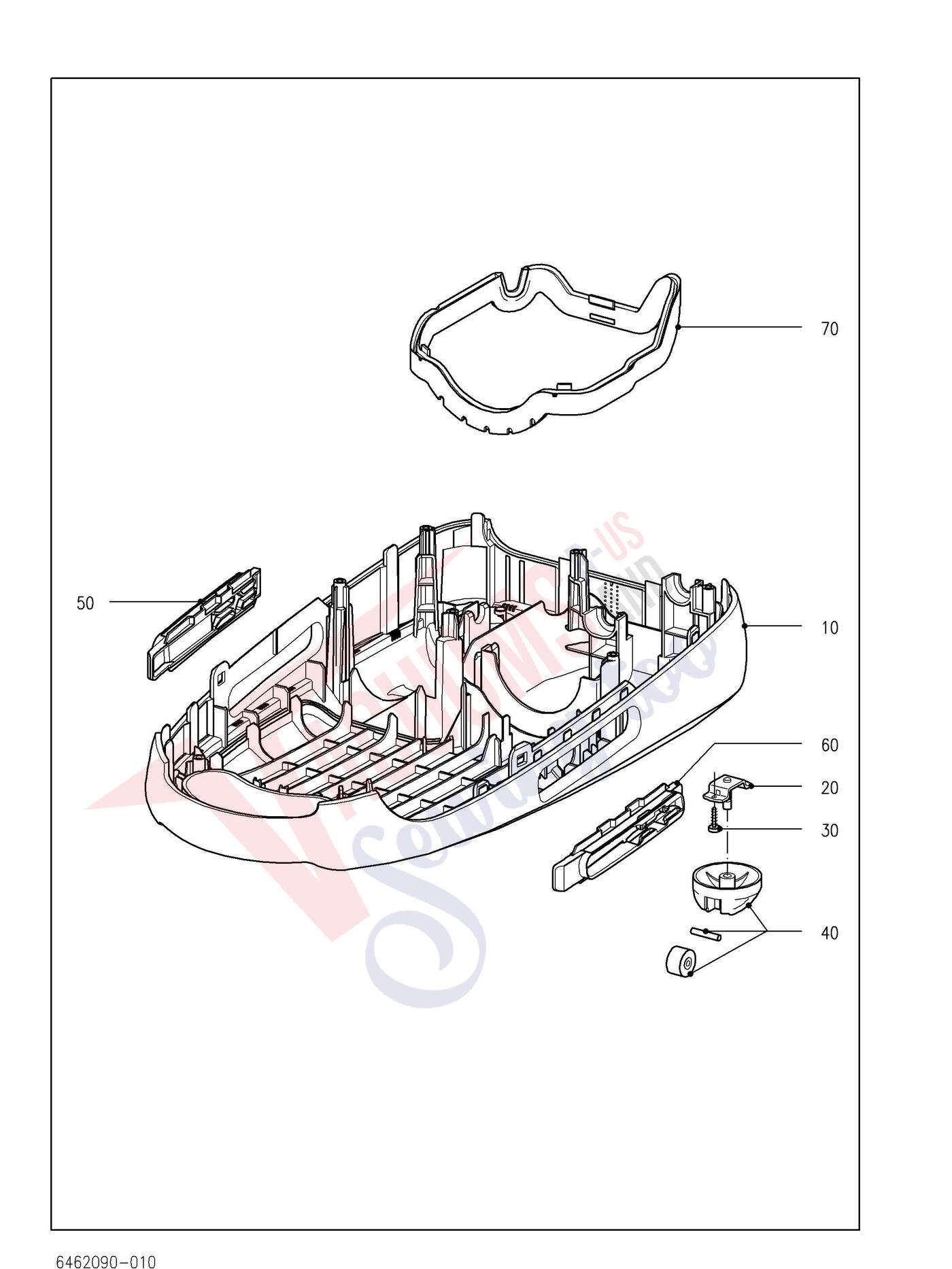

| # | Part image | Description | SKU | Price |
| XX |  | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 10-70 | No Image | Casing Bottom Anthracite | 9895503 | $119.00Read more |
| 20 | | Genuine Miele Shaft Slide skid | 3892600 | $9.70Read more |
| 40 | No Image | -Slide Skid Obsw Assy | 12494260 | $11.00Read more |
| 50 | | Genuine Miele Suspension right | 6065240 | $4.90Read more |
| 60 | Not Available | -Suspension left | 6065270 | Not Available |
| 70 | No Image | -Seal | 6049591 | $15.00Read more |

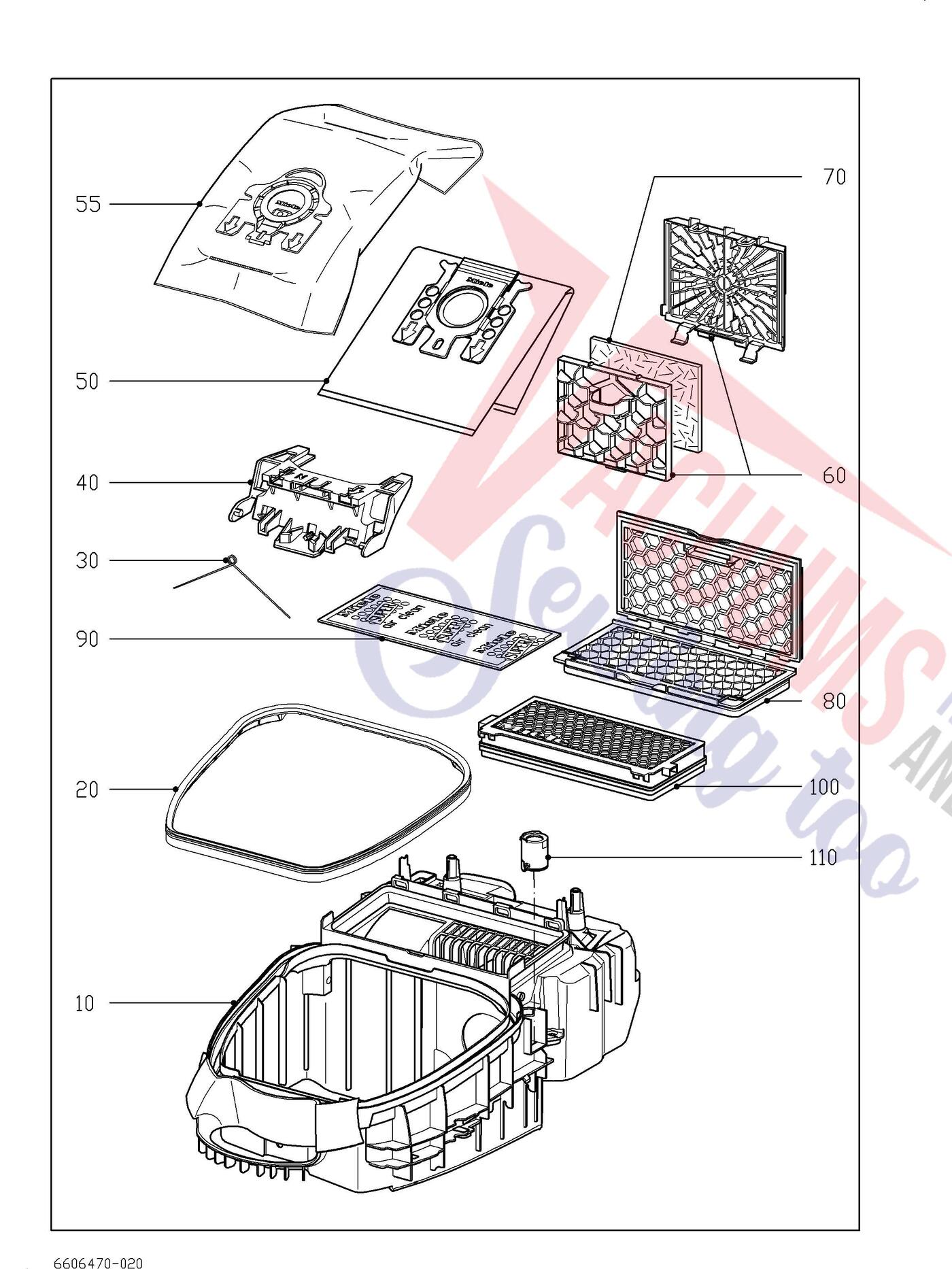

| # | Part image | Description | SKU | Price |
| 10 | | Genuine Miele Casing insert S5xxx | 12073090 | $71.70Read more |
| 20 | | Genuine Miele Sealing ring | 6141480 | $13.50Read more |
| 30 |  | Genuine Miele Torsion spring Bracket | 6434090 | $2.50Add to cart |
| 40 | | Genuine Miele Bracket vacuum cleaner bag | 6081322 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 | Not Available | vacuum cleaner bag G/N USA | 7805110 | Not Available |
| 60+70 | | Genuine Miele Filter frame Brilliant blue | 6241011 | $20.60Read more |
| 70 |  | Genuine Miele Dust compart.filter 3 pcs. | 6713110 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 80 |  | Genuine Miele Spacer bracket Air-Clean filter | 11690520 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 |  | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 | | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 100 | No Image | Act.Air Cleanfilter | 12785350 | $49.00Add to cart Special order: ships in 2 to 4 weeks |
| 100 | No Image | Hepa-Filter | 12785390 | $64.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 | | Genuine Miele End plug Suction control | 6175470 | $2.30Read more |

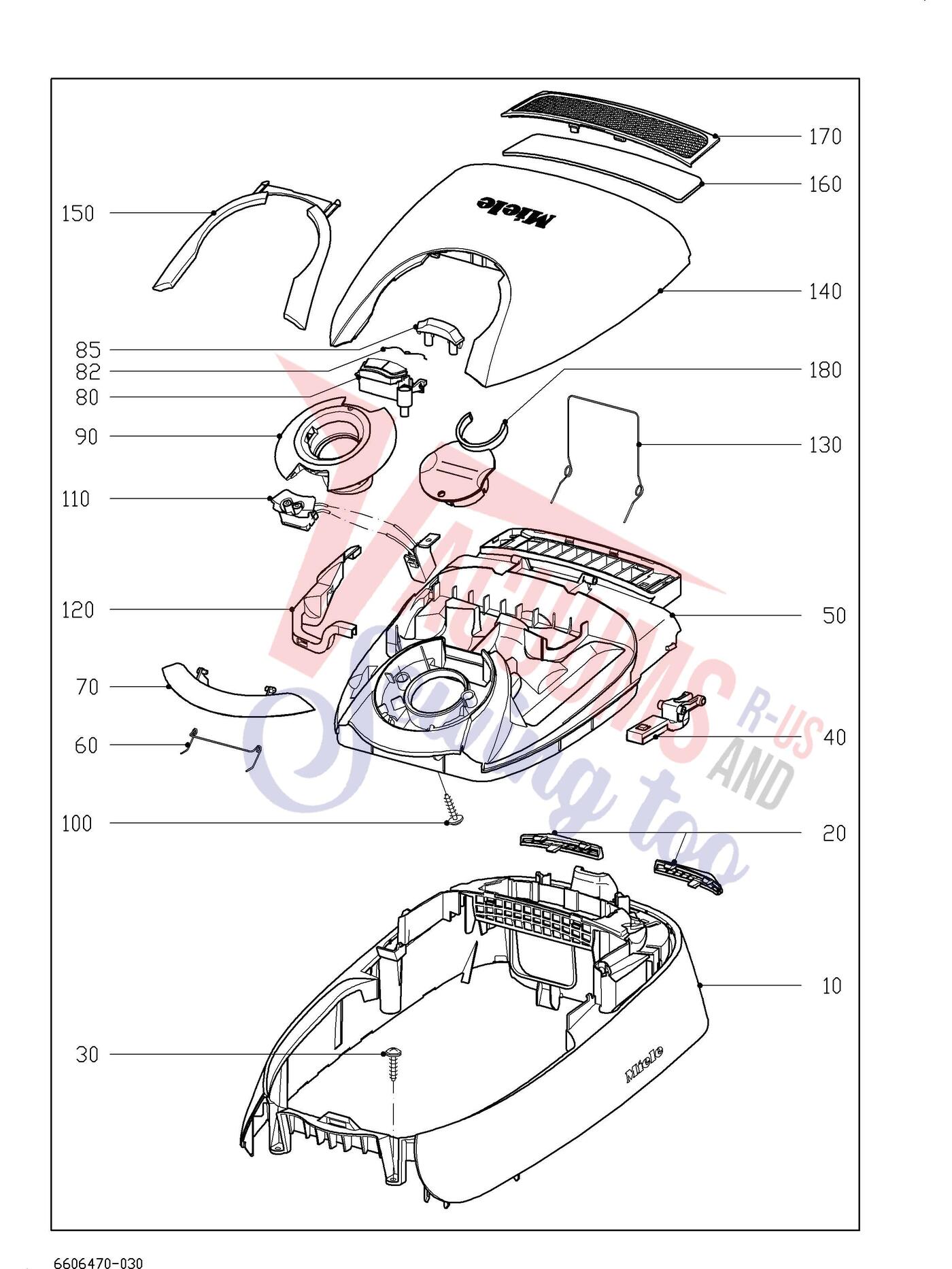

| # | Part image | Description | SKU | Price |
| XX | No Image | --Raised Head Screw 4,0X18 Torx T20 | 6238630 | $2.30Read more |
| XX |  | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 10+20 | No Image | Cover Frame Tealite Blue Met. | 6515230 | $129.00Read more |
| 10+20 | | Genuine Miele Cover frame Tizia red metallic | 6515250 | $120.70Read more |
| 10+20 | | Genuine Miele Cover frame Luna silver | 6515260 | $120.70Read more |
| 10+20 | No Image | Cover Frame Silver Passion | 6515270 | $129.00Read more |
| 10+20 | | Genuine Miele Cover frame Marine blue | 6643260 | $93.60Read more |
| 10+20 | No Image | Cover Frame Gold Bronze Metallic | 7202040 | $129.00Read more |
| 10+20 | | Genuine Miele Cover frame black magic | 6895590 | $120.70Read more |
| 10+20 | Not Available | Cover frame Midnight Purple | 7967220 | Not Available |
| 10+20 | | Genuine Miele Cover frame Steel-blue metallic | 7904970 | $120.70Read more |
| 20 | | Genuine Miele Strip Left and right | 6515290 | $2.30Read more |
| 40 | | Genuine Miele Hinge 2 Pcs. | 6515311 | $20.60Read more |
| 50 | | Genuine Miele Casing top S5xxx | 11997180 | $98.00Read more |
| 60 |  | Genuine Miele Torsion spring Lock | 6079920 | $3.60Add to cart |
| 70 |  | Genuine Miele Lock | 6079890 | $3.60Read more |
| 80-85 |  | Genuine Miele Change filter ind. SF TYPE 1 USA/J | 10292782 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 82 | No Image | -Torsion Spring Change Filter Ind. | 5463554 | $2.50Read more |
| 85 |  | Genuine Miele interlock | 6122782 | $2.50Read more |
| 90 | | Genuine Miele Ring alu-silver | 6212270 | $20.60Read more |
| 110+120 | No Image | Cover Strip Vollst.S5900 Usa | 6648462 | $63.00Read more |
| 120 | No Image | Cover Strip Casing Top | 6128230 | $4.14Read more |
| 130 |  | Genuine Miele Torsion spring Lid | 6409260 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 140+150 | | Genuine Miele Lid Obsidian black | 9375340 | $52.20Read more |
| 140+150 | | Genuine Miele Lid Tizia red metallic | 6515011 | $62.00Read more |
| 140+150 | | Genuine Miele Lid deep black | 6473661 | $59.40Read more |
| 140+150 | | Genuine Miele Lid Obsidian black | 9375340 | $52.20Read more |
| 140+150 | | Genuine Miele Lid Marine blue | 6643281 | $52.20Read more |
| 140+150 | Not Available | Lid Gold bronze metallic | 7202051 | Not Available |
| 140+150 | | Genuine Miele Lid black magic | 6896051 | $62.00Read more |
| 140+150 | | Genuine Miele Lid Midnight Purple | 7967230 | $62.00Read more |
| 140+150 | | Genuine Miele Lid Obsidian black | 9375340 | $52.20Read more |
| 150 | | Genuine Miele Fascia panel Lid | 6126401 | $4.90Read more |
| 170+160 | | Genuine Miele Air shield alu-silver | 6835790 | $27.90Read more |
| 180 | Not Available | Hygiene cap | 6622030 | Not Available |

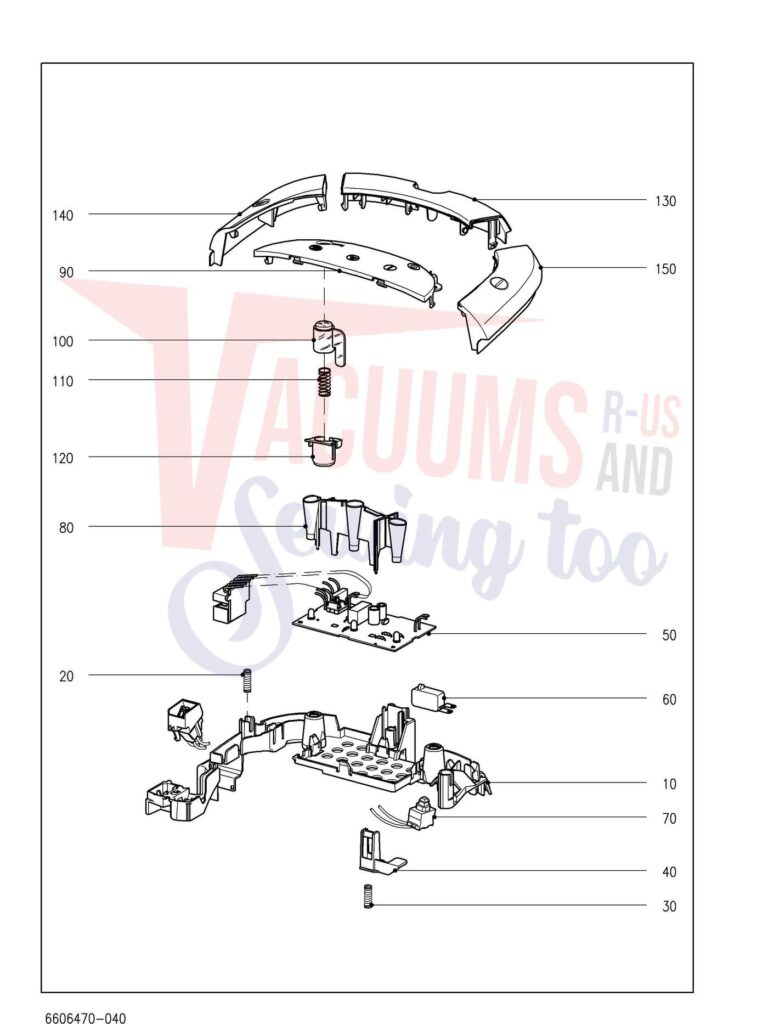

| # | Part image | Description | SKU | Price |

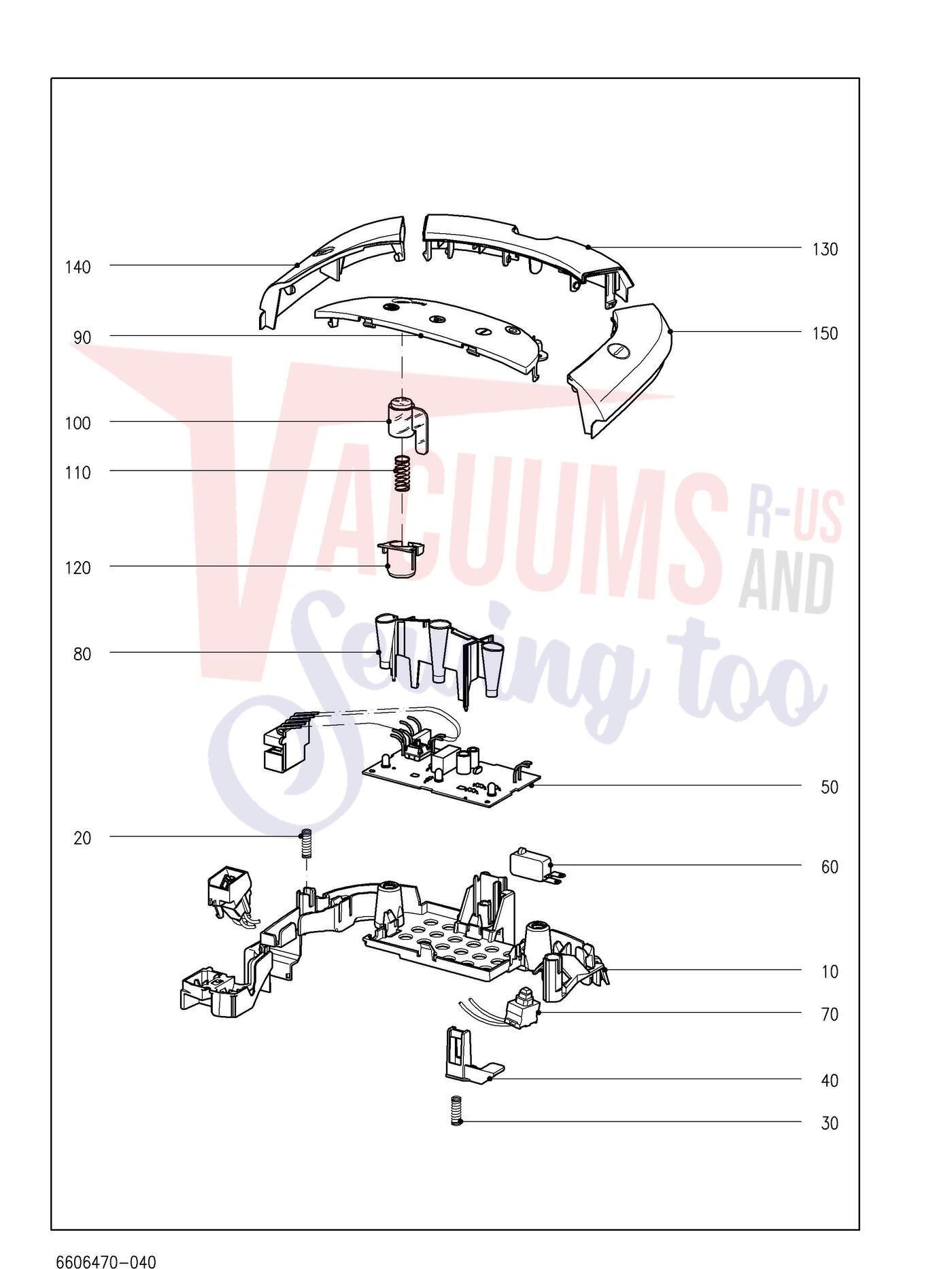

| 10 | No Image | Bracket Electronic Unit | 6134772 | $21.62Read more |
| 20 |  | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 30 | | Genuine Miele Spring | 3982390 | $3.60Read more |
| 30 | | Genuine Miele Spring | 3982390 | $3.60Read more |
| 40 | No Image | -Pushbutton S5000 | 6138870 | $2.50Read more |
| 50-70 | No Image | Electronic Unit Edw5900/81 120V 60Hz | 6715450 | $249.00Read more |
| 50-70 | No Image | Electronic Unit Edw5901/81 | 7661831 | $163.07Read more |
| 60 | | Genuine Miele Switch 250V | 4487791 | $20.60Add to cart Special order: ships in 2 to 4 weeks |
| 70 | No Image | -Switch 1 Pole 1681.3103 | 9023231 | $9.60Add to cart Special order: ships in 2 to 4 weeks |
| 80 | No Image | Reflector S5900 | 6218570 | $12.31Read more |
| 90-120 | No Image | Control Panel Black S5900 | 6637490 | $56.00Read more |
| 100 | No Image | -Push Button Black | 6599690 | $11.00Read more |
| 110 | | Genuine Miele Spring | 5457311 | $9.70Read more |
| 120 | No Image | -Bracket Push Button | 6087821 | $5.20Read more |
| 130 | Not Available | Fascia panel alu-silver | 6084080 | Not Available |
| 140 | | Genuine Miele Foot switch alu-silver SF printed | 11168540 | $22.00Add to cart |
| 150 | | Genuine Miele Foot switch alu-silver SF print | 11168551 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

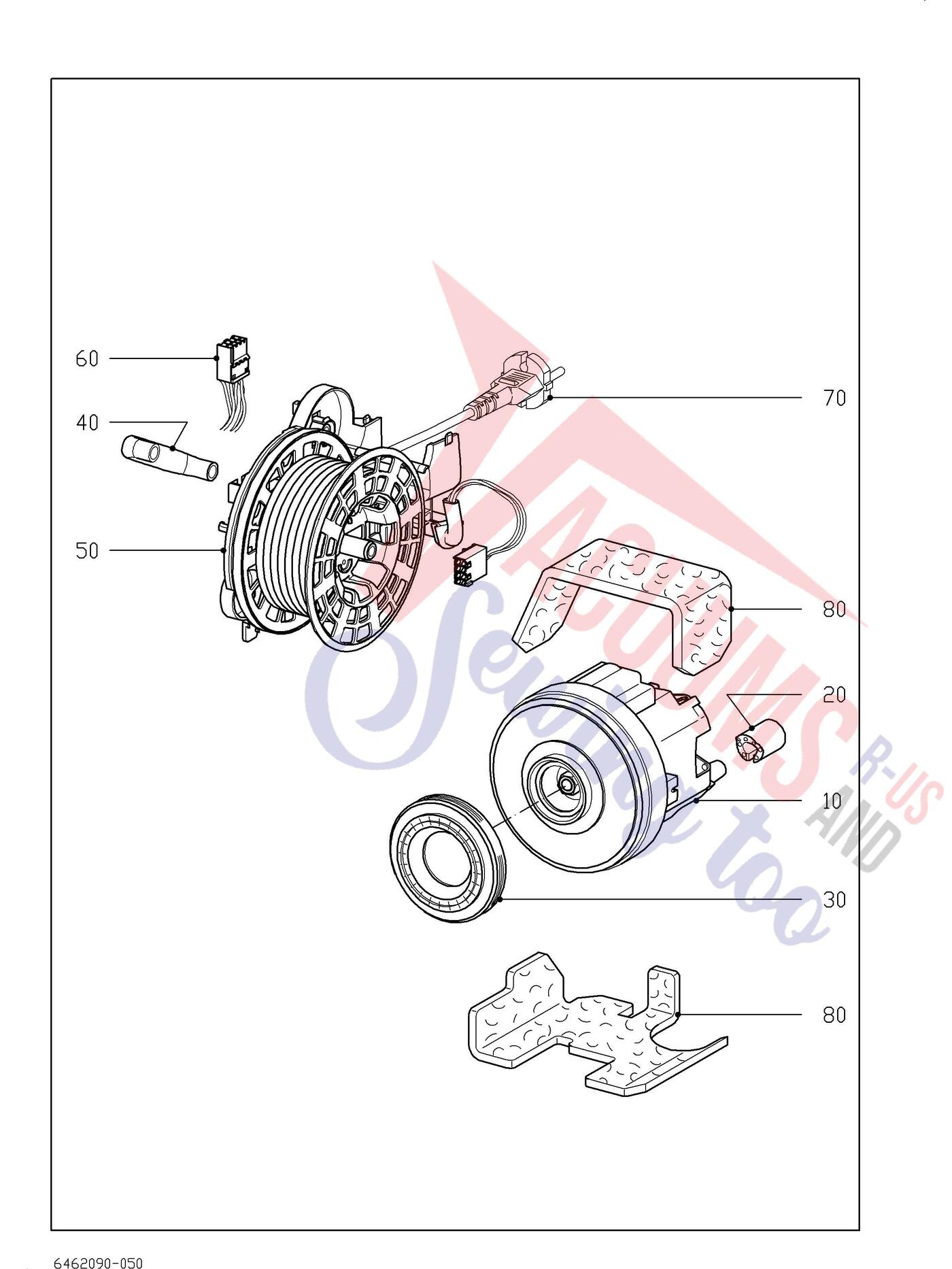

| 10 | | Genuine Miele Fan Mrg742/81-42/2 120V | 6514630 | $0.00Read more |
| 15 | | Genuine Miele Bearing ring V18 | 7714533 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | No Image | Rubber Cushion 2 Pcs. | 6207002 | $22.00Read more |
| 30 | | Genuine Miele Bearing ring | 7752870 | $15.00Read more |
| 30 | | Genuine Miele Bearing ring | 5964034 | $15.00Read more |
| 40 | | Genuine Miele Hose Nebenluft | 7196500 | $10.70Read more |
| 50-70 | | Genuine Miele Cable reel S5000 6,5m 120V USA | 6454293 | $0.00Read more |
| 60 |  | Genuine Miele Connecting cable S5000 100-120V | 6437871 | $63.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 | No Image | -Supply Cable 6,65M 1Qmm 230V | 5766340 | $61.00Read more |
| 70 | Not Available | -Supply cable 6,65m 17AWG 120V USA | 5241032 | Not Available |
| 80 | | Genuine Miele Damping plate | 6518591 | $20.60Read more |

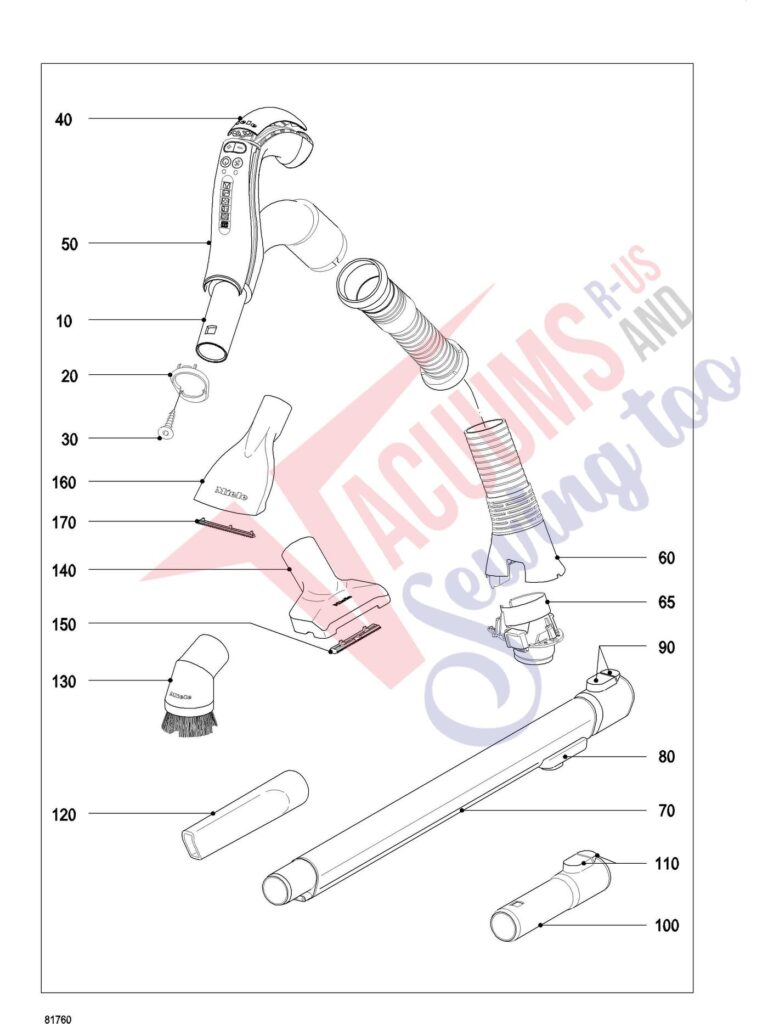

| # | Part image | Description | SKU | Price |

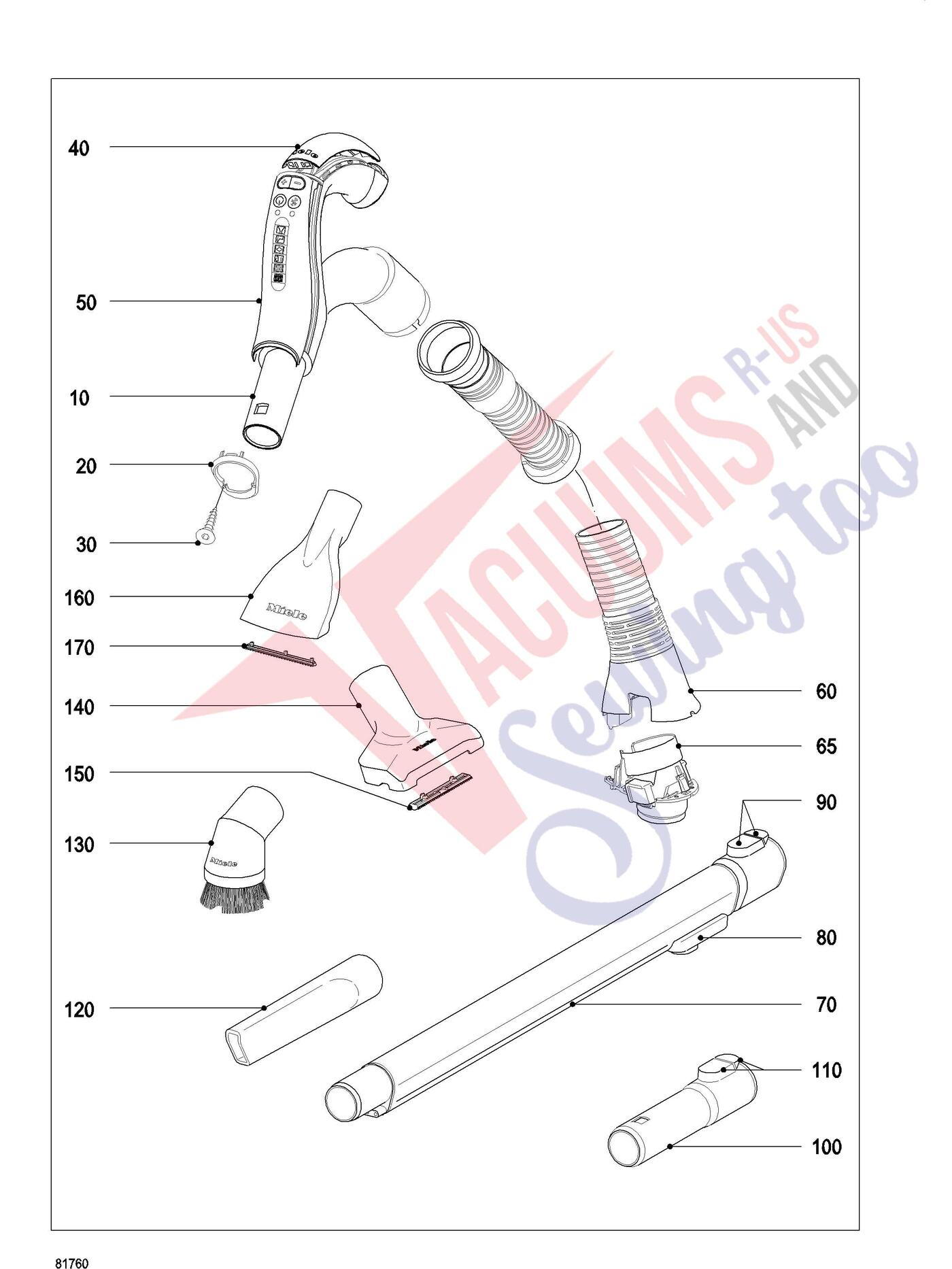

| XX | No Image | --Coun.Self-Tap.Screw Spax 3 X 9,5Torx T10 | 6167230 | $2.50Read more |
| w/o fig. | No Image | -Sealing Ring Ses119,Ses130 | 7104880 | $5.64Read more |
| 10-60 | No Image | Elec Suct. Hose Kit Ses130/Edw5901 Usa | 10073613 | $429.00Read more |
| 10-60 |  | Available Pre OwnedPreowned Miele SES130 Hose for Capricorn SES130 SES-130 More Product Details | SES130 | $124.99Add to cart |
| 10-65 | No Image | Elec.Suction Hose Ses130 Usa | 9078104 | $509.00Read more |
| 10-30 | No Image | -Tubular Handle Ses130Kd Usa | 6700102 | $189.00Read more |
| 20 | | Genuine Miele Ring Tubular handle | 6677130 | $20.60Read more |
| 40 |  | Genuine Miele Inset handle Printed | 6157660 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 | No Image | -Electronic Unit Edw5901-81 / 5951Kd | 10073931 | $289.00Read more |
| 50 | No Image | Electronic Unit Edw5951 Kd | 9077993 | $159.00Read more |
| 60 | No Image | -Elec.Suction Hose Ses130 Kd | 6699692 | $279.00Read more |
| 65 | No Image | -Air Shield Ses130 | 7615600 | $47.00Read more |
| 70-90 |  | Direct Connect Electric Wand SET220 41996432USA 6543880 | WP10506 | $199.00Add to cart |
| 80 | | Genuine Miele Push button anthracite | 5064430 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 80 |  | Genuine Miele Push button Round | 9160460 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 100+110 | | Genuine Miele connecting piece Floor nozzle | 5449760 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 120 | No Image | Crevice Nozzle 149Mm Obsw | 9442631 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 |  | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $26.00Add to cart Special order: ships in 2 to 4 weeks |
| 140+150 | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 150 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 160+170 | | Genuine Miele ST Mattress nozzle SMD10 | 7252280 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 170 | | Genuine Miele Thread lifter | 5056530 | $9.70Read more |
| # | Part image | Description | SKU | Price |

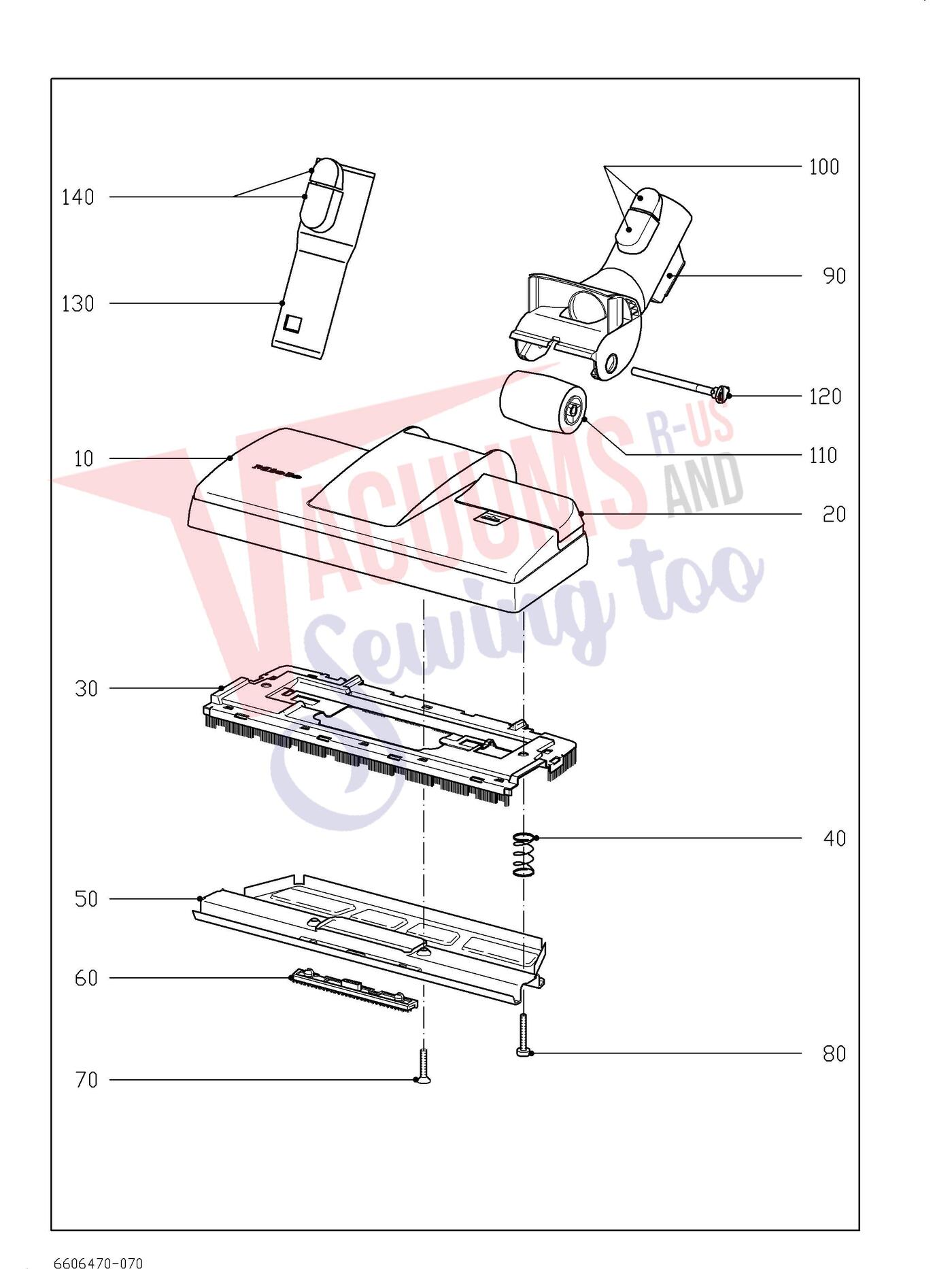

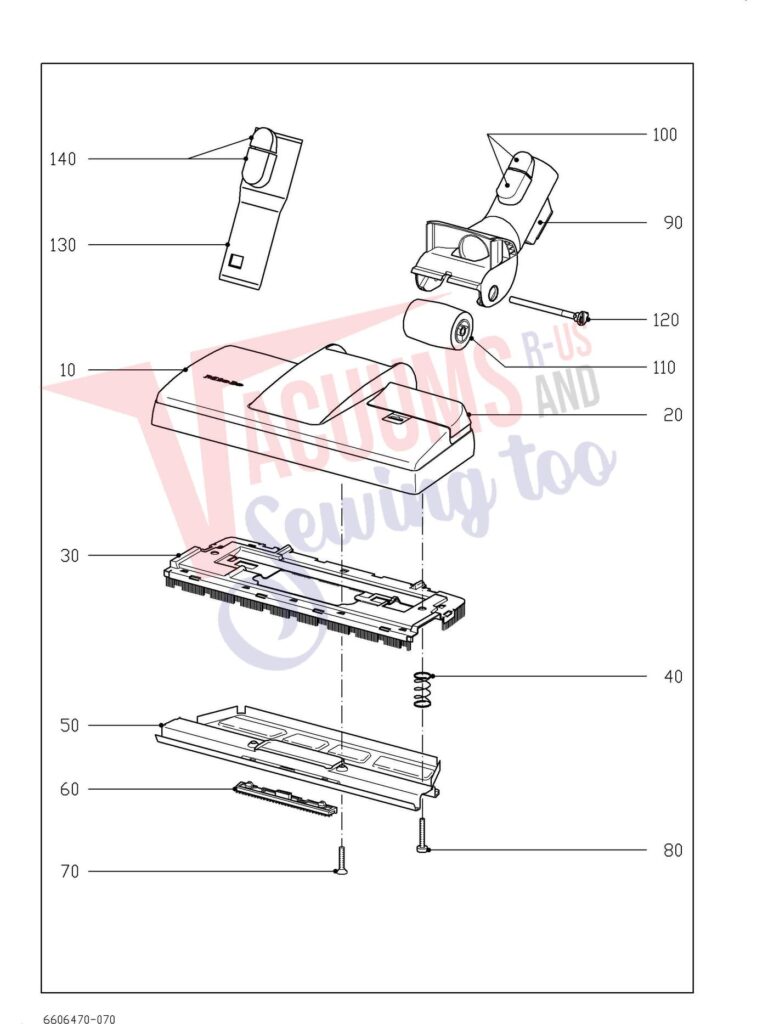

| 10-120 | Not Available | Floor nozzle SBD285-3 AllTeQ | 7253830 | Not Available |
| 30 | | Genuine Miele Bristle supp.plate SBD550-3 | 6577970 | $39.50Read more |
| 50+60 | No Image | -Lower Section Sbd550-3 | 6577960 | $56.00Read more |
| 60 | | Genuine Miele Thread lifter 2 Pcs. | 6440411 | $13.50Read more |
| 90+100 | | Genuine Miele Linkage SBD550-3 | 6599791 | $33.80Read more |
| 100 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 |  | Genuine Miele Support roller | 5235530 | $15.00Read more |
| 120 |  | Genuine Miele Shaft Bayonett fitting | 5235520 | $13.50Read more |
| 130+140 | | Genuine Miele connecting piece Floor nozzle | 5449760 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 140 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

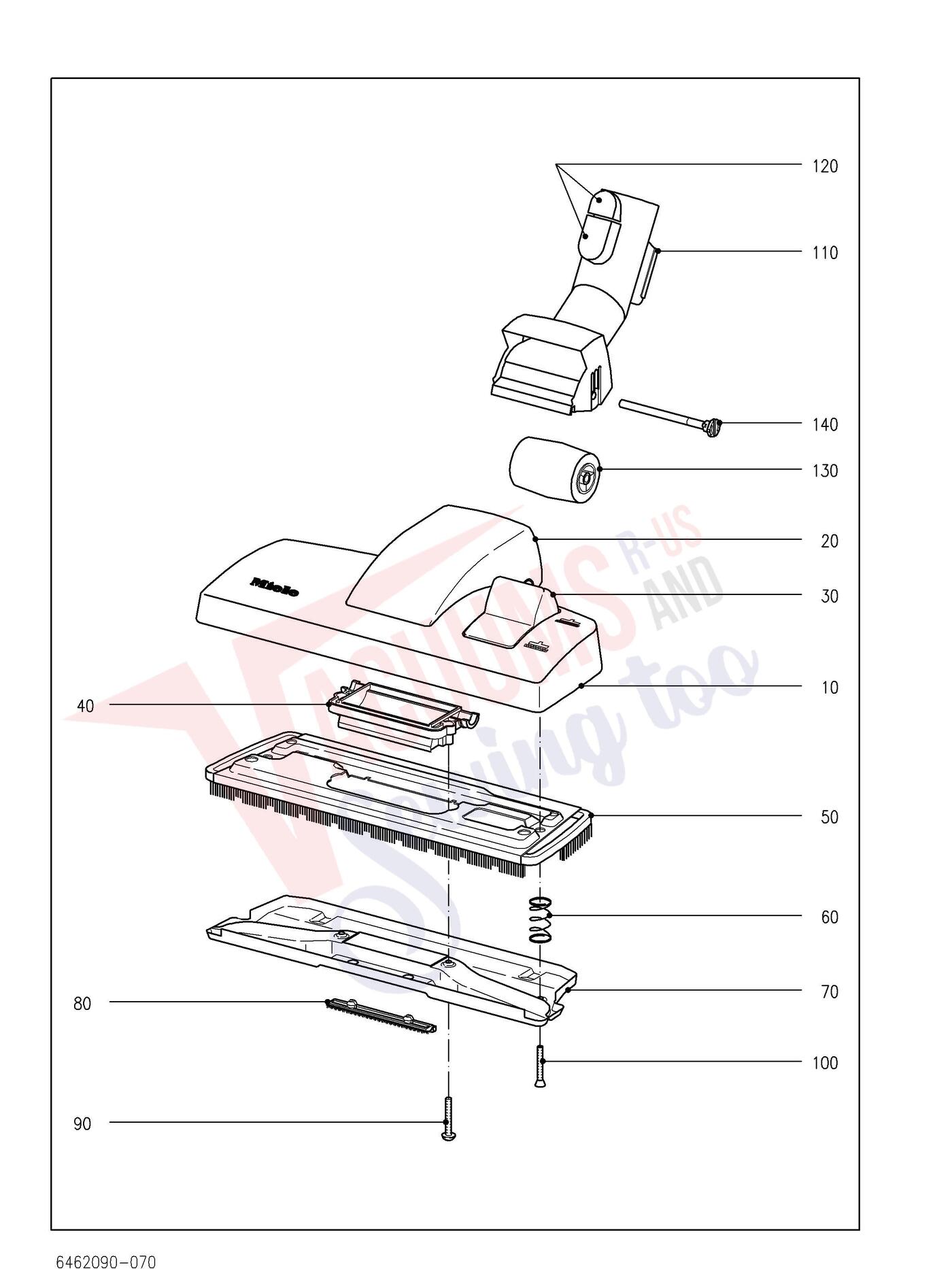

| 10-140 | Not Available | Floor nozzle SBD285-3 | 6223980 | Not Available |
| 10-140 | Not Available | Floor nozzle SBD285-3 AllTeQ | 7253830 | Not Available |
| 10 |  | Genuine Miele Top anthracite | 5235512 | $27.90Read more |
| 20 |  | Genuine Miele Suction channel anthracite | 5235541 | $24.70Read more |
| 30 |  | Genuine Miele Foot switch anthracite | 5235503 | $15.00Read more |
| 40 |  | Genuine Miele Fixing | 5235480 | $9.70Read more |
| 50 |  | Genuine Miele Bristle supp.plate | 5235463 | $33.80Read more |
| 60 |  | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |
| 70+80 |  | Genuine Miele Lower section | 5235453 | $43.60Read more |
| 80 |  | Genuine Miele Thread lifter 2 Pcs. | 6204050 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 |  | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $3.60Read more |
| 100 | No Image | --Countersunk Screw 35X20 | 5289870 | $2.30Read more |
| 110+120 |  | Genuine Miele Linkage SBD285-3 assy | 6578132 | $36.00Add to cart Special order: ships in 2 to 4 weeks |
| 120 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 | | Genuine Miele Support roller | 5235530 | $15.00Read more |
| 140 | | Genuine Miele Shaft Bayonett fitting | 5235520 | $13.50Read more |

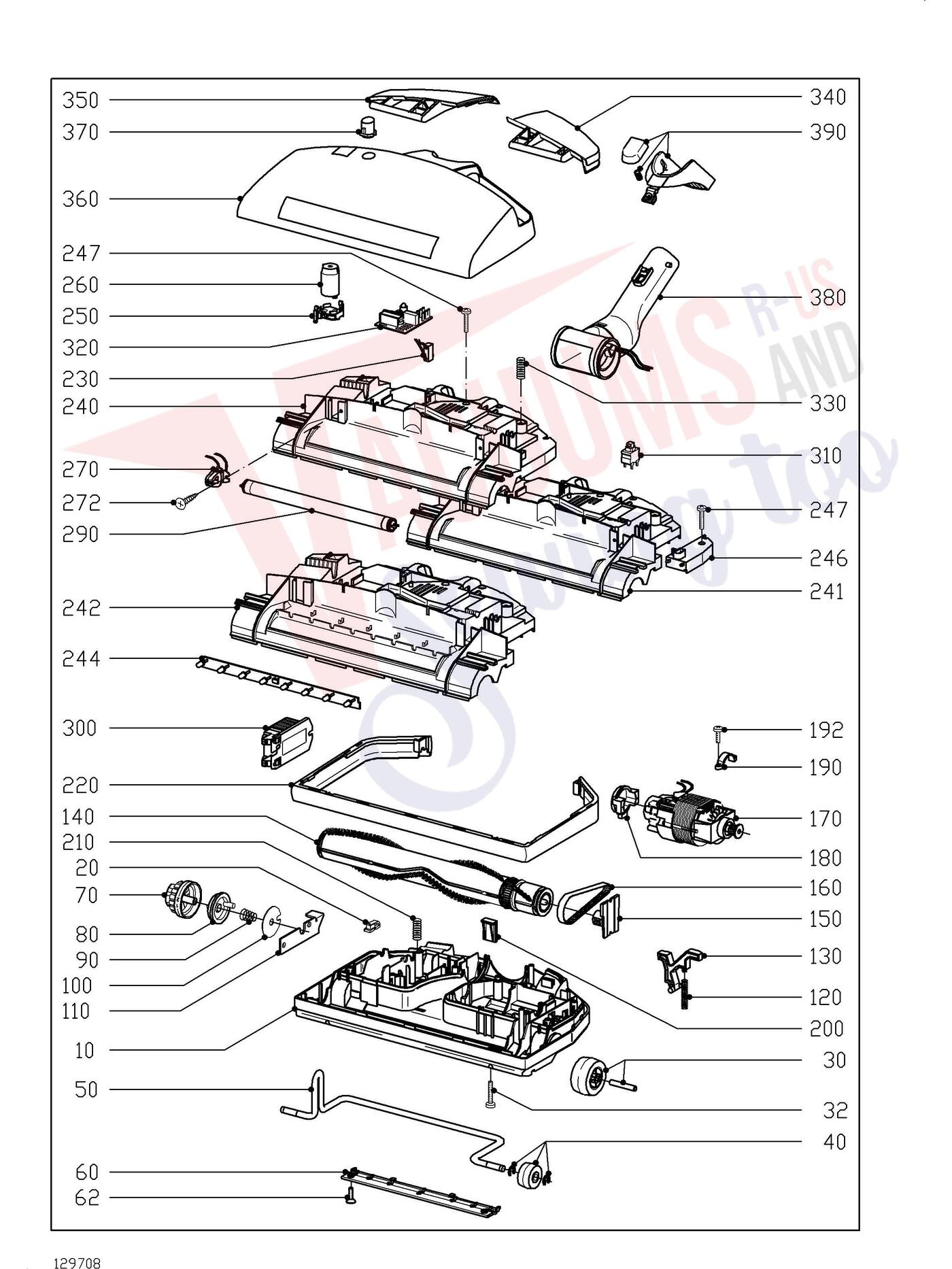

| # | Part image | Description | SKU | Price |
| XX | No Image | --Screw 35X30 | 5981580 | $2.50Read more |
| XX | | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $3.60Read more |
| XX | | Genuine Miele Screw KA35X16 EJOT-PT | 4863580 | $3.60Read more |
| XX | | Genuine Miele Screw KA35X16 EJOT-PT | 4863580 | $3.60Read more |
| XX | | Genuine Miele Screw KA35X16 EJOT-PT | 4863580 | $3.60Read more |
| 10-30 | Not Available | Lower section | 5872660 | Not Available |
| 10-30 | | Genuine Miele Lower section | 6588850 | $176.20Read more |
| 20 |  | Genuine Miele Locating peg | 5812090 | $4.90Read more |
| 30 | | Genuine Miele Support roller 2 Pcs. | 5872610 | $52.20Add to cart Special order: ships in 2 to 4 weeks |
| 40+50 | | Genuine Miele Angle lever | 5872630 | $131.10Read more |
| 40 |  | Genuine Miele Support roller 2 Pcs. | 5872620 | $33.80Read more |
| 60 | | Genuine Miele Cover strip | 5812220 | $24.70Read more |
| 70 | | Genuine Miele Regulator wheel | 5812030 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 80 | | Genuine Miele Carrier | 5812040 | $9.70Read more |
| 90 | | Genuine Miele Coil spring | 5812080 | $2.30Read more |
| 100 | | Genuine Miele Disc | 5812060 | $4.90Read more |
| 110 | | Genuine Miele Switch lever | 5812070 | $9.70Read more |
| 120 | | Genuine Miele Spring Foot switch SEB | 6644260 | $11.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 | No Image | Interlock | 5812160 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 140 | | Genuine Miele Brush roller | 5812012 | $96.72Add to cart Special order: ships in 2 to 4 weeks |
| 150 |  | Genuine Miele Spherical bearing 2 Pcs. | 5872640 | $56.00Add to cart |
| 160 |  | Genuine Miele Tooth belt | 5812180 | $30.00Add to cart Special order: ships in 2 to 4 weeks |
| 170 |  | Genuine Miele AC motor 120V | 5812170 | $141.70Add to cart |
| 180 | | Genuine Miele Bracket AC motor | 5812210 | $18.80Read more |
| 190 | | Genuine Miele Motor bracket | 5812200 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 200 | | Genuine Miele Wedge | 5863080 | $11.00Add to cart Special order: ships in 2 to 4 weeks |
| 210 |  | Genuine Miele Spring | 5981600 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| 220 | | Genuine Miele Buffer | 5812140 | $43.60Read more |
| 230 | | Genuine Miele Limit switch | 5884930 | $63.00Add to cart Special order: ships in 2 to 4 weeks |
| 240 | Not Available | Cover | 5812250 | Not Available |
| 241 | No Image | Cover | 6588870 | $100.00Read more |
| 242+244 | | Genuine Miele Conv.kit cover 120V | 7495990 | $193.40Read more |
| 244 | | Genuine Miele printed circ. board LED 120V | 7448320 | $159.00Read more |
| 246+247 | | Genuine Miele conv.kit casing | 6646700 | $282.60Read more |
| 246+247 | | Genuine Miele conv.kit casing | 6646700 | $282.60Read more |
| 246 | | Genuine Miele Cover Switch | 6589390 | $15.00Read more |
| 250 | | Genuine Miele Lamp-holder Starter | 5863160 | $10.70Read more |
| 260 | | Genuine Miele Starter | 5862880 | $27.90Read more |
| 270 | | Genuine Miele Lamp-holder 2 Pcs. | 5872650 | $15.00Read more |
| 290 | Not Available | Neon tube | 5862870 | Not Available |
| 300 | | Genuine Miele Choke 120V | 5862930 | $85.50Read more |
| 310 |  | Genuine Miele Push button switch | 5862950 | $36.00Add to cart |
| 310 |  | Available ReconditionedReconditioned Genuine Miele Push button switch More Product Details | 5862950R | $32.00Add to cart |
| 320 | | Genuine Miele printed circ. board 120V | 5863060 | $189.00Add to cart Special order: ships in 2 to 4 weeks |
| 325 | No Image | Cover Printed Circ. Board | 5863270 | $17.25Read more |
| 330 | | Genuine Miele Spring | 5981600 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| 340 |  | Genuine Miele Foot switch links | 5811960 | $27.00Add to cart |
| 350 |  | Genuine Miele Foot switch right | 5811970 | $63.00Add to cart |
| 360+370 | | Genuine Miele Top | 5811900 | $98.00Read more |
| 370 | | Genuine Miele Push button | 5811940 | $9.70Read more |
| 380+390 |  | Genuine Miele Connection socket | 5811990 | $87.69Add to cart Special order: ships in 2 to 4 weeks |
| 380+390 |  | Available Pre OwnedPre owned Miele Connection Socket Knuckle for SEB234 and SEB236 Power Nozzles PN: 5811990 More Product Details | 5811990R | $69.99Add to cart |
| 390 |  | Miele Foot Switch | 5872570 | $36.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| XX | Not Available | Operat.instruct. S5981 USA/CDN | 7176520 | Not Available |
| XX | Not Available | Operat.instruct. S5981 USA/CDN | 7890670 | Not Available |
| XX | Not Available | Operat.instruct. S5981 -USA- | 7915320 | Not Available |
| XX | Not Available | Operat.instruct. S5981 -USA/CDN- | 9096100 | Not Available |
Report errors on this page HERE
