Schematic and parts book for Miele S5780 S5780. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

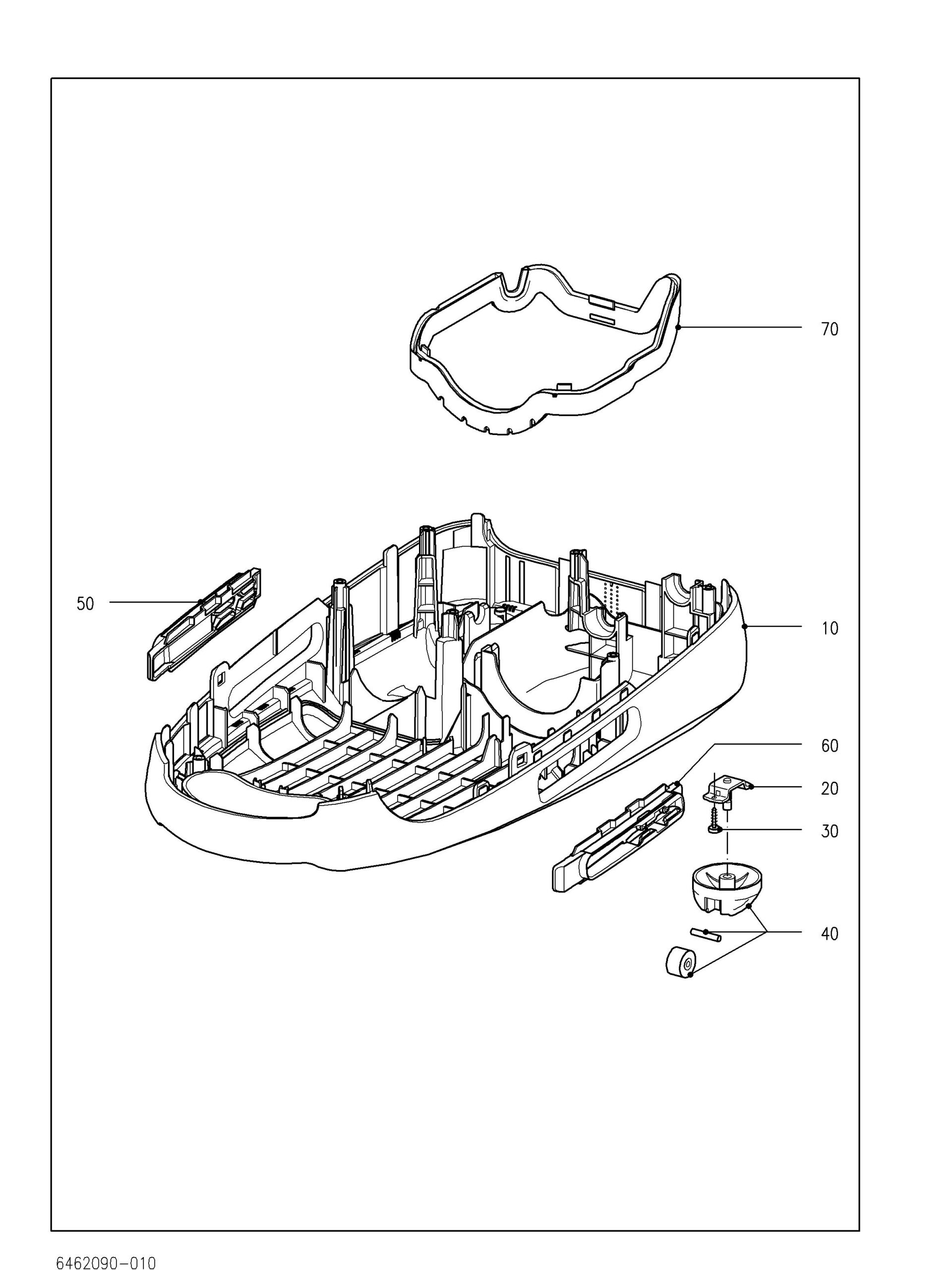

| # | Part image | Description | SKU | Price |
| XX | No Image | --Raised Head Screw 4,0X14 | 6498750 | $2.30Read more |
| 10-70 | No Image | Casing Bottom Anthracite | 9895503 | $119.00Read more |
| 20 |  | Genuine Miele Shaft Slide skid | 3892600 | $9.70Read more |
| 40 | No Image | -Slide Skid Obsw Assy | 12494260 | $11.00Read more |
| 50 | | Genuine Miele Suspension right | 6065240 | $4.90Read more |
| 60 | Not Available | -Suspension left | 6065270 | Not Available |
| 70 | No Image | -Seal | 6049591 | $15.00Read more |

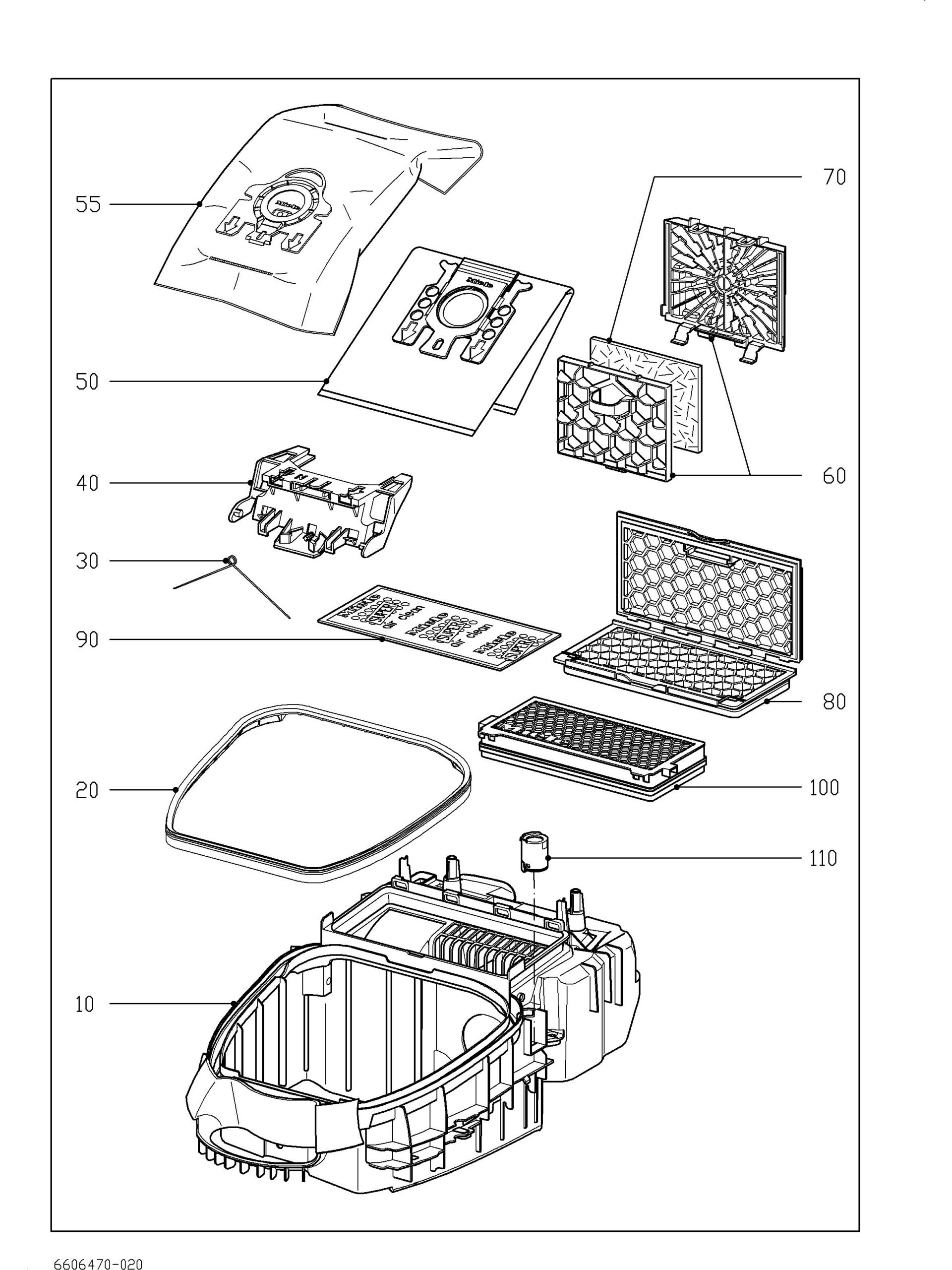

| # | Part image | Description | SKU | Price |
| 10 | | Genuine Miele Casing insert S5xxx | 12073090 | $71.70Read more |
| 20 | | Genuine Miele Sealing ring | 6141480 | $13.50Read more |
| 30 |  | Genuine Miele Torsion spring Bracket | 6434090 | $2.50Add to cart |
| 40 | | Genuine Miele Bracket vacuum cleaner bag | 6081322 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 | Not Available | vacuum cleaner bag G/N USA | 7805110 | Not Available |
| 60+70 | | Genuine Miele Filter frame Brilliant blue | 6241011 | $20.60Read more |
| 70 |  | Genuine Miele Dust compart.filter 3 pcs. | 6713110 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 80 |  | Genuine Miele Spacer bracket Air-Clean filter | 11690520 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 |  | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 100 | No Image | Act.Air Cleanfilter | 12785350 | $49.00Add to cart Special order: ships in 2 to 4 weeks |
| 100 | No Image | Hepa-Filter | 12785390 | $64.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 | | Genuine Miele Suction control S2/S5/S8 | 6455390 | $6.60Read more |

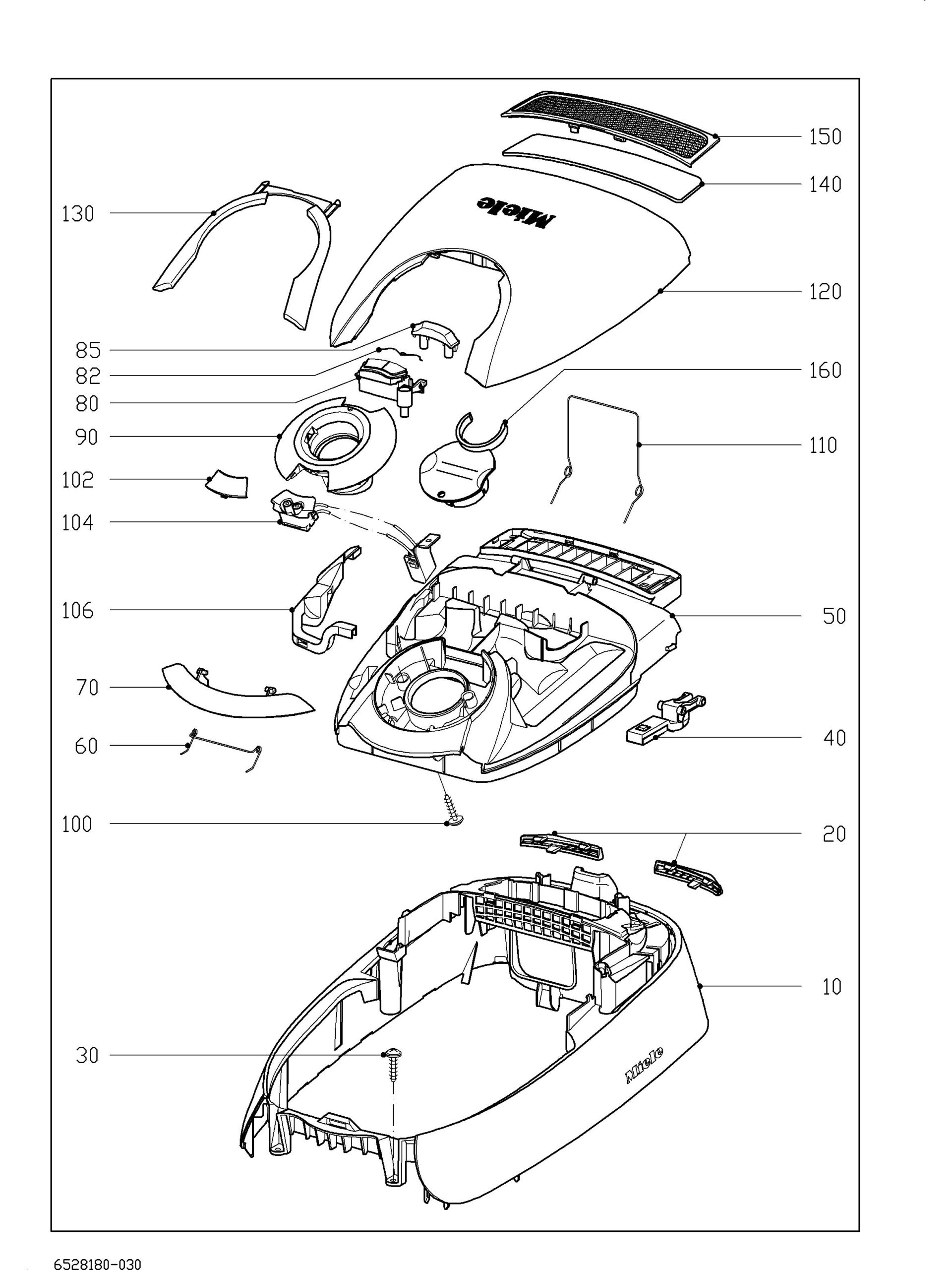

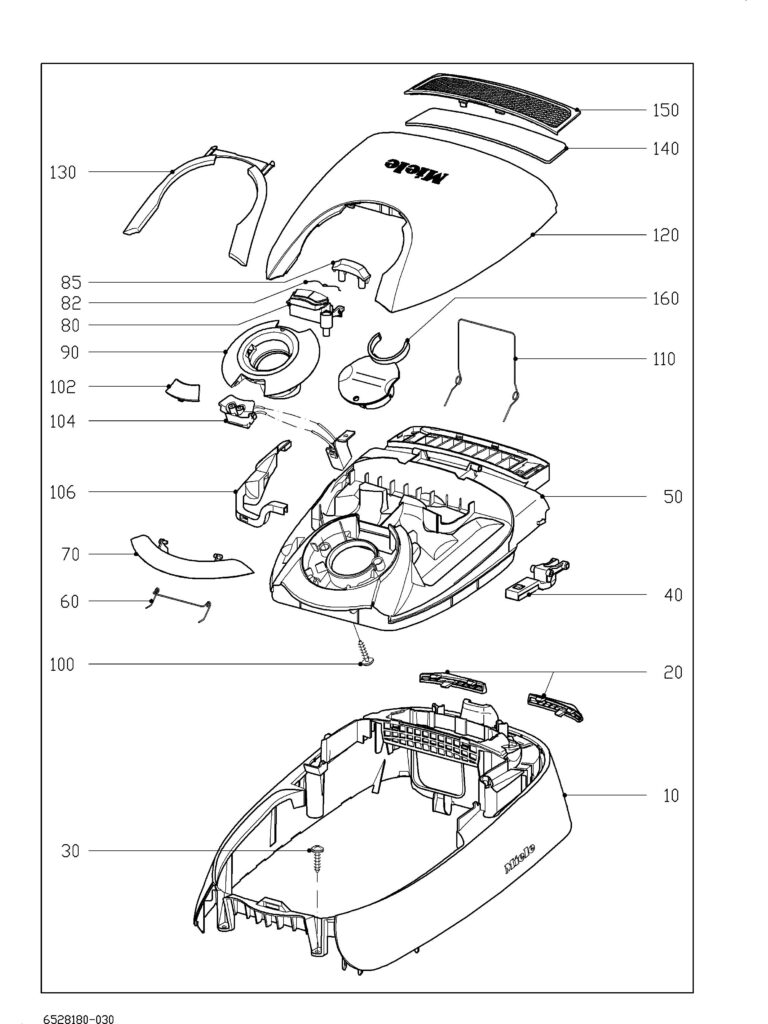

| # | Part image | Description | SKU | Price |
| XX |  | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| XX | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 10+20 | | Genuine Miele Cover frame deep black | 6515170 | $93.60Read more |
| 10+20 | No Image | Cover Frame Tealite Blue Met. | 6515230 | $129.00Read more |
| 10+20 | No Image | Cover Frame M.-Of-Pearl Silver | 6515240 | $129.00Read more |
| 10+20 | | Genuine Miele Cover frame Tizia red metallic | 6515250 | $120.70Read more |
| 10+20 | | Genuine Miele Cover frame Marine blue | 6643260 | $93.60Read more |
| 20 | | Genuine Miele Strip Left and right | 6515290 | $2.30Read more |
| 40 | | Genuine Miele Hinge 2 Pcs. | 6515311 | $20.60Read more |
| 50 | | Genuine Miele Casing top S5xxx | 11997180 | $98.00Read more |
| 60 |  | Genuine Miele Torsion spring Lock | 6079920 | $3.60Add to cart |
| 70 |  | Genuine Miele Lock | 6079890 | $3.60Read more |
| 80-85 | No Image | Change Filter Ind. | 6079450 | $27.00Read more |
| 80-85 | No Image | Change Filter Ind. Sf Type 1 Kpl. | 10289992 | $27.00Read more |
| 82 | No Image | -Torsion Spring Change Filter Ind. | 5463554 | $2.50Read more |
| 85 |  | Genuine Miele interlock | 6122782 | $2.50Read more |
| 90 | | Genuine Miele Ring alu-silver | 6212270 | $20.60Read more |
| 102 | | Genuine Miele Fascia panel alu-silver | 6217170 | $10.70Read more |
| 104 | Not Available | Flush socket outlet S5300 230-240V | 6456060 | Not Available |
| 106 | No Image | Cover Strip Casing Top | 6128230 | $4.14Read more |
| 110 |  | Genuine Miele Torsion spring Lid | 6409260 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 120+130 | | Genuine Miele Lid Obsidian black | 9375340 | $52.20Read more |
| 120+130 | | Genuine Miele Lid Obsidian black | 9375340 | $52.20Read more |
| 120+130 | No Image | Lid M.-Of-Pearl Silver | 6514991 | $66.00Read more |
| 120+130 | | Genuine Miele Lid Tizia red metallic | 6515011 | $62.00Read more |
| 120+130 | | Genuine Miele Lid Marine blue | 6643281 | $52.20Read more |
| 130 | | Genuine Miele Fascia panel Lid | 6126401 | $4.90Read more |
| 140 | Not Available | Air shield alu-silver | 6764550 | Not Available |
| 150+140 | | Genuine Miele Air shield alu-silver | 6835790 | $27.90Read more |
| 160 | Not Available | Hygiene cap | 6622030 | Not Available |

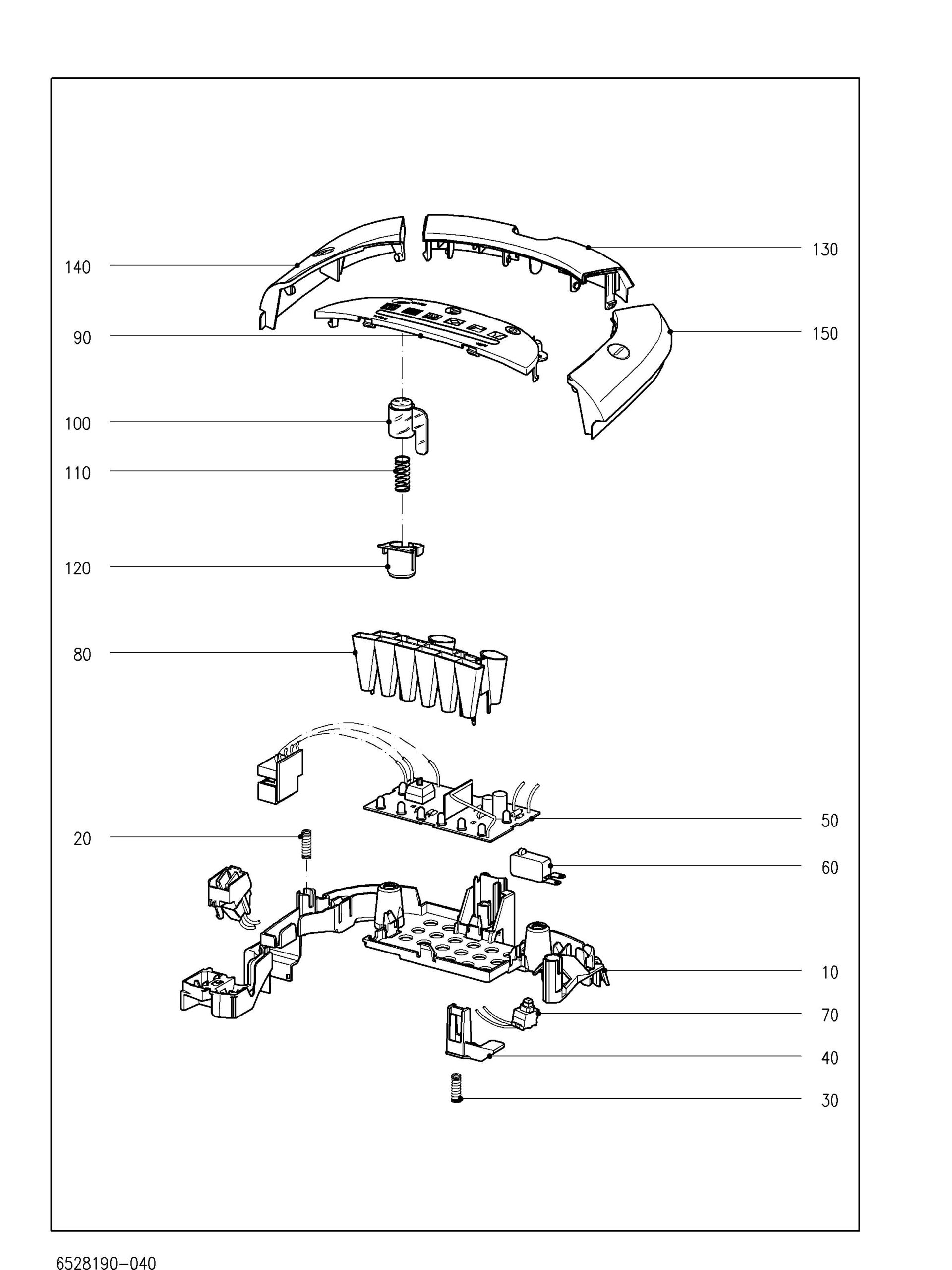

| # | Part image | Description | SKU | Price |
| 10 | No Image | Bracket Electronic Unit | 6134772 | $21.62Read more |
| 20 |  | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 30 | | Genuine Miele Spring | 3982390 | $3.60Read more |
| 40 | No Image | -Pushbutton S5000 | 6138870 | $2.50Read more |
| 60 | | Genuine Miele Switch 250V | 4487791 | $20.60Add to cart Special order: ships in 2 to 4 weeks |
| 70 | No Image | -Switch 1 Pole 1681.3103 | 9023231 | $9.60Add to cart Special order: ships in 2 to 4 weeks |
| 80 | No Image | Reflector S5700 | 6218540 | $12.31Read more |
| 90-120 | No Image | Control Panel Black S57Xx | 6561030 | $56.00Read more |
| 100 | | Genuine Miele Push button | 6084420 | $9.70Read more |
| 100 | | Genuine Miele Push button | 6084420 | $9.70Read more |
| 110 | | Genuine Miele Spring | 5457311 | $9.70Read more |
| 120 | No Image | -Bracket Push Button | 6087821 | $5.20Read more |
| 130 | Not Available | Fascia panel alu-silver | 6084080 | Not Available |
| 140 | | Genuine Miele Foot switch alu-silver SF printed | 11168540 | $22.00Add to cart |
| 150 | | Genuine Miele Foot switch alu-silver SF print | 11168551 | $22.00Add to cart Special order: ships in 2 to 4 weeks |

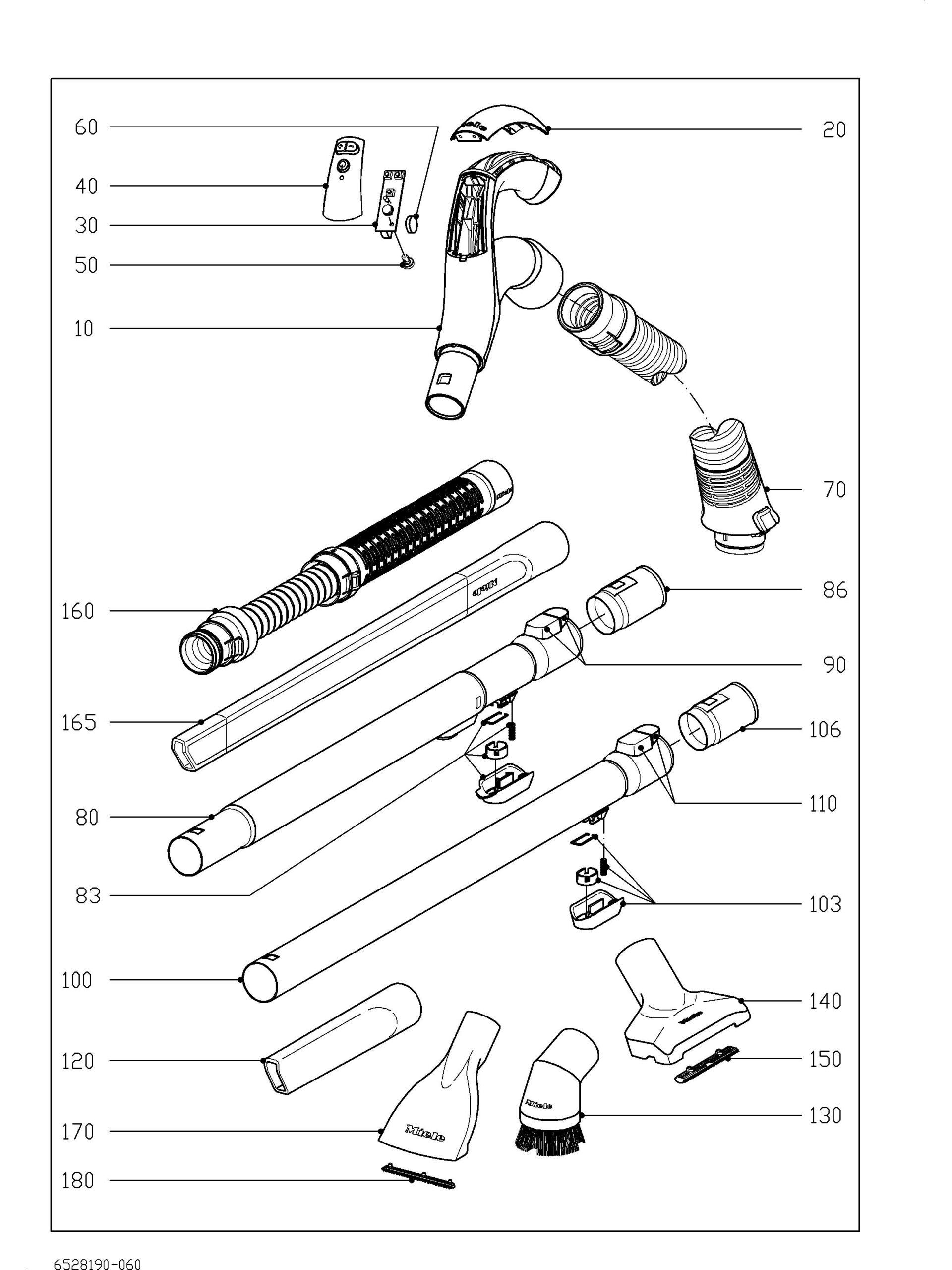

| # | Part image | Description | SKU | Price |

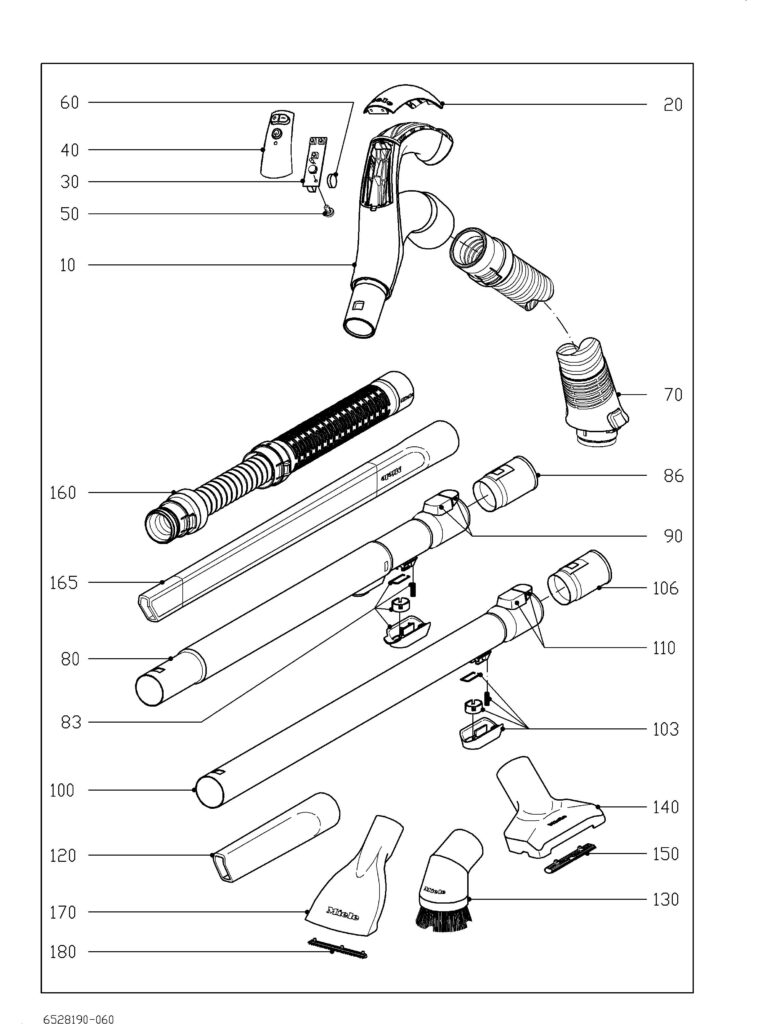

| w/o fig. | | Genuine Miele Screw Plastic 3x10 | 9121940 | $2.30Read more |
| XX | No Image | --Raised Head Screw 3,5X6,5 | 41851 | $2.30Read more |
| 10+20 | Not Available | Tubular handle assy | 9764413 | Not Available |
| 10+20+ | | Genuine Miele Tubular handle Radio controlled | 11560550 | $139.00Add to cart Special order: ships in 2 to 4 weeks |
| 10-60 | | Genuine Miele Tubular handle Radio transmitter | 9764405 | $120.70Read more |
| 20 |  | Genuine Miele Inset handle Printed | 6157660 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 30-60 | Not Available | Electronic unit EDW4750 kpl. | 9214850 | Not Available |
| 40 | | Genuine Miele support printed circ. board assy | 9764420 | $39.50Read more |
| 70 | | Genuine Miele Suction hose silver-coloured 1,8m | 6614661 | $0.00Read more |
| 80-90 |  | HES Telescopic Wand for Miele | 10615280 | $77.99Add to cart Special order: ships in 2 to 4 weeks |
| 80-90 |  | Available ReconditionedGenuine Reconditioned Miele Telescopic Wand - Non Electric More Product Details | 5658812R | $0.00Add to cart |
| 83 | No Image | -Push Button Round | 6151391 | $15.53Read more |
| 86 |  | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 100-110 |  | Genuine Miele Telescopic pipe 2-part st.steel | 5658812 | $0.00Read more |
| 100-110 |  | Available Pre OwnedReconditioned Miele Telescopic Aluminum Wand for Miele Upright Vacuums 6801181 More Product Details | 6801180R | $48.00Add to cart |
| 100-110 |  | Compatible alternateGenuine Miele Telescopic pipe Aluminium More Product Details | 6801181 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 103 | | Genuine Miele Push button Round | 5780931 | $0.00Read more |
| 106 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 120 | No Image | Crevice Nozzle 149Mm Obsw | 9442631 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 |  | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $26.00Add to cart Special order: ships in 2 to 4 weeks |
| 140+150 | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 150 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 160 | No Image | Flexible Hose Sfs 10 | 6483880 | $0.00Read more |
| 160 |  | Genuine Miele ST Flexible hose SFS10 | 7252210 | $44.00Add to cart Special order: ships in 2 to 4 weeks |
| 165 | | Genuine Miele ST Flex. crev. nozzle SFD20 560mm | 7252100 | $39.00Add to cart Special order: ships in 2 to 4 weeks |
| 165 |  | Compatible alternateMiele SFD20 Long Flexible Crevice Tool for Miele Vacuums More Product Details | SFD20 | $39.00Add to cart Special order: ships in 2 to 4 weeks |
| 165 | | Genuine Miele ST Flex. crev. nozzle SFD20 560mm | 7252100 | $39.00Add to cart Special order: ships in 2 to 4 weeks |
| 170+180 | | Genuine Miele ST Mattress nozzle SMD10 | 7252280 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 180 | | Genuine Miele Thread lifter | 5056530 | $9.70Read more |

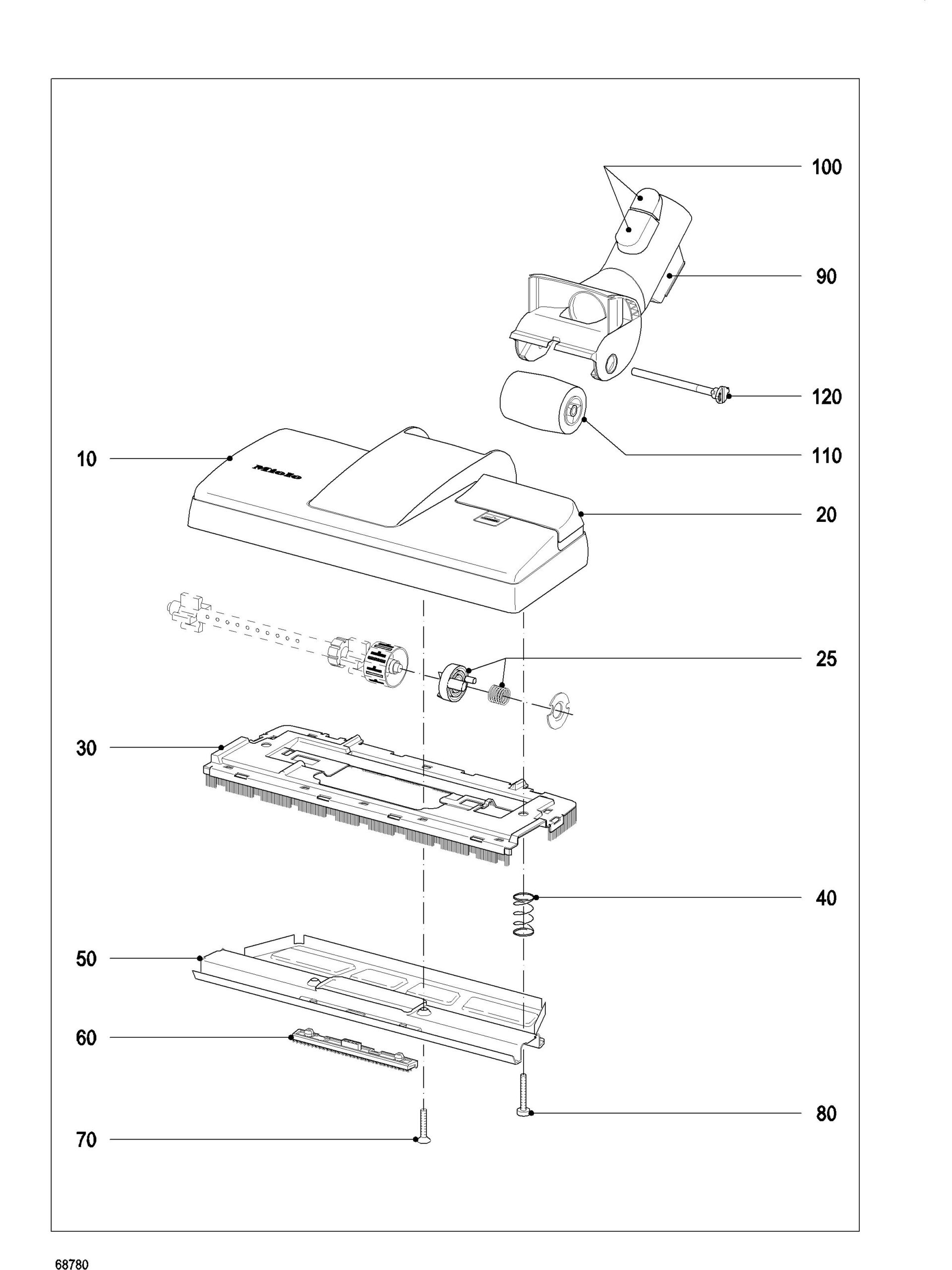

| # | Part image | Description | SKU | Price |
| 10-120 | Not Available | Floor nozzle SBD285-3 AllTeQ | 7253830 | Not Available |
| 25 | | Genuine Miele Carrier SBD550-3 | 7605701 | $20.60Read more |
| 30 | | Genuine Miele Bristle supp.plate SBD550-3 | 6577970 | $39.50Read more |
| 50+60 | No Image | -Lower Section Sbd550-3 | 6577960 | $56.00Read more |
| 60 | | Genuine Miele Thread lifter 2 Pcs. | 6440411 | $13.50Read more |
| 90+100 | | Genuine Miele Linkage SBD550-3 | 6599791 | $33.80Read more |
| 100 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 |  | Genuine Miele Support roller | 5235530 | $15.00Read more |
| 120 |  | Genuine Miele Shaft Bayonett fitting | 5235520 | $13.50Read more |
