Schematic and parts book for Miele S5520 S5520. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

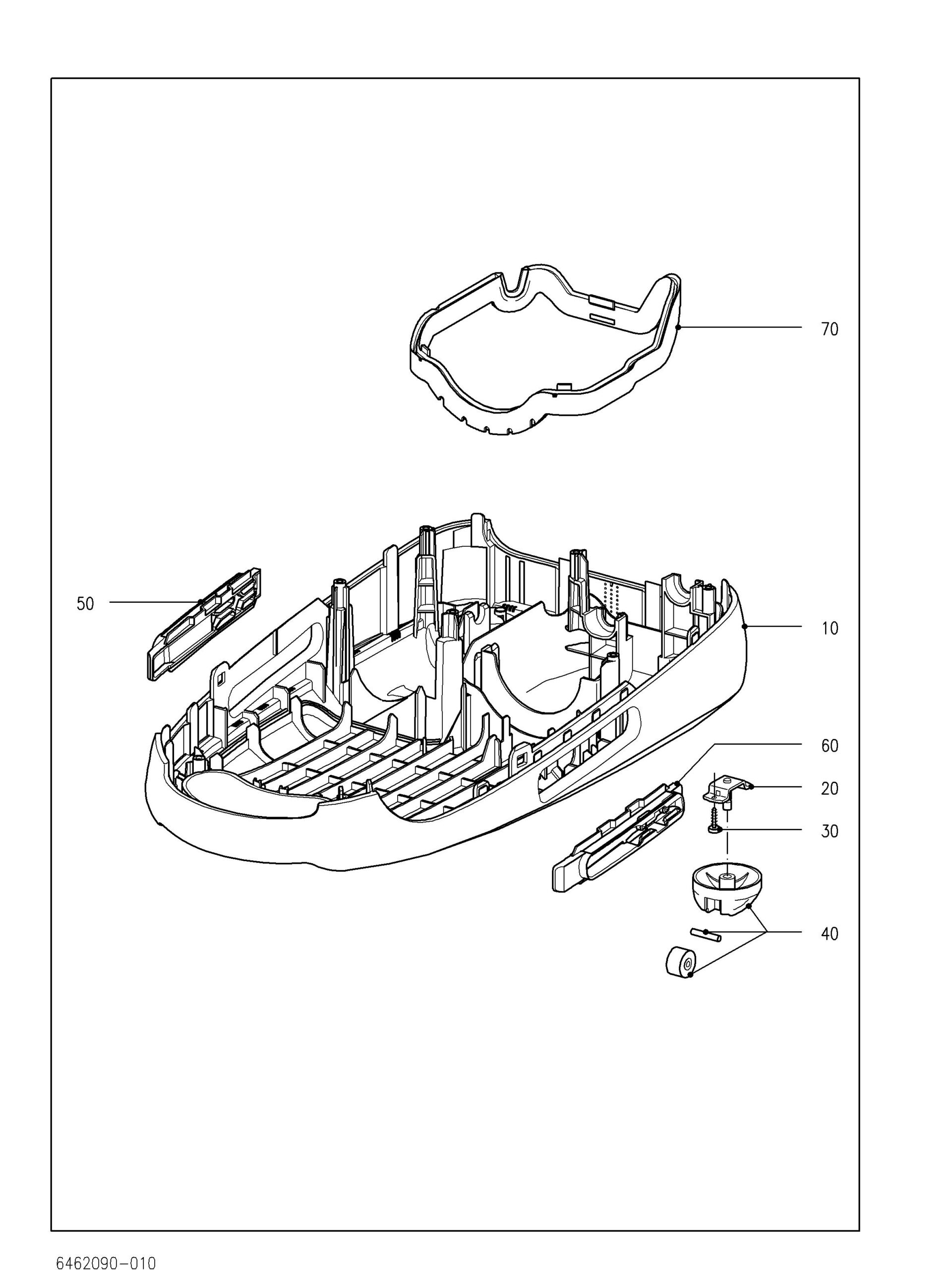

| # | Part image | Description | SKU | Price |
| XX |  | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 10-70 | No Image | Casing Bottom Anthracite | 6515350 | $119.00Read more |
| 20 | | Genuine Miele Shaft Slide skid | 3892600 | $9.70Read more |
| 40 | No Image | -Slide Skid Obsw Assy | 12494260 | $11.00Read more |
| 50 | | Genuine Miele Suspension right | 6065240 | $4.90Read more |
| 60 | Not Available | -Suspension left | 6065270 | Not Available |
| 70 | Not Available | -Seal | 6049590 | Not Available |

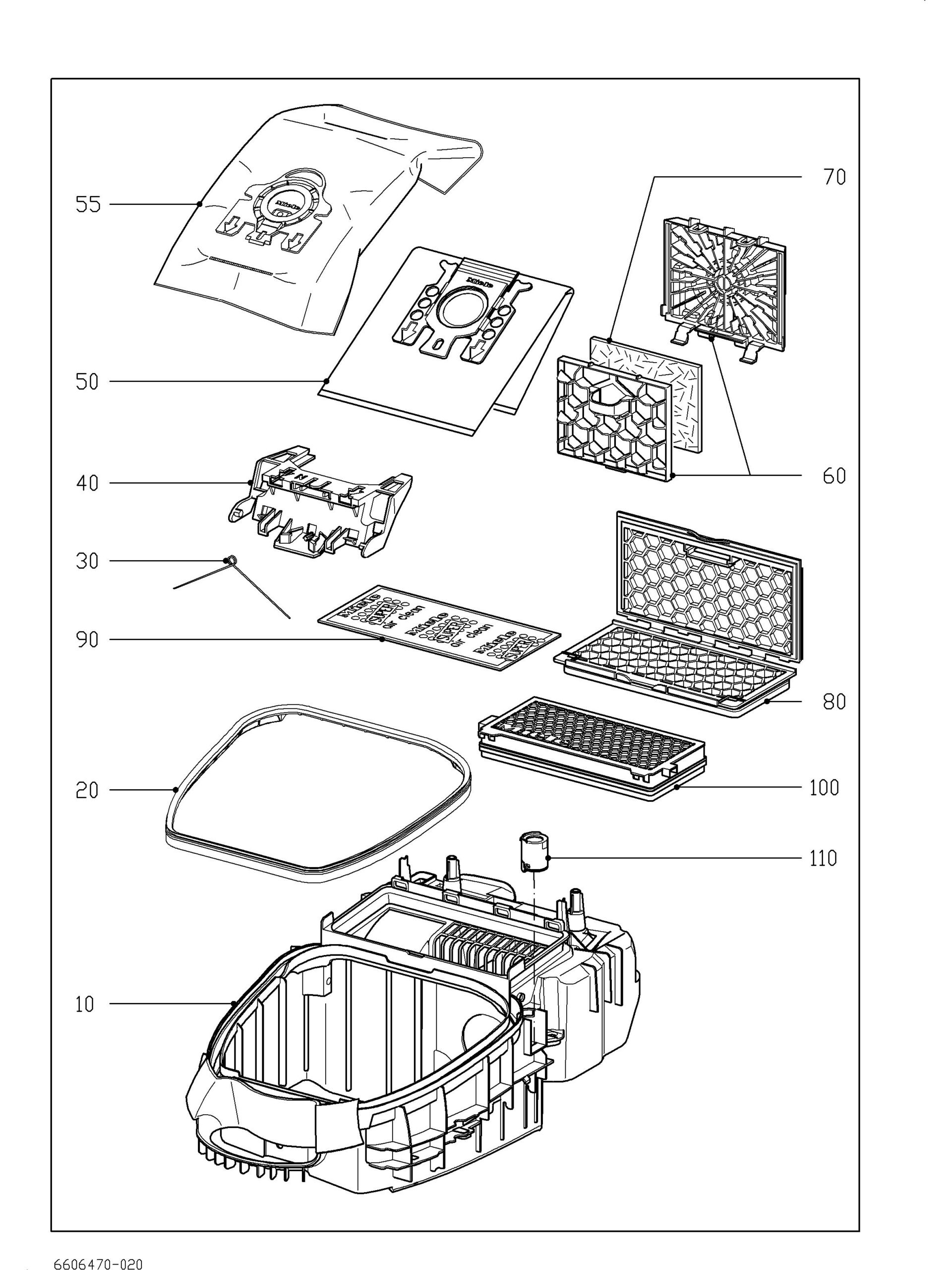

| # | Part image | Description | SKU | Price |
| 10 | | Genuine Miele Casing insert S5xxx | 12073090 | $71.70Read more |
| 20 | | Genuine Miele Sealing ring | 6141480 | $13.50Read more |
| 30 |  | Genuine Miele Torsion spring Bracket | 6434090 | $2.50Add to cart |
| 40 | | Genuine Miele Bracket vacuum cleaner bag | 6081322 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 | Not Available | vacuum cleaner bag G/N USA | 7805110 | Not Available |
| 60+70 | | Genuine Miele Filter frame Brilliant blue | 6241011 | $20.60Read more |
| 70 |  | Genuine Miele Dust compart.filter 3 pcs. | 6713110 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 80 |  | Genuine Miele Spacer bracket Air-Clean filter | 11690520 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 |  | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 100 | No Image | Act.Air Cleanfilter | 12785350 | $49.00Add to cart Special order: ships in 2 to 4 weeks |
| 100 | No Image | Hepa-Filter | 12785390 | $64.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 | | Genuine Miele Suction control S2/S5/S8 | 6455390 | $6.60Read more |

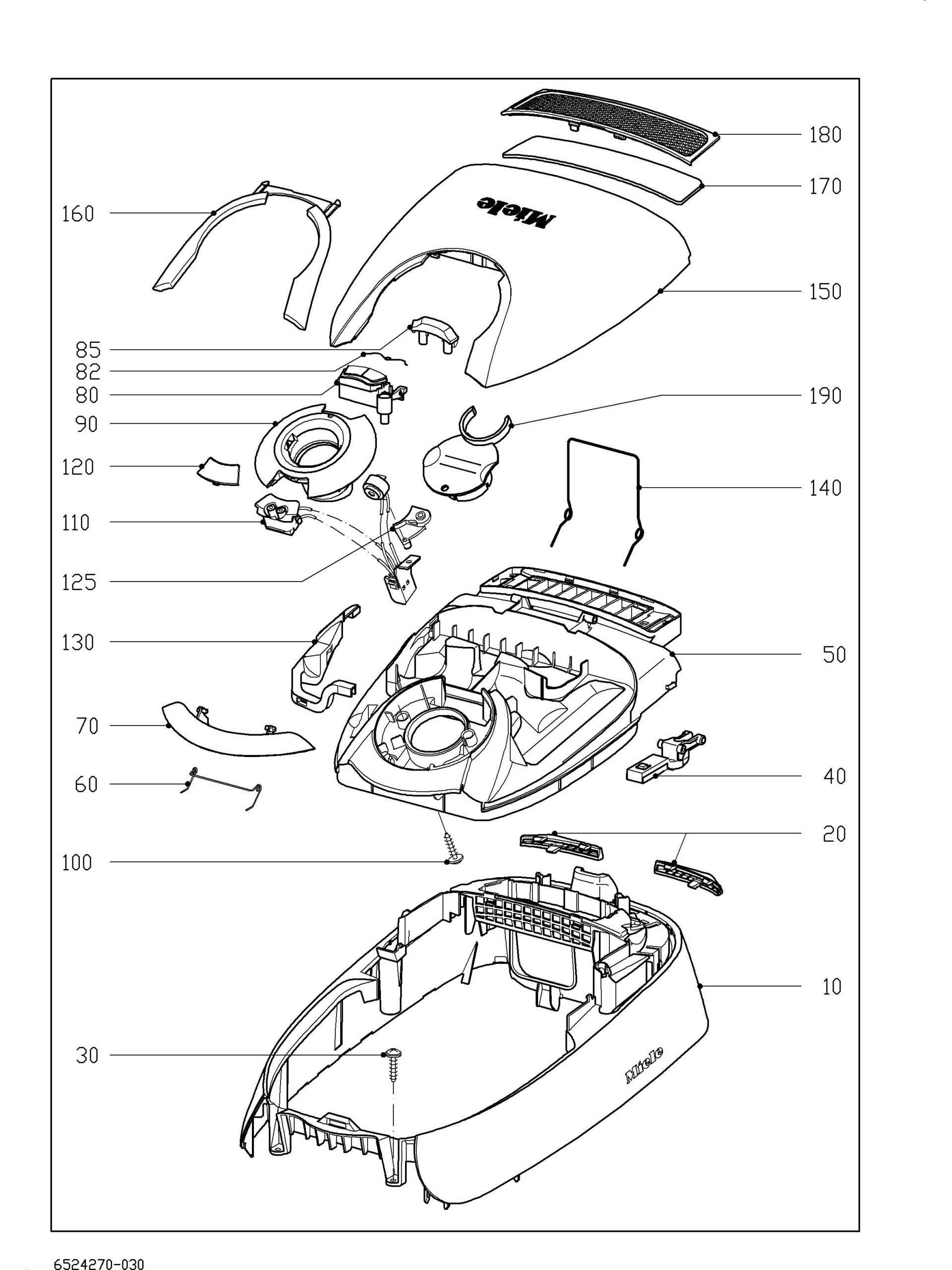

| # | Part image | Description | SKU | Price |
| XX | No Image | --Raised Head Screw 4,0X18 Torx T20 | 6238630 | $2.30Read more |
| XX |  | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 10+20 | | Genuine Miele Cover frame Luna silver | 6515260 | $120.70Read more |
| 20 | | Genuine Miele Strip Left and right | 6515290 | $2.30Read more |
| 40 | | Genuine Miele Hinge 2 Pcs. | 6515311 | $20.60Read more |
| 50 | | Genuine Miele Casing top S5xxx | 11997180 | $98.00Read more |
| 60 |  | Genuine Miele Torsion spring Lock | 6079920 | $3.60Add to cart |
| 70 |  | Genuine Miele Lock | 6079890 | $3.60Read more |
| 80-85 | No Image | Change Filter Ind. | 6079450 | $27.00Read more |
| 80-85 | No Image | Change Filter Ind. Sf Type 1 Kpl. | 10289992 | $27.00Read more |
| 82 | No Image | -Torsion Spring Change Filter Ind. | 5463554 | $2.50Read more |
| 85 |  | Genuine Miele interlock | 6122782 | $2.50Read more |
| 90 | | Genuine Miele Ring alu-silver S5500 | 6426520 | $20.60Read more |
| 110 | No Image | Flush Socket Outlet S5500 230-240V | 6456650 | $83.00Read more |
| 120 | | Genuine Miele Fascia panel alu-silver | 6217170 | $10.70Read more |
| 125 | No Image | Air Shield Ring | 6141491 | $2.50Read more |
| 130 | No Image | Cover Strip Casing Top | 6128230 | $4.14Read more |
| 140 |  | Genuine Miele Torsion spring Lid | 6409260 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 150+160 | | Genuine Miele Lid deep black | 6473661 | $59.40Read more |
| 160 | | Genuine Miele Fascia panel Lid | 6126401 | $4.90Read more |
| 180 | Not Available | Air shield alu-silver | 6764550 | Not Available |
| 180+170 | | Genuine Miele Air shield alu-silver | 6835790 | $27.90Read more |
| 190 | Not Available | Hygiene cap | 6622030 | Not Available |

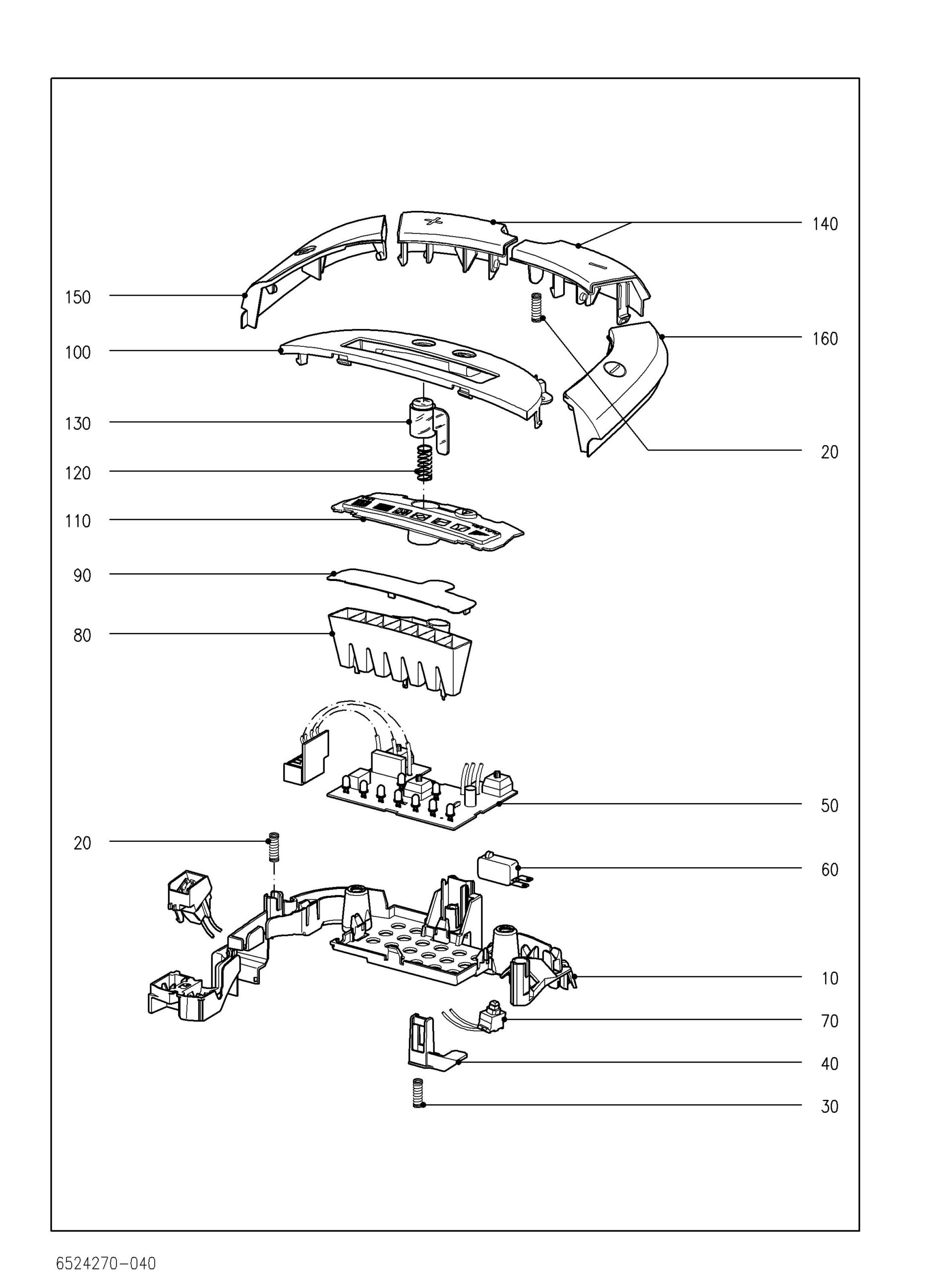

| # | Part image | Description | SKU | Price |
| 10 | No Image | Bracket Electronic Unit | 6134772 | $21.62Read more |
| 20 |  | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 20 | | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 30 | | Genuine Miele Spring | 3982390 | $3.60Read more |
| 40 | No Image | -Pushbutton S5000 | 6138870 | $2.50Read more |
| 50-70 | No Image | Electronic Unit Edw5500 230-240V | 6715380 | $179.00Read more |
| 60 | | Genuine Miele Switch 250V | 4487791 | $20.60Add to cart Special order: ships in 2 to 4 weeks |
| 70 | No Image | -Switch 1 Pole 1681.3103 | 9023231 | $9.60Add to cart Special order: ships in 2 to 4 weeks |
| 80 | No Image | Reflector | 6084380 | $17.25Read more |
| 90 | | Genuine Miele Fascia panel Reflector | 6165241 | $2.30Read more |
| 100-130 | Not Available | Control panel Autumn red | 6560970 | Not Available |
| 100-130 | Not Available | Control panel Luna silver | 6561020 | Not Available |
| 110 | No Image | -Viewing Screen | 6403040 | $20.00Read more |
| 120 | | Genuine Miele Spring | 5457311 | $9.70Read more |
| 130 | | Genuine Miele Push button | 6084420 | $9.70Read more |
| 140 | | Genuine Miele Pushbutton Left and right | 6518600 | $33.80Read more |
| 150 | | Genuine Miele Foot switch alu-silver SF printed | 11168540 | $22.00Add to cart |
| 160 | | Genuine Miele Foot switch alu-silver SF print | 11168551 | $22.00Add to cart Special order: ships in 2 to 4 weeks |

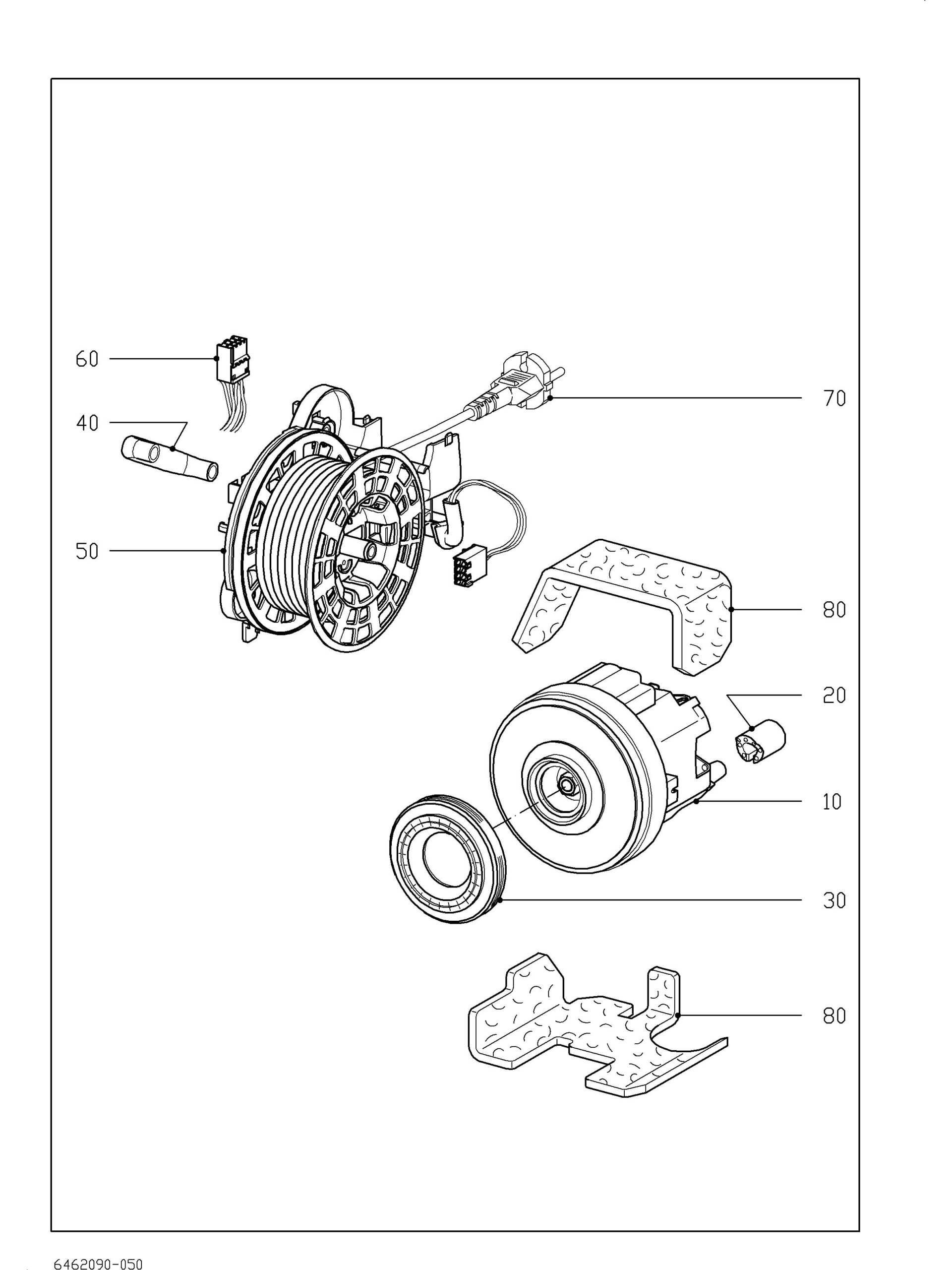

| # | Part image | Description | SKU | Price |
| 10 | | Genuine Miele Fan Mrg412-42/2 230V | 7890582 | $95.04Read more |
| 20 | No Image | Rubber Cushion 2 Pcs. | 6207002 | $22.00Read more |
| 30 | | Genuine Miele Bearing ring | 7752870 | $15.00Read more |
| 30 | | Genuine Miele Bearing ring | 5964034 | $15.00Read more |
| 40 | | Genuine Miele Hose Nebenluft | 7196500 | $10.70Read more |
| 50-70 | No Image | Cable Reel S5000 230V | 6724973 | $119.00Read more |
| 60 | No Image | -Connecting Cable S5000 230-240V | 6213481 | $42.00Read more |
| 70 | No Image | -Supply Cable 6,65M 1Qmm 230V | 5766340 | $61.00Read more |
| 80 | | Genuine Miele Damping plate | 6518591 | $20.60Read more |

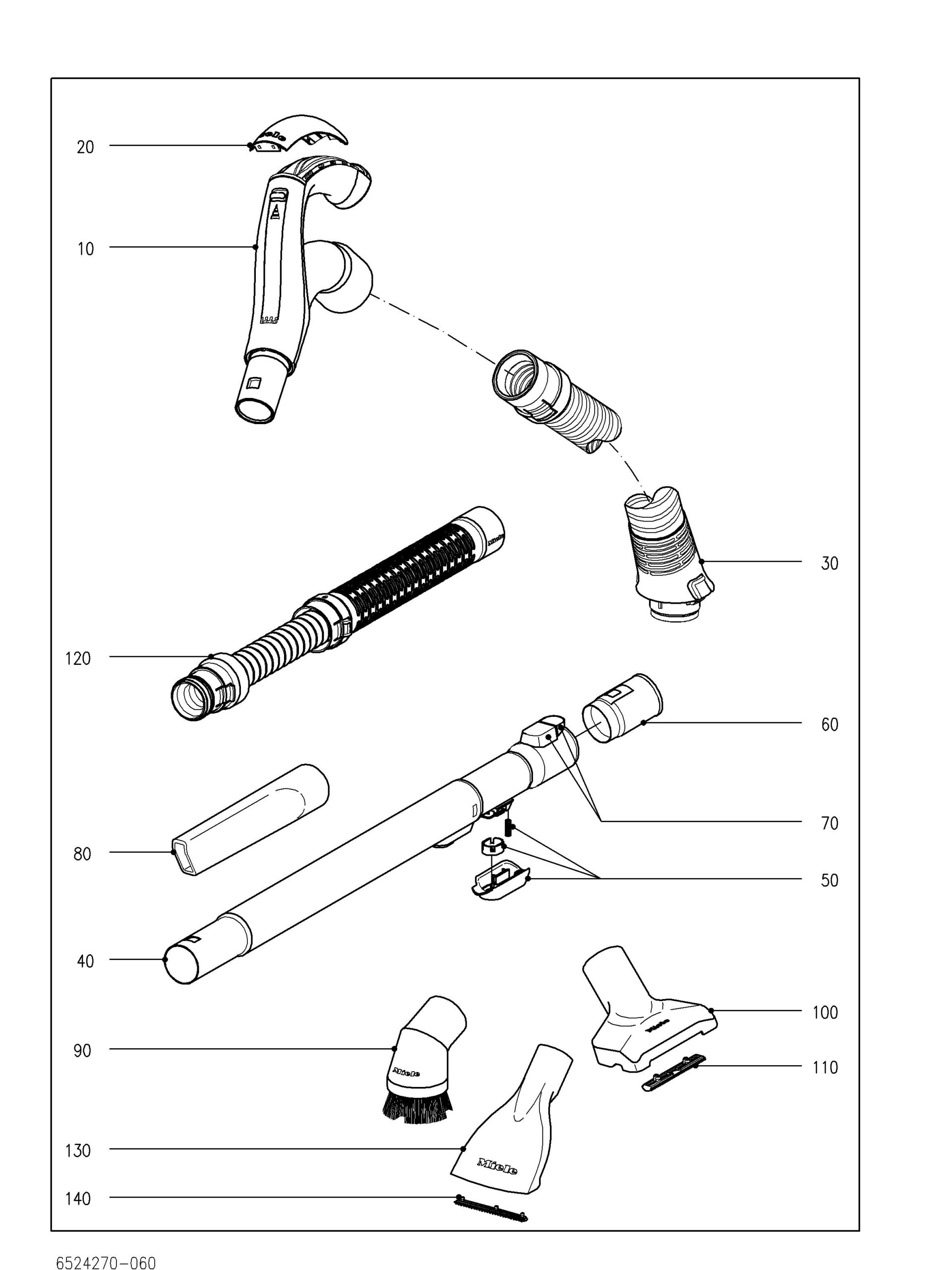

| # | Part image | Description | SKU | Price |
| 10+20 | | Genuine Miele Tubular handle S4, S5 | 6163661 | $0.00Read more |
| 20 |  | Genuine Miele Inset handle Printed | 6157660 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Genuine Miele Suction hose silver-coloured 1,8m | 6614661 | $0.00Read more |
| 40-70 |  | HES Telescopic Wand for Miele | 10615280 | $77.99Add to cart Special order: ships in 2 to 4 weeks |
| 40-70 |  | Available ReconditionedGenuine Reconditioned Miele Telescopic Wand - Non Electric More Product Details | 5658812R | $0.00Add to cart |
| 50 | No Image | -Push Button Round | 6151391 | $15.53Read more |
| 60 |  | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 80 | No Image | Crevice Nozzle 149Mm Obsw | 9442631 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 |  | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $26.00Add to cart Special order: ships in 2 to 4 weeks |
| 100+110 | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 120 |  | Genuine Miele ST Flexible hose SFS10 | 7252210 | $44.00Add to cart Special order: ships in 2 to 4 weeks |
| 130+140 | | Genuine Miele ST Mattress nozzle SMD10 | 7252280 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 140 | | Genuine Miele Thread lifter | 5056530 | $9.70Read more |

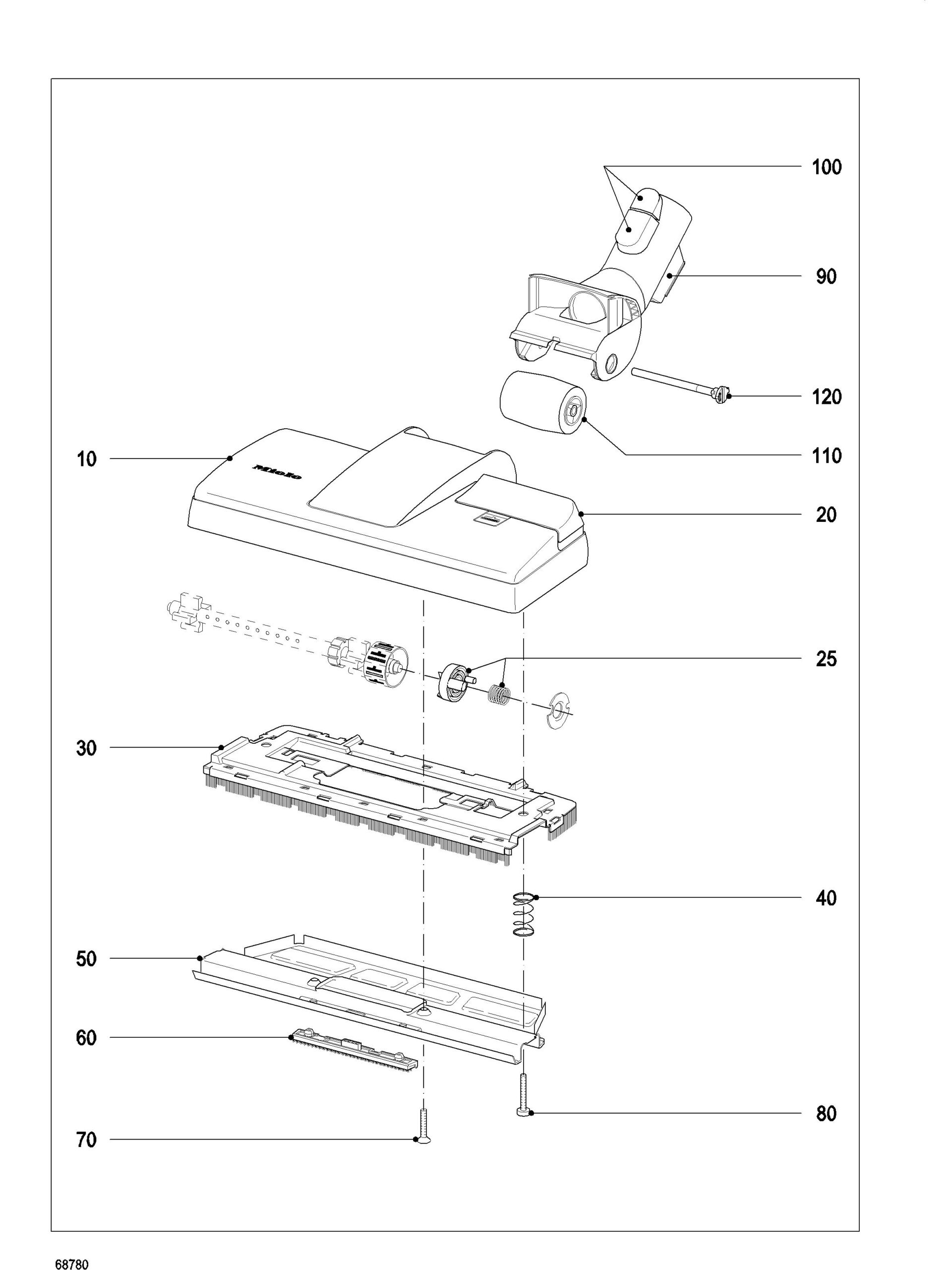

| # | Part image | Description | SKU | Price |
| 10-120 | Not Available | Floor nozzle SBD285-3 AllTeQ | 7253830 | Not Available |
| 25 | | Genuine Miele Carrier SBD550-3 | 7605701 | $20.60Read more |
| 30 | | Genuine Miele Bristle supp.plate SBD550-3 | 6577970 | $39.50Read more |
| 50+60 | No Image | -Lower Section Sbd550-3 | 6577960 | $56.00Read more |
| 60 | | Genuine Miele Thread lifter 2 Pcs. | 6440411 | $13.50Read more |
| 90+100 | | Genuine Miele Linkage SBD550-3 | 6599791 | $33.80Read more |
| 100 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 |  | Genuine Miele Support roller | 5235530 | $15.00Read more |
| 120 |  | Genuine Miele Shaft Bayonett fitting | 5235520 | $13.50Read more |
