Schematic and parts book for Miele S548 S 548. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| XX |  | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 10-60 | No Image | Casing Bottom Anthracite | 5266836 | $119.00Read more |
| 20 | | Genuine Miele Shaft Slide skid | 3892600 | $9.70Read more |
| 40-60 | No Image | -Slide Skid Obsw Assy | 12494260 | $11.00Read more |
| 50+60 | No Image | -Slide Skid Obsw Assy | 12494260 | $11.00Read more |
| 70 | | Genuine Miele Grip handle anthracite | 5088880 | $6.60Read more |
| 80 | | Genuine Miele Suspension anthracite | 5088800 | $6.60Read more |
| 90 | | Genuine Miele Buffer | 5088850 | $43.60Read more |
| 100 | | Genuine Miele Torsion spring | 5088960 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| 110 | No Image | Bracket Vacuum Cleaner Bag | 6745042 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 123 | Not Available | vacuum cleaner bag F/J/M USA | 7805100 | Not Available |
| 125+126 | Not Available | Cloth filter bag S227-S858 | 5188842 | Not Available |
| 126 | | Genuine Miele Lock | 1058641 | $20.60Read more |
| 130 |  | Genuine Miele Dust compart.filter 3 pcs. | 6713110 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 140 | | Genuine Miele Filter frame | 5117170 | $13.50Read more |
| 150 | | Genuine Miele Seal | 5088860 | $18.80Read more |
| 160 | | Genuine Miele Sealing ring | 5088870 | $18.80Read more |
| 170 | | Genuine Miele Hose | 5088980 | $15.00Read more |
| 180 | Not Available | Underpress.release 62/29 Typ A | 5412940 | Not Available |
| 190 | Not Available | Hose DRM4 65mm | 5306410 | Not Available |
| # | Part image | Description | SKU | Price |
| XX |  | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| XX | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 10 | Not Available | Cover frame brick red of 2 Parking | 5223512 | Not Available |
| 10 | | Genuine Miele Cover frame deep black of 2 Parking | 5223582 | $93.60Read more |
| 10 | Not Available | Cover frame Brilliant white of 2 Parking | 5323162 | Not Available |
| 10 | | Genuine Miele Cover frame ice green metallic of 2 Park | 5271742 | $120.70Read more |
| 10 | | Genuine Miele Cover frame irish green metallic of 2 Pa | 5271762 | $120.70Read more |
| 10 | Not Available | Cover frame alu-silver of 2 Parking | 5479372 | Not Available |
| 10 | | Genuine Miele Cover frame Gold bronze metallic of 2 Pa | 5752682 | $120.70Read more |
| 30 |  | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Genuine Miele Grille anthracite | 5089130 | $18.80Read more |
| 50 | No Image | Hepa-Filter | 12785370 | $64.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 | No Image | Act.Air Cleanfilter | 12718090 | $49.00Add to cart Special order: ships in 2 to 4 weeks |
| 60 |  | Genuine Miele Hinge left anthracite | 5089000 | $4.90Add to cart |
| 70 | Not Available | Flush socket outlet 2 pole | 5398100 | Not Available |
| 80 | | Genuine Miele Torsion spring | 5108160 | $10.70Read more |
| 90 |  | Genuine Miele Lock anthracite | 5089024 | $4.90Read more |
| 100 | | Genuine Miele Cap anthracite | 5089032 | $3.60Read more |
| 110 | | Genuine Miele Casing top deep black | 5184862 | $109.00Read more |
| 110 | | Genuine Miele Casing top deep black | 5184862 | $109.00Read more |
| 110 | No Image | Casing Top Brilliant White | 5322960 | $109.00Read more |
| 110 | Not Available | Casing top ice green metallic | 5184872 | Not Available |
| 110 | Not Available | Casing top irish green metallic | 5184902 | Not Available |
| 110 | Not Available | Casing top alu-silver | 5479331 | Not Available |
| 110 | | Genuine Miele Casing top Gold bronze metallic | 5752712 | $120.70Read more |
| 120 | | Genuine Miele Coupler link anthracite | 5091021 | $3.60Read more |
| 130 | No Image | Slide Sleeve Automatic | 5319003 | $15.53Read more |
| 135 | Not Available | Air shield | 5413960 | Not Available |
| 140 | | Genuine Miele Dust channel anthracite | 5089011 | $13.50Read more |
| 150 | | Genuine Miele Holder Dust channel | 5223481 | $4.90Read more |
| 170+172 | | Genuine Miele Change filter ind. | 5535191 | $33.80Read more |
| 172 | | Genuine Miele interlock | 5089091 | $9.70Read more |
| 180 |  | Genuine Miele Torsion spring | 5124520 | $4.90Read more |
| 190 |  | Genuine Miele Lid deep black | 5271302 | $56.00Add to cart Special order: ships in 2 to 4 weeks |
| 190 | | Genuine Miele Lid deep black | 5271302 | $56.00Add to cart Special order: ships in 2 to 4 weeks |
| 190 | Not Available | Lid Brilliant white | 5325662 | Not Available |
| 190 | | Genuine Miele Lid deep black | 5271302 | $56.00Add to cart Special order: ships in 2 to 4 weeks |
| 190 | | Genuine Miele Lid deep black | 5271302 | $56.00Add to cart Special order: ships in 2 to 4 weeks |
| 190 | | Genuine Miele Lid deep black | 5271302 | $56.00Add to cart Special order: ships in 2 to 4 weeks |
| 190 | Not Available | Lid Gold bronze metallic | 5752912 | Not Available |
| 200 | | Genuine Miele Cover strip anthracite | 5108170 | $2.30Read more |
| 210 | | Genuine Miele Blower plate | 5109310 | $20.60Read more |
| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 10 | Not Available | -Cap | 5129902 | Not Available |
| 20 | | Genuine Miele Spring | 3092700 | $4.90Read more |
| 30 | | Genuine Miele Push button | 5159490 | $4.90Read more |
| 40 | Not Available | -Viewing screen 1100W | 5390110 | Not Available |
| 40 | Not Available | -Viewing screen 1200W | 6076260 | Not Available |
| 50 |  | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 60 | Not Available | -Pushbutton Left and right | 5333210 | Not Available |
| 70 | Not Available | -Reflector | 5252320 | Not Available |
| 80+90 | Not Available | -Electronic unit EDW740/81 120V/60Hz | 6715860 | Not Available |
| 90 | Not Available | -Switch 250V | 5305040 | Not Available |
| +115 | No Image | Cap 1100W | 5582051 | $369.00Read more |
| +115 | Not Available | Cap 1200W | 6099960 | Not Available |
| 115 | No Image | -Switch 1 Pole 1681.3103 | 9023231 | $9.60Add to cart Special order: ships in 2 to 4 weeks |
| 120 | | Genuine Miele Foot switch left (Relaunch) | 7737081 | $9.70Read more |
| 130 | Not Available | Foot switch AutoReverse | 5363731 | Not Available |
| 180-210 |  | Genuine Miele Cable reel S500 6,5m 120V | 5240303 | $109.00Read more |
| 190 | No Image | -Brake Lever S300/500/700 | 4312183 | $7.59Read more |
| 200 | | Genuine Miele Torsion spring S300-S5000 | 6217500 | $6.60Read more |
| 210 | Not Available | -Supply cable 6,65m 17AWG 120V USA | 5241032 | Not Available |
| 220 | No Image | Connecting Cable Usa/J | 6836770 | $91.00Read more |
| 230 | | Genuine Miele Spring | 3982390 | $3.60Read more |
| 240 | | Genuine Miele Switch lever anthracite | 5281003 | $3.60Read more |
| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 3,9X9,5 | 3903441 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 TORX T20 | 6106980 | $0.00Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 10-30 | Not Available | Fan Mrg42/81-43/2 120V | 4698861 | Not Available |
| 20 | Not Available | -Carbon brush 2 Pcs. | 5419810 | Not Available |
| 40 | | Genuine Miele Bearing ring | 5089170 | $13.50Read more |
| 50 | | Genuine Miele Rubber cushion | 5089190 | $6.60Read more |
| 60 |  | Genuine Miele Electronic unit EL530/81 120V/60Hz | 5408631 | $85.50Read more |
| 70 |  | Genuine Miele Fan Mrg722/81-42/2 120V | 5709492 | $119.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 |  | Available ReconditionedReconditioned Genuine Miele Fan Mrg722/81-42/2 120V More Product Details | 5709492R | $100.00Add to cart |
| 70 | No Image | Fan Mrg722/81-42/2 120V | 5709490 | $119.00Read more |
| 80 | | Genuine Miele Adapter Fan | 5887410 | $20.60Read more |
| 80-100 | | Genuine Miele Electronic unit EL700/81 120V/60Hz | 6836720 | $105.10Read more |
| 80 | No Image | Adapter Fan | 5704060 | $22.00Read more |
| 80-100 | | Genuine Miele Electronic unit EL700/81 120V/60Hz | 6836720 | $105.10Read more |
| 90 | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 90 | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 110 | | Genuine Miele Damping plate | 5088890 | $10.70Read more |
| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 3,9X9,5 | 3903441 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 TORX T20 | 6106980 | $0.00Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 10-30 | Not Available | Fan Mrg42/81-43/2 120V | 4698861 | Not Available |
| 20 | Not Available | -Carbon brush 2 Pcs. | 5419810 | Not Available |
| 40 | | Genuine Miele Bearing ring | 5089170 | $13.50Read more |
| 50 | | Genuine Miele Rubber cushion | 5089190 | $6.60Read more |
| 60 | | Genuine Miele Electronic unit EL530/81 120V/60Hz | 5408631 | $85.50Read more |
| 70 | Not Available | Fan Mrg722/81-42/2 120V | 5709491 | Not Available |
| 70 | No Image | Fan Mrg722/81-42/2 120V | 5709490 | $119.00Read more |
| 80-100 | | Genuine Miele Electronic unit EL700/81 120V/60Hz | 6836720 | $105.10Read more |
| 80 | No Image | Adapter Fan | 5704060 | $22.00Read more |
| 80-100 | | Genuine Miele Electronic unit EL700/81 120V/60Hz | 6836720 | $105.10Read more |
| 90 | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 110 | | Genuine Miele Damping plate | 5088890 | $10.70Read more |
| # | Part image | Description | SKU | Price |
| 10-40 | Not Available | Suction hose S500/S600 | 5269604 | Not Available |
| 10+20 | | Genuine Miele Tubular handle anthracite | 9442601 | $37.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Suction control anthracite | 5141090 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Genuine Miele Suction hose silver-coloured 1,8m | 5230830 | $61.00Read more |
| 30 |  | Available ReconditionedReconditioned Genuine Miele Suction hose silver-coloured 1,8m More Product Details | 5230830R | $45.25Add to cart |
| 40 | Not Available | -Elbow anthracite | 5108111 | Not Available |
| 45 | Not Available | Connecting tube Suction hose | 5527410 | Not Available |
| 60 | | Genuine Miele Push button 15x30mm | 4832460 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 70+80 |  | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 85-89 |  | Genuine Miele Telescopic pipe 2-part st.steel | 5658812 | $0.00Read more |
| 85-89 |  | Available Pre OwnedReconditioned Miele Telescopic Aluminum Wand for Miele Upright Vacuums 6801181 More Product Details | 6801180R | $48.00Add to cart |
| 85-89 |  | Compatible alternateGenuine Miele Telescopic pipe Aluminium More Product Details | 6801181 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 87 |  | Genuine Miele Push button Round | 5780932 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 88+89 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 88 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 | No Image | Crevice Nozzle 149Mm Obsw | 9442631 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 | | Genuine Miele Thread lifter 2 Pcs. | 2348770 | $13.50Read more |
| 115+116 | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 116 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 121 |  | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $26.00Add to cart Special order: ships in 2 to 4 weeks |
| 130+140 | | Genuine Miele ST Mattress nozzle SMD10 | 7252280 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 140 | | Genuine Miele Thread lifter | 5056530 | $9.70Read more |
| # | Part image | Description | SKU | Price |
| 30 |  | Genuine Miele Push button Round | 9160460 | $15.00Add to cart Special order: ships in 2 to 4 weeks |

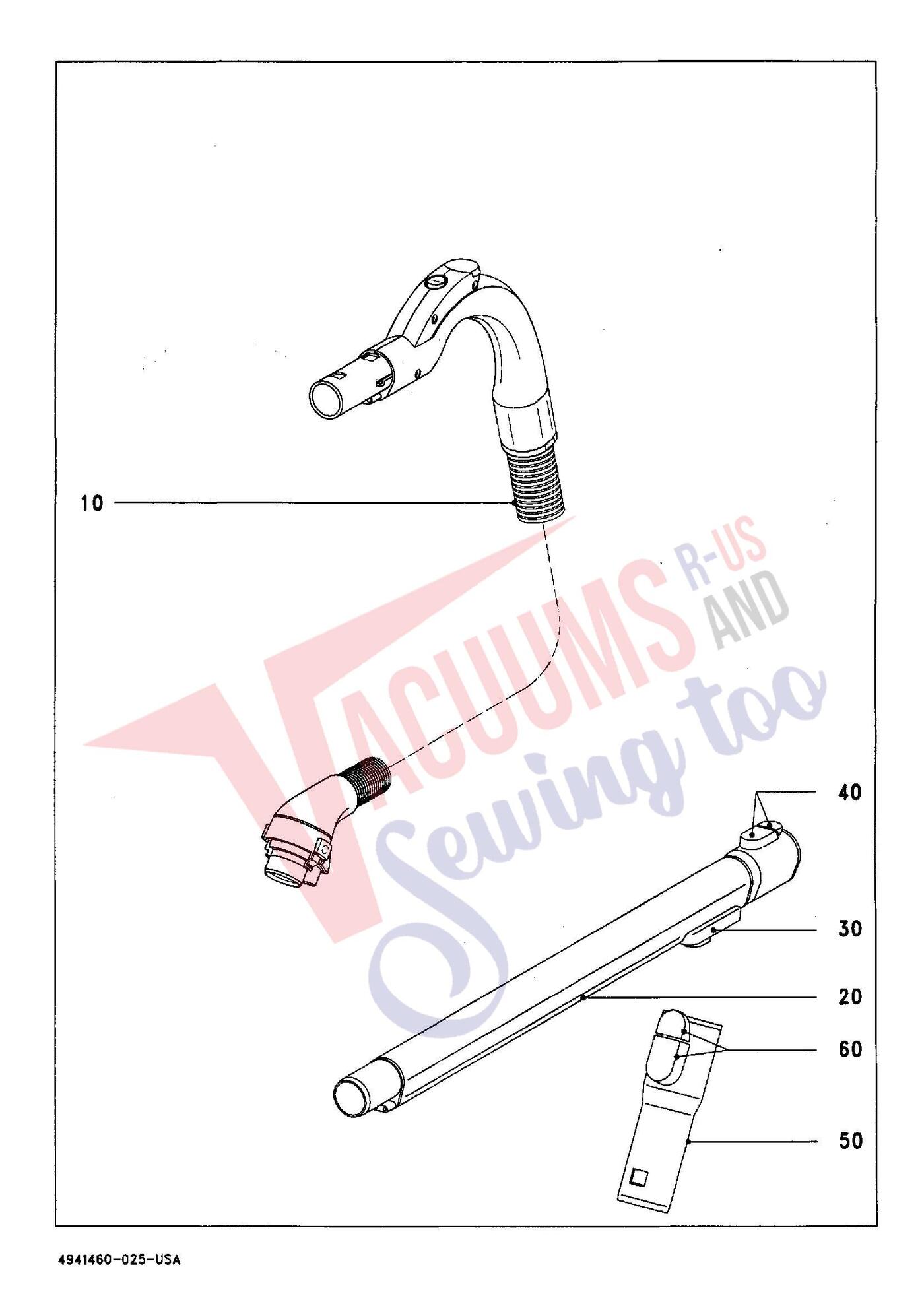

| # | Part image | Description | SKU | Price |
| 10 | | Genuine Miele SES 118 USA | 5497860 | $199.00Add to cart Special order: ships in 2 to 4 weeks |
| 20-40 |  | Direct Connect Electric Wand SET220 41996432USA 6543880 | WP10506 | $199.00Add to cart |
| 30 | | Genuine Miele Push button anthracite | 5064430 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Genuine Miele Push button Round | 9160460 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 50+60 | | Genuine Miele connecting piece Floor nozzle | 5449760 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 60 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| 10 |  | Genuine Miele Top anthracite | 5235512 | $27.90Read more |
| 20 |  | Genuine Miele Suction channel anthracite | 5235541 | $24.70Read more |
| 30 |  | Genuine Miele Foot switch anthracite | 5235503 | $15.00Read more |
| 40 |  | Genuine Miele Fixing | 5235480 | $9.70Read more |
| 50 |  | Genuine Miele Bristle supp.plate | 5235463 | $33.80Read more |
| 60 |  | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |

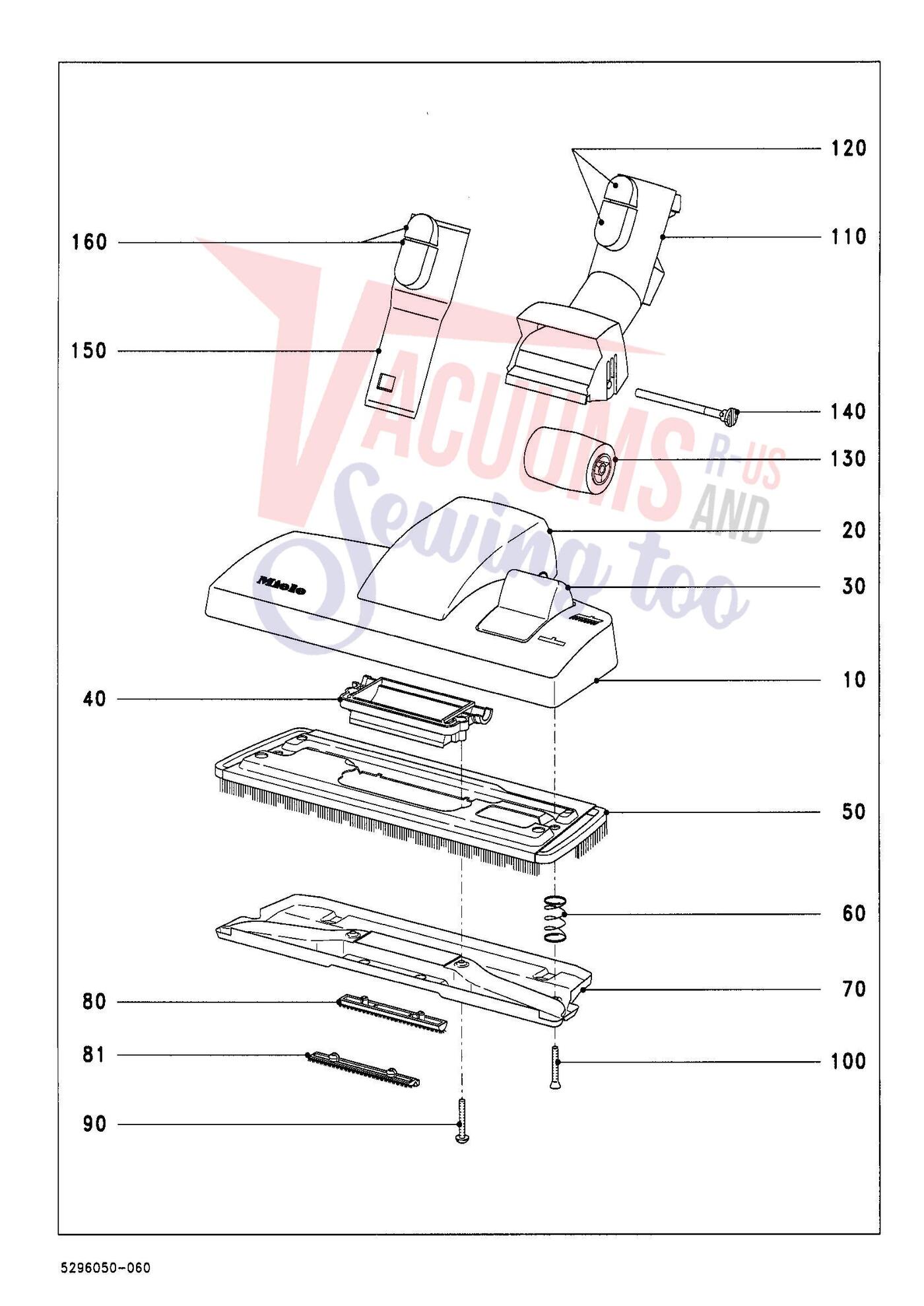

| 70+81 |  | Genuine Miele Lower section | 5235453 | $43.60Read more |
| 80 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 81-140 | Not Available | Floor nozzle SBD285-2 AllTeQ | 7253820 | Not Available |
| 81 |  | Genuine Miele Thread lifter 2 Pcs. | 6204050 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 |  | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $3.60Read more |
| 100 | No Image | --Countersunk Screw 35X20 | 5289870 | $2.30Read more |
| 110+120 | | Genuine Miele Linkage anthracite | 5235552 | $39.50Read more |
| 120 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 |  | Genuine Miele Support roller | 5235530 | $15.00Read more |
| 140 |  | Genuine Miele Shaft Bayonett fitting | 5235520 | $13.50Read more |
| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 4,0x14 TORX T20 | 6106980 | $0.00Read more |
| XX | | Genuine Miele Raised head screw 4X20 | 2364630 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4X20 | 2364630 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 TORX T20 | 6106980 | $0.00Read more |
| XX | No Image | --Raised Head Screw 3.5X6.5 | 5135710 | $2.30Read more |
| XX | No Image | --Raised Head Screw 3.5X6.5 | 5135710 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0X10 | 3092030 | $2.30Read more |

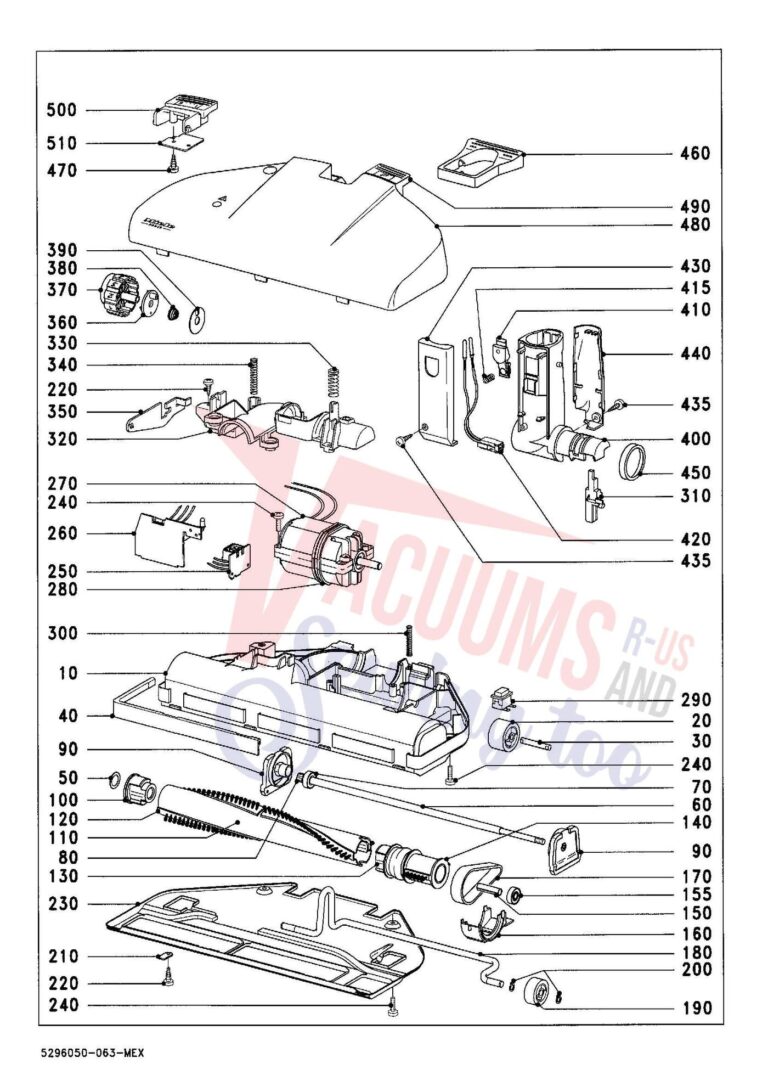

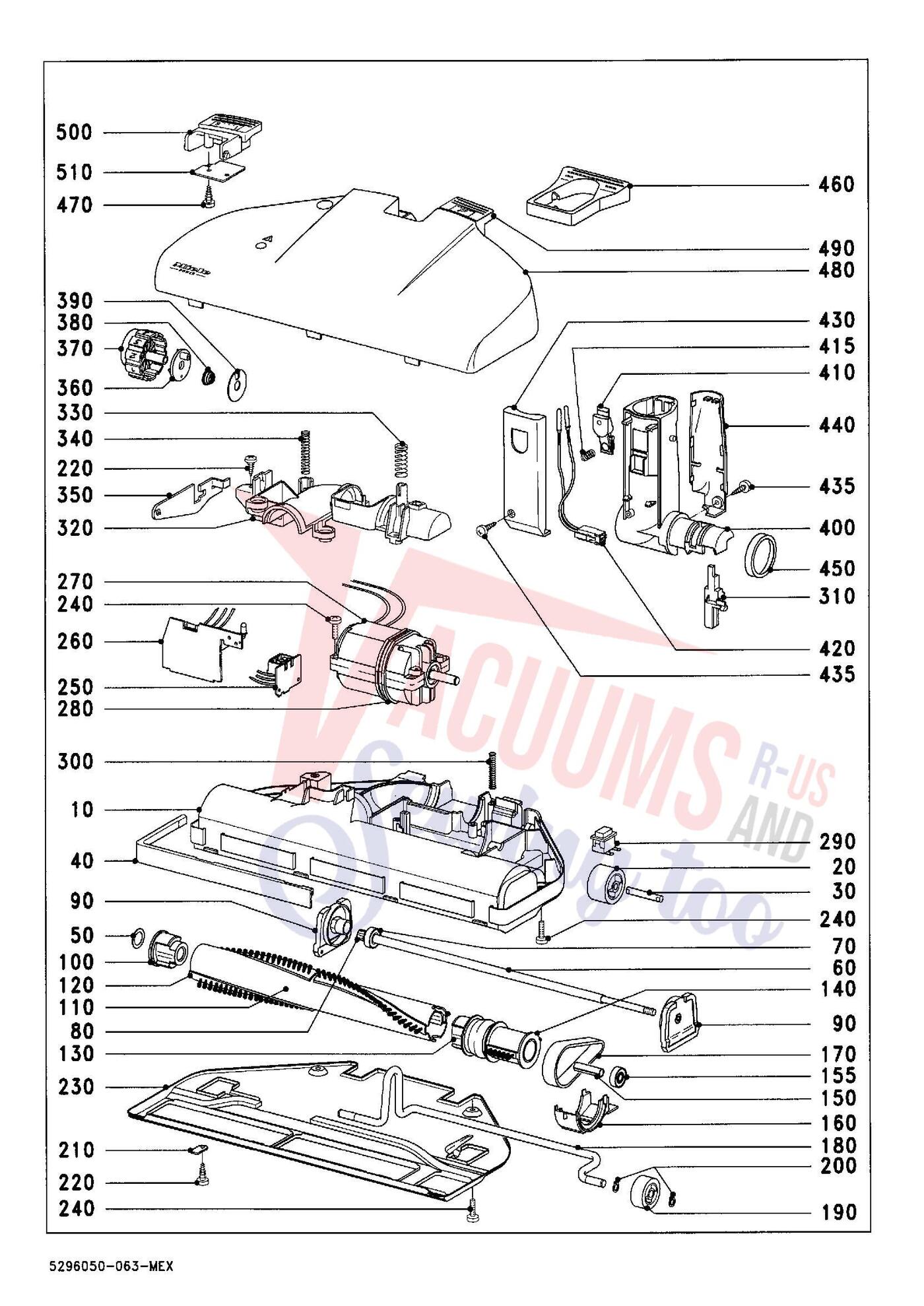

| 10-30 | Not Available | Casing bottom anthracite | 3666020 | Not Available |
| 20+30 | Not Available | -Support roller anthracite | 3666140 | Not Available |
| 40 | Not Available | Buffer anthracite | 3643200 | Not Available |
| 50-80 | Not Available | -Shaft | 3246420 | Not Available |
| 70 | Not Available | -Drive Lava grey | 3246401 | Not Available |
| 100 | | Genuine Miele Counter bearing anthracite | 3047711 | $15.00Read more |
| 110+120 | | Genuine Miele Roller | 3246381 | $150.60Read more |
| 120+140 | | Genuine Miele Bristle strip anthracite | 3246391 | $78.10Read more |
| 150 | | Genuine Miele Sleeve | 3047681 | $6.60Read more |
| 160 | Not Available | Cover strip anthracite | 3047522 | Not Available |
| 170 | | Genuine Miele Brush roller anthracite | 3647653 | $233.80Read more |
| 170 | | Genuine Miele Flat belt | 3854940 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 180-200 | Not Available | Angle lever anthracite | 3246311 | Not Available |
| 190+200 | Not Available | -Support roller anthracite | 3259211 | Not Available |
| 210 | Not Available | Clamping strip | 3046600 | Not Available |
| 230 | Not Available | Floor plate | 3446760 | Not Available |
| 250+260 | Not Available | Electronic unit ER201 120V 60HZ | 3121313 | Not Available |
| 270 | | Genuine Miele AC motor 120V 60HZ | 3121410 | $233.80Read more |
| 280 | Not Available | Sealing ring black | 3047540 | Not Available |
| 290 | Not Available | Switch 13A 120V | 3085940 | Not Available |
| 300 | Not Available | Spring | 3092710 | Not Available |
| 310 | Not Available | Feeler | 3042081 | Not Available |
| 320 | Not Available | Cover anthracite | 3643110 | Not Available |
| 330 | | Genuine Miele Spring | 3092700 | $4.90Read more |
| 340 | Not Available | Spring | 3092720 | Not Available |
| 350 | Not Available | Switch lever | 3042100 | Not Available |
| 360-380 | Not Available | Regulator wheel anthracite | 3246321 | Not Available |
| 390 | Not Available | Disc | 3046660 | Not Available |
| 400-450 | | Genuine Miele Connection socket SEB226 | 5014601 | $131.10Read more |
| 400 | | Genuine Miele Connection socket SEB226 | 5014611 | $52.20Read more |
| 410+415 | Not Available | -Lever anthracite | 3246342 | Not Available |
| 420 | | Genuine Miele Connecting cable 2 pole | 5290620 | $52.20Read more |
| 430 | Not Available | -Lid SEB226 | 5014630 | Not Available |
| 440 | Not Available | -Cover SEB226 | 5014650 | Not Available |
| 450 | Not Available | -Sleeve | 3246360 | Not Available |
| 460 | | Genuine Miele Foot switch SEB226 | 5014640 | $27.90Read more |
| 480-510 | Not Available | Casing top anthracite | 3676720 | Not Available |
| 490+500 | Not Available | -Foot switch anthracite | 3992760 | Not Available |
| 510 | Not Available | -Pressure plate | 3042160 | Not Available |
| # | Part image | Description | SKU | Price |
| # | Part image | Description | SKU | Price |
| w/o fig. | Not Available | Operat.instruct. USA/CDN | 5476421 | Not Available |
| w/o fig. | Not Available | Operat.instruct. USA | 6051031 | Not Available |
| XX | Not Available | Operat.instruct. S500 -USA/CDN- | 7319300 | Not Available |
Report errors on this page HERE
