Schematic and parts book for Miele S5360 S5360. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

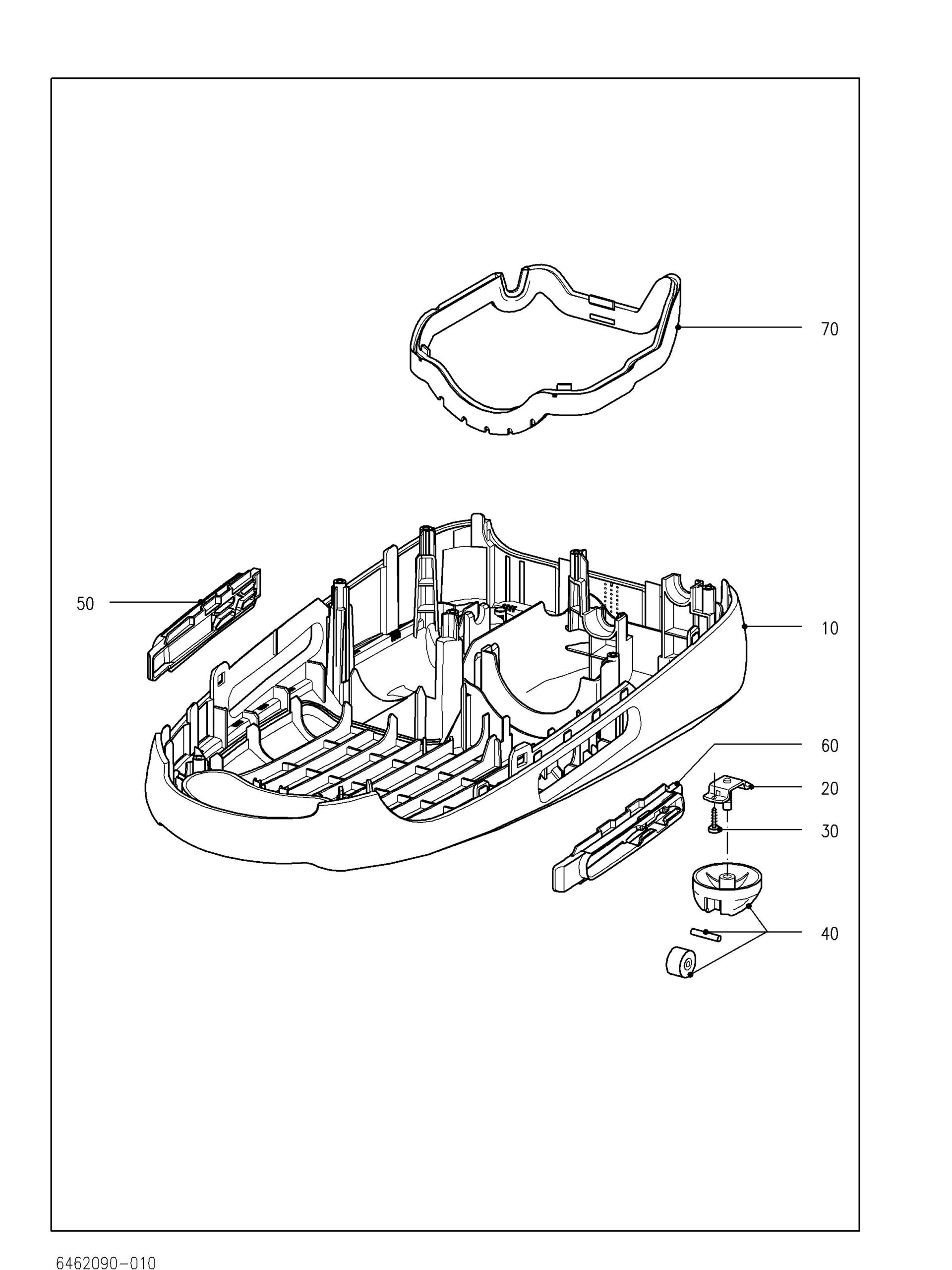

| # | Part image | Description | SKU | Price |
| XX |  | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 10-70 | No Image | Casing Bottom Anthracite | 9895503 | $119.00Read more |
| 20 | | Genuine Miele Shaft Slide skid | 3892600 | $9.70Read more |
| 40 | No Image | -Slide Skid Obsw Assy | 12494260 | $11.00Read more |
| 50 | | Genuine Miele Suspension right | 6065240 | $4.90Read more |
| 60 | Not Available | -Suspension left | 6065270 | Not Available |
| 70 | No Image | -Seal | 6049591 | $15.00Read more |

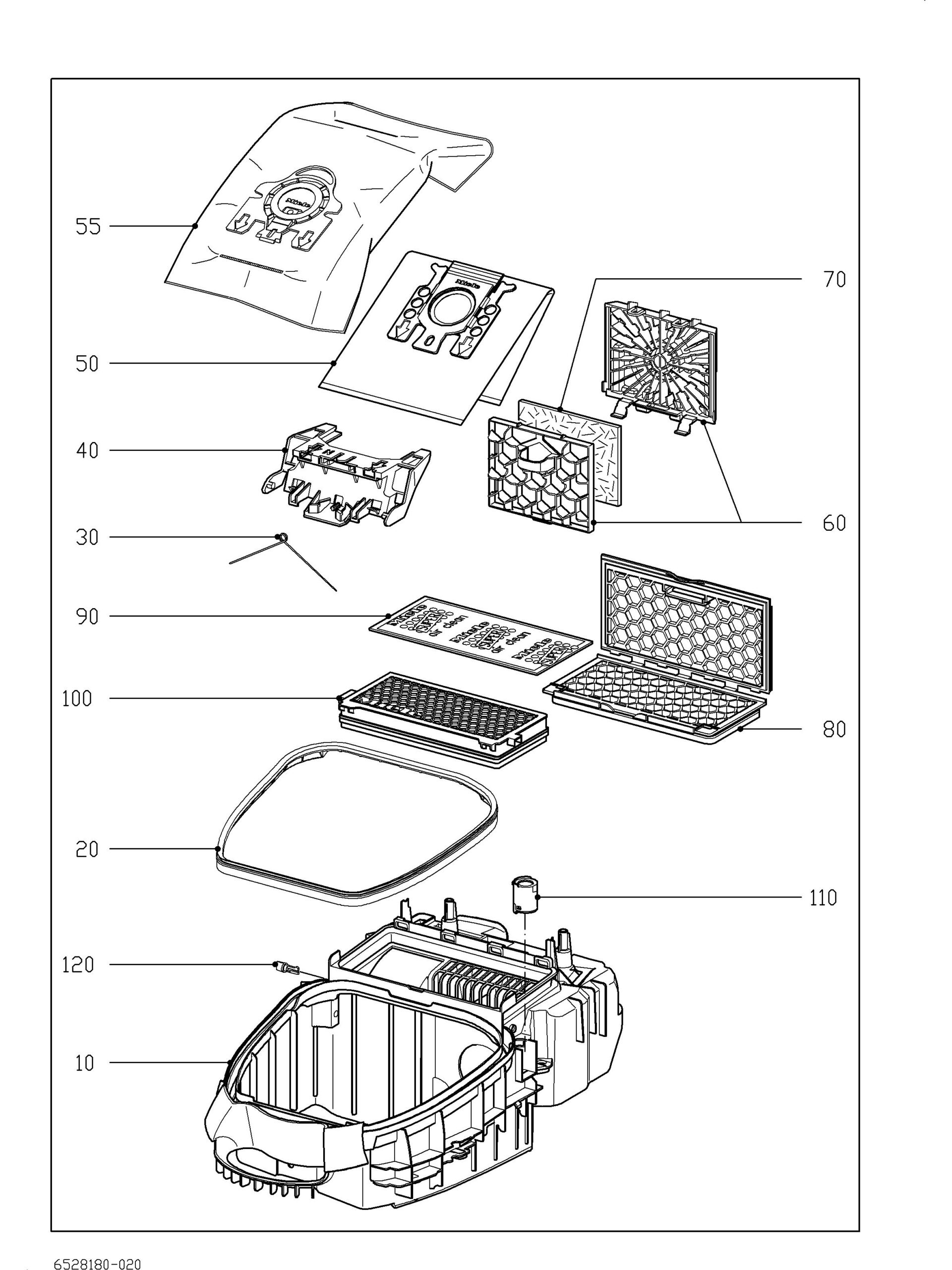

| # | Part image | Description | SKU | Price |
| 10 | | Genuine Miele Casing insert S5xxx | 12073090 | $71.70Read more |
| 20 | | Genuine Miele Sealing ring | 6141480 | $13.50Read more |
| 30 |  | Genuine Miele Torsion spring Bracket | 6434090 | $2.50Add to cart |
| 40 | | Genuine Miele Bracket vacuum cleaner bag | 6081322 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 | Not Available | vacuum cleaner bag G/N USA | 7805110 | Not Available |
| 60+70 | | Genuine Miele Filter frame Brilliant blue | 6241011 | $20.60Read more |
| 70 |  | Genuine Miele Dust compart.filter 3 pcs. | 6713110 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 80 |  | Genuine Miele Spacer bracket Air-Clean filter | 11690520 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 |  | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 100 | No Image | Act.Air Cleanfilter | 12785350 | $49.00Add to cart Special order: ships in 2 to 4 weeks |
| 100 | No Image | Hepa-Filter | 12785390 | $64.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 | | Genuine Miele End plug Suction control | 6175470 | $2.30Read more |

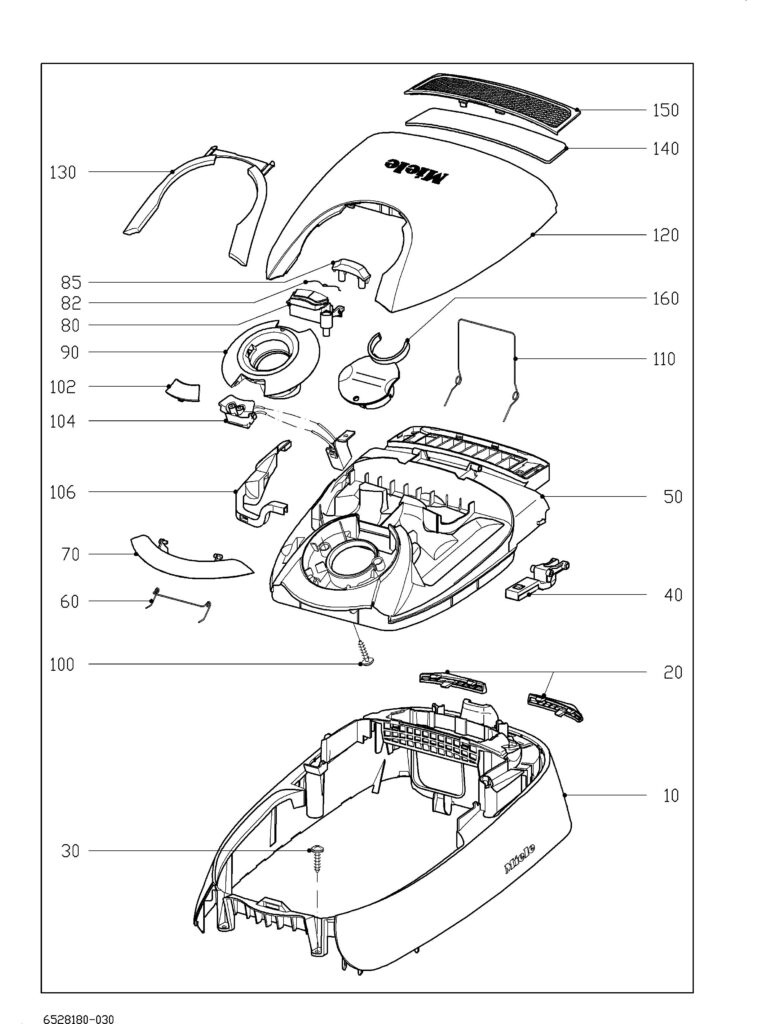

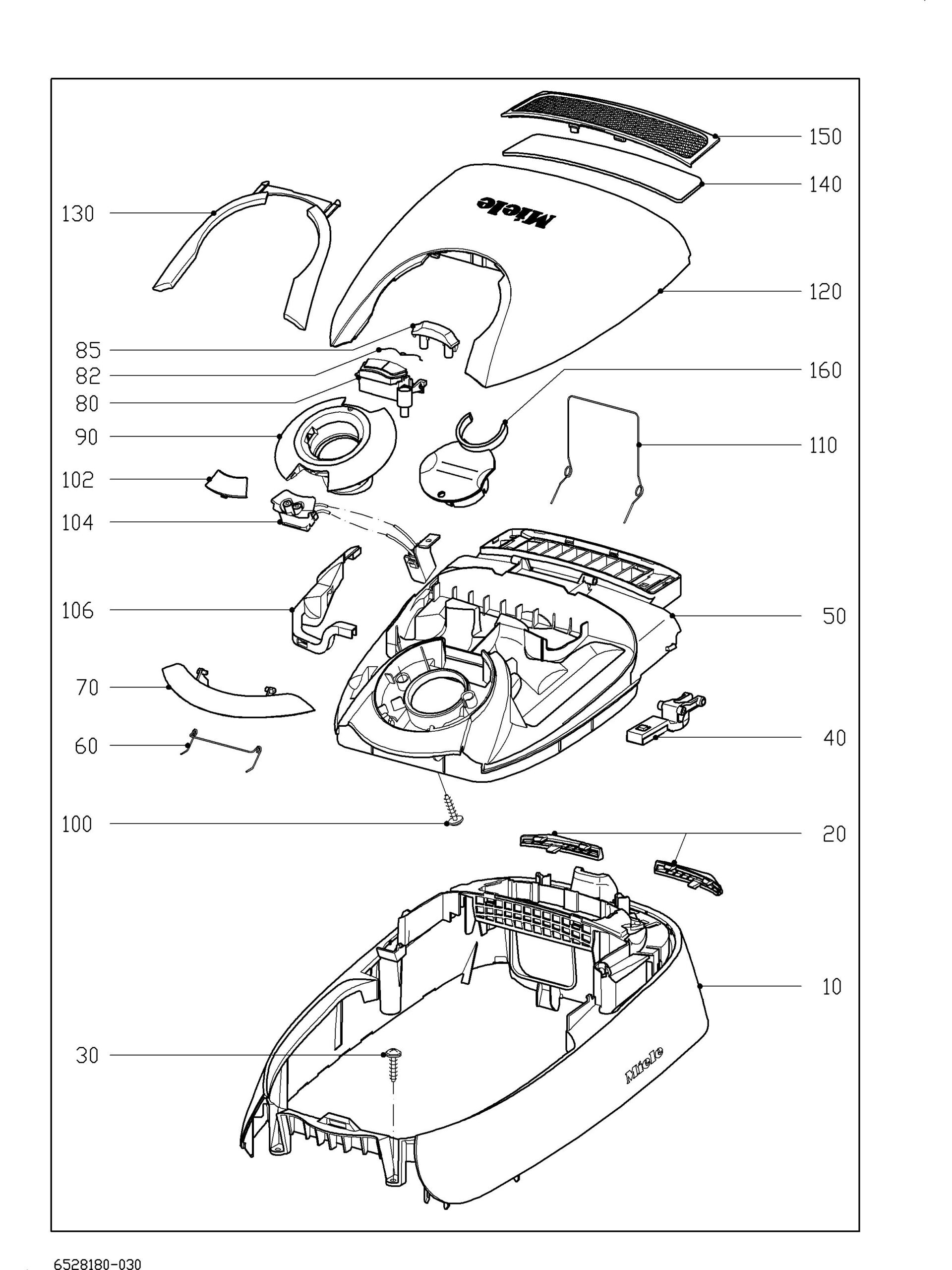

| # | Part image | Description | SKU | Price |
| XX | No Image | --Raised Head Screw 4,0X18 Torx T20 | 6238630 | $2.30Read more |
| XX | No Image | --Raised Head Screw 4,0X18 Torx T20 | 6238630 | $2.30Read more |
| XX |  | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 10+20 | | Genuine Miele Cover frame Melon yellow | 6515110 | $93.60Read more |
| 10+20 | | Genuine Miele Cover frame Autumn red | 6515160 | $0.00Read more |
| 10+20 | | Genuine Miele Cover frame Royal blue | 6515180 | $93.60Read more |
| 10+20 | | Genuine Miele Cover frame Tizia red metallic | 6515250 | $120.70Read more |
| 20 | | Genuine Miele Strip Left and right | 6515290 | $2.30Read more |
| 40 | | Genuine Miele Hinge 2 Pcs. | 6515311 | $20.60Read more |
| 50 | | Genuine Miele Casing top S5xxx | 11997180 | $98.00Read more |
| 60 |  | Genuine Miele Torsion spring Lock | 6079920 | $3.60Add to cart |
| 70 |  | Genuine Miele Lock | 6079890 | $3.60Read more |
| 80-85 |  | Genuine Miele Change filter ind. SF TYPE 1 USA/J | 10292782 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 82 | No Image | -Torsion Spring Change Filter Ind. | 5463554 | $2.50Read more |
| 85 |  | Genuine Miele interlock | 6122782 | $2.50Read more |
| 90 | | Genuine Miele Ring alu-silver | 6212270 | $20.60Read more |
| 102 | | Genuine Miele Fascia panel alu-silver | 6217170 | $10.70Read more |
| 104 | No Image | Flush Socket Outlet S5300 100-120V | 6648540 | $36.00Read more |
| 106 | No Image | Cover Strip Casing Top | 6128230 | $4.14Read more |
| 110 |  | Genuine Miele Torsion spring Lid | 6409260 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 120+130 | | Genuine Miele Lid Autumn red | 6473651 | $52.20Read more |
| 120+130 | | Genuine Miele Lid Obsidian black | 9375340 | $52.20Read more |
| 120+130 | | Genuine Miele Lid Tizia red metallic | 6515011 | $62.00Read more |
| 130 | No Image | -Fascia Panel Lid | 6126400 | $5.20Read more |
| 150 | Not Available | Air shield alu-silver | 6764550 | Not Available |
| 150+140 | | Genuine Miele Air shield alu-silver | 6835790 | $27.90Read more |
| 160 | Not Available | Hygiene cap | 6622030 | Not Available |

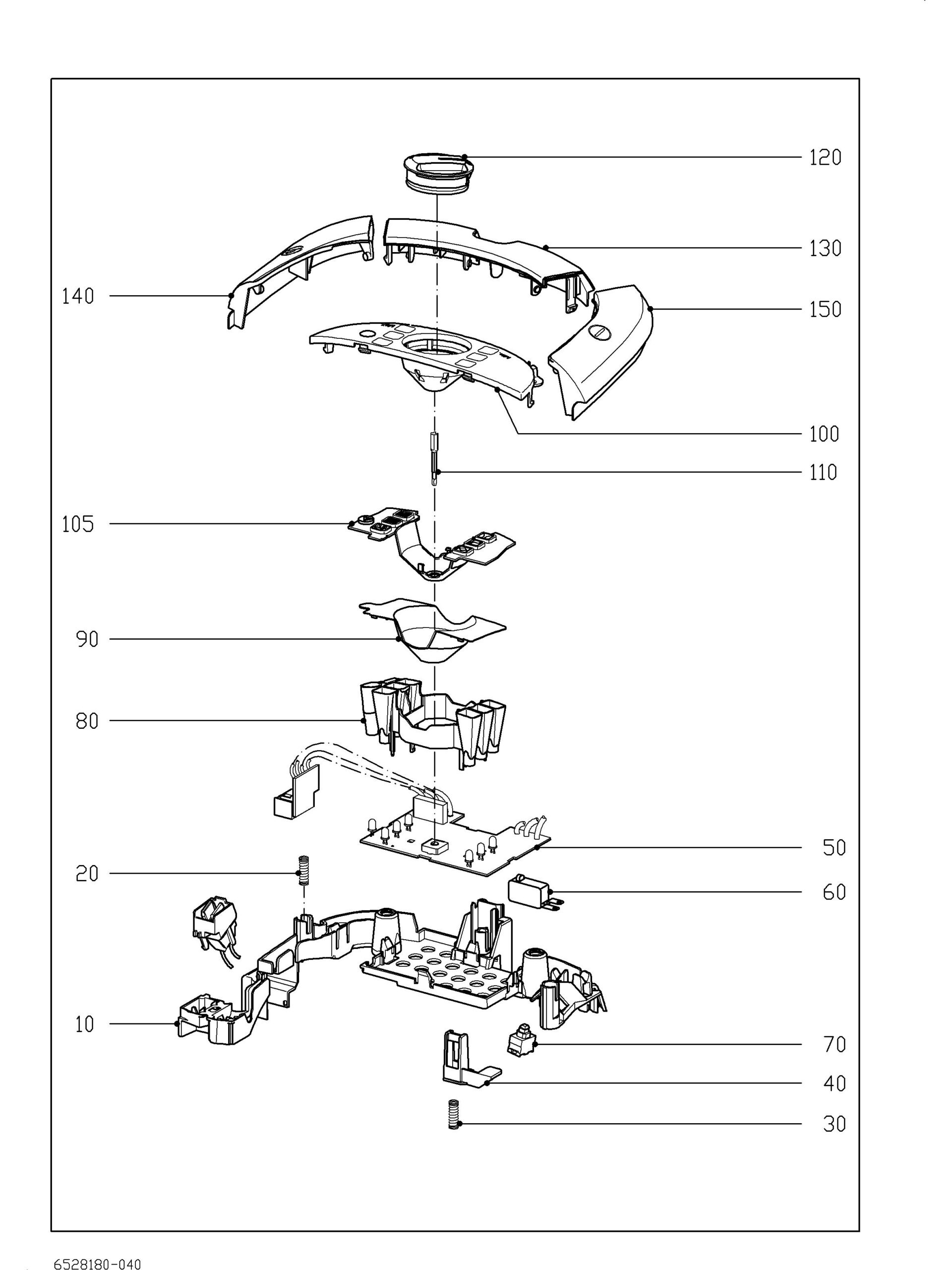

| # | Part image | Description | SKU | Price |
| 10 | No Image | Bracket Electronic Unit | 6134772 | $21.62Read more |
| 20 |  | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 30 | | Genuine Miele Spring | 3982390 | $3.60Read more |
| 40 | No Image | -Pushbutton S5000 | 6138870 | $2.50Read more |
| 50-70 | No Image | Electronic Unit Edw5300 230-240V | 6715350 | $109.00Read more |
| 60 | | Genuine Miele Switch 250V | 4487791 | $20.60Add to cart Special order: ships in 2 to 4 weeks |
| 70 | No Image | -Switch 1 Pole 1681.3103 | 9023231 | $9.60Add to cart Special order: ships in 2 to 4 weeks |
| 80 | No Image | Reflector S5300 | 6216350 | $15.00Read more |
| 90 | No Image | Fascia Panel Reflector | 6216361 | $2.50Read more |
| 100-120 | No Image | Control Panel Autumn Red | 6613250 | $56.00Read more |
| 100-120 | Not Available | Control panel Royal blue | 6653610 | Not Available |
| 100-120 | No Image | Control Panel Tizia Red Metallic | 6653640 | $66.00Read more |
| 105 | Not Available | -Viewing screen | 6097560 | Not Available |
| 110 | | Genuine Miele Adapter Rotary knob | 5776181 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| 120 | Not Available | -Rotary knob alu-silver | 6084040 | Not Available |
| 130 | Not Available | Fascia panel alu-silver | 6084080 | Not Available |
| 140 | | Genuine Miele Foot switch alu-silver SF printed | 11168540 | $22.00Add to cart |
| 150 | | Genuine Miele Foot switch alu-silver SF print | 11168551 | $22.00Add to cart Special order: ships in 2 to 4 weeks |

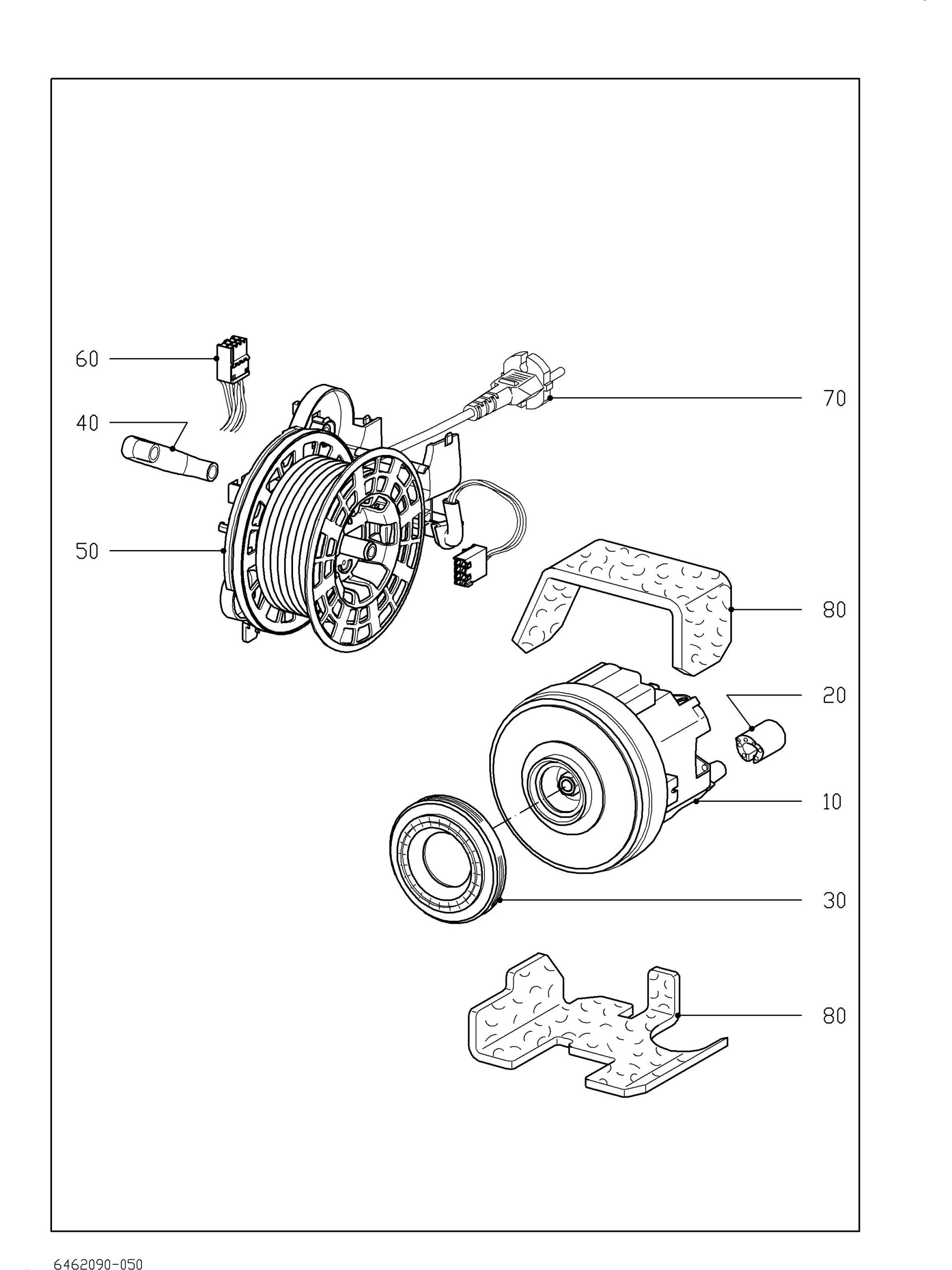

| # | Part image | Description | SKU | Price |
| 20 | No Image | Rubber Cushion 2 Pcs. | 6207002 | $22.00Read more |
| 30 | | Genuine Miele Bearing ring | 5964034 | $15.00Read more |
| 30 | | Genuine Miele Bearing ring | 7752871 | $15.00Read more |
| 40 | | Genuine Miele Hose Nebenluft | 7196500 | $10.70Read more |
| 50-70 | No Image | Cable Reel S5000 230V | 6724973 | $119.00Read more |
| 50-70 | | Genuine Miele Cable reel S5000 6,5m EU/PRC | 9931334 | $109.00Read more |
| 80 | | Genuine Miele Damping plate | 6518591 | $20.60Read more |

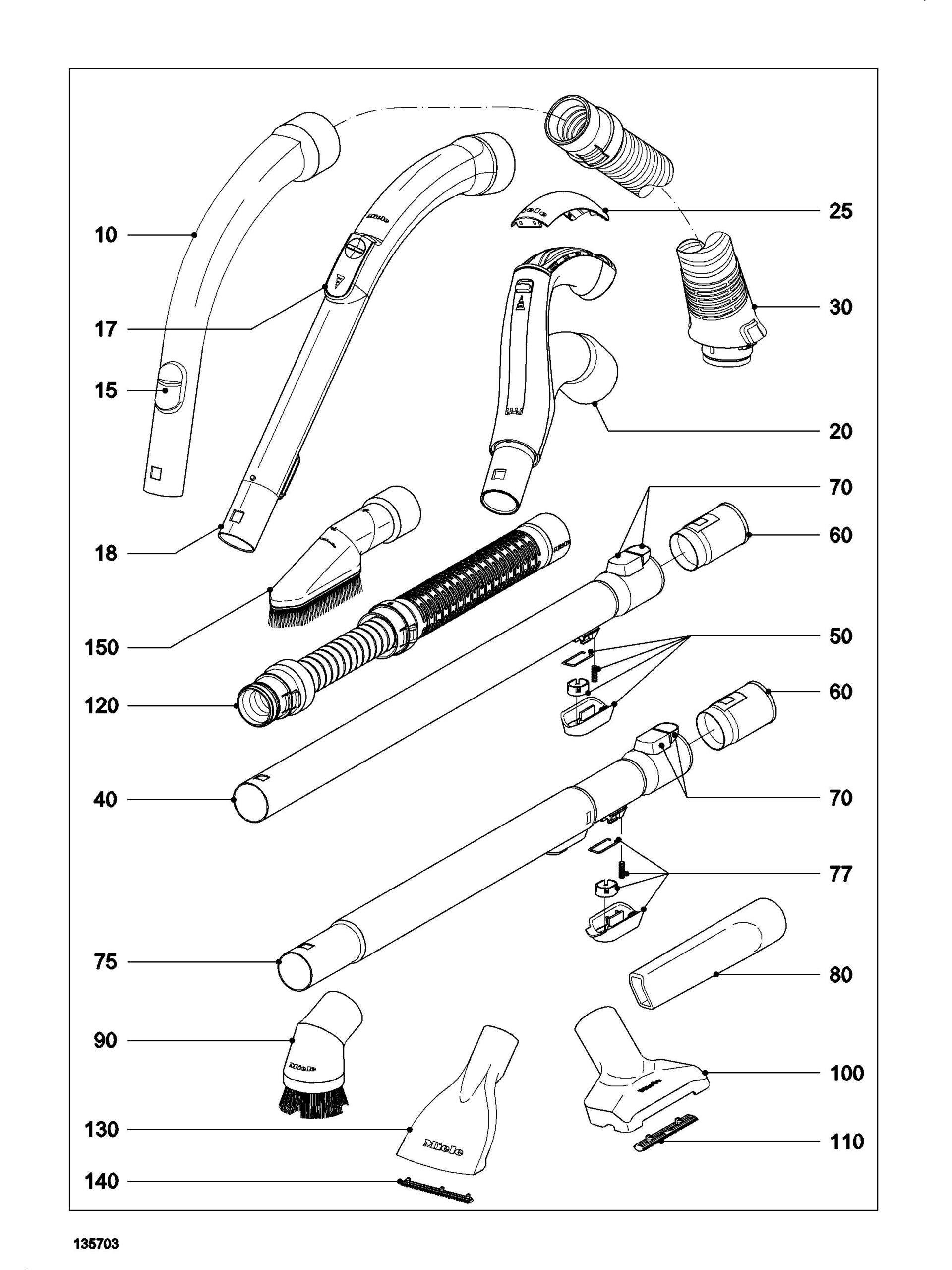

| # | Part image | Description | SKU | Price |
| 20+25 | | Genuine Miele Tubular handle S4, S5 | 6163661 | $0.00Read more |
| 25 |  | Genuine Miele Inset handle Printed | 6157660 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Genuine Miele Suction hose silver-coloured 1,8m | 6614661 | $0.00Read more |
| 40-70 |  | Genuine Miele Telescopic pipe 2-part st.steel | 5658812 | $0.00Read more |
| 40-70 |  | Available Pre OwnedReconditioned Miele Telescopic Aluminum Wand for Miele Upright Vacuums 6801181 More Product Details | 6801180R | $48.00Add to cart |
| 40-70 |  | Compatible alternateGenuine Miele Telescopic pipe Aluminium More Product Details | 6801181 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 | | Genuine Miele Push button Round | 5780931 | $0.00Read more |
| 60+70 |  | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 60-77 |  | HES Telescopic Wand for Miele | 10615280 | $77.99Add to cart Special order: ships in 2 to 4 weeks |
| 60-77 |  | Available ReconditionedGenuine Reconditioned Miele Telescopic Wand - Non Electric More Product Details | 5658812R | $0.00Add to cart |
| 70 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 80 | No Image | Crevice Nozzle 149Mm Obsw | 9442631 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 |  | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $26.00Add to cart Special order: ships in 2 to 4 weeks |
| 100+110 | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 120 | No Image | Flexible Hose Sfs 10 | 6483882 | $0.00Read more |
| 130+140 | | Genuine Miele ST Mattress nozzle SMD10 | 7252280 | $33.00Add to cart Special order: ships in 2 to 4 weeks |

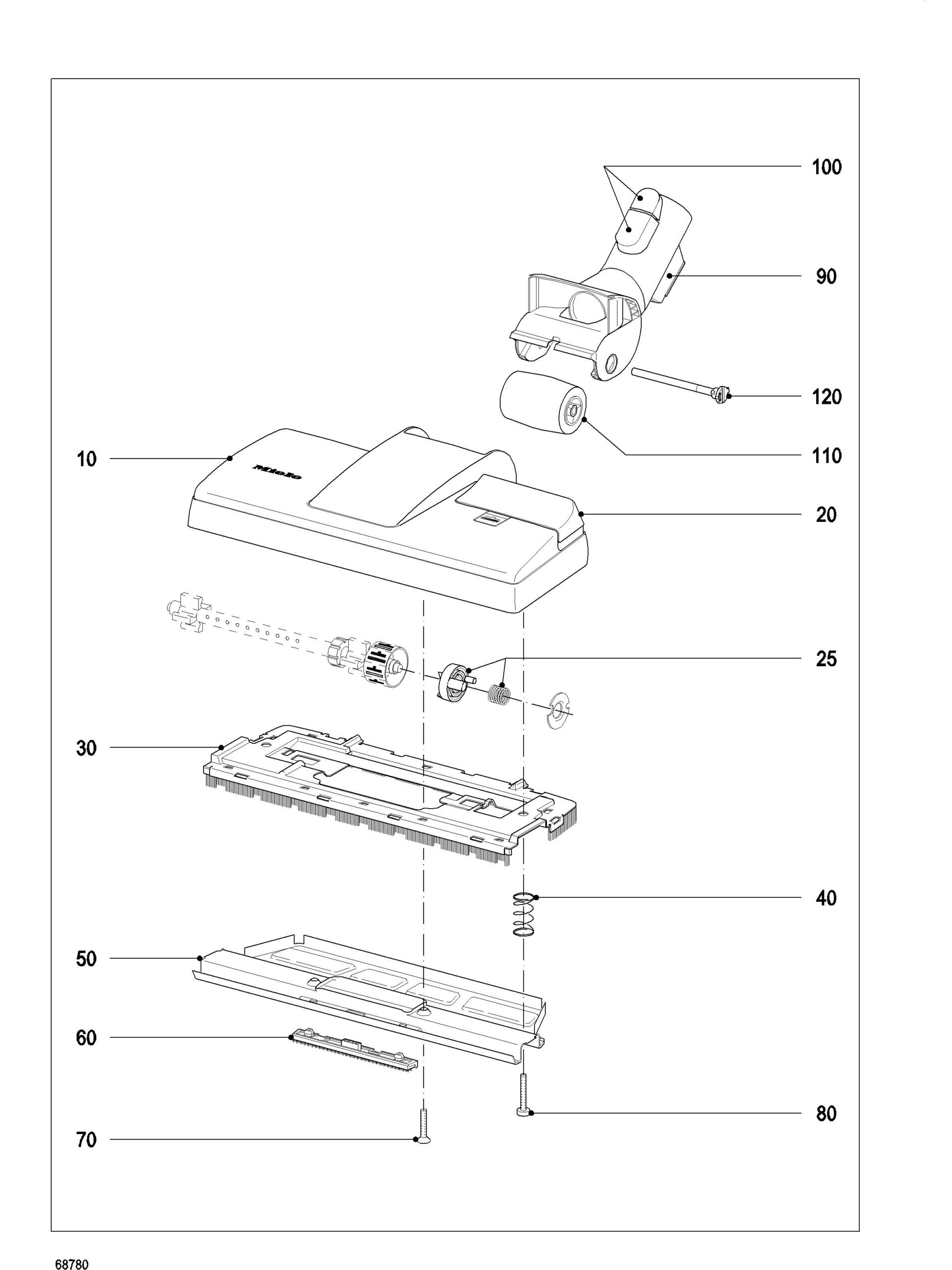

| # | Part image | Description | SKU | Price |
| 10-120 | Not Available | Floor nozzle SBD285-3 AllTeQ | 7253830 | Not Available |
| 25 | | Genuine Miele Carrier SBD550-3 | 7605701 | $20.60Read more |
| 30 | | Genuine Miele Bristle supp.plate SBD550-3 | 6577970 | $39.50Read more |
| 50+60 | No Image | -Lower Section Sbd550-3 | 6577960 | $56.00Read more |
| 60 | | Genuine Miele Thread lifter 2 Pcs. | 6440411 | $13.50Read more |
| 90+100 | | Genuine Miele Linkage SBD550-3 | 6599791 | $33.80Read more |
| 100 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 |  | Genuine Miele Support roller | 5235530 | $15.00Read more |
| 120 |  | Genuine Miele Shaft Bayonett fitting | 5235520 | $13.50Read more |

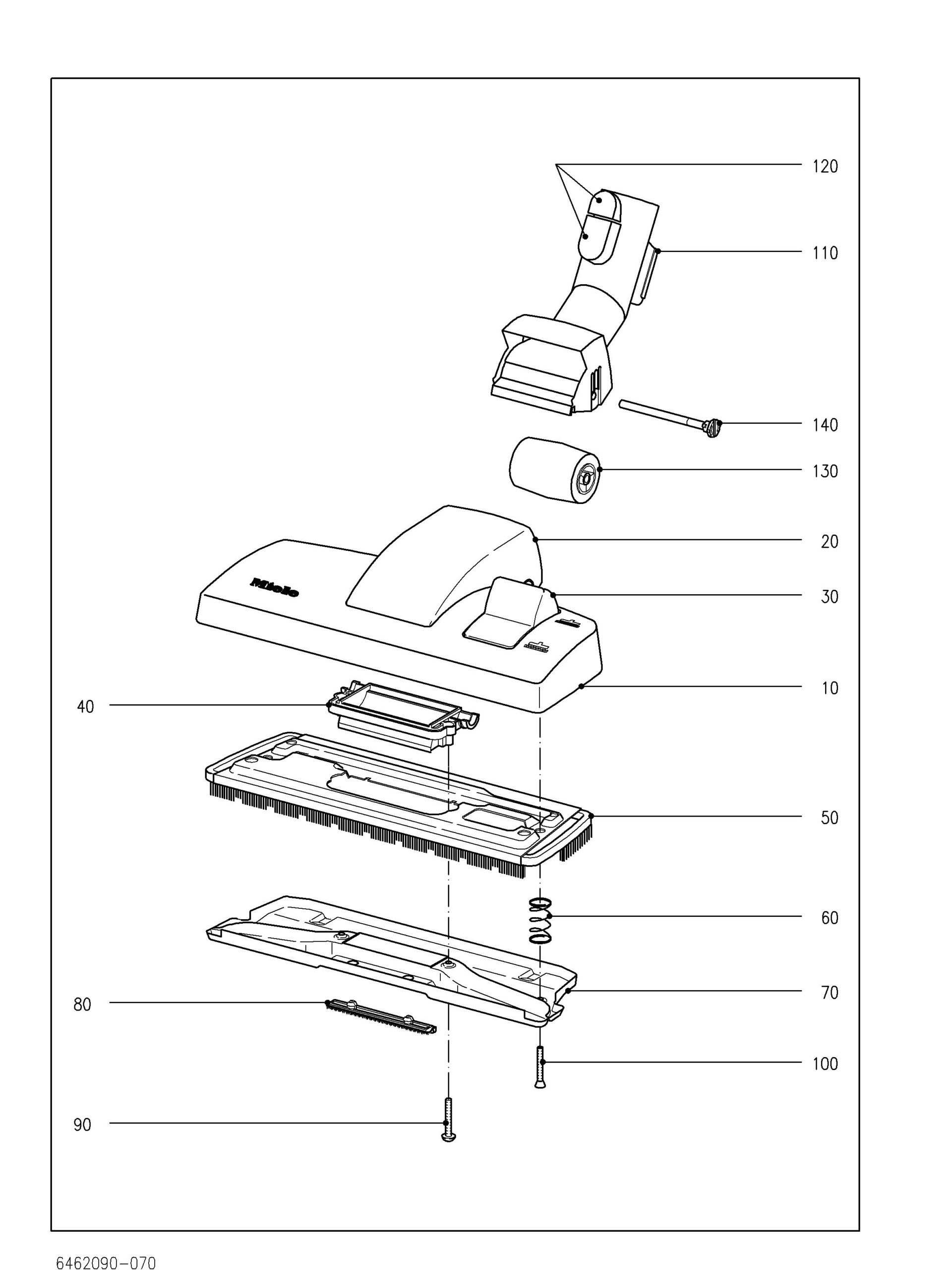

| # | Part image | Description | SKU | Price |
| 10-140 | Not Available | Floor nozzle SBD285-3 | 6223980 | Not Available |
| 10-140 | Not Available | Floor nozzle SBD285-3 AllTeQ | 7253830 | Not Available |
| 10 |  | Genuine Miele Top anthracite | 5235512 | $27.90Read more |
| 20 |  | Genuine Miele Suction channel anthracite | 5235541 | $24.70Read more |
| 30 |  | Genuine Miele Foot switch anthracite | 5235503 | $15.00Read more |
| 40 |  | Genuine Miele Fixing | 5235480 | $9.70Read more |
| 50 |  | Genuine Miele Bristle supp.plate | 5235463 | $33.80Read more |
| 60 |  | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |
| 70+80 |  | Genuine Miele Lower section | 5235453 | $43.60Read more |
| 80 |  | Genuine Miele Thread lifter 2 Pcs. | 6204050 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 |  | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $3.60Read more |
| 100 | No Image | --Countersunk Screw 35X20 | 5289870 | $2.30Read more |
| 110+120 |  | Genuine Miele Linkage SBD285-3 assy | 6578132 | $36.00Add to cart Special order: ships in 2 to 4 weeks |
| 120 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 | | Genuine Miele Support roller | 5235530 | $15.00Read more |
| 140 | | Genuine Miele Shaft Bayonett fitting | 5235520 | $13.50Read more |
