Schematic and parts book for Miele S518 S 518. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

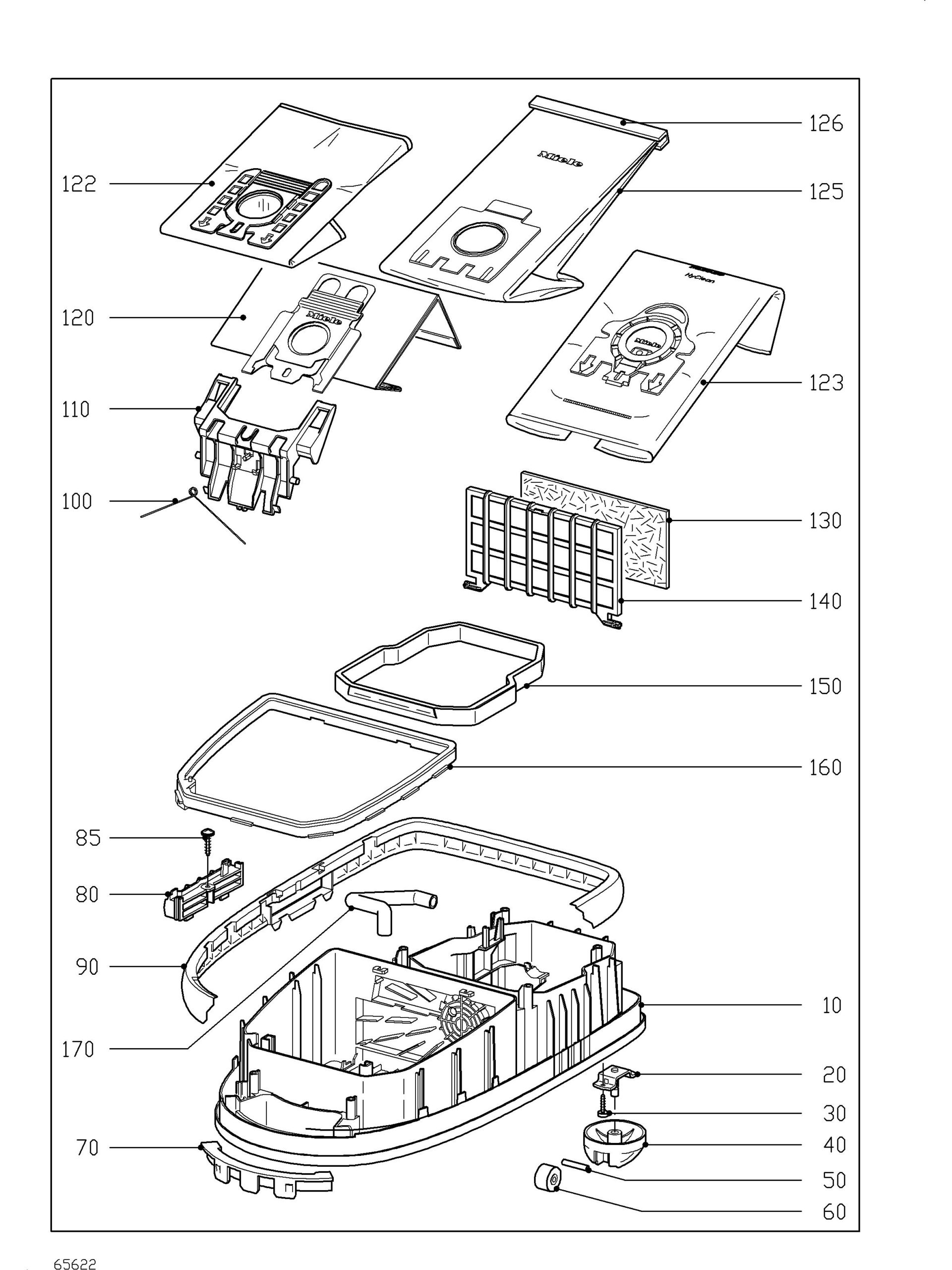

| # | Part image | Description | SKU | Price |
| XX |  | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 10-60 | No Image | Casing Bottom Anthracite | 5266836 | $119.00Read more |
| 20 | | Genuine Miele Shaft Slide skid | 3892600 | $9.70Read more |
| 40-60 | No Image | -Slide Skid Obsw Assy | 12494260 | $11.00Read more |
| 40-60 | No Image | -Slide Skid Obsw Assy | 12494260 | $11.00Read more |
| 70 | | Genuine Miele Grip handle anthracite | 5088880 | $6.60Read more |
| 80 | | Genuine Miele Suspension anthracite | 5088800 | $6.60Read more |
| 80 | | Genuine Miele Suspension Telescopic pipe | 6855820 | $6.60Read more |
| 90 | | Genuine Miele Buffer | 5088850 | $43.60Read more |
| 100 | | Genuine Miele Torsion spring | 5088960 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| 110 | No Image | Bracket Vacuum Cleaner Bag | 6745042 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 123 | Not Available | vacuum cleaner bag F/J/M USA | 7805100 | Not Available |
| 125+126 | Not Available | Cloth filter bag S227-S858 | 5188842 | Not Available |
| 126 | | Genuine Miele Lock | 1058641 | $20.60Read more |
| 130 |  | Genuine Miele Dust compart.filter 3 pcs. | 6713110 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 140 | | Genuine Miele Filter frame | 5117170 | $13.50Read more |
| 150 | | Genuine Miele Seal | 5088860 | $18.80Read more |
| 160 | | Genuine Miele Sealing ring | 5088870 | $18.80Read more |
| 170 | | Genuine Miele Hose | 5088980 | $15.00Read more |

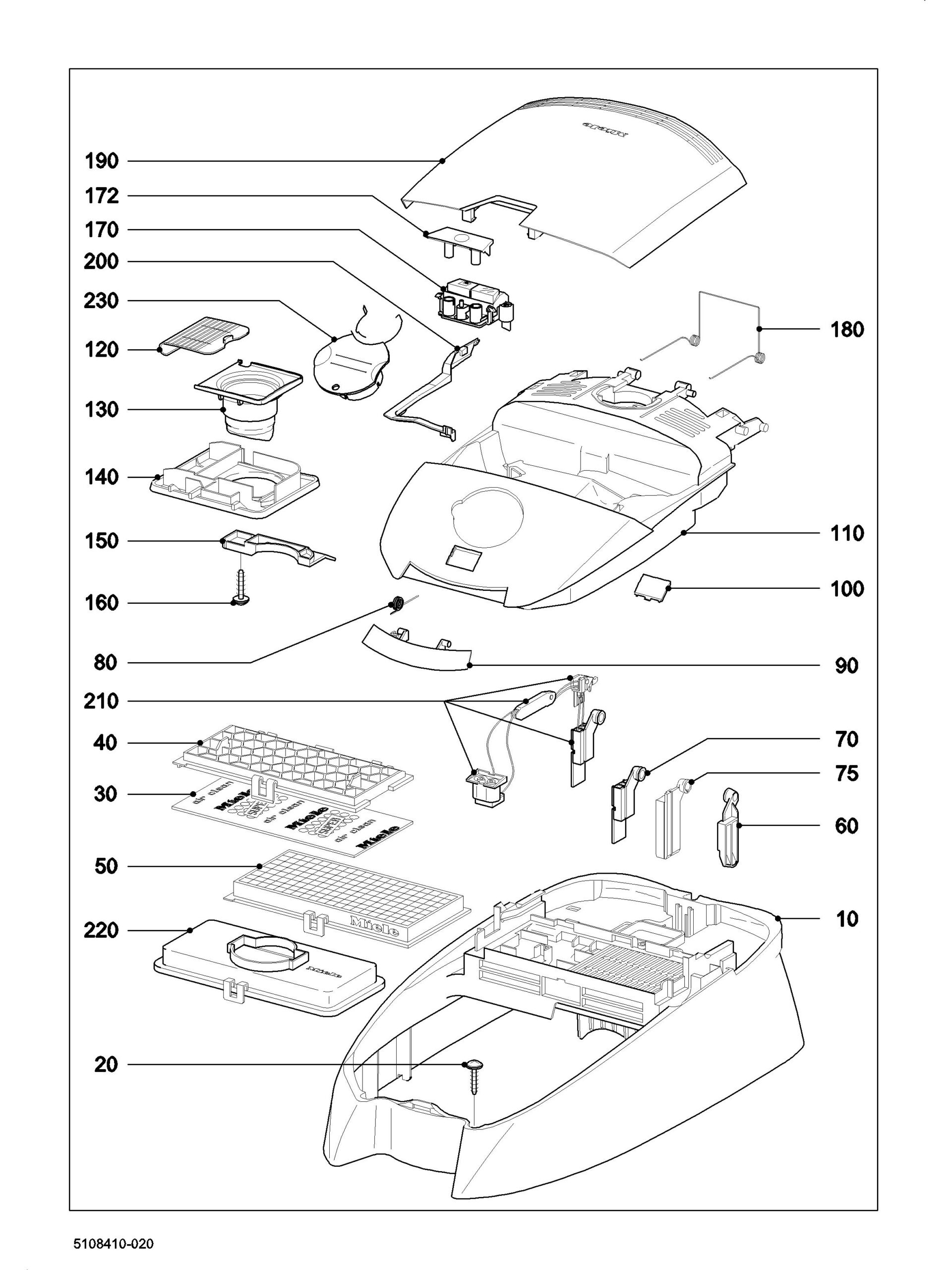

| # | Part image | Description | SKU | Price |
| XX |  | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| XX | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 10 | | Genuine Miele Cover frame Royal blue of 2 Parking | 5223522 | $93.60Read more |
| 10 | Not Available | Cover frame Brilliant white of 2 Parking | 5323162 | Not Available |
| 10 | | Genuine Miele Cover frame Indian red of 2 Parking | 5982392 | $93.60Read more |
| 10 | Not Available | Cover frame siena red | 5223552 | Not Available |
| 10 | | Genuine Miele Cover frame light blue of 2 Parking | 5223562 | $93.60Read more |
| 10 | Not Available | Cover frame tropical green | 5223572 | Not Available |
| 10 | No Image | Cover Frame Polar Ice Of 2 Parking | 6443002 | $100.00Read more |
| 10 | Not Available | Cover frame Melon yellow of 2 Parking | 6611932 | Not Available |
| 10 | No Image | Cover Frame Melon Yellow Of 3 Parking | 7330951 | $100.00Read more |
| 10 | | Genuine Miele Cover frame deep black of 2 Parking | 5223582 | $93.60Read more |
| 30 |  | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Genuine Miele Grille anthracite | 5089130 | $18.80Read more |
| 50 | No Image | Hepa-Filter | 12785370 | $64.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 | No Image | Act.Air Cleanfilter | 12718090 | $49.00Add to cart Special order: ships in 2 to 4 weeks |
| 60 |  | Genuine Miele Hinge left anthracite | 5089000 | $4.90Add to cart |
| 80 | | Genuine Miele Torsion spring | 5108160 | $10.70Read more |
| 90 |  | Genuine Miele Lock anthracite | 5089024 | $4.90Read more |
| 100 | | Genuine Miele Cap anthracite | 5089032 | $3.60Read more |
| 100 | Not Available | Fascia panel Royal blue | 5185011 | Not Available |
| 100 | Not Available | Fascia panel sun yellow | 5185051 | Not Available |
| 100 | Not Available | Fascia panel siena red | 5185071 | Not Available |
| 100 | Not Available | Fascia panel light blue | 5185081 | Not Available |
| 100 | Not Available | Fascia panel tropical green | 5185101 | Not Available |
| 110 | | Genuine Miele Casing top Royal blue | 5184632 | $98.00Read more |
| 110 | | Genuine Miele Casing top Brilliant white | 5322962 | $98.00Read more |
| 110 | Not Available | Casing top sun yellow | 5184772 | Not Available |
| 110 | Not Available | Casing top tropical green | 5184832 | Not Available |
| 110 | No Image | Casing Top Polar Ice | 6443012 | $76.00Read more |
| 110 | No Image | Casing Top Melon Yellow | 6612012 | $76.00Read more |
| 110+100 | | Genuine Miele Casing top deep black | 5184862 | $109.00Read more |
| 120 | | Genuine Miele Coupler link anthracite | 5091021 | $3.60Read more |
| 130 | | Genuine Miele Slide sleeve anthracite | 5089043 | $10.70Read more |
| 140 | | Genuine Miele Dust channel anthracite | 5089011 | $13.50Read more |
| 150 | | Genuine Miele Holder Dust channel | 5223481 | $4.90Read more |
| 170+172 | | Genuine Miele Change filter ind. | 5535191 | $33.80Read more |
| 172 | | Genuine Miele interlock | 5089091 | $9.70Read more |
| 180 |  | Genuine Miele Torsion spring | 5124520 | $4.90Read more |
| 190 | | Genuine Miele Lid Royal blue | 5271212 | $52.20Read more |
| 190 | Not Available | Lid Brilliant white | 5325662 | Not Available |
| 190 |  | Genuine Miele Lid deep black | 5271302 | $56.00Add to cart Special order: ships in 2 to 4 weeks |
| 190 | No Image | Lid Siena Red | 5271252 | $56.00Read more |
| 190 | | Genuine Miele Lid light blue | 5271272 | $0.00Read more |
| 190 | No Image | Lid Tropical Green | 5271282 | $56.00Read more |
| 190 | | Genuine Miele Lid deep black | 5271302 | $56.00Add to cart Special order: ships in 2 to 4 weeks |
| 190 | Not Available | Lid Melon yellow | 6658050 | Not Available |
| 190 | No Image | Lid Indigo | 5606442 | $56.00Read more |
| 210 | Not Available | Flush socket outlet 2 pole | 5398100 | Not Available |
| 220 | | Genuine Miele Blower plate | 5109310 | $20.60Read more |

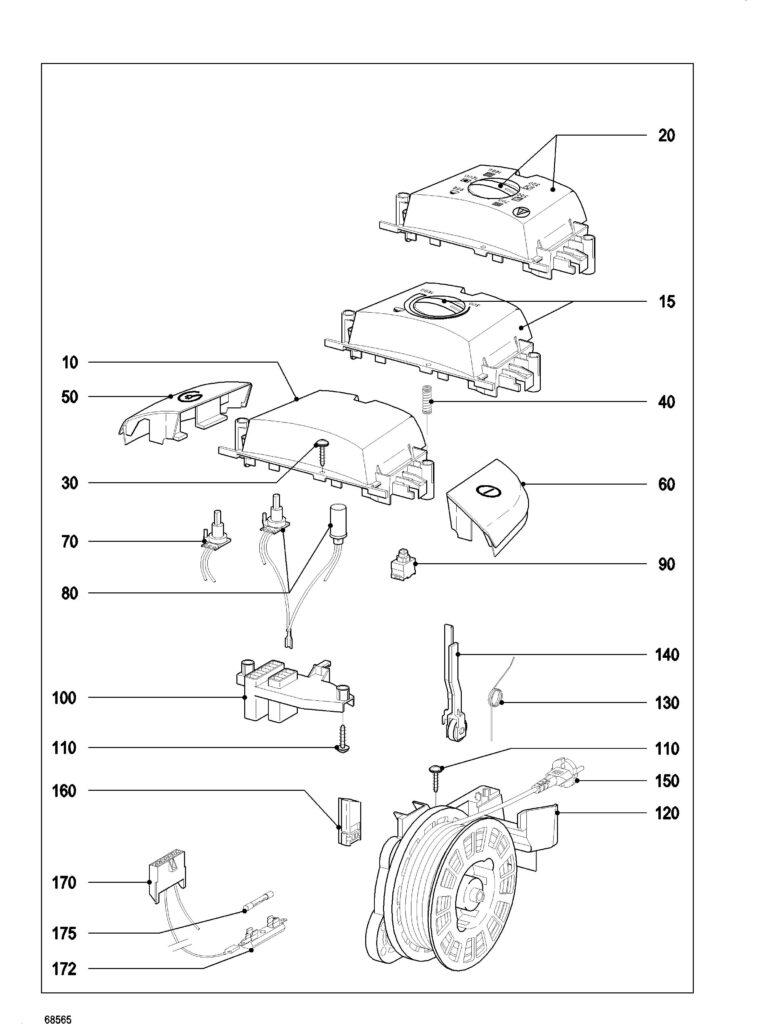

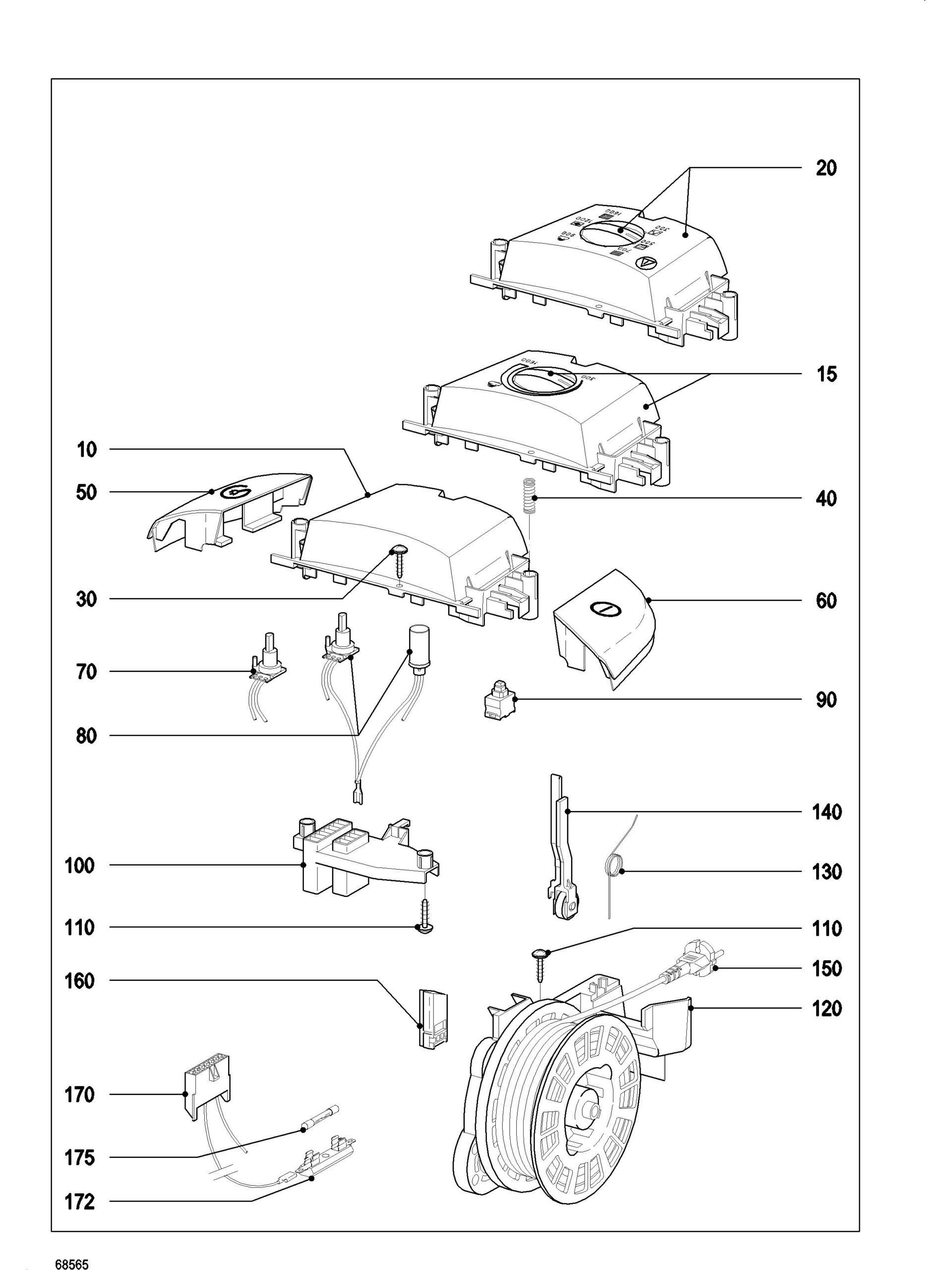

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| XX | No Image | --Raised Head Screw 4,0X14 | 6498750 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 15 | Not Available | Cap Min-Max | 7344931 | Not Available |
| 40 |  | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 50 | | Genuine Miele Foot switch right (Relaunch) | 7737071 | $9.70Add to cart |
| 60 | | Genuine Miele Foot switch left (Relaunch) | 7737081 | $9.70Read more |
| 80 | Not Available | Indicator light | 5482010 | Not Available |
| 90 | No Image | -Switch 1 Pole 1681.3103 | 9023231 | $9.60Add to cart Special order: ships in 2 to 4 weeks |
| 100 |  | Genuine Miele Plug housing | 5090752 | $52.20Add to cart |
| 120-150 |  | Genuine Miele Cable reel S500 6,5m 120V | 5240303 | $109.00Read more |
| 130 | No Image | -Torsion Spring Ks 131 | 4305810 | $7.59Read more |
| 130 | | Genuine Miele Torsion spring S300-S5000 | 6217500 | $6.60Read more |
| 140 | No Image | -Brake Lever S300/500/700 | 4312183 | $7.59Read more |
| 150 | Not Available | -Supply cable 6,65m 17AWG 120V USA | 5241032 | Not Available |
| 170 | No Image | Connecting Cable Usa | 5483511 | $91.00Read more |

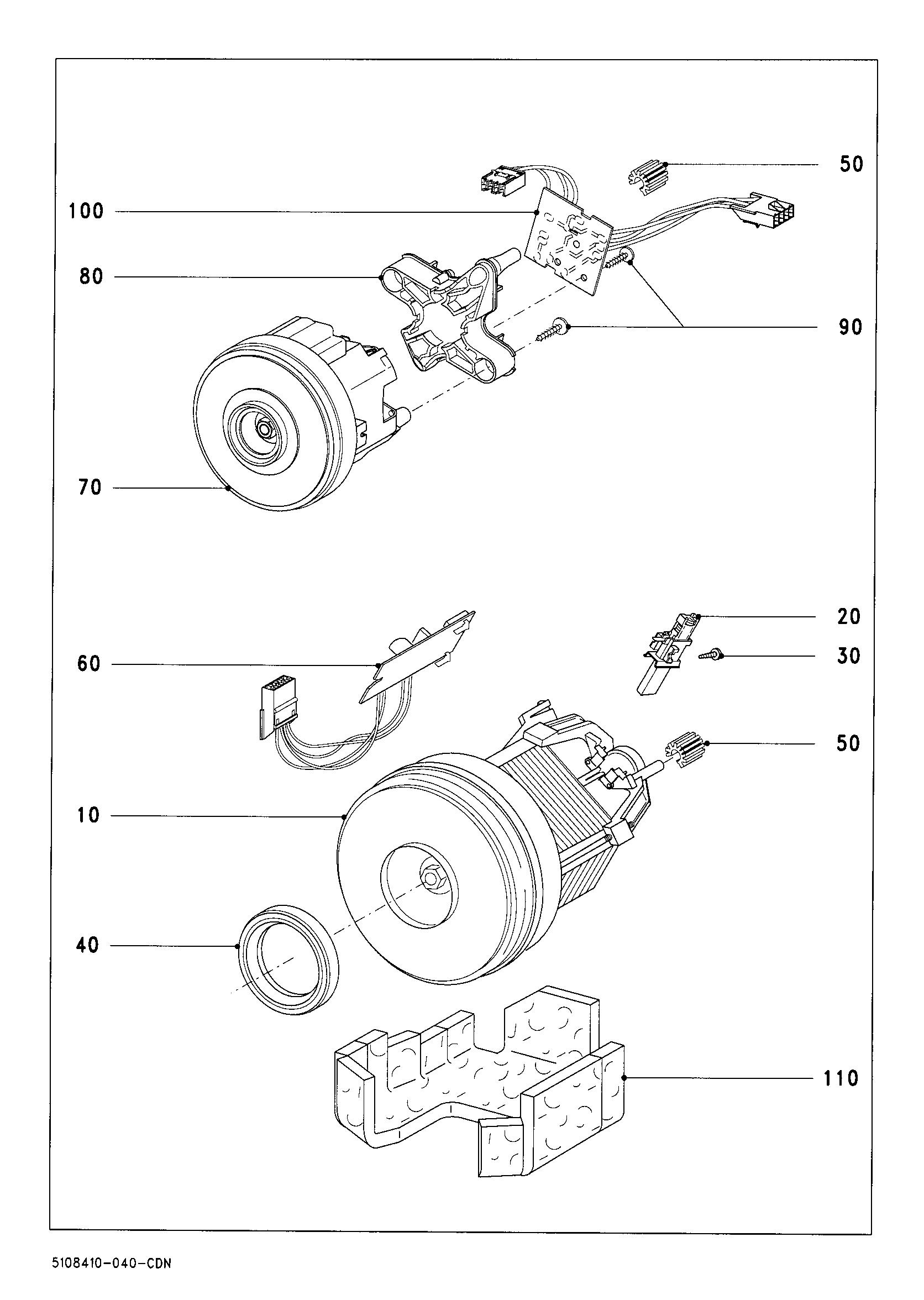

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 3,9X9,5 | 3903441 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 10-30 | Not Available | Fan Mrg42/81-43/2 120V | 4698861 | Not Available |
| 20 | Not Available | Carbon brush 2 Pcs. | 5419810 | Not Available |
| 40 | | Genuine Miele Bearing ring | 5089170 | $13.50Read more |
| 50 | | Genuine Miele Rubber cushion | 5089190 | $6.60Read more |
| 60 | Not Available | Electronic unit EDL515/81 120V/60Hz | 5408621 | Not Available |
| 70 |  | Genuine Miele Fan Mrg722/81-42/2 120V | 5709492 | $119.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 |  | Available ReconditionedReconditioned Genuine Miele Fan Mrg722/81-42/2 120V More Product Details | 5709492R | $100.00Add to cart |
| 70 | | Genuine Miele Fan Mrg722/81-42/2 120V | 5709492 | $119.00Add to cart Special order: ships in 2 to 4 weeks |
| 80-100 | | Genuine Miele Electronic unit EDL7161/81 vollst. | 6836741 | $120.70Read more |
| 80 | | Genuine Miele Adapter Fan | 5887410 | $20.60Read more |
| 90 | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 100 | Not Available | Conv.kit fan S700 | 10126311 | Not Available |
| 100 | | Genuine Miele Electronic unit EDL7161/81 vollst. | 6836741 | $120.70Read more |
| 110 | | Genuine Miele Damping plate | 5088890 | $10.70Read more |

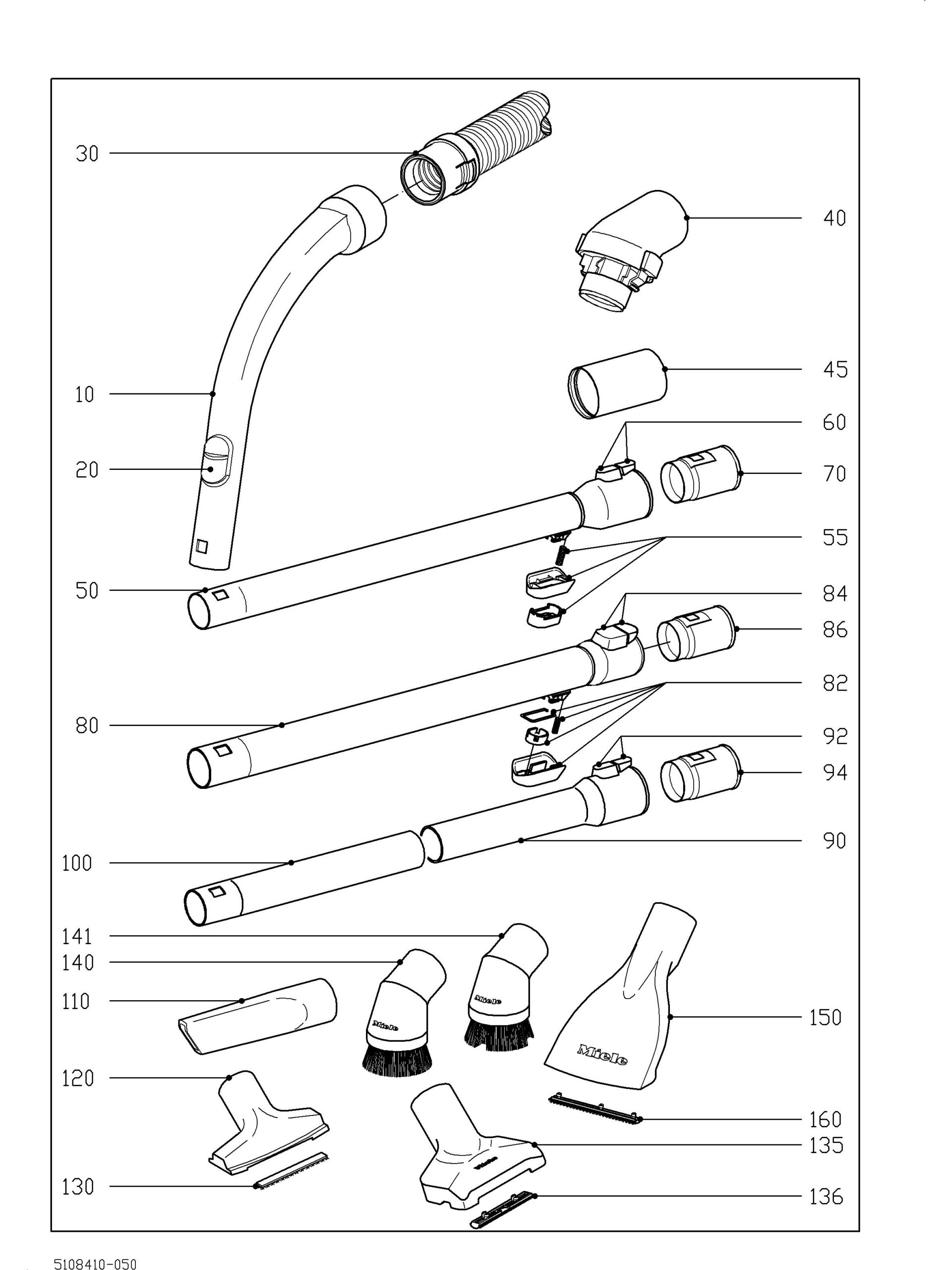

| # | Part image | Description | SKU | Price |
| 10-40 | Not Available | Suction hose S500/S600 | 5269604 | Not Available |
| 10+20 | | Genuine Miele Tubular handle anthracite | 9442601 | $37.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Suction control anthracite | 5141090 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Genuine Miele Suction hose silver-coloured 1,8m | 5230830 | $61.00Read more |
| 30 |  | Available ReconditionedReconditioned Genuine Miele Suction hose silver-coloured 1,8m More Product Details | 5230830R | $45.25Add to cart |
| 40 | Not Available | -Elbow anthracite | 5108111 | Not Available |
| 45 | Not Available | Connecting tube Suction hose | 5527410 | Not Available |
| 55 | | Genuine Miele Push button 15x30mm | 4832460 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 60+70 |  | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 60 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 80-86 |  | Genuine Miele Telescopic pipe 2-part st.steel | 5658812 | $0.00Read more |
| 80-86 |  | Available Pre OwnedReconditioned Miele Telescopic Aluminum Wand for Miele Upright Vacuums 6801181 More Product Details | 6801180R | $48.00Add to cart |
| 80-86 |  | Compatible alternateGenuine Miele Telescopic pipe Aluminium More Product Details | 6801181 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 82 |  | Genuine Miele Push button Round | 5780932 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 84+86 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 84 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 92+94 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 | No Image | Crevice Nozzle 149Mm Obsw | 9442631 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 | | Genuine Miele Thread lifter 2 Pcs. | 2348770 | $13.50Read more |
| 135+136 | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 136 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 141 |  | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $26.00Add to cart Special order: ships in 2 to 4 weeks |
| 150+160 | | Genuine Miele ST Mattress nozzle SMD10 | 7252280 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 160 | | Genuine Miele Thread lifter | 5056530 | $9.70Read more |

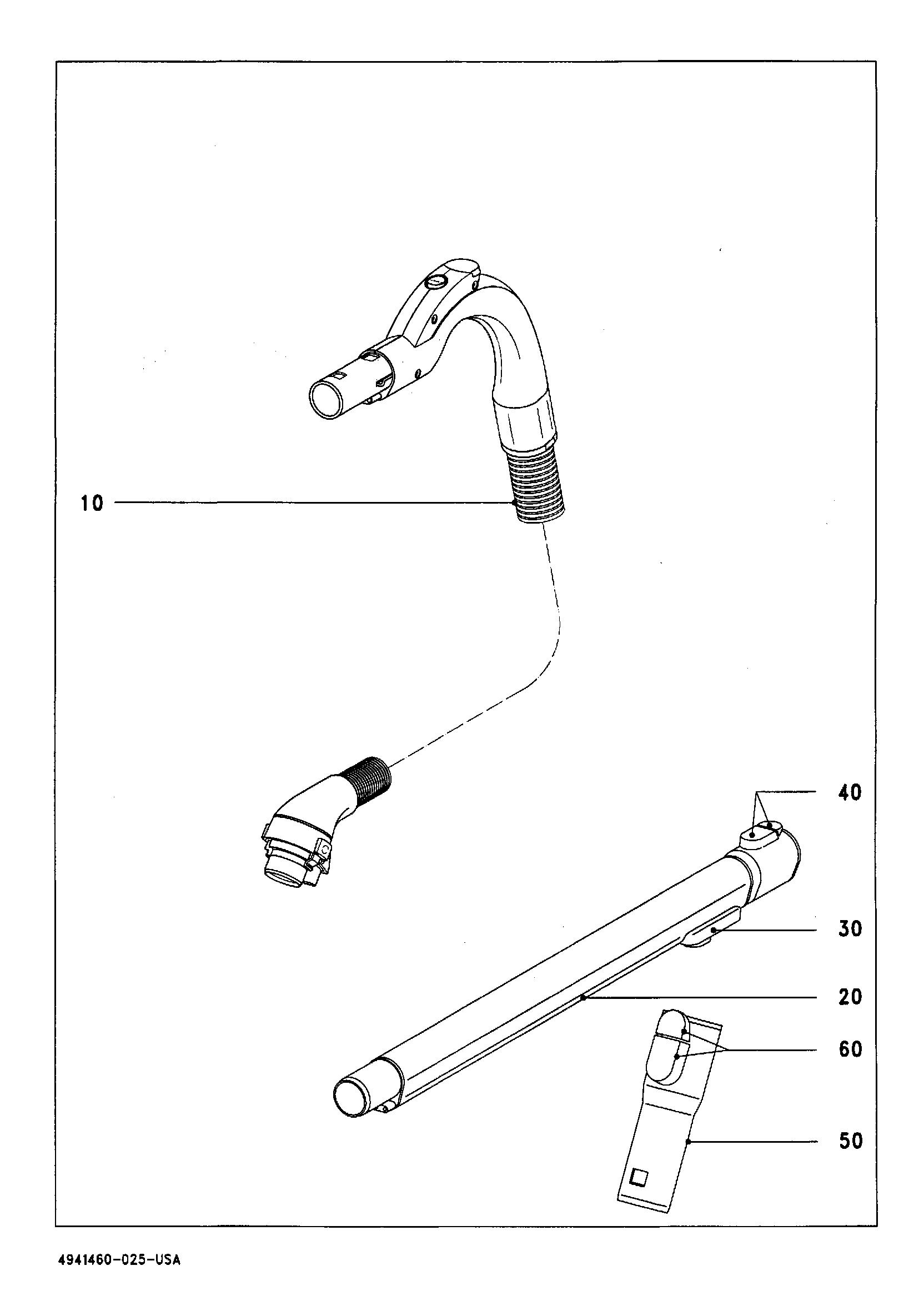

| # | Part image | Description | SKU | Price |
| 10 | | Genuine Miele SES 118 USA | 5497860 | $199.00Add to cart Special order: ships in 2 to 4 weeks |
| 20-40 |  | Direct Connect Electric Wand SET220 41996432USA 6543880 | WP10506 | $199.00Add to cart |
| 30 | | Genuine Miele Push button anthracite | 5064430 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Genuine Miele Push button Round | 9160460 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 50+60 | | Genuine Miele connecting piece Floor nozzle | 5449760 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 60 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |

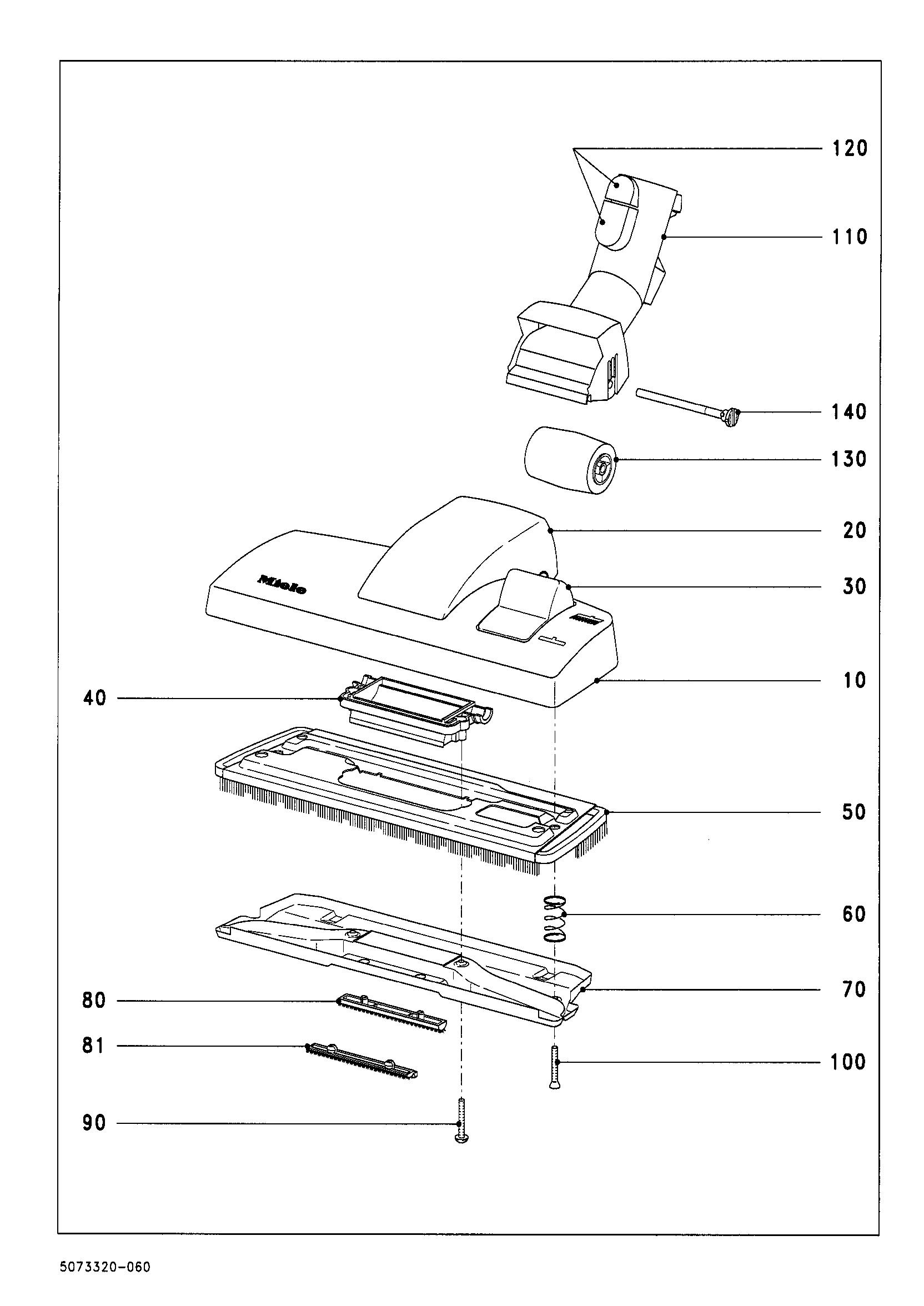

| # | Part image | Description | SKU | Price |
| 10 |  | Genuine Miele Top anthracite | 5235512 | $27.90Read more |
| 20 |  | Genuine Miele Suction channel anthracite | 5235541 | $24.70Read more |
| 30 |  | Genuine Miele Foot switch anthracite | 5235503 | $15.00Read more |
| 40 |  | Genuine Miele Fixing | 5235480 | $9.70Read more |
| 50 |  | Genuine Miele Bristle supp.plate | 5235463 | $33.80Read more |
| 60 |  | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |
| 70+81 |  | Genuine Miele Lower section | 5235453 | $43.60Read more |
| 80 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 81-140 | Not Available | Floor nozzle SBD285-2 AllTeQ | 7253820 | Not Available |
| 81 |  | Genuine Miele Thread lifter 2 Pcs. | 6204050 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 |  | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $3.60Read more |
| 100 | No Image | --Countersunk Screw 35X20 | 5289870 | $2.30Read more |
| 110+120 | | Genuine Miele Linkage anthracite | 5235552 | $39.50Read more |
| 130 |  | Genuine Miele Support roller | 5235530 | $15.00Read more |
| 140 |  | Genuine Miele Shaft Bayonett fitting | 5235520 | $13.50Read more |

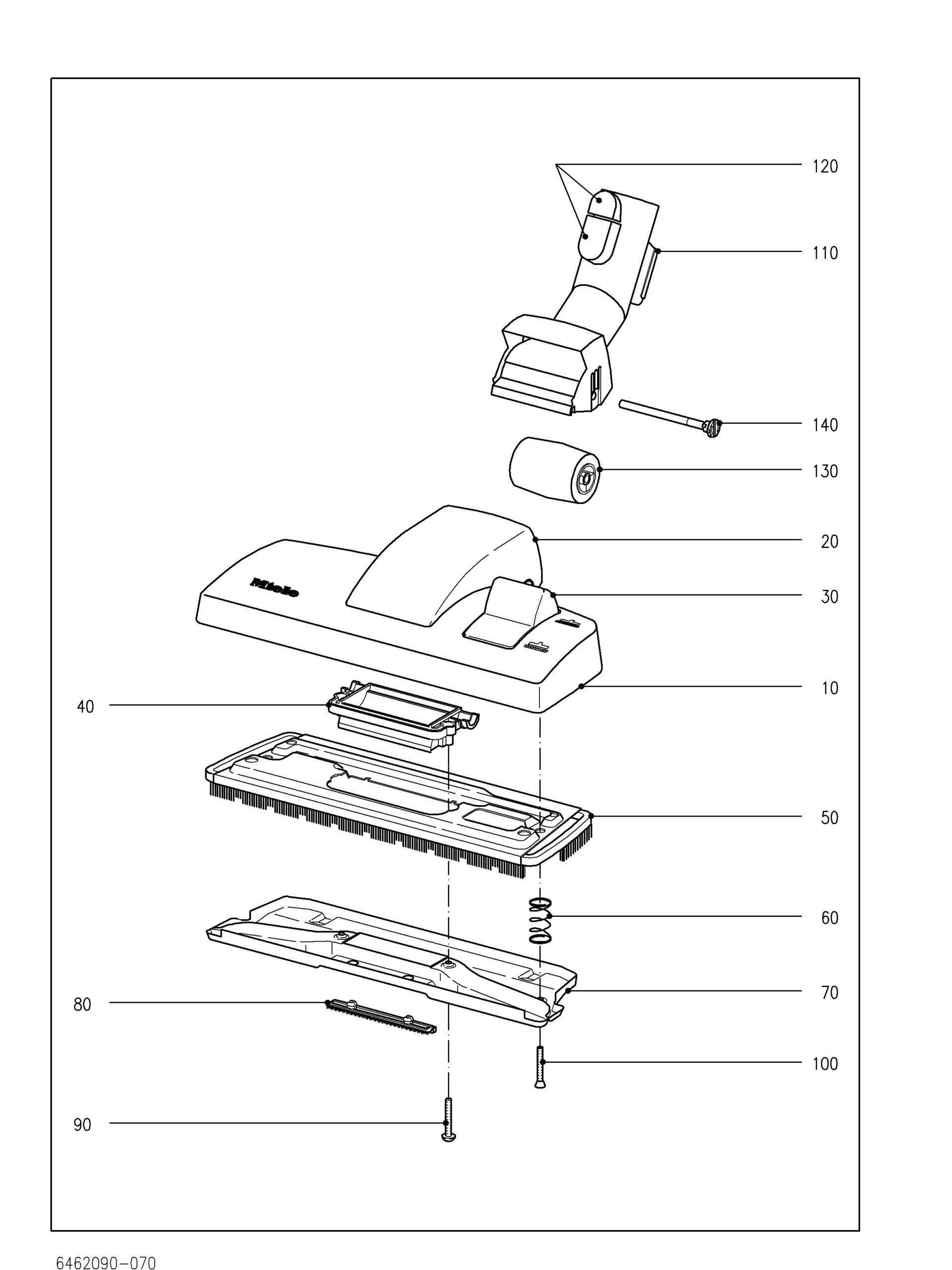

| # | Part image | Description | SKU | Price |
| 10 | | Genuine Miele Top anthracite | 5235512 | $27.90Read more |
| 20 | | Genuine Miele Suction channel anthracite | 5235541 | $24.70Read more |
| 30 | | Genuine Miele Foot switch anthracite | 5235503 | $15.00Read more |
| 40 | | Genuine Miele Fixing | 5235480 | $9.70Read more |
| 50 | | Genuine Miele Bristle supp.plate | 5235463 | $33.80Read more |
| 60 | | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |
| 70+81 | | Genuine Miele Lower section | 5235453 | $43.60Read more |
| 80 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 81-140 | Not Available | Floor nozzle SBD285-3 | 6223980 | Not Available |
| 81-140 | Not Available | Floor nozzle SBD285-3 AllTeQ | 7253830 | Not Available |
| 81 | | Genuine Miele Thread lifter 2 Pcs. | 6204050 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 | | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $3.60Read more |
| 100 | No Image | --Countersunk Screw 35X20 | 5289870 | $2.30Read more |
| 110+120 |  | Genuine Miele Linkage SBD285-3 assy | 6578132 | $36.00Add to cart Special order: ships in 2 to 4 weeks |
| 120 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 | | Genuine Miele Support roller | 5235530 | $15.00Read more |
| 140 | | Genuine Miele Shaft Bayonett fitting | 5235520 | $13.50Read more |
| # | Part image | Description | SKU | Price |

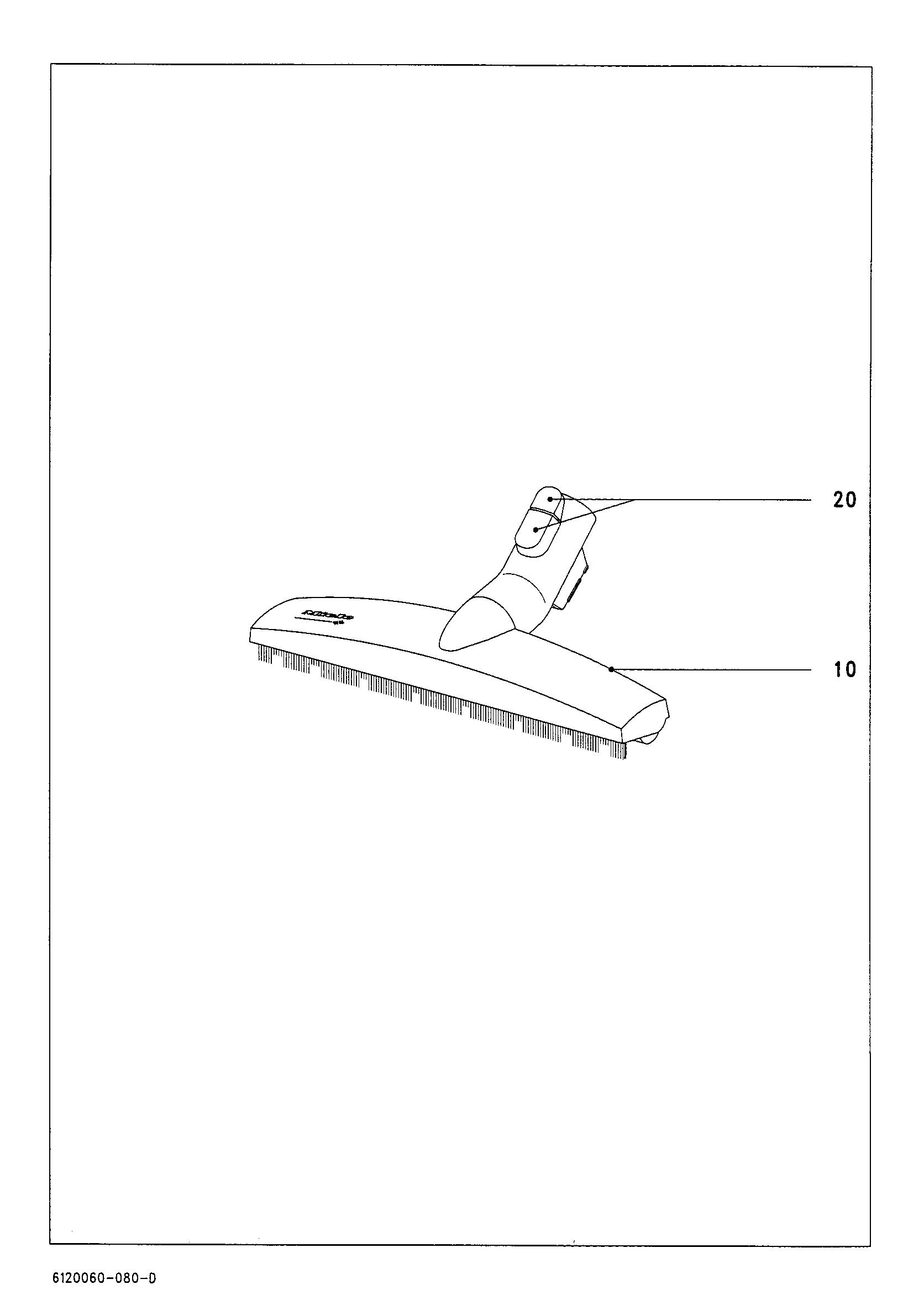

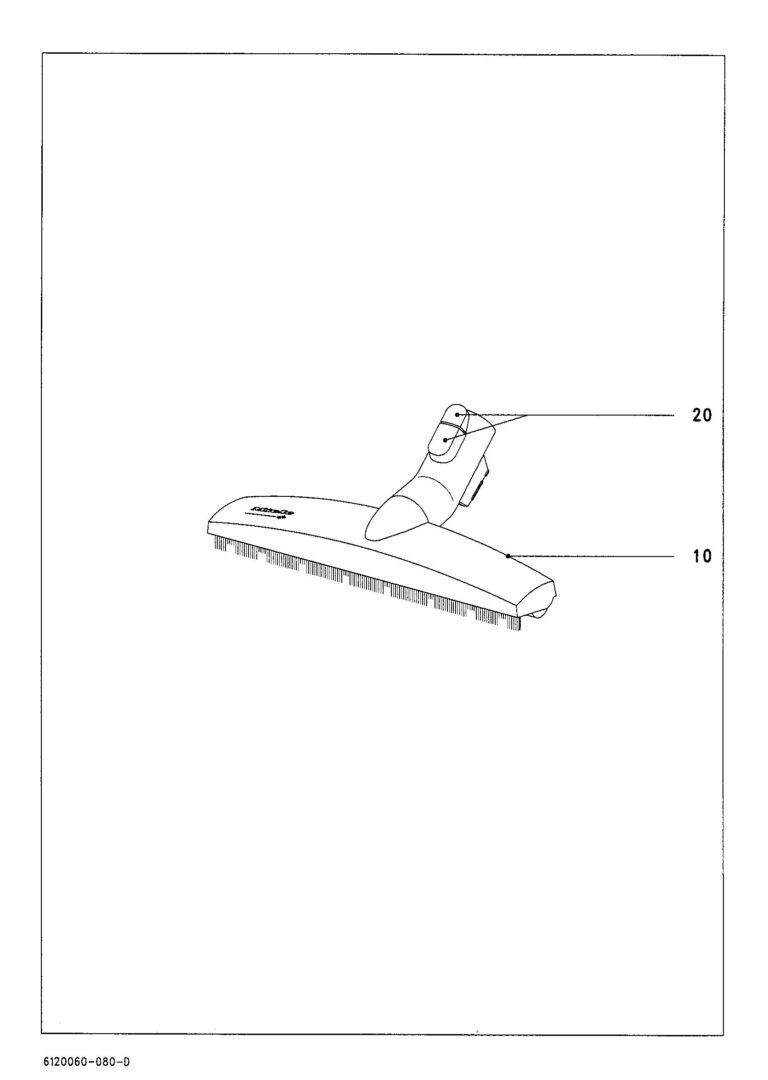

| 10+20 | Not Available | Floor brush SBB Parquet-3 | 7236220 | Not Available |
| 20 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Screw KA35X16 EJOT-PT | 4863580 | $3.60Read more |
| XX | | Genuine Miele Screw KA35X16 EJOT-PT | 4863580 | $3.60Read more |

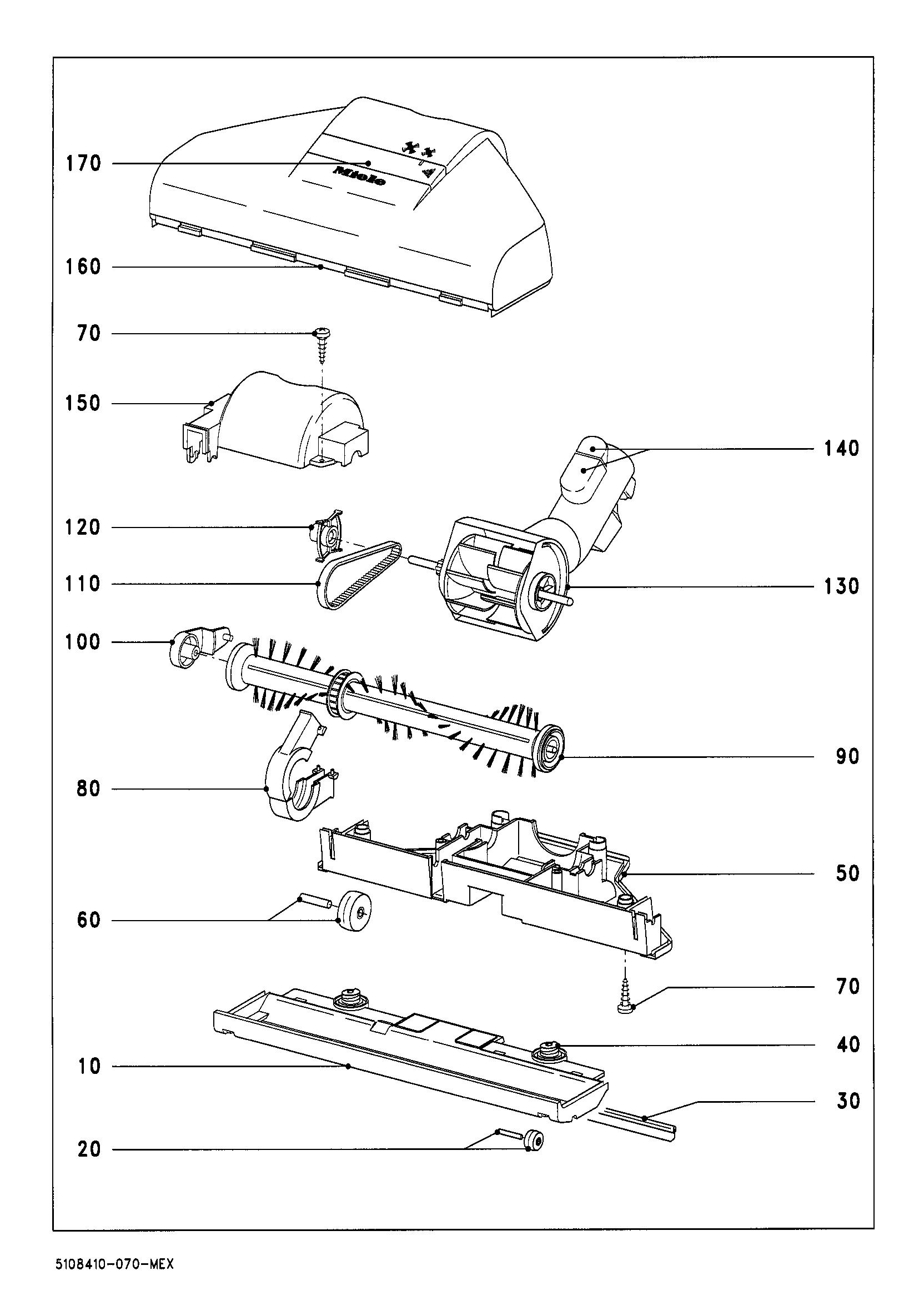

| 10-40 | | Genuine Miele Floor plate anthracite | 4897722 | $93.60Read more |
| 20 | | Genuine Miele Wheel 2 Pcs. | 4919170 | $30.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Genuine Miele Strip | 4929021 | $11.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Genuine Miele Screw 2 Pcs. | 4919190 | $15.00Read more |
| 50+60 | | Genuine Miele Lower section anthracite | 4863630 | $71.70Read more |
| 60 |  | Genuine Miele Wheel 2 Pcs. | 4919180 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 80 | | Genuine Miele Belt guard black | 2991760 | $10.70Read more |
| 90+100 | | Genuine Miele Brush roller | 4919210 | $85.50Read more |
| 100 | | Genuine Miele Bearing lever 2 Pcs. | 4919220 | $33.80Read more |
| 110 |  | Genuine Miele Tooth belt | 4897760 | $30.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 |  | Available ReconditionedReconditioned Genuine Miele Tooth belt More Product Details | 4897760R | $27.64Add to cart |
| 110 |  | Compatible alternateAftermarket Miele Geared Belt for SEB Powerheads More Product Details | 54330106 | $9.89Add to cart |
| 120-140 | | Genuine Miele Linkage STB205-2 | 5389071 | $52.20Read more |
| 120 | | Genuine Miele Spherical bearing 2 Pcs. | 4919230 | $30.00Read more |
| 140 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 150 | | Genuine Miele Cover anthracite | 4863700 | $27.90Read more |
| 160+170 | | Genuine Miele Top anthracite | 4863640 | $85.50Read more |
| 170 | | Genuine Miele Suction control anthracite | 4863710 | $27.90Read more |
Report errors on this page HERE
