Schematic and parts book for Miele S500 S 500. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

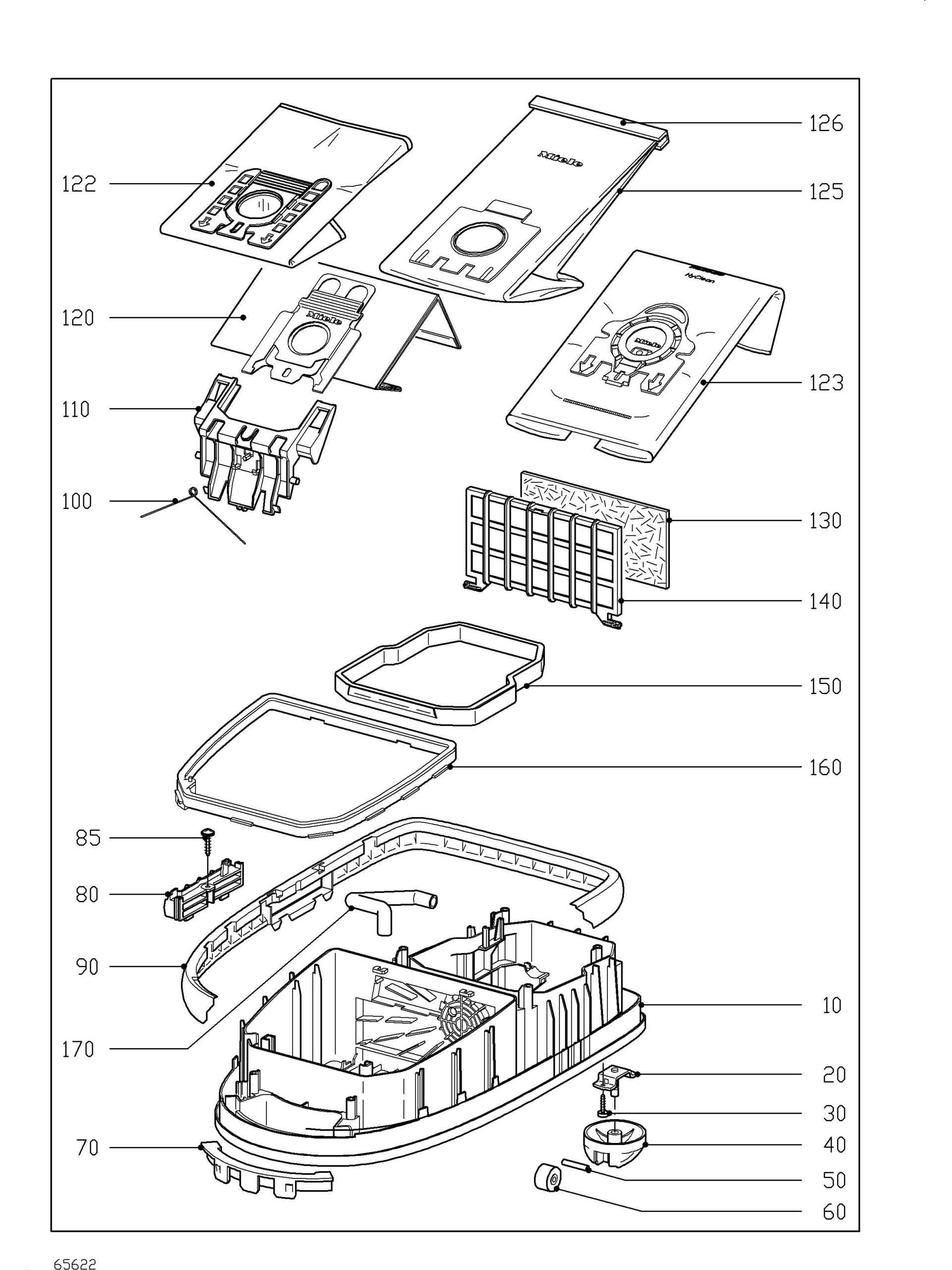

| # | Part image | Description | SKU | Price |
| XX |  | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 10-60 | No Image | Casing Bottom Anthracite | 5266836 | $119.00Read more |
| 20 | | Genuine Miele Shaft Slide skid | 3892600 | $9.70Read more |
| 40-60 | No Image | -Slide Skid Obsw Assy | 12494260 | $11.00Read more |
| 40-60 | No Image | -Slide Skid Obsw Assy | 12494260 | $11.00Read more |
| 70 | | Genuine Miele Grip handle anthracite | 5088880 | $6.60Read more |
| 80 | | Genuine Miele Suspension anthracite | 5088800 | $6.60Read more |
| 80 | | Genuine Miele Suspension Telescopic pipe | 6855820 | $6.60Read more |
| 90 | | Genuine Miele Buffer | 5088850 | $43.60Read more |
| 100 | | Genuine Miele Torsion spring | 5088960 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| 110 | No Image | Bracket Vacuum Cleaner Bag | 6745042 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 123 | Not Available | vacuum cleaner bag F/J/M USA | 7805100 | Not Available |
| 125+126 | Not Available | Cloth filter bag S227-S858 | 5188842 | Not Available |
| 126 | | Genuine Miele Lock | 1058641 | $20.60Read more |
| 130 |  | Genuine Miele Dust compart.filter 3 pcs. | 6713110 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 140 | | Genuine Miele Filter frame | 5117170 | $13.50Read more |
| 150 | | Genuine Miele Seal | 5088860 | $18.80Read more |
| 160 | | Genuine Miele Sealing ring | 5088870 | $18.80Read more |
| 170 | | Genuine Miele Hose | 5088980 | $15.00Read more |

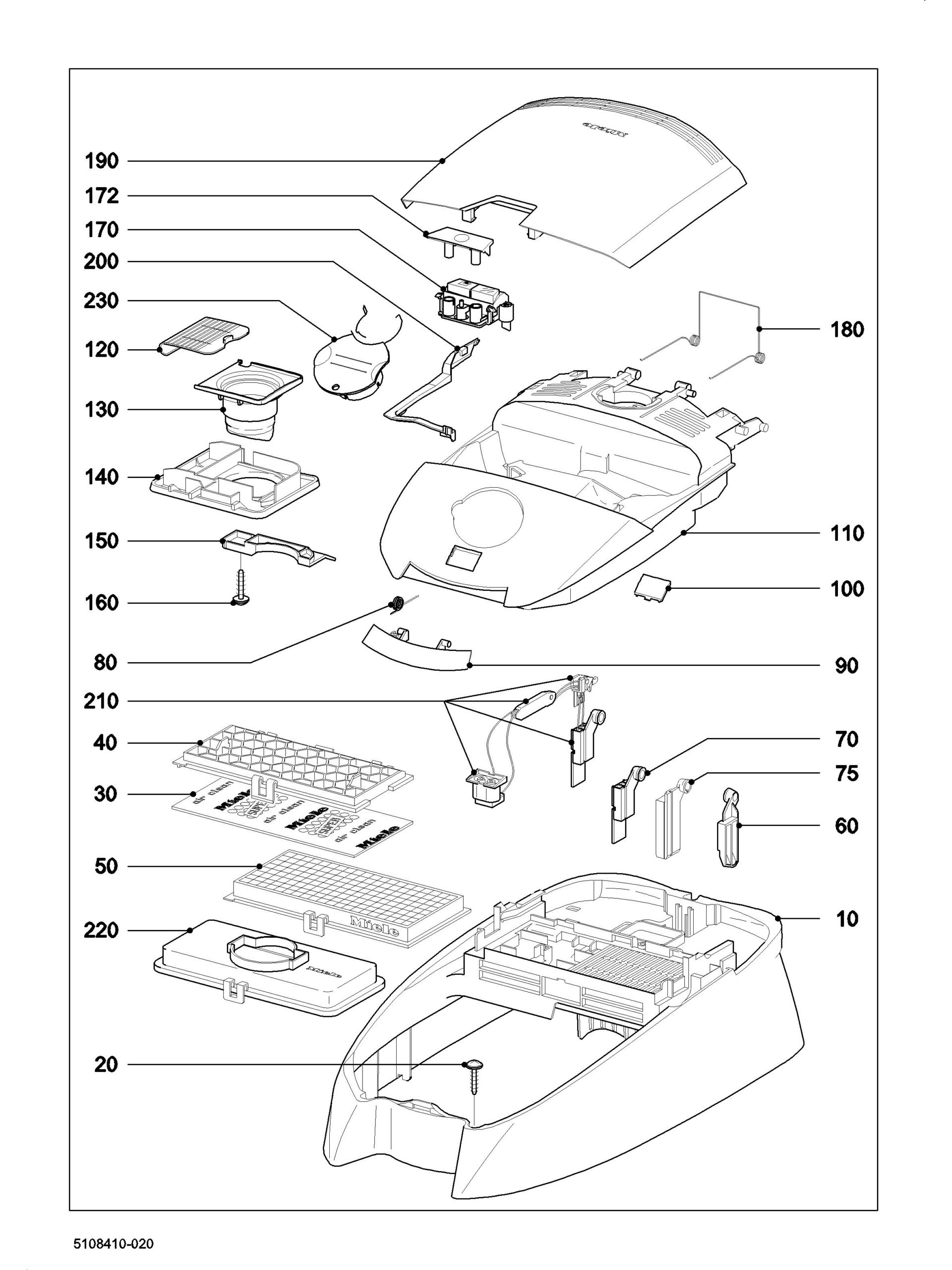

| # | Part image | Description | SKU | Price |
| XX |  | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| XX | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 10 | Not Available | Cover frame tropical green | 5223572 | Not Available |
| 30 |  | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Genuine Miele Grille anthracite | 5089130 | $18.80Read more |
| 50 | No Image | Hepa-Filter | 12785370 | $64.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 | No Image | Act.Air Cleanfilter | 12718090 | $49.00Add to cart Special order: ships in 2 to 4 weeks |
| 60 |  | Genuine Miele Hinge left anthracite | 5089000 | $4.90Add to cart |
| 80 | | Genuine Miele Torsion spring | 5108160 | $10.70Read more |
| 90 |  | Genuine Miele Lock anthracite | 5089024 | $4.90Read more |
| 100 | Not Available | Fascia panel tropical green | 5185101 | Not Available |
| 110 | Not Available | Casing top tropical green | 5184832 | Not Available |
| 120 | | Genuine Miele Coupler link anthracite | 5091021 | $3.60Read more |
| 130 | | Genuine Miele Slide sleeve anthracite | 5089043 | $10.70Read more |
| 140 | | Genuine Miele Dust channel anthracite | 5089011 | $13.50Read more |
| 150 | | Genuine Miele Holder Dust channel | 5223481 | $4.90Read more |
| 170+172 | | Genuine Miele Change filter ind. vollst. | 5089055 | $33.80Read more |
| 172 | | Genuine Miele interlock | 5089091 | $9.70Read more |
| 180 |  | Genuine Miele Torsion spring | 5124520 | $4.90Read more |
| 190 | No Image | Lid Tropical Green | 5271282 | $56.00Read more |
| 220 | | Genuine Miele Blower plate | 5109310 | $20.60Read more |

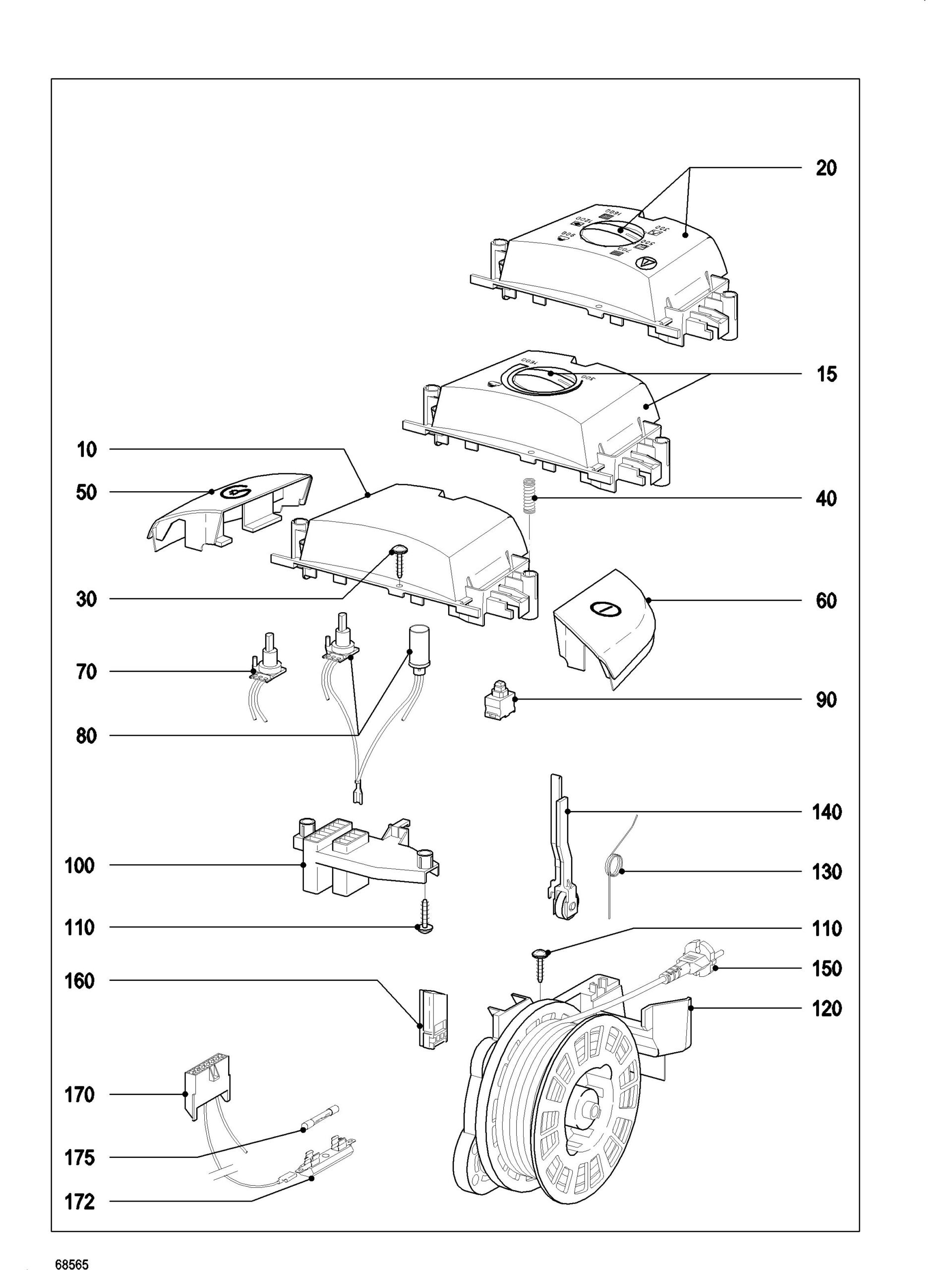

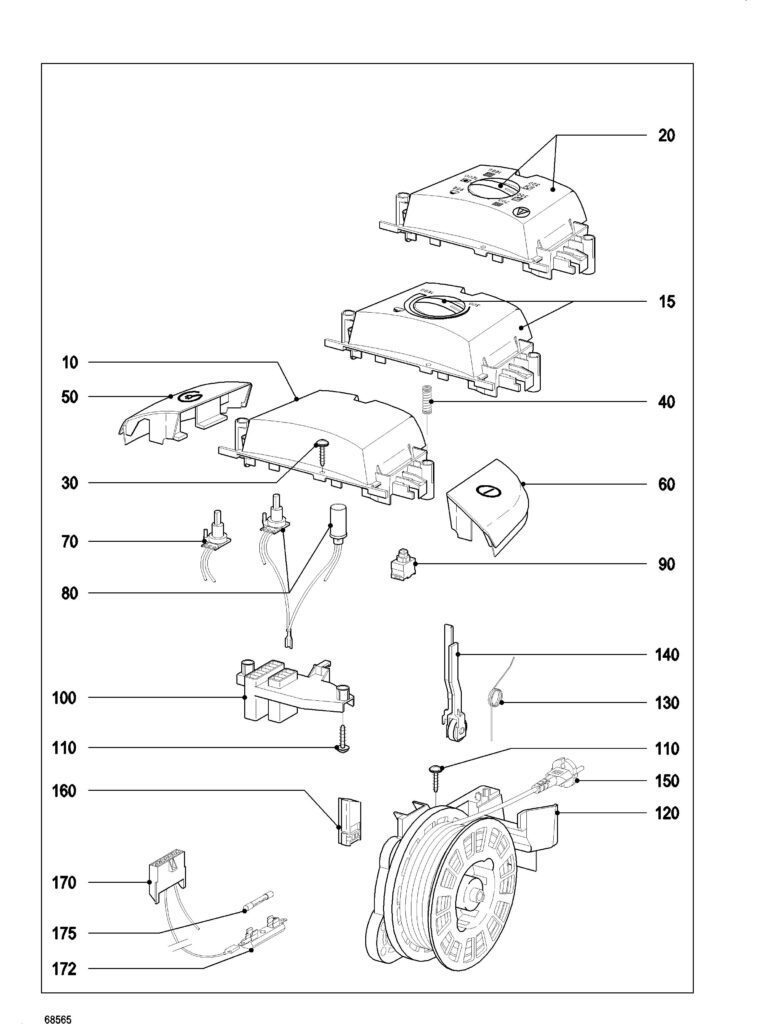

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| XX | No Image | --Raised Head Screw 4,0X14 | 6498750 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 10 | Not Available | Cap | 5089161 | Not Available |
| 40 |  | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 50 | | Genuine Miele Foot switch right (Relaunch) | 7737071 | $9.70Add to cart |
| 60 | | Genuine Miele Foot switch left (Relaunch) | 7737081 | $9.70Read more |
| 90 | No Image | -Switch 1 Pole 1681.3103 | 9023231 | $9.60Add to cart Special order: ships in 2 to 4 weeks |
| 100 |  | Genuine Miele Plug housing | 5090752 | $52.20Add to cart |
| 120-150 |  | Genuine Miele Cable reel S500 7,3M 230V EU | 5093723 | $189.00Read more |
| 130 | No Image | -Torsion Spring Ks 131 | 4305810 | $7.59Read more |
| 130 | | Genuine Miele Torsion spring S300-S5000 | 6217500 | $6.60Read more |
| 140 | No Image | -Brake Lever S300/500/700 | 4312183 | $7.59Read more |
| 150 | Not Available | -Supply cable 7,50m | 5290790 | Not Available |
| 160 | No Image | Bush Anthracite | 5065580 | $11.16Read more |

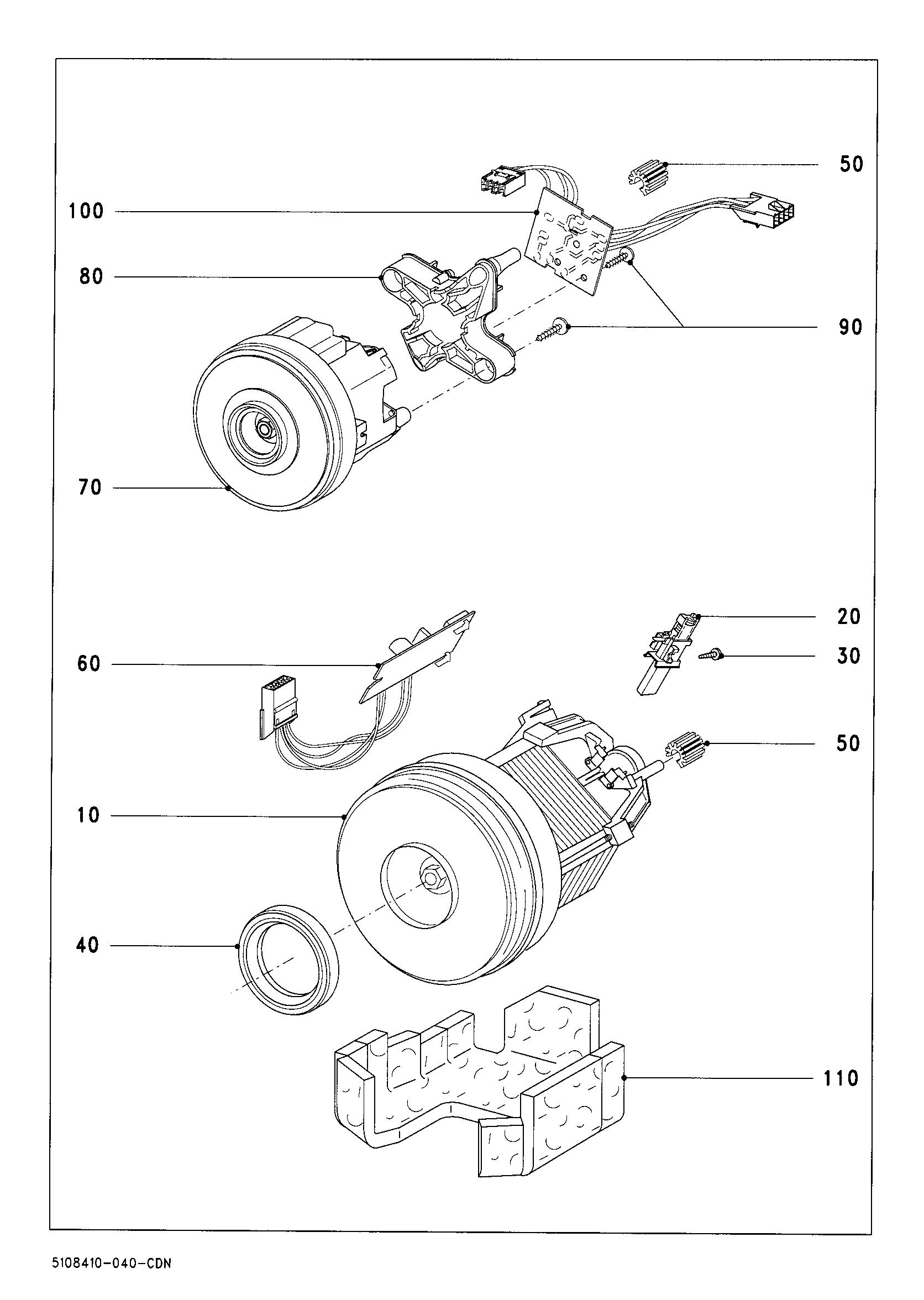

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 3,9X9,5 | 3903441 | $2.30Read more |
| 10-30 | Not Available | Fan Mrg44-43/2 230V | 5093951 | Not Available |
| 20 | Not Available | Carbon brush 2 Pcs. | 5419810 | Not Available |
| 40 | | Genuine Miele Bearing ring | 5089170 | $13.50Read more |
| 50 | | Genuine Miele Rubber cushion | 5089190 | $6.60Read more |
| 70 |  | Genuine Miele Fan Mrg722/81-42/2 120V | 5709492 | $119.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 |  | Available ReconditionedReconditioned Genuine Miele Fan Mrg722/81-42/2 120V More Product Details | 5709492R | $100.00Add to cart |
| 80-100 | | Genuine Miele Electronic unit EDL7161/81 vollst. | 6836741 | $120.70Read more |
| 90 | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 100 | Not Available | Conv.kit fan S700 | 10126311 | Not Available |
| 110 | | Genuine Miele Damping plate | 5088890 | $10.70Read more |

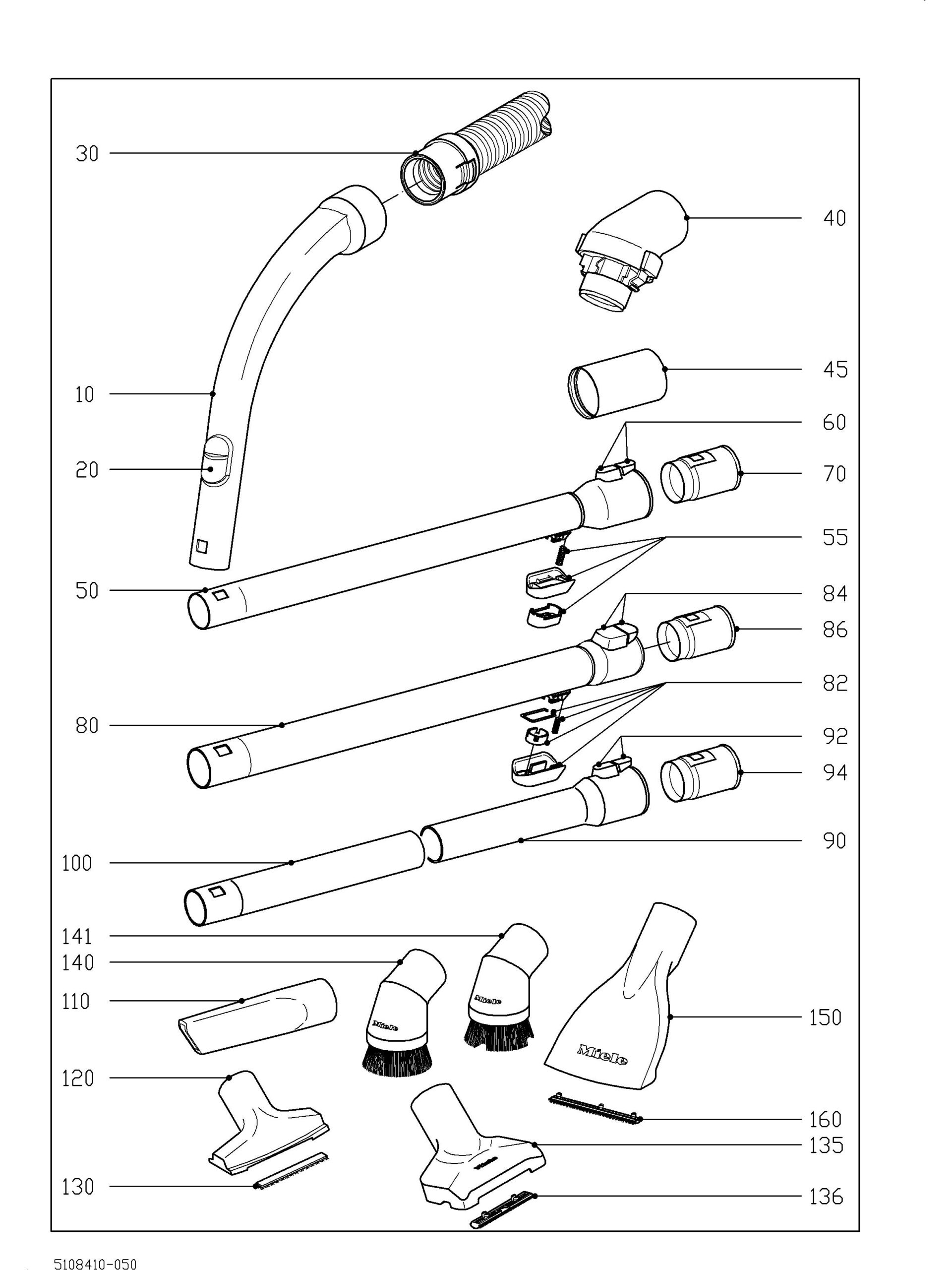

| # | Part image | Description | SKU | Price |
| 10-40 | Not Available | Suction hose S500/S600 | 5269604 | Not Available |
| 10+20 | | Genuine Miele Tubular handle anthracite | 9442601 | $37.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Suction control anthracite | 5141090 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Genuine Miele Suction hose silver-coloured 1,8m | 5230830 | $61.00Read more |
| 30 |  | Available ReconditionedReconditioned Genuine Miele Suction hose silver-coloured 1,8m More Product Details | 5230830R | $45.25Add to cart |
| 40 | Not Available | -Elbow anthracite | 5108111 | Not Available |
| 45 | Not Available | Connecting tube Suction hose | 5527410 | Not Available |
| 90-94 | No Image | Suction Pipe Top Obsw Assy | 12421840 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
| 92+94 |  | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 92 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 100 | No Image | Suction Pipe Top Obsw Assy | 12421840 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 | No Image | Crevice Nozzle 149Mm Obsw | 9442631 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 | | Genuine Miele Thread lifter 2 Pcs. | 2348770 | $13.50Read more |
| 135+136 | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 136 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 141 |  | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $26.00Add to cart Special order: ships in 2 to 4 weeks |
| 150+160 | | Genuine Miele ST Mattress nozzle SMD10 | 7252280 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 160 | | Genuine Miele Thread lifter | 5056530 | $9.70Read more |

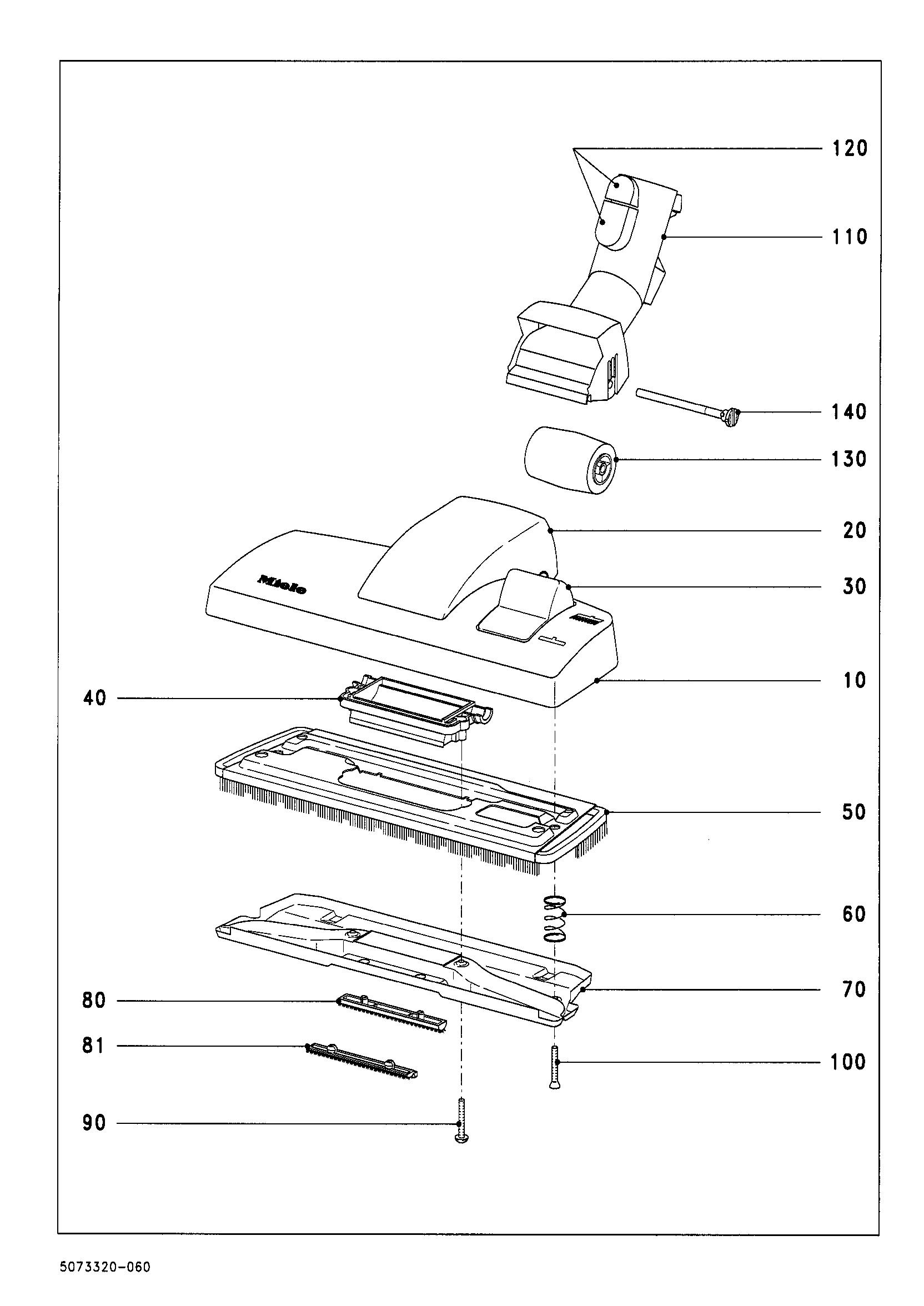

| # | Part image | Description | SKU | Price |
| 10 |  | Genuine Miele Top anthracite | 5235512 | $27.90Read more |
| 20 |  | Genuine Miele Suction channel anthracite | 5235541 | $24.70Read more |
| 30 |  | Genuine Miele Foot switch anthracite | 5235503 | $15.00Read more |
| 40 |  | Genuine Miele Fixing | 5235480 | $9.70Read more |
| 50 |  | Genuine Miele Bristle supp.plate | 5235463 | $33.80Read more |
| 60 |  | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |
| 70+81 |  | Genuine Miele Lower section | 5235453 | $43.60Read more |
| 80 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 81-140 | Not Available | Floor nozzle SBD285-2 AllTeQ | 7253820 | Not Available |
| 81 |  | Genuine Miele Thread lifter 2 Pcs. | 6204050 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 |  | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $3.60Read more |
| 100 | No Image | --Countersunk Screw 35X20 | 5289870 | $2.30Read more |
| 110+120 | | Genuine Miele Linkage anthracite | 5235552 | $39.50Read more |
| 120 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 |  | Genuine Miele Support roller | 5235530 | $15.00Read more |
| 140 |  | Genuine Miele Shaft Bayonett fitting | 5235520 | $13.50Read more |
