Schematic and parts book for Miele S456I S 456 I-2. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |

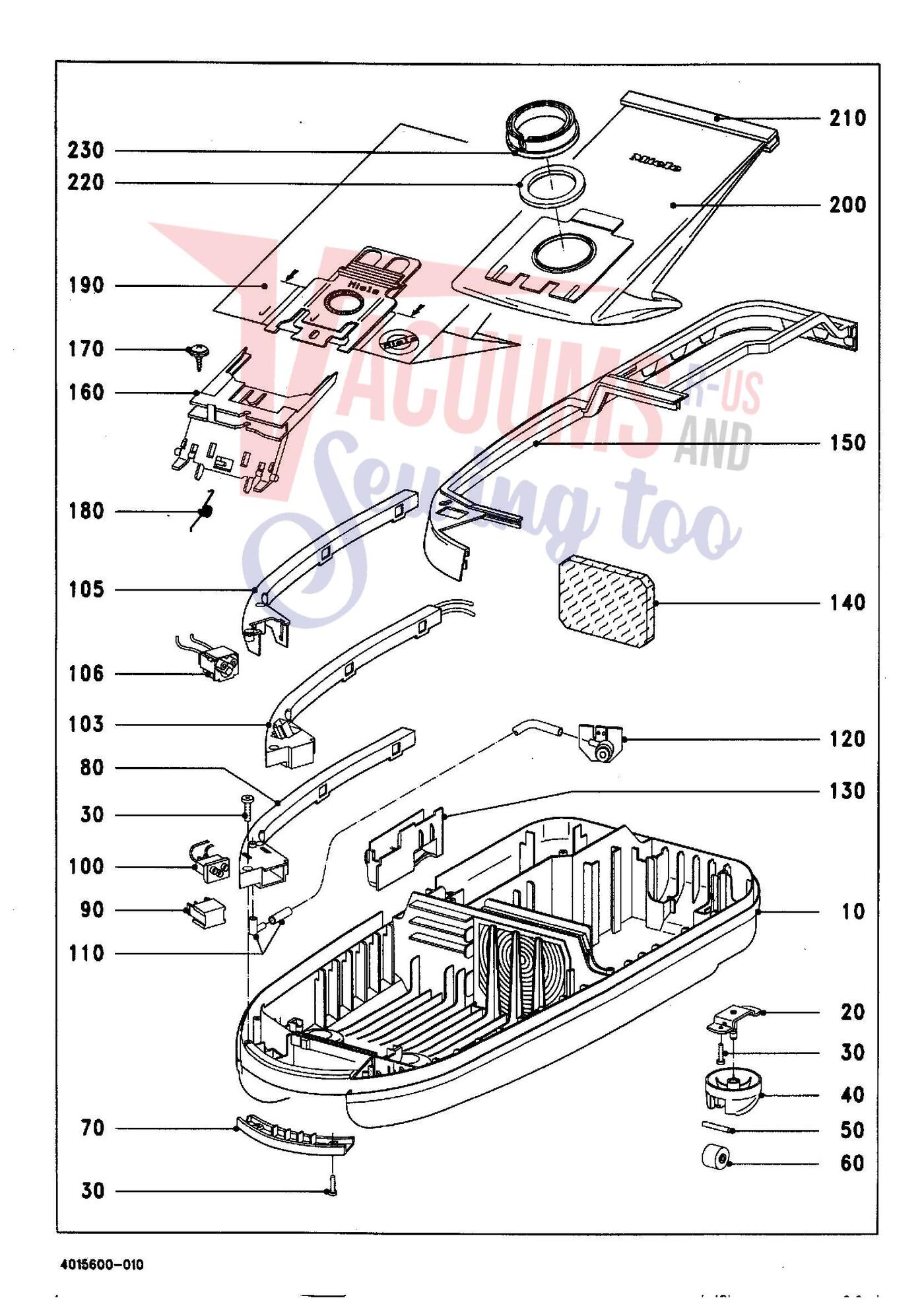

| XX |  | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 3,9X13 | 1023120 | $2.10Read more |
| (190) | No Image | Vacuum Cleaner Bag Gn Hyclean Pure Int | 12421130 | $0.00Add to cart Special order: ships in 2 to 4 weeks |
| 10-60 | Not Available | Casing bottom anthracite | 3944904 | Not Available |
| 20 | | Genuine Miele Shaft Slide skid | 3892600 | $9.70Read more |
| 40-60 | No Image | -Slide Skid Obsw Assy | 12494260 | $11.00Read more |
| 50+60 | No Image | -Support Roller Anthracite | 3946930 | $11.16Read more |
| 70 | Not Available | Grip handle anthracite | 3928020 | Not Available |
| 140 | No Image | Dust Compart.Filter 3 S400 | 4669170 | $17.25Read more |
| 150 | Not Available | Buffer anthracite | 3862953 | Not Available |
| 160 | Not Available | Bracket anthracite | 3928052 | Not Available |
| 180 | | Genuine Miele Torsion spring | 1348411 | $2.30Read more |
| 200-230 | Not Available | Cloth filter bag S227-S858 | 5188842 | Not Available |
| 210 | | Genuine Miele Lock | 1058641 | $20.60Read more |
| # | Part image | Description | SKU | Price |

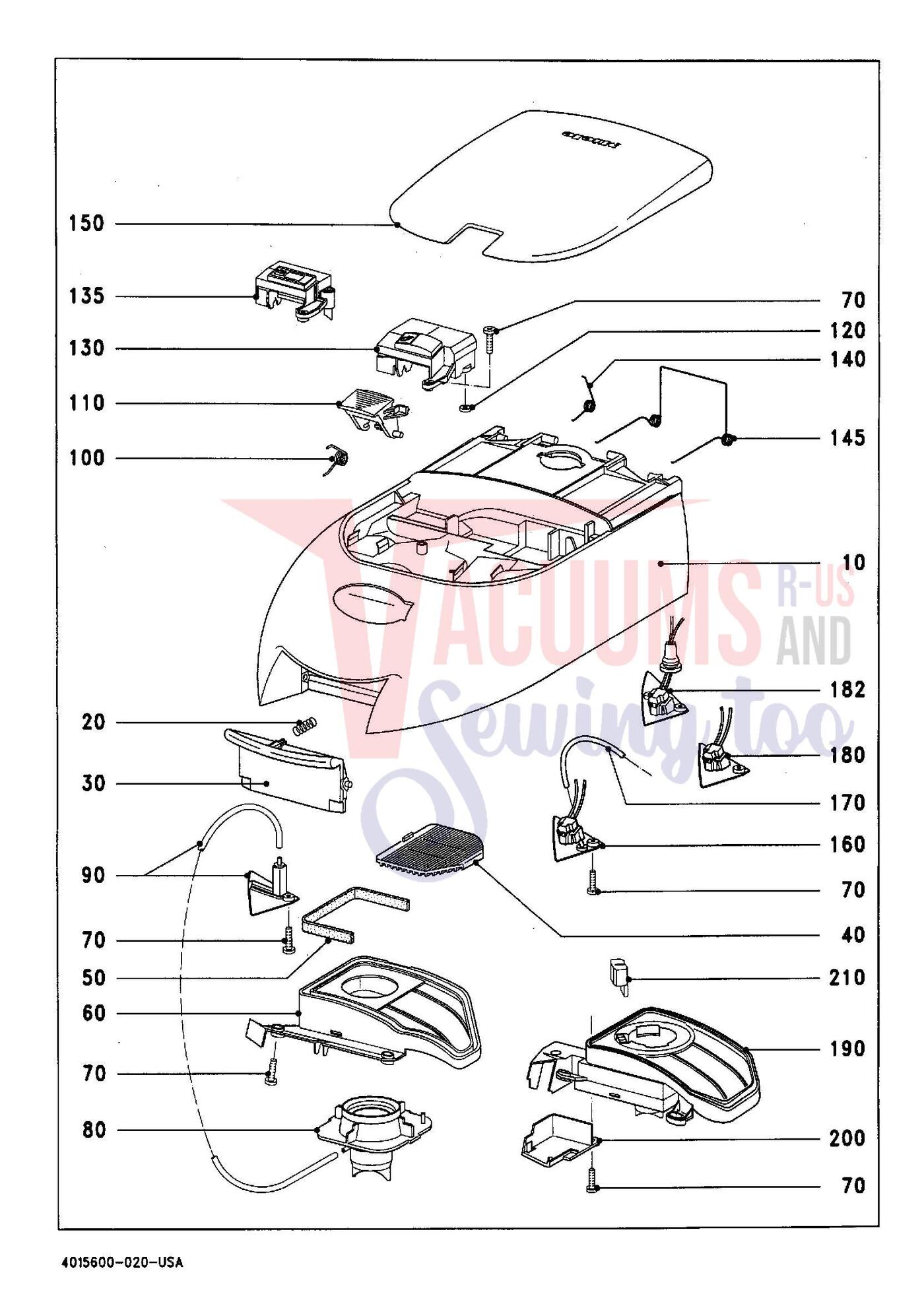

| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | No Image | --Raised Head Screw 4,0X14 | 1599350 | $2.10Read more |
| 10 | Not Available | Casing top Royal blue | 4881091 | Not Available |
| 20 |  | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 30 | Not Available | Lock anthracite | 3928203 | Not Available |
| 40 | | Genuine Miele Coupler link anthracite | 3928160 | $4.90Read more |
| 50 | Not Available | Sealing strip | 4235000 | Not Available |
| 100 | | Genuine Miele Torsion spring | 2348250 | $2.30Read more |
| 110 | | Genuine Miele interlock anthracite | 3928262 | $6.60Read more |
| 145 | No Image | Torsion Spring | 4103312 | $11.16Read more |
| 150+145 | Not Available | Lid Royal blue | 4972960 | Not Available |
| 200 | Not Available | Lid anthracite | 4180130 | Not Available |
| 210 | Not Available | Plug housing | 4862990 | Not Available |

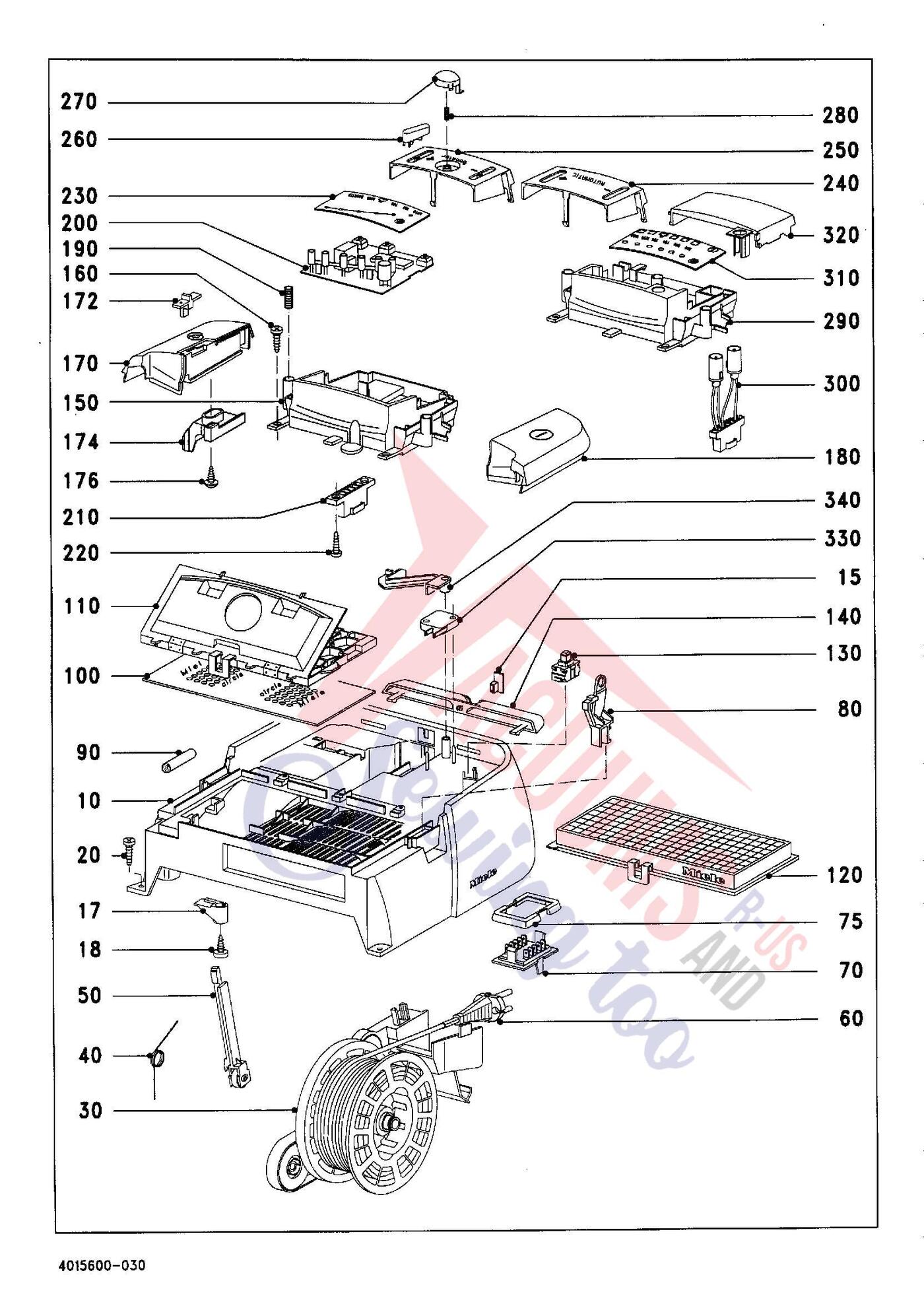

| # | Part image | Description | SKU | Price |

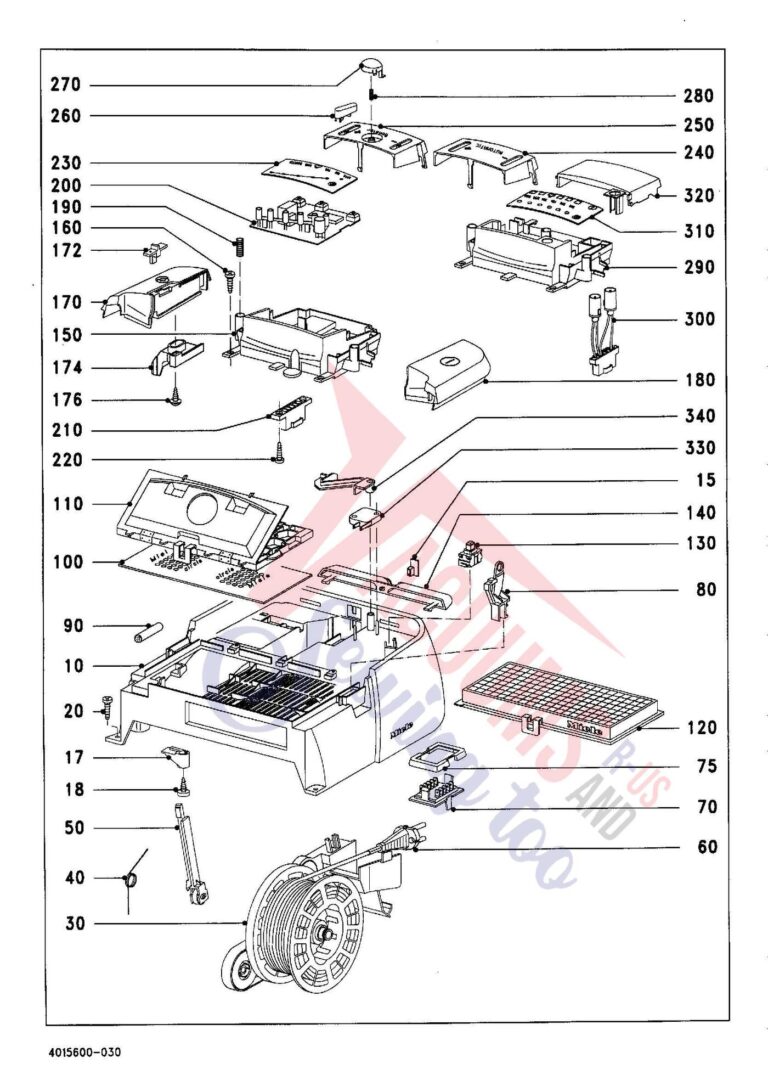

| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX |  | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| XX | | Genuine Miele Raised head screw Zinc-plated 3,9x9,5 | 1143583 | $2.30Add to cart Special order: ships in 2 to 4 weeks |
| 10 | Not Available | Rear panel Royal blue | 4842600 | Not Available |
| 17 | Not Available | Fitment | 5155460 | Not Available |
| 30-60 | No Image | Cable Reel S400 8,5M 230V | 3931196 | $109.00Read more |
| 70 | Not Available | Plug housing | 4247550 | Not Available |
| 80+(80) | Not Available | Hinge anthracite | 4347180 | Not Available |
| 90 | Not Available | Scent | 3027951 | Not Available |
| 100 |  | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 | No Image | Grille Anthracite | 3908663 | $21.62Read more |
| 120 | No Image | Active Hepa Filter Sf-Ah30 S300-800 | 4854915 | $0.00Read more |
| 120 | No Image | Act.Air Cleanfilter Sf-Aac30 S300-800 | 4306918 | $0.00Read more |
| 140 | No Image | Strip Anthracite | 3928311 | $17.25Read more |
| 170-176 | Not Available | Foot switch right anthracite | 4264861 | Not Available |
| 172 | Not Available | -Slide anthracite | 3968840 | Not Available |
| 174 | Not Available | -Sliding plate anthracite | 3968852 | Not Available |
| 180 | No Image | Foot Switch Left Anthracite | 3928352 | $17.25Read more |
| 190 | | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 290 | Not Available | Cap anthracite | 4006152 | Not Available |
| 300 | Not Available | Indicator light 250V | 4859300 | Not Available |
| 310 | Not Available | Viewing screen | 4838870 | Not Available |
| 320 | Not Available | Bracket anthracite | 4851400 | Not Available |
| 330 | | Genuine Miele Switch 250V | 4487791 | $20.60Add to cart Special order: ships in 2 to 4 weeks |
| 340 | No Image | Lever Anthracite | 4394651 | $4.14Read more |

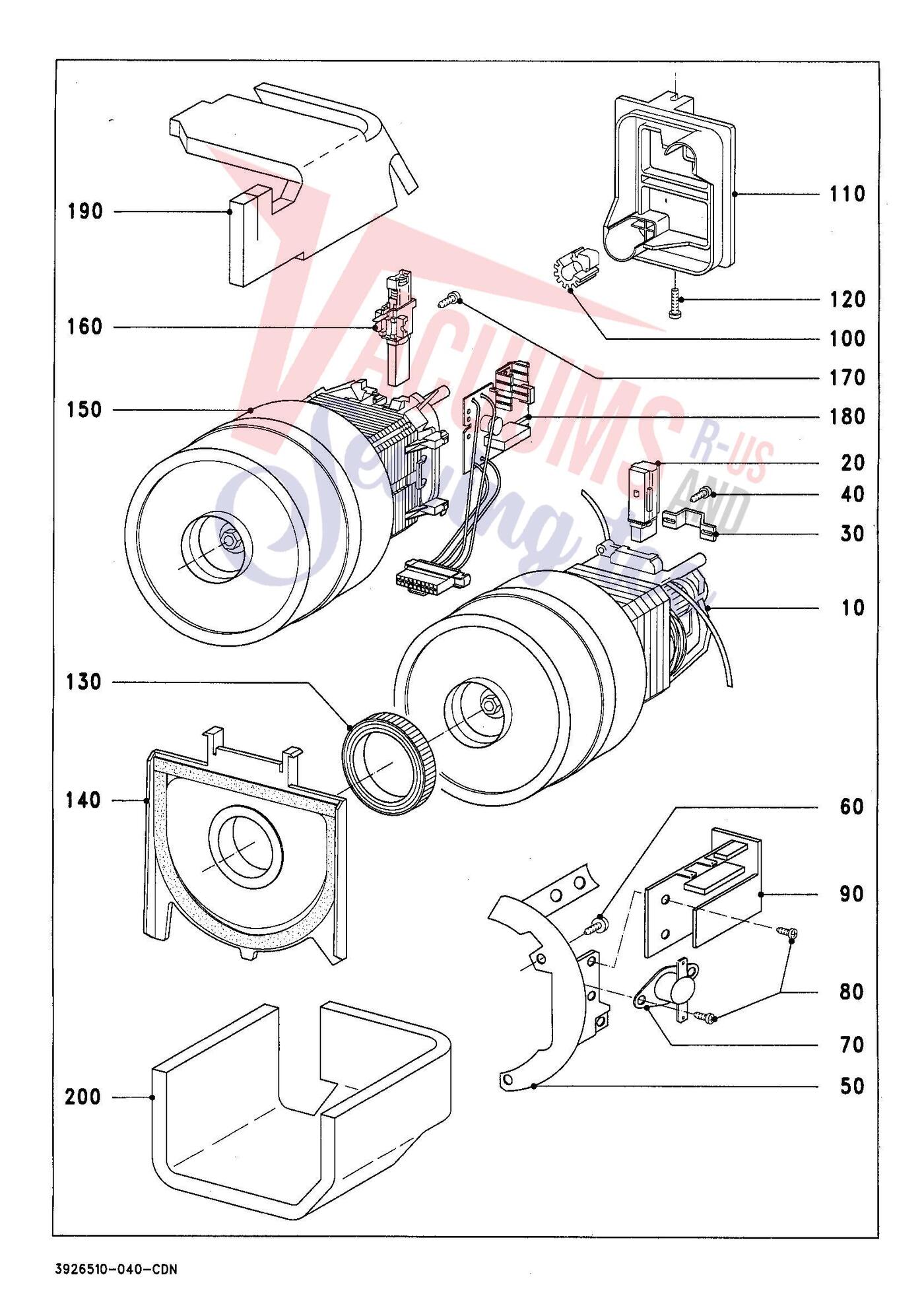

| # | Part image | Description | SKU | Price |

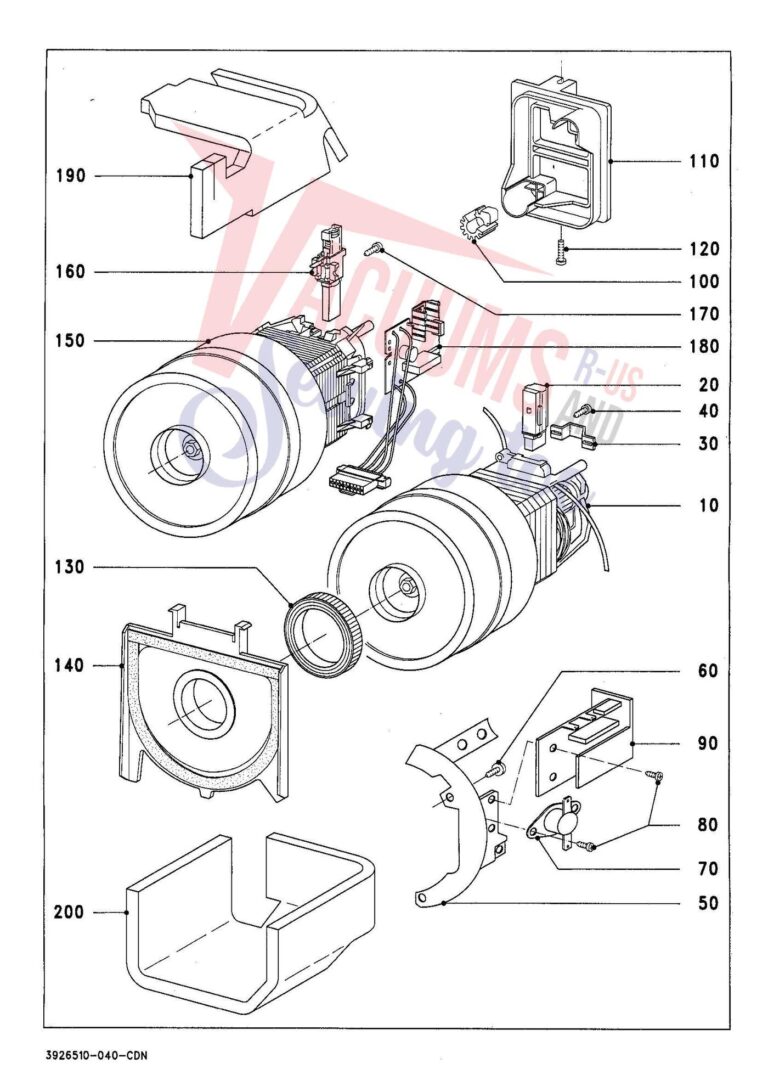

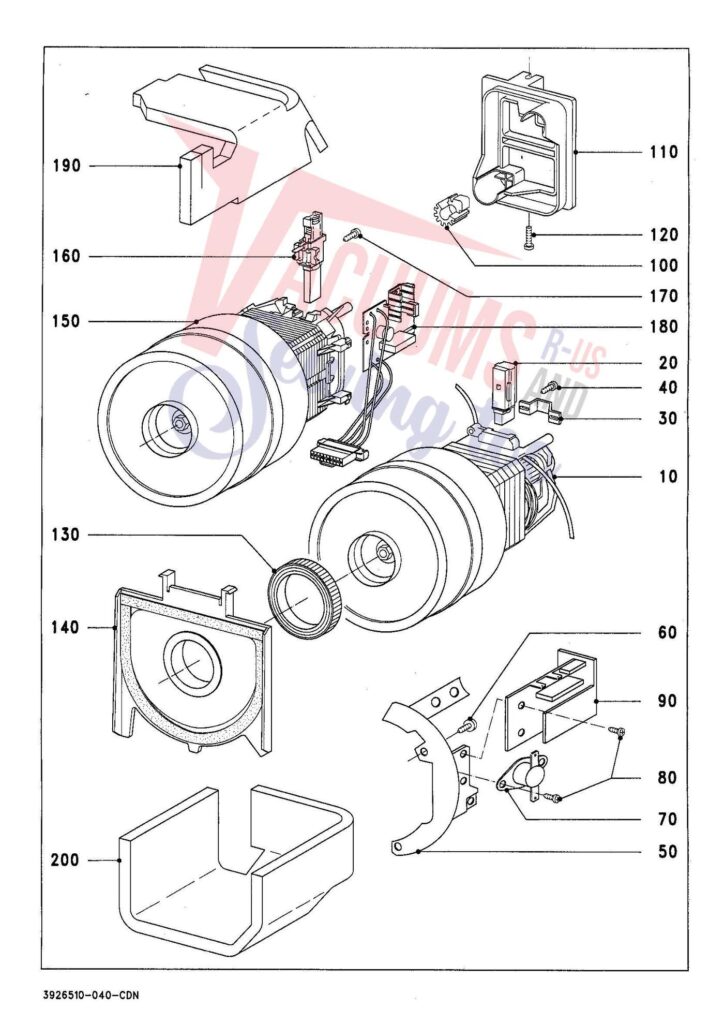

| 20+30 | Not Available | Fan Mrg43-43/2 230V | 4974702 | Not Available |
| 90 | | Genuine Miele Rubber cushion black | 3928380 | $0.00Read more |
| # | Part image | Description | SKU | Price |

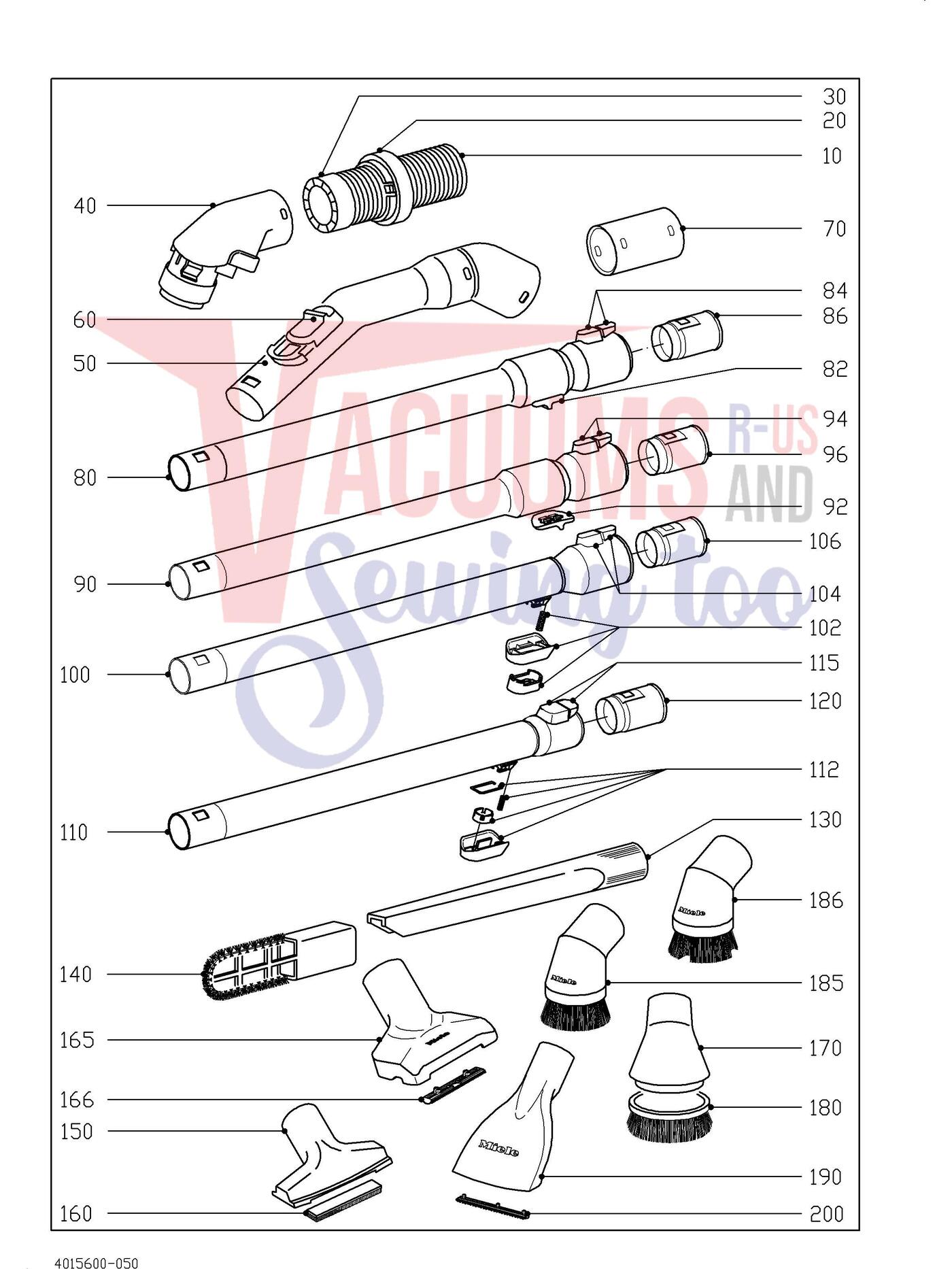

| 130 | | Genuine Miele Crevice nozzle anthracite | 3571671 | $12.10Read more |
| 130 |  | Compatible alternateMiele Canister Vacuum Crevice Tool More Product Details | 3571670 | $20.00Add to cart |
| 130 | | Compatible alternateGenuine Miele Crevice nozzle 149mm More Product Details | 9442630 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 140 | | Genuine Miele ST Radiator brush SHB30 | 9660490 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 150 | | Genuine Miele Thread lifter 2 Pcs. | 2348770 | $13.50Read more |
| 165+166 | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 166 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 186 | No Image | Dusting Brush L | 12187780 | $24.00Add to cart Special order: ships in 2 to 4 weeks |
| 186 | No Image | Dusting Brush Anthracite | 5098711 | $16.00Read more |
| 190+200 | | Genuine Miele ST Mattress nozzle SMD10 | 7252280 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 200 | | Genuine Miele Thread lifter | 5056530 | $9.70Read more |
| # | Part image | Description | SKU | Price |
| XX | No Image | --Raised Head Screw Din7981 Bz3,5X13 Z | 64392 | $2.50Read more |
| 20 | | Genuine Miele Socket anthracite | 4180082 | $27.90Read more |
| 50 | | Genuine Miele Push button anthracite | 5064430 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 60 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Screw KA35X16 EJOT-PT | 4863580 | $3.60Read more |

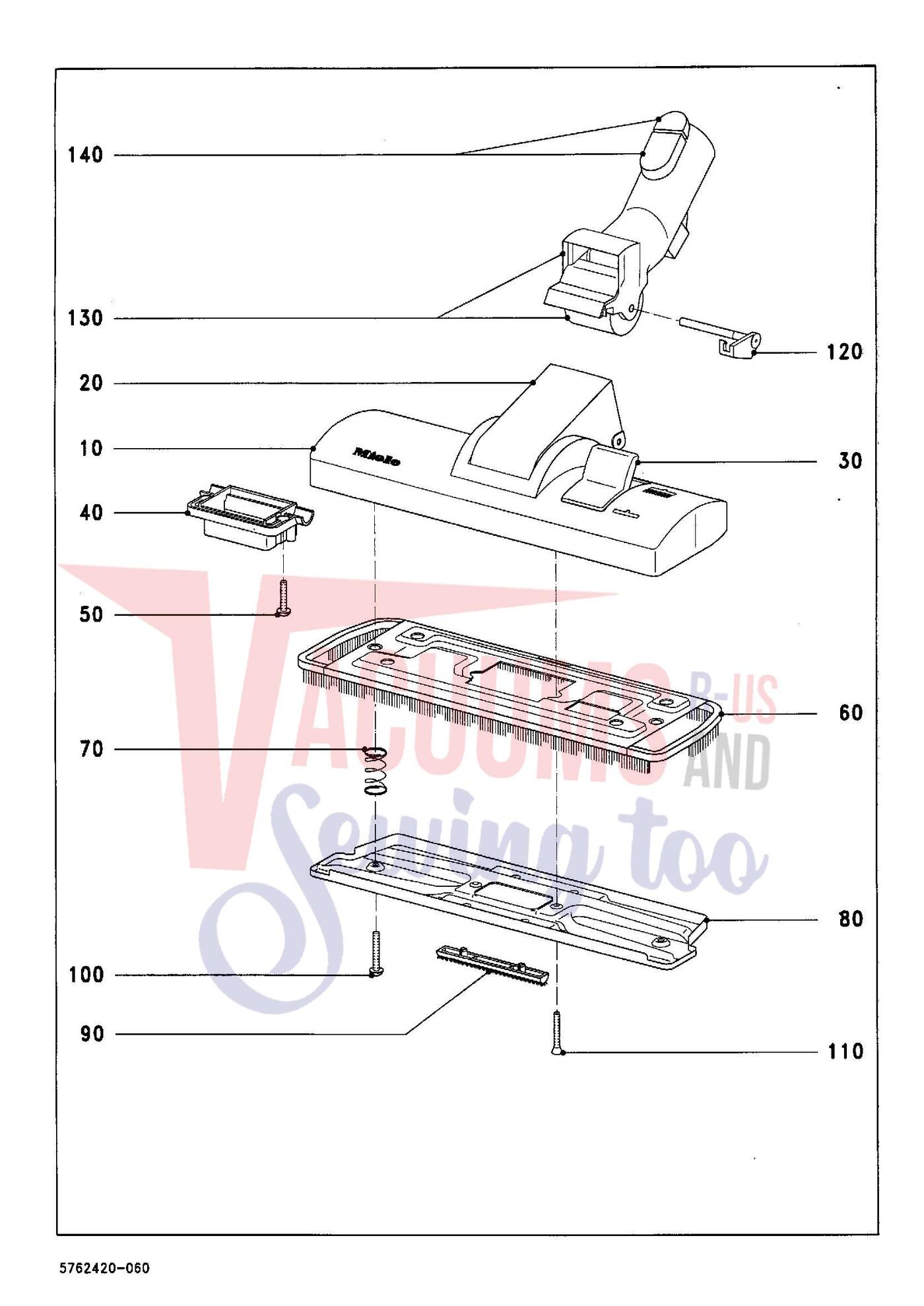

| 10-140 | Not Available | Floor nozzle SBD285-3 AllTeQ | 7253830 | Not Available |
| 10-50 | Not Available | -Top anthracite | 4789120 | Not Available |
| 20 | No Image | -Suction Channel Anthracite | 4769080 | $30.00Read more |
| 30 | No Image | -Foot Switch Anthracite | 4769070 | $30.00Read more |
| 40 | | Genuine Miele Fixing | 4769100 | $9.70Read more |
| 60 | Not Available | -Bristle supp.plate | 4769110 | Not Available |
| 70 |  | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |
| 80+90 | | Genuine Miele Lower section | 4969510 | $33.80Read more |
| 90 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 100 | No Image | --Screw Ka35X27 Ejot-Pt | 3522020 | $2.50Read more |
| 110 |  | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $3.60Read more |
| 120-140 | | Genuine Miele Linkage SBD265 | 6260600 | $39.50Read more |
| 120 | | Genuine Miele Shaft anthracite | 3612910 | $10.70Read more |
| 140 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
