Schematic and parts book for Miele S4511 S4511. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

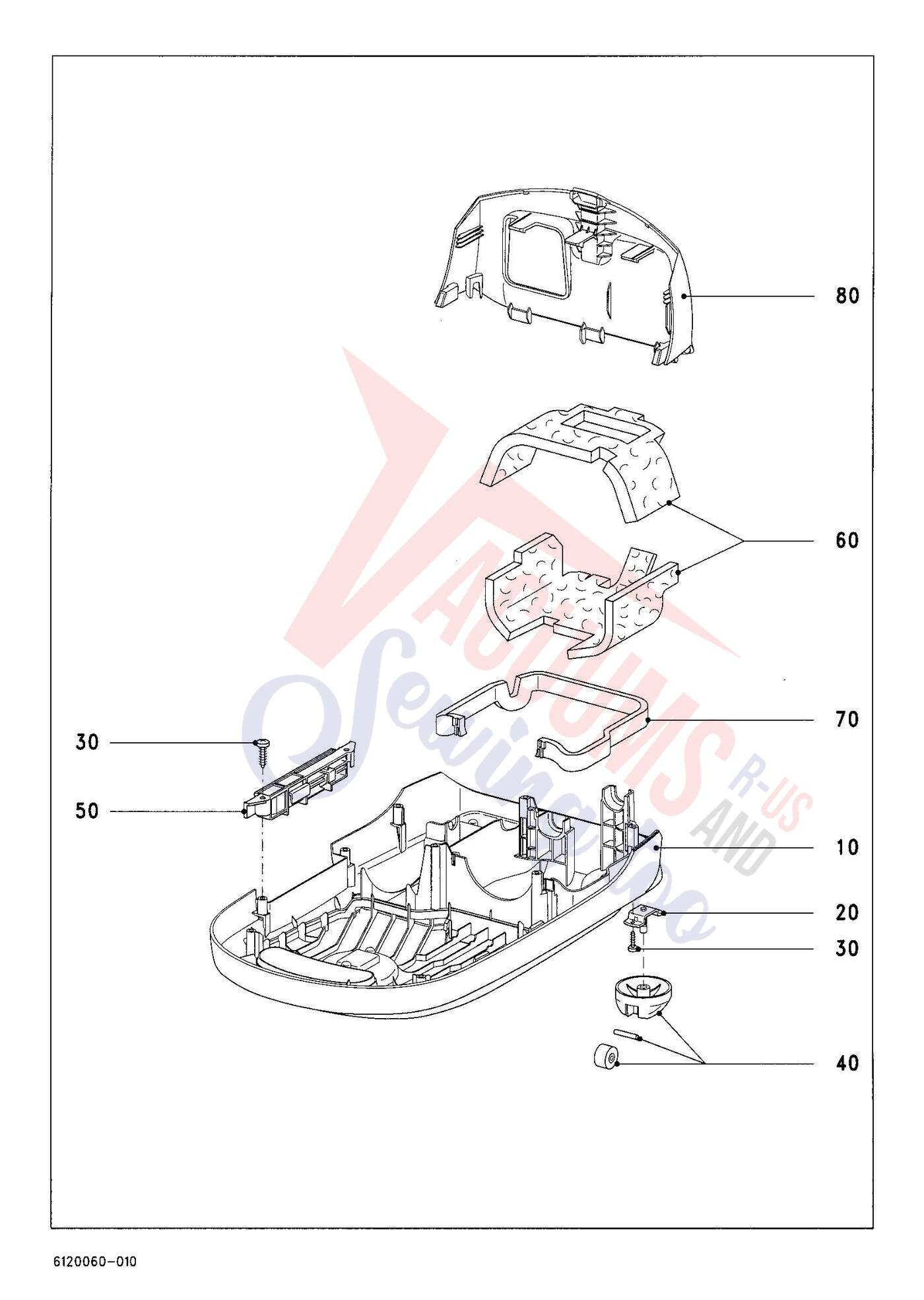

| # | Part image | Description | SKU | Price |
| XX |  | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 10-40 | No Image | Casing Bottom Anthracite | 6206982 | $119.00Read more |
| 20 | | Genuine Miele Shaft Slide skid | 3892600 | $9.70Read more |
| 40 | No Image | -Slide Skid Obsw Assy | 12494260 | $11.00Read more |
| 50 | No Image | Suspension Telescopic Pipe | 5965480 | $7.00Read more |
| 60 | No Image | Damping Plate | 6206991 | $27.00Read more |
| 70 | No Image | Seal | 5963891 | $15.00Read more |
| 80 | No Image | Rear Panel S4Xxx | 5963981 | $76.00Read more |

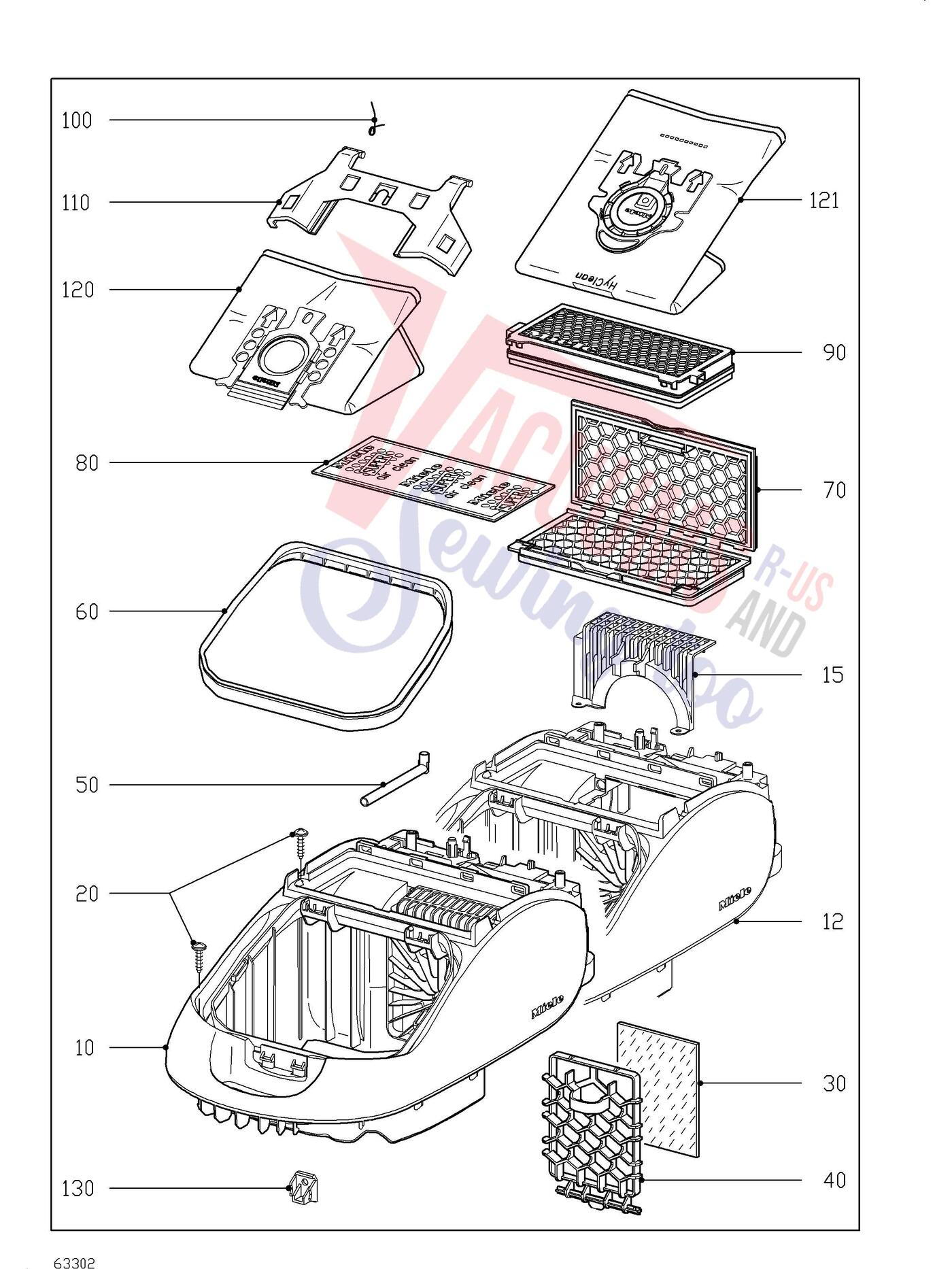

| # | Part image | Description | SKU | Price |
| XX |  | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 10 | No Image | Cover Frame Polar Ice | 7466560 | $100.00Read more |
| 10 | No Image | Cover Frame Lava Grey | 7466580 | $100.00Read more |
| 10 | No Image | Cover Frame Obsidian Black | 10082250 | $100.00Read more |
| 10 | No Image | Cover Frame Royal Blue | 6097380 | $100.00Read more |
| 10 | No Image | Cover Frame Capri Blue | 7466620 | $100.00Read more |
| 10 | No Image | Cover Frame Tealite Blue Met. | 7466690 | $129.00Read more |
| 10 | No Image | Cover Frame Indian Red | 7466710 | $100.00Read more |
| 10 | No Image | Cover Frame Tizia Red Metallic | 6844161 | $129.00Read more |
| 30 |  | Genuine Miele Dust compart.filter 3 pcs. | 6713110 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | No Image | Filter Frame | 5963933 | $15.00Read more |
| 50 | No Image | Air Shield Triac | 6003120 | $2.50Read more |
| 60 | No Image | Sealing Ring | 6002140 | $22.00Read more |
| 70 |  | Genuine Miele Spacer bracket Air-Clean filter | 11690520 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 80 |  | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 | No Image | Act.Air Cleanfilter | 12785350 | $49.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 | No Image | Hepa-Filter | 12785390 | $64.00Add to cart Special order: ships in 2 to 4 weeks |
| 100 | No Image | Torsion Spring Bracket | 6022540 | $10.42Add to cart Special order: ships in 2 to 4 weeks |
| 110 | No Image | Bracket Vacuum Cleaner Bag | 5963942 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 121 | Not Available | vacuum cleaner bag F/J/M USA | 7805100 | Not Available |
| 130 | No Image | End Plug Suction Control Usa/J | 6264220 | $2.50Read more |

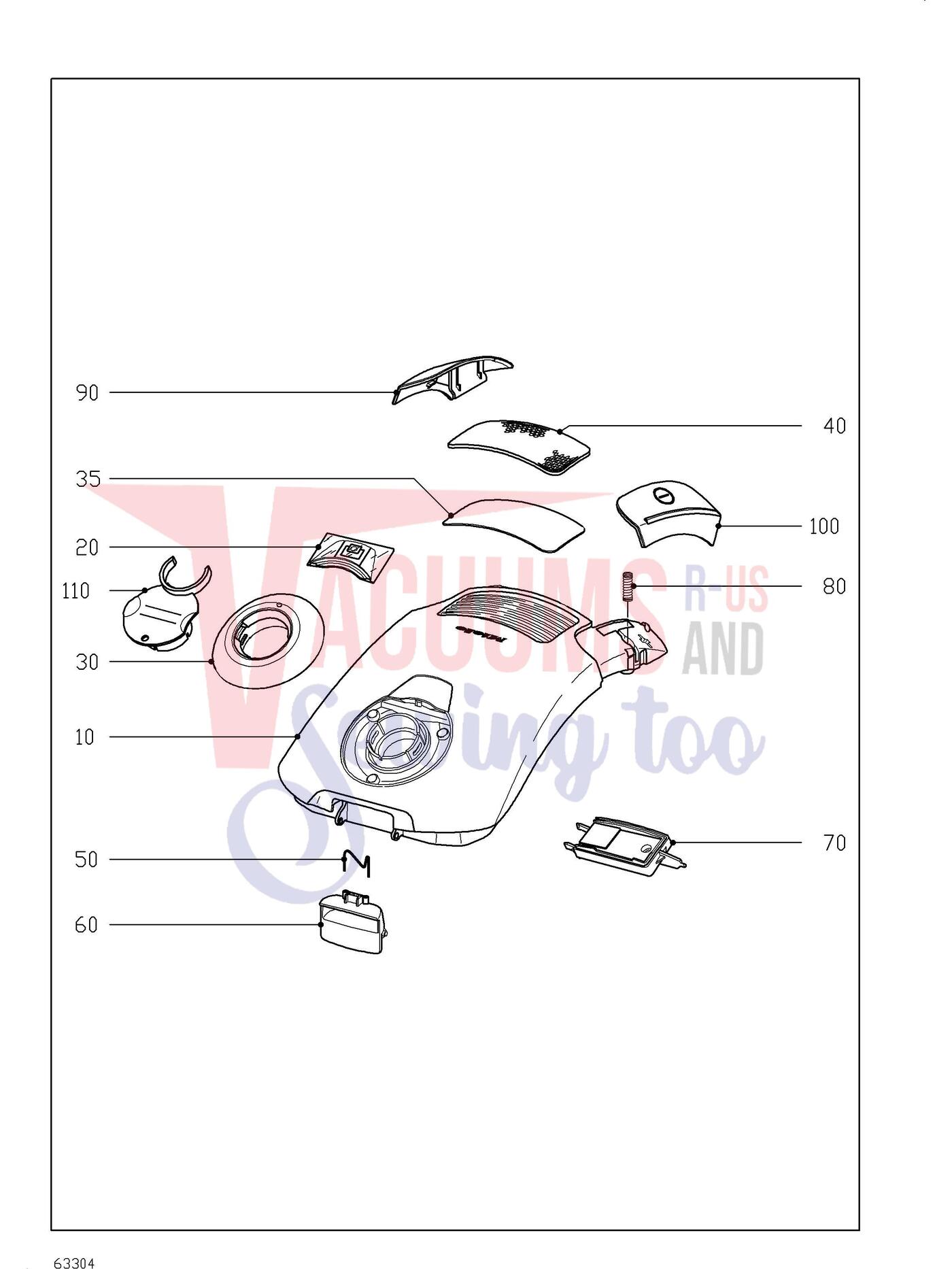

| # | Part image | Description | SKU | Price |
| 10+20 | Not Available | Casing top Polar ice | 6207060 | Not Available |
| 10+20 | No Image | Casing Top Lava Grey | 6207040 | $109.00Read more |
| 10+20 | Not Available | Casing top deep black | 6207020 | Not Available |
| 10+20 | No Image | Casing Top Royal Blue | 6207010 | $109.00Read more |
| 10+20 | No Image | Casing Top Capri Blue | 6872970 | $109.00Read more |
| 10+20 | No Image | Casing Top Tealite Blue Met. | 6391910 | $129.00Read more |
| 10+20 | No Image | Casing Top Indian Red | 6391930 | $109.00Read more |
| 10+20 | No Image | Casing Top Tizia Red Metallic | 6884030 | $129.00Read more |
| 10+20 | No Image | Casing Top Purple Black St | 7367780 | $109.00Read more |
| 20 | No Image | -Viewing Screen Casing Top | 5964362 | $12.00Read more |
| 30 | No Image | Ring Alu-Silver | 6151510 | $22.00Read more |
| 35 | No Image | Insulation Matting Air Shield | 6252470 | $3.90Read more |
| 40 | No Image | Air Shield Alu-Silver | 6151521 | $21.62Read more |
| 50 | Not Available | Torsion spring Lock | 7556250 | Not Available |
| 60 | No Image | Lock Anthracite | 5964012 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 | No Image | Change Filter Ind. | 6539882 | $21.62Read more |
| 80 |  | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 90 | No Image | Foot Switch Right Alu Silver | 6169680 | $27.00Read more |
| 100 | No Image | Foot Switch Left Paint Silver | 11477840 | $27.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 | Not Available | Hygiene cap | 6622030 | Not Available |

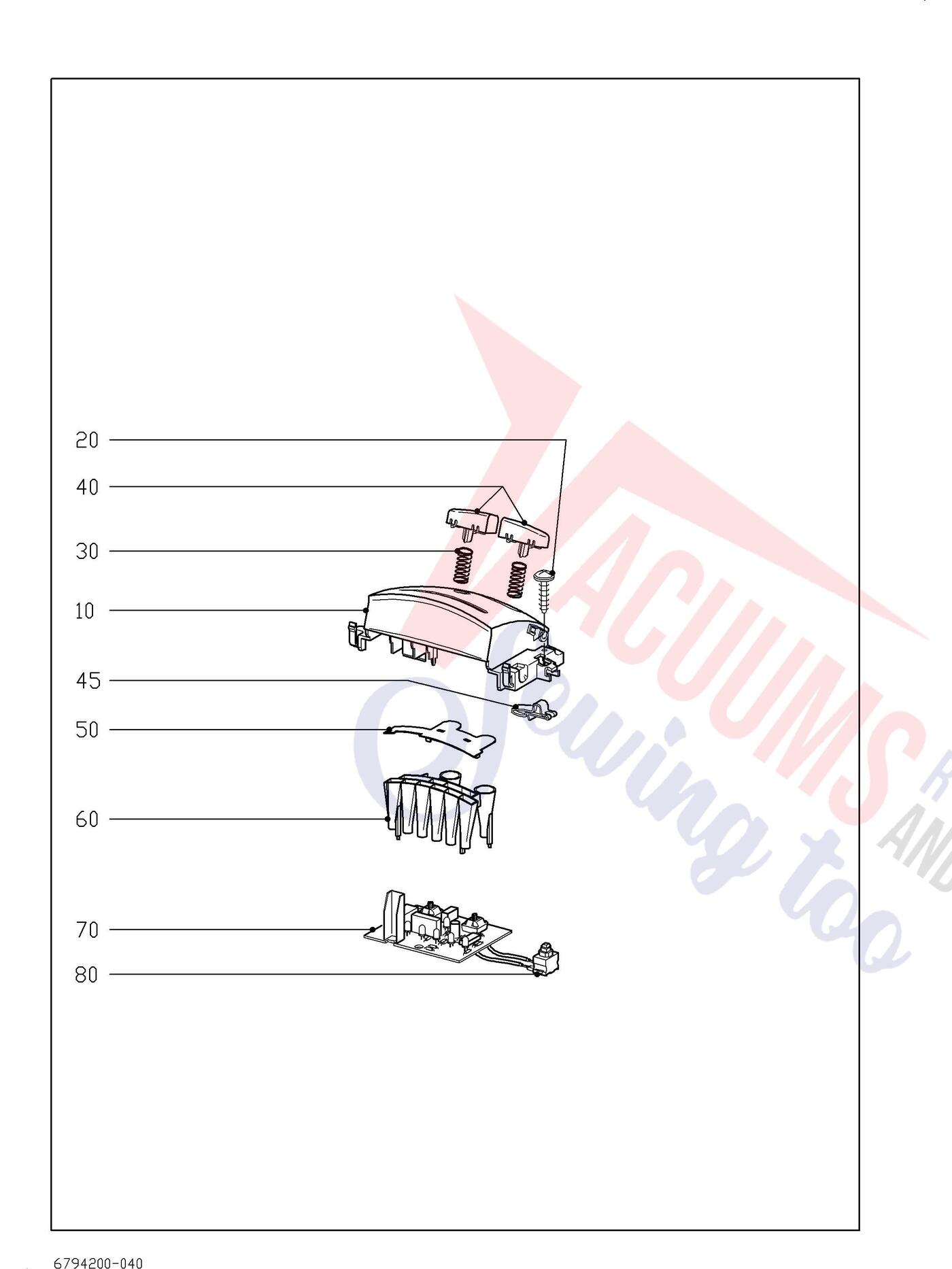

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 10 | Not Available | Cap Polar ice | 6213111 | Not Available |
| 10 | No Image | Cap Lava Grey | 6210780 | $56.00Read more |
| 10 | No Image | Cap Deep Black | 6409850 | $56.00Read more |
| 10 | No Image | Cap Royal Blue | 6210790 | $56.00Read more |
| 10 | No Image | Cap Capri Blue | 6934241 | $56.00Read more |
| 10 | Not Available | Cap Tealite blue met. | 6210800 | Not Available |
| 10 | Not Available | Cap Indian red | 6210830 | Not Available |
| 10 | Not Available | Cap Tizia red metallic | 6884441 | Not Available |
| 30 | | Genuine Miele Spring | 3092700 | $4.90Read more |
| 40 | No Image | Pushbutton Left And Right | 6211390 | $42.00Read more |
| 45 | No Image | Lever Switch | 5984722 | $2.50Read more |
| 50 | No Image | Fascia Panel Reflector | 6206411 | $16.00Read more |
| 60 | No Image | Reflector S4500 | 5964410 | $17.25Read more |
| 70+80 | No Image | Electronic Unit Edw4501/81 120V 60Hz | 7322140 | $129.00Read more |
| 80 | No Image | -Switch 1 Pole 1681.3103 | 9023231 | $9.60Add to cart Special order: ships in 2 to 4 weeks |

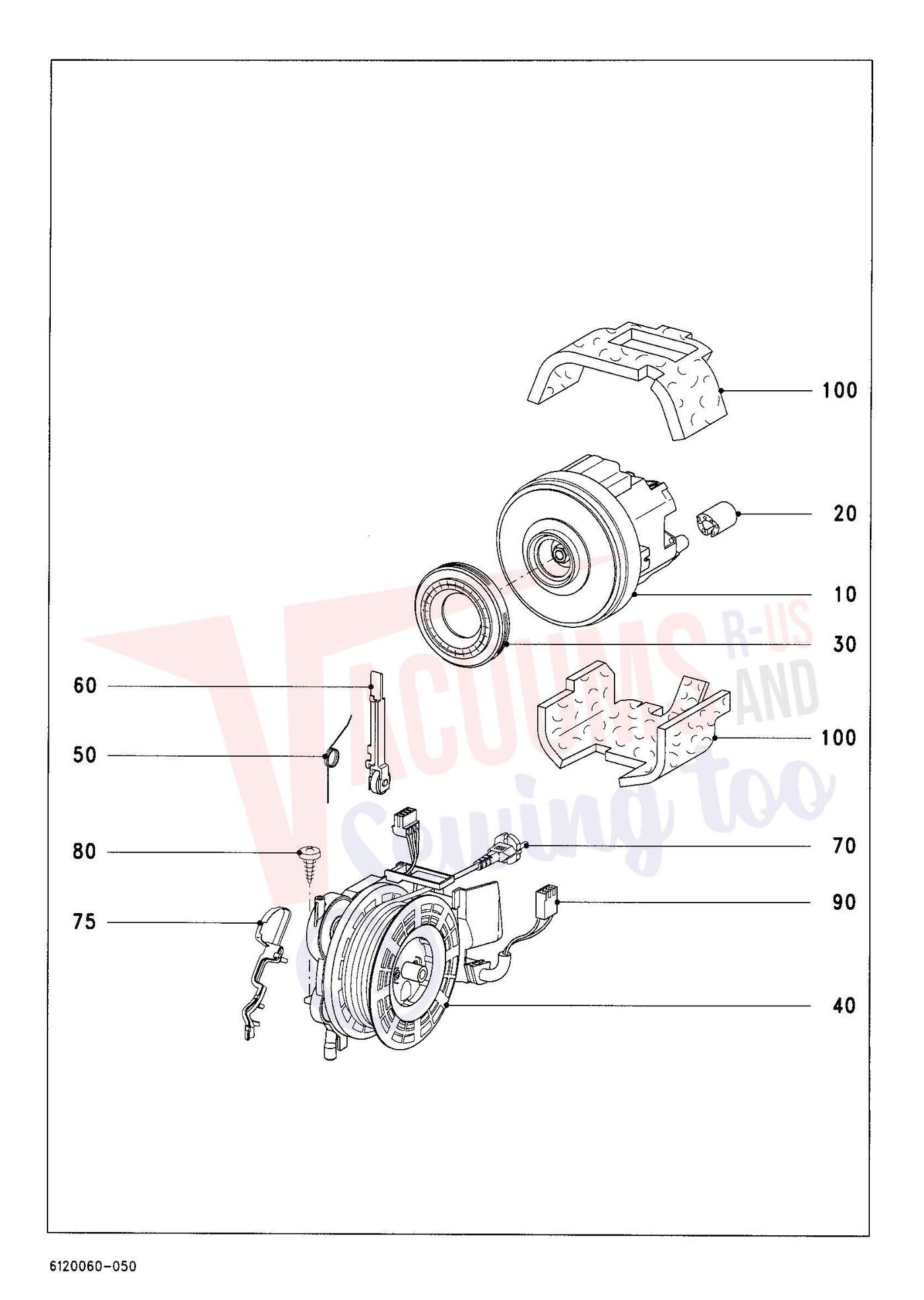

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 20 | No Image | Rubber Cushion 2 Pcs. | 6207002 | $22.00Read more |
| 30 | | Genuine Miele Bearing ring | 5964034 | $15.00Read more |
| 40-70 | No Image | Cable Reel S4000 5,5M 230V | 6171591 | $109.00Read more |
| 50 | | Genuine Miele Torsion spring S300-S5000 | 6217500 | $6.60Read more |
| 60 | No Image | -Brake Lever S4000 | 6217490 | $17.25Read more |
| 75 | No Image | Cover Strip S4000 | 6615140 | $3.90Read more |
| 90 | No Image | Connecting Cable S4000 100-120V | 6232741 | $42.00Read more |
| 100 | No Image | Damping Plate | 6206991 | $27.00Read more |

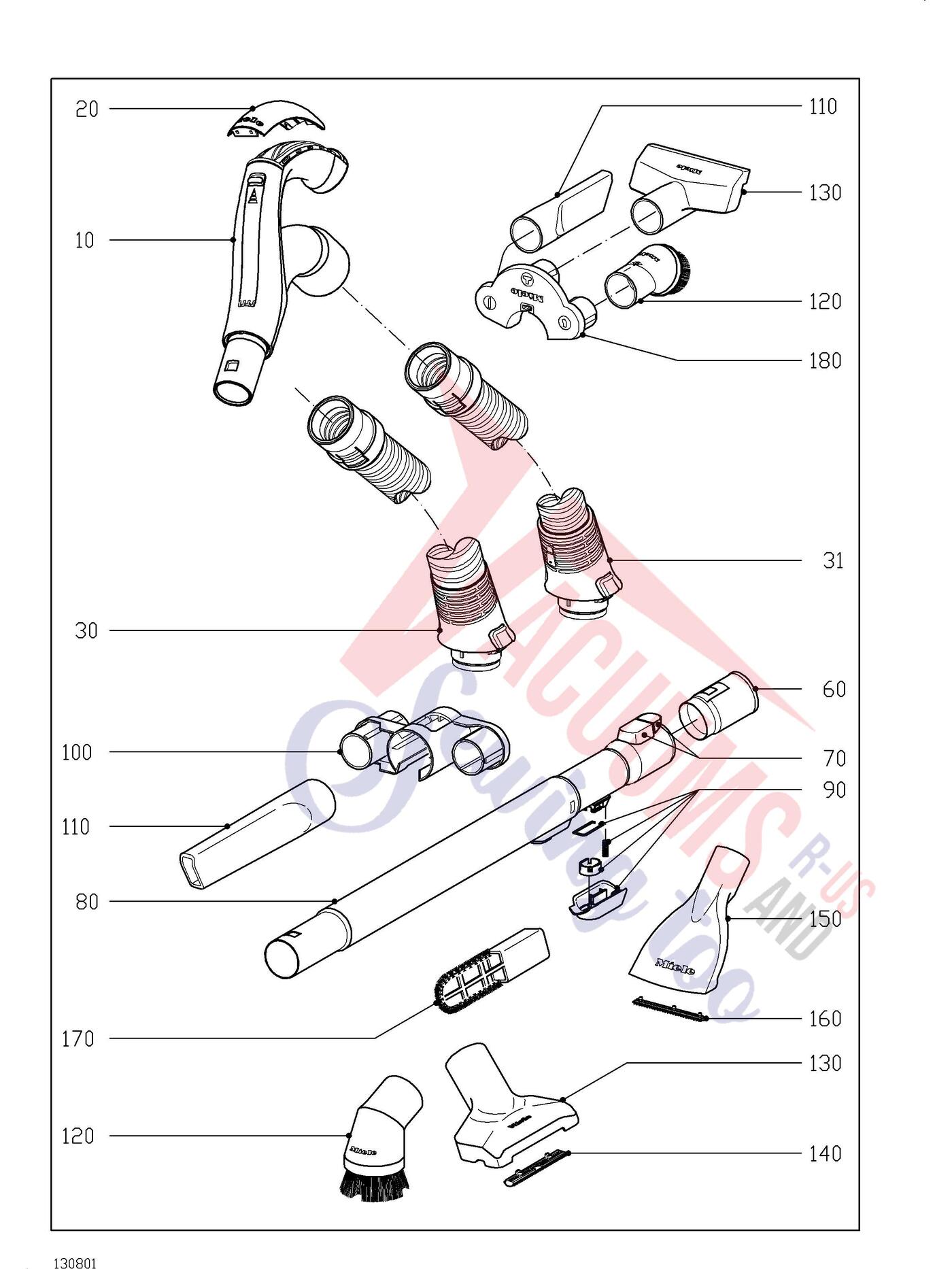

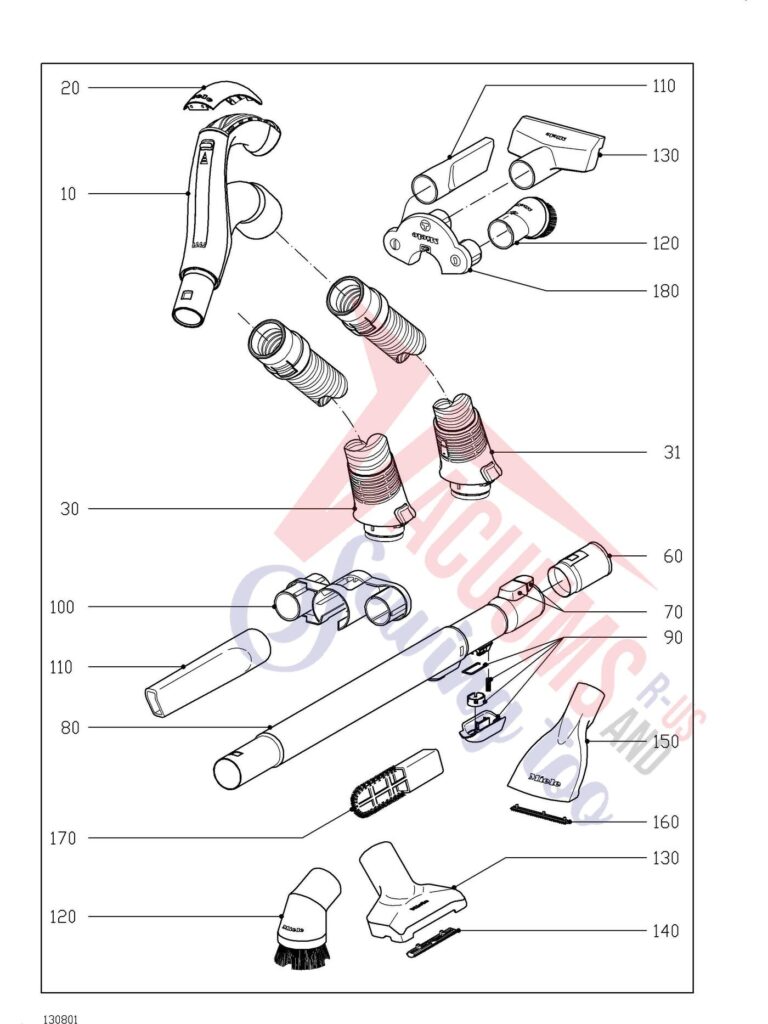

| # | Part image | Description | SKU | Price |
| 10+20 | | Genuine Miele Tubular handle S4, S5 | 6163661 | $0.00Read more |
| 20 |  | Genuine Miele Inset handle Printed | 6157660 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Genuine Miele Suction hose silver-coloured 1,8m | 6614661 | $0.00Read more |
| 60-90 |  | HES Telescopic Wand for Miele | 10615280 | $77.99Add to cart Special order: ships in 2 to 4 weeks |
| 60-90 |  | Available ReconditionedGenuine Reconditioned Miele Telescopic Wand - Non Electric More Product Details | 5658812R | $0.00Add to cart |
| 60+70 |  | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 | No Image | -Push Button Round | 6151391 | $15.53Read more |
| 100 | | Genuine Miele Holder 3-piece accessory | 6423360 | $36.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 | No Image | Crevice Nozzle 149Mm Obsw | 9442631 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 120 | No Image | Dusting Brush L | 12187780 | $24.00Add to cart Special order: ships in 2 to 4 weeks |
| 120 |  | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $26.00Add to cart Special order: ships in 2 to 4 weeks |
| 130+140 | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 140 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 150+160 | | Genuine Miele ST Mattress nozzle SMD10 | 7252280 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 160 | | Genuine Miele Thread lifter | 5056530 | $9.70Read more |
| 170 | | Genuine Miele ST Radiator brush SHB30 | 9660490 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| # | Part image | Description | SKU | Price |
