Schematic and parts book for Miele S4211 S4211. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

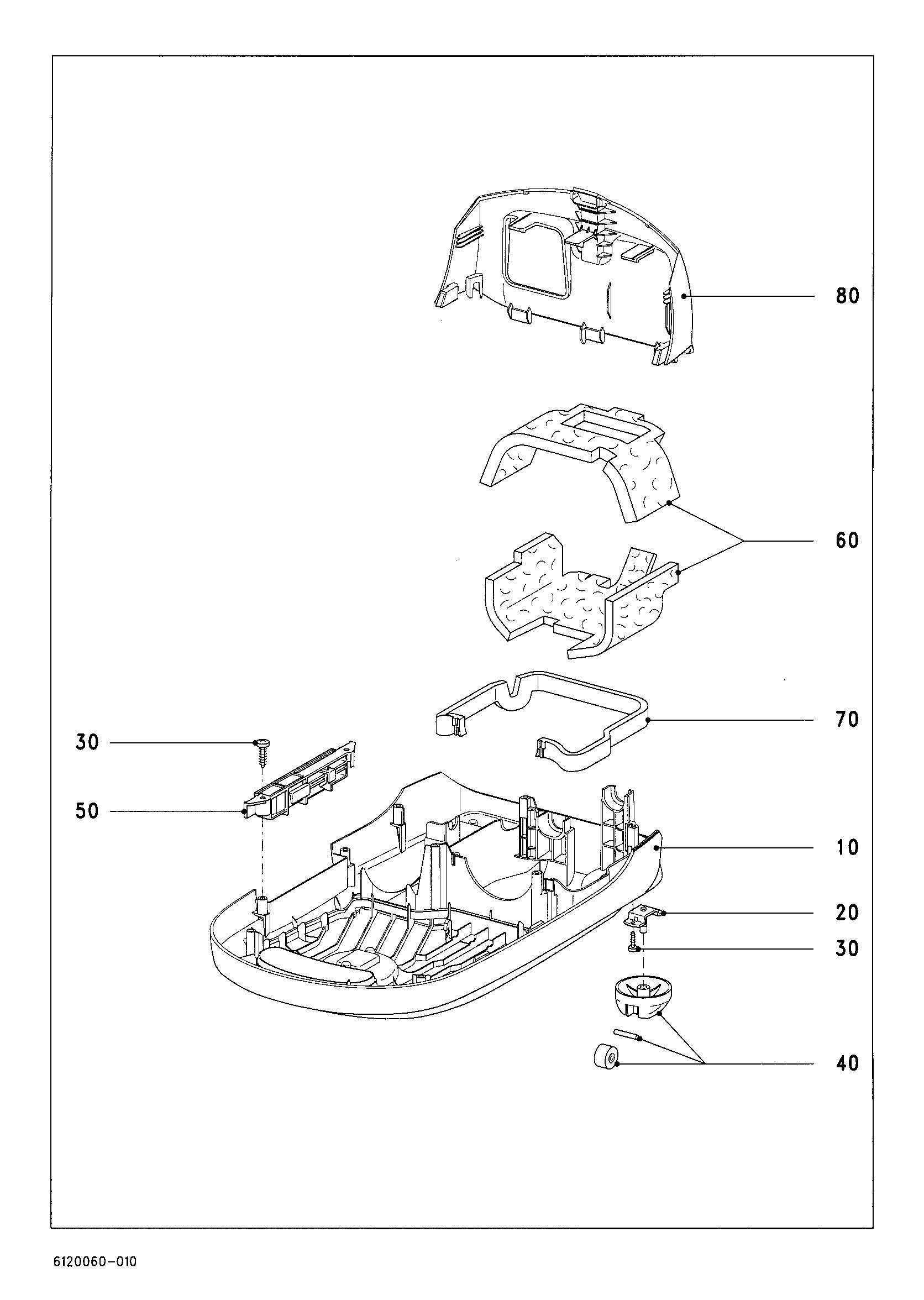

| # | Part image | Description | SKU | Price |
| XX |  | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 10-40 | No Image | Casing Bottom Anthracite | 6206982 | $119.00Read more |
| 20 | | Genuine Miele Shaft Slide skid | 3892600 | $9.70Read more |
| 40 | No Image | -Slide Skid Obsw Assy | 12494260 | $11.00Read more |
| 50 | No Image | Suspension Telescopic Pipe | 5965480 | $7.00Read more |
| 60 | No Image | Damping Plate | 6206991 | $27.00Read more |
| 70 | No Image | Seal | 5963891 | $15.00Read more |
| 80 | No Image | Rear Panel S4Xxx | 5963981 | $76.00Read more |

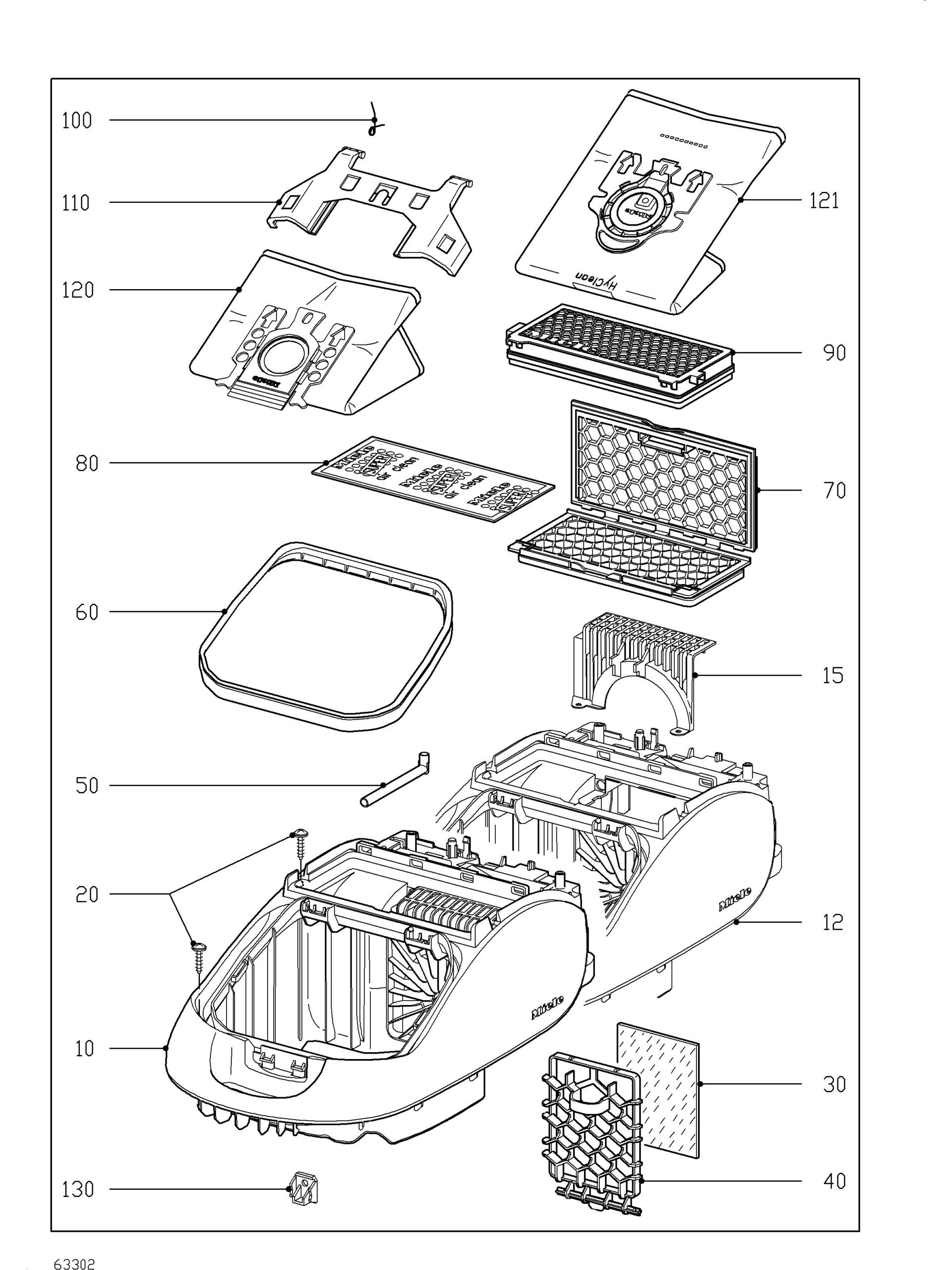

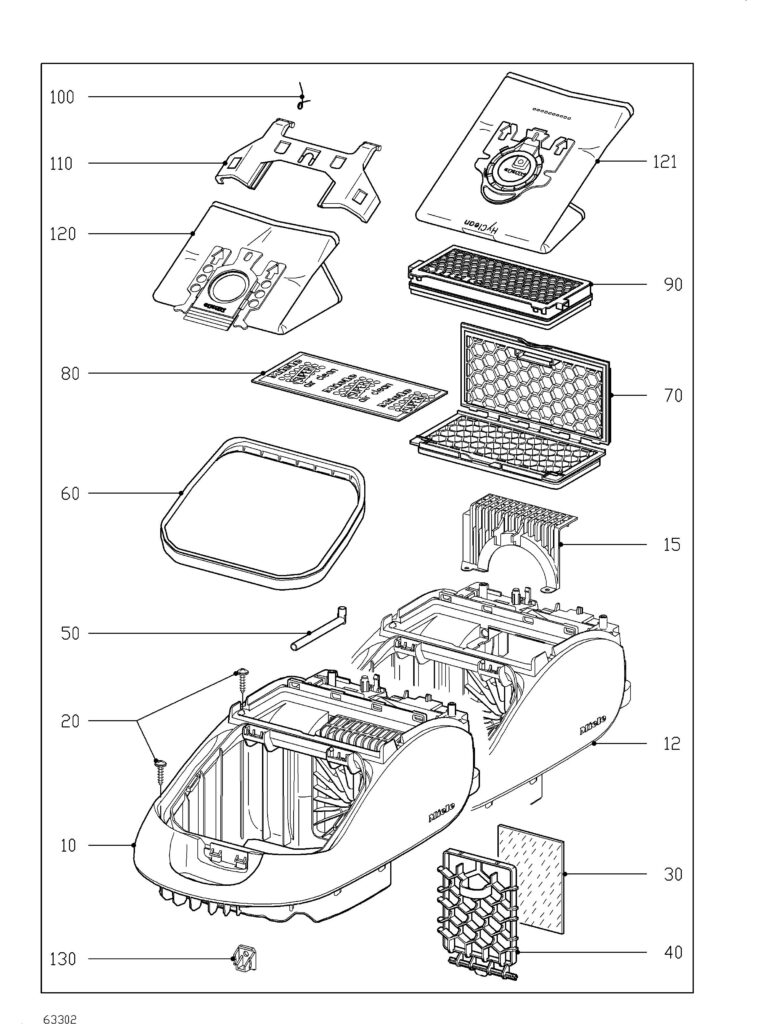

| # | Part image | Description | SKU | Price |
| XX |  | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 10 | No Image | Cover Frame Polar Ice | 7466560 | $100.00Read more |
| 10 | No Image | Cover Frame Melon Yellow | 7466570 | $100.00Read more |
| 10 | No Image | Cover Frame Lava Grey | 7466580 | $100.00Read more |
| 10 | Not Available | Cover frame Autumn red | 7466590 | Not Available |
| 10 | No Image | Cover Frame Obsidian Black | 10082250 | $100.00Read more |
| 10 | No Image | Cover Frame Royal Blue | 6097380 | $100.00Read more |
| 10 | No Image | Cover Frame Capri Blue | 7466620 | $100.00Read more |
| 10 | No Image | Cover Frame Chili Red | 7466650 | $100.00Read more |
| 10 | No Image | Cover Frame Indian Red | 7466710 | $100.00Read more |
| 10 | No Image | Cover Frame Electric Blue Met. | 7466720 | $129.00Read more |
| 10 | No Image | Cover Frame Tizia Red Metallic | 6844161 | $129.00Read more |
| 10 | No Image | Cover Frame Marine Blue | 6616751 | $100.00Read more |
| 10 | No Image | Cover Frame Obsidian Black | 10082250 | $100.00Read more |
| 12+15 | No Image | Cover Frame Java Green | 7465530 | $100.00Read more |
| 12+15 | No Image | Cover Frame Black Magic | 7466730 | $129.00Read more |
| 15 | No Image | Grille Cover Frame S4 | 6883740 | $4.14Read more |
| 30 |  | Genuine Miele Dust compart.filter 3 pcs. | 6713110 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | No Image | Filter Frame | 5963933 | $15.00Read more |
| 50 | No Image | Air Shield Triac | 6003120 | $2.50Read more |
| 60 | No Image | Sealing Ring | 6002140 | $22.00Read more |
| 70 |  | Genuine Miele Spacer bracket Air-Clean filter | 11690520 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 80 |  | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 | No Image | Act.Air Cleanfilter | 12785350 | $49.00Add to cart Special order: ships in 2 to 4 weeks |
| 90 | No Image | Hepa-Filter | 12785390 | $64.00Add to cart Special order: ships in 2 to 4 weeks |
| 100 | No Image | Torsion Spring Bracket | 6022540 | $10.42Add to cart Special order: ships in 2 to 4 weeks |
| 110 | No Image | Bracket Vacuum Cleaner Bag | 5963942 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 121 | Not Available | vacuum cleaner bag F/J/M USA | 7805100 | Not Available |
| 130 | No Image | End Plug Suction Control Usa/J | 6264220 | $2.50Read more |

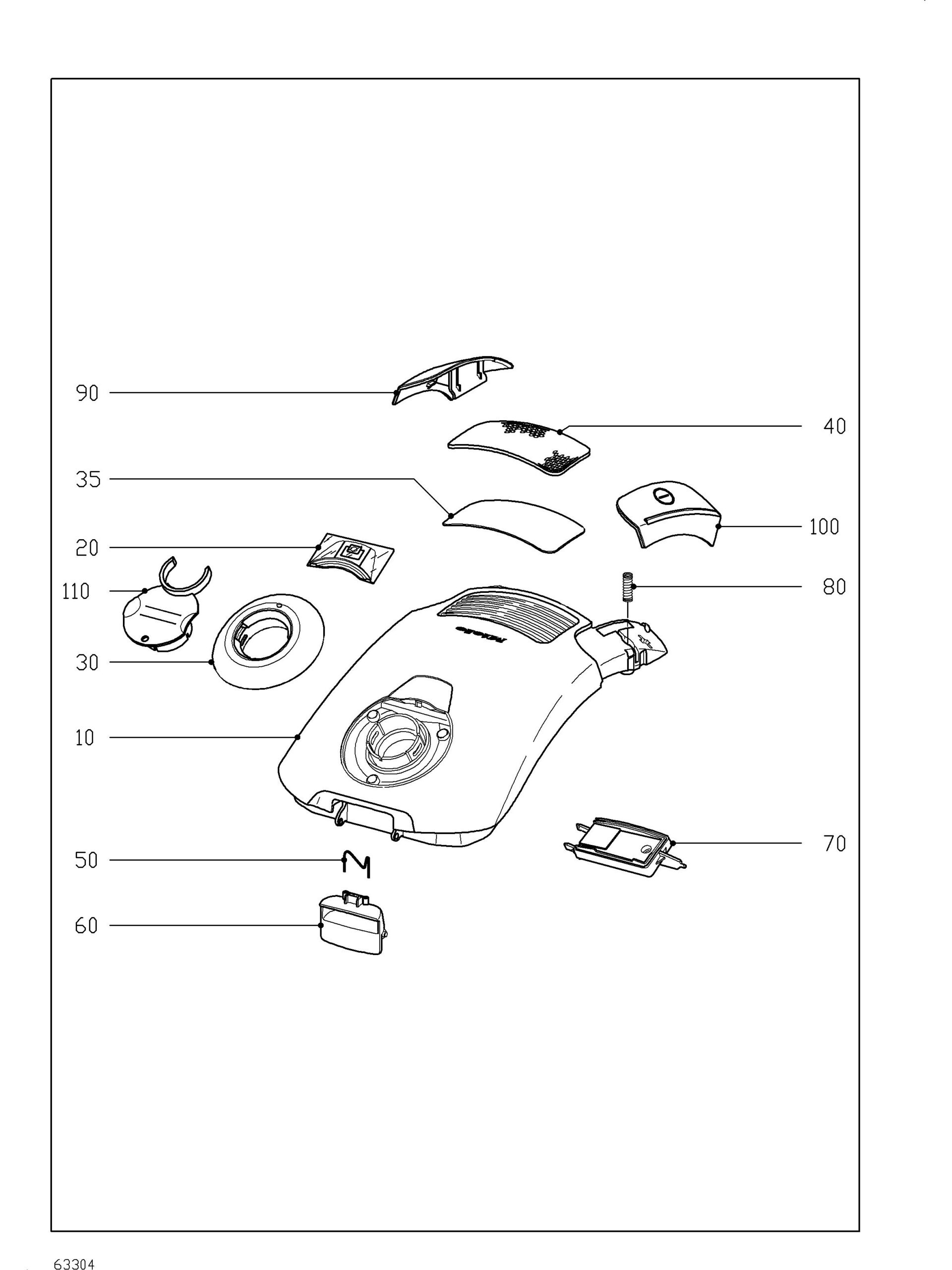

| # | Part image | Description | SKU | Price |
| 10+20 | Not Available | Casing top Polar ice | 6207060 | Not Available |
| 10+20 | No Image | Casing Top Melon Yellow | 6207050 | $109.00Read more |
| 10+20 | No Image | Casing Top Lava Grey | 6207040 | $109.00Read more |
| 10+20 | Not Available | Casing top Autumn red | 6207030 | Not Available |
| 10+20 | Not Available | Casing top deep black | 6207020 | Not Available |
| 10+20 | No Image | Casing Top Royal Blue | 6207010 | $109.00Read more |
| 10+20 | No Image | Casing Top Java Green | 6872980 | $109.00Read more |
| 10+20 | No Image | Casing Top Capri Blue | 6872970 | $109.00Read more |
| 10+20 | No Image | Casing Top Chili Red | 7309680 | $109.00Read more |
| 10+20 | No Image | Casing Top Indian Red | 6391930 | $109.00Read more |
| 10+20 | No Image | Casing Top Electric Blue Met. | 6391940 | $129.00Read more |
| 10+20 | Not Available | Casing top black magic | 6476960 | Not Available |
| 10+20 | No Image | Casing Top Tizia Red Metallic | 6884030 | $129.00Read more |
| 10+20 | No Image | Casing Top Marine Blue | 6641130 | $109.00Read more |
| 10+20 | Not Available | Casing top Obsidian black | 10082241 | Not Available |
| 20 | No Image | -Viewing Screen Casing Top | 5964362 | $12.00Read more |
| 30 | No Image | Ring Alu-Silver | 6151510 | $22.00Read more |
| 35 | No Image | Insulation Matting Air Shield | 6252470 | $3.90Read more |
| 40 | No Image | Air Shield Alu-Silver | 6151521 | $21.62Read more |
| 50 | Not Available | Torsion spring Lock | 7556250 | Not Available |
| 60 | No Image | Lock Anthracite | 5964012 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 | No Image | Change Filter Ind. | 6539882 | $21.62Read more |
| 80 |  | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 90 | No Image | Foot Switch Right Alu Silver | 6169680 | $27.00Read more |
| 100 | No Image | Foot Switch Left Paint Silver | 11477840 | $27.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 | Not Available | Hygiene cap | 6622030 | Not Available |

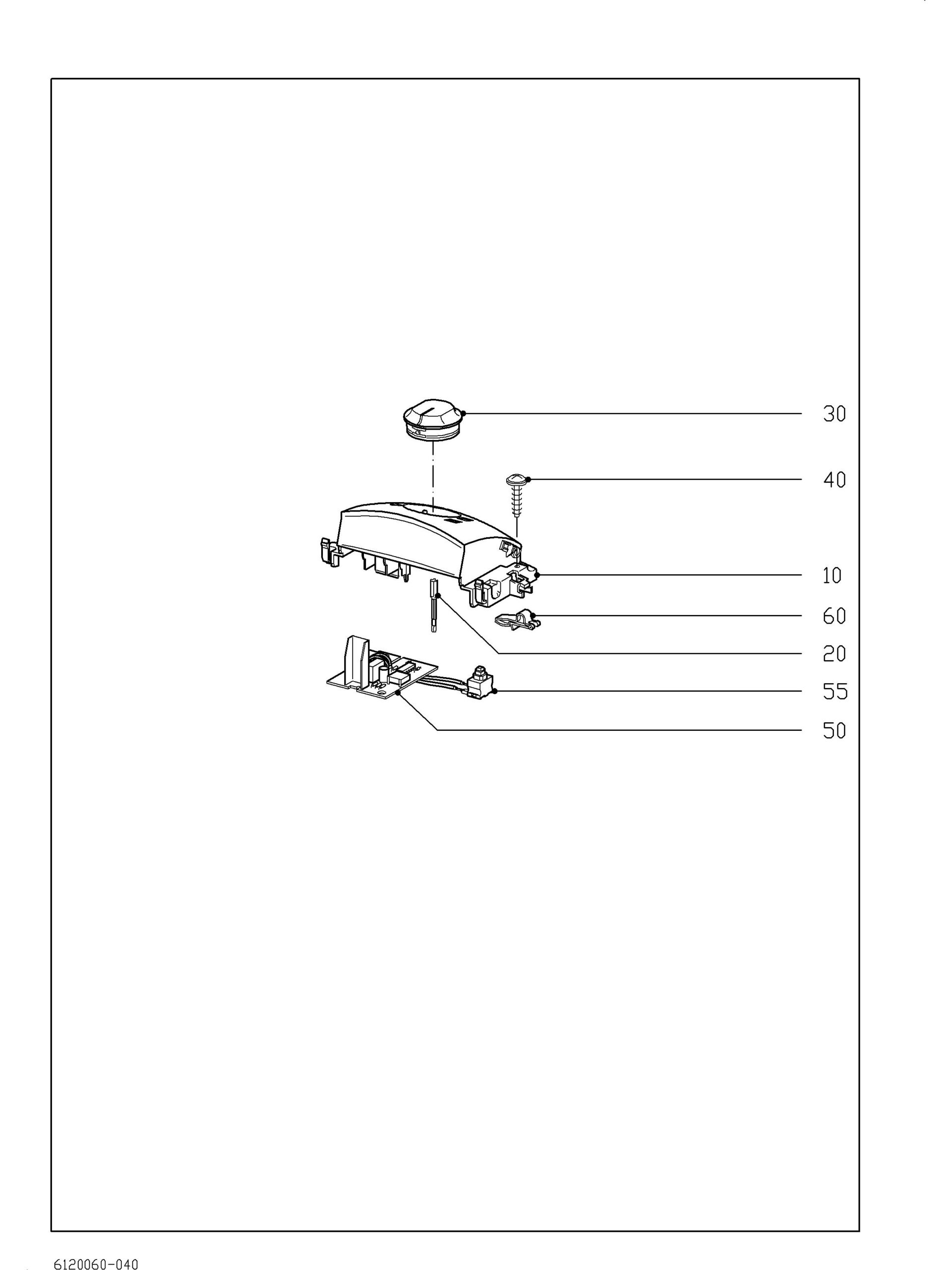

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| 10-30 | No Image | Cap Polar Ice | 6209721 | $100.00Read more |
| 10-30 | No Image | Cap Melon Yellow | 6209781 | $56.00Read more |
| 10-30 | No Image | Cap Lava Grey | 6209732 | $56.00Read more |
| 10-30 | No Image | Cap Autumn Red | 6209802 | $56.00Read more |
| 10-30 | No Image | Cap Obsidian Black | 10082230 | $100.00Read more |
| 10-30 | No Image | Cap Royal Blue | 6493332 | $56.00Read more |
| 10-30 | No Image | Cap Java Green | 6885251 | $56.00Read more |
| 10-30 | No Image | Cap Capri Blue | 6872992 | $56.00Read more |
| 10-30 | No Image | Cap Obsidian Black | 10082230 | $100.00Read more |
| 10-30 | No Image | Cap Obsidian Black | 10082230 | $100.00Read more |
| 10-30 | No Image | Cap Obsidian Black | 10082230 | $100.00Read more |
| 10-30 | No Image | Cap Black Magic | 6476361 | $100.00Read more |
| 10-30 | No Image | Cap Tizia Red Metallic | 6884042 | $91.00Read more |
| 10-30 | No Image | Cap Obsidian Black | 10082230 | $100.00Read more |
| 10-30 | No Image | Cap Gold Bronze Metallic | 7089450 | $91.00Read more |
| 20 | | Genuine Miele Adapter Rotary knob | 5776181 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| 30 | No Image | -Rotary Knob Alu-Silver | 6095750 | $16.00Read more |
| 55 | No Image | -Switch 1 Pole 1681.3103 | 9023231 | $9.60Add to cart Special order: ships in 2 to 4 weeks |
| 60 | No Image | Lever Switch | 5984722 | $2.50Read more |

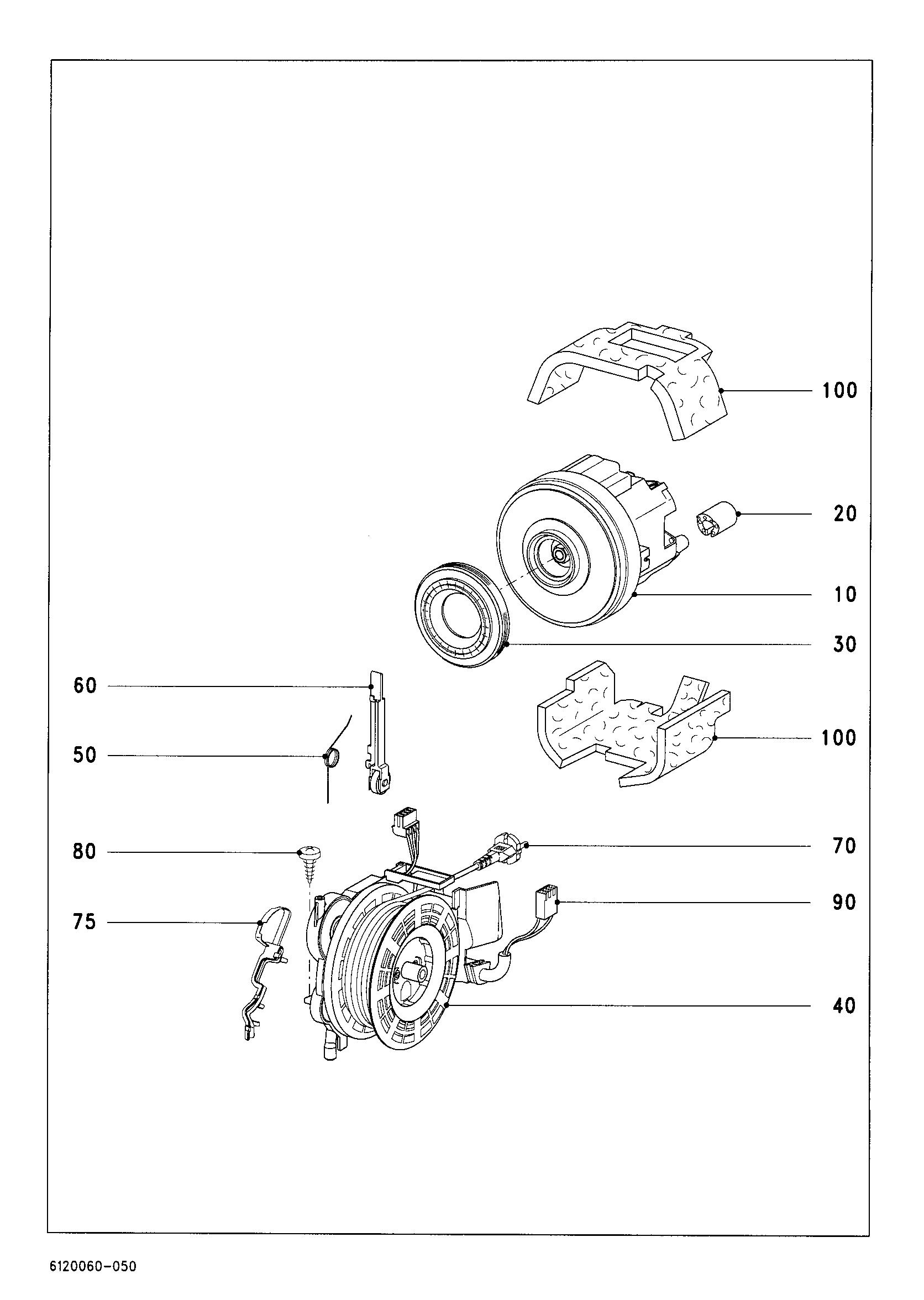

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 20 | No Image | Rubber Cushion 2 Pcs. | 6207002 | $22.00Read more |
| 30 | | Genuine Miele Bearing ring | 5964034 | $15.00Read more |
| 40-70 | No Image | Cable Reel S4000 5,5M 230V | 6171591 | $109.00Read more |
| 50 | | Genuine Miele Torsion spring S300-S5000 | 6217500 | $6.60Read more |
| 60 | No Image | -Brake Lever S4000 | 6217490 | $17.25Read more |
| 75 | No Image | Cover Strip S4000 | 6615140 | $3.90Read more |
| 90 | No Image | Connecting Cable S4000 230-240V | 6171560 | $47.00Read more |
| 100 | No Image | Damping Plate | 6206991 | $27.00Read more |

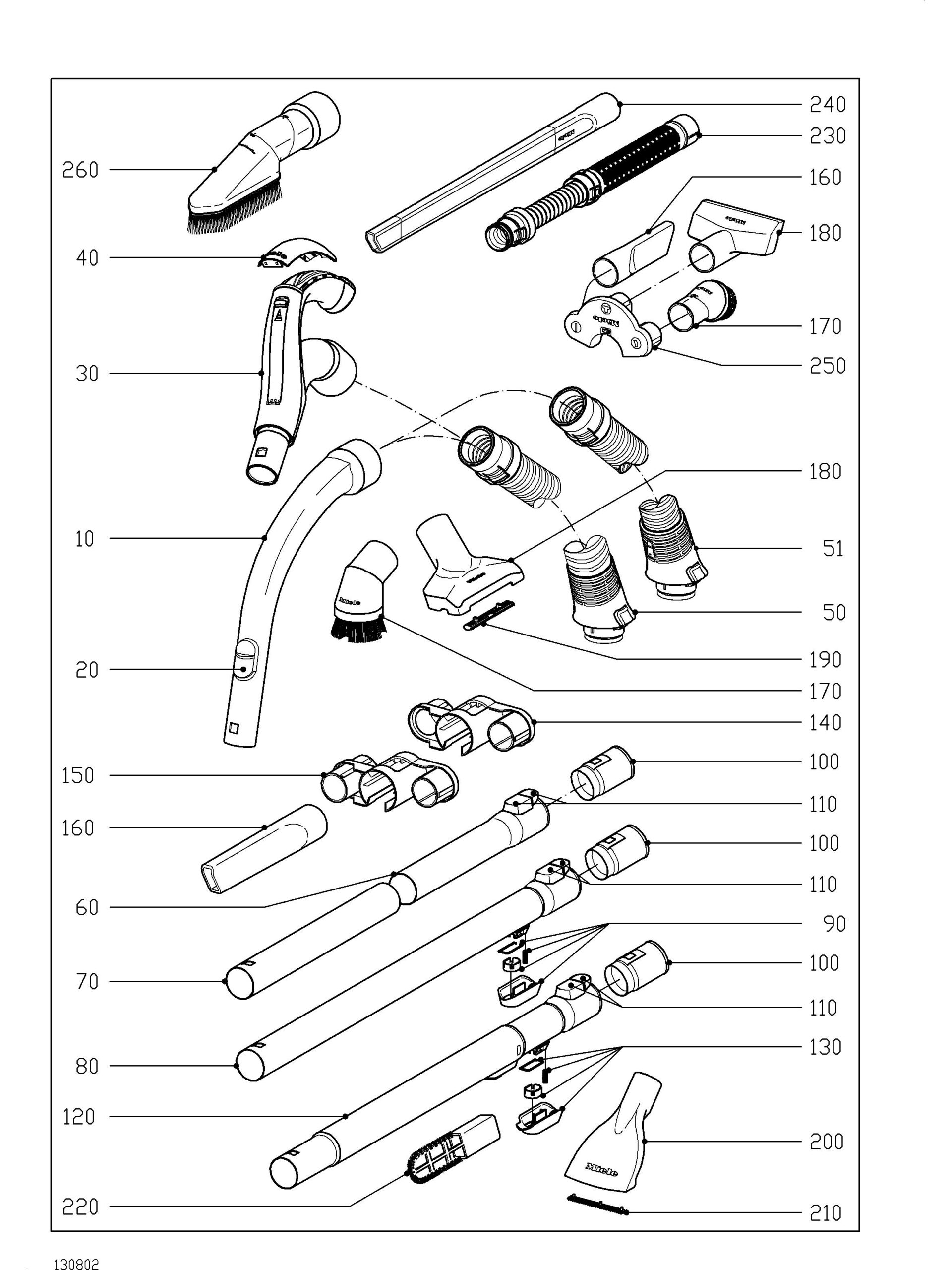

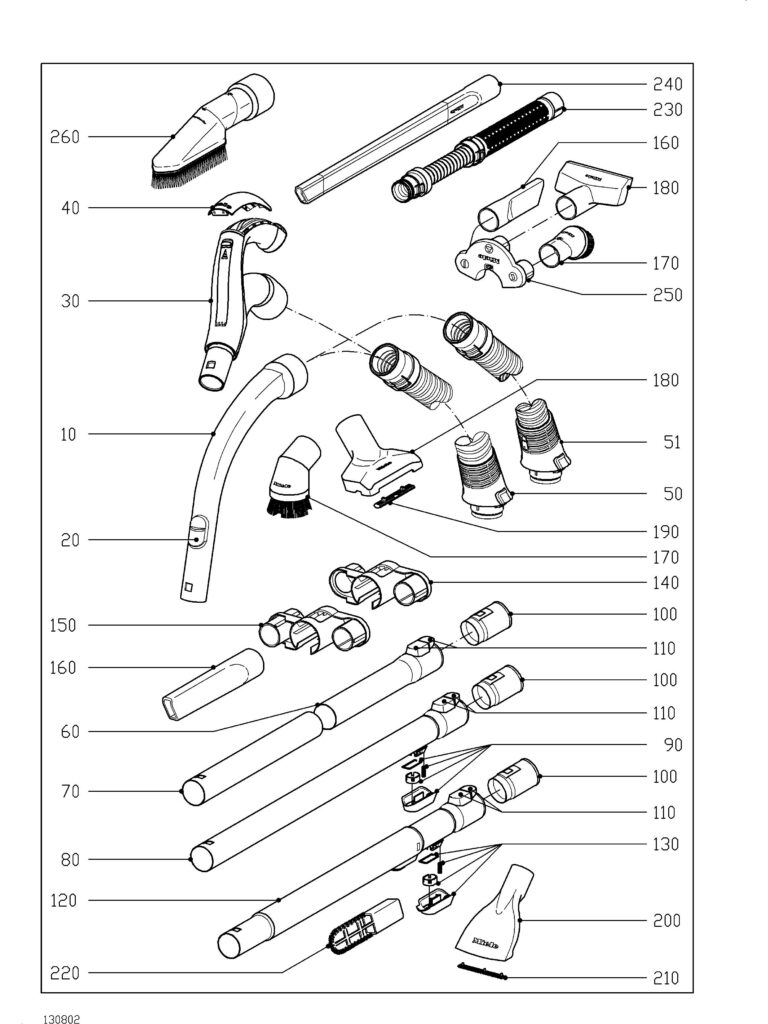

| # | Part image | Description | SKU | Price |
| 10+20 | | Genuine Miele Tubular handle anthracite | 9442601 | $37.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Suction control anthracite | 5141090 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 30+40 | | Genuine Miele Tubular handle S4, S5 | 6163661 | $0.00Read more |
| 51 |  | Genuine Miele Suction hose silver-coloured 1,8m S4000 | 7330632 | $53.00Add to cart |
| 70 | No Image | Suction Pipe Top Obsw Assy | 12421840 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
| 80-110 |  | Genuine Miele Telescopic pipe 2-part st.steel | 5658812 | $0.00Read more |
| 80-110 |  | Available Pre OwnedReconditioned Miele Telescopic Aluminum Wand for Miele Upright Vacuums 6801181 More Product Details | 6801180R | $48.00Add to cart |
| 80-110 |  | Compatible alternateGenuine Miele Telescopic pipe Aluminium More Product Details | 6801181 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 80-110 | | Genuine Miele Telescopic pipe 2-part st.steel | 5658812 | $0.00Read more |
| 90 |  | Genuine Miele Push button Round | 5780932 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 100+110 | No Image | Suction Pipe Top Obsw Assy | 12421840 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
| 100+110 |  | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 100+110 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 100-130 |  | HES Telescopic Wand for Miele | 10615280 | $77.99Add to cart Special order: ships in 2 to 4 weeks |
| 100-130 |  | Available ReconditionedGenuine Reconditioned Miele Telescopic Wand - Non Electric More Product Details | 5658812R | $0.00Add to cart |
| 100+110 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 120+130 | | HES Telescopic Wand for Miele | 10615280 | $77.99Add to cart Special order: ships in 2 to 4 weeks |
| 130 | No Image | -Push Button Round | 6151391 | $15.53Read more |
| 150 | | Genuine Miele Holder 3-piece accessory | 6423360 | $36.00Add to cart Special order: ships in 2 to 4 weeks |
| 160 | No Image | Crevice Nozzle 149Mm Obsw | 9442631 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 170 | No Image | Dusting Brush Anthracite | 5098711 | $16.00Read more |
| 170 |  | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $26.00Add to cart Special order: ships in 2 to 4 weeks |
| 180+190 | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 190 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 200+210 | | Genuine Miele ST Mattress nozzle SMD10 | 7252280 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 200+210 | | Genuine Miele ST Mattress nozzle SMD10 | 7252280 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 210 | | Genuine Miele Thread lifter | 5056530 | $9.70Read more |
| 220 | | Genuine Miele ST Radiator brush SHB30 | 9660490 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 230 |  | Genuine Miele ST Flexible hose SFS10 | 7252210 | $44.00Add to cart Special order: ships in 2 to 4 weeks |
| 230 | | Genuine Miele ST Flexible hose SFS10 | 7252210 | $44.00Add to cart Special order: ships in 2 to 4 weeks |
| 240 | | Genuine Miele ST Flex. crev. nozzle SFD20 560mm | 7252100 | $39.00Add to cart Special order: ships in 2 to 4 weeks |
| 240 |  | Compatible alternateMiele SFD20 Long Flexible Crevice Tool for Miele Vacuums More Product Details | SFD20 | $39.00Add to cart Special order: ships in 2 to 4 weeks |
| 240 | | Genuine Miele ST Flex. crev. nozzle SFD20 560mm | 7252100 | $39.00Add to cart Special order: ships in 2 to 4 weeks |
| 260 | | Genuine Miele ST Universal brush SUB20 | 11607330 | $49.00Read more |

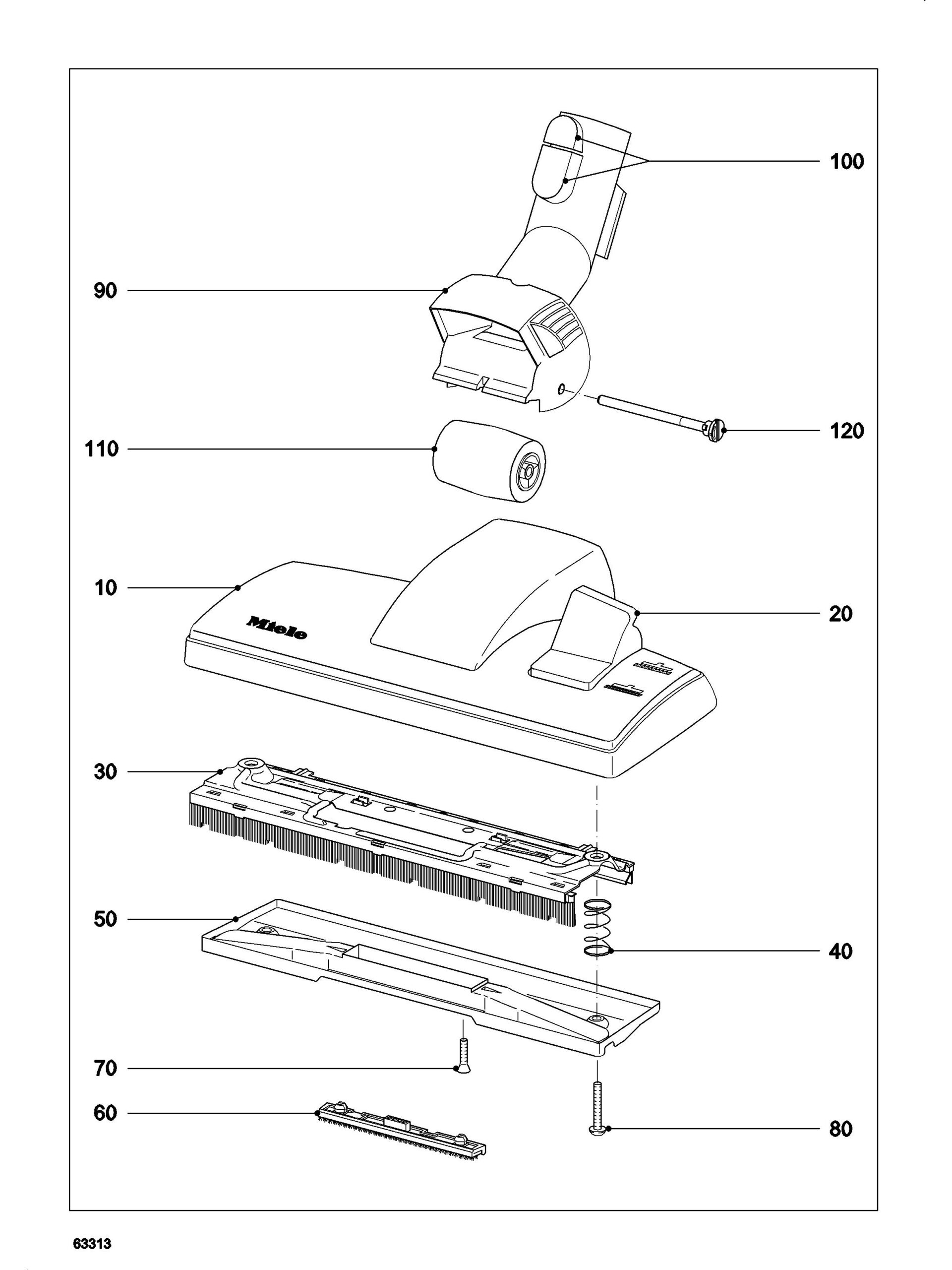

| # | Part image | Description | SKU | Price |
| 10-120 | Not Available | Floor nozzle SBD470-3 FiberTeQ | 9274750 | Not Available |
| 10-120 | Not Available | Floor nozzle SBD470-3 | 10484833 | Not Available |
| 10 | | Genuine Miele Top | 6167160 | $39.50Read more |
| 20 | | Genuine Miele Foot switch | 6167170 | $20.60Read more |
| 30 | No Image | -Bristle Supp.Plate | 6167191 | $42.00Read more |
| 40 |  | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |
| 50+60 | | Genuine Miele Lower section | 6167251 | $43.60Read more |
| 60 | | Genuine Miele Thread lifter 2 Pcs. | 6440411 | $13.50Read more |
| 70 | No Image | --Coun.Self-Tap.Screw Spax 3 X 9,5Torx T10 | 6167230 | $2.50Read more |
| 80 | | Genuine Miele Raised head screw 3,5x16 TORX T10 | 6644310 | $2.30Read more |
| 90+100 | | Genuine Miele Linkage SBD450-3 | 6167150 | $33.80Read more |
| 100 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 |  | Genuine Miele Support roller | 5235530 | $15.00Read more |
| 120 |  | Genuine Miele Shaft Bayonett fitting | 5235520 | $13.50Read more |

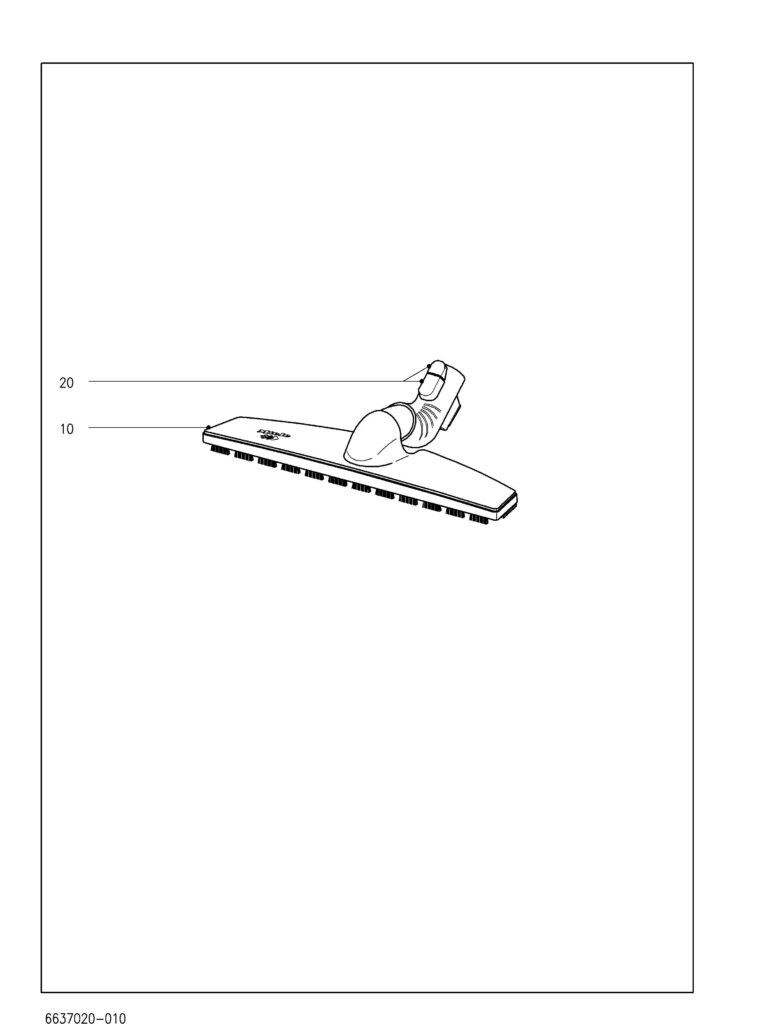

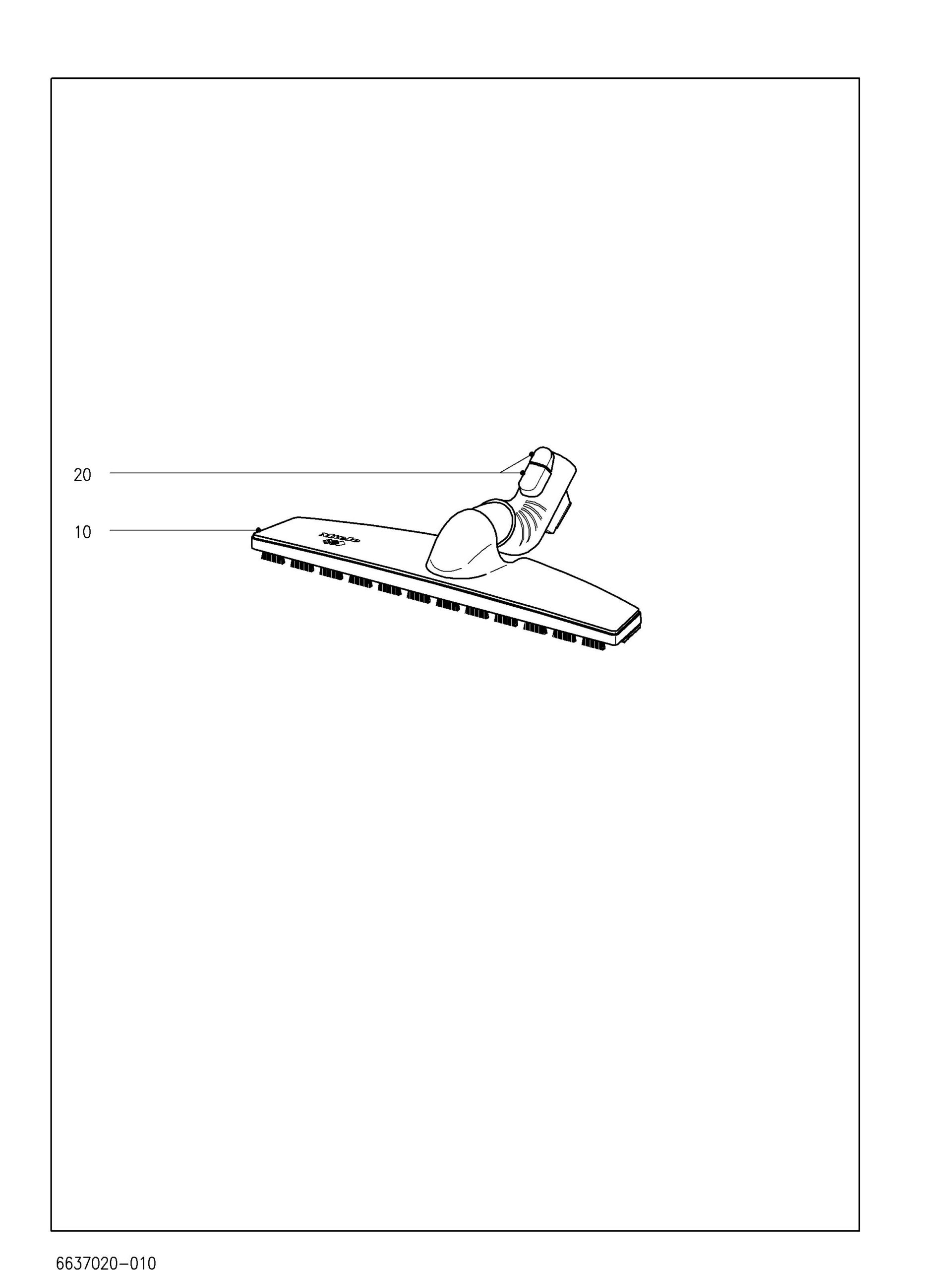

| # | Part image | Description | SKU | Price |
| 10+20 | Not Available | Floor brush Parq.Twister-3 | 6622123 | Not Available |
| 10+20 | | Genuine Miele ST Floor brush Parq.Twister-3 | 7155710 | $89.00Add to cart Special order: ships in 2 to 4 weeks |
| 10+20 | No Image | Compatible alternateMiele ST Floor Brush Parquet Twister SBB300-3 More Product Details | WP10948 | $89.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
