Schematic and parts book for Miele S410I S 410 I. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

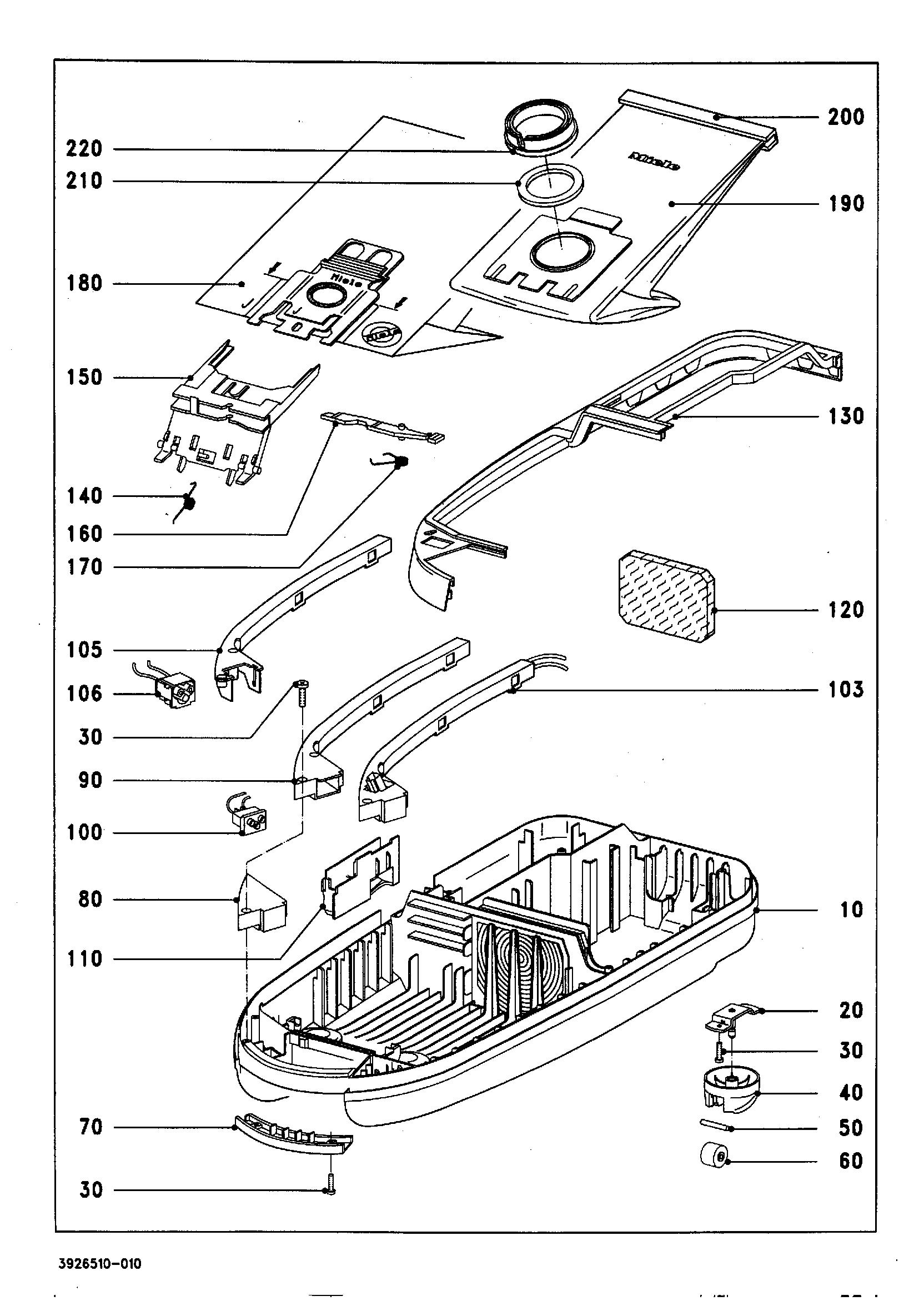

| # | Part image | Description | SKU | Price |
| XX |  | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 3,9X13 | 1023120 | $2.10Read more |
| (180) | No Image | Vacuum Cleaner Bag Gn Hyclean Pure Int | 12421130 | $0.00Add to cart Special order: ships in 2 to 4 weeks |
| w/o fig. | | Genuine Miele Micro fuse T6,3A 500V 6,3X32MM | 3595980 | $6.00Read more |
| w/o fig. | | Genuine Miele Fuse holder | 3604030 | $33.80Read more |
| XX | | Genuine Miele Raised head screw Zinc-plated 2,9X9,5 | 1023022 | $4.90Read more |
| 10-60 | Not Available | Casing bottom anthracite | 3944904 | Not Available |
| 20 | | Genuine Miele Shaft Slide skid | 3892600 | $9.70Read more |
| 40-60 | No Image | -Slide Skid Anthracite | 6216101 | $11.00Read more |
| 40-60 | No Image | -Slide Skid Obsw Assy | 12494260 | $11.00Read more |
| 40-60 | No Image | -Slide Skid Obsw Assy | 12494260 | $11.00Read more |
| 70 | Not Available | Grip handle anthracite | 3928020 | Not Available |
| 80 | Not Available | Cover strip anthracite | 3928100 | Not Available |
| 90 | Not Available | Cover strip anthracite | 3960450 | Not Available |
| 100 | No Image | Flush Socket Outlet 2 Pole Anthracite | 4252570 | $47.00Read more |
| 110 | No Image | Suspension Anthracite | 3908652 | $17.25Read more |
| 120 | No Image | Dust Compart.Filter 3 S400 | 4669170 | $17.25Read more |
| 130 | Not Available | Buffer anthracite | 3862953 | Not Available |
| 140 | | Genuine Miele Torsion spring | 1348411 | $2.30Read more |
| 150 | Not Available | Bracket anthracite | 3928052 | Not Available |
| 160 | Not Available | Lever anthracite | 3928040 | Not Available |
| 170 | Not Available | Torsion spring | 3964290 | Not Available |
| 180 | No Image | Dustbag Typ G 1/5 S400 | 3986655 | $20.16Read more |
| 190+200 | Not Available | Cloth filter bag S227-S858 | 5188842 | Not Available |
| 210 | Not Available | -Sealing ring grey | 3430580 | Not Available |
| 220 | Not Available | -Ring anthracite | 4425280 | Not Available |

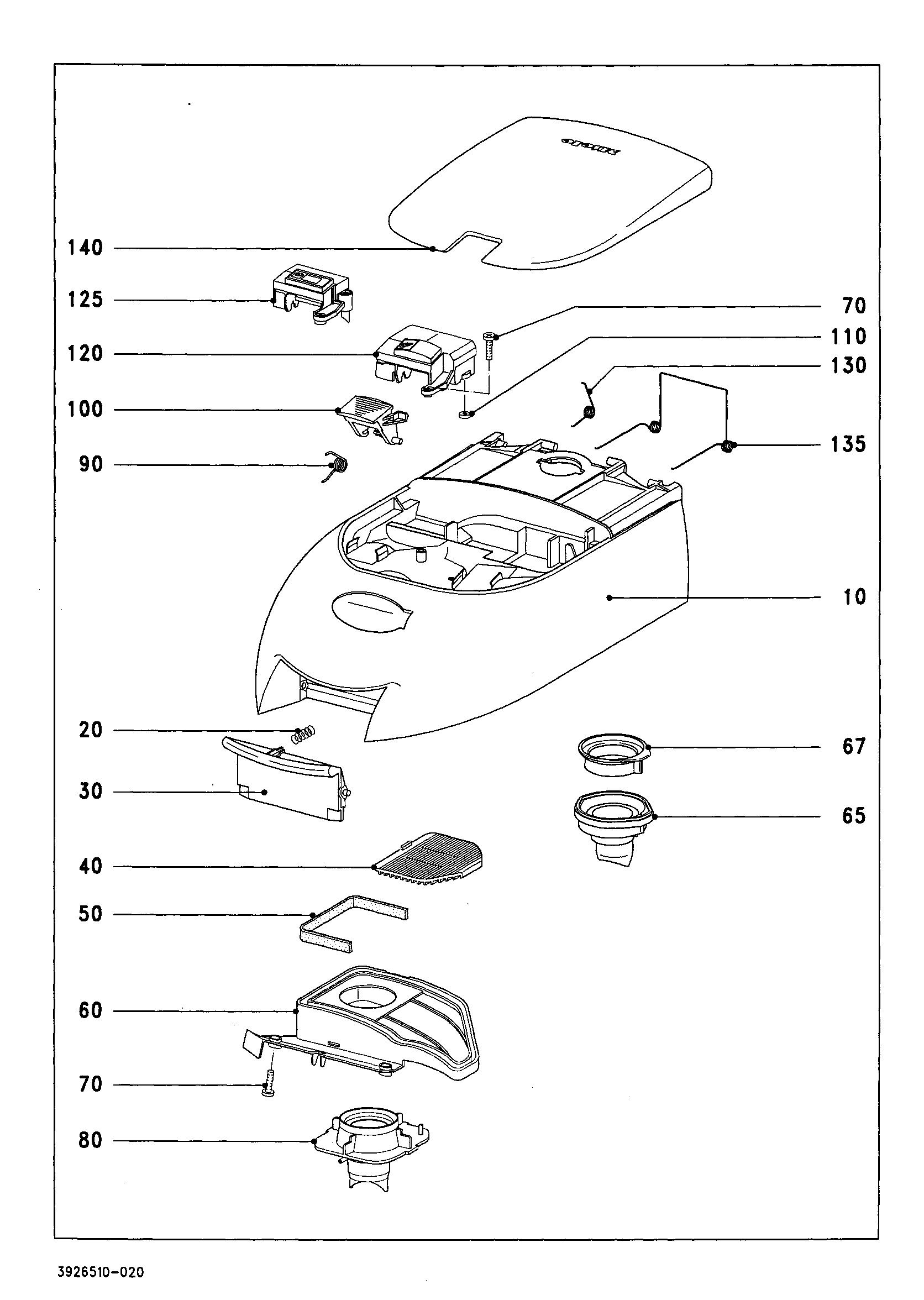

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 10 | Not Available | Casing top corn yellow | 4366604 | Not Available |
| 10 | Not Available | Casing top Champagne | 4366612 | Not Available |
| 10 | Not Available | Casing top pastel red | 4759071 | Not Available |
| 10 | Not Available | Casing top Matt green | 4835211 | Not Available |
| 20 |  | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 30 | Not Available | Lock anthracite | 3928203 | Not Available |
| 40 | | Genuine Miele Coupler link anthracite | 3928160 | $4.90Read more |
| 50 | Not Available | Sealing strip | 4235000 | Not Available |
| 80 | Not Available | Dust channel anthracite | 4831210 | Not Available |
| 80 | Not Available | Dust channel anthracite | 4831210 | Not Available |
| 90 | | Genuine Miele Torsion spring | 2348250 | $2.30Read more |
| 100+125 | Not Available | Casing top brick red | 4208075 | Not Available |
| 100+125 | No Image | Casing Top Brilliant White | 4208085 | $189.00Read more |
| 100+125 | Not Available | Casing top anthracite | 5649610 | Not Available |
| 100+125 | Not Available | Casing top anthracite | 5649610 | Not Available |
| 100+125 | Not Available | Casing top turquoise | 4366634 | Not Available |
| 100+120 | Not Available | Change filter ind. | 3928275 | Not Available |
| 100+125 | | Genuine Miele Change filter ind. | 4249012 | $33.80Read more |
| 100 | | Genuine Miele interlock anthracite | 3928262 | $6.60Read more |
| 110 | Not Available | Seal | 1584100 | Not Available |
| 130 | Not Available | Torsion spring | 3982380 | Not Available |
| 135 | No Image | Torsion Spring | 4103312 | $11.16Read more |
| 140+135 | Not Available | Lid anthracite | 5649620 | Not Available |
| 140+135 | Not Available | Lid anthracite | 5649620 | Not Available |
| 140+135 | Not Available | Lid anthracite | 5649620 | Not Available |
| 140+135 | Not Available | Lid corn yellow | 4932570 | Not Available |
| 140+135 | Not Available | Lid anthracite | 5649620 | Not Available |
| 140+135 | Not Available | Lid anthracite | 5649620 | Not Available |
| 140+135 | Not Available | Lid turquoise | 4932591 | Not Available |
| 140+135 | Not Available | Lid pastel red | 4932600 | Not Available |
| 140+135 | Not Available | Lid Matt green | 4932660 | Not Available |

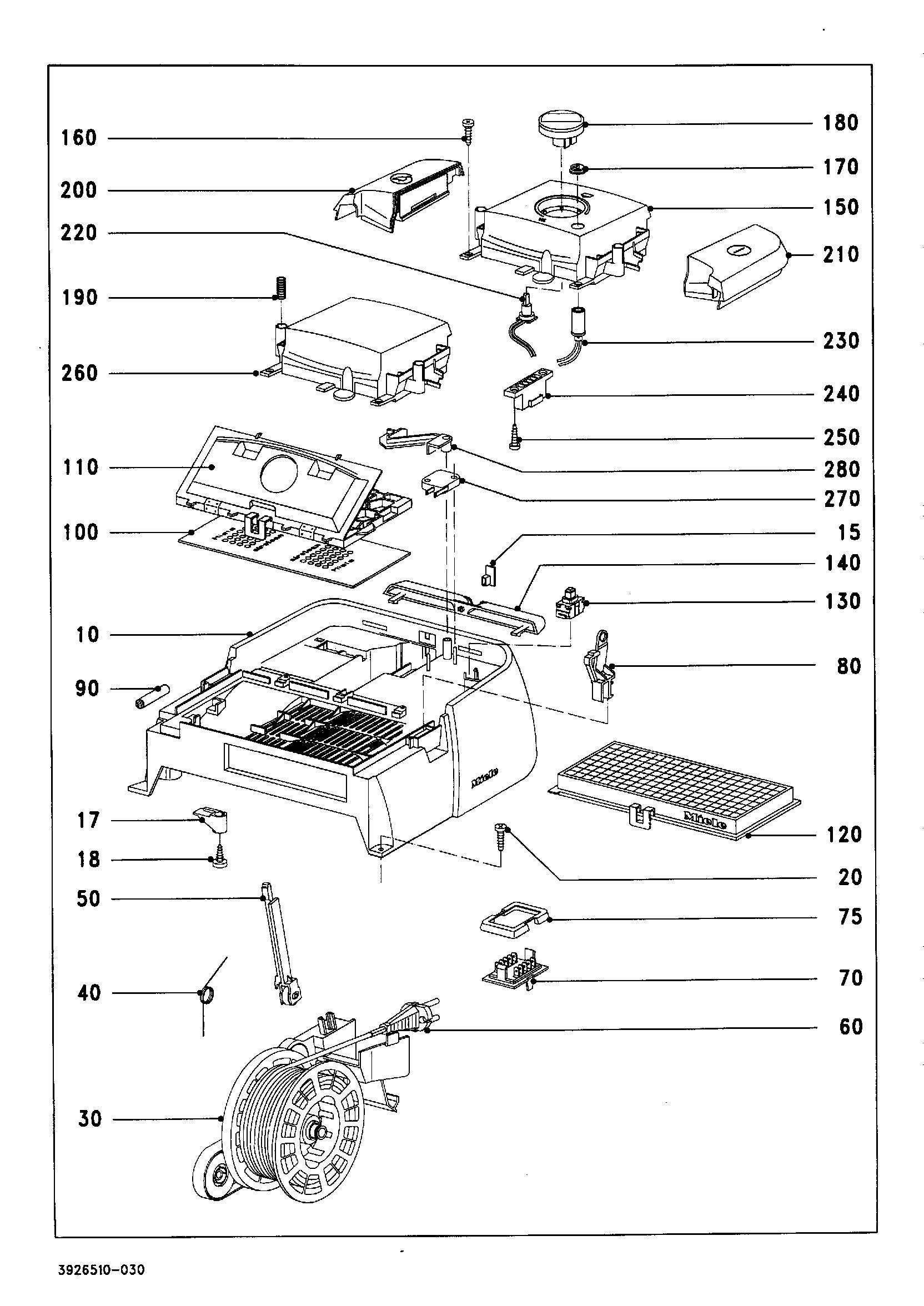

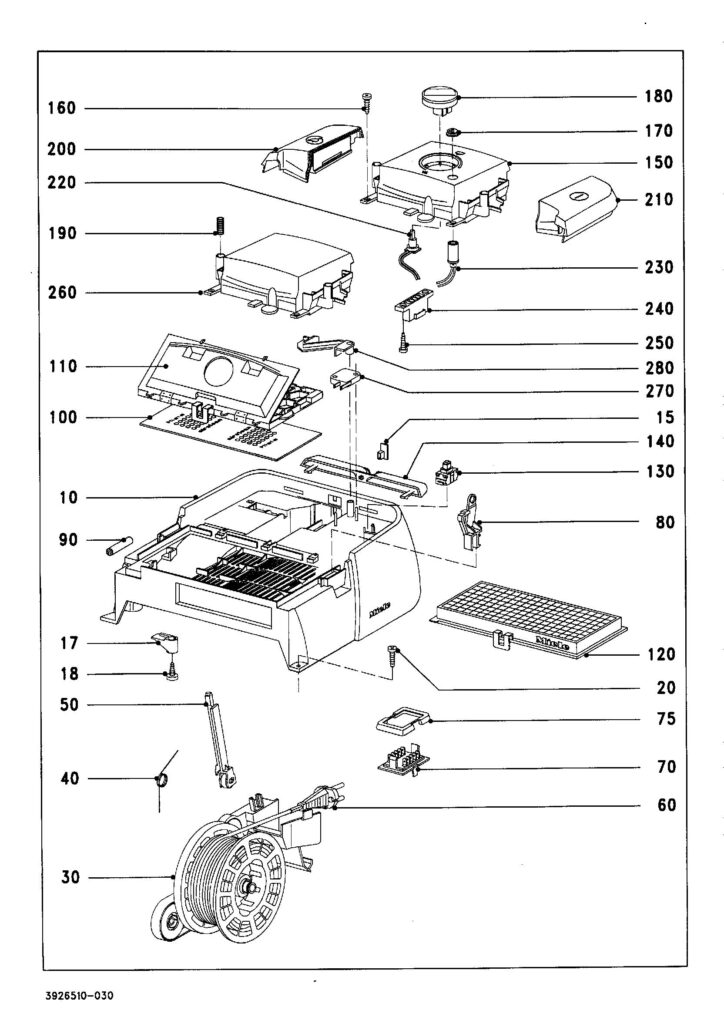

| # | Part image | Description | SKU | Price |
| XX | No Image | --Raised Head Screw 4,0X14 | 1599350 | $2.10Read more |
| XX | No Image | --Screw 4X20 | 3457650 | $2.50Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw Zinc-plated 2,9X9,5 | 1023022 | $4.90Read more |
| 10+15 | Not Available | Rear panel brick red | 4267884 | Not Available |
| 10+15 | Not Available | Rear panel Brilliant white | 4267894 | Not Available |
| 10+15 | Not Available | Rear panel azure blue | 4267903 | Not Available |
| 10+15 | Not Available | Rear panel corn yellow | 4441402 | Not Available |
| 10+15 | Not Available | Rear panel Champagne | 4441411 | Not Available |
| 10+15 | Not Available | Rear panel Polar blue | 4441422 | Not Available |
| 10+15 | Not Available | Rear panel anthracite | 5571330 | Not Available |
| 10 | Not Available | Rear panel pastel red | 4732031 | Not Available |
| 10 | Not Available | Rear panel Matt green | 4835550 | Not Available |
| 15 | Not Available | -End plug anthracite | 4397570 | Not Available |
| 17 | Not Available | Fitment | 5155460 | Not Available |
| 40 | | Genuine Miele Torsion spring S300-S5000 | 6217500 | $6.60Read more |
| 40 | No Image | -Torsion Spring Ks 131 | 4305810 | $7.59Read more |
| 50 | | Genuine Miele Brake lever S400/600/800 | 4312191 | $18.80Read more |
| 50 | | Genuine Miele Brake lever S400/600/800 | 4312191 | $18.80Read more |
| 60 | No Image | -Supply Cable 6,65M 230V | 4691520 | $61.00Read more |
| 70 | Not Available | Plug housing | 4247550 | Not Available |
| 75 | Not Available | Seal | 4053890 | Not Available |
| 80+(80) | Not Available | Hinge anthracite | 4347180 | Not Available |
| 90 | Not Available | Scent | 3027951 | Not Available |
| 100 |  | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 | No Image | Grille Anthracite | 3908663 | $21.62Read more |
| 120 | No Image | Active Hepa Filter Sf-Ah30 S300-800 | 4854915 | $0.00Read more |
| 120 | No Image | Act.Air Cleanfilter Sf-Aac30 S300-800 | 4306918 | $0.00Read more |
| 140 | No Image | Strip Anthracite | 3928311 | $17.25Read more |
| 150 | Not Available | Cap anthracite 1100W | 4289493 | Not Available |
| 170 | Not Available | Viewing screen red | 1962650 | Not Available |
| 180 | Not Available | Programme knob anthracite | 3932382 | Not Available |
| 190 | | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 200 | No Image | Foot Switch Right Anthracite | 3928341 | $27.00Read more |
| 210 | No Image | Foot Switch Left Anthracite | 3928352 | $17.25Read more |
| 220 | No Image | Potentiometer | 3934411 | $47.00Read more |
| 230+240 | Not Available | Indicator light 120V | 4252590 | Not Available |
| 240 | No Image | -Plug Housing 5 Pole | 1942150 | $12.00Read more |
| 270 | | Genuine Miele Switch 250V | 4487791 | $20.60Add to cart Special order: ships in 2 to 4 weeks |
| 280 | Not Available | Lever anthracite | 4394652 | Not Available |

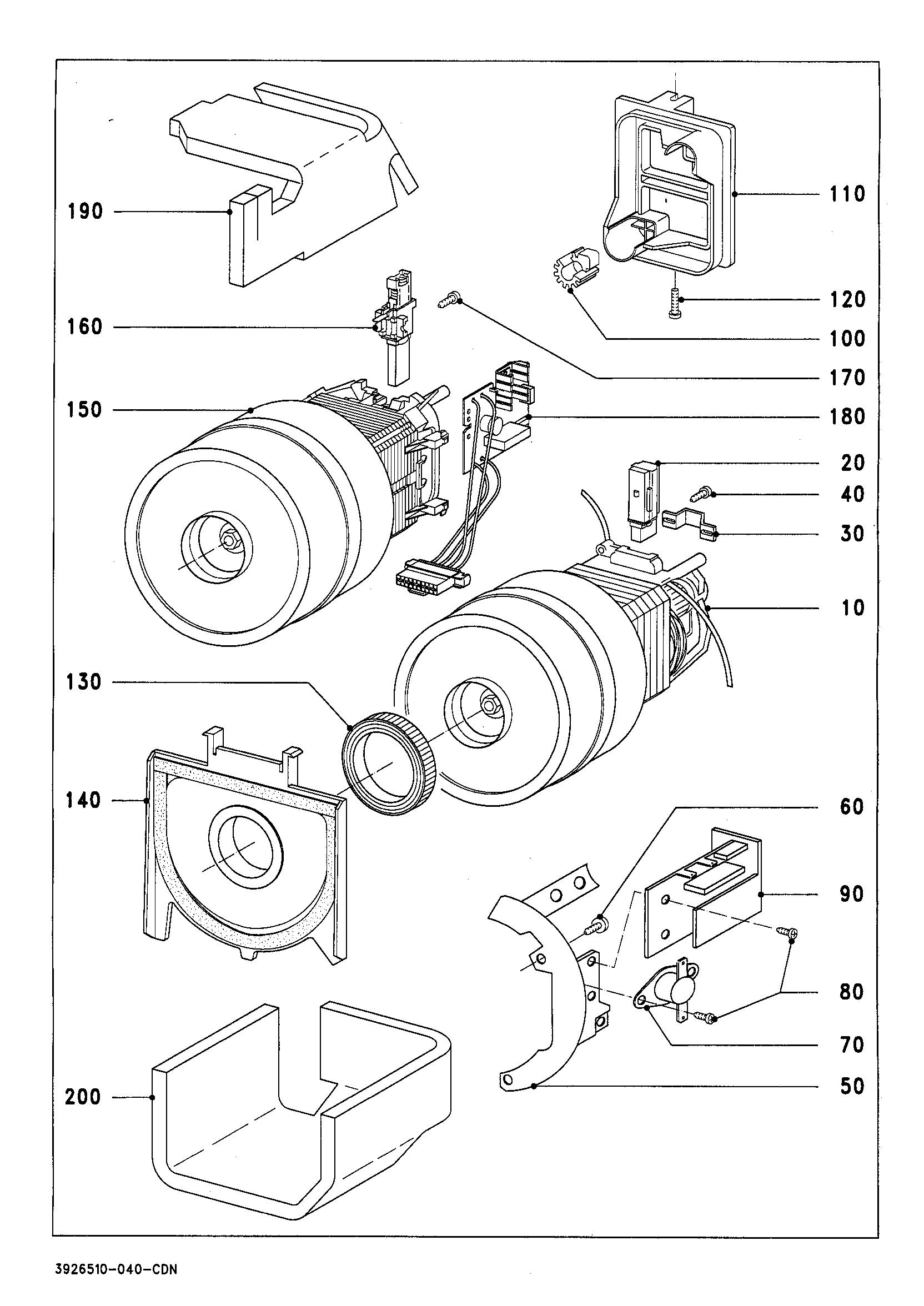

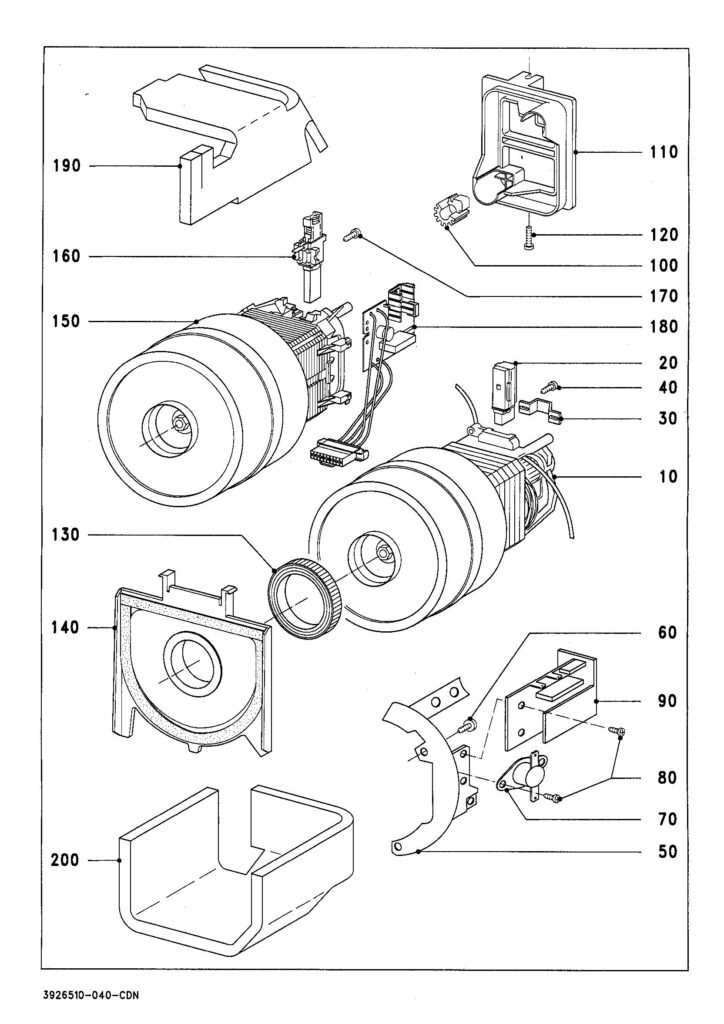

| # | Part image | Description | SKU | Price |
| XX | No Image | --Roundheaded Screw 5/32.Zollx8 | 49673 | $7.59Read more |
| XX | No Image | --Raised Head Screw 4,8X9,5 Torx T20 | 4268010 | $3.90Read more |
| XX | No Image | --Raised Head Screw 3,9X6,5 | 2125130 | $2.30Read more |
| XX | No Image | --Raised Head Screw 3,9X6,5 | 2125130 | $2.30Read more |
| XX | No Image | --Raised Head Screw 3,9X13 | 1023050 | $2.10Read more |
| 10-40 | Not Available | Fan 117923-23 120V 60HZ | 4318370 | Not Available |
| 20 | | Genuine Miele Carbon brush | 2830481 | $56.80Read more |
| 30 | | Genuine Miele Clamping bracket | 75426 | $9.70Read more |
| 50 | | Genuine Miele Fixing | 1889550 | $9.70Read more |
| 70 | | Genuine Miele Thermoswitch 10A 250V | 79864 | $39.50Read more |
| 90 | | Genuine Miele Electronic unit EDL211 120V 60HZ | 4416342 | $150.60Read more |
| 100 | | Genuine Miele Rubber cushion black | 3928380 | $0.00Read more |
| 110 | Not Available | Motor bracket anthracite | 3928394 | Not Available |
| 130 | No Image | Bearing Ring | 4034450 | $22.00Read more |
| 140 | No Image | Bearing Plate | 4034444 | $36.00Read more |

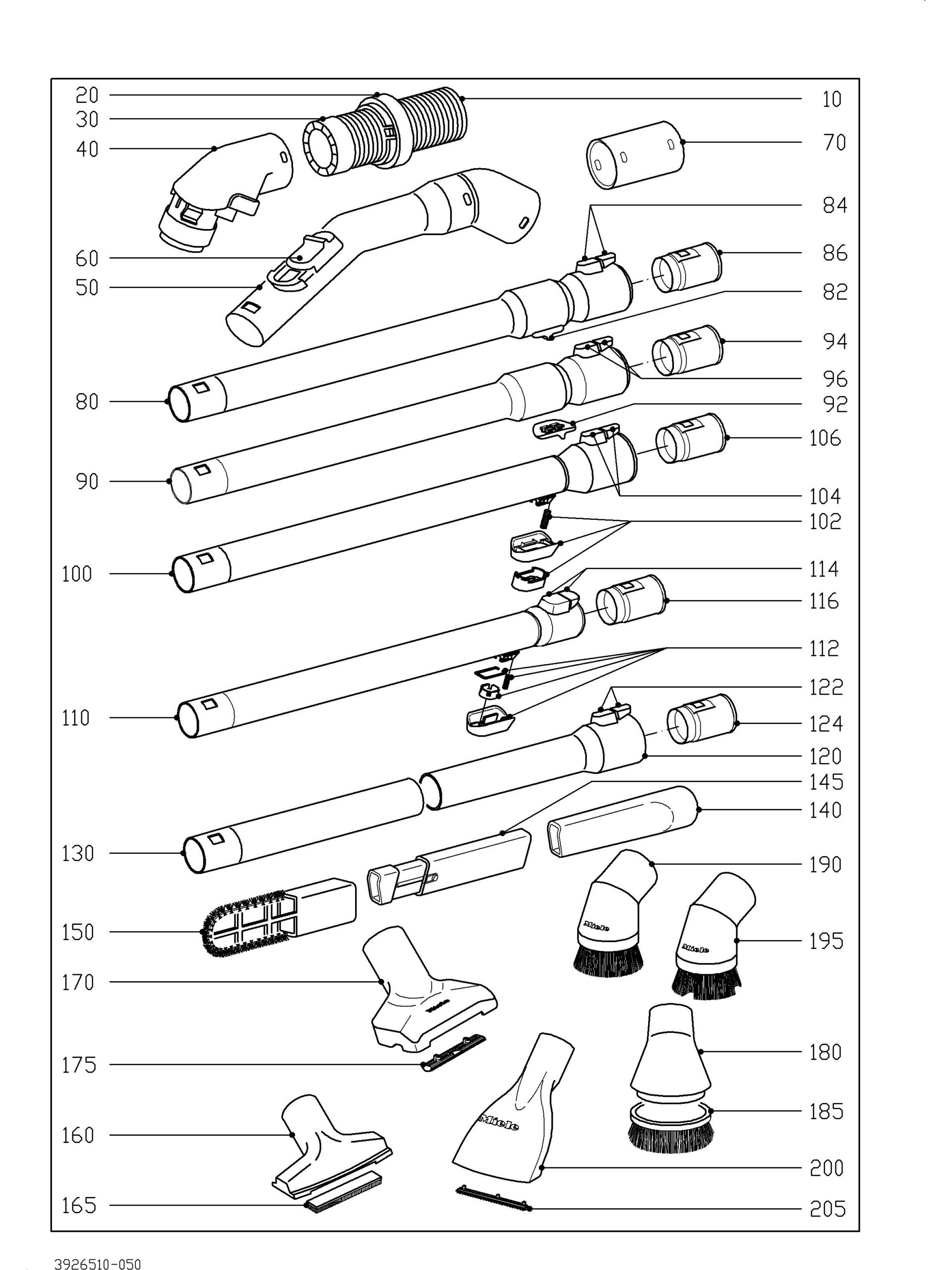

| # | Part image | Description | SKU | Price |
| 10-60 | | Genuine Miele Suction hose anthracite | 3947436 | $53.00Add to cart Special order: ships in 2 to 4 weeks |
| 10-30 |  | Genuine Miele Suction hose silver-coloured 1,8m | 3565351 | $51.00Add to cart |
| 10-30 | No Image | Suction Hose Black 1,8M | 4788350 | $83.00Read more |
| 20 | | Genuine Miele Ring anthracite | 3565360 | $4.90Read more |
| 30 | | Genuine Miele Sleeve | 91205 | $9.70Read more |
| 40 |  | Genuine Miele Elbow anthracite | 3982544 | $42.00Read more |
| 50+60 | | Genuine Miele Tubular handle anthracite assy | 3565461 | $56.00Add to cart Special order: ships in 2 to 4 weeks |
| 50+60 |  | Compatible alternateGenuine Miele Vacuum Cleaner Bend End for S series S200-S800 More Product Details | 3565460 | $35.99Add to cart Special order: ships in 2 to 4 weeks |
| 60 | | Genuine Miele Suction control anthracite | 3565580 | $3.60Read more |
| 70 | | Genuine Miele Connecting tube anthracite | 3565760 | $20.60Read more |
| 82 | No Image | -Slide Anthracite | 3570310 | $5.64Read more |
| 84+86 |  | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 84 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 92 | No Image | -Slide Anthracite | 4333600 | $7.00Read more |
| 94+96 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 94 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 102 | | Genuine Miele Push button 15x30mm | 4832460 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 104+106 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 104 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 110-116 |  | Genuine Miele Telescopic pipe 2-part st.steel | 5658812 | $0.00Read more |
| 110-116 |  | Available Pre OwnedReconditioned Miele Telescopic Aluminum Wand for Miele Upright Vacuums 6801181 More Product Details | 6801180R | $48.00Add to cart |
| 110-116 |  | Compatible alternateGenuine Miele Telescopic pipe Aluminium More Product Details | 6801181 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 112 |  | Genuine Miele Push button Round | 5780932 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 114+116 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 114 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 120-124 | No Image | Suction Pipe Top Obsw Assy | 12421840 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
| 122+124 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 122 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 | No Image | Suction Pipe Top Obsw Assy | 12421840 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
| 140 | | Genuine Miele Crevice nozzle anthracite | 3571671 | $12.10Read more |
| 140 |  | Compatible alternateMiele Canister Vacuum Crevice Tool More Product Details | 3571670 | $20.00Add to cart |
| 140 | | Compatible alternateGenuine Miele Crevice nozzle 149mm More Product Details | 9442630 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 145 | | Genuine Miele Nozzle extension anthracite | 5120360 | $33.80Read more |
| 150 | | Genuine Miele ST Radiator brush SHB30 | 9660490 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 165 | | Genuine Miele Thread lifter 2 Pcs. | 2348770 | $13.50Read more |
| 175+175 | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 175 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 195 |  | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $26.00Add to cart Special order: ships in 2 to 4 weeks |
| 195 | No Image | Dusting Brush Anthracite | 5098711 | $16.00Read more |
| 200+205 | | Genuine Miele ST Mattress nozzle SMD10 | 7252280 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 205 | | Genuine Miele Thread lifter | 5056530 | $9.70Read more |

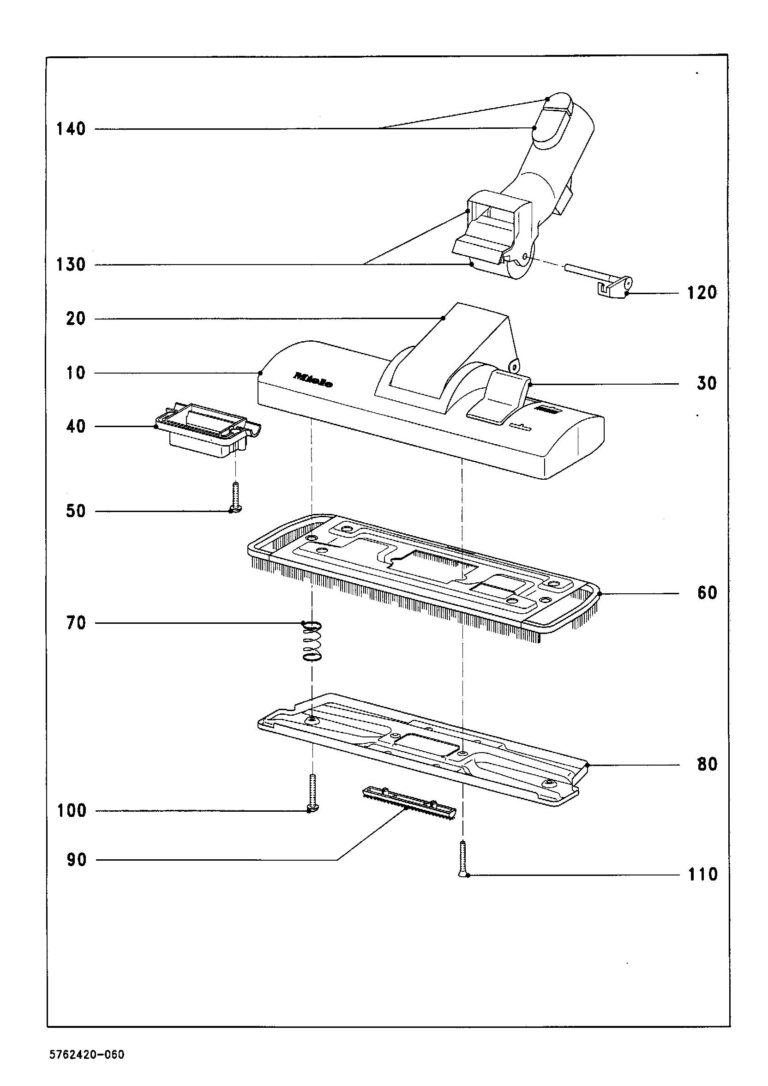

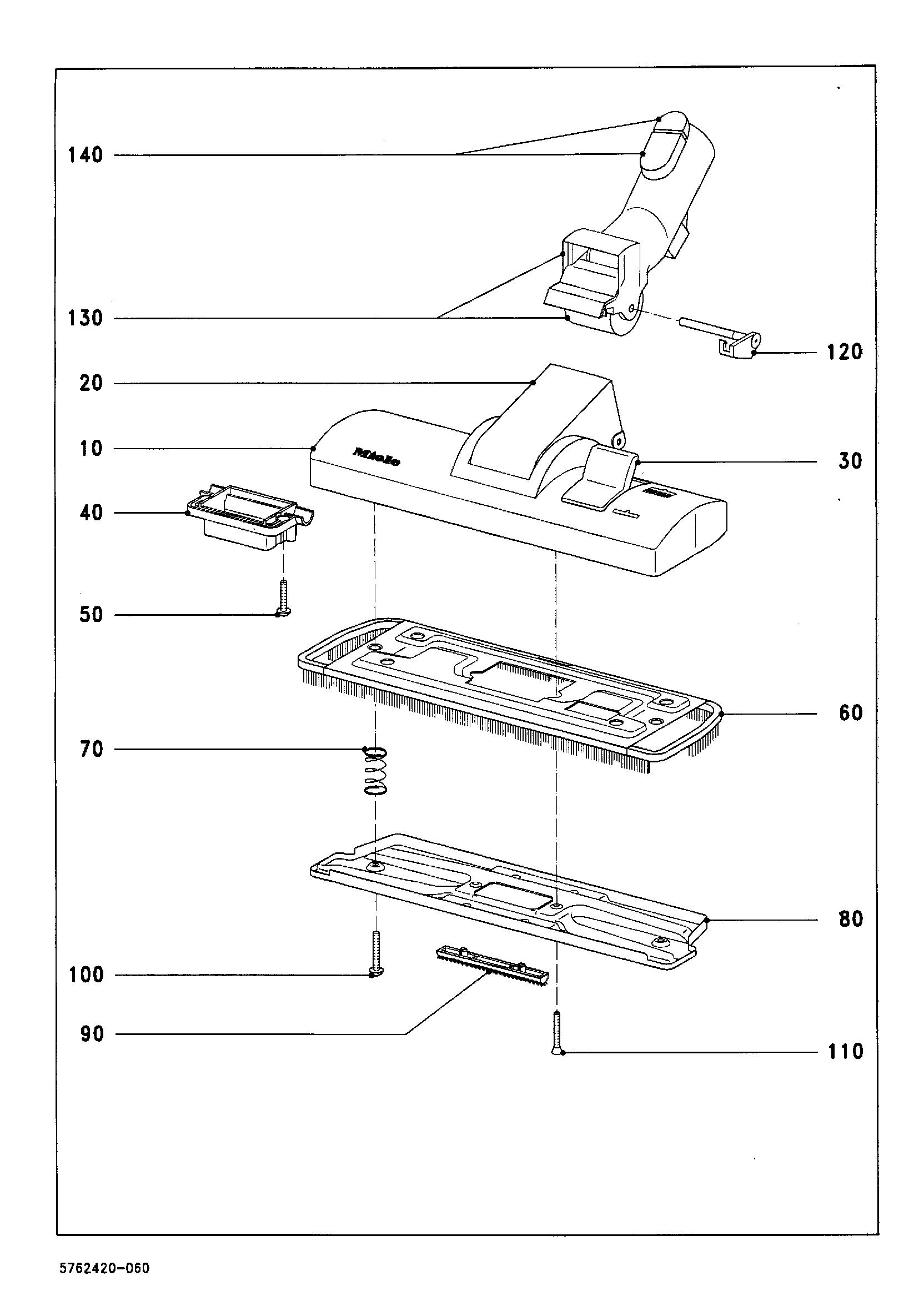

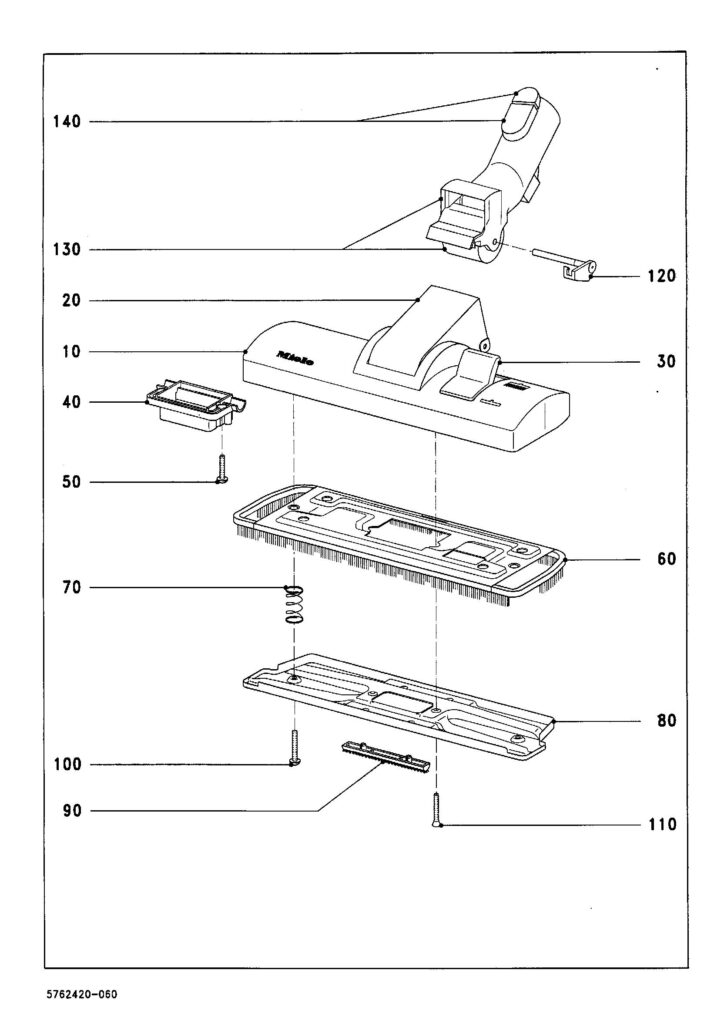

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Screw K40X45/25 EJOT-PT | 3930740 | $3.60Read more |
| 10-130 | Not Available | Floor nozzle SBD404 | 3996305 | Not Available |
| 10 | Not Available | -Casing top anthracite | 3884621 | Not Available |
| 20 | Not Available | -Air channel | 4024210 | Not Available |
| 20 | Not Available | Air channel | 4024210 | Not Available |
| 20 | Not Available | Air channel | 4024210 | Not Available |
| 30-50 | | Genuine Miele Linkage anthracite | 3947972 | $43.60Read more |
| 30 | Not Available | -Lid anthracite | 3884660 | Not Available |
| 40 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 60 | Not Available | -Roller black | 3947691 | Not Available |
| 70 | Not Available | -Bearing shield anthracite | 3948061 | Not Available |
| 80 | | Genuine Miele Support roller black | 3947921 | $27.90Read more |
| 95 | Not Available | -Bristle strip | 4366730 | Not Available |
| 95-110 | Not Available | Cv.kit floor plate | 4366661 | Not Available |
| 110 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 120 | Not Available | Cover | 3988860 | Not Available |
| 120 | Not Available | -Cover | 3988860 | Not Available |
| 120 | Not Available | Cover | 3988860 | Not Available |
| # | Part image | Description | SKU | Price |

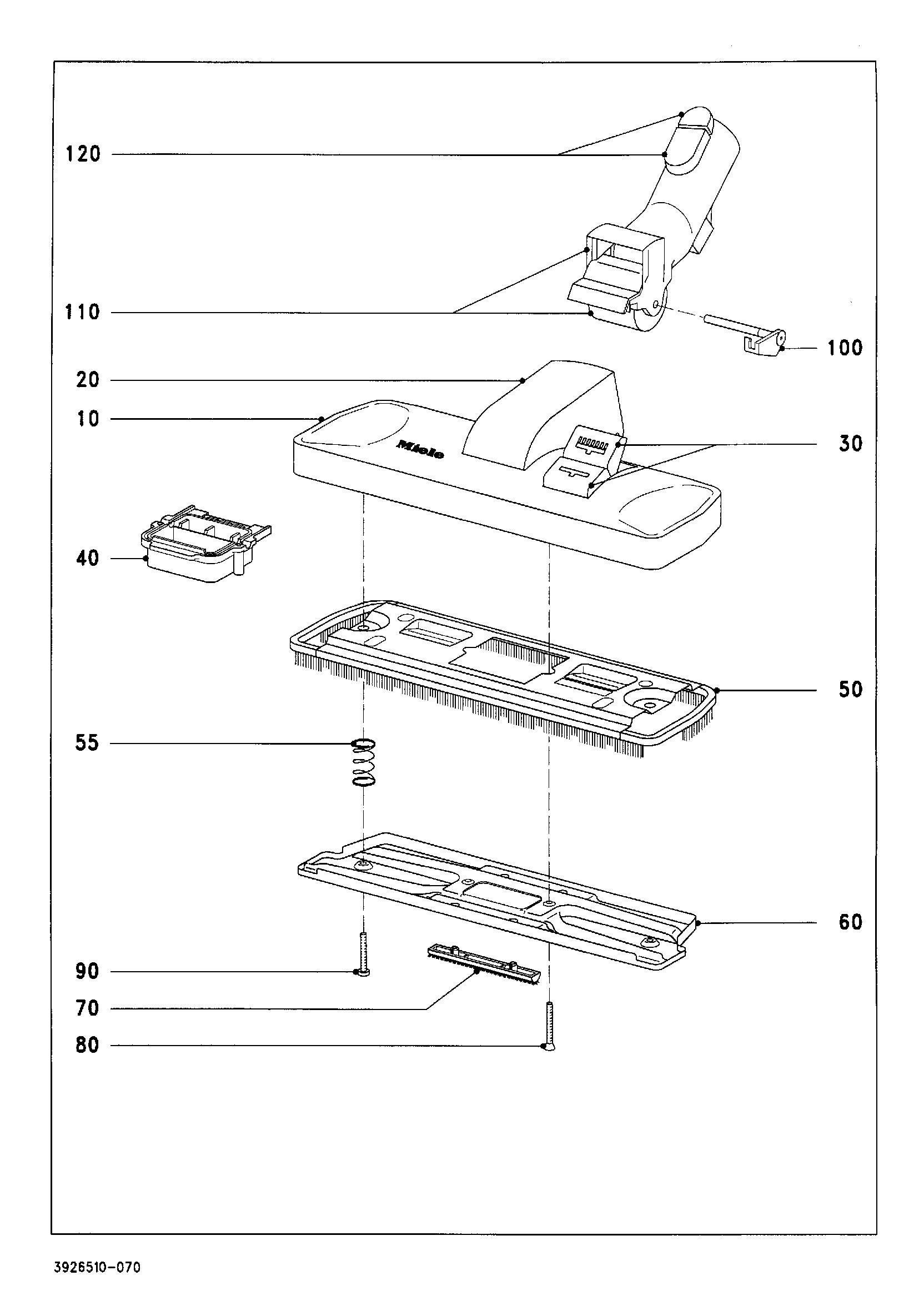

| w/o fig. | No Image | Floor Nozzle Sbd265 | 4769121 | $98.70Read more |
| 10-40 | Not Available | -Top anthracite | 3614251 | Not Available |
| 10-40 | Not Available | -Top anthracite | 3614251 | Not Available |
| 30 | | Genuine Miele Foot switch anthracite | 3649851 | $10.70Read more |
| 40 | Not Available | -Spacer | 3613000 | Not Available |
| 50 | Not Available | -Bristle supp.plate | 1229792 | Not Available |
| 55 |  | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |
| 60+70 | | Genuine Miele Lower section | 4969510 | $33.80Read more |
| 70 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 80 | Not Available | --Screw KA35X30 | 1702700 | Not Available |
| 90 | No Image | --Screw Ka35X27 Ejot-Pt | 3522020 | $2.50Read more |
| 100-120 | No Image | -Linkage Anthracite | 3685341 | $42.00Read more |
| 100 | | Genuine Miele Shaft anthracite | 3612910 | $10.70Read more |
| 120 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Screw KA35X16 EJOT-PT | 4863580 | $3.60Read more |
| 10-140 | Not Available | Floor nozzle SBD285-3 AllTeQ | 7253830 | Not Available |
| 10-50 | Not Available | -Top anthracite | 4789120 | Not Available |
| 20 | No Image | -Suction Channel Anthracite | 4769080 | $30.00Read more |
| 30 | No Image | -Foot Switch Anthracite | 4769070 | $30.00Read more |
| 40 | | Genuine Miele Fixing | 4769100 | $9.70Read more |
| 60 | Not Available | -Bristle supp.plate | 4769110 | Not Available |
| 70 | | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |
| 80+90 | | Genuine Miele Lower section | 4969510 | $33.80Read more |
| 90 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 100 | No Image | --Screw Ka35X27 Ejot-Pt | 3522020 | $2.50Read more |
| 110 |  | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $3.60Read more |
| 120-140 | | Genuine Miele Linkage SBD265 | 6260600 | $39.50Read more |
| 120 | | Genuine Miele Shaft anthracite | 3612910 | $10.70Read more |
| 140 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Screw K40X45/25 EJOT-PT | 3930740 | $3.60Read more |
| 20 | Not Available | -Casing top anthracite | 4334260 | Not Available |
| 30 | Not Available | -Lid anthracite | 4366490 | Not Available |
| 50-130 | Not Available | Floor nozzle SBD304 | 4334252 | Not Available |
| 50+55 | | Genuine Miele Linkage anthracite | 4366472 | $43.60Read more |
| 50 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 60 | No Image | -Roller Anthracite | 4366500 | $30.00Read more |
| 70 | | Genuine Miele Support roller black | 3947921 | $27.90Read more |
| 80 | Not Available | -Sealing strip | 4334370 | Not Available |
| 90 | | Genuine Miele Bristle strip | 4334410 | $24.70Read more |
| 100+110 | No Image | -Floor Plate Anthracite | 4334350 | $56.00Read more |
| 110 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 120 | | Genuine Miele Cover | 4334341 | $15.00Read more |
Report errors on this page HERE
