Schematic and parts book for Miele S324I S 324 I. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| XX |  | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| w/o fig. | Not Available | -Hose | 4445721 | Not Available |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw Zinc-plated 2,9X9,5 | 1023022 | $4.90Read more |
| 10-60 | No Image | Casing Bottom Anthracite | 4442040 | $109.00Read more |
| 20 | | Genuine Miele Shaft Slide skid | 3892600 | $9.70Read more |
| 40-60 | No Image | -Slide Skid Obsw Assy | 12494260 | $11.00Read more |
| 40-60 | No Image | -Slide Skid Obsw Assy | 12494260 | $11.00Read more |
| 70 | | Genuine Miele Grip handle anthracite | 4248920 | $4.90Read more |
| 90 | Not Available | Cover strip anthracite | 4273230 | Not Available |
| 100 | Not Available | Flush socket outlet 2 pole anthracite | 4309731 | Not Available |
| 101 | | Genuine Miele Fuse holder | 3604030 | $33.80Read more |
| 110 | | Genuine Miele Suspension anthracite | 4248881 | $10.70Read more |
| 120 |  | Genuine Miele Dust compart.filter 3 pcs. | 6713110 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 130+120 | | Genuine Miele Filter frame anthracite | 4910870 | $18.80Read more |
| 140 | | Genuine Miele Buffer anthracite | 4249262 | $71.70Read more |
| 150 | | Genuine Miele Torsion spring | 1348411 | $2.30Read more |
| 160 | | Genuine Miele Bracket vacuum cleaner bag | 6791731 | $13.50Read more |
| 174 | No Image | Vacuum Cleaner Bag Fjm Hyclean Pure Int | 12421140 | $0.00Read more |
| 174 | No Image | Compatible alternateAftermarket Miele FJM bags 4 pack bags More Product Details | FJMAM4PK | $9.99Add to cart |
| 180+190 | Not Available | Cloth filter bag S227-S858 | 5188842 | Not Available |
| 190 | | Genuine Miele Lock | 1058641 | $20.60Read more |
| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 10 | No Image | Casing Top Aubergine | 4214612 | $109.00Read more |
| 10 | Not Available | Casing top brick red | 4624722 | Not Available |
| 10 | | Genuine Miele Casing top Royal blue | 4842114 | $98.00Read more |
| 10 | No Image | Casing Top Corn Yellow | 4318973 | $109.00Read more |
| 10 | Not Available | Casing top Champagne | 4318982 | Not Available |
| 10 | No Image | Casing Top Polar Blue | 4318992 | $109.00Read more |
| 10 | | Genuine Miele Casing top Royal blue | 4842114 | $98.00Read more |
| 10 | No Image | Casing Top Pastel Red | 4692480 | $109.00Read more |
| 20 |  | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 30 |  | Genuine Miele Lock anthracite | 4248993 | $11.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Genuine Miele Coupler link anthracite | 3928160 | $4.90Read more |
| 50+60 | Not Available | Dust channel anthracite | 4290592 | Not Available |
| 60 | Not Available | -Sealing strip | 4235000 | Not Available |
| 80 | | Genuine Miele Torsion spring | 2348250 | $2.30Read more |
| 90+115 | No Image | Change Filter Ind. | 4434831 | $36.00Read more |
| 90 | | Genuine Miele interlock anthracite | 3928262 | $6.60Read more |
| 100 | Not Available | -Seal | 4249020 | Not Available |
| 120 | | Genuine Miele Torsion spring | 4249083 | $9.70Read more |
| 130+120 | Not Available | Lid Aubergine | 4979720 | Not Available |
| 130+120 | Not Available | Lid brick red | 4979731 | Not Available |
| 130+120 | Not Available | Lid lotos green | 4979751 | Not Available |
| 130+120 | No Image | Lid Corn Yellow | 4979771 | $56.00Read more |
| 130 | No Image | Lid Champagne | 4319140 | $36.00Read more |
| 130+120 | | Genuine Miele Lid Bahama blue | 5991152 | $52.20Read more |
| 130 | Not Available | Lid deep black | 6940622 | Not Available |
| 130+120 | No Image | Lid Pastel Red | 4979820 | $56.00Read more |
| # | Part image | Description | SKU | Price |
| XX |  | Genuine Miele Raised head screw 4,0x18 | 6238631 | $2.10Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| (80) | | Genuine Miele Seal | 4360330 | $10.70Read more |
| (100) | | Genuine Miele Hinge right anthracite | 4248981 | $4.90Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 10 | Not Available | Rear panel anthracite | 5696352 | Not Available |
| 10 | No Image | Rear Panel Brick Red | 4250362 | $76.00Read more |
| 10 | Not Available | Rear panel corn yellow | 4319052 | Not Available |
| 10 | No Image | Rear Panel Champagne | 4496111 | $76.00Read more |
| 10 | Not Available | Rear panel Polar blue | 4319071 | Not Available |
| 10 | Not Available | Rear panel turquoise | 4319081 | Not Available |
| 10 | Not Available | Rear panel pastel red | 4692760 | Not Available |
| 30-60 | | Genuine Miele Cable reel S300 6,5m 120V | 4369459 | $176.20Read more |
| 40 | | Genuine Miele Torsion spring S300-S5000 | 6217500 | $6.60Read more |
| 50 | No Image | -Brake Lever S300/500/700 | 4312183 | $7.59Read more |
| 60 | Not Available | -Supply cable 6,65m 17AWG 120V USA | 5241032 | Not Available |
| 80 | Not Available | Seal | 4053890 | Not Available |
| 90 | | Genuine Miele Plug housing | 4172273 | $18.80Read more |
| 90 |  | Available ReconditionedReconditioned Genuine Miele Plug housing More Product Details | 4172273R | $14.90Add to cart |
| 100 | | Genuine Miele Hinge left anthracite | 4248971 | $4.90Read more |
| 110 |  | Genuine Miele Filter holder | 4249095 | $18.80Add to cart |
| 120 |  | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 | No Image | Active Hepa Filter Sf-Ah30 S300-800 | 4854915 | $0.00Read more |
| 130 | No Image | Act.Air Cleanfilter Sf-Aac30 S300-800 | 4306918 | $0.00Read more |
| 140 | Not Available | Scent | 3027951 | Not Available |
| 150 | | Genuine Miele Foot switch right anthracite | 4249110 | $15.00Read more |
| 150-240 | Not Available | Cap anthracite 1100W | 4441710 | Not Available |
| 160 | Not Available | Foot switch left anthracite | 7018631 | Not Available |
| 170 | | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 180 | Not Available | Cap anthracite 1100W | 4461270 | Not Available |
| 190 | Not Available | Slide | 4272020 | Not Available |
| 200 | Not Available | Gear rack | 4272040 | Not Available |
| 210 | Not Available | Cogwheel | 4272030 | Not Available |
| 220 | | Genuine Miele Potentiometer | 3934451 | $59.40Read more |
| 230 | Not Available | Bracket | 4272050 | Not Available |
| 240 | | Genuine Miele Plug housing | 4172281 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 240-260 | | Genuine Miele Switch 120V S310I-S338I | 5134450 | $98.00Read more |
| 250 | Not Available | Indicator light 120V | 4309290 | Not Available |
| 260 | No Image | -Switch 1 Pole 1681.3103 | 9023231 | $9.60Add to cart Special order: ships in 2 to 4 weeks |
| 400 |  | Genuine Miele Connecting cable | 4309751 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| XX | No Image | --Roundheaded Screw 5/32.Zollx8 | 49673 | $7.59Read more |
| XX | Not Available | --Raised head screw 4,8X10,5 | 4268011 | Not Available |
| XX | | Genuine Miele Raised head screw 3,9X6,5 | 4781122 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| XX | | Genuine Miele Raised head screw 3,9X6,5 | 4781122 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 10-40 | Not Available | Fan 117923-23 120V 60HZ | 4318370 | Not Available |
| 20 | | Genuine Miele Carbon brush | 2830481 | $56.80Read more |
| 30 | | Genuine Miele Clamping bracket | 75426 | $9.70Read more |
| 50 | | Genuine Miele Fixing | 1889550 | $9.70Read more |
| 70 | | Genuine Miele Thermoswitch 10A 250V | 79864 | $39.50Read more |
| 90 | | Genuine Miele Electronic unit EDL211 120V 60HZ | 4416342 | $150.60Read more |
| 100 | | Genuine Miele Bearing ring | 4249160 | $13.50Read more |
| 110 | | Genuine Miele Bearing plate light grey | 4249150 | $9.70Read more |
| 120 | | Genuine Miele Rubber cushion black | 3928380 | $0.00Read more |
| 130 | | Genuine Miele Motor bracket black | 4249140 | $13.50Read more |
| # | Part image | Description | SKU | Price |
| 10-60 | | Genuine Miele Suction hose anthracite | 3947436 | $53.00Add to cart Special order: ships in 2 to 4 weeks |
| 10-30 |  | Genuine Miele Suction hose silver-coloured 1,8m | 3565351 | $51.00Add to cart |
| 20 | | Genuine Miele Ring anthracite | 3565360 | $4.90Read more |
| 30 | | Genuine Miele Sleeve | 91205 | $9.70Read more |
| 40 |  | Genuine Miele Elbow anthracite | 3982544 | $42.00Read more |
| 50+60 | | Genuine Miele Tubular handle anthracite assy | 3565461 | $56.00Add to cart Special order: ships in 2 to 4 weeks |
| 50+60 |  | Compatible alternateGenuine Miele Vacuum Cleaner Bend End for S series S200-S800 More Product Details | 3565460 | $35.99Add to cart Special order: ships in 2 to 4 weeks |
| 60 | | Genuine Miele Suction control anthracite | 3565580 | $3.60Read more |
| 70 | | Genuine Miele Connecting tube anthracite | 3565760 | $20.60Read more |
| 82 | No Image | -Slide Lava Grey | 3205631 | $7.59Read more |
| 82 | No Image | -Slide Anthracite | 3570310 | $5.64Read more |
| 84+86 |  | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 84 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 92 | No Image | -Slide Anthracite | 4333600 | $7.00Read more |
| 94+96 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 94 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 102 | | Genuine Miele Push button 15x30mm | 4832460 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 104+106 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 104 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 110-120 |  | Genuine Miele Telescopic pipe 2-part st.steel | 5658812 | $0.00Read more |
| 110-120 |  | Available Pre OwnedReconditioned Miele Telescopic Aluminum Wand for Miele Upright Vacuums 6801181 More Product Details | 6801180R | $48.00Add to cart |
| 110-120 |  | Compatible alternateGenuine Miele Telescopic pipe Aluminium More Product Details | 6801181 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 112 |  | Genuine Miele Push button Round | 5780932 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 115+120 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 | No Image | Crevice Nozzle 149Mm Obsw | 9442631 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 140 | | Genuine Miele ST Radiator brush SHB30 | 9660490 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 160 | | Genuine Miele Thread lifter 2 Pcs. | 2348770 | $13.50Read more |
| 165+166 | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 166 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 186 |  | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $26.00Add to cart Special order: ships in 2 to 4 weeks |
| 186 | No Image | Dusting Brush Anthracite | 5098711 | $16.00Read more |
| 190+200 | | Genuine Miele ST Mattress nozzle SMD10 | 7252280 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 200 | | Genuine Miele Thread lifter | 5056530 | $9.70Read more |
| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Screw K40X45/25 EJOT-PT | 3930740 | $3.60Read more |
| 10-130 | Not Available | Floor nozzle SBD404 | 3996305 | Not Available |
| 10 | Not Available | -Casing top anthracite | 3884621 | Not Available |
| 20 | Not Available | -Air channel | 4024210 | Not Available |
| 30-50 | | Genuine Miele Linkage anthracite | 3947972 | $43.60Read more |
| 30 | Not Available | -Lid anthracite | 3884660 | Not Available |
| 40 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 60 | Not Available | -Roller black | 3947691 | Not Available |
| 70 | Not Available | -Bearing shield anthracite | 3948061 | Not Available |
| 80 | | Genuine Miele Support roller black | 3947921 | $27.90Read more |
| 95 | Not Available | -Bristle strip | 4366730 | Not Available |
| 95-110 | Not Available | -Cv.kit floor plate | 4366661 | Not Available |
| 110 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 120 | Not Available | -Cover | 3988860 | Not Available |

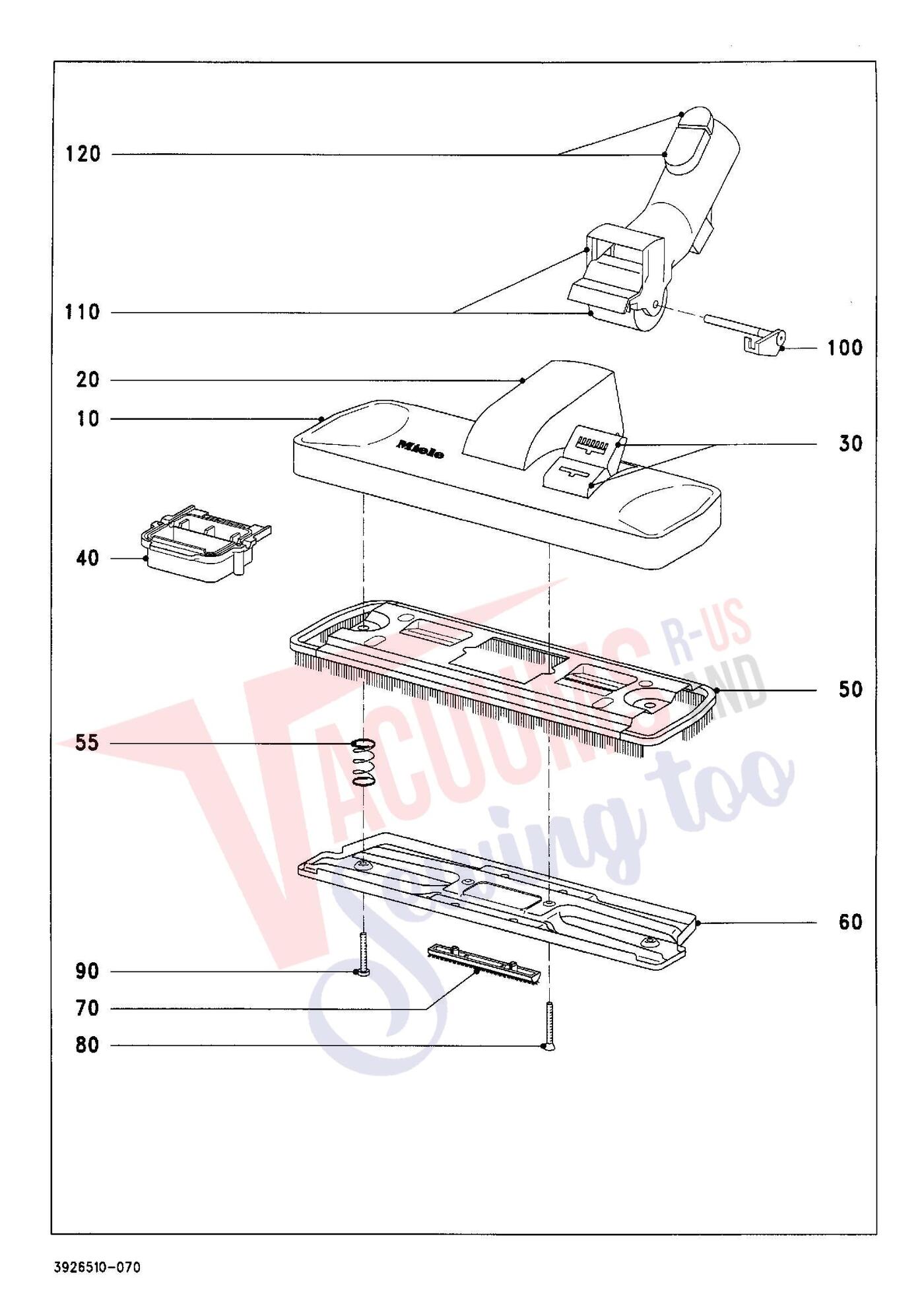

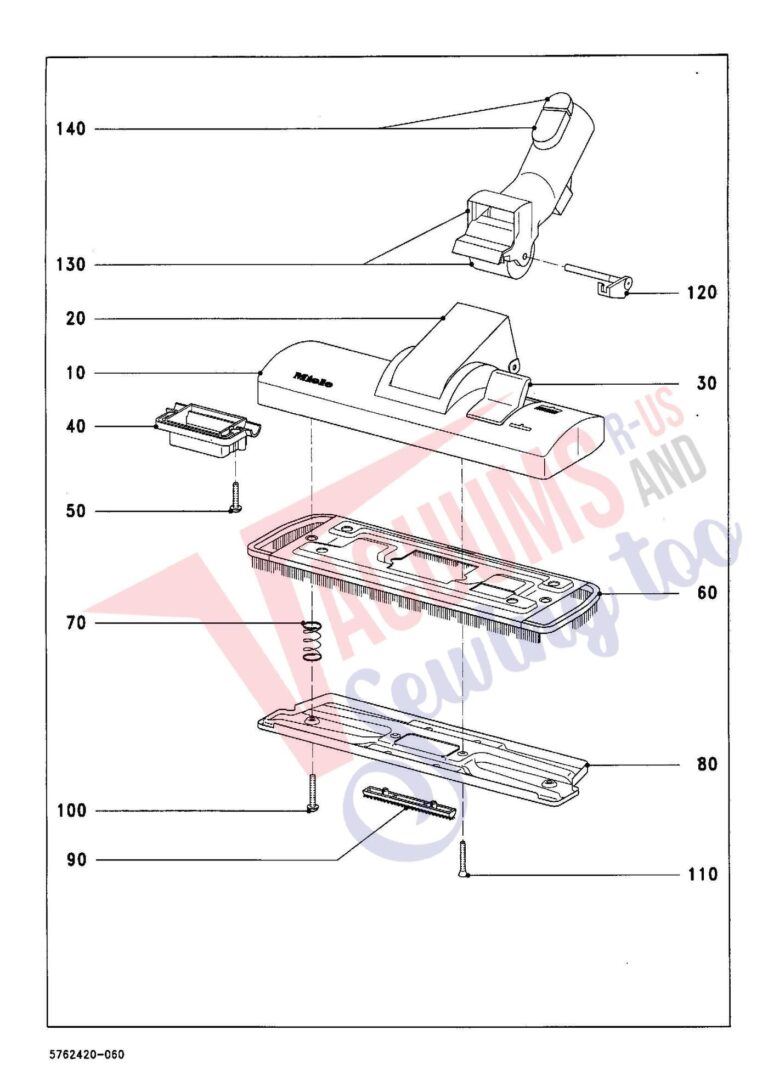

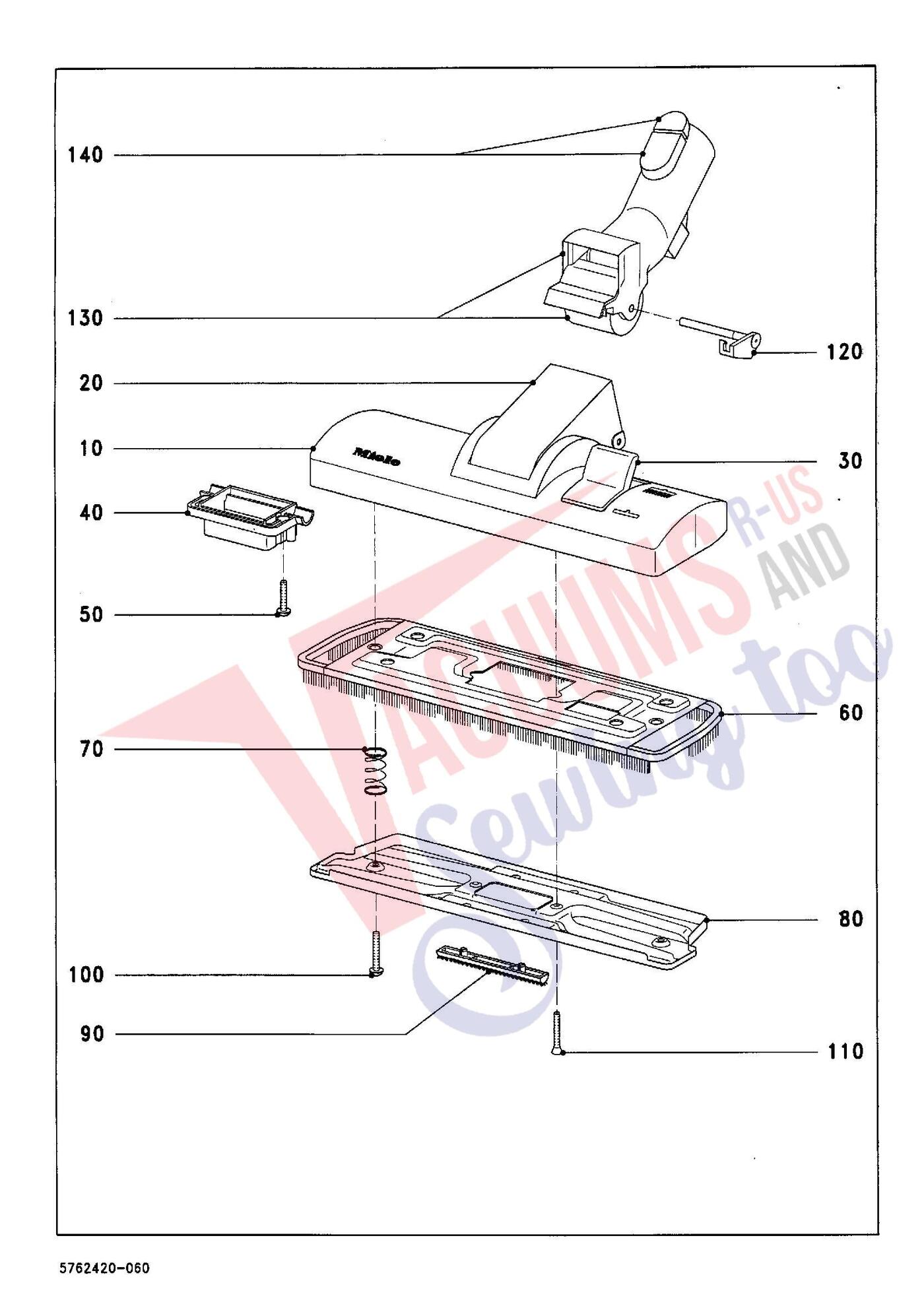

| # | Part image | Description | SKU | Price |
| w/o fig. | No Image | Floor Nozzle Sbd265 | 4769121 | $98.70Read more |
| 10-40 | Not Available | -Top anthracite | 3614251 | Not Available |
| 10-40 | Not Available | -Top anthracite | 3614251 | Not Available |
| 30 | | Genuine Miele Foot switch anthracite | 3649851 | $10.70Read more |
| 40 | Not Available | -Spacer | 3613000 | Not Available |
| 50 | Not Available | -Bristle supp.plate | 1229792 | Not Available |
| 55 |  | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |
| 60+70 | | Genuine Miele Lower section | 4969510 | $33.80Read more |
| 70 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 80 | Not Available | --Screw KA35X30 | 1702700 | Not Available |
| 90 | No Image | --Screw Ka35X27 Ejot-Pt | 3522020 | $2.50Read more |
| 100-120 | No Image | -Linkage Anthracite | 3685341 | $42.00Read more |
| 100 | | Genuine Miele Shaft anthracite | 3612910 | $10.70Read more |
| 120 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Screw KA35X16 EJOT-PT | 4863580 | $3.60Read more |
| 10-140 | Not Available | Floor nozzle SBD285-3 AllTeQ | 7253830 | Not Available |
| 10-50 | Not Available | -Top anthracite | 4789120 | Not Available |
| 20 | No Image | -Suction Channel Anthracite | 4769080 | $30.00Read more |
| 30 | No Image | -Foot Switch Anthracite | 4769070 | $30.00Read more |
| 40 | | Genuine Miele Fixing | 4769100 | $9.70Read more |
| 60 | Not Available | -Bristle supp.plate | 4769110 | Not Available |
| 70 | | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |
| 80+90 | | Genuine Miele Lower section | 4969510 | $33.80Read more |
| 90 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 100 | No Image | --Screw Ka35X27 Ejot-Pt | 3522020 | $2.50Read more |
| 110 |  | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $3.60Read more |
| 120-140 | | Genuine Miele Linkage SBD265 | 6260600 | $39.50Read more |
| 120 | | Genuine Miele Shaft anthracite | 3612910 | $10.70Read more |
| 140 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |

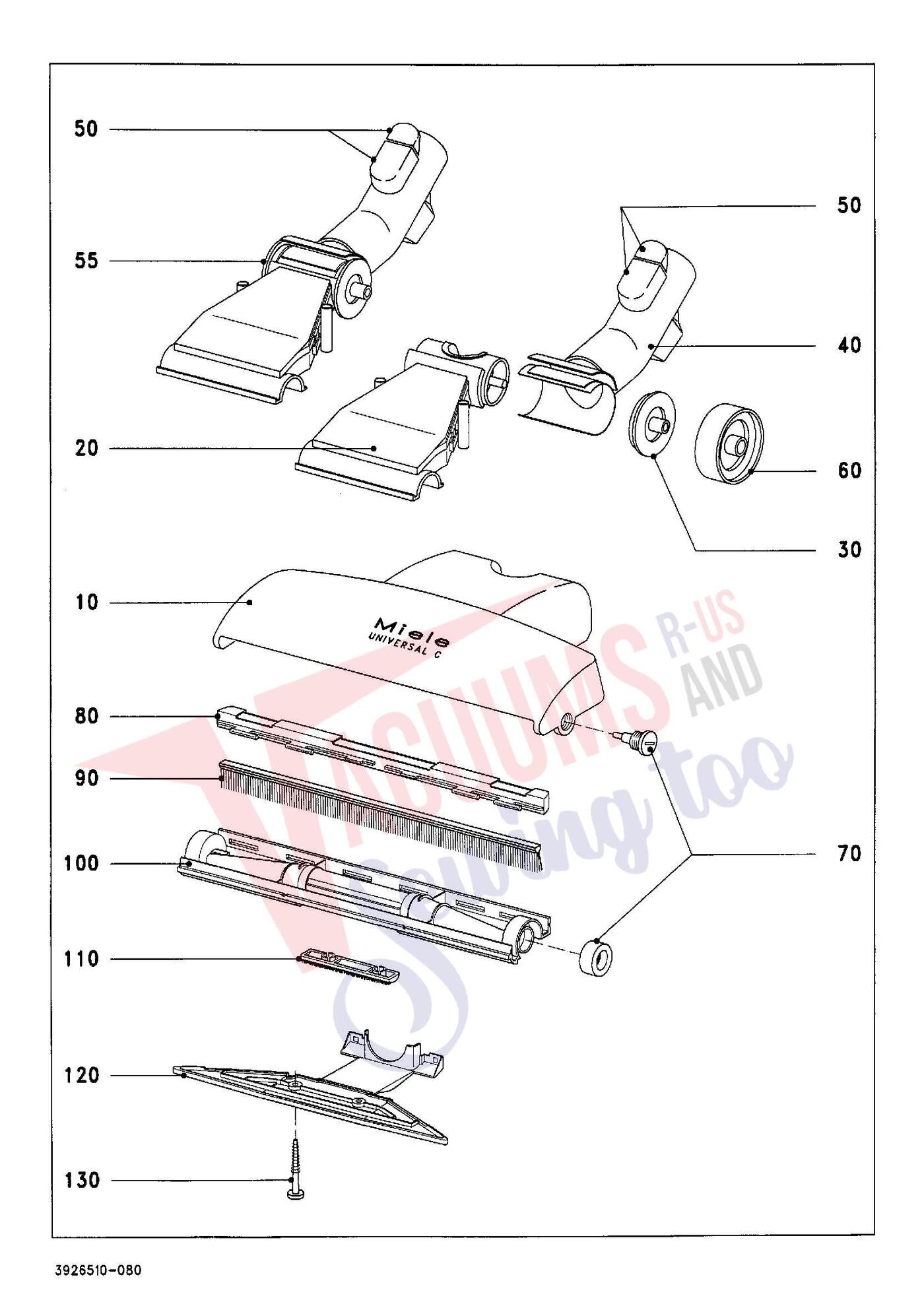

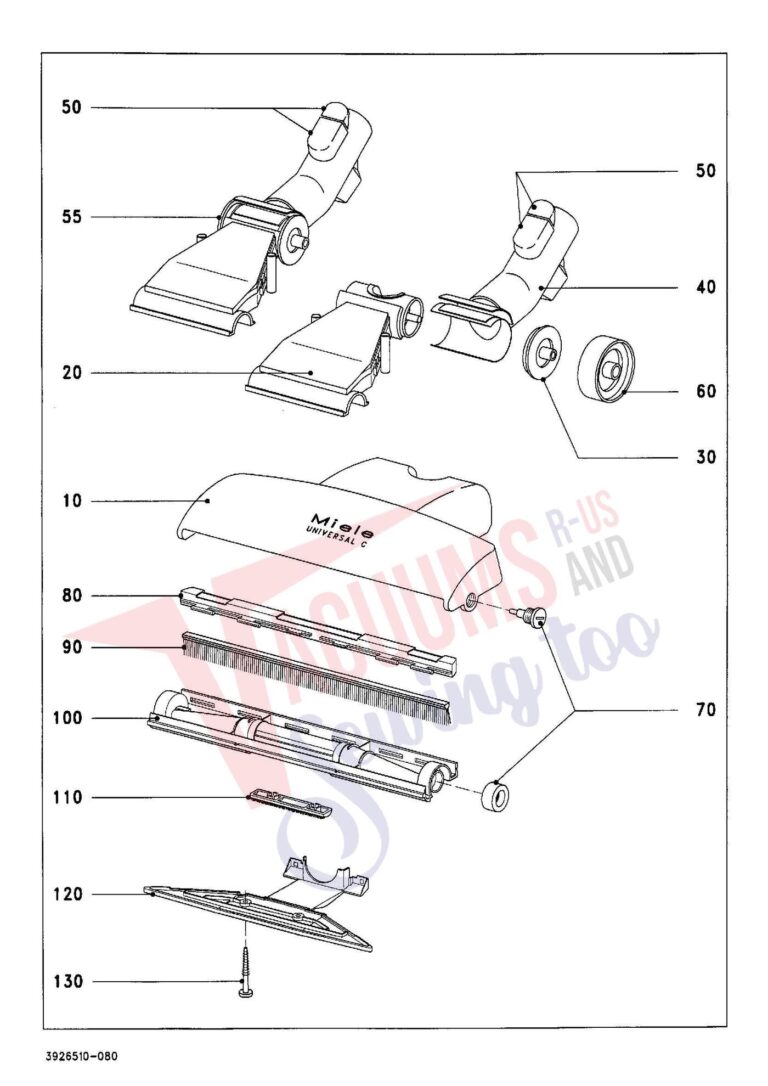

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Screw K40X45/25 EJOT-PT | 3930740 | $3.60Read more |
| 10 | Not Available | -Casing top anthracite | 4334260 | Not Available |
| 20 | Not Available | -Air channel anthracite | 4366480 | Not Available |
| 30 | Not Available | -Lid anthracite | 4366490 | Not Available |
| 50-130 | Not Available | Floor nozzle SBD304 | 4334252 | Not Available |
| 50+55 | | Genuine Miele Linkage anthracite | 4366472 | $43.60Read more |
| 50 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 60 | No Image | -Roller Anthracite | 4366500 | $30.00Read more |
| 70 | | Genuine Miele Support roller black | 3947921 | $27.90Read more |
| 80 | Not Available | -Sealing strip | 4334370 | Not Available |
| 90 | | Genuine Miele Bristle strip | 4334410 | $24.70Read more |
| 100+110 | | Genuine Miele Floor plate anthracite | 4334351 | $52.20Read more |
| 110 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 120 | | Genuine Miele Cover | 4334341 | $15.00Read more |
Report errors on this page HERE
