Schematic and parts book for Miele S311I S 311 I. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

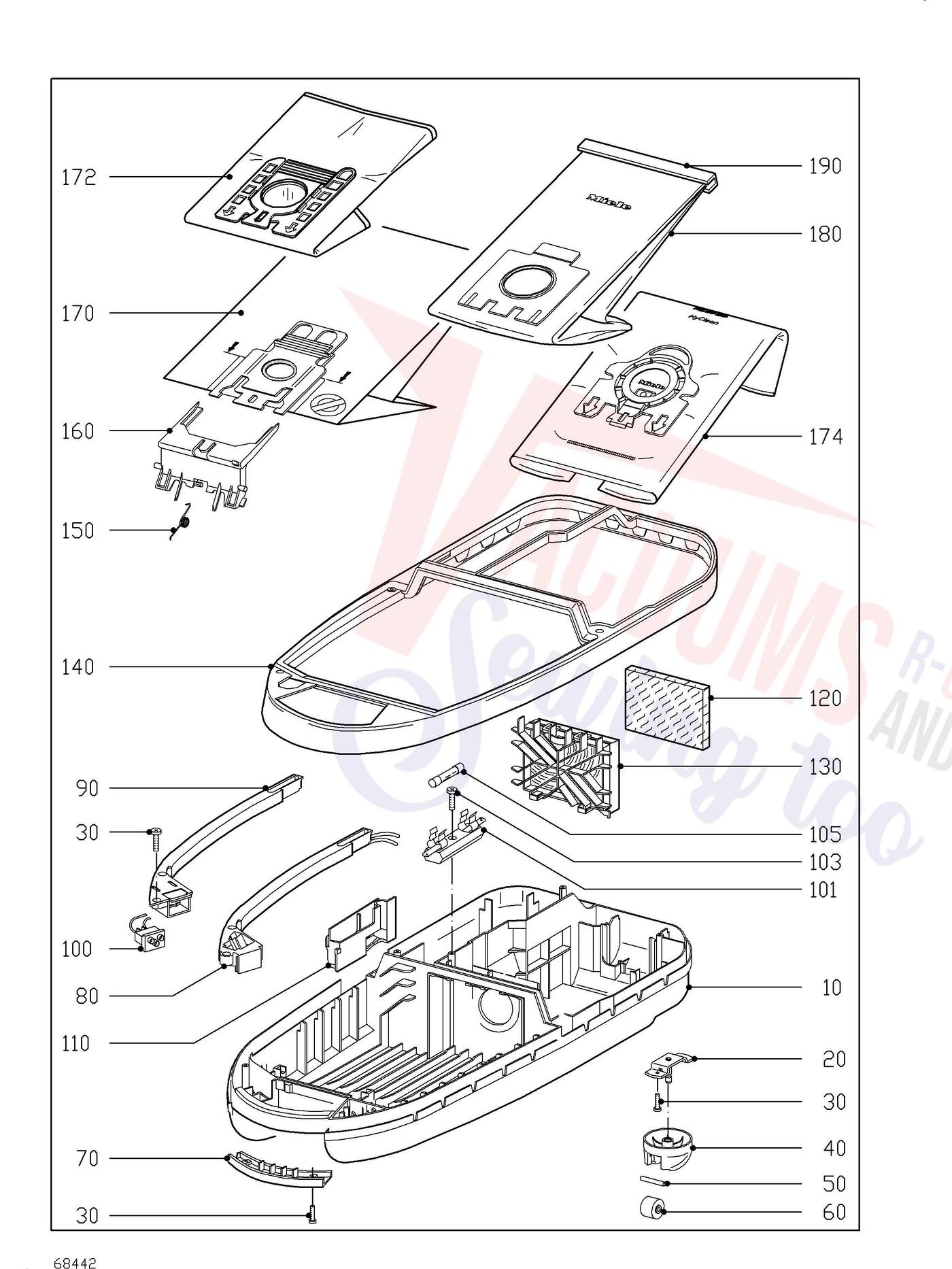

| # | Part image | Description | SKU | Price |
| XX |  | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 20 | | Genuine Miele Shaft Slide skid | 3892600 | $9.70Read more |
| 40-60 | No Image | -Slide Skid Obsw Assy | 12494260 | $11.00Read more |
| 40-60 | No Image | -Slide Skid Obsw Assy | 12494260 | $11.00Read more |
| 70 | | Genuine Miele Grip handle anthracite | 4248920 | $4.90Read more |
| 80 | | Genuine Miele Cover strip anthracite | 4248951 | $13.50Read more |
| 110 | | Genuine Miele Suspension anthracite | 4248881 | $10.70Read more |
| 120 |  | Genuine Miele Dust compart.filter 3 pcs. | 6713110 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 130+120 | | Genuine Miele Filter frame anthracite | 4910870 | $18.80Read more |
| 140 | | Genuine Miele Buffer anthracite | 4249262 | $71.70Read more |
| 150 | | Genuine Miele Torsion spring | 1348411 | $2.30Read more |
| 160 | | Genuine Miele Bracket vacuum cleaner bag | 6791731 | $13.50Read more |
| 174 | No Image | Vacuum Cleaner Bag Fjm Hyclean Pure Int | 12421140 | $0.00Read more |
| 174 | No Image | Compatible alternateAftermarket Miele FJM bags 4 pack bags More Product Details | FJMAM4PK | $9.99Add to cart |
| 180+190 | Not Available | Cloth filter bag S227-S858 | 5188842 | Not Available |
| 190 | | Genuine Miele Lock | 1058641 | $20.60Read more |

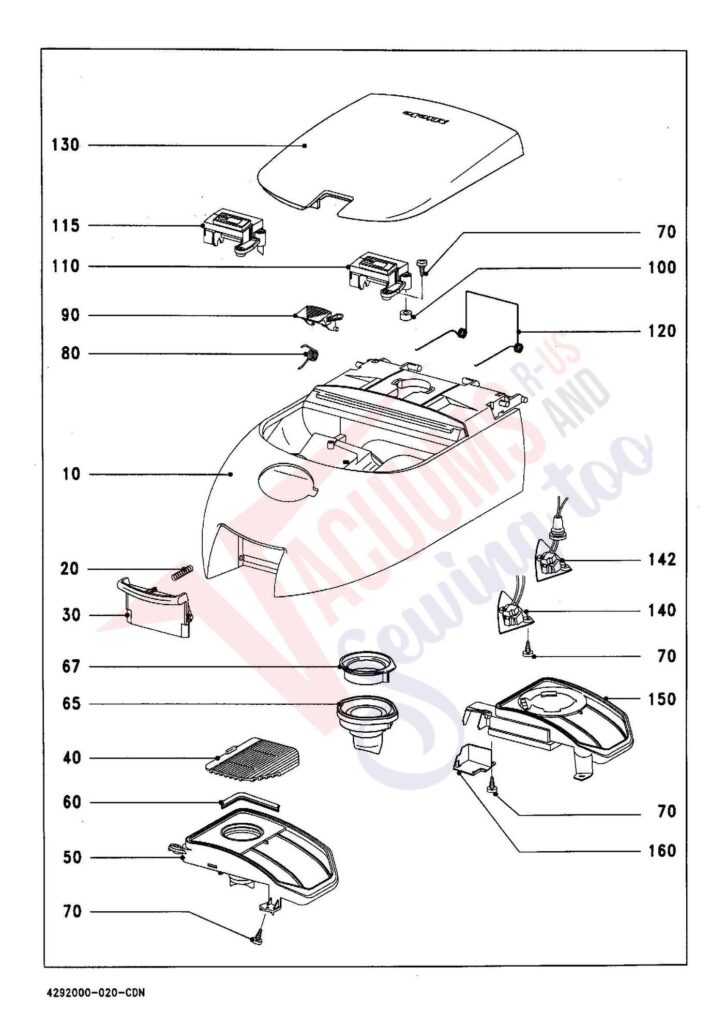

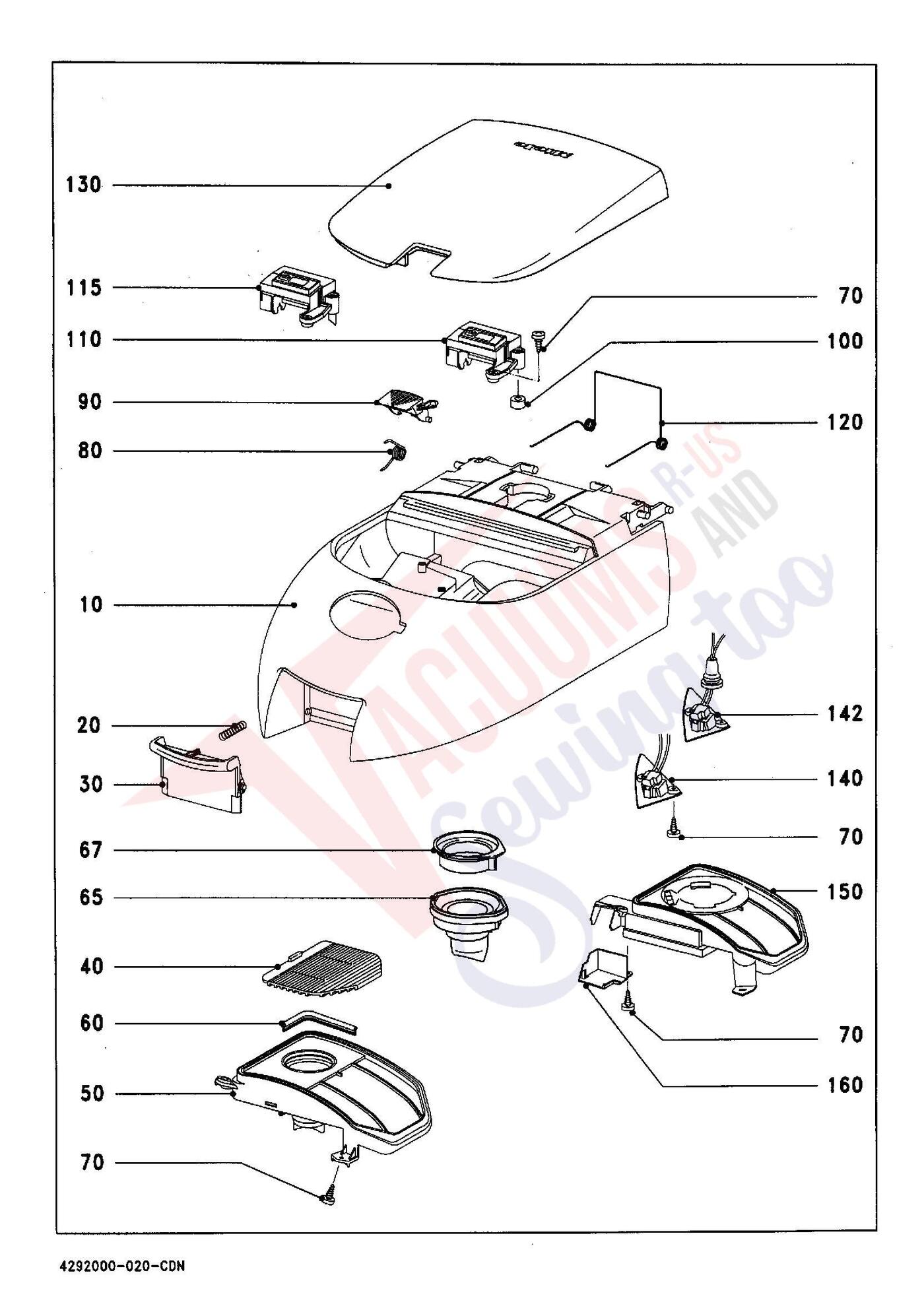

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 10 | Not Available | Casing top brick red | 4624722 | Not Available |
| 10 | | Genuine Miele Casing top Brilliant white | 4214634 | $98.00Read more |
| 10 | | Genuine Miele Casing top Royal blue | 4842114 | $98.00Read more |
| 10 | Not Available | Casing top corn yellow | 4318974 | Not Available |
| 10 | No Image | Casing Top Pastel Red | 4692480 | $109.00Read more |
| 10 | Not Available | Casing top Orange | 4747590 | Not Available |
| 10 | | Genuine Miele Casing top Royal blue | 4842114 | $98.00Read more |
| 10 | No Image | Casing Top Mint Green | 5031140 | $109.00Read more |
| 10 | No Image | Casing Top Alu-Silver | 5182511 | $100.00Read more |
| 10 | Not Available | Casing top irish green metallic | 5720233 | Not Available |
| 20 |  | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 30 |  | Genuine Miele Lock anthracite | 4248993 | $11.00Add to cart Special order: ships in 2 to 4 weeks |
| 50+60 | Not Available | Dust channel anthracite | 4290592 | Not Available |
| 60 | Not Available | -Sealing strip | 4235000 | Not Available |
| 65 | | Genuine Miele Slide sleeve anthracite | 5038840 | $15.00Read more |
| 67 | | Genuine Miele Ring anthracite | 4949370 | $10.70Read more |
| 80 | | Genuine Miele Torsion spring | 2348250 | $2.30Read more |
| 90 | | Genuine Miele interlock anthracite | 3928262 | $6.60Read more |
| 100 | Not Available | -Seal | 4249020 | Not Available |
| 120 | | Genuine Miele Torsion spring | 4249083 | $9.70Read more |
| 130+120 | Not Available | Lid brick red | 4979731 | Not Available |
| 130+120 | Not Available | Lid Brilliant white | 4979741 | Not Available |
| 130+120 | Not Available | Lid lotos green | 4979751 | Not Available |
| 130+120 | No Image | Lid Corn Yellow | 4979771 | $56.00Read more |
| 130+120 | Not Available | Lid brick red | 4979731 | Not Available |
| 130+120 | | Genuine Miele Lid Orange | 4979840 | $52.20Read more |
| 130+120 | No Image | Lid Royal Blue | 4979871 | $56.00Read more |
| 130 | Not Available | Lid Mint green | 5031202 | Not Available |
| 130 | No Image | Lid Alu-Silver | 5695102 | $66.00Read more |
| 130 | Not Available | Lid alu-silver | 5726032 | Not Available |
| 130 | Not Available | Lid irish green metallic | 5726052 | Not Available |

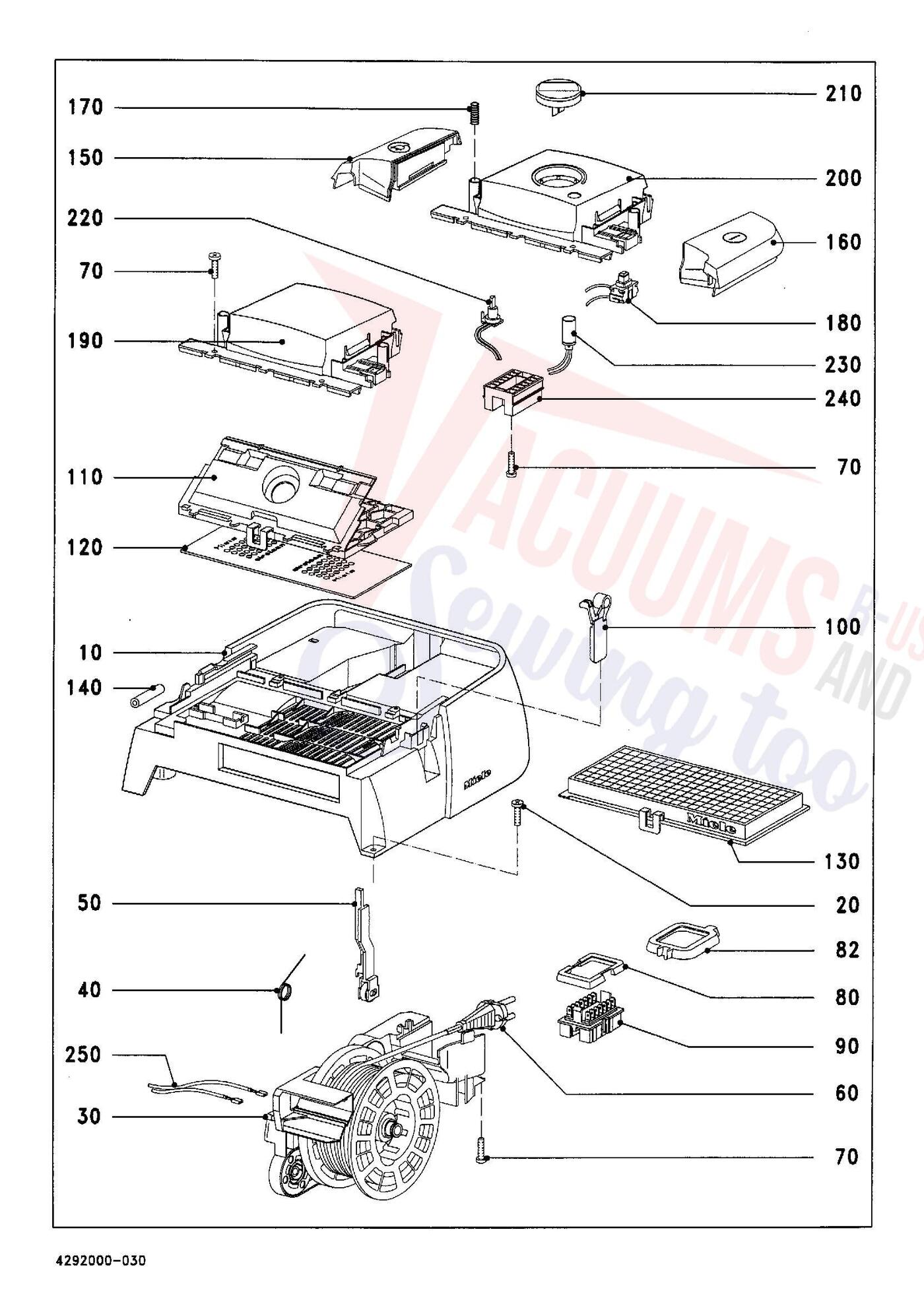

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| (100) | | Genuine Miele Hinge right anthracite | 4248981 | $4.90Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 10 | No Image | Rear Panel Brick Red | 4250362 | $76.00Read more |
| 10 | Not Available | Rear panel Brilliant white | 4250372 | Not Available |
| 10 | Not Available | Rear panel Royal blue | 4842183 | Not Available |
| 10 | Not Available | Rear panel corn yellow | 4319052 | Not Available |
| 10 | Not Available | Rear panel pastel red | 4692760 | Not Available |
| 10 | Not Available | Rear panel Orange | 4749890 | Not Available |
| 10 | Not Available | Rear panel Royal blue | 4842183 | Not Available |
| 10 | No Image | Rear Panel Mint Green | 5031250 | $76.00Read more |
| 10 | Not Available | Rear panel alu-silver | 5182570 | Not Available |
| 10 | Not Available | Rear panel irish green metallic | 5720572 | Not Available |
| 30-60 | Not Available | Cable reel S300 6,5m EU | 4249106 | Not Available |
| 40 | | Genuine Miele Torsion spring S300-S5000 | 6217500 | $6.60Read more |
| 50 | No Image | -Brake Lever S300/500/700 | 4312183 | $7.59Read more |
| 60 | No Image | -Supply Cable 6,65M 230V | 4691520 | $61.00Read more |
| 82 | | Genuine Miele Seal | 4360330 | $10.70Read more |
| 90 | | Genuine Miele Plug housing | 4172273 | $18.80Read more |
| 90 |  | Available ReconditionedReconditioned Genuine Miele Plug housing More Product Details | 4172273R | $14.90Add to cart |
| 100 | | Genuine Miele Hinge left anthracite | 4248971 | $4.90Read more |
| 110 |  | Genuine Miele Filter holder | 4249095 | $18.80Add to cart |
| 120 |  | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 | No Image | Active Hepa Filter Sf-Ah30 S300-800 | 4854915 | $0.00Read more |
| 130 | No Image | Act.Air Cleanfilter Sf-Aac30 S300-800 | 4306918 | $0.00Read more |
| 140 | Not Available | Scent | 3027951 | Not Available |
| 150 | | Genuine Miele Foot switch right anthracite | 4249110 | $15.00Read more |
| 160 | Not Available | Foot switch left anthracite | 7018631 | Not Available |
| 170 | | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 180 | No Image | -Switch 1 Pole 1681.3103 | 9023231 | $9.60Add to cart Special order: ships in 2 to 4 weeks |
| 200 | Not Available | Cap Min. - Max. | 6439750 | Not Available |
| 200 | Not Available | Cap Min. - Max. | 6439750 | Not Available |
| 210 | | Genuine Miele Programme knob anthracite | 4272000 | $4.90Read more |
| 220 | No Image | Potentiometer | 3934411 | $47.00Read more |
| 240 | | Genuine Miele Plug housing | 4172281 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 250 | No Image | Connecting Cable 2 Pole | 4248851 | $27.00Read more |

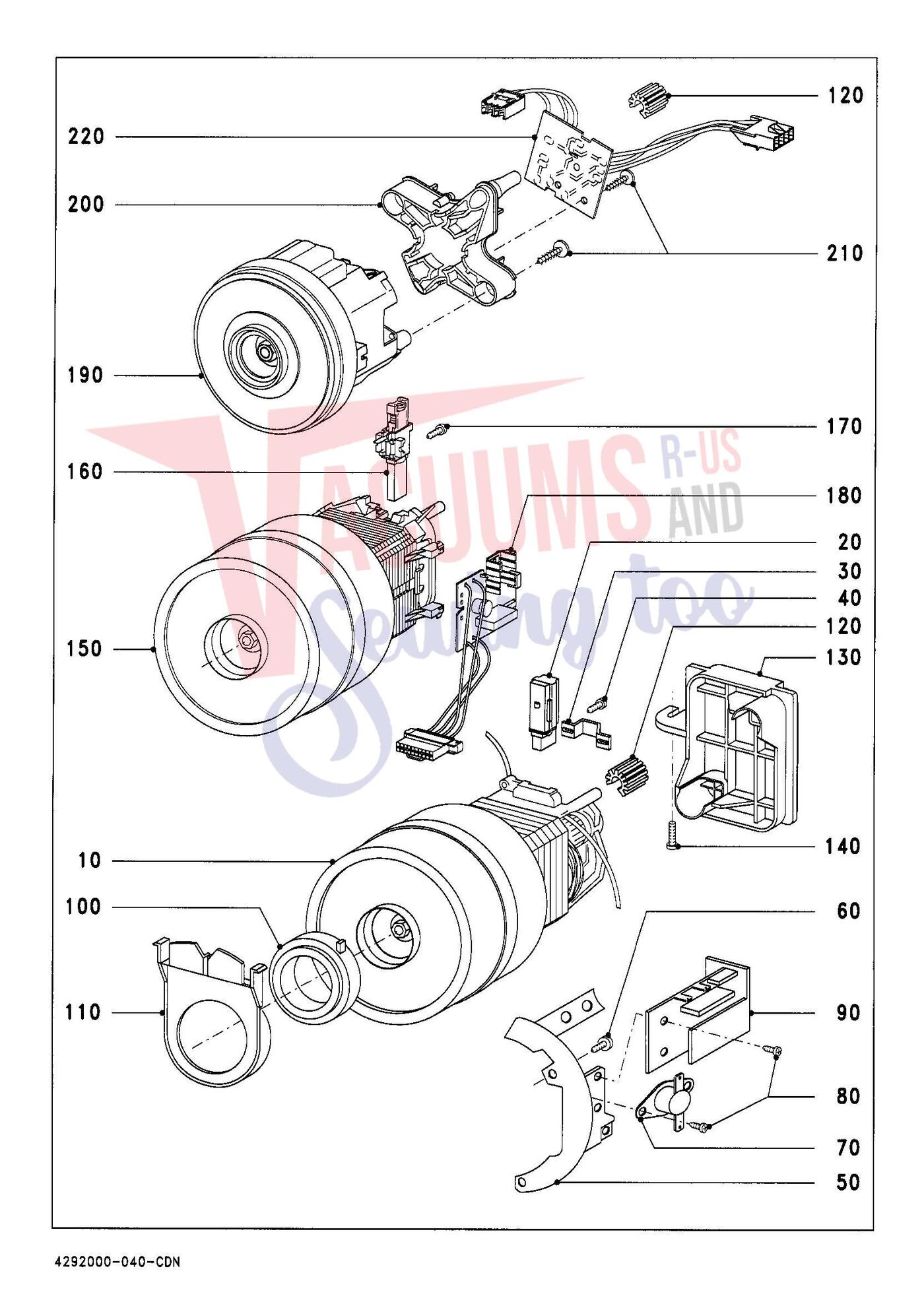

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 3,9X9,5 | 3903441 | $2.30Read more |
| XX | | Genuine Miele Bearing ring | 4249160 | $13.50Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| w/o fig. | | Genuine Miele Damping plate | 4290290 | $20.60Read more |
| 80 | | Genuine Miele Bearing ring | 4249160 | $13.50Read more |
| 110 | | Genuine Miele Motor bracket black | 4249140 | $13.50Read more |
| 160 | | Genuine Miele Adapter Fan | 5708930 | $43.60Read more |

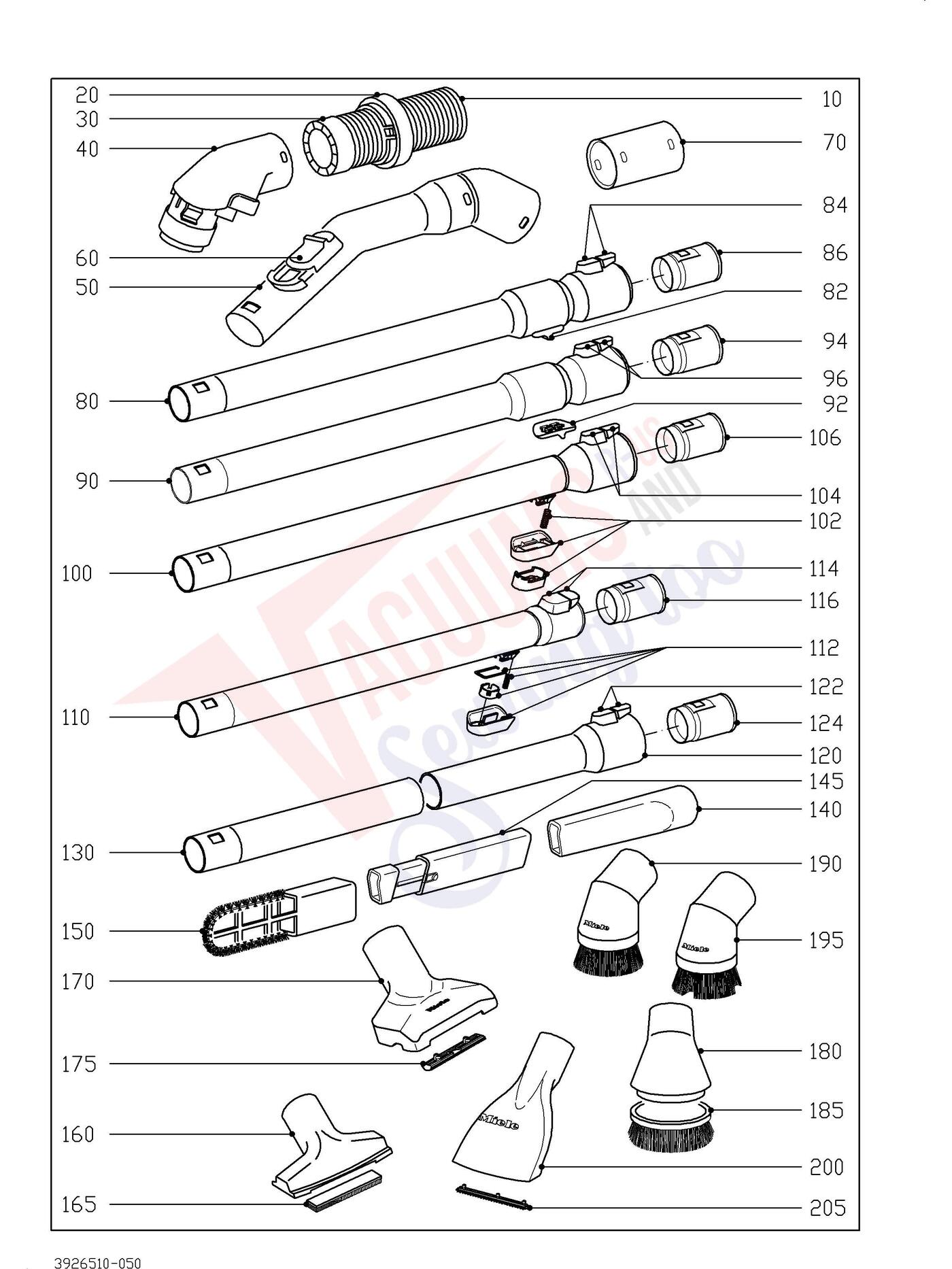

| # | Part image | Description | SKU | Price |
| 10-60 | | Genuine Miele Suction hose anthracite | 3947436 | $53.00Add to cart Special order: ships in 2 to 4 weeks |
| 10-30 |  | Genuine Miele Suction hose silver-coloured 1,8m | 3565351 | $51.00Add to cart |
| 10-30 | No Image | Suction Hose Black 1,8M | 4788350 | $83.00Read more |
| 20 | | Genuine Miele Ring anthracite | 3565360 | $4.90Read more |
| 30 | | Genuine Miele Sleeve | 91205 | $9.70Read more |
| 40 |  | Genuine Miele Elbow anthracite | 3982544 | $42.00Read more |
| 50+60 | | Genuine Miele Tubular handle anthracite assy | 3565461 | $56.00Add to cart Special order: ships in 2 to 4 weeks |
| 50+60 |  | Compatible alternateGenuine Miele Vacuum Cleaner Bend End for S series S200-S800 More Product Details | 3565460 | $35.99Add to cart Special order: ships in 2 to 4 weeks |
| 60 | | Genuine Miele Suction control anthracite | 3565580 | $3.60Read more |
| 70 | | Genuine Miele Connecting tube anthracite | 3565760 | $20.60Read more |
| 82 | No Image | -Slide Anthracite | 3570310 | $5.64Read more |
| 84+86 |  | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 84 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 92 | No Image | -Slide Anthracite | 4333600 | $7.00Read more |
| 94+96 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 94 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 102 | | Genuine Miele Push button 15x30mm | 4832460 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 104+106 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 104 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 110-116 |  | Genuine Miele Telescopic pipe 2-part st.steel | 5658812 | $0.00Read more |
| 110-116 |  | Available Pre OwnedReconditioned Miele Telescopic Aluminum Wand for Miele Upright Vacuums 6801181 More Product Details | 6801180R | $48.00Add to cart |
| 110-116 |  | Compatible alternateGenuine Miele Telescopic pipe Aluminium More Product Details | 6801181 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 112 |  | Genuine Miele Push button Round | 5780932 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 114+116 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 114 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 120-124 | No Image | Suction Pipe Top Obsw Assy | 12421840 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
| 122+124 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 122 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 | No Image | Suction Pipe Top Obsw Assy | 12421840 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
| 140 | No Image | Crevice Nozzle 149Mm Obsw | 9442631 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 150 | | Genuine Miele ST Radiator brush SHB30 | 9660490 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 165 | | Genuine Miele Thread lifter 2 Pcs. | 2348770 | $13.50Read more |
| 170+175 | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 175 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 195 | No Image | Dusting Brush L | 12187780 | $24.00Add to cart Special order: ships in 2 to 4 weeks |
| 195 |  | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $26.00Add to cart Special order: ships in 2 to 4 weeks |
| 200+205 | | Genuine Miele ST Mattress nozzle SMD10 | 7252280 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 205 | | Genuine Miele Thread lifter | 5056530 | $9.70Read more |

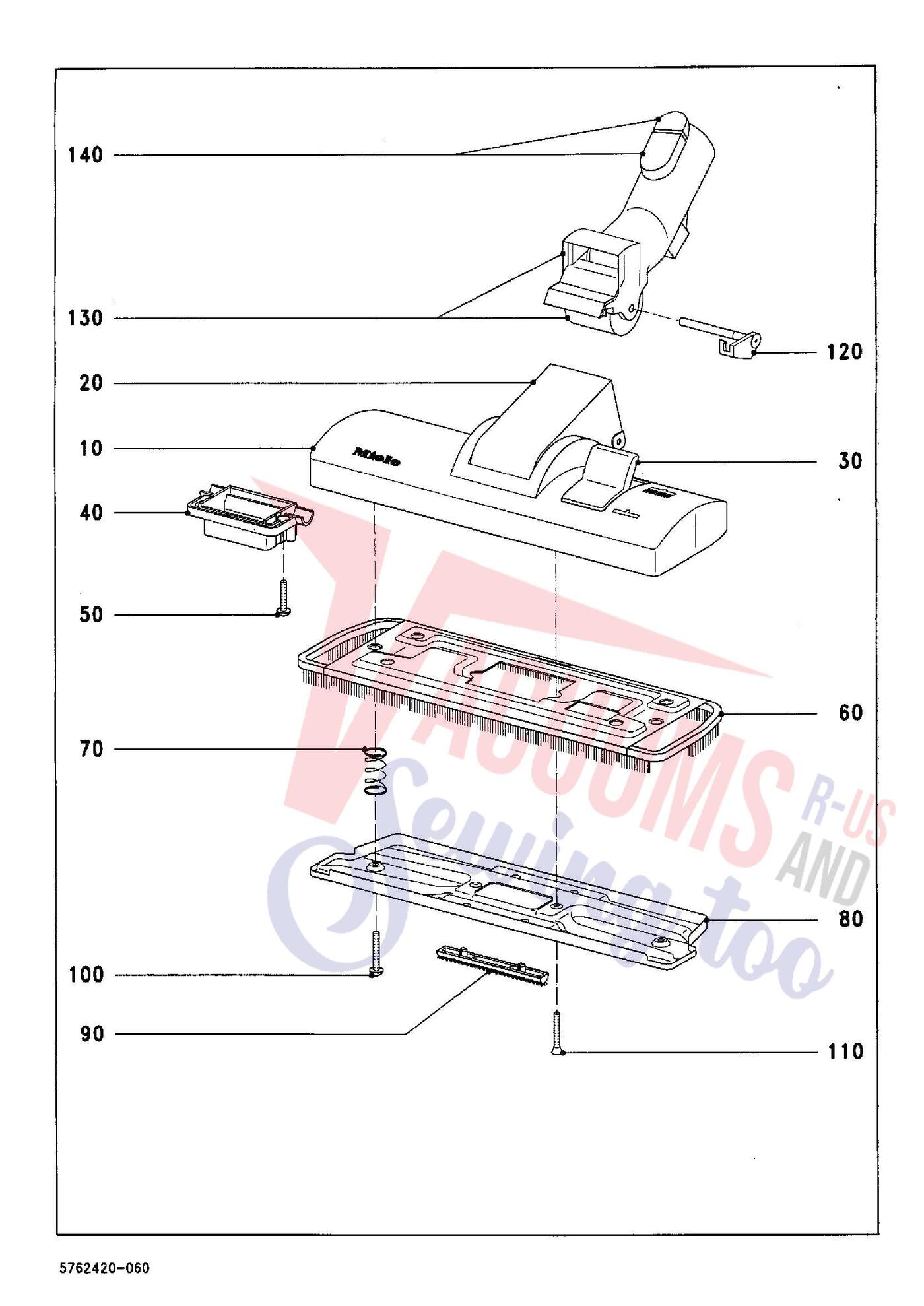

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Screw KA35X16 EJOT-PT | 4863580 | $3.60Read more |
| 10-140 | Not Available | Floor nozzle SBD285-3 AllTeQ | 7253830 | Not Available |
| 10-50 | Not Available | -Top anthracite | 4789120 | Not Available |
| 20 | Not Available | -Suction channel anthracite | 4900990 | Not Available |
| 30 | No Image | -Foot Switch Anthracite | 4769070 | $30.00Read more |
| 40 | | Genuine Miele Fixing | 4769100 | $9.70Read more |
| 60 | Not Available | -Bristle supp.plate | 4769110 | Not Available |
| 70 |  | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |
| 80+90 | | Genuine Miele Lower section | 4969510 | $33.80Read more |
| 90 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 100 | | Genuine Miele Screw KA35X27 EJOT-PT | 3484490 | $2.30Read more |
| 110 |  | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $3.60Read more |
| 120-140 | | Genuine Miele Linkage SBD265 | 6260600 | $39.50Read more |
| 120 | | Genuine Miele Shaft anthracite | 3612910 | $10.70Read more |
| 130 | | Genuine Miele Support roller Floor nozzle | 3607430 | $15.00Read more |
| 140 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
