Schematic and parts book for Miele S280I-SIL S 280 I-SIL. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

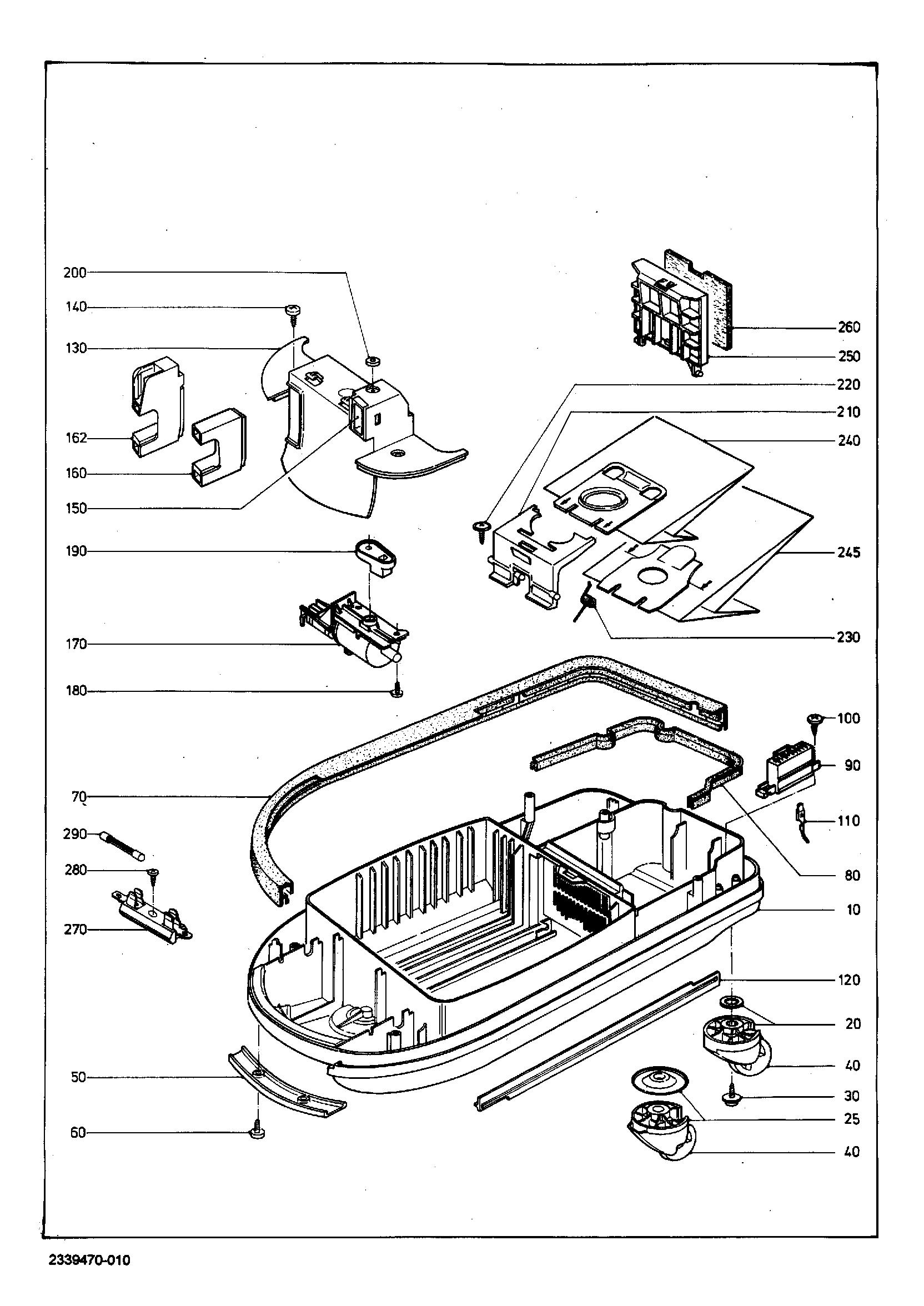

| # | Part image | Description | SKU | Price |
| XX | No Image | --Raised Head Screw 4,2X18 | 4274582 | $2.30Read more |
| XX | No Image | --Raised Head Screw 4,2X18 | 4274582 | $2.30Read more |
| XX |  | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw Zinc-plated 2,9X9,5 | 1023022 | $4.90Read more |
| XX | | Genuine Miele Raised head screw 4X20 | 2364630 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 3,9X13 | 1023120 | $2.10Read more |
| w/o fig. | | Genuine Miele Lock | 1058641 | $20.60Read more |
| XX | | Genuine Miele Raised head screw Zinc-plated 2,9X9,5 | 1023022 | $4.90Read more |
| w/o fig. | Not Available | Clamping strip 3 pole | 1699020 | Not Available |
| w/o fig. | Not Available | Connecting cable 4 Pole | 2318670 | Not Available |
| 25-40 | Not Available | Casing bottom anthracite | 3594114 | Not Available |
| 25+40 | Not Available | -Slide skid anthracite | 3594264 | Not Available |
| 25-40 | Not Available | Casing bottom anthracite | 3594114 | Not Available |
| 25+40 | Not Available | -Slide skid anthracite | 3594264 | Not Available |
| 40 | No Image | -Support Roller Anthracite | 3745700 | $11.16Read more |
| 40 | No Image | -Support Roller Anthracite | 3745700 | $11.16Read more |
| 50 | Not Available | Grip handle Lava grey | 1962791 | Not Available |
| 50 | Not Available | Grip handle anthracite | 3558560 | Not Available |
| 70 | Not Available | Buffer anthracite | 3558550 | Not Available |
| 80 | Not Available | Seal | 1886990 | Not Available |
| 90 | No Image | -Plug Housing 5 Pole | 1942150 | $12.00Read more |
| 110 | No Image | Plug 6,3Mm 0,5-1,5Qmm | 1071451 | $2.30Read more |
| 120 | Not Available | Strip Lava grey | 1952740 | Not Available |
| 120 | Not Available | Strip anthracite | 3566320 | Not Available |
| 130 | Not Available | Cover Lava grey | 1962961 | Not Available |
| 130 | Not Available | Cover anthracite | 3558580 | Not Available |
| 150 | Not Available | Flush socket outlet 2-pole lava grey | 2153350 | Not Available |
| 150 | Not Available | Flush socket outlet 2 pole anthracite | 3569590 | Not Available |
| 162 | Not Available | Bracket anthracite | 3565710 | Not Available |
| 170-200 | Not Available | Sensor anthracite | 3889420 | Not Available |
| 190 | Not Available | Suspension buffer anthracite | 3566440 | Not Available |
| 200 | Not Available | Seal | 1584100 | Not Available |
| 210 | Not Available | Bracket anthracite | 3558643 | Not Available |
| 230 | | Genuine Miele Torsion spring | 1348411 | $2.30Read more |
| 240 | Not Available | Cloth filter bag S227-S858 | 5188842 | Not Available |
| 245 | Not Available | Dustbag TYP H 1/5 S230,S270 | 2046318 | Not Available |
| 250+260 | No Image | Filter Frame Anthracite | 3627381 | $22.00Read more |
| 260 | Not Available | -Dust compart.filter 3 S230,S270 | 4669150 | Not Available |
| 270 | | Genuine Miele Fuse holder | 3604030 | $33.80Read more |
| 290 | | Genuine Miele Micro fuse T6,3A 500V 6,3X32MM | 3595980 | $6.00Read more |

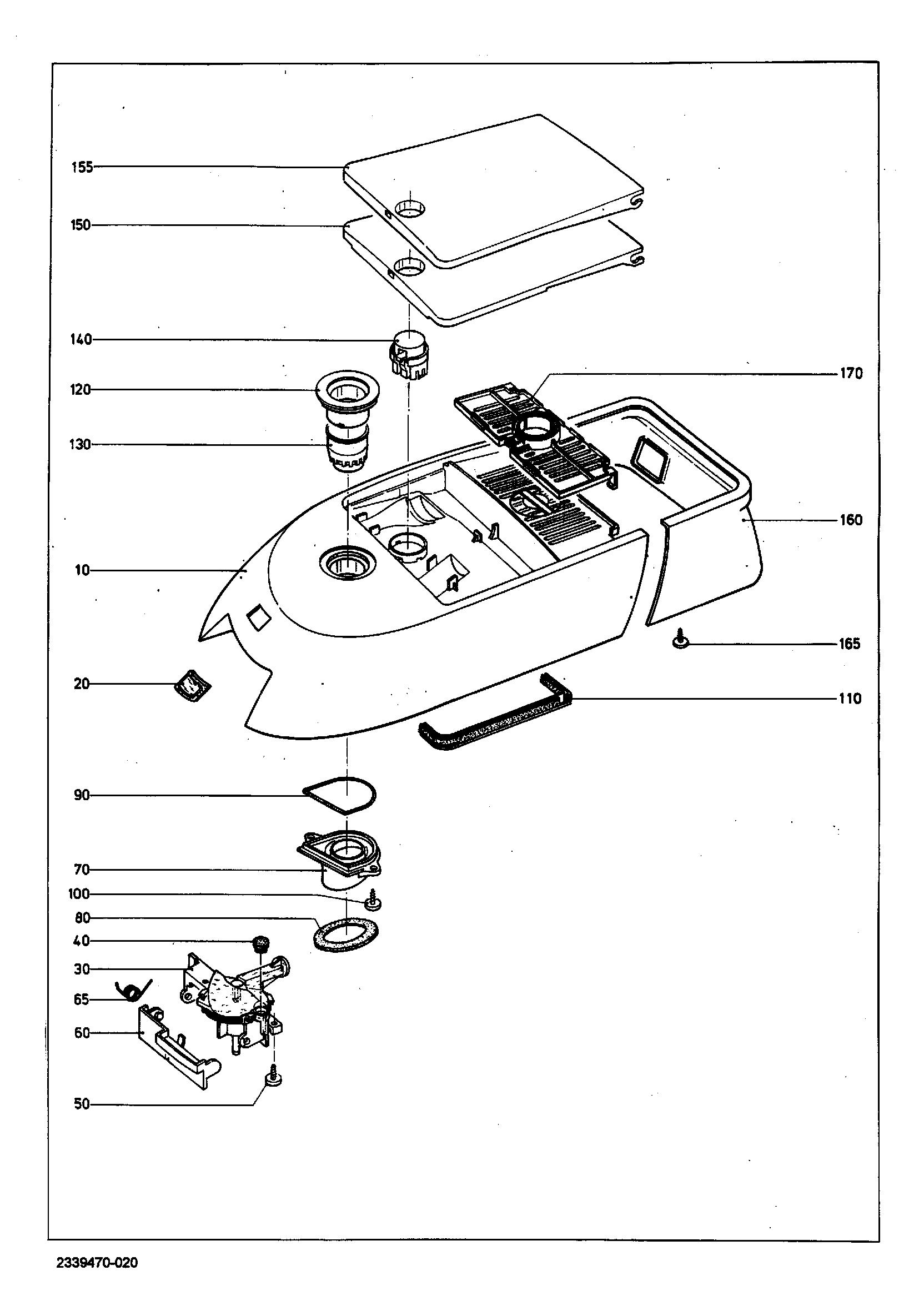

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 TORX T20 | 6106980 | $0.00Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 10 | Not Available | Casing top Metallic silver | 3662641 | Not Available |
| 20 | Not Available | Viewing screen | 1887071 | Not Available |
| 40 | Not Available | Seal | 1964510 | Not Available |
| 60+65 | Not Available | fill level indic. anthracite | 3566473 | Not Available |
| 60 | Not Available | Lock anthracite | 3558870 | Not Available |
| 65 | Not Available | Torsion spring | 2153420 | Not Available |
| 70 | No Image | Dust Channel Anthracite | 3558781 | $12.00Read more |
| 80 | Not Available | -Sealing ring grey | 3430580 | Not Available |
| 90 | Not Available | Rubber ring | 92606 | Not Available |
| 110 | Not Available | Sealing ring anthracite | 3558740 | Not Available |
| 120 | No Image | Slide Sleeve Anthracite | 3566400 | $22.00Read more |
| 130 | No Image | Slide Sleeve Anthracite | 3558750 | $12.31Read more |
| 130 | No Image | Sleeve Black | 1583210 | $4.14Read more |
| 140 | Not Available | Lock anthracite | 3558930 | Not Available |
| 140 | Not Available | Lock anthracite | 3558930 | Not Available |
| 155 | Not Available | Lid alu-silver | 2154442 | Not Available |
| 160 | Not Available | Rear panel Metallic silver | 2152960 | Not Available |
| 170 | Not Available | Grille anthracite | 3558921 | Not Available |

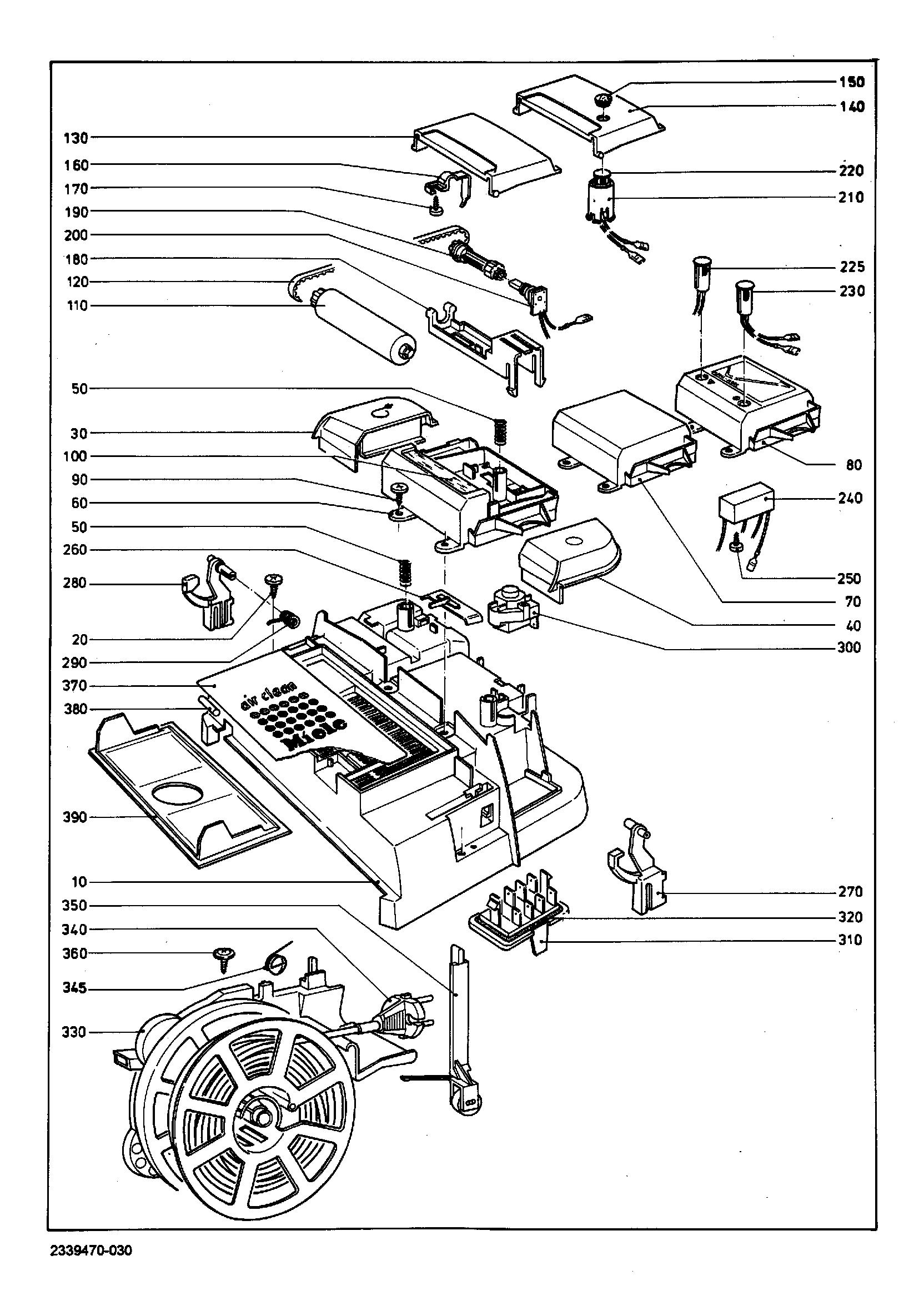

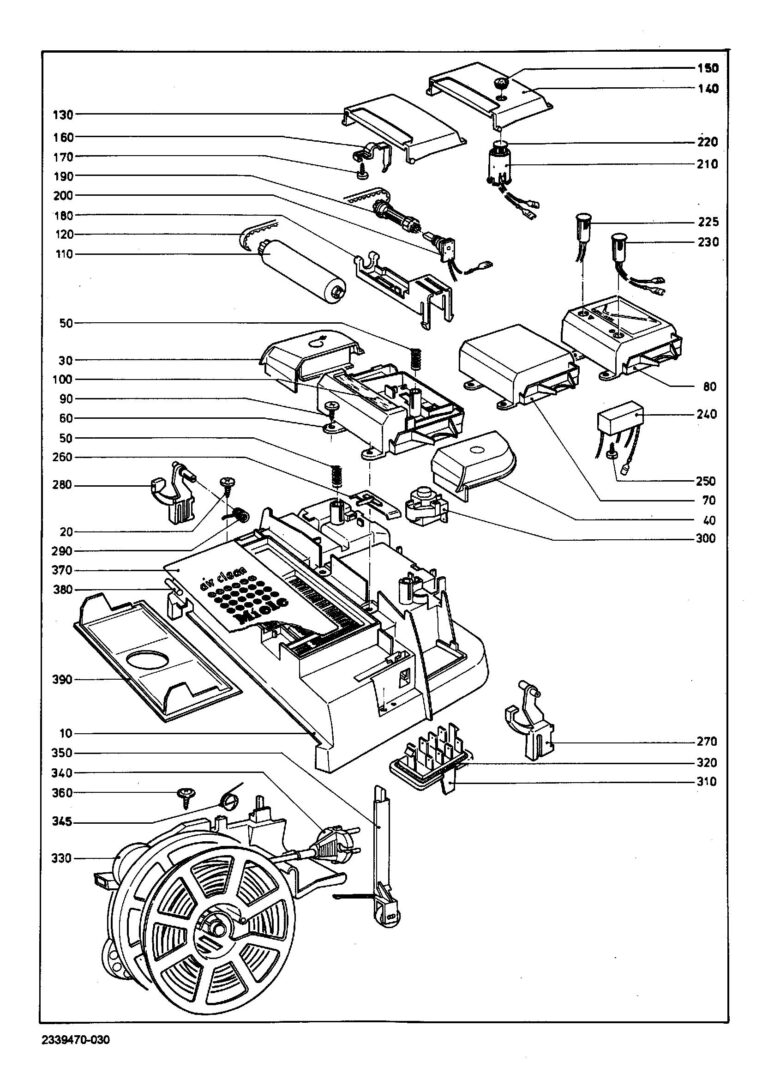

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 4X20 | 2364630 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 3,9X9,5 | 1143580 | $0.00Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 10 | Not Available | Mounting plate anthracite | 3558962 | Not Available |
| 30 | Not Available | Foot switch Right lava grey | 1885230 | Not Available |
| 30 | Not Available | Foot switch right anthracite | 3558990 | Not Available |
| 40 | Not Available | Foot switch left lava grey | 1885240 | Not Available |
| 40 | Not Available | Foot switch left anthracite | 3559000 | Not Available |
| 50 |  | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 60 | Not Available | Cap Lava grey | 1939621 | Not Available |
| 60 | Not Available | Cap anthracite | 3559150 | Not Available |
| 100 | Not Available | Viewing screen | 1939630 | Not Available |
| 110 | Not Available | Roller indicator 1000W | 2048451 | Not Available |
| 110 | Not Available | Roller indicator 1100W | 2099161 | Not Available |
| 110 | No Image | Roller Indicator Anthracite 1200W | 3616710 | $30.00Read more |
| 110 | No Image | Roller Indicator Anthracite 1100W | 3616700 | $30.00Read more |
| 120 | Not Available | Tooth belt | 1939650 | Not Available |
| 140 | Not Available | Swivel Lava grey | 2245570 | Not Available |
| 150 | Not Available | Viewing screen red | 1962650 | Not Available |
| 160+170 | Not Available | Swivel anthracite | 4218351 | Not Available |
| 160 | Not Available | Hook Colourless | 1939682 | Not Available |
| 180 | Not Available | Bracket | 3872181 | Not Available |
| 190 | Not Available | Drive anthracite | 3559230 | Not Available |
| 190 | Not Available | Drive anthracite | 3559230 | Not Available |
| 200 | Not Available | Potentiometer | 2301220 | Not Available |
| 210 | Not Available | Insert anthracite | 3559340 | Not Available |
| 225 | Not Available | Indicator light 110V red | 2521700 | Not Available |
| 260 | Not Available | Slide track anthracite | 3559010 | Not Available |
| 270 | No Image | Hinge Left Anthracite | 3558710 | $5.20Read more |
| 280 | No Image | Hinge Right Anthracite | 3558730 | $5.20Read more |
| 290 | No Image | Torsion Spring | 1889510 | $2.50Read more |
| 300 | No Image | Conv.Kit Switch | 4220400 | $66.00Read more |
| 310+320 | Not Available | Plug housing 6 pole | 2048420 | Not Available |
| 310+320 | Not Available | Plug housing 10 pole | 2048440 | Not Available |
| 320 | No Image | Sealing Ring | 1710360 | $11.16Read more |
| 330-350 | Not Available | Cable reel S270 6,5m 120V USA | 4691473 | Not Available |
| 340 | Not Available | -Supply cable 6,65m 17AWG 120V USA | 5241032 | Not Available |
| 345 | No Image | -Torsion Spring S250 | 4330190 | $2.50Read more |
| 350 | Not Available | -Brake lever m.Bremsscheibe S270 | 2048411 | Not Available |
| 370 | No Image | -Sup.Air-Cleanfilter 3 S230,S250,270,290 | 3366200 | $0.00Read more |
| 380 | Not Available | Scent | 3027951 | Not Available |
| 390 | Not Available | Blower plate yellow | 3061172 | Not Available |

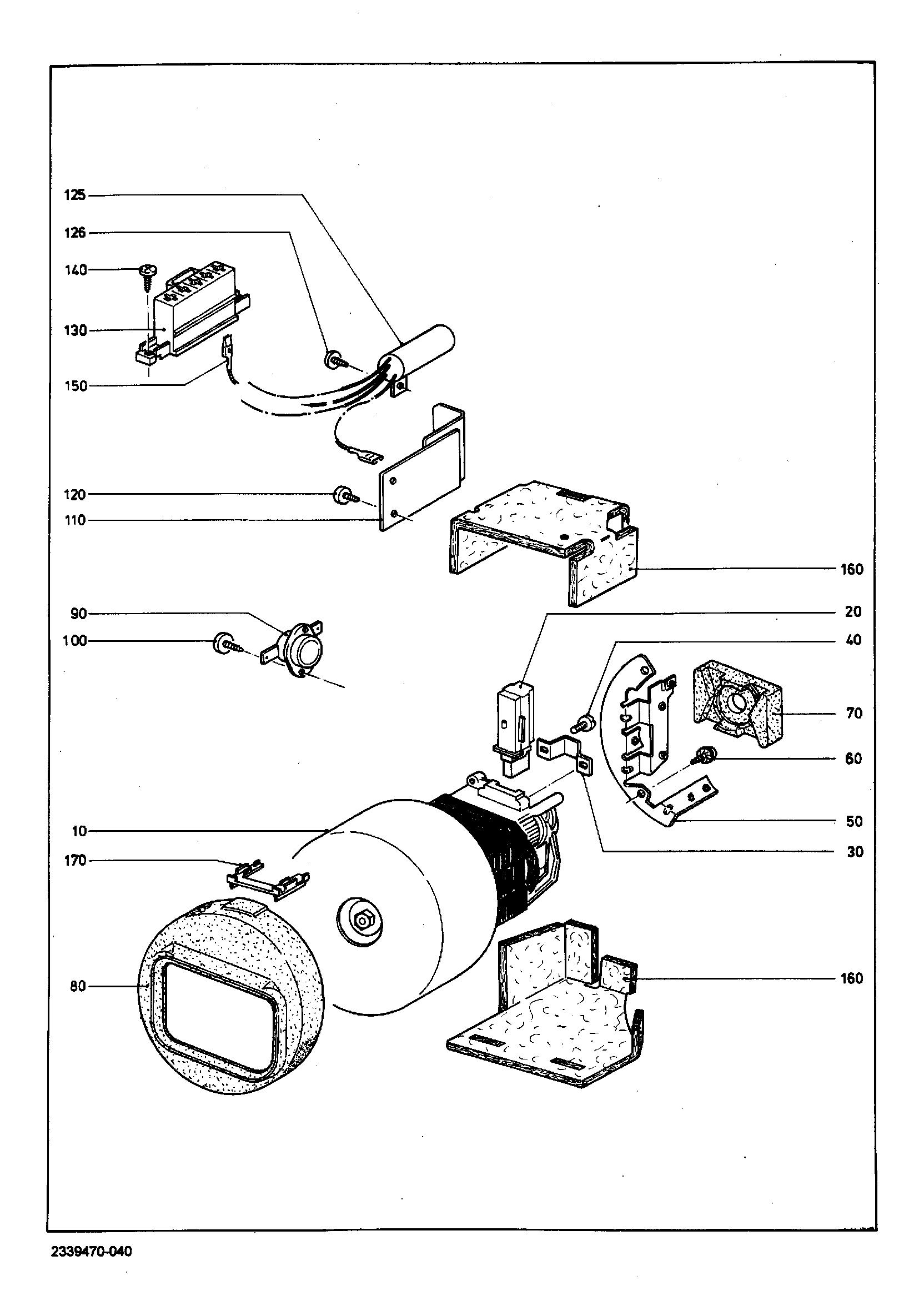

| # | Part image | Description | SKU | Price |
| XX | No Image | --Roundheaded Screw 5/32.Zollx8 | 49673 | $7.59Read more |
| XX | Not Available | --Raised head screw 4,8X13 DIN 7981 | 10607 | Not Available |
| XX | | Genuine Miele Raised head screw 3,9X6,5 | 4781122 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| XX | | Genuine Miele Raised head screw 3,9X6,5 | 4781122 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| XX | | Genuine Miele Raised head screw Zinc-plated 2,9X9,5 | 1023022 | $4.90Read more |
| 10-40 | Not Available | Fan 115923-AB 120V 60HZ | 1502662 | Not Available |
| 20 | | Genuine Miele Carbon brush | 2830481 | $56.80Read more |
| 30 | | Genuine Miele Clamping bracket | 75426 | $9.70Read more |
| 50 | | Genuine Miele Fixing | 1889550 | $9.70Read more |
| 70 | No Image | Rubber Cushion | 1889520 | $0.00Read more |
| 80 | Not Available | Sealing ring | 1887030 | Not Available |
| 90 | | Genuine Miele Thermoswitch 10A 250V | 79864 | $39.50Read more |
| 110 | Not Available | Speed control EDL311 120V60HZ | 2301192 | Not Available |
| 130 | No Image | -Plug Housing 5 Pole | 1942150 | $12.00Read more |
| 150 | No Image | Plug 6,3Mm 0,5-1,5Qmm | 1071451 | $2.30Read more |
| 160 | Not Available | Damping plate | 3125130 | Not Available |
| 170 | Not Available | Locating peg anthracite | 3840800 | Not Available |

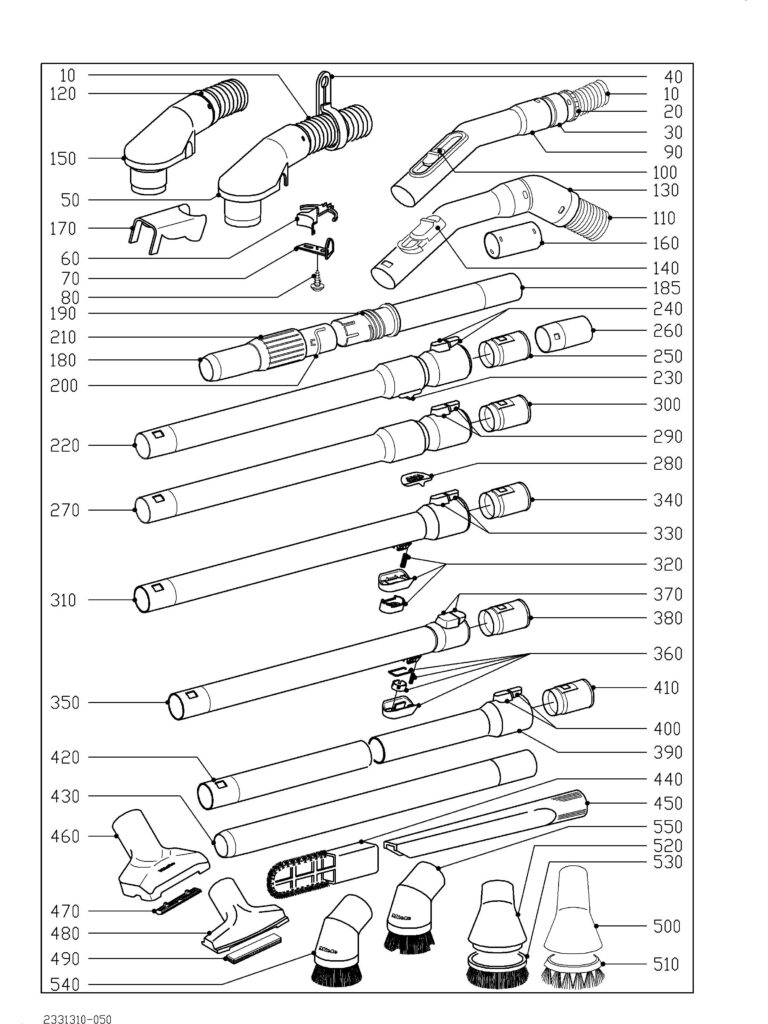

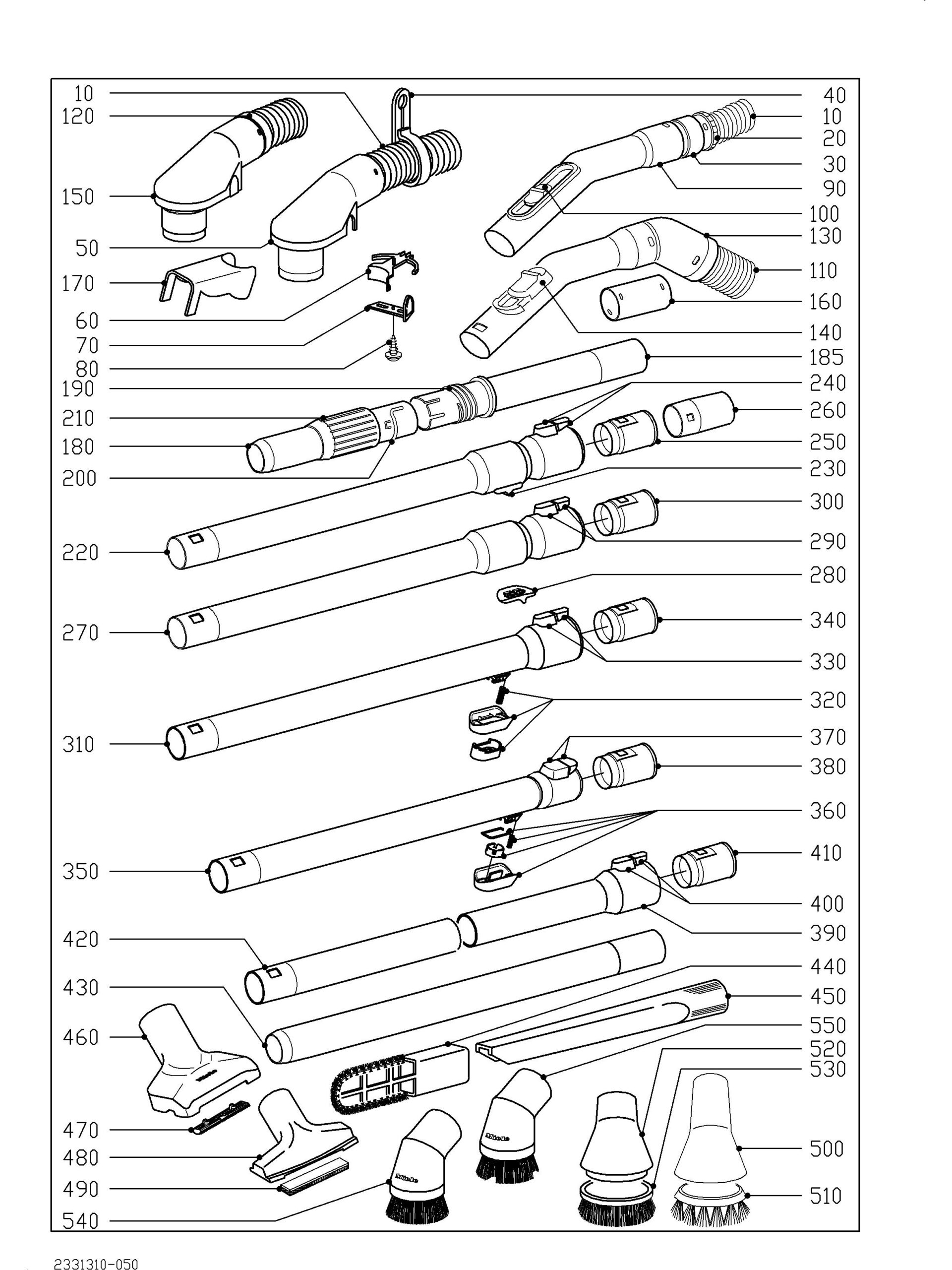

| # | Part image | Description | SKU | Price |
| 30 | | Genuine Miele Sleeve | 91205 | $9.70Read more |
| 40 | | Genuine Miele Suspension anthracite | 3565990 | $3.60Read more |
| 110-150 | No Image | Suction Hose Anthracite | 3617463 | $149.00Add to cart Special order: ships in 2 to 4 weeks |
| 110+120 |  | Genuine Miele Suction hose silver-coloured 1,8m | 3565351 | $51.00Add to cart |
| 120 | | Genuine Miele Ring anthracite | 3565360 | $4.90Read more |
| 130+140 | | Genuine Miele Tubular handle anthracite assy | 3565461 | $56.00Add to cart Special order: ships in 2 to 4 weeks |
| 130+140 |  | Compatible alternateGenuine Miele Vacuum Cleaner Bend End for S series S200-S800 More Product Details | 3565460 | $35.99Add to cart Special order: ships in 2 to 4 weeks |
| 140 | | Genuine Miele Suction control anthracite | 3565580 | $3.60Read more |
| 150 | | Genuine Miele Elbow anthracite | 3565392 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
| 160 | | Genuine Miele Connecting tube anthracite | 3565760 | $20.60Read more |
| 170 | No Image | Holder Anthracite | 3565700 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 190-210 | Not Available | -Screw connector anthracite | 1567702 | Not Available |
| 190 | Not Available | -Screw connector anthracite | 1567702 | Not Available |
| 200 | Not Available | -Screw connector anthracite | 1567702 | Not Available |
| 210 | Not Available | -Screw connector anthracite | 1567702 | Not Available |
| 230 | No Image | -Slide Lava Grey | 3205631 | $7.59Read more |
| 230 | No Image | -Slide Anthracite | 3570310 | $5.64Read more |
| 240+250 |  | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 240 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 280 | No Image | -Slide Anthracite | 4333600 | $7.00Read more |
| 290+300 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 290 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 320 | | Genuine Miele Push button 15x30mm | 4832460 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 330+340 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 330 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 350-380 |  | Genuine Miele Telescopic pipe 2-part st.steel | 5658812 | $0.00Read more |
| 350-380 |  | Available Pre OwnedReconditioned Miele Telescopic Aluminum Wand for Miele Upright Vacuums 6801181 More Product Details | 6801180R | $48.00Add to cart |
| 350-380 |  | Compatible alternateGenuine Miele Telescopic pipe Aluminium More Product Details | 6801181 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 350-380 | | Genuine Miele Telescopic pipe 2-part st.steel | 5658812 | $0.00Read more |
| 350-380 | | Genuine Miele Telescopic pipe 2-part st.steel | 5658812 | $0.00Read more |
| 350 | No Image | Dusting Brush L | 12187780 | $24.00Add to cart Special order: ships in 2 to 4 weeks |
| 360 |  | Genuine Miele Push button Round | 5780932 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 370+380 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 370 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 375 | No Image | Dusting Brush Anthracite | 5098711 | $16.00Read more |
| 440 | | Genuine Miele ST Radiator brush SHB30 | 9660490 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 450 | No Image | Crevice Nozzle 149Mm Obsw | 9442631 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 460+470 | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 470 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 490 | | Genuine Miele Thread lifter 2 Pcs. | 2348770 | $13.50Read more |
| 550 | | Genuine Miele ST Dusting brush Natural | 5387401 | $0.00Read more |
| 550 | No Image | Dusting Brush Anthracite | 5098711 | $16.00Read more |
| 550 | No Image | Dusting Brush Anthracite | 5098711 | $16.00Read more |

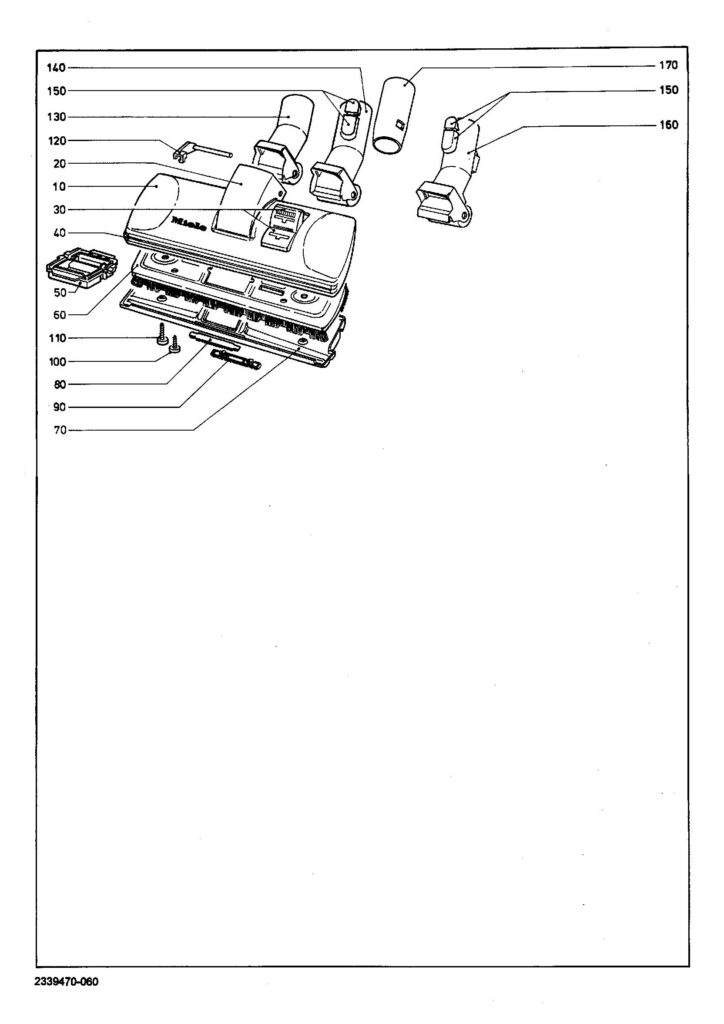

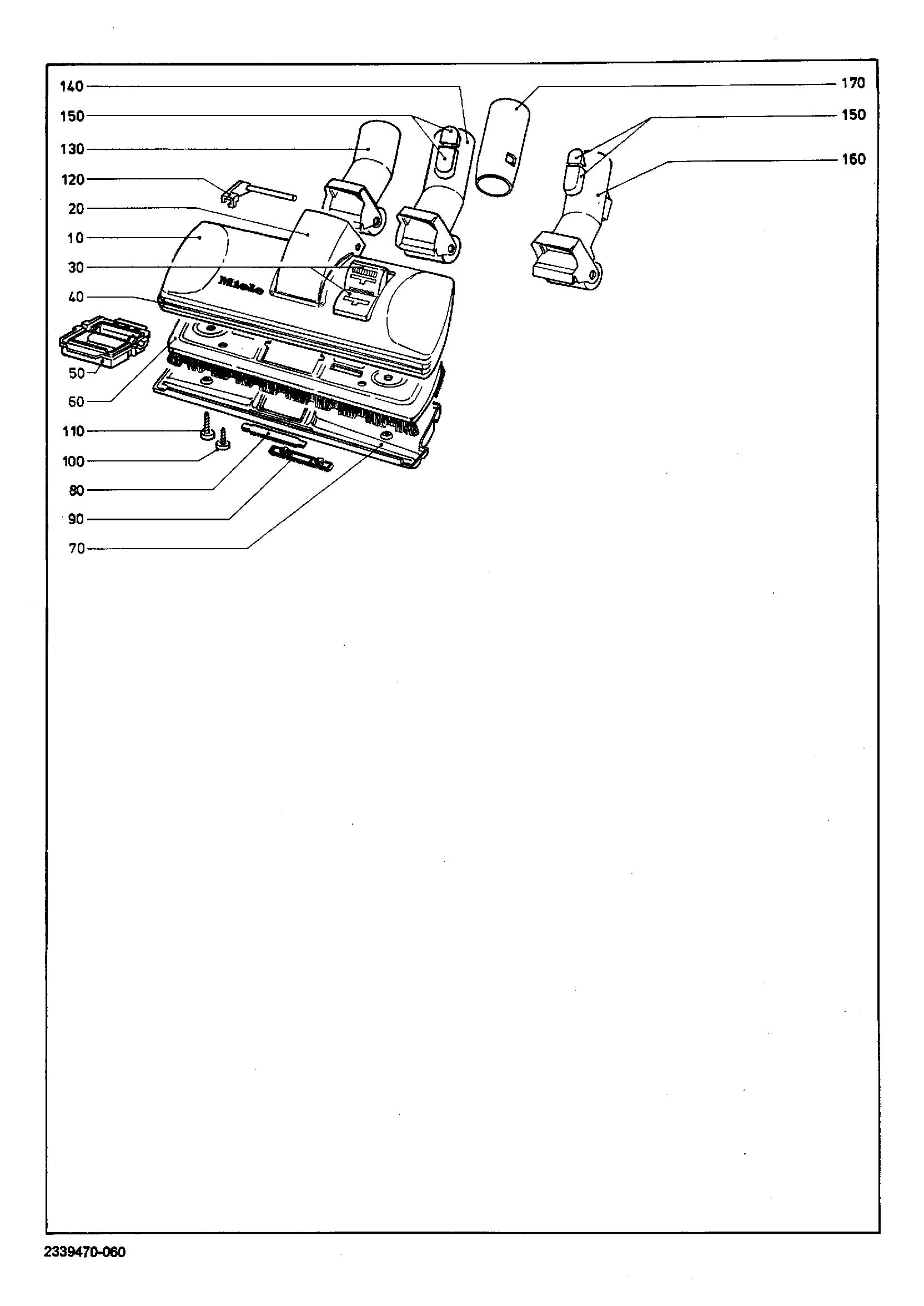

| # | Part image | Description | SKU | Price |
| w/o fig. | Not Available | Floor nozzle SBD285-3 AllTeQ | 7253830 | Not Available |
| 20 | Not Available | -Suction channel Lava grey | 2142670 | Not Available |
| 20 | Not Available | -Suction channel anthracite | 3639070 | Not Available |
| 30 | | Genuine Miele Foot switch anthracite | 3649851 | $10.70Read more |
| 50 | Not Available | Top anthracite | 3639081 | Not Available |
| 50 | Not Available | -Spacer | 3613000 | Not Available |
| 60 | Not Available | -Bristle supp.plate | 1229792 | Not Available |
| 70+90 | | Genuine Miele Lower section | 4969510 | $33.80Read more |
| 90 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 100 | No Image | --Countersunk Screw Ka35X16 Ejot-Pt | 2396150 | $2.50Read more |
| 110 | Not Available | --Raised head screw 3,5X25 | 10597 | Not Available |
| 120 | | Genuine Miele Shaft anthracite | 3612910 | $10.70Read more |
| 150+160 | Not Available | -Linkage anthracite | 3649870 | Not Available |
| 170 | | Genuine Miele Sleeve | 3058721 | $62.00Read more |

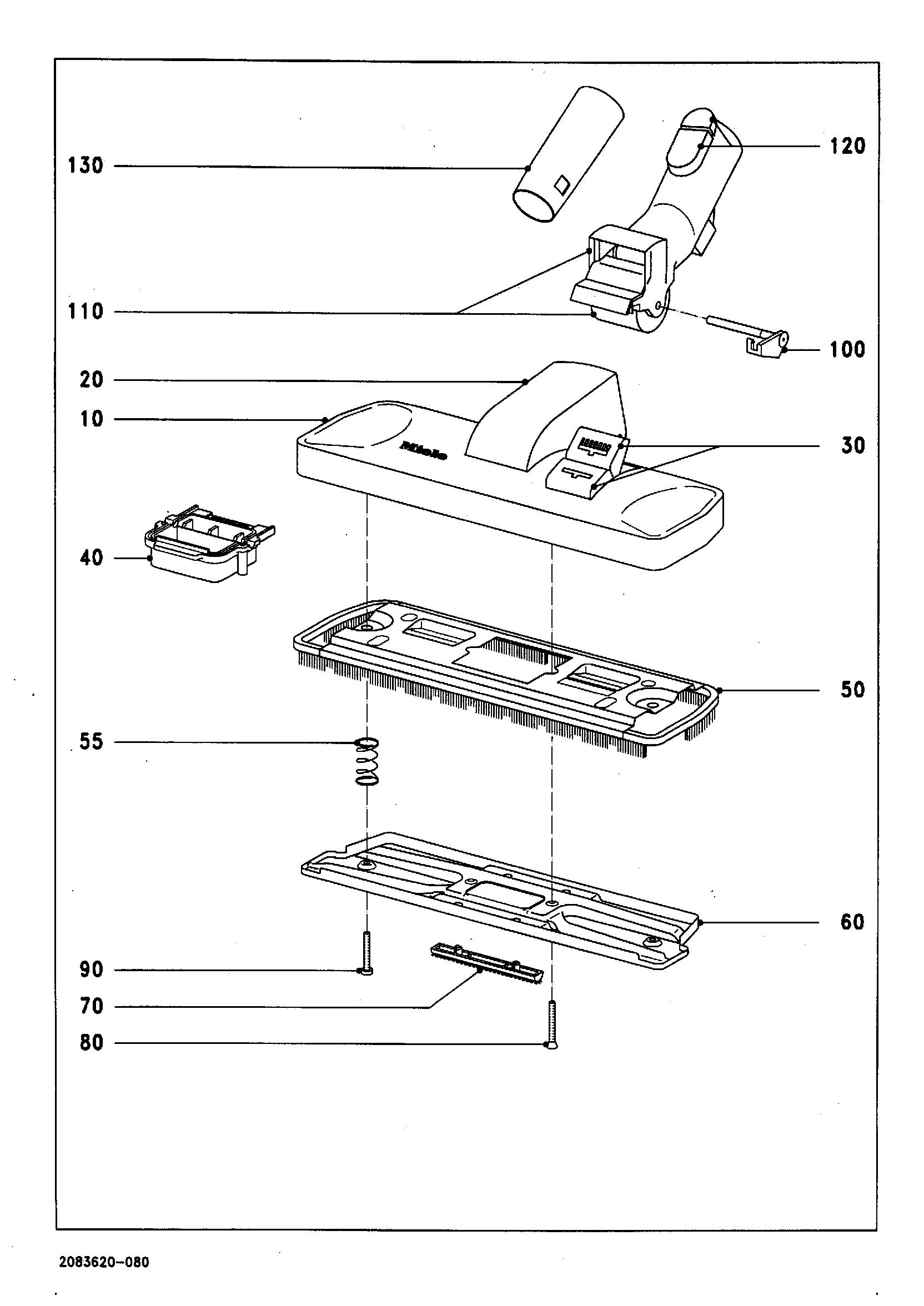

| # | Part image | Description | SKU | Price |
| w/o fig. | Not Available | Floor nozzle SBD285-3 AllTeQ | 7253830 | Not Available |
| 10-40 | Not Available | -Top anthracite | 3614251 | Not Available |
| 10-40 | Not Available | -Top anthracite | 3614251 | Not Available |
| 30 | | Genuine Miele Foot switch anthracite | 3649851 | $10.70Read more |
| 40 | Not Available | -Spacer | 3613000 | Not Available |
| 50 | Not Available | -Bristle supp.plate | 1229792 | Not Available |
| 55 |  | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |
| 60+70 | | Genuine Miele Lower section | 4969510 | $33.80Read more |
| 70 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 80 | Not Available | --Screw KA35X30 | 1702700 | Not Available |
| 90 | | Genuine Miele Screw KA35X27 EJOT-PT | 3484490 | $2.30Read more |
| 100 | | Genuine Miele Shaft anthracite | 3612910 | $10.70Read more |
| 100-120 | | Genuine Miele Linkage SBD265 | 6260600 | $39.50Read more |
| 100 | | Genuine Miele Shaft anthracite | 3612910 | $10.70Read more |
| 120 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 | | Genuine Miele Sleeve | 3058721 | $62.00Read more |
Report errors on this page HERE
