Schematic and parts book for Miele S269I S 269 I. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

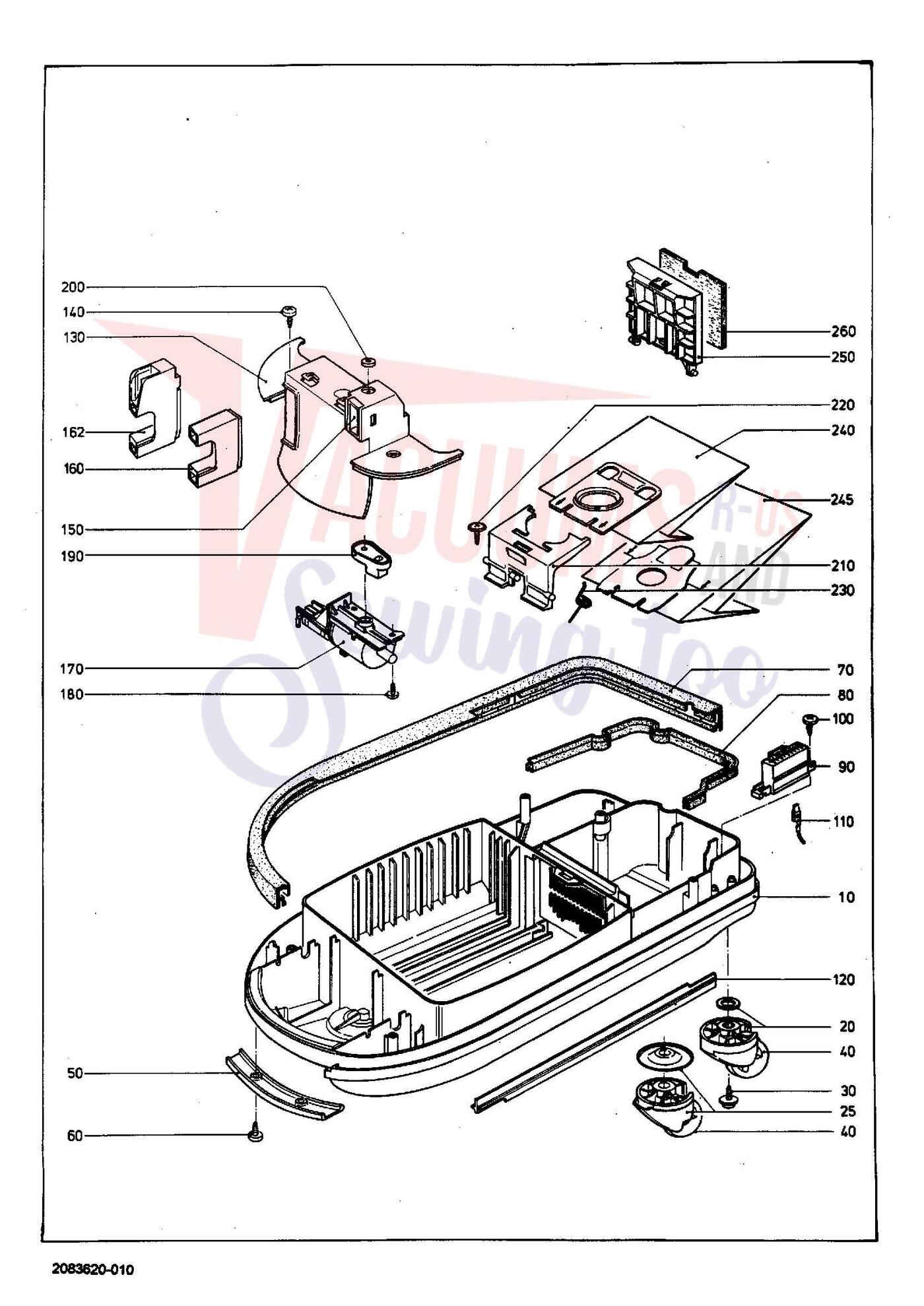

| # | Part image | Description | SKU | Price |
| XX | No Image | --Raised Head Screw 4,2X18 | 4274582 | $2.30Read more |
| XX | No Image | --Raised Head Screw 4,2X18 | 4274582 | $2.30Read more |
| XX |  | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw Zinc-plated 2,9X9,5 | 1023022 | $4.90Read more |
| XX | | Genuine Miele Raised head screw 4X20 | 2364630 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 3,9X13 | 1023120 | $2.10Read more |
| (240) | Not Available | Cloth filter bag S227-S858 | 5188842 | Not Available |
| w/o fig. | | Genuine Miele Lock | 1058641 | $20.60Read more |
| 10-40 | Not Available | Casing bottom anthracite | 3594114 | Not Available |
| 25+40 | Not Available | Slide skid anthracite | 3594264 | Not Available |
| 25-40 | Not Available | Casing bottom anthracite | 3594114 | Not Available |
| 25+40 | Not Available | -Slide skid anthracite | 3594264 | Not Available |
| 40 | No Image | -Support Roller Lava Grey | 1886130 | $11.00Read more |
| 40 | No Image | -Support Roller Anthracite | 3745700 | $11.16Read more |
| 50 | Not Available | Grip handle Lava grey | 1962791 | Not Available |
| 50 | Not Available | Grip handle anthracite | 3558560 | Not Available |
| 70 | Not Available | Buffer anthracite | 3558550 | Not Available |
| 80 | Not Available | Seal | 1886990 | Not Available |
| 90 | No Image | -Plug Housing 5 Pole | 1942150 | $12.00Read more |
| 110 | No Image | Plug 6,3Mm 0,5-1,5Qmm | 1071451 | $2.30Read more |
| 130 | Not Available | Cover Lava grey | 1962961 | Not Available |
| 130 | Not Available | Cover anthracite | 3558580 | Not Available |
| 150 | Not Available | Cap Lava grey | 1962970 | Not Available |
| 150 | Not Available | Cap anthracite | 3558600 | Not Available |
| 162 | Not Available | Bracket anthracite | 3565710 | Not Available |
| 210 | Not Available | Bracket anthracite | 3558643 | Not Available |
| 230 | | Genuine Miele Torsion spring | 1348411 | $2.30Read more |
| 245 | Not Available | Dustbag TYP H 1/5 S230,S270 | 2046318 | Not Available |
| 250+260 | No Image | Filter Frame Anthracite | 3627381 | $22.00Read more |
| 260 | Not Available | -Dust compart.filter 3 S230,S270 | 4669150 | Not Available |

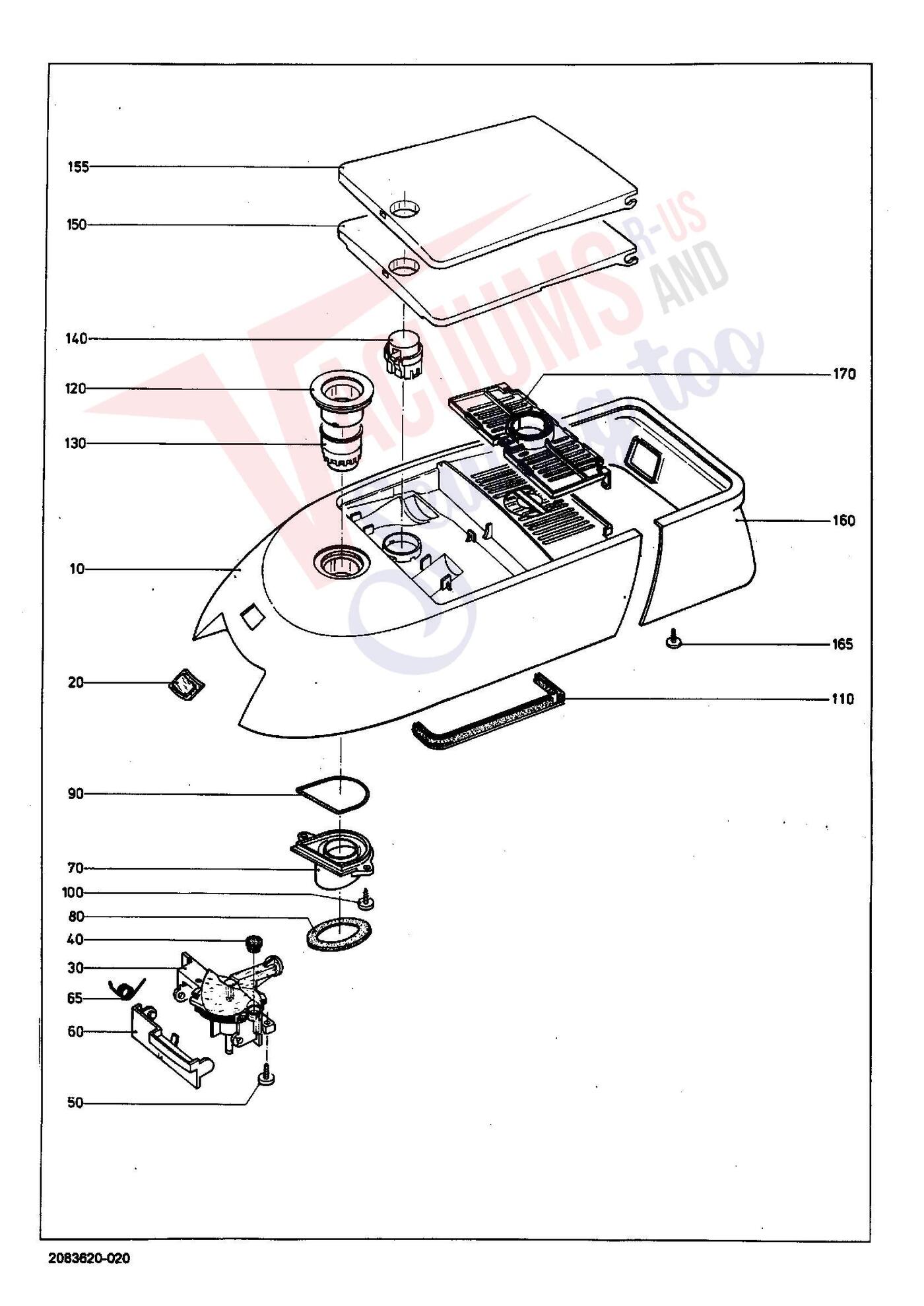

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 10 | No Image | Casing Top Brilliant White | 4051370 | $159.00Read more |
| 10 | Not Available | Casing top lotos green | 4051460 | Not Available |
| 10 | Not Available | Casing top Polar blue | 4535110 | Not Available |
| 20 | Not Available | Viewing screen | 1887071 | Not Available |
| 60+65 | Not Available | Change filter ind. anthracite | 3558802 | Not Available |
| 60 | Not Available | Lock anthracite | 3558870 | Not Available |
| 65 | Not Available | Torsion spring | 2153420 | Not Available |
| 70 | No Image | Dust Channel Anthracite | 3558781 | $12.00Read more |
| 80 | Not Available | -Sealing ring grey | 3430580 | Not Available |
| 90 | Not Available | Rubber ring | 92606 | Not Available |
| 110 | Not Available | Sealing ring anthracite | 3558740 | Not Available |
| 120 | No Image | Slide Sleeve Anthracite | 3558750 | $12.31Read more |
| 130 | No Image | Sleeve Black | 1583210 | $4.14Read more |
| 140 | Not Available | Lock anthracite | 3558930 | Not Available |
| 155 | Not Available | Lid light grey | 2421881 | Not Available |
| 155 | Not Available | Lid Brilliant white | 4835320 | Not Available |
| 155 | Not Available | Lid lotos green | 4835330 | Not Available |
| 155 | Not Available | Lid Polar blue | 4835350 | Not Available |
| 160 | Not Available | Rear panel light grey | 1964620 | Not Available |
| 160 | Not Available | Rear panel Brilliant white | 4051721 | Not Available |
| 160 | Not Available | Rear panel lotos green | 4051741 | Not Available |
| 160 | Not Available | Rear panel Polar blue | 4383521 | Not Available |
| 170 | Not Available | Grille anthracite | 3558921 | Not Available |

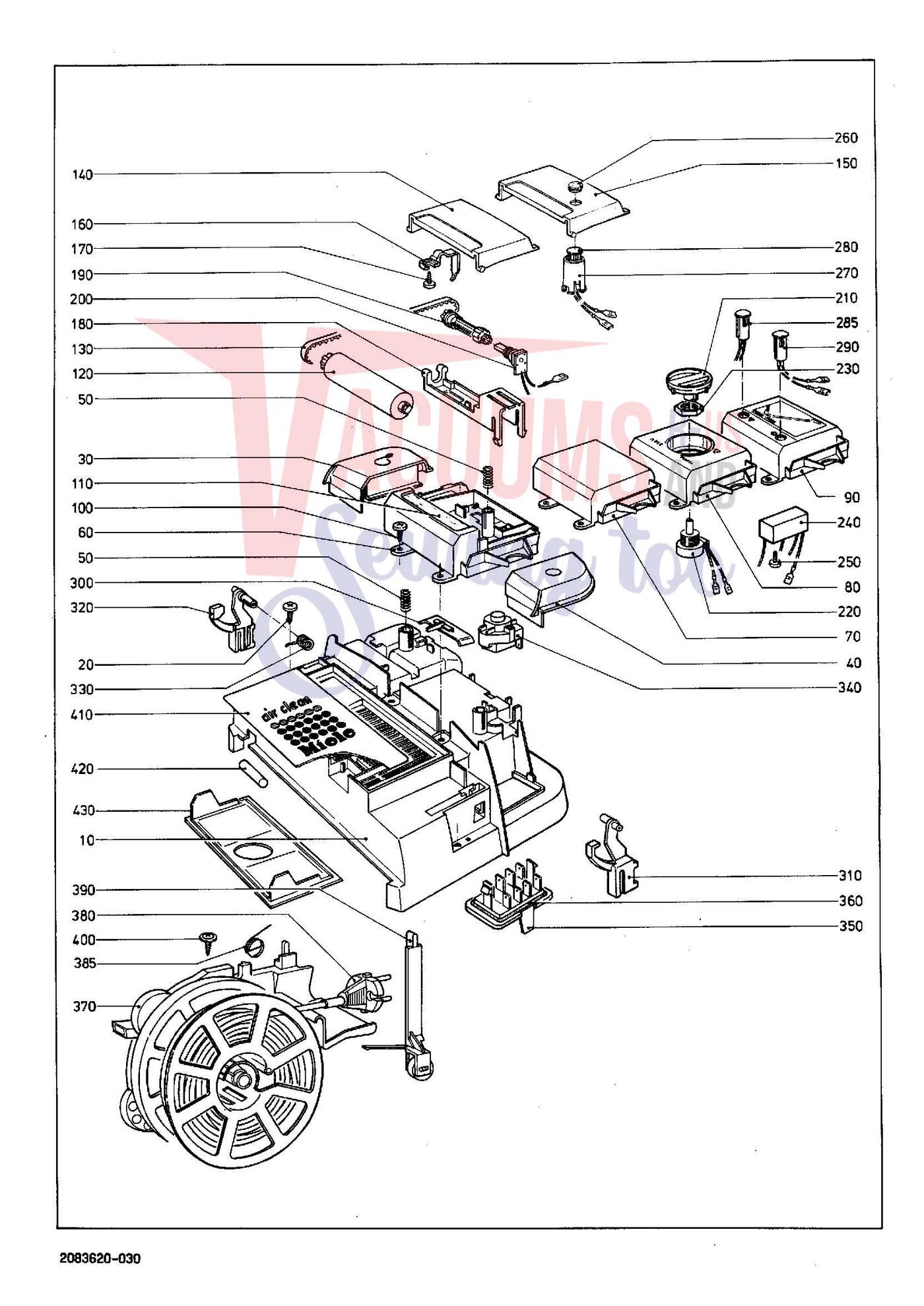

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 4X20 | 2364630 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 10 | Not Available | Mounting plate anthracite | 3558962 | Not Available |
| 10 | Not Available | Mounting plate anthracite | 3558962 | Not Available |
| 30 | Not Available | Foot switch Right lava grey | 1885230 | Not Available |
| 30 | Not Available | Foot switch right anthracite | 3558990 | Not Available |
| 40 | Not Available | Foot switch left lava grey | 1885240 | Not Available |
| 40 | Not Available | Foot switch left anthracite | 3559000 | Not Available |
| 50 |  | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 70 | Not Available | Cap Lava grey | 1885250 | Not Available |
| 70 | Not Available | Cap anthracite | 3559020 | Not Available |
| 300 | Not Available | Slide track anthracite | 3559010 | Not Available |
| 310 | No Image | Hinge Left Anthracite | 3558710 | $5.20Read more |
| 320 | No Image | Hinge Right Anthracite | 3558730 | $5.20Read more |
| 330 | No Image | Torsion Spring | 1889510 | $2.50Read more |
| 340 | No Image | Switch 10A 250V | 1957381 | $30.00Read more |
| 350+360 | Not Available | Plug housing 6 pole | 2048420 | Not Available |
| 360 | No Image | Sealing Ring | 1710360 | $11.16Read more |
| 370-390 | Not Available | Cable reel S270 6,5m 230V D | 4691400 | Not Available |
| 380 | No Image | -Supply Cable 6,65M 230V | 4691520 | $61.00Read more |
| 385 | No Image | -Torsion Spring S250 | 4330190 | $2.50Read more |
| 390 | Not Available | -Brake lever m.Bremsscheibe S270 | 2048411 | Not Available |
| 410 | No Image | -Sup.Air-Cleanfilter 3 S230,S250,270,290 | 3366200 | $0.00Read more |
| 420 | Not Available | Scent | 3027951 | Not Available |
| 430 | Not Available | Blower plate yellow | 3061172 | Not Available |

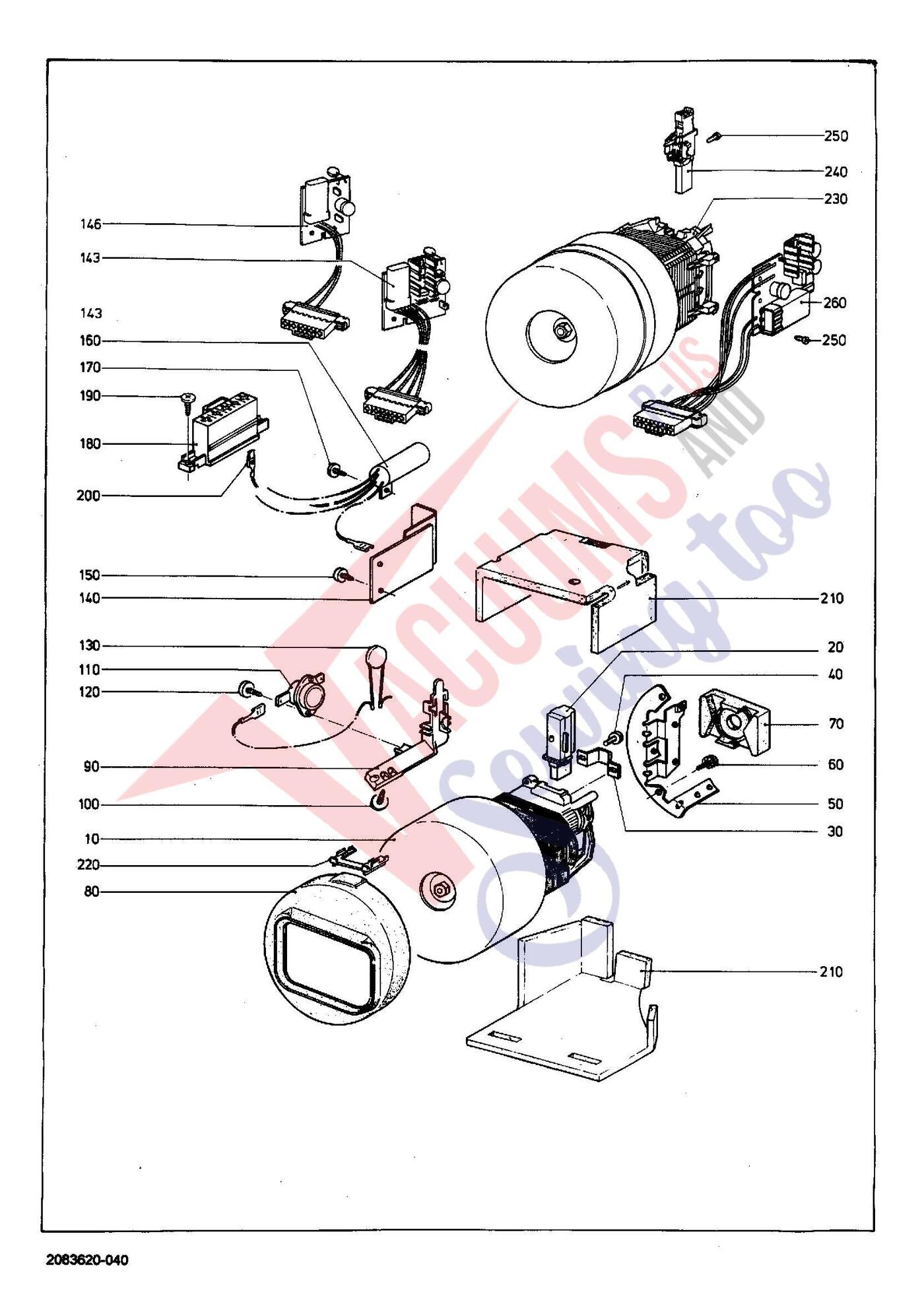

| # | Part image | Description | SKU | Price |
| XX | No Image | --Roundheaded Screw 5/32.Zollx8 | 49673 | $7.59Read more |
| w/o fig. | | Genuine Miele  | 1071710 | $3.60Read more |
| XX | Not Available | --Raised head screw 4,8X13 DIN 7981 | 10607 | Not Available |
| XX | | Genuine Miele Raised head screw 3,9X9,5 | 1143580 | $0.00Read more |
| XX | | Genuine Miele Raised head screw 3,9X6,5 | 4781122 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| XX | | Genuine Miele Raised head screw 3,9X6,5 | 4781122 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| XX | | Genuine Miele Raised head screw Zinc-plated 2,9X9,5 | 1023022 | $4.90Read more |
| XX | | Genuine Miele Raised head screw 3,9X9,5 | 3903441 | $2.30Read more |
| (260) | Not Available | Distributor 230-240V | 3960552 | Not Available |
| 10-40 | Not Available | Fan 115809-01 230V | 1125553 | Not Available |
| 10-40 | Not Available | Fan 115809-01 230V | 1125554 | Not Available |
| 10-40 | Not Available | Fan 115809-01 230V | 1125554 | Not Available |
| 20 | | Genuine Miele Carbon brush | 2830481 | $56.80Read more |
| 30 | | Genuine Miele Clamping bracket | 75426 | $9.70Read more |
| 50 | | Genuine Miele Fixing | 1889550 | $9.70Read more |
| 70 | No Image | Rubber Cushion | 1889520 | $0.00Read more |
| 80 | Not Available | Sealing ring | 1887030 | Not Available |
| 90 | No Image | Holder | 1583770 | $7.00Read more |
| 110 | No Image | Thermoswitch 10A 250V | 2521100 | $42.00Read more |
| 130 | No Image | Resistor 10 Ohm | 2029220 | $47.00Read more |
| 146 | No Image | Distributor 220-240V | 3648092 | $100.00Read more |
| 160 | Not Available | Interf.sup.capacit. 0,15UF+2X2400PF 250V | 1961980 | Not Available |
| 180 | No Image | -Plug Housing 5 Pole | 1942150 | $12.00Read more |
| 200 | No Image | Plug 6,3Mm 0,5-1,5Qmm | 1071451 | $2.30Read more |
| 210 | Not Available | Damping plate | 3125130 | Not Available |
| 220 | Not Available | Locating peg anthracite | 3840800 | Not Available |
| 240 | Not Available | -Carbon brush 2 Pcs. | 5419810 | Not Available |

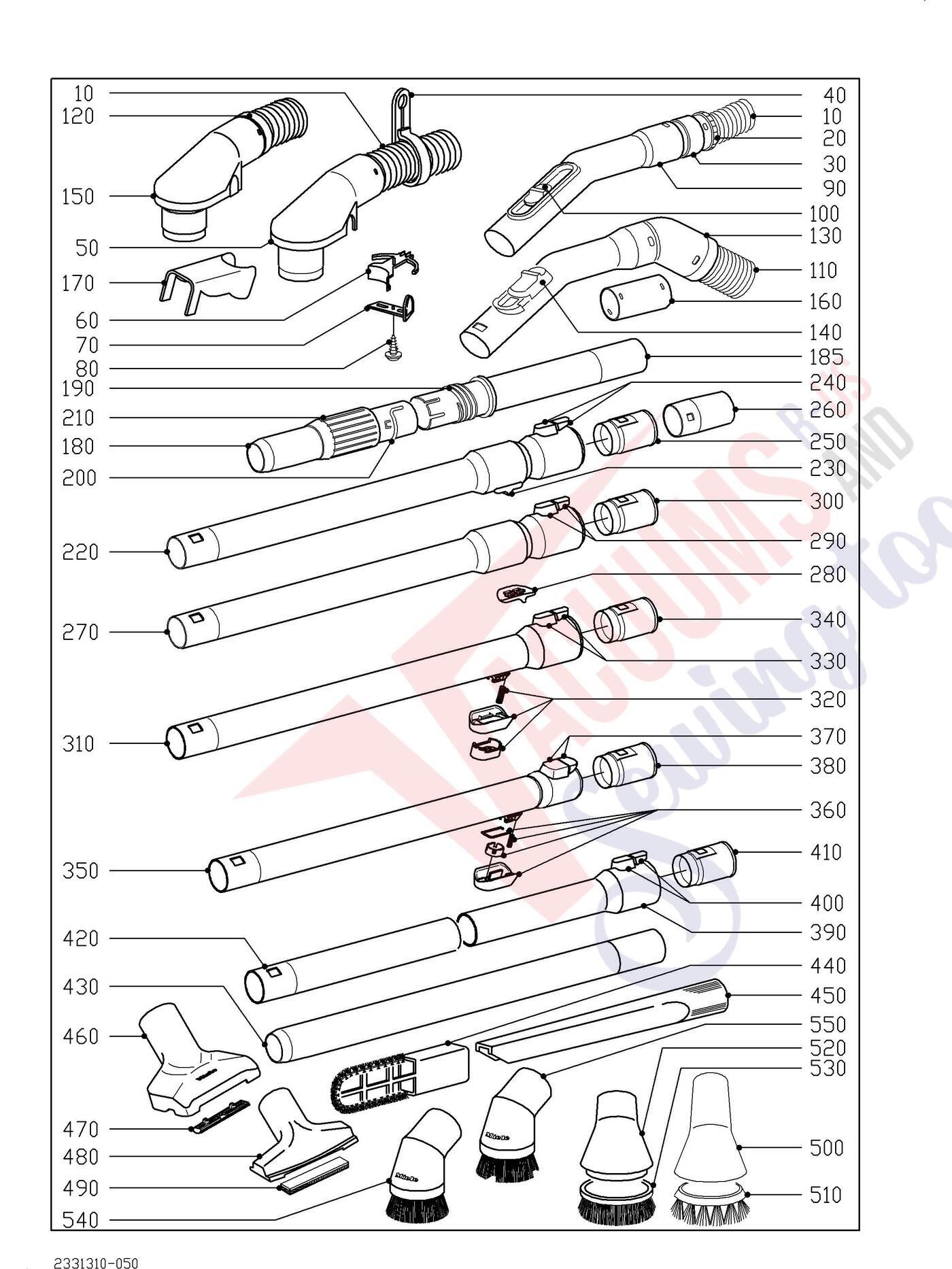

| # | Part image | Description | SKU | Price |
| 20 | | Genuine Miele Ring anthracite | 3565360 | $4.90Read more |
| 30 | | Genuine Miele Sleeve | 91205 | $9.70Read more |
| 30 | | Genuine Miele Sleeve | 91205 | $9.70Read more |
| 40 | | Genuine Miele Suspension anthracite | 3565990 | $3.60Read more |
| 40 | | Genuine Miele Suspension anthracite | 3565990 | $3.60Read more |
| 110-150 | No Image | Suction Hose Anthracite | 3617463 | $149.00Add to cart Special order: ships in 2 to 4 weeks |
| 110+120 |  | Genuine Miele Suction hose silver-coloured 1,8m | 3565351 | $51.00Add to cart |
| 110-150 | No Image | Suction Hose Anthracite | 3617463 | $149.00Add to cart Special order: ships in 2 to 4 weeks |
| 110+120 | | Genuine Miele Suction hose silver-coloured 1,8m | 3565351 | $51.00Add to cart |
| 120 | | Genuine Miele Ring anthracite | 3565360 | $4.90Read more |
| 130+140 | | Genuine Miele Tubular handle anthracite assy | 3565461 | $56.00Add to cart Special order: ships in 2 to 4 weeks |
| 130+140 |  | Compatible alternateGenuine Miele Vacuum Cleaner Bend End for S series S200-S800 More Product Details | 3565460 | $35.99Add to cart Special order: ships in 2 to 4 weeks |
| 130+140 | | Genuine Miele Tubular handle anthracite assy | 3565461 | $56.00Add to cart Special order: ships in 2 to 4 weeks |
| 140 | | Genuine Miele Suction control anthracite | 3565580 | $3.60Read more |
| 150 | | Genuine Miele Elbow anthracite | 3565392 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
| 150 | | Genuine Miele Elbow anthracite | 3565392 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
| 160 | | Genuine Miele Connecting tube anthracite | 3565760 | $20.60Read more |
| 170 | No Image | Holder Anthracite | 3565700 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 390-410 | No Image | Suction Pipe Top Obsw Assy | 12421840 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
| 390-410 | No Image | Suction Pipe Top Obsw Assy | 12421840 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
| 400+410 |  | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 400 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 420 | No Image | Suction Pipe Top Obsw Assy | 12421840 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
| 420 | No Image | Suction Pipe Top Obsw Assy | 12421840 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
| 440 | | Genuine Miele ST Radiator brush SHB30 | 9660490 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 450 | No Image | Crevice Nozzle 149Mm Obsw | 9442631 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 460+470 | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 470 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 490 | | Genuine Miele Thread lifter 2 Pcs. | 2348770 | $13.50Read more |
| 510 | No Image | Dusting Brush L | 12187780 | $24.00Add to cart Special order: ships in 2 to 4 weeks |
| 550 | No Image | Dusting Brush Anthracite | 5098711 | $16.00Read more |
| 550 | | Genuine Miele ST Dusting brush Natural | 5387401 | $0.00Read more |
| 550 | No Image | Dusting Brush Anthracite | 5098711 | $16.00Read more |
| 550 | No Image | Dusting Brush Anthracite | 5098711 | $16.00Read more |

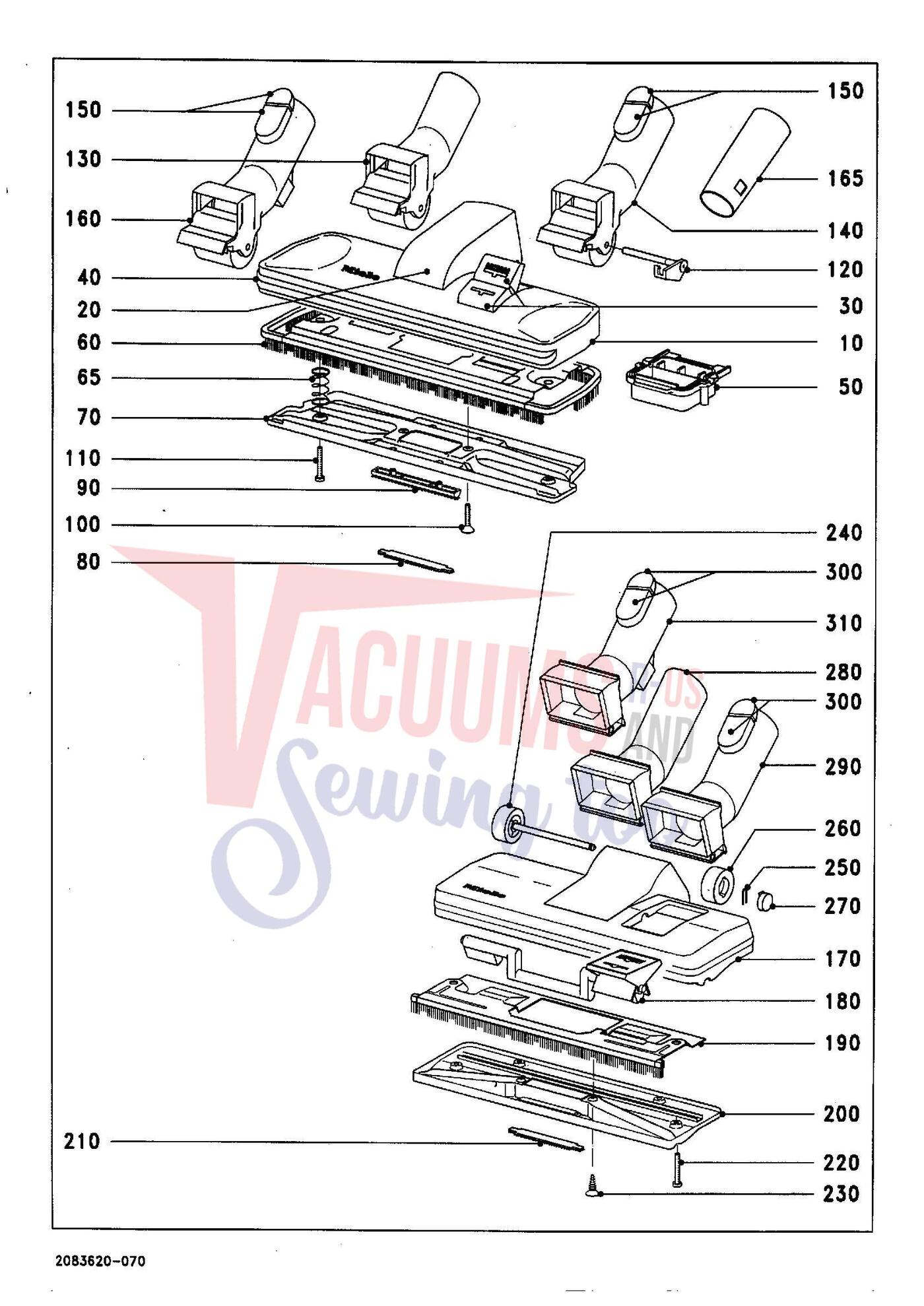

| # | Part image | Description | SKU | Price |
| w/o fig. | Not Available | Floor nozzle SBD285-3 AllTeQ | 7253830 | Not Available |
| w/o fig. | Not Available | Floor nozzle SBD285-3 AllTeQ | 7253830 | Not Available |
| w/o fig. | Not Available | Floor nozzle SBD285-3 AllTeQ | 7253830 | Not Available |
| 170 | Not Available | -Top Lava grey | 3024850 | Not Available |
| 170 | Not Available | -Top anthracite | 3642840 | Not Available |
| 180 | Not Available | -Foot switch Lava grey | 3024860 | Not Available |
| 180 | Not Available | -Foot switch anthracite | 3642830 | Not Available |
| 190 | Not Available | -Bristle supp.plate | 3024841 | Not Available |
| 200+210 | Not Available | -Lower section | 3024820 | Not Available |
| 210 | No Image | -Thread Lifter | 3039320 | $20.00Read more |
| 220 | No Image | --Raised Head Screw 3,5X19 | 14137 | $3.90Read more |
| 230 | No Image | --Countersunk Screw Ka35X16 Ejot-Pt | 2396150 | $2.50Read more |
| 240+250 | Not Available | -Shaft | 3039370 | Not Available |
| 250-270 | Not Available | -Support roller anthracite | 3642820 | Not Available |
| 280 | Not Available | -Linkage Lava grey | 3024870 | Not Available |
| 280 | Not Available | -Linkage anthracite | 3650340 | Not Available |
| 300+310 | Not Available | -Linkage Lava grey | 3348890 | Not Available |
| 300+310 | Not Available | -Linkage anthracite | 3639000 | Not Available |
| 300 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |

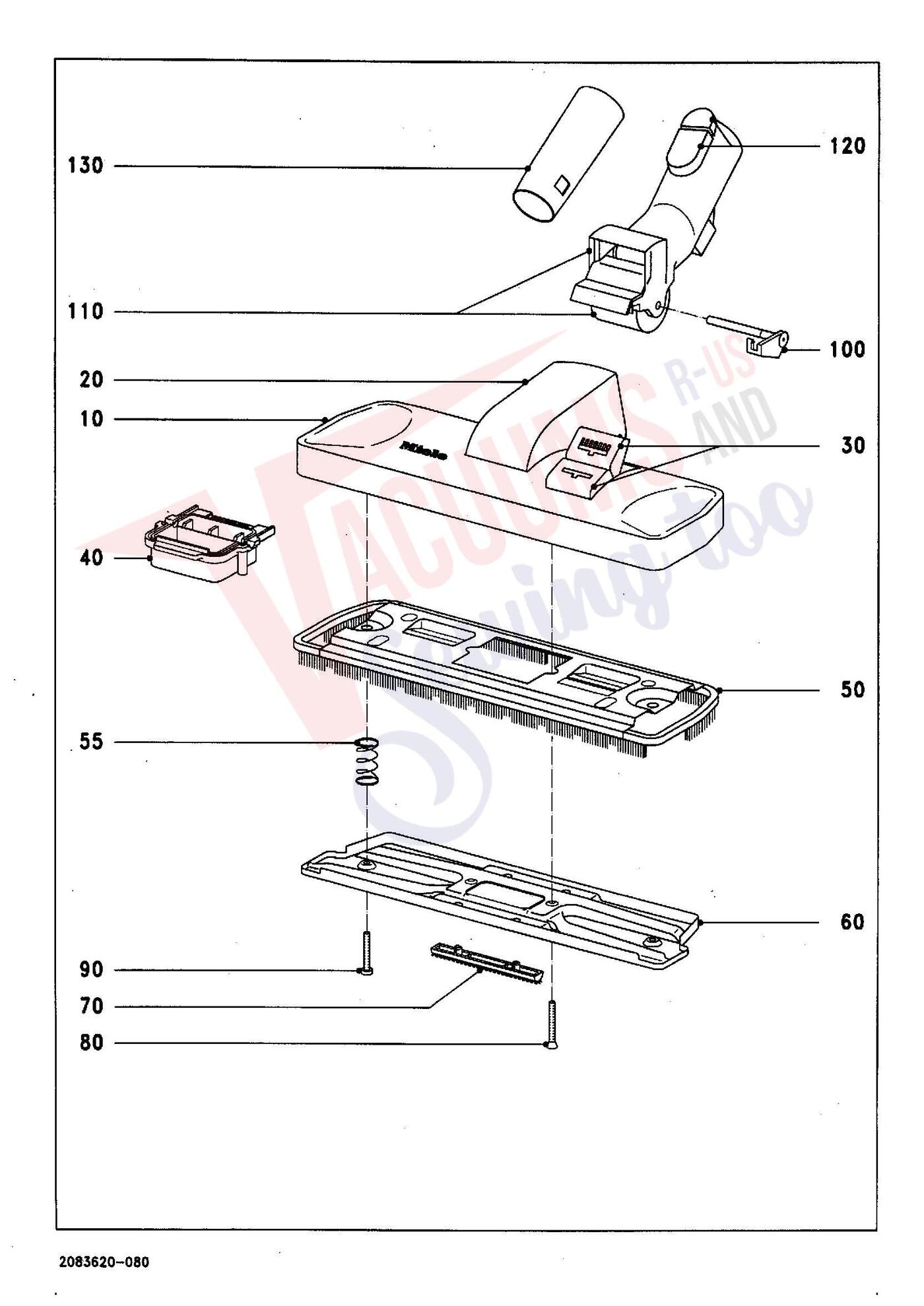

| # | Part image | Description | SKU | Price |
| w/o fig. | Not Available | Floor nozzle SBD285-3 AllTeQ | 7253830 | Not Available |
| 10-40 | Not Available | -Top anthracite | 3614251 | Not Available |
| 10-40 | Not Available | -Top anthracite | 3614251 | Not Available |
| 30 | | Genuine Miele Foot switch anthracite | 3649851 | $10.70Read more |
| 40 | Not Available | -Spacer | 3613000 | Not Available |
| 50 | Not Available | -Bristle supp.plate | 1229792 | Not Available |
| 60+70 | | Genuine Miele Lower section | 4969510 | $33.80Read more |
| 70 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 80 | Not Available | --Screw KA35X30 | 1702700 | Not Available |
| 90 | | Genuine Miele Screw KA35X27 EJOT-PT | 3484490 | $2.30Read more |
| 100-120 | | Genuine Miele Linkage SBD265 | 6260600 | $39.50Read more |
| 100 | | Genuine Miele Shaft anthracite | 3612910 | $10.70Read more |
| 120 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 | | Genuine Miele Sleeve | 3058721 | $62.00Read more |

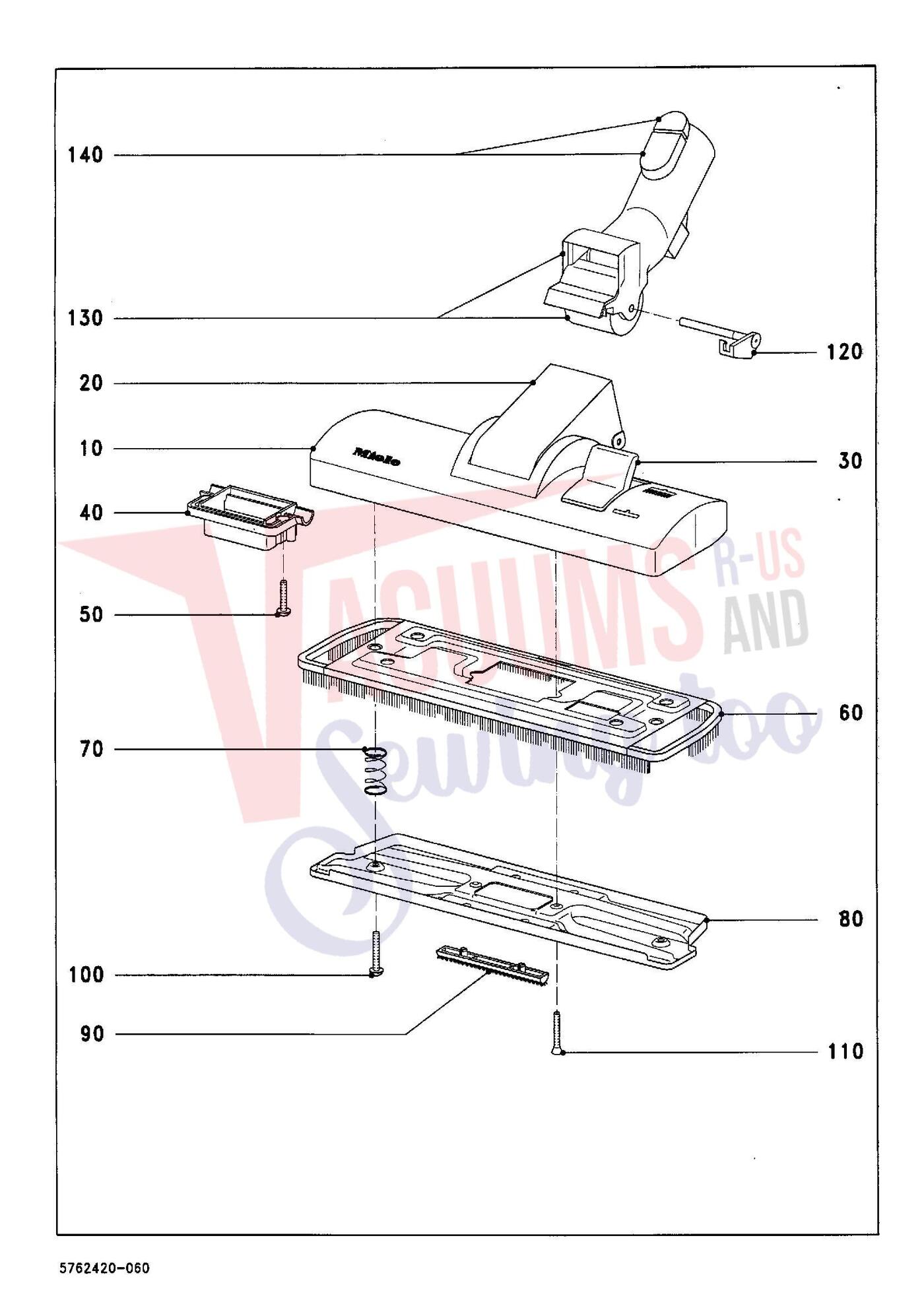

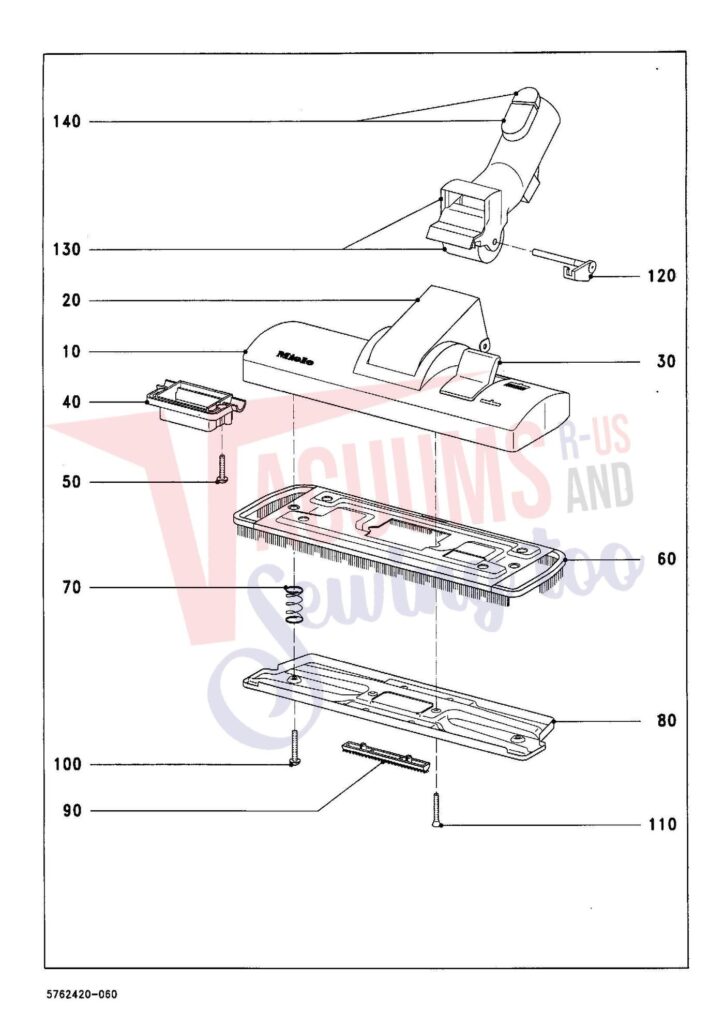

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Screw KA35X16 EJOT-PT | 4863580 | $3.60Read more |
| 10-140 | Not Available | Floor nozzle SBD285-3 AllTeQ | 7253830 | Not Available |
| 10-50 | Not Available | -Top anthracite | 4789120 | Not Available |
| 20 | Not Available | -Suction channel anthracite | 4900990 | Not Available |
| 30 | No Image | -Foot Switch Anthracite | 4769070 | $30.00Read more |
| 40 | | Genuine Miele Fixing | 4769100 | $9.70Read more |
| 60 | Not Available | -Bristle supp.plate | 4769110 | Not Available |
| 70 |  | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |
| 80+90 | | Genuine Miele Lower section | 4969510 | $33.80Read more |
| 90 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 100 | | Genuine Miele Screw KA35X27 EJOT-PT | 3484490 | $2.30Read more |
| 110 |  | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $3.60Read more |
| 120-140 | | Genuine Miele Linkage SBD265 | 6260600 | $39.50Read more |
| 120 | | Genuine Miele Shaft anthracite | 3612910 | $10.70Read more |
| 140 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |

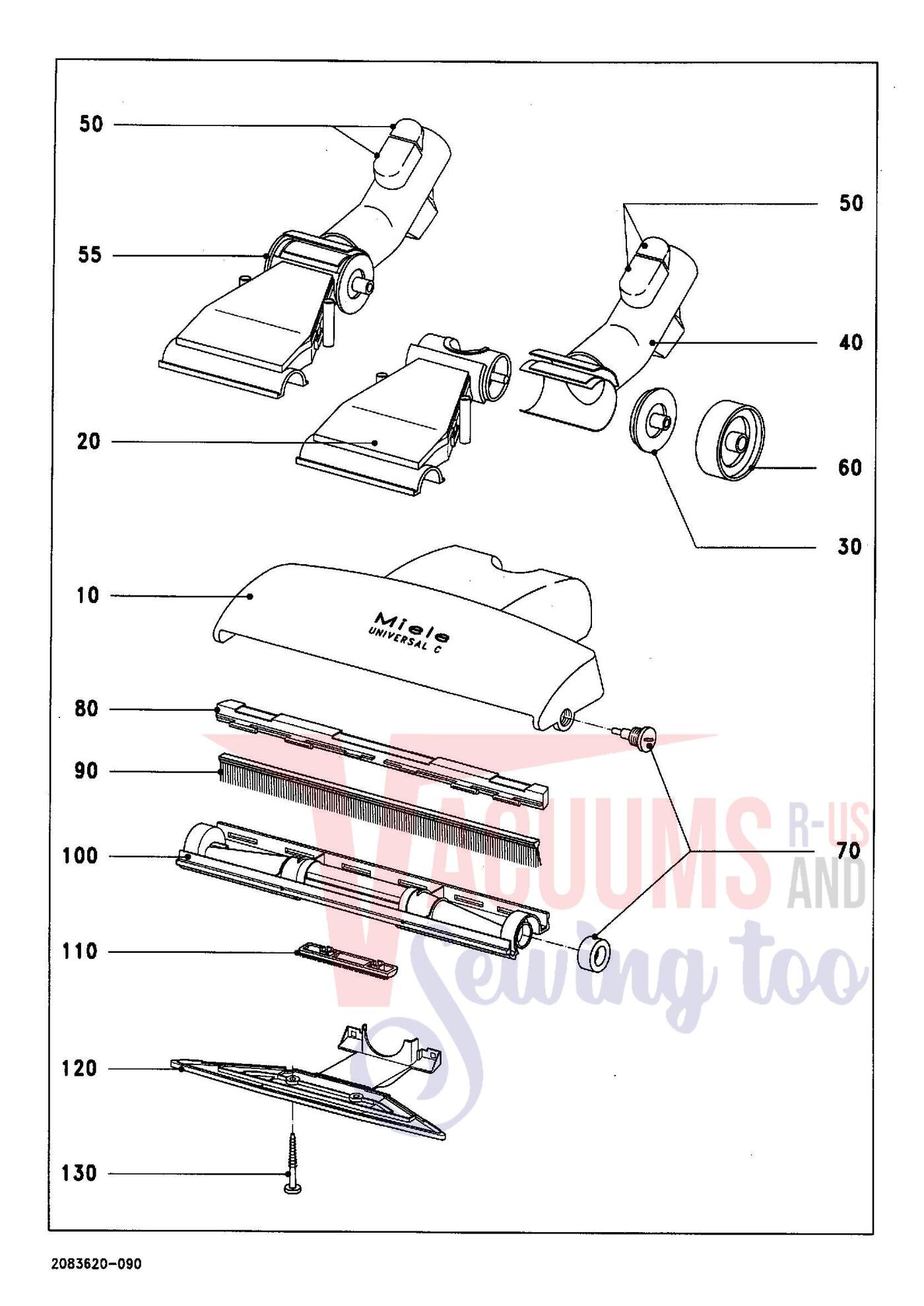

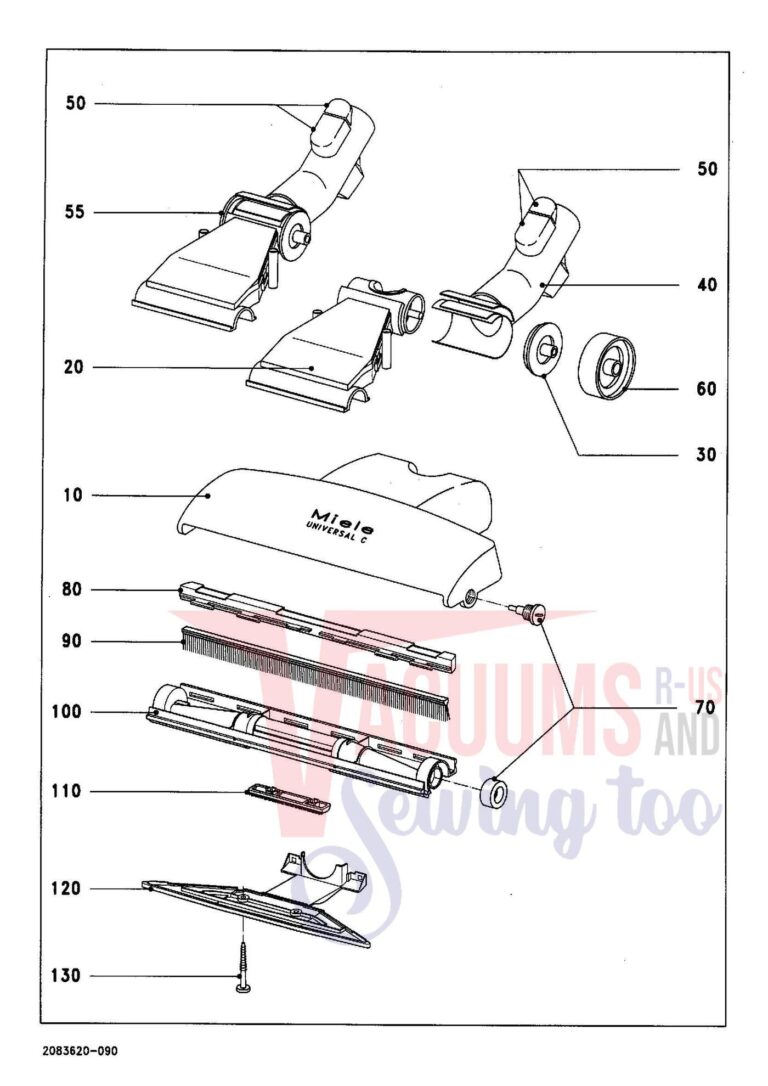

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Screw K40X45/25 EJOT-PT | 3930740 | $3.60Read more |
| 10 | Not Available | -Casing top anthracite | 4334260 | Not Available |
| 20 | Not Available | -Air channel anthracite | 4366480 | Not Available |
| 30 | Not Available | -Lid anthracite | 4366490 | Not Available |
| 50-130 | Not Available | Floor nozzle SBD304 | 4334252 | Not Available |
| 50+55 | | Genuine Miele Linkage anthracite | 4366472 | $43.60Read more |
| 50 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 60 | No Image | -Roller Anthracite | 4366500 | $30.00Read more |
| 70 | | Genuine Miele Support roller black | 3947921 | $27.90Read more |
| 80 | Not Available | -Sealing strip | 4334370 | Not Available |
| 90 | | Genuine Miele Bristle strip | 4334410 | $24.70Read more |
| 100+110 | | Genuine Miele Floor plate anthracite | 4334351 | $52.20Read more |
| 110 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 120 | | Genuine Miele Cover | 4334341 | $15.00Read more |
Report errors on this page HERE
