Schematic and parts book for Miele S248I SERIES 10 lotusgrün. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

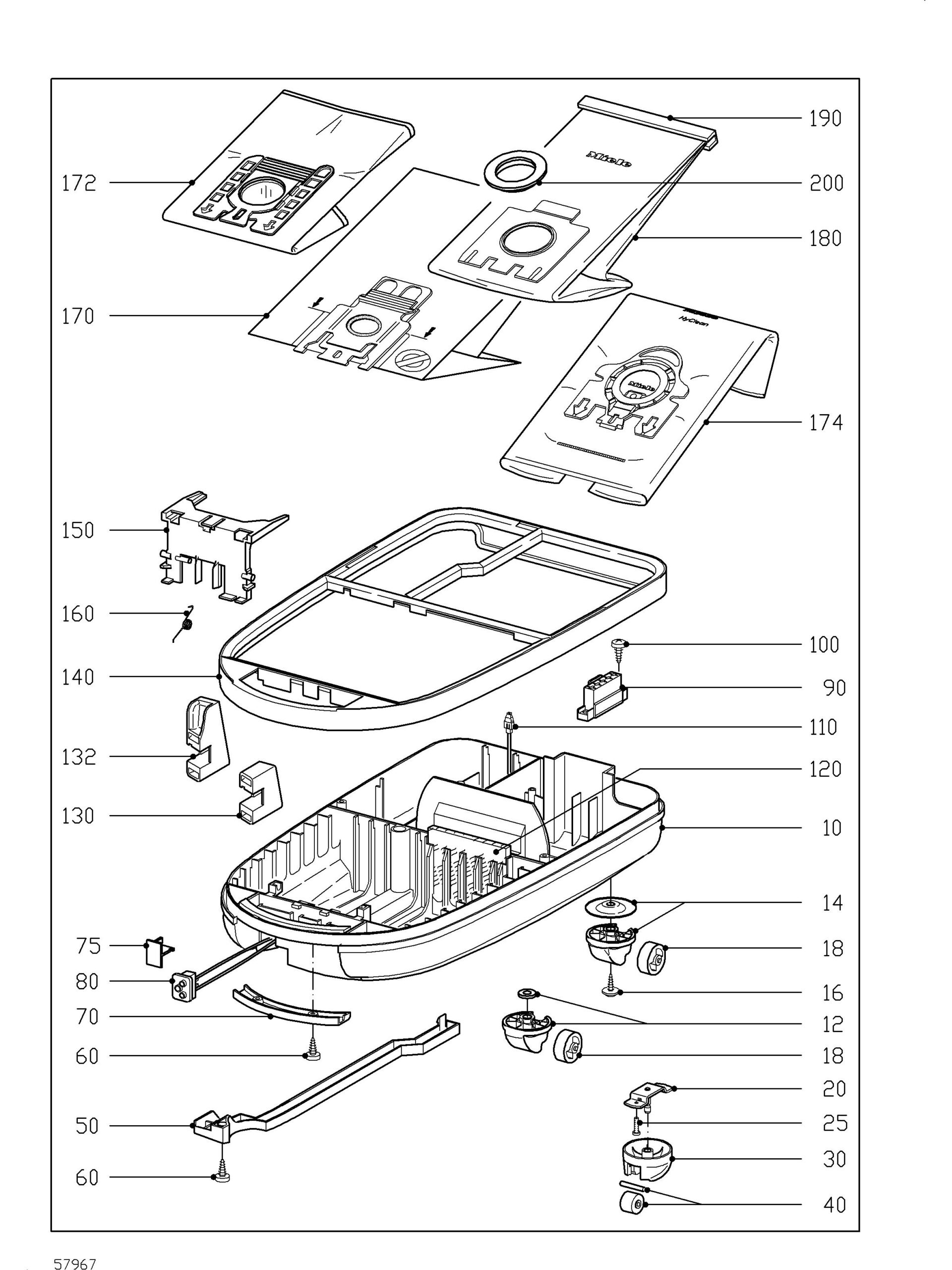

| # | Part image | Description | SKU | Price |
| XX | No Image | --Raised Head Screw 4,2X18 | 4274582 | $2.30Read more |
| XX |  | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| (70) | Not Available | Grip handle Lava grey | 2243900 | Not Available |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw Zinc-plated 2,9X9,5 | 1023022 | $4.90Read more |
| (130) | Not Available | Bracket Lava grey | 2243970 | Not Available |
| 14+18 | Not Available | -Slide skid anthracite | 3594264 | Not Available |
| 18 | No Image | -Support Roller Anthracite | 3745700 | $11.16Read more |
| 20-40 | No Image | Casing Bottom Anthracite | 5568050 | $119.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Genuine Miele Shaft Slide skid | 3892600 | $9.70Read more |
| 30+40 | No Image | -Slide Skid Obsw Assy | 12494260 | $11.00Read more |
| 30+40 | No Image | -Slide Skid Obsw Assy | 12494260 | $11.00Read more |
| 50 | No Image | Strip Lava Grey | 2246620 | $21.62Read more |
| 50 | Not Available | Strip anthracite | 3611170 | Not Available |
| 70 | No Image | Grip Handle Anthracite | 3611190 | $7.59Read more |
| 70 | No Image | Grip Handle Lava Grey | 2490680 | $7.59Read more |
| 70 | No Image | Grip Handle Anthracite | 3611190 | $7.59Read more |
| 70 | No Image | Grip Handle Lava Grey | 2490680 | $7.59Read more |
| 75 | No Image | Cover Lava Grey | 2351280 | $2.30Read more |
| 75 | Not Available | Cover anthracite | 3611210 | Not Available |
| 80 | No Image | Flush Socket Outlet Anthracite | 4304600 | $66.00Read more |
| 90 | No Image | -Plug Housing 5 Pole | 1942150 | $12.00Read more |
| 110 | No Image | Plug 6,3Mm 0,5-1,5Qmm | 1071451 | $2.30Read more |
| 120 |  | Genuine Miele Dust compart.filter 3 pcs. | 6713110 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 132 | No Image | Bracket Anthracite | 3614181 | $20.00Read more |
| 132 | No Image | Bracket Anthracite | 3614181 | $20.00Read more |
| 132 | No Image | Bracket Anthracite | 3614181 | $20.00Read more |
| 132 | No Image | Bracket Anthracite | 3614181 | $20.00Read more |
| 140 | No Image | Buffer Anthracite | 3611180 | $47.00Read more |
| 150 | No Image | Bracket Anthracite | 2243914 | $22.00Read more |
| 160 | | Genuine Miele Torsion spring | 1348411 | $2.30Read more |
| 174 | No Image | Vacuum Cleaner Bag Fjm Hyclean Pure Int | 12421140 | $0.00Read more |
| 174 | No Image | Compatible alternateAftermarket Miele FJM bags 4 pack bags More Product Details | FJMAM4PK | $9.99Add to cart |
| 180-200 | Not Available | Cloth filter bag S227-S858 | 5188842 | Not Available |
| 190 | | Genuine Miele Lock | 1058641 | $20.60Read more |
| 200 | Not Available | -Sealing ring | 2318440 | Not Available |

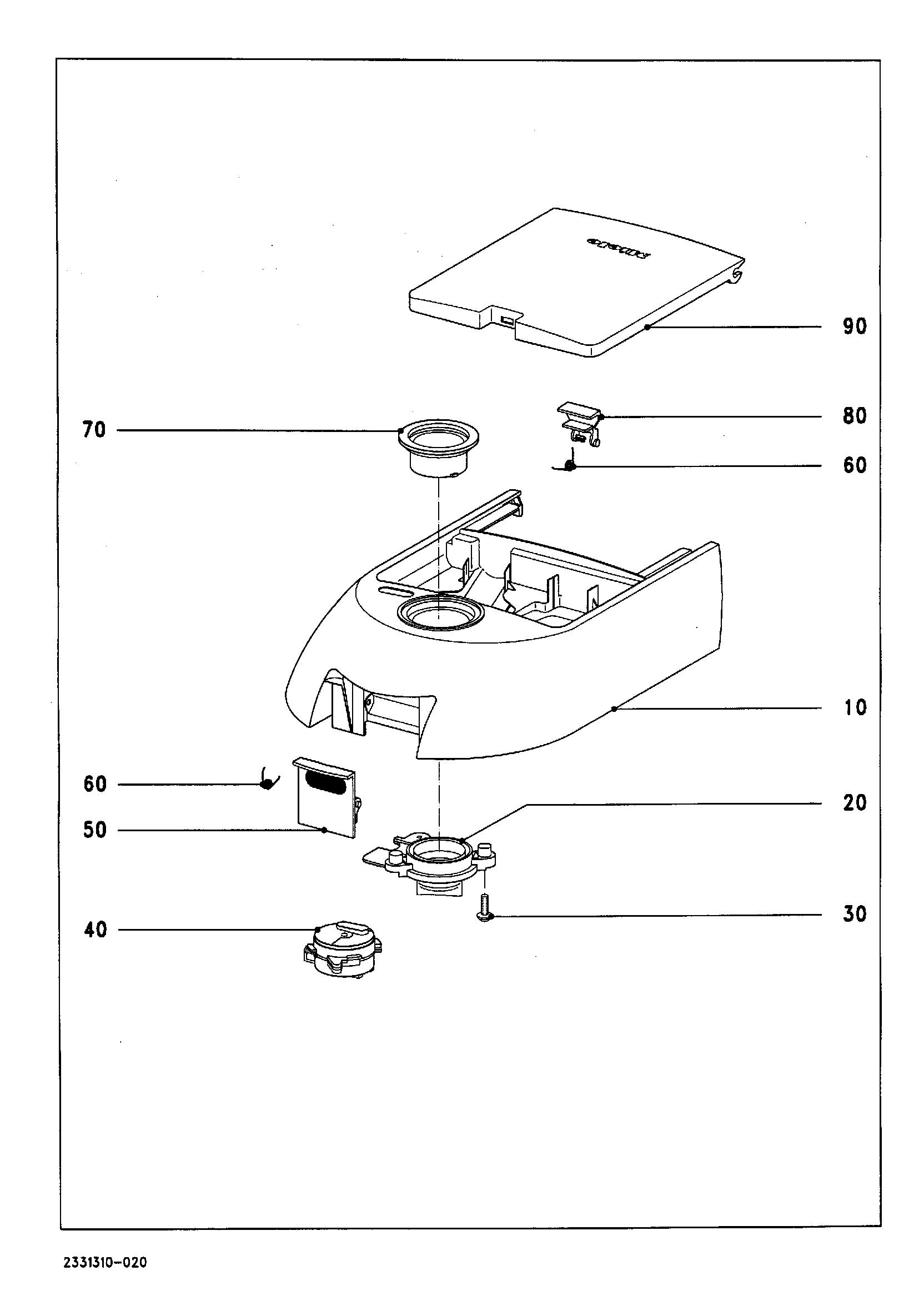

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 10 | No Image | Casing Top Pastel White | 3593201 | $109.00Read more |
| 10 | No Image | Casing Top Ruby Red | 3593191 | $109.00Read more |
| 10 | Not Available | Casing top saphire blue | 3593221 | Not Available |
| 10 | Not Available | Casing top Aubergine | 3611241 | Not Available |
| 10 | No Image | Casing Top Emerald Green | 3624361 | $109.00Read more |
| 10 | No Image | Casing Top Brick Red | 4072550 | $109.00Read more |
| 10 | No Image | Casing Top Brilliant White | 4072570 | $109.00Read more |
| 10 | Not Available | Casing top azure blue | 4072730 | Not Available |
| 10 | No Image | Casing Top Lotos Green | 4072610 | $109.00Read more |
| 20 | No Image | Dust Channel Anthracite | 2243924 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | Not Available | Change filter ind. anthracite | 2239913 | Not Available |
| 50 | No Image | Lock Anthracite | 3611311 | $12.31Read more |
| 50 | No Image | Lock Anthracite | 3611311 | $12.31Read more |
| 50 | No Image | Lock Anthracite | 3611311 | $12.31Read more |
| 60 | | Genuine Miele Torsion spring | 2348250 | $2.30Read more |
| 60 | | Genuine Miele Torsion spring | 2348250 | $2.30Read more |
| 70 | No Image | Slide Sleeve Anthracite | 3558750 | $12.31Read more |
| 80 | No Image | Interlock Anthracite | 3611343 | $5.20Read more |
| 90 | No Image | Lid Brilliant White | 4927270 | $56.00Read more |
| 90 | No Image | Lid Brilliant White | 4927270 | $56.00Read more |
| 90 | No Image | Lid Royal Blue | 4927330 | $56.00Read more |
| 90 | Not Available | Lid Aubergine | 4927250 | Not Available |
| 90 | No Image | Lid Emerald Green | 3611370 | $66.00Read more |
| 90 | Not Available | Lid brick red | 4927260 | Not Available |
| 90 | No Image | Lid Brilliant White | 4927270 | $56.00Read more |
| 90 | No Image | Lid Azure Blue | 4072850 | $56.00Read more |
| 90 | No Image | Lid Lotos Green | 4927280 | $56.00Read more |

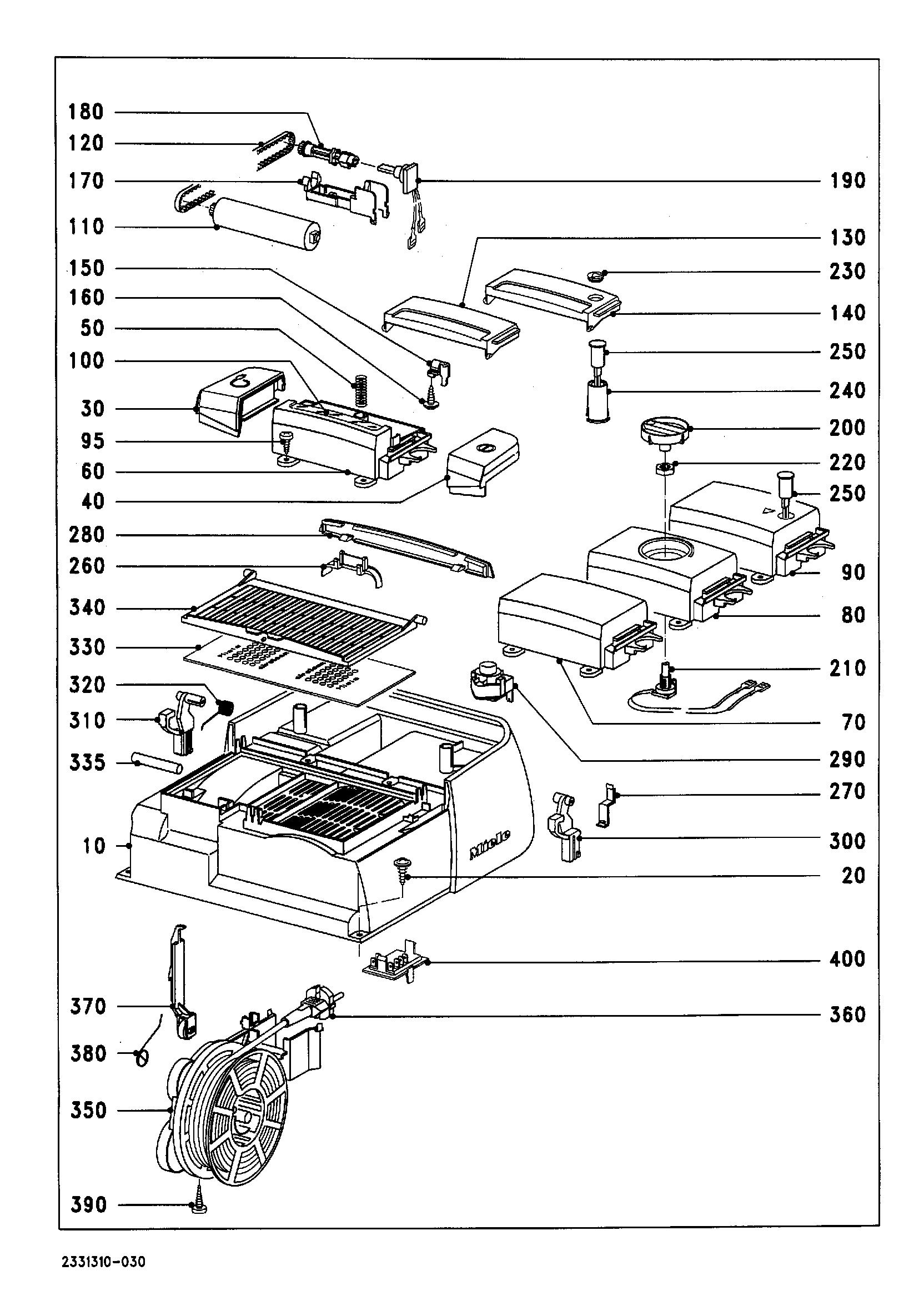

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 4X20 | 2364630 | $2.30Read more |
| XX | No Image | --Coun.Self-Tap.Screw 3,9X13 | 36817 | $4.14Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 10+340 | No Image | Rear Panel Pastel White | 3576581 | $76.00Read more |
| 10+340 | Not Available | Rear panel Ruby red | 3576561 | Not Available |
| 10+340 | No Image | Rear Panel Saphire Blue | 3576601 | $76.00Read more |
| 10 | Not Available | Rear panel Aubergine | 3611423 | Not Available |
| 10 | No Image | Rear Panel Brick Red | 4073232 | $76.00Read more |
| 10 | No Image | Rear Panel Brilliant White | 4073252 | $76.00Read more |
| 10 | No Image | Rear Panel Azure Blue | 4073261 | $76.00Read more |
| 10 | No Image | Rear Panel Lotos Green | 4073292 | $76.00Read more |
| 30 | No Image | Foot Switch Right Lava Grey | 2246830 | $15.53Read more |
| 30 | No Image | Foot Switch Right | 7355980 | $15.53Read more |
| 40 | Not Available | Foot switch left lava grey | 2246840 | Not Available |
| 40 | No Image | Foot Switch Left | 7335380 | $15.53Read more |
| 50 |  | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 70 | Not Available | Cap Lava grey | 2246200 | Not Available |
| 70 | No Image | Cap Anthracite | 3558220 | $20.00Read more |
| 260 | No Image | Slide Track Anthracite | 2243951 | $4.14Read more |
| 270 | Not Available | End plug anthracite | 2243941 | Not Available |
| 280 | Not Available | Strip pastel white | 2243930 | Not Available |
| 280 | No Image | Strip Anthracite | 3611470 | $11.00Read more |
| 280 | No Image | Strip Anthracite | 3611470 | $11.00Read more |
| 280 | No Image | Strip Brick Red | 4073310 | $11.00Read more |
| 280 | No Image | Strip Anthracite | 3611470 | $11.00Read more |
| 280 | No Image | Strip Lotos Green | 4073350 | $11.00Read more |
| 290 | No Image | Conv.Kit Switch | 4220400 | $66.00Read more |
| 300 | No Image | Hinge Left Anthracite | 3558710 | $5.20Read more |
| 310 | No Image | Hinge Right Anthracite | 3558730 | $5.20Read more |
| 320 | No Image | Torsion Spring | 2349140 | $2.50Read more |
| 330 |  | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 335 | Not Available | Scent | 3027951 | Not Available |
| 340 | No Image | -Grille Anthracite | 2243968 | $22.00Read more |
| 340 | No Image | -Grille Anthracite | 2243968 | $22.00Read more |
| 350-380 | Not Available | Cable reel S250 6,5m 125V | 7001780 | Not Available |
| 360 | Not Available | -Supply cable 6,65m 17AWG 120V USA | 5241032 | Not Available |
| 370 | No Image | -Brake Lever | 3457660 | $21.62Read more |
| 380 | No Image | -Torsion Spring S250 | 4330190 | $2.50Read more |
| 400 | Not Available | Plug housing 6 pole | 2048420 | Not Available |

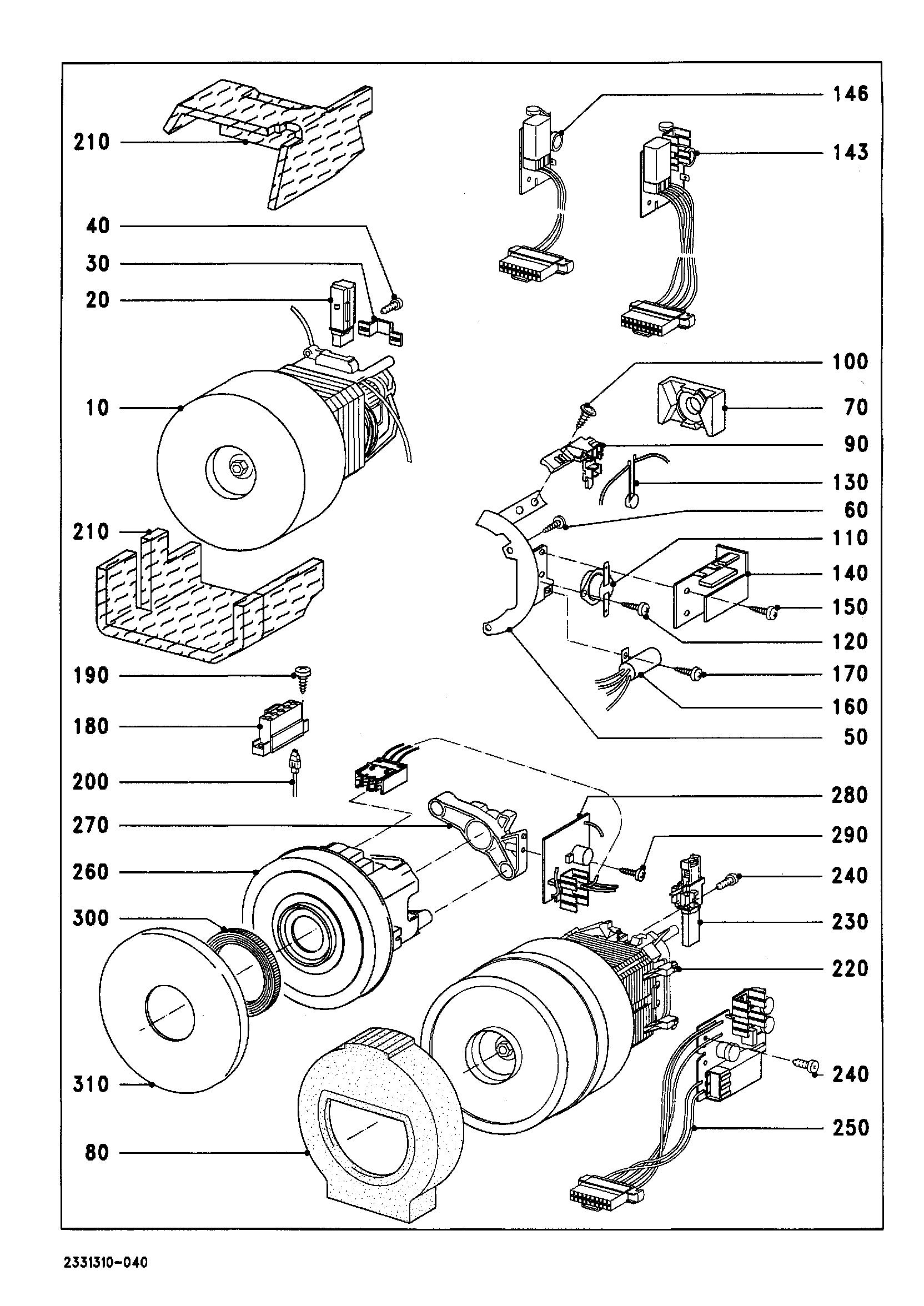

| # | Part image | Description | SKU | Price |
| XX | No Image | --Roundheaded Screw 5/32.Zollx8 | 49673 | $7.59Read more |
| w/o fig. | | Genuine Miele  | 1071710 | $3.60Read more |
| XX | Not Available | --Raised head screw 4,8X13 DIN 7981 | 10607 | Not Available |
| XX | | Genuine Miele Raised head screw 3,9X9,5 | 1143580 | $0.00Read more |
| XX | | Genuine Miele Raised head screw 3,9X6,5 | 4781122 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| XX | | Genuine Miele Raised head screw 3,9X6,5 | 4781122 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| XX | | Genuine Miele Raised head screw Zinc-plated 2,9X9,5 | 1023022 | $4.90Read more |
| XX | | Genuine Miele Raised head screw 3,9X9,5 | 3903441 | $2.30Read more |
| 10-10 | Not Available | Fan 115923-AB 120V 60HZ | 1502662 | Not Available |
| 20 | | Genuine Miele Carbon brush | 2830481 | $56.80Read more |
| 30 | | Genuine Miele Clamping bracket | 75426 | $9.70Read more |
| 50 | | Genuine Miele Fixing | 1889550 | $9.70Read more |
| 70 | No Image | Rubber Cushion | 1889520 | $0.00Read more |
| 80 | No Image | Sealing Ring | 2239052 | $36.00Read more |
| 110 | | Genuine Miele Thermoswitch 10A 250V | 79864 | $39.50Read more |
| 130 | No Image | Resistor 10 Ohm | 2029220 | $47.00Read more |
| 180 | No Image | -Plug Housing 5 Pole | 1942150 | $12.00Read more |
| 200 | No Image | Plug 6,3Mm 0,5-1,5Qmm | 1071451 | $2.30Read more |
| 210 | Not Available | Damping plate | 3125141 | Not Available |
| 260 |  | Genuine Miele Fan Mrg722/81-42/2 120V | 5709492 | $119.00Add to cart Special order: ships in 2 to 4 weeks |
| 260 |  | Available ReconditionedReconditioned Genuine Miele Fan Mrg722/81-42/2 120V More Product Details | 5709492R | $100.00Add to cart |
| 280 | No Image | Electronic Unit 120V/60Hz | 6049200 | $76.00Read more |
| 290 | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 300 | No Image | Bearing Ring | 4034450 | $22.00Read more |
| 310 | No Image | Bearing Shell | 5480830 | $20.00Read more |

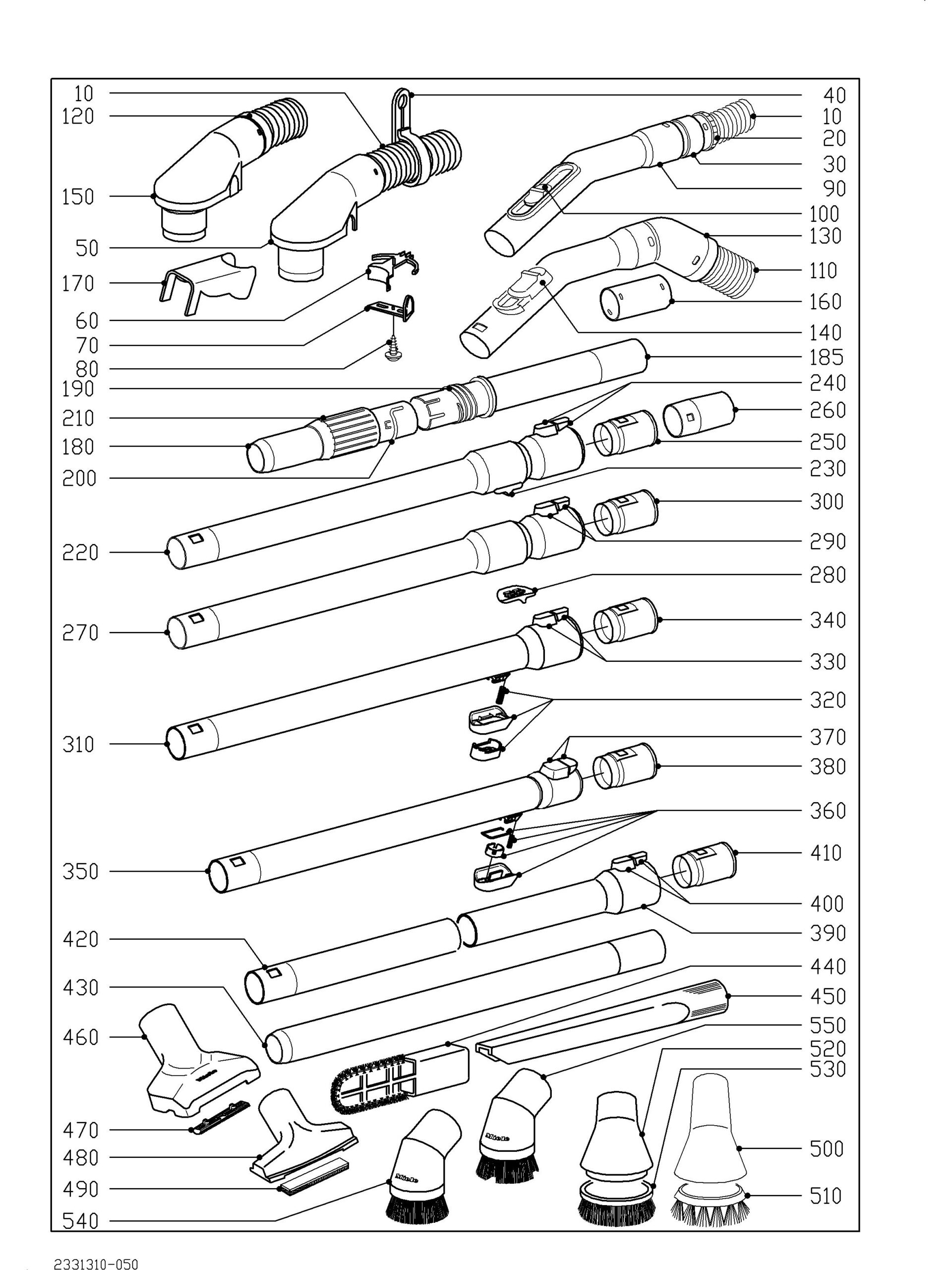

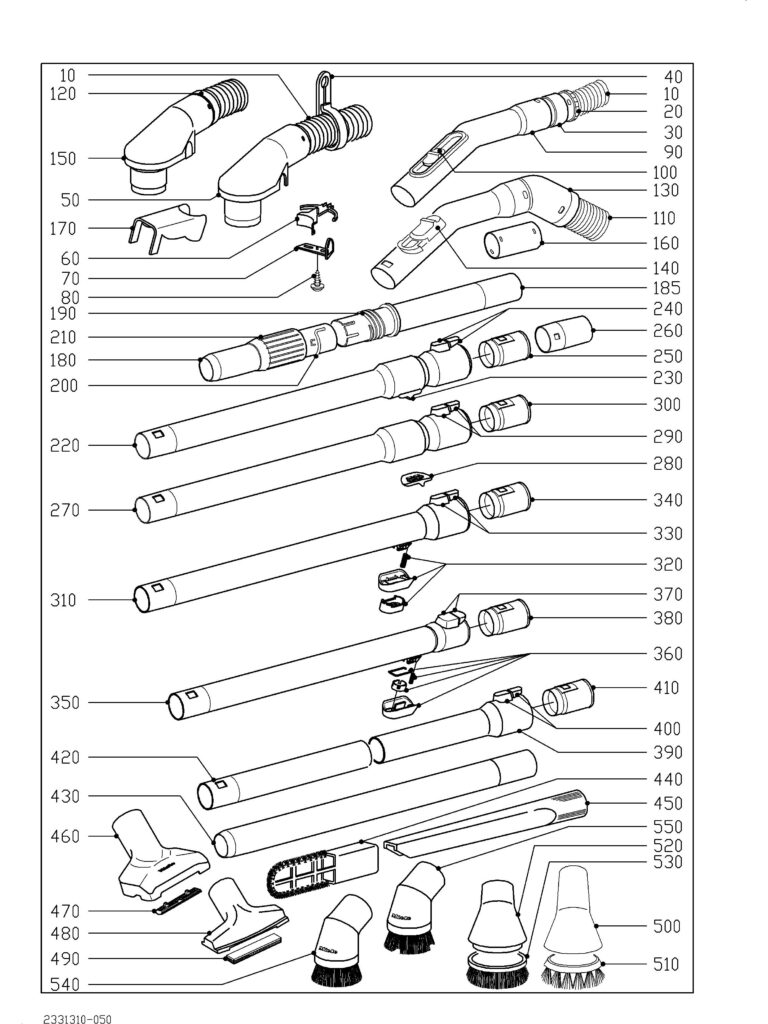

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 3,9X9,5 | 1143580 | $0.00Read more |
| 30 | | Genuine Miele Sleeve | 91205 | $9.70Read more |
| 30 | | Genuine Miele Sleeve | 91205 | $9.70Read more |
| 40 | | Genuine Miele Suspension anthracite | 3565990 | $3.60Read more |
| 40 | | Genuine Miele Suspension anthracite | 3565990 | $3.60Read more |
| 60 | | Genuine Miele interlock Lava grey | 1963320 | $6.60Read more |
| 70 | | Genuine Miele Slide | 1348550 | $3.60Read more |
| 100 | No Image | -Suction Control Anthracite | 1328680 | $3.90Read more |
| 110-150 | No Image | Suction Hose Anthracite | 3617463 | $149.00Add to cart Special order: ships in 2 to 4 weeks |
| 110+120 |  | Genuine Miele Suction hose silver-coloured 1,8m | 3565351 | $51.00Add to cart |
| 110-150 | No Image | Suction Hose Anthracite | 3617463 | $149.00Add to cart Special order: ships in 2 to 4 weeks |
| 110+120 | | Genuine Miele Suction hose silver-coloured 1,8m | 3565351 | $51.00Add to cart |
| 120 | | Genuine Miele Ring anthracite | 3565360 | $4.90Read more |
| 120 | | Genuine Miele Ring anthracite | 3565360 | $4.90Read more |
| 130+140 | | Genuine Miele Tubular handle anthracite assy | 3565461 | $56.00Add to cart Special order: ships in 2 to 4 weeks |
| 130+140 |  | Compatible alternateGenuine Miele Vacuum Cleaner Bend End for S series S200-S800 More Product Details | 3565460 | $35.99Add to cart Special order: ships in 2 to 4 weeks |
| 130+140 | | Genuine Miele Tubular handle anthracite assy | 3565461 | $56.00Add to cart Special order: ships in 2 to 4 weeks |
| 140 | | Genuine Miele Suction control anthracite | 3565580 | $3.60Read more |
| 150 | | Genuine Miele Elbow anthracite | 3565392 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
| 150 | | Genuine Miele Elbow anthracite | 3565392 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
| 160 | | Genuine Miele Connecting tube anthracite | 3565760 | $20.60Read more |
| 170 | No Image | Holder Anthracite | 3565700 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 190-210 | Not Available | -Screw connector anthracite | 1567702 | Not Available |
| 190 | Not Available | -Screw connector anthracite | 1567702 | Not Available |
| 200 | Not Available | -Screw connector anthracite | 1567702 | Not Available |
| 210 | Not Available | -Screw connector anthracite | 1567702 | Not Available |
| 230 | No Image | -Slide Lava Grey | 3205631 | $7.59Read more |
| 230 | No Image | -Slide Anthracite | 3570310 | $5.64Read more |
| 240+250 |  | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 240 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 280 | No Image | -Slide Anthracite | 4333600 | $7.00Read more |
| 290+300 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 290 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 320 | | Genuine Miele Push button 15x30mm | 4832460 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 330+340 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 330 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 350-380 |  | Genuine Miele Telescopic pipe 2-part st.steel | 5658812 | $0.00Read more |
| 350-380 |  | Available Pre OwnedReconditioned Miele Telescopic Aluminum Wand for Miele Upright Vacuums 6801181 More Product Details | 6801180R | $48.00Add to cart |
| 350-380 |  | Compatible alternateGenuine Miele Telescopic pipe Aluminium More Product Details | 6801181 | $109.00Add to cart Special order: ships in 2 to 4 weeks |
| 350-380 | | Genuine Miele Telescopic pipe 2-part st.steel | 5658812 | $0.00Read more |
| 350-380 | | Genuine Miele Telescopic pipe 2-part st.steel | 5658812 | $0.00Read more |
| 360 |  | Genuine Miele Push button Round | 5780932 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 370+380 | | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 370 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 440 | | Genuine Miele ST Radiator brush SHB30 | 9660490 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 450 | No Image | Crevice Nozzle 149Mm Obsw | 9442631 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 460+470 | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 470 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 490 | | Genuine Miele Thread lifter 2 Pcs. | 2348770 | $13.50Read more |
| 510 | No Image | -Brush Head Pvc | 2142680 | $17.25Read more |
| 550 |  | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $26.00Add to cart Special order: ships in 2 to 4 weeks |
| 550 | No Image | Dusting Brush L | 12187780 | $24.00Add to cart Special order: ships in 2 to 4 weeks |
| 550 | No Image | Dusting Brush L | 12187780 | $24.00Add to cart Special order: ships in 2 to 4 weeks |

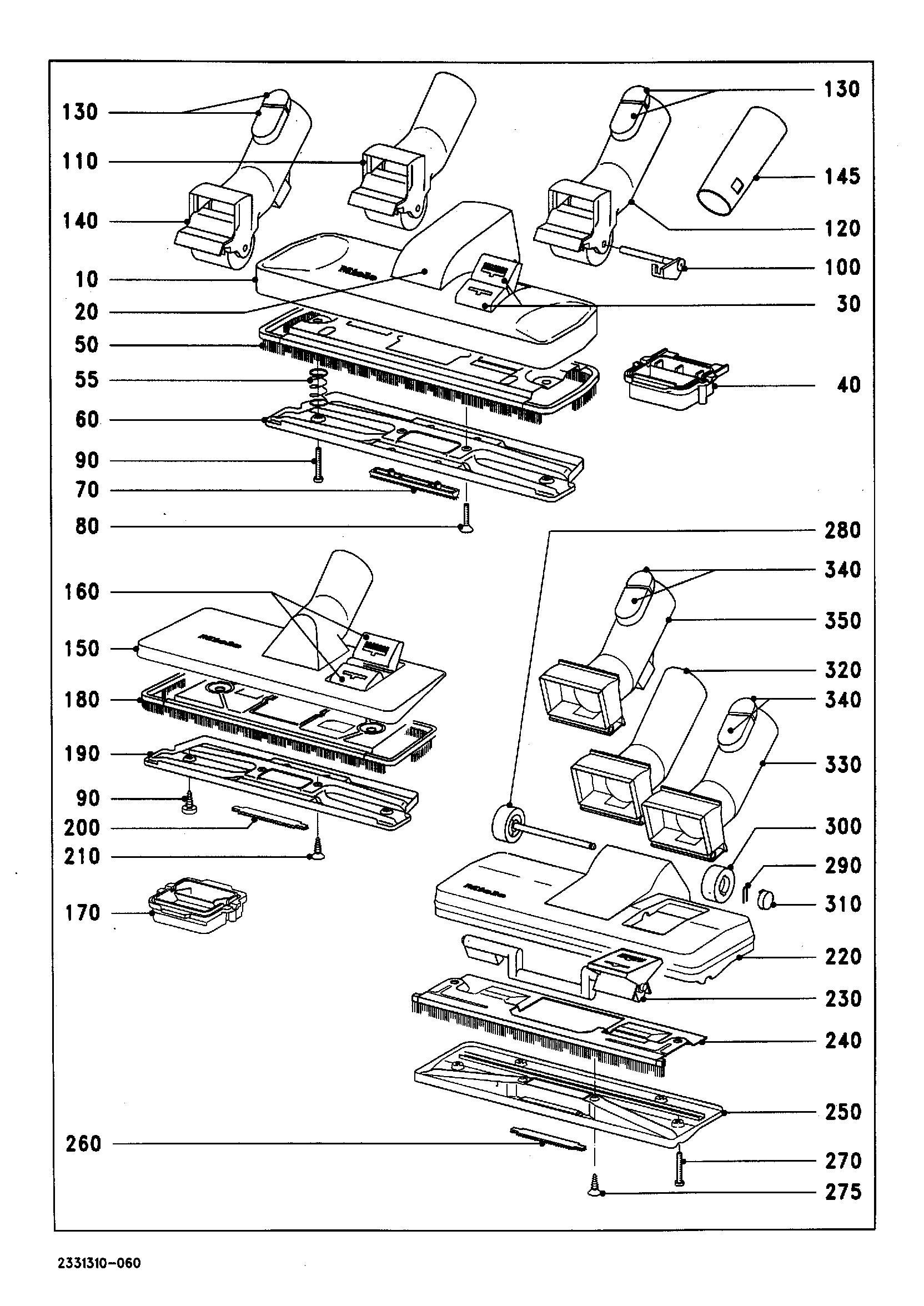

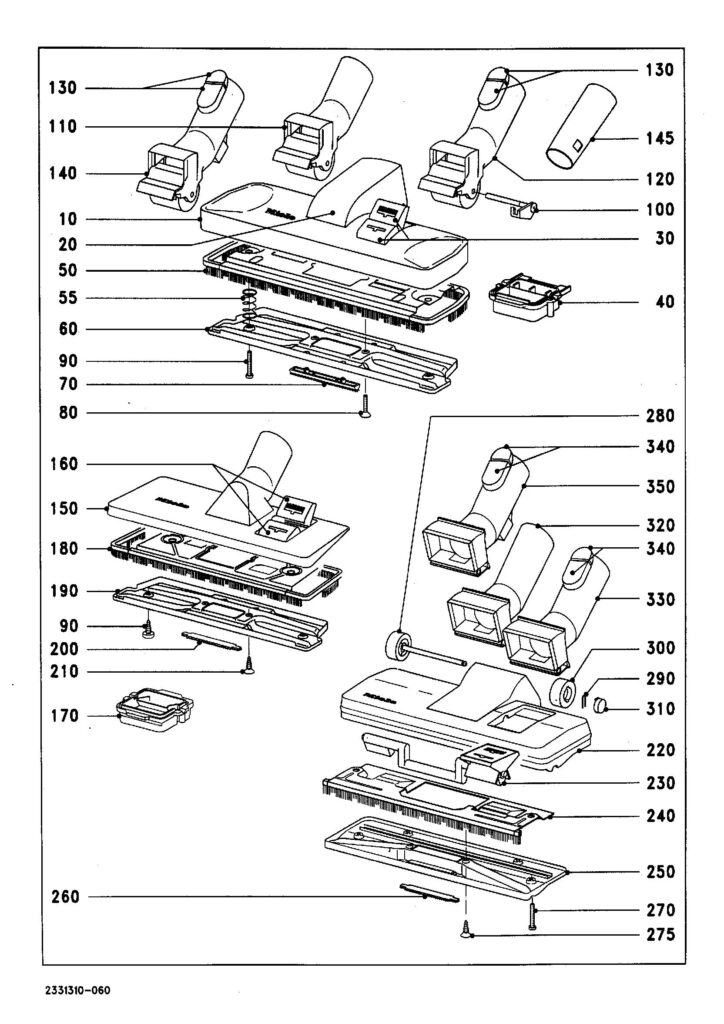

| # | Part image | Description | SKU | Price |
| w/o fig. | No Image | Floor Nozzle Sbd265 | 4769121 | $98.70Read more |
| w/o fig. | No Image | Floor Nozzle Sbd265 | 4769121 | $98.70Read more |
| 10-40 | Not Available | -Top anthracite | 3639081 | Not Available |
| 20 | Not Available | -Suction channel Lava grey | 2142670 | Not Available |
| 20 | Not Available | -Suction channel anthracite | 3639070 | Not Available |
| 30 | | Genuine Miele Foot switch anthracite | 3649851 | $10.70Read more |
| 40 | Not Available | -Spacer | 3613000 | Not Available |
| 50 | Not Available | -Bristle supp.plate | 1229792 | Not Available |
| 55 |  | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |
| 60+70 | | Genuine Miele Lower section | 4969510 | $33.80Read more |
| 70 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 80 | No Image | --Countersunk Screw Ka35X16 Ejot-Pt | 2396150 | $2.50Read more |
| 90 | Not Available | --Raised head screw 3,5X25 | 10597 | Not Available |
| 100+110 | Not Available | -Linkage anthracite | 3651490 | Not Available |
| 100 | | Genuine Miele Shaft anthracite | 3612910 | $10.70Read more |
| 130+140 | Not Available | -Linkage anthracite | 3649870 | Not Available |
| 130 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 145 | | Genuine Miele Sleeve | 3058721 | $62.00Read more |

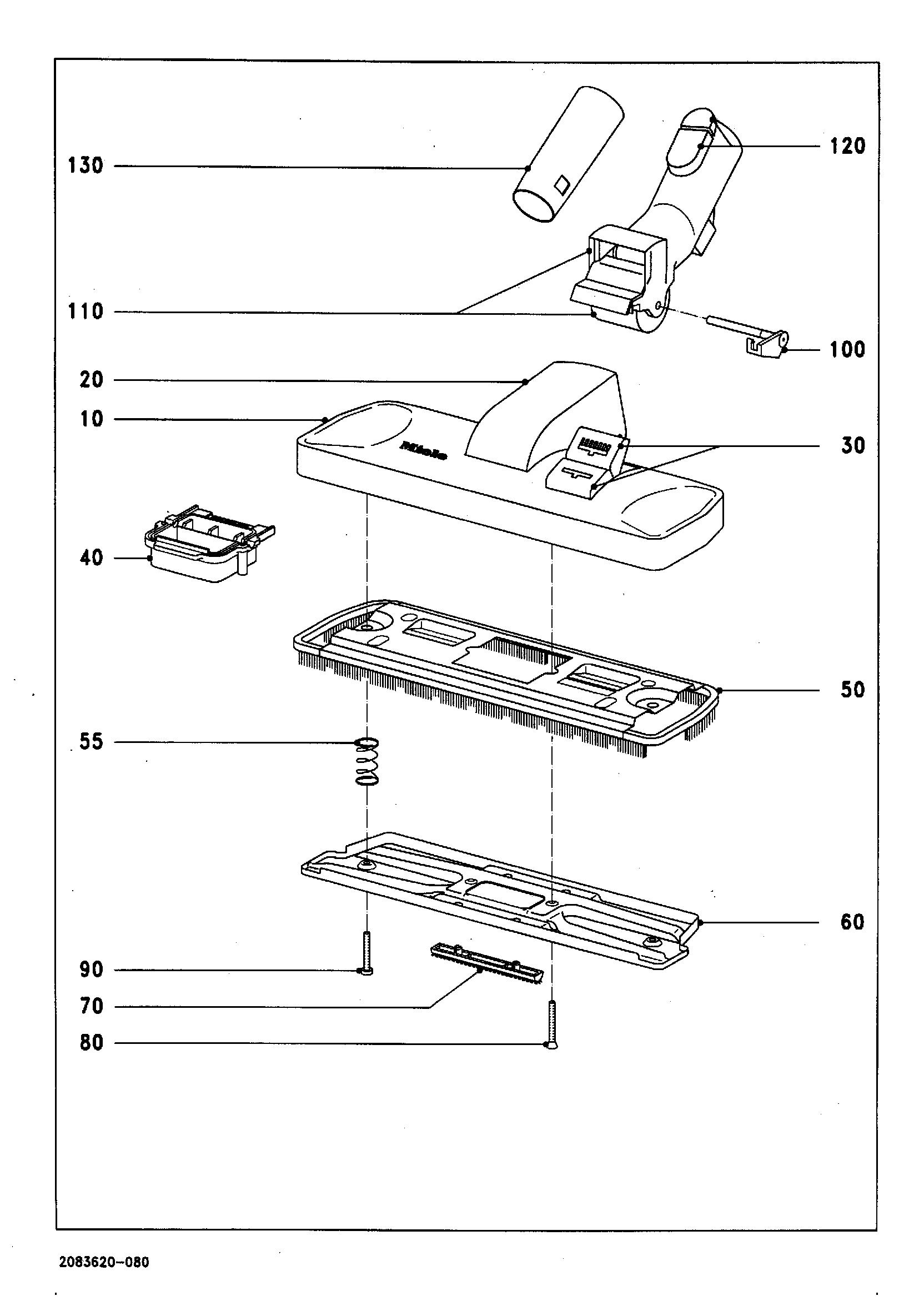

| # | Part image | Description | SKU | Price |
| w/o fig. | Not Available | Floor nozzle SBD285-3 AllTeQ | 7253830 | Not Available |
| 10-40 | Not Available | -Top anthracite | 3614251 | Not Available |
| 10-40 | Not Available | -Top anthracite | 3614251 | Not Available |
| 30 | | Genuine Miele Foot switch anthracite | 3649851 | $10.70Read more |
| 40 | Not Available | -Spacer | 3613000 | Not Available |
| 50 | Not Available | -Bristle supp.plate | 1229792 | Not Available |
| 55 | | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |
| 60+70 | | Genuine Miele Lower section | 4969510 | $33.80Read more |
| 70 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 80 | No Image | --Screw Ka35X31 Ejot-Pt | 3614330 | $2.50Read more |
| 90 | | Genuine Miele Screw KA35X27 EJOT-PT | 3484490 | $2.30Read more |
| 100-120 | No Image | -Linkage Anthracite | 3685341 | $42.00Read more |
| 100 | | Genuine Miele Shaft anthracite | 3612910 | $10.70Read more |
| 120 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 130 | | Genuine Miele Sleeve | 3058721 | $62.00Read more |

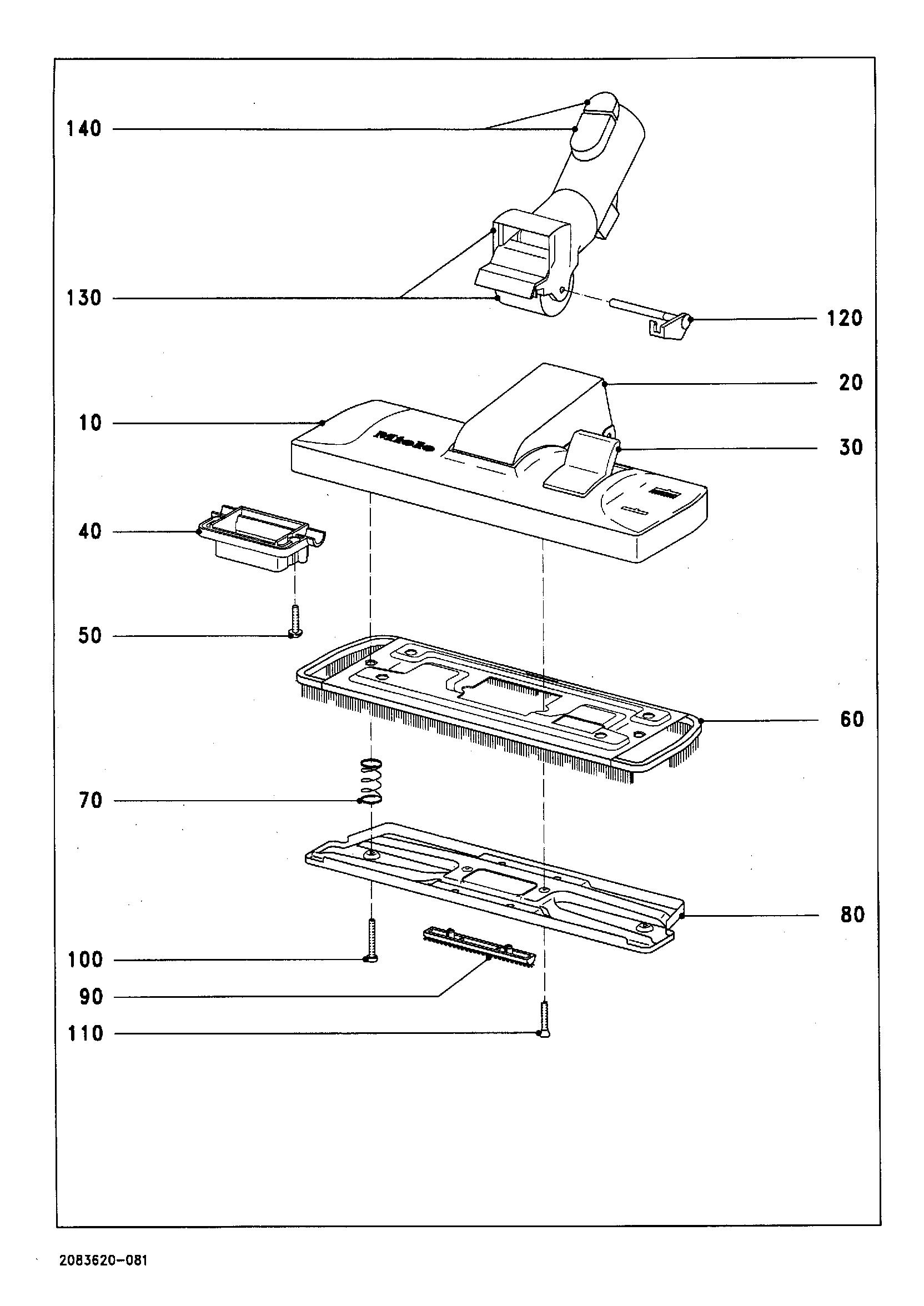

| # | Part image | Description | SKU | Price |
| w/o fig. | Not Available | Floor nozzle SBD285-3 AllTeQ | 7253830 | Not Available |
| XX | No Image | --Screw 3,5X12 | 4953780 | $2.50Read more |
| 10-50 | Not Available | -Top anthracite | 4789120 | Not Available |
| 20 | Not Available | -Suction channel anthracite | 4900990 | Not Available |
| 30 | No Image | -Foot Switch Anthracite | 4769070 | $30.00Read more |
| 40 | | Genuine Miele Fixing | 4769100 | $9.70Read more |
| 60 | Not Available | -Bristle supp.plate | 4769110 | Not Available |
| 70 | | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |
| 80+90 | | Genuine Miele Lower section | 4969510 | $33.80Read more |
| 90 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 120-140 | No Image | -Linkage Anthracite | 3685341 | $42.00Read more |
| 120 | | Genuine Miele Shaft anthracite | 3612910 | $10.70Read more |
| 140 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |

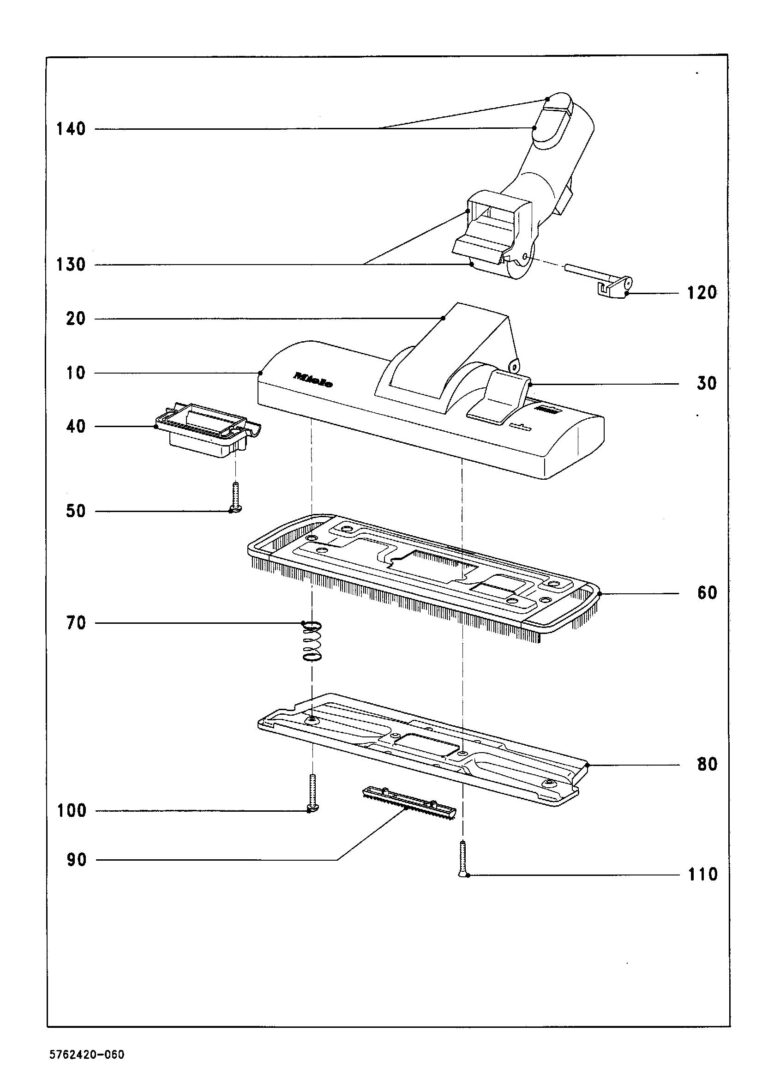

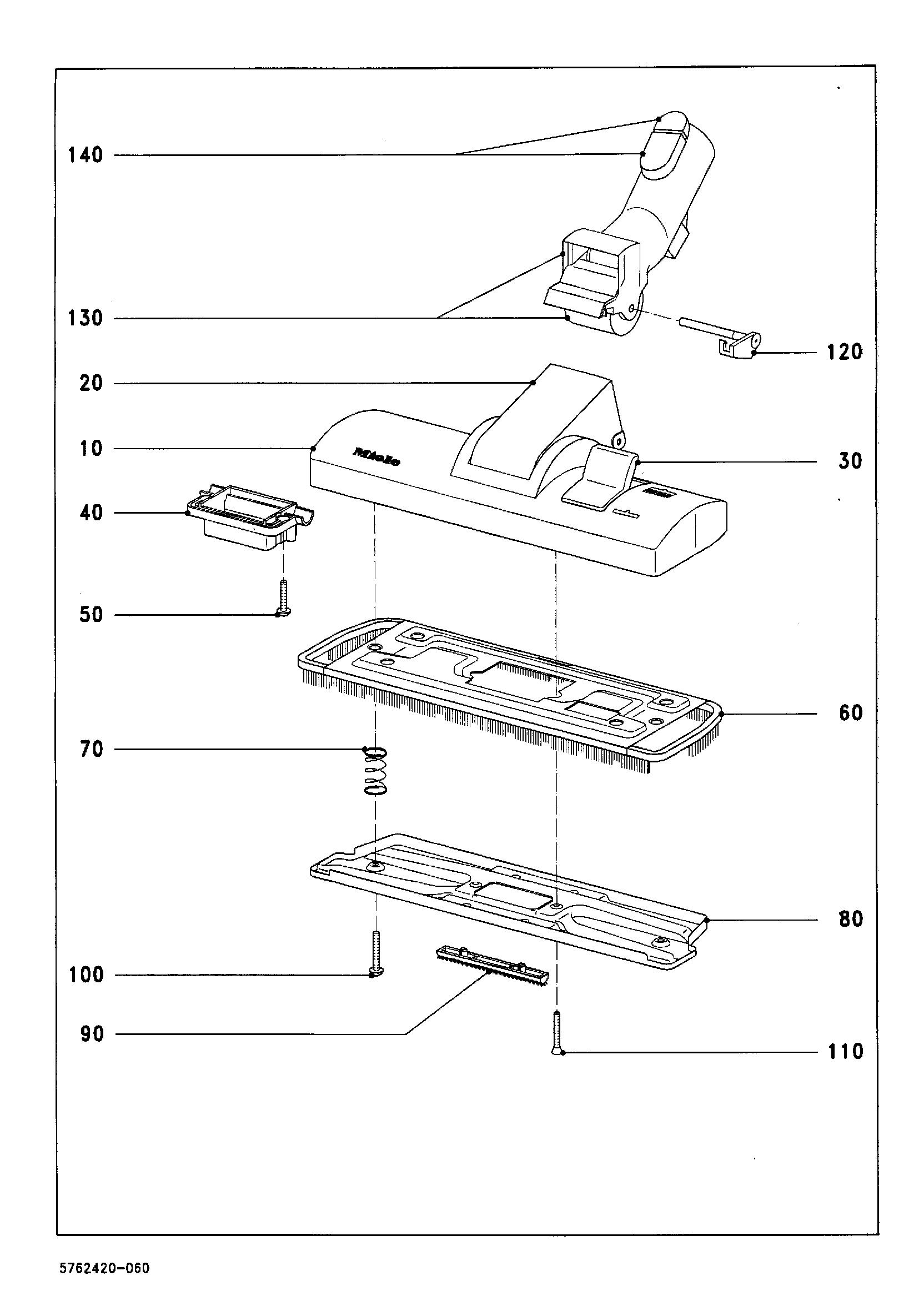

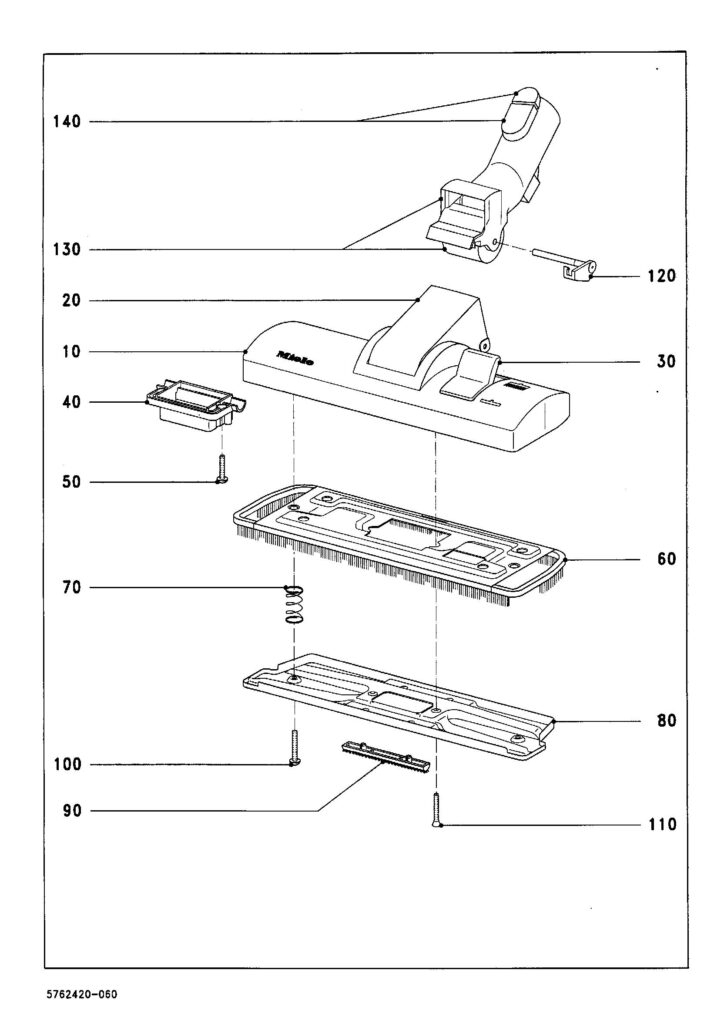

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Screw KA35X16 EJOT-PT | 4863580 | $3.60Read more |
| 10-140 | Not Available | Floor nozzle SBD285-3 AllTeQ | 7253830 | Not Available |
| 10-50 | Not Available | -Top anthracite | 4789120 | Not Available |
| 20 | Not Available | -Suction channel anthracite | 4900990 | Not Available |
| 30 | No Image | -Foot Switch Anthracite | 4769070 | $30.00Read more |
| 40 | | Genuine Miele Fixing | 4769100 | $9.70Read more |
| 60 | Not Available | -Bristle supp.plate | 4769110 | Not Available |
| 70 | | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |
| 80+90 | | Genuine Miele Lower section | 4969510 | $33.80Read more |
| 90 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 100 | | Genuine Miele Screw KA35X27 EJOT-PT | 3484490 | $2.30Read more |
| 110 |  | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $3.60Read more |
| 120-140 | | Genuine Miele Linkage SBD265 | 6260600 | $39.50Read more |
| 120 | | Genuine Miele Shaft anthracite | 3612910 | $10.70Read more |
| 140 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
Report errors on this page HERE
