Schematic and parts book for Miele S246I S 246 I. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

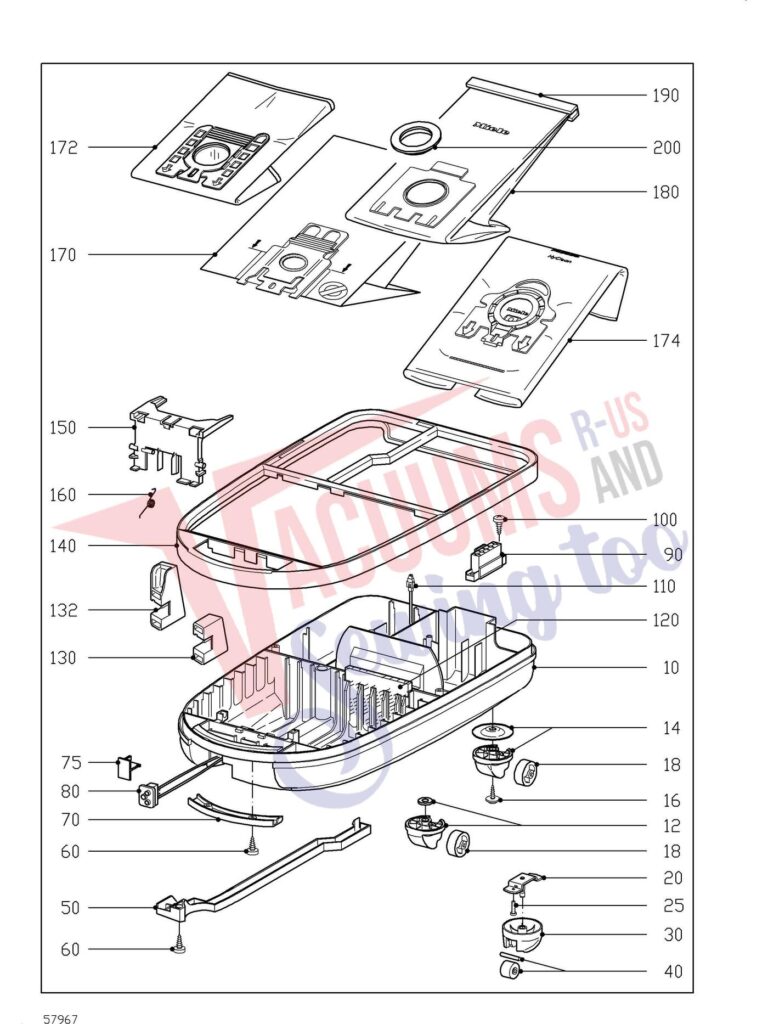

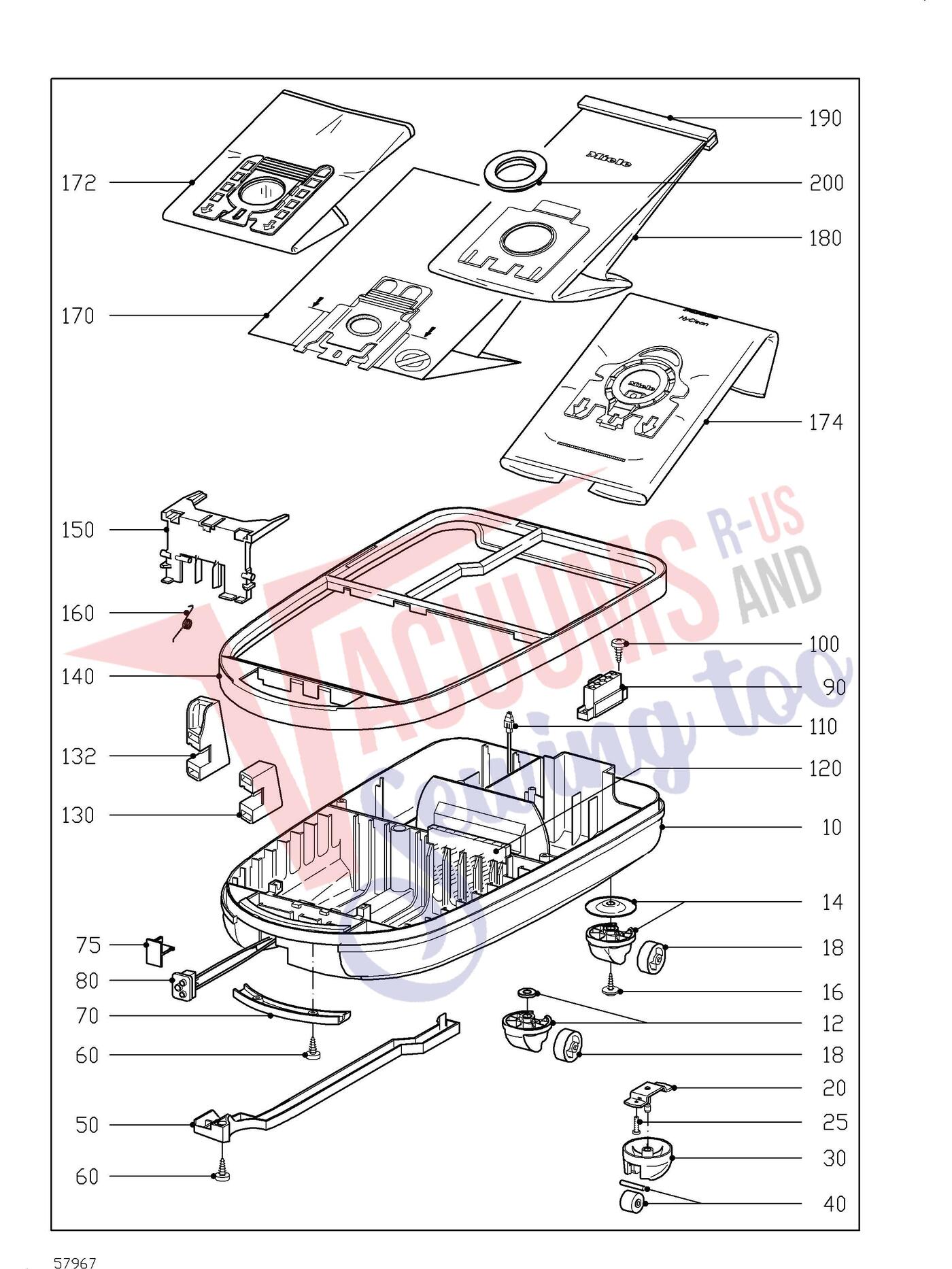

| # | Part image | Description | SKU | Price |
| XX |  | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw Zinc-plated 2,9X9,5 | 1023022 | $4.90Read more |
| 14+18 | Not Available | -Slide skid anthracite | 3594264 | Not Available |
| 18 | No Image | -Support Roller Anthracite | 3745700 | $11.16Read more |
| 20-40 | No Image | Casing Bottom Anthracite | 5568050 | $119.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Genuine Miele Shaft Slide skid | 3892600 | $9.70Read more |
| 30+40 | No Image | -Slide Skid Obsw Assy | 12494260 | $11.00Read more |
| 30+40 | No Image | -Slide Skid Obsw Assy | 12494260 | $11.00Read more |
| 50 | Not Available | Strip anthracite | 3611170 | Not Available |
| 70 | No Image | Grip Handle Anthracite | 3611190 | $7.59Read more |
| 75 | Not Available | Cover anthracite | 3611210 | Not Available |
| 90 | No Image | -Plug Housing 5 Pole | 1942150 | $12.00Read more |
| 110 | No Image | Plug 6,3Mm 0,5-1,5Qmm | 1071451 | $2.30Read more |
| 120 |  | Genuine Miele Dust compart.filter 3 pcs. | 6713110 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 132 | No Image | Bracket Anthracite | 3614181 | $20.00Read more |
| 140 | No Image | Buffer Anthracite | 3611180 | $47.00Read more |
| 150 | No Image | Bracket Anthracite | 2243914 | $22.00Read more |
| 160 | | Genuine Miele Torsion spring | 1348411 | $2.30Read more |
| 174 | No Image | Vacuum Cleaner Bag Fjm Hyclean Pure Int | 12421140 | $0.00Read more |
| 174 | No Image | Compatible alternateAftermarket Miele FJM bags 4 pack bags More Product Details | FJMAM4PK | $9.99Add to cart |
| 180-200 | Not Available | Cloth filter bag S227-S858 | 5188842 | Not Available |
| 190 | | Genuine Miele Lock | 1058641 | $20.60Read more |
| 200 | Not Available | -Sealing ring | 2318440 | Not Available |

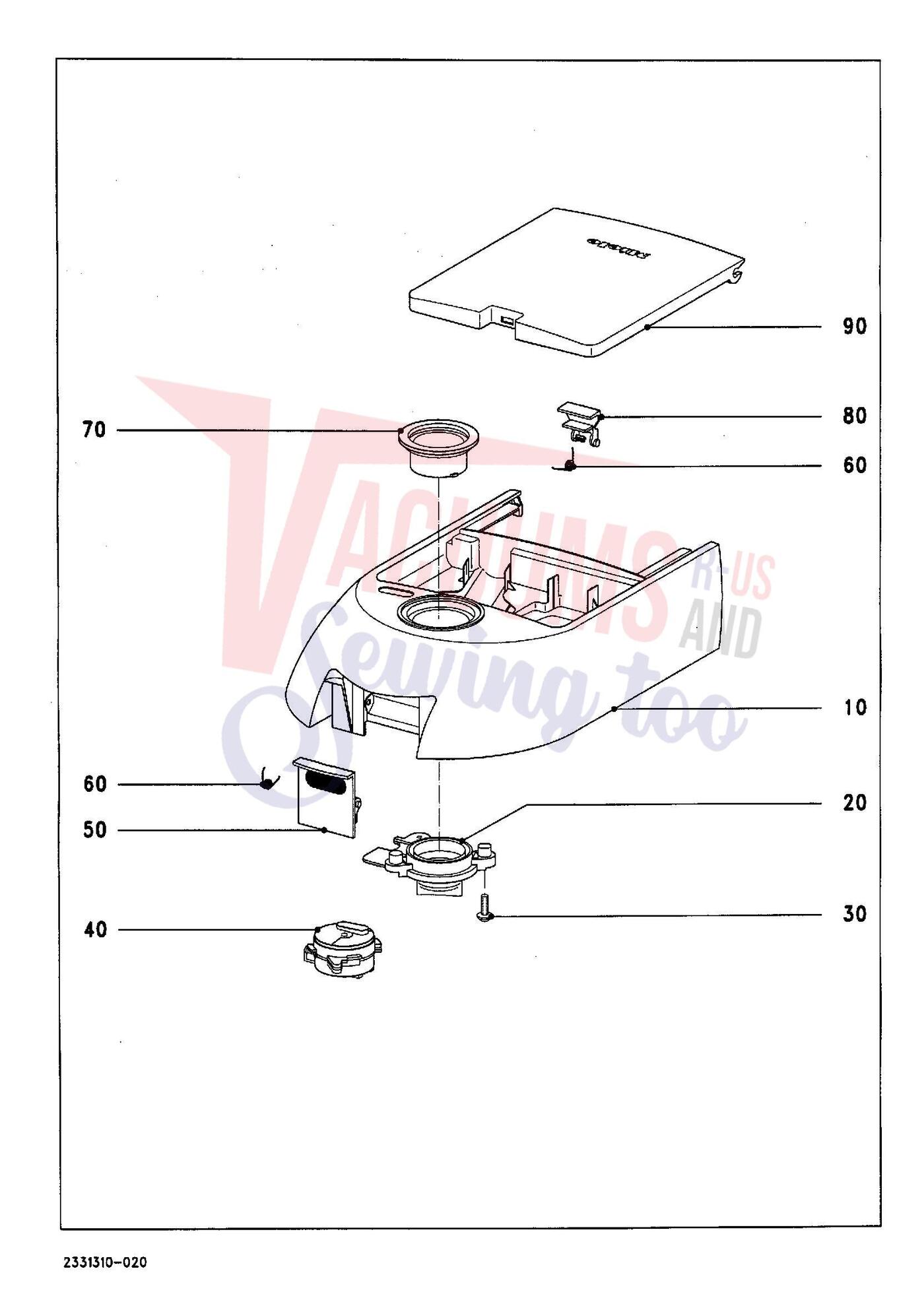

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 10 | No Image | Casing Top Brick Red | 4072550 | $109.00Read more |
| 10 | No Image | Casing Top Corn Yellow | 4384570 | $109.00Read more |
| 10 | No Image | Casing Top Champagne | 4384660 | $129.00Read more |
| 10 | Not Available | Casing top pastel red | 4716510 | Not Available |
| 10 | Not Available | Casing top Royal blue | 4835380 | Not Available |
| 10 | No Image | Casing Top Melon Yellow | 6609480 | $109.00Read more |
| 20 | No Image | Dust Channel Anthracite | 2243924 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | Not Available | Change filter ind. anthracite | 2239913 | Not Available |
| 50 | No Image | Lock Anthracite | 3611311 | $12.31Read more |
| 50 | No Image | Lock Anthracite | 3611311 | $12.31Read more |
| 50 | No Image | Lock Champagne | 4384700 | $12.31Read more |
| 50 | No Image | Lock Anthracite | 3611311 | $12.31Read more |
| 60 | | Genuine Miele Torsion spring | 2348250 | $2.30Read more |
| 60 | | Genuine Miele Torsion spring | 2348250 | $2.30Read more |
| 70 | No Image | Slide Sleeve Anthracite | 3558750 | $12.31Read more |
| 80 | No Image | Interlock Anthracite | 3611343 | $5.20Read more |
| 90 | Not Available | Lid brick red | 4927260 | Not Available |
| 90 | No Image | Lid Corn Yellow | 4927290 | $56.00Read more |
| 90 | No Image | Lid Champagne | 4384770 | $56.00Read more |
| 90 | No Image | Lid Pastel Red | 4927320 | $56.00Read more |
| 90 | No Image | Lid Royal Blue | 4927330 | $56.00Read more |
| 90 | Not Available | Lid Melon yellow | 6609550 | Not Available |

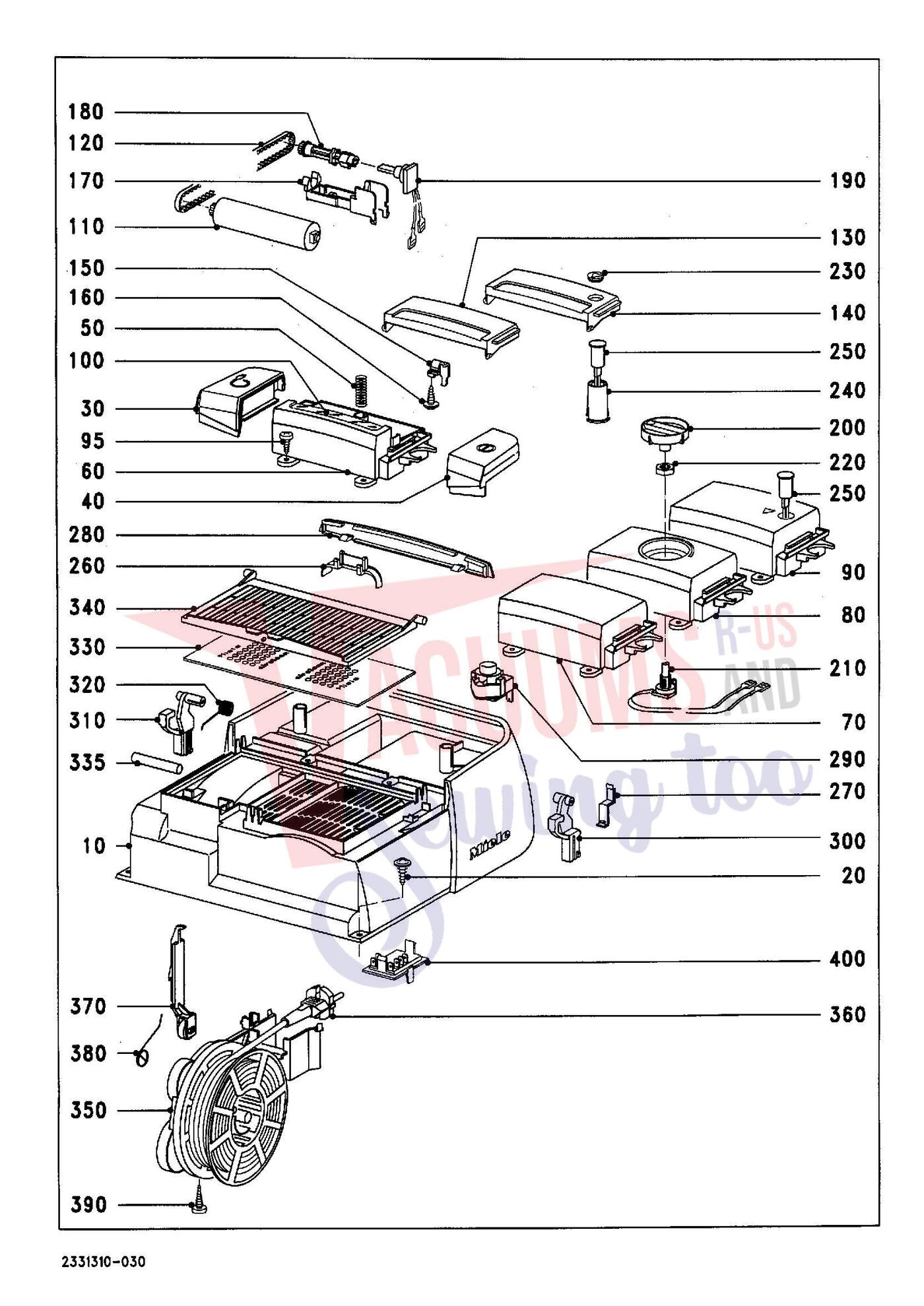

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 4X20 | 2364630 | $2.30Read more |
| XX | No Image | --Coun.Self-Tap.Screw 3,9X13 | 36817 | $4.14Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 10 | No Image | Rear Panel Brick Red | 4073232 | $76.00Read more |
| 10 | No Image | Rear Panel Corn Yellow | 4387721 | $76.00Read more |
| 10 | No Image | Rear Panel Champagne | 4387731 | $76.00Read more |
| 10 | No Image | Rear Panel Pastel Red | 4716350 | $76.00Read more |
| 10 | No Image | Rear Panel Royal Blue | 4835440 | $76.00Read more |
| 10 | No Image | Rear Panel Melon Yellow | 6609340 | $76.00Read more |
| 30 | No Image | Foot Switch Right | 7355980 | $15.53Read more |
| 40 | No Image | Foot Switch Left | 7335380 | $15.53Read more |
| 50 |  | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 70 | No Image | Cap Anthracite | 3558220 | $20.00Read more |
| 260 | No Image | Slide Track Anthracite | 2243951 | $4.14Read more |
| 270 | Not Available | End plug anthracite | 2243941 | Not Available |
| 280 | No Image | Strip Anthracite | 3611470 | $11.00Read more |
| 290 | No Image | Switch 10A 250V | 1957381 | $30.00Read more |
| 300 | No Image | Hinge Left Anthracite | 3558710 | $5.20Read more |
| 310 | No Image | Hinge Right Anthracite | 3558730 | $5.20Read more |
| 320 | No Image | Torsion Spring | 2349140 | $2.50Read more |
| 330 |  | Genuine Miele SF-SAC-30 Air-Clean filter 3 pcs. | 3944711 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 335 | Not Available | Scent | 3027951 | Not Available |
| 340 | No Image | -Grille Anthracite | 2243968 | $22.00Read more |
| 340 | No Image | -Grille Anthracite | 2243968 | $22.00Read more |
| 350-380 | Not Available | Cable reel S250 6,5m 230V | 2285545 | Not Available |
| 370 | No Image | -Brake Lever | 3457660 | $21.62Read more |
| 380 | No Image | -Torsion Spring S250 | 4330190 | $2.50Read more |
| 400 | Not Available | Plug housing 6 pole | 2048420 | Not Available |

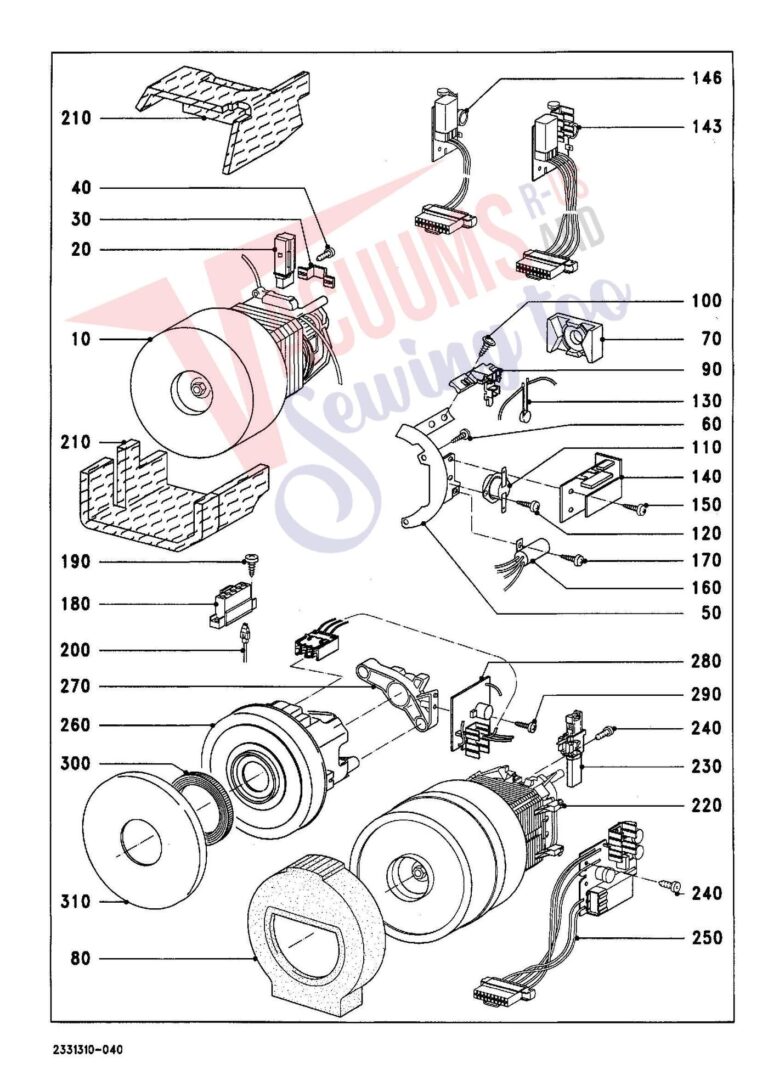

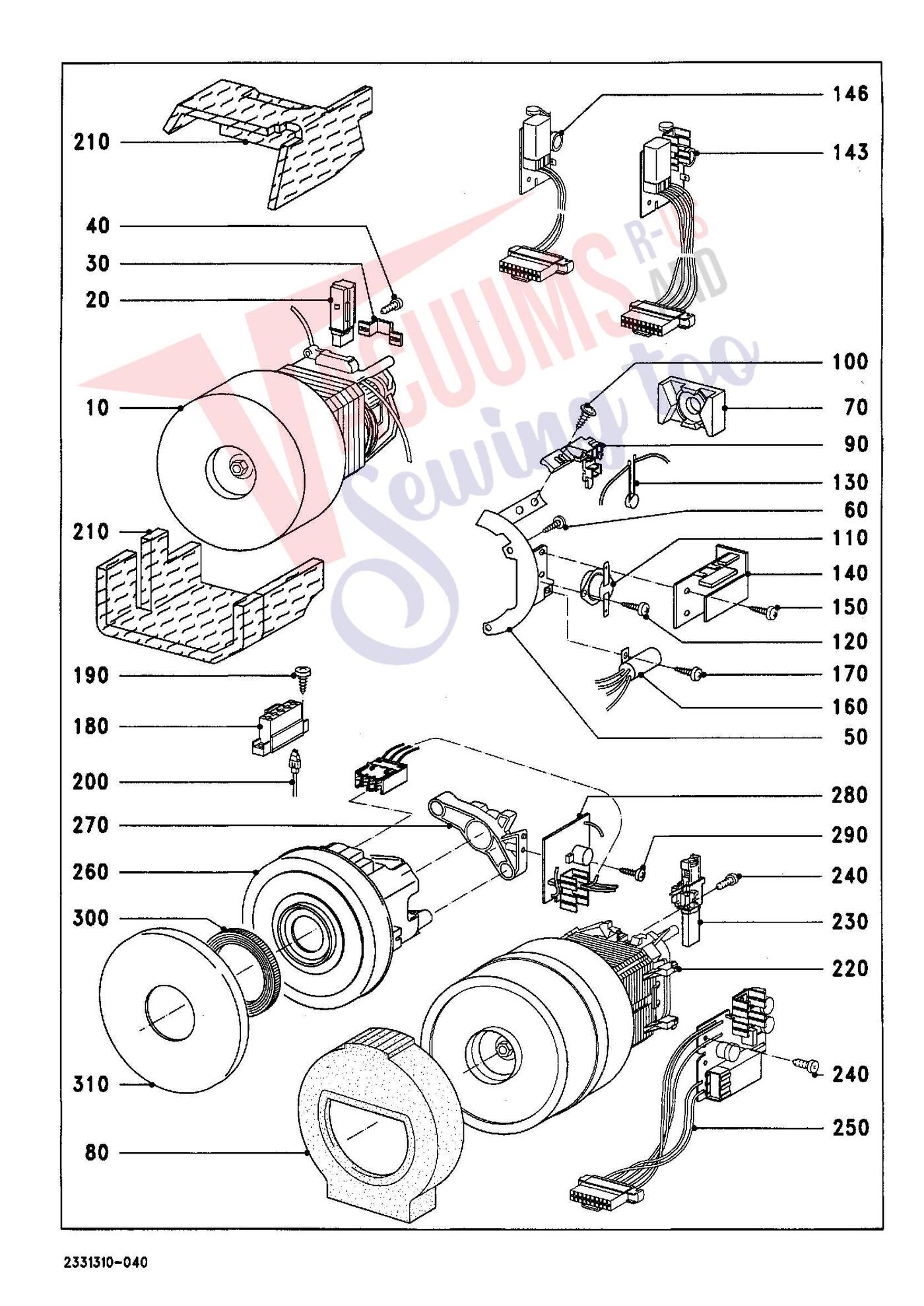

| # | Part image | Description | SKU | Price |
| XX | No Image | --Roundheaded Screw 5/32.Zollx8 | 49673 | $7.59Read more |
| w/o fig. | | Genuine Miele  | 1071710 | $3.60Read more |
| XX | Not Available | --Raised head screw 4,8X13 DIN 7981 | 10607 | Not Available |
| XX | | Genuine Miele Raised head screw 3,9X9,5 | 1143580 | $0.00Read more |
| XX | | Genuine Miele Raised head screw 3,9X6,5 | 4781122 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| XX | | Genuine Miele Raised head screw 3,9X6,5 | 4781122 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| XX | | Genuine Miele Raised head screw Zinc-plated 2,9X9,5 | 1023022 | $4.90Read more |
| XX | | Genuine Miele Raised head screw 3,9X9,5 | 3903441 | $2.30Read more |
| (250) | No Image | Electronic Unit Vt S400/81 120V 60Hz | 5131490 | $76.00Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| 10-40 | Not Available | Fan 115809-01 230V | 1125553 | Not Available |
| 20 | | Genuine Miele Carbon brush | 2830481 | $56.80Read more |
| 30 | | Genuine Miele Clamping bracket | 75426 | $9.70Read more |
| 50 | | Genuine Miele Fixing | 1889550 | $9.70Read more |
| 70 | No Image | Rubber Cushion | 1889520 | $0.00Read more |
| 80 | No Image | Sealing Ring | 2239052 | $36.00Read more |
| 180 | No Image | -Plug Housing 5 Pole | 1942150 | $12.00Read more |
| 200 | No Image | Plug 6,3Mm 0,5-1,5Qmm | 1071451 | $2.30Read more |
| 210 | Not Available | Damping plate | 3125141 | Not Available |
| 260 |  | Genuine Miele Fan Mrg722/81-42/2 120V | 5709492 | $119.00Add to cart Special order: ships in 2 to 4 weeks |
| 260 |  | Available ReconditionedReconditioned Genuine Miele Fan Mrg722/81-42/2 120V More Product Details | 5709492R | $100.00Add to cart |
| 270 | Not Available | Adapter Fan | 5480850 | Not Available |
| 280 | No Image | Electronic Unit 120V/60Hz | 6049201 | $76.00Read more |
| 300 | No Image | Bearing Ring | 4034450 | $22.00Read more |
| 310 | No Image | Bearing Shell | 5480830 | $20.00Read more |

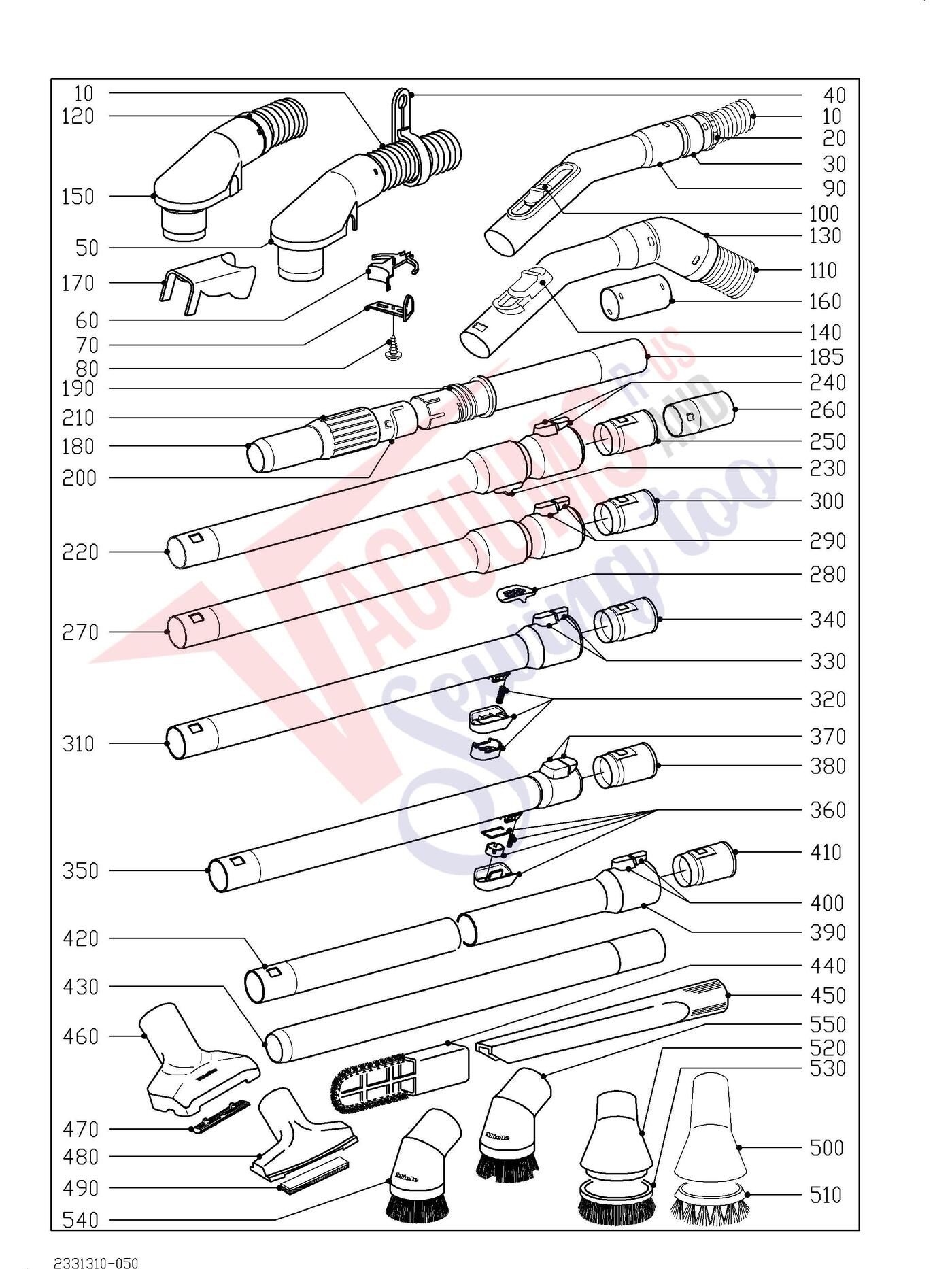

| # | Part image | Description | SKU | Price |
| 30 | | Genuine Miele Sleeve | 91205 | $9.70Read more |
| 40 | | Genuine Miele Suspension anthracite | 3565990 | $3.60Read more |
| 110-150 | No Image | Suction Hose Anthracite | 3617463 | $149.00Add to cart Special order: ships in 2 to 4 weeks |
| 110+120 |  | Genuine Miele Suction hose silver-coloured 1,8m | 3565351 | $51.00Add to cart |
| 110-150 | No Image | Suction Hose Anthracite | 3617463 | $149.00Add to cart Special order: ships in 2 to 4 weeks |
| 110+120 | | Genuine Miele Suction hose silver-coloured 1,8m | 3565351 | $51.00Add to cart |
| 120 | | Genuine Miele Ring anthracite | 3565360 | $4.90Read more |
| 130+140 | | Genuine Miele Tubular handle anthracite assy | 3565461 | $56.00Add to cart Special order: ships in 2 to 4 weeks |
| 130+140 |  | Compatible alternateGenuine Miele Vacuum Cleaner Bend End for S series S200-S800 More Product Details | 3565460 | $35.99Add to cart Special order: ships in 2 to 4 weeks |
| 140 | | Genuine Miele Suction control anthracite | 3565580 | $3.60Read more |
| 150 | | Genuine Miele Elbow anthracite | 3565392 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
| 160 | | Genuine Miele Connecting tube anthracite | 3565760 | $20.60Read more |
| 170 | No Image | Holder Anthracite | 3565700 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 440 | | Genuine Miele ST Radiator brush SHB30 | 9660490 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 450 | No Image | Crevice Nozzle 149Mm Obsw | 9442631 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 460+470 | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 470 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 490 | | Genuine Miele Thread lifter 2 Pcs. | 2348770 | $13.50Read more |
| 550 |  | Genuine Miele ST Dusting brush SSP 10 | 11607230 | $26.00Add to cart Special order: ships in 2 to 4 weeks |
| 550 | No Image | Dusting Brush L | 12187780 | $24.00Add to cart Special order: ships in 2 to 4 weeks |
| 550 | No Image | Dusting Brush L | 12187780 | $24.00Add to cart Special order: ships in 2 to 4 weeks |

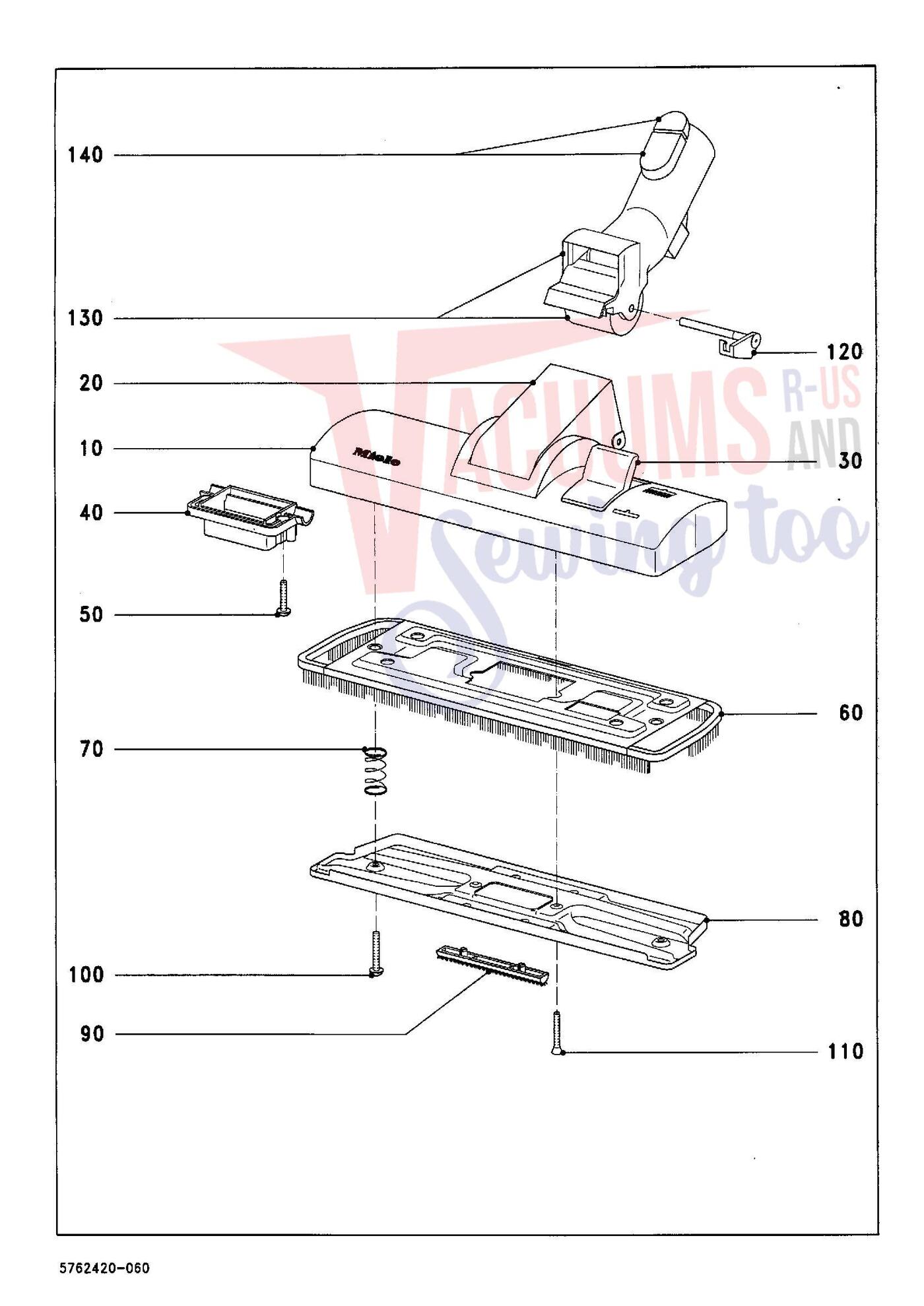

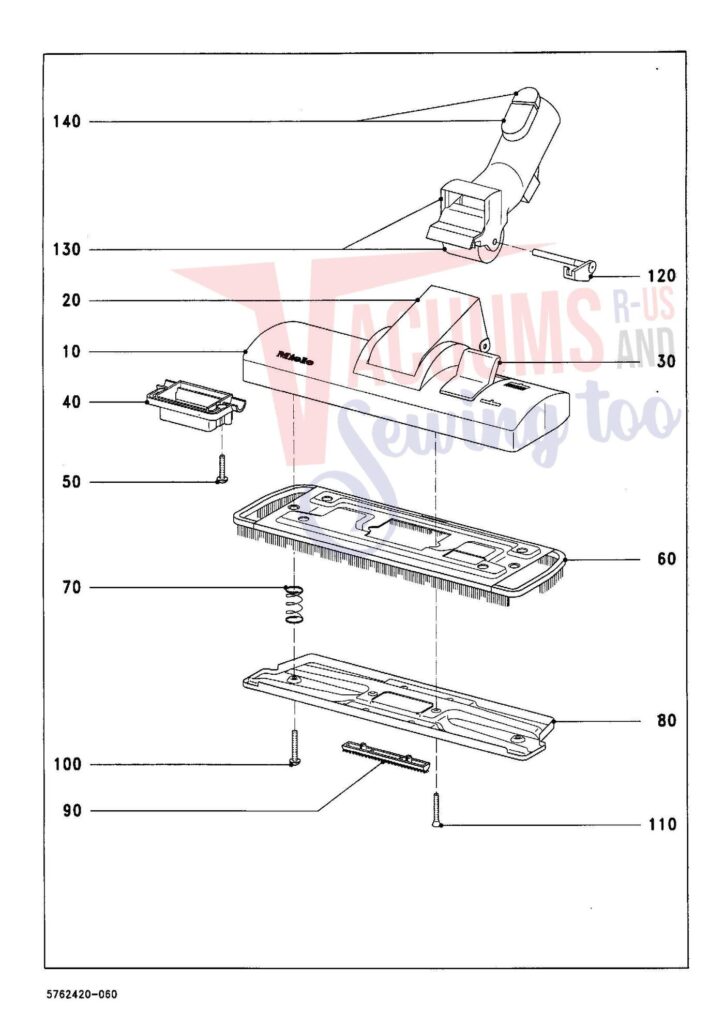

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Screw KA35X16 EJOT-PT | 4863580 | $3.60Read more |
| 10-140 | Not Available | Floor nozzle SBD285-3 AllTeQ | 7253830 | Not Available |
| 10-50 | Not Available | -Top anthracite | 4789120 | Not Available |
| 20 | Not Available | -Suction channel anthracite | 4900990 | Not Available |
| 30 | No Image | -Foot Switch Anthracite | 4769070 | $30.00Read more |
| 40 | | Genuine Miele Fixing | 4769100 | $9.70Read more |
| 60 | Not Available | -Bristle supp.plate | 4769110 | Not Available |
| 70 |  | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |
| 80+90 | | Genuine Miele Lower section | 4969510 | $33.80Read more |
| 90 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 100 | | Genuine Miele Screw KA35X27 EJOT-PT | 3484490 | $2.30Read more |
| 110 |  | Genuine Miele Countersunk screw KA35X16 EJOT-PT | 4863600 | $3.60Read more |
| 120-140 | | Genuine Miele Linkage SBD265 | 6260600 | $39.50Read more |
| 120 | | Genuine Miele Shaft anthracite | 3612910 | $10.70Read more |
| 140 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |

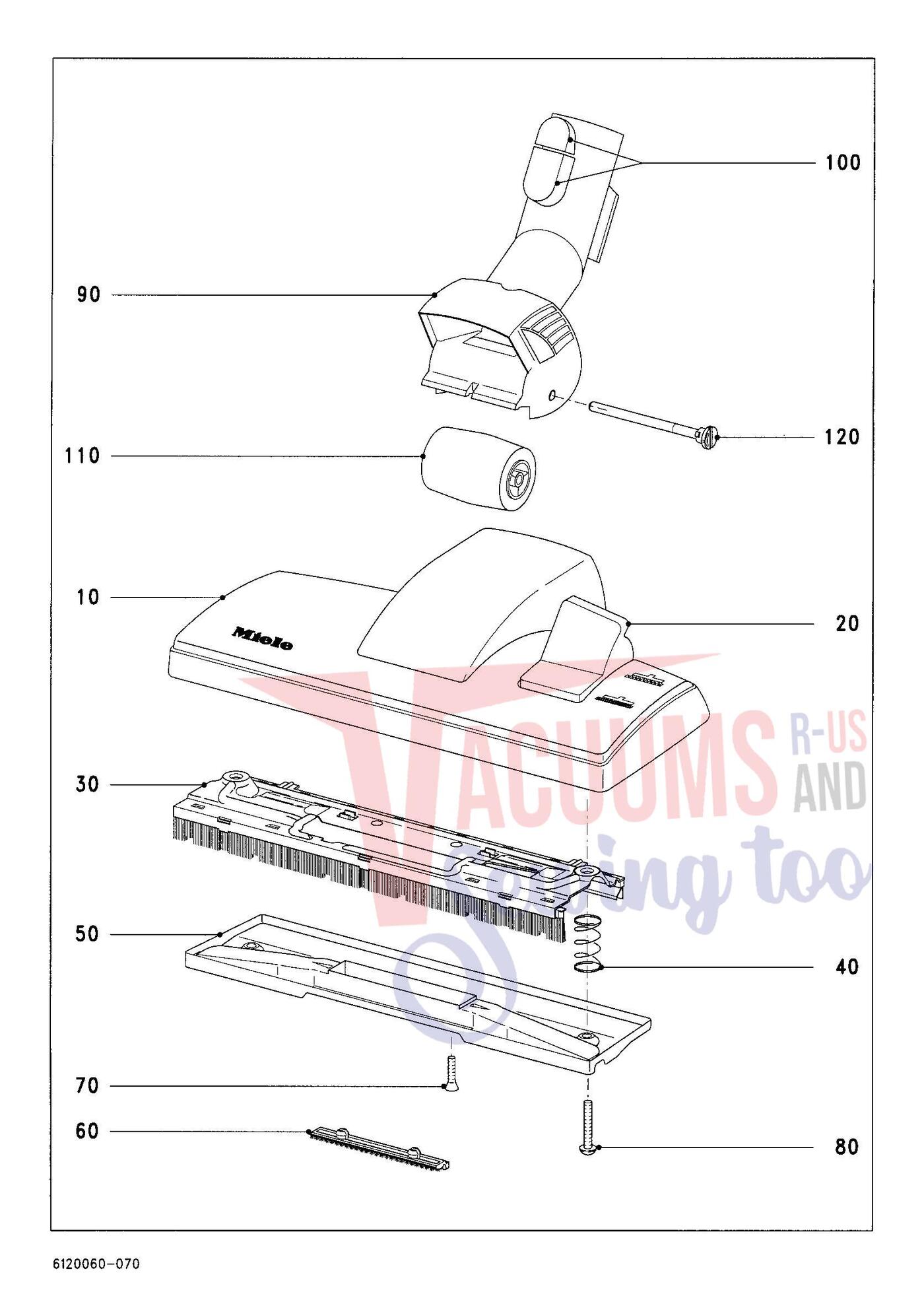

| # | Part image | Description | SKU | Price |
| 10-120 | Not Available | Floor nozzle SBD470-3 FiberTeQ | 9274750 | Not Available |
| 10-120 | Not Available | Floor nozzle SBD470-3 | 10484833 | Not Available |
| 10 | | Genuine Miele Top | 6167160 | $39.50Read more |
| 20 | | Genuine Miele Foot switch | 6167170 | $20.60Read more |
| 30 | No Image | -Bristle Supp.Plate | 6167191 | $42.00Read more |
| 40 | | Genuine Miele Spring 2 Pcs. | 4818720 | $20.60Read more |
| 50+60 | | Genuine Miele Lower section | 6167251 | $43.60Read more |
| 60 | | Genuine Miele Thread lifter 2 Pcs. | 6440411 | $13.50Read more |
| 70 | No Image | --Coun.Self-Tap.Screw Spax 3 X 9,5Torx T10 | 6167230 | $2.50Read more |
| 80 | | Genuine Miele Raised head screw 3,5x16 TORX T10 | 6644310 | $2.30Read more |
| 90+100 | | Genuine Miele Linkage SBD450-3 | 6167150 | $33.80Read more |
| 100 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 110 |  | Genuine Miele Support roller | 5235530 | $15.00Read more |
| 120 |  | Genuine Miele Shaft Bayonett fitting | 5235520 | $13.50Read more |

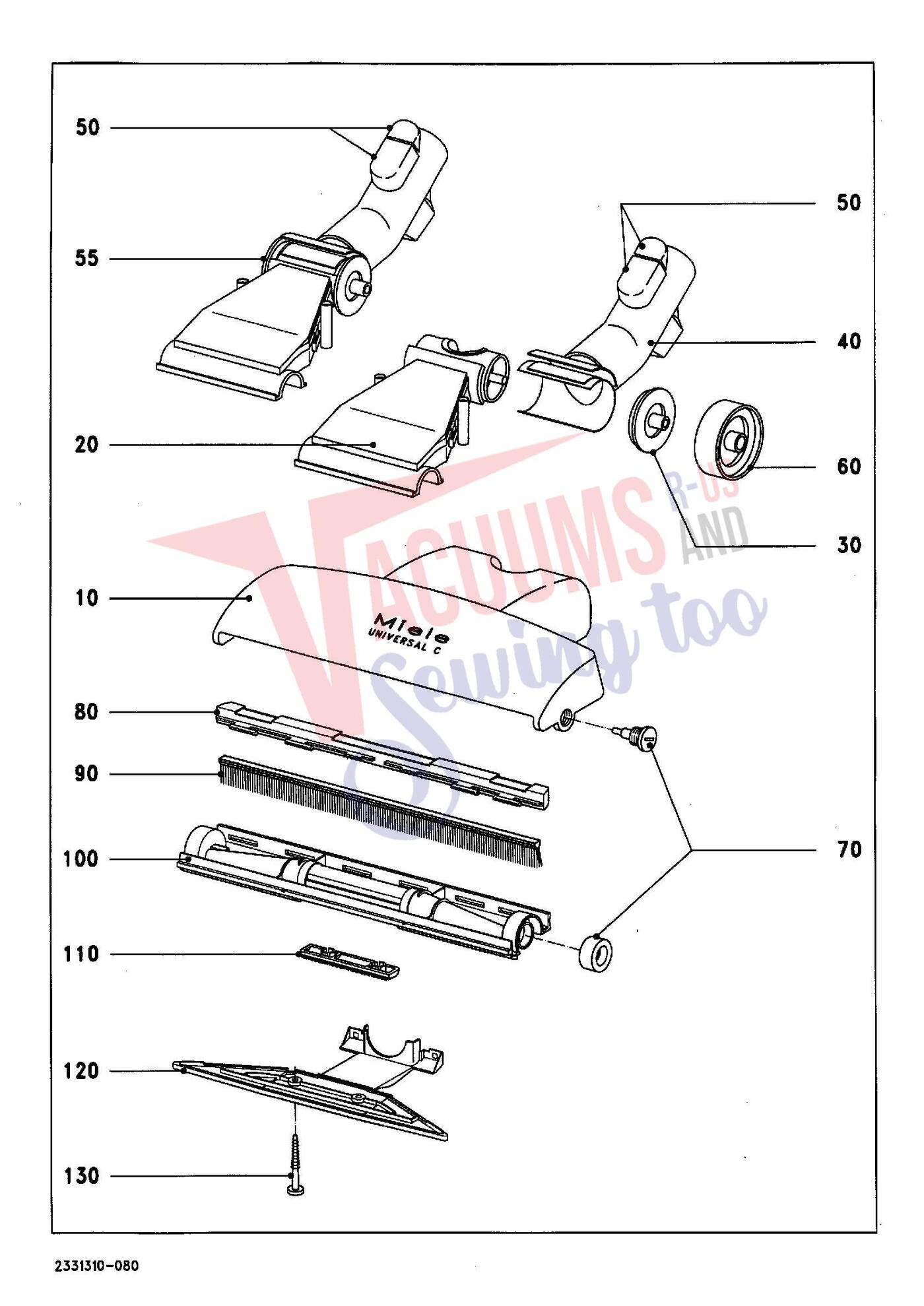

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Screw K40X45/25 EJOT-PT | 3930740 | $3.60Read more |
| 10 | Not Available | -Casing top anthracite | 4334260 | Not Available |
| 20 | Not Available | -Air channel anthracite | 4366480 | Not Available |
| 30 | Not Available | -Lid anthracite | 4366490 | Not Available |
| 50-130 | Not Available | Floor nozzle SBD304 | 4334252 | Not Available |
| 50+55 | | Genuine Miele Linkage anthracite | 4366472 | $43.60Read more |
| 50 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 60 | No Image | -Roller Anthracite | 4366500 | $30.00Read more |
| 70 | | Genuine Miele Support roller black | 3947921 | $27.90Read more |
| 80 | Not Available | -Sealing strip | 4334370 | Not Available |
| 90 | | Genuine Miele Bristle strip | 4334410 | $24.70Read more |
| 100+110 | | Genuine Miele Floor plate anthracite | 4334351 | $52.20Read more |
| 110 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 120 | | Genuine Miele Cover | 4334341 | $15.00Read more |
Report errors on this page HERE
