Schematic and parts book for Miele S240I S 240 I. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

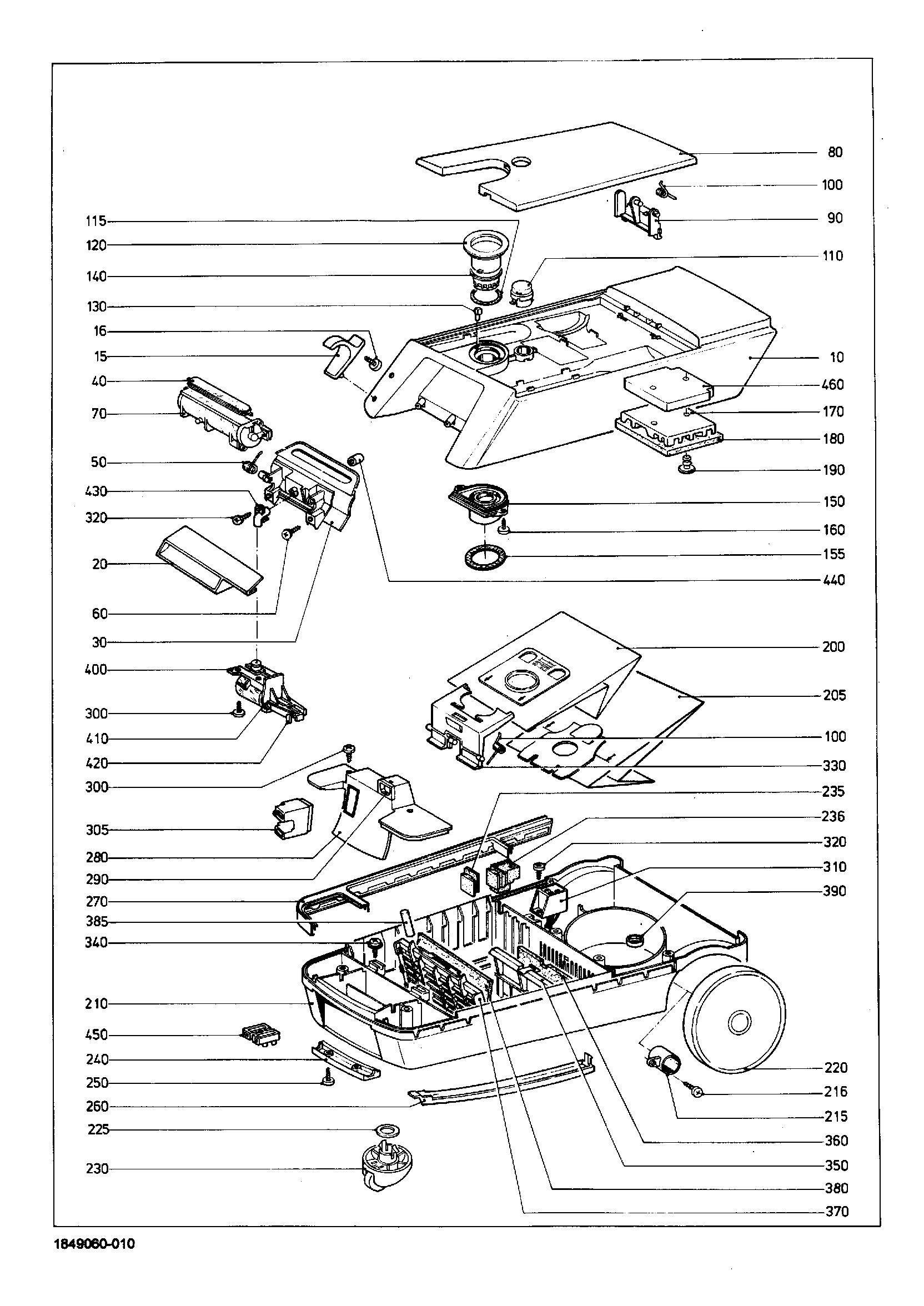

| # | Part image | Description | SKU | Price |
| (10) | Not Available | Casing top nevada beige | 1528561 | Not Available |
| (10) | Not Available | Casing top nevada beige | 1528561 | Not Available |
| XX |  | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| w/o fig. | | Genuine Miele Lock | 1058641 | $20.60Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 TORX T20 | 6106980 | $0.00Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4X20 | 2364630 | $2.30Read more |
| XX | | Genuine Miele Raised head screw Zinc-plated 2,9X9,5 | 1023022 | $4.90Read more |
| XX | | Genuine Miele Raised head screw 3,9X13 | 1023120 | $2.10Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 TORX T20 | 6106980 | $0.00Read more |
| XX | No Image | --Raised Head Screw 2,9X9,5 | 1023020 | $5.64Read more |
| 20 | Not Available | Lock black | 2233230 | Not Available |
| 20 | Not Available | Lock Lava grey | 2233240 | Not Available |
| 30 | Not Available | support anthracite | 1348221 | Not Available |
| 40 | Not Available | Viewing screen | 1348331 | Not Available |
| 50 | Not Available | Torsion spring | 1348230 | Not Available |
| 70 | Not Available | fill level indic. | 1565590 | Not Available |
| 80 | Not Available | Lid Sand beige | 2046690 | Not Available |
| 80 | Not Available | Lid Sand beige | 2046690 | Not Available |
| 90 | Not Available | Hinge black | 1348420 | Not Available |
| 90 | Not Available | Hinge Lava grey | 2046770 | Not Available |
| 100 | | Genuine Miele Torsion spring | 1348411 | $2.30Read more |
| 100 | | Genuine Miele Torsion spring | 1348411 | $2.30Read more |
| 110 | Not Available | Lock anthracite | 3558930 | Not Available |
| 115 | Not Available | Sealing ring | 1940830 | Not Available |
| 120 | No Image | Slide Sleeve Anthracite | 3566400 | $22.00Read more |
| 140 | No Image | Sleeve Black | 1583210 | $4.14Read more |
| 150 | No Image | Dust Channel Anthracite | 3558781 | $12.00Read more |
| 155 | Not Available | -Sealing ring grey | 3430580 | Not Available |
| 170 | Not Available | Damping plate | 1348190 | Not Available |
| 180 | Not Available | Air outlet filter 3 S230 | 4880480 | Not Available |
| 180 | Not Available | Filter 2X3 S230 | 1437451 | Not Available |
| 190 | Not Available | End plug anthracite | 1348371 | Not Available |
| 200 | Not Available | Cloth filter bag S227-S858 | 5188842 | Not Available |
| 205 | Not Available | Dustbag TYP H 1/5 S230,S270 | 2046318 | Not Available |
| 210-230 | Not Available | Casing bottom anthracite | 2240161 | Not Available |
| 215 | No Image | -Bush | 2118190 | $5.20Read more |
| 220 | Not Available | -Wheel anthracite | 1348033 | Not Available |
| 225 | No Image | -Disc 20,1X26,5X0,5 St-A3F | 2140640 | $5.20Read more |
| 225 | Not Available | -Slide skid Lava grey | 2046580 | Not Available |
| 230 | No Image | -Slide Skid Anthracite | 1348121 | $20.00Read more |
| 235 | No Image | -End Plug Lava Grey | 2245210 | $2.30Read more |
| 235 | Not Available | -End plug anthracite | 1348371 | Not Available |
| 240 | Not Available | Cover black | 2232780 | Not Available |
| 240 | Not Available | Cover Lava grey | 2232790 | Not Available |
| 260 | Not Available | Strip black | 2232720 | Not Available |
| 260 | Not Available | Strip anthracite | 3629570 | Not Available |
| 270 | Not Available | Buffer black | 1348040 | Not Available |
| 270 | Not Available | Buffer Lava grey | 2046480 | Not Available |
| 280+290 | No Image | Cover Black | 1820821 | $76.00Read more |
| 280+290 | Not Available | Cover 2-pole lava grey | 2156310 | Not Available |
| 280+290 | Not Available | Cover 2-pole lava grey | 2156310 | Not Available |
| 290 | Not Available | -Flush socket outlet 2-pole lava grey | 2153350 | Not Available |
| 290 | Not Available | -Flush socket outlet 2-pole lava grey | 2153350 | Not Available |
| 310 | Not Available | Connecting cable 4 Pole | 1724050 | Not Available |
| 330 | Not Available | Bracket anthracite | 3558643 | Not Available |
| 350 | Not Available | Filter frame black | 1348090 | Not Available |
| 360 | Not Available | -Dust compart.filter 3 S230,S270 | 4669150 | Not Available |
| 360+180 | Not Available | -Filter 2X3 S230 | 1437451 | Not Available |
| 380 | No Image | -Sup.Air-Cleanfilter 3 S230,S250,270,290 | 3366200 | $0.00Read more |
| 385 | Not Available | Scent | 3027951 | Not Available |
| 390 | Not Available | Suspension buffer | 1348050 | Not Available |
| 400-420 | Not Available | Sensor | 1548180 | Not Available |
| 430 | Not Available | Connecting tube black | 1565360 | Not Available |
| 440 | Not Available | Sleeve grey | 1565370 | Not Available |
| 450 | Not Available | Clamping strip 2 pole | 1699010 | Not Available |
| 460 | Not Available | Damping plate | 1660161 | Not Available |
| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 4X20 | 2364630 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 TORX T20 | 6106980 | $0.00Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 TORX T20 | 6106980 | $0.00Read more |
| XX | | Genuine Miele Raised head screw Zinc-plated 2,9X9,5 | 1023022 | $4.90Read more |
| (220) | Not Available | -Brake lever | 1954550 | Not Available |
| XX | | Genuine Miele Raised head screw 3,9X13 | 1023120 | $2.10Read more |
| XX | No Image | --Raised Head Screw 3,9X9,5 | 1023040 | $2.30Read more |

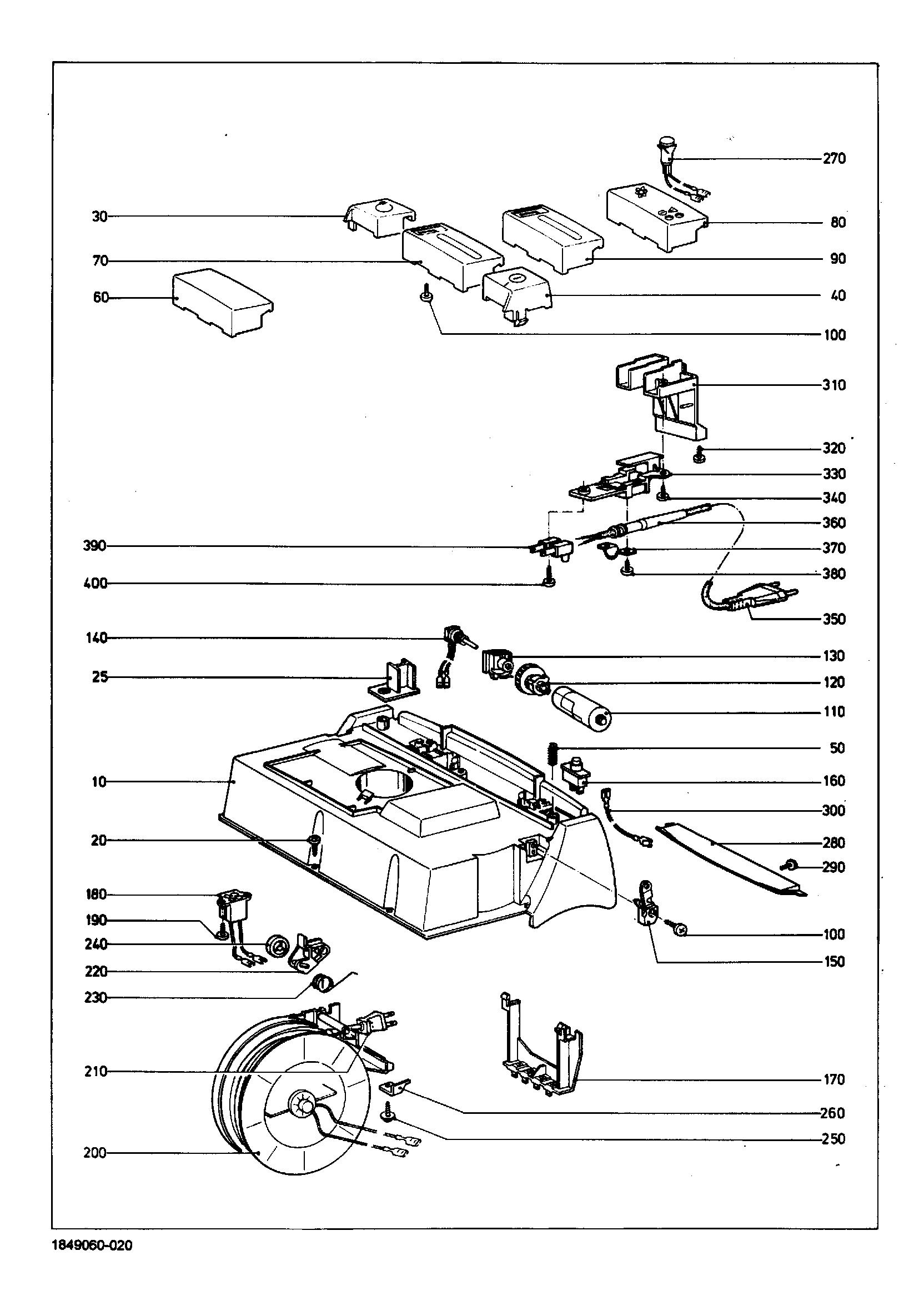

| 10 | No Image | Rear Panel Anthracite | 2233441 | $76.00Read more |
| 10 | Not Available | Rear panel anthracite | 1348432 | Not Available |
| 30 | Not Available | Foot switch right anthracite | 2232911 | Not Available |
| 30 | Not Available | Foot switch Right lava grey | 2046800 | Not Available |
| 40 | Not Available | Foot switch left anthracite | 1348451 | Not Available |
| 50 |  | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 90 | Not Available | Cap Lava grey | 2078990 | Not Available |
| 110 | Not Available | Roller indicator black 1000W | 1565500 | Not Available |
| 110 | Not Available | Roller indicator lava grey 1000W | 2046171 | Not Available |
| 120 | Not Available | Regulator wheel anthracite | 3576950 | Not Available |
| 120 | Not Available | Regulator wheel Lava grey | 2046180 | Not Available |
| 130 | Not Available | Bearing shell | 1379780 | Not Available |
| 140 | Not Available | Potentiometer | 1741600 | Not Available |
| 150 | Not Available | Hinge left black | 1348170 | Not Available |
| 150 | Not Available | Hinge left lava grey | 2046820 | Not Available |
| 150 | Not Available | Hinge right black | 1348180 | Not Available |
| 150 | Not Available | Hinge Right lava grey | 2046830 | Not Available |
| 160 | No Image | Push Button Switch 10A 120V | 1588820 | $30.00Read more |
| 170 | Not Available | Double tag | 1416040 | Not Available |
| 180 | Not Available | Plug housing 4 Pole | 1692870 | Not Available |
| 200-240 | Not Available | Cable reel | 1567721 | Not Available |
| 210 | Not Available | -Supply cable | 1692900 | Not Available |
| 220 | Not Available | -Brake lever | 1625070 | Not Available |
| 230 | Not Available | -Torsion spring | 1522831 | Not Available |
| 240 | No Image | -Brake Disc/Pulley Cable Reel | 4252350 | $5.64Read more |
| 280 | Not Available | Guide plate anthracite | 1691771 | Not Available |
| 280 | Not Available | Guide plate Lava grey | 2155840 | Not Available |
| 300 | Not Available | Flexible wire SCHWARZ 210 MM | 1693120 | Not Available |
| # | Part image | Description | SKU | Price |
| XX | No Image | --Roundheaded Screw 5/32.Zollx8 | 49673 | $7.59Read more |
| w/o fig. | | Genuine Miele  | 1071710 | $3.60Read more |
| XX | | Genuine Miele Raised head screw 3,9X6,5 | 4781122 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| XX | Not Available | --Raised head screw 4,8X13 DIN 7981 | 10607 | Not Available |
| XX | | Genuine Miele Raised head screw 3,9X13 | 1023120 | $2.10Read more |
| XX | | Genuine Miele Raised head screw 3,9X6,5 | 4781122 | $2.50Add to cart Special order: ships in 2 to 4 weeks |

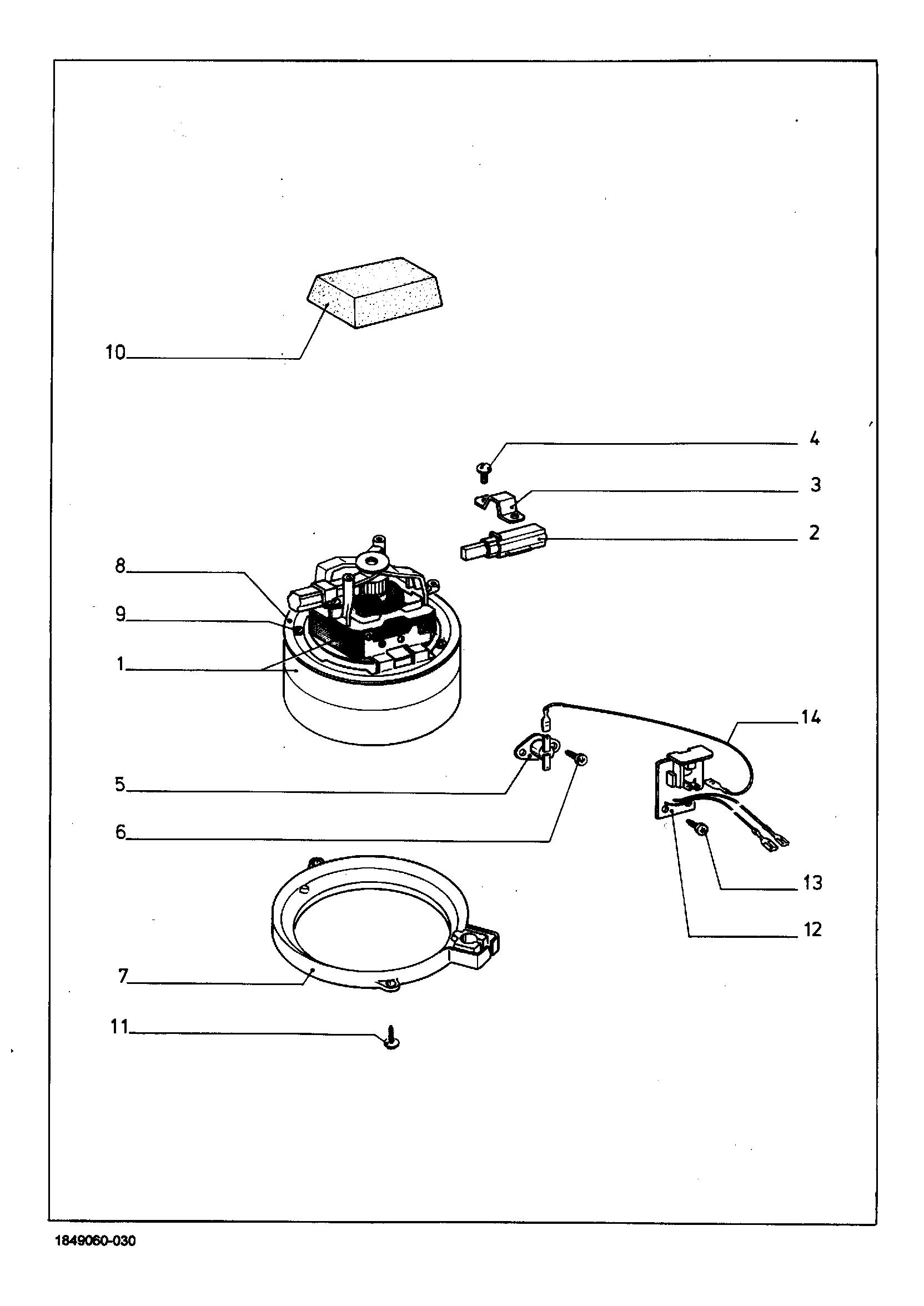

| 1-4 | Not Available | Fan 115923-AB 120V 60HZ | 1502662 | Not Available |
| 2 | | Genuine Miele Carbon brush | 2830481 | $56.80Read more |
| 3 | | Genuine Miele Clamping bracket | 75426 | $9.70Read more |
| 5 | | Genuine Miele Thermoswitch 10A 250V | 79864 | $39.50Read more |
| 7 | Not Available | Sealing ring | 1348470 | Not Available |
| 8 | Not Available | support | 1348480 | Not Available |
| 10 | Not Available | Damping plate | 1439640 | Not Available |
| 12 | Not Available | Speed control EDL310 120V60HZ 8A | 1725380 | Not Available |
| 14 | Not Available | Flexible wire SCHWARZ 150MM | 1692980 | Not Available |
| 14 | Not Available | Flexible wire SCHWARZ 280MM | 1693130 | Not Available |

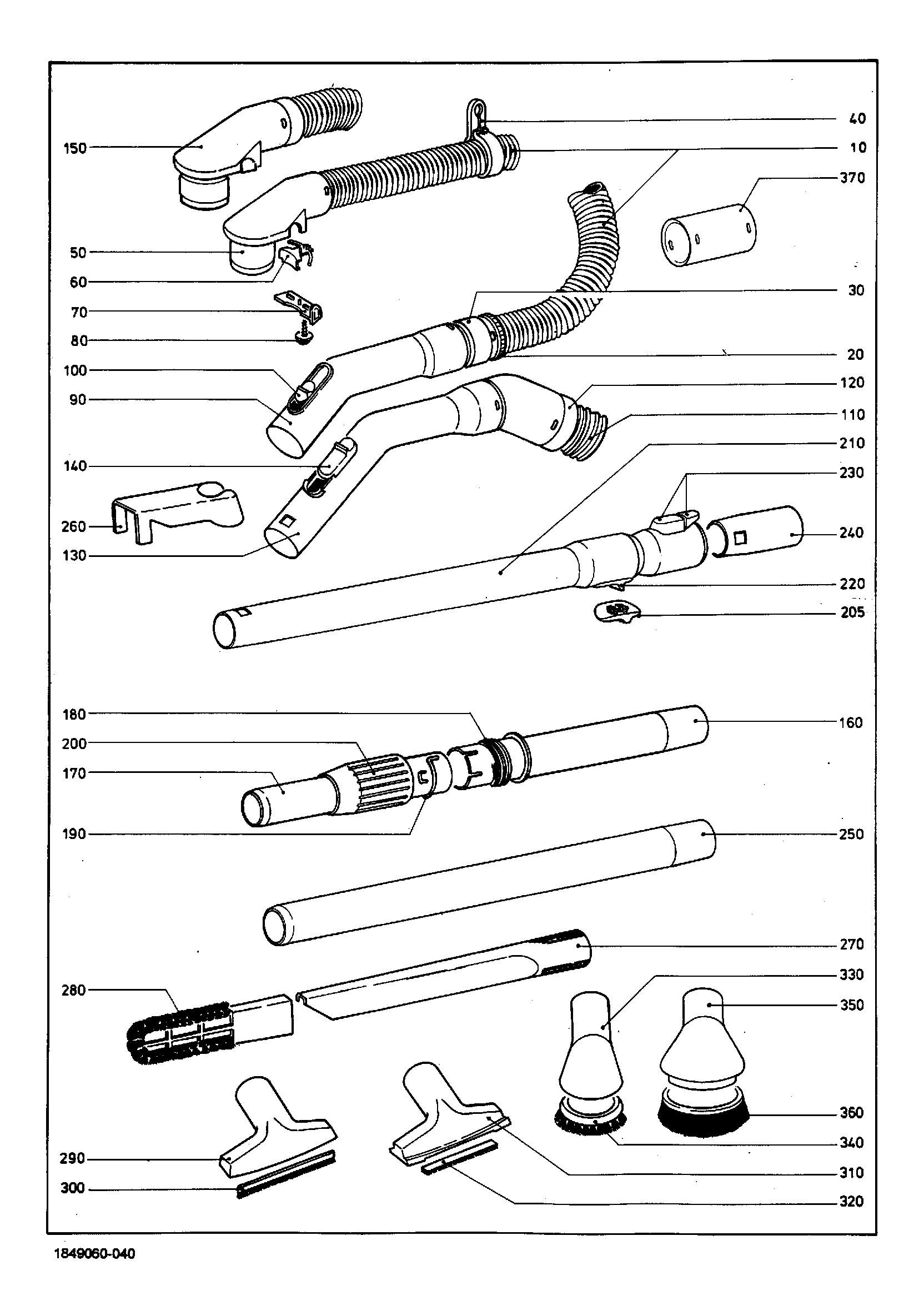

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 3,9X9,5 | 1143580 | $0.00Read more |
| w/o fig. | No Image | Telescopic Pipe 2-Part St.Steel | 5658811 | $77.99Read more |
| w/o fig. | No Image | Telescopic Pipe 2-Part St.Steel | 5658811 | $77.99Read more |
| w/o fig. | No Image | Telescopic Pipe 2-Part St.Steel | 5658811 | $77.99Read more |
| w/o fig. | No Image | Telescopic Pipe 2-Part St.Steel | 5658811 | $77.99Read more |
| w/o fig. |  | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| w/o fig. | No Image | Dusting Brush Anthracite | 5098711 | $16.00Read more |
| w/o fig. | No Image | Dusting Brush Anthracite | 5098711 | $16.00Read more |
| w/o fig. | | Genuine Miele ST Dusting brush Natural | 5387401 | $0.00Read more |
| w/o fig. | No Image | Dusting Brush Anthracite | 5098711 | $16.00Read more |
| 30 | | Genuine Miele Sleeve | 91205 | $9.70Read more |
| 30 | | Genuine Miele Sleeve | 91205 | $9.70Read more |
| 40 | | Genuine Miele Suspension anthracite | 3565990 | $3.60Read more |
| 40 | | Genuine Miele Suspension anthracite | 3565990 | $3.60Read more |
| 60 | Not Available | -interlock black/brown | 1348560 | Not Available |
| 60 | | Genuine Miele interlock Lava grey | 1963320 | $6.60Read more |
| 70 | | Genuine Miele Slide | 1348550 | $3.60Read more |
| 100 | No Image | -Suction Control Anthracite | 1328680 | $3.90Read more |
| 110+120 |  | Genuine Miele Suction hose silver-coloured 1,8m | 3565351 | $51.00Add to cart |
| 110-150 | No Image | Suction Hose Anthracite | 3617461 | $149.00Read more |
| 110+120 | | Genuine Miele Suction hose silver-coloured 1,8m | 3565351 | $51.00Add to cart |
| 120 | | Genuine Miele Ring anthracite | 3565360 | $4.90Read more |
| 130+140 | | Genuine Miele Tubular handle anthracite assy | 3565461 | $56.00Add to cart Special order: ships in 2 to 4 weeks |
| 130+140 |  | Compatible alternateGenuine Miele Vacuum Cleaner Bend End for S series S200-S800 More Product Details | 3565460 | $35.99Add to cart Special order: ships in 2 to 4 weeks |
| 150 | | Genuine Miele Elbow anthracite | 3565392 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
| 150 | | Genuine Miele Elbow anthracite | 3565392 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
| 180-200 | Not Available | -Screw connector anthracite | 1567702 | Not Available |
| 180-200 | Not Available | -Screw connector anthracite | 1567702 | Not Available |
| 180 | Not Available | -Screw connector anthracite | 1567702 | Not Available |
| 190 | Not Available | -Screw connector anthracite | 1567702 | Not Available |
| 200 | Not Available | -Screw connector anthracite | 1567702 | Not Available |
| 200 | Not Available | -Screw connector anthracite | 1567702 | Not Available |
| 200 | Not Available | -Screw connector anthracite | 1567702 | Not Available |
| 220 | No Image | -Slide Lava Grey | 3205631 | $7.59Read more |
| 220 | No Image | -Slide Anthracite | 3570310 | $5.64Read more |
| 230 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 240 | | Genuine Miele Sleeve | 3058721 | $62.00Read more |
| 300 | Not Available | -Bristle strip | 1389730 | Not Available |
| 320 | | Genuine Miele Thread lifter 2 Pcs. | 2348770 | $13.50Read more |
| 340 | No Image | Dusting Brush L | 12187780 | $24.00Add to cart Special order: ships in 2 to 4 weeks |
| 370 | | Genuine Miele Connecting tube anthracite | 3565760 | $20.60Read more |
| # | Part image | Description | SKU | Price |

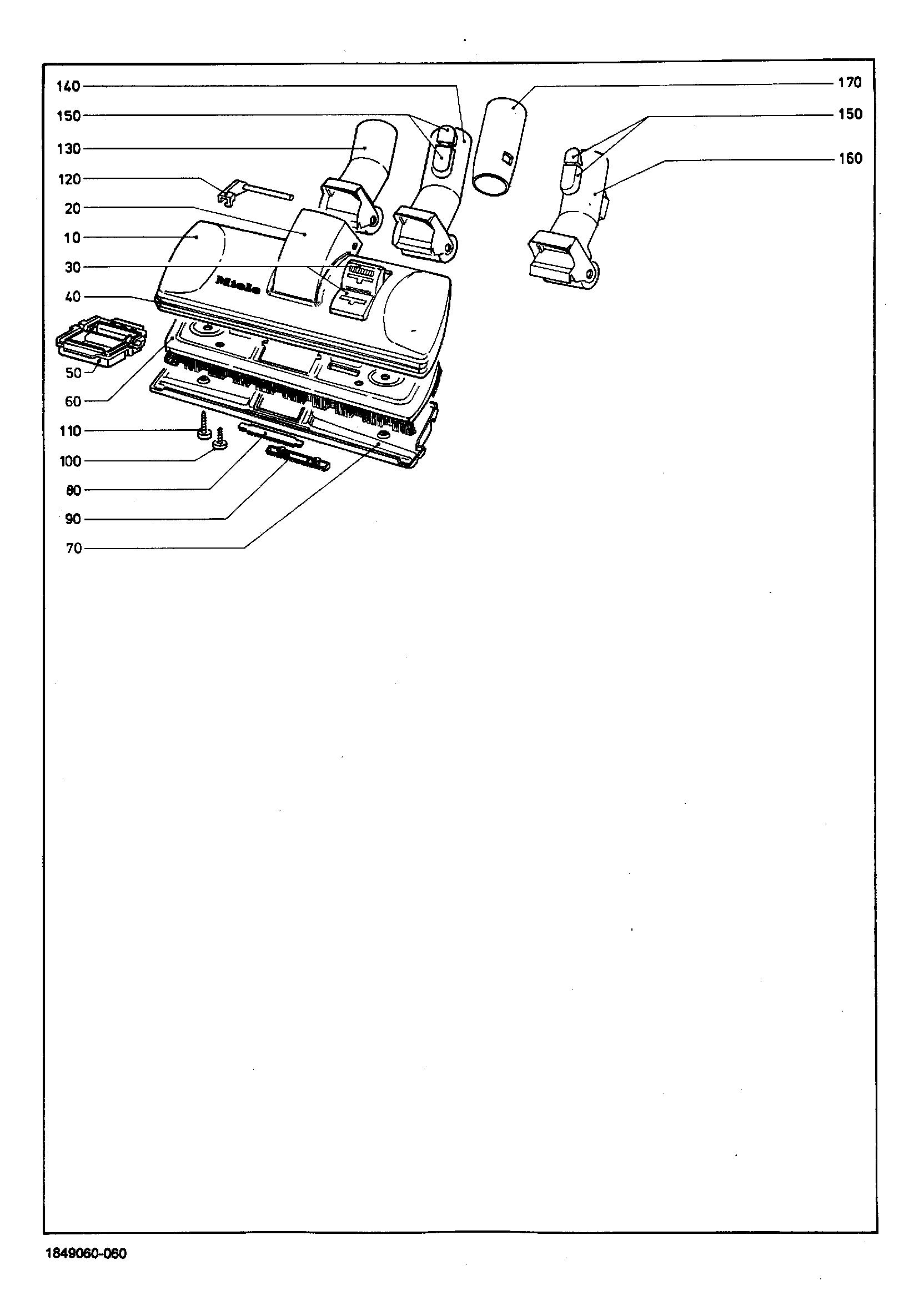

| w/o fig. | No Image | Floor Nozzle Sbd265 | 4769121 | $98.70Read more |
| 20 | Not Available | -Suction channel Lava grey | 2142670 | Not Available |
| 30 | | Genuine Miele Foot switch anthracite | 3649851 | $10.70Read more |
| 40 | Not Available | -Buffer | 1571870 | Not Available |
| 50 | Not Available | -Spacer | 3613000 | Not Available |
| 60 | Not Available | -Bristle supp.plate | 1229792 | Not Available |
| 70+90 | | Genuine Miele Lower section | 4969510 | $33.80Read more |
| 80 | | Genuine Miele Thread lifter | 82699 | $13.50Read more |
| 90 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 100 | No Image | --Countersunk Screw Ka35X16 Ejot-Pt | 2396150 | $2.50Read more |
| 110 | Not Available | --Raised head screw 3,5X25 | 10597 | Not Available |
| 120 | | Genuine Miele Shaft anthracite | 3612910 | $10.70Read more |
| 120+130 | Not Available | -Linkage anthracite | 3651490 | Not Available |
| 150 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 170 | | Genuine Miele Sleeve | 3058721 | $62.00Read more |
Report errors on this page HERE
