Schematic and parts book for Miele S231 S 231. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

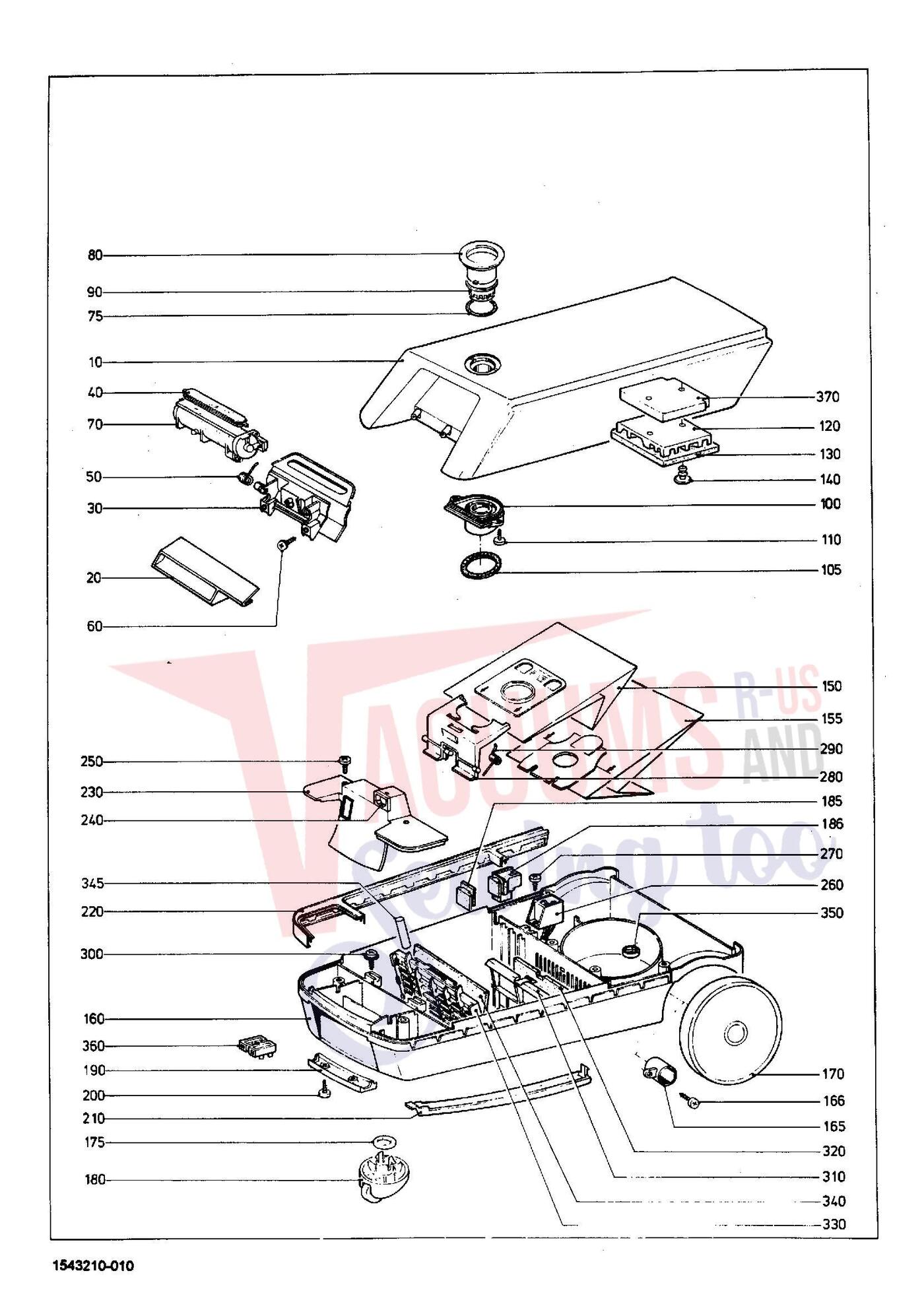

| # | Part image | Description | SKU | Price |
| XX | No Image | --Raised Head Screw 3,9X13 | 1023050 | $2.10Read more |
| XX | No Image | --Raised Head Screw 3,9X13 | 1023050 | $2.10Read more |
| w/o fig. | No Image | Cloth Filter Bag | 3181840 | $109.00Read more |
| w/o fig. |  | Genuine Miele Lock | 1058641 | $20.60Read more |
| XX | No Image | --Raised Head Screw 3,9X13 | 1023050 | $2.10Read more |
| XX | No Image | --Raised Head Screw 3,9X13 | 1023050 | $2.10Read more |
| XX | No Image | --Raised Head Screw Din7981 Bz3,9X19 | 1023060 | $2.50Read more |
| XX | No Image | --Raised Head Screw 3,9X13 | 1023050 | $2.10Read more |
| XX | | Genuine Miele Raised head screw Zinc-plated 2,9X9,5 | 1023022 | $4.90Read more |
| XX | | Genuine Miele Raised head screw 3,9X13 | 1023120 | $2.10Read more |
| 10 | Not Available | Casing top Brilliant white | 4084330 | Not Available |
| 10 | Not Available | Casing top Sand beige | 2098410 | Not Available |
| 10 | Not Available | Casing top lotos green | 4084350 | Not Available |
| 10 | Not Available | Casing top Brilliant white | 4084330 | Not Available |
| 20 | Not Available | Lock anthracite | 1348211 | Not Available |
| 20 | No Image | Lock Lava Grey | 2046670 | $21.62Read more |
| 20+70 | Not Available | fill level indic. | 4267470 | Not Available |
| 30 | Not Available | support anthracite | 1348221 | Not Available |
| 40 | Not Available | Viewing screen | 1348331 | Not Available |
| 50 | Not Available | Torsion spring | 1348230 | Not Available |
| 75 | Not Available | Sealing ring | 1940830 | Not Available |
| 80 | Not Available | Slide sleeve black | 1348380 | Not Available |
| 80 | No Image | Slide Sleeve Anthracite | 3558750 | $12.31Read more |
| 90 | No Image | Sleeve Black | 1583210 | $4.14Read more |
| 100 | Not Available | Dust channel black | 1379960 | Not Available |
| 100 | No Image | Dust Channel Anthracite | 3558781 | $12.00Read more |
| 105 | Not Available | -Sealing ring grey | 3430580 | Not Available |
| 120 | Not Available | Damping plate | 1348190 | Not Available |
| 130 | Not Available | Air outlet filter 3 S230 | 4880480 | Not Available |
| 130 | Not Available | Filter 2X3 S230 | 1437451 | Not Available |
| 140 | Not Available | End plug anthracite | 1348371 | Not Available |
| 155 | Not Available | Dustbag TYP H 1/5 S230,S270 | 2046318 | Not Available |
| 160-180 | Not Available | Casing bottom anthracite | 1585922 | Not Available |
| 160-185 | Not Available | Casing bottom Bamboo green | 1500441 | Not Available |
| 160-180 | Not Available | Casing bottom anthracite | 1585922 | Not Available |
| 165 | No Image | -Bush | 2118190 | $5.20Read more |
| 165 | No Image | -Bush | 2118190 | $5.20Read more |
| 170 | Not Available | -Wheel anthracite | 1348033 | Not Available |
| 170 | Not Available | -Wheel anthracite | 1348033 | Not Available |
| 175 | No Image | -Disc 20,1X26,5X0,5 St-A3F | 2140640 | $5.20Read more |
| 175 | No Image | -Disc 20,1X26,5X0,5 St-A3F | 2140640 | $5.20Read more |
| 180 | No Image | -Slide Skid Anthracite | 1348121 | $20.00Read more |
| 180 | Not Available | -Slide skid Lava grey | 2046580 | Not Available |
| 180 | No Image | -Slide Skid Anthracite | 1348121 | $20.00Read more |
| 185 | Not Available | -End plug anthracite | 1348371 | Not Available |
| 185 | Not Available | -End plug anthracite | 1348371 | Not Available |
| 186 | Not Available | -connecting piece Lava grey | 2239060 | Not Available |
| 186 | Not Available | connecting piece Lava grey | 2239060 | Not Available |
| 190 | Not Available | Cover Lava grey | 2232790 | Not Available |
| 190 | Not Available | Cover black | 2232780 | Not Available |
| 210 | Not Available | Strip anthracite | 3629570 | Not Available |
| 220 | Not Available | Buffer black | 1348040 | Not Available |
| 220 | Not Available | Buffer Lava grey | 2046480 | Not Available |
| 230+240 | Not Available | Cover 2/3 Pole anthracite | 4065260 | Not Available |
| 230+240 | Not Available | Cover 2/3 Pole anthracite | 4065260 | Not Available |
| 230+240 | Not Available | Cover 2/3 Pole anthracite | 4065260 | Not Available |
| 230 | Not Available | Cover anthracite | 1566773 | Not Available |
| 240 | Not Available | Flush socket outlet 2 pole black | 1529711 | Not Available |
| 240 | Not Available | -Flush socket outlet 2-pole lava grey | 1998460 | Not Available |
| 240 | Not Available | Cap anthracite | 3558600 | Not Available |
| 260 | Not Available | Connecting cable 2 pole | 1348150 | Not Available |
| 280 | Not Available | Bracket anthracite | 3558643 | Not Available |
| 290 | | Genuine Miele Torsion spring | 1348411 | $2.30Read more |
| 320 | Not Available | Dust compart.filter 3 S230,S270 | 4669150 | Not Available |
| 320+130 | Not Available | Filter 2X3 S230 | 1437451 | Not Available |
| 330+340 | No Image | Filt.Cass.(Replac.) Anthracite | 1886472 | $47.00Read more |
| 330+340 | No Image | Filt.Cass.(Replac.) Anthracite | 1886472 | $47.00Read more |
| 340 | No Image | -Sup.Air-Cleanfilter 3 S230,S250,270,290 | 3366200 | $0.00Read more |
| 345 | Not Available | Scent | 3027951 | Not Available |
| 350 | Not Available | Suspension buffer | 1348050 | Not Available |
| 360 | Not Available | Clamping strip 2 pole | 1699010 | Not Available |
| 370 | Not Available | Damping plate | 1660161 | Not Available |

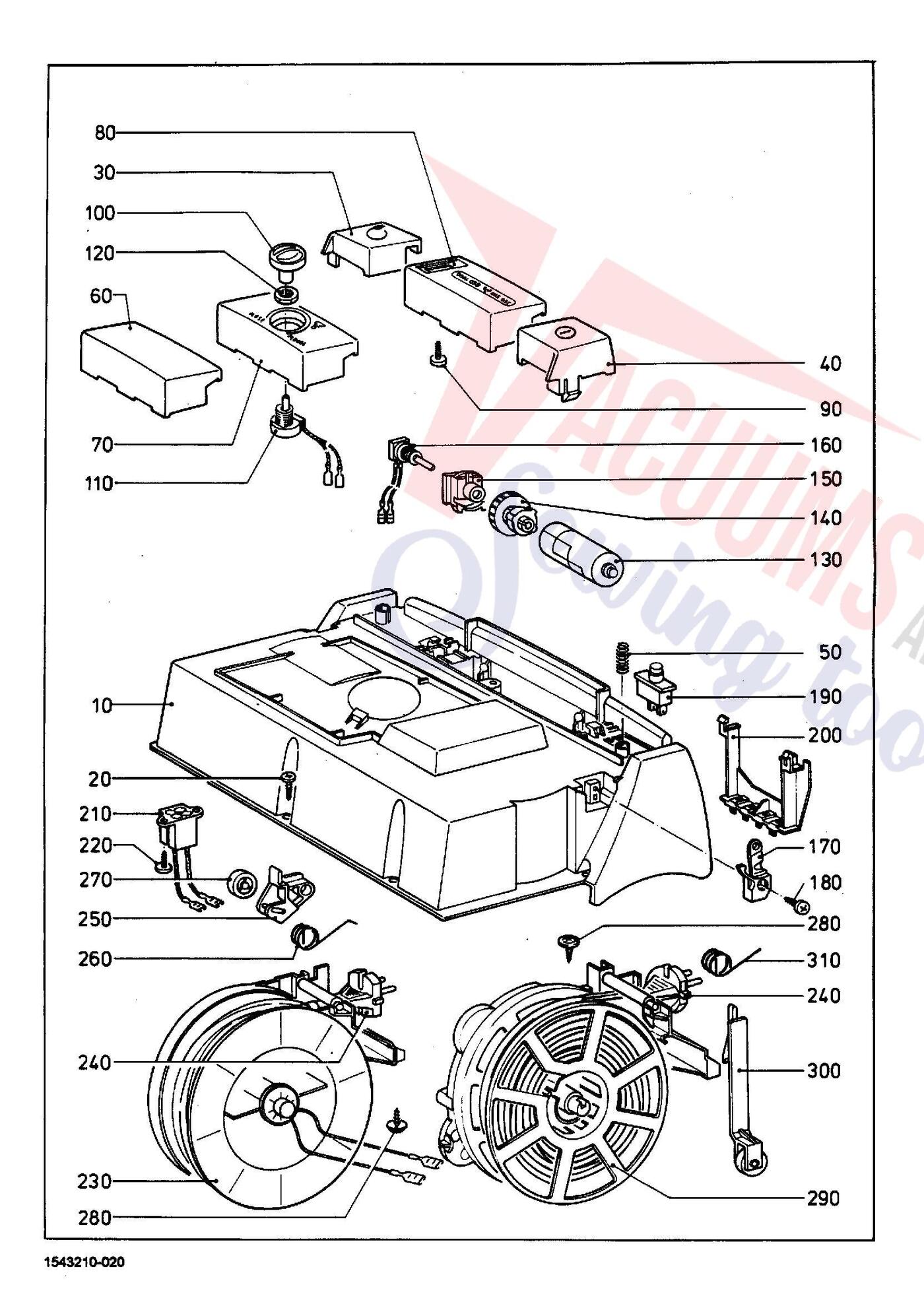

| # | Part image | Description | SKU | Price |
| XX | No Image | --Screw 4X20 | 3457650 | $2.50Read more |
| XX | No Image | --Raised Head Screw 3,9X13 | 1023050 | $2.10Read more |
| XX | No Image | --Hexagonal Nut M10X0,75 | 1022930 | $3.90Read more |
| XX | No Image | --Raised Head Screw 3,9X13 | 1023050 | $2.10Read more |
| XX | | Genuine Miele Raised head screw Zinc-plated 2,9X9,5 | 1023022 | $4.90Read more |
| (250) | Not Available | -Brake lever | 1954550 | Not Available |
| XX | | Genuine Miele Raised head screw 3,9X13 | 1023120 | $2.10Read more |
| 10 | Not Available | Rear panel anthracite | 1348432 | Not Available |
| 30 | Not Available | Foot switch right anthracite | 1348441 | Not Available |
| 30 | Not Available | Foot switch right anthracite | 1348441 | Not Available |
| 30 | Not Available | Foot switch Right lava grey | 2046800 | Not Available |
| 40 | Not Available | Foot switch left anthracite | 1348451 | Not Available |
| 50 |  | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 70 | Not Available | Cap black 1000W | 1471560 | Not Available |
| 70 | Not Available | Cap lava grey 1100W | 2247150 | Not Available |
| 70 | Not Available | Cap anthracite 1200W | 3576782 | Not Available |
| 70 | Not Available | Cap lava grey 1000W | 2099760 | Not Available |
| 70 | Not Available | Cap lava grey 1100W | 2247150 | Not Available |
| 70 | Not Available | Cap lava grey 1200W | 2247160 | Not Available |
| 70 | Not Available | Cap anthracite 1200W | 3576782 | Not Available |
| 100 | Not Available | Programme knob anthracite | 3576811 | Not Available |
| 110 | No Image | Potentiometer | 3868751 | $36.00Read more |
| 170 | Not Available | Hinge right black | 1348180 | Not Available |
| 170 | Not Available | Hinge Right lava grey | 2046830 | Not Available |
| 170 | Not Available | Hinge left black | 1348170 | Not Available |
| 170 | Not Available | Hinge left lava grey | 2046820 | Not Available |
| 190 | Not Available | Switch 6A 250V | 1357951 | Not Available |
| 200 | Not Available | Double tag | 1416040 | Not Available |
| 210 | Not Available | Plug housing 2 pole | 3694850 | Not Available |
| 240 | No Image | Supply Cable 6,65M | 2102361 | $61.00Read more |
| 250 | Not Available | -Brake lever | 1625070 | Not Available |
| 260 | Not Available | -Torsion spring | 1522831 | Not Available |
| 270 | No Image | -Brake Disc/Pulley Cable Reel | 4252350 | $5.64Read more |
| 290-310 | Not Available | Cable reel S230 6,5m 230V | 2225975 | Not Available |
| 300 | Not Available | -Brake lever m.Bremsscheibe S230 | 2372811 | Not Available |
| 310 | No Image | -Torsion Spring S250 | 4330190 | $2.50Read more |

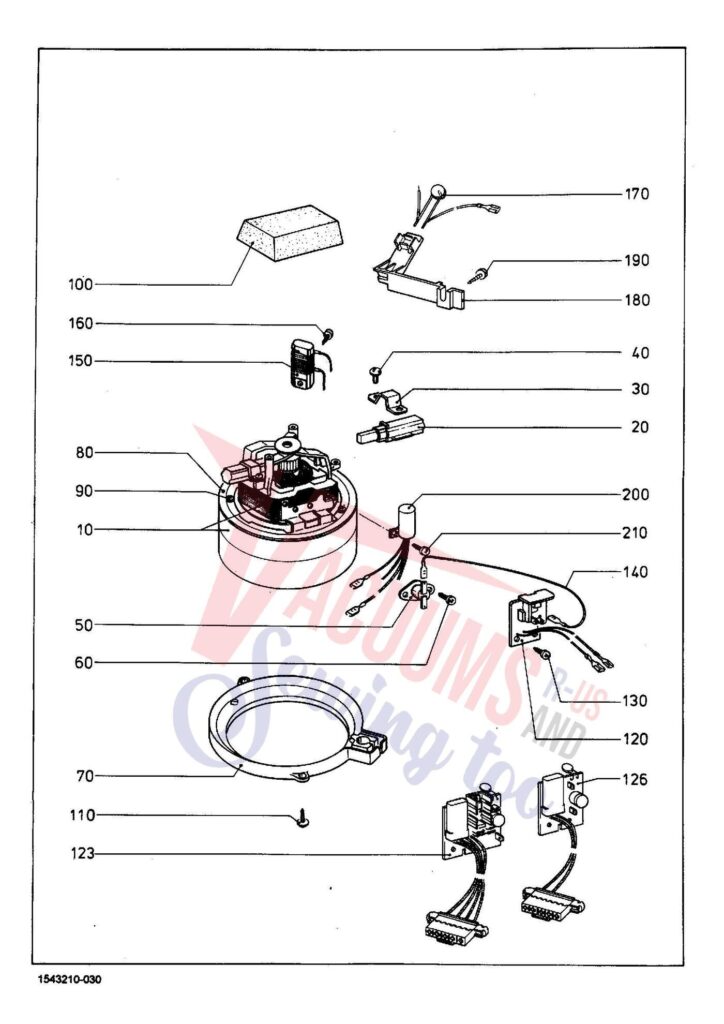

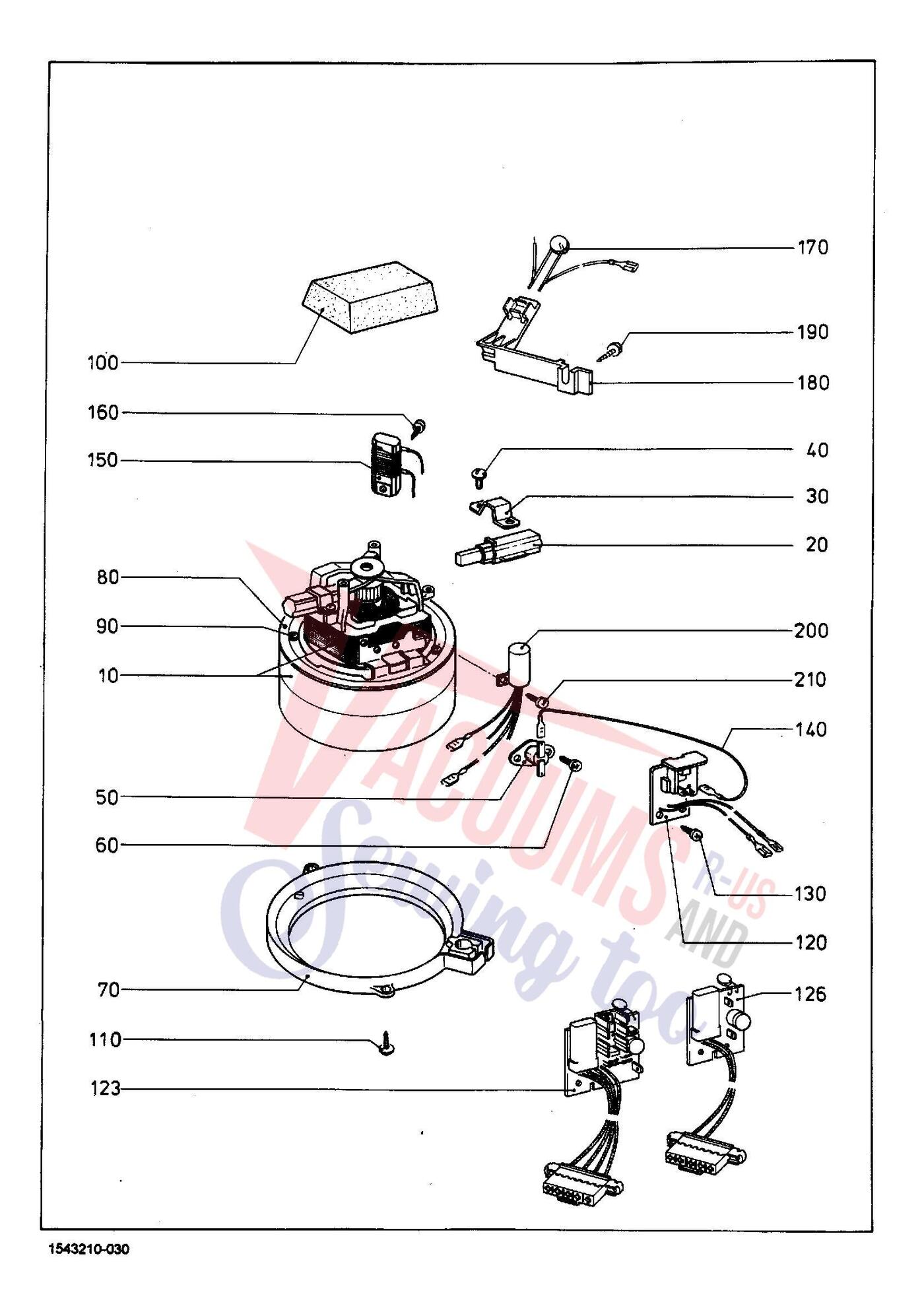

| # | Part image | Description | SKU | Price |
| XX | No Image | --Roundheaded Screw 5/32.Zollx8 | 49673 | $7.59Read more |
| w/o fig. | | Genuine Miele  | 1071710 | $3.60Read more |
| XX | No Image | --Raised Head Screw 3,9X6,5 | 2125130 | $2.30Read more |
| XX | Not Available | --Raised head screw 4,8X13 DIN 7981 | 10607 | Not Available |
| XX | | Genuine Miele Raised head screw 3,9X13 | 1023120 | $2.10Read more |
| XX | No Image | --Raised Head Screw 3,9X6,5 | 2125130 | $2.30Read more |
| XX | No Image | --Raised Head Screw 3,9X13 | 1023050 | $2.10Read more |
| XX | | Genuine Miele Raised head screw 3,9X9,5 | 1143580 | $0.00Read more |
| XX | No Image | --Raised Head Screw 3,9X6,5 | 2125130 | $2.30Read more |
| 10-40 | Not Available | Fan 115809-01 230V | 1125553 | Not Available |
| 10-40 | Not Available | Fan 230V S217-S240i | 5477440 | Not Available |
| 20 | | Genuine Miele Carbon brush | 2830481 | $56.80Read more |
| 30 | | Genuine Miele Clamping bracket | 75426 | $9.70Read more |
| 50 | | Genuine Miele Thermoswitch 10A 250V | 79864 | $39.50Read more |
| 50 | No Image | Thermoswitch 10A 250V | 2521100 | $42.00Read more |
| 70 | Not Available | Sealing ring | 1348470 | Not Available |
| 80 | Not Available | support | 1348480 | Not Available |
| 100 | Not Available | Damping plate | 1439640 | Not Available |
| 123 | Not Available | Speed control EDL 010 220-240V50HZ | 3719092 | Not Available |
| 140 | Not Available | Flexible wire SCHWARZ 150 MM LG. | 1415070 | Not Available |
| 150 | Not Available | Resistor 2,4 OHM 5A | 1380720 | Not Available |
| 170 | No Image | Resistor 10 0Hm Sg 40 | 1588780 | $63.00Read more |
| 180 | No Image | Holder | 1583770 | $7.00Read more |
| 200 | Not Available | Interf.sup.capacit. 0,2 UF+2X2500PF | 1380740 | Not Available |

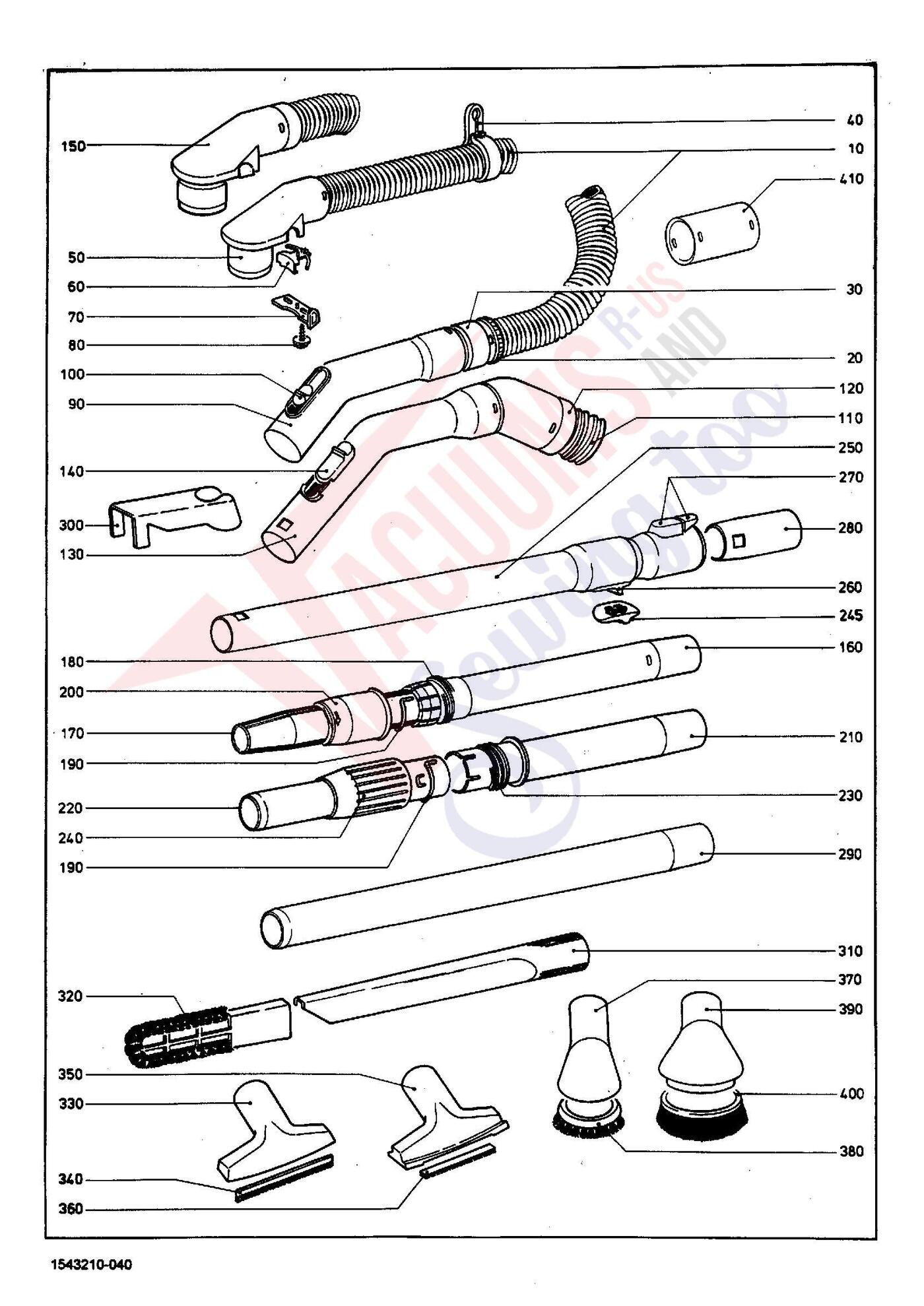

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 3,9X9,5 | 1143580 | $0.00Read more |
| w/o fig. |  | Genuine Miele Ay.kt.lock.device Telescopic pipe | 3876673 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Genuine Miele Sleeve | 91205 | $9.70Read more |
| 30 | | Genuine Miele Sleeve | 91205 | $9.70Read more |
| 40 | | Genuine Miele Suspension anthracite | 3565990 | $3.60Read more |
| 40 | | Genuine Miele Suspension anthracite | 3565990 | $3.60Read more |
| 60 | Not Available | -interlock black/brown | 1348560 | Not Available |
| 60 | | Genuine Miele interlock Lava grey | 1963320 | $6.60Read more |
| 70 | | Genuine Miele Slide | 1348550 | $3.60Read more |
| 100 | No Image | -Suction Control Anthracite | 1328680 | $3.90Read more |
| 110-150 | No Image | Suction Hose Anthracite | 3617463 | $149.00Add to cart Special order: ships in 2 to 4 weeks |
| 110+120 |  | Genuine Miele Suction hose silver-coloured 1,8m | 3565351 | $51.00Add to cart |
| 110-150 | No Image | Suction Hose Anthracite | 3617463 | $149.00Add to cart Special order: ships in 2 to 4 weeks |
| 110+120 | | Genuine Miele Suction hose silver-coloured 1,8m | 3565351 | $51.00Add to cart |
| 120 | | Genuine Miele Ring anthracite | 3565360 | $4.90Read more |
| 120 | | Genuine Miele Ring anthracite | 3565360 | $4.90Read more |
| 130+140 | | Genuine Miele Tubular handle anthracite assy | 3565461 | $56.00Add to cart Special order: ships in 2 to 4 weeks |
| 130+140 |  | Compatible alternateGenuine Miele Vacuum Cleaner Bend End for S series S200-S800 More Product Details | 3565460 | $35.99Add to cart Special order: ships in 2 to 4 weeks |
| 130+140 | | Genuine Miele Tubular handle anthracite assy | 3565461 | $56.00Add to cart Special order: ships in 2 to 4 weeks |
| 140 | | Genuine Miele Suction control anthracite | 3565580 | $3.60Read more |
| 150 | | Genuine Miele Elbow anthracite | 3565392 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
| 150 | | Genuine Miele Elbow anthracite | 3565392 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
| 160 | Not Available | -Suction pipe top | 1203360 | Not Available |
| 170 | No Image | -Suction Pipe Bottom | 1530080 | $77.99Read more |
| 190 | Not Available | -Screw connector anthracite | 1567702 | Not Available |
| 190 | Not Available | -Screw connector anthracite | 1567702 | Not Available |
| 190 | Not Available | -Screw connector anthracite | 1567702 | Not Available |
| 210 | No Image | -Suction Pipe Top | 1530090 | $77.99Read more |
| 220 | No Image | -Suction Pipe Bottom | 1530080 | $77.99Read more |
| 230+240 | Not Available | -Screw connector anthracite | 1567702 | Not Available |
| 230+240 | Not Available | -Screw connector anthracite | 1567702 | Not Available |
| 230+240 | Not Available | -Screw connector anthracite | 1567702 | Not Available |
| 230 | Not Available | -Screw connector anthracite | 1567702 | Not Available |
| 230 | Not Available | -Screw connector anthracite | 1567702 | Not Available |
| 240 | Not Available | -Screw connector anthracite | 1567702 | Not Available |
| 240 | No Image | -Nut Telescopic Pipe Lava Grey | 1963440 | $30.00Read more |
| 245 | No Image | -Slide Anthracite | 4333600 | $7.00Read more |
| 250+270 | No Image | Telescopic Pipe Anthracite | 3981960 | $77.99Read more |
| 250+270 | No Image | Telescopic Pipe Anthracite | 3981960 | $77.99Read more |
| 250+270 | No Image | Telescopic Pipe Anthracite | 3981960 | $77.99Read more |
| 250+270 | No Image | Telescopic Pipe St-Steel Anthracite | 4051130 | $77.99Read more |
| 260 | No Image | -Slide Lava Grey | 3205631 | $7.59Read more |
| 260 | No Image | -Slide Anthracite | 3570310 | $5.64Read more |
| 270 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 280 | | Genuine Miele Sleeve | 3058721 | $62.00Read more |
| 310 | | Genuine Miele Crevice nozzle anthracite | 3571671 | $12.10Read more |
| 310 |  | Compatible alternateMiele Canister Vacuum Crevice Tool More Product Details | 3571670 | $20.00Add to cart |
| 310 | | Compatible alternateGenuine Miele Crevice nozzle 149mm More Product Details | 9442630 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 320 | | Genuine Miele ST Radiator brush SHB30 | 9660490 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 330+340 | Not Available | Upholstery nozzle anthracite | 1347982 | Not Available |
| 340 | Not Available | -Bristle strip | 1389730 | Not Available |
| 350+360 | No Image | Upholstery Nozzle Anthracite | 3571680 | $22.00Read more |
| 360 | | Genuine Miele Thread lifter 2 Pcs. | 2348770 | $13.50Read more |
| 370+380 | No Image | Dusting Brush Anthracite | 3774310 | $16.00Read more |
| 380 | No Image | Dusting Brush Anthracite | 1963782 | $16.00Read more |
| 380 | No Image | Dusting Brush L | 12187780 | $24.00Add to cart Special order: ships in 2 to 4 weeks |
| 390+400 | No Image | Dusting Brush Anthracite | 4317710 | $26.00Read more |
| 400 | No Image | -Brush Head | 4312800 | $16.00Read more |
| 410 | | Genuine Miele Connecting tube anthracite | 3565760 | $20.60Read more |
| # | Part image | Description | SKU | Price |

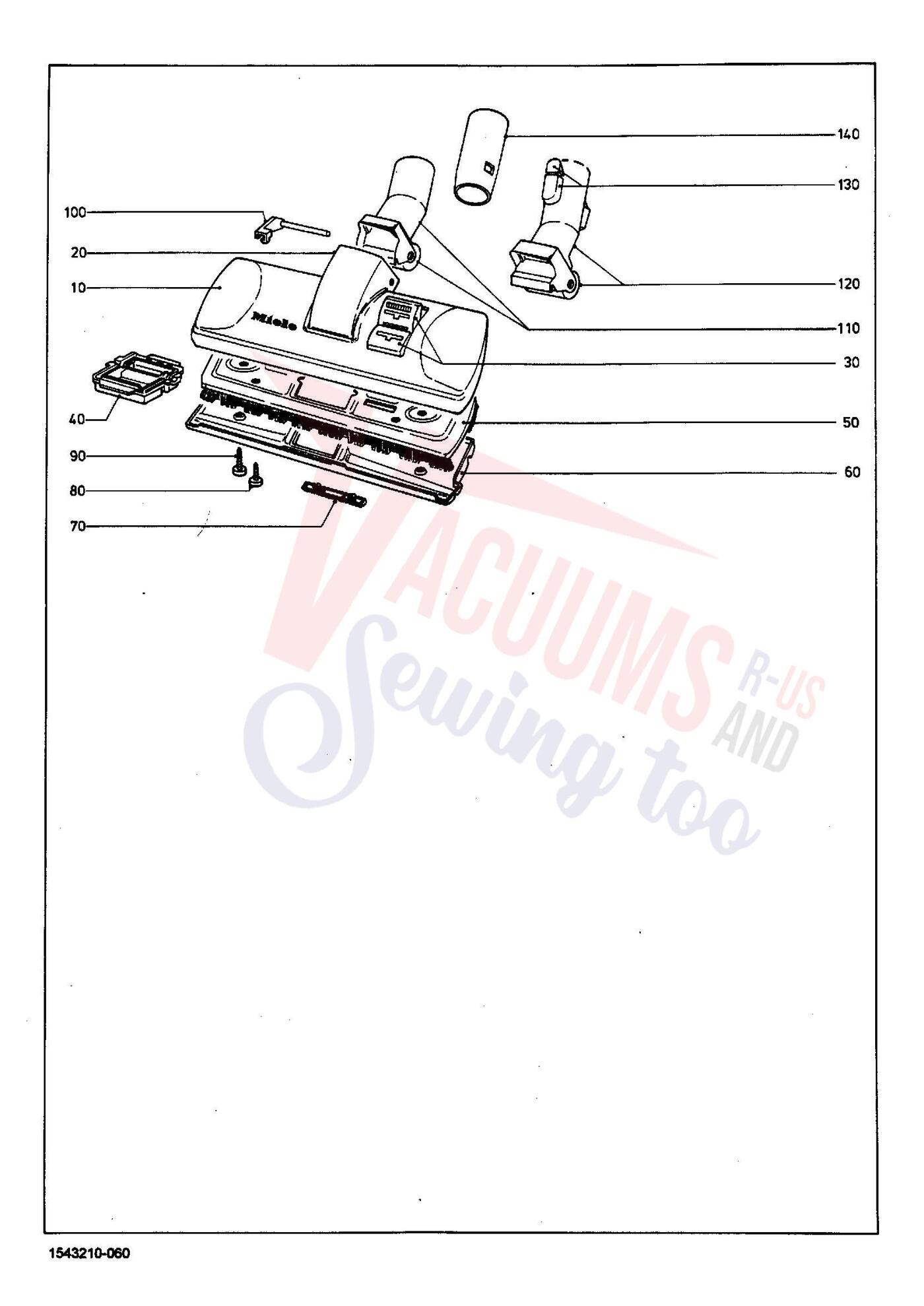

| XX | No Image | Floor Nozzle Sbd264/1 Pp | 3615732 | $98.70Read more |
| XX | No Image | Floor Nozzle Sbd264/1 Pp | 3615732 | $98.70Read more |
| XX | No Image | Floor Nozzle Sbd264/1 Pp | 3615732 | $98.70Read more |
| XX | No Image | Floor Nozzle Sbd264/1 Pp | 3615732 | $98.70Read more |
| 20 | Not Available | -Suction channel Lava grey | 2142670 | Not Available |
| 20 | Not Available | -Suction channel anthracite | 3639070 | Not Available |
| 30 | | Genuine Miele Foot switch anthracite | 3649851 | $10.70Read more |
| 40 | Not Available | -Buffer | 1571870 | Not Available |
| 50 | Not Available | Top anthracite | 3639081 | Not Available |
| 50 | Not Available | -Spacer | 3613000 | Not Available |
| 60 | Not Available | -Bristle supp.plate | 1229792 | Not Available |
| 70+90 | No Image | -Lower Section | 3510430 | $36.00Read more |
| 80 | | Genuine Miele Thread lifter | 82699 | $13.50Read more |
| 90 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 100 | Not Available | --Raised head screw 3,5X25 | 10597 | Not Available |
| 110 | No Image | --Countersunk Screw Ka35X16 Ejot-Pt | 2396150 | $2.50Read more |
| 120 | | Genuine Miele Shaft anthracite | 3612910 | $10.70Read more |
| 120+130 | Not Available | -Linkage anthracite | 3651490 | Not Available |
| 120+130 | Not Available | -Linkage anthracite | 3651490 | Not Available |
| 140+150 | Not Available | -Linkage anthracite | 3649870 | Not Available |
| 150 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 160 | | Genuine Miele Sleeve | 3058721 | $62.00Read more |
| 290 | Not Available | -Top Lava grey | 3024850 | Not Available |
| 290 | Not Available | -Top anthracite | 3642840 | Not Available |
| 300 | Not Available | -Foot switch Lava grey | 3024860 | Not Available |
| 300 | Not Available | -Foot switch anthracite | 3642830 | Not Available |
| 310 | Not Available | -Bristle supp.plate | 3024841 | Not Available |
| 320+330 | Not Available | -Lower section | 3024820 | Not Available |
| 330 | No Image | -Thread Lifter | 3039320 | $20.00Read more |
| 340 | No Image | --Countersunk Screw Ka35X16 Ejot-Pt | 2396150 | $2.50Read more |
| 345 | No Image | --Raised Head Screw 3,5X19 | 14137 | $3.90Read more |
| 350+360 | Not Available | -Shaft | 3039370 | Not Available |
| 360-380 | Not Available | -Support roller anthracite | 3642820 | Not Available |
| 390 | Not Available | -Linkage Lava grey | 3024870 | Not Available |
| 390 | Not Available | -Linkage anthracite | 3650340 | Not Available |
| # | Part image | Description | SKU | Price |
Report errors on this page HERE
