Schematic and parts book for Miele S227I S 227 I. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

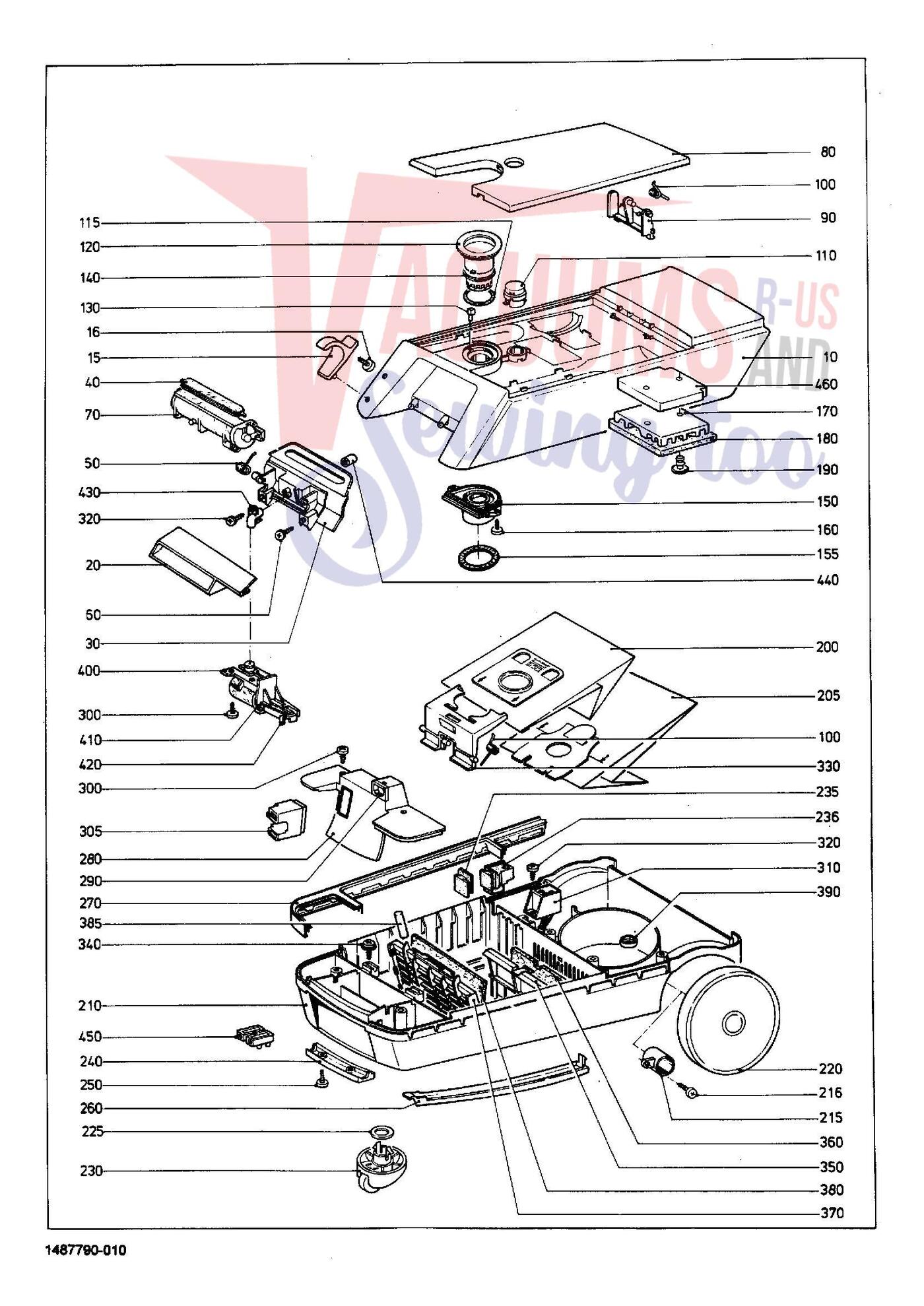

| # | Part image | Description | SKU | Price |
| XX |  | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| (205) | Not Available | Dustbag TYP H 1/5 S230,S270 | 2046318 | Not Available |
| w/o fig. | | Genuine Miele Lock | 1058641 | $20.60Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | No Image | --Raised Head Screw Din7981 Bz3,9X19 | 1023060 | $2.50Read more |
| XX | | Genuine Miele Raised head screw 4X20 | 2364630 | $2.30Read more |
| XX | | Genuine Miele Raised head screw Zinc-plated 2,9X9,5 | 1023022 | $4.90Read more |
| XX | | Genuine Miele Raised head screw 3,9X13 | 1023120 | $2.10Read more |
| 10 | Not Available | Casing top pastel white | 2246240 | Not Available |
| 10 | Not Available | Casing top nevada beige | 1528561 | Not Available |
| 10 | Not Available | Casing top azure blue | 4161850 | Not Available |
| 10 | Not Available | Casing top Bordeau red | 1528581 | Not Available |
| 10 | Not Available | Casing top Bamboo green | 1528591 | Not Available |
| 10 | Not Available | Casing top Ruby red | 2246230 | Not Available |
| 10 | Not Available | Casing top pastel white | 2246240 | Not Available |
| 10 | Not Available | Casing top Brilliant white | 4084640 | Not Available |
| 10 | Not Available | Casing top saphire blue | 2347650 | Not Available |
| 10 | Not Available | Casing top Emerald green | 3618370 | Not Available |
| 10 | Not Available | Casing top brick red | 4084630 | Not Available |
| 10 | Not Available | Casing top Royal blue | 4890430 | Not Available |
| 10 | No Image | Casing Top Lotos Green | 4084670 | $179.00Read more |
| 20 | Not Available | Lock anthracite | 1348211 | Not Available |
| 20 | No Image | Lock Lava Grey | 2046670 | $21.62Read more |
| 20+70 | Not Available | fill level indic. | 4267470 | Not Available |
| 30 | Not Available | support anthracite | 1348221 | Not Available |
| 30 | Not Available | support anthracite | 1348221 | Not Available |
| 40 | Not Available | Viewing screen | 1348331 | Not Available |
| 50 | Not Available | Torsion spring | 1348230 | Not Available |
| 80 | Not Available | Lid Classic white | 1680180 | Not Available |
| 80 | Not Available | Lid nevada beige | 1680190 | Not Available |
| 80 | Not Available | Lid Bordeau red | 1680210 | Not Available |
| 80 | Not Available | Lid Bamboo green | 1680220 | Not Available |
| 80 | Not Available | Lid brick red | 4085130 | Not Available |
| 80 | Not Available | Lid pastel white | 2240050 | Not Available |
| 80 | Not Available | Lid light grey | 2046720 | Not Available |
| 80 | Not Available | Lid saphire blue | 2347680 | Not Available |
| 80 | Not Available | Lid Emerald green | 3618410 | Not Available |
| 80 | Not Available | Lid brick red | 4085130 | Not Available |
| 80 | Not Available | Lid azure blue | 4085190 | Not Available |
| 80 | Not Available | Lid lotos green | 4085210 | Not Available |
| 90 | Not Available | Hinge black | 1348420 | Not Available |
| 90 | Not Available | Hinge Lava grey | 2046770 | Not Available |
| 100 | | Genuine Miele Torsion spring | 1348411 | $2.30Read more |
| 100 | | Genuine Miele Torsion spring | 1348411 | $2.30Read more |
| 110 | Not Available | Lock anthracite | 3558930 | Not Available |
| 115 | Not Available | Sealing ring | 1940830 | Not Available |
| 120 | Not Available | Slide sleeve black | 1348380 | Not Available |
| 120 | No Image | Slide Sleeve Anthracite | 3558750 | $12.31Read more |
| 140 | No Image | Sleeve Black | 1583210 | $4.14Read more |
| 150 | No Image | Dust Channel Anthracite | 3558781 | $12.00Read more |
| 155 | Not Available | -Sealing ring grey | 3430580 | Not Available |
| 180 | Not Available | Air outlet filter 3 S230 | 4880480 | Not Available |
| 180 | Not Available | Filter 2X3 S230 | 1437451 | Not Available |
| 190 | Not Available | End plug anthracite | 1348371 | Not Available |
| 200 | Not Available | Cloth filter bag S227-S858 | 5188842 | Not Available |
| 210-230 | Not Available | Casing bottom anthracite | 1585922 | Not Available |
| 215 | No Image | -Bush | 2118190 | $5.20Read more |
| 215 | No Image | -Bush | 2118190 | $5.20Read more |
| 220 | Not Available | -Wheel anthracite | 1348033 | Not Available |
| 220 | Not Available | -Wheel anthracite | 1348033 | Not Available |
| 225 | No Image | -Disc 20,1X26,5X0,5 St-A3F | 2140640 | $5.20Read more |
| 225 | No Image | -Disc 20,1X26,5X0,5 St-A3F | 2140640 | $5.20Read more |
| 230 | No Image | -Slide Skid Anthracite | 1348121 | $20.00Read more |
| 230 | Not Available | -Slide skid Lava grey | 2046580 | Not Available |
| 230 | No Image | -Slide Skid Anthracite | 1348121 | $20.00Read more |
| 235 | Not Available | -End plug anthracite | 1348371 | Not Available |
| 235 | Not Available | -End plug anthracite | 1348371 | Not Available |
| 236 | Not Available | connecting piece Lava grey | 2239060 | Not Available |
| 236 | Not Available | connecting piece Lava grey | 2239060 | Not Available |
| 240 | Not Available | Cover Lava grey | 2232790 | Not Available |
| 240 | Not Available | Cover black | 2232780 | Not Available |
| 260 | Not Available | Strip anthracite | 3629570 | Not Available |
| 270 | Not Available | Buffer black | 1348040 | Not Available |
| 270 | Not Available | Buffer Lava grey | 2046480 | Not Available |
| 280 | Not Available | Cover anthracite | 1566773 | Not Available |
| 280+290 | Not Available | Cover 2/3 Pole anthracite | 4065260 | Not Available |
| 280+290 | Not Available | Cover 2/3 Pole anthracite | 4065260 | Not Available |
| 280+290 | Not Available | Cover 2/3 Pole anthracite | 4065260 | Not Available |
| 290 | Not Available | Cap anthracite | 3558600 | Not Available |
| 310 | Not Available | Connecting cable 2 pole | 1348150 | Not Available |
| 330 | Not Available | Bracket anthracite | 3558643 | Not Available |
| 350+360 | Not Available | Filter frame black | 1348090 | Not Available |
| 360 | Not Available | -Dust compart.filter 3 S230,S270 | 4669150 | Not Available |
| 360+180 | Not Available | Filter 2X3 S230 | 1437451 | Not Available |
| 370 | No Image | Filt.Cass.(Replac.) Anthracite | 1886472 | $47.00Read more |
| 370 | No Image | Filt.Cass.(Replac.) Anthracite | 1886472 | $47.00Read more |
| 380 | No Image | -Sup.Air-Cleanfilter 3 S230,S250,270,290 | 3366200 | $0.00Read more |
| 385 | Not Available | Scent | 3027951 | Not Available |
| 390 | Not Available | Suspension buffer | 1348050 | Not Available |
| 460 | Not Available | Damping plate | 1660161 | Not Available |

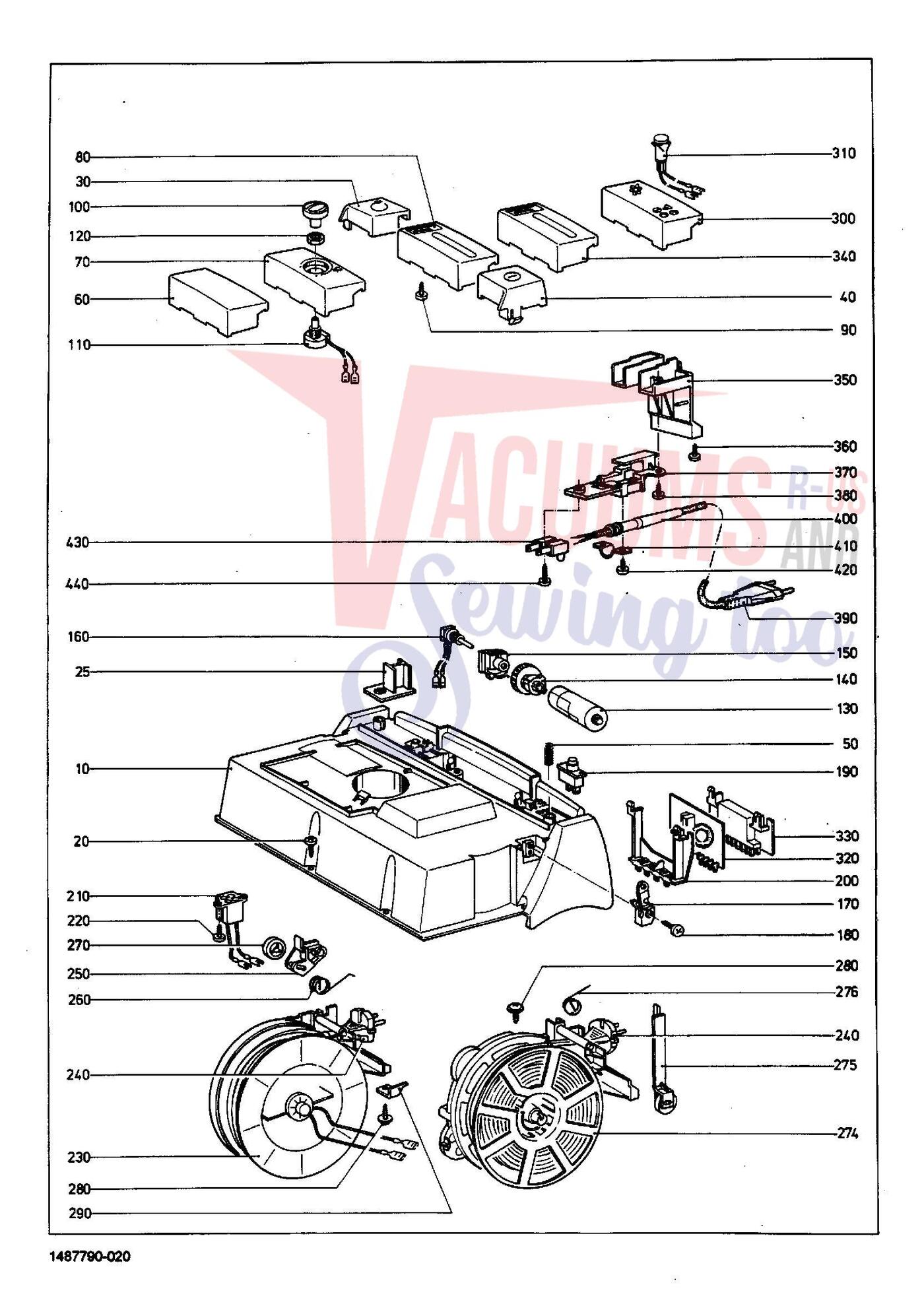

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 4X20 | 2364630 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 TORX T20 | 6106980 | $0.00Read more |
| (170) | Not Available | Hinge right black | 1348180 | Not Available |
| (170) | Not Available | Hinge Right lava grey | 2046830 | Not Available |
| XX | | Genuine Miele Raised head screw 4,0x14 TORX T20 | 6106980 | $0.00Read more |
| (250) | Not Available | -Brake lever | 1954550 | Not Available |
| XX | | Genuine Miele Raised head screw 3,9X13 | 1023120 | $2.10Read more |
| 10 | Not Available | Rear panel anthracite | 1348432 | Not Available |
| 30 | Not Available | Foot switch right anthracite | 1348441 | Not Available |
| 30 | Not Available | Foot switch Right lava grey | 2046800 | Not Available |
| 40 | Not Available | Foot switch left anthracite | 1348451 | Not Available |
| 50 |  | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 60 | Not Available | Cap anthracite | 1348461 | Not Available |
| 60 | Not Available | Cap anthracite | 1348461 | Not Available |
| 60 | Not Available | Cap Lava grey | 2046840 | Not Available |
| 170 | Not Available | Hinge left black | 1348170 | Not Available |
| 170 | Not Available | Hinge left lava grey | 2046820 | Not Available |
| 190 | Not Available | Switch 6A 250V | 1357951 | Not Available |
| 200 | Not Available | Double tag | 1348830 | Not Available |
| 240 | No Image | -Supply Cable 6,65M 230V | 4691520 | $61.00Read more |
| 270 | No Image | -Brake Disc/Pulley Cable Reel | 4252350 | $5.64Read more |
| 274-276 | Not Available | Cable reel S230 6,5m 230V | 2225975 | Not Available |
| 275 | Not Available | -Brake lever m.Bremsscheibe S230 | 2372811 | Not Available |
| 276 | No Image | -Torsion Spring S250 | 4330190 | $2.50Read more |

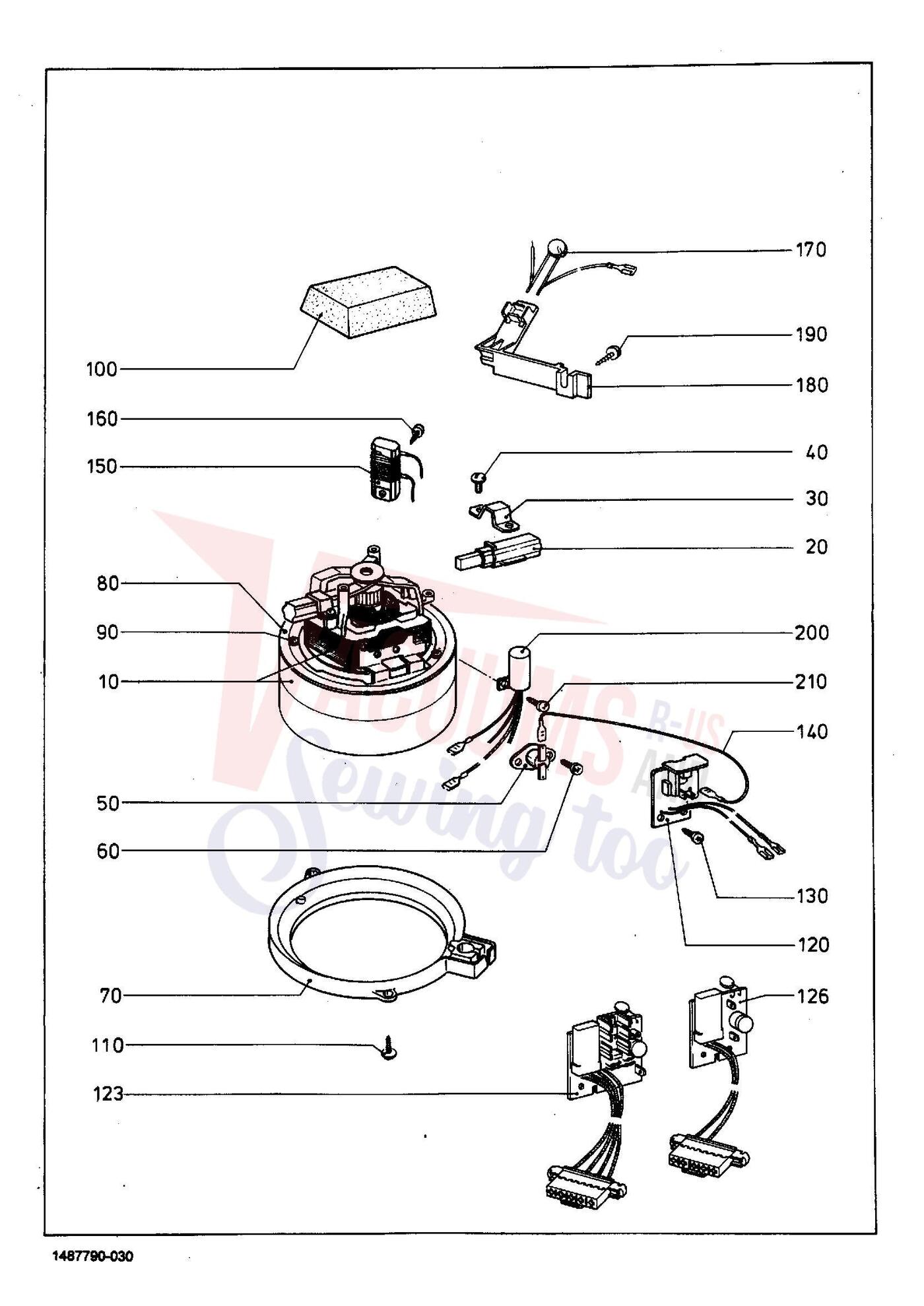

| # | Part image | Description | SKU | Price |
| XX | No Image | --Roundheaded Screw 5/32.Zollx8 | 49673 | $7.59Read more |
| w/o fig. | | Genuine Miele  | 1071710 | $3.60Read more |
| XX | No Image | --Raised Head Screw 3,9X6,5 | 4781120 | $2.30Read more |
| XX | Not Available | --Raised head screw 4,8X13 DIN 7981 | 10607 | Not Available |
| XX | | Genuine Miele Raised head screw 3,9X13 | 1023120 | $2.10Read more |
| XX | | Genuine Miele Raised head screw 4,0x14 | 6106981 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 3,9X9,5 | 1143580 | $0.00Read more |
| XX | | Genuine Miele Raised head screw 3,9X6,5 | 4781122 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| 10-40 | Not Available | Fan 115809-01 230V | 1125553 | Not Available |
| 10-40 | Not Available | Fan 230V S217-S240i | 5477440 | Not Available |
| 20 | | Genuine Miele Carbon brush | 2830481 | $56.80Read more |
| 30 | | Genuine Miele Clamping bracket | 75426 | $9.70Read more |
| 50 | | Genuine Miele Thermoswitch 10A 250V | 79864 | $39.50Read more |
| 70 | Not Available | Sealing ring | 1348470 | Not Available |
| 80 | Not Available | support | 1348480 | Not Available |
| 100 | Not Available | Damping plate | 1439640 | Not Available |
| 126 | Not Available | Distributor 220-240V | 3648070 | Not Available |
| 170 | No Image | Resistor 10 0Hm Sg 40 | 1588780 | $63.00Read more |
| 180 | No Image | Holder | 1583770 | $7.00Read more |
| 200 | Not Available | Interf.sup.capacit. 0,12 UF +2X2500PF | 1380730 | Not Available |

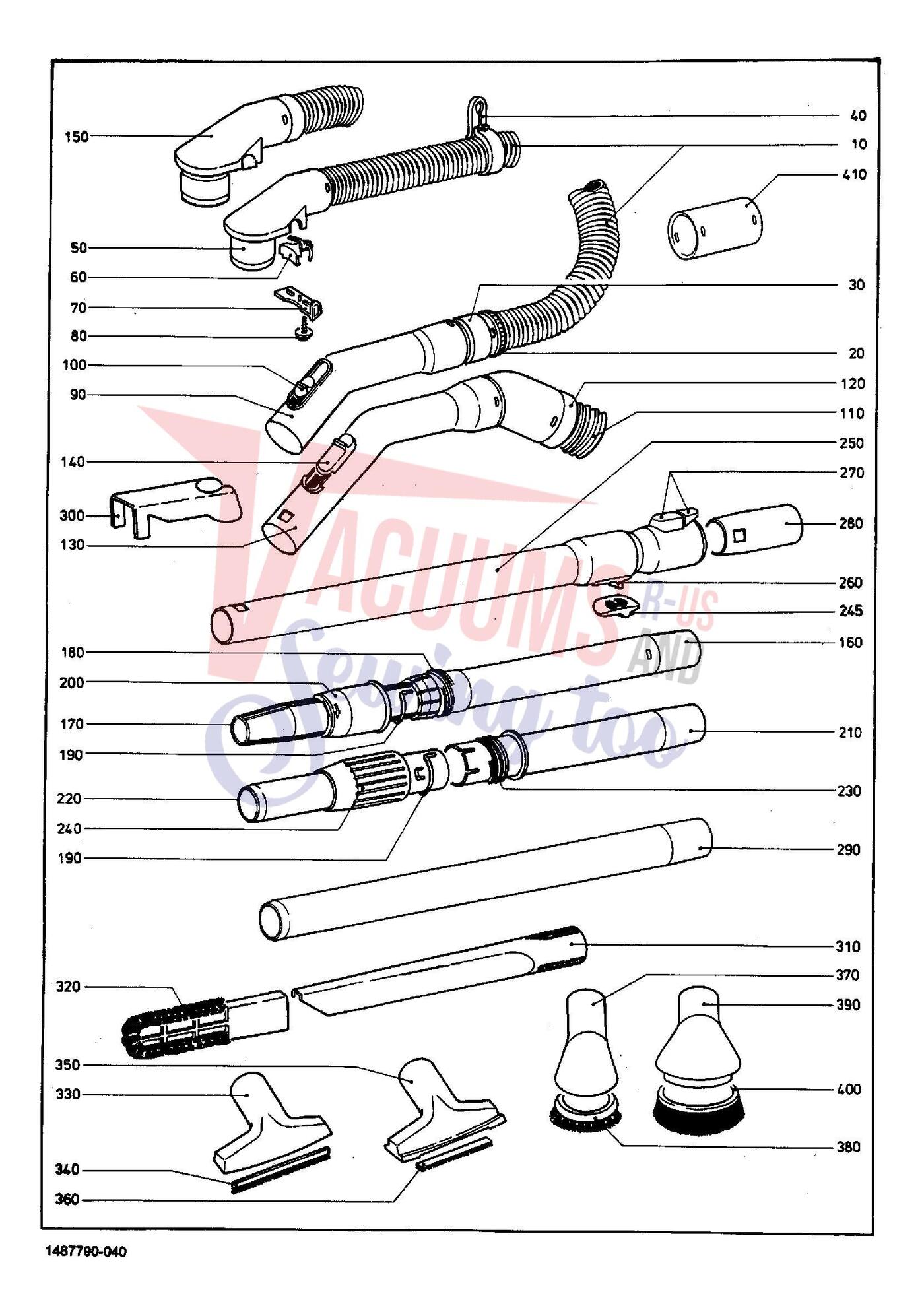

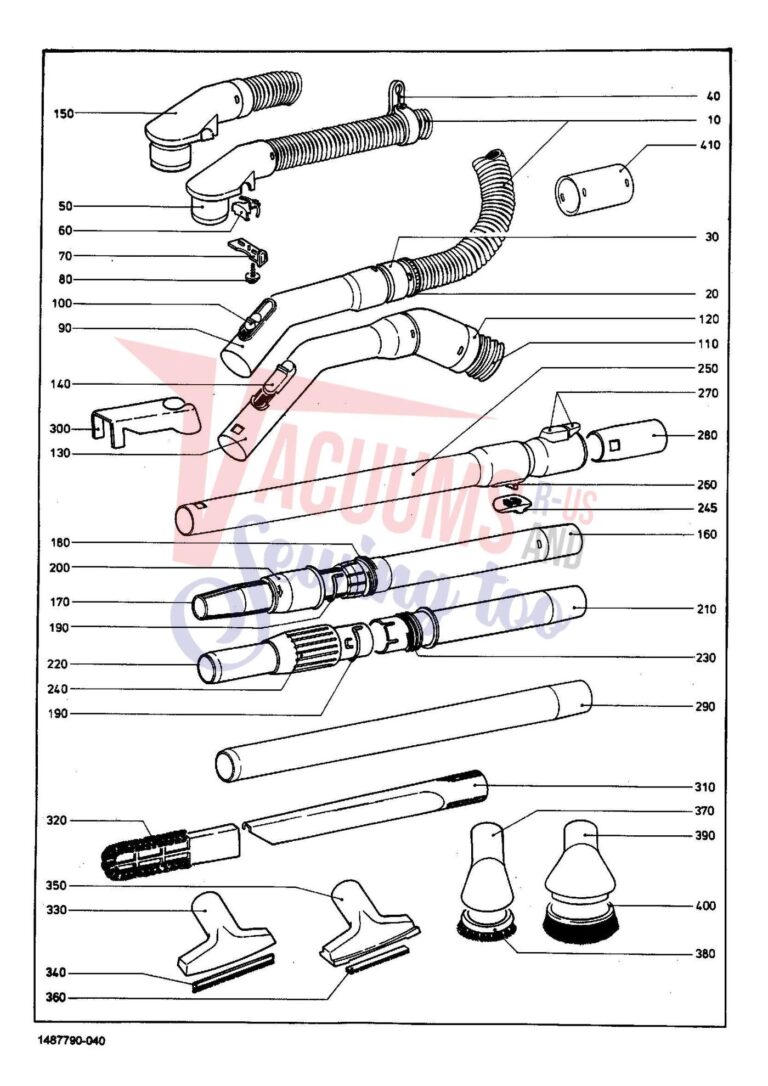

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 3,9X9,5 | 1143580 | $0.00Read more |
| w/o fig. | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| w/o fig. | No Image | Dusting Brush Anthracite | 5098711 | $16.00Read more |
| w/o fig. | | Genuine Miele ST Dusting brush Natural | 5387401 | $0.00Read more |
| w/o fig. | | Genuine Miele ST Dusting brush Natural | 5387401 | $0.00Read more |
| 30 | | Genuine Miele Sleeve | 91205 | $9.70Read more |
| 30 | | Genuine Miele Sleeve | 91205 | $9.70Read more |
| 40 | | Genuine Miele Suspension anthracite | 3565990 | $3.60Read more |
| 40 | | Genuine Miele Suspension anthracite | 3565990 | $3.60Read more |
| 60 | Not Available | -interlock black/brown | 1348560 | Not Available |
| 60 | | Genuine Miele interlock Lava grey | 1963320 | $6.60Read more |
| 70 | | Genuine Miele Slide | 1348550 | $3.60Read more |
| 100 | No Image | -Suction Control Anthracite | 1328680 | $3.90Read more |
| 110-150 | No Image | Suction Hose Anthracite | 3617463 | $149.00Add to cart Special order: ships in 2 to 4 weeks |
| 110+120 |  | Genuine Miele Suction hose silver-coloured 1,8m | 3565351 | $51.00Add to cart |
| 110-150 | No Image | Suction Hose Anthracite | 3617461 | $149.00Read more |
| 110+120 | | Genuine Miele Suction hose silver-coloured 1,8m | 3565351 | $51.00Add to cart |
| 120 | | Genuine Miele Ring anthracite | 3565360 | $4.90Read more |
| 120 | | Genuine Miele Ring anthracite | 3565360 | $4.90Read more |
| 130+140 | | Genuine Miele Tubular handle anthracite assy | 3565461 | $56.00Add to cart Special order: ships in 2 to 4 weeks |
| 130+140 |  | Compatible alternateGenuine Miele Vacuum Cleaner Bend End for S series S200-S800 More Product Details | 3565460 | $35.99Add to cart Special order: ships in 2 to 4 weeks |
| 130+140 | | Genuine Miele Tubular handle anthracite assy | 3565461 | $56.00Add to cart Special order: ships in 2 to 4 weeks |
| 140 | | Genuine Miele Suction control anthracite | 3565580 | $3.60Read more |
| 150 | | Genuine Miele Elbow anthracite | 3565392 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
| 150 | | Genuine Miele Elbow anthracite | 3565392 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
| 290 | No Image | Suction Pipe Top Obsw Assy | 12421840 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
| 310 | | Genuine Miele Crevice nozzle anthracite | 3571671 | $12.10Read more |
| 310 |  | Compatible alternateMiele Canister Vacuum Crevice Tool More Product Details | 3571670 | $20.00Add to cart |
| 310 | | Compatible alternateGenuine Miele Crevice nozzle 149mm More Product Details | 9442630 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 320 | | Genuine Miele ST Radiator brush SHB30 | 9660490 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 330+340 | Not Available | Upholstery nozzle anthracite | 1347982 | Not Available |
| 340 | Not Available | -Bristle strip | 1389730 | Not Available |
| 360 | | Genuine Miele Thread lifter 2 Pcs. | 2348770 | $13.50Read more |
| 380 | No Image | Dusting Brush L | 12187780 | $24.00Add to cart Special order: ships in 2 to 4 weeks |
| 410 | | Genuine Miele Connecting tube anthracite | 3565760 | $20.60Read more |
| # | Part image | Description | SKU | Price |

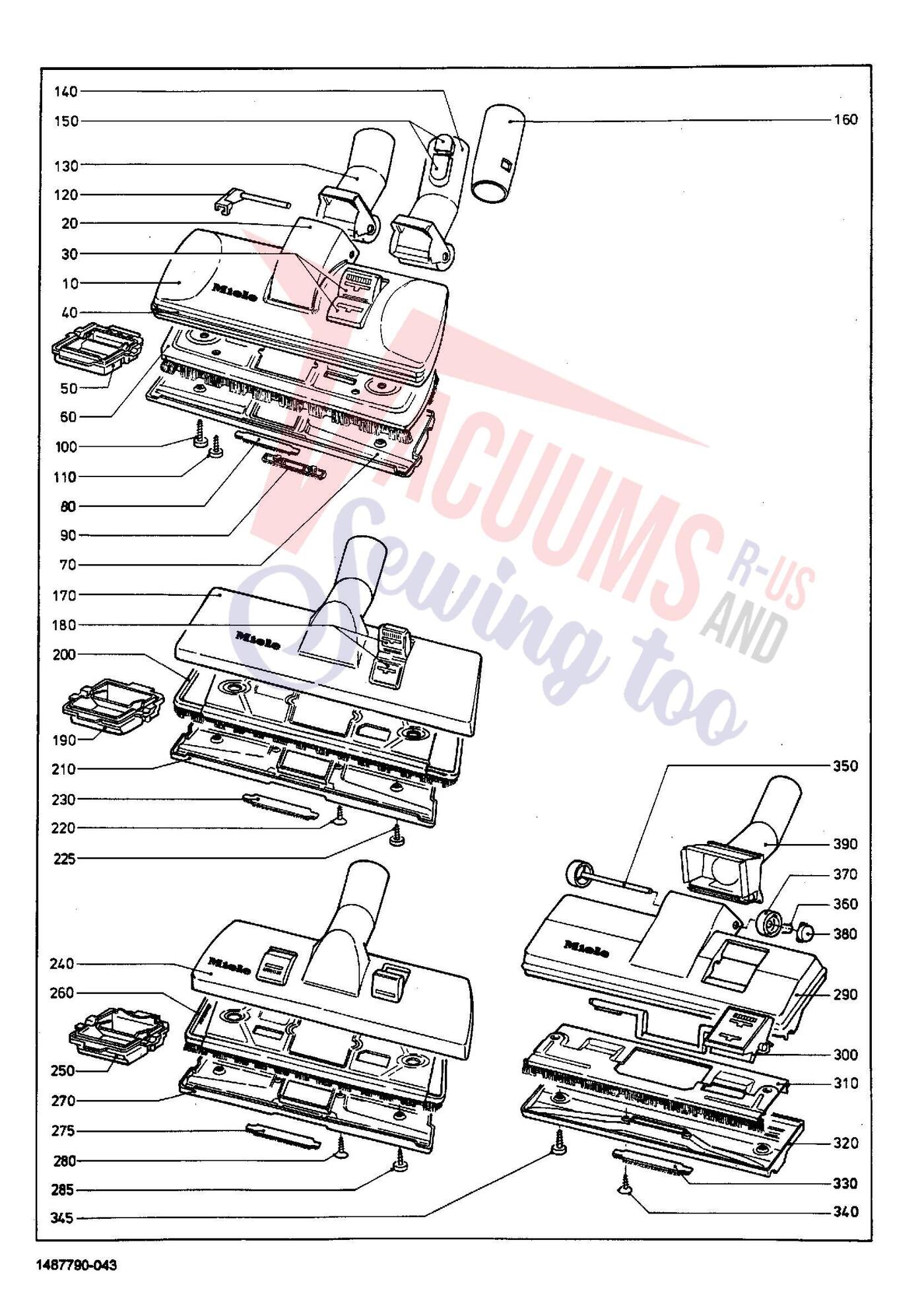

| w/o fig. | Not Available | Floor nozzle SBD285-3 AllTeQ | 7253830 | Not Available |
| 170 | No Image | -Top Lava Grey | 2142650 | $98.70Read more |
| 180 | Not Available | -Foot switch Lava grey | 2229530 | Not Available |
| 190 | No Image | -Spacer | 1949880 | $15.00Read more |
| 200 | Not Available | -Bristle supp.plate | 1949860 | Not Available |
| 210+230 | No Image | -Lower Section | 1949851 | $47.00Read more |
| 220 | | Genuine Miele Raised head screw 3,5X16 | 46546 | $2.10Read more |
| 225 | Not Available | --Raised head screw 3,5X25 | 10597 | Not Available |
| 230 | | Genuine Miele Thread lifter | 82699 | $13.50Read more |
| # | Part image | Description | SKU | Price |

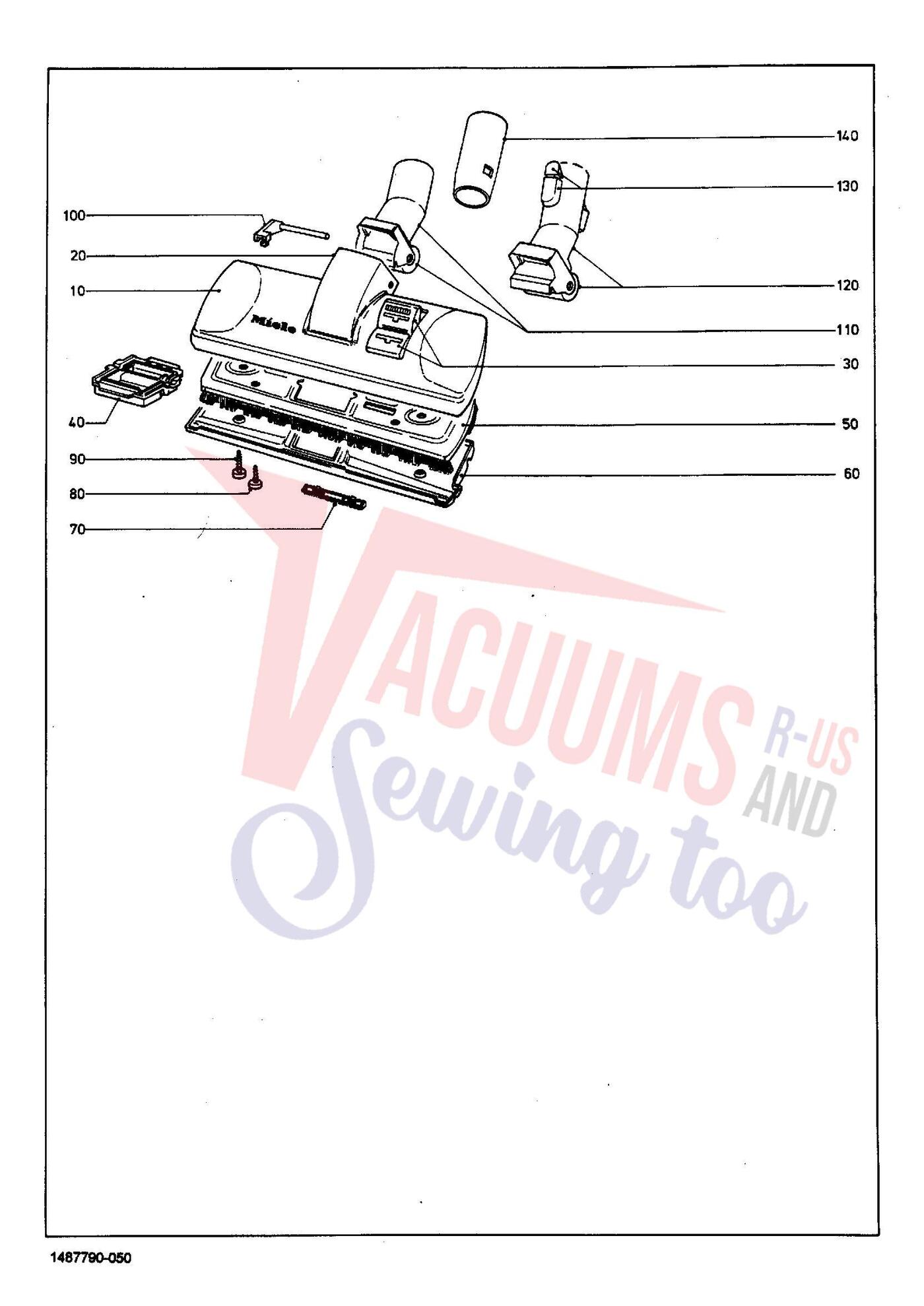

| w/o fig. | No Image | Floor Nozzle Sbd265 | 4769121 | $98.70Read more |
| 10-40 | Not Available | -Top anthracite | 3614251 | Not Available |
| 10-40 | Not Available | -Top anthracite | 3614251 | Not Available |
| 30 | | Genuine Miele Foot switch anthracite | 3649851 | $10.70Read more |
| 40 | Not Available | -Spacer | 3613000 | Not Available |
| 50 | Not Available | -Bristle supp.plate | 1229792 | Not Available |
| 60+70 | | Genuine Miele Lower section | 4969510 | $33.80Read more |
| 70 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 80 | Not Available | --Screw KA35X30 | 1702700 | Not Available |
| 90 | | Genuine Miele Screw KA35X27 EJOT-PT | 3484490 | $2.30Read more |
| 100 | | Genuine Miele Shaft anthracite | 3612910 | $10.70Read more |
| 100+110 | Not Available | -Linkage SBD260/1 PP | 3685360 | Not Available |
| 100 | | Genuine Miele Shaft anthracite | 3612910 | $10.70Read more |
| 120+130 | No Image | -Linkage Anthracite | 3685340 | $42.00Read more |
| 130 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 140 | | Genuine Miele Sleeve | 3058721 | $62.00Read more |
Report errors on this page HERE
