Schematic and parts book for Miele S227 S 227. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

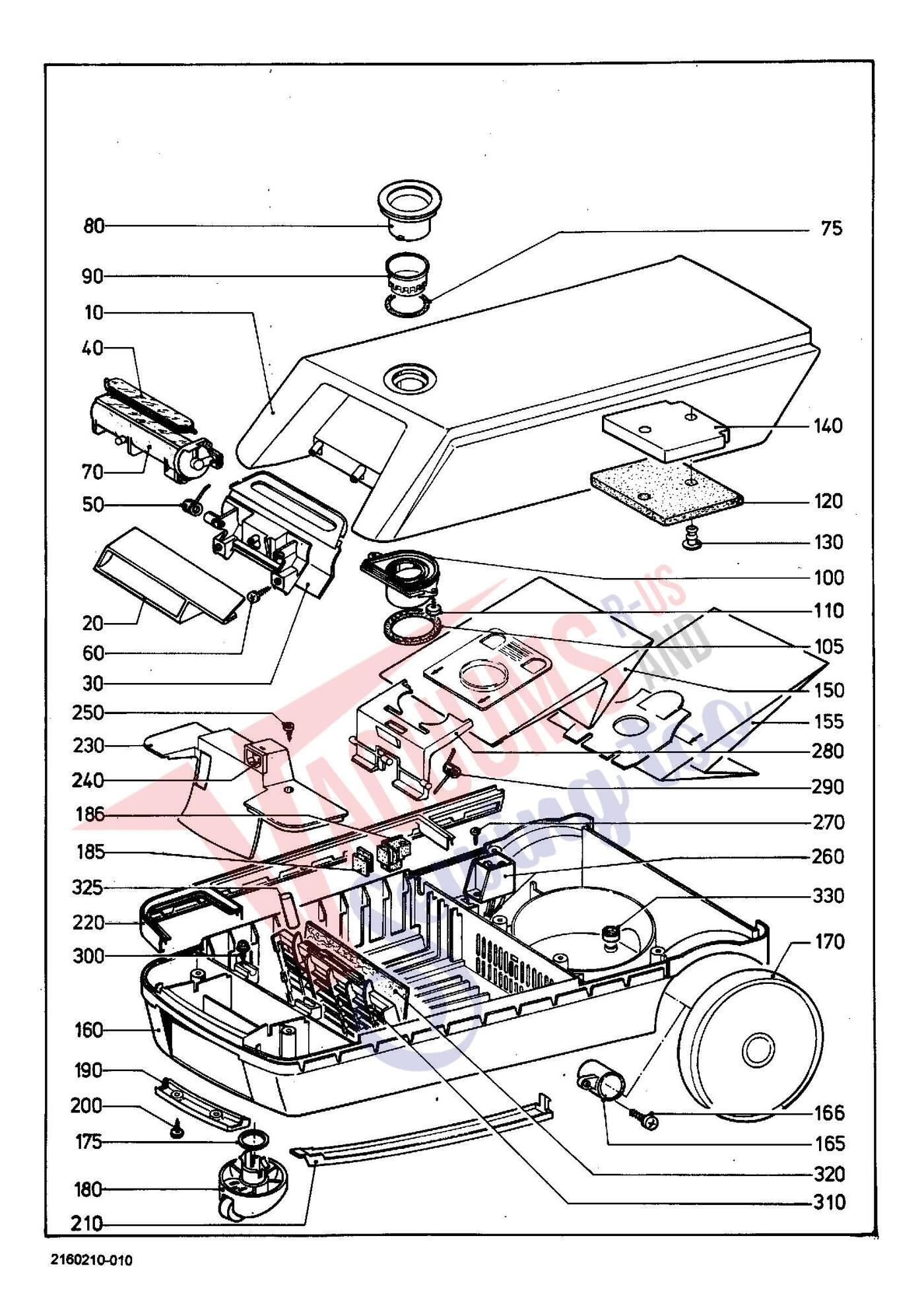

| # | Part image | Description | SKU | Price |
| XX | No Image | --Raised Head Screw 3,9X13 | 1023050 | $2.10Read more |
| XX | No Image | --Raised Head Screw 3,9X13 | 1023050 | $2.10Read more |
| w/o fig. |  | Genuine Miele Lock | 1058641 | $20.60Read more |
| XX | No Image | --Raised Head Screw 3,9X13 | 1023050 | $2.10Read more |
| XX | No Image | --Raised Head Screw Din7981 Bz3,9X19 | 1023060 | $2.50Read more |
| (240) | Not Available | Cap Lava grey | 1962970 | Not Available |
| (240) | Not Available | Cap anthracite | 3558600 | Not Available |
| XX | No Image | --Raised Head Screw 3,9X13 | 1023050 | $2.10Read more |
| XX | | Genuine Miele Raised head screw Zinc-plated 2,9X9,5 | 1023022 | $4.90Read more |
| XX | | Genuine Miele Raised head screw 3,9X13 | 1023120 | $2.10Read more |
| 10 | Not Available | Casing top light grey | 2233730 | Not Available |
| 10 | Not Available | Casing top brick red | 4086640 | Not Available |
| 20 | Not Available | Lock Lava grey | 2233240 | Not Available |
| 20 | Not Available | Lock black | 2233230 | Not Available |
| 30 | Not Available | support anthracite | 1348221 | Not Available |
| 40 | Not Available | Viewing screen | 1348331 | Not Available |
| 50 | Not Available | Torsion spring | 1348230 | Not Available |
| 70 | Not Available | fill level indic. | 4267470 | Not Available |
| 75 | Not Available | Sealing ring | 1940830 | Not Available |
| 80 | No Image | Slide Sleeve Anthracite | 3566400 | $22.00Read more |
| 90 | No Image | Sleeve Anthracite | 3558790 | $4.14Read more |
| 90 | No Image | Sleeve Black | 1583210 | $4.14Read more |
| 100 | No Image | Dust Channel Anthracite | 3558781 | $12.00Read more |
| 105 | Not Available | -Sealing ring grey | 3430580 | Not Available |
| 120 | Not Available | Air outlet filter 3 S230 | 4880480 | Not Available |
| 120 | Not Available | Filter 2X3 S230 | 1437451 | Not Available |
| 130 | Not Available | End plug anthracite | 1348371 | Not Available |
| 140 | Not Available | Damping plate | 1660161 | Not Available |
| 150 | Not Available | Cloth filter bag S227-S858 | 5188842 | Not Available |
| 155 | Not Available | Dustbag TYP H 1/5 S230,S270 | 2046318 | Not Available |
| 160-180 | Not Available | Casing bottom anthracite | 2240161 | Not Available |
| 165 | No Image | -Bush | 2118190 | $5.20Read more |
| 170 | Not Available | -Wheel anthracite | 1348033 | Not Available |
| 175 | No Image | -Disc 20,1X26,5X0,5 St-A3F | 2140640 | $5.20Read more |
| 180 | Not Available | -Slide skid Lava grey | 2046580 | Not Available |
| 180 | No Image | -Slide Skid Anthracite | 1348121 | $20.00Read more |
| 185 | Not Available | -End plug anthracite | 1348371 | Not Available |
| 190 | Not Available | Cover Lava grey | 2232790 | Not Available |
| 190 | Not Available | Cover black | 2232780 | Not Available |
| 210 | Not Available | Strip anthracite | 3629570 | Not Available |
| 220 | Not Available | Buffer Lava grey | 2046480 | Not Available |
| 220 | Not Available | Buffer black | 1348040 | Not Available |
| 230+240 | Not Available | Cover 2 pole anthracite | 1820802 | Not Available |
| 260 | Not Available | Connecting cable 2 pole | 1348150 | Not Available |
| 280 | Not Available | Bracket anthracite | 3558643 | Not Available |
| 290 | | Genuine Miele Torsion spring | 1348411 | $2.30Read more |
| 310+320 | No Image | Filt.Cass.(Replac.) Anthracite | 1886472 | $47.00Read more |
| 320 | No Image | -Sup.Air-Cleanfilter 3 S230,S250,270,290 | 3366200 | $0.00Read more |
| 325 | Not Available | Scent | 3027951 | Not Available |
| 330 | Not Available | Suspension buffer | 1348050 | Not Available |

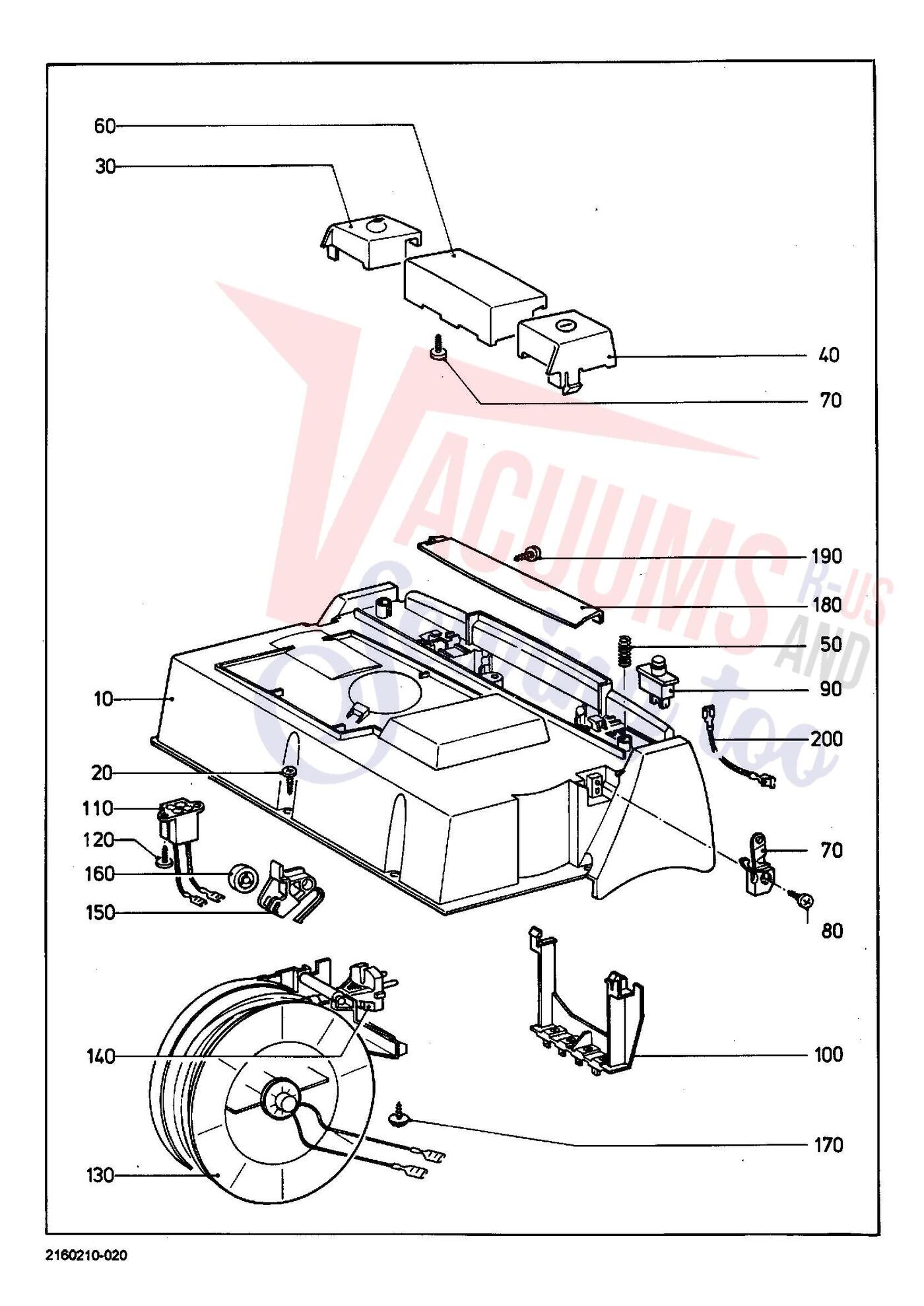

| # | Part image | Description | SKU | Price |
| XX | No Image | --Screw 4X20 | 3457650 | $2.50Read more |
| XX | No Image | --Raised Head Screw 3,9X13 | 1023050 | $2.10Read more |
| (80) | Not Available | Hinge Right lava grey | 2046830 | Not Available |
| (80) | Not Available | Hinge right black | 1348180 | Not Available |
| XX | No Image | --Raised Head Screw 3,9X13 | 1023050 | $2.10Read more |
| XX | | Genuine Miele Raised head screw Zinc-plated 2,9X9,5 | 1023022 | $4.90Read more |
| XX | | Genuine Miele Raised head screw 3,9X13 | 1023120 | $2.10Read more |
| XX | No Image | --Raised Head Screw 3,9X9,5 | 1023040 | $2.30Read more |
| 10 | Not Available | Rear panel anthracite | 1348432 | Not Available |
| 30 | Not Available | Foot switch Right lava grey | 2046800 | Not Available |
| 30 | Not Available | Foot switch right anthracite | 2232911 | Not Available |
| 40 | Not Available | Foot switch left anthracite | 1348451 | Not Available |
| 50 |  | Genuine Miele Spring | 2733371 | $2.50Add to cart |
| 60 | Not Available | Cap Lava grey | 2046840 | Not Available |
| 60 | Not Available | Cap anthracite | 1348461 | Not Available |
| 80 | Not Available | Hinge left lava grey | 2046820 | Not Available |
| 80 | Not Available | Hinge left black | 1348170 | Not Available |
| 90 | No Image | Push Button Switch 10A 120V | 1588820 | $30.00Read more |
| 100 | Not Available | Double tag | 1348830 | Not Available |
| 110 | Not Available | Plug housing 2 pole | 3694860 | Not Available |
| 130-160 | Not Available | Cable reel | 1567721 | Not Available |
| 140 | Not Available | -Supply cable | 1692900 | Not Available |
| 150 | Not Available | -Brake lever | 1954550 | Not Available |
| 160 | No Image | -Brake Disc/Pulley | 1547681 | $5.64Read more |
| 160 | No Image | -Brake Disc/Pulley Cable Reel | 4252350 | $5.64Read more |
| 180 | Not Available | Guide plate Lava grey | 2155840 | Not Available |
| 180 | Not Available | Guide plate anthracite | 1691771 | Not Available |
| 200 | Not Available | Flexible wire SCHWARZ 210 MM | 1693120 | Not Available |

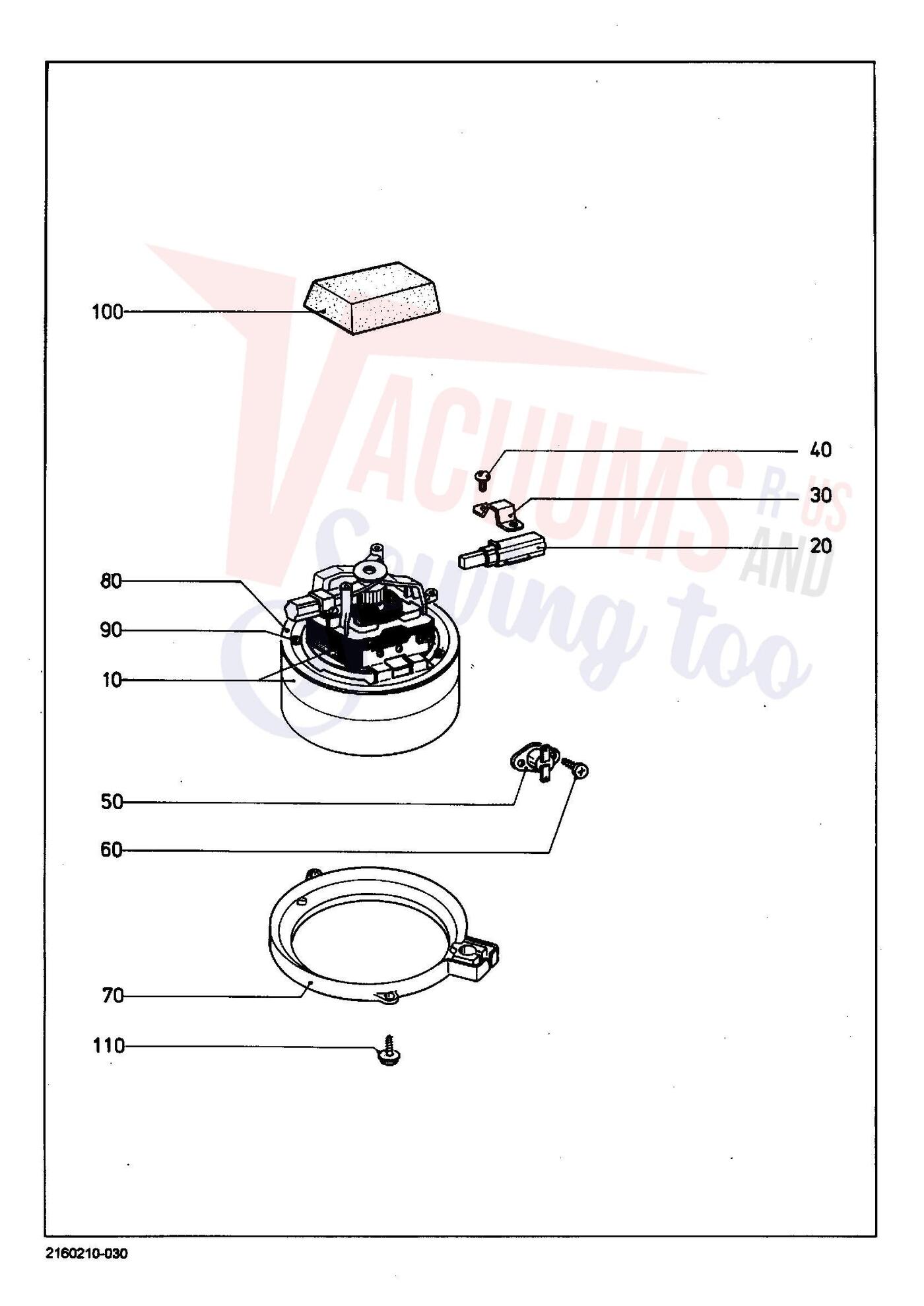

| # | Part image | Description | SKU | Price |
| XX | No Image | --Roundheaded Screw 5/32.Zollx8 | 49673 | $7.59Read more |
| w/o fig. | | Genuine Miele  | 1071710 | $3.60Read more |
| XX | No Image | --Raised Head Screw 3,9X6,5 | 2125130 | $2.30Read more |
| XX | Not Available | --Raised head screw 4,8X13 DIN 7981 | 10607 | Not Available |
| XX | | Genuine Miele Raised head screw 3,9X13 | 1023120 | $2.10Read more |
| 10-40 | Not Available | Fan 115923-AB 120V 60HZ | 1502662 | Not Available |
| 20 | | Genuine Miele Carbon brush | 2830481 | $56.80Read more |
| 30 | | Genuine Miele Clamping bracket | 75426 | $9.70Read more |
| 50 | | Genuine Miele Thermoswitch 10A 250V | 79864 | $39.50Read more |
| 70 | Not Available | Sealing ring | 1348470 | Not Available |
| 80 | Not Available | support | 1348480 | Not Available |
| 100 | Not Available | Damping plate | 1439640 | Not Available |

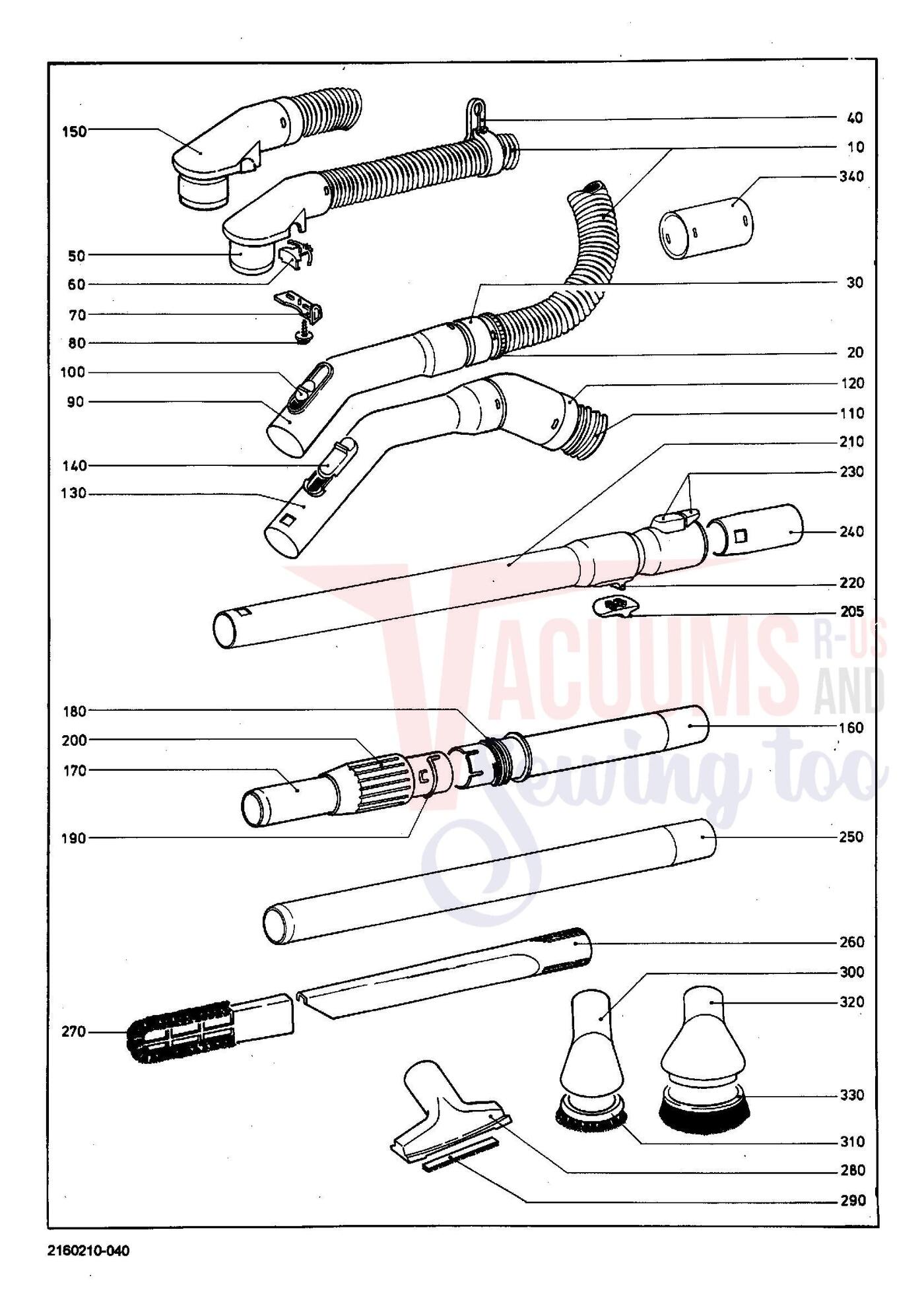

| # | Part image | Description | SKU | Price |
| XX | | Genuine Miele Raised head screw 3,9X9,5 | 1143580 | $0.00Read more |
| w/o fig. | | Genuine Miele Upholstery nozzle | 9442620 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| w/o fig. | No Image | Dusting Brush Anthracite | 5098711 | $16.00Read more |
| w/o fig. | No Image | Dusting Brush Anthracite | 5098711 | $16.00Read more |
| XX | No Image | Dusting Brush Anthracite | 5098711 | $16.00Read more |
| 30 | | Genuine Miele Sleeve | 91205 | $9.70Read more |
| 30 | | Genuine Miele Sleeve | 91205 | $9.70Read more |
| 40 | | Genuine Miele Suspension anthracite | 3565990 | $3.60Read more |
| 40 | | Genuine Miele Suspension anthracite | 3565990 | $3.60Read more |
| 60 | | Genuine Miele interlock Lava grey | 1963320 | $6.60Read more |
| 70 | | Genuine Miele Slide | 1348550 | $3.60Read more |
| 100 | No Image | -Suction Control Anthracite | 1328680 | $3.90Read more |
| 110-150 | No Image | Suction Hose Anthracite | 3617463 | $149.00Add to cart Special order: ships in 2 to 4 weeks |
| 110+120 |  | Genuine Miele Suction hose silver-coloured 1,8m | 3565351 | $51.00Add to cart |
| 110-150 | No Image | Suction Hose Anthracite | 3617461 | $149.00Read more |
| 110+120 | | Genuine Miele Suction hose silver-coloured 1,8m | 3565351 | $51.00Add to cart |
| 120 | | Genuine Miele Ring anthracite | 3565360 | $4.90Read more |
| 120 | | Genuine Miele Ring anthracite | 3565360 | $4.90Read more |
| 130+140 | | Genuine Miele Tubular handle anthracite assy | 3565461 | $56.00Add to cart Special order: ships in 2 to 4 weeks |
| 130+140 |  | Compatible alternateGenuine Miele Vacuum Cleaner Bend End for S series S200-S800 More Product Details | 3565460 | $35.99Add to cart Special order: ships in 2 to 4 weeks |
| 130+140 | | Genuine Miele Tubular handle anthracite assy | 3565461 | $56.00Add to cart Special order: ships in 2 to 4 weeks |
| 140 | | Genuine Miele Suction control anthracite | 3565580 | $3.60Read more |
| 150 | | Genuine Miele Elbow anthracite | 3565392 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
| 150 | | Genuine Miele Elbow anthracite | 3565392 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
| 250 | No Image | Suction Pipe Top Obsw Assy | 12421840 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
| 260 | | Genuine Miele Crevice nozzle anthracite | 3571671 | $12.10Read more |
| 260 |  | Compatible alternateMiele Canister Vacuum Crevice Tool More Product Details | 3571670 | $20.00Add to cart |
| 260 | | Compatible alternateGenuine Miele Crevice nozzle 149mm More Product Details | 9442630 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 270 | | Genuine Miele ST Radiator brush SHB30 | 9660490 | $33.00Add to cart Special order: ships in 2 to 4 weeks |
| 290 | | Genuine Miele Thread lifter 2 Pcs. | 2348770 | $13.50Read more |
| 310 | No Image | Dusting Brush L | 12187780 | $24.00Add to cart Special order: ships in 2 to 4 weeks |
| 340 | | Genuine Miele Connecting tube anthracite | 3565760 | $20.60Read more |

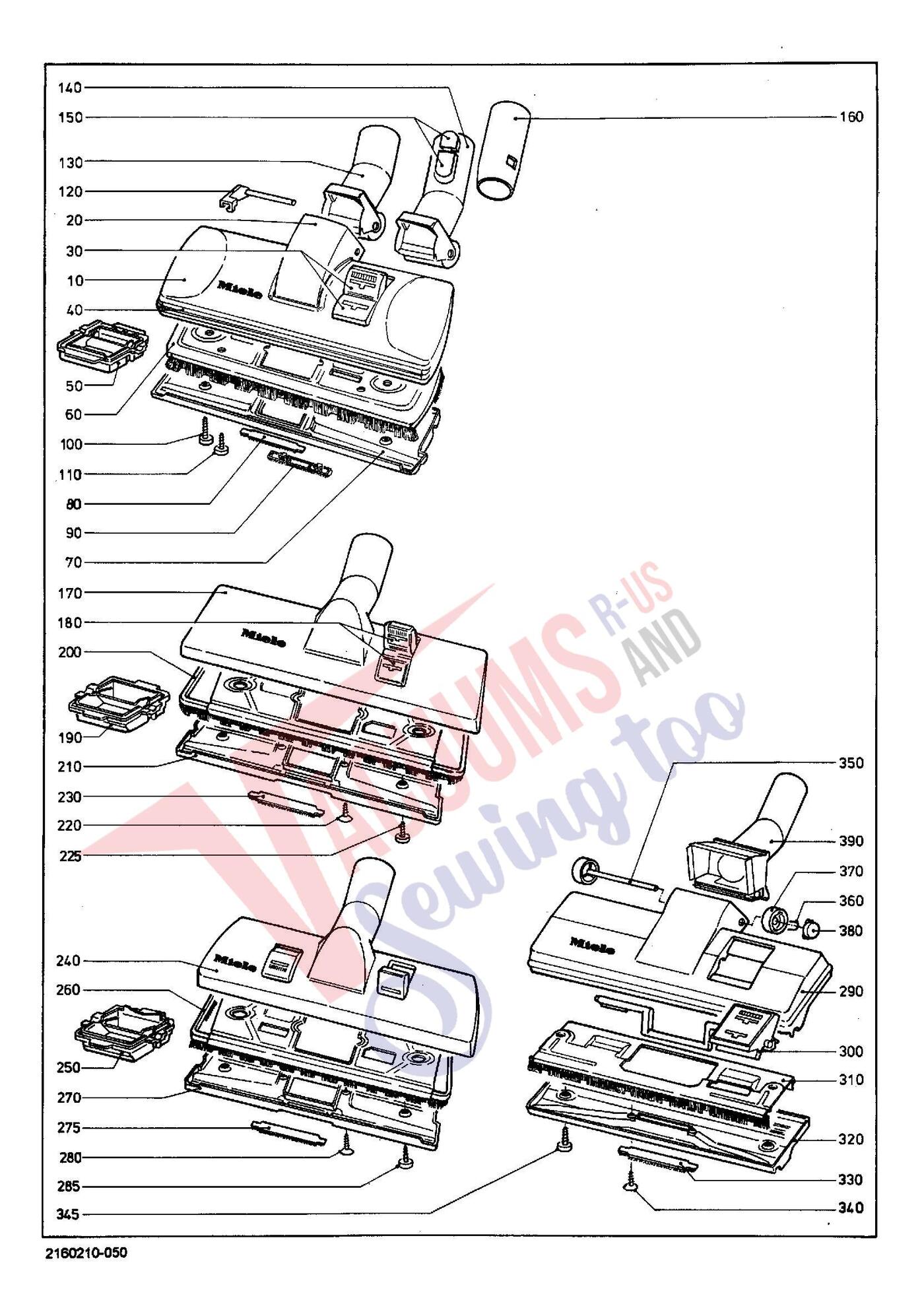

| # | Part image | Description | SKU | Price |
| w/o fig. | No Image | Floor Nozzle Sbd265 | 4769121 | $98.70Read more |
| w/o fig. | No Image | Floor Nozzle Sbd265 | 4769121 | $98.70Read more |
| w/o fig. | No Image | Floor Nozzle Sbd265 | 4769121 | $98.70Read more |
| 170 | No Image | -Top Lava Grey | 2142650 | $98.70Read more |
| 180 | Not Available | -Foot switch Lava grey | 2229530 | Not Available |
| 190 | No Image | -Spacer | 1949880 | $15.00Read more |
| 200 | Not Available | -Bristle supp.plate | 1949860 | Not Available |
| 210+230 | No Image | -Lower Section | 1949851 | $47.00Read more |
| 220 | | Genuine Miele Raised head screw 3,5X16 | 46546 | $2.10Read more |
| 225 | Not Available | --Raised head screw 3,5X25 | 10597 | Not Available |
| 230 | | Genuine Miele Thread lifter | 82699 | $13.50Read more |
| 240 | Not Available | -Top Lava grey | 2142640 | Not Available |
| 250 | Not Available | -Spacer | 2054100 | Not Available |
| 260 | Not Available | -Bristle supp.plate | 2054090 | Not Available |
| 270+275 | Not Available | -Lower section | 2054070 | Not Available |
| 275 | | Genuine Miele Thread lifter | 82699 | $13.50Read more |
| 280 | No Image | --Raisedhead Screw Din7983 B3,5X13 | 86831 | $2.30Read more |
| 290 | Not Available | -Top Lava grey | 3024850 | Not Available |
| 290 | Not Available | -Top anthracite | 3642840 | Not Available |
| 300 | Not Available | -Foot switch Lava grey | 3024860 | Not Available |
| 300 | Not Available | -Foot switch anthracite | 3642830 | Not Available |
| 310 | Not Available | -Bristle supp.plate | 3024841 | Not Available |
| 320+330 | Not Available | -Lower section | 3024820 | Not Available |
| 330 | No Image | -Thread Lifter | 3039320 | $20.00Read more |
| 340 | No Image | --Countersunk Screw Ka35X16 Ejot-Pt | 2396150 | $2.50Read more |
| 345 | No Image | --Raised Head Screw 3,5X19 | 14137 | $3.90Read more |
| 350+360 | Not Available | -Shaft | 3039370 | Not Available |
| 360-380 | Not Available | -Support roller anthracite | 3642820 | Not Available |
| 390 | Not Available | -Linkage Lava grey | 3024870 | Not Available |
| 390 | Not Available | -Linkage anthracite | 3650340 | Not Available |

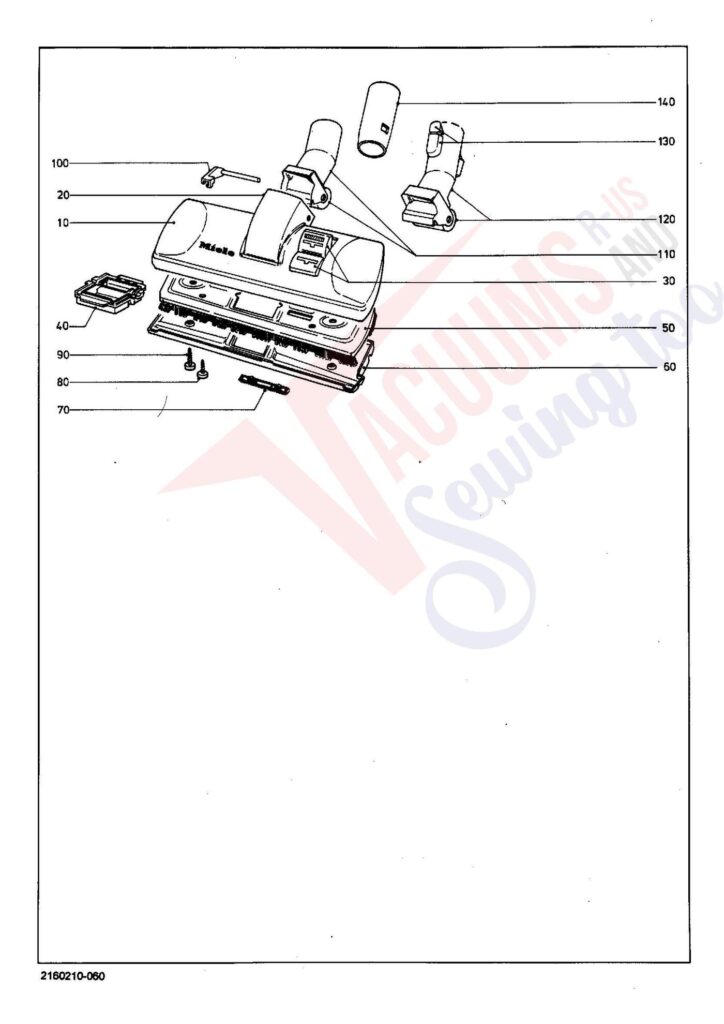

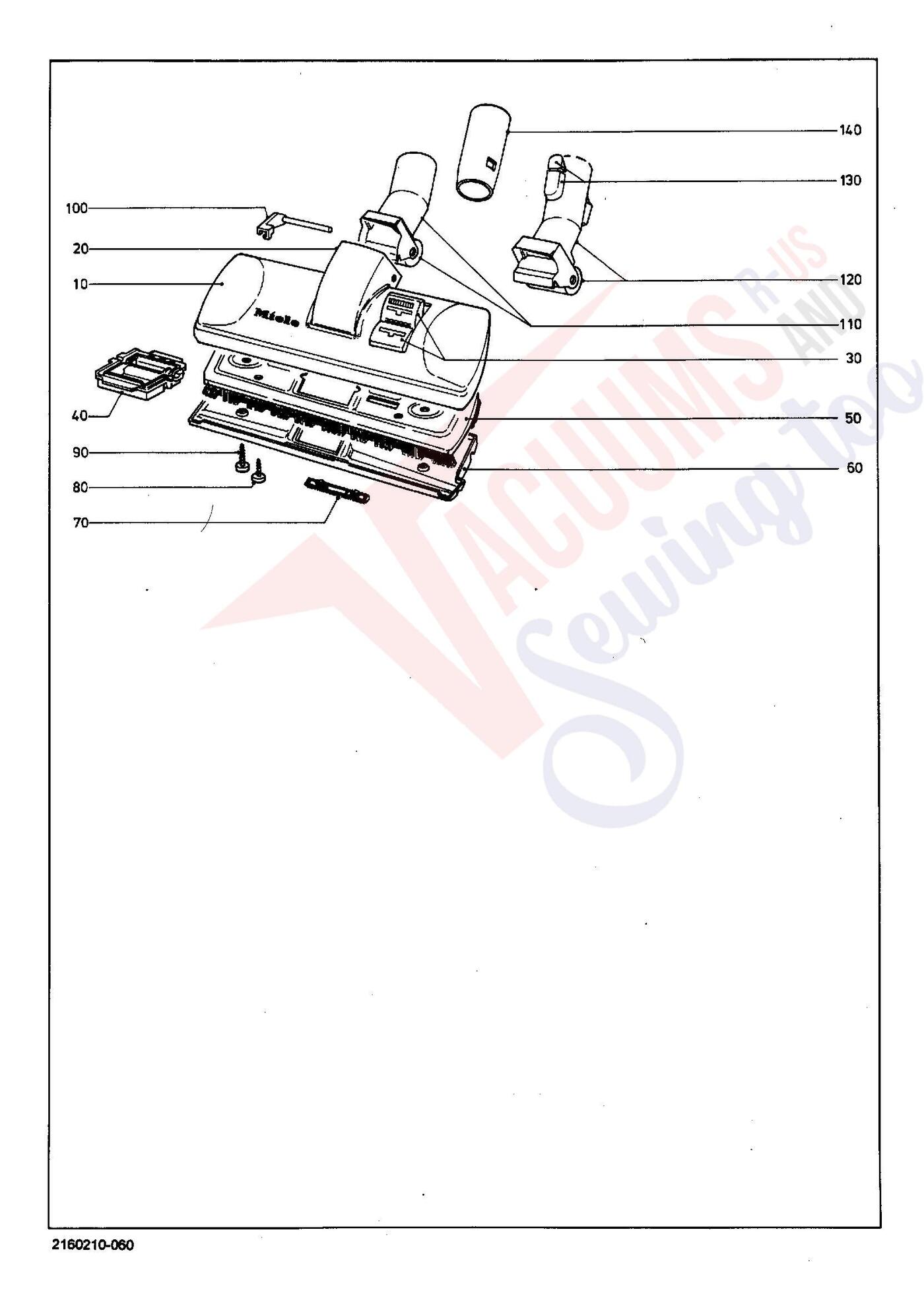

| # | Part image | Description | SKU | Price |
| 10-40 | Not Available | -Top anthracite | 3614251 | Not Available |
| 20 | No Image | -Suction Channel Anthracite | 3612990 | $76.00Read more |
| 30 | | Genuine Miele Foot switch anthracite | 3649851 | $10.70Read more |
| 40 | Not Available | -Spacer | 3613000 | Not Available |
| 50 | Not Available | -Bristle supp.plate | 1229792 | Not Available |
| 60+70 | | Genuine Miele Lower section | 4969510 | $33.80Read more |
| 70 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 80 | No Image | --Screw Ka35X31 Ejot-Pt | 3614330 | $2.50Read more |
| 90 | No Image | --Screw Ka35X27 Ejot-Pt | 3522020 | $2.50Read more |
| 100 | | Genuine Miele Shaft anthracite | 3612910 | $10.70Read more |
| 100+110 | Not Available | -Linkage SBD260/1 PP | 3685360 | Not Available |
| 100 | | Genuine Miele Shaft anthracite | 3612910 | $10.70Read more |
| 120-140 | No Image | Floor Nozzle Sbd264 | 3651921 | $98.70Read more |
| 120+130 | No Image | -Linkage Anthracite | 3685341 | $42.00Read more |
| 130 |  | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 140 | | Genuine Miele Sleeve | 3058721 | $62.00Read more |
| # | Part image | Description | SKU | Price |

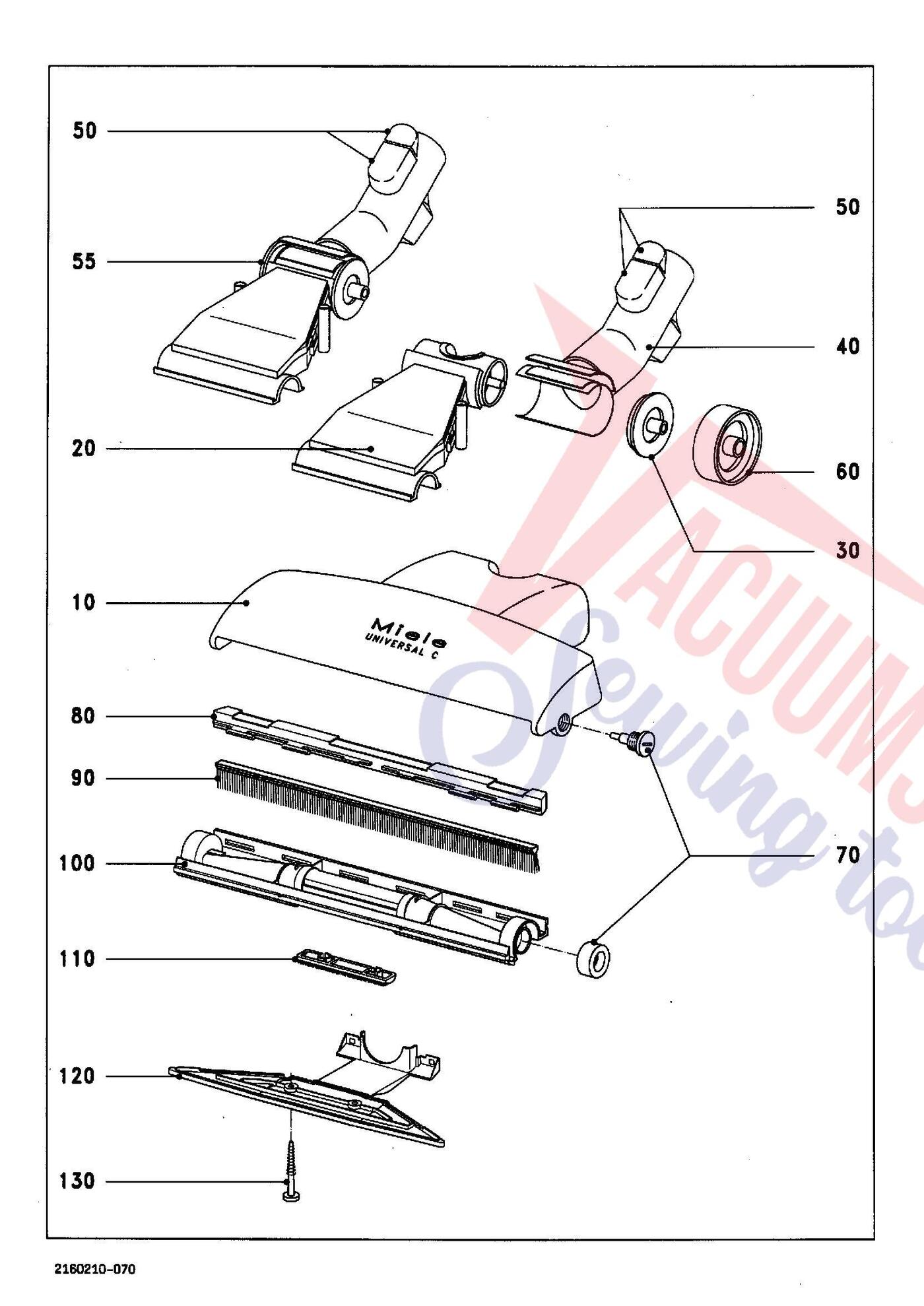

| XX | | Genuine Miele Screw K40X45/25 EJOT-PT | 3930740 | $3.60Read more |
| 10 | Not Available | -Casing top anthracite | 4334260 | Not Available |
| 20 | Not Available | -Air channel anthracite | 4366480 | Not Available |
| 30 | Not Available | -Lid anthracite | 4366490 | Not Available |
| 50-130 | Not Available | Floor nozzle SBD304 | 4334252 | Not Available |
| 50+55 | | Genuine Miele Linkage anthracite | 4366472 | $43.60Read more |
| 50 | | Genuine Miele interlock anthracite | 3595181 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 60 | No Image | -Roller Anthracite | 4366500 | $30.00Read more |
| 70 | | Genuine Miele Support roller black | 3947921 | $27.90Read more |
| 80 | Not Available | -Sealing strip | 4334370 | Not Available |
| 90 | | Genuine Miele Bristle strip | 4334410 | $24.70Read more |
| 100+110 | | Genuine Miele Floor plate anthracite | 4334351 | $52.20Read more |
| 110 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 120 | | Genuine Miele Cover | 4334341 | $15.00Read more |
Report errors on this page HERE
