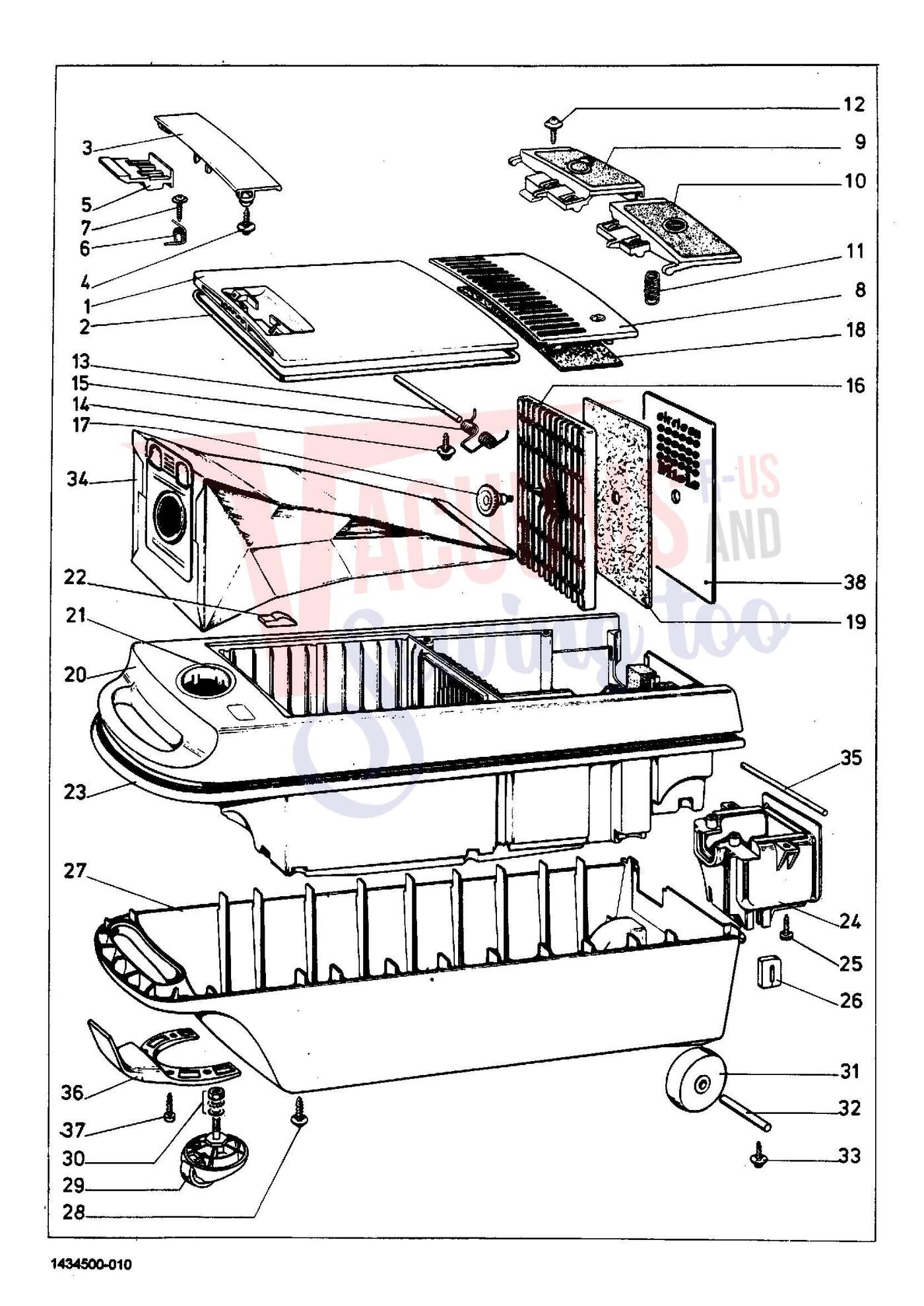

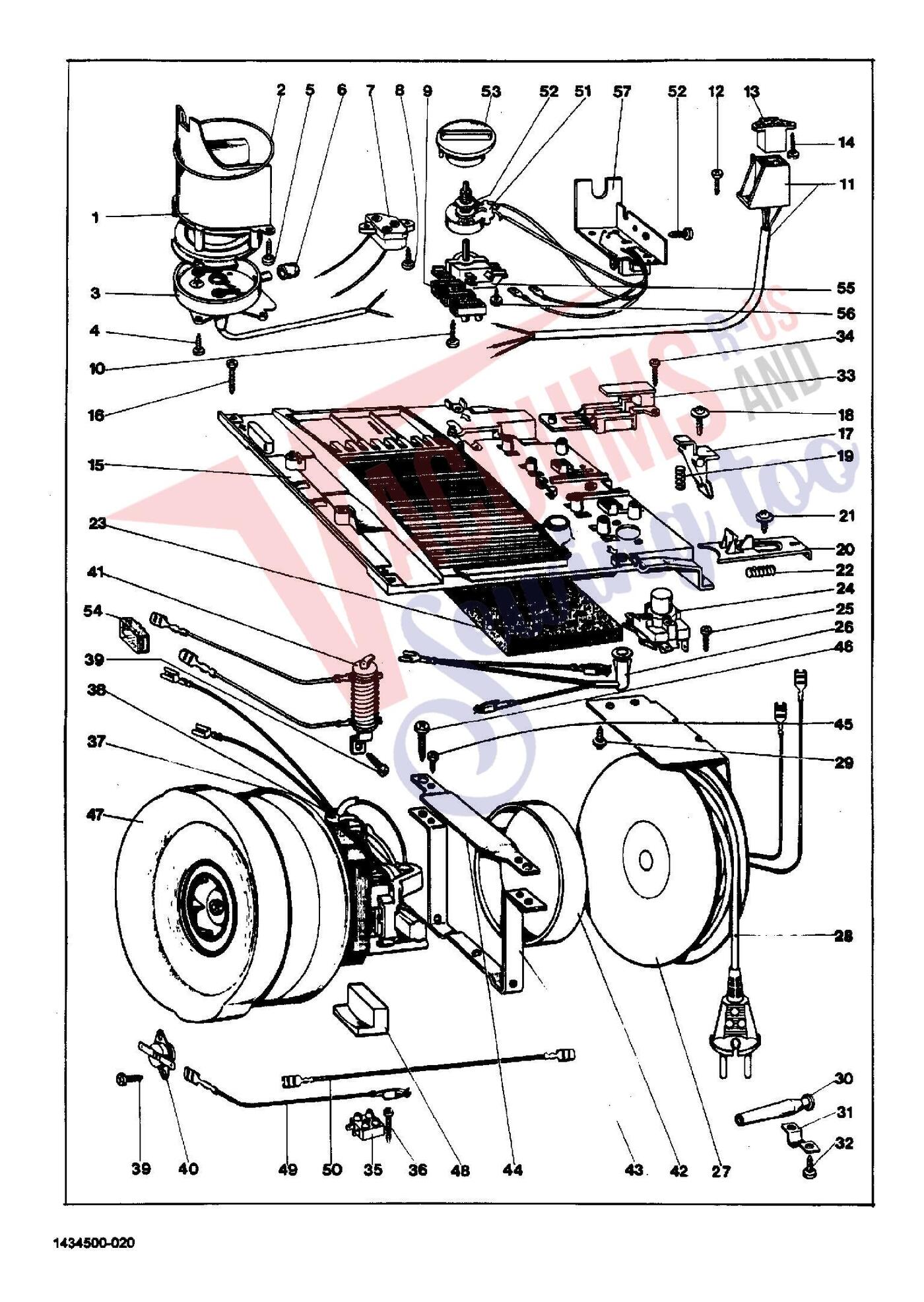

Schematic and parts book for Miele S224 S 224. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| w/o fig. | No Image | Lock | 1058640 | $22.00Read more |
| w/o fig. | No Image | Cloth Filter Bag | 1058630 | $109.00Read more |
| XX |  | Genuine Miele Raised head screw 3,9X9,5 | 1143580 | $0.00Read more |
| XX | Not Available | --Spring washer 6,4X16X0,5 | 1133100 | Not Available |
| XX | | Genuine Miele Star washer A 6,4 | 10540 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| XX | | Genuine Miele Raised head screw Zinc-plated 4,2X13 | 106042 | $2.10Read more |
| XX | Not Available | --Knurled screw | 92298 | Not Available |
| XX | No Image | --Raised Head Screw 3,9X13 | 1023050 | $2.10Read more |
| XX | | Genuine Miele Raised head screw 2,9X6,5 | 66224 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 2,9X6,5 | 66224 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 3,9X9,5 | 1143580 | $0.00Read more |
| w/o fig. | Not Available | -Cap | 1155940 | Not Available |
| XX | | Genuine Miele Raised head screw 3,9X9,5 | 1143580 | $0.00Read more |
| (21) | Not Available | Slide sleeve black | 1204330 | Not Available |
| XX | No Image | --Hexagonal Nut M6 | 26773 | $2.30Read more |
| XX | Not Available | --Knurled screw | 92298 | Not Available |
| 1-7 | No Image | Dust Compart.Lid Brick Red | 97048 | $109.00Read more |
| 1-7 | No Image | Dust Compart.Lid Bordeau Red | 1643540 | $109.00Read more |
| 1-7 | No Image | Dust Compart.Lid Classic White | 1416810 | $109.00Read more |
| 2 | Not Available | Seal | 92618 | Not Available |
| 3 | No Image | -Lock | 91632 | $12.31Read more |
| 5 | Not Available | -Slide | 92620 | Not Available |
| 6 | Not Available | -Spring | 92646 | Not Available |
| 8 | No Image | Filter Cap Bordeau Red | 1659360 | $42.00Read more |
| 8 | No Image | Filter Cap Classic White | 1644000 | $42.00Read more |
| 8 | No Image | Filter Cap Brick Red | 97049 | $42.00Read more |
| 9 | Not Available | Foot switch right | 91398 | Not Available |
| 10 | Not Available | Foot switch left | 91399 | Not Available |
| 11 | | Genuine Miele Raised head screw 3,9X13 | 1023120 | $2.10Read more |
| 11 | Not Available | Spring | 97061 | Not Available |
| 13 | Not Available | Hinge bolt | 92628 | Not Available |
| 15 | Not Available | Torsion spring | 92629 | Not Available |
| 16 | Not Available | Filter frame | 87403 | Not Available |
| 18 | No Image | Air Outlet Filter 3 S220 | 3215540 | $30.00Read more |
| 18+19 | Not Available | Filter 2X3 S220 | 1002350 | Not Available |
| 20-22 | Not Available | Casing top Bordeau red | 1658262 | Not Available |
| 20-22 | No Image | Casing Top Classic White | 1439510 | $299.00Read more |
| 20-22 | Not Available | Casing top Brick red | 1004043 | Not Available |
| 21 | Not Available | Slide sleeve black | 1051241 | Not Available |
| 22 | Not Available | Ridge | 92645 | Not Available |
| 23 | Not Available | Buffer | 92615 | Not Available |
| 24 | No Image | Plug Housing Classic White | 1439540 | $36.00Read more |
| 24 | Not Available | Plug housing Bordeau red | 1658050 | Not Available |
| 24 | Not Available | Plug housing Brick red | 1089970 | Not Available |
| 26 | Not Available | cable guide | 94231 | Not Available |
| 29-33 | No Image | Casing Bottom Brick Red | 1145761 | $249.00Read more |
| 29-33 | No Image | Casing Bottom Bordeau Red | 1658060 | $249.00Read more |
| 29-33 | No Image | Casing Bottom Classic White | 1439460 | $249.00Read more |
| 29 | Not Available | -Slide skid | 1161800 | Not Available |
| 31 | Not Available | -Wheel | 92613 | Not Available |
| 32 | Not Available | -Shaft | 92614 | Not Available |
| 34 | No Image | Dustbag 1/7 S217 - S226 | 1002342 | $0.00Read more |
| 35 | Not Available | Guide | 1025250 | Not Available |
| 38 | Not Available | Air-Clean filter 3 S220 | 2517330 | Not Available |
| 38 | Not Available | Air-Clean filter 3 S220 | 2517330 | Not Available |
| # | Part image | Description | SKU | Price |
| XX | Not Available | --Raised head screw DIN7981 BZ4,2X13 Z | 64394 | Not Available |
| w/o fig. | | Genuine Miele Carbon brush | 2830481 | $56.80Read more |
| w/o fig. | | Genuine Miele Clamping bracket | 75426 | $9.70Read more |
| w/o fig. | | Genuine Miele  | 1071710 | $3.60Read more |
| (38) | Not Available | Capacitor 0,2UF 250V | 1091620 | Not Available |
| XX | Not Available | --Raised head screw 4,8X13 DIN 7981 | 10607 | Not Available |
| XX | Not Available | --Star washer Zinc-plated A4,3 | 10536 | Not Available |
| (41) | Not Available | Resistor 2,4 OHM 5A | 1142830 | Not Available |
| (41) | Not Available | Resistor 2,4OHM+0,3-0,1OHM 5A | 1174660 | Not Available |
| (41) | No Image | Resistor 2,4 Ohm +0,3-0,1 5A | 1380850 | $47.00Read more |
| w/o fig. | Not Available | -Carbon brush | 75427 | Not Available |
| XX | No Image | --Raised Head Screw 3,9X9,5 | 1023040 | $2.30Read more |
| XX | No Image | --Raised Head Screw 3,9X9,5 | 1023040 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 3,9X13 | 1023120 | $2.10Read more |
| (26) | Not Available | Indicator light yellow 220V | 1698890 | Not Available |
| (19) | | Genuine Miele Spring | 29289 | $2.50Add to cart Product is special order please allow 2-4 weeks for delivery. |
| XX | | Genuine Miele Raised head screw 3,9X13 | 1023120 | $2.10Read more |
| (17) | Not Available | Brake lever | 1155630 | Not Available |
| XX | Not Available | Mounting plate | 913971 | Not Available |
| XX | | Genuine Miele Raised head screw 3,9X9,5 | 1143580 | $0.00Read more |
| XX | | Genuine Miele Raised head screw Zinc-plated 2,9X9,5 | 1023022 | $4.90Read more |
| (37) | Not Available | Fan 115809-01 230V | 1125553 | Not Available |
| XX | Not Available | --Raised head screw 2,9X16 | 1023030 | Not Available |
| (9) | Not Available | Clamping strip 3 pole | 1699020 | Not Available |
| (37) | Not Available | Fan 230V S217-S240i | 5477440 | Not Available |
| XX | No Image | --Raised Head Screw 3,9X9,5 | 1023040 | $2.30Read more |
| (7) | Not Available | Flush socket outlet 2 pole | 1583050 | Not Available |
| XX | No Image | -Suppressor Choke | 1264660 | $16.00Read more |
| XX | No Image | --Raised Head Screw 3,9X13 | 1023050 | $2.10Read more |
| XX | | Genuine Miele Raised head screw Zinc-plated 4,2X13 | 106042 | $2.10Read more |
| (51+57) | Not Available | Speed control 220V 50HZ 5A | 97447 | Not Available |
| XX | Not Available | --Raised head screw DIN7985 M3,5X8 | 11774 | Not Available |
| XX | No Image | --Hexagonal Nut M10X0,75 | 1022930 | $3.90Read more |
| XX | No Image | --Raised Head Screw 3,9X6,5 | 2125130 | $2.30Read more |
| 1-4 | Not Available | Dust channel | 1025100 | Not Available |
| 6 | Not Available | Sleeve black | 92605 | Not Available |
| 9 | Not Available | Clamping strip 3 pole | 86057 | Not Available |
| 11 | Not Available | Connecting cable 3 pole | 92612 | Not Available |
| 13 | Not Available | Casing 4 Pole | 94918 | Not Available |
| 20 | Not Available | Slide | 92634 | Not Available |
| 22 | No Image | Spring | 97459 | $2.30Read more |
| 22 | No Image | Spring | 2733370 | $2.30Read more |
| 23 | Not Available | Damping plate | 92640 | Not Available |
| 24 | Not Available | Switch 250V/10A | 1002130 | Not Available |
| 27+28 | Not Available | Cable reel | 92630 | Not Available |
| 28 | Not Available | -Supply cable | 1026520 | Not Available |
| 40 | No Image | -Thermoswitch 10A 250V | 89330 | $42.00Read more |
| 41 | Not Available | Resistor 1,5 OHM 5A | 96795 | Not Available |
| 42 | Not Available | -Ring | 95893 | Not Available |
| 42 | Not Available | -Fixing bracket | 95891 | Not Available |
| 44 | Not Available | -Tray | 95890 | Not Available |
| 45 | | Genuine Miele Raised head screw 3,5X9,5 | 20724 | $2.30Read more |
| 46 | No Image | --Raised Head Screw Din7981 Bz4,2X16 | 1023090 | $2.30Read more |
| 47 | Not Available | Sealing ring | 92639 | Not Available |
| 48 | Not Available | Support | 94889 | Not Available |
| 49 | Not Available | Flexible wire | 96799 | Not Available |
| 53 | Not Available | Programme knob Chrome-plated | 94891 | Not Available |
| 54 | No Image | Connecting Piece 4,8Mm | 1134530 | $12.31Read more |
| # | Part image | Description | SKU | Price |
| (19) | No Image | Crevice Nozzle Lava Grey | 1963350 | $13.92Read more |
| (20) | No Image | Dusting Brush Light Beige | 1083240 | $17.25Read more |
| (25) | Not Available | Sleeve | 1328480 | Not Available |
| w/o fig. | Not Available | -Bristle strip | 1389730 | Not Available |
| (17) | No Image | -Nut Telescopic Pipe Black/Brown | 1545991 | $30.00Read more |
| (5) | No Image | -Ring Black/Brown | 1327700 | $5.64Read more |
| (7) | Not Available | -Elbow | 1328140 | Not Available |
| (12-17) | | Genuine Miele Telescopic pipe Lava grey | 1963451 | $0.00Read more |
| (13) | No Image | -Suction Pipe Bottom | 1886650 | $77.99Read more |
| (14) | No Image | -Suction Pipe Top | 1530090 | $77.99Read more |
| (15-17) | Not Available | -Screw connector black/brown | 1567701 | Not Available |
| (15-17) | Not Available | -Screw connector black/brown | 1567701 | Not Available |
| (15-17) | Not Available | -Screw connector black/brown | 1567701 | Not Available |
| (15) | No Image | -Screw Telesc.Pipe Black/Brown | 1545980 | $30.00Read more |
| 2 | Not Available | -Suction control light beige | 91204 | Not Available |
| 3-5 | No Image | Suction Hose Lava Grey | 1963250 | $51.00Read more |
| 3-10 | No Image | Suction Hose | 1328150 | $159.00Read more |
| 4 | | Genuine Miele Sleeve | 91205 | $9.70Read more |
| 6 | Not Available | -Suspension Lava grey | 1963220 | Not Available |
| 8-9 | No Image | -Tubular Handle Lava Grey | 1963340 | $56.00Read more |
| 8-10 | No Image | -Tubular Handle Lava Grey | 1248322 | $76.00Read more |
| 8-10 | No Image | -Tubular Handle Lava Grey | 1248322 | $76.00Read more |
| 9 | No Image | -Suction Control Anthracite | 1328680 | $3.90Read more |
| 10 | Not Available | -Sleeve | 1200590 | Not Available |
| 11 | Not Available | -Screw telesc.pipe | 39917 | Not Available |
| 12 | No Image | Mounting Plate, TW050-W43-U | 39918 | $520.99Read more |
| 13 | No Image | -Suction Pipe Bottom | 39915 | $77.99Read more |
| 14 | Not Available | -Suction pipe top | 1203360 | Not Available |
| 16 | Not Available | -Screw connector anthracite | 1567702 | Not Available |
| 18 | No Image | Radiator Brush Light Beige | 79878 | $0.00Read more |
| 18 | No Image | Radiator Brush Lava Grey | 1963370 | $0.00Read more |
| 21+22 | No Image | Dusting Brush Lava Grey | 1963581 | $17.25Read more |
| 22 | No Image | Dusting Brush L | 12187780 | $24.00Read more |
| 23+24 | No Image | Upholstery Nozzle Lava Grey | 1347981 | $22.00Read more |
| 24 | Not Available | Bristle strip | 1411510 | Not Available |
| 24 | Not Available | -Bristle strip | 1389730 | Not Available |
| 26 | No Image | Universal Brush Lava Grey | 2118010 | $35.70Read more |
| # | Part image | Description | SKU | Price |
| (3) | Not Available | -Bristle supp.plate | 1949860 | Not Available |
| (4) | Not Available | -Lower section | 970221 | Not Available |
| (3) | Not Available | -Bristle supp.plate | 1949860 | Not Available |
| XX | Not Available | --Raised head screw 3,5X25 | 10597 | Not Available |
| XX | No Image | --Raisedhead Screw Din7983 B3,5X13 | 86831 | $2.30Read more |
| (11) | No Image | -Lower Section | 2391760 | $36.00Read more |
| XX | | Genuine Miele Raised head screw 3,5X16 | 46546 | $2.10Read more |
| XX | Not Available | --Raised head screw 3,5X25 | 10597 | Not Available |
| XX | | Genuine Miele Raised head screw 3,5X16 | 46546 | $2.10Read more |
| 1 | No Image | -Top | 970211 | $98.70Read more |
| 2 | Not Available | -Spacer | 1599330 | Not Available |
| 4 | Not Available | -Lower section | 97022 | Not Available |
| 6 | | Genuine Miele Thread lifter | 82699 | $13.50Read more |
| 7+8 | No Image | -Top Lava Grey | 1970751 | $76.00Read more |
| 8 | No Image | -Spacer | 1598950 | $15.53Read more |
| 8 | No Image | -Spacer | 1598950 | $15.53Read more |
| 9 | Not Available | -Buffer | 1571870 | Not Available |
| 9 | Not Available | -Buffer | 1571870 | Not Available |
| 10 | No Image | -Bristle Supp.Plate | 1229790 | $42.00Read more |
| 10 | No Image | -Bristle Supp.Plate | 1229790 | $42.00Read more |
| 13 | | Genuine Miele Thread lifter | 82699 | $13.50Read more |
| 13 | | Genuine Miele Thread lifter | 82699 | $13.50Read more |
| 14 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 14-18 | No Image | Floor Nozzle Lava Grey | 1970732 | $98.70Read more |
| 14-18 | No Image | Floor Nozzle Lava Grey | 1970732 | $98.70Read more |
| 15-16 | No Image | -Linkage Black/Brown | 1448961 | $66.00Read more |
| 15+16 | No Image | -Linkage Black/Brown | 1448961 | $66.00Read more |
| 15+16 | No Image | -Linkage Lava Grey | 2218010 | $66.00Read more |
| 16 | No Image | -Shaft Black/Brown | 1684721 | $12.00Read more |
| 16 | No Image | -Shaft Black/Brown | 1684721 | $12.00Read more |
| 16 | No Image | -Shaft Lava Grey | 1970770 | $12.00Read more |
| 17 | No Image | -Suction Channel Black | 2142660 | $47.00Read more |
| 17+18 | No Image | -Top Lava Grey | 1970751 | $76.00Read more |
| 17 | Not Available | -Suction channel Lava grey | 2142670 | Not Available |
| 18 | No Image | -Foot Switch Lava Grey | 2229520 | $12.31Read more |
| 18 | No Image | -Foot Switch Black | 2276320 | $12.31Read more |
Report errors on this page HERE
