Schematic and parts book for Miele S220 S 220. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

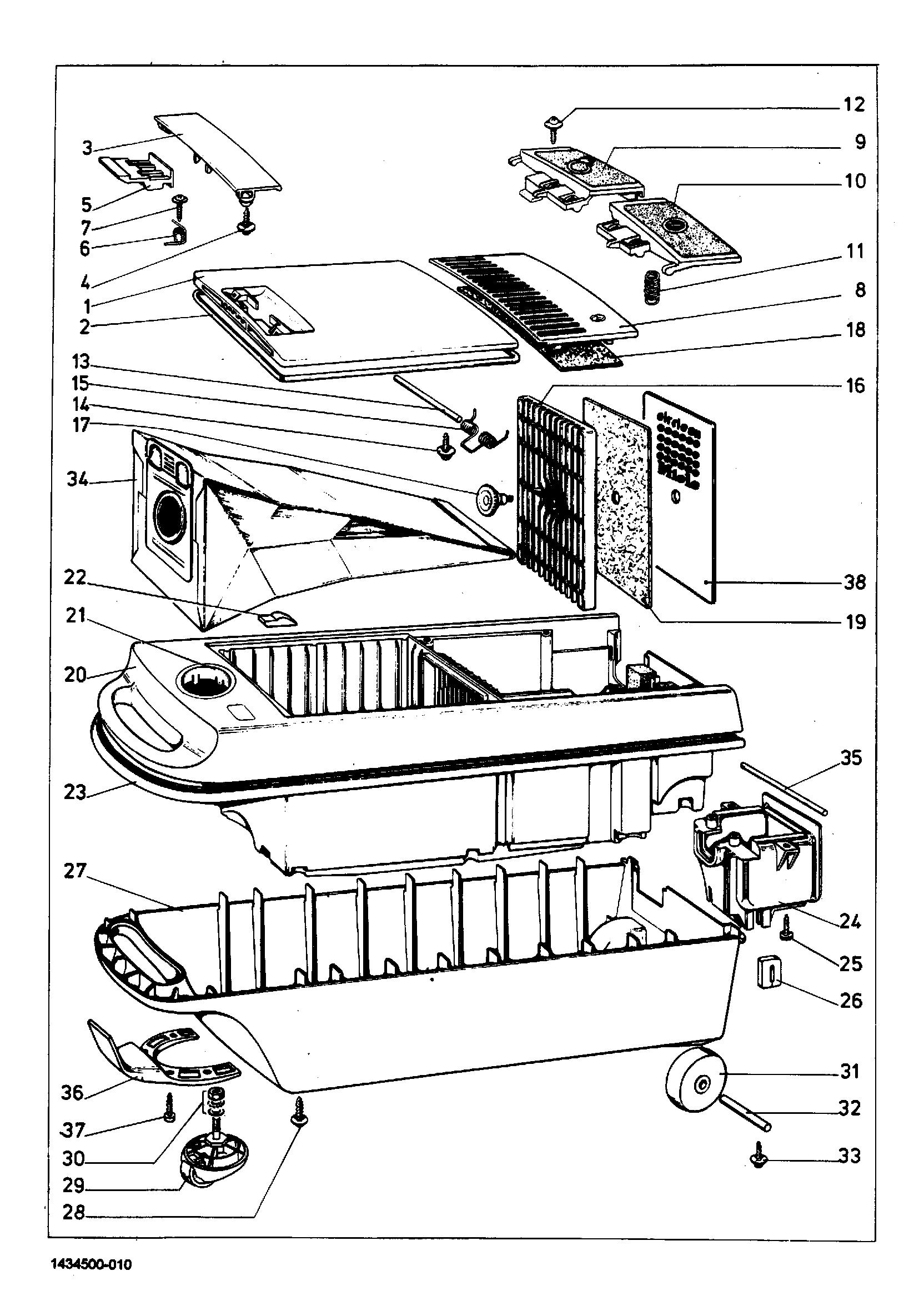

| # | Part image | Description | SKU | Price |
| XX |  | Genuine Miele Raised head screw 3,9X9,5 | 1143580 | $0.00Read more |
| w/o fig. | No Image | Cloth Filter Bag | 1058630 | $109.00Read more |
| w/o fig. | No Image | Lock | 1058640 | $22.00Read more |
| XX | Not Available | --Knurled screw | 92298 | Not Available |
| w/o fig. | Not Available | -Cap | 1155940 | Not Available |
| XX | | Genuine Miele Raised head screw 3,9X9,5 | 1143580 | $0.00Read more |
| XX | | Genuine Miele Raised head screw 3,9X9,5 | 1143580 | $0.00Read more |
| XX | | Genuine Miele Raised head screw 2,9X6,5 | 66224 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 2,9X6,5 | 66224 | $2.30Read more |
| (21) | Not Available | Slide sleeve black | 1204330 | Not Available |
| XX | No Image | --Hexagonal Nut M6 | 26773 | $2.30Read more |
| XX | Not Available | --Spring washer 6,4X16X0,5 | 1133100 | Not Available |
| XX | | Genuine Miele Star washer A 6,4 | 10540 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| XX | | Genuine Miele Raised head screw Zinc-plated 4,2X13 | 106042 | $2.10Read more |
| XX | Not Available | --Knurled screw | 92298 | Not Available |
| 1-7 | No Image | Dust Compart.Lid Lime Green | 92619 | $109.00Read more |
| 1-7 | No Image | Dust Compart.Lid Bamboo Green | 1472920 | $109.00Read more |
| 2 | Not Available | Seal | 92618 | Not Available |
| 3 | Not Available | -interlock | 95198 | Not Available |
| 5 | Not Available | -Slide | 92620 | Not Available |
| 6 | Not Available | -Spring | 92646 | Not Available |
| 8 | No Image | Filter Cap Bamboo Green | 1631890 | $47.00Read more |
| 8 | Not Available | Filter cap lime green | 92621 | Not Available |
| 9 | Not Available | Foot switch right | 91398 | Not Available |
| 10 | Not Available | Foot switch left | 91399 | Not Available |
| 11 | | Genuine Miele Raised head screw 3,9X13 | 1023120 | $2.10Read more |
| 11 | Not Available | Spring | 97061 | Not Available |
| 13 | Not Available | Hinge bolt | 92628 | Not Available |
| 15 | Not Available | Torsion spring | 92629 | Not Available |
| 16 | Not Available | Filter frame | 87403 | Not Available |
| 18+19 | Not Available | Filter 2X3 S220 | 1002350 | Not Available |
| 18 | No Image | Air Outlet Filter 3 S220 | 3215540 | $30.00Read more |
| 20-22 | No Image | Casing Top Lime Green | 926022 | $299.00Read more |
| 20-22 | No Image | Casing Top Bamboo Green | 1472932 | $299.00Read more |
| 21 | Not Available | Slide sleeve black | 1051241 | Not Available |
| 22 | Not Available | Ridge | 92645 | Not Available |
| 23 | Not Available | Buffer | 92615 | Not Available |
| 24 | Not Available | Plug housing Bamboo green | 1472960 | Not Available |
| 24 | Not Available | Plug housing lime green | 1089960 | Not Available |
| 26 | Not Available | cable guide | 94231 | Not Available |
| 29-33 | No Image | Casing Bottom Bamboo Green | 1472940 | $249.00Read more |
| 29 | Not Available | -Slide skid | 1161800 | Not Available |
| 29-33 | No Image | Casing Bottom Lime Green | 926172 | $249.00Read more |
| 31 | Not Available | -Wheel | 92613 | Not Available |
| 32 | Not Available | -Shaft | 92614 | Not Available |
| 34 | No Image | Dustbag 1/7 S217 - S226 | 1002342 | $0.00Read more |
| 35 | Not Available | Guide | 1025250 | Not Available |
| 38 | Not Available | Air-Clean filter 3 S220 | 2517330 | Not Available |
| 38 | Not Available | Air-Clean filter 3 S220 | 2517330 | Not Available |

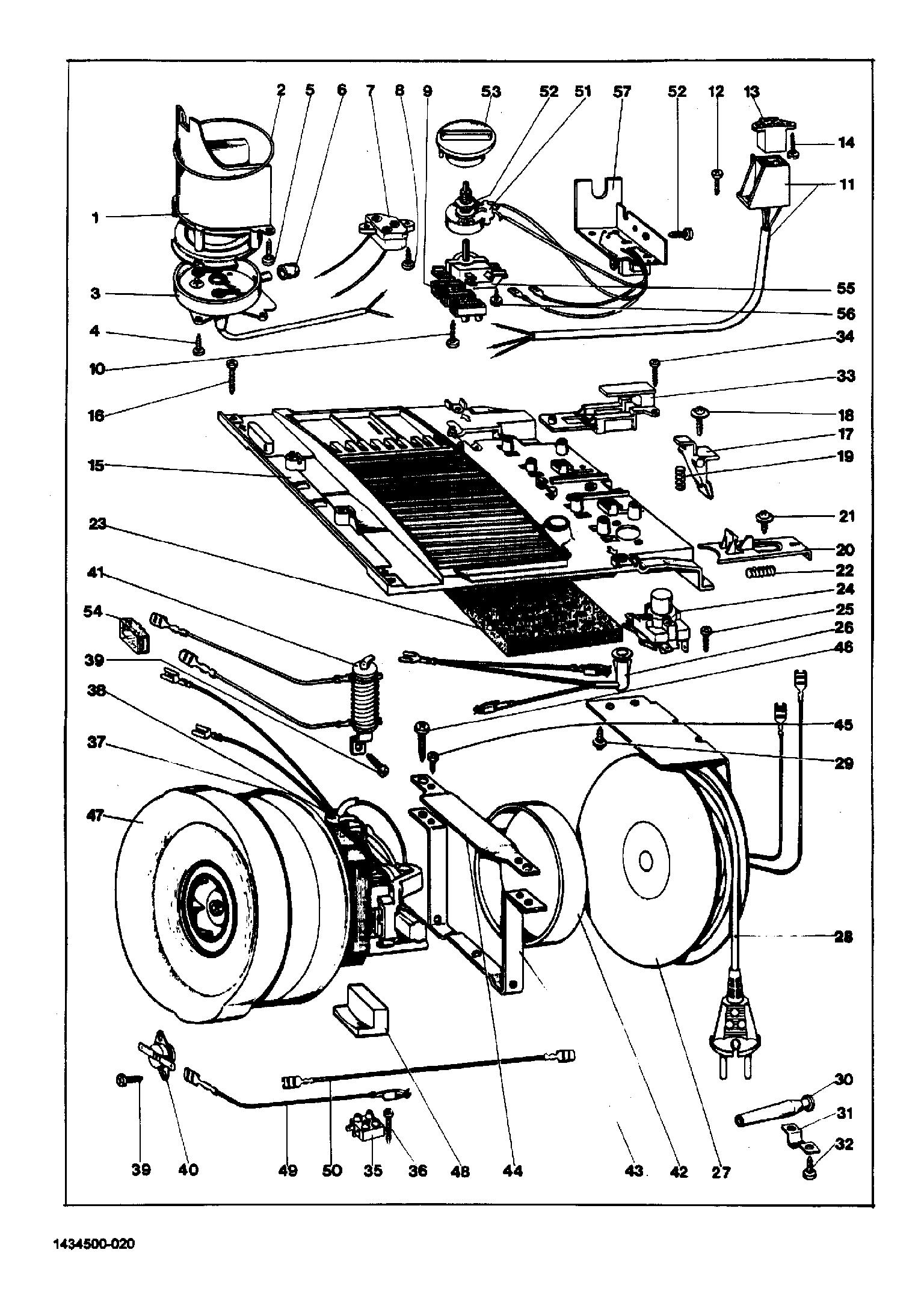

| # | Part image | Description | SKU | Price |
| (9) | Not Available | Clamping strip 3 pole | 1699020 | Not Available |
| XX | Not Available | --Raised head screw 2,9X16 | 1023030 | Not Available |
| XX | | Genuine Miele Raised head screw Zinc-plated 2,9X9,5 | 1023022 | $4.90Read more |
| XX | Not Available | Mounting plate | 913971 | Not Available |
| (17) | Not Available | Brake lever | 1155630 | Not Available |
| XX | | Genuine Miele Raised head screw 3,9X13 | 1023120 | $2.10Read more |
| XX | No Image | --Raised Head Screw 3,9X9,5 | 1023040 | $2.30Read more |
| (7) | Not Available | Flush socket outlet 2 pole | 1583050 | Not Available |
| XX | No Image | --Raised Head Screw 3,9X9,5 | 1023040 | $2.30Read more |
| XX | No Image | --Raised Head Screw 3,9X9,5 | 1023040 | $2.30Read more |
| XX | No Image | --Raised Head Screw 3,9X13 | 1023050 | $2.10Read more |
| (19) | | Genuine Miele Spring | 29289 | $2.50Add to cart Product is special order please allow 2-4 weeks for delivery. |
| w/o fig. | | Genuine Miele Clamping bracket | 75426 | $9.70Read more |
| w/o fig. | | Genuine Miele  | 1071710 | $3.60Read more |
| (38) | Not Available | Capacitor 0,12 UF 250V | 1143170 | Not Available |
| XX | Not Available | --Raised head screw 4,8X13 DIN 7981 | 10607 | Not Available |
| XX | No Image | --Raised Head Screw 3,9X6,5 | 2125130 | $2.30Read more |
| (41) | Not Available | Resistor 2,4 OHM 5A | 1142830 | Not Available |
| (41) | Not Available | Resistor 2,4OHM+0,3-0,1OHM 5A | 1174660 | Not Available |
| (41) | No Image | Resistor 2,4 Ohm +0,3-0,1 5A | 1380850 | $47.00Read more |
| w/o fig. | | Genuine Miele Carbon brush | 2830481 | $56.80Read more |
| w/o fig. | Not Available | -Carbon brush | 75427 | Not Available |
| (37) | Not Available | Fan 230V S217-S240i | 5477440 | Not Available |
| XX | | Genuine Miele Raised head screw 3,9X13 | 1023120 | $2.10Read more |
| (38) | Not Available | Interf.sup.capacit. 0,12UF+2X2500PF 250V | 1102280 | Not Available |
| XX | Not Available | --Raised head screw DIN7981 BZ4,2X13 Z | 64394 | Not Available |
| (26) | Not Available | Indicator light yellow 220V | 1698890 | Not Available |
| XX | | Genuine Miele Raised head screw 3,9X9,5 | 1143580 | $0.00Read more |
| (37) | Not Available | Fan 115809-01 230V | 1125553 | Not Available |
| XX | | Genuine Miele Raised head screw Zinc-plated 4,2X13 | 106042 | $2.10Read more |
| XX | Not Available | --Star washer Zinc-plated A4,3 | 10536 | Not Available |
| 1-4 | Not Available | Dust channel | 1025100 | Not Available |
| 6 | Not Available | Sleeve black | 92605 | Not Available |
| 9 | Not Available | Clamping strip 3 pole | 86057 | Not Available |
| 11 | Not Available | Connecting cable 3 pole | 92612 | Not Available |
| 13 | Not Available | Casing 4 Pole | 94918 | Not Available |
| 20 | Not Available | Slide | 92634 | Not Available |
| 22 | No Image | Spring | 97459 | $2.30Read more |
| 22 | No Image | Spring | 2733370 | $2.30Read more |
| 23 | Not Available | Damping plate | 92640 | Not Available |
| 24 | Not Available | Switch 250V/10A | 1002130 | Not Available |
| 27+28 | Not Available | Cable reel | 92630 | Not Available |
| 28 | Not Available | -Supply cable | 1026520 | Not Available |
| 40 | No Image | -Thermoswitch 10A 250V | 89330 | $42.00Read more |
| 41 | Not Available | Resistor 1,5 OHM 5A | 96795 | Not Available |
| 42 | Not Available | -Fixing bracket | 95891 | Not Available |
| 42 | Not Available | -Ring | 95893 | Not Available |
| 44 | Not Available | -Tray | 95890 | Not Available |
| 45 | | Genuine Miele Raised head screw 3,5X9,5 | 20724 | $2.30Read more |
| 46 | No Image | --Raised Head Screw Din7981 Bz4,2X16 | 1023090 | $2.30Read more |
| 47 | Not Available | Sealing ring | 92639 | Not Available |
| 48 | Not Available | Support | 94889 | Not Available |
| 49 | Not Available | Flexible wire | 96799 | Not Available |
| 54 | No Image | Connecting Piece 4,8Mm | 1134530 | $12.31Read more |
| # | Part image | Description | SKU | Price |
| (14) | No Image | -Suction Pipe Top | 1530090 | $77.99Read more |
| (13) | No Image | -Suction Pipe Bottom | 1886650 | $77.99Read more |
| (15-17) | Not Available | -Screw connector black/brown | 1567701 | Not Available |
| (15) | No Image | -Screw Telesc.Pipe Black/Brown | 1545980 | $30.00Read more |
| (15-17) | Not Available | -Screw connector black/brown | 1567701 | Not Available |
| (15-17) | Not Available | -Screw connector black/brown | 1567701 | Not Available |
| (7) | Not Available | -Elbow | 1328140 | Not Available |
| (12-17) | | Genuine Miele Telescopic pipe Lava grey | 1963451 | $0.00Read more |
| (5) | No Image | -Ring Black/Brown | 1327700 | $5.64Read more |
| (17) | No Image | -Nut Telescopic Pipe Black/Brown | 1545991 | $30.00Read more |
| w/o fig. | Not Available | -Bristle strip | 1389730 | Not Available |
| (19) | No Image | Crevice Nozzle Lava Grey | 1963350 | $13.92Read more |
| (20) | No Image | Dusting Brush Light Beige | 1083240 | $17.25Read more |
| (25) | Not Available | Sleeve | 1328480 | Not Available |
| 2 | Not Available | -Suction control light beige | 91204 | Not Available |
| 3-5 | No Image | Suction Hose Lava Grey | 1963250 | $51.00Read more |
| 3-10 | No Image | Suction Hose | 1328150 | $159.00Read more |
| 4 | | Genuine Miele Sleeve | 91205 | $9.70Read more |
| 6 | Not Available | -Suspension Lava grey | 1963220 | Not Available |
| 8-10 | No Image | -Tubular Handle Lava Grey | 1248322 | $76.00Read more |
| 8-9 | No Image | -Tubular Handle Lava Grey | 1963340 | $56.00Read more |
| 8-10 | No Image | -Tubular Handle Lava Grey | 1248322 | $76.00Read more |
| 9 | No Image | -Suction Control Anthracite | 1328680 | $3.90Read more |
| 10 | Not Available | -Sleeve | 1200590 | Not Available |
| 11 | Not Available | -Screw telesc.pipe | 39917 | Not Available |
| 12 | No Image | Mounting Plate, TW050-W43-U | 39918 | $520.99Read more |
| 13 | No Image | -Suction Pipe Bottom | 39915 | $77.99Read more |
| 14 | Not Available | -Suction pipe top | 1203360 | Not Available |
| 16 | Not Available | -Screw connector anthracite | 1567702 | Not Available |
| 18 | No Image | Radiator Brush Lava Grey | 1963370 | $0.00Read more |
| 18 | No Image | Radiator Brush Light Beige | 79878 | $0.00Read more |
| 21+22 | No Image | Dusting Brush Lava Grey | 1963581 | $17.25Read more |
| 22 | No Image | Dusting Brush L | 12187780 | $24.00Read more |
| 23+24 | No Image | Upholstery Nozzle Lava Grey | 1347981 | $22.00Read more |
| 24 | Not Available | Bristle strip | 1411510 | Not Available |
| 24 | Not Available | -Bristle strip | 1389730 | Not Available |
| 26 | No Image | Universal Brush Lava Grey | 2118010 | $35.70Read more |
| # | Part image | Description | SKU | Price |
| (4) | Not Available | -Lower section | 970221 | Not Available |
| (3) | Not Available | -Bristle supp.plate | 1949860 | Not Available |
| XX | Not Available | --Raised head screw 3,5X25 | 10597 | Not Available |
| (11) | No Image | -Lower Section | 2391760 | $36.00Read more |
| XX | | Genuine Miele Raised head screw 3,5X16 | 46546 | $2.10Read more |
| XX | Not Available | --Raised head screw 3,5X25 | 10597 | Not Available |
| XX | | Genuine Miele Raised head screw 3,5X16 | 46546 | $2.10Read more |
| (3) | Not Available | -Bristle supp.plate | 1949860 | Not Available |
| XX | No Image | --Raisedhead Screw Din7983 B3,5X13 | 86831 | $2.30Read more |
| 1 | No Image | -Top | 970211 | $98.70Read more |
| 2 | Not Available | -Spacer | 1599330 | Not Available |
| 4 | Not Available | -Lower section | 97022 | Not Available |
| 6 | | Genuine Miele Thread lifter | 82699 | $13.50Read more |
| 7+8 | No Image | -Top Lava Grey | 1970751 | $76.00Read more |
| 8 | No Image | -Spacer | 1598950 | $15.53Read more |
| 8 | No Image | -Spacer | 1598950 | $15.53Read more |
| 9 | Not Available | -Buffer | 1571870 | Not Available |
| 9 | Not Available | -Buffer | 1571870 | Not Available |
| 10 | No Image | -Bristle Supp.Plate | 1229790 | $42.00Read more |
| 10 | No Image | -Bristle Supp.Plate | 1229790 | $42.00Read more |
| 13 | | Genuine Miele Thread lifter | 82699 | $13.50Read more |
| 13 | | Genuine Miele Thread lifter | 82699 | $13.50Read more |
| 14 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 14-18 | No Image | Floor Nozzle Lava Grey | 1970732 | $98.70Read more |
| 14-18 | No Image | Floor Nozzle Lava Grey | 1970732 | $98.70Read more |
| 15+16 | No Image | -Linkage Black/Brown | 1448961 | $66.00Read more |
| 15+16 | No Image | -Linkage Lava Grey | 2218010 | $66.00Read more |
| 15-16 | No Image | -Linkage Black/Brown | 1448961 | $66.00Read more |
| 16 | No Image | -Shaft Lava Grey | 1970770 | $12.00Read more |
| 16 | No Image | -Shaft Black/Brown | 1684721 | $12.00Read more |
| 16 | No Image | -Shaft Black/Brown | 1684721 | $12.00Read more |
| 17 | Not Available | -Suction channel Lava grey | 2142670 | Not Available |
| 17 | No Image | -Suction Channel Black | 2142660 | $47.00Read more |
| 17+18 | No Image | -Top Lava Grey | 1970751 | $76.00Read more |
| 18 | No Image | -Foot Switch Lava Grey | 2229520 | $12.31Read more |
| 18 | No Image | -Foot Switch Black | 2276320 | $12.31Read more |
Report errors on this page HERE
