Schematic and parts book for Miele S218 S 218. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

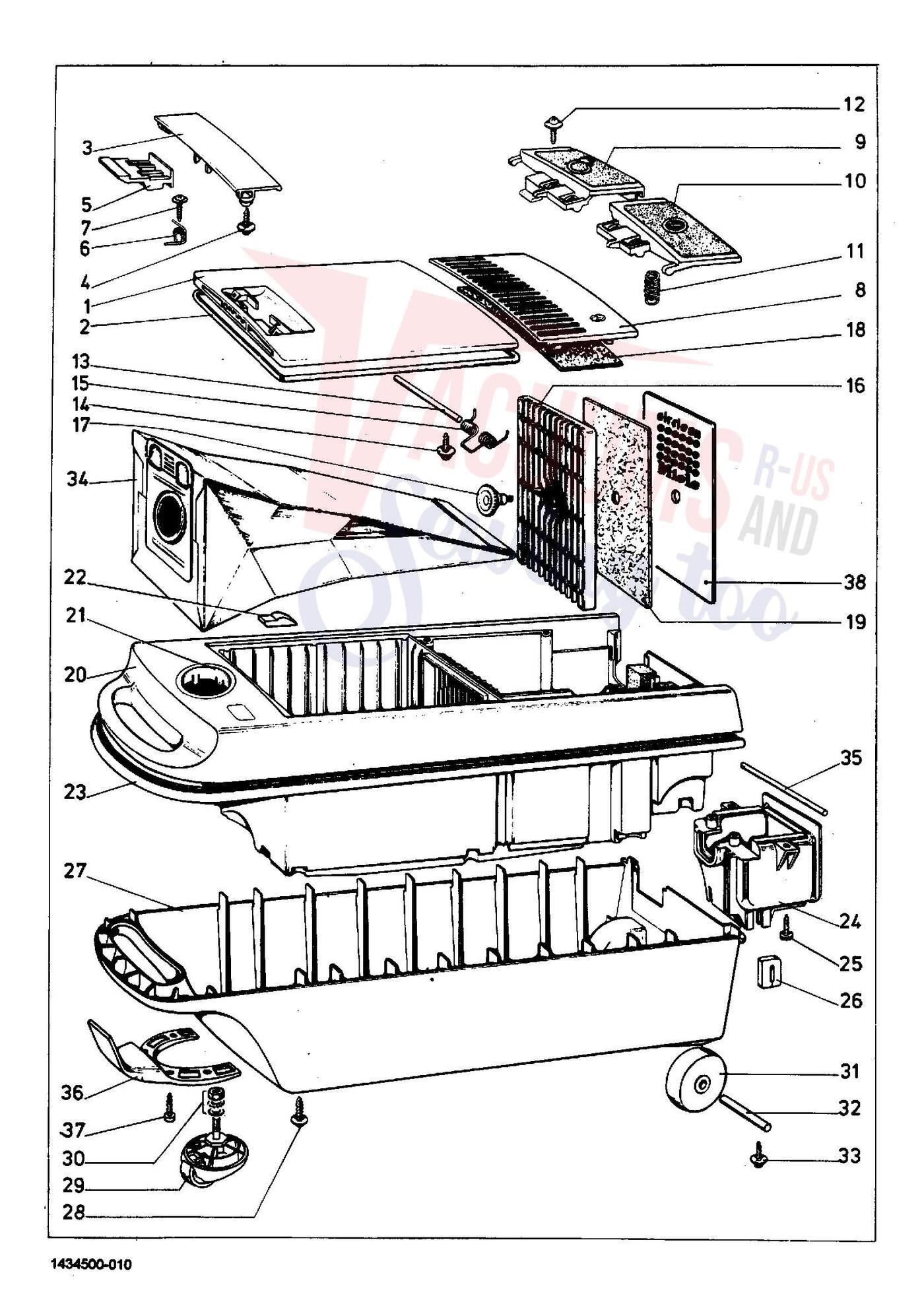

| # | Part image | Description | SKU | Price |
| w/o fig. | Not Available | -Cap | 1155940 | Not Available |
| XX |  | Genuine Miele Raised head screw 3,9X9,5 | 1143580 | $0.00Read more |
| XX | | Genuine Miele Raised head screw 2,9X6,5 | 66224 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 2,9X6,5 | 66224 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 3,9X9,5 | 1143580 | $0.00Read more |
| XX | Not Available | --Knurled screw | 92298 | Not Available |
| (21) | Not Available | Slide sleeve black | 1204330 | Not Available |
| XX | Not Available | --Knurled screw | 92298 | Not Available |
| XX | | Genuine Miele Raised head screw Zinc-plated 4,2X13 | 106042 | $2.10Read more |
| XX | | Genuine Miele Star washer A 6,4 | 10540 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| XX | Not Available | --Spring washer 6,4X16X0,5 | 1133100 | Not Available |
| XX | No Image | --Hexagonal Nut M6 | 26773 | $2.30Read more |
| XX | | Genuine Miele Raised head screw 3,9X9,5 | 1143580 | $0.00Read more |
| w/o fig. | No Image | Cloth Filter Bag | 1058630 | $109.00Read more |
| w/o fig. | No Image | Lock | 1058640 | $22.00Read more |
| 1-7 | No Image | Dust Compart.Lid Bamboo Green | 1472920 | $109.00Read more |
| 2 | Not Available | Seal | 92618 | Not Available |
| 3 | Not Available | -interlock | 95198 | Not Available |
| 5 | Not Available | -Slide | 92620 | Not Available |
| 6 | Not Available | -Spring | 92646 | Not Available |
| 8 | Not Available | Filter cap lime green | 92621 | Not Available |
| 9 | Not Available | Foot switch right | 91398 | Not Available |
| 10 | Not Available | Foot switch left | 91399 | Not Available |
| 11 | Not Available | Spring | 97061 | Not Available |
| 11 | | Genuine Miele Raised head screw 3,9X13 | 1023120 | $2.10Read more |
| 13 | Not Available | Hinge bolt | 92628 | Not Available |
| 15 | Not Available | Torsion spring | 92629 | Not Available |
| 16 | Not Available | Filter frame | 87403 | Not Available |
| 18 | No Image | Air Outlet Filter 3 S220 | 3215540 | $30.00Read more |
| 18+19 | Not Available | Filter 2X3 S220 | 1002350 | Not Available |
| 20-22 | No Image | Casing Top Bamboo Green | 1472932 | $299.00Read more |
| 23 | Not Available | Buffer | 92615 | Not Available |
| 24 | Not Available | Plug housing Bamboo green | 1472960 | Not Available |
| 26 | Not Available | cable guide | 94231 | Not Available |
| 29-33 | No Image | Casing Bottom Bamboo Green | 1472940 | $249.00Read more |
| 31 | Not Available | -Wheel | 92613 | Not Available |
| 32 | Not Available | -Shaft | 92614 | Not Available |
| 34 | No Image | Dustbag 1/7 S217 - S226 | 1002342 | $0.00Read more |
| 38 | Not Available | Air-Clean filter 3 S220 | 2517330 | Not Available |
| 38 | Not Available | Air-Clean filter 3 S220 | 2517330 | Not Available |

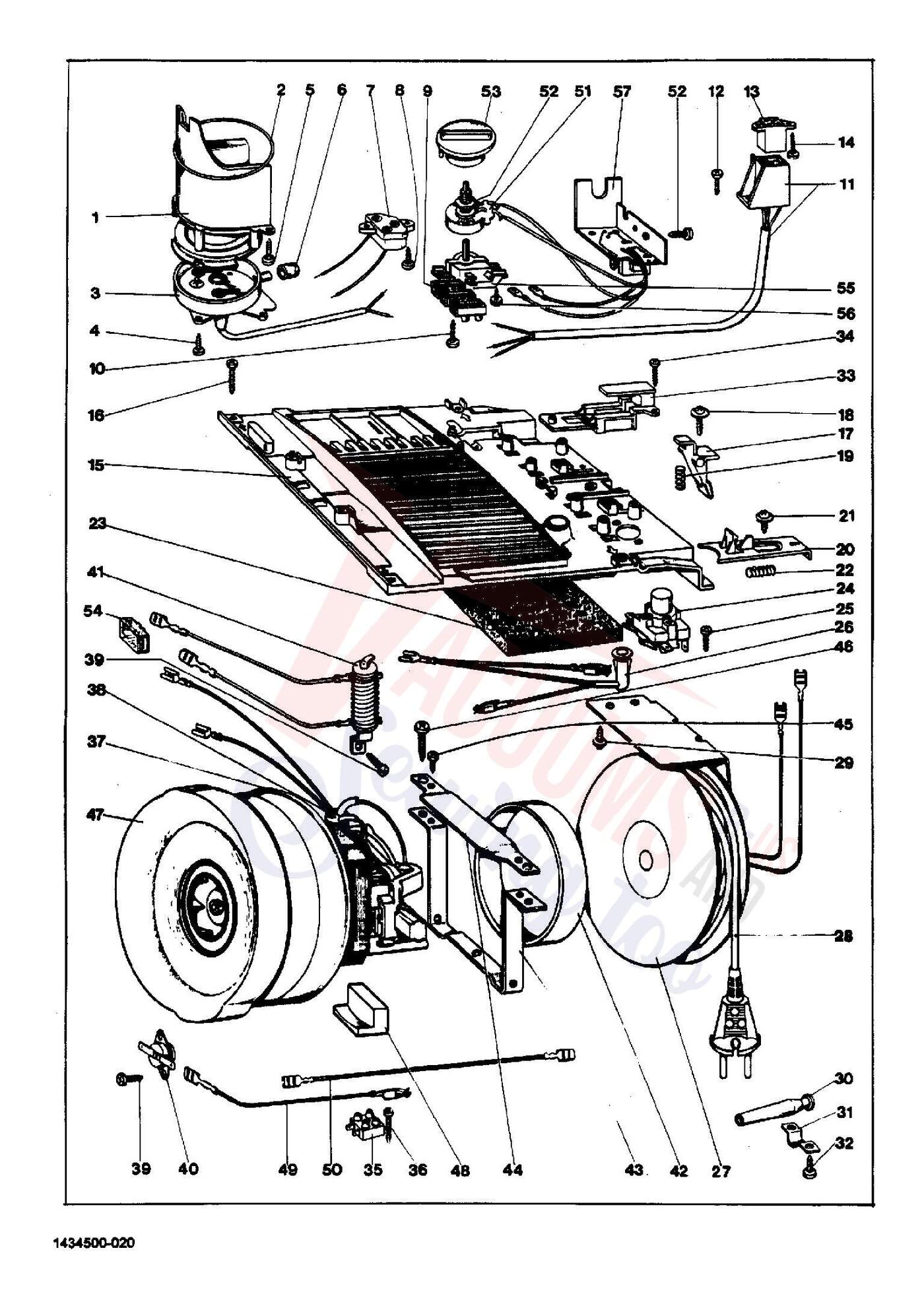

| # | Part image | Description | SKU | Price |
| (1) | Not Available | -Dust channel | 92603 | Not Available |
| (2) | Not Available | -Rubber ring | 92606 | Not Available |
| (3) | Not Available | -Lid | 1021071 | Not Available |
| XX | No Image | Dust Channel | 1472970 | $63.00Read more |
| XX | No Image | --Raised Head Screw 3,9X9,5 | 1023040 | $2.30Read more |
| (7) | Not Available | Flush socket outlet 2 pole | 1583050 | Not Available |
| XX | No Image | --Raised Head Screw 3,9X9,5 | 1023040 | $2.30Read more |
| (9) | Not Available | Clamping strip 2 pole | 1699010 | Not Available |
| (11) | Not Available | Connecting cable 2 pole | 1348150 | Not Available |
| XX | | Genuine Miele Raised head screw Zinc-plated 2,9X9,5 | 1023022 | $4.90Read more |
| XX | Not Available | Mounting plate | 913971 | Not Available |
| (17) | Not Available | Brake lever | 1155630 | Not Available |
| XX | | Genuine Miele Raised head screw 3,9X13 | 1023120 | $2.10Read more |
| (19) | | Genuine Miele Spring | 29289 | $2.50Add to cart Product is special order please allow 2-4 weeks for delivery. |
| XX | | Genuine Miele Raised head screw 3,9X13 | 1023120 | $2.10Read more |
| XX | Not Available | --Raised head screw DIN7981 BZ4,2X13 Z | 64394 | Not Available |
| XX | | Genuine Miele Raised head screw 3,9X9,5 | 1143580 | $0.00Read more |
| (37) | No Image | Fan 220V | 1473330 | $329.00Read more |
| w/o fig. | Not Available | -Carbon brush | 75427 | Not Available |
| w/o fig. | | Genuine Miele Carbon brush | 2830481 | $56.80Read more |
| w/o fig. | | Genuine Miele Clamping bracket | 75426 | $9.70Read more |
| w/o fig. | | Genuine Miele  | 1071710 | $3.60Read more |
| (38) | Not Available | Interf.sup.capacit. 0,1UF 250V | 1488030 | Not Available |
| XX | Not Available | --Raised head screw 4,8X13 DIN 7981 | 10607 | Not Available |
| (44) | Not Available | -Tray | 1472600 | Not Available |
| (47) | Not Available | Sealing ring | 1500930 | Not Available |
| (48) | Not Available | Cushion | 1472620 | Not Available |
| (49) | Not Available | Flexible wire | 1054210 | Not Available |
| 13 | Not Available | Casing 4 Pole | 94918 | Not Available |
| 20 | Not Available | Slide | 92634 | Not Available |
| 22 | No Image | Spring | 97459 | $2.30Read more |
| 22 | No Image | Spring | 2733370 | $2.30Read more |
| 23 | Not Available | Damping plate | 92640 | Not Available |
| 24 | Not Available | Switch 250V/10A | 1002130 | Not Available |
| 27+28 | Not Available | Cable reel | 92630 | Not Available |
| 28 | Not Available | -Supply cable | 1026520 | Not Available |
| 45 | | Genuine Miele Raised head screw 3,5X9,5 | 20724 | $2.30Read more |
| 46 | No Image | --Raised Head Screw Din7981 Bz4,2X16 | 1023090 | $2.30Read more |
| 49 | Not Available | Flexible wire | 96799 | Not Available |

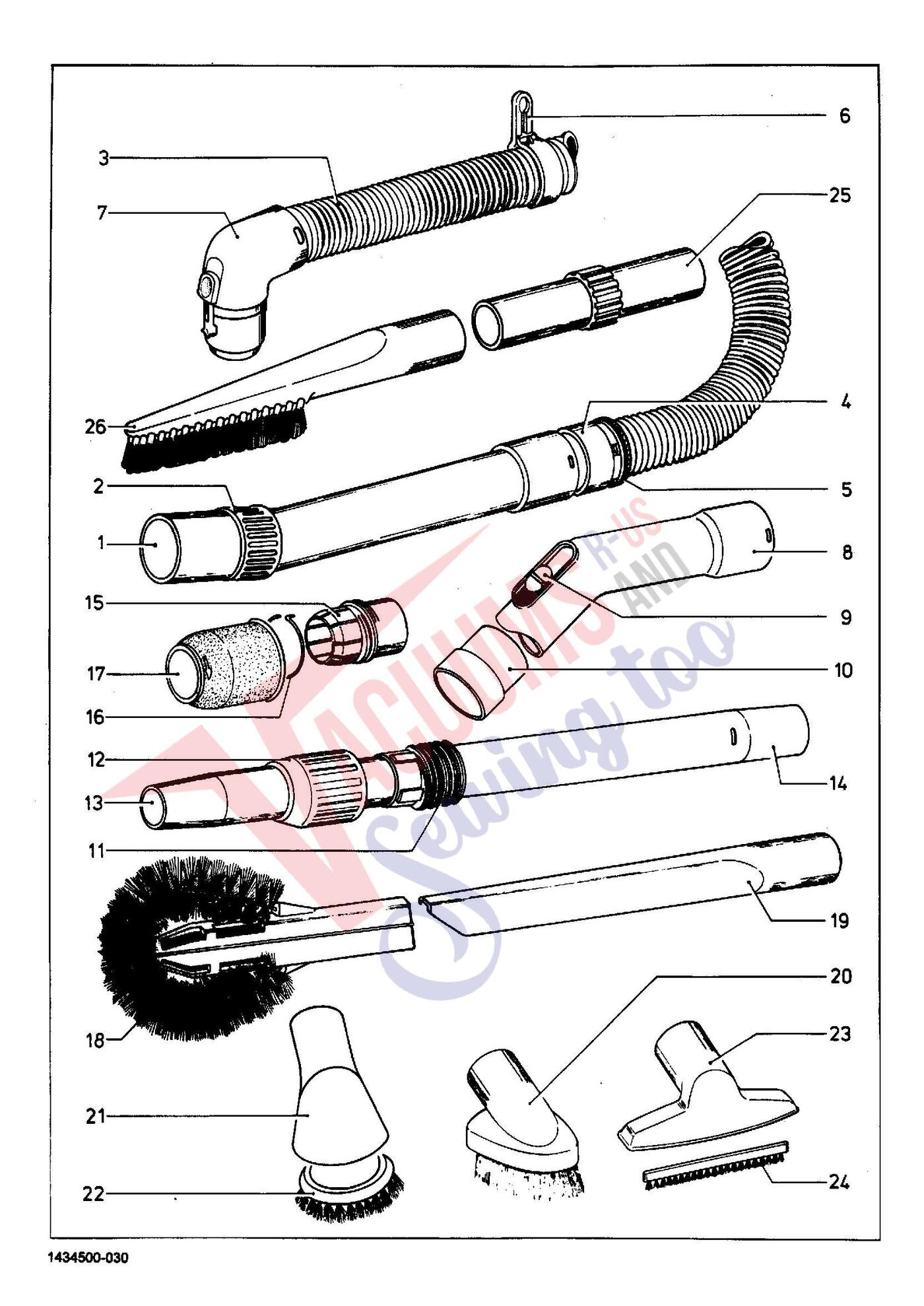

| # | Part image | Description | SKU | Price |
| (5) | No Image | -Ring Black/Brown | 1327700 | $5.64Read more |
| (7) | Not Available | -Elbow | 1328140 | Not Available |
| 3-10 | No Image | Suction Hose | 1328150 | $159.00Read more |
| 3-5 | No Image | Suction Hose Lava Grey | 1963250 | $51.00Read more |
| 4 | | Genuine Miele Sleeve | 91205 | $9.70Read more |
| 6 | Not Available | -Suspension Lava grey | 1963220 | Not Available |
| 8-9 | No Image | -Tubular Handle Lava Grey | 1963340 | $56.00Read more |
| 9 | No Image | -Suction Control Anthracite | 1328680 | $3.90Read more |
| 21+22 | No Image | Dusting Brush Lava Grey | 1963581 | $17.25Read more |
| 22 | No Image | Dusting Brush L | 12187780 | $24.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23+24 | No Image | Upholstery Nozzle Lava Grey | 1347981 | $22.00Read more |
| 24 | Not Available | -Bristle strip | 1389730 | Not Available |
| 26 | No Image | Universal Brush Lava Grey | 2118010 | $35.70Read more |

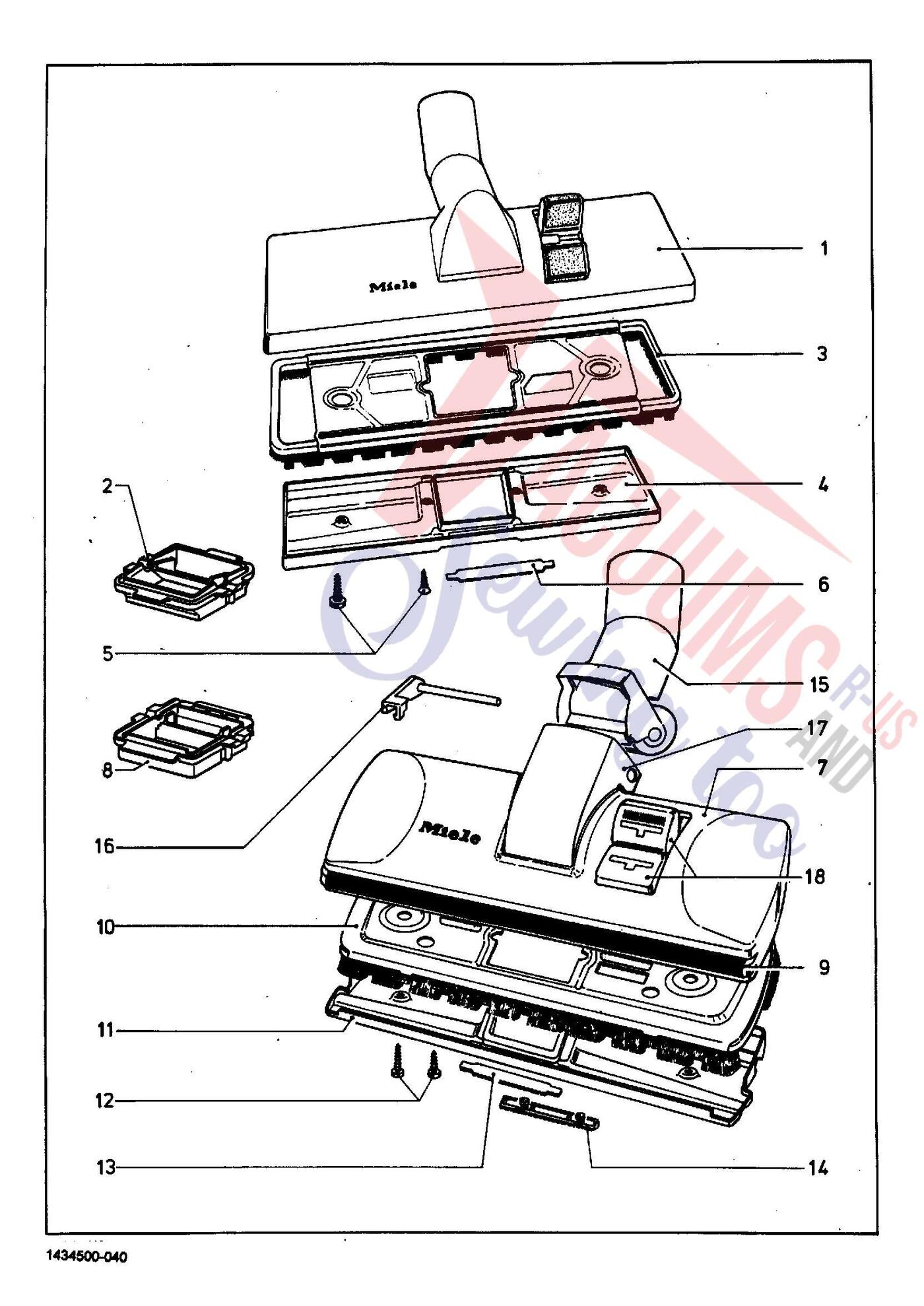

| # | Part image | Description | SKU | Price |
| (7) | Not Available | -Top black/brown | 1498640 | Not Available |
| (8) | Not Available | -Spacer | 1498650 | Not Available |
| (10) | Not Available | -Bristle supp.plate | 1498620 | Not Available |
| (11) | Not Available | -Lower section | 1498610 | Not Available |
| XX | | Genuine Miele Raised head screw 3,5X16 | 46546 | $2.10Read more |
| 8 | No Image | -Spacer | 1598950 | $15.53Read more |
| 9 | Not Available | -Buffer | 1571870 | Not Available |
| 10 | No Image | -Bristle Supp.Plate | 1229790 | $42.00Read more |
| 13 | | Genuine Miele Thread lifter | 82699 | $13.50Read more |
| 13 | | Genuine Miele Thread lifter | 82699 | $13.50Read more |
| 14-18 | No Image | Floor Nozzle Lava Grey | 1970732 | $98.70Read more |
| 14 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 15 | Not Available | -Linkage black/brown | 1498630 | Not Available |
| 15+16 | No Image | -Linkage Black/Brown | 1448961 | $66.00Read more |
| 15+16 | No Image | -Linkage Lava Grey | 2218010 | $66.00Read more |
| 16 | No Image | -Shaft Black/Brown | 1684721 | $12.00Read more |
| 16 | No Image | -Shaft Lava Grey | 1970770 | $12.00Read more |
| 17+18 | No Image | -Top Lava Grey | 1970751 | $76.00Read more |
| 17 | No Image | -Suction Channel Black | 2142660 | $47.00Read more |
| 17 | Not Available | -Suction channel Lava grey | 2142670 | Not Available |
| 18 | No Image | -Foot Switch Black | 2276320 | $12.31Read more |
| 18 | No Image | -Foot Switch Lava Grey | 2229520 | $12.31Read more |
