Schematic and parts book for Miele S204 S 204. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

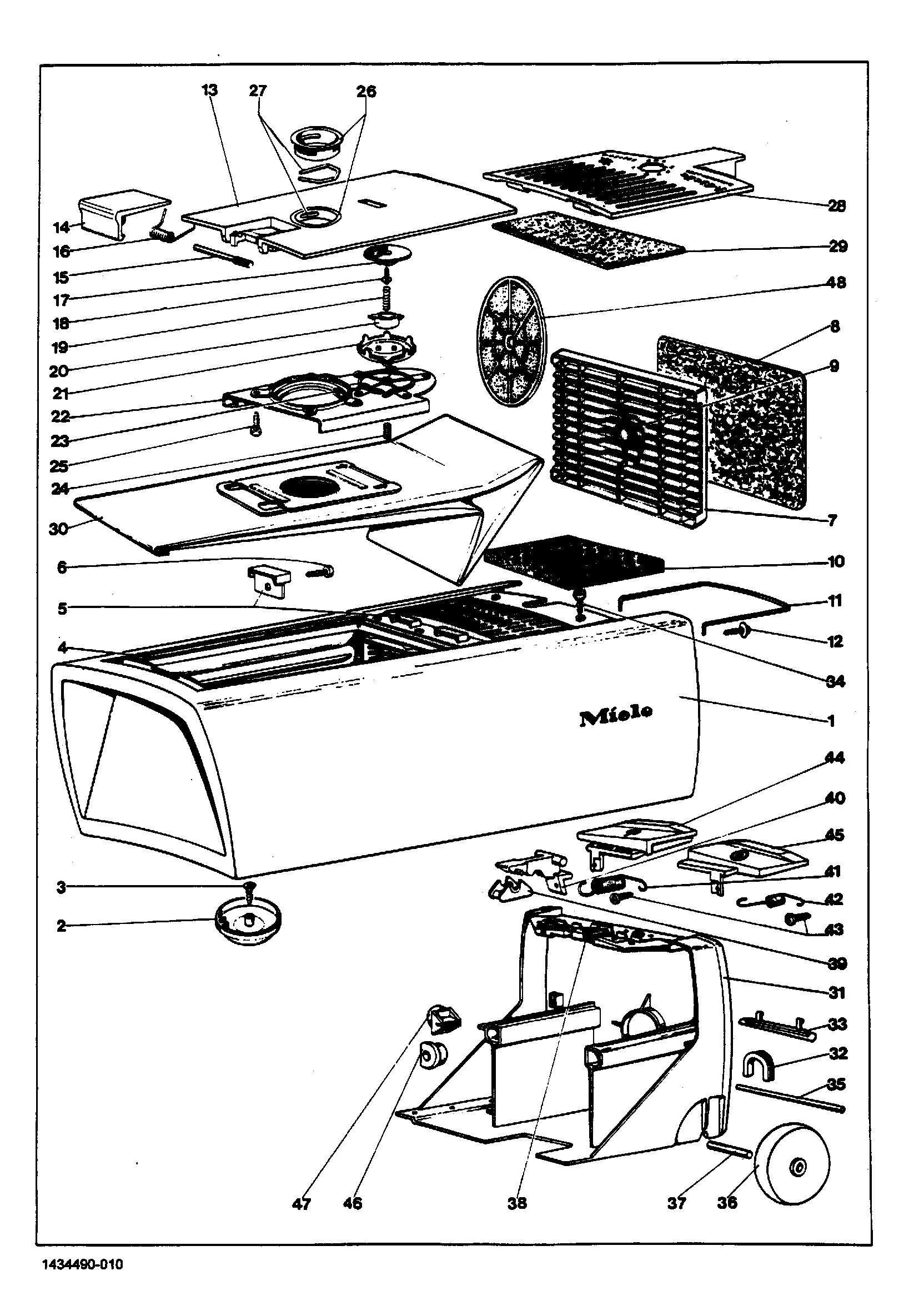

| # | Part image | Description | SKU | Price |
| XX | No Image | --Raised Head Screw 4,2X9,5 Din 7981 | 1298960 | $2.30Read more |
| (7) | Not Available | -Filter | 67385 | Not Available |
| XX | Not Available | --Coun.self-tap.screw DIN7982 BZ4,2X13 | 71279 | Not Available |
| XX | Not Available | --Knurled screw | 92298 | Not Available |
| XX |  | Genuine Miele Raised head screw 3,9X9,5 | 1143580 | $0.00Read more |
| w/o fig. | Not Available | -Clip | 29317 | Not Available |
| XX | | Genuine Miele Raised head screw 2,9X6,5 | 66224 | $2.30Read more |
| XX | Not Available | --Coun.self-tap.screw DIN7982 BZ4,2X13 | 71279 | Not Available |
| XX | No Image | --Raised Head Screw 3,9X13 | 1023050 | $2.10Read more |
| (47) | Not Available | Counter bearing | 75760 | Not Available |
| (2) |  | Floor Tool, Natural Bristles Part Number: 39632 for Eureka | 39632 | $23.31Read more |
| XX | No Image | --Raised Head Screw 3,9X9,5 | 64393 | $3.90Read more |
| (40) | Not Available | Brake lever | 89155 | Not Available |
| (41) | Not Available | Tensioning spring | 89156 | Not Available |
| 1-12 | Not Available | Casing grey | 78763 | Not Available |
| 2 | Not Available | -Slide skid | 68058 | Not Available |
| 4 | No Image | LOCKING CLAMP | 39628 | $91.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | -Hinge | 39635 | Not Available |
| 7 | Not Available | -Filter frame | 87403 | Not Available |
| 8+29 | No Image | -Filter 2X3 S200 | 1001840 | $30.00Read more |
| 10 | Not Available | -Damping plate | 83601 | Not Available |
| 11 | Not Available | -Wire bracket | 83602 | Not Available |
| 13-27 | Not Available | Dust compart.lid green | 67881 | Not Available |
| 14 | Not Available | -Lock | 87387 | Not Available |
| 15 | No Image | CASTOR WHEEL 35DIAX24MM | 39641 | $76.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | Limit Switch, TW050-W43-U | 39874 | $42.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | Not Available | -Disc | 48195 | Not Available |
| 19 | No Image | Battery Level Indicator TW050-W43-U | 39882 | $966.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | No Image | Small Gasket, Panel, TW050-W43-U | 39875 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | No Image | Gasket Cover, Filter, TW050-W43-U | 39879 | $18.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | Not Available | -Lid | 48508 | Not Available |
| 23 | No Image | Holder, Main Cover, TW050-W43-U | 39884 | $22.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | Not Available | -Threaded pin DIN 551 M6X8 | 37985 | Not Available |
| 26 | Not Available | -Slide sleeve black/brown | 1327540 | Not Available |
| 27 | No Image | Caster Assembly, TW050-W43-U | 39885 | $52.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | Not Available | Filter cap green | 67884 | Not Available |
| 29+8 | No Image | -Filter 2X3 S200 | 1001840 | $30.00Read more |
| 29 | No Image | Latching Strap, Battery, TW050-W43-U | 39887 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | No Image | Dustbag 1/10 S180 - S204 | 485421 | $0.00Read more |
| 30 | No Image | Cloth Filter Bag | 54812 | $109.00Read more |
| 31-33 | Not Available | Rear panel | 58349 | Not Available |
| 32 | Not Available | -Slide insert | 57318 | Not Available |
| 33 | Not Available | -Slide track | 58382 | Not Available |
| 35 | Not Available | Conversion kit LUFTLEITSTEG | 95649 | Not Available |
| 36 | No Image | Nut, Rear Skirt, TW050-W43-U | 39890 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 | No Image | Castor Plate, TW050-W43-U | 39892 | $23.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | No Image | Plastic Screw, Chain, TW050-W43-U | 39899 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 | Not Available | Brake shoe | 48178 | Not Available |
| 42 | Not Available | Tensioning spring | 79867 | Not Available |
| 44 | No Image | Foot Switch Right Green | 92296 | $30.00Read more |
| 45 | Not Available | Foot switch left green | 67886 | Not Available |
| 46 | Not Available | Suspension buffer | 43807 | Not Available |
| 48 | No Image | Dust Compart.Filter 1 S110,S200 | 38900 | $36.00Read more |
| 48+29 | Not Available | Filter 2X3 S200 | 1059090 | Not Available |
| # | Part image | Description | SKU | Price |

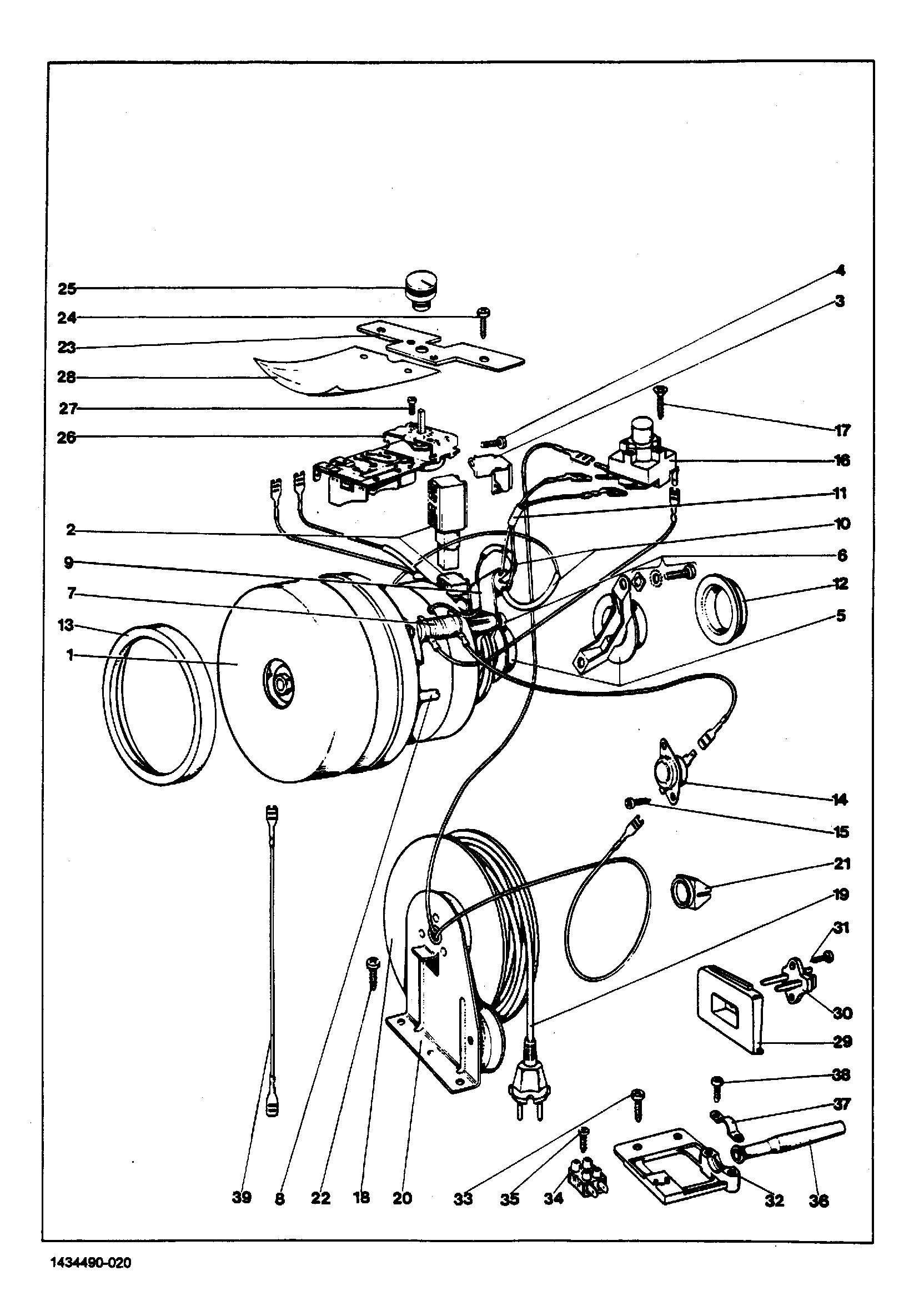

| XX | No Image | --Roundheaded Screw 5/32.Zollx8 | 49673 | $7.59Read more |
| (13) | Not Available | Sealing ring | 94887 | Not Available |
| (14) | No Image | -Thermoswitch 10A 250V | 89330 | $42.00Read more |
| XX | No Image | --Raised Head Screw 3,9X9,5 | 64393 | $3.90Read more |
| w/o fig. | Not Available | Conv.kit switch | 95854 | Not Available |
| (16) | Not Available | Switch 250V/10A | 1002130 | Not Available |
| XX | No Image | --Countersunk Screw M 3 X 12 | 50486 | $3.90Read more |
| XX | Not Available | --Coun.self-tap.screw DIN7982 BZ4,2X13 | 71279 | Not Available |
| w/o fig. | Not Available | -Clamping shield | 49046 | Not Available |
| w/o fig. | Not Available | -Fixing clip | 58394 | Not Available |
| (9) | Not Available | -Interf.sup.capacit. 0,2UF+2X2500PF 250V | 1091610 | Not Available |
| (9) | Not Available | -Interf.sup.capacit. 0,12UF+2X2500PF 250V | 1102280 | Not Available |
| w/o fig. | | Genuine Miele  | 1071710 | $3.60Read more |
| (5) | Not Available | -Holder | 69409 | Not Available |
| (5) | Not Available | -Holder | 1025320 | Not Available |
| XX | No Image | --Star Washer Din6798 A5,1 | 28267 | $2.50Read more |
| XX | Not Available | --Disc 5,1X11X0,8 | 56682 | Not Available |
| XX | No Image | --Raised Head Screw M5X10 | 10626 | $2.10Read more |
| XX | No Image | --Star Washer Din6798 A5,1 | 28267 | $2.50Read more |
| XX | Not Available | --Disc 5,1X11X0,8 | 56682 | Not Available |
| XX | Not Available | --Raised head screw 4,8X13 DIN 7981 | 10607 | Not Available |
| XX | Not Available | --Raised head screw 4,8X13 DIN 7981 | 10607 | Not Available |
| XX | Not Available | --Trunnion bolt M5X7X16 | 52584 | Not Available |
| XX | No Image | --Raised Head Screw M3X6 -Z- Din7985-A3G | 26897 | $2.30Read more |
| w/o fig. | No Image | Connecting Piece 4,8Mm | 1134530 | $12.31Read more |
| XX | No Image | --Raised Head Screw 3,9X9,5 | 64393 | $3.90Read more |
| 1-11 | Not Available | Fan 220V | 1138550 | Not Available |
| 1-6+8 | No Image | Fan 220V | 1138551 | $329.00Read more |
| 2 | Not Available | -Carbon brush | 2837650 | Not Available |
| 3 | Not Available | -Clamp | 49672 | Not Available |
| 5 | Not Available | -Holder | 43805 | Not Available |
| 7 | No Image | -Resistor 2,6 Ohm 5A | 795371 | $76.00Read more |
| 10 | Not Available | -Insulation sleeve | 49981 | Not Available |
| 11 | Not Available | -Insulation sleeve 60LG. | 67400 | Not Available |
| 12 | No Image | Anti-Static Chain, TW050-W43-U | 39893 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18+21 | Not Available | Cable reel | 76146 | Not Available |
| 18-21 | Not Available | Conv.kit cable reel | 76152 | Not Available |
| 19 | No Image | -Supply Cable | 86635 | $209.00Read more |
| 20 | Not Available | -Angle | 91355 | Not Available |
| 21 | Not Available | -Counter bearing | 75760 | Not Available |
| 23 | Not Available | Fixing plate | 77697 | Not Available |
| 25 | Not Available | Programme knob | 63897 | Not Available |
| 26 | Not Available | Speed control | 63921 | Not Available |
| 28 | Not Available | Foil | 63896 | Not Available |
| # | Part image | Description | SKU | Price |
| (16-19) | | Genuine Miele Telescopic pipe Lava grey | 1963451 | $0.00Read more |
| w/o fig. | No Image | Dusting Brush L | 12187780 | $24.00Read more |
| (16) | No Image | -Suction Pipe Bottom | 1530080 | $77.99Read more |
| (23) | No Image | Dusting Brush Lava Grey | 1963581 | $17.25Read more |
| (17-19) | No Image | -Suction Pipe Top | 1530090 | $77.99Read more |
| w/o fig. | Not Available | -Screw connector black/brown | 1567701 | Not Available |
| w/o fig. | Not Available | -Screw connector black/brown | 1567701 | Not Available |
| w/o fig. | No Image | -Screw Telesc.Pipe Black/Brown | 1545980 | $30.00Read more |
| w/o fig. | Not Available | -Screw connector black/brown | 1567701 | Not Available |
| w/o fig. | No Image | -Nut Telescopic Pipe Black/Brown | 1545991 | $30.00Read more |
| w/o fig. | Not Available | -Screw connector anthracite | 1567702 | Not Available |
| (20) | Not Available | Sleeve | 1328480 | Not Available |
| (21) | No Image | Universal Brush Lava Grey | 2118010 | $35.70Read more |
| (24) | No Image | Crevice Nozzle Lava Grey | 1963350 | $13.92Read more |
| (13) | Not Available | -Elbow light beige | 78818 | Not Available |
| (12) | | Genuine Miele Sleeve | 91205 | $9.70Read more |
| (26) | Not Available | -Bristle strip | 1389730 | Not Available |
| (25-26) | No Image | Upholstery Nozzle Lava Grey | 1347981 | $22.00Read more |
| (22) | No Image | Radiator Brush Lava Grey | 1963370 | $0.00Read more |
| (3) | Not Available | Swivel sleeve | 78819 | Not Available |
| w/o fig. | No Image | Thermal circut breaker, TW050-W43-U | 39912 | $98.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| (6-8) | No Image | -Tubular Handle Lava Grey | 1248322 | $76.00Read more |
| (6-8) | No Image | -Tubular Handle Lava Grey | 1248322 | $76.00Read more |
| (6-7) | No Image | -Tubular Handle Lava Grey | 1963340 | $56.00Read more |
| (7) | No Image | -Suction Control Anthracite | 1328680 | $3.90Read more |
| (11) | No Image | -Ring Black/Brown | 1327700 | $5.64Read more |
| (23) | No Image | Dusting Brush Light Beige | 1083240 | $17.25Read more |
| (13) | Not Available | -Elbow anthracite | 1327550 | Not Available |
| 1 | No Image | On Board Charger Assembly, TW0-W43-U | 39910 | $720.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Charging Connector, TW050-W43-U | 39911 | $38.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | -Suction control light beige | 91204 | Not Available |
| 6-13 | No Image | Suction Hose | 1328130 | $159.00Read more |
| 8 | Not Available | -Sleeve | 1200590 | Not Available |
| 9 | Not Available | -Suspension Lava grey | 1963220 | Not Available |
| 10-12 | No Image | Suction Hose Lava Grey | 1963250 | $51.00Read more |
| 14 | Not Available | -Screw telesc.pipe | 39917 | Not Available |
| 15 | No Image | Mounting Plate, TW050-W43-U | 39918 | $520.99Read more |
| 17 | Not Available | -Suction pipe top | 1203360 | Not Available |
| 22 | No Image | Radiator Brush Light Beige | 79878 | $0.00Read more |
| 26 | Not Available | -Bristle strip | 1411510 | Not Available |
| # | Part image | Description | SKU | Price |
| w/o fig. | Not Available | -Linkage | 64523 | Not Available |
| w/o fig. | Not Available | -Lower section | 40627 | Not Available |
| w/o fig. | Not Available | -Seal | 40639 | Not Available |
| w/o fig. | Not Available | -Spring | 69889 | Not Available |
| w/o fig. | Not Available | -Bristle insert | 40637 | Not Available |
| w/o fig. | Not Available | -Thread lifter | 64522 | Not Available |
| w/o fig. | | Genuine Miele Thread lifter | 82699 | $13.50Read more |
| w/o fig. | Not Available | -Lower section | 77436 | Not Available |
| w/o fig. | No Image | -Raisedhead Screw Din7973 B3,5X13 A2 | 56619 | $2.30Read more |
| XX | Not Available | --Raised head screw 3,5X25 | 10597 | Not Available |
| XX | | Genuine Miele Raised head screw 3,5X16 | 46546 | $2.10Read more |
| XX | Not Available | --Raised head screw 3,5X25 | 10597 | Not Available |
| XX | No Image | --Raisedhead Screw Din7983 B3,5X13 | 86831 | $2.30Read more |
| (15) | No Image | -Lower Section | 2391760 | $36.00Read more |
| w/o fig. | Not Available | -Seal | 40635 | Not Available |
| w/o fig. | Not Available | -Seal | 40634 | Not Available |
| w/o fig. | Not Available | -Pipe | 77435 | Not Available |
| w/o fig. | Not Available | -Seal | 77434 | Not Available |
| w/o fig. | Not Available | -Bristle insert | 77433 | Not Available |
| w/o fig. | Not Available | -Spring | 69889 | Not Available |
| 3 | No Image | -Top | 970211 | $98.70Read more |
| 4 | Not Available | -Spacer | 1599330 | Not Available |
| 5 | Not Available | -Bristle supp.plate | 1949860 | Not Available |
| 5 | Not Available | -Bristle supp.plate | 1949860 | Not Available |
| 6 | Not Available | -Lower section | 97022 | Not Available |
| 6 | Not Available | -Lower section | 970221 | Not Available |
| 8 | | Genuine Miele Thread lifter | 82699 | $13.50Read more |
| 10 | No Image | -Suction Channel Black | 2142660 | $47.00Read more |
| 10 | Not Available | -Suction channel Lava grey | 2142670 | Not Available |
| 11 | No Image | -Foot Switch Black | 2276320 | $12.31Read more |
| 11 | No Image | -Foot Switch Lava Grey | 2229520 | $12.31Read more |
| 12 | Not Available | -Buffer | 1571870 | Not Available |
| 13 | No Image | -Top Lava Grey | 1970751 | $76.00Read more |
| 13-20 | No Image | Floor Nozzle Lava Grey | 1970732 | $98.70Read more |
| 13-20 | No Image | Floor Nozzle Lava Grey | 1970732 | $98.70Read more |
| 13-20 | No Image | Floor Nozzle Lava Grey | 1970732 | $98.70Read more |
| 13-20 | No Image | Floor Nozzle Lava Grey | 1970732 | $98.70Read more |
| 13 | No Image | -Top Black | 1361631 | $76.00Read more |
| 13 | No Image | -Spacer | 1598950 | $15.53Read more |
| 13-20 | No Image | Floor Nozzle Lava Grey | 1970732 | $98.70Read more |
| 14 | No Image | -Bristle Supp.Plate | 1229790 | $42.00Read more |
| 17 | | Genuine Miele Thread lifter | 82699 | $13.50Read more |
| 18 | | Genuine Miele Thread lifter 2 Pcs. | 2396352 | $13.50Read more |
| 19+20 | No Image | -Linkage Black/Brown | 1448961 | $66.00Read more |
| 19+20 | No Image | -Linkage Lava Grey | 2218010 | $66.00Read more |
| 20 | No Image | -Shaft Lava Grey | 1970770 | $12.00Read more |
| 20 | No Image | -Shaft Black/Brown | 1684721 | $12.00Read more |
Report errors on this page HERE
