Schematic and parts book for Miele S158 S 158. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |

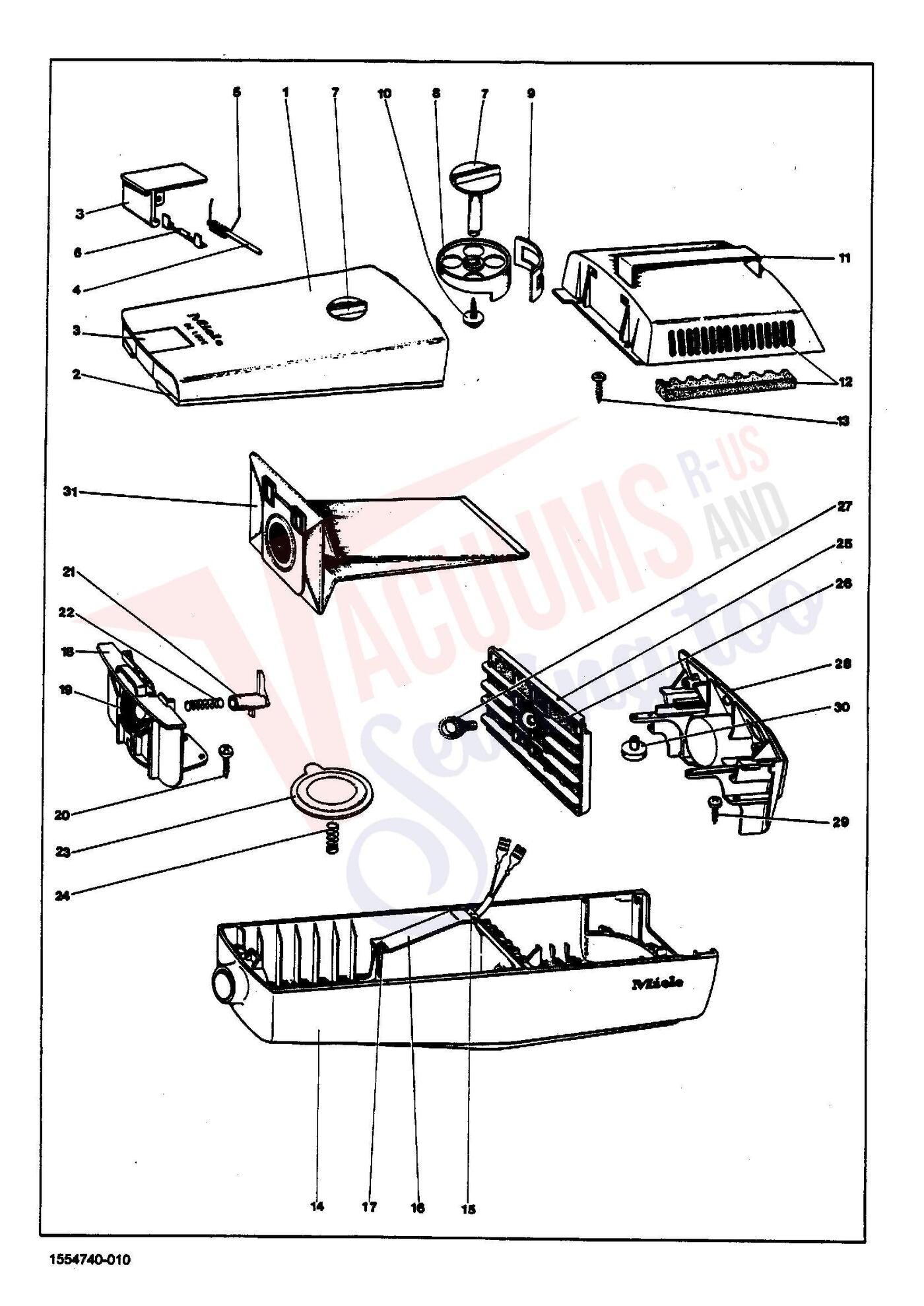

| XX | Not Available | --Raised head screw 3,9X9,5 | 1023110 | Not Available |
| XX | No Image | --Raised Head Screw Din7981 Bz4,2X16 | 1023090 | $2.30Read more |
| (16) | No Image | Squeegee, Front, 30 Inch, Ureth (Optl) | 75019 | $147.99Add to cart Special order: ships in 2 to 4 weeks |
| XX | No Image | --Raised Head Screw 3,9X13 | 1023050 | $2.10Read more |
| XX | No Image | --Raised Head Screw 3,9X13 | 1023050 | $2.10Read more |
| XX | Not Available | --Knurled screw | 92298 | Not Available |
| XX | No Image | --Raised Head Screw Din7981 Bz4,2X16 | 1023090 | $2.30Read more |
| 1-10 | No Image | Dust Compart.Lid Red | 75755 | $159.00Read more |
| 1-10 | No Image | Dust Compart.Lid Gold/Orange | 87272 | $159.00Read more |
| 2 | Not Available | -Sealing ring anthracite | 87275 | Not Available |
| 3 | Not Available | -Lock | 87281 | Not Available |
| 4 | Not Available | -Shaft | 75009 | Not Available |
| 5 | Not Available | -Torsion spring | 75413 | Not Available |
| 6 | No Image | Bracket, Support, Head | 75026 | $147.99Read more |
| 7 | Not Available | -Programme knob | 87282 | Not Available |
| 8 | Not Available | -Resetting disc | 75028 | Not Available |
| 9 | No Image | Bracket, Support, Lever | 75029 | $77.99Read more |
| 11+12 | No Image | Bracket, Link, Squeegee | 75030 | $210.99Read more |
| 11+12 | Not Available | Casing top Gold/Orange | 87381 | Not Available |
| 11 | No Image | -Handle Grey | 75032 | $17.25Read more |
| 11 | Not Available | -Handle Gold/Orange | 87266 | Not Available |
| 12 | No Image | Handle Rod, for SOFTCASE | 75033 | $24.00Read more |
| 14-17 | No Image | Casing Bottom Light Grey | 75001 | $269.00Read more |
| 14-17 | Not Available | Casing bottom Gold/Orange | 87405 | Not Available |
| 15 | No Image | Squeegee, Rear, 30 Inch | 75018 | $121.99Add to cart Special order: ships in 2 to 4 weeks |
| 16 | Not Available | -Cover | 84595 | Not Available |
| 18+19 | Not Available | Casing insert | 84607 | Not Available |
| 19 | Not Available | -Rubber ring | 75011 | Not Available |
| 25+26 | Not Available | Filter frame | 78270 | Not Available |
| 26 | No Image | Bumper | 75005 | $18.99Read more |
| 28 | Not Available | Rear panel anthracite | 87276 | Not Available |
| 30 | No Image | Block, Weight, Balance | 75036 | $86.99Read more |
| 31 | No Image | Dustbag 1/8 S158,S160 | 787681 | $0.00Read more |
| # | Part image | Description | SKU | Price |

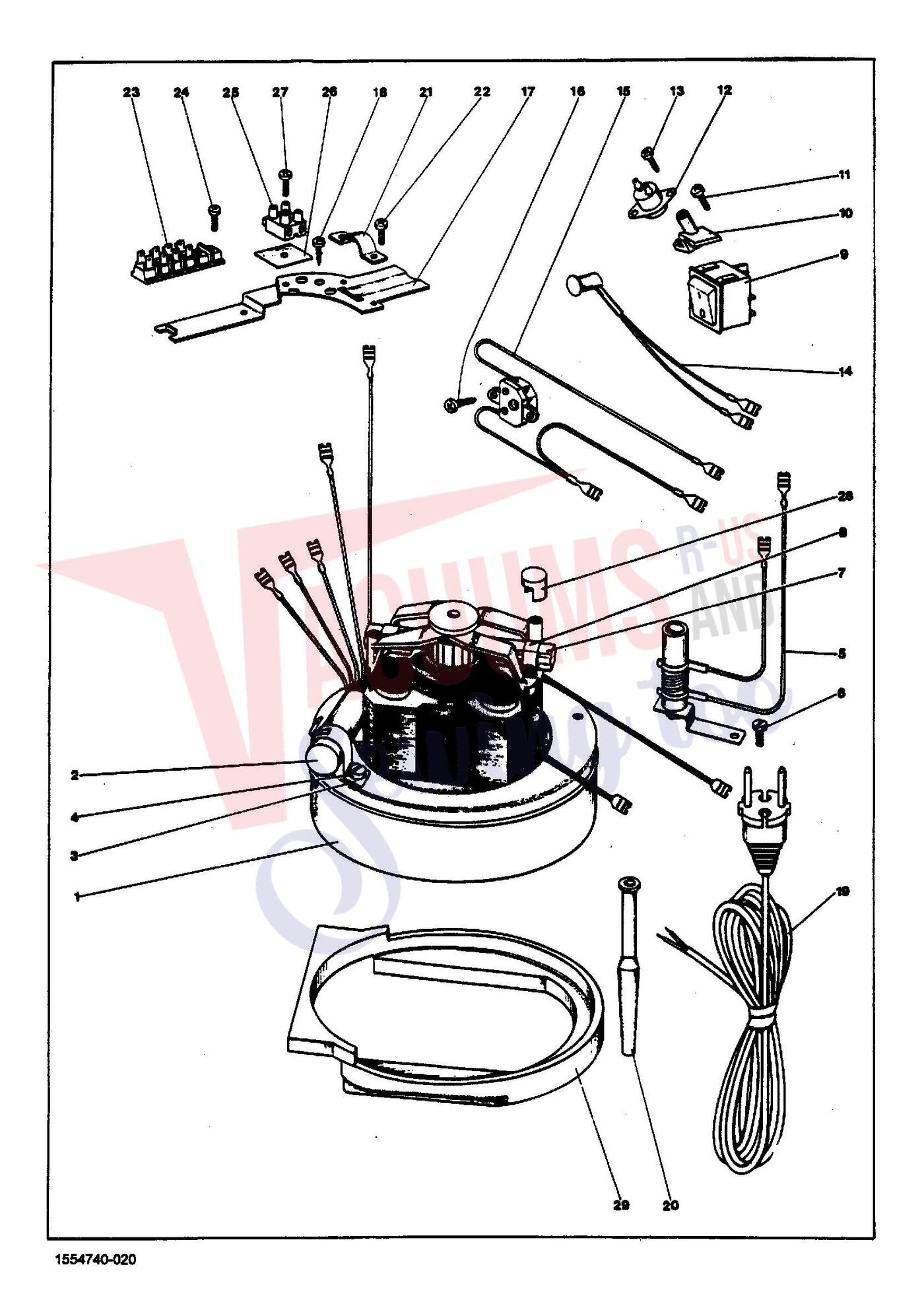

| w/o fig. |  | Hose Connecter Lower Part Number 53.083 for Cleanmax Models CMC-QD | 53083 | |
| w/o fig. | Not Available | -Casing | 75430 | Not Available |
| (2) | Not Available | -Interf.sup.capacit. 0,12UF+2X2500PF 250V | 1102280 | Not Available |
| XX | Not Available | --Self tapping screw M5X8 | 73588 | Not Available |
| XX | Not Available | --Self tapping screw M5X8 | 73588 | Not Available |
| XX | No Image | --Roundheaded Screw 5/32.Zollx8 | 49673 | $7.59Read more |
| w/o fig. |  | Genuine Miele  | 1071710 | $3.60Read more |
| XX | No Image | --Raised Head Screw 3,9X13 | 1023050 | $2.10Read more |
| w/o fig. | No Image | Conv.Kit Switch | 1189090 | $47.00Read more |
| (15) | Not Available | Flush socket outlet 2 pole | 1583050 | Not Available |
| XX | No Image | --Raised Head Screw 3,9X13 | 1023050 | $2.10Read more |
| XX | No Image | --Raised Head Screw Din7981 Bz4,2X16 | 1023090 | $2.30Read more |
| XX | No Image | --Roundheaded Screw M3X12 | 684551 | $2.30Read more |
| (23) | Not Available | Clamping strip 3 pole | 86057 | Not Available |
| XX | No Image | --Roundheaded Screw M3X12 | 684551 | $2.30Read more |
| 1-8 | Not Available | Fan 220V | 84593 | Not Available |
| 2 | Not Available | -Capacitor 0,12 UF 250V | 1143170 | Not Available |
| 3 | Not Available | Fixing clip | 58394 | Not Available |
| 7 | | Genuine Miele Carbon brush | 2830481 | $56.80Read more |
| 8 | | Genuine Miele Clamping bracket | 75426 | $9.70Read more |
| 9 | No Image | Rocker Switch 10A/250V | 73883 | $36.00Read more |
| 10 |  | Cap Hose Drain - Repl For 75062 | 75037 | $91.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 | No Image | -Thermoswitch 10A 250V | 89330 | $42.00Read more |
| 17 | Not Available | Fixing plate | 75447 | Not Available |
| 19 | Not Available | Supply cable | 67905 | Not Available |
| 19 | Not Available | Supply cable | 82692 | Not Available |
| 19 | No Image | Supply Cable Lava Grey | 2498580 | $68.00Read more |
| 20 | Not Available | Cable clamp | 87277 | Not Available |
| 21 | Not Available | Cable holder | 75446 | Not Available |
| 26 | Not Available | Foil | 79847 | Not Available |
| 28 | Not Available | Suspension buffer | 75412 | Not Available |
| 29 | No Image | Clamp, Plastic, P-Shaped | 75012 | $5.99Read more |
| # | Part image | Description | SKU | Price |

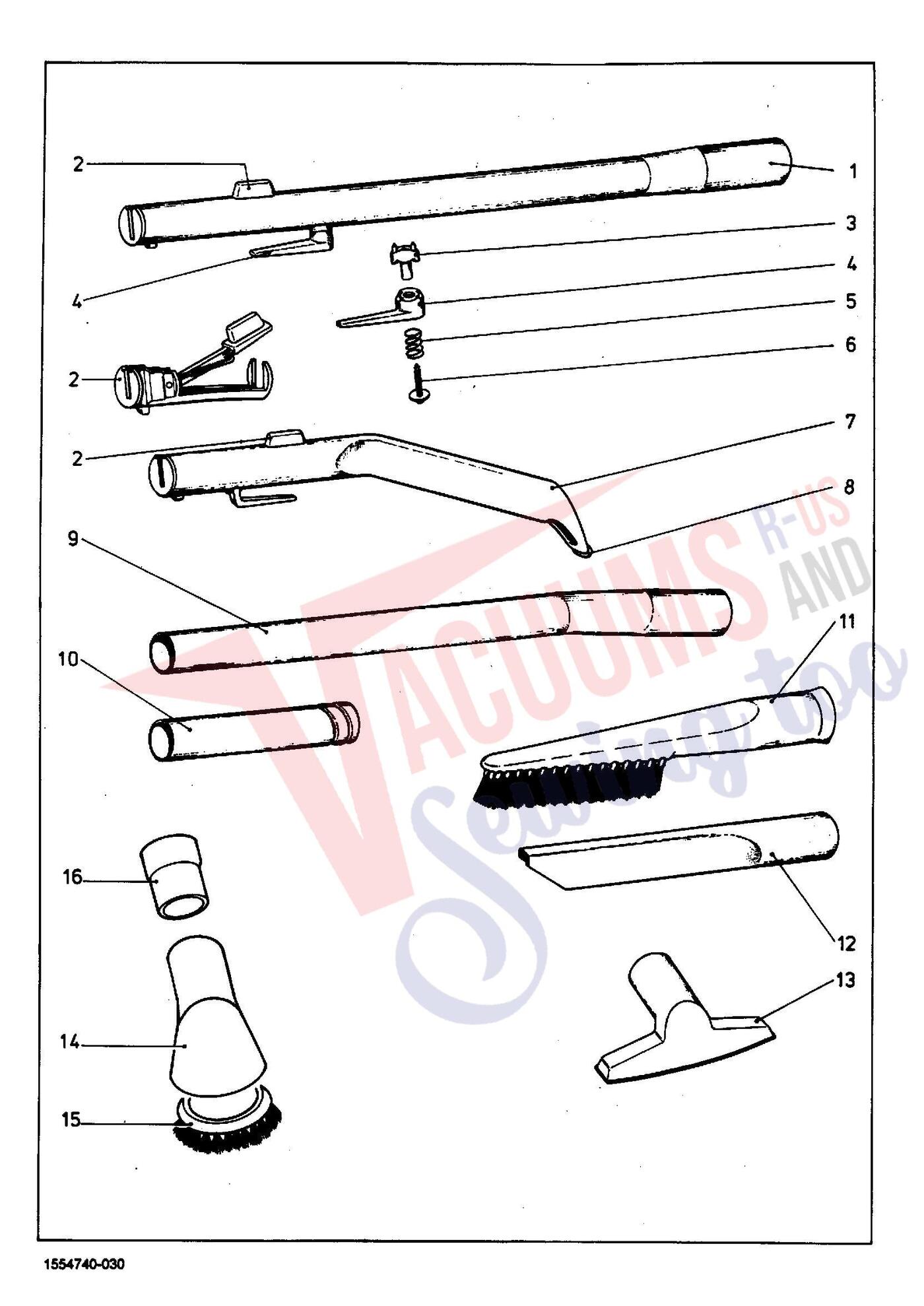

| XX | No Image | --Raised Head Screw 3,9X22 | 29293 | $2.50Read more |
| (8) | Not Available | -Slide protection black/brown | 87278 | Not Available |
| (9) | Not Available | Extension | 46141 | Not Available |
| XX | No Image | Upholstery Nozzle | 9442621 | $22.00Read more |
| XX | No Image | Dusting Brush Anthracite | 5098710 | $17.25Read more |
| 1-6 | No Image | Tubular Handle | 87721 | $91.00Read more |
| 2 | No Image | -Lever Bracket Black/Brown | 75112 | $36.00Read more |
| 2 | No Image | -Lever Bracket Black/Brown | 75105 | $30.00Read more |
| 2 | Not Available | -Lever bracket Lava grey | 2117770 | Not Available |
| 3 | Not Available | -Hinge plate light grey | 34638 | Not Available |
| 3 | No Image | -Hinge Plate Black/Brown | 1197450 | $7.59Read more |
| 3 | No Image | -Hinge Plate Black/Brown | 1197450 | $7.59Read more |
| 4 | No Image | -Hook Black/Brown | 1197460 | $7.00Read more |
| 4 | Not Available | -Hook light grey | 34639 | Not Available |
| 4 | No Image | -Hook Black/Brown | 1197460 | $7.00Read more |
| 5 | | Genuine Miele Spring | 29289 | $2.50Add to cart Special order: ships in 2 to 4 weeks |
| 7+8+2 | No Image | Tubular Handle Light Beige | 75101 | $66.00Read more |
| 7+8+2 | No Image | Tubular Handle Lava Grey | 2117760 | $66.00Read more |
| 7+8+2 | No Image | Tubular Handle Lava Grey | 2117760 | $66.00Read more |
| 8 | Not Available | -Slide protection Lava grey | 2117640 | Not Available |
| 10 | Not Available | Suction pipe | 75450 | Not Available |
| 11 | No Image | Universal Brush Anthracite | 3571660 | $35.70Read more |
| 12 | | Genuine Miele Crevice nozzle anthracite | 3571671 | $12.10Read more |
| 12 |  | Compatible alternateMiele Canister Vacuum Crevice Tool More Product Details | 3571670 | $20.00Add to cart |
| 12 | | Compatible alternateGenuine Miele Crevice nozzle 149mm More Product Details | 9442630 | $20.00Add to cart Special order: ships in 2 to 4 weeks |
| 14+15 | Not Available | Dusting brush | 1144992 | Not Available |
| 15 | No Image | Dusting Brush L | 12187780 | $24.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | No Image | Reducing Collar Lava Grey | 1327581 | $15.53Read more |
| 16 | No Image | Reducing Collar Lava Grey | 1327581 | $15.53Read more |
| 16 | No Image | Reducing Collar Lava Grey | 1327581 | $15.53Read more |
| 16 | No Image | Reducing Collar Lava Grey | 1327581 | $15.53Read more |
| 16 | No Image | Reducing Collar Lava Grey | 1327581 | $15.53Read more |
| # | Part image | Description | SKU | Price |

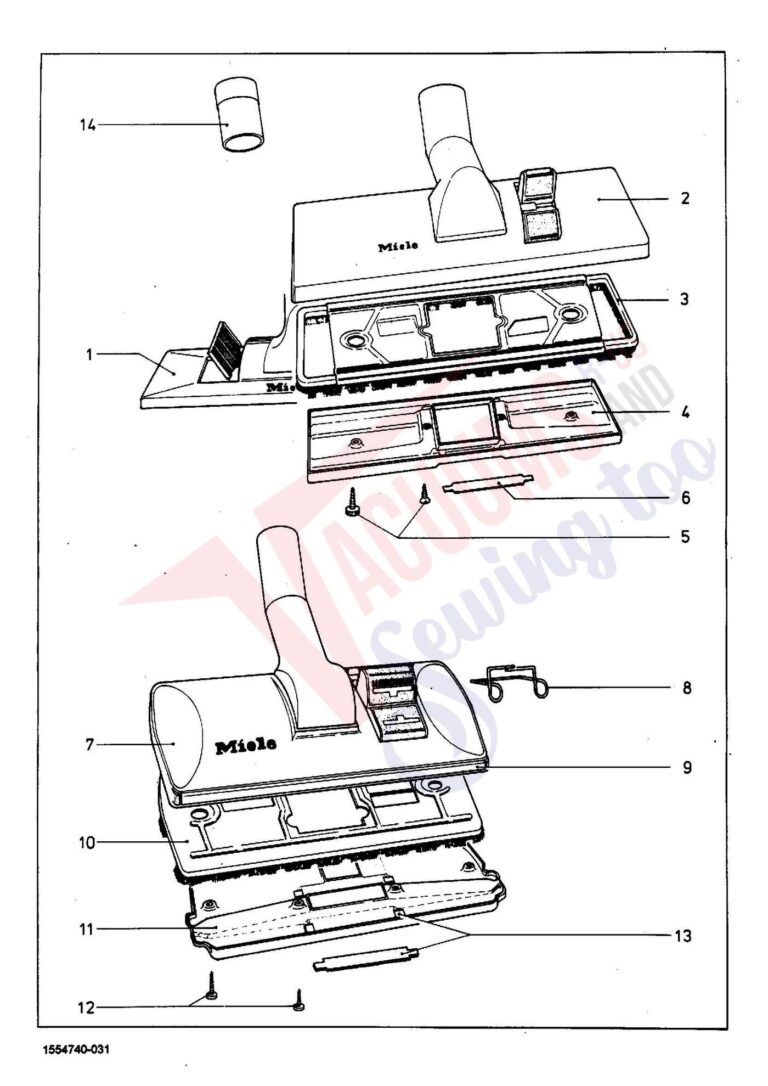

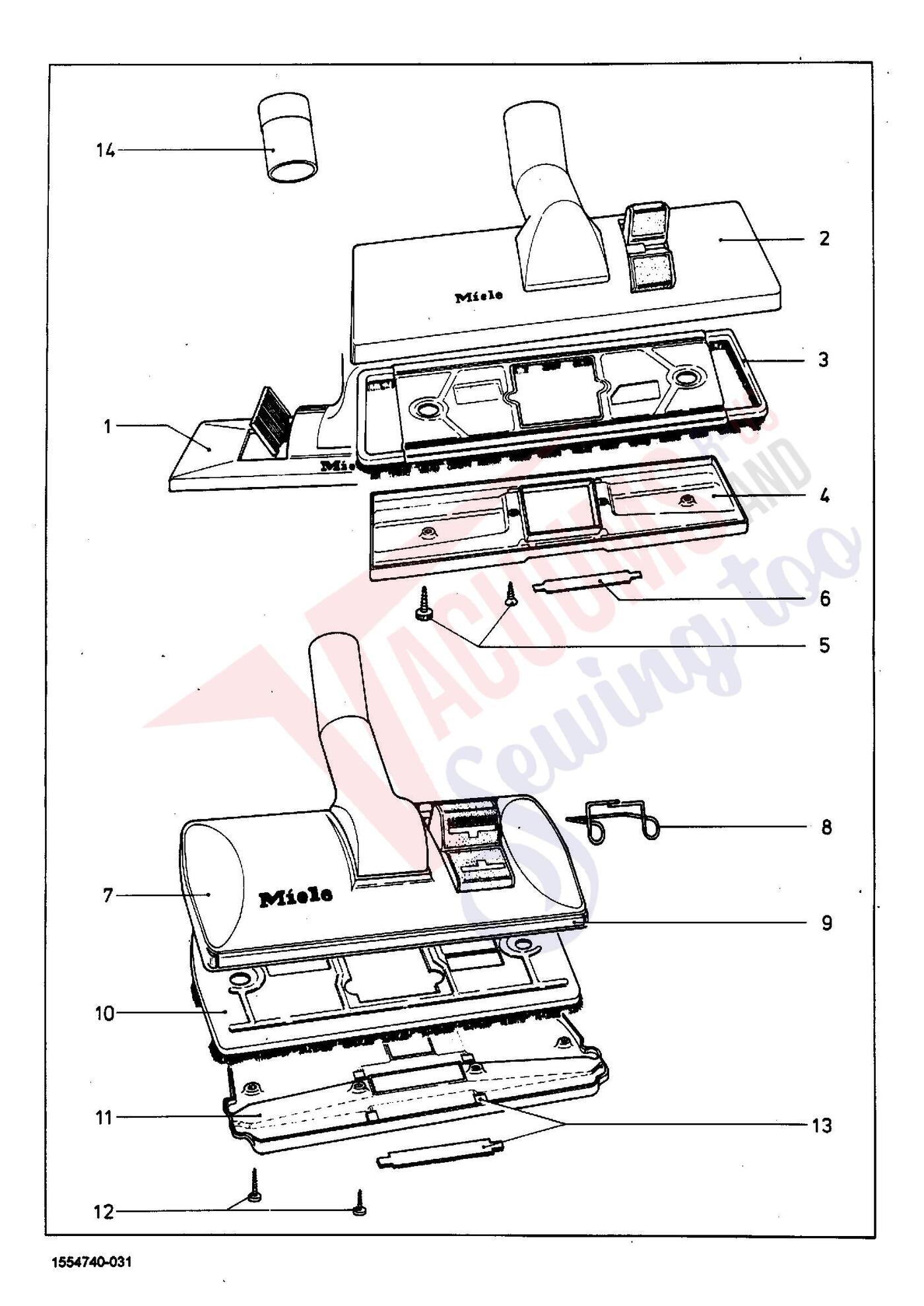

| XX | Not Available | -Top | 83603 | Not Available |
| XX | Not Available | -Foot switch right | 71623 | Not Available |
| XX | Not Available | -Foot switch left | 71624 | Not Available |
| XX | Not Available | -Connection socket light grey | 83604 | Not Available |
| XX | Not Available | -Bristle plate | 83605 | Not Available |
| XX | Not Available | -Spring | 69889 | Not Available |
| XX | Not Available | -Lower section | 83606 | Not Available |
| XX | | Genuine Miele Thread lifter | 82699 | $13.50Read more |
| (2-6) | No Image | Floor Nozzle Lava Grey | 2126680 | $98.70Read more |
| (2) | Not Available | -Casing top Gold/Orange | 1065350 | Not Available |
| (2) | Not Available | -Top black/brown | 2054080 | Not Available |
| (3) | Not Available | -Bristle supp.plate | 2054090 | Not Available |
| XX | Not Available | --Raised head screw 3,5X25 | 10597 | Not Available |
| XX | No Image | --Raisedhead Screw Din7983 B3,5X13 | 86831 | $2.30Read more |
| XX | No Image | --Raised Head Screw Din7981 Bz3,5X22 | 29020 | $2.50Read more |
| XX | No Image | --Raised Head Screw 3,5X19 | 14137 | $3.90Read more |
| 2-6 | Not Available | Floor nozzle light grey | 97023 | Not Available |
| 2-6 | No Image | Floor Nozzle Lava Grey | 2126680 | $98.70Read more |
| 2-6 | Not Available | Floor nozzle light grey | 97023 | Not Available |
| 2 | Not Available | -Top light grey | 97026 | Not Available |
| 3 | No Image | -Bristle Supp.Plate | 97025 | $42.00Read more |
| 4 | Not Available | -Lower section | 2054070 | Not Available |
| 6 | | Genuine Miele Thread lifter | 82699 | $13.50Read more |
| 7-13 | No Image | Floor Nozzle Lava Grey | 2142261 | $72.45Read more |
| 7-13 | Not Available | Floor nozzle Gold/Orange | 1142120 | Not Available |
| 7-9 | Not Available | -Top Gold/Orange | 1144240 | Not Available |
| 7+8 | Not Available | -Top Lava grey | 2142271 | Not Available |
| 8 | No Image | -Torsion Spring | 2290300 | $4.14Read more |
| 9 | Not Available | -Buffer | 1599320 | Not Available |
| 10-13 | No Image | Floor Nozzle Lava Grey | 2142261 | $72.45Read more |
| 10 | No Image | -Bristle Supp.Plate | 1134870 | $30.00Read more |
| 11 | Not Available | -Lower section | 1134880 | Not Available |
| 13 | | Genuine Miele Thread lifter | 82699 | $13.50Read more |
| 14 | No Image | Reducing Collar Lava Grey | 1327581 | $15.53Read more |
| 14 | No Image | Reducing Collar Lava Grey | 1327581 | $15.53Read more |
| 14 | No Image | Reducing Collar Lava Grey | 1327581 | $15.53Read more |
| 14 | No Image | Reducing Collar Lava Grey | 1327581 | $15.53Read more |
| 14 | No Image | Reducing Collar Lava Grey | 1327581 | $15.53Read more |
| 14 | No Image | Reducing Collar Lava Grey | 1327581 | $15.53Read more |
